Enhanced Code Generation from UML Composite State Machines

Omar Badreddin

, Timothy C. Lethbridge

, Andrew Forward

, Maged Elaasar

Hamoud Aljamaan

and Miguel A. Garzon

School of Electrical Engineering and Computer Science, University of Ottawa, Ottawa, Ontario, Canada

Department of Systems and Computer Engineering, Carleton University, Ottawa, Ontario, Canada

Keywords: State Machine, Code Generation, Reverse Engineering, Model Oriented Programming, Model Driven

Architecture, Model Driven Development, Umple.

Abstract: UML modelling tools provide poor support for composite state machine code generation. Generated code is

typically complex and large, especially for composite state machines. Existing approaches either do not

handle this case at all or handle it by flattening the composite state machine into a simple one with a combi-

natorial explosion of states, and excessive generated code. This paper presents a new approach that trans-

forms a composite state machine into an equivalent set of simple state machines before code generation.

This avoids the combinatorial explosion and leads to more concise and scalable generated code. We imple-

ment our approach in Umple. We report on a case study, comparing our approach to others in terms of code

size and scalability.

1 INTRODUCTION

State machines are a powerful behavioral modeling

formalism, especially in real time and embedded

systems. Despite being part of UML for many years,

state machines have not played a central role in most

software projects. This may partially be explained

by a survey of modeling practices (Forward et al.

2010) that revealed very poor support for code gen-

eration, in particular for composite (nested) state

machines.

Many tools omit composite state machines en-

tirely, or only generate code for simple state ma-

chines. Others generate excessively complex code or

flatten composite states as a pre-processing step,

resulting in a combinatorial explosion of states. We

will present an approach that overcomes these issues.

Some approaches (Wasowski 2004; Lano et al.,

2007; Niaz and Tanaka 2003) generate code from

composite state machines without the need for flat-

tening. However, these approaches have other

weaknesses; in particular it is important that similar

state machines generate similar code.

Our approach avoids flattening by mapping

composite state machines into an equivalent set of

simple state machines. We present mapping patterns

for possible state machine configurations and

demonstrate these patterns with concrete examples

in Umple (Forward et al., 2010), (Badreddin et al.,

2014), (Badreddin et al., 2014), (Badreddin, 2013),

(Badreddin and Lethbridge, 2013), (Badreddin et al.,

2012), (Badreddin and Lethbridge, 2012).

A live demonstration of the generated code is

available in our online (UmpleOnline, 2013) tool.

In this paper, we first briefly introduce the Um-

ple technology, then present our approach to code

generation of composite state machines. A case

study where we assess our approach and compare it

to other approaches is discussed in section 4. We

show that our approach is more scalable and resulted

in more concise code than the other approaches.

2 OVERVIEW OF UMPLE

Umple extends languages like C++ and Java with

modeling constructs, elevating their level of abstrac-

tion. It supports UML class diagrams, state machines,

and selected software patterns. We present here min-

imal background to allow the reader to understand

Umple code. More information is available else-

where (Lethbridge and Badreddin, 2011; Lethbridge

and Badreddin, 2011; Lethbridge and Mussbacher,

2011; Badreddin, 2010, Lethbridge et al., 2012).

Umple is a fully-functional program-

ming/modeling language. Below is a simple example

235

Badreddin O., Lethbridge T., Forward A., Elaasar M., Aljamaan H. and A. Garzon M..

Enhanced Code Generation from UML Composite State Machines.

DOI: 10.5220/0004699602350245

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 235-245

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

that defines a state machine model.

class Course {

Boolean maxStudentsReached;

courseId;

status {

Open {

[maxStudentReached] register

/{notification();} -> Closed;

Closed {

deRegister/{deRegister();} -> Open;

} }

// placeholder methods

public void notification() { }

ublic void deRegister() { } }

Figure 1: Example state machine in Umple.

The Course class has three attributes, maxStuden-

tReached, courseId and status. The status value is

controlled by a state machine with two states, Open

and Closed. When event register() occurs, and if

guard [maxStudentReached] is true, then the transi-

tion action notification() is executed, and status is

updated to Closed. When in Closed state, the state

machine responds to event deRegister(). To save

space above we only provided placeholders for na-

tive code that handles notifications and deregistering.

Umple follows UML semantics with minor de-

viations described in other publications. An example

deviation is that since Umple is textual, the start

state in a state machine is always the first state listed;

there is therefore no ‘start’ pseudostate.

3 CODE GENERATION

FOR COMPOSITE STATE

MACHINES

As in UML specifications, we classify state ma-

chines into simple and composite. Traditional flat-

tening techniques transform a composite state

machine into one simple state machine. This can

result in explosion of the generated code. Our ap-

proach creates a set of simple state machines equiva-

lent to the composite state machine. Our generated

code is significantly smaller in size than that pro-

duced with traditional flattening. Moreover, it is also

smaller to that generated from state-of-the-art mod-

eling tools and research tools reported in the litera-

ture.

3.1 Overview

Umple handles both simple and composite state ma-

chines. After parsing a model and creating an in-

stance of its metamodel (very similar to UML 2.2

metamodel (OMG 2011)), Umple determines

whether each state machine is simple of composite.

For each composite state machine , Umple adds

states, transitions, and actions to transform it into a

set of simple state machines with equivalent behav-

ior. Specifically, a new simple state machine is add-

ed for every nested state machine. Each of these

state machines has a ‘null’ state indicating when it is

inactive, i.e. when some other part of the original

composite state machine is currently active. The

resulting set of state machines is then used to gener-

ate code using the same templates used for simple

state machines.

4 CODE GENERATION CASES

The following sections give a set of patterns for

composite state machines code generation. For ex-

ample, a transition from an outer state to an inner

state in a nested-states environment is one case.

Each of case demonstrates one specific aspect of

composite states. For each case, we show the follow-

ing:

 The source UML model

 The flattened state machines

 Excerpt of the generated code

 The equivalent source model in Umple

 The algorithm for code generation

The analysis of each case focuses on a specific as-

pect of code generation. Therefore, some questions

may be left unanswered for any given case; these

should become clear in the cases that follow.

Examples are shown in Java, but Umple can also

generate C++ state machines.

4.1 Case 1: Transition to an Inner State

The first case is a transition to an inner state (Figure

2). The state machine starts in state A. When event

‘e’ occurs, the transition to state C takes place. Since

state C is a substate of B, this is equivalent to transi-

tion from state A to B, and then from state B to C.

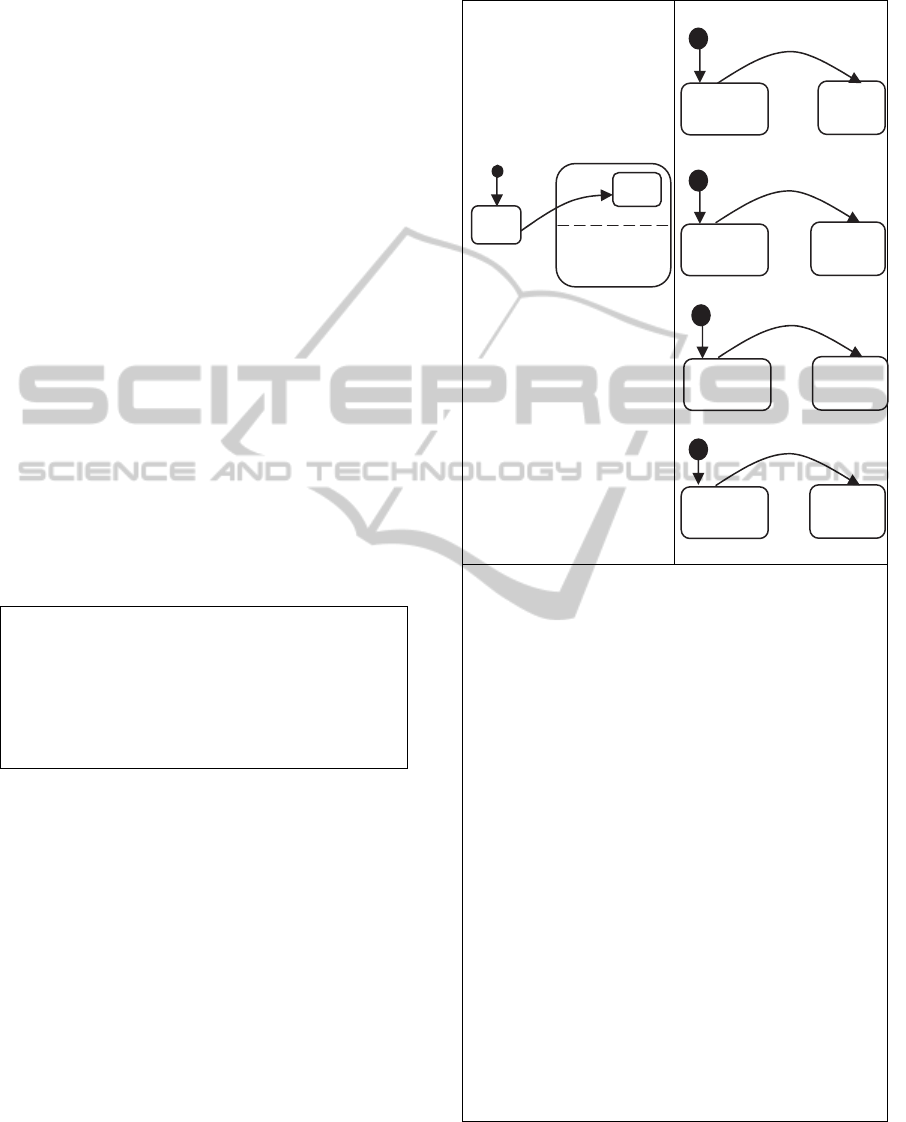

Figure 2 shows the source of the composite state

model, the flattened state machines, and the excerpt

of the generated code.

Any exit action(s) from state A are called first,

then transition actions, followed by any entry actions

into B, and finally, entry actions into C.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

236

Equivalent flattened

state machines:

StateMachine

StateMachineB

// Flattened state machines

enum StateMachine { A, B }

enum StateMachineB { Null, C }

// Construction

public ToInnerState(){

setStateMachine(StateMachine.A);

if (stateMachineB == null) { setStateMa-

chineB(StateMachineB.Null); } }

// Event processing

public boolean e(){

boolean wasEventProcessed = false;

switch (stateMachine) {

case A:

setStateMachineB(StateMachineB.C);

wasEventProcessed = true;

reak;

}

Figure 2: Transition to an inner state.

The Umple model for this example is as follows:

class ToInnerState {

stateMachine {

A { e -> C; }

B {

C {} } } }

For this case only, we show the generated flattened

state machine in Umple syntax.

class ToInnerState {

stateMachine {

A { e -> B ; }

B { } }

stateMachineB {

Null { e -> C ; }

C { } } }

Note that Umple allows multiple state machines to

be declared within the same class. In this example,

the two state machines are stateMachine and state-

MachineB.

For the rest of the cases, we do not show the Umple

model for the flattened state machines for brevity.

The algorithm to achieve this flattening is as follows:

1. Flatten by generating stateMachine and StateMa-

chineB.

2. Set stateMachine to A (the start state)

3. Set stateMachineB to Null (state B is not active)

4. When event e occurs:

- If state A is active, set stateMachineB to state-

MachineB.C

- Return true to indicate the event was processed.

As shown in the diagram and the abstracts of the

generated code, Umple internally creates two state

machines; the first has two states, A and B; the sec-

ond has states Null and C.

Upon construction, the first state machine is up-

dated to state A, and the second state machine is

updated to state Null. State Null is used to indicate

that stateMachineB is not active; i.e., the higher-

level state machine is in some other state than B

(here it is in state A). When event e occurs, two tran-

sitions take place; transition in stateMachine from A

to B, and a transition in StateMachineB from Null to

C. Firing two transitions when a single event occurs

is a feature specific to Umple. This feature is partic-

ularly useful when flattening state machines.

As with simple Umple state machines, the event

handler is generated as a public method. This meth-

od updates the state machine state by calling a pri-

vate method setStateMachineB( ). It encapsulates

calls to any actions and do activities. This encapsula-

tion is important to our code generation approach for

two reasons:

1. It makes all event-processing methods small in

size; they become easier to read and understand.

2. It simplifies the code generation patterns. All

event-processing methods look similar, and can

therefore use the same code generation template.

This event processing method is very simple: it en-

capsulates all method calls when transitioning from

some state to another state. But also, this method

allows for arbitrary complexity in the state machines

the modeler can create; there are an unlimited num-

ber of combinations of source and destination states.

For this reason, we will ignore the complexity of this

method while we are discussing these code genera-

tion cases. The specifics of the code generation for

this method are discussed later in the paper.

4.2 Case 2: Transition from an Inner

State

This case is similar to the previous case except that

Null



e

EnhancedCodeGenerationfromUMLCompositeStateMachines

237

the transition is from an inner state to an outer state.

StateMachine

StateMachineB

// Flattened state machines

enum StateMachine { A, B }

enum StateMachineB { Null, C }

// Construction

public FromInnerState() {

setStateMachineB(StateMachineB.Null);

setStateMachine(StateMachine.A); }

// Event processing

public boolean e() {

boolean wasEventProcessed = false;

switch (stateMachineB) {

case C:

setStateMachine(StateMachine.A);

wasEventProcessed = true;

break; } }

Figure 3: Transition from an inner state.

The Umple model is as follows:

class FromInnerState

{ stateMachine {

A { }

B {

C { e -> A;

} } } }

The flattening algorithm is as follows:

1. Flatten by generating stateMachine and StateMa-

chineB.

2. Set stateMachine to A (the start state)

3. Set stateMachineB to Null (state B is not active)

4. When event e occurs:

- If state C is active, set stateMachineB to Null.

- Set stateMachine to A.

5. Return true to indicate the event was processed.

The code generation for this case is similar to the

previous case, which is an objective we strive to

maintain in Umple; similar state machines should

have similar code generation patterns.

The difference here is in the event-processing

method. In response to the event ‘e’, and if the state

machine is in state C, we update the state machine

state to A. This is also encapsulated in a single

method call setStateMachine( ).

The coming cases entail regions and concurrency.

In our implementation, we consider every region to

be a full-fledged state machine; a region may have

one or more state machine elements of any type,

such as a start state, end states, ordinary states and

transitions. This view of regions allows us to recur-

sively define regions without having to redefine a

new region element. This is similar to a nested state,

where a state can itself contain a state (a substate).

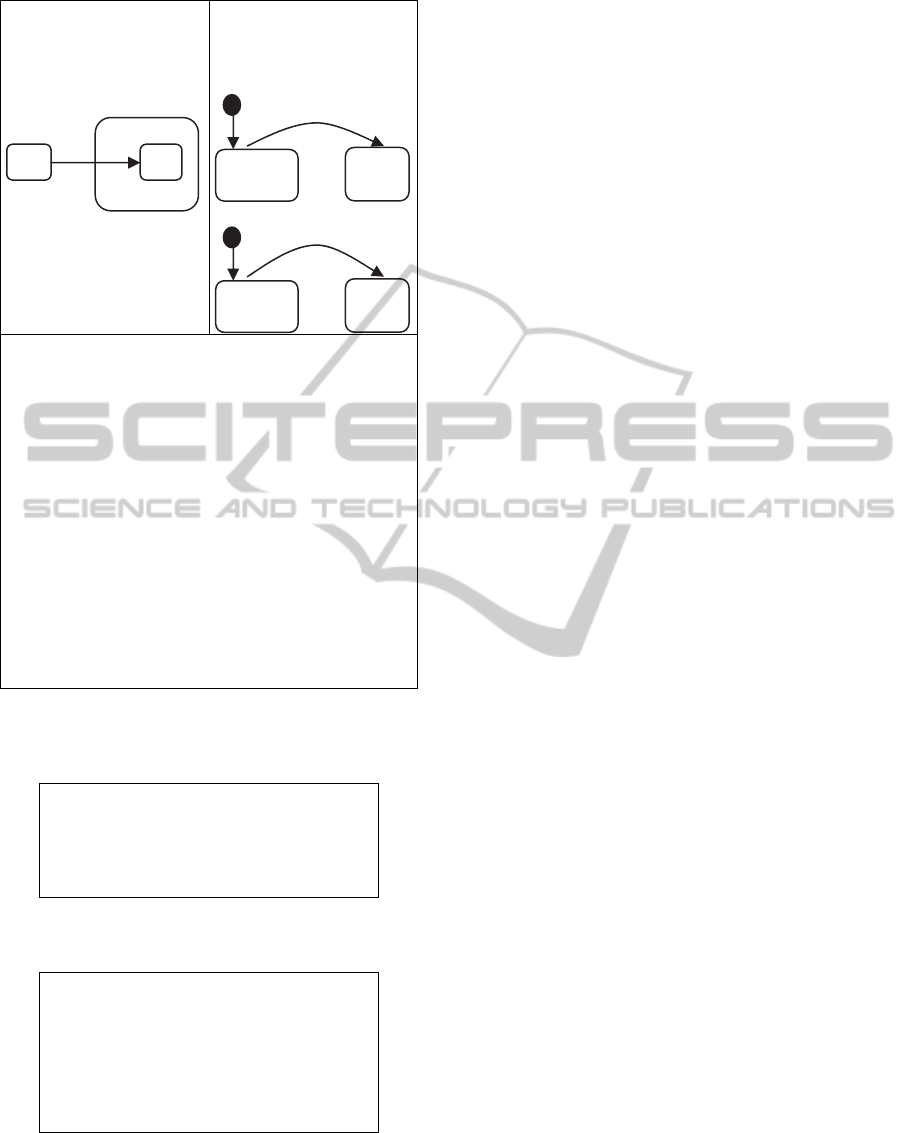

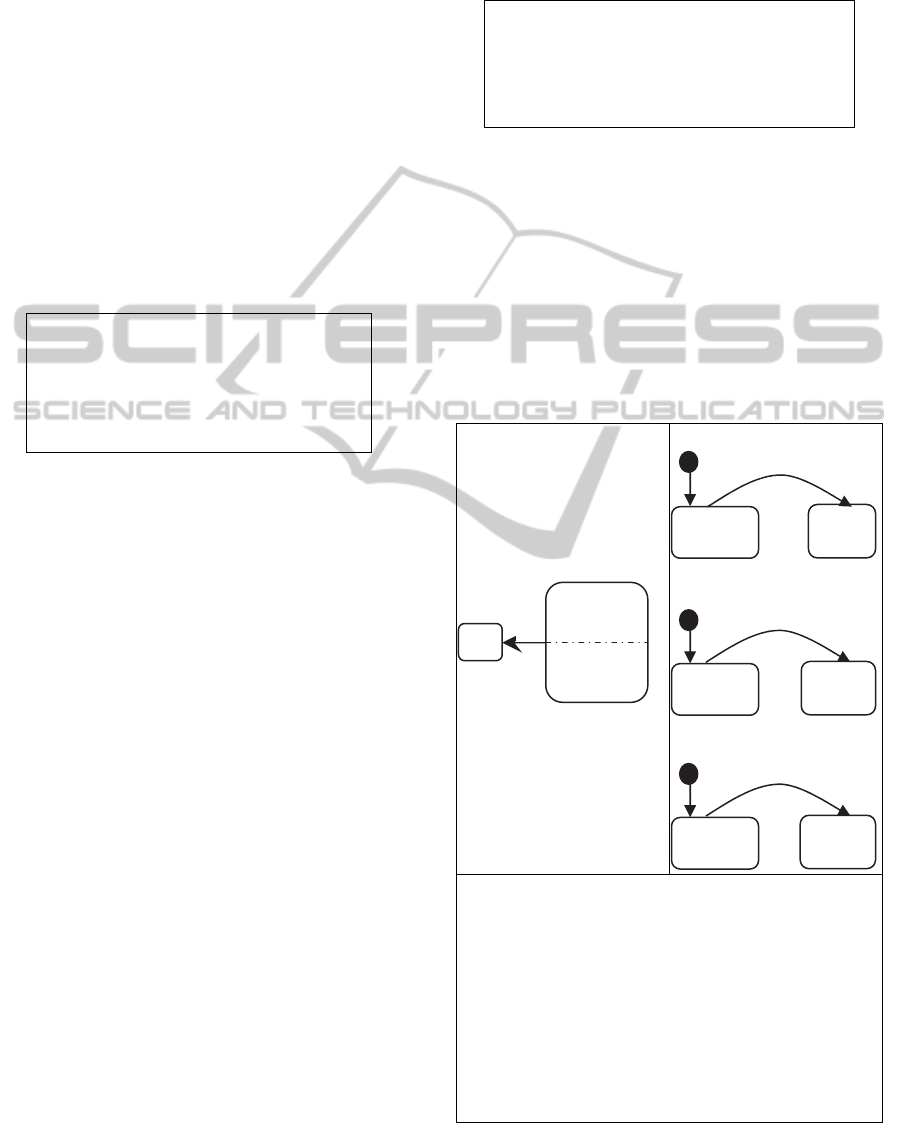

StateMachine

StateMachineC

StateMachineD

/ Flattened state machines

num StateMachine { A, M }

num StateMachineC { Null, C }

num StateMachineD { Null, D }

/ Construction

ublic ToConcurrentState() {

etStateMachineC(StateMachineC.Null);

etStateMachineD(StateMachineD.Null);

setStateMachine(StateMachine.A); }

/ Event prcoessing

ublic boolean e() {

boolean wasEventProcessed = false;

switch (stateMachine) {

case A:

setStateMachine(StateMachine.M);

wasEventProcessed = true;

break; }

return wasEventProcessed; }

Figure 4: Transition to a concurrent state.

Null



e

Null



e

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

238

4.3 Case 3: Transition to a Concurrent

State

In this case, the state machine starts in state A.

When the event ‘e’ occurs, the transition from state

A to the composite state M takes place. Instantane-

ously, the two regions C and D become active.

Umple creates internally three state machines;

StateMachine that has two states, A and M; State-

MachineC that has two states, null and C; and finally

StateMachineD that has two states null and D.

We use the dummy state null in a consistent

manner. If a state machine is in state null, it means

that the state machine is not active. In this case, if

the state machine is in state A, then both regions C

and D are set to Null.

The Umple model for this example is as follows:

class ToConcurrentState {

stateMachine {

A { e -> M; }

M { C {}

| |

D {} } } }

The flattening algorithm for this case is as follows:

1. Flatten by generating stateMachine and StateMa-

chineC and stateMachineD.

2. Set stateMachine to A (the start state)

3. Set stateMachineC to Null.

4. Set stateMachineD to Null.

5. When event e occurs:

- Set stateMachine to M.

- Set stateMachineC to C

- Set stateMachineD to D

6. Return true to indicate the event was processed.

At construction, the state machine is set to state

A. The two other state machines (statemachineC and

statemachineD) are set to state null. When event ‘e’

occurs, the state machine becomes in state M. The

method setStateMachine(stateMachine.M) updates

the states for the two regions C and D and calls entry

and exit actions, if any. Notice the level of similarity

between event processing methods in the previous

cases, even though the transition is of a different

nature. This similarity was achieved by means of

hiding the transition details in a single method call.

4.4 Case 4: Transition

from a Concurrent State

This case occurs when a transition out of a compo-

site state takes place. In this example, the state ma-

chine starts in state M, which has two concurrent

regions, C and D. Event ‘e’ triggers a transition out

of the composite state.

The Umple model for this example is as follows:

class FromConcurrentState {

stateMachine {

M { e -> A;

C {}

D {} }

{} } }

The flattening algorithm is as follows:

1. Flatten by generating stateMachine and State-

MachineC and stateMachineD.

2. Set stateMachine to M (the start state)

3. Set stateMachineC to C.

4. Set stateMachineD to D.

5. When event e occurs:

- Set stateMachine to A.

- Set stateMachineC to Null

- Set stateMachineD to Null.

6. Return true to indicate the event was processed.

StateMachine

StateMachineC

StateMachineD

/ exiting a composite state

public boolean exitM() {

boolean wasEventProcessed = false;

switch (stateMachineC) {

case C:

setStateMachineC(StateMachineC.Null);

wasEventProcessed = true;

break; }

switch (stateMachineD) {

ase D:

etStateMachineD(StateMachineD.Null);

wasEventProcessed = true;

reak; } }

Figure 5: Transition from a concurrent state.

Null



e

EnhancedCodeGenerationfromUMLCompositeStateMachines

239

When exiting a simple state, a single switch state-

ment suffices. A concurrent state with two regions

requires two switch statements. The first switch

statement checks if region C is active, and if so, up-

dates the state machine to null using the method

setStateMachineC, which also handles any exit ac-

tions. The second switch statement performs the

same steps for region D.

4.5 Case 5: Reflexive Transition

of a Concurrent State

This case focuses on the implementation of a reflex-

ive transition. A reflexive transition is just another

transition whose source state and destination state

are the same. A reflexive transition of a composite

state with two concurrent regions behaves as follows:

1. Call exit actions associated with any state being

exited, including the composite state itself. Start-

ing with the innermost state and working your

way outward.

3. Exit all regions of the concurrent state;

4. Call transition actions, if any;

5. Re-enter the concurrent state;

6. Re-enter each concurrent region;

7. Call entry actions of any state being entered in-

cluding the composite state itself.

According to state machine semantics, exiting

the two regions takes place at the same time. How-

ever, if you are executing the state machine in a sin-

gle-threaded environment, one region will be exited

before the other. Due to the sequential nature of

Umple, the region that is declared first is exited first.

To override such behavior, one can re-order the re-

gions so that region D is declared before region C.

The same applies for entering a concurrent region in

step 5 above.

The Umple model for this example is as follows:

class Reflexive {

stateMachine {

A { e -> M; }

M { e -> M;

C {}

|| D {} } } }

The flattening algorithm is as follows:

1. Flatten by generating stateMachine and State-

MachineC and stateMachineD.

2. Set stateMachine to A (the start state)

3. Set stateMachineC to Null.

4. Set stateMachineD to Null.

5. When event e occurs:

- Set stateMachine to M, set stateMachineC to C,

and set stateMachineD to D.

6. When event e occurs (triggering the reflexive

transition):

- Call exitStateMachine() method, which exits all

regions of M and exits M itself.

- Set stateMachine to M (re-entering composite

state)

- Set stateMachineC to C

- Set stateMachineD to D.

7. Return true to indicate the event was processed.

StateMachine

StateMachineC

StateMachineD

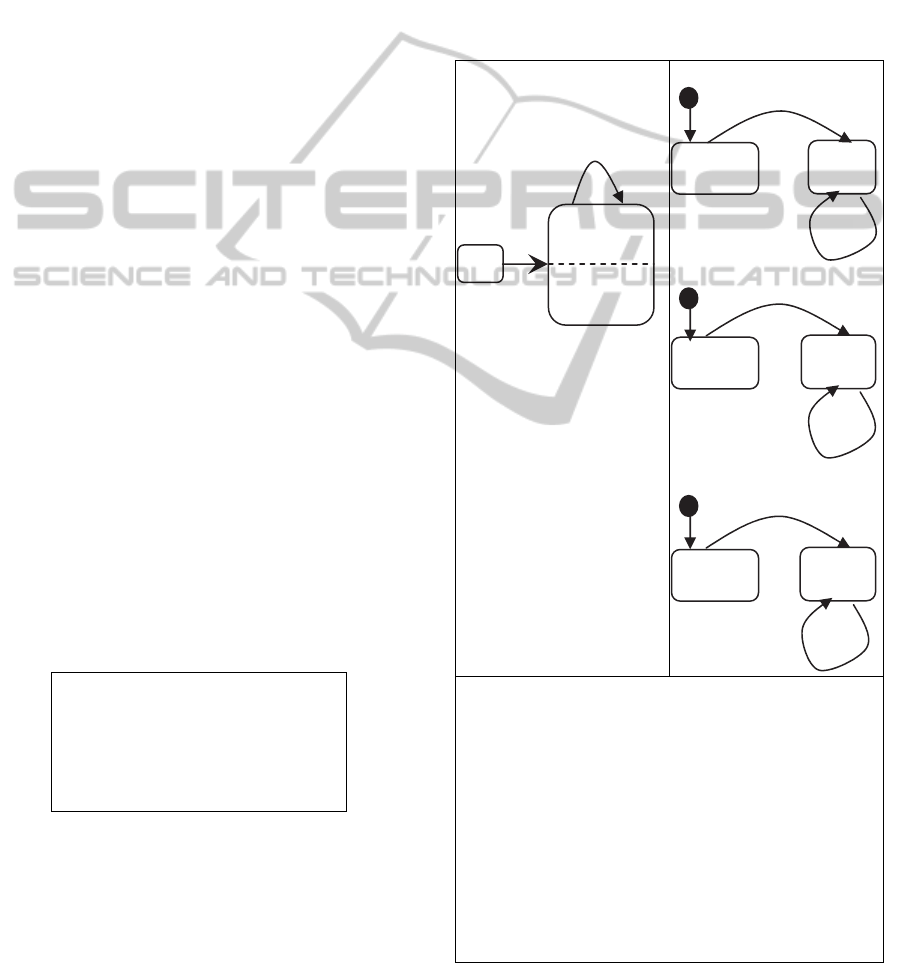

/ Reflexive transition

ublic boolean e() {

boolean wasEventProcessed = false;

switch (stateMachine) {

case A:

setStateMachine(StateMachine.M);

wasEventProcessed = true;

break;

case M:

exitStateMachine();

setStateMachine(StateMachine.M);

wasEventProcessed = true;

break; }

return wasEventProcessed; }

Figure 6: Reflexive transition of a concurrent state.

Null



e

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

240

Note the switch statement in the generated code.

The first case handles the behavior when the state

machine is in state A. The second case handles when

the state machine is in state M. Our focus here is on

the second case. The following takes place:

1. Calling the method exitStateMachine( ) which en-

capsulates the logistics of exiting all regions.

2. Re-entering the state M by calling the method

setStateMachine(StateMachine.M( )

3. Updating the Boolean variable to indicate that the

event was processed

4.6 Case 6: Transition into an Inner

State in a Concurrent Region

This case explores a scenario when a transition to an

inner state which lies inside a concurrent region.

This case is special because even though the transi-

tion explicitly enters one region, the second region

must also be activated. In our example below, the

state machine is initially in state A. When the event

‘e’ occurs, the state machine instantaneously enters

the concurrent state M and also instantaneously en-

ters state E. In that situation, the state machine is in

state M, and in state E. Both regions C and D are

active.

The Umple model for this example is as follows:

class ToConcurrentState {

stateMachine {

A { e -> E; }

M { C {

E {entry/{inside_E;} } }

D {} } } }

The flattening algorithm is as follows:

1. Flatten by generating stateMachine StateMa-

chineC,stateMachineCC, and stateMachineD.

2. Set stateMachine to A (the start state)

3. Set stateMachineC to Null.

4. SetStateMachineCC to Null.

5. Set stateMachineD to Null.

6. When event e occurs:

- Set stateMachine to M.

- Set stateMachineC to C.

- Set stateMachineCC to E.

- Set stateMachineD to D.

7. Return true to indicate the event was processed.

This case results in four internal state machines as

shown in the generated code above. Notice how the

event processing method is similar to other cases.

This is because the public method ‘e’ delegates to

the method setStateMachineCC that calls the entry

action and updates the state machine state.

StateMachine

StateMachineC

StateMachineCC

StateMachineD

// Flattened state machines

enum StateMachine { A, M }

enum StateMachineC { Null, C }

enum StateMachineCC { Null, E }

enum StateMachineD { Null, D }

// Event processing

public boolean e() {

boolean wasEventProcessed = false;

switch (stateMachine) {

case A:

setStateMachineCC(StateMachineCC.E);

wasEventProcessed = true;

break; }

return wasEventProcessed; }

private void

setStateMachineCC(StateMachineCC

aStateMachineCC) {

stateMachineCC = aStateMachineCC;

if (stateMachineC != StateMachineC.C

&& aStateMachineCC !=

StateMachineCC.Null)

{ setStateMachineC(StateMachineC.C); }

// entry action

switch(stateMachineCC) {

case E:

inside_E;

break; } } }

Figure 7: Transition into inner state in a concurrent region.

Null



e

Null

EnhancedCodeGenerationfromUMLCompositeStateMachines

241

4.7 State Transition Method

As we have demonstrated in the code generation

cases, there are many variations of state transitions.

The following are the characteristics of such varia-

tions: 1) Is the source state a simple state or compo-

site state? 2) Is the source state is composite, is it

nested or concurrent? 3)Are there any states being

exited that have exit actions associated with them? 4)

Does the transition have any transition action associ-

ated with it? 5) Is the destination state a simple state

or a composite state? 6) Are there any entry actions

associated with any state being entered?

The answers to these questions demonstrate

some of the complexities of implementing transi-

tions that are typically transferred to the generated

code.

Our objective is to generate simple and concise

code; simpler code generation is also easier to im-

plement. If we are able to make event-processing

methods look similar, we will be able to use simpler

code generation templates to implement them.

We achieved this by abstracting common pro-

cessing elements in an event processing method and

encapsulating the details in other internal methods.

To demonstrate the complexity of implementing

a transition, and how Umple handles this complexity,

we will reuse two of the cases presented earlier in

this paper. For this analysis, we assume that all tran-

sitions have both a guard G and an action A associ-

ated with them. We also assume that every state has

an entry and exit action.

4.8 Entering a Composite State

This analysis is based on a modified state machine in

case 3 above. The equivalent model represented us-

ing Umple notation is below. For those not familiar

with Umple syntax, the model here is identical to

case 3 model, but adds entry actions in state M, C,

and state D. The model here also adds a guard and

an action to the transition from A to M.

class ToConcurrentState {

stateMachine {

A { e [g] ->/{transition_action();}M;}

M { entry/ {entering_M;}

C { cState {entry/ {entering_C();} } }

D { dState {entry/ {entering_D();} } }

} } }

Figure 8: Entering a composite state.

The code that implements the transition from A to M

is presented in the following four steps.

Step1: Public Function to handle the Event Pro-

cessing.

public boolean e() {

boolean wasEventProcessed = false;

switch (stateMachine){

case A:

if (G) {

transition_action;

setStateMachine(StateMachine.M);

wasEventProcessed = true; }

break; }

return wasEventProcessed; }

Figure 9: Step 1.

The public method is named after the event name. In

this case, ‘e’. This method returns a Boolean indicat-

ing whether the event has been processed or not.

Checking for the guard takes place within this meth-

od (as highlighted above). The method also calls the

transition action right after checking for the value of

the guard. The method then delegates the rest of the

transition execution to setStateMa-

chine(StateMachine.M).

Step 2: setStateMachine.

private void setStateMachine(StateMachine aState-

Machine) {

stateMachine = aStateMachine;

// entry actions

switch(stateMachine) {

case M:

entering_M;

if (stateMachineC == StateMachineC.Null) {

setStateMachineC(StateMachineC.C); }

if (stateMachineD == StateMachineD.Null) {

setStateMachineD(StateMachineD.D); }

break; } }

Figure 10: Step 2.

This method will call any entry actions. In this case,

entering_M is called. The entry action is called prior

to updating the state machine configurations (i.e

prior to updating the state machine attributes).

Therefore, if the entry action queries the state ma-

chine, an inaccurate value would be returned.

Initially, both regions’ states are set to null. This

method checks if the region is in the null state, and if

so, it will delegate to setStateMachineC and

setStateMachineD respectively. For brevity, we only

analyze setStateMachineC.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

242

Step 3: setStateMachineC.

private void setStateMachineC(StateMachineC

aStateMachineC) {

stateMachineC = aStateMachineC;

if (stateMachine != StateMachine.M &&

aStateMachineC != StateMachineC.Null)

{ setStateMachine(StateMachine.M); }

switch(stateMachineC) {

case C:

if (stateMachineCC == StateMachineCC.Null)

{setStateMachineCC(StateMachineCC.cState);}

break; } } }

Figure 11: Step 3.

This method would call any entry actions. In this

case, there are no entry actions associated with the

stateMachineC. The method updates the state ma-

chine state to cState by means of delegation to

StateMachineCC.cState.

Step 4: setStateMachineCC.

private void setStateMachineCC(StateMachineCC

aStateMachineCC) {

// entry actions

switch(stateMachineCC) {

case cState:

entering_C;

break; } } }

Figure 12: Step 4.

This method finally calls the entry action for the

cState.

4.9 Exiting a Composite State

The steps for exiting a composite state machine are

very similar to entering a composite state machine.

Again, this similarity makes it easier to follow the

generated code, and makes the code generation tem-

plates less complex and easily extendable. For brevi-

ty, we show the method for exiting the composite

state M.

public boolean exitM() {

boolean wasEventProcessed = false;

switch (stateMachineC) {

case C:

exitStateMachineC();

setStateMachineC(StateMachineC.Null);

wasEventProcessed = true;

break; }

switch (stateMachineD) { .. } }

Figure 13: Exiting the composite state.

When exiting the composite state M, we also exit

stateMachineC and stateMachineD. For brevity, we

analyze the steps for exiting stateMa-chineC. Again,

we delegate to exitStateMachineC for the handling

of exit actions, if any, and for updating the state ma-

chine state. Notice that when we exit the state ma-

chine, we set its state to null.

5 COMPARISON

OF APPROACHES

In this section, we compare Umple’s code genera-

tion approach to that of a commercial tool (Rhapso-

dy) and a research tool whose authors (Niaz et al.,)

claim a novel approach of generating efficient and

compact code for composite states (Niaz et al.,

2003).

Rhapsody implements state machines using mul-

tiple classes and creates objects that represent states

up-front; i.e, as soon as the state machine becomes

active. These objects stay in memory as long as the

state machine is executing. Rhapsody uses a switch

statement and a helper class to implement the state

machine behavior.

The research tool proposed by Niaz also uses

multiple classes, where each state is implemented in

a separate class. However, objects are not created

up-front; rather, objects are created and deleted at

run time. This makes the expected performance of

this tool potentially better than Rhapsody. Niaz’s

approach implements composite state machines by

using object composition and delegation. In our

comparison, we adopt criteria identical to Niaz’s

(Niaz et al., 2003) that base comparison on number

of lines of code, bytes, and classes. For the base

comparison, we consider the example in Figure 14.

In many cases, we were unable to compare our

approach to other tools due to the fact that such tools

typically do not support composite states in a way

complete enough to allow for this comparison. For

example, Bridgepoint (Mentor Graphics, 2012) does

not allow substates or guards.

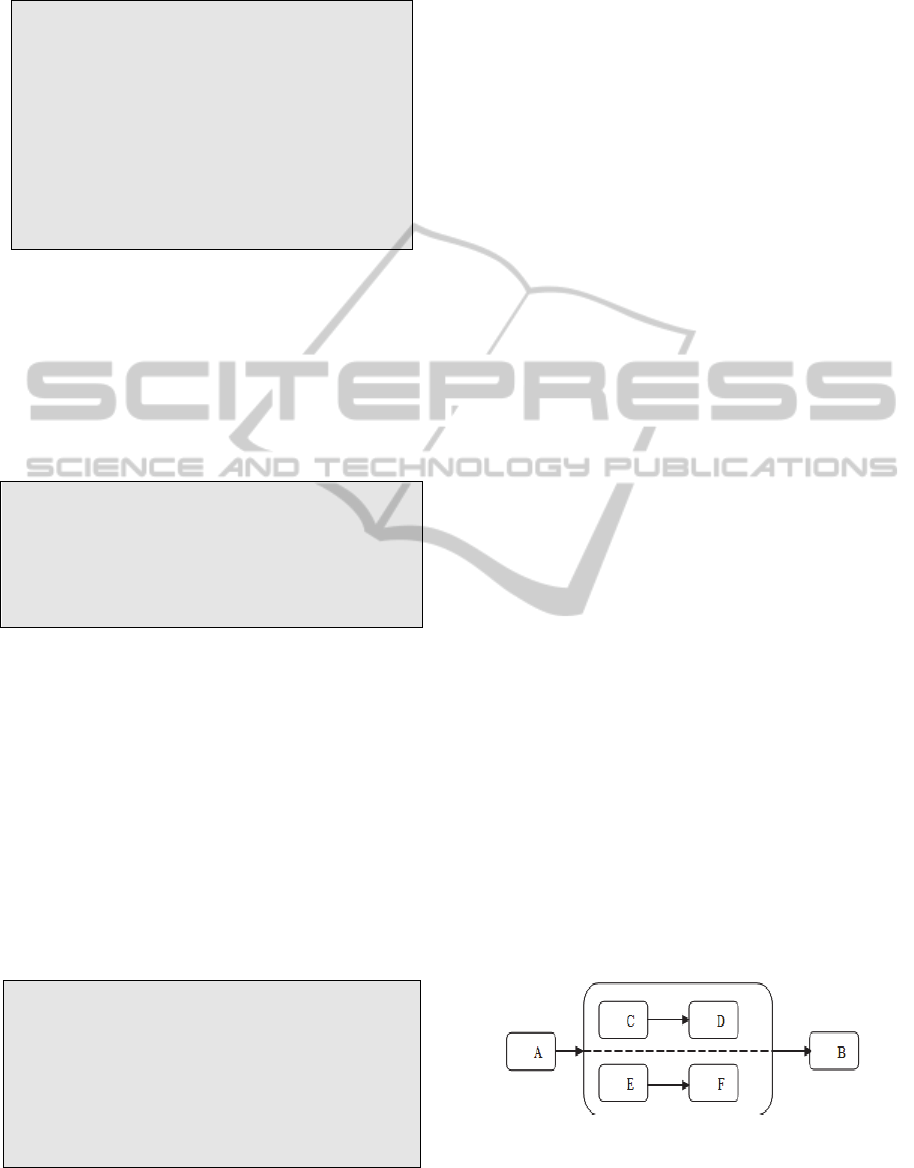

Figure 14: Composite state comparison example.

Lines of code, despite its simplicity, is arguably

the most effective measure for complexity (Gold et

EnhancedCodeGenerationfromUMLCompositeStateMachines

243

al., 2005). It is also reported that cyclomatic com-

plexity tends to be comparable to lines of code when

measuring complexity (Gill and Kemerer, 1991).

Table 1: Code generation comparison.

Rhapsody Niaz Umple

generated

Code

Umple

LOC

675 250 125 8

Bytes

24,270 6,420 5,010 197

Classes

7 11 1 1

As shown, the number of lines of code is significant-

ly lower in the case of Umple (a reduction of about

50% as compared with Niaz`s approach). The num-

ber of bytes is less in the case of Umple (a reduction

of about 22%).

This comparison cannot be a final word on gen-

erated code complexity. Other complexity measures

may give different results. In addition, It is possible

that Rhapsody or Niaz’s tool provide additional gen-

erated code to support functionality not available in

Umple. The generated code that was used in Niaz’s

study was not publicly available for inspection. On

the other hand, all of our examples can be compiled

and the code generated online. Making our algo-

rithm and its implementation available for future

research.

6 CONCLUSIONS

This paper presented an approach for code genera-

tion from composite state machines. We generate a

set of state machines equivalent to the original state

machine, and use ‘null’ states to indicate when any

given state machine is not active.

We presented cases covering each possible con-

figuration of composite states and their transitions.

Each case exposes an aspect of the code generation.

Our approach significantly reduces complexity and

code volume.

We have also introduced a unique concept in the

Umple model-oriented language where multiple

state machines can reside in the same class and

where multiple transitions can be fired by a single

event.

The code generation method and the associated

algorithms are implemented and are fully available

for inspection online.

REFERENCES

Badreddin O., Lethbridge T. C. and Elassar M., 2013.

"Modeling Practices in Open Source Software." Open

Source Software: Quality Verification. Springer. 127-

139.

Badreddin O., 2010. "Umple: A Model-Oriented Pro-

gramming Language," in Proceedings of the 32nd

ACM/IEEE International Conference on Software En-

gineering,Vol. 2, pp. 337-338.

Badreddin O., Forward A. and Lethbridge T.C., 2012.

"Model oriented programming: an empirical study of

comprehension." 2012 Conference of the Center for

Advanced Studies on Collaborative Research. IBM

Corp.

Badreddin O., Forward A., and Lethbridge T. C., 2014.

"Exploring a Model-Oriented and Executable Syntax

for UML Attributes." Software Engineering Re-search,

Management and Applications. Springer, 33-53.

Badreddin O., Forward A., and Lethbridge T. C., 2014.

"Improving Code Generation for Associations: En-

forcing Multiplicity Constraints and Ensuring Refer-

ential Integrity." Software Engineering Research,

Management and Applications. Springer, 129-149.

Badreddin O., Lethbridge T. C., 2013. “Model Oriented

Programming: Bridging the Code-Model Divide”.

ICSE Workshop on Modeling in Software Engineering

(MiSE), 2013 5th International Workshop,

10.1109/MiSE.2013.6595299. Pages: 69 - 75.

Badreddin O., Lethbridge T. C., Lethbridge T. C., 2012.

"Combining experiments and grounded theory to eval-

uate a research prototype: Lessons from the umple

model-oriented programming technology", User Eval-

uation for Software Engineering Researchers (USER),

2012. 10.1109/USER.2012.6226575. Page(s): 1- 4.

Badreddin O.,2013. "Empirical evaluation of research

proto-types at variable stages of maturity", User Eval-

uations for Software Engineering Researchers (USER),

2013 2nd International Workshop, 10.1109/

USER.2013.6603076. Pages: 1- 4.

Forward A., Badreddin O., Lethbridge T.C.,. "Perceptions

of Software Modeling: A Survey of Software Practi-

tioners," in 5th Workshop from Code Centric to Model

Centric: Evaluating the Effectiveness of MDD

(C2M:EEMDD), 2010. Available: www.esi.es/

modelplex/c2m/papers.php.

Gill G.K., Kemerer C.F., 1991. “Cyclomatic complexity

density and software maintenance productivity”, IEEE

Transactions on Software Engineering, 17(12).

Gold N. E., Mohan A. M., Layzell P. J., 2005. “Spatial

complexity metrics: an investigation of utility”, IEEE

Trans. on Software Engineering,.31(3), pp. 203-212.

Lano K., Clark D., 2007. "Direct Semantics of Extended

State Machines". TOOLS’07, pp. 35-51.

Lethbridge T.C., Badreddin O., 2011. "Umple - Associa-

tions and Generalizations". Accessed 2012,

http://www.youtube.com/watch?v=HIBo0ErCVtU.

Lethbridge T. C., Badreddin O., 2011. "Umple - State

Machines Details". http://www. Youtube. com/

watch?v=mFczzVkTZ9g.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

244

Lethbridge T. C., Mussbacher G., Forward A. and Ba-

dreddin O., 2011. "Teaching UML using Umple: Ap-

plying Model-Oriented Programming in the

Classroom", CSEE&T, pp. 421-428.

Lethbridge T. C., Forward A., Badreddin O., 2010. "Um-

plification: Refactoring to Incrementally Add Abstrac-

tion to a Program," in Working Conf. on Reverse Eng,

pp. 220-224.

Lethbridge T. C., Forward A., Badreddin O., 2012. "Um-

ple Google Code Project". Available:

http://code.umple. org.

Mentor Graphics Corporation, 2010. "Mentor Graphics

Bridge-Point", accessed 2012, http://www.mentor.

com/products/sm/model_development/bridgepoint/.

Niaz I. A., Tanaka I. A., 2003. "Code Generation from

UML Statecharts" in Proc. 7 Th IASTED International

Conf. on Software Engineering and Application (SEA

2003). pp. 315-321.

OMG, 2010. "UML Specifications", accessed 2011,

http://www.omg.org/spec/UML/.

Schaumont P.R., 2010. A Practical Introduction to hard-

ware/software Codesign. Springer Verlag.

UmpleOnline, 2013. "Umple Online", accessed 2013,

http://try.umple.org.

Wagner F., Wolstenholme P., 2004. "Misunderstandings

about State Machines". Computing and Control Eng,

vol 15, pp. 40-45.

Wasowski A., 2004. "Flattening State Machines without

Explosions", ACM Sigplan Notices, vol 39, ACM.

257-266.

EnhancedCodeGenerationfromUMLCompositeStateMachines

245
