A Framework for Model Recommenders

Requirements, Architecture and Tool Support

Andrej Dyck, Andreas Ganser and Horst Lichter

Software Construction, RWTH Aachen University, Ahornstr. 55, 52074 Aachen, Germany

Keywords:

Recommender Framework, Recommender Systems, Model Completion, Modeling Support, Model Recom-

mendation, Model Reuse, MDE, MDD, EMF.

Abstract:

Content-assist systems and code completion are nicely accessible in integrated development environments

(IDEs). Using multiple data sources and performing sophisticated completion in several editors is quite com-

mon. However, no such supporting system exists for modeling environments, e.g., a completion mechanism

in class diagrams is only existent for textual items like names, if at all.

We designed a framework to bolster model recommendation research and present the requirements, concepts,

architecture, and the realization below. Last of which is easily extendable and adaptable to either new data

recommendation strategies or new environments like editors. As additional tool support, we provide a simula-

tion environment, which ease development as well as implementing recommendation algorithm. Accordingly,

researchers get all the conceptual groundwork and a realized infrastructure that ease the initial burden to start

recommendations in modeling environments.

1 INTRODUCTION

Humans have always been hunter-gatherer seeking to

put things away for later reuse. Generations collected

pictures from, e.g., family events in order to skim

through these pictures later, where order is essential

for how efﬁcient they can be found later. This is why

generations over generations reinvented labeling sys-

tems to stay on top of things.

Considering this information management prob-

lem in the context of software artifacts, one notices

that quite the same techniques were used for a long

time. Documents were categorized, content was in-

dexed, and search algorithms were invented. How-

ever, the information overﬂow could barely be man-

aged. For example, a programmer needs to be familiar

with many APIs, so often the overview is quickly lost.

Due to that, type completion mechanism support pro-

grammers and help on a syntactic level. Yet, recent

programming environments go further and provide

good guesses of what might happen next (Eclipse,

2012a). The underlying ideas are taken from rec-

ommender systems, which proved beneﬁcial for web

shops by recommending products to customers (e.g.,

Netﬂix).

Another domain that could beneﬁt from recom-

mender system support is modeling. Note that at ﬁrst

glance the recommendations in modeling environ-

ments appear similar as for programming – but they

are not. Considering UML class diagrams, ﬁrstly, this

is due to the weaker semantics of the underlying con-

cepts. While recommendations for Java source code

need to compile, recommendations for class diagrams

just need to be valid and well formed. Secondly, there

are numerous kinds of data available: model reposi-

tories, glossaries, dictionaries, ontologies, and so on.

They all allow for producing different recommenda-

tions, i.e., names, hierarchies, or partial models.

Investigating the limitations, which might be put

on producing recommendations for class diagrams, it

proved helpful to distinguish three areas. First, the

content itself limits the kind of recommendations as

mentioned above. Second, the current context inﬂu-

ences the appropriateness of a recommendation. For

example, editing the name ﬁeld of a class should limit

recommendations to textual recommendations only;

recommending an interface or a type would not help.

Third, the user interface restricts how recommenda-

tions are presented since pro-active and re-active sys-

tems work differently (Dyck et al., 2014).

Altogether we researched how a recommender

framework could support conducting research on

model recommenders. Consequently we contribute a

framework and a simulation environment, so model-

282

Dyck A., Ganser A. and Lichter H..

A Framework for Model Recommenders - Requirements, Architecture and Tool Support.

DOI: 10.5220/0004701702820290

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 282-290

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

ers can jump-start model recommendations with their

very own model recommender system. All that is

needed is to implement the actual algorithm, i.e., most

of the scaffolding is provided by the easily extendable

framework. Therefore, we ﬁrst explain the require-

ments we found for such a framework (section 3.1),

explain its basics (section 3.2), elaborate on inter-

nals (section 3.3), and describe the simulation envi-

ronment (section 4).

2 RELATED WORK

Recommender Systems could be discussed rooted

in Information Management Systems and Decision

Supporting Systems (DSS) in the eighties (Sprague,

1980). But terminology evolved, so we keep to the re-

cent state and look into more recent frameworks with-

out contrasting them to DSS.

Regarding UML, there was only few research

conducted, so recommendations for UML modeling

barely exceeded textual completion support. One

of these approaches was described by Kuhn (Kuhn,

2010) focusing on recommending names for textual

elements of the UML like methods. An investigation

on architectural aspects was not addressed.

Another approach was presented by Sen et

al.’s (Sen et al., 2008) which bases on Prolog. They

demonstrate what they call “partial model comple-

tion” for ﬁnite state machines. Moreover, they offer

a brief methodology. Our work differs w.r.t. target en-

vironments, because we try to keep it as wide as possi-

ble, meaning that we could use their solution and plug

it into our framework by adapting their interfaces.

Looking at a broader scope, White and Schmidt

present a framework for domain speciﬁc modeling

languages on a conceptual level (White and Schmidt,

2006). But they focus on establishing domain spe-

ciﬁc knowledge bases and algorithms. They do so

to be able to work in “combinatorically challenging

domains”. Hence, they use Prolog and demonstrated

their approach by means of an AUTomotive Open

System ARchitecture (AUTOSAR) example. We, in

contrast, do not focus on domains or editors, but try

to provide a conceptual and implemented infrastruc-

ture. One could use their implementation as a recom-

mender strategy in our framework.

With Nassi-Schneiderman diagrams, triple graph

grammars are used as a foundation by Mazanek et

al. (Mazanek et al., 2008). They transform the dia-

grams into graph grammars, which they then leverage

for auto-complete mechanism. In other words, they

produce suggestions and these we could plug their re-

alization into our framework as a strategy.

Other supporting systems are of textual nature

and usually found in IDEs. Recent supporting sys-

tems exceed code completion systems and content as-

sist systems by means of recommender system ideas.

For example, an Eclipse project called Code Recom-

menders (Bruch et al., 2008) is such a system. It

is a more clever code-completion-based on a rank-

ing enhanced knowledge base for code suggestions.

Another example is Code Conjurer, a reactive IDE-

recommender system that provides potentially miss-

ing artifacts (Hummel et al., 2008) using a source

code search engine called Merobase (Janjic et al.,

2013).

3 THE FRAMEWORK

We ﬁrstly summarize the needs and constraints for a

model recommender framework. Then we explain our

conceptual solution and elaborate on our realization.

Unfortunately, we cannot explain each and every de-

tail for the sake of brevity. An elaborated description

is provided by Dyck (Dyck, 2012).

3.1 Black-box Aspects: Requirements

Discussing possible requirements for a model rec-

ommender framework, we found the following func-

tional requirements that are depicted in ﬁgure 1 as a

use case diagram. Since we aim for framework sup-

port, there are only few externally visible actors and

requirements. Therefore, only a modeler and a data

source are involved for conﬁguring the recommender

strategies, querying for recommendations and choos-

ing recommender strategies.

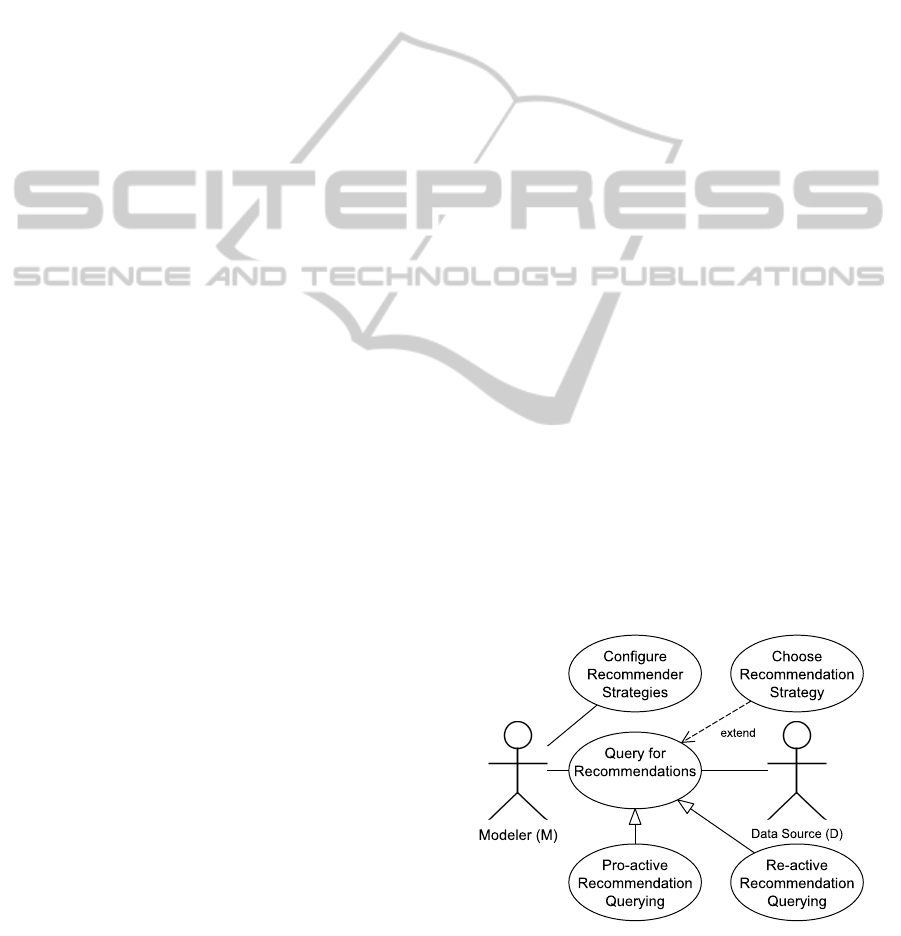

Figure 1: Model Recommender Framework Use Cases.

Regarding non-functional requirements we found

several necessities. First (1), multiple data sources

AFrameworkforModelRecommenders-Requirements,ArchitectureandToolSupport

283

(e.g., repositories or knowledge bases) should be

queried for producing recommendations, while the

framework must not know about the concrete content

of the recommendation objects. For example, ontolo-

gies, ReMoDD (France et al., 2007), MOOGLE (Lu-

crdio et al., 2010), or MoCCa (Ganser and Lichter,

2013) should possibly serve as back-ends. Second

(2), different algorithms should be pluggable into the

framework, allowing multiple recommender strate-

gies. Third (3), the context of the current editing

should be captured, and thus, be available for produc-

ing recommendations, e.g., querying, ranking or ﬁl-

tering. This requires the same extendability as above,

since a different editor might be regarded as another

context (Dyck et al., 2013). This leads to, fourth

(4), the requirement to support several user interfaces,

since different editors might present recommenda-

tions differently (Dyck et al., 2014). Fifth (5), the

user interface should be non-blocking, i.e., respon-

sive. This is important, as it might take a while until

recommendations are produced. This leads to, sixth

(6), decoupled and multi-threaded back ends. Last,

the framework should be easy to use and provide sup-

port for starting extensions from scratch.

To sum up the requirements, the model recom-

mender framework needs to realize a core that is ex-

tendable (cf. ﬁgure 2). To the best of our knowledge,

there is no such environment available.

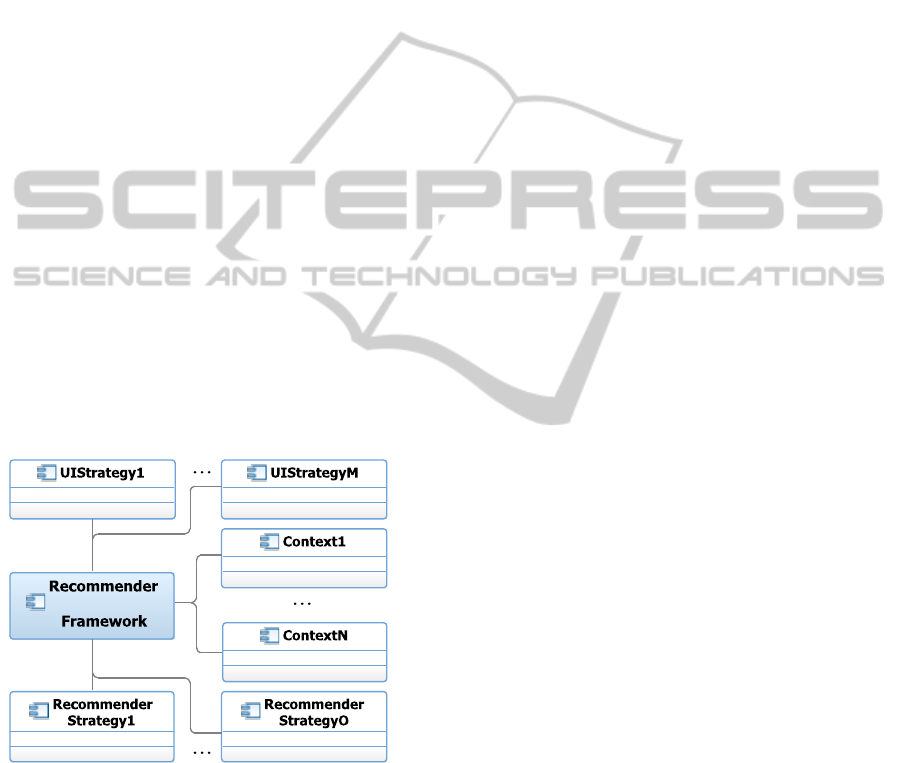

Figure 2: Conceptual Architecture.

3.2 Gray-box Aspects: Hot Spots

The requirements described above lead to a concep-

tual architecture as depicted in ﬁgure 2. It shows a

core which is extendable in three respects: First, it al-

lows a RecommenderStrategy to be plugged into it

(requirements (1) & (2)). Therefore, data is gathered

and processed in such strategies and, eventually, rec-

ommendation objects are produced and handed over

to the framework. Second, a Context builds the

bridge between produced recommendations and an

editor to have it applied to (requirements (3) & (4)).

This means, a Context links these two as well as it

adapts, if necessary. Third, a UIStrategy is a means

to trigger queries and to depict results (requirement

(4)). The easiest example for a UIStrategy is a query

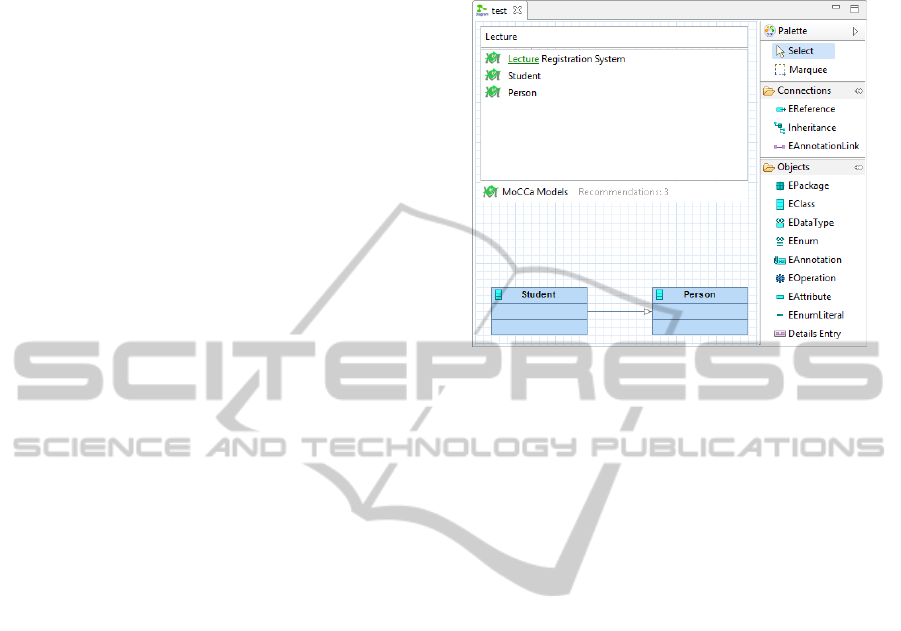

box as depicted in the top left corner of ﬁgure 8. It

works re-actively because it needs to be opened ex-

plicitly as known from code completion. Another

UIStrategy might be a view that follows a cursor

position and produces recommendations based on the

next neighbor information related to the mouse posi-

tion, i.e., a pro-active system. Furthermore, support-

ing non-blocking UIs and multi-threading (require-

ments (5) & (6)), are properties of the framework.

Subsequently, we explain how the framework needs

to be extended by making use of each framework hot

spot (c.f. (Pree, 1996)) with an example (cf. ﬁgure 3).

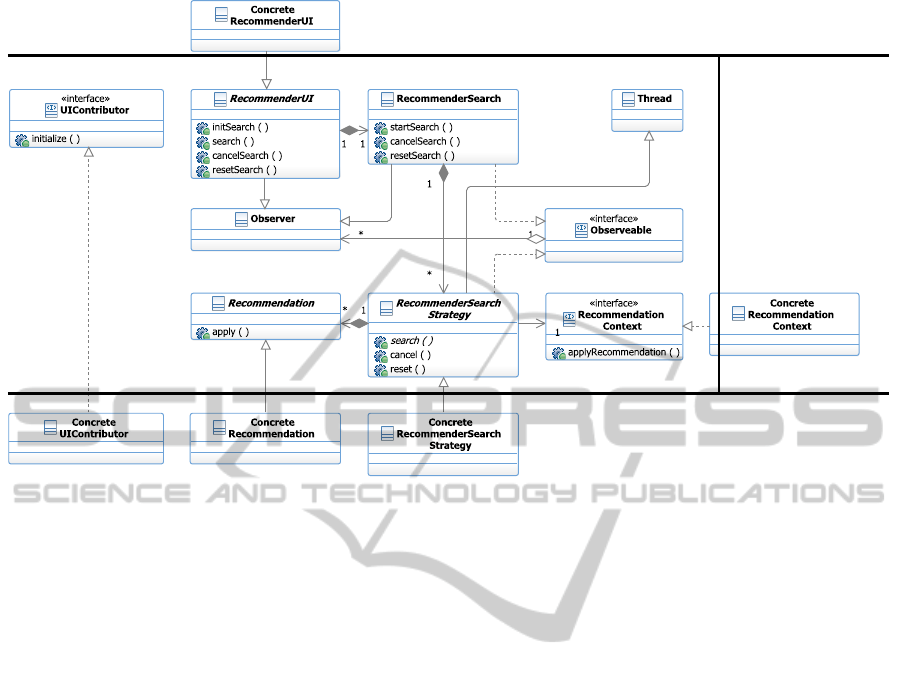

The most important hot spots are re-

lated to the classes: Recommendation and

RecommenderSearchStrategy. The former has

to realize a method apply(), which is invoked

if a ConcreteRecommendation object is to be

applied in an editor. In ﬁgure 8 that would be

a pick of an entry in the list. The latter has to

realize the actual search(), which, invoked on

a ConcreteRecommenderSearchStrategy, starts

this recommender strategy. Additionally, labels and

icons related to ConcreteRecommendations can be

registered by the ConcreteUIContributor. Due to

that, a ConcreteRecommenderSearchStrategy can

return several kinds of ConcreteRecommendations

each represented by a different icon; e.g., the UI in

ﬁgure 8 shows the label of our model repository.

The second most important hot spot regards the

user interface, where a ConcreteRecommendationUI

needs to realize how a search() is triggered and how

the user can interact with the system, e.g., pick recom-

mendations, cancel the search, etc. Since quite a lot of

this is similar for several ConcreteRecommenderUIs

some default implementation is provided by the

core through the RecommenderUI. Finally, the

ConcreteRecommendationUI needs to implement

the graphical aspects as well (Dyck et al., 2014). For

example, ﬁgure 8 shows a query box with a drop-

down window as an overlay on a class diagram can-

vas.

Last, a new context is created by extending the

hot spot RecommendationContext. By doing so,

a ConcreteRecommendationContext identiﬁes an

editor and registers a ConcreteRecommenderUIs to

it. In other words, one context is mostly respon-

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

284

Framework

Core

Context

Recommender

Strategy

Figure 3: Coarse Grain Architecture.

sible for one editor. This is due to editors usu-

ally offering unequal sets of operations. This is

why a context knows how the actual apply() from

a ConcreteRecommendation object has to be exe-

cuted, i.e., it adapts or wraps the operations if nec-

essary (Dyck et al., 2013).

At ﬁrst, all this looks fairly complex. However,

we hope with our dashboard, which supports all of the

extending and registering mentioned above, this com-

plexity can be reduced. Anyhow, the details of the im-

plementation comprise a few more technical details,

since more sophisticated functionality is required to

make the framework enjoyable for users.

3.3 White-box Aspects: Internals

So far a mostly gray-box view on the framework al-

lows to get started with model recommendations, but

more details are necessary for an advanced under-

standing. Therefore, we elaborate more on ﬁgure 3

and explain the factories, the notiﬁcation mechanism,

threading, the proxies, and the search strategy states.

A very basic example in form of sequence diagrams

will complement the explanation.

As a RecommenderUI triggers a search()

method, the recommender framework uses a search

factory that holds a set of all the registered

ConcreteRecommenderSearchStrategies to in-

stantiate an object each of them. Then the

RecommenderSearch starts the actual strategies by

invoking startSearch() and feeds them with the

query information. This initiates all the instantiated

ConcreteRecommenderSearchStrategies to run

and waits for their results. Finally, they return their

Recommendations and notify the RecommenderUIs.

Behind this notiﬁcation mechanism is

an observer pattern, which allows each

RecommenderSearchStrategy to “tell” all the

linked RecommenderUIs to update. This is possi-

ble, because each RecommenderSearchStrategy

is an Observable and has RecommenderUIs as

Observers. Mind that this allows continuous notiﬁ-

cations, and therefore, for each recommendation in

ﬁgure 8, to appear almost instantly. The beneﬁt here

becomes clear, when Recommendation objects are

produced with a noticeable delay, e.g., due to a slow

Internet connection. However, some recommender

algorithm might not beneﬁt from this feature because,

e.g., collaborative ﬁltering work on complete sets.

Note that, above, we started all the search

strategies at once. That is possible, because we

build in a threading mechanism that runs each

RecommenderSearchStrategy object in its own

thread, fulﬁlling requirements (5) & (6), i.e., have a

non-blocking UI and have search strategies better load

balanced. Again, considering a search strategy, which

is delayed by a slow Internet connection, allows other

strategies to proceed.

Yet another trick is necessary to avoid trouble

with search strategies. For the same reasons men-

AFrameworkforModelRecommenders-Requirements,ArchitectureandToolSupport

285

Figure 4: Sequence Diagram: search().

tioned above, it makes perfect sense to wrap each

ConcreteRecommenderSearchStrategy in a proxy.

It binds the search strategy to the framework and acts

as an adapter for the notiﬁcation mechanism at the

same time. For simplicity sake, we do not elaborate

on this part of the architecture.

Finally, the proxies and threading decouple (see

requirement (5)) the components to an extent that we

had to realize a controlling mechanism for the rec-

ommender search strategies. To this end, we imple-

mented a state mechanism as depicted in ﬁgure 5. It

illustrates the life-cycle of a recommender strategy on

two levels. First, on the outer level, a search strategy

can be enabled or disabled – or defect. While the

ﬁrst two states can be set in the preferences, a defect

strategy could be, for example, the result of a missing

default constructor. Additionally, a search strategy

can be asked to reset. This happens, e.g., if the UI

is closed. Second, the internal level of a search strat-

egy can follow a regular sequence of states, namely:

ready, running, and done. Alternatively, it can be

failed or canceled; where the former is due to an

internal error the latter is being triggered by the user.

3.4 Sequential Aspects: Object Flow

For a better understanding of the framework’s inter-

nal process, we provide an example by two sequence

diagrams, shown in ﬁgure 4 and ﬁgure 6.

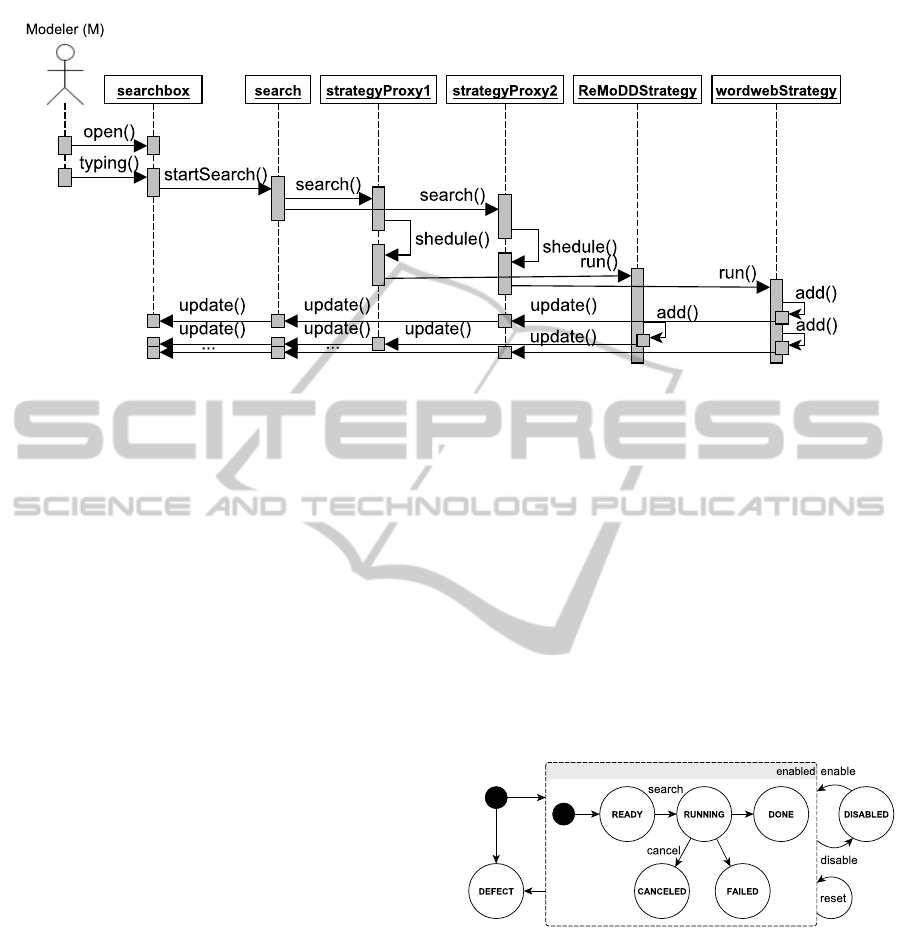

The ﬁrst sequence diagram in ﬁgure 4 shows how

a search starts and how it ends, delivering the recom-

mendation objects to the UI. Please mind that we take

some obvious shortcuts, while explaining the object

ﬂows compared to ﬁgure 3: First, a Modeler opens

the searchbox (cf. ﬁgure 8) and starts typing. After

a neglectable delay, the actual search is started, in-

stantiating strategyProxies for each recommender

search strategy. Since we implemented the frame-

work for multi-threading, the proxies use a schedul-

ing to queue up the actual search, which is eventually

run. Doing so, the recommender search strategies are

working independently, using their algorithm to pro-

duce recommendations. They can return these to the

framework by storing them in their recommendations

set and notifying the framework, which forwards the

notiﬁcations all the way up to the registered observers,

i.e., our searchbox. An example of the searchbox

with a list of produced recommendations, provided by

our recommender strategy, is shown in ﬁgure 8.

Figure 5: Search States.

As the recommendations are listed in the UI, one

of them can be picked as illustrated in the second se-

quence diagram in ﬁgure 6. It illustrates the steps

how a recommendation is selected until it is applied

to an exemplary editor. Again, we omit some obvious

delegations to make the sequence diagram more com-

prehensible: First, the Modeler picks a recommenda-

tion in the searchbox. That invokes an apply() on a

recommendation object, which needs to do some pre-

processing. This is acquiring the context by asking

the recommendation-providing search strategy about

it. In this case, the recommendation was an entry

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

286

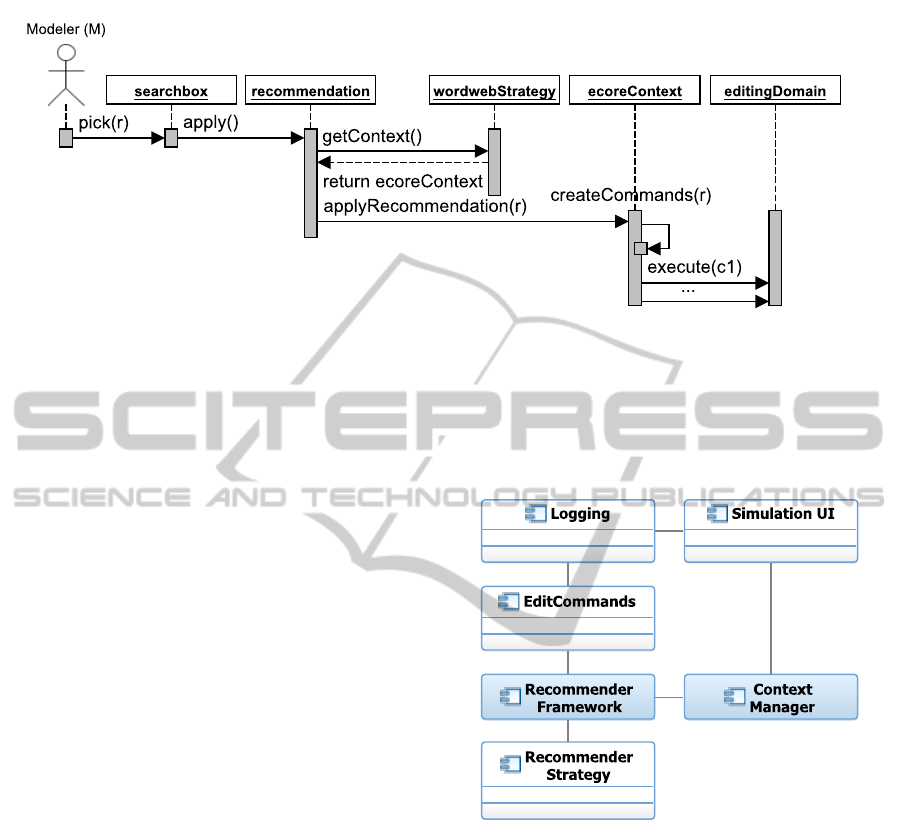

Figure 6: Sequence Diagram: pick().

on the WordWeb Online website (Dyck et al., 2013),

which was parsed to several recommendation objects.

Since the strategy knows about its context it returns

an ecoreContext in our example. Now, the apply()

can be started on the retrieved context. Hence, the

recommendation object is taken and transformed into

something that is applicable in an ecoreContext.

This means, because our editor is able to execute

EMF commands, a compound command is created

by invoking createCommands(r) that are executed

on the editingDomain eventually. Note that the

EMF/Ecore-speciﬁc editing domain (Steinberg et al.,

2009) is hidden behind the context object.

4 SIMULATION SUPPORT

So far, our model recommender framework provides a

ﬂexible, extensible, yet simple management environ-

ment. This is due to the few hot spots that are needed

for development. In order to ease development and

testing of recommender strategies, we implemented

a simulation environment. It supports the developer

ﬁnding malformed recommendation objects and er-

rors while applying them in the context. Moreover,

recommendation strategies, if build properly, can con-

tribute in their very own way to parameter tweaking

as we explain below.

4.1 Simulation Cornerstones

Speaking of simulation, there is a large theory behind

how to design an appropriate simulation that actually

meets the required needs and provides beneﬁcial re-

sults (Banks, 1998). Based on this theory, we need

to deﬁne what our object under simulation is, what

we consider as our simulation environment, and what

our simulation model is. Further, we need to deﬁne

our simulation protocol. Since this is tightly con-

nected to the simulation concept, it is reasonable to

have glimpse at ﬁgure 7 to begin with.

Figure 7: Simulation Architecture.

First, our objects under simulation are recommen-

dations and how they were produced by a recom-

mender search strategy. In general, these recommen-

dations are the results of a transformation of some

source format to a command set which is applicable

in graphical editors. Hence, monitoring these com-

mands is the most promising approach to ﬁnd out if

a recommendation strategy produces the right recom-

mendations. This makes the simulation a white-box

simulation w.r.t. the recommendations and a black-

box simulation w.r.t. the recommendation strategies;

i.e., disregarding the latter system state variables.

The latter can easily be altered to become a white-

box simulation if the programmer of a recommender

search strategy adheres to certain rules regarding log-

ging. Then, our simulation environment is able to

AFrameworkforModelRecommenders-Requirements,ArchitectureandToolSupport

287

trace the actual production of the recommendation

as well as the recommendation algorithm, which is

applied to the data back end, i.e., the use of can-

didate selection, ﬁltering, and post processing. In

other words, a white-box simulation of recommender

strategies would be a monitoring of system state vari-

ables in terms of simulation theory (Banks, 1998).

Often this is out of reach, so we discuss no more than

the black-box properties ﬁrst.

Second, our simulation environment is a graphi-

cal editor that is modiﬁable by a ﬂexible command

framework. This means, a recommendation, which

is a set of commands, produced by a recommender

search strategy, can be applied in this environment.

This makes the whole environment a discrete event

simulation and behaves very similar to GMF gener-

ated editors. They offer editing function through the

EMF command framework, of which we make use of

as well. However our edit command framework needs

to be slightly more ﬂexible, as we need to be able to

react on unknown or malformed commands as well.

Altogether, this environment is stable, yet alter-

able serving as a controllable environment for sim-

ulations. It is stable, because it is stateless, always

producing the same results for the same sequences of

commands. Moreover, it is alterable, since the edit

commands can be altered and extended by new com-

mands to serve new kinds of recommendations.

Third, the simulation model is the foundation for

our environment and needs to be the smallest possi-

ble basis of UML – or EMF models (Steinberg et al.,

2009). This makes MOF – or Ecore – the obvious

choice for the simulation model because they form the

meta foundation in terms of grammars respectively.

In other words, if this meta language is used, every

model deﬁned by it can be dealt with. Hence, this

basis explains why there is a good foundation for the

command framework and why it is as ﬂexible as men-

tioned above. Additionally, these command frame-

works would be quickly exchangeable if another sim-

ulation environment is needed.

Last, the simulation protocols are textual repre-

sentations of attempts to apply recommendations in

our simulation environment. This categorizes our

approach as an activity scanning simulation (Banks,

1998). This is possible, since we have full control

over our environment which would be almost impos-

sible with third party environments. This means, all

attempts and results are logged and can be analyzed.

We avoided to use a DSL as a foundation for the

logging since we wanted it to be usable as easy as pos-

sible. In case we had used a DSL, we would certainly

be able to analyze the simulation traces more quickly,

but we would put this burden on users as well, i.e.,

learning the grammar or even parts of, e.g., xtext.

Figure 8: Simulation UI.

4.2 Simulation Aspects and Concept

As we have set the foundations of our simulation, we

can look into the details of the concept; how they ﬁt

together and what issues could be addressed. We can

subdivide this along ﬁgure 7. First, the simulation UI,

which is a replacement for the real editor to be used

later, we can investigate on issues related to collabora-

tion between recommendations and editors. Second,

the recommendation’s consistency is under investiga-

tion as well, i.e., if their application results in valid

models. And, last, the recommendation objects need

to be produced, so the recommender strategy is under

investigation as well.

It can be rather tedious to ﬁnd out the reasons why

a recommendation results in a rather unexpected ed-

itor canvas. The reasons can be manifold, but the

best approach to ﬁnd out is using something simi-

lar to a test spy (Meszaros, 2006). In our case the

recommendation should be applied to a canvas; thus,

this should be the test spy. This means the canvas

is replaced with another canvas that is able to record

and log all the actions which are “executed” on it.

This means, for every known command an info mes-

sage is created, while malformed commands result

in warnings and unknown commands result in error

messages. While known and unknown commands are

rather self-explanatory, an example for a malformed

command is one that tries to create a method with pa-

rameter type that is not in the current scope.

All in all our simulation user interface is a rewrit-

ten class editor by means of the Graphiti frame-

work (Eclipse, 2012c). It is enhanced with logging

functionality as mentioned above and serves as a con-

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

288

trolled yet customizable environment. As the com-

mands mirror the real third party editor, successfully

applied recommendations should work in the ﬁnal en-

vironment as well.

Certainly this requires valid recommendation ob-

jects, but these can be invalid in three ways.

Therefore, each recommendation object needs to be

checked (1) if it produces well formed models. This

can be done by Ecore Tools or other available frame-

works (Eclipse, 2012b). Moreover, (2) the recom-

mendation can be incompatible with the simulation

environment. This would be the case, if a UML com-

mand set was created instead of an Ecore command

set. Last, (3) the recommendation could hold com-

mands that are not denotable by the simulation envi-

ronment. While these errors could be logged as un-

known commands, the semantic is slightly different.

For example, a command set might contain stereotype

information, while the simulation environment is not

able to “understand” these, a whole set of informa-

tion is not applicable. The reason for this could either

be a wrong ﬁltering by the recommendation strategy

or a wrong transformation of the source data to com-

mands. However, both of these issues might be rooted

in a misinterpreted query or insert context.

Regarding how recommendation objects are pro-

duced, some aspects can be monitored, while others

maybe not. For example, a recommendation strategy

has some internals on how to rank and transform ob-

jects which might not be exposed. We can investigate

in- and outgoing data and refer to them as the query

context and the insert context. From them and the pro-

vided data source, we can gain useful information, if

a recommendation strategy works appropriately. For

example, an editing position, which is the text ﬁeld of

a class name, should not get a recommendation that

wants to create a whole class in this text ﬁeld. In

this case, we could assume that the post ﬁltering in

the recommendation strategy is not correct and that it

probably did not take into account the query context.

As we make appropriate use of logging in a rec-

ommender strategy, we changed to a white-box simu-

lation. There we can gain insights to the algorithm

and use the system state variables to ﬁnd errors or

tweak the algorithm. This is possible if the dash-

board was used to generate the recommender strategy

and the logging is used appropriately for parameters

and calculation details. Because only then, we are

able to see how the query and query context lead to

source data, how this source data is ranked, ﬁltered,

and transformed into recommendation objects.

The beneﬁt of using this approach appears to be

that no debugging is necessary and no information

noise as known from debugging environments is dis-

tracting developers. Hence, the developer can focus

on evaluating the parameters, monitoring the rank-

ing, and analyzing the recommendation objects. In

addition, tools like Logback-beagle (Glc et al., 2012)

enable easy gathering and evaluating of the logging,

e.g., “jump to log position”, and thus, allowing easy

tweaking of a recommendation algorithm.

5 CONCLUSIONS

The ﬁeld of model recommenders is rather new and

will need a lot of research until high-quality recom-

mendations can be produced as in other domains. Un-

fortunately, adjusting the known algorithms and ap-

plying them to models does not work. Thus, we

created a research environment that is meant to en-

able experimenting with model recommender UIs

and model recommender search strategies, i.e., al-

gorithms. This environment comprises a software

framework as explained in section 3 and tool support

in form of an simulation environment as explained in

section 4. It was realized in the context of the HER-

MES project (Ganser, 2013a), it is available as an

Eclipse P2 Updatesite (Ganser, 2013b), and a video

shows its functionality, (Ganser, 2013c).

In more detail, we, ﬁrst, explained a bit on the con-

ceptual architecture of the actual software and how it

can be extended. The point was that several UIs, con-

texts, and recommender search strategies are required

due to several possible deployment scenarios. Sec-

ond, we elaborated on the details with an exemplary

realization and illustrated the calls in a sequence di-

agram. Last, we described our simulation environ-

ment, which is meant as developer support for devel-

oping and testing recommender search strategies.

In this paper, due to lack of space, we omitted to

mention a further tool support; a dashboard that offers

user guidance and helps to jump-start the framework.

This dashboard guides a user through important con-

ﬁguration steps and creates plug-ins for the hot spots

described in section 3.2. The former comprise ready

to use classes and helpful skeleton source code, along

with all the necessary conﬁgurations.

Objectives of publication and future work are:

First, an enhanced context management that provides

more detailed contextual information to recommender

search strategies. Second, a template engine that al-

lows for building place holder into models and offer-

ing user guidance while model templates are applied.

And, last, concepts and algorithms to produce good

recommendations based on enhanced model libraries

like MoCCa (Ganser and Lichter, 2013).

Last, but most importantly, we hope to provide a

AFrameworkforModelRecommenders-Requirements,ArchitectureandToolSupport

289

useful and easy to use framework for model recom-

mender research. We are very excited and curious

about community feedback, since each and every dis-

cussion we had on model reuse, let to the consensus

that there is huge need and potential.

ACKNOWLEDGEMENTS

We would like to thank all our reviewers for their

comments! We would also like to thank Junior

Lekane Nimpa, Daniel Schiller, and Viet Ngoc Tran

for their contributions.

REFERENCES

Banks, J. (1998). Handbook of Simulation: Principles,

Methodology, Advances, Applications, and Practice.

A Wiley-Interscience publication. Wiley.

Bruch, M., Sch

afer, T., and Mezini, M. (2008). On Evalu-

ating Recommender Systems for API Usages. In Pro-

ceedings of the 2008 international workshop on Rec-

ommendation systems for software engineering, RSSE

’08, pages 16–20, New York, NY, USA. ACM.

Dyck, A. (2012). Recommender System Architecture for

Ecore Libraries (Master Thesis, RWTH Aachen Uni-

versity).

Dyck, A., Ganser, A., and Lichter, H. (2013). Enabling

Model Recommenders for Command-Enabled Edi-

tors. In MoDELS MDEBE - International Workshop

on Model-driven Engineering By Example 2013 co-

located with MODELS Conference, September 29,

2013, Miami, Florida.

Dyck, A., Ganser, A., and Lichter, H. (2014). On Designing

Recommenders for Graphical Domain Modeling En-

vironments. In Modelsward 2014, Proceedings of the

2nd International Conference on Model-Driven Engi-

neering and Software Development, Lisbon, Portugal,

7.-9. January 2014. SCITEPRESS.

Eclipse (2012a). Code Recommenders. http://www.eclipse.

org/recommenders/.

Eclipse (2012b). Ecore Tools. http://wiki.eclipse.org/ in-

dex.php/Ecore Tools.

Eclipse (2012c). Graphiti. http://www.eclipse.org/graphiti/.

France, R., Bieman, J., and Cheng, B. (2007). Repository

for model driven development (ReMoDD). In Mod-

els in Software Engineering, volume 4364 of Lecture

Notes in Computer Science, pages 311–317.

Ganser, A. (2013a). Reusing Domain Engineered Artifacts

for Code Generation – The HERMES Project (Har-

vesting, Evolving, and Reusing Models Easily and

Seamlessly). http://goo.gl/4LRdN.

Ganser, A. (2013b). The HERMES Project - Eclipse P2

Updatesite: HERMES.reuse. http://goo.gl/ZGxIf.

Ganser, A. (2013c). YouTube: Model Autocompletion

Demo. http://goo.gl/fqwxl.

Ganser, A. and Lichter, H. (2013). Engineering Model

Recommender Foundations - From Class Comple-

tion to Model Recommendations. In Modelsward

2013, Proceedings of the 1st International Conference

on Model-Driven Engineering and Software Develop-

ment, Barcelona, Spain,19.-21- February 2013, pages

135–142. SCITEPRESS.

Glc, C., Pennec, S., and Harris, C. (2012). Logback-beagle.

http://logback.qos.ch/beagle/.

Hummel, O., Janjic, W., and Atkinson, C. (2008). Code

Conjurer: Pulling Reusable Software out of Thin Air.

Software, IEEE, 25(5):45–52.

Janjic, W., Hummel, O., Schumacher, M., and Atkinson,

C. (2013). An Unabridged Source Code Dataset for

Research in Software Reuse. In Proceedings of the

10th Working Conference on Mining Software Repos-

itories, MSR ’13, pages 339–342, Piscataway, NJ,

USA. IEEE Press.

Kuhn, A. (2010). On recommending meaningful names in

source and UML. In Proceedings of the 2nd Inter-

national Workshop on Recommendation Systems for

Software Engineering, RSSE ’10, pages 50–51, New

York, NY, USA. ACM.

Lucrdio, D., de M. Fortes, R., and Whittle, J. (2010).

MOOGLE: A Metamodel-based Model Search En-

gine. Software and Systems Modeling, 11:183–208.

Mazanek, S., Maier, S., and Minas, M. (2008). Auto-

completion for diagram editors based on graph gram-

mars. In Visual Languages and Human-Centric Com-

puting, 2008. VL/HCC 2008. IEEE Symposium on,

pages 242–245.

Meszaros, G. (2006). XUnit Test Patterns: Refactoring Test

Code. Prentice Hall PTR.

Pree, W. (1996). Framework Patterns. SIGS Books and

Multimedia, New York.

Sen, S., Baudry, B., and Vangheluwe, H. (2008). Domain-

Speciﬁc Model Editors with Model Completion. In

Giese, H., editor, Models in Software Engineering,

volume 5002 of Lecture Notes in Computer Science,

pages 259–270. Springer Berlin Heidelberg.

Sprague, R. H. (1980). A Framework for the Development

of Decision Support Systems. MIS Q., 4(4):1–26.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF: Eclipse Modeling Framework 2.0.

Addison-Wesley Professional, 2nd edition.

White, J. and Schmidt, D. C. (2006). Intelligence Frame-

works for Assisting Modelers in Combinatorically

Challenging Domains. In In Proceedings of the Work-

shop on Generative Programming and Component

Engineering for QoS Provisioning in Distributed Sys-

tems at the Fifth International Conference on Gen-

erative Programming and Component Engineering

(GPCE), page 90.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

290
