An EMF-based Toolkit for Creation of Domain-speciﬁc Data Services

Andreas Bender, Stefan Bozic and Ivan Kondov

Steinbuch Centre for Computing (SCC), Karlsruhe Institute of Technology (KIT),

Hermann-von-Helmholtz-Platz 1, 76344 Eggenstein-Leopoldshafen, Karlsruher, Germany

Keywords:

Metamodel, Eclipse Modeling Framework, Dataﬂow, Data Model, Workﬂow, Application Integration, Web

Service.

Abstract:

Development of composite workﬂow applications in science and engineering is troublesome and costly due to

high heterogeneity of data representations and data access interfaces of the underlying individual components.

As an effective solution we present a generic toolkit enabling domain experts to develop data models and

automatically generate a self-contained data access service. We deﬁned a custom metamodel based on Ecore

which can be readily used to create domain-speciﬁc data models. Using the generated data access service,

instances of the modeled data residing on heterogeneous and distributed resources, such as databases and

cloud data stores, are accessible from the individual application components via a language-independent Web

service interface. We discuss the framework architecture, the toolkit implementation, the deployment process,

as well as the performance of the data access service. Workﬂow designers as target users would beneﬁt from

the toolkit by using it for rapid and cost-efﬁcient application integration.

1 INTRODUCTION

The complexity of applications for simulation and

data analysis in science and engineering has increased

dramatically over the recent years. Such applications,

often designed in the form of generic workﬂows,

combine multiple software components originating

from diverse application domains. Thus, developing

such a composite application requires signiﬁcant ef-

fort either for coordination of experts from these do-

mains or for learning multiple domain-speciﬁc pro-

gram codes by individual researchers. Scientists de-

signing workﬂow applications face a rapidly increas-

ing number of different programs which carry out

very often the same functions. Thus the time nec-

essary to implement changes, which are typically

made on a short notice and rather frequently, has

increased substantially. On the other hand, current

environments for simulation and data analysis pro-

vided at computing centers are still too complicated

for use by non-experts. Since computer simulations

and data analyses are typically planned and carried

out by scientists and engineers who are often non-

experts in the technical ﬁeld of computer science and

software engineering, a corresponding easy-to-handle

software infrastructure has to be provided. For this

purpose, the paradigms of service-oriented architec-

ture (SOA) (Erl, 2005) and model-driven engineering

(MDE) (Schmidt, 2006) have been adopted to develop

systems at such a level of technical abstraction that

application domain experts can develop composite

applications by integrating existing components fol-

lowing their design rather than spending efforts with

the technicalities of the underlying computing envi-

ronment. For instance, the SOA concept has been re-

cently adopted to integrate multiple components into

workﬂow applications for multiscale materials simu-

lation (Kondov et al., 2011; Bozic et al., 2012) moti-

vated by demands in the community.

The major challenge we met with constructing a

workﬂow application is the handling of data exchange

between the workﬂow steps which is often referred

to as dataﬂow. Data modeling in workﬂow’s speciﬁ-

cation has been shown to be very important to avoid

potential data ﬂow problems (Sadiq et al., 2004). Al-

though complex data must be stored in such a way that

all workﬂow steps can easily access it, many program

codes usually cannot use the same data source in prac-

tice because they have mutually incompatible data

representations, heterogeneous data formats or non-

uniform data access interfaces. A common strategy

employed in multiple application domains bases on

format converters between the workﬂow steps which

operate for a limited set of supported formats. This

strategy was found unsatisfactory because it requires

Bender A., Bozic S. and Kondov I..

An EMF-based Toolkit for Creation of Domain-speciﬁc Data Services.

DOI: 10.5220/0004701900300040

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 30-40

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

tedious, frequent and error-prone reimplementation

of converters for each combination of simulation or

analysis codes in a workﬂow application (Bozic and

Kondov, 2012). Moreover, multiple conversions of

large data can become a bottleneck and even make the

workﬂow simulation unfeasible. Also, the converter

solution is usually restricted to storage on a ﬁle sys-

tem which introduces the need to manage additional

metadata along the workﬂow.

To treat the dataﬂow more efﬁciently different

domain-speciﬁc non-transferable solutions have been

developed in diverse application domains, e.g. in fu-

sion plasma engineering (Manduchi et al., 2008), nu-

clear magnetic resonance (Vranken et al., 2005; Fogh

et al., 2005; Nowling et al., 2011), computational

chemistry (Murray-Rust et al., 2011; Birkenheuer

et al., 2012), molecular engineering (Dubitzky et al.,

2004; Sild et al., 2005; Sild et al., 2006), oil and

gas industry (Rahon et al., 2012) and materials sci-

ence (Bozic et al., 2012; Bozic and Kondov, 2012),

whereby some of them have employed a model-driven

approach. For example, the integration of COSMOS,

a program code applied in the computational nuclear

magnetic resonance, into the CCPN data model was

straightforward (Schneider et al., 2012) while our at-

tempt to adopt the same data model in other domains,

e.g. in computational materials science, was less suc-

cessful. In particular, we realized that a generic data

model (a metamodel) and a generic tool is necessary

to allow any domain expert in the role of workﬂow de-

signer to develop domain-speciﬁc data models. More-

over, the data should be made accessible from each in-

dividual application code via a language-independent

interface, e.g. a Web service, for rapid implementa-

tion of pre- and post-processors and construction of

workﬂows from standard components.

In this paper we present a generic solution for

modeling and management of data in scientiﬁc work-

ﬂows in a simple and uniform way. We report on a

development of the concept from (Bozic and Kon-

dov, 2012) resulting in a novel SOA- and MDE-based

framework using modern standards for Web services.

We will describe the implementation of the frame-

work and discuss its functionality and general appli-

cability. This service-oriented framework is based on

a custom metamodel and domain models from which

a complete service can be created with the Eclipse

Modeling Framework (EMF).

Elsewhere (Bender et al., 2013) we have demon-

strated the applicability and the practical beneﬁts of

the framework in the use case of a composite multi-

scale modeling application in computational science.

Here, we will focus on the program architecture and

report on the technical implementation of the frame-

work as a toolkit for model-driven automatic genera-

tion of data access services. The paper is organized

as follows. In the next Section 2 we introduce the re-

quirements and then in Section 3 discuss the concep-

tual design and program architecture of the toolkit. In

Section 4 we discuss our speciﬁc selection of tech-

nologies which were used for the toolkit implementa-

tion and the generation process as described in Sec-

tion 5. Further, in Section 6, we outline the unique

advantages of our approach and analyze the perfor-

mance of the data access service generated for a spe-

ciﬁc use case. In Section 7 we review related ap-

proaches in the context of the present work. Finally, in

Section 8, we summarize the key results of this work

and suggest directions for future work.

2 REQUIREMENTS ANALYSIS

In order to develop and implement a concept for the

framework we have considered all lessons learned

from previous experience and the requirements of

data modeling in different domains. In the follow-

ing we will outline the essential requirements. The

framework should

• be generic and domain-independent so that it can

be used in different domains with no further mod-

iﬁcation.

• act as a bridge for access to heterogeneous and

distributed storage from distributed workﬂow ap-

plications thus providing two interfaces — one for

the storage and one for the application side.

• provide a modeling environment, containing a

graphical editor, for creation of data models for

domain-speciﬁc needs.

• provide utilities for fully automatic code genera-

tion of all components because it will only in this

case provide a low-effort and low-threshold solu-

tion for the end-user.

• provide a language-independent application ac-

cess interface, e.g. a Web service.

• provide an abstract storage access interface allow-

ing applications to connect to distributed and het-

erogeneous data storage resources e.g. relational

databases, simple ﬁles or cloud storage services

such as Amazon S3.

The implementation of the framework will be a

toolkit providing interfaces that assist the user in all

steps of the service creation: from the construction

of a data model, through code generation of a ser-

vice, up to the deployment as data access server. The

toolkit should be operating system-independent and

AnEMF-basedToolkitforCreationofDomain-specificDataServices

NamedElement

-name : EString

DataEntity Reference

Attribute

«datatype»

EDataType

Ecore (EMOF)

Custom Metamodel

Domain Model

Objects of Reality

entities

attributeType

attributes

referenceType

references

Package

-nsURI : EString

-nsPrefix : EString

Figure 1: Custom M2-layer metamodel.

preferably based on open-source technology. In ad-

dition we aspire to use the modular service platform

OSGi which enables reuse of components, reducing

the complexity during developing components, ver-

sioning, simple deployment and dynamic updates.

3 FRAMEWORK

ARCHITECTURE

In this section we describe the architecture of the

framework starting with the selection of the meta-

model from which all domain-speciﬁc data models

will be instantiated. Afterwards the concept of a Ser-

vice Generator which transforms a given data model

into a set of kernel classes is explained. Finally we

will have a closer look at the generic kernel which

provides two interfaces connecting a storage resource

with arbitrary workﬂow applications.

3.1 Metamodel

The creation of individual domain-speciﬁc models, as

aimed by our framework, is part of an MDE process.

The Meta Object Facility (MOF) is an MDE standard

deﬁned by the Object Management Group (OMG,

http://www.omg.org/) forming the base for building

custom metamodels as shown on the left hand side of

Fig. 1. The M3 layer is the most generic one and de-

ﬁnes a standard for the creation of meta-metamodels

which are needed to build metamodels. Metamodels

are resident in the M2 layer. The most prominent rep-

resentative of this layer is the Uniﬁed Modeling Lan-

guage (UML) (OMG, 2003). However, UML class

diagrams contain methods or other components be-

yond those needed to model data entities and rela-

tionships. This UML complexity should not be ex-

posed to the user constructing domain-speciﬁc mod-

els. To solve this problem we used the M3 (Ecore)

layer to create a custom simple data-centric meta-

model (in the M2 layer) as alternative to UML which

can be understood by domain experts having no IT

knowledge. This custom metamodel is restricted to

the minimum necessary for modeling and managing

data and forms the base for domain models which are

part of the M1 layer. Thus, the proposed custom meta-

model is innovative because it implements a practical

trade-off between genericity and instant usability. A

concrete instance of the M1 layer is a model that de-

scribes real objects and related data of the M0 layer.

The objects of reality pertinent to the M0 layer repre-

sent domain-speciﬁc data units that users would like

to make persistent in a storage instance. The mean-

ing and value of such data units depend on the corre-

sponding domain. For example, in computational ma-

terials science such objects could be atoms, molecules

and chemical bonds between atoms. We designed

the custom metamodel primarily for simulations and

data analysis in scientiﬁc and engineering applica-

tions. However, owing to capabilities of Ecore the

M2-layer metamodel can be readily extended to allow

typing of data structures such as e.g. data cubes.

The diagram in Fig. 1 shows the newly deﬁned

metamodel which is based on Ecore. The main el-

ement of the metamodel is the DataEntity which is

used to model concrete data entities. These entities

contain Attributes of different data types and may also

contain References to other entities. With these refer-

ences relationships or dependencies between entities

can be deﬁned. DataEntities are combined in a Pack-

age. A package is necessary to deﬁne identiﬁcation

information, such as a URI, in order to distinguish

between different data models. It is planned to extend

the metamodel with the concept of inheritance allow-

ing the creation of more complex data models with

less effort. Also it is intended to further investigate

the applicability of the metamodel in different more

extensive domains.

3.2 Service Generator

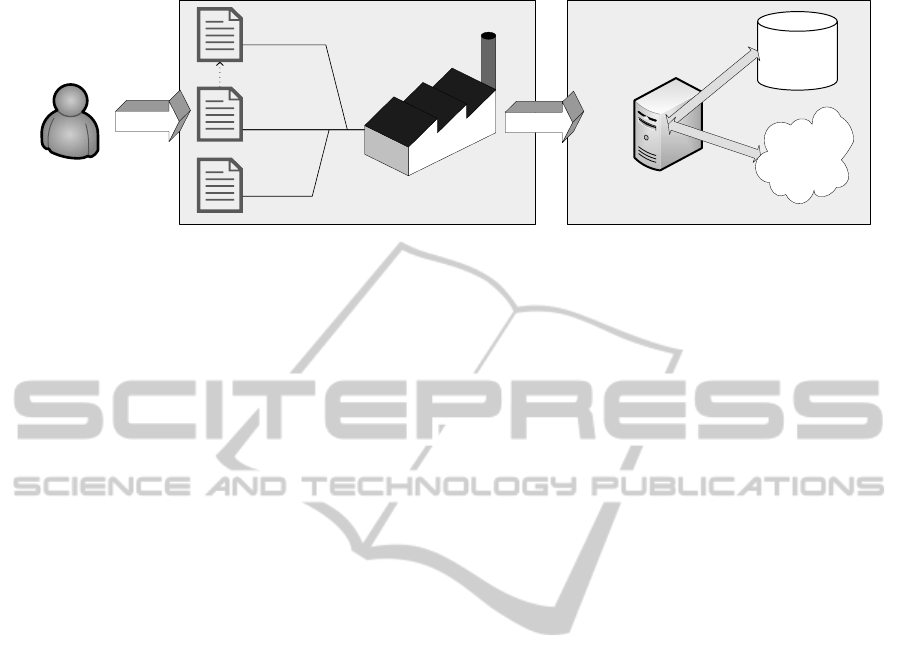

Figure 2 depicts the generation process for a domain-

speciﬁc Data Access Service. A domain expert uses

a graphical editor to create a domain model based on

the metamodel. Additionally the user has to deﬁne

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

Service Generator

Metamodel

Domain Model

Domain Expert

Properties

Data Access Service

Storage

Application/

Workflows

Figure 2: From a domain model to a Data Access Service.

a set of properties that are needed to gain access to

the target storage resource, typically including a con-

nection URL and security credentials. Another set of

properties is mandatory to deﬁne the Web service in-

terface. The metamodel, the domain model and the

service properties are then used by the Service Gen-

erator to transform the model to the ﬁnal Data Access

Service.

3.3 Data Access Service

To support a large number of applications and make

the Data Access Service accessible via the Internet

we adopted the SOA paradigm making use of Web

services technologies and open standards. The main

component of the Data Access Service is a kernel

that connects applications via a Web service with a

data storage. The kernel has a three-layer architec-

ture shown in Figure 3. The persistence layer han-

dles the mapping between data objects and storage

entities. A well known technology to realize this

is O/R (object-relational) mapping (Ambler, 2012).

Unfortunately this technology is limited to relational

databases and we decided to use a storage-type inde-

pendent solution for this part. The toolkit users should

be able to choose a storage type for their data which

ﬁts best to their problem domain, for instance re-

lational, graph-based, web-based or document-based

data stores. The purpose of the representation layer is

to marshal/unmarshal data objects to a transport for-

mat, e.g. XML or JSON. The most complex layer is

the resource layer which deﬁnes the Web service in-

terface. The layer acts as controller mapping the Web

service operations to CRUD (Create, Read, Update,

Delete) operations of the persistence layer. Further-

more it is responsible to deliver and receive marshaled

data objects using the representation layer.

4 TECHNOLOGY SELECTION

Previously (Bender et al., 2013) we have brieﬂy in-

troduced the technology stack which has been derived

from the requirements and the framework concept. In

this section we will discuss the pros and cons of dif-

ferent technologies available for the implementation.

We suppose that such a discussion is interesting in the

domain of model-based engineering and can be used

to improve existing modeling tools.

4.1 Model Development

The Eclipse Modeling Framework (EMF) has been

established within the Eclipse Modeling Project

(http://www.eclipse.org/modeling/) providing model-

based development technologies and a large collec-

tion of modeling tools for the Java programming en-

vironment, including graphical tools for construction

of models and metamodels, editors and for generation

of source code. Since we have the requirement to de-

ﬁne a metamodel and corresponding graphical editors

as well as a code generator, therefore EMF seems to

be the technology of choice.

4.2 Model Transformation

The Eclipse Model To Text (M2T,

http://www.eclipse.org/modeling/m2t/) project

enfolds three generator tools which are capable of

transforming concrete models into text or source

code using different template languages: Java Emitter

Templates (JET), Xpand and Acceleo. JET uses a

language that is similar to Java Server Pages (JSP)

while Xpand uses a self-developed template language

and the template language of Acceleo is an imple-

mentation of the MOF Model to Text Transformation

Language standard (MOFM2T) of the OMG. Xpand

and Acceleo assist the template developer with

AnEMF-basedToolkitforCreationofDomain-specificDataServices

Storage

Model

Persistence

Mapping

View

Data Serialization

Controller

Web Service

Persistence LayerResource Layer Representation Layer

Client Applications

Figure 3: The Data Access Service encapsulates a kernel with a three-layer architecture.

rich text editors that provide syntax highlighting,

syntax validation and code completion. The standard

template editor of JET is yet not fully developed. The

template editors of Xpand and Acceleo look very

similar in respect of usability and function volume.

Because, in addition, Acceleo follows the MOFM2T

standard we decided to build our generator tool with

the help of Acceleo.

4.3 Editor Development

The Graphical Editing Framework (GEF) supports

developers in creating graphical editors for the

Eclipse Platform. Such editors provide convenient

means to create complex objects such as state dia-

grams and process ﬂow editors. To simplify the cre-

ation of graphical editors based on EMF metamod-

els and GEF, the Graphical Modeling Project (GMP)

provides generation components and runtime infras-

tructure. Especially the Graphical Modeling Frame-

work (GMF) allows the development of diagram edi-

tors based on Ecore models without programming any

line of code.

4.4 Persistence Layer

A main requirement of the service is the possibil-

ity to save data in different kinds of storage. A

ﬂexible way to handle this issue provides the stan-

dard Java Data Objects (JDO) (Oracle Corpora-

tion, 2013b). JDO is an annotation-driven frame-

work which maps Java objects to storage entities.

The reference implementation of JDO is DataNu-

cleus (http://www.datanucleus.org) which supports a

large set of various storage types such as RDBMS

(Oracle, MySQL), map-based (HBase, Cassandra),

document-based (MongoDB) and web-based (Ama-

zonS3, Google Storage) storages.

Several EMF-based frameworks address the topic

of persisting models in different ways. Connected

Data Objects (CDO, http://www.eclipse.org/cdo/) can

be used to store EMF models in a central repository.

Although the pluggable storage backend of CDO is

very promising, the variety of supported storage types

is very limited and covers mostly relational database

systems. A similar approach regarding the persis-

tence of models employs the framework Teneo. It

provides a model-relational mapping using Hibernate

and EclipseLink. Teneo is also used in the CDO Hi-

bernate Store and supports only relational databases.

A very interesting EMF-based framework, espe-

cially considering the resource layer which is dis-

cussed in the next section, is Texo. From a model

deﬁnition it builds a web server which uses the Java

Persistence API (JPA) (Oracle Corporation, 2013c) to

store model data in relational data stores. In addition

it provides a REST interface which allows clients to

retrieve and modify data objects over a network. For

this purpose the data objects are serialized in XML

or JSON. Unfortunately it also does not fulﬁll the

requirement that different types of data storage sys-

tems, e.g. document-oriented or cloud storage sys-

tems, should be supported. Therefore we decided

to develop an own ﬂexible solution with JDO and

DataNucleus respectively.

4.5 Resource Layer

The resource layer should provide a programming

language-independent interface in order that differ-

ent applications can access data objects in a simple

and uniform way. As solution we chose a REST-

based Web service (Richardson and Ruby, 2007). We

decided to use REST over a SOAP-based Web ser-

vice (W3C, 2007) because the processing of domain

data will follow the CRUD functionality which is

represented by the standard HTTP methods (GET,

PUT, POST, DELETE). Furthermore the SOAP pro-

tocol has a signiﬁcant overhead due to increased

data volume transferred by the service. REST ser-

vices with Java are deﬁned by the JAX-RS speciﬁ-

cation (Oracle Corporation, 2013d). We used Jersey

(http://jersey.java.net/) for the implementation of the

resource layer because it is the reference implementa-

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

tion of the JAX-RS speciﬁcation which is widely used

by well-known Java projects.

4.6 Representation Layer

To combine the JDO technology with the REST

service, we needed to transform Java objects into

a language-independent representation format, e.g.

XML or JSON. A standard for this purpose is JAXB

(Java Architecture for XML Binding) (Oracle Corpo-

ration, 2013a) which can be used for binding XML

data to Java objects and vice versa. Thus, object in-

stances of the representation layer have dependencies

on the model and resource layer and transform the in-

coming data from the application layer to the corre-

sponding JDO objects of the storage layer.

4.7 Technology Stack

An overview of the chosen technologies is given in the

technology stack in Fig. 4. The stack has ﬁve layers of

components that we used to build a toolkit for gener-

ation of Data Access Services. The layers of the stack

have a ﬁxed sequence owing to the dependencies be-

tween the layers. The sequence of the layers gives rise

to the speciﬁc build process that is explained in Sec-

tion 5.2. The ﬁrst layer includes the deﬁnition of new

domain-speciﬁc models done with a simple graphical

editor based on EMF or a more complex diagram ed-

itor created with GMF. Acceleo templates are used to

transform the model deﬁnition to concrete Java source

code for the kernel API which is built with implemen-

tations of the speciﬁcations for JDO, JAXB and JAX-

RS. Then an Eclipse plug-in compiles the kernel API

to concrete Java bytecode. Finally the compiled ker-

nel code is packaged and deployed in a lightweight

runtime environment for Web services, for example

Apache Tomcat or Jetty from the Eclipse Foundation,

using Ant.

JAX-RS

JDO

Acceleo

EMF

GMF (optional)

Kernel API

Transformation

Modeling

Sequence

Build

Ant

Runtime

Jetty

JAXB

Eclipse

Figure 4: The technology stack used to build the toolkit.

5 TOOLKIT IMPLEMENTATION

One of the objectives is to provide a modeling envi-

ronment which supports domain experts with graphi-

cal editors for creating their models including a self-

explanatory GUI to manage the build process of the

Service Generator and to conﬁgure the application

and storage access layers. To tackle this task we

have implemented a toolkit based on the Eclipse

platform which in turn is based on the Equinox

OSGi (http://www.eclipse.org/equinox/) implementa-

tion and available for many operating systems. All

toolkit components were developed as Eclipse plug-

ins and made available on an Eclipse update site so

that users can install the toolkit with a few clicks into

their Eclipse installation.

The plug-ins can be classiﬁed in three categories:

The ﬁrst category are the plug-ins that are based on

EMF and which are generated mostly automatically.

The second category contains the generation plug-in

which manages the model-to-text transformation pro-

cess. Here the Acceleo templates are speciﬁed which

are used to generate all source and conﬁguration ﬁles

of the Data Access Service from a domain model. The

third category includes the main plug-in of the toolkit,

which we will discuss as well as the EMF-based plug-

ins in more detail below.

5.1 EMF-based Plug-ins

The ﬁrst plug-in in this category speciﬁes the Ecore

representation of the metamodel. Additionally a gen-

erator model automatically has been derived by EMF

from the metamodel which stores parameters for the

EMF code generator used to create source code for

other plug-ins described below. These two models

form the base for additional GMF models (gmfgraph,

gmftool, gmfmap, gmfgen) that are used to create a

high-quality diagram editor.

A plug-in whose content is based on the genera-

tor model is the edit plug-in. Its classes deﬁne the

base for graphical model editors. Some included

icons are used to mark the different model elements

in the editor view. To reduce the number of selectable

choices for the data type of an Attribute we made

some changes to this plug-in so that only the most

common used types, e.g. Boolean, Integer, Float and

String, are displayed in the editors.

Also based on the generator model an editor plug-

in has been generated. It contains classes for an entire

graphical editor consisting of multiple views (model

view and properties view). Additionally the plug-in

adds a wizard to the Eclipse platform which assists

users with the creation of new model ﬁles. We did not

AnEMF-basedToolkitforCreationofDomain-specificDataServices

make any changes in the source code of this plug-in.

To provide a graphical model editor which is more

comprehensive than the one deﬁned before we built a

diagram editor plug-in with GMF. The resulting dia-

gram editor looks similar to a simple UML class ed-

itor and facilitates a more sophisticated overview of

the data entities and the connections between them.

5.2 Main Plug-in

The main plug-in references the others to provide an

intuitive graphical interface and hides the details of

the generation process of the Data Access Service

from the users.

With the help of wizards users can create a new

project in Eclipse which contains a default model ﬁle

as well as a basic properties ﬁle which are starting

points for the users to deﬁne a new domain model.

When a model is designed the user can execute a

wizard which will guide them through the build pro-

cess. The user can choose if only a web applica-

tion ﬁle should be generated or a full-blown ready-

to-start web server with the web application already

installed. To make this possible we distribute a Jetty

web server with the toolkit. Although we provide

Jetty by default, the generated web application is

runnable on different servlet containers or Java appli-

cation servers, e.g. Apache Tomcat or GlassFish.

A wizard parametrizes and manages the build pro-

cess for the Data Access Service. The user has to

enter several properties regarding the storage and the

Web service layer that are mandatory to create a func-

tional kernel. If the user enters valid parameters the

wizard executes a sequential workﬂow which builds

the Data Access Service with the help of Ant.

Figure 5 shows the build process in more detail.

The initialization step creates a folder structure for the

generic Java source code, properties ﬁles and com-

piled classes. Then the code generation with Acceleo

from the user-generated domain model and a prop-

erties ﬁle is triggered. The generated Java classes

are stored in a package structure which reﬂects the

kernel architecture presented in Fig. 3. The usage

of DataNucleus implies an enhancement step which

is necessary to extend the byte code of the classes

from the resource package with additional function-

ality needed for persistence. In the deployment phase

the compiled and enhanced classes, constituting the

ready-to-run Data Access Service, are packed into a

WAR archive. Finally the WAR ﬁle and additional

storage drivers are copied to a Jetty web server which

is then zipped.

6 BENEFITS OF THE DATA

ACCESS SERVICE

In this section we discuss some aspects in our model-

driven Data Access Service that have been addressed

to obtain acceptance in the scientiﬁc community and

the industry.

6.1 Deployment

The Service Generator produces a standard WAR ﬁle

(Web application ARchive) containing the generated

kernel classes and conﬁguration ﬁles that constitute a

web application which can be deployed on different

application servers. We have deployed and run the

generated WAR ﬁle successfully on an Apache Tom-

cat and a Jetty web servers. These servers can host

multiple instances of Data Access Services in paral-

lel. To increase the automation, the Service Genera-

tor has the ability to create a ready-to-use Jetty web

server containing the web application together with a

bunch of tested storage drivers.

6.2 Security

Security is always important when processing user

data especially when the service is available via the

Internet. Application servers provide a lot of func-

tionality in the area of security which covers en-

cryption, authentication and authorization. All web

servers support data encryption via the SSL protocol.

Since we are using REST technology all aspects of

authentication and authorization can be handled via

Basic-Authentication or Digest-Authentication which

are also supported well by the Web server vendors.

Beside that alternative authentication protocols, e.g.

Shibboleth, Public Key or Kerberos, can be used to

protect the service from unauthorized parties.

6.3 Evolutionary Design

Usually domain models are subject to permanent

changes. This increases the effort for developing

scientiﬁc workﬂows because changes in the domain

model require changes on all components of the simu-

lation infrastructure in particular on the client and the

storage side. Changes on the client side can be min-

imized by generating the client code using the Web

service description that is automatically published by

the Data Access Service. Our major advantage of

using JDO in the persistence layer is the support of

schemaless storages, e.g. the NoSQL database Mon-

goDB. Such databases keep untouched when chang-

ing the domain model because the structure of the

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

Initialisation Code Generation Compilation Enhancement Deployment

Figure 5: Build process for the Data Access Service.

stored documents can vary. However DataNucleus

can handle changes on the domain model even for re-

lational databases as long as the model changes are

limited to the addition of new entities or attributes.

DataNucleus will add new tables and columns au-

tomatically to the database schema. However, after

deletion or change of an existing entity or attribute

the database schema must be updated manually.

6.4 Service Access

The implementation of the application access layer as

a RESTful service allows access from applications

written in various programming languages which

have HTTP support. Furthermore the transport format

is based on XML or JSON which are also in common

use for many programming languages. The REST ser-

vice is described in a WADL ﬁle (Web Application

Description Language) including the URIs of the ser-

vice resources. An XSD schema ﬁle, also provided by

the service, describes the XML representation that is

used to transfer the data entities between a client ap-

plication and the service. In the Java environment, the

Jersey Client API and the JAXB API can be used to

create service stubs for clients basing on the WADL

and XSD ﬁles. On the one hand this reduces the ef-

fort of programming client code to a minimum and on

the other hand it even makes the integration of some

applications containing many components feasible at

all.

Applied to constructing workﬂows from standard

components the Data Access Service provides a bet-

ter alternative to the common practice of using format

converters between workﬂow steps by replacing m:n

transformations by a 1:n transformation. Even exist-

ing tools, which operate for a limited set of supported

formats, will beneﬁt in such a way that they do not

have to exchange data in any other formats. Thereby,

the only remaining data transformation is the one be-

tween the internal representation and the one imposed

by the data model.

6.5 Performance

An important factor for the acceptance of the toolkit

is the performance of reading and writing data enti-

ties via the service. To get some insight we have car-

ried out performance measurements for three different

storage types, a document-based MongoDB, a rela-

tional database system PostgreSQL and cloud storage

Amazon S3 as persistence backends. For this purpose

we deﬁned an example entity type named Atom repre-

senting an atom with some attributes such as position

coordinates, charge and element type. The perfor-

mance test was done with a Jersey client that wrote

Atom entities in XML format via HTTP POST re-

quests to the storage. Beside the number of trans-

ferred entities we distinguished whether the entities

are transferred bundled in one POST request (list) or

sequentially (seq) in several POST requests. With

these measurements we could examine the overall ef-

fort for writing data from the application to the stor-

age as displayed in Fig. 6.

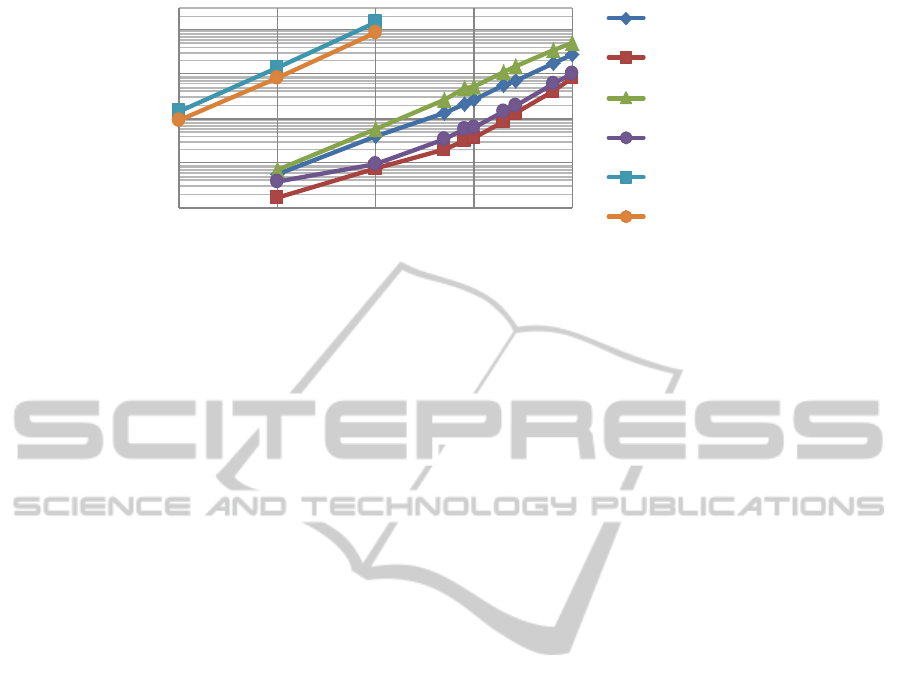

For all measurements MongoDB outperforms the

PostgreSQL. For up to 10000 atom entities all write

methods scale almost linearly. Then there is a cross-

over point after which a steeper linear region is ob-

served. The difference between the MongoDB and

PostgreSQL is smaller as between the single and the

bundled write modes, i.e. the effect of the choice be-

tween MongoDB and PostgreSQL is minor. Further-

more, MongoDB seems to scale better with increasing

number of entities for single writes (the correspond-

ing curves diverge in Fig. 6). In contrast, for bundled

writes, MongoDB and PostgreSQL seem to converge

and for sufﬁciently large data might have the same

performance. Using the Amazon S3 storage, which

is about 100 times slower than the slowest local stor-

age and write mode (PostgreSQL/seq), the bundled

transfer of data entities is always more efﬁcient. The

low performance is due to the used implementation of

JDO (DataNucleus) which executes additional service

requests to Amazon over the network. The bottleneck

seems to be either the network connection, the struc-

ture of the network communication or constraints of

the Amazon service. The possibility to choose be-

tween different storages depending on usage scenario

is a clear beneﬁt of the Data Access Service.

7 RELATED WORK

In this section we outline some recent developments

which have much in common with our present work.

We are not aware of an environment satisfying all re-

quirements of the user communities as discussed in

AnEMF-basedToolkitforCreationofDomain-specificDataServices

100

1000

10 100 1000 10000 10000 0

Time, seconds

Number of atom entities

MongoDB/seq

MongoDB/list

PostgreSQL/seq

PostgreSQL/list

AmazonS3/seq

AmazonS3/list

Figure 6: Throughput performance of the Data Access Service measured for three different storage backends.

Section 2. In speciﬁc scientiﬁc and engineering do-

mains (for instance, in materials science) the practical

beneﬁts of the model-driven engineering and service-

oriented architecture is still limited. Existing solu-

tions, some of which are described in the following,

are either too generic, and hence inaccessible for such

communities, or too speciﬁc and difﬁcult to transfer

to other application scenarios.

The MEMOPS (MEta-MOdel Programming Sys-

tem) (Fogh et al., 2010) code generation machinery

is a good example for a graphical modeling tool cre-

ated by the Collaborative Computational Project for

NMR (CCPN) (Vranken et al., 2005) and deployed

in the domain of the nuclear magnetic resonance.

MEMOPS offers a graphical tool where domain spe-

cialists can design their models in the UML (Uniﬁed

Modeling Language) notation. The MEMOPS frame-

work creates data access libraries (via APIs) and data

storage implementation automatically from the model

description. Unfortunately, the generated APIs are re-

stricted to Python, Java and C that limits the num-

ber of applications and the only supported storage

types are local XML ﬁles and SQL databases. There-

fore, the system is limited to non-distributed appli-

cations, i.e. running locally. In another approach for

biomolecular NMR data analysis, workﬂow models

and conceptual and logical data models (Ellis et al.,

2006) have been proposed which have led recently

to the CONNJUR integrated environment (Nowling

et al., 2011) aiming to support the entire process of

molecular structure determination.

In the framework of the Integrated Tokamak Mod-

eling Task Force (ITM), the Universal Access Layer

(UAL) (Manduchi et al., 2008) has been developed

to provide capability of storing and retrieving data

involved in a simulation using the Kepler workﬂow

system. The underlying hierarchical data structure is

based on the storage formats MDSplus and HDF5 and

the granularity in data access is deﬁned by a set of so-

called Consistent Physical Objects.

The SIMPL framework architecture has been pro-

posed for access to heterogeneous data sources in sci-

entiﬁc workﬂows (Reimann et al., 2011). The SIMPL

framework has been designed as extension to exist-

ing scientiﬁc workﬂow management systems to pro-

vide abstraction for data management and data provi-

sioning in scientiﬁc and engineering simulation work-

ﬂows. However, the SIMPL framework does not pro-

vide means for meta-modeling and data models for

the data structures.

Recently an approach called Morsa (Es-

pinazo Pag

an et al., 2011) has been proposed

for scalable access to large models through load

on demand in which model persistence has been

realized using a NoSQL database. Performance

benchmarks with a prototype for EMF have shown

performance superior to CDO and XMI especially

in respect with reduced memory footprint achieved

by partial loading of the data. More recently, the

proposed language T



(Rabbi and MacCaull, 2012)

enables model-driven development and generation of

multi-component workﬂow applications. Thereby,

the aspects of the persistence component have been

less emphasized as in our present work. Rather,

the provided elaborated language syntax allows

for implementing procedural statements, ontology

queries, declaring user interfaces, applying access

control policy, and task scheduling via Web service

based access interfaces for client applications and

resources.

MDE Eclipse tools have been employed for indus-

trial development of distributed scientiﬁc workﬂow

applications in the oil and gas domain (Rahon et al.,

2012). Similar to the approach in our present work,

the EMF/Ecore is used for modeling and Acceleo for

code generation. Nevertheless, the realization does

not seem to allow the same variety of storage back-

ends and does not provide a language-independent

Web service as client application interface but a C++

library API.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

8 CONCLUSIONS

In this paper we presented a generic framework for

model-driven management of data in composite sci-

entiﬁc and engineering applications. The essential re-

sult of the realization of the framework is an EMF-

based toolkit, consisting of a set of Eclipse plugins,

which enables domain experts to develop data mod-

els and automatically generate self-contained data ac-

cess services. For this purpose we deﬁned as a spe-

cialization of the Ecore meta-metamodel a custom

metamodel which is optimized for handling domain-

speciﬁc pure data models. A data access service is au-

tomatically created employing a generative approach

based on Acceleo and integrating JDO and JAX-RS

to the service kernel, containing a persistence layer, a

resource layer and a representation layer. The data is

then accessible from the individual client application

components via a language-independent Web service

interface of the data access service.

The proposed solution is especially suitable for

applications with high heterogeneity and complexity

of data representations, diversity of programming lan-

guages of the integrated components and data stor-

age resources used. The solution makes possible an

evolutionary design of dynamically changing appli-

cations. Thus the toolkit can be used in all applica-

tion domains of computational science for rapid de-

velopment of complex dynamic applications and ef-

fective deployment as Web services. Although the

toolkit strongly reduces the technical burden of data

modeling and management, it can be combined with

ontology-based frameworks such as the Apache Jena

framework (http://jena.apache.org/) to tackle model

complexity even more effectively.

Future work will focus on analysis of the scalabil-

ity of the data access service, in particular considering

applications for data-intensive analyses and evalua-

tion in production environments. Additionally we en-

visage exploitation of the modeling approach to steer

throughput performance optimizations. Also further

practical aspects such as model revisions and model

changes during service operation will be investigated.

As soon as the framework is released we will pro-

vide tutorials and example use cases to demonstrate

the operability.

ACKNOWLEDGEMENTS

This work has been partially funded by the 7th

Framework Programme of the European Commission

within the Research Infrastructures with grant agree-

ment number RI-261594, project MMM@HPC.

REFERENCES

Ambler, S. W. (2012). Mapping Objects to Re-

lational Databases: O/R Mapping In Detail.

http://www.agiledata.org/essays/mappingObjects.htm

[Online; accessed 6-August-2013].

Bender, A., Poschlad, A., Bozic, S., and Kondov, I.

(2013). A Service-oriented Framework for Integration

of Domain-speciﬁc Data Models in Scientiﬁc Work-

ﬂows. Procedia Computer Science, 18:1087 – 1096.

2013 International Conference on Computational Sci-

ence.

Birkenheuer, G., Blunk, D., Breuers, S., Brinkmann, A., dos

Santos Vieira, I., Fels, G., Gesing, S., Grunzke, R.,

Herres-Pawlis, S., Kohlbacher, O., Kruger, J., Lang,

U., Packschies, L., Muller-Pfefferkorn, R., Schafer, P.,

Steinke, T., Warzecha, K.-D., and Wewior, M. (2012).

MoSGrid: efﬁcient data management and a standard-

ized data exchange format for molecular simulations

in a grid environment. Journal of Cheminformatics,

4(Suppl 1):P21.

Bozic, S. and Kondov, I. (2012). Dataﬂow Management: A

Grand Challenge in Multiscale Materials Modelling.

In Cunningham, P. and Cunningham, M., editors,

eChallenges e-2012 Conference Proceedings, page

Ref. 38. IIMC International Information Management

Corporation.

Bozic, S., Kondov, I., Meded, V., and Wenzel, W. (2012).

UNICORE-Based Workﬂows for the Simulation of

Organic Light-Emitting Diodes. In Huber, V., M

uller-

Pfefferkorn, R., and Romberg, M. R., editors, UNI-

CORE Summit 2012 Proceedings, May 30-31, 2012,

Dresden, Germany, volume 15 of IAS Series, pages

15–25. Forschungszentrum J

ulich GmbH Zentralbib-

liothek, Verlag.

Dubitzky, W., McCourt, D., Galushka, M., Romberg, M.,

and Schuller, B. (2004). Grid-enabled data warehous-

ing for molecular engineering. Parallel Computing,

30(9-10):1019–1035.

Ellis, H., Fox-Erlich, S., Martyn, T., and Gryk, M. (2006).

Development of an Integrated Framework for Protein

Structure Determinations: A Logical Data Model for

NMR Data Analysis. In Third International Confer-

ence on Information Technology: New Generations,

2006. ITNG 2006., pages 613–618.

Erl, T. (2005). Service-Oriented Architecture: Concepts,

Technology, and Design. Prentice Hall PTR, Upper

Saddle River, NJ, USA.

Espinazo Pag

an, J., S

anchez Cuadrado, J., and

Garc

ıa Molina, J. (2011). Morsa: A Scalable

Approach for Persisting and Accessing Large Mod-

els. In Whittle, J., Clark, T., and K

uhne, T., editors,

Model Driven Engineering Languages and Systems,

volume 6981 of Lecture Notes in Computer Science,

pages 77–92. Springer Berlin Heidelberg.

Fogh, R. H., Boucher, W., Ionides, J. M. C., Vranken, W. F.,

Stevens, T. J., and Laue, E. D. (2010). MEMOPS:

Data modelling and automatic code generation. J. In-

tegr. Bioinform., 7(3):123–145.

Fogh, R. H., Boucher, W., Vranken, W. F., Pajon, A.,

Stevens, T. J., Bhat, T. N., Westbrook, J., Ionides, J.

AnEMF-basedToolkitforCreationofDomain-specificDataServices

M. C., and Laue, E. D. (2005). A framework for sci-

entiﬁc data modeling and automated software devel-

opment. Bioinformatics, 21(8):1678–1684.

Kondov, I., Maul, R., Bozic, S., Meded, V., and Wen-

zel, W. (2011). UNICORE-Based Integrated Appli-

cation Services for Multiscale Materials Modelling.

In Romberg, M., Bala, P., M

uller-Pfefferkorn, R., and

Mallmann, D., editors, UNICORE Summit 2011 Pro-

ceedings, 7-8 July 2011, Torun, Poland, volume 9 of

IAS Series, pages 1–10, J

ulich. Forschungszentrum

ulich GmbH Zentralbibliothek.

Manduchi, G., Iannone, F., Imbeaux, F., Huysmans, G., Lis-

ter, J., Guillerminet, B., Strand, P., Eriksson, L.-G.,

and Romanelli, M. (2008). A universal access layer

for the Integrated Tokamak Modelling Task Force. Fu-

sion Engineering and Design, 83(2-3):462 – 466.

Murray-Rust, P., Townsend, J., Adams, S., Phadung-

sukanan, W., and Thomas, J. (2011). The semantics of

Chemical Markup Language (CML): dictionaries and

conventions. Journal of Cheminformatics, 3(1):43.

Nowling, R., Vyas, J., Weatherby, G., Fenwick, M., El-

lis, H., and Gryk, M. (2011). CONNJUR spectrum

translator: an open source application for reformatting

NMR spectral data. Journal of Biomolecular NMR,

50:83–89.

OMG (2003). UML 2.0 Infrastructure Speciﬁcation.

Technical Report ptc/03-09-15, Object Management

Group.

Oracle Corporation (2013a). JSR 222: Java(TM)

Architecture for XML Binding (JAXB) 2.0.

http://jcp.org/en/jsr/detail?id=222 [Online; accessed

6-August-2013].

Oracle Corporation (2013b). JSR 243: Java(TM) Data

Objects 2.0 - An Extension to the JDO speciﬁca-

tion. http://jcp.org/en/jsr/detail?id=243 [Online; ac-

cessed 6-August-2013].

Oracle Corporation (2013c). JSR 317: Java(TM) Persis-

tence 2.0. http://jcp.org/en/jsr/detail?id=317 [Online;

accessed 6-August-2013].

Oracle Corporation (2013d). JSR 339: JAX-RS

2.0: The Java API for RESTful Web Services.

http://jcp.org/en/jsr/detail?id=339 [Online; accessed

6-August-2013].

Rabbi, F. and MacCaull, W. (2012). T



: A Domain Spe-

ciﬁc Language for Rapid Workﬂow Development. In

France, R. B., Kazmeier, J., Breu, R., and Atkinson,

C., editors, Model Driven Engineering Languages and

Systems, volume 7590 of Lecture Notes in Computer

Science, pages 36–52. Springer Berlin Heidelberg.

Rahon, D., Gayno, R., Gratien, J.-M., Le Fur, G., and

Schneider, S. (2012). Migration to model driven en-

gineering in the development process of distributed

scientiﬁc application software. In Proceedings of the

3rd annual conference on Systems, programming, and

applications: software for humanity, SPLASH ’12,

pages 181–190, New York, NY, USA. ACM.

Reimann, P., Reiter, M., Schwarz, H., Karastoyanova, D.,

and Leymann, F. (2011). SIMPL - A Framework

for Accessing External Data in Simulation Workﬂows.

In f

ur Informatik (GI), G., editor, Datenbanksysteme

ur Business, Technologie und Web (BTW 2011), 14.

Fachtagung des GI-Fachbereichs “Datenbanken und

Informationssysteme” (DBIS), Proceedings, 02.-04.

arz 2011, Kaiserslautern, Germany, volume 180 of

Lecture Notes in Informatics (LNI), pages 534–553.

Richardson, L. and Ruby, S. (2007). RESTful Web Services.

O’Reilly, ﬁrst edition.

Sadiq, S., Orlowska, M., Sadiq, W., and Foulger, C. (2004).

Data ﬂow and validation in workﬂow modelling. In

Proceedings of the 15th Australasian database con-

ference, volume 27 of ADC ’04, pages 207–214, Dar-

linghurst, Australia, Australia. Australian Computer

Society, Inc.

Schmidt, D. (2006). Guest Editor’s Introduction: Model-

Driven Engineering. IEEE Computer, 39(2):25–31.

Schneider, O., Fogh, R. H., Sternberg, U., Klenin, K., and

Kondov, I. (2012). Structure Simulation with Calcu-

lated NMR Parameters — Integrating COSMOS into

the CCPN Framework. In Gesing, S., Glatard, T.,

uger, J., Olabarriaga, S. D., Solomonides, T., Sil-

verstein, J. C., Montagnat, J., Gaignard, A., and Kreft-

ing, D., editors, HealthGrid Applications and Tech-

nologies Meet Science Gateways for Life Sciences,

volume 175 of Studies in Health Technology and In-

formatics, pages 162–172. IOS Press.

Sild, S., Maran, U., Lomaka, A., and Karelson, M. (2006).

Open Computing Grid for Molecular Science and En-

gineering. J. Chem. Inf. Modeling, 46:953–959.

Sild, S., Maran, U., Romberg, M., Schuller, B., and Ben-

fenati, E. (2005). OpenMolGRID: Using Automated

Workﬂows in GRID Computing Environment. In

Sloot, P., Hoekstra, A., Priol, T., Reinefeld, A., and

Bubak, M., editors, Advances in Grid Computing -

EGC 2005, volume 3470 of Lecture Notes in Com-

puter Science, pages 464–473. Springer.

Vranken, W. F., Boucher, W., Stevens, T. J., Fogh, R. H.,

Pajon, A., Llinas, M., Ulrich, E. L., Markley, J. L.,

Ionides, J., and Laue, E. D. (2005). The CCPN data

model for NMR spectroscopy: Development of a soft-

ware pipeline. Proteins: Structure, Function, and

Bioinformatics, 59(4):687–696.

W3C (2007). SOAP Version 1.2 Part 1: Messaging Frame-

work (Second Edition).

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment
