A Language for Enabling Model-Driven Analysis of Business Processes

Paolo Bocciarelli, Andrea D’Ambrogio and Emiliano Paglia

Department of Enterprise Engineering, University of Rome Tor Vergata, Rome, Italy

Keywords:

Business Process, BPMN, Model Transformation, Domain-speciﬁc Language, Simulation, Performance.

Abstract:

The use of simulation-based approaches for the analysis of business processes enables the design-time

prediction of the process behavior and/or the operation-time process reconﬁguration. However, the

effectiveness of BP simulation is still limited for several reasons (e.g., lack of simulation know-how of BP

analysts, simulation model parameters that can be hard to gather, large semantic gap between the business

process model and the simulation model). To overcome such limitations, this paper introduces a model-

driven method to automatically build the executable simulation code of a business process from its abstract

deﬁnition in BPMN, the standard language for specifying business processes. The simulation code is speciﬁed

in eBPMN, a novel domain-speciﬁc language that has been designed and implemented according to the BPMN

execution semantics.

1 INTRODUCTION

Modern enterprises are increasingly interested in

analyzing and optimizing the business processes

(BPs) that deﬁne the set of tasks executed to deliver

services and/or produce goods. A BP is deﬁned by the

set of tasks that are orchestrated for delivering value

to customers and commercial partners.

In this context, business analysts claim for

methods and tools to specify business goals, analyze

the model of a BP and predict at design time

its behavior to assess whether or not the business

goals can be achieved. It is thus essential to

quantitatively analyze a speciﬁed BP to study the

characteristics affecting its overall quality. The most

relevant example of BP quantitative analysis is the

performance analysis (van der Aalst et al., 2010).

In (Kamrani et al., 2010; Hook, 2011; van der

Aalst et al., 2010) simulation has been identiﬁed as a

key technique for BP performance analysis. However,

the effectiveness of BP simulation is still limited,

mainly for the following reasons:

• lack of simulation know-how of BP analysts;

• costs and difﬁculties in retrieving and analyzing

the data required for simulation model parameter-

ization;

• large semantic gap between the business process

model and the simulation model;

• use of models that may be (partially) incorrect or

may not be at the right level of abstraction.

In order to overcome such limitations, we have

proposed a model-driven method for the generation of

executable simulation code from BP models speciﬁed

by use of the BPMN (Business Process Model and

Notation) language (Bocciarelli and D’Ambrogio,

2012; Bocciarelli et al., 2012). The method has been

used to generate queueing-based analysis models of

the BP under study. The simulation-based analysis of

such models, which are speciﬁed by use of the EQN

(Extended Queueing Network) formalism, yields the

design-time prediction of the BP behavior, to assess

whether or not it meets the required constraints.

In this work we propose a signiﬁcant extension

of the previous contribution. Speciﬁcally, we

introduce a model-driven method that exploits a novel

language, named eBPMN, to automatically build BP

executable simulation code from standard BPMN

models. eBPMN is a domain-speciﬁc language that

has been designed and implemented according to

the BPMN execution semantics, thus obtaining a

compact and precise executable model of the input

BP model, without the need of introducing addi-

tional formalisms, such as queueing-based modeling

languages. As a consequence, it can be effectively

used by business analysts who do not have speciﬁc

queueing theory skills.

The proposed method exploits both PyBPMN

(Bocciarelli and D’Ambrogio, 2011b), a BPMN

extension to specify performance-related properties

of a BP, and SimArch (Gianni et al., 2011), a

layered infrastructure to ease the speciﬁcation and the

325

Bocciarelli P., D’Ambrogio A. and Paglia E..

A Language for Enabling Model-Driven Analysis of Business Processes.

DOI: 10.5220/0004712603250332

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 325-332

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

implementation of discrete event simulation models.

Finally, the proposed approach overcomes the

limitations of the several commercially-available

BPM tools that show a low degree of customizability

(or result not customizable at all), being tied to

the speciﬁc implementation technologies adopted for

modeling and simulating (or often simply animating)

the BP behavior.

The rest of the paper is structured as follows.

Section 2 reviews relevant contributions dealing with

BP analysis. Section 3 brieﬂy provides an overview

of the technical background at the basis of this

work. Section 4 describes eBPMN, while Section

5 illustrates the proposed model-driven method that

yields the executable eBPMN simulation code from

the abstract BPMN model. Finally, Section 6 outlines

the conclusions.

2 RELATED WORK

This section reviews the existing literature dealing

with BP analysis. In this respect, as stated in

Section 1, this work extends and improves our

previous contributions (Bocciarelli and D’Ambrogio,

2012; Bocciarelli et al., 2012), which introduce a

model-driven method for the generation of executable

queueing-based simulation code from BPMN models.

Similarly to such contributions, this work exploits

model-driven techniques and the SimArch architec-

ture to ease the automated generation of executable

simulation code of the BP under study. Differently,

this work introduces eBPMN, a novel simulation

language built on top of SimArch and based on the

BPMN 2.0 execution semantics.

Approaches that deal with the use of executable

models can be found, e.g., in (Tatibouet et al., 2013;

Weyprecht and Rose, 2011). The use of fUML

in simulation processes is discussed in (Tatibouet

et al., 2013), which proposes new mechanisms for

delegating the execution control, in order to provide

a basic support for discrete-event simulation. The

limitations of the reference implementation of fUML

are discussed in (Weyprecht and Rose, 2011), which

states that fUML does not include the concept of time

and does not provide mechanisms to observe elements

during the simulation. A new implementation of

fUML is then synthetically discussed, which aims

to provide all the features required to effectively use

fUML for simulation purposes. Such aforementioned

approaches are founded on the adoption of the

fUML notation. In this respect, it should be noted

how fUML could be easily reused in the BPM

context, according to the following considerations:

i) (White, 2004) states that fUML activity diagrams

and BPMN models can be considered semantically

equivalent; ii) the abstract BP model can be speciﬁed

as a fUML activity diagram either directly or

transforming a BPMN model by use of existing

model-driven approaches, as discussed in (Bocciarelli

and D’Ambrogio, 2012). Nevertheless, as underlined

in (Tatibouet et al., 2013; Weyprecht and Rose, 2011),

fUML shows several limitations and the reference

implementation needs to be extended in order to

be used in real-world simulation cases. Differently

from contributions that make use of fUML, this

work is founded on the use of a domain-speciﬁc

simulation language, built according to the BPMN 2.0

speciﬁcation.

The optimization of BPs by use of performance-

based simulation or analytical techniques can be

found in (Kamrani et al., 2010; Yang et al., 2010;

Grefen et al., 2000). A BPMN extension to

enable the association of performance information

to task and activity constructs is introduced in

(Kamrani et al., 2010). The proposed approach

exploits such extension to estimate an overall measure

of the BP performance by simulating a model

of human agents performance. The performance

metrics are ﬁnally used to optimize the allocation

of tasks to agents. The application of discrete

event simulation to workﬂows is discussed in (Yang

et al., 2010). The paper proposes a framework for

process simulation based on multi-agent systems to

support ﬂexible activity scheduling. Differently from

the aforementioned contributions, this work makes

use of the eBPMN language for implementing and

executing the corresponding simulation. Moreover,

the proposed approach concretely exploits SimArch

and model-driven core standards, such as MOF, XMI

and QVT, to obtain a signiﬁcant reduction of the effort

needed for implementing the relevant simulation.

3 BACKGROUND

In order to provide a clear understanding of the

technical basis of this paper work, the following sub-

sections brieﬂy outline both the PyBPMN extension

and the SimArch architecture.

3.1 Performability-enabled BPMN

BPMN is a standard notation for the high-level

representation of business processes and is typically

used at the early stages of the business process

lifecycle. Despite its pervasiveness and completeness,

BPMN does not support the characterization of the

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

326

BP in terms of non functional properties, such

as performance or reliability (Saeedi et al., 2010).

Currently, BPMN descriptions cannot be used to

specify overall performance constraints (e.g., the

response time associated to the entire BP execution)

or task properties (e.g., execution time of a single

process task). To overcome such limitations we

have introduced PyBPMN (Performability-enabled

BPMN), a lightweight BPMN extension that ad-

dresses the speciﬁcation of performance and reliabil-

ity properties of a BP (Bocciarelli and D’Ambrogio,

2011b; Bocciarelli and D’Ambrogio, 2011a).

More speciﬁcally, PyBPMN is obtained as a

BPMN metamodel extension that provides annota-

tions to specify workloads, performance properties

and reliability properties. In this work PyBPMN

is speciﬁcally used to drive the generation of

performance-oriented simulation models of BPs, by

use of the following metaclasses:

• ClosedPattern: to represent the workload in terms

of a ﬁxed number of active or potential users/jobs.

• OpenPattern: to represent the workload in terms

of a stream of requests that arrive at a given rate

in some predetermined pattern.

• PaService: to represent the execution demand of

tasks. It is speciﬁed by a set of attributes, such

as unit, which describes the unit of measure, and

value, which speciﬁes the service time value.

A detailed description of PyBPMN can be found

in (Bocciarelli and D’Ambrogio, 2013).

3.2 SimArch

SimArch is a layered software architecture that pro-

vides a general-purpose and event-based simulation

infrastructure upon which domain-speciﬁc simulation

components can be implemented and seamlessly used

in local or distributed execution environments (Gianni

et al., 2011).

The architecture, depicted in Figure 1, consists

of ﬁve layers: distributed computing infrastructure

(Layer 0), distributed discrete event simulation

services (Layer 1), discrete event simulation services

(Layer 2), simulation components (Layer 3) and

simulation model (Layer 4). SimArch users specify

simulation models at Layer 4 by use of a domain-

speciﬁc simulation language. Currently, SimArch is

provided with jEQN, a Java-based simulation library

that implements a domain-speciﬁc language for the

speciﬁcation of EQN models.

Layer 0 is the distributed computing infras-

tructure, which can be either a simulation-speciﬁc

infrastructure, such as the High Level Architecture

Layer 4

Simulation Model Layer

Layer 3

Simulation Components Layer

Layer 2

Discrete Event Simulation

Layer

Layer 1

Distributed Discrete Event

Simulation Layer

Layer 0

Distributed Computing

Infrastructure Layer

Distributed Infrastructure Implementation

Figure 1: Simarch layered architecture.

(HLA), or a general-purpose infrastructure, such as

a cloud-based platform. Layer 1 implements an

abstraction of a distributed discrete event simulation

and contributes to make the speciﬁc distributed

infrastructure transparent to the uppermost layer.

Layer 1 provides typical distributed simulation

services such as synchronization or event dispatching,

used by Layer 2 to provide a transparent discrete event

simulation abstraction on top of local or distributed

execution environments.

Layers from 0 to 2 constitute the backbone of the

SimArch architecture and provide services to build

discrete event simulations that can be transparently

executed either in local or distributed execution con-

texts. Upper levels are instead committed to specify

and implement domain-speciﬁc simulation systems.

Speciﬁcally, Layer 3 contains the implementation of

a domain-speciﬁc simulation language, which is used

ad Layer 4 to deﬁne speciﬁc simulation models.

Currently, the Layer 2 implementation supports

the process interaction simulation paradigm and is

founded on the following concepts:

• simulation engine, which is the engine that

executes the simulation system;

• simulation entity, which represents a building

block used to build simulation systems;

• port, which belongs to a simulation entity and

constitutes its interaction point; ports allow the

exchange of events among entities;

• link, which represents the logical connection

among entity ports;

• event, which represents something that occurs at

a particular instant in time and affects the state of

the system.

ALanguageforEnablingModel-DrivenAnalysisofBusinessProcesses

327

Interested readers are referred to the SimArch

website (https://sites.google.com/site/

simulationarchitecture) for additional details.

4 eBPMN

eBPMN is a domain speciﬁc simulation language

built according to the BPMN 2.0 execution semantics

(OMG, 2011) and thus close to the domain experts

knowledge. Similarly to jEQN, eBPMN is built on

top of SimArch and its implementation is composed

of a set of Java-based primitives. Each primitive

implements the execution semantics of a given BPMN

construct. With regards to the SimArch layered

architecture (see Figure 1), eBPMN is positioned

at Layer 3 and uses/extends the Layer 2 services,

classes and interfaces to enable the speciﬁcation of

BP simulation models at Layer 4. An architectural

view of the eBPMN implementation is summarized in

the class diagram depicted in Figure 2, where classes

provided by the SimArch reference implementation

are shown in gray background color.

According to the SimArch speciﬁcation, a

Layer 3 implementation is centered around the

ComponentLevelEntity class that implements the

Layer2toLayer3Interface and provides the simu-

lation and synchronization services to manage events

and to control the component execution. Table 1

summarizes a description of the eBPMN primitives

that implement a subset of the elements provided by

the BPMN 2.0 notation. As speciﬁcally described in

Subsection 4.1, this work is a ﬁrst step toward a full

coverage of the BPMN 2.0 speciﬁcation.

4.1 Implementation Assumptions

In order to simplify the space of the problem and,

ultimately, to limit the implementation of the ﬁrst

release to the core BPMN elements, the currently

available eBPMN version is built on top of the

following assumptions:

• interactions among several participants must be

expressed in terms of a collaboration. The

use of a choreography model is not currently

supported;

• the use of both multiple incoming and outgoing

sequence ﬂows is not permitted. Converging and

diverging ﬂows must be explicitly represented by

use of gateway elements;

• each Pool must include either a start event

element or a receive task element that activates the

related process execution;

• conditions associated on outgoing sequence ﬂows

of inclusive and exclusive gateways must be

expressed in terms of either the branching

probability or the number of iterations to be

performed;

• Event-based gateways are not currently sup-

ported.

5 MODEL-DRIVEN METHOD

FOR BP SIMULATION

Figure 3 illustrates the method that exploits eBPMN

to automate the simulation-based analysis of BPs.

The proposed method has been built upon our

previous work (Bocciarelli and D’Ambrogio, 2011b;

Bocciarelli and D’Ambrogio, 2012), which has

been revised and extended to achieve the following

objectives:

• Use of eBPMN: methods proposed in previous

contributions adopt a two steps approach that ﬁrst

generates an intermediate and abstract model (i.e.,

a UML Activity Diagram) and then uses such

a model to generate a performance model based

on queueing-based formalisms, such as EQN.

Differently, this work integrates and exploits the

eBPMN language and does not require any UML

intermediate model. Moreover, being sternly

linked to the BPMN 2.0 speciﬁcation, eBPMN

contributes to provide a more accurate simulation

of the BP behavior.

• Use of Visual Tools: in order to allow the

speciﬁcation of the non-functional properties of

BPs and to drive the automated execution of the

simulation-based analysis, methods proposed in

our past works are founded on the lightweight

PyBPMN extension. One of the most relevant

limitation of such an approach is the unavailability

of visual tools to represents PyBPMN models. In

this respect, this work introduces a novel model

transformation that allows BP analysts to specify

the BPMN model by use of BPMN-compliant

visual tools and effortlessly annotate the model by

use of the PyBPMN extension.

With regards to the use of visual tools, it

should be underlined that alternative solutions based

on the BPMN native extension mechanism (OMG,

2011) have been evaluated. Even though such

an approach is promoted as the standard BPMN

extension mechanism, it is affected by the following

limitations (Stroppi et al., 2011):

• it does not deﬁne a methodological approach to

design the extension;

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

328

Table 1: Description of the eBPMN primitives.

Class Name Description

FlowObject The building block of a BPMN model.

Activity

The execution of an Activity object starts as a token incomes. To model the execution

of a process step, an Activity object holds the incoming token for the time required

to execute the related process step and send it through the outgoing sequence ﬂow. The

Activity class constructor is parameterized according to the performance annotations

speciﬁed in the PyBPMN model.

ServiceTask

An automated step that is executed by invoking an external web service. As the

PyBPMN annotations are used to specify web service request and response messages,

the behavior of the ServiceTask object takes into consideration the time required to

send, receive and elaborate such messages.

SendTask

Upon activation, a SendTask object sends a message through the outgoing

MessageFlow that causes the notiﬁcation of an IncomingMessage event at the recipient

side, then it terminates its execution.

ReceiveTask

A ReceiveTask class can be used either as an intermediate task or as an initial node. In

the former case the ReceiveTask creates a new Token object and routes it through the

outgoing SequenceFlow. In the latter case it waits until an IncomingMessage event

occurs.

StartEvent

A source for a process execution and instantiation of a new Token object within the

process workﬂow. The StartEvent class constructor is parameterized according to

the workload annotations speciﬁed in the PyBPMN model.

EndEvent A sink for all incoming tokens.

Gateway Probability-based and iteration-based branching conditions.

ParallelGateway

Synchronization of multiple concurrent ﬂows (i.e., join behavior) and activation of new

concurrent threads on outgoing sequence ﬂows (i.e., fork behavior).

ExclusiveGateway

Upon activation, the ExclusiveGateway class routes the incoming token to one of

the associated outgoing SequenceFlow elements, according to the related condition

that must be expressed in terms of either the branching probability or the number of

iterations that have to be carried out.

InclusiveGateway

Upon execution, the incoming tokens are consumed and some tokens are generated and

routed to a subset of the outgoing sequence ﬂows. The branching condition must be

expressed in terms of either the branching probability or the number of iterations that

have to be carried out.

Pool

A thread of simulation execution that groups the elements associated to each participant

and allows to collect process-related statistic data.

SequenceFlow

Connection link between two ObjectFlow classes, in order to allow the routing of

tokens within the simulation model.

MessageFlow

Connection link between a SendTask class and a ReceiveTask class, in order to route

Message elements

Data Interface that speciﬁes the payload of exchanged events.

Message Data exchanged by a pair of SendTask and ReceiveTask elements

Token

The Token class manages the activities execution ﬂow. It owns two attributes:

currentTime, which stores the current value of the simulation time, and bornTime,

which holds the simulation time value at the moment of the object instantiation.

EventType

The handling of events in eBPMN is fully based on the SimArch reference

implementation. The EventType enumeration implements the two types of events that

have to be managed by the underlying DES engine for the BP simulation purposes (i.e.,

Incoming token and Incoming message).

ALanguageforEnablingModel-DrivenAnalysisofBusinessProcesses

329

<<interface>>

SimJEntity

LocalEntity

<<interface>>

SimJEvent

PLocalEvent

Layer 2

Layer 3

ComponentLevelEntity

Layer3ToLayer2Interface

<<enum>>

EventType

incomingToken

incomingMessage

Event

<<interface>>

Data

Message Token

SequenceFlow

MessageFlow

PoolEventNodeGateway

ExclusiveGateway InclusiveGateway ParallelGatewayTask

SendTask ReceiveTask

Activity

ServiceTask

LocalProcessEngine

<<interface>>

Link

<<interface>>

Port

BasicPortBasicLink

inputPort

outputPort

FlowObject

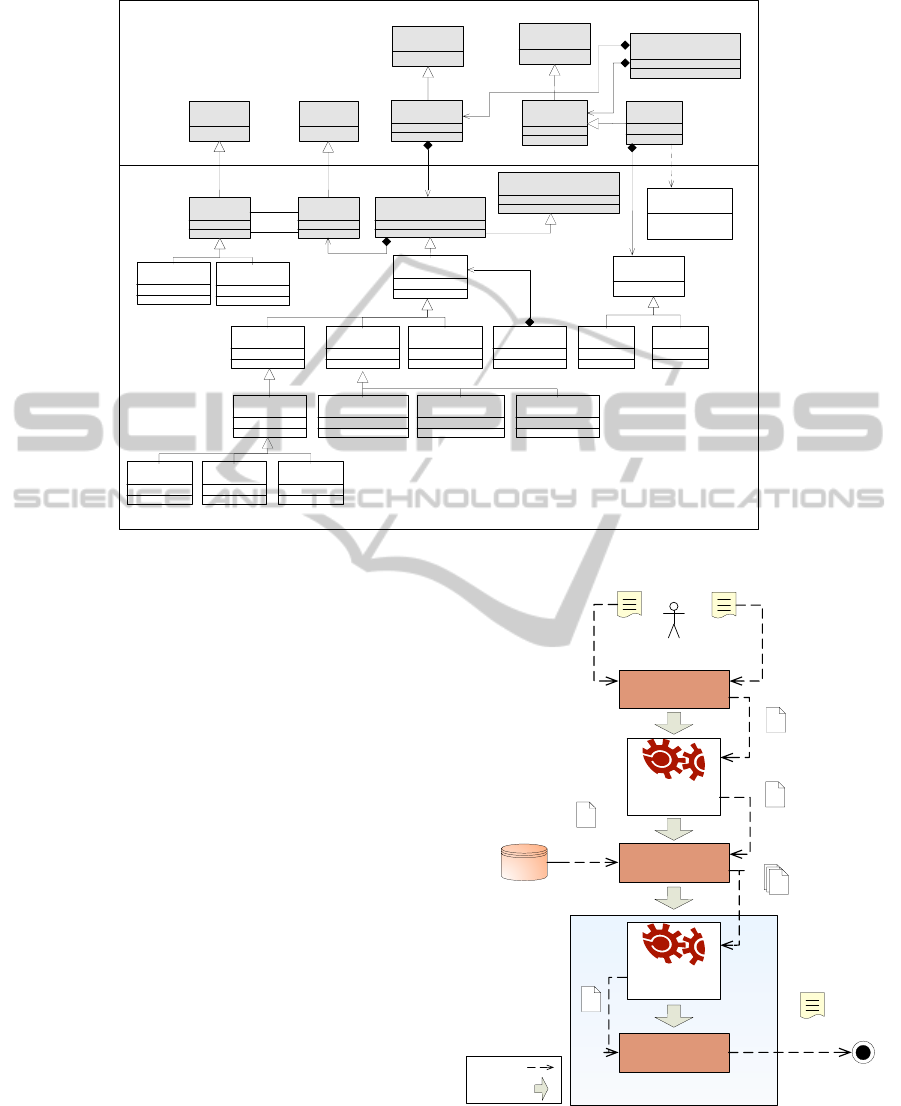

Figure 2: eBPMN architecture.

• the BPMN speciﬁcation does not provide any

visual notation to represent the extension.

As a consequence, the concrete support of the

extension mechanism by open source and commercial

tools is still limited in practice. The Eclipse

Foundation provides a well documented method to

build a plugin, based on the BPMN Modeler (Eclipse

Foundation, 2013), whose implementation is based

on the BPMN native extension mechanism. In such

an approach, the BPMN extension is provided as

an Ecore metamodel that is in turn used to create

the Java code to deﬁne novel BPMN flow object.

Differently, the proposed method (and speciﬁcally

the PyBPMN extension) implementation leverages

model-driven standards and tools so that it can be

easily customized to ﬁt speciﬁc needs.

According to Figure 3, at the ﬁrst step, the

business analyst gathers both functional and non-

functional requirements of the BP under study and

speciﬁes the relevant BPMN model. While the

functional requirements are used to deﬁne the ﬂow

of tasks and activities that constitute the BPMN

model, the non-functional requirements are included

as comments associated to the related Activity and

Process objects. Such comments have to be speciﬁed

according to the following syntax:

MetaclassName:AttributeName={tag1=value1,

tag2=value2,...}

Flow of

documents

Control flow

BPMN

model

Business Process

Analyst

PyBPMN

model

Service

Specification

(WSDL/Q-WSDL)

Candidate

Configurations

(PyBPMN models)

Business Process Simulation

Functional

requirements

Non-functional

requirements

Business Process

Specification

eBPMN execution

BPMN-to-PyBPMN

Model-to-Model

transformation

PyBPMN-to-eBPMN

Model-to-Text

transformation

eBPMN

code

Service

Discovery & Selection

Simulation

results

Figure 3: Model-driven BP simulation method.

where metaclasses and attributes are speciﬁed ac-

cording to the PyBPMN extension and tags are

parameters that quantify the attribute according to

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

330

given datatypes, as speciﬁed in (Bocciarelli and

D’Ambrogio, 2013).

As an example, a task that requires 200 ms to

be executed is speciﬁed by attaching the following

comment to the corresponding Task element.

PaQualification:serviceTime = {value=200,

unit=’ms’, source=’est’, dir=’decr’,

statQ=’max’}

where the tags value, unit, source, dir and statQ

give the value, the unit of measure, the origin, the type

of order relation used for values comparison and the

type of statistical value of the attribute, respectively.

Then the BPMN-to-PyBPMN model-to-model trans-

formation is executed in order to derive the PyBPMN

model that corresponds to the BPMN input model.

A service discovery may also take place to

retrieve the descriptions of concrete web services

that match the abstract service interfaces speciﬁed in

the PyBPMN model.

The method proceeds with the simulation of

the BP, which is carried out by ﬁrst executing

the PyBPMN-to-eBPMN model-to-text transformation,

which takes as input the PyBPMN model and yields

as output the eBPMN simulation code, and then

executing the eBPMN code on top of the SimArch

simulation engine.

The simulation results are ﬁnally used by the

business analyst to evaluate design trade-offs or what-

if scenarios and also to assess at design time the

satisﬁability of non-functional requirements.

5.1 Model Transformations

As stated in the previous section, the proposed

method makes use of the BPMN-to-PyBPMN model-

to-model transformation and the PyBPMN-to-eBPMN

model-to-text transformation.

The BPMN-to-PyBPMN transformation has been

implemented by use of the standard QVT-Operational

(QVT-O) language (OMG, 2008) and it is carried out

to transform a BPMN model into a PyBPMN model.

Speciﬁcally, the transformation maps the an-

notation elements that describe the non-functional

properties of the BP under study (e.g., task service

time and process workload characterization) to the

corresponding PyBPMN elements (e.g., PaService,

OpenPattern and ClosedPattern elements).

The proposed method assumes that the tasks compos-

ing a BP are executed by automated resources implemented

as web services and is fully compliant with both the

standard WSDL description language and the performance-

oriented Q-WSDL description (D’Ambrogio, 2006).

As an example, let us consider the mapping of a

performance-related annotation. The QVT-O trans-

formation engine parses the BPMN model (in XMI

format) looking for well-formed TextAnnotation

elements to be mapped to PaService elements in

the target PyBPMN model. Then the transformation

retrieves, from the input model, the Association

element that links the TextAnnotation to the

related Activity element, in order to associate the

PaService element to the proper Activity element

in the target model. Finally, the TextAnnotation

is parsed to instantiate the serviceTime attribute in

the target model and to assign a value to the related

tagged values.

The PyBPMN-to-eBPMN transformation is a

model-to-text transformation speciﬁed by use of

the OMG’s Model to Text (M2T) language and

implemented on top of the Eclipse platform. The

M2T language makes use of a template-based

approach, in which placeholders for data to be

extracted from models are used. These placeholders

are expressions speciﬁed over metamodel entities.

As an example, the logic to instantiate a Task

object is as follows:

[template public generateTask(t : Task)]

Task [t.id] = new Task();

[t.id].setName([t.name]);

// Other setters

[/template]

During the transformation the template

generateTask (delimited by template and

/template tags) is invoked for each t element of

type Task that is in the source PyBPMN model. In

order to avoid the creation of more than one object

with the same name, the id attribute, which is unique

throughout the model, is used as a reference to the

object. The name attribute (which is not required

to be unique) is used to set the name of the object

through a setter method, as well as for the remaining

attributes of the eBPMN object.

6 CONCLUSIONS

This paper has introduced a model-driven method

for automating the transformation of BPMN models

into simulation code speciﬁed by use of eBPMN, a

domain-speciﬁc language for BP simulation.

Speciﬁcally, the proposed method ﬁrst executes a

model-to-model transformation, which takes as input

the BPMN model of the BP under study and yields as

output the corresponding PyBPMN model, and then

executes a model-to-text transformation, which takes

ALanguageforEnablingModel-DrivenAnalysisofBusinessProcesses

331

as input the PyBPMN model and yields as output the

eBPMN executable simulation code, which is ﬁnally

executed on top of the simulation engine provided by

the underlying SimArch infrastructure.

The current eBPMN implementation includes a

subset of the complete BPMN notation and represents

a ﬁrst step towards the implementation of a full-

featured BP simulation-based analysis environment.

Ongoing work includes both the implementation

of additional BPMN constructs and an extensive

experimentation and validation campaign on real-

world cases.

REFERENCES

Bocciarelli, P. and D’Ambrogio, A. (2011a). A BPMN

Extension for Modeling Non Functional Properties of

Business Processes. In Proceedings of the Symposium

on Theory of Modeling and Simulation, DEVS-TMS

’11.

Bocciarelli, P. and D’Ambrogio, A. (2011b).

Performability-oriented Description and Analysis

of Business Processes. In Beckmann, J. A., editor,

Business Process Modeling: Software Engineering,

Analysis and Applications. Nova Publishers.

Bocciarelli, P. and D’Ambrogio, A. (2012). Automated

performance analysis of business processes. In Pro-

ceedings of the Symposium On Theory of Modeling

and Simulation, DEVS-TMS ’12.

Bocciarelli, P. and D’Ambrogio, A. (2013). A Model-driven

Method for Enacting the Design-time QoS Analysis of

Business Processes. Software & Systems Modeling.

Bocciarelli, P., Pieroni, A., Gianni, D., and D’Ambrogio,

A. (2012). A Model-driven Method for Building Dis-

tributed Simulation Systems from Business Process

Models. In Rose, O. and Uhrmacher, A. M., editors,

Winter Simulation Conference, page 227. WSC.

D’Ambrogio, A. (2006). A model-driven wsdl extension for

describing the qos of web services. In Proceedings of

the IEEE International Conference on Web Services,

ICWS ’06, pages 789–796, Washington, DC, USA.

IEEE Computer Society.

Eclipse Foundation (2013). BPMN2 modeler. Website:

http://www.eclipse.org/bpmn2-modeler/ documenta-

tion.php.

Gianni, D., D’Ambrogio, A., and Iazeolla, G. (2011).

A software architecture to ease the development

of distributed simulation systems. Simulation,

87(9):819–836.

Grefen, P., Aberer, K., Hoffner, Y., and Ludwig, H.

(2000). Crossﬂow: Cross-organizational workﬂow

management in dynamic virtual enterprises. Com-

puter Systems Science & Engineering, 1(5):277–290.

Hook, G. (2011). Business process modeling and

simulation. In Jain, S., Jr., R. R. C., Himmelspach, J.,

White, K. P., and Fu, M. C., editors, Winter Simulation

Conference, pages 773–778. WSC.

Kamrani, F., Ayani, R., and Karimson, A. (2010).

Optimizing a business process model by using

simulation. In IEEE Workshop on Principles of

Advanced and Distributed Simulation (PADS), pages

1–8, Atlanta, GA.

OMG (2008). Meta object facility (mof) 2.0 query/view/-

transformation, version 1.0.

OMG (2011). Business Process Modeling

Notation (BPMN), version 2.0,

http://www.omg.org/spec/BPMN/2.0/.

Saeedi, K., Zhao, L., and Sampaio, P. R. F. (2010).

Extending bpmn for supporting customer-facing

service quality requirements. Web Services, IEEE

International Conference on, 0:616–623.

Stroppi, L. J. R., Chiotti, O., and Villarreal, P. D. (2011).

Extending bpmn 2.0: Method and tool support. In

Dijkman, R. M., Hofstetter, J., and Koehler, J., editors,

BPMN, volume 95 of Lecture Notes in Business

Information Processing, pages 59–73. Springer.

Tatibouet, J., Cuccuru, A., G

erard, S., and Terrier, F. (2013).

Principles for the realization of an open simulation

framework based on fuml (wip). In Proceedings of

the Symposium on Theory of Modeling & Simulation -

DEVS Integrative M&S Symposium, DEVS 13, pages

4:1–4:6, San Diego, CA, USA. Society for Computer

Simulation International.

van der Aalst, W., Nakatumba, J., Rozinat, A., and Russell,

N. (2010). Business Process Simulation: How to

get it right? In Handbook on Business Process

Management, International Handbooks on Informa-

tion Systems, pages 317–342. Springer-Verlag.

Weyprecht, P. and Rose, O. (2011). Model-driven

development of simulation solution based on sysml

starting with the simulation core. In Proceedings

of the 2011 Symposium on Theory of Modeling

& Simulation: DEVS Integrative M&S Symposium,

TMS-DEVS ’11, pages 189–192, San Diego, CA,

USA. Society for Computer Simulation International.

White, S. A. (2004). Process Modeling Notations and

workﬂow patterns. Workﬂow Handbook, pages 265-

294.

Yang, F., Shen, W., Tan, W., and Ghenniwa, H. (2010). A

framework for service enterprise workﬂow simulation

based on multi-agent cooperation. In Proc. of

the IEEE Int. Conference on Systems, Man and

Cybernetics, Istanbul, Turkey, 10-13 October 2010,

pages 2587–2594. IEEE.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

332
