Modeling of Tool Integration Resources with OSLC Support

Weiqing Zhang and Birger Møller-Pedersen

Department of Informatics, University of Oslo, Oslo, Norway

Keywords:

Tool Chain Management, Tool Integration, Model, Web Services, OSLC.

Abstract:

This paper discusses a class modeling approach for managing tool integration. Model concepts like Artifact

and Role are introduced as integration backbones. Artifacts represent real artifacts like model elements that

are maintained by tools. Different kinds of tools require different kinds of Artifact classes. The Role classes

capture integration scenario-speciﬁc properties for Artifacts. As the same Artifact may be involved in different

scenarios, and as integration scenarios may come and go, Roles can be dynamically attached to Artifacts. It is

also demonstrated the possibility to model with Artifacts and Roles alone, without any real model elements.

OSLC Web services (and as part of that, OSLC resources) are generated from these class models, and it is

demonstrated that class modeling of Artifacts are superior to plain OSLC speciﬁcation of resources.

1 INTRODUCTION

Development processes for software systems involves

a large number of different tools that are special-

ized for certain tasks within their engineering do-

mains, such as requirement analysis, architecture de-

sign, model simulation, code generation, software

conﬁguration. These tools are usually designed with

focus on their speciﬁc domains, and they are not de-

signed with integration in mind.

An effective solution is to integrate tools based

upon tool adaptors with services that work on com-

monly deﬁned representatives of the real artifacts

(model and model elements), and a modeling ap-

proach to this would be to deﬁne representative class

models for the real artifacts. Experiences from apply-

ing this approach to industrial cases have shown that

a straight forward representative approach has to be

extended in several respects.

With respect to semantics of model elements, the

same model element in different engineering domains

may be interpreted differently (e.g., a UML Class

could represent a hardware component in hardware

platform, or represent an application in software de-

sign). Different model elements in different lan-

guages and tools may also have the same semantic

interpretation, e.g. elements of a UML model and the

corresponding elements of the corresponding C code.

Model elements in different models in different

languages may be derived from a common deﬁnition

(in another language). For instance, common deﬁni-

tions of data types (e.g. temperature and wind speed

classes in a wind turbine project) in a UML class

model are used to derive the corresponding deﬁnitions

in e.g. Simulink and IEC61131 (Rzonca et al., 2007),

and placed into Simulink and IEC61131 models, re-

spectively.

The same model element (through its representa-

tive) may be involved in multiple integration scenar-

ios, and handled differently in each of these. Dif-

ferent properties of the element are required in addi-

tion to the plain representative properties, in order to

support the different integration scenarios. E.g. us-

ing a UML class as a transformation source based

upon a common semantics scenario requires scenario-

speciﬁc properties that are different from those used

in a transformation as part of a common deﬁnition

scenario.

All of this has led to an approach based upon Ar-

tifacts and Roles attached to Artifacts (Zhang et al.,

2012a) (Zhang and Moller-Pedersen, 2013b). Based

upon the above discussions, in this paper we con-

tribute to further properties of Artifacts and Roles.

In addition we provide some more details on the

modeling of Artifacts and Roles. The implementation

of the approach is based upon OSLC (Open Services

for Lifecycle Collaboration, 2013) Web Services, as

OSLC is becoming more and more accepted by tool

vendors as a vehicle for tool integration. However, the

modeling approach itself is independent of OSLC.

The rest of the paper is organized as follows. Sec-

tion 2 gives the background, including previous work.

Zhang W. and Møller-pedersen B..

Modeling of Tool Integration Resources with OSLC Support.

DOI: 10.5220/0004713000990110

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 99-110

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

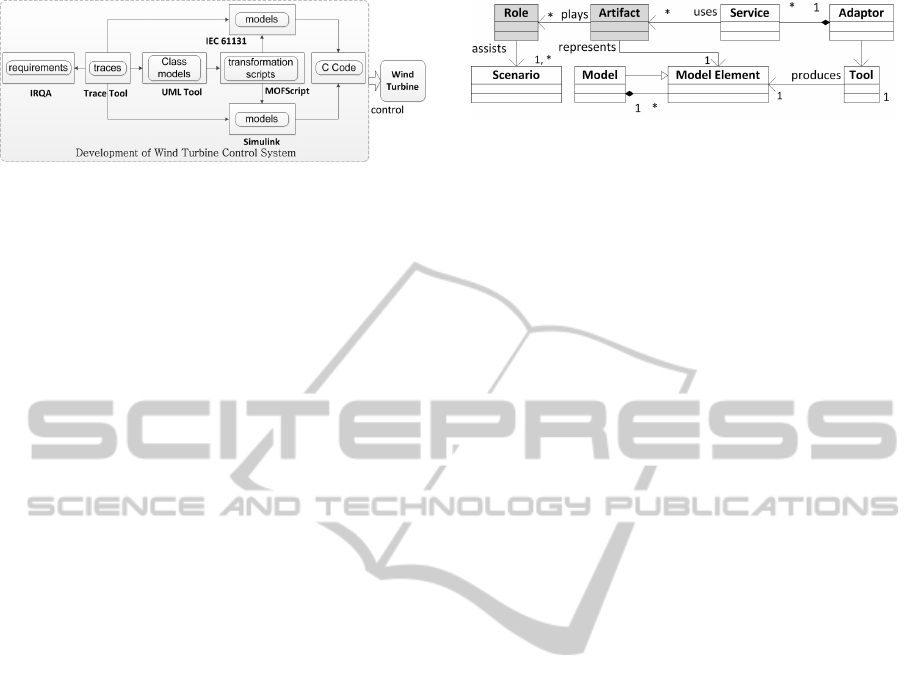

Figure 1: Development Tools in Industrial Cases.

Section 3 describes the model-based approach, with

details of Artifacts and Roles. Section 4 presents the

extended notions of Artifact and Roles and how to

model with these. Section 5 describes how to pro-

vide OSLC-based services from the model. Section 6

compares with related work. Section 7 concludes the

paper.

2 BACKGROUND

2.1 Industrial Case

We use an wind turbine project (from ABB Norway)

throughout this paper. This project is to develop

an embedded system to control wind turbines. An

overview of involved development tools is illustrated

in ﬁgure 1.

Sensors are deployed around the wind turbines

to collect the environmental data. The control sys-

tem contains two modules executed on the same mi-

croprocessor: a C code module generated from a

Simulink model for high speed performance, and a

C code module generated from an IEC 61131 model

for low speed performance. The control system per-

forms calculations according to the sensor data and

sends commands to control the wind turbine. A num-

ber of development tools from different engineering

domains are involved: A tool for making require-

ments (IRQA), then tools for designing the IEC 61131

and Simulink models, and a traceability tool for cre-

ating traces between these tool elements. A UML

tool is used to specify class models that are com-

mon to Simulink and IEC 61131 design, and then

transform these class models into Simulink and IEC

61131 tools through MOFScript (Object Management

Group, 2010).

2.2 Review of Previous Work

In previous work, we deﬁned representatives for real

models and model element artifacts, named Artifacts,

and these formed the basis for the generation of OSLC

resources with adequate properties, and we made tool

Figure 2: Concepts of the Integration Approach.

integration based upon tool Adaptors with services

that work on these representatives. Instead of relying

on mappings between proprietary representations of

model elements, Artifacts deﬁne model element rep-

resentatives that are common to all tool adaptors and

to other kinds of application that use these tool adap-

tors. As representatives, Artifacts have properties that

reﬂect the actual model elements for the purpose of

tool integration. General kinds of tool integration, e.g.

tracing between any kinds of model element, are read-

ily supporting by Artifacts, by deﬁning a trace that

links between Artifacts. Tool integration that involves

transformations between models may need Artifacts

with properties like source and target language.

The above industrial case revealed that tool inte-

gration is more than adapting tools to a common way

of representing model elements in different languages

or formats. As more advanced integration scenarios

were identiﬁed as part of applying it to the industrial

case, we found that integration requires more than

just Artifacts as representatives of model elements.

The industrial case includes integration issues where

the handling of model elements depends not only on

language/tool-speciﬁc properties, but also on prop-

erties that are speciﬁc for the integration scenarios.

Therefore we introduced the Role concept for captur-

ing these integration scenario speciﬁc properties.

Figure 2 introduces the main concepts of the ap-

proach. Tool integration is performed through tool

adaptors. An Adaptor is a software unit or plug-in

that exposes a subset of tool functionalities to other

tools in terms of Services, which work on Artifacts.

The legal services that can be applied to the Artifact

instances are constrained by the operations deﬁned by

Artifact classes. Model Elements are the real model

elements produced and manipulated by tools. Data

models, e.g. analysis data about models, are con-

sidered as special kinds of models in our approach

(Zhang et al., 2012a). Scenario provides an overview

of how tools collaborate according to certain process

and integration requirements. In our approach the ex-

change of messages in scenarios are speciﬁed in terms

of Artifacts and Roles.

The overview of this approach is illustrated in ﬁg-

ure 3. When using this approach, tool integration

modelers create integration models, such as Artifact,

Roles, and Choreography models. Because various

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

100

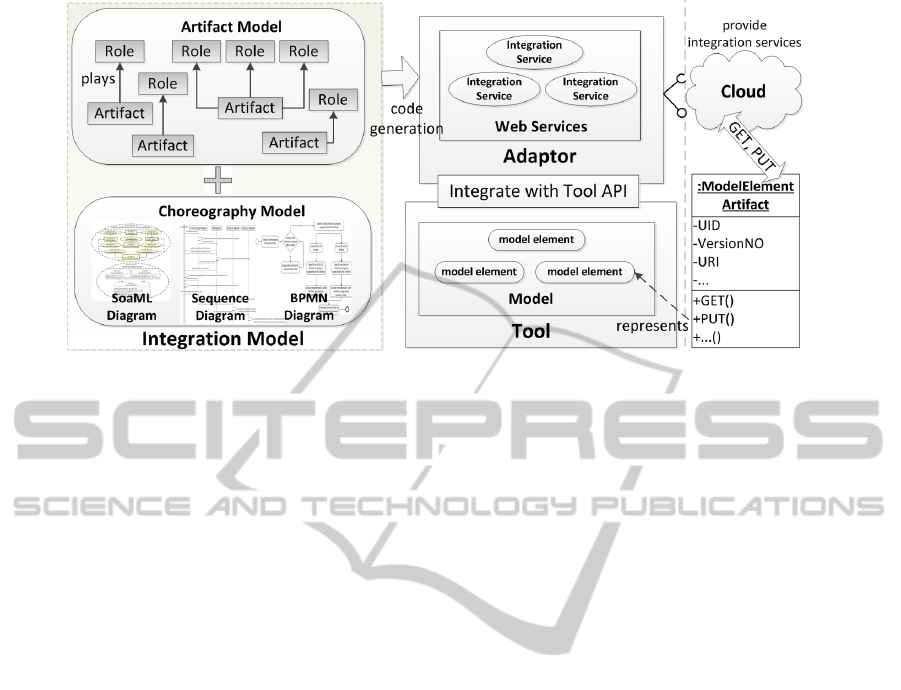

Figure 3: Overview of the Integration Approach.

OSLC integration adaptor servers and clients are op-

erated in a similar way, the server and client code

can be speciﬁed in a standard way. Therefore, model

transformation scripts are prepared for the purpose

of generating adaptor server code. The integration

models are independent of implementation technol-

ogy, while Web services are based upon speciﬁc tech-

nologies like J2EE or .Net. Therefore different trans-

formation scripts are applied to the same integration

models to obtain Web Services that runs on different

platforms. The adaptors manipulate the tool model

elements through tool-speciﬁc APIs, and represent

them as predeﬁned Artifact objects through integra-

tion services.

3 MODEL-BASED INTEGRATION

3.1 Details of the Artifact Concept

One solution to the integration of tools supporting lan-

guages with different metamodels is to have a com-

mon, exhaustive metamodel that merges all the con-

cepts deﬁned in all tool metamodels. However, expe-

rience tells us that the resulting metamodel would be

large, complicated and hard to maintain when tools

come and go. A common partial metamodel may be

used for extracting certain aspects of the various mod-

els, but it will not solve full tool integration.

Instead of being metamodel-based, our approach

is therefore model-based in the sense that it relies

on representatives for the real models and model el-

ements as the means for tool integration (Zhang et al.,

2012b). These representatives are called Artifacts. A

model-based approach to tool integration implies that

Artifact is deﬁned as a class of objects, so that each

Artifact object represents a real model or model ele-

ment.

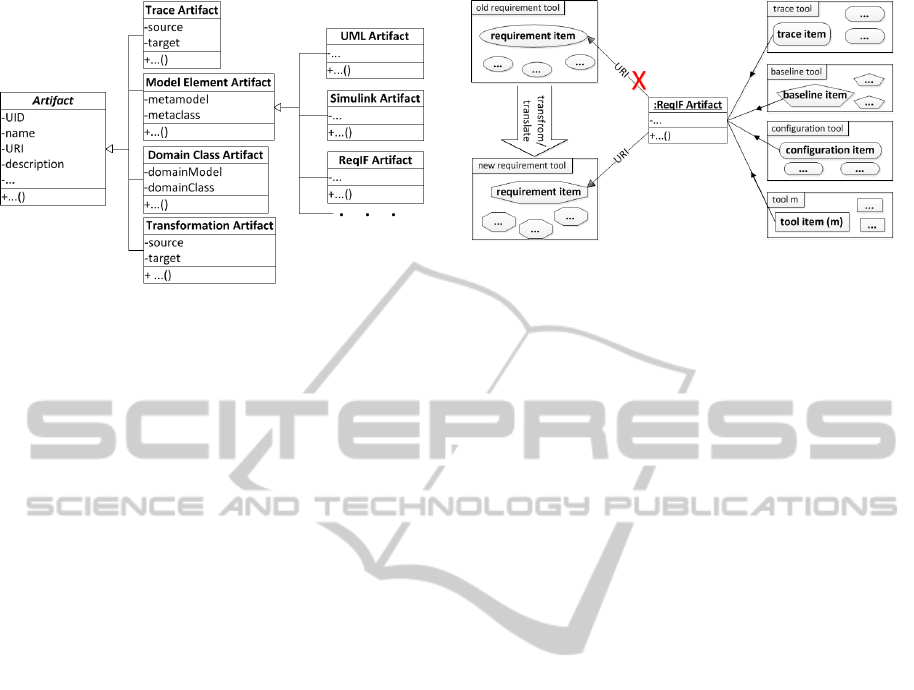

As shown in ﬁgure 4, the kinds of tool integrations

above are based upon a ﬁxed set of Artifact deﬁni-

tions, with a ﬁxed set of properties and operations that

are common for model or model element in speciﬁc

set of tools. The common properties of general Arti-

fact are software lifecycle management properties that

support integration, such as unique identiﬁer (UID),

name of Artifact, URI of the represented model ele-

ments, description of Artifact, and etc.

The speciﬁc Artifacts only require properties that

have to do with the represented model elements, e.g.

UML metamodel and metaclass of the represented

class model element that are required for e.g. a

UML model transformation. Artifact like Transfor-

mation Artifact contains properties like source and

target, which point to the Model Element Artifact in-

stances that represent the source model and the tar-

get metamodel, respectively. Model Element Arti-

facts that represent models or model elements in a

given language will, in addition to the common prop-

erties, have a property that identiﬁes the metamodel

for the language, and a property that identiﬁes the

metaclass of the model element, such as the UML

Artifact, Simulink Artifact and ReqIF (Object Man-

agement Group, 2011) Artifact in ﬁgure 4. Thus we

can access the metamodels that are required for trans-

formations.

DomainClassArtifact is used to represent model

elements when they are involved in different speciﬁc

semantic domains. In the Domain Class Artifact,

the ”domainModel” property identiﬁes the domain

(semantics) model while the ”domainClass” property

identiﬁes the domain class that the Role links to. This

covers the cases where a model from one tool (in

one language) must be represented by a model in an-

ModelingofToolIntegrationResourceswithOSLCSupport

101

Figure 4: Artifact Overview.

other tool (in a different language), and where this is

based upon an interpretation of the models according

to the semantics/domain concepts of some common

domain. The best-known characterization (Wasser-

man, 1989) of tool integrations identiﬁes ﬁve views

of integration, where language of model is only as-

sociated with the data view, and this view does not

even consider the semantics-based mapping between

languages. DomainClassArtifact will cover this.

The operations of Artifact are the legal operations

that other tools can perform to manipulate the model

element that is represented by the Artifact. A UML

Artifact with GET() and PUT() operations would only

allow other tools to GET or PUT its represented UML

model element.

Each real tool model element has its correspond-

ing Artifact. The Artifact relates to the real tool model

element through its URI. Assume there is a model el-

ement (e.g. a requirement item in a requirement tool)

that is associated and used by many (M) other devel-

opment tools (e.g. trace tool, baseline tool, conﬁgura-

tion tool). If we want to replace this requirement tool

with another similar requirement tool, a common pro-

cess is that we transform the requirement model ele-

ments to the other tool, and then re-establish the asso-

ciations between these elements and elements of other

tools. It takes M times to establish the re-associations.

If there are N such elements in the requirement model,

then it costs (N * M) times for the re-establishment.

Alternatively, if we use Artifact for the above tool re-

placement scenario, we will have Artifact objects for

each model element and all integration between tools

are based upon Artifacts. As illustrated in ﬁgure 5, as

the development tools only know the Artifact, we will

only need to simply change the URI of Artifact from

the old tool element to the new tool element, then the

other development tools are connect to the new tool

model elements. We can thus reduce the complexity

from N*M times to N. Using Artifact for integration

is a ﬂexible solution and will ease tool replacement.

Figure 5: Artifact Beneﬁts.

This implies a need for storing Artifacts, which

may be kept in a central repository. When tools

modify their data like adding or deleting data items,

the corresponding updates for Artifact should also be

done in this central repository.

In addition to the beneﬁts described above, using

Artifact also has the following beneﬁts:

• Standard Interfaces: All integration services work

on the same Artifact/ Role objects, so tool-internal

elements are handled in a uniform way, facilitat-

ing standardization for industrial tool vendors.

• Generic: Tools of the same kind share the same

Artifacts, thus integrations is not constrained by

any tool internal way of handling their elements.

• Traceable: Artifact has traceability feature by na-

ture, so very little has to be known about the real

traced model elements when integration is per-

formed.

Finally, in the Artifact class it is possible to deﬁne

various tool integration properties, which enhance the

tool capabilities to manage different lifecycle tool el-

ements.

3.2 Details of the Role Concept

Roles are designed to cover scenarios-based informa-

tion that is required for integration, but cannot be cov-

ered by the general notion of Artifact. For instance, a

UML class, represented by a UML Artifact, may be

transformed into different models when different se-

mantics are applied. This semantics information is

captured by a Role class.

3.3 Identiﬁed Roles

As shown in ﬁgure 6, we encountered several kinds of

Roles from the industrial integration scenarios. How-

ever, the approach is open-ended, in the sense that

custom-made Roles (as subclasses of Role) can de-

ﬁned by integration engineers to support their speciﬁc

integration scenarios.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

102

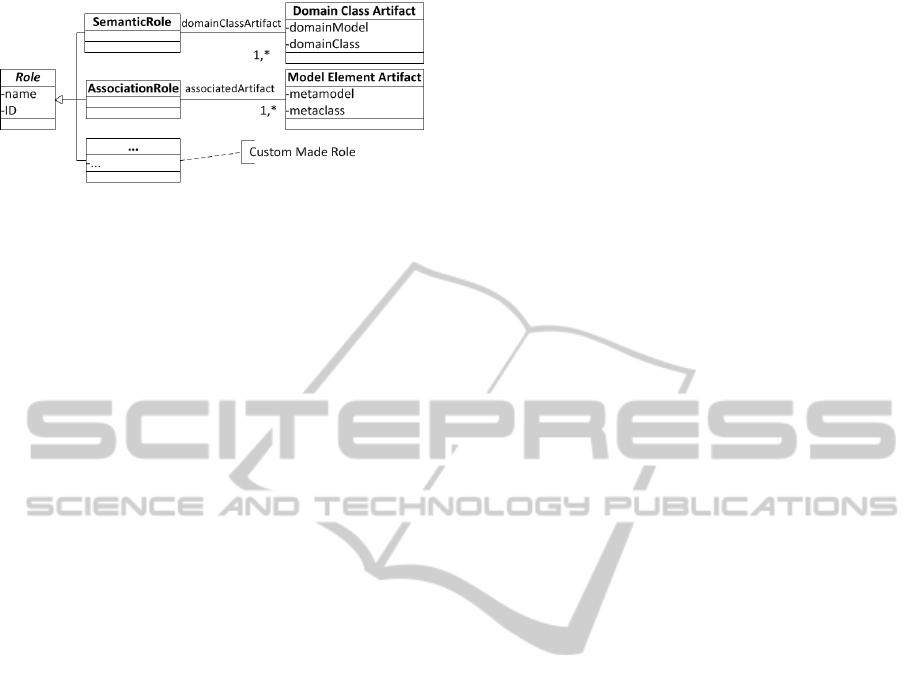

Figure 6: Role Overview.

Semantics Roles. In transformation scenarios it is

common that a source model is transformed into dif-

ferent target models governed by different interpre-

tations of the elements of the source models. This

is normally captured by different transformations. In

the cases we have encountered there is a standard way

if transforming most of a source model, while some

model elements should be treated differently. In ad-

dition, model elements of different models are sup-

posed to be interpreted in the same way, indepen-

dently of the languages in which these different mod-

els are made.

This calls for a mechanism where a model element

(and in our case the corresponding Artifact) can play

a certain semantic Role. It would be possible to do

this by means of a simple annotation of the model

element, but as we have already Artifacts as repre-

sentatives of model elements, it is much more ﬂexi-

ble to attach the semantic information to the Artifact.

For UML models we could have used stereotypes, but

the approach should be independent of what kinds of

tools are used and their support for stereotyping.

As our approach is model-based it is obvious to

require that the semantic information for a given inter-

pretation is deﬁned by some kind of model element.

As different interpretations are often due to the inter-

pretation given by different domains, we simply de-

ﬁne a semantic Role to have a reference to a domain

class in a domain model (see ﬁgure 6). A Seman-

tics Role (Zhang and Moller-Pedersen, 2013b) there-

fore identiﬁes a domain class in a domain model that

applies to certain Artifact. As this domain class is a

model element that is also represented by an Artifact,

this reference (”domainClassArtifact”) is a reference

to an Artifact (Domain Class Artifact).

Another beneﬁt of having Roles deﬁned indepen-

dently of language and tool (i.e. as attached to Arti-

facts) is that several Artifacts (representing model el-

ements in different models) may have the same Role,

thereby capturing that we have common semantics

across languages/tools. In a transformation scenario,

a common Semantics Role for two different Artifacts

preserves the semantics consistency of the transfor-

mation source and target. As an example, a UML

class, a Simulink block and a part of a C code may

all play the Role of a being a special kind of part of

a system design. Transformation between the differ-

ent model elements, or updates of the different model

elements, must take this common semantics into ac-

count.

Association Roles. In a transformation sce-

nario where various model elements are derived from

a common deﬁnition model element, the Artifact that

represents the common deﬁnition model element may

have associations to the Artifacts that represent these

derived model elements. The common Artifact has

an Association Role (Zhang and Moller-Pedersen,

2013b) which links to the Model Element Artifacts

that tell where the derived model elements should be

placed inside these models. If the common Artifact

is changed, the derived Artifacts have to be changed

correspondingly.

In the wind turbine model design we transformed

UML model elements to Simulink model elements.

The transformation engine can only transform the

temperature and wind speed UML classes to Simulink

model elements; it cannot know where these trans-

formed Simulink model elements should be placed in-

side Simulink models. An association Role helps to

provide this information. The association Role links

to the Simulink Artifact in which we can specify the

locations of the generated Simulink model elements.

4 EXTENDED NOTIONS OF

ARTIFACTS AND ROLES

4.1 Synthesis Artifact

An Artifact model element may represent a synthe-

sis of properties of a number of other Artifact model

elements, e.g. a report, analysis result, testing result

from applying a set of tests. Whenever some of the

involved model elements change, the synthesized Ar-

tifact may have to be updated.

There are synthesis links from all the involved Ar-

tifacts to the synthesis Artifact, which in turn will

know which Artifacts to be involved in the synthe-

sis. E.g. an Artifact that represents a test result in

terms of a document may have synthesis links (as

”contain” relation in this case) to many other Arti-

facts that represent elements like texts and tables that

compose this document. The multiplicity of synthesis

links between Artifacts is usually one to many.

ModelingofToolIntegrationResourceswithOSLCSupport

103

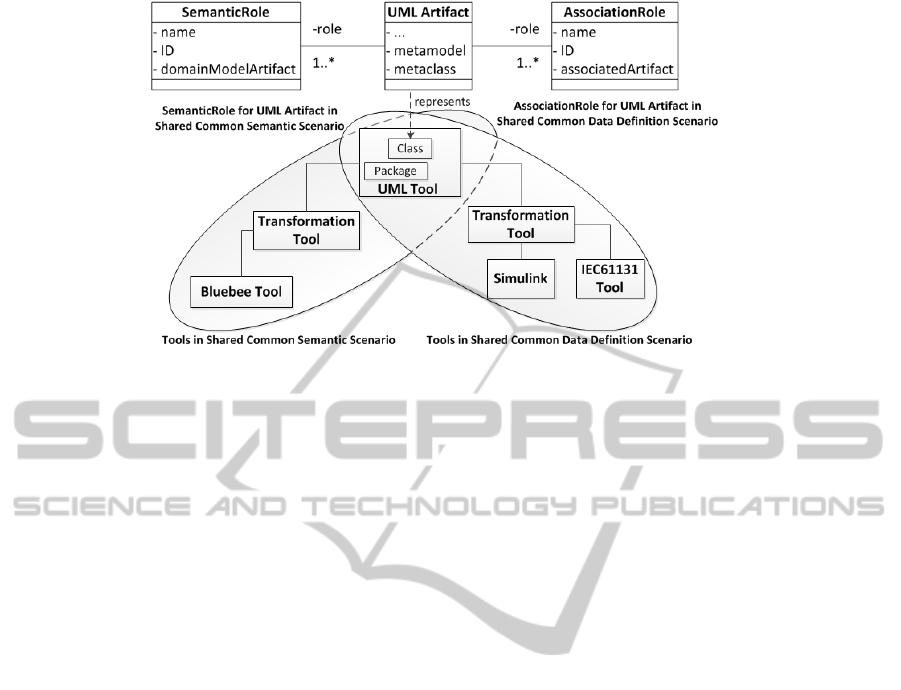

Figure 7: Example of Artifact with Different Roles.

4.2 Dynamicity of Roles

One Artifact may have multiple Roles in different sce-

narios. For instance, a UML Class deﬁned by a mod-

eler that is involved in a shared common semantics

scenario may be used differently when it is involved

in a common deﬁnition scenario. As ﬁgure 7 shows,

in the left scenario (described in an ellipse) the Se-

mantics Role of a UML class (represented by a UML

Artifact) are used to interpret it according to a com-

mon semantics, while in the right scenario the As-

sociation Role captures the associated Artifacts that

record the placement information when transforming

a common deﬁnition from a UML model to Simulink

and IEC61131 models. The same UML Artifact has

different Roles as it requires different context-based

information to support the different scenarios.

The same model element (through its representa-

tive) may be involved in multiple integration scenar-

ios, and these may change. Different properties of the

element are required in addition to the plain represen-

tative properties, in order to support the different inte-

gration scenarios. E.g. using a UML class as a trans-

formation source in a process based upon a common

semantics scenario requires scenario-speciﬁc proper-

ties that are different from those used in a transforma-

tion process as part of a common deﬁnition scenario.

The Role of a model element is not ﬁxed in ad-

vance and depends on the actual integration. A model

reﬁnement transformation would generally produce a

more precise model with the properties of its Role be-

ing extended. E.g. a UML Class representing a Com-

puting Resource at one level of abstraction might be

reﬁned when it later represents a Processor. The Roles

of model elements are required to be dynamically as-

signed, removed, and updated.

When engineers create UML Artifact object, it

only represents UML model elements with certain

dedicated software lifecycle management properties.

However, it is still uncertain what speciﬁc informa-

tion may be required for various integration scenarios.

The dymamicity of Roles overcomes this shortcom-

ing. The semantic Role is attached to UML Artifact

when this Artifact involved in shared common seman-

tic scenarios. When the scenario is not valid anymore,

the UML Artifact can remove this semantic Role and

play e.g Association Role in shared common data def-

inition scenario. The dynamicity feature brings ﬂex-

ibility and complementariness for additional integra-

tion information for Artifact models.

A usual way of modeling that an object may play

different Roles is to model the corresponding class

with an interface for each Role. However, this has

to be determined when the class (in this case the spe-

cial Artifact class) is deﬁned, and Artifact classes are

deﬁned based upon the kind of the represented model

element, the language in which the model element is

speciﬁed, and perhaps the tool being used.

Another approach to role modeling (Reenskaug,

1997) is that roles really are the things that are spec-

iﬁed in order to know what objects do (or shall do)

and how they interact, while classes are merely imple-

mentations of roles. The role approach of Rolv Bræk

is similar (Bræk, 2000) (Floch and Bræk, 2003), al-

though classes of objects are recognized as the main

way of modeling objects. Both of these approaches

have tried to come up with a more or less automated

role synthesis, the idea being that in order to make

classes of objects, make ﬁrst all the role speciﬁcations

and then synthesize these into classes. The reason that

this is important is that when models are supposed to

form the basis for implementations in some program-

ming language (and not just be analysis models), then

roles models have to be turned into class model, as

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

104

most programming languages support classes, but not

roles.

All of these approaches to roles have in common

that role modeling is part of modeling, which is the

outcome of role modeling is to come up with classes

of objects that play the roles that have been speciﬁed.

For tool integration the situation is that Artifacts

may be deﬁned based upon the language used for

making model elements that the Artifact objects are to

represent, and this does not change once a model ele-

ment has been made. However, integration scenarios

may be made after the model elements (and the cor-

responding Artifacts) have been made, therefore the

scenario-speciﬁc properties required for tool integra-

tion (deﬁned by Roles) have to be attached to existing

Artifacts. While models and their model elements are

usually maintained, and some even are used in sev-

eral projects, integration scenarios may come and go

depending on how the models are used in different

settings. Therefore Roles may also be removed from

Artifacts.

4.3 Modeling with Artifacts and Roles

4.3.1 Choreography Models

In the approach we also model the integration pro-

cesses that correspond to various required interaction

scenarios. While Artifacts form the basis for tool

Adaptors with services, the integration processes use

these services. The models that are specifying the col-

laborations between tool Adaptors are called choreog-

raphy models. Choreography models are used to de-

ﬁne, control, and monitor integration processes, and

they are using Artifact and Role instances.

From the investigation (Guo and Jones, 2009) we

know that widely-used modeling languages such as

UML /SysML do not give full support for modeling

of tool integration, so one of our future work items

is to deﬁne a domain speciﬁc language for this. For

the purpose of this paper, and in order to explore

to which extent mechanisms of existing languages

may be used, we have experimented with the use of

SoaML, UML Sequence Diagrams and BPMN for

making choreography models.

In our experiment the integration services are

speciﬁed by SoaML Service Architecture models and

Service Contract models. The requirements from

the integration process are viewed as service archi-

tecture, thus indicating tool adaptors act as partici-

pants in the integration process. The service contracts

specify how participants interact, and how their ser-

vices and requests are orchestrated. Service architec-

ture formally speciﬁes the integration requirements

performed by interacting service participants, with-

out addressing any implementation concerns. Ser-

vice Contracts simply indicate the agreed-upon inter-

actions between participants that play the indicated

Roles in the service architecture.

We have illustrated how it would be possible to

use SoaML models, UML sequence diagrams, and

BPMN models for constructing of the choreography

models (Zhang and Moller-Pedersen, 2013a). The or-

chestrator orchestrates integration scenarios. It makes

the individual tools integrated through adaptor ser-

vices. To simplify the implementation, orchestrators

for various scenarios are driven by user inputs, and

they are based on the core principles of OSLC and

calls OSLC services using basic HTTP commands.

However, it is also possible to generate these orches-

trators with process models like BPMN.

Choreography models have been speciﬁed by Ser-

vice Architecture diagrams and service contract di-

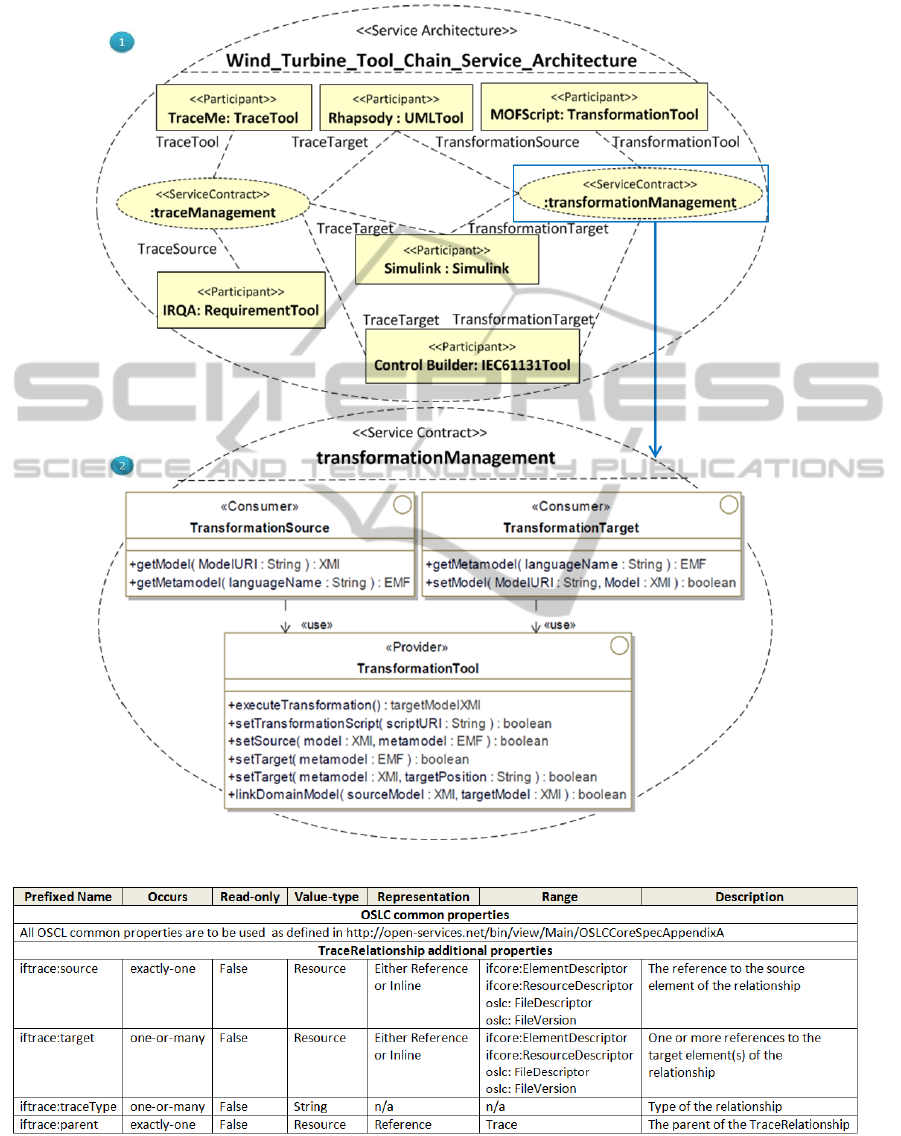

agrams from SoaML. Part 1 of ﬁgure 8 illustrates

a Service Architecture diagram and shows how dif-

ferent adaptor participants enable the tool integration

through service contracts in shared common data def-

inition scenario. For instance, the MOFScript adap-

tor participants provide Transformation Management

Services for the Simulink and IEC 61131 adaptors.

Part 2 illustrates the Transformation Services details

that are provided and consumed in the Transformation

Management Service Contracts.

4.3.2 Modeling with just Artifacts and Roles

In (Zhang and Moller-Pedersen, 2013b) the notions

of integration models were shortly introduced. There

it was assumed that the involved Artifacts with their

respective model elements are deﬁned when the in-

tegration models were made. However, we also in-

troduced the distinction between integration models

and the base models maintained by the integrated

tools. We compared integration models with variabil-

ity models within software product lines (exemplied

by CVL (Object Management Group, 2013)(Haugen

et al., 2008)), with both integration models and vari-

ability models being emphorthogonal to the (base)

models. CVL variability models have variability el-

ements that reference real model elements, and these

variability elements have properties that express what

kind of variability that applies to the referenced model

element, like our Artifact and Roles have properties

that tell what kind of tool integration the real model

element may be subject to.

Variability modeling is used to specify variability

within a product line, with a base model, a number

of variability models, and for each variability model

a number of resolution models. Feature models are

ModelingofToolIntegrationResourceswithOSLCSupport

105

Figure 8: Sample of Service Architecture Diagram and Service Contract Diagram.

Figure 9: Traceable OSLC Resource.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

106

special kinds of variability models, where there may

not be any base model to which the variability models

are associated: they simply specify the desired fea-

tures, including relations and restrictions on features,

and feature dependencies. Later, in order to use fea-

ture models in order to make speciﬁc models for each

selected conﬁguration of features, the feature models

are associated with base models.

Similarly, integration models with Artifacts and

Roles may be made without any real model elements

being made. Up front it may very well be determined

that a development of a certain system should result

in a number of model element Artifacts (with Roles)

and that they have to be integrated in a certain way.

The developers know that wind speed and tem-

perature will be deﬁned in a common language, and

from this language they can generate IEC61131 and

Simulink models. There may be a number so such

common deﬁnitions, they may e.g. come from a dy-

namically generated domain analysis result. Thus

we can specify integration model before making the

detailed UML deﬁnitions of the common concepts,

and execute this integration model when some or all

the common deﬁnitions have been made in a UML

model.

The implication of this for Artifact is that the

property of an Artifact object that references the real

model element has to a property of its own and not

just an inherent property of the Artifact, e.g. given by

the unique identiﬁcation of the Artifact object. Inte-

gration models may therefore be made before the real

model elements are made.

5 PROVIDE OSLC INTEGRATION

SERVICES

As the tool integration approach is model-based, it is

independent of the underlying implementation tech-

nology. In our case we chose OSLC Web Services to

implement and validate the approach.

5.1 Models of Traceable OSLC

Resource

Our class modeling approach was worked out in com-

parison with an approach where OSLC speciﬁcations

were made directly. The following shows one of the

main differences between the two approaches.

The difference is illustrated with traces. In this

section traces are a little more elaborated than those

that we have seen before. For other purposes than

tracing, the following Resources had been identiﬁed:

ElementDescriptor, ResourceDescriptor, FileDescrip-

tor, and FileVersion. E.g. all elements represented by

ElementDescriptor should be traceable, based on the

ElementDescriptor common properties. When trace-

ability were to be modelled in the pure OSLC ap-

proach, the modeller was left with the option of spec-

ifying the range of source and target as a list of these

resources, see ﬁgure 9.

With a modeling approach, one would do as de-

scribed above, i.e. make all artifacts traceable (and

deﬁne all kinds of Artifacts as subclasses of Artifact).

Alternatively, as illustrated in ﬁgure 10, one would

deﬁne a common superclass for all the traceable arti-

facts, in case not all of them should be traceable. The

obvious beneﬁt is that introducing a new kind of ar-

tifact that shall be traceable amounts to deﬁne it as a

subclass of Traceable, while in the pure OSLC speci-

ﬁcation style one would have to go through all ranges

in other parts of the speciﬁcation and change these.

5.2 From Models to OSLC Web Service

Tools can be loosely coupled via a set of services,

or web services applied on standardized communi-

cation protocols. The recent framework provided by

the OSLC community ﬁnds an agreement among the

stakeholders on speciﬁcation for tool integration. The

key concepts are a uniform access to shared resources,

a common vocabulary/formats, and a loose coupling

approach between tools through REST architectures

(Fielding, 2000). Using OSLC speciﬁcations implies

that adaptors work on representatives of the real arti-

facts of tools in terms of artifact resources, and that

these have to be speciﬁed in terms of OSLC-tables of

properties (OSLC speciﬁcations). In addition, adap-

tors also specify services. A tool is integrated by im-

plementing such adaptor speciﬁcations. Our experi-

ment supports the generation of the part of adaptor

implementations (server and client code) that adhere

to the OSLC speciﬁcation.

OSLC speciﬁcations deﬁne a small set of common

properties that are common among all resources. In

addition there are often some project-speciﬁc proper-

ties.

In the OSLC experiment we chose UML class

model to deﬁne Artifact and Role models. In OSLC,

Resources are representatives of models and model

elements. A Resource Shape deﬁnes the set of OSLC

Properties expected in a Resource for speciﬁc oper-

ations (i.e. creation, update or query) for each their

value types, allowed values, cardinality and option-

ally. Models are made in languages deﬁned by meta-

models - this includes models for which there may

be no concrete syntax, as e.g. requirements models.

ModelingofToolIntegrationResourceswithOSLCSupport

107

Figure 10: Model the Traceable OSLC Resource

Resources are elements according to models, but not

metamodels.

The Artifact and Role models are the basis for

the generation of OSLC resource deﬁnitions and

server/client code for tool adaptor interfaces in terms

of services. Moreover, giving some mapping rules de-

ﬁned between the tools concepts and engineering do-

main concepts, Roles can be automatically attached

or removed from their artifact during the process exe-

cution.

As there are different development tools involved,

UUID (universally unique identiﬁer) is chosen as

standardized UID to identify every single Artifact

and Role. The experiment code is based upon the

OSLC Eclipse LYO (The Eclipse Foundation, 2013)

project. It adopts OSLC speciﬁcations and builds

OSLC-compliant tool adaptor server and client. The

code is based upon RDF and Web Service technology.

The tool adaptor server part includes the common def-

initions used for the adaptor, such as Resource deﬁni-

tions (compliant to Artifact model and Role model)

and constants. It mainly includes three parts. The

OSLC Registry web application is used as an OSLC

Catalog for the service providers. When each appli-

cation starts, it registers its OSLC service provider

details with OSLC Registry. The OSLC Wink is the

framework that builds RESTful Web services. The

OSLC Provider provides OSLC Resources in RDF

or JSON. The adaptor server provides services and

receives requests from consumers to manipulate the

OSLC Resource through HTTP methods (GET, PUT,

DELETE, and POST). The OSLC project uses anno-

tations and JAX-RS methods to simplify the develop-

ment process, which can also be generated from the

models. The client code acts as service consumer to

test the services provided by adaptor server.

Beside the implementation code, our experiment

shows it is also feasible to generate tool adaptor spec-

iﬁcations (e.g. in Microsoft Ofﬁce Word format)

from above class models. The generated speciﬁca-

tions mainly include the data description (e.g. OSLC

property tables, ﬁgure 9) and service description (e.g

Artifact operations). Data speciﬁcation deﬁnes a set

of speciﬁc Resources for delegated tool adaptor, and

their properties and relationships to be exposed by

the provided adaptor services. Provided Services de-

ﬁne functionalities made available to tools, while Re-

quired Services deﬁnes set functionalities needed by

tool type to function as expected.

6 RELATED WORK

Tool integration has been a research area since the

90’s, and it has been subject to many characteriza-

tion attempts. (Brown et al., 1992) splits integration

in a Conceptual axis that represents the understand-

ing of integration and the Mechanistic axis that repre-

sents the technical way of realizing it. In (Wasserman,

1989) integration is characterized by ﬁve dimensions

control, data, presentation, process and platform. Be-

sides (Brown and McDermid, 1992) classiﬁes integra-

tion into interoperability levels where syntactic relates

to the agreement of tools on common data structures,

and semantics addresses the meaning of exchanged

data.

Several integration patterns have emerged: point

to point consists of ad-hoc tools connections, Inte-

gration Framework Environments that integrate tools

around a common framework based on standardiza-

tion architectures (e.g. CORBA (Vinoski, 1997)),

common formats (e.g. EIA/CDIF (Flatscher, 2002)),

or infrastructures facilitating tool collaboration (e.g.

Jazz (Jazz, 2011)). Tools can be loosely coupled via

a set of services, or web services applied on standard-

ized communication protocols (Web Service Oriented

Architecture).

The above work forms the basis of our discus-

sion. With the increasing complexity of systems,

more and more development tasks are realized by

models conform to metamodels as common represen-

tations for data, and tools have to agree on both the

syntax and semantics of models that are to be ex-

changed (Kapsammer and Reiter, 2006). Tool meta-

models are used in different ways. The Fujaba (Hen-

kler et al., 2010) approach provides a generic solu-

tion for integrating different tool data through vari-

ous metamodel design patterns. Due to the nature of

MDE, approaches like VMTS (Gergely Mezei, 2006)

focuses on the integration of various model-based de-

sign tools, but ignore the tools in other software devel-

opment phases. Thus, lifecycle management aspects

are not covered accordingly. Some of the approaches

(e.g. MOFLON (Amelunxen et al., 2008), Gener-

alStore (Reichmann et al., 2004), CDIF (Flatscher,

2002), VMTS (Gergely Mezei, 2006), and Seman-

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

108

tic Integration from Vanderbilt (Karsai and Gray,

2000)) are designed for generic integrations without

investigating speciﬁc tool integration scenarios. WO-

TIF(Karsai et al., 2006), jETI (Margaria et al., 2005),

and ModelBus (Sriplakich et al., 2008), build the in-

tegration based upon Web Services.

Recently, ontologies for semantics integration

have been used. Ontology is deﬁned as a represen-

tation of knowledge of a domain and represents se-

mantics information in a form that enables reasoning

about data. Ontology is considered as a domain model

and is different from of a metamodel which deﬁnes a

language for models within a domain of. ModelCVS

(Kramler et al., 2006) utilizes semantic technologies

based on ontologies to ﬁll the gaps between different

tool metamodels.

Tools are used in different contexts and thus data

semantics may evolve. The Role mechanism (Kris-

tensen and Østerbye, 1996) can make tool chains

more dynamic, adapting an object to different needs

through attached Roles, each one representing a role

played in one particular context (Reenskaug et al.,

1996) and (B

aumer et al., 2000). (Steimann, 2000)

gives a broad overview of Role implementations, and

(Seifert et al., 2010) proposes one example of Role-

based metamodelling approach to tool integration.

In (Weiqing Zhang, 2013), we introduced three

different approaches to the modeling of OSLC Re-

source/ Resource Shapes by class modeling. Com-

parison of the different approaches is illustrated and

discussed.

Our paper handles both metamodel and ontologies

issues through representative Artifact models, and use

the Role concept in order to dynamically assign the

required integration information to Artifacts.

7 CONCLUSIONS

This paper has presented extended notions of Arti-

facts and Roles, to enhance their features for integrat-

ing tools. The same Artifacts are involved in multiple

scenarios, which extends integration support by using

the dynamicity of Roles and attach them to these Ar-

tifacts. Integration models may also be speciﬁed by

just Artifacts and Roles, even before any real model

elements (represented by Artifacts) are made. Finally

the paper has shown that class modeling of Artifacts

and Roles may be used for generating OSLC speciﬁ-

cations, and also implementation code for construct-

ing tool adaptors with OSLC Web Services.

ACKNOWLEDGEMENTS

The authors would like to thank for the support given

by ARTEMIS Tool Integration project iFEST (iFEST

Project, 2013), including our industrial partners.

REFERENCES

Amelunxen, C., Klar, F., K

onigs, A., R

otschke, T., and

Sch

urr, A. (2008). Metamodel-based tool integration

with moﬂon. In Proceedings of the 30th international

conference on Software engineering, ICSE ’08, pages

807–810, New York, NY, USA. ACM.

aumer, D., Riehle, D., Siberski, W., and Wulf, M. (2000).

Role Object, pages 15–32. Addison-Wesley, Mas-

sachusetts.

Bræk, R., editor (2000). Using Roles with Types and Ob-

jects for Service Development.

Brown, A. W., Feiler, P. H., and Wallnau, K. C. (1992). Past

and future models of CASE integration. In [1992]

Proceedings of the Fifth International Workshop on

Computer-Aided Software Engineering, pages 36–45.

IEEE Comput. Soc. Press.

Brown, A. W. and McDermid, J. A. (1992). Learning from

ipse’s mistakes. IEEE Softw., 9:23–28.

Fielding, R. T. (2000). Architectural Styles and the Design

of Network-based Software Architectures. Phd thesis,

University of California.

Flatscher, R. G. (2002). Metamodeling in eia/cdif—meta-

metamodel and metamodels. ACM Trans. Model.

Comput. Simul., 12:322–342.

Floch, J. and Bræk, R. (2003). Using sdl for modeling be-

havior composition. In In: Proc. of the 11th Int. SDL

Forum. Springer.

Gergely Mezei, Sandor Juhasz, T. L. (2006). Integrating

model transformation systems and asynchronous clus-

ter tools. In 7th International Symposium of Hungar-

ian Researchers on Computational Intelligence.

Guo, Y. and Jones, R. (2009). A study of approaches for

model based development of an automotive driver in-

formation system. In Systems Conference, 2009 3rd

Annual IEEE, pages 267 –272.

Haugen, O., Moller-Pedersen, B., Oldevik, J., Olsen, G.,

and Svendsen, A. (2008). Adding standardized vari-

ability to domain speciﬁc languages. In Software

Product Line Conference, 2008. SPLC ’08. 12th In-

ternational, pages 139–148.

Henkler, S., Meyer, J., Sch

afer, W., von Detten, M., and

Nickel, U. (2010). Legacy component integration by

the fujaba real-time tool suite. In Proceedings of the

32nd ACM/IEEE International Conference on Soft-

ware Engineering - Volume 2, ICSE ’10, pages 267–

270, New York, NY, USA. ACM.

iFEST Project (2010- 2013). iFEST - industrial Frame-

work for Embedded Systems Tools. ARTEMIS-2009-

1-100203, .

ModelingofToolIntegrationResourceswithOSLCSupport

109

Jazz (2011). Jazz. http://jazz.net/.

Kapsammer, E. and Reiter, T. (2006). Model-based tool

integration- state of the art and future perspectives 1.

Karsai, G. and Gray, J. (2000). Component gen-

eration technology for semantic tool integration.

2000 IEEE Aerospace Conference Proceedings Cat

No00TH8484, pages 491–499.

Karsai, G., Ledeczi, A., Neema, S., and Sztipanovits, J.

(2006). The model-integrated computing toolsuite:

Metaprogrammable tools for embedded control sys-

tem design. In Computer Aided Control System De-

sign, 2006 IEEE International Conference on Control

Applications, 2006 IEEE International Symposium on

Intelligent Control, 2006 IEEE, pages 50 –55.

Kramler, G., Kappel, G., Reiter, T., Kapsammer, E., Rets-

chitzegger, W., and Schwinger, W. (2006). Towards

a semantic infrastructure supporting model-based tool

integration. In Proceedings of the 2006 international

workshop on Global integrated model management,

GaMMa ’06, pages 43–46, New York, NY, USA.

ACM.

Kristensen, B. B. and Østerbye, K. (1996). Roles: concep-

tual abstraction theory and practical language issues.

Theory and Practice of Object Systems, 2(3):143–160.

Margaria, T., Nagel, R., and Steffen, B. (2005). jETI:

A Tool for Remote Tool Integration Tools and Algo-

rithms for the Construction and Analysis of Systems.

volume 3440 of Lecture Notes in Computer Science,

chapter 38, pages 557–562. Springer Berlin / Heidel-

berg, Berlin, Heidelberg.

Object Management Group (2010). MOF Model to Text

Transformation. OMG Document ad/05-05-04.pdf .

Object Management Group (2011). Requirements

Interchange Format (ReqIF), Version 1.0.1.

http://www.omg.org/spec/ReqIF/.

Object Management Group (2013). Com-

mon Variability Language Wiki.

http://www.omgwiki.org/variability/doku.php.

Open Services for Lifecycle Collaboration (2013). OSLC -

Open Services for Lifecycle Collaboration Core Spec-

iﬁcation Version 2.0 .

Reenskaug, T. (1997). Working with objects: A three-

model architecture for the analysis of information sys-

tems. JOOP, 10(2):22–29, 40.

Reenskaug, T., Wold, P., and Lehne, O. A. (1996). Work-

ing with objects: the Ooram software engineering

method. Manning Publications, Greenwich, CT.

Reichmann, C., Kiihl, M., Graf, P., and Muller-Glaser, K.

(2004). Generalstore - a case-tool integration platform

enabling model level coupling of heterogeneous de-

signs for embedded electronic systems. In Engineer-

ing of Computer-Based Systems, 2004. Proceedings.

11th IEEE International Conference and Workshop on

the, pages 225 – 232.

Rzonca, D., Sadolewski, J., and Trybus, B. (2007). Proto-

type environment for controller programming in the

iec 61131-3 st language. Comput. Sci. Inf. Syst.,

4(2):133–148.

Seifert, M., Wende, C., and Aßmann, U. (2010). Antici-

pating Unanticipated Tool Interoperability using Role

Models. pages 52–60.

Sriplakich, P., Blanc, X., and Gervais, M.-P. (2008). Collab-

orative software engineering on large-scale models:

requirements and experience in modelbus. In Wain-

wright, R. L. and Haddad, H., editors, SAC, pages

674–681. ACM.

Steimann, F. (2000). On the representation of roles

in object-oriented and conceptual modelling. Data

Knowledge Engineering, 35(1):83–106.

The Eclipse Foundation (2013). Eclipse Lyo Project.

http://www.eclipse.org/lyo/, 2012.

Vinoski, S. (1997). Corba: integrating diverse applications

within distributed heterogeneous environments. Com-

munications Magazine, IEEE, 35(2):46–55.

Wasserman, A. I. (1989). Tool integration in software engi-

neering environments. In SEE, pages 137–149.

Weiqing Zhang (2013). Class Modeling of OSLC Re-

sources. Technical Report, University of Oslo.

Zhang, W., Leilde, V., Moller-Pedersen, B., Champeau, J.,

and Guychard, C. (2012a). Towards tool integration

through artifacts and roles. In The 19th Asia-Paciﬁc

Software Engineering Conference.

Zhang, W. and Moller-Pedersen, B. (2013a). Establishing

tool chains above the service cloud with integration

models. In IEEE 20th International Conference on

Web Services.

Zhang, W. and Moller-Pedersen, B. (2013b). Tool integra-

tion models. In The 20th Asia-Paciﬁc Software Engi-

neering Conference.

Zhang, W., Moller-Pedersen, B., and Biehl, M. (2012b). A

light-weight tool integration approach– from a tool in-

tegration model to oslc integration services. In 7th In-

ternational Conference on Software Paradigm Trends.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

110
