The MDArte Experience

Organizational Aspects Acquired from a Successful Partnership between

Government and Academia using Model-Driven Development

Rodrigo Salvador Monteiro

, Roque Elias Assumpção Pinel

Geraldo Zimbrão

and Jano Moreira de Souza

Computer Science Department, Fluminense Federal University (UFF), Niterói, Brazil

COPPE, Graduate School of Engineering, Federal University of Rio de Janeiro (UFRJ), Rio de Janeiro, Brazil

Keywords: MDA, Organizational Aspects, Practical Experience, Success Cases.

Abstract: Developing and evolving critical information systems in order to cope with changes in regulations and laws

is a constant worry for governments in the e-Government era. Due to the frequent challenges and some

previous frustrating experiences, the Brazilian Government has searched for an alternative development

method that could better fit its needs. At the same time, Brazilian Academia, represented in this case by the

Computer Science Department of COPPE/UFRJ, has been researching how to bridge the gaps in order to

harness the promise of Model-Driven Architecture in real life projects. A successful partnership between

both started in 2005, which gave birth to a complete MDA development environment that would later be

known as MDArte. The MDArte framework has been freely available since 2009 through the SPB portal

(Brazilian Public Software Portal – www.softwarepublico.gov.br) and throughout its construction and

evolution more than a dozen real projects have been built and maintained. During the development of such

real life projects a lot of critical organizational aspects raised. The main contribution of this paper is to

reveal and motivate the discussion on such organizational aspects that must be faced when deciding to adopt

an MDA approach. In order to contextualize our perceptions, we present the MDArte experience, including

its origin, evolution and current state. The major challenging and complex systems that have been developed

with MDArte are presented as success cases along with an analysis of the benefits of using a Model Driven

Development (MDD) approach.

1 INTRODUCTION

The Model-Driven Architecture (MDA, 2003)

approach as released by the Object Management

Group (OMG, 2013) aims at addressing a whole

bunch of recurrent problems faced in information

systems development. The promises of the MDA

approach are attractive and the benefits presented in

slide sheets make any software development

manager yell, ‘I do want to use that!’ However,

using the MDA approach in practice is far from

trivial as can be confirmed by other initiatives (Rios

et al., 2006); (Staron, 2006). There are huge cultural

and technical gaps that may lead your pilot project to

fail. Understanding the current limitations on one

hand and the powerful potential in the medium and

long run on the other hand, are key issues in

avoiding unrealistic expectations. In this paper we

describe the origin, evolution and current state of the

MDArte framework (MDArte, 2013) in order to

pinpoint the challenges involved in the adoption of

an MDA approach. The MDArte framework has

delivered a dozen information systems. Two of them

that are considered to be the most challenging are

presented as success cases: SICONV and SGDC-P.

Their business contexts are addressed, the major

challenges are pointed out, and issues where the

MDA proved its value are highlighted.

This paper is organized as follows: section 2

presents the origin, history and current state of the

MDArte framework; two success cases – the SGDC-

P and SICONV are reported, respectively, in

sections 3 and 4; section 5 summarizes the lessons

learned regarding organizational aspects through

almost ten years of experience; and finally, we

conclude the paper in section 6 and outline the next

steps as future work.

575

Salvador Monteiro R., Elias Assumpção Pinel R., Zimbrão G. and Moreira de Souza J..

The MDArte Experience - Organizational Aspects Acquired from a Successful Partnership between Government and Academia using Model-Driven

Development.

DOI: 10.5220/0004714305750584

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 575-584

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 THE MDArte FRAMEWORK

Model Driven Architecture (MDA) is a

methodology for information system development

based on values from Model Driven Development

(MDD, 2003). The OMG released it in 2001, and its

main goal is to formalize a methodology on code

generation that uses the Unified Modeling Language

(UML, 2005) and some other industry standards to

build abstraction layers from model to code.

These layers represent the main idea behind the

MDA: promoting the separation between what is

considered specific to or independent of technology.

Thus, the same model could be used to generate the

information system for different platforms without

too much additional work. From the models, more

than 80% of application code can be automatically

generated; leaving around 20% to be written to fit

the specific platform needs (Guttman and Parodi,

2006). Based on the fact that the generation covers

almost all the code, the development requires less

specific knowledge from developers and reduces

both development time and cost.

After the methodology was released by the

OMG, different organizations started migrating and

building code generation frameworks to work with

its concepts. One of the most widely known and

used MDA frameworks is the AndroMDA

(AndroMDA, 2013), an open source project that

deals with different target technologies. In Brazil,

the project was extended due to the Brazilian

Government’s need to standardize the development

of its information systems, resulting in the creation

of the MDArte framework. Today, it is an open

collaborative community involving public and

private sectors, from industry to academia. Besides

this, although both frameworks have been exploring

the generation of specific information systems, they

are still contributing to each other in order to

streamline code generation.

2.1 Historical Context

The OMG – a non-profit international consortium of

industrial and computing organizations created in

1989 with the purpose of establishing corporate

modeling and integration standards – announced an

initial (but incomplete) formal version of MDA

specification in September 2001. In mid-2003 a

more detailed definition of the architecture was

published. In February 2003, an open source

initiative released an MDA framework. This open

source MDA framework was baptized as

AndroMDA and by July 2003 it had been published

in its final 2.0.2 version. From 2003 to 2005

COPPE/UFRJ developed a series of academic

projects and small pilot projects using AndroMDA.

Such projects aimed at identifying weak points that

should be researched in order to provide viable

solutions for the development of large scale real life

information systems. In February 2005, a project

involving the Ministry of Planning, Budget and

Management, the Ministry of Defence and

COPPE/UFRJ was established for the creation of the

Brazilian National Codification System. One of the

sub-projects included the development of a new

version of the Catalogue Data Management System

(SGDC-P) using the MDA approach via the

AndroMDA framework. The AndroMDA

framework can be freely customized by changing the

existing plug-ins or creating new ones. In the

AndroMDA context, such plug-ins are responsible

for specifying how the UML models provided as

input should be processed and what should be

produced as output. Also, these plug-ins are

commonly called cartridges by the AndroMDA

community. Since the beginning of the development

of the SGDC-P a series of new requirements for the

AndroMDA cartridges have been identified. These

requirements were analyzed, generic solutions to

cope with them were designed and, finally,

implemented and made available in new versions of

the cartridges. These solutions are readily available

for use in new projects. During the development of

the Agreements Portal (SICONV), in a partnership

between the Ministry of Planning and

COPPE/UFRJ, which began in September 2007, the

productivity gains obtained from the reuse of

solutions embedded into the AndroMDA were

already evident. The new set of AndroMDA

cartridges constructed through this process was

called MDArte and is publically available at

www.softwarepublico.gov.br since 2009. Since then

more than ten other information systems have been

developed and put into production using this

development platform. Nowadays, the MDArte

community counts more than 2000 users and is

maintained by its open source community.

2.2 Current State

MDArte had its origin in the academic field by way

of a federal government partnership in the area of

database research with the Systems and Computing

Engineering Program (PESC), which is part of the

Alberto Luiz Coimbra Institute (COPPE) of the

Federal University of Rio de Janeiro (UFRJ) (PESC,

2013). COPPE maintains a sector dedicated to the

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

576

research of MDA methodology in which MDArte

has shown to be an excellent learning tool. As a

result, several projects related to the framework have

been developed (e.g. Final Course Projects, Masters

Thesis, etc) and published in conferences as well as

national and international journals. Some current

research topics are:

 Evolution impact analyzer for generated systems.

 Metrics analyzer, counting function points and

other statistics (Pinel, 2012).

 Android application generation.

 Test flow generation with JUnit (Pinel et al.,

2011).

 Python application generation.

 Dependency extractor and architecture violation

identifier (Antelio, 2011).

 Development support tools.

 Integration with the jBPM framework.

 Support for Data Warehouse (DW) environments

(Fernandes et al., 2010).

Many of these projects such as the JUnit

generation, statistics generation and the development

support tools are already part of the latest version of

MDArte. Some other projects, like the dependency

extractor and architecture violation identifier, are in

the final phase of testing and should become public

soon. Moreover, the Fluminense Federal University

is now part of the MDArte community and there are

plans to create a research group focused on MDA

and MDD in the near future.

3 SUCCESS CASE 1: SGDC-P

The Catalogue Data Management System was

conceived in partnership with the Brazilian Armed

Forces Catalogue Center of the Defence Ministry. Its

initial version, the SGDC, allowed Brazil to achieve

a Tier 2 level on the NATO Codification System

(NCS). Being a Tier 2 nation means to be able to

actively participate in the catalogue of

manufacturers and supply items offered through the

NCS network. As a fundamental requirement for

reaching such level, the country must have an

approved information system that allows the

exchange of codification messages following a

rigorous standard defined by NATO. The

development of the SGDC and its production

availability resulted in the requested requirements

being fully satisfied. The development of the SGDC-

P began in 2005; this corresponds to an evolution of

the original SGDC and includes parameterization

flexibility as well as a series of technological

innovations. Among the innovations it is worth

highlighting the possibility of exchanging

codification messages online using Web Services

technology.

3.1 Major Challenges

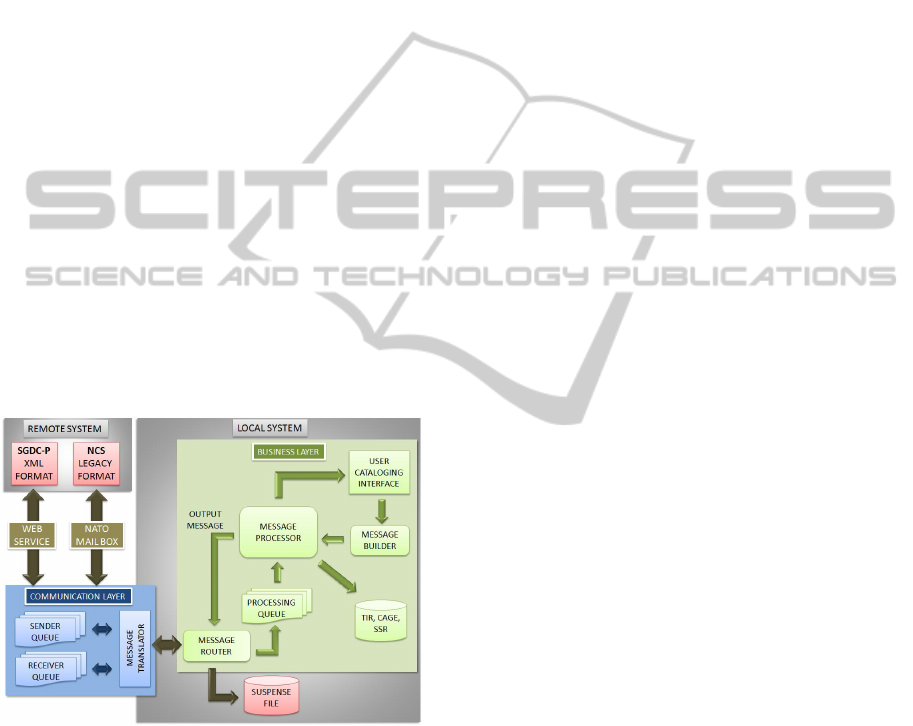

If we analyze the NATO Codification System

(NCS), we can split it into two major “layers”: the

first one is composed of the whole set of business

rules, which manage the catalogue of manufacturers

and supply items. The second layer is formed by the

communication protocol, which is nothing more than

an EDI (Bergeron and Raymond, 1992) protocol

defined by NATO. In this protocol, the NCS

transactions are an embedding of business

transactions necessary to accomplish all the

codification processes with the controls necessary

for their transmission. Thus, in a simplified way we

can portray the NCS as a great repository of

distributed data, composed of manufacturers and

supply items, which use the transactions as a way of

querying, creating, changing and deleting this

information, keeping all the client databases

synchronized.

Ever since the NATO Codification System was

conceived in the middle of the 20th century there has

been no clear separation between the business layer

and the communication layer and several

interferences between them can be perceived. Also,

because it is an old protocol, many restrictions were

applied due to the high costs of communication and

data processing existing at that time. And due to

these restrictions, any new implementation in this

system demands very complex programming.

Currently, with the high level of maturity of tools

and processes in Information Systems development,

it is obvious that the separation between

communication and business layers is fundamental

for the development of a more robust system in

terms of Codification rules (its core) that is less

dependent on technological aspects for

communication purposes. By adopting this practice,

it is possible to gain benefits from standards already

established by the software development community

that have solved many communication problems in

an efficient and maintainable way – as established

by data communication via web services (Web

Services Architecture, 2013) – and thus focus all the

development efforts exclusively on business aspects

in order to build a system fully compliant with all

the codification rules and capable of meeting all

users’ requirements. Following this approach, the

SGDC-P was built with more focus on Codification

TheMDArteExperience-OrganizationalAspectsAcquiredfromaSuccessfulPartnershipbetweenGovernmentand

AcademiausingModel-DrivenDevelopment

577

rules, relegating communication aspects to a lower

level of concern.

The above-mentioned approach of separation

between communication and business layers lead us

to defining the architecture depicted in Figure 1 for

the SGDC-P. In the following we briefly describe

the role of the main components of the SGDC-P

Architecture:

MESSAGE: By means of the message, the

actions demanded by the system operator are stored

for processing. A message can act on manufacturers

or supply items. This way, when the operator wants

to query, create, change or delete data, the system

creates a message which will run through the system

until it is processed.

MESSAGE PROCESSOR: The Message

Processor (MP) is a service capable of interpreting a

message, executing the actions required and

validating them. In the first step, the MP does not

update the database, but simulates the actions

indicated in the message and retrieves a temporary

version of the item/manufacturer with the changes

required by the message and the possible errors

originating from these. Depending on the step in the

codification workflow the changes originating from

the message processing may or may not be persisted

in the database.

Figure 1: SGDC-P Architecture.

INTERFACE FOR USER CATALOGUE: These are

the screens that allow interactions between the

operator and the system. It is through some of these

screens that the messages are built. Once the

message is completed, the MP is demanded and a

feedback is provided for the operator. This is

particularly interesting, since it allows the operator

to know in advance the expected results before the

message is actually processed and the actions have

persisted in the database. Another advantage is that

there are no duplications in terms of business rules;

all the validation is done uniquely through the MP.

MESSAGE BUILDER (MB): The MB works

with the version concept (for items and for

manufacturers) in order to let the system know

which actions the operator has performed to modify

the item or the manufacturer. Based on the

differences between the previous version and the

modified version, the actions demanded by the

operator are deduced by the system. This solution

allows the storage of all the actions performed for a

given item, as well as permitting validation of those

actions, by using the MP to simulate the processing.

As such, during the codification process the codifier

is capable of being aware of the possible errors

encountered during the process, before finishing its

actions.

MESSAGE ROUTER (MR): The MR defines if

the message is to be processed locally (into the

system) or remotely (the message is to be sent via

web service/XML protocol or via NCS Legacy

format).

MESSAGE TRANSLATOR (MT): By means of

the MT, NCS Legacy format transactions and XML

messages are converted into SGDC-P internal

messages and vice versa. This is a very important

step, as it lets the MP work exclusively with a

unique kind of standardized message (the SGDC-P

internal message), thus allowing it to focus

exclusively on business validations. Any error

related to the format of the transmission is detected

by this service, preventing the continuation of the

message to the next step which would be the

business processing.

RECEIVING, SENDING AND PROCESSING

QUEUES: By means of queues, it is possible to

ascertain that the message will reach its destination.

Once in the queue, the message will be processed

obeying chronological order.

The requirements associated to the above

mentioned components were only partially fulfilled

by the features available in MDArte at the beginning

of the project. In the next section we discuss some

examples of new features developed in the MDArte

cartridges in order to cope with the development

needs.

3.2 Sample of Model Transformation

Evolution in the SGDC-P Context

The SGDC-P development presented a lot of new

challenges for the MDArte team. The existing model

transformations at the beginning of the project had

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

578

no adequate support for a lot of features. In fact, the

development started in two forefronts: the first one

(thread 1) started implementing the use cases that

could be expressed through the existing model

transformations; the second one (thread 2) started

building new model transformations for coping with

the new requirements. Specially, looking at the

description presented in the previous section we can

notice the need of having ways of modeling message

queues and the exposure of services through web

services. We chose to present these two evolutions

in the following in order to illustrate how the work

was conducted.

When it comes to message queuing, the missing

features intended to model components representing

the queue, the queue listener and the queue client.

Introducing a semantic notation for expressing such

components at a platform independent level should

be enough for building new transformation for

generating the required artifacts at the target

language. In such a way, we created two new

stereotypes and one new tagged value. The first new

stereotype was «MessageListener» associated with

the new tagged value @mdarte.service.QueueName.

These new elements were conceived to expresses

that a class receiving the stereotype

«MessageListener» would behave as a component

waiting for receiving messages sent to a queue

identified by the name provided in

@mdarte.service.QueueName. The second

stereotype was «MessageListenerClient» and the

class receiving this stereotype would behave as a

component able to send messages to a specific

queue. The notation chosen to express to which

queue the queue client would send the messages was

to model a dependency relationship between the

class with the «MessageListenerClient» stereotype

and the class with the «MessageListener» stereotype.

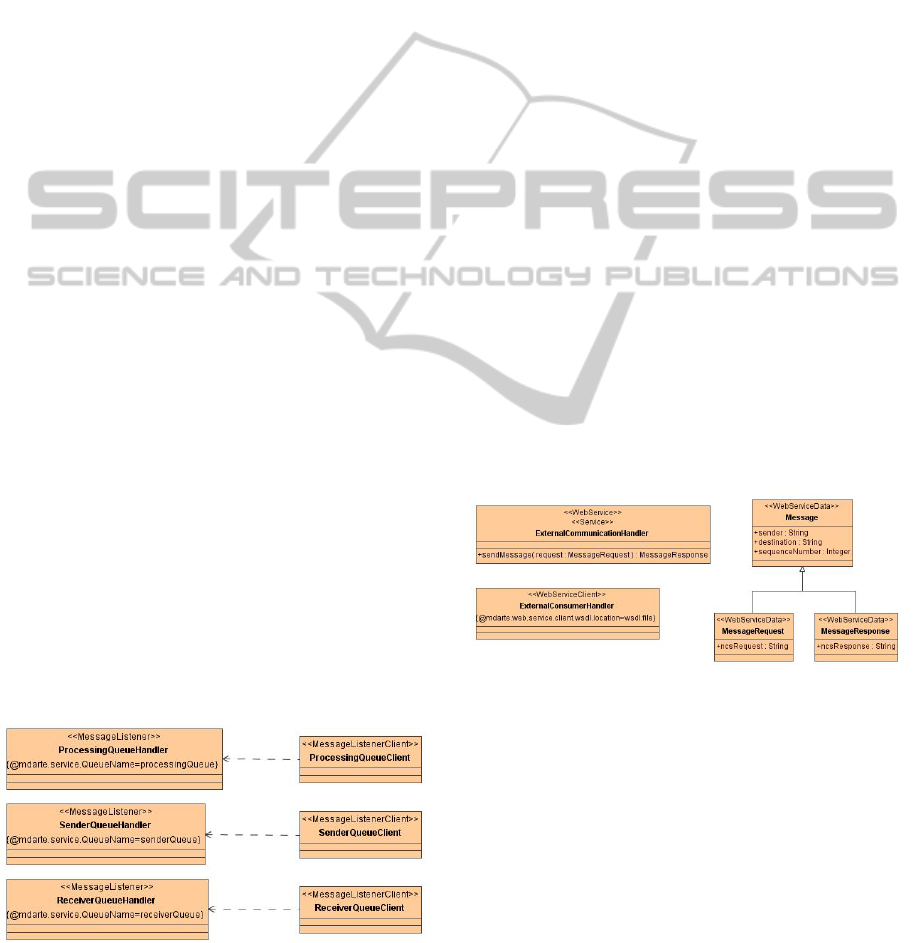

Figure 2 presents a class diagram using the notation

described to represent the three queues depicted in

the SGDC-P Architecture in Figure 1.

Figure 2: Modeling Message Queuing Behavior.

The team responsible for evolving the model

transformation performed changes in the EJB

cartridge in order to register new components aware

of the above modeling features. New templates were

developed to generate all the artifacts required for

deploying a MDB (Message Driven Bean)

component of the EJB (Enterprise Java Beans)

specification. The most interesting feature is that the

development team focused on thread 1 only needed

to be told about the modeling features depicted in

Figure 2. No details on how building and deploying

an MDB component were required for them.

Regarding the exposure of services as web

services once again there were a lot of features

missing. How would we model that a service must

be exposed or that some component will consume an

external service? In this case, we have created three

new stereotypes and one new tagged value. A

stereotype «WebService» was created in order to be

used together with the existing one «Service» in

order to express that it should be published as a web

service. A new stereotype «WebServiceClient»

associated with the tagged value

@mdarte.web.service.client.wsdl.location were

created to model a component that should behave as

a consumer of a web service described by the WSDL

(Web Service Description Language) file provided

in the tagged value. Finally, a stereotype called

«WebServiceData» was created to indicate that a

modeled data structure will be sent or received via a

web service. Figure 3 presents a diagram using the

new embedded semantic information.

Figure 3: Modeling Web Service Components.

The model transformation team once again evolved

the cartridges adding new components associated to

the new notation elements. New templates were

developed to generate the artifacts required as input

to the JWSDP (Java Web Services Development

Pack) for the elements annotated with the

«WebService» and «WebServiceClient» stereotypes.

Other templates were implemented to generate Java

classes conforming to the W3C standard for

supported data types when the «WebServiceData»

stereotype is provided.

TheMDArteExperience-OrganizationalAspectsAcquiredfromaSuccessfulPartnershipbetweenGovernmentand

AcademiausingModel-DrivenDevelopment

579

3.3 Analysis of MDA Benefits

The major challenges involved in the SGDC-P

development address technical issues. Therefore,

designing solutions to cope with the translation

between different protocols and to perform the role

of the architecture’s components are central

problems perceived by the client. This was an

extremely favorable environment for the MDA

adoption. It was easier for the client to understand

what the infrastructure team was working on.

The development of the SGDC-P required

solutions for deploying and managing queues,

executing simulations, web service deployment and

W3C Data Structure compliance, W3C Data

Structure vs. Internal Structure translation. The use

of MDA allowed delivering solutions to all these

topics. Most importantly, in almost all of them the

development team was simply told: “focus on the

business issues, everything else is already solved”.

In other words, the experience of applying MDA on

the SGDC-P development confirmed that it really

proves its value when it comes to hide framework

technical details and protocol standards. For

instance, if you want to publish a service on the web

via a web service, just add a stereotype to your

service saying so. If you want to exchange data

through web services using W3C compliant data

structures, just model your data and add a stereotype

saying that it will be used to transport data through

web services. By doing so, the development team

was released from a whole bunch of technical details

and could focus on the business rules

implementation.

4 SUCCESS CASE 2: SICONV

With the identification of the misuse of public funds

personified by the overpriced ambulances scandal,

the Audit Court (TCU) determined by the 2066/2006

accord “... to the Planning, Budget and Management

Ministry, in order to allow the transparency that

should be afforded public actions, as a way of

facilitating social control and the principle of

publicity …, a technical study will be presented to

this Tribunal for the implementation of a web

information system platform that allows online

tracking of all agreements and other instruments of

law used to transfer federal funds to other

agencies/entities, federal entities and private sector

entities; that can be accessed by any citizen via the

worldwide web and contains information related to

the formalized instruments ...”. Compliance with this

determination was made possible through a

partnership between COPPE and the Ministry of

Planning, Budget and Management for the

development of a new Agreements Portal (SICONV)

to replace the old system which only satisfied a

small part of the process implemented by the Union

and was not accessible to ordinary citizens.

Due to the short amount of time for the

construction of the new information system, the

COPPE staff responsible for the project made use of

their experience in the development of systems

focused on models and MDA (Model Driven

Architecture) to accelerate development and meet

deadlines. After meeting the requirements agreed

upon for the partnership, the development of the new

SICONV was transferred to SERPRO (Federal Data

Processing Service) through training focused both

on business and the MDA technology used. The

system was successfully transferred and is now fully

maintained by SERPRO, which is totally qualified to

deal with the

system’s evolution using the new

technology.

SICONV (the Agreements Portal) is responsible

for the voluntary transfer of resources from the

Union to the states, municipalities and private non-

profit entities, which exceeds tens of billions of reais

annually (R$23.78 billion in 2007, which roughly

corresponds to US$12 billion). The progress of the

transfers and allocation of resources can be tracked

online on the website http://www.convenios.gov.br.

4.1 Major Challenges

In Brazil, the federal constitution states that the

Union is responsible for the majority of tributes,

levied in the form of taxes, improvement

contributions, compulsory loans, import tariffs,

export tariffs, income tax (IRPF and IRPJ), tariffs on

industrial products (IPI), duty on credit transactions

(IOF) and rural property tax

(ITR) amongst others.

As a consequence, mechanisms were created to

decentralize these resources to other spheres of

government (states and municipalities) or to private

non-profit entities in order to meet the needs of

society. A portion of these resources comes from

mandatory transfers and follows rules predefined by

the Federal Constitution, or from specific laws as in

the case of the Municipalities Participation Fund.

The other portion comes from voluntary and

discretionary transfer for use in projects of mutual

interest, accomplished by means of formal

instruments generically known as “Covenants” that,

when providing for the intervention of an official

bank, are known as “Transfer Agreements”.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

580

According to Hely Lopes Meireles, “Covenants

are agreements signed by various kinds of public

entities or between them and private organizations,

for achieving objectives of common interest to the

participants”. Over the past decades, the Federal

Public Administration has been consistently

investing in the implementation of automated

information systems to improve the collection,

allocation and execution of public resources;

however, until recently such initiatives were very

weak in terms of decentralized resource execution,

since in most cases the other administrative spheres

did not have instruments equivalent to the federal

sphere for control and transparency of spending.

Such a situation left these resources subject to

arbitrary uses and in opposition to the original

objectives of the transfers - inflated pricing and

misappropriation of funds frequently appeared in the

headlines of the major newspapers. It is the

transparency in the operation of these funds that the

Agreement and Transfer Contract Management

System (SICONV) is focused.

Among the main challenges, the ones that stand

out are those relative to major clients and to the

progressive development of the modules – due to the

prerequisites not being completely defined yet. The

lack of standardized enforcement mechanisms has

led many authorities to develop procedures and even

their own automated solutions. Associated with this,

a certain aversion to controls intensified the

resistance to change and significantly complicated

the implementation of the new system. The human

resistance to change is always a constant, but in the

case of this initiative there are particular difficulties

associated with almost all the actors involved in the

process. Strictly speaking, everyone agrees with the

objectives proposed by the new system and wanted

the change, given the successive scandals that

constantly appeared in the major headlines;

however, in practice, the

absence of standardized

procedures and the superficial control led to

everyone developing a method for treating the theme

and investing in homegrown solutions, some of good

quality but not satisfying the full scope and purposes

and with knowledge restrictions for the whole

process.

4.2 Sample of Model Transformation

Evolution in the SICONV Context

A very sensitive and present requirement in the

SICONV development was the ability to track the

user responsible for inserting, updating or deleting

any information. The need of storing change logs

was in evidence as well. Therefore, creating

automatic mechanisms for coping with such

requirements would release the business

development team from such worries. The model

transformation team delivered two options for

expressing the need of an auditing mechanism. The

first one was to simply add a general property on the

project stating that every class on the Data Layer

must be auditable. The second one was more

selective and allowed the business development

team to add a new stereotype <<Auditable>> on the

Data Layer components that must be handled by the

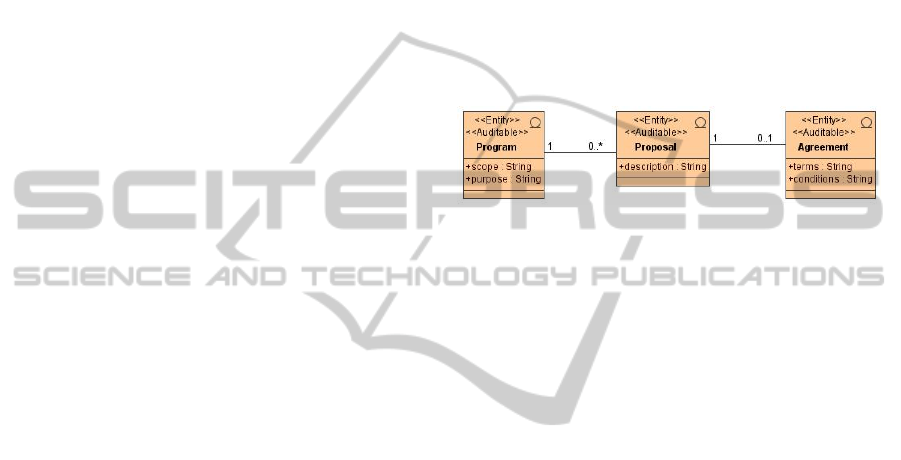

auditing mechanism. Figure 4 presents an example

on how this annotation is modeled.

Figure 4: Modeling Auditing Behavior.

The model transformation team performed changes

in the Hibernate cartridge in order to automatically

generate all database objects required for storing the

audit trail. Every auditable Data Layer component

received additional attributes for logging the user,

the timestamp and the operation performed, as well

as a complementary log table to store the historical

data. Finally, an interceptor component was attached

to the Hibernate framework in order to monitor

every data manipulation performed by the

application. Performance tests were conducted to

evaluate the overhead created by the auditing

mechanism and the solution was tuned to reach an

acceptable level for the application context.

Besides, it is worth mentioning that the strong

security issues involved in the application context

demanded solutions to prevent some kind of

common attacks. The model transformation team

applied well-known solutions to generate a safe code

preventing, for instance, script-injection and SQL-

injection.

4.3 Analysis of MDA Benefits

The major problems faced by the SICONV

development were far away from the technical

perspective. Most of them were cultural and social

problems. Moreover, due to the absence of

standardized procedures there were no clearly

defined business processes and requirements.

The adoption of MDA in this project was clearly

made to take advantage of the team expertise and

high productivity. The main benefits of using MDA

TheMDArteExperience-OrganizationalAspectsAcquiredfromaSuccessfulPartnershipbetweenGovernmentand

AcademiausingModel-DrivenDevelopment

581

had little to contribute to the major challenges faced.

Indeed sometimes it was even an additional

argument to strengthen the cultural resistance. As

the other extreme faced in the SGDC-P

development, the environment was extremely

contrary to the MDA adoption.

It is true that the use of the MDArte framework

allied with the team expertise was decisive in

meeting the strict and short deadlines imposed.

Although, throughout the development its use was

many times blamed as the responsible for different

problems that would arise in any other development

option. Problems from performance and security

issues to bugs in the Java framework chosen for the

web layer (Struts framework) were assigned to the

adoption of MDA.

Fortunately, the development team was always

capable of quickly detecting the cause of reported

problems and give fast answers and solutions.

Nevertheless, it was very difficult for the client to

understand the technical details and the doubt about

if the MDA was the right choice started to gain

strength.

5 LESSONS LEARNED

In this section we summarize a set of lessons learned

over the past almost ten years of experience in

managing, planning and developing information

systems using the MDA approach. Our intention is

to share some hints that can help other MDA

practical initiatives to avoid common pitfalls,

resistance and unrealistic expectations. Although,

before presenting such hints some important remarks

must be made. In our discussion we are constrained

to traditional information systems. This constraint

removes from the scope safety critical applications,

such as avionics and automotive control systems for

example. In such scenarios qualified code generators

are being used which cannot be adapted or tempered

by the development team due to certification

considerations. In other words, do not try to change

the behavior of the code generator if you do not have

full control and knowledge on how it must work!

Once that the constraints are imposed, please find

our hints in the following:

 Do not start any MDA initiative without the

support of a solid MDA infrastructure team

It seams obvious but we have noticed many

initiatives trying to use MDA in a project facing it as

a off the shelf package or component of the

development environment. The real benefits and

gains of applying MDA come when your team is

capable of assuming total control over the model

transformations in order to adapt and evolve them

aligned with the project requirements. Otherwise,

your development team will simply use the chosen

MDA tool as a regular automatic code generator

module and it is almost sure that the team will

struggle and complain about the code being

generated or the flexibility provided. Actually, this is

why many automatic code generation initiatives

have failed. The code being generated must be

adapted to meet the architecture and patterns

established

as standards for the running project. In

practice, we have witnessed development teams

trying to adapt them selves to the generated code. If

you are trying to discipline your team to obey the

established standards then its fine, but normally this

happens because the code being generated is not

aligned with the project requirements and the

development team has to find ways to overcome the

barriers imposed by it. If the latter happens, soon the

development team will resist and refuse to support

the use of MDA. Indeed, some projects we

conducted at the beginning faced such problems.

Some projects were conducted only by developers

without the support of a background infrastructure

team. Some of them after while quit using MDA.

 Establish clear priorities for the MDA

infrastructure team

A very common error in a project applying MDA is

to consider the capacity of the MDA infrastructure

team when planning the deliverables schedule and

making commitments. This is not to say that the

MDA infrastructure team should not work and help

on the business requirements development. Indeed

the MDA team must help in such tasks as much as it

can, but there must be some time reserved on the

planning to cope with unexpected needs that could

not be envisaged. The problems arise because as

soon as the model transformations are well

established and stable it is tempting to engage all the

MDA infrastructure team direct in the

implementation of business requirements. The

project will face new requirements and challenges

that will require changes and evolutions in the model

transformations. Therefore, there must be some time

reserved for performing such tasks. Over the

projects we have developed we acquired statistics

showing that on the average we have consumed 15%

of the total hours devoted to the project to evolve

and maintain the model transformations. An

alternative we have been using to reduce the

pressure on consuming the MDA infrastructure team

resources for business requirements development is

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

582

to share this team among different projects.

 Clearly identify the main benefits MDA can bring

to your project

One very import issue is to identify what the

development team and mainly the stakeholders of

the project are expecting as benefits of the MDA

adoption. High productivity, up-to-date

documentation, obedience to the established

patterns, quality of the code being produced,

independent of the set of expected benefits keep one

thing in mind: none of them come without focus and

effort. The adoption of MDA can indeed provide all

the above benefits beside others and we are

witnesses of that. However, it is no magic solution.

Instead, it will provide the team project with tools to

reach the desired benefits. For instance, if you do not

work on a good architecture design and implement it

in your model transformations should not expect to

magically produce a well-structured system. MDA is

an elegant way of applying good practices

recommended by software engineering without

flooding the developers with annoying tasks. MDA

has a huge potential, it does have payoff, but it

requires hard work to realize it in practice.

 Keep expectations under control, especially when

it comes to gains of productivity

Avoid starting your project flooding your sponsors

with the promises of commonly seen slide sheets

about the wonders of MDA. Obviously you must

expose them but keeping everybody feet on the

ground. Some benefits only come in the long run

and this may frustrate some of the project’s

stakeholders at earlier stages. For example, when it

comes to gains of productivity we have cases

confirming the observations of (Hutchinson et al.,

2011) having 4 or 5 times increase in productivity.

However, at least in our projects we were not able to

reach this level on the average. Only developers with

high expertise were able to reach those levels. If you

have created expectations for such high productivity

levels regarding your whole team someone will be

frustrated even if you improve the productivity at

lower levels.

 Do not try to automate everything using model

transformations

Resist to the impulse of automating everything.

Current modeling languages do not have enough

expressive power to capture every requirement for

general information systems. Unless you intend to

constraint your domain and work with a domain

specific language (DSL), keeping a rate from 60% to

80% of the code being automatically generated is

already a good result. The main risk of automation

levels near 100% is to imprison the development

team and force it to demand too many model

transformations evolution to cope with the business

requirements flooding the MDA infrastructure team.

Moreover, introducing modeling elements at the

same level of abstraction that would be used directly

into the specific language platform is a signal that

you have crossed the optimal level of automation.

 Do not reinvent the wheel

The use of MDA adds a lot of value by bridging the

gap between models that represent the application

behavior and the platform code that implements it.

However, how far we should go with the

implementation must be a constant worry as a lot of

new tools arise in order to help in different

implementation issues. For instance, the Hibernate

Java framework helps a lot on the object-relational

mapping. A lot of workflow engines (e.g. jBPM) are

available, as well as business rule engines (e.g.

JBoss Drools). Instead of solving these issues by

delivering full solutions built in the model

transformations, it is recommended to generate

artifacts that can be plugged or fed into the platform

specific solutions that already deal with it. By doing

so, you can keep the desired information in your

models and take advantage of the tools provided in

your target platform. Moreover, if you are targeting

a new platform and building cartridges from scratch,

surveying the available tools and frameworks and

selecting the ones that will be used is part of the

homework. Summarizing, it is important to think

about the MDA approach as a layer above the

traditional development which links the models to

the platform engines, frameworks and what so ever

you would use if you were not using MDA.

 Be prepared for evangelizing the MDA culture

Be prepared to explain one million times what MDA

can and cannot do. Unfortunately, MDA concepts

are not known in general industry and even the

acronym MDA has no meaning for the general IT

public outside the academia. Personally, we have

been inquired more than once if it was a new kind of

MBA (Master of Business Administration).

 Be prepared to be the first one to be blamed for

everything that goes wrong

It is sad, but in this case the question “Do you have

someone or something to blame?” will always be

answered with “Yes, MDA!”. As reported before

when discussing the use of MDA in the SICONV

development, whenever facing any difficulty, the

use of MDA will be responsible for it. This issue

TheMDArteExperience-OrganizationalAspectsAcquiredfromaSuccessfulPartnershipbetweenGovernmentand

AcademiausingModel-DrivenDevelopment

583

enforces the need of a solid MDA infrastructure

team that must be ready to quickly identify the

origin of problems even if they have nothing to do

with the use of MDA. It is extremely critical because

not observing and understanding the resistance in a

hostile environment will lead your initiative to

discredit. Differently, identifying the source of the

problem quickly and helping solve it even if it has

nothing to do with the use of MDA will strengthen

the project as a whole.

6 CONCLUSION AND FUTURE

WORK

This paper presented a well-succeeded partnership

between the Brazilian Government and Academia,

which led to the creation of the MDArte framework,

representing a complete MDA development

environment used to develop more than a dozen real

information systems projects. We presented two

cases of success, SICONV and SGDC-P, which

were selected for being considered the most

challenging ones from different perspectives:

technical and cultural. In the sequence we provided a

section listing a set of lessons learned from our

experience aiming to highlight critical organizational

issues that must be observed when deciding to start a

project using MDA.

It indeed is a cliché but: “There is no silver

bullet!”. MDA indeed helps a lot in many different

aspects, from establishing standard architecture and

patterns, passing through reuse and reaching up-to-

date documentation and productivity gains.

However, the intrinsic complexity of developing an

information system is still there. To avoid creating

unrealistic expectation has been a key success factor

in our projects allied with hard work of the MDA

infrastructure team.

As future work, we intend to compile statistics

from all developed projects in order to disclose other

successful stories and help to disseminate the use of

MDA for information systems development.

Furthermore, the universities supporting the MDArte

will continually research new capabilities that can be

explored and release prototypes through the MDArte

community to be evaluated by the adherents

projects.

ACKNOWLEDGEMENTS

This article would not have been possible without

the support of CNPq, CAPES, FAPERJ, Fluminense

Federal University (UFF) and COPPE at the Federal

University of Rio de Janeiro (UFRJ).

REFERENCES

MDD, Model-driven development, IEEE Software Special

Issue, Mellor, S. J., Clark, A. N., and Futagami, T.

(eds.), vol 20, n. 5, September 2003.

OMG, Object Management Group. URL:

http://www.omg.org. Last visit: Feb 2013.

UML, Object Management Group, Unified Modeling

Language (UML): Superstructure, version 2.0, August

2005.

Guttman, M., and Parodi, J., Real-Life MDA: Solving

Business Problems with Model Driven Architecture,

1st ed. Morgan Kaufmann, 2006, p. 224.

AndroMDA. URL: http://www.andromda.org. Last visit:

Feb 2013.

PESC, COPPE, UFRJ: http://www.cos.ufrj.br. Last visit:

Feb 2013.

MDA, Object Management Group, MDA Guide, version

1.0.1, June 2003.

MDArte:

http://www.softwarepublico.gov.br/dotlrn/clubs/mdart

e. Last visit: Feb 2013.

Bergeron, F., Raymond, L.. “The advantages of electronic

data interchange”. ACM SIGMIS Database, PP 19-31,

1992.

Web Services Architecture (W3C Working Group Note).

http://www.w3.org/TR/ws-arch/. Last visit: Feb 2013.

Hutchinson, J., Rouncefield, M., Whittle, J., and

Kristoffersen, S: “Empirical assessment of MDE in

industry”. Proceeding of the 33rd International

Conference on Software Engineering, 2011.

Rios, E., Bozheva, T., Bediaga, A., and Guilloreau, N.:

MDD Maturity Model: A Roadmap for Introducing

Model-Driven Development, Proc. ECMDA 2006.

Staron, M.: Adopting Model Driven Software Development

in Industry - A Case Study at Two Companies. Proc.

MODELS 2006.

Pinel, R. E. A., Carmo, F. B., Monteiro, R. S., and

Zimbrão, G.: Improving tests infrastructure through a

model-based approach. ACM SIGSOFT Software

Engineering Notes 36(1): 1-5 (2011).

Fernandes, L. A., Neto, B. H., Fagundes, V., Zimbrao, G.,

Souza, J. M., and Monteiro, R. S.: Model-Driven

Architecture Approach for Data Warehouse. ICAS

2010: 156-161.

Antelio, M.: Architectural Breaches Detection in a Model

Driven Development Scenario. Master Thesis,

COPPE/UFRJ (2011).

Pinel, R. E. A.: Function Point Analysis Supported by

Model Driven Architecture. Master Thesis,

COPPE/UFRJ (2012).

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

584
