Smartphone-based Activity Recognition using Hybrid Classiﬁer

Utilizing Cloud Infrastructure for Data Analysis

Bingchuan Yuan, John Herbert and Yalda Emamian

Department of Computer Science, University College Cork, Cork, Ireland

Keywords:

ADLs, Smartphone, Wearable Wireless Sensor, Machine Learning, Cloud Infrastructure, Unsupervised

Learning, Real-time Activity Recognition.

Abstract:

Learning and recognizing the activities of daily living (ADLs) of an individual is vital when providing an

individual with context-aware at-home healthcare. In this work, unobtrusive detection of inhabitants’ activities

in the home environment is implemented through the smartphone and wearable wireless sensor belt solution.

A hybrid classiﬁer is developed by combining threshold-based methods and machine learning mechanisms.

Features extracted from the raw inertial sensor data are collected from a Body Area Network (BAN) (consisting

of the Zephyr BioHarness sensor and an Android smartphone), and are used to build classiﬁcation models

using different machine learning algorithms. A cloud-based data analytics framework is developed to process

different classiﬁcation models in parallel and to select the most suitable model for each user. The evolving

machine learning mechanism makes the model become customizable and self-adaptive by utilizing a cloud

infrastructure which also overcomes the limitation of the computing power and storage of a smartphone.

Furthermore, we investigate methods for adapting a universal model, which is trained using the data set of all

users, to an individual user through an unsupervised learning scheme. The evaluation results of the experiments

conducted on eight participants indicate that the proposed approach can robustly identify activities in real-time

across multiple individuals: the highest recognition rate achieved 98% after a few runs.

1 INTRODUCTION

As health awareness increases and technology ad-

vances, there is an increasing demand for an auto-

mated healthcare infrastructure that provides round-

the-clock assessment of a subject’s well being

(Singer, 2011). Remote healthcare monitoring in a

Smart Home is a potential solution allowing an el-

derly person to remain living safely and indepen-

dently. A Smart Home environment usually consists

of three main components: pervasive sensors, an in-

telligent reasoning system and actuators. Sensors are

low level devices that capture changes in the home

environment. Data streamed from sensors can be in-

terpreted by the reasoning system for rapid detection

of events in real-time. Certain event information can

then be sent over the Internet to a Remote Monitoring

Server and intelligent decisions can be made to allow

the actuators to adjust the environment. This kind of

infrastructure is the next generation of personal home

healthcare.

Our previous work (Yuan and Herbert, 2011b;

Yuan and Herbert, 2011a; Yuan and Herbert, 2012)

describes CARA (Context-aware Real-time Assistant)

an intelligent system especially designed for perva-

sive healthcare. The ability to accurately recognize

and continuously monitor activities of daily living

(ADLs) is one of the key features that CARA is ex-

pected to provide. ADL is associated with both phys-

ical and mental health and is a primary indicator

of quality of life (Skelton and McLaughlin, 1996).

Indeed, some age-related diseases(cognitive impair-

ments, mild dementia and Parkinson’s disease) have a

direct impact on the ADL of the elderly (White et al.,

2001). Activity recognition has been studied as part

of a healthcare solution to reduce the necessity for

carer supervision of individuals. Activity recognition

can also be used in conjunction with pattern recogni-

tion to detect changes in a subject’s routine.

In this paper, a novel and robust ADL recognition

approach is developed and evaluated. The solution in-

volves identifying a user’s activity through the com-

bined use of inertial sensors(accelerometer and gyro-

scopes) built-in to the smartphone along with a wear-

able wireless sensor attached to the chest. Raw sensor

data are collected, ﬁltered and extracted into different

features. These features are then used to build and

update classiﬁcation models using several machine

Yuan B., Herbert J. and Emamian Y..

Smartphone-based Activity Recognition using Hybrid Classiﬁer - Utilizing Cloud Infrastructure for Data Analysis.

DOI: 10.5220/0004723900140023

In Proceedings of the 4th International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2014), pages 14-23

ISBN: 978-989-758-000-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

learning algorithms. The most remarkable part of our

approach is that it is able to reﬁne the classiﬁcation

model through a cloud-based data analytics frame-

work so that it becomes customizable and adaptive

to different individuals. As a hybrid system, a thresh-

old based method is used to distinguish static and dy-

namic activities and a rule-based reasoning mecha-

nism is applied to identify simple static activities and

a machine learning classiﬁer is used to classify com-

plex dynamic activities which signiﬁcantly improves

the cost efﬁciency under the limitation of computing

power of a mobile device. Furthermore, by combin-

ing the wearable wireless sensor and the smartphone,

the average recognition rate of ADL can achieve over

95% in a real usage environment.

2 STATE OF THE ART AND

RELATED WORK

Advances in ubiquitous and pervasive computing

have resulted in the development of a number of sens-

ing technologies for capturing information related to

human physical activities. Two approaches for activ-

ity recognition have been extensively studied using

different underlying sensing mechanisms. The ﬁrst

method relies upon environmental sensors (e.g. RFID

tags, cameras) to track aspects such as motion, loca-

tion and object interaction (Tapia et al., 2004). It is a

promising approach for recognizing activities, but the

major hurdle in implementing these systems outside

of trials is how intrusive these sensors are. Usually a

large investment is involved in setting up and main-

taining the system, and in some cases it is only feasi-

ble for use in laboratory conditions.

The second method uses a Body Area Network

(BAN) to track the acceleration of speciﬁc limbs as

well as the body as a whole. Some of the existing

work on wearable sensor based activity recognition

uses several accelerometers placed on different parts

of the body (Tapia et al., 2007). Other research has ex-

plored the use of multiple kinds of wearable sensors

for activity recognition (e.g. accelerometers, temper-

ature sensors and microphones)(Maurer et al., 2006).

Wearable sensors are often non-invasive, unobtrusive

and require less effort to set up. Nevertheless, most

of the wearable sensors are required to be ﬁxed onto

special locations on the subject’s body which makes

it inconvenient and impractical for continuous long

term monitoring. While the ubiquity of smartphones

and their capability to support sensor data collection,

processing and communications make them an alter-

native platform to wearable sensors. Recently, re-

searchers have been working on using smartphones

as mobile sensing and computing platforms to achieve

activity recognition (J.R. Kwapisz and Moore, 2010;

Khan et al., 2010; Stefan et al., 2012). However, the

performance of these approaches is less effective due

to the ambiguity of upper body movement tracking.

To improve it, our approach makes use of two sets of

sensors; instead of using a single smartphone an addi-

tional Zephyr BioHarness sensor was used to monitor

trunk movement. The recognition rate was dramati-

cally improved by this combination, as shown in the

evaluation results.

On the other hand, activities of daily living in the

home environment can be generalized into two cat-

egories. Simple motionless activities, such as sit-

ting, standing, lying and bending, correspond to a

static posture of the human body. These activities

may be mostly recognized by using a threshold based

method (Lyons et al., 2005). Complex dynamic activ-

ities, such as walking stairs, cooking, sweeping and

washing hands, involve multiple overlapping actions.

These activities can be recognized by identifying pat-

terns of people’s movement (Ravi et al., 2005). We

build on these approaches and extend them to test

the ability of real-time identiﬁcation of daily activi-

ties through the combination of the aforementioned

methods.

Using a smartphone as a primary device for data

collection and processing increases the likelihood of

data coverage and represents a minimal maintenance

commitment and cost to the user. However, there

is a limitation of the hardware resource in a smart-

phone when processing heavy machine learning tasks.

Fortunately, the emerging of cloud computing could

solve the problem. As a delivery model for IT ser-

vices, cloud computing offers a cost-effective way to

support data analysis technologies with high ﬂexibil-

ity, scalability and availability for accessing data, dis-

covering patterns, and deriving models. There are

lots of ongoing research on mobile cloud computing,

and a wide range of potential mobile cloud applica-

tions have been recognized in the literature (Huerta-

Canepa and Lee, 2010; Frederking and Brown, 2010;

Marinelli, 2009). These applications fall into different

areas such as image processing, natural language pro-

cessing, multimedia search and sensor data manage-

ment. In this work, we focus on introducing a cloud-

based data analytics framework especially designed

to reﬁne classiﬁcation models for activity recognition

using multiple machine learning methods. By uti-

lizing the cloud infrastructure, the smartphone, even

with limited computational resources, can perform

intelligent real-time classiﬁcation and this provides

novel functionality in our solution.

Smartphone-basedActivityRecognitionusingHybridClassifier-UtilizingCloudInfrastructureforDataAnalysis

Collect accelerometer and gyroscope

data from sensors

Start

End

Extract features from 1-second analysis

window until data is fully processed

Distinguish static and dynamic activities

using threshold-based method

Load classification model

Convert acceleration to angles(degree)

Determine activity according to the

posture of body and legs

Sitting Standing Bending Lying

Build dataset for classification

Static Dynamic

Activity recognition using machine

learning classifier

Walking Running

Walking Stairs WashingHand

Apply threshold to the confidence of

classification output

Unknown Activity Recognized Activity

Confidence < 0.9 Confidence ≥ 0.9

Cloud-based

Model Optimization

Activity recognition output

Figure 1: Flowchart of activity recognition.

3 MATERIALS AND METHODS

3.1 Activity of Daily Living

Previously, we have developed a reasoning frame-

work for CARA pervasive healthcare that can help

extend independent living for the elderly in a smart

home environment by monitoring the person and am-

bient changes to detect anomaly situations (Yuan and

Herbert, 2012). For a smart home based monitoring

system, it is important to detect human body move-

ment which can provide the basic activity context. By

combining activity context along with other environ-

mental contexts, the context-aware monitoring system

is able to perform better reasoning for healthcare. In

this paper, we focus on introducing how the system

recognizes human activities through BAN without as-

sistance of any smart home sensors. The basic activ-

ity of daily living can be divided into two categories:

static posture and dynamic movement. Static pos-

ture indicates the position of the body which consists

of Sitting, Standing, Lying, Bending and Leaning

back, whereas dynamic movement is the compilation

of a series of multiple actions. The dynamic activi-

ties we considered in our system include: Walking,

Running, Walking Stairs, Washing Hands, Sweep-

ing, Falling. A custom-design Android application

for activity recognition has been implemented and run

on Samsung Galaxy III. The control ﬂow is as fol-

lows:

1. The machine learning classiﬁcation model is

loaded from the cloud.

2. Raw data are collected from BioHarness sensors

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

and smartphone build-in accelerometer and gyro-

scope sensors.

3. The signals are then low-pass ﬁltered and a 1s

window is moved over the signal and overlapped

every 500ms.

4. The features corresponding to each window are

extracted.

5. Static and dynamic activities are distinguished us-

ing a threshold-based method where a threshold

value of the acceleration is applied.

6. Static activities are divided into sitting, stand-

ing, bending, lying and leaning back by applying

threshold angles for both trunk and thigh.

7. Dynamic activities are classiﬁed using machine

learning classiﬁer based on the dataset of ex-

tracted features.

8. Activities are labelled as correctly classiﬁed if the

output conﬁdence is high enough.

9. Features and activity label of each detected case

are stored in the data ﬁle.

10. Recognized activity is used to retrain the classi-

ﬁer and update the classiﬁcation model using the

cloud-based data analysis framework.

The process of activity recognition is summarised in

Fig. 1 and further details are described in the follow-

ing sections.

3.2 Data Collection

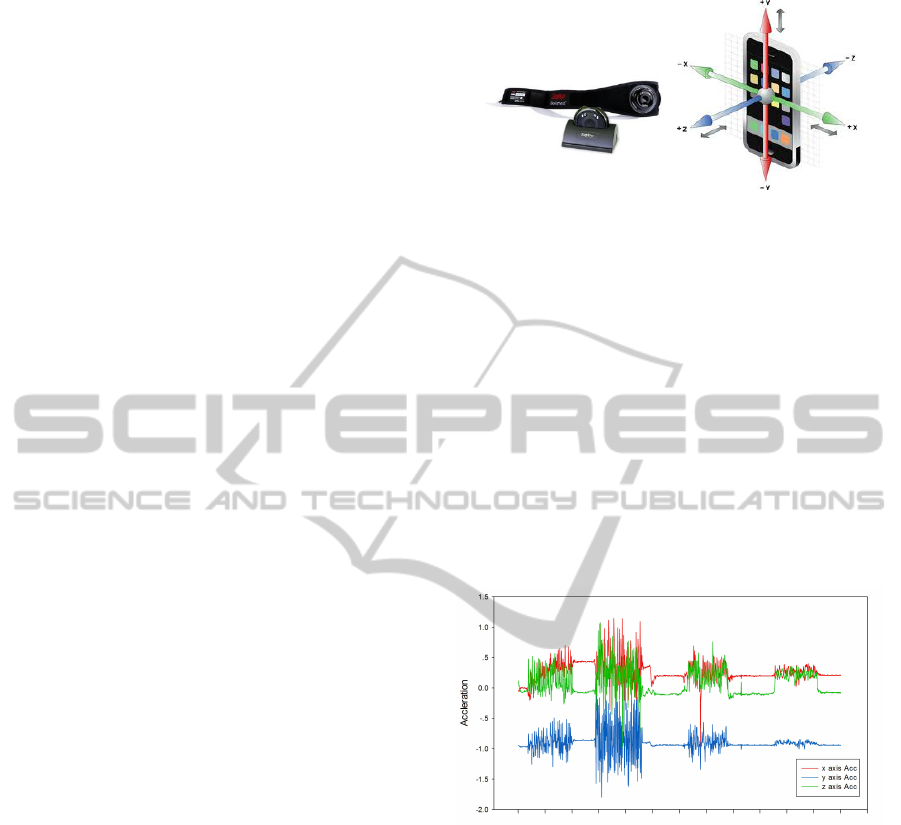

The data were collected by using a Samsung Galaxy

SIII mobile phone (Samsung Inc., 2012) and wear-

able Zephyr BioHarness sensor as shown in Fig. 2(a)

(Zephyr Inc., 2011). The embedded tri-axial ac-

celerometer and gyroscope sensor measure the 3D-

acceleration and orientation of the smartphone. The

three axes of acceleration are dependent upon the ori-

entation of the phone, the x-axis runs parallel to the

width of the phone, the y-axis runs the length of the

phone, and the z-axis runs perpendicular to the face

of the phone, as shown in Fig. 2(b). The sensor in-

tegrated into the mobile device is easy to use without

assistance and can be carried comfortably for long pe-

riods of time (Choudhury and Consolvo, 2008). The

data collection was done by performing experiments

on eight postgraduate students at University College

Cork, Ireland. Subjects were asked to perform a series

of activities while carrying the smartphone in the front

pocket of their trousers and the BioHarness sensor on

the chest. The BioHarness sensor data were transmit-

ted to the smartphone through a Bluetooth connection

in real-time. We created an application running on a

(a) Zephyr BioHarness (b) 3D-acceleration

Figure 2: Body area network for sensor data collection.

tablet device that communicates with the smartphone

while the subject performed the activities. The tablet

worked as a monitor and a controller that displays the

label of the ongoing activity and controls the phone to

start or stop recording activity data. 9 channels of sen-

sor readings, 3D-acceleration and orientation of the

thigh and 3D-acceleration of the trunk with associated

timestamps (ThighACCx, ThighACCy, ThighACCz,

ThighGYROx, ThighGYROy, ThighGYROz, Trunk-

ACCx, TrunkACCy, TrunkACCz) were collected and

subsequently used for the evaluation of the activity

classiﬁcation algorithms. Fig. 3 illustrates the sample

of raw sensor data collected by the smartphone.

Figure 3: Plot of raw 3-axis acceleration of the smartphone.

3.3 Feature Extraction

As to the sampling frequency, the sensors in the An-

droid phone trigger an event whenever the accelerom-

eter or gyroscope values change. The rate of events

can be set to one of four thresholds: fastest, game,

normal, and UI, with fastest being the fastest sam-

pling rate and UI being the slowest. In order to bal-

ance the speed of data processing and activity feature

extraction, the sampling rate for the experiment was

set to normal which is about 15Hz and we found it is

fast enough for the daily activity classiﬁcation.

Standard classiﬁers do not work well on the raw

sensor data. It is essential to transform the raw data

into a representation that captures the salient features

of the raw data. This is typically performed by break-

Smartphone-basedActivityRecognitionusingHybridClassifier-UtilizingCloudInfrastructureforDataAnalysis

Table 1: Description of features extracted from raw sensor data.

Feature Trunk Accelerometer Thigh Accelerometer Thigh Orientation

Min X, Y, Z, Peak ACC X, Y, Z, Absolute ACC Azimuth, Pitch, Roll, Absolute GYRO

Max X, Y, Z, Peak ACC X, Y, Z, Absolute ACC Azimuth, Pitch, Roll, Absolute GYRO

Mean X, Y, Z, Peak ACC X, Y, Z, Absolute ACC Azimuth, Pitch, Roll, Absolute GYR

Standard Deviation X, Y, Z, Peak ACC X, Y, Z, Absolute ACC Azimuth, Pitch, Roll, Absolute GYRO

Zero Cross X, Y, Z X, Y, Z Azimuth, Pitch, Roll

Mean Cross Peak ACC Absolute ACC Absolute GYRO

Angular Degree X, Y, Z X, Y, Z

ing the continuous data into windows of certain du-

ration. In this work, we experimented with one sec-

ond time window which is overlapped by one half of

the window length. Hence, each window is a sin-

gle instance, but any given data point contributes to

two instances. This method has been shown to be ef-

fective in earlier work using accelerometer data (Bao

and Intille, 2004). Table 1 summarized a number of

features extracted from each window. Each window

was represented as a feature vector of length 66. The

processed data were saved in the smartphone in an

arff(Attribute-Relation File Format) ﬁle for data anal-

ysis.

3.4 Threshold-based Mechanism

Among all the features, the standard deviation of ac-

celeration indicates the variability of the accelerome-

ter signal for each 1-s window of recorded data. High

variability would be expected during dynamic activi-

ties whereas static activities result in low variability.

Thresholds are then applied to the standard deviation

of both the smartphone and BioHarness accelerome-

ter signals. If either signal is above the threshold for

that second the activity is considered dynamic and if

both of them are below the threshold, the activity is

deemed static. Thresholds were determined empiri-

cally from the collected data. The threshold for trunk

acceleration was set at 0.25 m/s

and threshold for

thigh acceleration was set to 0.2 m/s

to ensure that

all motionless activities are detected. Fig. 4 shows an

example of the standard deviation threshold for Bio-

Harness accelerometer readings.

degrees

180

arccos(

) (1)

When the activity is deemed static, the mean ac-

celerations over the one second window are converted

to a corresponding inclination angle using the arc co-

sine transformation of Eq. 1, where a is the mean

acceleration, g is the gravity of earth, θ in degrees

corresponds to the angles of the trunk and thigh. Spe-

ciﬁc trunk and thigh inclination ranges are set based

Figure 4: Standard deviation threshold for trunk accelerom-

eter signals.

on the ﬁnding of Lyons et al. (Lyons et al., 2005).

They proposed the best estimate threshold which ac-

curately reﬂect real-life trunk and thigh ranges. How-

ever, they only considered three static activities, sit-

ting, standing and lying. In our work, we added two

more static activities, bending and leaning back, for

classiﬁcation. The ranges of thigh and trunk angles

Table 2: Threshold in degrees for thigh and trunk posture

detection.

Thigh Posture Upper Thres. Lower Thres.

Vertical 0 45

Horizontal 45 90

Trunk Posture Upper Thres. Lower Thres.

Vertical -30 30

Bending 30 60

Horizontal | ± 90| |±60|

Leaning Back -60 -30

for each posture are listed in Table 2. Static activity is

classiﬁed according to the posture of trunk and thigh

using rule-based methods. In the trial, detection accu-

racies of 98% and greater were achieved for each of

the static activities.

3.5 Machine Learning Classiﬁer

To recognize dynamic activities such as walking,

walking stairs and running, the machine learning clas-

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

siﬁer was trained to produce the classiﬁcation model.

The Weka machine learning package (Witten et al.,

2011) was used in this study for the purposes of de-

veloping the machine learning mechanism for the ac-

tivity detection. This package provides a collection

of machine learning algorithms for data mining tasks

which can be used in the android application. Four

different machine learning algorithms were investi-

gated and evaluated in this work:

• Bayesian Network. A probabilistic graphical

model using estimator classes and quality mea-

sures.

• Decision Tree. Generates a decision tree and nav-

igates from the root of the tree down to a leaf for

classiﬁcation.

• K-Nearest Neighbours. An instance-based clas-

siﬁer, classiﬁcation is based on some similarity

function.

• Neural Network. A multiple layer of perceptron

that uses back propagation to classify instances

We used the default parameters associated with each

of the classiﬁers. The classiﬁer obtains a model dur-

ing the training stage. After training, it can predict

the class membership for new instances using the

classiﬁcation model. Based on our experiments we

have found that the performance of different classiﬁer

varies from person to person which mostly depends

on the training dataset collected from each individual.

But overall, the Decision Tree algorithm has provided

more comprehensive results in terms of accuracy and

efﬁciency in comparison with the other algorithms.

The details of the experiment results are discussed in

Section 4.

3.6 Cloud-based Model Optimization

Data collected from all the subjects were pooled to-

gether to build a universal classiﬁcation model, re-

ferred to as the Default Model in the rest of the pa-

per. It works as the default for each user only if there

is no existing personal model available for that user.

However, it is not the suitable model for a speciﬁc in-

dividual since the model is trained and evaluated us-

ing the data gathered from all users; the body and be-

haviour pattern of each user is different. In order to

improve the classiﬁcation performance efﬁciently, we

introduced the idea of model adaptation for the opti-

mization of the machine learning classiﬁer by utiliz-

ing the cloud infrastructure.

As shown in Fig. 5, the principle of model opti-

mization is to keep updating the classiﬁcation model

for an individual user while the activity recognition

Build/Update

Models

Real-time

Classification

New Training

Dataset

Best Model

Upload

Datasetl

Model Evaluation

Download

Model

Unsupervised Learning

Client Cloud

Misclassified

Filtering

Figure 5: The process of model optimization.

task is carrying on. All the new users start with a de-

fault classiﬁcation model, which in turn gets reﬁned

and adapted to each individual user for better perfor-

mance when more activity data are available as users

carry the phone.

On the client side, real-time activity recognition

is carried out in the smartphone using the classiﬁca-

tion model. An unsupervised learning scheme was ap-

plied to generate new training data which is based on

self-training using unlabelled data without any user

input. It reuses the predicted label and conﬁdence

statistics generated by the machine learning classi-

ﬁer during the inference process to select new training

samples. The adaptation method determines whether

a data sample is suitable for adaptation according to

the conﬁdence level of the inference result and uses

high conﬁdence samples. The new training data are

recorded in a data ﬁle in the smartphone and are up-

loaded to the cloud storage periodically.

On the cloud side, multiple worker roles are de-

ployed for analysing user’s activity data.

• Controller Node. Control and manage the ﬂow

of incoming data and add the new messages in to

the Task Queue for further processing.

• Machine Learning Nodes. Each of the worker

roles reads a message from its own Task Queue

and starts producing a model based on a different

machine learning classiﬁers.

• Universal Node. A special machine learning

worker role that is designed to deal with data from

all the users to update the Default Model using a

dedicated classiﬁer (e.g. Neural Network).

• Evaluation Node. Select the most suitable model

for a speciﬁc user by comparing the evaluation re-

sults of each classiﬁcation model. Moreover, a

misclassiﬁed ﬁlter is also applied to the user’s data

after the best model is found.

Smartphone-basedActivityRecognitionusingHybridClassifier-UtilizingCloudInfrastructureforDataAnalysis

Cloud Environment

Blob

D4D3D2D1

Data Queue

U4U3U2U1

User Register Queue

Result Queue

Clients

Controller

Task Queue

DALL

Universal Model

Neural Networkl

Decision Tree

Bayesian Network

MnM3M2M1

Model Queue

Evaluation & Filter

(Get Best Model)

Worker Roles

Figure 6: Structure of cloud-based data analysis framework.

The process of classiﬁcation model optimization is il-

lustrated in Fig. 6. The URL of the training data are

collected by the Controller node and assigned as dif-

ferent tasks to machine learning worker roles. The

data are then used to either build new classiﬁcation

models in the case of a new user or reﬁne the exist-

ing models. Moreover, the data is also fused with

the available data from all users to update the De-

fault Model for new user. In the experiment, four

worker roles worked in parallel to process machine

learning tasks. Each of the worker roles is designed

to handle one machine learning algorithm. The num-

ber of worker roles is able to be adjusted on demand

which makes use of the ﬂexibility and scalability of

the cloud infrastructure. The models are generated

and evaluated for each machine learning classiﬁer in

worker roles. After gathering the evaluation results of

all the models in the Evaluation node, the most suit-

able model is selected according to the performance

of each model. The data (combining new training data

and any previously existing data) of that user are then

ﬁltered by a misclassiﬁed ﬁlter using the best model

and stored in the cloud storage as previous data. Once

the process is ﬁnished, the best model is sent back

to the user automatically. Thus, the new or updated

model can be used in the client for real-time classiﬁ-

cation.

4 EXPERIMENTS AND RESULTS

Eight volunteers (ﬁve male, three female) were in-

volved in our experiments to help us evaluate the fea-

sibility of the proposed approach. The activity data

were collected in a home setting and recorded in data

ﬁles for training and testing machine learning clas-

siﬁers. For supervised learning, subjects were asked

to perform static and dynamic activities sequentially

while carrying the smatphone and wearing the body

sensor. A controller application running on an An-

droid Tablet remotely controlled the smartphone to

start or stop recording activity data and to label the

recorded data on the ﬂy. Firstly, we built the Person-

alized Model which is a completely user dependent

approach. It requires training machine learning clas-

siﬁer on each individual user’s activity data and gen-

erates a user dependent model for each user. Clearly,

this scheme is superior to other models in terms of

performance for a speciﬁc user, but its lack of us-

ability and scalability greatly limits its application.

In addition, the supervised learning scheme requires

a great effort of manually labelling the activity data

which is a tedious and heavy task for the user. To im-

prove it, we decided to move on to a semi-supervised

approach where a universal classiﬁer is trained with

manually labelled data from all users (called the De-

fault Model). As we discussed in the last section, an

unsupervised learning scheme was applied to gather

new training data to update the model so that it gets

adapted to each individual user in a progressive man-

ner.

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

(a) Overall model accuracy for the female user A (b) Overall model accuracy for the male user B

Figure 7: Average accuracy of each machine learning classiﬁer in four runs.

Table 3: Detail of performance of different classiﬁcation models.

Classiﬁer TP Rate FP Rate Precision Recall F-Score Time (ms) Accuracy

First Run (1980 instances −→ 1874 instances)

Decision Tree 0.684 0.034 0.839 0.684 0.657 1838 68.37%

Bayesian Network 0.845 0.011 0.931 0.845 0.860 2725 84.45%

K-Nearest Neighbour 0.724 0.044 0.811 0.724 0.684 4849 72.35%

Neural Network 0.742 0.040 0.811 0.742 0.720 84682 74.23%

Second Run (3493 instances −→ 3392 instances)

Decision Tree 0.958 0.006 0.960 0.958 0.957 1248 95.80%

Bayesian Network 0.897 0.010 0.943 0.897 0.899 1482 89.67%

K-Nearest Neighbour 0.795 0.036 0.860 0.795 0.763 5504 79.51%

Neural Network 0.970 0.004 0.972 0.970 0.970 145111 97.04%

Third Run (5482 instances −→ 5403 instances)

Decision Tree 0.966 0.006 0.967 0.966 0.966 1358 96.61%

Bayesian Network 0.955 0.005 0.967 0.955 0.958 1727 95.48%

K-Nearest Neighbour 0.828 0.031 0.873 0.828 0.810 7019 82.84%

Neural Network 0.985 0.002 0.985 0.985 0.985 227774 98.49%

Fourth Run (6790 instances −→ 6714 instances)

Decision Tree 0.955 0.007 0.958 0.965 0.965 1692 96.54%

Bayesian Network 0.960 0.005 0.966 0.960 0.962 1357 95.97%

K-Nearest Neighbour 0.884 0.020 0.899 0.884 0.881 9041 88.43%

Neural Network 0.985 0.002 0.986 0.985 0.985 281971 98.55%

The proposed cloud-based approach was tested on

two users(one female user A and one male user B).

The manually labelled data gathered from these two

users were used as the testing set to evaluate four clas-

siﬁcation models. Each user started with the Default

Model and was able to obtain his/her Adapted Model

after the ﬁrst run. The model was reﬁned and up-

dated while the experiment was carried on. After four

runs of each user, the overall accuracy of the classi-

ﬁcation model was boosted and the best performance

achieved was over 95% (see Fig. 7). The detailed re-

sults for each classiﬁcation model obtained from each

run of User A are summarized in Table 3. It can

be observed that the performance of each model in

the ﬁrst run is quite poor, because the Default Model

dose not suit the user very well. However, after up-

dating the Adapted Model and ﬁltering the misclas-

siﬁed instances in the next few runs, the accuracy of

most models remains consistently above 90% except

for K-NN. The best accuracy was obtained with the

Neural Network method while the most cost efﬁcient

model was the Decision Tree. Note that the execution

time for building and evaluating the model using the

Decision Tree algorithm was around 1.5s on average

while the processing time of the Neural Network lin-

early decreased with the growth of the instances. In

this case, the Decision Tree was considered as the best

Adapted Model for this user. The Adapted Model rep-

Smartphone-basedActivityRecognitionusingHybridClassifier-UtilizingCloudInfrastructureforDataAnalysis

Table 4: Confusion matrix by using K-NN classiﬁer in the Default Model.

Activity a b c d e f g h i j k l

WALKING (a) 1852 0 10 0 0 0 6 0 0 0 0 0

RUNNING (b) 1 1105 32 1 0 0 0 0 0 0 0 0

WALK STAIRS (c) 47 0 1937 4 0 0 1 4 0 0 2 0

SWEEPING (d) 6 0 1 1378 14 0 4 0 0 0 0 0

WASHING HANDS (e) 0 0 0 0 873 0 7 0 0 2 1 0

FALLING (f) 0 0 2 1 5 32 6 1 2 3 0 0

STANDING (g) 0 0 0 0 0 0 822 0 0 0 0 0

SITTING (h) 0 0 0 0 0 0 0 972 0 0 0 0

LYING (i) 0 0 0 0 0 0 0 1 649 0 0 0

BENDING (j) 0 0 0 0 0 0 0 0 0 718 0 0

LEANING BACK (k) 0 0 0 0 0 0 0 0 0 0 557 0

ROLLING (l) 0 0 4 10 1 1 1 5 8 0 1 187

resents a middle ground between the Default Model

and the Personalized Model; it got reﬁned and even-

tually yielded 98% accuracy after four runs through

model optimization, and it is the model that is actu-

ally used in real-time activity recognition.

As for the Default Model, it was initially built

using the data collected from eight people using a

supervised learning scheme and then kept being up-

dated in the cloud once new data uploaded by any user

was available. Table 4 presents the confusion matrix

for the considered daily activities. The results were

obtained using a 10-fold cross-validation method to

evaluate the Default Model that was built by the K-

NN classiﬁer. The matrix shows that most errors oc-

curred between Falling, Standing and lying. Never-

theless, the average accuracy is still over 95% since

the original Default Model was built through a super-

vised learning manner. The reason for misclassifying

Falling is that it is a quick action which usually in-

volves a series of static pre-actions and post-actions,

e.g. Standing and lying. So it is difﬁcult to clas-

sify it through a machine learning model using a ﬁxed

sliding window method. However, a threshold based

method would solve this problem because the change

of activity readings are dramatic at the moment peo-

ple fall. We evaluated this method and the recognition

rate of Falling was boosted from 62% to 91%.

Instead of using a ﬁxed length of sliding window,

we also investigated our system using dynamic slid-

ing window which automatically determines the start

and end of an activity according to the dynamic ac-

tivity threshold. The performance of using dynamic

window is even better, however this method has the

limitation that it requires an activity to be completed

before it can be recognized. The delay of activity

recognition makes it less practical for real-time mon-

itoring, but it shows the potential for improving our

recognition system.

5 CONCLUSIONS

In this paper, we proposed a robust system of daily ac-

tivity monitoring using hierarchical classiﬁcation by

combining rule-based reasoning and multi-class ma-

chine learning algorithms. Human daily activities can

be naturally represented through hierarchies, such as

motion and motionlessness. Firstly, rule-base reason-

ing was used to separate the sensing data into two

groups: static and dynamic. Static activities are iden-

tiﬁed based on the posture of the body which is cal-

culated from 3D-acceleration, and dynamic activities

are classiﬁed respectively by using adapted classiﬁca-

tion models. By utilizing the cloud infrastructure, the

system provides high scalability and availability for

data analysis and model management. The data pro-

cessing and classiﬁcation algorithms are implemented

in the smartphone for real-time activity monitoring

while the cloud-based data analysis and model evalu-

ation are conducted off-line. The experimental results

compare favourably with other work using body sen-

sors (Stefan et al., 2012). Moreover, the performance

of our approach shows a signiﬁcant improvement in

comparison to the approach using a single smartphone

(Zhang et al., 2010) and the approach built on ﬁxed

machine learning algorithms (Andreu and Angelov,

2013). This shows a lot of promise for using smart-

phones as an alternative to dedicated sensors and us-

ing the cloud-based data analytics framework to pro-

cess machine learning tasks.

A limitation of this study is that the rule-base

reasoning depends on two thresholds to separate the

static and dynamic activities. Although, the chosen

threshold values work well in this study, they may not

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

be generally suitable for other cases and for different

sensors. Future work will evaluate new algorithms,

which can separate motion and motionless activities

automatically, without the need for static thresholds.

REFERENCES

Andreu, J. and Angelov, P. (2013). An evolving machine

learning method for human activity recognition sys-

tems. Journal of Ambient Intelligence and Humanized

Computing.

Bao, L. and Intille, S. (2004). Activity recognition from

user-annotated acceleration data. Pervasive Comput-

ing.

Choudhury, T. and Consolvo, S. (2008). The mobile sensing

platform: An embedded activity recognition system.

IEEE2008 Pervasive Computing.

Frederking, R. and Brown, R. (2010). The pangloss-lite ma-

chine translation system. In Proceedings of the Second

Conference of the Association for Machine Transla-

tion in the Americas.

Huerta-Canepa, G. and Lee, D. (2010). A virtual cloud

computing provider for mobile devices. In Proceeding

of the 1st ACM Workshop on Mobile Cloud Computing

& Services: Social Networks and Beyond.

J.R. Kwapisz, G. W. and Moore, S. (2010). Activity recog-

nition using cell phone accelerometers. In Proceed-

ings of the Fourth International Workshop on Knowl-

edge Discovery from Sensor Data.

Khan, A., Lee, Y., Lee, S., and Kim, T. (2010). Human

activity recognition via an accelerometer-enabled-

smartphone using kernel discriminant analysis. In 5th

International Conference on Future Information Tech-

nology.

Lyons, G., Culhane, K., Hilton, D., Grace, P., and Lyons,

D. (2005). A description of an accelerometer-based

mobility monitoring technique. Medical Engineering

& Physics.

Marinelli, E. (2009). Hyrax: cloud computing on mobile

devices using mapreduce. Master’s thesis, Carnegie

Mellon University.

Maurer, U., Samilagic, A., Siewiorek, D., and Deisher, M.

(2006). Activity recognition and monitoring using

multiple sensors on different body positions. In IEEE

Proceedings on the International Workshop on Wear-

able and Implantable Sensor Networks.

Ravi, N., Dandekar, N., Mysore, P., and Littman, M. L.

(2005). Activity recognition from accelerometer data.

In Proceeding of the National Conference on Artiﬁcial

Intelligence.

Samsung Inc. (2012). Android smartphone: Sam-

sung galaxy siii. Description Available online at

http://en.wikipedia.org/wiki/Samsung

Galaxy S III.

Singer, E. (2011). The measured life. In Technology Review,

volume 114.

Skelton, D. and McLaughlin, A. (1996). Train functional

ability in old age. Physiotherapy.

Stefan, D., Das, B., Krishnan, N., Thomas, B., and Cook,

D. (2012). Simple and complex activity recognition

through smart phones. In 8th International Confer-

ence on Intelligent Environments.

Tapia, E., Intille, S., Haskell, W., Larson, K., and Friedman,

R. (2007). Real-time recognition of physical activities

and their intensities using wireless accelerometers and

a heart rate monitor. In Proceedings of the 11th IEEE

International Symposium on Wearable Computers &

Physics.

Tapia, E., Intille, S., and Larson, K. (2004). Activity recog-

nition in the home setting using simple and ubiquitous

sensors. In Proceedings of PERVASIVE.

White, D., Wagenaar, R., and Ellis, T. (2001). Monitoring

activity in individuals with parkinson’s disease: A va-

lidity study. Jurnal of Neurological Physical Therapy,

30.

Witten, H., Frank, E., and Hall, A. (2011). Data Min-

ing: Practical machine learning tools and techniques.

Morgan Kaufmann, San Francisco, 3rd edition edi-

tion.

Yuan, B. and Herbert, J. (2011a). Non-intrusive movement

detection in cara pervasive healthcare application. In

The 2011 International Conference on Wireless Net-

works.

Yuan, B. and Herbert, J. (2011b). Web-based real-time re-

mote monitoring for pervasive healthcare. In IEEE In-

ternational Conference on Pervasive Computing and

Communications Workshops (PERCOM Workshops).

Yuan, B. and Herbert, J. (2012). Fuzzy cara - a fuzzy-based

context reasoning system for pervasive healthcare. In

Procedia Computer Science, volume 10.

Zephyr Inc. (2011). Wireless professional heart rate

monitor & physiological monitor with bluetooth.

Description Available online at http://www.zephyr-

technology.com/products/bioharness-3/.

Zhang, S., McCullagh, P., Nugent, C., and Zheng, H.

(2010). Activity monitoring using a smart phone’s ac-

celerometer with hierarchical classiﬁcation. In 6th In-

ternational Conference on Intelligent Environments.

Smartphone-basedActivityRecognitionusingHybridClassifier-UtilizingCloudInfrastructureforDataAnalysis
