Privacy in Pervasive Video Surveillance

Trust through Technology and Users Cooperation

Antoni Mart

ınez-Ballest

e, Agusti Solanas, Marc Vives and Hatem A. Rashwan

Departament d’Enginyeria Inform

atica i Matem

atiques, Universitat Rovira i Virgili, Tarragona, Catalonia, Spain.

Keywords:

Video Surveillance, Privacy, Trust, Mobile Applications.

Abstract:

During the last decades, video surveillance systems (VSS) have become popular and, nowadays, they can be

found almost everywhere. When those systems were initially deployed, they were mainly used by authorities

only and, people tend to accept to be surveilled for the sake of security. Currently, VSS are located in public

places and controlled by governmental agencies, but some others are placed in private spaces and controlled

by corporations, banks, and so on. In addition, VSS have gained computational capabilities and, nowadays,

off-the-shelf cameras are able to record high quality digital video that can be easily shared by means of private

networks or even the Internet. Trust is strictly related to the operators of those VSS and their behaviour. Hence,

it is necessary to deﬁne a comprehensive model for trustworthy video surveillance, aiming at preserving the

right to privacy of citizens. In this article we present a platform for trustworthy video surveillance. Our model

is based on the use of real-time and accurate techniques, and the active cooperation of people using mobile

applications.

1 INTRODUCTION

The existence of pervasive video surveillance systems

(VSS) and their inherent ubiquitous nature endanger

the privacy of people since they are recorded while

performing their daily activities and, a lot of private

information can be obtained from these recordings.

The main goal of video surveillance is to improve

security. Clearly, authorities must be able to access

those cameras and their recordings whenever neces-

sary, but the massive and growing use of VSS requires

to reconsider their associated privacy problems.

Current legislation in most countries states that

any image that allows the identiﬁcation of a person

must be considered as personal data. By doing so,

the law is protecting people against deliberate at-

tacks to their privacy rights. However, in most cases,

legislation only speciﬁes that the responsible for the

management of the recordings is the owner or op-

erator (i.e. the administrator of the systems). That

means that people have to trust that the owner be-

haves according to the law. Also, laws require the

owners of VSS to publicly announce the presence

of surveillance cameras. New proposals for legisla-

tions (European-Parliament, 2012) propose the adop-

tion of privacy by design methodologies, so as to

tackle the concept of privacy in a comprehensive man-

ner.

Notwithstanding, citizens lack a certain way to

know how many cameras have recorded them whilst

performing their daily activities. This is specially im-

portant in the context of a smart city, where video

surveillance plays a key role (Mart

ınez-Ballest

e et al.,

2013a).

Moreover, scientiﬁc literature (Senior, 2009) ad-

dresses the privacy-preserving video surveillance

problem by paying attention to the algorithms used to

protect the so-called regions of interest (the sensitive

information such as faces, car plates or other identiﬁ-

cation information): ﬁrst, computer vision techniques

are used to detect the regions of interest; afterwards,

information security procedures are applied to those

regions so as to preserve the privacy of individuals

(e.g. preventing the re-identiﬁcation of people). How-

ever, the privacy issues raising in our globally video-

surveilled society must be tackled from a much wider

perspective.

Having this holistic view in mind, trustworthy

video surveillance can be deﬁned as the combina-

tion not only of technologies, but also other elements,

to ensure the right to privacy of citizens comprehen-

sively.

In this article we present a model for achieving

trust in pervasive video surveillance. Essentially, we

Martínez-Ballesté A., Solanas A., Vives M. and A. Rashwan H..

Privacy in Pervasive Video Surveillance - Trust through Technology and Users Cooperation.

DOI: 10.5220/0004724200490054

In Proceedings of the 4th International Conference on Pervasive and Embedded Computing and Communication Systems (PECCS-2014), pages 49-54

ISBN: 978-989-758-000-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

describe a software platform that allows the reliable

protection of people’s privacy and a mobile appli-

cation that allows citizens to be aware of the video

surveillance prevasive challenge.

2 TRUSTWORTHY VIDEO

SURVEILLANCE

Trustworthy video surveillance can be described as

a complex problem comprising three main concepts:

Law Enforcement, Trust in the VSS Technology and

Social Cooperation. These three elements must work

together to achieve comprehensive and feasible trust-

worthy video surveillance systems. They are ad-

dressed in the following paragraphs:

• Law Enforcement is the ﬁrst and most apparent

component and, it refers to the legal aspects of

VSS. Users clearly feel more comfortable with a

legislation that protects them from dishonest VSS

owners. In a comprehensive trustworthy video

surveillance scenario, legislation should go fur-

ther than the current one. For instance, law could

require the use of privacy-preserving techniques

over the recordings of the cameras. However, as

we will see later, current legislations are mainly

focussed on trusting the owners of the VSS.

• Trusting that owners and operators behave prop-

erly is not so easy (e.g. how could we be sure

that they will not send the recordings to unautho-

rised people?). In this sense, the idea of Trust in

the VSS Technology consists in handing over trust

from the owners to the very VSS. Thus, for a VSS

to be trusted, it must guarantee the detection of

sensitive information within the recordings, and

their protection. That means that everyone should

have access to the protected recordings (i.e. the

public version of the video) so as to be able to

verify that their privacy is properly protected (e.g.

their faces have been properly obfuscated). More-

over, authorities (the so-called trusted managers)

might be able to obtain the original recordings

from the protected ones by applying some secure

disclosure functions if necessary (e.g. in case of

criminal investigation or the like). However, en-

suring trust in a VSS is not straightforward. First

the system must be able to detect all sensitive ar-

eas of the images and protect them without the su-

pervision of humans that could misbehave. Also,

the obfuscation procedure should be performed in

real time to avoid the storage of unprotected in-

formation. Note that those are challenges that are

currently being studied by the research commu-

Figure 1: Example of a VSS camera with an appropriate

warning sign.

nity (Mart

ınez-Ballest

e et al., 2012).

• Finally, the last piece of the puzzle refers to So-

cial Cooperation, which is based on the social

relations amongst citizens and how they could

help in improving their privacy. Users generate

most of the information stored in Internet-based

information systems. In addition, most of these

systems have collaborative ﬁltering applications

in which users can rate the site information and

add their opinions. Thus, for the people to re-

alise about the privacy problems related to VSS,

it is necessary that they might know the cameras

that have recorded them during their daily activi-

ties. To address this problem, a collaborative ap-

proach seems to be very promising, since every

user could contribute by informing about VSS and

by rating their privacy protection quality (e.g. ac-

cording to some of the properties stated above).

Our approach to trustworthy video surveillance

fulﬁlls the aforementioned concepts.

3 CAMERAS: THE LAW’S

PERVASIVE CHALLENGE

The number of surveillance cameras is growing at an

unprecedented pace. According to (Lewis, 2011), in

2001 the number of cameras in the United Kingdom

was about two million. Moreover, any citizen can be

recorded by an average of 300 cameras a day while

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

staying in London. As a matter of fact, most of them

are operated by public authorities, but the rest are

scattered throughout shops, corporate buildings, pri-

vate blocks, etc. The key issue is that those cameras

are privately controlled and, consequently, the trust

lies on the appropriate behaviour of the owners that,

in principle, may not inspire as much conﬁdence as

public authorities. Besides, the ease access to this

technology and the aforementioned growing compu-

tational capabilities of VSS pave the way for a mas-

sive collection and analysis of information that leads

to a Big Brother Effect (i.e. a lot of private infor-

mation can be obtained from the recordings, namely

consumer habits, routines, contacts, social status, etc).

As an example, video surveillance technology allows

the surveillance and tracking of citizens while they

drive (Cherry, 2012).

Indeed, security is (or should be) the only purpose

of VSS. Thus, legislation plays a central role when

privacy issues are involved and specially when there

is a need for ﬁnding a proper balance between con-

ﬂicting interests: on the one hand, the right to privacy;

and on the other hand, the right to security.

In this line, governments have enacted laws re-

garding the use of video surveillance systems. For

instance, European legislation (European-Parliament,

1995) considers citizens’ data obtained by VSS as

personal data. Additionally, some countries have also

enacted laws explicitly concerning video surveillance.

In the case of Spain (Bosch, 2011) it takes into ac-

count, among others, the following principles:

I) VSS must be advertised, both indoors and out-

doors;

II) The owner of the system must take the right

precautions to ensure the safety of the images and

prevent modiﬁcation, loss or unauthorized access

or treatment;

III) Data cannot be released to third parties, except

for criminal investigations;

IV) The use of cameras will always be respectful

with the rights of individuals.

Legislation should evolve and make the adop-

tion of privacy-preserving VSS mandatory. More-

over, we propose that besides informing about who

is the owner of the VSS, mandatory information signs

should contain other useful information such as e.g.

whether the video is accessible through the Internet.

In addition, each camera in a VSS should be labelled

with a level of trust: i.e. from a low/no trust level if

no privacy-protection is offered, to a high trust level if

the camera belongs to a trustworthy VSS (Mart

ınez-

Ballest

e et al., 2012).

To illustrate this concept, Figure 1 shows a draw-

ing of camera with a proper warning sign. This sign

clearly states the owner and operator of the VSS, as

well as the level of privacy protection. Moreover,

people are informed about the website that they can

visit to check that their privacy has been correctly pre-

served. Last but not least and, specially in indoor lo-

cations, a display might be placed next to the camera

to show the obfuscated video so as to allow people to

verify that their privacy is being protected.

4 ALGORITHMS FOR

TRUSTWORTHY PRIVACY

As we stated in Section 1, privacy-aware video

surveillance is usually achieved by means of com-

puter vision techniques applied to the surveillance

video and its transformation using a variety of pro-

cedures (blurring, scrambling, etc).

In order to achive trustworthy video surveil-

lance, and to materialize the concept of Trust in the

VSS Technology, the following properties must be

achieved (Mart

ınez-Ballest

e et al., 2013b):

1. The sensitive information must be detected acu-

rately by the computer vision techniques.

2. The sensitive information must be protected using

a reversible procedure.

3. The computational procedures applied to the

video must perform in real time.

Note that if the ﬁrst requirement is fulﬁlled, no human

interaction will be necessary (and hence no “operator”

will be monitoring the unprotected video). The fulﬁll-

ment of the 2nd requirement avoids the storage of the

original unprotected video in case of crime investiga-

tions. Finally, if the video is processed in real time

no temporary storage of the unprotected video will be

needed.

Hence, if legislation regulates on the use of trust-

worthy VSS, owners must ensure that sensitive infor-

mation is protected in real-time and accurately. They

will have to choose from a plethora of products and

technologies to accomplish the mandatory utilization

of privacy- preserving technologies.

There are some techniques in the literature de-

voted to the accurate detection of regions of interest

in real time. Speciﬁcally, when the regions to be de-

tected are faces, the Haar-Features technique (Viola

and Jones, 2001) is accurate and works in real time.

For a more general kind of regions of interest (e.g.

bodies, cars, etc.) and, in the case of cameras focus-

ing on a ﬁxed background, robust techniques based on

PrivacyinPervasiveVideoSurveillance-TrustthroughTechnologyandUsersCooperation

background subtraction such as Codebook Construc-

tion (Kim et al., 2004) can be used. Finally, tech-

niques based on optical ﬂow estimation (Horn and

Schunck, 1993) overcome the shortcomings of a ﬁxed

background.

Furthermore, in order to protect the sensitive in-

formation and, at the same time, allow its disclosure

under certain conditions (e.g. for criminal investi-

gation), invertible operations/functions must be used.

The so-called coefﬁcient alteration techniques (Du-

Faux and Ebrahimi, 2006) are invertible operations in

which the process of protection (and disclosure) de-

pends on a key. The key is used to generate a “pro-

tection stream” – a set of bits that will be used to

specify how the information in the regions of inter-

est is changed. Since this technique alters the sign of

the coefﬁcients of the compressed video streams, its

use does not affect the efﬁciency of the compressor

(which is essential in any video storage network). Au-

thorities could cryptographically generate the “pro-

tection stream” whenever it is necessary to use it to

disclose a portion of the protected video.

5 CAMNOTIFY: MAKING VSS

VISIBLE

The right of people to privacy in VSS can be com-

plemented with the ability to easily know the cam-

eras of VSS that have recorded a given person. Hence

we propose a website database of VSS and a comple-

menting mobile application (CamNotify) that might

help people realise about the privacy concerns related

to pervasive video surveillance. The VSS using our

software packages (allowing accurate and real-time

video protection) should be listed in the database so

citizens, equipped with a mobile phone running our

app, could be notiﬁed of the nearby VSS.

Note that by means of this application, users could

collaborate with the web service in different ways,

for instance, by adding comments about the VSS, by

voting, and by providing information about possible

abuse or misuse. In that sense, collaborative ﬁltering

techniques could be also applied over the data stored

in the census database of the service to obtain a holis-

tic view of the privacy of users with regard to VSS.

Finally, users could notify the existence of cameras

belonging to VSS that are not using the privacy pro-

tection techniques. Consequently, the VSS database

could be updated collaboratively by the users of the

application.

We have designed and implemented a prototype

of this mobile application that is described in the fol-

lowing lines. With the aim to illustrate the scenario,

let us consider the following example: Peter Smith

enrols in the web service to be aware of the VSS that

might have recorded him during his everyday activi-

ties. After downloading the CamNotify application to

his smartphone, he registers to the service and turns

on the application. The mobile app uses the self-

location and communication capabilities of the device

to request the web service a list of nearby cameras, ac-

cording to its current position (longitude and latitude).

In fact, this action occurs each time the smartphone

detects a signiﬁcant change in Peter’s location.

Now, the app is able to measure distances between

the current location of the device and the location of

the cameras in the list. The cameras located close to

the smartphone (i.e. that might have been recording

Peter) will be listed in the display (on a map). Also,

the list of cameras is shown 4. In addition, this list of

cameras will be sent to the web service, which will be

also aware of the time in which Peter passed nearby

each camera.

After some time, Peter enters a shop willing to buy

some coffee. He realises that the shop owners have

installed several cameras in the shop premises. How-

ever, there is no visible sign advertising them nor any

display in which the recorded video is shown. Peter

takes a look at his smartphone and realises that this

VSS is not in the list. Hence, he makes use of Cam-

Notify to request the addition of a new camera in that

location 3. Certainly, he will specify a low trust level

for the VSS.

When he arrives home, Peter opens his laptop and

connects to the web service website (cf. Figure 2)

and he can access the list of cameras that might have

recorded him, which are grouped by walks. He can

read the comments of other users, manage some in-

formation and, naturally, he can make comments on

the cameras he saw during the day (for instance, by

warning that a camera that is currently labelled with

a high level of trust, actually does not have a visible

display).

Two hours later, Mary Martin, who is also a Cam-

Noﬁty user, enters the shop previously visited by Pe-

ter. She receives an alarm in the application: Cam-

Notify warns her that there is a new camera being de-

tected nearby and the web service needs to conﬁrm

that there is a real camera there (note that the cam-

era was included in the system a few hours ago and it

could be a fake). Mary conﬁrms with a positive vote

that the camera is actually there. Naturally, after a

certain number of positive votes, the web service will

stop requesting CamNotify users for conﬁrmations.

However, CamNoﬁty can randomly request users to

approve cameras from time to time, aiming at being

notiﬁed of VSS not operating any more.

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

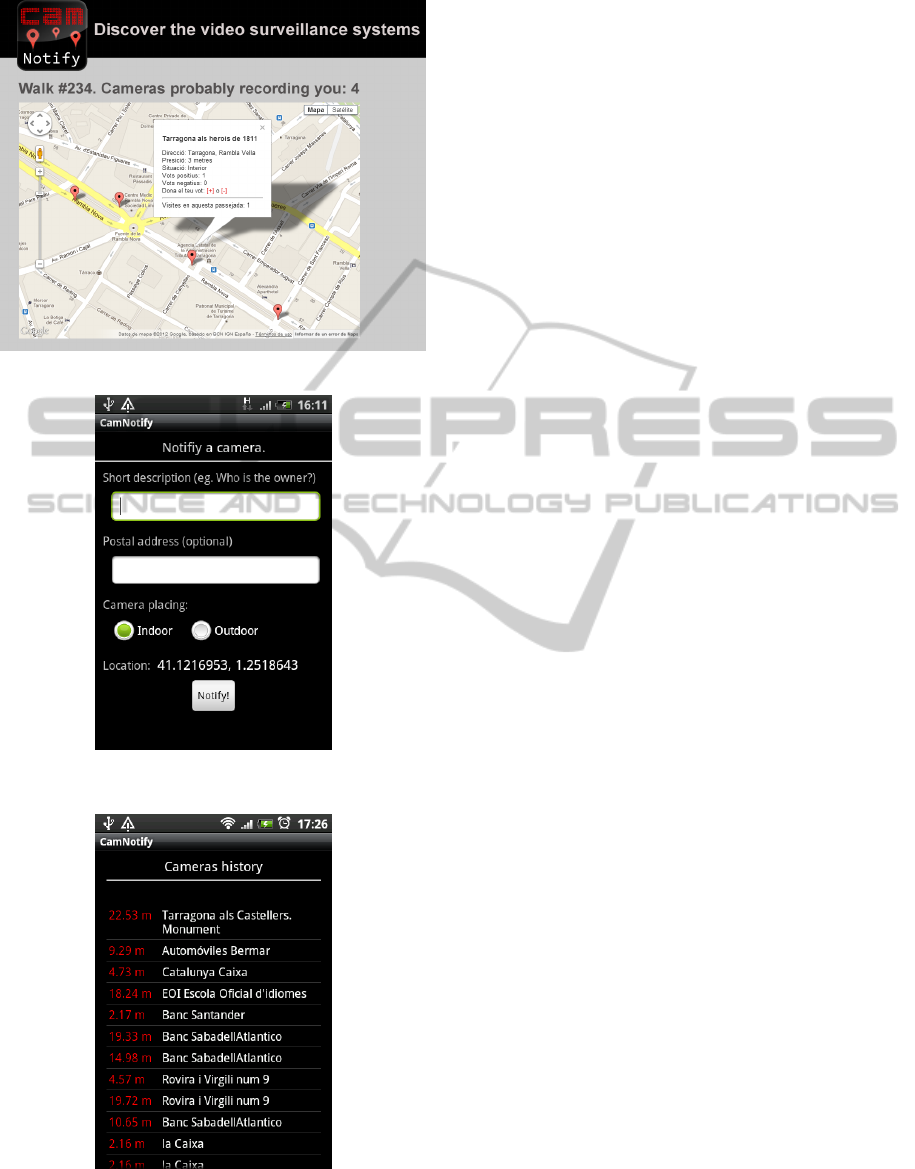

Figure 2: Website for the CamNoﬁty application.

Figure 3: The application allows the user to introduce a new

VSS camera that is not in the system.

Figure 4: The list of cameras that might have recorded the

user.

As a result, using such an application will con-

tribute to cooperatively build a complete database of

VSS. The web service will have a census composed

by the cameras using its platform for detection and

protection tools and the cameras that have been noti-

ﬁed by users.

6 CONCLUSIONS

In this article we have presented a model for trust

in pervasive video surveillance systems. Our model

consists of Law Enforcement, Trust in Technology

and Social Cooperation. To make our model a real-

ity, ﬁrst, legislation must evolve so as to make the

adoption of privacy-preserving technologies in VSS

mandatory. Second, instead of trusting the owners

and operators of the VSS, the underlying technology

for privacy protection must be trustworthy. Finally,

citizens have to play a key role in assessing the differ-

ent level of trust in the pervasive VSS.

We have discussed the role of legislators with re-

spect to the achievement of comprehensive privacy in

video surveillance. We have stated that the use of re-

liable protection techniques should be mandatory. We

have shown that there are some feasible techniques

that are worth to be trusted, since they allow the op-

eration in real time thus avoiding the need of tem-

porarily storing the original video. Finally, we have

focused on the function of users when making visi-

ble the pervasive video surveillance systems. Thanks

to a mobile application, users can be notiﬁed of the

cameras around them. Moreover, they can contribute

to collaboratively build a “map” of video surveillance

systems.

We believe that following the proposals and rec-

ommendations of this paper, a scenario with trustwor-

thy video surveillance is completely feasible. Legis-

lators and engineers must pave the way for a social

acceptance of this important family of pervasive tech-

nology.

ACKNOWLEDGEMENTS

This work was partly funded by the Spanish Govern-

ment through project CONSOLIDER INGENIO 2010

CSD2007- 0004 ARES, project TIN2011-27076-

C03-01 CO-PRIVACY, and by the Rovira i Virgili

University through project 2012R2B-01 VIPP.

PrivacyinPervasiveVideoSurveillance-TrustthroughTechnologyandUsersCooperation

REFERENCES

Bosch, R. B. (2011). An

alisis de la doctrina administra-

tiva de la agencia espa

nola de protecci

on de datos

en relaci

on con el tratamiento de im

agenes a trav

de videovigilancia. Revista Aranzadi de Derecho y

Nuevas Tecnolog

ıas, (25):61.

Cherry, S. (2012). License plates, cameras, and our van-

ishing privacy (Spectrum). http://spectrum.ieee.org/

podcast/geek-life/tools-toys/license-plates-cameras-

and-our-vanishing-privacy.

DuFaux, F. and Ebrahimi, T. (2006). Scrambling for video

surveillance with privacy. In Privacy Research in Vi-

sion, page 160.

European-Parliament (1995). Directive 95/46/EC of

the European Parliament and of the Council of 24

October 1995 on the protection of individuals with

regard to the processing of personal data and on the

free movement of such data. http://europa.eu/

legislation summaries/information society/

data protect% ion/l14012 en.htm.

European-Parliament (2012). Proposal for a regulation

of the European Parliament and of the Council

on the protection of individuals with regard to the

processing of personal data and on the free moove-

ment of such data. http://ec.europa.eu/justice/data-

protection/document/review2012/com 2012 11 en.pdf.

Horn, B. K. P. and Schunck, B. G. (1993). Determining

optical ﬂow: A retrospective. Artif. Intell, 59(1-2):81–

87.

Kim, K., Chalidabhongse, T. H., Harwood, D., and Davis,

L. S. (2004). Background modeling and subtraction

by codebook construction. In ICIP, pages V: 3061–

3064.

Lewis, P. (2011). You’re being watched: there’s one CCTV

camera for every 32 people in UK (The Guardian).

http://www.guardian.co.uk/uk/2011/mar/02/cctv-

cameras-watching-surveillance.

Mart

ınez-Ballest

e, A., P

erez-Mart

ınez, P. A., and Agusti, S.

(2013a). The pursuit of citizens’ privacy: a privacy-

aware smart city is possible. IEEE Communications

Magazine, 51(6):136–141.

Mart

ınez-Ballest

e, A., Rashwan, H. A., Castell

a-Roca,

J., and Puig, D. (2013b). A trustworthy database

for privacy-preserving video surveillance. In Guer-

rini, G., editor, Joint 2013 EDBT/ICDT Conferences,

EDBT/ICDT ’13, Genoa, Italy, March 22, 2013,

Workshop Proceedings, pages 179–183. ACM.

Mart

ınez-Ballest

e, A., Rashwan, H. A., Puig, D., and Ful-

lana, A. P. (2012). Towards a trustworthy privacy

in pervasive video surveillance systems. In PerCom

Workshops, pages 914–919. IEEE.

Senior, A. W. (2009). Protecting privacy in video surveil-

lance. Springer.

Viola, P. and Jones, M. (2001). Rapid object detection using

a boosted cascade of simple features. Proc. CVPR,

1:511–518.

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems
