Virtual Touch Screen “VIRTOS”

Implementing Virtual Touch Buttons and Virtual Sliders

using a Projector and Camera

Takashi Homma and Katsuto Nakajima

Department of Information Systems and Multimedia Design, Tokyo Denki University, Tokyo, Japan

Keywords: Projector-camera Systems, Projector-based Display, Touch Detection, Virtual Touch Screen.

Abstract: We propose a large interactive display with virtual touch buttons and sliders on a pale-colored flat wall. Our

easy-to-install system consists of a front projector and a single commodity camera. A button touch is

detected based on the area of the shadow cast by the user’s hand; this shadow becomes very small when the

button is touched. The shadow area is segmented by a brief change of the button to a different color when a

large foreground (i.e., the hand and its shadow) covers the button region. Therefore, no time consuming

operations, such as morphing or shape analysis, are required. Background subtraction is used to extract the

foreground region. The reference image for the background is continuously adjusted to match the ambient

light. Our virtual slider is based on this touch-button mechanism. When tested, our scheme proved robust to

differences in illumination. The response time for touch detection was about 150 ms. Our virtual slider has a

quick response and proved suitable as a controller for a Breakout-style game.

1 INTRODUCTION

As consumer-grade digital projectors and cameras

have become less expensive, many interactive

projector-camera systems have been proposed. In

particular, since ordinary flat walls can be used as

the screen, large interactive displays can be used for

digital signage and information boards in public

spaces without the need for expensive touch panels.

There are two types of user interaction under a

projector-lighted environment. One is gesture based

(primarily hand gestures) (Licsar, 2004; Sato, 2004;

Winkler, 2007; Lech, 2010; Fujiwara, 2011; Shah,

2011), and the other is touchscreen based (Kjeldsen,

2002; Pinhanez, 2003; Borkowski, 2004; Borkowski

2006; Kale, 2010; Wilson, 2005; Song, 2007; Kim,

2010; Park, 2010; Audet, 2012; Dai, 2012). For a

gesture interface, users must learn the gestures

corresponding to defined functions and may need

training. On the other hand, touching the screen is

intuitive and increasingly popular due to the recent

spread of touch-based devices such as smartphones.

Various methods for touch detection on a

projector-lighted screen have been proposed. The

methods described in the next section include (a)

measuring the position and distance of the

hand/finger from the screen by using multiple

cameras or depth sensors such as the one used in

Microsoft Kinect (Microsoft, 2010), (b) observing

size changes in the shadow cast by a hand/finger

approaching the screen (Pinhanez, 2003; Kale, 2010;

Wilson, 2005; Song, 2007), and (c) tracing the tip of

the hand/finger until the tip stops on some

predefined touch area (Kjeldsen et al., 2002;

Borkowski, 2004; Borkowski 2006; Audet, 2012).

Our aim is to make large, easy-to-install,

economical interactive displays; therefore, we use a

front projector and a nearby camera. A hand touch

on the screen is detected by the area of the shadow

cast by the user’s hand. The key idea is that the

shadow color does not depend on the projected color.

The issue is when and how to alter the button color

to capitalize on this idea without sacrificing usability.

Our virtual touchscreen system, called VIRTOS,

is designed to function in a space where ambient

light conditions may change. VIRTOS continually

monitors the touch area (the "button" or "touch

button"), and when a large foreground (non-

background, a hand or its shadow) covers and stops

on the button, the color of the projected touch button

is altered briefly in order to distinguish the shadow

from the hand. If the shadow area, the color of

which is not changed, is very small, then the system

Homma T. and Nakajima K..

Virtual Touch Screen “VIRTOS” - Implementing Virtual Touch Buttons and Virtual Sliders using a Projector and Camera.

DOI: 10.5220/0004728600340043

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 34-43

ISBN: 978-989-758-009-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

recognizes this as a touch. VIRTOS also supports a

slider (scrollbar) based on this virtual touch-button

mechanism.

The background subtraction technique is used to

segment the foreground. The reference image for

each button, used for background subtraction, is

continuously updated to account for changes in

ambient light.

We tested the accuracy and response time of our

virtual touch button and slider.

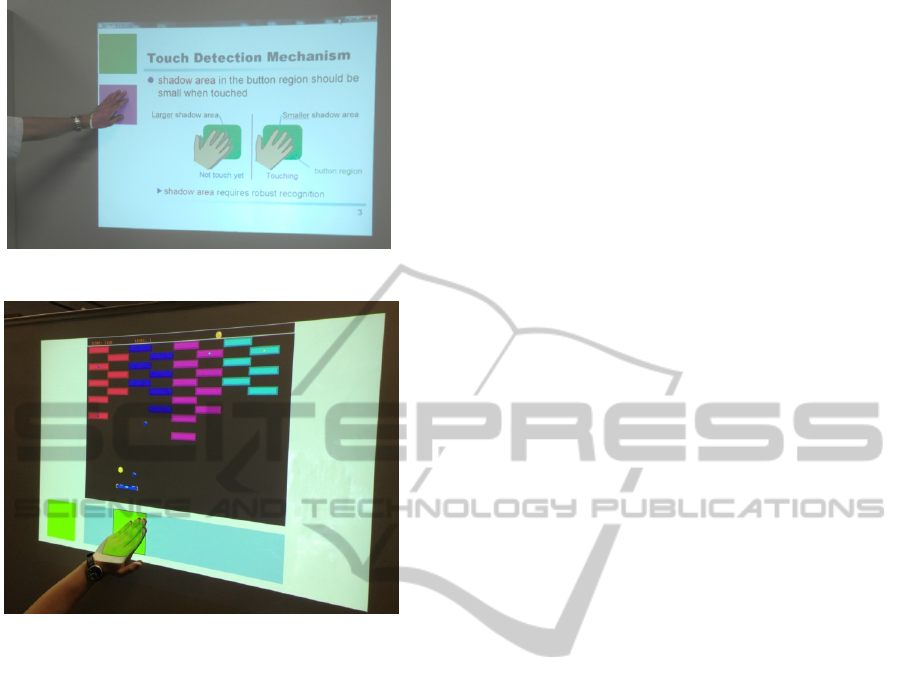

To demonstrate the usability of VIRTOS, we

also developed two applications: one is for slide

presentations, with two virtual buttons to navigate

the slides, and the other is an action game controlled

by the virtual slider.

In Section 2, various alternate methods for touch

detection are discussed, and Section 3 describes the

implementation of VIRTOS. Section 4 presents the

evaluation results, and two applications of VIRTOS

are shown in Section 5. We conclude with Section 6.

2 TOUCH DETECTION

This section summarizes various methods to detect a

touch of a hand or finger on the screen. We focus on

virtual touch buttons on the screen, indicated by a

specific projected color, because touch buttons are a

general and fundamental widget for touch interfaces.

2.1 Distance and Location

Measurement by Two Cameras

or a Depth Sensor

Probably the most straightforward method to locate

the position of a hand or finger on the x and y axes

of the screen uses two cameras. This method, in

addition to requiring two (or more) cameras,

requires that cameras be installed along the

top/bottom and left/right sides of the screen, and this

restricts the flexibility of the installation. To provide

flexibility of installation, we aim to require only one

camera and impose minimal restrictions on its

placement.

Depth sensors, such as the one used in Microsoft

Kinect (Microsoft, 2010), may be able to measure

the distance between the hand/finger and the screen

if the sensor is carefully positioned in relation to the

screen surface. However, these sensors are still more

expensive than commodity web cameras.

2.2 Hand or Finger Segmentation

and Tracking

If it is possible to locate the position of a hand/finger

and extract its shape by a single web camera,

configuration of the system becomes simple.

However, because the color of the hand or finger is

overwhelmed by the projector’s light, skin color

extraction based on hue value does not work in most

cases (Kale, 2004). In addition, the shadow of the

hand/finger is cast on the screen due to the

perspective difference between the projector and the

camera and disrupts analysis of the hand/finger

shape.

Background subtraction is an effective and

frequently used method for extracting the

foreground region, even in the projector illumination.

The following are three types of reference images

that can be subtracted from the camera input image

and the method to do so.

(1) Real background: by memorizing an image of

the screen where a virtual button image is

projected.

(2) Dynamically estimated background: by

estimating background pixel values at each pixel

position based on the several latest input frames

(Brutzer, 2011; Winkler, 2007).

(3) Synthesized background: by predicting the color

of each pixel from the mapping relation derived

by comparing the projected colors and reference

samples taken by the camera during system

initialization (Hilario, 2004; Licsar, 2010; Kale,

2004; Audet, 2012; Dai, 2012).

Method (1) is simple and fast but must be altered

due to changes in ambient light. Method (2) often

requires heavy computation for accurate estimation

(Brutzer, 2011) and forces a trade-off between

response time and accuracy of foreground extraction.

In theory, method (3) enables the real-time

production of any background with arbitrary colors

and images. However, mapping all of the colors

necessitates a large look-up table, which must be

constructed in a complex initialization. Furthermore,

it is difficult to adapt to ambient light changes

without reconstructing the look-up table.

Another way to extract the foreground region

without affecting the projected light is to use

infrared light and a camera with an infra-red filter. It

is easy to extract the foreground from infrared

images (Sato, 2004; Wilson, 2005). However,

infrared devices are costly.

All the methods described above extract both a

hand/finger and its shadow, and they should be

VirtualTouchScreen"VIRTOS"-ImplementingVirtualTouchButtonsandVirtualSlidersusingaProjectorandCamera

sensitive enough for precise touch detection. The

hand/finger can be separated from its shadow by the

intensity value. If the intensity of a pixel in the

foreground is lower than some threshold, the pixel is

regarded as a part of the shadow. The threshold

value must account for the level of ambient light

around the system, and doing so is not an easy task.

For environments in which shadow segmentation

cannot be done with sufficient accuracy, there are

several methods to detect a touch by tracking the

movement of the hand/finger (Kjeldsen et al., 2002;

Borkowski, 2004; Borkowski 2006; Audet, 2012).

In Audet (2012), the tip of the finger is tracked.

If it enters a button region and stops, the system

detects a touch. For real-time processing, the system

utilizes simple technologies such as frame

differences for moving-object tracking and a simple

template matching for locating the tip of the finger.

If more than one tip is recognized, the most distant

tip from the user’s body is selected for touch

detection. In Borkowski (2004) and Borkowski

(2006), an elongated foreground (i.e. a finger) is

detected in the button region by monitoring changes

in the region’s luminance. The button region is

virtually split into two or more subregions, one

fingertip-sized subregion is located in the center of

the button region, and the other subregions surround

this central subregion. A touch by a finger tip on the

center of the button is detected when luminance

changes are observed at only some of the subregions

and at the central subregion.

These methods can efficiently recognize an

elongated foreground shape, but it is difficult for the

system to distinguish a finger touching the button

from a hovering finger or the elongated shadow of

something else. Therefore, such methods may be

suitable for a small personal display, but they are

problematic for a large interactive display with

hand-sized large buttons.

2.3 Touch Detection by Shadow

One of the characteristics of a projector-based

system is that a shadow unavoidably appears when a

user is touching or about to touch the screen,

because the hand intercepts the projected light; the

camera, owing to its perspective different from that

of the projector, sees this shadow. This particular

feature can be utilized for detecting a touch.

If a front camera can reliably distinguish

between a hand and its shadow, a screen touch can

be detected by calculating the relative proportions of

the hand and the shadow in the camera image (Kale,

2004; Song, 2007). When a hand is about to touch

the screen but still hovering on it, the shadow is

relatively larger than when the hand is touching.

This method depends on accurate separation of the

shadow from the hand through the use of only

optical color information.

The shadow color might be recognized more

easily than the hand color because it is not affected

by the projected light and is almost the same as the

unilluminated screen color. The intensity

(brightness) value is often used as a threshold

criterion (Brutzer, 2011; Winkler, 2007). The pixels

with lower intensity value than this threshold are

extracted as shadow. However, this simple criterion

may falsely accept more than a few non-shadow

pixels, and the threshold must be adjusted whenever

the ambient light changes.

In Wilson (2005) and Kim (2010), the shape of

the finger shadow is the metric for touch detection.

To generate a clean shape, some morphological

operations must be performed before analysis of the

shadow shape.

2.4 Proposed Method – Measuring

Shadow Area

As stated in Section 1, our target system is a large

interactive display. Virtual touch buttons are as large

as a hand and are supposed to be touched with the

whole hand. Therefore, we do not rely on the shape

and direction of the user’s hand for touch detection.

To ensure real-time performance, we try to avoid

time-consuming operations, such as morphological

ones and shape analysis. Therefore, we use an area

proportion metric in the button region.

The shadow color on the screen can be known in

the system by taking an image with the projector off

during initialization. However, ambient light may

change throughout day.

One way to know the shadow area in the touch

detection process is to intercept the projected light.

So, by altering the color of projected light in the

button area, we can find those pixels that do not

change color after the projected light changes. As

both the button region without interception and the

touching hand are affected by the color change, this

scheme works out except when the user wears a

black or very dark glove (Figure 1). Thus, under the

following two conditions, we can achieve touch

detection even in places where the ambient light

changes.

(a) The proportion of the foreground (non-

background) area exceeds a threshold.

(b) The proportion of shadow is below a separate

threshold.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

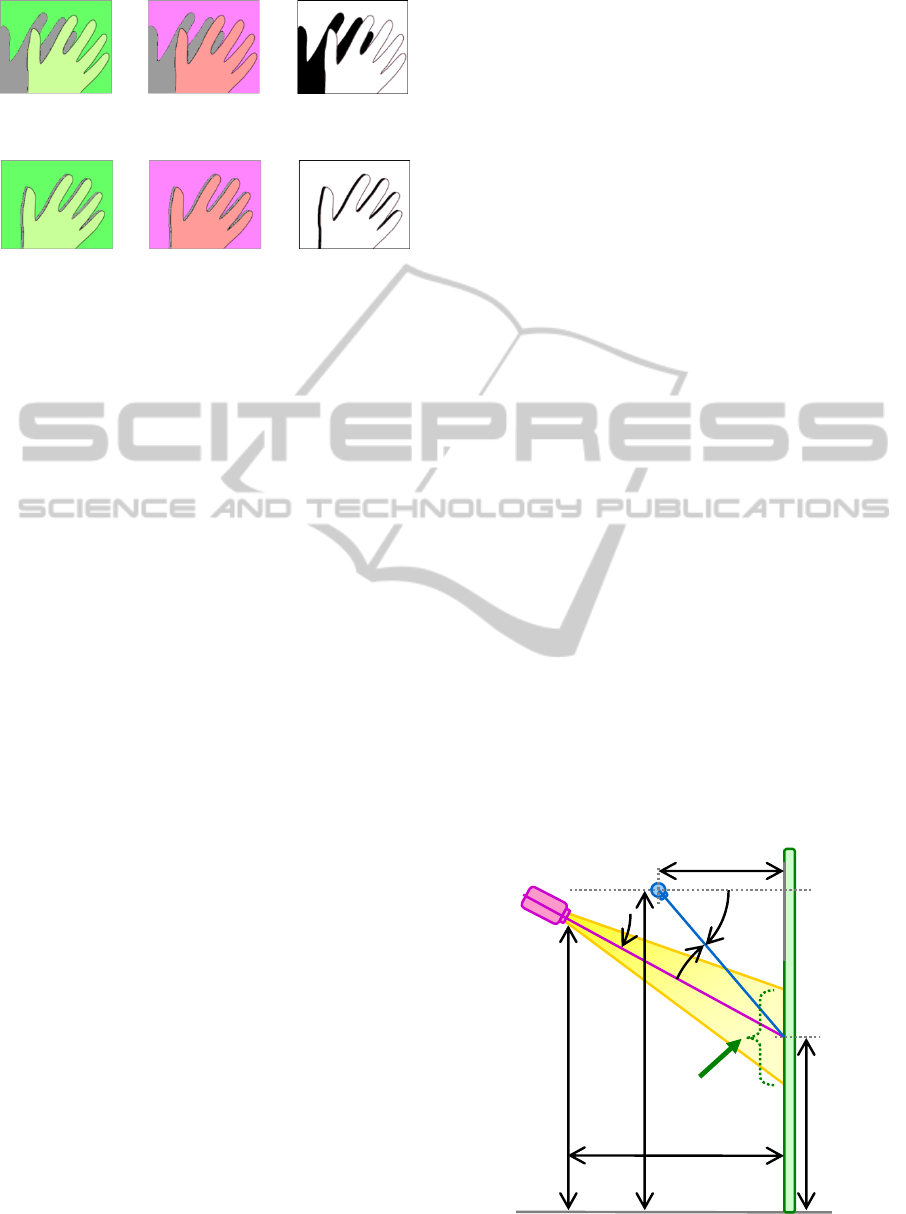

(a) When hovering: if the button color is changed (from

left to center), the shadow area (black area, right) is

shown to be large.

(b) When touching: if the button color is changed (from

left to center), the shadowed area (black area, right) is

shown to be very small.

Figure 1: Touch Detection by Shadow Area.

For condition (a), we utilize background subtraction

to extract the foreground. The image of the color

button without any object on it is acquired by the

camera as a reference image during system

initialization and updated continuously. The details

are described in the next section.

One of the important issues in our scheme is

when and how the button color is changed. Another

issue is usability. We think that a brief color change

of the button may be perceived by users as a

response to a button touch. Thus, when a large

proportion of the button region is covered by a

foreground, we alter the button color for the

minimum duration required for the camera to sense

the change.

Because this scheme does not depend on the

shape of touching object (such as the hand), it is not

possible to recognize whether more than one hand is

simultaneously touching. However, we believe that

this is a reasonable limitation for a large interactive

display. In addition, simultaneous touch can be

reduced by limiting the size of the button, for

example, to palm sized.

Based on the discussion above, we designed and

implemented a large display with virtual touch

buttons. We also developed a slider (scrollbar) based

on our touch-button mechanism. The next section

describes the details of the implementation of our

touchscreen, which we have named VIRTOS.

3 VIRTUAL TOUCH SCREEN

“VIRTOS”

3.1 Installation

Our touchscreen requires a projector, a commodity

optical camera, a computer connected to these

devices, and a screen or a pale-colored flat wall.

These devices are easily installed. The projector and

the camera must be arranged in front of the screen,

but there are few restrictions on their positions; the

projector should be able to project the content onto

the screen clearly, and the camera should be able to

observe the content. It is also necessary to place the

camera obliquely from the projector (i.e., off-axis)

so that the camera can observe shadows of the hand

touching the screen.

Preferably, the projector is placed as high as

possible so that the projected content can be

observed on the screen with minimal blocking of

projected light by the user (or users) standing in

front of the screen.

Figure 2 shows a typical installation of VIRTOS.

The projector is placed on the vertical center line in

front of the screen. The camera may be placed at a

slant, for example, 50 cm left or right of the center

of the screen.

3.2 Initialization

Our touchscreen is automatically initialized when

the system is invoked. First, the relationship between

the projector and the camera is calibrated to let the

system know the button positions. This task is done

by having the camera view a projected chessboard

pattern (Zhang, 2000).

The second step of initialization is to acquire

virtual button images. VIRTOS can have more than

one touch button, each of a different color. The

projector projects the various buttons to their

positions on the screen, and the system memorizes

each “button-only” (i.e., without foreground) image

from the camera input. These images are used as the

Screen

Camera

18.5°

38.5°

20°

Projector

210

(cm)

120

Projection

area

188

148

Figure 2: Typical Installation of VIRTOS.

VirtualTouchScreen"VIRTOS"-ImplementingVirtualTouchButtonsandVirtualSlidersusingaProjectorandCamera

reference image for the background subtraction in

the touch detection process described below.

3.3 Touch Detection

Each button has one of the following states in the

touch detection process. Figure 3 shows the state

transition between these states.

(1) Normal: The button is currently not touched,

and nothing is covering the button.

(2) Waiting: Something is covering the button, and

the process is waiting for the object (hand) to stop.

(3) Checking: The process is checking whether the

object is touching the button. During this state, the

button color is briefly changed to a different color.

(4) Touching: The button is being touched. The

process is waiting for the touching object to leave

the button.

All buttons start in the Normal state. These states

are sequential and can be regarded as filters for the

touch detection. For example, the state subsequent to

the Normal state is always the Waiting state. If

each procedure for a state (except for the Normal

state) finds that the condition is not met to proceed

to the next state, the button state will be changed

immediately to the Normal state. The details of each

state are as follows.

Waiting

Large foreground ?

Foreground moving ?

Large shadow ?

Normal

Checking

Touching

Yes

Updatebuttonimage

continuously

Temporarilychange

buttoncolor

Sendtoucheventto

applicationand

waitforforegroundto

disappear

Donotproceed

ifforegroundismoving

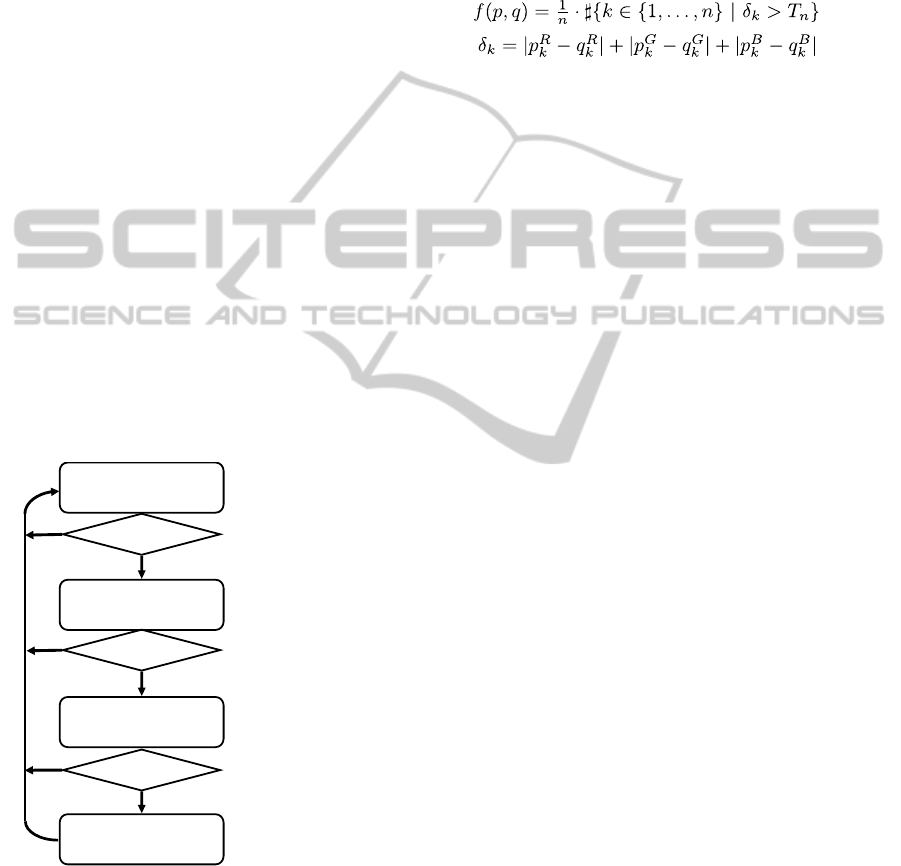

Figure 3: Flowchart of State Transitions.

3.3.1 Normal State

The Normal state means that the button is not being

touched and nothing is covering the button. During

this state, the number of pixels within the button

area that differ between the current camera image

and the reference “button-only” image is calculated

at every frame. If the amount of difference is larger

than a predefined threshold (e.g., 25%), the system

decides that something is covering the button, and

the button state is changed to the Waiting state. The

difference between two images is calculated by

equations (1) and (2).

(1)

(2)

where p and q are the images being compared and n

is the number of pixels in the images. δ

is the

distance in RGB color space from the pixel at the

position k in p to the pixel at the corresponding

position in q. Tn is a threshold (e.g., 70) to

determine the pixels differ from each other. P

and

denote the value of the i-color channel {i

∈

R,G,B}

at the position k. The value is normalized to

range [0,1), and therefore the result of the function f

is also in [0,1). Smaller values represent smaller

differences and vice versa. The function f is also

used in subsequent processes.

We chose to use the Manhattan distance

(equation (2)) instead of the Euclidean distance for

the sake of calculation speed. However, this choice

is not intrinsic to system functioning.

The button-only images are first acquired in the

initialization. A problem with this is that the button

colors in the camera image may vary with changes

in the ambient lighting condition, such as light

through windows. This makes it difficult to precisely

extract the foreground in background subtraction. To

deal with this problem, VIRTOS updates the button-

only images continuously when no foreground

objects are observed in the button region during the

Normal state. The values of the pixels of the button-

only image are updated incrementally. They are

increased or decreased by one in the range from 0 to

256 if the currently observed pixel value differs

from the current reference image.

3.3.2 Waiting State

The process during the Waiting state is just to wait

for the object (foreground) to stop moving. This step

is required to avoid erroneous detection in the

subsequent process.

To determine whether the object is moving, the

current camera frame is compared with the previous

frame. If the difference (the number of different

pixels) is smaller than a predefined threshold for

some duration (e.g., 25% for 100 ms), the button

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

state is changed to the Checking state. Otherwise,

the process waits until the measure difference drops

below the threshold.

During this state, the area of the foreground is

also calculated at each frame. If the foreground area

becomes smaller than a threshold (e.g., 25%), the

button state is changed to the Normal because the

object is regarded as having moved away from the

button.

3.3.3 Checking State

When the button state is changed to the Checking

state, the current camera image is saved. Then, the

button color is changed to another pre-defined color

that is sufficiently different from the original button

color (e.g., green to magenta).

By changing the color, it is possible to determine

the shadow area. The difference between the saved

image and the current image within the button area

is the criteria for a touch. If the object is actually

touching the button, the difference will be quite

large, almost the whole the button area, because the

background area is also included in the difference. If

the object is not touching and is instead hovering on

the button, the difference is less by some amount

than the button area because of the shadow cast by

the object.

If a large shadow, such as a shadow of the user’s

head or body, covers the button and does not move

for a while, the button state proceeds to this state.

However, our color change mechanism eliminates

false touch detection because the difference between

the saved image and the current image will be very

small.

The threshold for the area of shadow to

determine a touch depends on the installation

geometry, the size and position of the touch button

and the user’s method of touch. In our experiment,

8% was an appropriate threshold for an 8 to 12 cm

button when the projector and the camera were

placed as shown in Figure 2.

If the process determines that the button is being

touched, the button state is changed to the

subsequent Touching state. Otherwise, the button

state will return to the Normal state. In either case,

the button color is reverted to the original color.

The altered color should be maintained until the

system captures the image after the color change.

The calculation of the difference is very quick.

Therefore, the delay time from the command to

change the color of projection to the camera input is

dominant in the Checking state. This gives a

response time of around 150 ms.

3.3.4 Touching State

During this state, the process waits for the touching

object to leave the button by monitoring the amount

of foreground. When the object leaves the button,

the button state is changed to the Normal state.

If desired, a “long press” function can easily be

supported by measuring the time in the Touching

state.

3.4 Slider (Scrollbar)

Our touch slider is implemented as an extension of a

VIRTOS touch button.

The sliding zone and the slider handle (scrollbar)

are defined and projected in different colors (Figure

4). In the Touching state, when the centroid of the

foreground (hand) is different from the centroid of

the slider handle, the handle position is moved

toward the foreground position. To generate smooth

movement, the handle position is moved as follows:

(3)

where P

f and Ph are the centroids of the foreground

and of the slider handle, respectively. M is the

amount of the move toward the foreground. The

parameters α (<1) and β (<α) act to damp movement

to prevent overshooting and vibration. The threshold

h chooses between α and β according to the

distance between the current handle position and the

foreground object. Each of α, β, and T

h should be

set in accordance with the size of the slider zone and

the handle.

Foreground segmentation is performed based on

the background subtraction. Two background

images are used: one is the zone image without the

slider handle, and the other is the zone image filled

with the color of the slider handle. The foreground

region is extracted from the input image as the pixels

having a color different from both the zone color and

the handle color.

The system updates the image of the sliding zone

and the slider handle in the Normal state and

recreates the two background images.

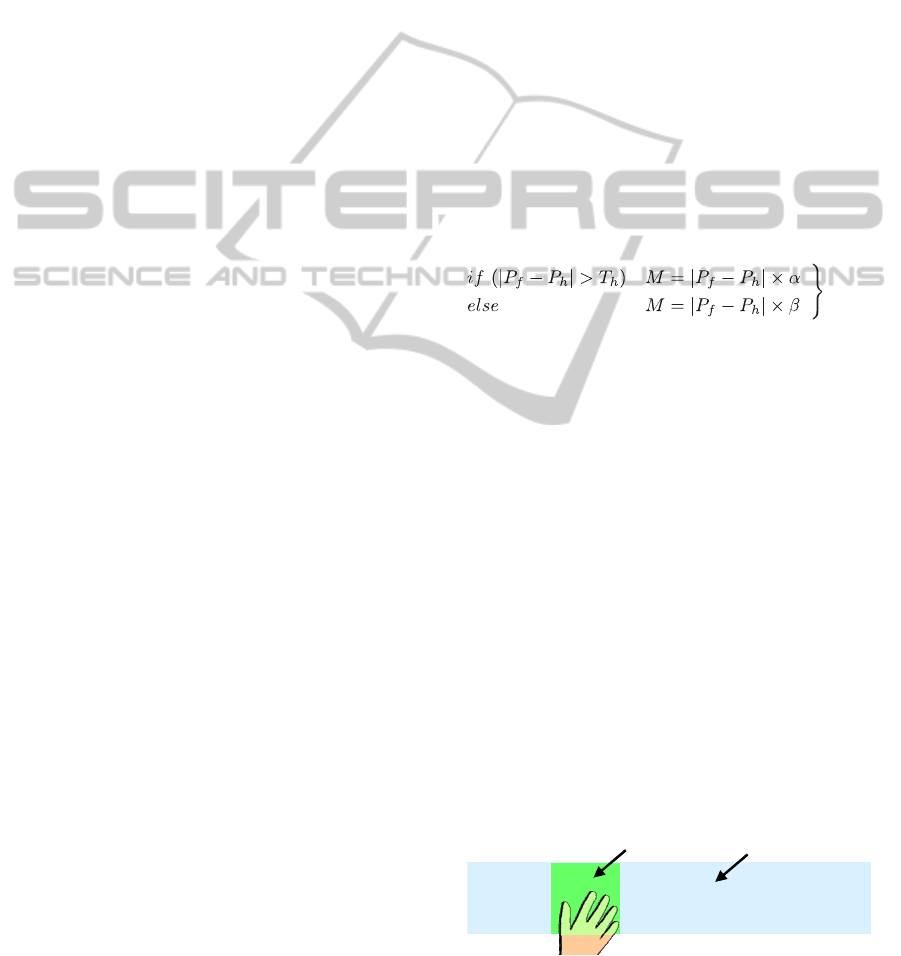

Slider handle Slider zoneSlider handle Slider zone

Figure 4: Slider Zone and Slider Handle.

VirtualTouchScreen"VIRTOS"-ImplementingVirtualTouchButtonsandVirtualSlidersusingaProjectorandCamera

3.5 Software Implementation

VIRTOS is provided as a class library based on

the .NET Framework 4.5 so that our virtual touch

buttons and virtual sliders are easily embedded in

applications. VIRTOS is implemented in C# and

XAML for Windows Presentation Foundation

(WPF) and partly in C++/CLI for OpenCV2.3.1.

4 EXPERIMENTATION

AND EVALUATION

The major challenges to VIRTOS in providing a

way to interact with practical large-screen

applications are stability under ambient light

changes, interactive response time, and functionality.

We conducted three experiments to evaluate our

touch button and touch slider system: (1)

measurement of the accuracy of the shadow

segmentation by our method, (2) a test of the touch

detection rate, and (3) a test of slider responsiveness.

The spatial arrangement of the devices in the

experiments was the same as shown in Figure 2. A

whiteboard was used as a screen. A projector (Epson

EB-X12) capable of up to 2,800 lm and a

commodity camera (Sony PlayStationEye) were

connected to a 3.1 GHz Windows PC (Intel Core i5-

2400) with 8 GB of memory.

4.1 Shadow Segmentation

One of the key ideas for our virtual touch detection

is a method to detect shadow pixels in the button

area.

Table 1 shows the precision, recall and F-

measure for the results of shadow segmentation by

our method (a), in which the button color is briefly

altered. The button color was green

(R=0,G=255,B=0), and the alternate color for touch

detection was magenta (R=255,G=0,B=255).

Measurement was performed under two ambient

light conditions, 620 lx (bright) and 12 lx (dim).

Two test image pairs of a hand and its shadow on a

touch button region illuminated by green and

magenta were used. The ground truth of the shadow

for each condition was established by thresholding

the green-illuminated test image itself with a

manually optimized threshold for brightness. One

was optimized under the bright environment (620 lx),

and the other was optimized under the dim one (12

lx).

The precision is the ratio of the correctly

extracted shadow pixels to all the extracted pixels as

shadow, and the recall is the ratio of the correctly

extracted shadow pixels to all the true shadow pixels.

The F-measure is the harmonic mean of precision

and recall.

Table 1 also shows the results for simple

thresholding methods: in (b), pixels whose

brightness were under a threshold manually

optimized for the bright environment were extracted;

in (c), pixels were extracted as in (b) except that the

threshold that was optimized for the dim

environment.

The result shows our method can accurately

extract the shadow pixels and is robust to changes in

ambient light.

4.2 User Test for Touch Button

Even if shadow segmentation is successful, touch

detection faces another difficulty. The area of the

shadow depends on the shape of the user’s hand and

its elevation angle from the screen. To evaluate the

usability of our touch button, we conducted a user

test using the same installation as in Figure 2. The

button color and the altered color were the same as

in 4.1.

Five men participated in this test. Each

participant was asked to touch the button 20 times

with his bare hand in arbitrary ways in terms of hand

shape, depth to the button area, and hand elevation

angle. They were not asked to pay attention to

whether the system detected the touch or reacted.

This test was repeated four times for each

participant: once for each pairing of an ambient light

condition, about 690 lx or 12 lx on the screen when

the projector was off, and button size, 85 mm square

or 120 mm square.

Table 1: Shadow Segmentation.

Shadow

segmentation

(%)

Bright

( 620 lx )

Dim

( 12 lx )

Prec. Recall

F-

measure

Prec. Recall

F-

measur

(a) Proposed

(button color change)

81 83 82 73 69 71

(b) Low brightness

(optimized for

bright)

(100) (100) (100) 56 100 72

(optimized for dim)

100 63 77 (100) (100) (100)

Table 2 shows reasons for failure along with

their rates. The following reasons were found: (a)

hand movement was too fast to change the color of

the touch button; (b) incorrect estimation of the

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

shadow area when comparing the color-changed

image to the reference image.

Result (a) shows that users need some

notification from the system or they tend to move

their hand too quickly. Result (b) indicates that our

touch detection method works accurately and is

robust to illumination changes.

Although the change of the button color is

perceived by the user, we confirmed in this test that

most users are not annoyed by it because they

recognize this change as the system’s reaction to

touch.

When the user is not touching the interface, color

changes should be reduced as much as possible. For

this purpose, VIRTOS was designed to initiate a

color change only when both some amount of

foreground (e.g., more than 25%) is observed the

foreground object stops in the button.

The time from the user’s touch on the screen to a

visible system action, such as projecting a picture,

was about 150 ms.

4.3 User Test for Touch Slider

If a slider (scrollbar) does not smoothly follow the

movement of the user’s hand, it will be annoying

and stressful to use.

In this test, the participant was asked to

repeatedly move the slider handle to target positions

chosen randomly by the system. The average time to

move between positions was evaluated. The

installation was the same as in the Figure 2. The

color of the handle and the altered color were the

same as in 4.1, and the color of the slider zone was

light blue (R=178, G=203, B=228).

Five participants (5 men) were asked to move

the slider handle left or right 20 times in a trial. The

test system indicated a target position and displayed

it until the participant successfully moved the handle

to that position and stopped. Immediately after the

handle stopped at the target position, the system

showed the next one. The slider zone was divided

Table 2: Button Touch Detection.

Reason for

failure (%)

Bright

( 690 lx )

Dim

( 12 lx )

Button size = 85 mm sq.

(a) Too fast to change 9.0 2.0

(b) Detection failure 0.0 6.0

Button size = 120 mm sq.

(a) Too fast to change 3.0 4.0

(b) Detection failure 0.0 19.0

into 10 target positions, and the test system

randomly selected one of these positions as the next

target. The total time to complete 20 moves was

measured for each trial. Each participant completed

four trials: two in bright light and two in dim light.

Table 3 shows the average time of each handle

move for all participants. The results in the second

trial are about 0.5% to 8% better than the results of

the first trial because participants improved their

manipulation of the slider from the first trial.

We expect that the response times (manipulation

times) in Table 3 are good enough for digital signage

and direction boards. As discussed in the next

section, our virtual touch slider is suitable even as a

control handle for action games if very quick

movements are not required.

5 APPLICATION

Virtual touch screens are especially useful for large

display applications in public spaces, such as

interactive direction boards and digital signage,

because they are less expensive and less prone to

breakdown than large touch panels.

We developed two applications to demonstrate

the usability of VIRTOS. The first application uses

two VIRTOS touch buttons to control forward and

backward movement through a slide presentation

(Figure 5 (a)). The lower touch button in Figure 5

advances a slide; the upper button goes back a slide.

During a full-day demonstration in a bright room,

the touch buttons of this application were stable and

quick enough for presentation navigation.

The other application is a Breakout-style game in

which a VIRTOS touch slider is used to control the

game bar (Figure 5 (b)). The touch slider acts as a

handle for the game bar; it deflects a puck to break

the blocks in the upper area of the game screen.

Table 3: Touch Slider Response.

Touch slider

response

Bright

( ≈ 700 lx )

Dim

( ≈ 16 lx )

First trial Time to move (sec)

(a) Handle size

= 85 mm sq.

1.82 2.00

Second trial Time to move (sec)

(b) Handle size

= 85 mm sq.

1.68 1.99

During a half-day demonstration of the game to

about 50 users, there were no questions about color

VirtualTouchScreen"VIRTOS"-ImplementingVirtualTouchButtonsandVirtualSlidersusingaProjectorandCamera

(a) Slide presentation on a wall with two virtual touch

buttons (upper left green and violet).

(b) Breakout game with a virtual slider (right) and a virtual

touch button (left) on a white board

Figure 5: VIRTOS Applications.

changes of the button. We assume that these users

also perceived the change as a reaction to the touch,

as in 4.1. We also found that our current touch slider

was moderately usable for this action game.

However, when players wanted to move the game

bar quickly (so as not to loose the puck), they

occasionally moved their hand so fast that the slider

failed to follow. Therefore, we should improve the

response of the touch slider for this kind of game.

6 CONCLUSIONS

We proposed a large interactive display named

VIRTOS, with virtual touch buttons and touch

sliders, which consists of a projector, a pale-colored

wall, a computer, and one commodity camera as a

highly practical and useful projector-camera system.

In VIRTOS, a button touch is detected from the

area of the shadow of the user’s hand. The shadow

area is segmented from the foreground (non-

projected) image by a momentary change of the

button color. This scheme works robustly for

gradual illumination change around the system

because the criterion for detecting shadow pixels in

the camera image is whether a change occurred after

altering the button color. In addition, no optical

calibration or coordination between the projector

and the camera is required.

We evaluated the accuracy of our touch button

and the response of our touch slider. These

evaluations show that VIRTOS is suitable for

practical applications.

We also developed two applications to

demonstrate the usability for large display

applications. One application is a slide presentation

system with VIRTOS touch buttons, and the other

application is a Breakout-style game with a VIRTOS

touch slider. Both of these applications are easily set

up and automatically initialized.

We still need to improve some aspects of

VIRTOS, for example, further reducing unnecessary

color changes when a large shadow covers most of

the button area and recovering from sudden changes

in ambient light. We also plan to develop more

applications and test them in practical environments,

such as public halls.

REFERENCES

Audet, S., Okutomi, M., and Tanaka, M. (2012).

Augmenting Moving Planar Surfaces Interactively

with Video Projection and a Color Camera. IEEE

Virtual Reality (VRW ’12), pages 111-112.

Borkowski, S., Letessier, J., and Crowley, J. L. (2004).

Spatial Control of Interactive Surfaces in an

Augmented Environment. EHCI/DS-VIS Lecture

Notes in Computer Science, vol. 3425, pages 228-244.

Borkowski, S., Letessier, J., Bérard, F., and Crowley, J.L.

(2006). User-Centric Design of a Vision System for

Interactive Applications. IEEE Conf. on Computer

Vision Systems (ICVS ‘06), pages 9.

Brutzer, S., Höferlin, B., and Heidemann, G. (2011).

Evaluation of Background Subtraction Techniques for

Video Surveillance. IEEE Conf. on Computer Vision

and Pattern Recognition (CVPR ‘11), pages 1937-

1944.

Dai, J. and Chung, R. (2012). Making any planar surface

into a touch-sensitive display by a mere projector and

camera. IEEE Conf. on Computer Vision and Pattern

Recognition Workshops (CVPRW ‘12), pages 35-42.

Fujiwara, T. and Iwatani, Y. (2011). Interactions with a

Line-Follower: an Interactive Tabletop System with a

Markerless Gesture Interface for Robot Control. IEEE

Conf. on Robotics and Biomimetics (ROBIO ‘11),

pages 2037-2042.

Hilario, M. N. and Cooperstock, J. R. (2004). Occlusion

Detection for Front-Projected Interactive Displays. 2

International Conf. on Pervasive Computing and

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

Advances in Pervasive Computing, Austrian

Computer Society.

Kale, A., Kenneth, K., and Jaynes, C. (2004). Epipolar

Constrained User Pushbutton Selection in Projected

Interfaces. IEEE Conf. on Computer Vision and

Pattern Recognition Workshops (CVPRW ‘04), pages

156-163.

Kim, S., Takahashi, S., and Tanaka, J. (2010). New

Interface Using Palm and Fingertip without Marker

for Ubiquitous Environment. In Proc. of International

Conf. on Computer and Information Science

(ACIS’10), pages 819-824.

Kjeldsen, R., Pinhanez, C., Pingali, G., and Hartman, J.

(2002). Interacting with Steerable Projected Displays.

International Conf. on Automatic Face and Gesture

Recognition (FGR ’02), pages 402-407.

Lech, M. and Kostek, B. (2010). Gesture-based Computer

Control System applied to the Interactive Whiteboard.

International Conf. on Information Technology

(ICIT ‘10), pages 75-78.

Licsar, A. and Sziranyi, T. (2004). Hand Gesture

Recognition in Camera-Projector Systems. Computer

Vision in Human-Computer Interaction, Springer,

pages 83-93.

Microsoft. (2010). Kinect for X-BOX 360. www:

http://www.xbox.com/en-US/kinect.

Park, J. and Kim, M.H. (2010). Interactive Display of

Image Details using a Camera-coupled Mobile

Projector. IEEE Conf. on Computer Vision and

Pattern Recognition Workshops (CVPRW ‘10), pages

9-16.

Pinhanez, C., Kjeldsen, R., Levas, A., Pingali, G.,

Podlaseck, M., and Sukaviriya, N. (2003). Application

of Steerable Projector-Camera Systems. In Proc. of

International Workshop on Projector-Camera Systems

(PROCAMS-2003).

Sato, Y., Oka, K., Koike, H., and Nakanishi, Y. (2004).

Video-Based Tracking of User’s Motion for

Augmented Desk Interface. International Conf. on

Automatic Face and Gesture Recognition (FGR ’04),

pages 805-809.

Shah, S.A.H., Ahmed, A., Mahmood, I., and Khurshid, K.

(2011). Hand gesture based user interface for

computer using a camera and projector. IEEE

International Conf. on Signal and Image Processing

Applications (ICSIPA ’11), pages 168-173.

Song, P., Winkler, S., Gilani, S.O., and Zhou, Z. (2007).

Vision-Based Projected Tabletop Interface for Finger

Interactions. Human–Computer Interaction, Lecture

Notes in Computer Science, vol. 4796, Springer, pages

49-58.

Wilson, D. (2005). Playanywhere: a compact interactive

tabletop projection-vision system. Proc. 18th ACM

Symposium on User Interface Software and

Technology (UIST ’05), pages 83-92.

Winkler, S., Yu, H., and Zhou, Z. (2007). Tangible mixed

reality desktop for digital media management. SPIE:

vol. 6490.

Zhang, Z. (2000). A flexible new technique for camera

calibration. IEEE Trans. on Pattern Analysis and

Machine Intelligence (PAMI), pages 1330-1334.

VirtualTouchScreen"VIRTOS"-ImplementingVirtualTouchButtonsandVirtualSlidersusingaProjectorandCamera
