Free Viewpoint Video for Soccer using Histogram-based Validity Maps in

Plane Sweeping

Patrik Goorts, Steven Maesen, Maarten Dumont, Sammy Rogmans and Philippe Bekaert

Hasselt University - tUL - iMinds, Expertise Centre for Digital Media, Wetenschapspark 2, 3590 Diepenbeek, Belgium

Keywords:

Sports Broadcasting, View Interpolation, Plane Sweep, Virtual Viewpoint, Validity Maps, GPU, CUDA.

Abstract:

In this paper, we present a method to accomplish free viewpoint video for soccer scenes. This will allow

the rendering of a virtual camera, such as a virtual rail camera, or a camera moving around a frozen scene.

We use 7 static cameras in a wide baseline setup (10 meters apart from each other). After debayering and

segmentation, a crude depth map is created using a plane sweep approach. Next, this depth map is ﬁltered

and used in a second, depth-selective plane sweep by creating validity maps per depth. The complete method

employs NVIDIA CUDA and traditional GPU shaders, resulting in a fast and scalable solution. The results,

using real images, show the effective removal of artifacts, yielding high quality images for a virtual camera.

1 INTRODUCTION

Nowadays, entertainment broadcasting plays a large

role in current society. Especially sports broadcast-

ing is a well-known recreational aspect of television.

Therefore, it is important to provide a high quality and

visually pleasing reporting of sports events. To pro-

vide novel representations of sport scenes, we present

a method to generate the video stream of a virtual

camera, positioned in between real cameras. Our

method is especially tailored for soccer scenes. Al-

lowing novel viewpoints, it is possible to create a vir-

tual rail camera. While the real cameras have a ﬁxed

position, a virtual camera can move from one side of

the ﬁeld to the other side in a smooth manner. This

way, distracting hopping between cameras is avoided.

Avoiding camera hopping makes it also possible to

place real cameras at the opposite side of the pitch.

Nowadays, this is avoided to reduce confusion of the

spectators, who can experience loss of global loca-

tion. This can be avoided if the movement of the cam-

era is smooth, without hops, and global location can

be retained. Furthermore, novel imaging methods can

be employed, such as a moving camera over a frozen

scene.

In this paper, we present a method to generate

the image of the virtual camera, i.e. interpolating real

camera images. The method is fully automatic. We

employ an image-based approach using an adapted

and depth-aware plane sweep approach. To provide

as fast as possible processing speed, we employed

CUDA and classical shader technology on GPU to al-

low parallel processing of the camera images. CUDA

is a well-known technology which exposes commod-

ity NVIDIA GPUs as a collection of parallel pro-

cessors, while traditional shaders use the graphical

pipeline. We used a combination of both to leverage

their strengths and hide their weaknesses.

Our setup, depicted in Figure 1, consists of a num-

ber of cameras with a static location and orientation.

The cameras are aimed at the pitch and are placed in a

wide baseline setup, i.e. 10 meters between each cam-

era. All images are transferred to a storage server,

where all the captured data is stored. A render com-

puter can access all required images to generate a

novel viewpoint.

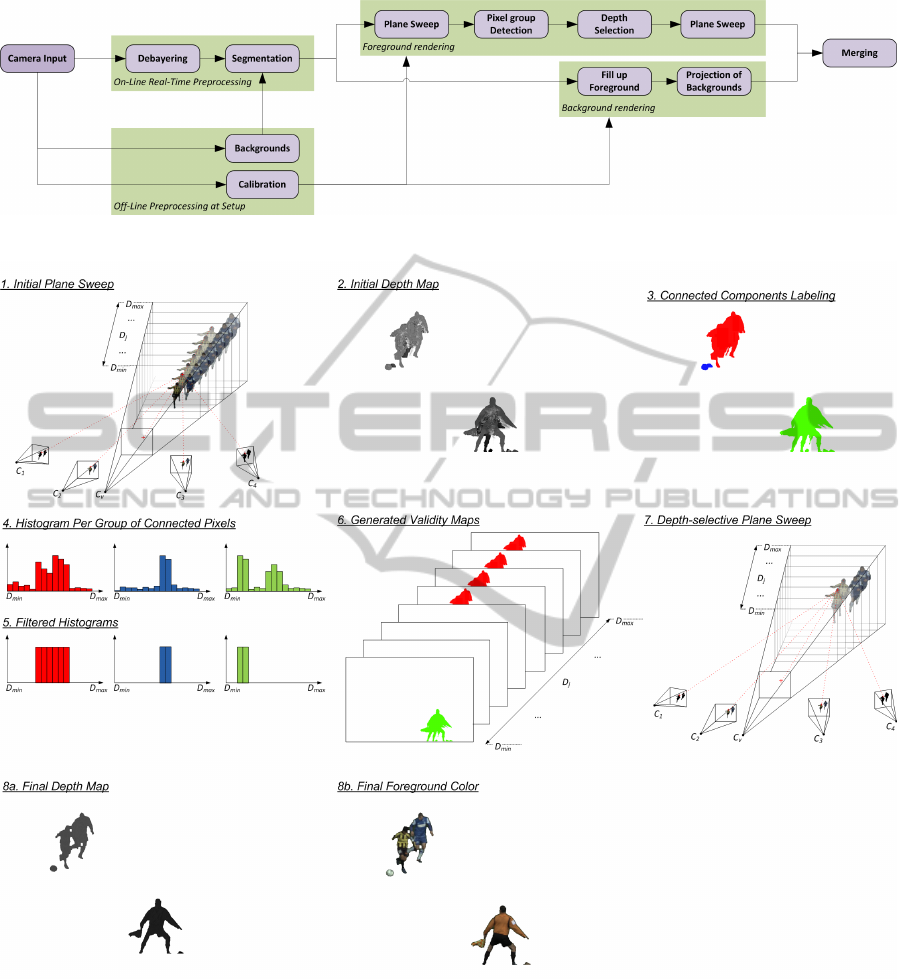

The generation of the image of the virtual cam-

era consists of two phases: a non real-time prepro-

cessing phase and a real-time interpolation phase (see

Figure 3). The preprocessing stage consists of camera

calibration and background determination. The real-

time phase generates images for a chosen virtual cam-

era position and a chosen time in the video sequence.

Foreground and background are processed indepen-

dently. The foreground rendering uses a plane-sweep

approach to generate a novel viewpoint, where the

reprojection consistency for different depths is maxi-

mized, thus generating a novel image and depth map

simultaneously. However, normal plane sweeping

does not yield high quality results for soccer scenes

using a wide baseline setup. Serious artifacts, such as

ghost players, can be perceived. Therefore, we em-

378

Goorts P., Maesen S., Dumont M., Rogmans S. and Bekaert P..

Free Viewpoint Video for Soccer using Histogram-based Validity Maps in Plane Sweeping.

DOI: 10.5220/0004730003780386

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 378-386

ISBN: 978-989-758-009-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

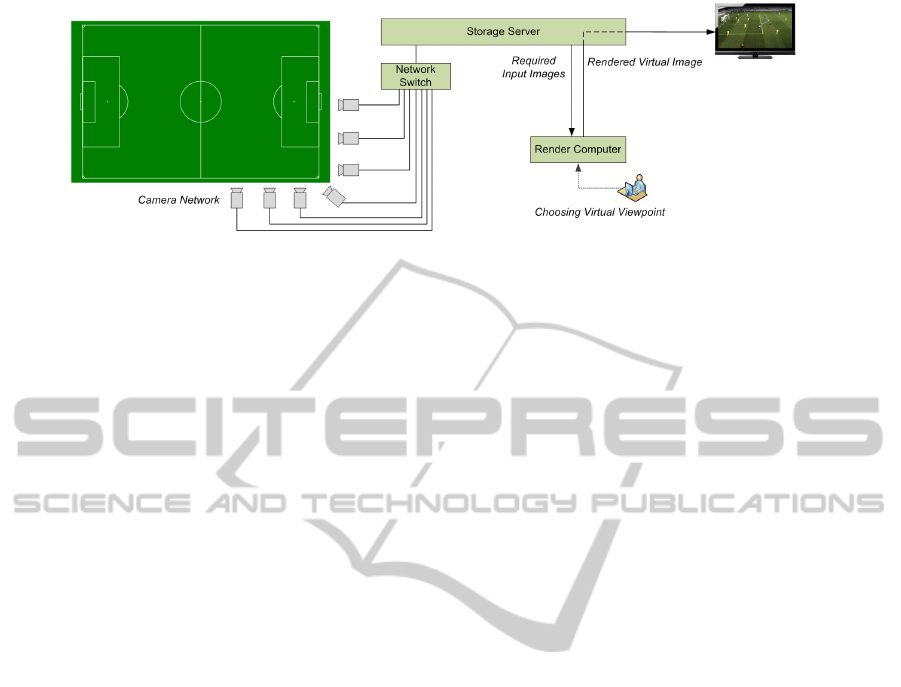

Figure 1: Overview of our setup. The setup consists of a camera network, connected to a storage server. The rendering

module can fetch any image required to generate a novel viewpoint. The novel images are stored on the storage server for

further distribution.

ploy a depth selection method where the acceptable

depths of groups of pixels is determined and used in a

second, depth-selective plane sweep.

To demonstrate our method, we obtained images

from a real soccer match in real conditions. Our

method outperforms other free viewpoint video sys-

tems, as demonstrated by the results and the accompa-

nying video. Typical artifacts, such as ghost players,

are effectively removed.

2 RELATED WORK

There are two general approaches for generating

novel viewpoints using a multiview camera setup:

3D reconstruction and image-based rendering. Using

3D reconstruction, the 3D information is recovered,

allowing the rendering from an arbitrary viewpoint.

The resulting rendering is as good as the reconstruc-

tion. A well-known method is the shape from sil-

houette approach, where foreground-background seg-

mentation is used to reconstruct 3D objects by carving

out voxels in space (Seitz and Dyer, 1999; Kutulakos

and Seitz, 2000), or by reconstructing 3D meshes di-

rectly (Matusik et al., 2000; Miller et al., 2005). The

resulting object, i.e. the visual hull, can then be tex-

tured using the input color images (Eisemann et al.,

2008). While 3D reconstruction is robust, artifacts

can be introduced when the resolution of the 3D ob-

ject is low, or ghosting objects can be introduced if a

lot of objects are in the scene.

Image-based methods do not perform a 3D re-

construction, but will generate the image of a novel

viewpoint directly. These methods include plenop-

tic modeling (McMillan and Bishop, 1995) and light

ﬁeld rendering (Levoy and Hanrahan, 1996). In many

methods, depth generation, implicit or explicit, is

done concurrently. When using two cameras, stereo

vision can be used (Scharstein and Szeliski, 2002).

Here, explicit depth is calculated, which is used to

warp the input image to a new viewpoint (Glasbey

and Mardia, 1998). While this can introduce holes in

the ﬁnal result, different techniques are developed to

cope with this problem (Wang et al., 2008). Tradi-

tional stereo methods use a narrow baseline, but ex-

tensions are possible for wide baseline setups using

feature matching (Matas et al., 2002; Tuytelaars and

Van Gool, 2000).

When multiple cameras are present, plane sweep-

ing can be used (Yang et al., 2004). These can be em-

ployed for small baseline setups, such as video con-

ferencing (Dumont et al., 2009), and wide baseline

setups, such as building reconstruction (Baillard and

Zisserman, 2000). Here, different depth hypotheses

are tested for color consistency. This way, depth is

implicitly calculated. Multiple optimizations are pos-

sible, such as depth plane redistribution for higher

quality (Goorts et al., 2013b) or depth omission for

increased performance (Rogmans et al., 2009).

Plane sweeping has already been employed for in-

terpolation in soccer scenes. Goorts et al. (Goorts

et al., 2012a; Goorts et al., 2013a) present a method

with two plane sweeps and a depth ﬁltering step,

but segments in the virtual image can only have

one depth. This will result in disappearing players

if they are overlapping in the image. Furthermore,

the method is only suitable for smaller baseline se-

tups (about 1 meter). Due to the similarity with our

method, thorough comparions are made in Section 6.

Ohta et al.(Ohta et al., 2007) present a free view-

point system for soccer games using billboards. Here,

simple 3D proxies are placed in the scene, represent-

ing players, and the closest camera image is used for

the color information. This will, however, result in

perspective distortions and a lower quality result. Fur-

thermore, player positions can be difﬁcult to estimate

in complex situations.

Hayashi and Saito (Hayashi and Saito, 2006) also

use a billboard method, but the interpolation is per-

formed by estimating the projective geometry among

FreeViewpointVideoforSoccerusingHistogram-basedValidityMapsinPlaneSweeping

379

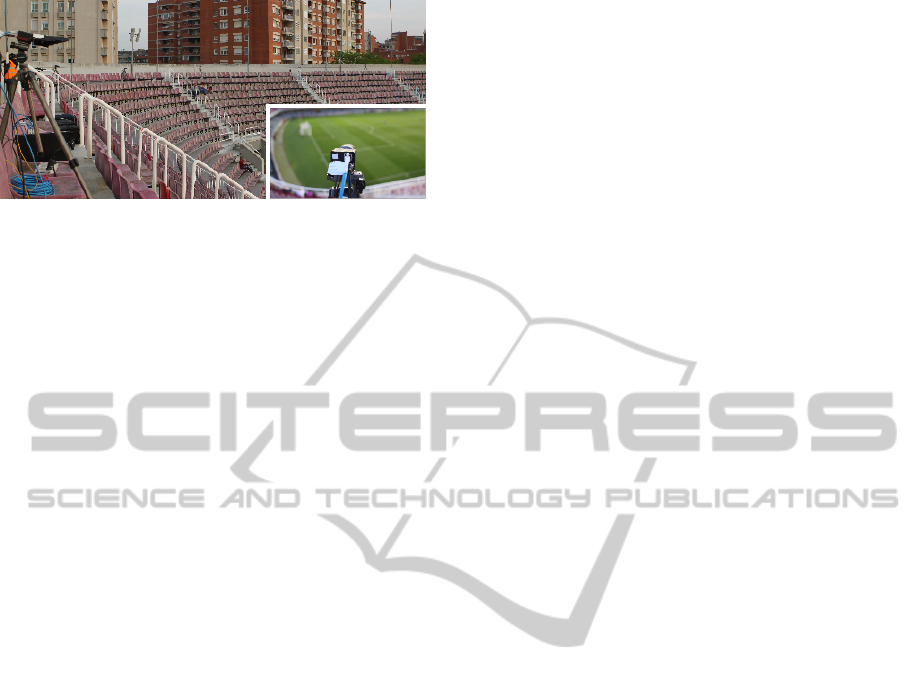

Figure 2: The camera setup. 7 cameras are visible, set up in

an arc arrangement. The distance is 10 meters between the

cameras.

different views.

Germann et al. (Germann et al., 2010) estimate

the pose of the players by matching the images of the

players to a database. This way, novel viewpoints of

players can be calculated, which are then projected

on billboards placed in the scene. This will yield

higher quality results, but manual intervention is re-

quired and the position of the billboards must still be

determined.

Red Bee Media (Corporation, 2001) presented the

iView system (Grau et al., 2007), where a narrow

baseline is used. Both billboards and visual hull are

used. Hilton et al. (Hilton et al., 2011) extend this

method using reﬁnement based on sparse image fea-

tures.

3 ACQUIRING VIDEO STREAMS

We employed a multi camera setup to acquire real

data from soccer scenes. The prototype setup con-

sists of 7 computer vision cameras, placed around one

quarter of the ﬁeld (see Figure 2). The distance be-

tween the cameras is about 10 meters, allowing the

coverage of a complete ﬁeld using only 40 cameras.

We used 16 mm Fujinon lenses to provide a ﬁeld of

view which covers one half of the ﬁeld, focused on the

center of the penalty area. All cameras were synchro-

nized on shutter level using a global clock. Image data

was transferred using standard 1 gigabit copper Eth-

ernet connections, connected to a switch. The data is

then transferred to a capture computer using a 10 Gi-

gabit ﬁber Ethernet connection. The images with res-

olution of 1600x1200 are stored in raw, i.e. bayered

format, which reduces the bandwidth with a factor of

three compared with corresponding RGB images.

The setup was tested in real conditions in the Mini

Estadi of Barcelona, Spain, where it proved to be sta-

ble and robust. The quarter arc setup proved to be es-

pecially useful for showing frozen action shots from

different angles. Other setups with a smaller base-

line or a linear camera placement are also possible

(Goorts et al., 2012a). However, we demonstrate a

method where the distance between the cameras is in-

creased, allowing a more ﬂexible and less expensive

setup, thus creating a more practical solution.

4 PREPROCESSING

Before the generation of novel viewpoints is possible,

preprocessing is required.

First, the cameras are calibrated to acquire their

position, orientation and intrinsic parameters. We ex-

tract SIFT features (Lowe, 2004) from a number of

frames and calculate the pairwise matching between

them using the k-d tree algorithm. These pairwise

matches are then tracked across different image pairs.

This way, we obtain point correspondences between

multiple images. Using these image correspondences,

we can calculate the extrinsic and intrinsic parame-

ters simultaneously using the well-known calibration

method of Svoboda et al. (Svoboda et al., 2005).

Here, a bundle adjustment approach is used, together

with an outlier rejector based on RANSAC (Hartley

and Zisserman, 2003). The calibration is then rotated

and scaled such that the pitch is in the XY plane, the

center of the pitch is the center of the coordinate sys-

tem and the unit is in meters. This way, we know the

locations of the cameras relative to the pitch.

Next, the background B

of every image stream is

determined. We use a per-pixel median approach ap-

plied to about 30 images per stream, each 2 second

apart from each other. The backgrounds are updated

when the lighting changes during the game. Further-

more, a binary mask of the goal is created.

5 REAL-TIME NOVEL

VIEWPOINT RENDERING

Using the captured image streams and the prepro-

cessed data, we can now render novel viewpoints. The

user of the system chooses a novel viewpoint (or a

collection of novel viewpoints on a viewpath) and the

corresponding time in the sequence. The rendering

request is then processed by the rendering module.

First, the rendering module requests the required

raw images C

(i ∈ [1, N]) for N cameras from the stor-

age server. Next, the images are debayered and seg-

mented using GPU technologies. These images are

then used in the generation of the image of the novel

viewpoint, where the foreground and background are

rendered independently. The foreground is generated

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

380

Figure 3: Overview of our method for the rendering. Both the non real-time and real-time phase are shown.

Figure 4: Overview of our method for foreground interpolation. 1: An initial depth map is acquired by a plane sweep

approach. Only the two closest cameras are used for color consistency; the other are used for segmentation consistency. 2:

The initial depth map. Serious artifacts, such as a third leg, can be seen. 3: The depth map is segmented using a parallel

connected components approach. 4: For every group of connected pixels, a depth histogram is acquired. 5: The histogram

is ﬁltered using the depth of the background and depth assumptions. 6: The resulting validity map. Coloured pixels denote a

valid depth; white pixels are non-valid depths. There is a validity map per depth. 7: A second, depth-selective plane sweep is

used, where some depths for a group of pixels are omitted, based on the corresponding validity map. 8a: The ﬁnal depth map,

and 8b: the corresponding color result.

using a depth-selective plane sweep approach. After

combining foreground and background, the results are

uploaded to the storage server for further distribution.

5.1 Real-time Preprocessing

Every input image for every frame is preprocessed be-

fore further processing. The preprocessing consists of

FreeViewpointVideoforSoccerusingHistogram-basedValidityMapsinPlaneSweeping

381

debayering and segmentation.

Debayering consists of converting raw images to

its RGB representation. In raw images, every pixel

only contains the value of one color channel, as de-

ﬁned by the image sensor; the other color channels

must be estimated. We use the method of Malvar et

al. (Malvar et al., 2004), implemented in CUDA for

fast processing (Goorts et al., 2012b) to estimate the

other, missing color channels. This method uses bi-

linear interpolation, while using gradient information

of other color channels to reduce artifacts. The algo-

rithm can be implemented as FIR ﬁltering.

The debayered images C

are then segmented in

foreground and background pixels, represented by the

segmentations S

. These segmentations are based on

the backgrounds B

, as obtained in Section 4. Seg-

mentation is performed on a per-pixel basis using

the differences between the color values, compared

against three thresholds τ

, τ

and τ

, with τ

> τ











1 : τ

< kc

− b

1 : τ

≥ kc

− b

k ≥ τ

and cos(

) ≤ τ

0 : kc

− b

k < τ

0 : τ

≥ kc

− b

k ≥ τ

and cos(

) > τ

(1)

where s

= S

(x, y), c

= C

(x, y) and b

= B

(x, y),

for all pixels (x, y).

is the angle between the fore-

ground and background color vectors. This method

allows fast segmentation in high quality. τ

and τ

allow the determination for very large or very small

differences, while τ

considers more subtle color dif-

ferences. Furthermore, we use the mask of the goal to

set all the pixels of the goal to foreground. We want

to actually interpolate the goal to cope with moving

parts and perspective differences in the images. The

segmentation is then enhanced with an erosion and

dilation step to reduce errors caused by input noise

(Yang and Welch, 2002).

The segmentation is applied such that shadows are

part of the background. This will ease the foreground

interpolation, while still keeping lighting information.

Shadows are considered as darker background, reduc-

ing the need for a separate interpolation.

Now the image of the virtual viewpoint can be ren-

dered. The background B

and foreground F

are pro-

cessed independently.

5.2 Background Rendering

To generate the background B

of the virtual image,

we generate the backgrounds of every input image.

Here, the foreground pixels of the input images C

are replaced by the corresponding pixels of the back-

grounds B

. Now we have the backgrounds of every

input stream, where the shadows and lighting effects

are still present.

These backgrounds are then deprojected to a vir-

tual plane, coplanar to the pitch, and reprojected to

the virtual camera image. We know the location of

the pitch due to the calibration from Section 4. We

start with the camera closest to the virtual camera to

ﬁll the virtual image up as much as possible. The parts

of the image that are not covered by the closest back-

ground are ﬁlled up by the other cameras. To provide

a pleasant looking result and to compensate for color

differences between cameras, smoothing is applied to

the borders of the reprojected backgrounds. This way,

changes from one background to the other are not vis-

ible.

The goal is considered as foreground. If the goal

was background, it would be projected to a plane, re-

sulting in serious projective distortions. By consider-

ing the goal as foreground, height of the goal is kept

(just as the players), resulting in higher quality results.

Furthermore, the depth of the virtual background

is stored for further use in the foreground rendering.

5.3 Plane Sweeping

The foreground is rendered using a plane sweep ap-

proach, followed by depth ﬁltering and a depth-

selective plane sweep. The foreground interpola-

tion method is depicted in Figure 4. In the ﬁrst

step, a depth map is generated using an adaptation

of the well-known plane sweeping method of Yang

et al. (Yang et al., 2003). The space before the virtual

camera is divided in depth planes with distance to the

virtual camera D

. We use M planes between D

min

and D

max

For every plane, we project the images of the two

cameras p and q closest to the virtual camera onto the

plane. Per pixel, the average γ of the color values is

calculated and used to determine an error value ε:

ε =

kγ −C

+ kγ −C

with γ =

(2)

Furthermore, the segmentation of every other

camera is projected to the plane. If the segmentation

of one of the cameras is background, ε is set to inﬁn-

ity.

Now we have an error value for every pixel on

the plane. This is repeated for every plane with depth

∈ [D

min

, D

max

]. We can now generate a depth map

for the virtual image by selecting, for every pixel, the

depth of the plane where the error value ε is minimal.

If ε is inﬁnity for every depth plane, the pixel is con-

sidered as background.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

382

Using traditional Cg shaders, we can accomplish

real-time processing (Dumont et al., 2009). Com-

pared with CUDA, Cg shaders have projective tex-

turing capabilities and depth testing, thus exploiting

more capabilities of commodity GPUs.

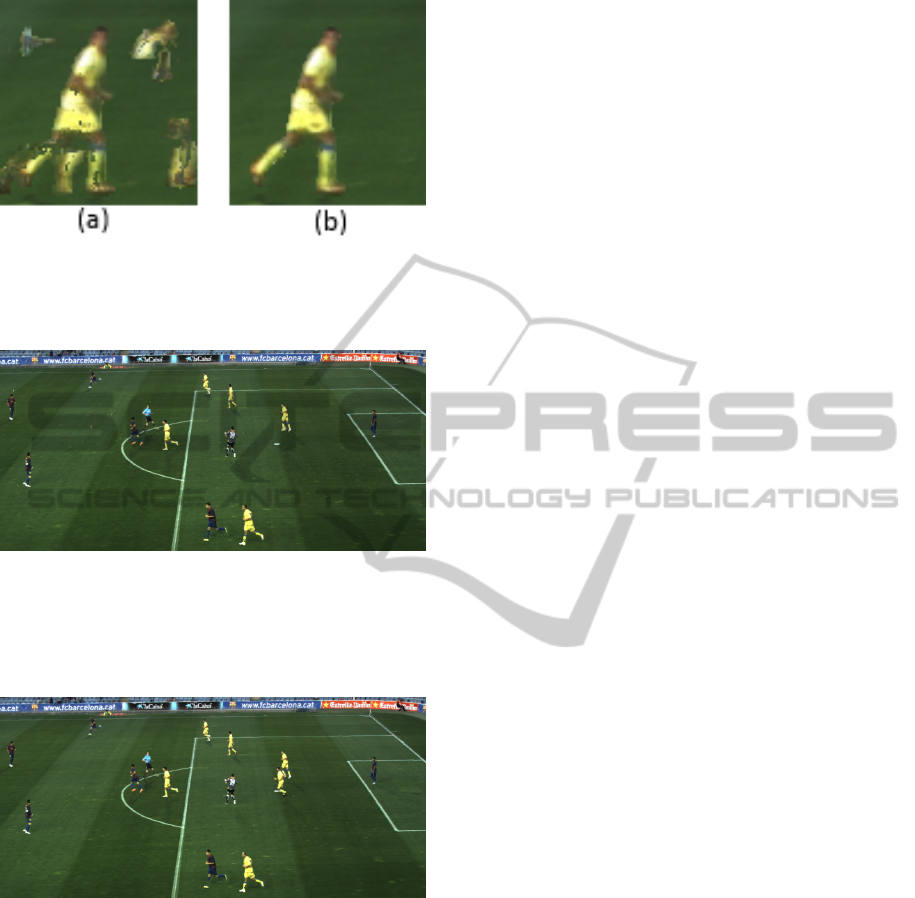

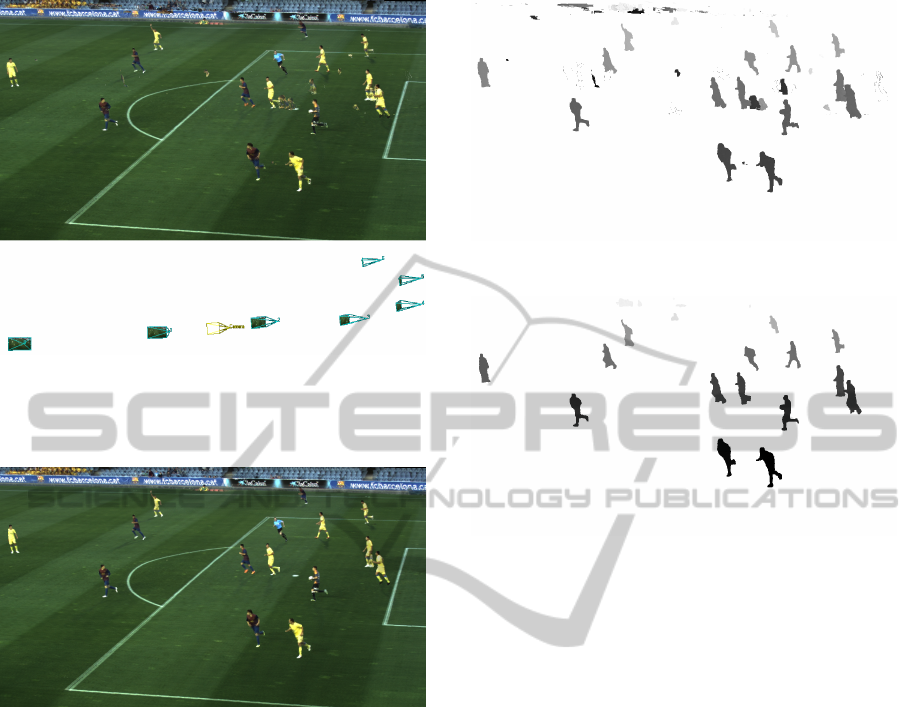

The results of the ﬁrst plane sweep (already ap-

plied to the background, see Section 5.6) can be seen

in Figure 5. Here, a lot of artifacts can be perceived.

However, the depth map of this result, shown in Fig-

ure 7, shows a very different depth for the artifacts.

We can use this information to ﬁlter the depth map

and effectively determine for every pixel the allowed

depth values. This way, we can remove artifacts,

while keeping the depth information of the objects in

the scene.

5.4 Histogram-based Depth Selection

In the depth selection step, we generate a validity

map, i.e. a boolean array with the same size as the

image, for every depth plane. Thus, we generate one

validity map per depth plane. Every element in the

validity map determines if the corresponding pixel

may be processed during the second depth-selective

plane sweeping step. This will exclude certain depths

for certain pixels, thus eliminating artifacts with this

depth.

To determine the allowed depths per pixel, we ﬁrst

perform a grouping of connected foreground pixels

of the depth map of the virtual image using a paral-

lel connected components algorithm. The connected

components problem consists of labeling every pixel

with a number, where every connected pixel has the

same label and every group of non-connected pixels

has a different label. This way, we perform a map-

ping between a label and a group of connected pixels.

Initially, we apply a unique label to every pixel

and apply zero to background pixels. Next, we com-

pare every pair of neighboring pixels. If one of the

two labels is zero, nothing happens. If the labels are

greater than zero and different, both labels are set to

the smallest of the two. By repeating this process un-

til no changes are performed anymore, all connected

pixels will have the same label.

This method can be mapped to the model of

CUDA. Every pixel is assigned a thread on the GPU,

so that these are processed in parallel. Because only

neighboring pixels are considered, fast memory ac-

cess strategies can be employed by using only loca-

lized memory accesses. This allows the use of fast,

thread-shared memory and reduces the amount of

slow copies from global memory (Goorts et al., 2009).

Once all groups of connected pixels have the same

label, we can generate the histogram of depth val-

ues per group using parallel reduction. Once the his-

tograms are known, we apply a local maximum ﬁlter-

ing where we replace the value of the histogram by the

maximum value in its neighborhood. A neighborhood

of size φ

is used. This way, we can effectively ﬁlter

out peaks in the histogram, which are considered valid

depth values. By using a neighborhood, depth values

around the valid depths are still considered, allowing

more detailed depth maps in the ﬁnal result.

Furthermore, we remove all values that differ too

much from the depths of the backgrounds using a

threshold φ

. This will eliminate depths where the

objects should be in the ground or ﬂying high in the

air. Lastly, we delete all histograms with less than φ

values, thus eliminating noise.

Once these ﬁltered histograms are known, we use

these to generate the validity map per depth value,

which determines if that depth for a pixel is valid.

For every pixel in the depth map, we determine the

corresponding label and look up the value of the his-

togram of the corresponding label. If the value is a

local maximum in the histogram, the depth is valid

and is as such represented in the validity map. This

validity map is created for every processed depth and

passed to the second depth-selective plane sweep. By

using a histogram-based method, multiple depths and

various depth ranges are possible per group of pixels,

allowing situations with many players close to each

other.

5.5 Depth-selective Plane Sweep

The second, depth-selective plane sweep is equivalent

to the ﬁrst plane sweep, but the error value ε is set to

inﬁnity if the depth of the plane is not valid, according

to the validity maps from the previous ﬁltering step. It

is possible that all error values ε for a pixel are inﬁn-

ity, thus resulting in background and the effective re-

moval of artifacts. To increase performance, the num-

ber of valid pixels in the validity map is counted. If

the value is zero, the plane is skipped. The ﬁnal color

result consists of the average color values γ where ε is

minimal.

5.6 Merging

At this point, the background of the virtual image is

known from Section 5.2, and the foreground with seg-

mentation information from Section 5.5. The fore-

ground and background are merged together accord-

ing to the segmentation information. This will result

in the ﬁnal image with correct shadows and reduced

artifacts.

FreeViewpointVideoforSoccerusingHistogram-basedValidityMapsinPlaneSweeping

383

Figure 5: Result of traditional interpolation methods. The

position of the virtual camera, in yellow, is shown beneath

the result. Artifacts, such as ghosting players and ghost

limbs, can be clearly seen.

Figure 6: Result of our method, at the same position for

the virtual camera as Figure 5. The artifacts are effectively

removed.

6 RESULTS

To demonstrate the effectiveness of our method, we

used real captured data from a real soccer game. We

use 1024 planes for the plane sweeping step and use

the values φ

= 9, φ

= 0.03 (for depths normalized

between 0 and 1) and φ

= 20 pixels. This parame-

ters will result in the highest visible quality. By using

an NVIDIA Geforce GTX Titan, we obtain a process-

ing speed of 6Hz for the full resolution of 1600x1200.

Due to the parallel nature and temporal independence

of the method, scalability can easily be obtained by

increasing the number or GPUs per system or by in-

creasing the number of rendering computers.

Figure 5 shows the results using traditional plane

sweeping approaches, without depth ﬁltering. The

corresponding depth map is shown in Figure 7. Nu-

merous artifacts can be perceived. Figure 6 and Fig-

Figure 7: Depth map of the result of traditional interpolation

methods of Figure 5. The depth of the artifacts is clearly

different from the depth of the correct objects.

Figure 8: Depth map of the result of our method of Figure

ure 8 shows the result for our approach. As can be

seen, the artifacts are effectively removed.

This is further demonstrated in detail in Figure 9.

Here, a closed up view shows that there is a ghost leg

and other ghosting artifacts. As shown in Figure 9(b),

these kind of artifacts are effectively removed.

When using only one depth value per group of pix-

els, as proposed by Goorts et al. (Goorts et al., 2013a),

players can disappear when using a wide baseline

setup. This is demonstrated in Figure 10. Here, the

closest player at the right side has disappeared. Fig-

ure 11 shows out method. Here, all players are visible

and no disappearance can be perceived.

Some artifacts can still be perceived in the back-

ground, such as ghost lines. This is caused by the sim-

pliﬁed assumption of the geometry of the pitch. When

more accurate geometric data is available, quality will

increase.

All results can also be seen in the supplementary

video, where our method is demonstrated using real

life soccer data. Here, a smooth transition from one

side to the other is demonstrated, both for a moving

and a frozen scene. This clearly demonstrates the use

of our method to generate a virtual rail camera, us-

ing only 7 static cameras. Furthermore, the method

is compared side-by-side with traditional methods,

where artifacts can be seen.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

384

Figure 9: (a) Detail result of traditional interpolation meth-

ods. Artifacts, such as ghost players and ghost limbs, can

clearly be seen. (b) Detail result of our method. The arti-

facts are effectively removed.

Figure 10: Results generated using the method of Goorts

et al. (Goorts et al., 2013a). When compared with Fig-

ure 11, a player has disappeared (the closest player of the

group of two players at the right side). This is caused by the

invalid assumption that every group of pixel only has one

valid depth.

Figure 11: Result of our method. No players have disap-

peared, or have been ﬁltered out.

7 CONCLUSIONS

We presented our system to generate free viewpoint

video for soccer games, using a wide baseline static

camera setup. Our method uses and extends the well-

known plane sweep approach, allowing the genera-

tion of higher quality results. We employ an initial

plane sweep to generate a crude depth map. This

depth map is ﬁltered and used for a second, depth-

selective plane sweep. By employing a combination

of traditional Cg and modern NVIDIA CUDA GPU

computing, a scalable and fast solution is obtained.

The results, obtained from real life data, demonstrate

the effectiveness of our method, where the artifacts

from traditional approaches are effectively removed,

resulting in high quality images for the virtual cam-

era.

ACKNOWLEDGEMENTS

Patrik Goorts would like to thank the IWT for its PhD.

bursary.

REFERENCES

Baillard, C. and Zisserman, A. (2000). A plane-sweep strat-

egy for the 3d reconstruction of buildings from multi-

ple images. International Archives of Photogramme-

try and Remote Sensing, 33(B2; PART 2):56–62.

Corporation, R. B. (2001). 3d graphics systems. http:

//www.redbeemedia.com/piero/piero.

Dumont, M., Rogmans, S., Maesen, S., and Bekaert, P.

(2009). Optimized two-party video chat with restored

eye contact using graphics hardware. e-Business and

Telecommunications, pages 358–372.

Eisemann, M., De Decker, B., Magnor, M., Bekaert, P.,

De Aguiar, E., Ahmed, N., Theobalt, C., and Sellent,

A. (2008). Floating textures. Computer Graphics Fo-

rum, 27(2):409–418.

Germann, M., Hornung, A., Keiser, R., Ziegler, R.,

urmlin, S., and Gross, M. (2010). Articulated bill-

boards for video-based rendering. Computer Graphics

Forum, 29(2):585–594.

Glasbey, C. A. and Mardia, K. V. (1998). A review of

image-warping methods. Journal of applied statistics,

25(2):155–171.

Goorts, P., Ancuti, C., Dumont, M., and Bekaert, P. (2013a).

Real-time video-based view interpolation of soccer

events using depth-selective plane sweeping. In Pro-

ceedings of the Eight International Conference on

Computer Vision Theory and Applications (VISAPP

2013). INSTICC.

Goorts, P., Dumont, M., Rogmans, S., and Bekaert, P.

(2012a). An end-to-end system for free viewpoint

video for smooth camera transitions. In Proceedings

of the Second International Conference on 3D Imag-

ing (IC3D 2012). 3D Stereo Media.

Goorts, P., Maesen, S., Dumont, M., Rogmans, S., and

Bekaert, P. (2013b). Optimization of free viewpoint

interpolation by applying adaptive depth plane dis-

tributions in plane sweeping. In Proceedings of the

Eleventh International Conference on Signal Process-

ing and Multimedia Applications (SIGMAP 2013).

Goorts, P., Rogmans, S., and Bekaert, P. (2009). Opti-

mal Data Distribution for Versatile Finite Impulse Re-

sponse Filtering on Next-Generation Graphics Hard-

ware using CUDA . In Proceedings of The Fifteenth

FreeViewpointVideoforSoccerusingHistogram-basedValidityMapsinPlaneSweeping

385

International Conference on Parallel and Distributed

Systems, pages 300–307.

Goorts, P., Rogmans, S., and Bekaert, P. (2012b). Raw

camera image demosaicing using ﬁnite impulse re-

sponse ﬁltering on commodity gpu hardware using

cuda. In Proceedings of the Tenth International Con-

ference on Signal Processing and Multimedia Appli-

cations (SIGMAP 2012). INSTICC.

Grau, O., Hilton, A., Kilner, J., Miller, G., Sargeant, T., and

Starck, J. (2007). A Free-Viewpoint Video System for

Visualization of Sport Scenes. SMPTE motion imag-

ing journal, 116(5/6):213.

Hartley, R. and Zisserman, A. (2003). Multiple view geom-

etry in computer vision, volume 2. Cambridge Univ

Press.

Hayashi, K. and Saito, H. (2006). Synthesizing Free-

Viewpoing Images from Multiple View Videos in Soc-

cer Stadium. In Proceedings of the International Con-

ference on Computer Graphics, Imaging and Visuali-

sation, pages 220–225.

Hilton, A., Guillemaut, J., Kilner, J., Grau, O., and Thomas,

G. (2011). 3d-tv production from conventional cam-

eras for sports broadcast. IEEE Transactions on

Broadcasting, (99):1–1.

Kutulakos, K. and Seitz, S. (2000). A theory of shape by

space carving. International Journal of Computer Vi-

sion, 38(3):199–218.

Levoy, M. and Hanrahan, P. (1996). Light ﬁeld rendering. In

Proceedings of the 23rd annual conference on Com-

puter graphics and interactive techniques, pages 31–

42. ACM.

Lowe, D. (2004). Distinctive image features from scale-

invariant keypoints. International journal of computer

vision, 60(2):91–110.

Malvar, H., He, L., and Cutler, R. (2004). High-quality lin-

ear interpolation for demosaicing of bayer-patterned

color images. In Proceedings of the International

Conference on Acoustics, Speech, and Signal Process-

ing (ICASSP 2004), volume 3, pages 485–488. IEEE.

Matas, J., Chum, O., Urban, M., and Pajdla, T. (2002). Ro-

bust wide baseline stereo from maximally stable ex-

tremal regions. In Proceedings of the British machine

vision conference, volume 1, pages 384–393.

Matusik, W., Buehler, C., Raskar, R., Gortler, S., and

McMillan, L. (2000). Image-based visual hulls. In

Proceedings of the 27th annual conference on Com-

puter graphics and interactive techniques, pages 369–

374. ACM Press/Addison-Wesley Publishing Co.

McMillan, L. and Bishop, G. (1995). Plenoptic modeling:

An image-based rendering system. In Proceedings

of the 22nd annual conference on Computer graphics

and interactive techniques, pages 39–46. ACM.

Miller, G., Hilton, A., and Starck, J. (2005). Interac-

tive free-viewpoint video. In Proceedings of the In-

ternational Conference on Visual Media Production

(CVMP 2005), pages 50–59. Citeseer.

Ohta, Y., Kitahara, I., Kameda, Y., Ishikawa, H., and

Koyama, T. (2007). Live 3D Video in Soccer Stadium.

International Journal of Computer Vision, 75(1):173–

187.

Rogmans, S., Dumont, M., Cuypers, T., Lafruit, G., and

Bekaert, P. (2009). Complexity reduction of real-time

depth scanning on graphics hardware. In Proceedings

of the International Conference on Computer Vision

Theory and Applications (VISAPP 2009).

Scharstein, D. and Szeliski, R. (2002). A taxonomy and

evaluation of dense two-frame stereo correspondence

algorithms. International journal of computer vision,

47(1):7–42.

Seitz, S. and Dyer, C. (1999). Photorealistic scene recon-

struction by voxel coloring. Inernational. Journal of

Computer Vision, 35(2):151–173.

Svoboda, T., Martinec, D., and Pajdla, T. (2005). A conve-

nient multicamera self-calibration for virtual environ-

ments. Presence: Teleoperators & Virtual Environ-

ments, 14(4):407–422.

Tuytelaars, T. and Van Gool, L. (2000). Wide baseline

stereo matching based on local, afﬁnely invariant re-

gions. In Proceedings of the British machine vision

conference, volume 2, page 4.

Wang, L., Jin, H., Yang, R., and Gong, M. (2008). Stereo-

scopic inpainting: Joint color and depth completion

from stereo images. In Proceedings of the Interna-

tional Conference on Computer Vision and Pattern

Recognition (CVPR 2008), pages 1–8. IEEE.

Yang, R., Pollefeys, M., Yang, H., and Welch, G. (2004). A

uniﬁed approach to real-time, multi-resolution, multi-

baseline 2d view synthesis and 3d depth estimation

using commodity graphics hardware. International

Journal of Image and Graphics, 4(4):627–651.

Yang, R. and Welch, G. (2002). Fast image segmentation

and smoothing using commodity graphics hardware.

Journal of graphics tools, 7(4):91–100.

Yang, R., Welch, G., and Bishop, G. (2003). Real-time

consensus-based scene reconstruction using commod-

ity graphics hardware. Computer Graphics Forum,

22(2):207–216.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

386
