An Improved Approach for Depth Data based Face Pose Estimation

using Particle Swarm Optimization

Xiaozheng Mou and Han Wang

School of Electrical and Electronic Engineering, Nanyang Technological University, 639798, Singapore, Singapore

Keywords:

Template Matching, Nose Tip Localization, Face Orientation Computation.

Abstract:

This paper presents an improved approach for face pose estimation based on depth data using particle swarm

optimization (PSO). In this approach, the frontal face of the system-user is ﬁrst initialized and its depth image

is taken as a person-speciﬁc template. Each query face of that user is rotated and translated with respect to its

centroid using PSO to match with the template. Since the centroid of each query face always changes with the

face pose changing, a common reference point has to be deﬁned to measure the exact transformation of the

query face. Thus, the nose tips of the optimal transformed face and the query face are localized to recompute

the transformation from the query face to the optimal transformed face that matched with the template. Using

the recomputed rotation and translation information, ﬁnally, the pose of the query face can be approximated

by the relative pose between the query face and the template face. Experiments on public database show that

the accuracy of this new method is more than 99%, which is much higher than the best performance (< 91%)

of existing work.

1 INTRODUCTION

Face pose estimation or head pose estimation is an

important and challenging task for many real life ap-

plications, such as human-computer interfaces (e.g.,

monitoring drivers attention in a car), preprocessing

for face registration and face recognition, and visual

gaze estimation, in which face pose provides an im-

portant supplementary information. Thus, numerous

research (Murphy-Chutorian and Trivedi, 2009) con-

centrated on the issue of face pose estimation have

emerged prominently in the last few years.

Recently, with the development of 3D scanning

technology, like real-time stereo-enhanced structured-

light method (Weise et al., 2007), Microsoft Kinect,

etc, 3D data with high resolution and accuracy can be

obtained conveniently. Since 3D data is much less af-

fected by illumination changing and partial occlusion

of the face (e.g. hair, glasses) than 2D data (RGB

image or intensity image), recent researches for face

pose estimation based on 3D data demonstrated more

accurate and robust results. In general, the methods

for this 3D data based study can be grouped into three

classes: models method, regression method and align-

ment method.

In models method, 3D face model is always con-

structed from the facial features, landmarks, surface,

or point clouds. With the generated model, related

mathematic methods are used to solve the face pose.

For example, (Cai et al., 2010) constructed their 3D

face model using the linear deformable model (Zhang

et al., 2004), and the face pose is obtained by comput-

ing the rotation, translation and deformation param-

eters between the head model and the depth camera

with a regularized maximum likelihood deformable

model ﬁtting algorithm. (Bleiweiss and Werman,

2010) combined the color data with the time-of-ﬂight

depth data to construct a textured mesh model, and

then synthetic image was obtained by projecting the

hypotheses mesh model to 2D image space. The head

pose is ﬁnally derived by minimizing the difference

between the synthetic image and input image. More-

over, A rigid body motion model (Horn and Harris,

1991) is applied in (Kondori et al., 2011) to measure

the face rotation and translation between two consec-

utive depth frames. In (Tu et al., 2011), the pitch and

yaw angles are estimated by ﬁtting a plane to the 3D

points around the detected nose tip, while the roll an-

gle is coarsely computed by ﬁtting an ellipse to the

head boundary points. However, the accuracy of this

method is limited by the robustness of nose tip detec-

tion or nose tip tracking.

The regression method is efﬁcient to solve the

problem of face pose estimation for the reason that

534

Mou X. and Wang H..

An Improved Approach for Depth Data based Face Pose Estimation using Particle Swarm Optimization.

DOI: 10.5220/0004732305340541

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 534-541

ISBN: 978-989-758-004-8

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

features extracted from the depth image are discrimi-

nately enough and robust to illumination and partial

occlusion. For instance, (Tang et al., 2011a; See-

mann et al., 2004) employed neural network (NN) to

train and test their 3D face pose estimators. (Rajwade

and Levine, 2006) utilized support vector regression

(SVR) based on 3D data to estimate facial pose. Fur-

thermore, random regression forests (RRF) is utilized

in (Fanelli et al., 2011a; Fanelli et al., 2011b; Tang

et al., 2011b) to solve depth data based face pose esti-

mation problem. However, a large database has to be

collected for training in the regression method.

In alignment method, the query face image is ﬁrst

aligned with a ﬁxed template face image, and then

the pose of the query face is measured by the orienta-

tion difference between them. Iterative closest point

(ICP) (Besl and McKay, 1992) is a commonly used

approach for 3D point clouds alignment. Numerous

papers (Ghorbelet al., 2010; Mora and Odobez, 2012)

have applied ICP to solve the task of 3D face pose

estimation. Nevertheless, ICP need a good initial-

ization, and it is sensitive to facial expression chang-

ing and oblique face poses. These limitations invoke

other methods to improve the robustness and reduce

the limitations. (Breitenstein et al., 2008) proposed a

real time face pose estimation system based on sin-

gle range images. Nevertheless, several limitations

exist in their work: 1) a huge database with face mod-

els of different reference poses should be prepared;

2) the space of face poses is discretized, which may

reduce the accuracy; 3) the nose detection part is com-

plicate and time consuming. Evolutionary algorithm

(EA) (Back, 1996) for face pose estimation was ﬁrst

published in (Padeleris et al., 2012). In their work,

particle swarm optimization (PSO) is used to regis-

ter the resampled candidate face to the template face.

Furthermore, (Wang and Ying, 2012) employed ge-

netic algorithm (GA) to register two point clouds of

partial faces to recover the whole face, and it showed

better performance on this task than ICP.

Therefore, in the above literatures, either training

is required or the accuracy is limited by large pose

variations. Inspired by the work of (Padeleris et al.,

2012) by Padeleris et al., this paper presents an im-

proved approach for face pose estimation based on

depth data. Unlike (Padeleris et al., 2012), in the pro-

posed algorithm, we get rid of the processes of sur-

face reconstruction and depth image resampling, but

utilize the PSO algorithm on the original depth image

directly for template matching, which results in two

corresponding point clouds between the query face

and the optimal transformed face. Moreover, the nose

tips on the two corresponding point clouds can be lo-

calized precisely by the proposed method. Finally,

with the obtained corresponding points and nose tips

mentioned above, the relative rotation and translation

matrices of the query face to the optimal transformed

face or template face can be derived using the singu-

lar value decomposition (SVD) algorithm. Therefore,

the estimated orientation of the query face can be ob-

tained from the rotation and translation matrices by

assuming the orientation angles of the template face

are all zero degree. The proposed algorithm is ex-

pected to be faster and more accurate than the method

proposed in (Padeleris et al., 2012). An overview of

the proposed framework is shown in Figure 1.

The remainder of the paper is organized as fol-

lows: The proposed approach for face pose estimation

is described in detail in Section 2; Experimental re-

sults are presented in Section 3 to verify the efﬁciency

of the proposed approach; A conclusion is made and

the future work for this study is discussed in Section

2 PROPOSED APPROACH

In this paper, the face pose, P = [ρ η γ x y z]

, is com-

posed by the nose tip location (x,y,z) and face orien-

tation (ρ, η, γ) (pitch, yaw, roll angles). Suppose the

face is already segmented, the organized point cloud

of the face whose pose needs to be estimated is named

as query face denoted by Q ∈ R

m×n×3

. Denote that

M ∈ R

m×n

is the template face depth image (2D map

of z values), and F

∈ R

m×n

is the optimal depth im-

age transformed from Q.

2.1 Template Matching

The ﬁrst goal of the proposed algorithm is to align

the depth image of query face Q to the template face

depth image M and obtain the optimal transformed

depth image F

. To this end, as (Padeleris et al.,

2012), this alignment process can be formulated by

minimizing the Sum of Squared Differences (SSD)

of pairwise pixel differences between the template M

and the face depth image F

∈ R

m×n

, which is trans-

formed from Q by several candidate parameters: scal-

ing scalar c

∈ R

, rotation matrix R

∈ R

3×3

and

translation matrix T

∈ R

3×1

. Hence, this optimiza-

tion problem can be formulated by

arg min

= ξ

−1

∑

i=1

∑

j=1

H(i, j)[M(i, j) − F

(i, j)]

(1)

where ξ =

∑

i=1

∑

j=1

H(i, j) is a normalization factor and

H(i, j) is a point matching indicator:

AnImprovedApproachforDepthDatabasedFacePoseEstimationusingParticleSwarmOptimization

535

Template face

Query face

Face

Alignment

(PSO)

Optimal

transformed

face

Corresponding

points matrix

Nose

Tip

Localization

Nose tip of

transformed

face

Nose tip of

query face

Rotation

Matrix

Computing

(SVD)

Query face

orientation

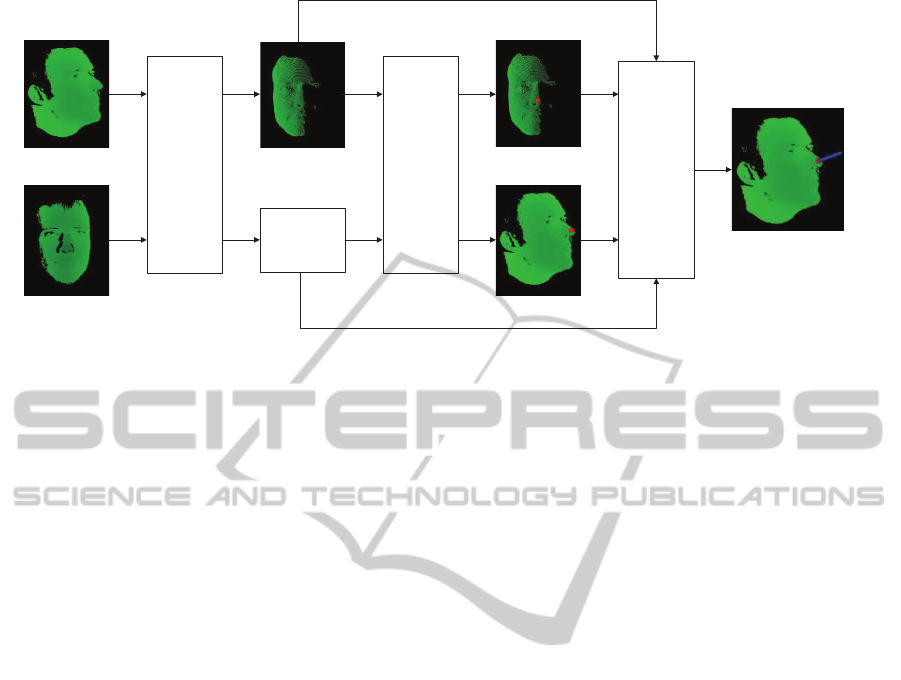

Figure 1: Flowchart of the proposed approach for face pose estimation based on depth data.

H(i, j) =

(

1, if F

(i, j) > 0 and M(i, j) > 0

0, otherwise.

(2)

Denote q

∈ R

3×1

,l = [1,2, ..., mn] as a 3D point

in point cloud Q, and w ∈ R

3×1

is the centroid of Q.

Then, for each point in Q with depth value greater

than 0, the following transformation is conducted:

= c

· (q

− w) + T

, (3)

in which f

∈ R

3×1

is called the corresponding point

of q

The transformed face depth image F

is formed

by projecting each f

to a void m× n 2D matrix. The

pixel value of F

is determined by the depth (z) value

of the point projected upon that pixel location. How-

ever, there is a case that more than one points may be

projected to a same 2D pixel location. In this case, the

pixel value of F

in that location is set by the small-

est depth value of all points projected on it. Mean-

while, the transformed face point cloud F

′

∈ R

m×n×3

corresponding to F

can be obtained with the points

that form F

. Similarly, with the corresponding re-

lationship of f

and q

, the corresponding points ma-

trix Q

′

∈ R

m×n×3

of F

′

can be formed by putting the

corresponding points of F

′

into Q

′

with the same 2D

location.

Similar to (Padeleris et al., 2012), the canonical

PSO is applied to solve the minimization problem

proposed in formula (1). In PSO, each particle is a

candidate solution for the ﬁtness function (1), and the

particle is modelled by a seven dimensional vector

s = [c φ θ ψ d

]

, where c is the scaling fac-

tor; φ,θ,ψ are the rotation Euler angles correspond-

ing to x, y and z axes respectively; d

denotes

the translation along x, y and z axes. Note that the ori-

gin of the coordinate system mentioned above is the

centroid of the query face point cloud.

Assuming the optimal solution of (1) is found us-

ing PSO, the indicator k for all parameters mentioned

above is replaced with o. However, this optimal solu-

tion is not the accurate face pose, because the centroid

of the query face is not the corresponding point of the

centroid of the template face, which results in mean-

ingless rotation Euler angles and translation values for

face pose. Therefore, to compute accurate face pose,

a reference point has to be deﬁned.

2.2 Nose Tip Localization

Finding that nose tip is a good reference point which

is invariant to the changes of face expression and easy

to locate automatically, we measure the query face

orientation around its nose tip (face location). In this

part, a simple hybrid method for nose tip localization

is proposed.

Method 1. Normally, the nose tip of a frontal face

point cloud is the nearest point to the camera. Thus,

one method of localizing the nose tip is to ﬁnd the

point with smallest depth value in the optimal trans-

formed face depth image F

, and then use the opti-

mal transformed face point cloud F

′

to obtain the 3D

nose tip point ∆

in it. Meanwhile, the 3D nose tip

point ∆

in the query face point cloud Q can be ob-

tained by ﬁnding the corresponding points of F

′

its corresponding points matrix Q

′

. However, ﬁnd-

ing only one point with smallest depth value in the

point cloud may produce wrongly located nose tip

caused by noisy points, and it may need a large num-

ber of computing time when the searching space is

the whole face image. To solve the problems men-

tioned above, a constrained nose region is predeﬁned

for nose tip searching. First, the nose of the template

face is detected on its RGB image using object de-

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

536

tection method(e.g. Viola-Jones method); If the RGB

image is not available (suppose the depth image or

3D point cloud of the template face is already seg-

mented), the nose region can be roughly deﬁned by

computing the center of the point cloud, which means

the 2D location of the point cloud center is the same

with the center of the nose region. After deﬁning the

nose tip searching region on the template face, this re-

gion is ﬁxed and applied to all the transformed frontal

faces, since the relative 2D locations of the template

image and the optimal transformed image are iden-

tical. Rather than only selecting only one point in

the predeﬁned searching region, N

points in F

′

with

smallest depth values are selected and taken the aver-

age of these 3D points, which results in the nose tip

∆

of the optimal transformedface. Accordingly,with

′

, the nose tip ∆

of the query face can be derived

by computing the average of the corresponding points

of the selected N

nose

points in F

′

. The procedure of

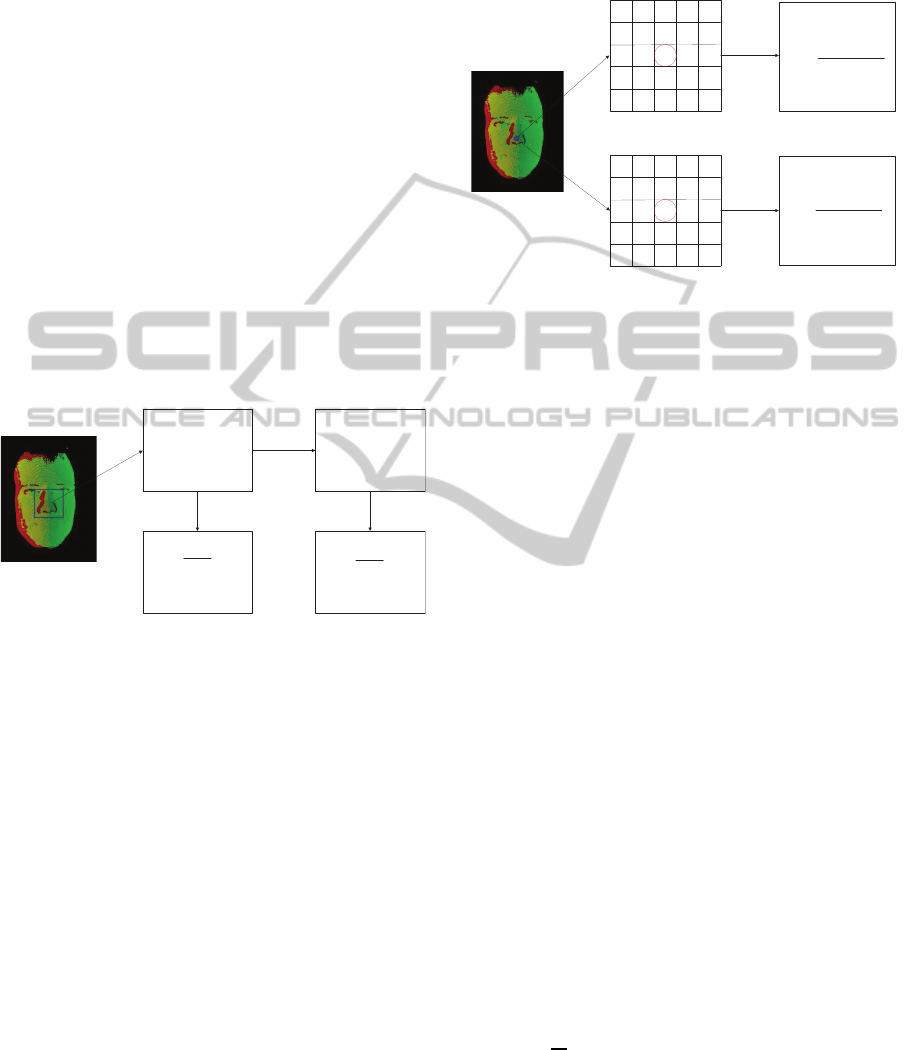

Method 1 is depicted in Figure 2.

},...,,{

fff

Points with smallest

depth value found

from the nose region

of the optimal

transformed face

Nose tip of the optimal

transformed face

Nose tip of the query

face

}

,...,,

{

Points with smallest

depth value in the

query face

Corresponding

points matrix

Figure 2: Method 1 for nose tip localization. In the left im-

age, Green: template face; Red: optimal transformed face;

Yellow: matching points between the template face and the

optimal transformed face.

Method 2. Another method for nose tip localization

is similar to Method 1, but more time saving and more

insensitive to noise. In this method, the nose tip of the

template face is localized using the same means of

Method 1. However, instead of searching points with

smallest depth value in the predeﬁned nose region, the

2D location of the nose tip on the template face im-

age is considered as the 2D location of the nose tip

on the optimal transformed face image. In this way,

the nose tips of the transformed face and the query

face are localized by averaging the N

× N

neigh-

borhood 3D points of the pre-computed 2D nose tip

location in F

′

and Q

′

respectively. Nevertheless, for

some large rotation angles, the N

× N

neighbor-

hood 3D points may contain no information, and this

method will not detect any nose tip in such case. Fig-

ure 3 illustrates this method. Note that in Figure 3,

i, j

= 1, if the depth value of f

i, j

is greater than 0;

Otherwise, h

i, j

= 0. h

′

i, j

= 1, if the depth value of

i, j

is greater than 0; Otherwise, h

′

i, j

= 0. This means

the neighborhoodpoints to be averaged in this method

should have depth values greater than zero.

Neighborhood 3D points in

the optimal transformed

face

Neighborhood 3D points in

the corresponding points

matrix

å å

= =

2 2

1 1

m m

ijij

åå

= =

2 2

1 1

m m

ijij

Nose tip of the optimal

transformed face

Nose tip of the query face

Figure 3: Method 2 for nose tip localization. In the left im-

age, Green: template face; Red: optimal transformed face;

Yellow: matching points between the template face and the

optimal transformed face.

Method 3. In our work, to combine the advantages

of the above two methods for nose tip localization,

we propose to apply Method 2 ﬁrst, and if no nose

tip was detected, Method 1 is used to detect the nose

tip. In this hybrid method, both the nose tip and nose

region of the template face need to be found and re-

tained before estimating the pose of the query face,

while this process is fully automatic and fast. Since

the case of very large face rotation is rare, the hybrid

method not only reduces the computation complex-

ity (avoiding the point searching procedure for most

cases), but also improves the robustness of nose tip

localization (reducing the inﬂuence of noise).

Thus, with F

′

and Q

′

, the nose tip ∆

∈ R

3×1

of the optimal transformed face F

′

and the nose tip

∆

∈ R

3×1

of the query face Q can be localized re-

spectively.

2.3 Face Orientation Computation

At last, the orientation of the query face can be de-

rived by ﬁnding the rotation and translation relation-

ship with respect to the face location (nose tip) be-

tween F

′

and Q

′

, which is formulated by the follow-

ing least square problem.

argmin

R,T

∑

i=1

k( f

′

− ∆

) − [R(q

′

− ∆

) + T]k

, (4)

where f

′

∈ R

3×1

and q

′

∈ R

3×1

are corresponding

points in F

′

and Q

′

respectively; N is the number of

points with depth value greater than zero.

AnImprovedApproachforDepthDatabasedFacePoseEstimationusingParticleSwarmOptimization

537

The minimization problem in (4) can be easily

solved using SVD. Note that R and T obtained in

(4) represent the rotation and translation from the

query face Q to the optimal transformed face F

′

. Be-

cause the optimal transformed face has been already

aligned with the template face based on depth data

(z value) using PSO, it can be approximated that R

and T are also the motion parameters from the query

face to the template face. Assume that the reference

rotation matrix R

and translation vector T

of the

initialized template face are R

= I

3×3

(3 × 3 iden-

tity matrix) and T

= [0 0 0]

, respectively. There-

fore, take the forward direction vector of the template

face as

∈ R

3×1

, then the forward direction vector

∈ R

3×1

of the query face can be obtained by taking

the inverse translation and rotation. That is

= R

(

− T). (5)

In the end, the desired pitch and yaw angles of the

query face Q can be easily derived by the obtained

direction vector

. Similarly, the roll angle can also

be derived with the same method by deﬁning a ver-

tical direction vector that is perpendicular to

. In

other words, if the forward direction vector parallels

to z axis, the vertical direction vector to compute roll

angle should parallel to y axis.

3 EXPERIMENTS

In order to assess the efﬁciency of the proposed al-

gorithm for face pose estimation based on 3D data,

the ETH Face Pose Range Image Data Set (Breit-

enstein et al., 2008) is used. In this database, more

than 10,000 range images (i.e. images with per-pixel

depth, also known as depth images) of 20 persons (3

female, 6 persons of them recorded twice for the sit-

uations with and without glasses) are included. The

range images were captured at 28 fps with a scan-

ner using the real-time stereo-enhanced structured-

light method (Weise et al., 2007) when each people

ﬁrst looked straight into the camera, and then freely

turned her head. Each range image has a resolution

of 640 × 480 pixels, and a face typically consists of

about 150 × 200 depth values. The face pose range

covers about ±90

◦

for yaw rotation and ±45

◦

for

pitch rotation. Nose position and face direction (vec-

tor through nose) in a left-handed coordinate system

of each range image were provided as ground truth.

All the experiments in this section are performed on a

PC equipped with i5 3.10GHz CPU.

Throughout our experiments, the size of each face

range image is set to 200× 260 pixels. In the part of

face alignment using PSO, the following parameters

are predeﬁned: Since the ﬁrst range image in each

sequence was taken when the person looked straight

into the camera, we take this image as the person-

speciﬁc initialization, where the person-speciﬁc tem-

plate face depth image with assumed face direction

~n = [0,0, −1] is obtained. The number of particles

is set to S = 25, and the maximum running genera-

tions are tested by G = 10, 20, 30, 40 separately. For

simpliﬁcation, the scaling factor c in the ﬁrst dimen-

sion of each particle is taken as c = 1, because there

is little scaling variation in the sequence of each per-

son, who was asked to just rotate her head but not to

move forward or back when recording the database.

In addition, the rotation angles and translation dis-

tance dimensions of each particle are initialized at

the uniform distribution of the center of the search-

ing space, while their velocities are set to zeros. Be-

cause each sequence in the database is continuous, i.e.

the poses of every two consecutive images have rela-

tive small difference, the optimal solution of the pre-

vious image is taken as the searching center of cur-

rent image, and the searching space around the center

is deﬁned as ±20

◦

for each rotation angle dimension

(φ,θ,ψ) and ±20mm for each translation dimension

). This searching space constriction method

both accelerate the searching speed for optimal solu-

tion and improve the face alignment accuracy. Fur-

thermore, in the particle velocity update equation, we

take the same parameters setting and constraints as

(Padeleris et al., 2012). Moreover, the predeﬁned

threshold τ for the ﬁtness result of the ﬁtness function

(1) is τ = 0.1. Finally, a matching ratio threshold

α =

∑

i=1

∑

j=1

H(i, j)

No. of nonzero pixels in template M

, (6)

with H(i, j) deﬁned in (1) between the candidate

transformed depth image and the template depth im-

age is deﬁned to exclude the bad solutions that give

small ﬁtness value but wrongly aligned face (e.g.

oblique poses or severe occlusions). If α < ξ, ξ is

a threshold, the candidate solution is accepted; Oth-

erwise, it is rejected. In our experiments, we use

ξ = 0.1.

For the part of nose tip localization, the number

of nearest points that are selected to compute the nose

tip location is taken as N

= 5 in Method 1; 5 × 5

neighborhood of the 2D location of the template face

is used in Method 2 (i.e. N

= 5).

Although the computing speed can be improved

by using a subset pairs of corresponding points with

SVD to compute the face orientation, this improve-

ment is insigniﬁcant compared to the large number of

computing in the process of face alignment. There-

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

538

fore, to ensure the robustness and high accuracy dur-

ing computing the face orientation, we use all pairs of

corresponding points for SVD.

We consider the ground truth of nose position of

the database as the ground truth of nose tip location in

our experiments, and since the rendered ground truth

of face direction only encodes the yaw and pitch rota-

tions while does not contain roll rotations, we convert

the face direction of ground truth and the output face

direction vector to their corresponding yaw and pitch

angles respectively before the estimated yaw error and

pitch error are computed. As (Padeleris et al., 2012)

and (Fanelli et al., 2011a), we also take a frame as

a successfully estimated frame if the L2 norm of its

nose tip location error and face orientation error are

less than their corresponding predeﬁned thresholds.

Table 1 shows the mean errors of estimated face

pose from the whole data set with different num-

ber of maximum generations in face alignment. It

can be seen that the face pose estimation error de-

creases with the number of generations increasing,

which means PSO convergentbetter with more gener-

ations. In addition, Figure 4 and Figure 5 compare the

face pose estimation accuracy under different num-

ber of generations in PSO. One can observe that the

face alignment cannot achieve optimal solution with

small number of generations, like 10 generations, and

the performances with 20, 30, and 40 generations

are very similar, therefore, it can be concluded that

we can achieve considerable with 20 generations in

PSO. Though PSO with 40 generations gives slightly

smaller pose error, using 20 generations will save al-

most half of the processing time for one frame in real

time application.

Table 1: Face pose estimation error comparison with differ-

ent number of generations in PSO. Mean error and standard

deviation of nose tip location and face orientation (yaw and

pitch) are shown.

Itr(#) Nose(mm) Yaw(

◦

) Pitch(

◦

)

10 5.16± 11.69 2.19± 4.89 1.20± 2.32

20 3.51± 3.83 1.33± 2.12 0.67 ± 0.88

30 3.32± 3.83 1.16± 1.83 0.56 ± 0.76

40 3.26± 3.29 1.12± 2.03 0.53 ± 1.17

The performance of the proposed algorithm is

compared with other related work on the same

database in Table 2. It can be seen that the proposed

approach performs much better in both pose estima-

tion error (the ﬁrst three columns) and estimation ac-

curacy (the last column) within 10

◦

face orientation

error than the latest work. Note that the errors re-

ported in (Breitenstein et al., 2008) are computed with

a threshold for a true positive rate of 80% and false

positive rate of 3% (i.e. a high conﬁdence for nose

10 12 14 16 18 20 22 24 26 28 30

96.5

97.5

98.5

99.5

100

Nose error threshold (mm)

Accuracy (%)

10 generations

20 generations

30 generations

40 generations

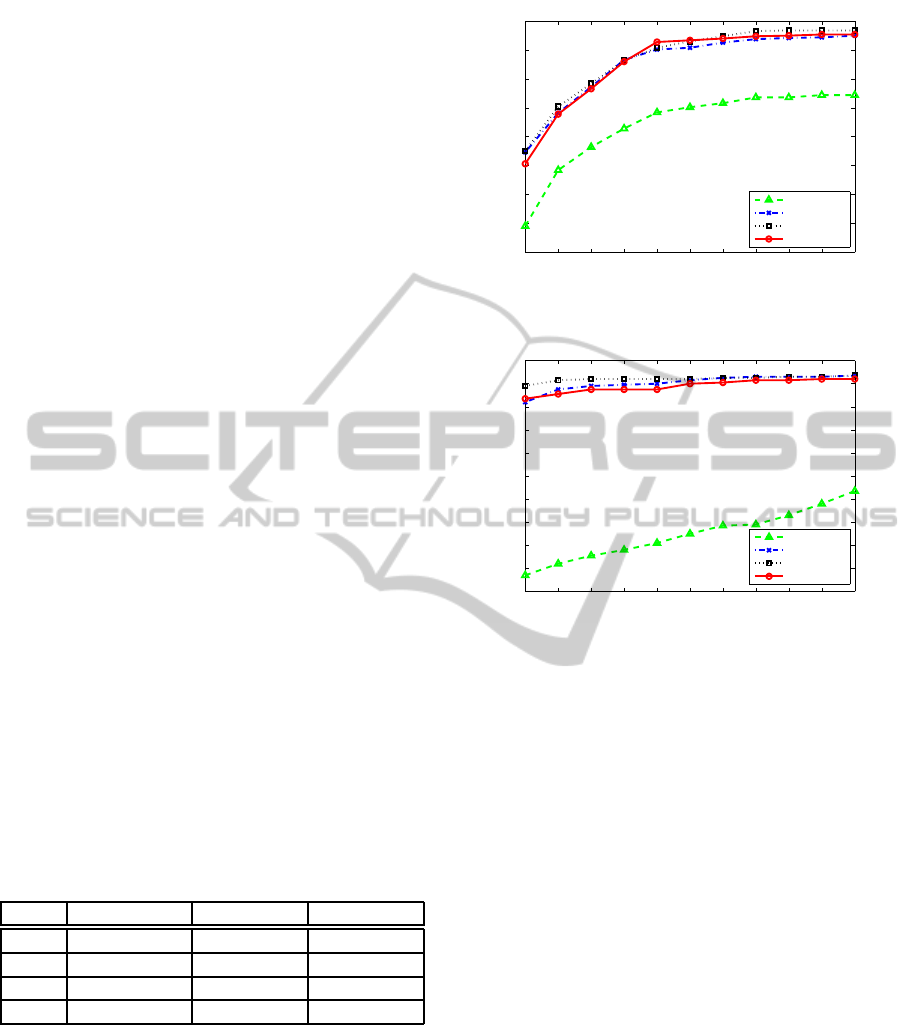

Figure 4: Accuracy of nose tip localization with different

number of generations in PSO.

10 12 14 16 18 20 22 24 26 28 30

98.2

98.4

98.6

98.8

99.2

99.4

99.6

99.8

100

Angle error threshold (degrees)

Accuracy (%)

10 generations

20 generations

30 generations

40 generations

Figure 5: Accuracy of face orientation computation with

different number of generations in PSO.

identiﬁcation). In the system of (Fanelli et al., 2011a),

6.5% of the range images in ETH database were dis-

carded before computing the errors, because these im-

ages failed to be estimated. In a word, more or less

images were omitted when calculating the pose errors

in the two literatures mentioned above. However, the

pose estimation error in our work is calculated from

all frames in the whole database except for the ﬁrst

frame in each sequence, which is taken as the tem-

plate. Therefore, one can conclude that the proposed

approach can handle more difﬁcult situations and es-

timate face pose more accurately than the compared

work in Table 2.

Furthermore, as shown in Table 3, the proposed

approach renders higher face pose estimation accu-

racy than (Breitenstein et al., 2008) and (Fanelli et al.,

2011a) within angle error thresholds of 10

◦

, 15

◦

, and

◦

. The accuracy of the proposed approach within

the most conservative threshold 10

◦

is even higher

than that of the other two within the less conservative

threshold 20

◦

Finally, some correctly estimated face depth im-

ages by the proposed approach from the ETH Face

Pose Range Image Data Set (Breitenstein et al., 2008)

were sampled to further prove its efﬁciency. As

AnImprovedApproachforDepthDatabasedFacePoseEstimationusingParticleSwarmOptimization

539

Table 2: Face pose estimation comparison using the ETH Face Pose Range Image Data Set (Breitenstein et al., 2008). The

ﬁrst three columns show mean error and standard deviation for nose tip localization and face orientation estimation (Yaw,

Pitch). The last column shows the percentage of successfully estimated frames for the predeﬁned angle error threshold of 10

◦

Nose error (mm) Yaw error (

◦

) Pitch error (

◦

) Accuracy (%)

(Breitenstein et al., 2008) 9.00± 14.00 6.10± 10.30 4.20± 3.90 80.8

(Fanelli et al., 2011a) 13.40± 21.10 5.70± 15.20 5.10± 4.90 90.4

(Padeleris et al., 2012) 7.05± 6.46 1.62± 1.59 2.05± 1.87 90.1

Proposed Approach 3.26± 3.29 1.12± 2.03 0.53± 1.17 99.7

Table 3: Face pose estimation accuracy comparison with different angle error thresholds.

◦

accuracy (%) 15

◦

accuracy (%) 20

◦

accuracy (%)

(Breitenstein et al., 2008) 80.8 97.8 98.4

(Fanelli et al., 2011a) 90.4 95.4 95.9

Proposed Approach 99.7 99.7 99.8

(a) (b) (c)

(d) (e) (f)

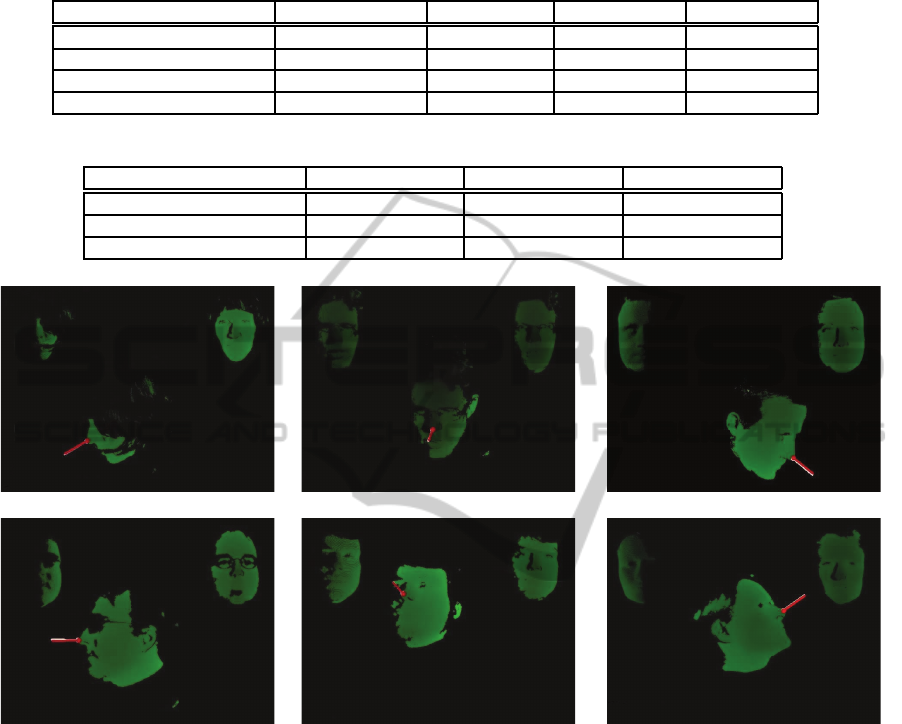

Figure 6: Some face pose estimation results from the ETH Face Pose Range Image Data Set (Breitenstein et al., 2008) with the

proposed approach. In each image (a)-(f): The person-speciﬁc template face is shown in top right; The optimal transformed

face is shown in top left; Dot represents nose tip location; Face direction is illustrated by a straight line originated from nose

tip and paralleled to face direction vector. (Red: estimated pose; White: ground truth).

shown in Figure 6, one can see that the proposed al-

gorithm can give high pose estimation accuracy for

the situations of both large pose variation and partial

occlusion (e.g. long hairs (a) and wearing glasses (b),

(d)).

4 CONCLUSIONS

In conclusion, an improved algorithm for face pose

estimation based on 3D data have been presented in

detail in this paper. The contributions of this work in-

clude: 1) The proposed approach, which has no need

of surface reconstruction and depth image resam-

pling, improves the accuracy and computing speed

for 3D face pose estimation. Comparing to the lat-

est work of others, the proposed approach demon-

strates the best performance in the public database;

2) A new hybrid method for nose tip localization has

been proposed, and its efﬁciency and reliability have

been proved by experimental results.

To further improve the proposed approach, in the

future work, a genetic face model will be built to get

rid of the initialization part and GPU programming

will be studied to implement the proposed approach

in real time.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

540

REFERENCES

Back, T. (1996). Evolutionary algorithms in theory and

practice: evolution strategies, evolutionary program-

ming, genetic algorithms. Oxford University Press,

USA.

Besl, P. and McKay, N. (1992). A method for registration

of 3d shapes. IEEE Transactions on pattern analysis

and machine intelligence, 14(2):239–256.

Bleiweiss, A. and Werman, M. (2010). Robust head pose

estimation by fusing time-of-ﬂight depth and color. In

Proceedings of IEEE International Workshop on Mul-

timedia Signal Processing, pages 116–121.

Breitenstein, M., Kuettel, D., Weise, T., Gool, L. V., and

Pﬁster, H. (2008). Real-time face pose estimation

from single range images. In Proceedings of IEEE

Conference on Computer Vision and Pattern Recogni-

tion, pages 1–8.

Cai, Q., Gallup, D., Zhang, C., and Zhang, Z. (2010). 3d de-

formable face tracking with a commodity depth cam-

era. In Proceedings of European Conference on Com-

puter Vision, pages 229–242.

Fanelli, G., Gall, J., and Gool, L. V. (2011a). Real time head

pose estimation with random regression forests. In

Proceedings of IEEE Conference on Computer Vision

and Pattern Recognition, pages 617–624.

Fanelli, G., Weise, T., Gall, J., and Gool, L. V. (2011b).

Real time head pose estimation from consumer depth

cameras. Pattern Recognition, pages 101–110.

Ghorbel, M. B., Baklouti, M., and Couvet, S. (2010). 3d

head pose estimation and tracking using particle ﬁl-

tering and icp algorithm. Articulated Motion and De-

formable Objects, pages 224–237.

Horn, B. and Harris, J. (1991). Rigid body motion from

range image sequences. CVGIP: Image Understand-

ing, 53(1):1–13.

Kondori, F., Youseﬁ, S., Li, H., and Sonning, S. (2011). 3d

head pose estimation using the kinect. In Proceedings

of International Conference on Wireless Communica-

tions and Signal Processing, pages 1–4.

Mora, K. F. and Odobez, J. (2012). Gaze estimation from

multimodal kinect data. In Proceedings of IEEE Com-

puter Society Conference on Computer Vision and

Pattern Recognition Workshops, pages 25–30.

Murphy-Chutorian, E. and Trivedi, M. (2009). Head pose

estimation in computer vision: A survey. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

31(4):607–626.

Padeleris, P., Zabulis, X., and Argyros, A. (2012). Head

pose estimation on depth data based on particle swarm

optimization. In Proceedings of IEEE Computer So-

ciety Conference on Computer Vision and Pattern

Recognition Workshops, pages 42–49.

Rajwade, A. and Levine, M. (2006). Facial pose from 3d

data. Image and Vision Computing, 24(8):849–856.

Seemann, E., Nickel, K., and Stiefelhagen, R. (2004). Head

pose estimation using stereo vision for human-robot

interaction. In Proceedings of IEEE International

Conference on Automatic Face and Gesture Recogni-

tion, pages 626–631.

Tang, Y., Sun, Z., and Tan, T. (2011a). Face pose estima-

tion based on integral slice features of single depth im-

ages. In Proceedings of Asian Conference on Pattern

Recognition, pages 530–534.

Tang, Y., Sun, Z., and Tan, T. (2011b). Real-time head pose

estimation using random regression forests. Biometric

Recognition, pages 66–73.

Tu, Y., Zeng, C., Yeh, C., Huang, S., Cheng, T., and Ouhy-

oung, M. (2011). Real-time head pose estimation us-

ing depth map for avatar control. In Proceedings of

IPPR Conference on Computer Vision, Graphics, and

Image Processing.

Wang, H. and Ying, Y. (2012). A novel torchlight data as-

sociation strategy for surface registration. In Proceed-

ings of IEEE/RSJ International Conference on Intelli-

gent Robots and Systems, pages 1708–1713.

Weise, T., Leibe, B., and Gool, L. V. (2007). Fast 3d scan-

ning with automatic motion compensation. In Pro-

ceedings of IEEE Conference on Computer Vision and

Pattern Recognition, pages 1–8.

Zhang, Z., Liu, Z., Adler, D., Cohen, M., Hanson, E., and

Shan, Y. (2004). Robust and rapid generation of ani-

mated faces from video images: A model-based mod-

eling approach. International Journal of Computer

Vision, 58(2):93–119.

AnImprovedApproachforDepthDatabasedFacePoseEstimationusingParticleSwarmOptimization

541
