Velum Movement Detection based on Surface Electromyography

for Speech Interface

João Freitas

1,2

, António Teixeira

, Samuel Silva

, Catarina Oliveira

and Miguel Sales Dias

1,4

Microsoft Language Development Center, Lisbon, Portugal

Dep. Electronics Telecommunications & Informatics/IEETA, University of Aveiro, Aveiro, Portugal

Health School/IEETA, University of Aveiro, Aveiro, Portugal

ISCTE-University Institute of Lisbon, Lisbon, Portugal

Keywords: Nasal Vowels Detection, Surface Electromyography, Silent Speech Interfaces.

Abstract: Conventional speech communication systems do not perform well in the absence of an intelligible acoustic

signal. Silent Speech Interfaces enable speech communication to take place with speech-handicapped users

and in noisy environments. However, since no acoustic signal is available, information on nasality may be

absent, which is an important and relevant characteristic of several languages, particularly European

Portuguese. In this paper we propose a non-invasive method – surface Electromyography (EMG) electrodes

- positioned in the face and neck regions to explore the existence of useful information about the velum

movement. The applied procedure takes advantage of Real-Time Magnetic Resonance Imaging (RT-MRI)

data, collected from the same speakers, to interpret and validate EMG data. By ensuring compatible

scenario conditions and proper alignment between the EMG and RT-MRI data, we are able to estimate

when the velum moves and the probable type of movement under a nasality occurrence. Overall results of

this experiment revealed interesting and distinct characteristics in the EMG signal when a nasal vowel is

uttered and that it is possible to detect velum movement, particularly by sensors positioned below the ear

between the mastoid process and the mandible in the upper neck region.

1 INTRODUCTION

Conventional speech interfaces solely rely on the

acoustic signal. Hence, this type of interface

becomes inappropriate when used in the presence of

environmental noise, such as in office settings, or

when used in situations where privacy or

confidentiality is required. For the same reason,

speech-impaired persons such as those who were

subjected to a laryngectomy are unable to use this

type of interface. Also, robust speech recognition

and improved user experience, with this type of

interfaces, remains a challenge (Huang et al., 2001)

and an attractive research topic (Flynn and Jones,

2008; Stark and Paliwal, 2011; Yang et al., 2012). A

Silent Speech Interface (SSI) can be viewed as an

alternative or complementary solution since it allows

for communication to occur in the absence of an

acoustic signal and, although they are still in an

early stage of development, latest results have

shown that this type of interface can be used to

tackle these issues. An overview about SSIs can be

found in Denby et al. (2009).

Surface Electromyography (EMG) is one of the

approaches reported in literature that is suitable for

implementing an SSI, having achieved promising

results (Schultz and Wand, 2010; Jorgensen et al.,

2003). A known challenge in SSIs, including those

based on surface EMG, is the detection of the

nasality phenomena in speech production being

unclear if information on nasality is present (Denby

et al., 2009).. Nasality is an important characteristic

of several languages, such as European Portuguese

(EP) (Teixeira, 2000), which is the selected language

for the experiments here reported. Additionally, no

SSI exists for Portuguese and as previously

discussed in Freitas et al. (2012), nasality can cause

severe accuracy degradation for this language. Given

the particular relevance of nasality for EP, we have

conducted an experiment that aims at expanding the

current state-of-the-art in this area, determining the

possibility of detecting nasality in EMG-based

speech interfaces, consequently improving this type

of interaction system. The main idea behind this

Freitas J., Teixeira A., Silva S., Oliveira C. and Dias M..

Velum Movement Detection based on Surface Electromyography for Speech Interface.

DOI: 10.5220/0004741100130020

In Proceedings of the International Conference on Bio-inspired Systems and Signal Processing (BIOSIGNALS-2014), pages 13-20

ISBN: 978-989-758-011-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

experiment consists in crossing two types of data

containing information about the velum movement:

(1) images collected using Real Time Magnetic

Resonance Imaging (RT-MRI) and (2) the

myoelectric signal collected using Surface EMG. By

combining these two sources, ensuring compatible

scenario conditions and proper time alignment, we

are able to accurately estimate the time when the

velum moves, under a nasality phenomenon, and

establish the differences between nasal and oral

vowels using surface EMG.

2 BACKGROUND

The production of a nasal vowel involves air flow

through the oral and nasal cavities. This air passage

for the nasal cavity is essentially controlled by the

velum that, when lowered, allows for the

velopharyngeal port to be open, enabling resonance

in the nasal cavity and the sound to be perceived

nasal. The production of oral sounds occurs when

the velum is raised and the access to the nasal cavity

is closed (Teixeira, 2000). The process of moving

the velum involves several muscles (Seikel et al.,

2010; Hardcastle, 1976; Fritzell, 1969). The muscles

responsible for elevating the velum are: the Levator

veli palatini, Musculus uvulae (Kuehn et al., 1988),

Superior pharyngeal constrictor, and the Tensor veli

palatine. Along with gravity, relaxation of the

above-mentioned muscles, the Palatoglossus and the

Palatopharyngeous are responsible for the lowering

of the velum.

2.1 Nasality in European Portuguese

Nasality is present in a vast number of languages

around the world, nonetheless, only 20% have nasal

vowels (Rossato et al., 2006). In EP there are five

nasal vowels ([ĩ], [ẽ], [ɐ

], [õ], and [ũ]); three nasal

consonants ([m], [n], and [ɲ]); and several nasal

diphthongs [wɐ

] (e.g. quando), [wẽ] (e.g. aguentar),

[jɐ

] (e.g. fiando), [wĩ] (e.g. ruim) and triphthongs

[wɐ

w] (e.g. enxaguam). Nasal vowels in EP diverge

from other languages with such type of vowels, such

as French, in its wider variation in the initial

segment and stronger nasality at the end (Trigo,

1993; Lacerda and Head, 1966). Doubts still remain

regarding tongue positions and other articulators

during nasals production in EP, namely, nasal

vowels (Teixeira et al., 2003). Differences at the

pharyngeal cavity level and velum port opening

quotient were also detected by Martins et al. (2008)

when comparing EP and French nasal vowels

articulation. In EP, nasality can distinguish

consonants (e.g. the bilabial stop consonant [p]

becomes [m]), creating minimal pairs such as

[katu]/[matu] and vowels, in minimal pairs such as

[titu]/[tĩtu].

3 RELATED WORK

In previous studies, the application of EMG to

measure the level of activity of the muscles involved

in the velum movement has been performed by

means of intramuscular electrodes (Fritzell, 1969;

Bell-Berti, 1976) and surface electrodes positioned

directly on the oral surface of the soft palate

(Lubker, 1968; Kuehn et al., 1982). Our work differs

from the cited papers, in the way that none of them

uses surface electrodes placed in the face and neck

regions, a significantly less invasive approach and

quite more realistic and representative of the SSIs

case scenarios. Also, although intramuscular

electrodes may offer more reliable myoelectric

signals, they also require considerable medical

skills. For both reasons, intramuscular electrodes

were not considered for this study.

No literature exists in terms of detecting the

muscles involved in the velopharyngeal function

with surface EMG electrodes placed on the face and

neck regions. However, previous studies in the

lumbar spine region have shown that if proper

electrode positioning is considered a representation

of deeper muscles can be acquired (McGill et al.,

1996) thus raising a question that is currently

unanswered: is surface EMG able to detect activity

of the muscles related to nasal port opening/closing

and consequently detect the nasality phenomena?

Another related question that can be raised is how

we can show, with some confidence, that the signal

we are seeing is in fact the myoelectric signal

generated by the velum movement and not spurious

movements caused by neighboring muscles

unrelated to the velopharyngeal function.

3.1 EMG-based Speech Interfaces

Our method relies on Surface EMG sensors to detect

nasality. This technique has also been applied to

audible speech and silent speech recognition (e.g.

Schultz and Wand (2010)). Relevant results in this

area were first reported in 2001 by Chan et al.

(2001) where surface EMG sensors were used to

recognize ten English digits, achieving accuracy

rates as high as 93%. In 2003, Jorgensen et al.

(2003) achieved an average accuracy rate of 92% for

BIOSIGNALS2014-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

a vocabulary with six distinct English words, using a

single pair of electrodes for non-audible speech. In

2007, Jou et al. (2007) reported an average accuracy

of 70.1% for a 101-word vocabulary in a speaker

dependent scenario. In 2010, Schultz and Wand

(2010) reported similar average accuracies using

phonetic feature bundling for modelling

coarticulation on the same vocabulary and an

accuracy of 90% for the best-recognized speaker.

Latest research in this area has been focused on the

differences between audible and silent speech and

how to decrease the impact of different speaking

modes (Wand and Schultz, 2011a); the importance

of acoustic feedback (Herff et al., 2011); EMG-

based phone classification (Wand and Schultz,

2011b); session-independent training methods

(Wand and Schultz, 2011c); adapting to new

languages (Freitas et al., 2012); and EMG recording

systems based on multi-channel electrode arrays

(Wand et al., 2013).

Our technique can, in theory, be used as a

complement to a surface EMG-based speech

interface by adding a new sensor, or be combined

with other silent speech recognition techniques such

as Ultrasonic Doppler Sensing (Freitas et al. 2012b),

Video (Galatas et al., 2012), etc. by using a

multimodal approach.

4 METHODOLOGY

To determine the possibility of detecting nasality

using surface EMG we need to know when the

velum is moving, avoiding signals from other

muscles, artifacts and noise, to be misinterpreted as

signal coming from the target muscles. To overcome

this problem we take advantage of a previous data

collection based on RT-MRI (Teixeira et al., 2012),

which provides an excellent method to interpret

EMG data and estimate when the velum is moving.

Recent advances in MRI technology allow real-time

visualization of the vocal tract with an acceptable

spatial and temporal resolution. This sensing

technology enables us to have access to real time

images with relevant articulatory information for our

study, including velum raising and lowering. In

order to make the correlation between the two

signals, audio recordings were performed in both

data collections by the same speakers. Notice that

EMG and RT-MRI data cannot be collected

together, so the best option is to collect the same

corpus for the same set of speakers, at different

times, reading the same prompts in EMG and RT-

MRI.

4.1 Corpora

The two corpora collected (RT-MRI and EMG)

share a subset of the same prompts. This set of

prompts is composed by several non-sense words

that contain five EP nasal vowels ([ɐ

, ẽ, ĩ, õ, ũ])

isolated and in word-initial, word-internal and word-

final context (e.g. ampa [ɐ

pɐ], pampa [pɐ

pɐ], pam

[pɐ

]). The nasal vowels were flanked by the bilabial

stop or the labiodental fricative. For comparison

purposes the set of prompts also includes isolated

oral vowels and in context. In the EMG data

collection a total of 90 utterances per speaker were

recorded. A detailed description of the RT-MRI

corpus can be found in Teixeira et al. (2012).

The three speakers participating in this study

were all female native speakers of EP, with the

following ages: 22, 22 and 33 years. No history of

hearing or speech disorders is known for all of them.

One of the speakers is a professor in the area of

Phonetics and the remaining speakers are students in

the area of Speech Therapy.

4.2 RT-MRI Data

The RT-MRI data collection was previously

conducted at IBILI/Coimbra for nasal production

studies. Images were acquired in the midsagittal and

coronal oblique (encompassing the oral and nasal

cavities) planes of the vocal tract at a frame rate of

14 frames/second. For additional information

concerning the image acquisition protocol the reader

is forwarded to Silva et al. (2012). The audio was

recorded simultaneously with the real-time images,

inside the scanner, at a sampling rate of 16000Hz,

using a fiber optic microphone. For synchronization

purposes a TTL pulse was generated from the RT-

MRI scanner (Teixeira et al., 2012). Currently, the

RT-MRI corpus contains only three speakers due to

costs per recording session and availability of the

technology involved.

4.2.1 Extraction of Information on Nasal

Port from RT MRI Data

For the mid-sagittal RT-MRI sequences of the vocal

tract, since the main interest was to interpret velum

position/movement from the sagittal RT-MRI

sequences, instead of measuring distances, we opted

for a method based on the area variation between the

velum and pharynx, closely related to velum

position. These images allowed deriving a signal

over time that describes the velum movement

(shown in

Figure 1 and depicted as dashed line in

VelumMovementDetectionbasedonSurfaceElectromyographyforSpeechInterface

Figure 3). As can be observed, minima correspond

to a closed velopharingeal port (oral sound) and

maxima to an open port (nasal sound). Additional

details concerning the segmentation of the oblique

real-time images for velum movement extraction can

be found in Silva et al. (2012) and resulted in similar

variation curves.

Figure 1: Mid-sagittal RT-MRI images of the vocal tract

for several velum positions, over time, showing evolution

from a raised velum, to a lowered velum and back to

initial conditions. The presented curve, used for analysis,

was derived from the images.

4.3 Surface EMG Data Collection

For this data collection the same speakers from the

RT-MRI recordings were used. The recordings took

place in a single session, meaning that the sensors

were never removed during the recordings for each

speaker. Before placing the sensors, the sensor

location was previously cleaned with alcohol. While

uttering the prompts no other movement, besides the

one associated with speech production, was made,

including any kind of neck movement. The

recordings took place in an isolated quiet room. An

assistant was responsible for pushing the record

button and also stopping the recording in order to

avoid unwanted muscle activity. The prompts were

presented to the speaker in a random order and were

selected based on the already existent RT-MRI

corpus (Teixeira et al., 2012). In this data collection

two signals were acquired: myoelectric and audio.

For synchronization purposes, after starting the

recording, a marker was generated in both signals.

The used acquisition system from Plux (2013)

consisted of 5 pairs of EMG surface electrodes

connected to a device that communicates with a

computer via Bluetooth. These electrodes measure

the myoelectric activity using bipolar and monopolar

surface electrode configuration, thus the result will

be the amplified difference between the pair of

electrodes, using a reference electrode located in a

place with low or negligible muscle activity. In the

monopolar configuration, instead of placing the

electrode pair along the muscle fiber, only one of the

electrodes is placed on the articulatory muscles

while the other electrode is used as a reference. The

sensors were attached to the skin using single-use

2.5cm diameter clear plastic self-adhesive surfaces

and considering an approximate 2cm spacing

between the electrodes center. One of the difficulties

found while preparing this study was that no specific

background literature in speech science exists

towards best surface EMG sensor position in order

to detect the muscles referred in section 2. Hence,

based on anatomy and physiology literature (e.g.

Hardcastle (1976)) and preliminary trials we

determined a set of positions that cover, as much as

possible, the probable best positions for detecting

the targeted muscles. As depicted on Figure 2, the 5

sensor pairs were positioned in a way that covers the

upper neck area, the area above the mandibular

notch and the area below the ear between the

mastoid process and the mandible. The reference

electrodes were placed in the mastoid portion of the

temporal bone and in the cervical vertebrae. Even

though the goal is to detect signals from the muscles

involved in the velopharyngeal function it is also

expected to acquire unwanted myoelectric signals

due to the superposition of muscles in these areas,

such as the jaw muscles. However, in spite of the

muscles of the velum being remote from this

peripheral region, we expect to be able to select a

sensor location that enables us to identify and

classify the targeted muscle signal with success.

The technical specifications of the acquisition

system (Plux, 2013) include snaps with a diameter of

14.6 mm and 6.2 mm of height, a voltage range that

goes from 0.0V to 5.0V and a voltage gain of 1000.

The recording signal was sampled at 600Hz and 12

bit samples were used.

The audio recordings were performed using a

laptop integrated dual-microphone array using a

sample rate of 8000Hz, 16 bits per sample and a

single audio channel. Since the audio quality was not

a requirement in this collection we opted for this

solution instead of a headset microphone which

could cause interference with the EMG signal.

Figure 2: EMG electrodes positioning and the respective

channels (1 to 5) plus the reference electrode (R). EMG

channels 1 and 2 use a monopolar configuration and

channels 3, 4 and 5 use bipolar configurations.

BIOSIGNALS2014-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

4.4 Signal Synchronization

In order to address the nasality detection problem we

need to synchronize the EMG and RT-MRI signals.

We start by aligning both EMG and the information

extracted from the RT-MRI with the corresponding

audio recordings. Next, we resample the audio

recordings to 12000Hz and apply Dynamic Time

Warping (DTW) to the signals, finding the optimal

match between the two sequences. Based on the

DTW result we map the information extracted from

RT-MRI to the EMG time axis, establishing the

needed correspondence between the EMG and the

RT-MRI information, as depicted in Figure 3.

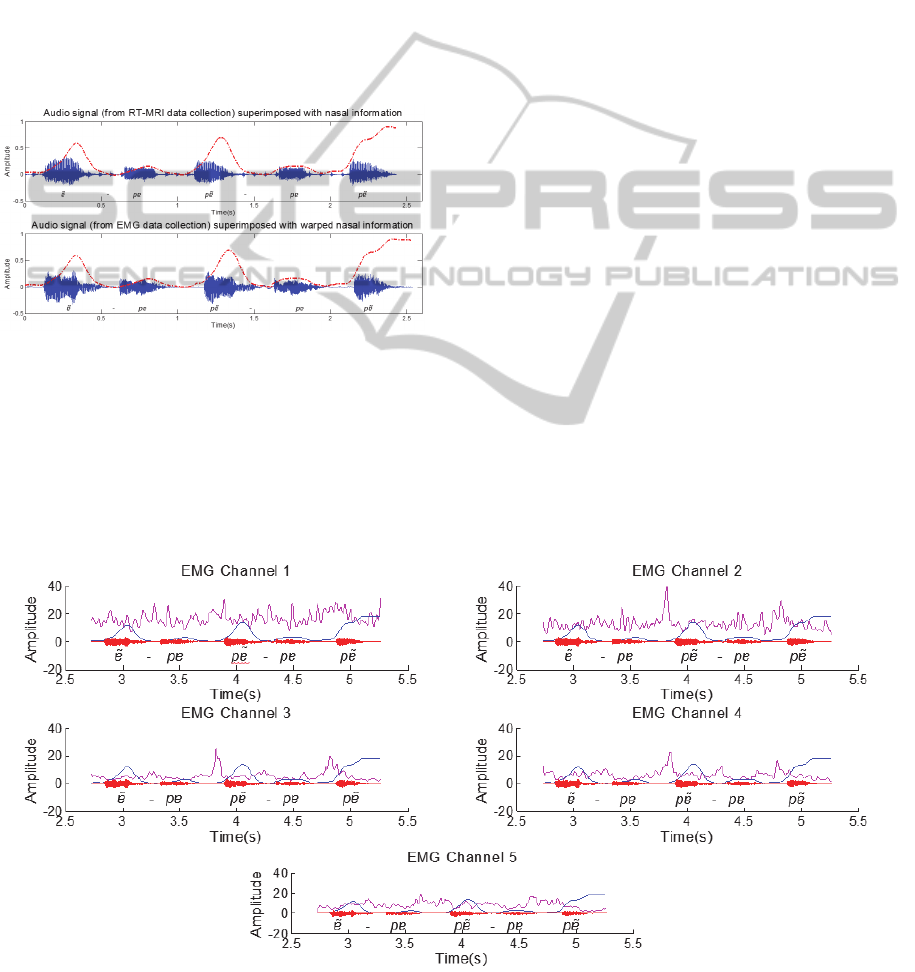

Figure 3: Exemplification of the warped signal

representing the nasal information extracted from RT-MRI

(dashed line) superimposed on the speech recorded during

the corresponding RT-MRI and EMG acquisition, for the

sentence [ɐ

pɐ, pɐ

Based on the information extracted from the RT-

MRI signal and after signal alignment, we are able

to segment the EMG signal into nasal and non-nasal.

The transitional part of the signal (i.e. lowering and

raising of the velum) was included in the nasal

zones.

5 RESULTS

In this section the results of the analysis that

combines the EMG signal with the information

extracted from the RT-MRI signal and a

classification experiment are presented.

5.1 EMG Signal Analysis

After we have extracted the required information

from the RT-MRI images and have it aligned with

the EMG signal we started visually exploring

possible relations between the signals. To facilitate

the analysis we pre-process the EMG signal and

apply a 12-point moving average filter with zero-

phase distortion to the absolute value of the

normalized EMG signal. An example of the

resulting signal for all channels, along with the data

derived from the RT-MRI, aligned as described in

the previous section, is depicted in Figure 4. Based

on a visual analysis, it is worth noticing that several

peaks anticipate the nasal sound, especially in

channels 2, 3 and 4. These peaks are most

accentuated for the middle and final word position.

By using surface electrodes the risk of acquiring

myoelectric signal superposition is relatively high,

particularly muscles related with the movement of

the lower jaw and the tongue considering the

electrodes position. However, if we analyze

an example of a close vowel such as [ĩ], where the

Figure 4: Filtered EMG signal for the several channels (pink), the aligned RT-MRI information (blue) and the

corresponding audio signal for the sentence [ɐ

pɐ, pɐ

] from speaker 1.

VelumMovementDetectionbasedonSurfaceElectromyographyforSpeechInterface

movement of the jaw is less prominent, the peaks

found in the signal still anticipate the RT-MRI velar

information for channels 3 and 4. Channel 5 also

exhibits a more active behavior in this case which

might be caused by its position near the tongue

muscles and the tongue movement associated with

the articulation of the [ĩ] vowel. If the same analysis

is considered for isolated nasal vowels ([ɐ

, ẽ, ĩ, õ, ũ])

of the same speaker, EMG Channel 1 signal exihibts

a more clearer signal apparently with less muscle

crosstalk and peaks can be noticed before the nasal

vowels. For the remaining channels there is not a

clear relation with all the vowels, altough signal

amplitude variations can be noticed in the last three

vowels for EMG channel 3.

The fact that all seemed to point for the presence

of differences between the two classes (nasal and

non-nasal) motivated an exploratory classification

experiment based on Support Vector Machines

(SVMs), which have presented an acceptable

performance in other applications, even when

trained with small data sets.

5.2 Frame-based Nasality

Classification

In a real use situation the information about the nasal

and non-nasal zones extracted from the RT-MRI

signal is not available. As such, in order to

complement our study and because we want to have

a nasality feature detector, we have conducted an

experiment where we split the EMG signal into

frames and classify them as one of two classes: nasal

or non-nasal. For estimating classifier performance

we have applied 10-fold cross-validation technique

to the whole set of frames from the 3 speakers. A

total of 1572 frames (801 nasal and 771 non-nasal)

were considered. From each frame we extract 9 first

order temporal features similar to the ones used by

Hudgins et al. (1993). Our feature vector is then

composed by mean, absolute mean, standard

deviation, maximum, minimum, kurtosis, energy,

zero-crossing rate and mean absolute slope. We have

considered 100ms frames and a frame shift of 20ms.

Both feature set and frame sizes were determined

after several experiments. For classification we

have used SVMs with a Gaussian Radial Basis

Function.

In our classification experiments we start by

using the data from all speakers. Results of 4

relevant metrics are depicted in Figure 5. Besides the

mean value of the 10-fold, 95% confidence intervals

are also included. Results indicate a best result for

EMG Channel 3 with 32.5% mean error rate, an F-

score of 66.3%, a mean sensitivity of 65.5% and a

mean specificity of 69.4%. Channels 4 and 2

achieved second and third best error rates with mean

error rates of 32.7% and 33.2% and an F-score of

64.5% and 64.3%.

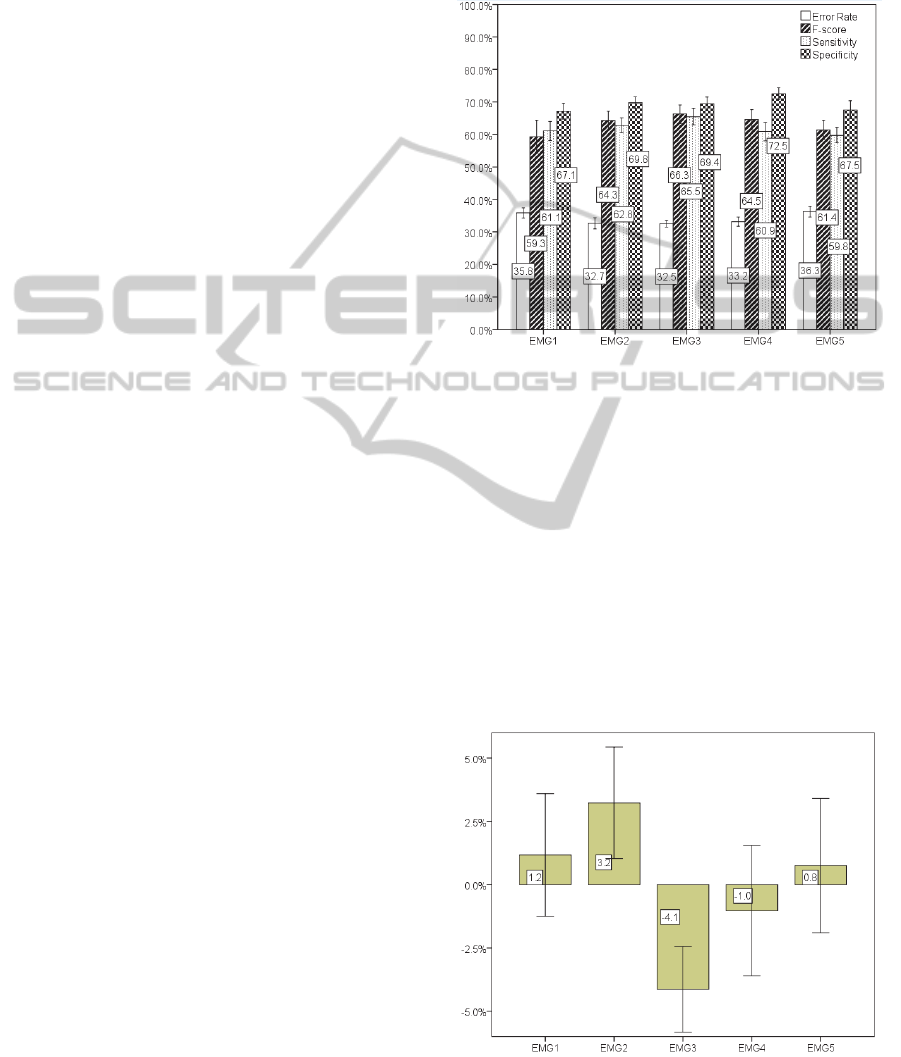

Figure 5: Classification results (mean value of the 10-fold

for error rate, F-score, sensitivity and specificity) for all

channels and all speakers. Error bars show a 95%

confidence interval.

We have also run the same experiment for each

individual speaker. EMG channel 3 obtained the best

overall result with 24.3% mean error rate and 62.3%

mean F-score. The best results for each individual

speaker were found for Speaker 3 with 23.4% and

23.6% mean error rate and F-score values of 72.1%

and 70.3% in EMG channels 4 and 3, respectively.

For Speaker 1 and 2, EMG channel 3 presents the

best results with 25.7% and 23.7% mean error rate

and F-score values of 76.1% and 51.9%. However, if

we look into the data of Speaker 2 a higher amount

Figure 6: Difference between the mean error rate of all

channels and the respective result of each channel for all

speakers. Error bars show a 95% confidence interval.

BIOSIGNALS2014-InternationalConferenceonBio-inspiredSystemsandSignalProcessing

of nasal frames is found, explained by common

breathings between words, which imply an open

velum.

On a different perspective, if we subtract the

global mean error rate of all channels then, as seen

in Figure 6, EMG channel 3 exhibits a mean error

rate 4.1% below this mean, followed by EMG

channel 4 with 1.0% below the global mean.

To assess if any advantage could be extracted

from using channel combination to improve

classification we have also experienced

classification with multiple EMG channels.

However, no improvements were verified when

comparing with the previously obtained results, a

fact that might indicate an overlapping of

information between channels.

6 CONCLUSIONS

The work presented uses two distinct sources of

information – Surface EMG and RT-MRI – in order

to address the challenge of nasality detection in

EMG-based silent speech interfaces. The

information extracted from the RT-MRI images

allows us to know when to expect nasal information.

Thus, by synchronizing both signals, based on

simultaneously recorded audio signals from the

same speaker, we are able to explore the existence of

useful information in the EMG signal about the

velum movement. The global results of this study,

altough preliminary in the sense that further

validation is required, point to the fact that the

selected approach can be used to reduce the error

rate caused by nasality in languages where this

characteristic is particulary relevant such as

Portuguese, also providing background for future

studies in terms of sensor positioning. The results of

this study show that, in a real use situation, error

rates as low as 23.4% can be achieved for sensors

positioned below the ear between the mastoid

process and the mandible in the upper neck region,

and that careful articulation, positioning of the

sensors or even anatomy of the speaker may

influence nasality detection results. Also, although

the methodology used in this study partially relies on

RT-MRI information for scientific substantiation, a

technology which requires a complex and expensive

setup, the proposed solution to detect nasality is

solely based on a single sensor of surface EMG.

Thus, the development of an SSI based on EMG for

EP, with language adapted sensor positioning, seems

to be now a possibility.

ACKNOWLEDGEMENTS

This work was partially funded by Marie Curie

Golem (ref.251415, FP7-PEOPLE-2009-IAPP) and

by FEDER through the Operational Program

Competitiveness factors - COMPETE under the

scope of QREN 5329 FalaGlobal, by National Funds

through FCT (Foundation for Science and

Technology) in the context of the Project HERON II

(PTDC/EEA-PLP/098298/2008) and by project

Cloud Thinking (funded by the QREN Mais Centro

program: CENTRO-07-ST24-FEDER-002031).

REFERENCES

Huang, X., Acero, A., Hon, H., 2001. Spoken Language

Processing, Prentice Hall PTR, Upper Saddle River,

NJ.

Bell-Berti, F., 1976. An Electromyographic Study of

Velopharyngeal Function, Speech Journal of Speech

and Hearing Research, Vol.19, pp. 225-240.

Chan, A. D. C., Englehart, K., Hudgins, B. and Lovely, D.

F., 2001. Hidden Markov model classification of

myoelectric signals in speech. Proceedings of the 23rd

Annual International Conference of the IEEE

Engineering in Medicine and Biology Society, vol. 2,

pp. 1727–1730.

Denby, B., Schultz, T., Honda, K., Hueber, T., Gilbert, J.

M. and Brumberg, J. S, 2009. Silent speech interfaces.

Speech Communication, Vol. 52, Issue 4, pp. 270-287.

Flynn, R. and Jones, E., 2008. Combined speech

enhancement and auditory modelling for robust

distributed speech recognition, Speech

Communication, Vol. 50, Issue 10, pp. 797-809.

Freitas, J., Teixeira, A. and Dias, M. S., 2012. Towards a

Silent Speech Interface for Portuguese: Surface

Electromyography and the nasality challenge, Int.

Conf. on Bio-inspired Systems and Signal Processing,

Vilamoura, Algarve, Portugal.

Fritzell, B., 1969. The velopharyngeal muscles in speech:

an electromyographic and cineradiographic study.

Acta Otolaryngolica. Suppl. 50.

Hardcastle, W. J., 1976. Physiology of Speech Production

- An Introduction for Speech Scientists, Academic

Press.

Herff, C., Janke, M., Wand, M. and Schultz, T., 2011.

Impact of Different Feedback Mechanisms in EMG-

based Speech Recognition. Interspeech 2011.

Florence, Italy.

Hudgins, B., Parker, P. and Scott, R., 1993. A new

strategy for multifunction myoelectric control,

Biomedical Engineering, IEEE Transactions on, Vol.

40, Issue 1, pp. 82-94.

Jorgensen, C., Lee, D. and Agabon, S., 2003. Sub auditory

speech recognition based on EMG signals. In Proc.

Internat. Joint Conf. on Neural Networks (IJCNN), pp.

3128–3133.

VelumMovementDetectionbasedonSurfaceElectromyographyforSpeechInterface

Jou, S., Schultz, T. and Waibel, A., 2007. Continuous

Electromyographic Speech Recognition with a Multi-

Stream Decoding Architecture. Proceedings of the

IEEE International Conference on Acoustics, Speech,

and Signal Processing, ICASSP 2007, Honolulu,

Hawaii, US.

Kuehn D. P., Folkins J.W. and Cutting C. B.,

1982. Relationships between muscle activity and velar

position, Cleft Palate Journal, Vol. 19, Issue 1, pp. 25-

35.

Kuehn D. P., Folkins J.W. and Linville R. N., 1988. An

Electromyographic Study of the Musculus Uvulae,

Cleft Palate Journal, Vol. 25, Issue 4, pp. 348-355.

Lacerda, A. and Head, B. F., 1996. Análise de sons nasais

e sons nasalizados do Português. Revista do

Laboratório de Fonética Experimental (de Coimbra),

No.6, pp. 5-70.

Lubker, J. F., 1968. An electromyographic-

cinefluorographic investigation of velar function

during normal speech production, Cleft Palate

Journal, Vol. 5, Issue 1, pp. 17.

Martins, P. Carbone, I. Pinto, A. Silva, A. and Teixeira,

A., 2008. European Portuguese MRI based speech

production studies. Speech Communication. NL:

Elsevier, Vol. 50, No.11/12, ISSN 0167-6393, pp.

925–952.

McGill, S., Juker, D. and Kropf, P., 1996. Appropriately

placed surface EMG electrodes reflect deep muscle

activity (psoas, quadratus lumborum, abdominal wall)

in the lumbar spine, Journal of Biomechanics, Vol. 29,

Issue 11, pp. 1503-7.

Plux Wireless Biosignals, Portugal, 2013. Available from:

http://www.plux.info/. (accessed on December 20.

2013).

Rossato, S. Teixeira, A. and Ferreira, L., 2006. Les

Nasales du Portugais et du Français: une étude

comparative sur les données EMMA. In XXVI

Journées d'Études de la Parole. Dinard, France.

Schultz, T. and Wand. M., 2010. Modeling coarticulation

in large vocabulary EMG-based speech recognition.

Speech Communication, Vol. 52, Issue 4, pp. 341-353.

Seikel, J. A., King, D. W., Drumright, D. G., 2010.

Anatomy and Physiology for Speech, Language, and

Hearing, Delmar Learning, 4rd Ed.

Silva, S., Martins, P., Oliveira, C., Silva, A. and Teixeira,

A., 2012. Segmentation and Analysis of the Oral and

Nasal Cavities from MR Time Sequences, Image

Analysis and Recognition. Proceedings of ICIAR

2012, LNCS, Springer.

Stark, A. and Paliwal, K., 2011. MMSE estimation of log-

filterbank energies for robust speech recognition,

Speech Communication, Vol. 53, Issue 3, pp. 403-416.

Teixeira, A., Moutinho, L. C. and Coimbra, R. L., 2003.

Production, acoustic and perceptual studies on

European Portuguese nasal vowels height. In Internat.

Congress Phonetic Sciences (ICPhS), pp. 3033–3036.

Teixeira, A., Martins, P., Oliveira, C., Ferreira, C., Silva,

A. And Shosted, R., 2012. Real-time MRI for

Portuguese: database, methods and applications,

Proceedings of PROPOR 2012, LNCS vol. 7243. pp.

306-317.

Teixeira, J. S., 2000. Síntese Articulatória das Vogais

Nasais do Português Europeu [Articulatory Synthesis

of Nasal Vowels for European Portuguese]. PhD

Thesis, Universidade de Aveiro.

Trigo, R. L., 1993. The inherent structure of nasal

segments, In Nasals, Nasalization, and the Velum,

Phonetics and Phonology, M. K. Huffman e R. A.

Krakow (eds.), Academic Press Inc., Vol. 5, pp. 369-

400.

Wand, M. and Schultz, T., 2011a. Investigations on

Speaking Mode Discrepancies in EMG-based Speech

Recognition, Interspeech 2011, Florence, Italy.

Wand, M. and Schultz, T., 2011b. Analysis of Phone

Confusion in EMG-based Speech Recognition. IEEE

International Conference on Acoustics, Speech and

Signal Processing, ICASSP 2011, Prague, Czech

Republic.

Wand, M. and Schultz, T., 2011c. Session-Independent

EMG-based Speech Recognition. International

Conference on Bio-inspired Systems and Signal

Processing 2011, Biosignals 2011, Rome, Italy.

Wand, M., Schulte, C., Janke, M. and Schultz, T., 2013.

Array-based Electromyographic Silent Speech

Interface. In 6th International Conference on Bio-

inspired Systems and Signal Processing, Biosignals

2013, Barcelona, Spain.

Yang, C.; Brown, G., Lu, L., Yamagishi, J. and King, S.,

2012. Noise-robust whispered speech recognition

using a non-audible-murmur microphone with VTS

compensation. Chinese Spoken Language Processing

(ISCSLP), 2012 8th International Symposium on, pp.

220-223.

BIOSIGNALS2014-InternationalConferenceonBio-inspiredSystemsandSignalProcessing
