Authentication and Authorisation for Widget-based Applications in a

Loosely-coupled Web eLearning Environment

∗

Jean-No

el Colin and Minh Tien Hoang

PReCISE Research Center, University of Namur, Namur, Belgium

Keywords:

Widgets, eLearning, Authentication, oAuth, OpenId.

Abstract:

In this paper, we discuss the mechanisms used for authentication and authorisation of users in a widget-based

web environment that integrates multiple components from multiple providers running at multiple locations.

Users are typically teachers and pupils who access our platform either directly or through their usual Learning

Management System (LMS). Although the technologies used themselves are not new, we believe that the

approach we follow is innovative enough in their integration and use. Our approach is based on a survey ran

among european teachers about their practices in terms of user credentials usage and sharing.

1 INTRODUCTION

The last few years have seen the emergence of a new

approach to building Web applications, in the form

of mashups. Mashups are applications that reuse

and combine data and services available on the web

(Aghaee and Pautasso, 2012). In the rest of the pa-

per, we will follow the deﬁnition of mashup and re-

lated concepts as deﬁned in (Zibuschka et al., 2010).

Web mashups usually combine data and services that

are available on the Internet– freely, commercially,

or through other partnership agreements. In this per-

spective, we differentiate between the mashup plat-

form (the system that integrates remote content) and

the remote content itself, usually integrated through

some standard protocol or approach like W3C Wid-

gets

In terms of security, one of the main issues

encountered when dealing with complex software

web architecture is that the traditional browser se-

curity model dictates that content from different ori-

gins cannot interact with each other, while content

∗

The work presented in this paper is partially supported

by the European Commission’s FP7 programme –project

iTEC: Innovative Technologies for an Engaging Classroom

(Grant agreement N

◦

257566). The content of this paper is

the sole responsibility of the authors and it does not repre-

sent the opinion of the European Commission and the Com-

mission is not responsible for any use that might be made

of information contained herein.

http://www.w3.org/TR/2012/REC-widgets-20121127/

#widgets-family-of-speciﬁcations

from the same origin can interact without constraint

(De Keukelaere et al., 2008). While solutions exists

(like using a proxy server or making use of script

tags), we have to ﬁnd a generic way to overcome this

limitation and allow content from mixed origins to in-

teract with each other.

A key element to this integration is the proper

management of users, i.e. know who is who, and who

is allowed to do what: authentication and authorisa-

tion. Users may have an account with the mashup

platform or with the provider of the remote service

or content; moreover, users may want to use creden-

tials they already have with other actors on the In-

ternet (think of the ’Sign-In with your xxx account’

button you ﬁnd on many websites). Access policies

may be deﬁned centrally, while others may be speci-

ﬁed on the remote side. This is what we call a loosely-

coupled environment: independent components inter-

acting together through identiﬁed interfaces, with lit-

tle to no knowledge about remote components and

policies. The challenges we face in this work are the

following:

• how do we solve user authentication in such

multi-layer loosely-coupled environment?

• how do we ensure proper access to mashup ser-

vices and remote content, based on a decentralised

policy

• how do we propagate authentication and authori-

sation information through the various layers of

the environment?

This research takes place in the framework of the

Colin J. and Tien Hoang M..

Authentication and Authorisation for Widget-based Applications in a Loosely-coupled Web eLearning Environment.

DOI: 10.5220/0004795700170026

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 17-26

ISBN: 978-989-758-023-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

the iTEC project

, a 4 years EU-funded project fo-

cused on the design and evaluation of the future class-

room in Europe.

To solve the various issues and to ensure interop-

erability, we have investigated several open standards

and solution, and have selected oAuth and OpenID as

building blocks of our solution, in an approach simi-

lar to the one presented in (Govaerts et al., 2011). We

will discuss this choice further in the paper, as well as

give a complete description of the solution we put in

place. The rest of the paper is organised as follows:

section 2 presents the conclusions of a survey run with

teachers to identify use of Learning Management Sys-

tems and practices regarding use and re-use of creden-

tials. The results of the survey guided the rest of the

work. Section 3 describes the overall project architec-

ture and requirements in terms of user management

and access control. Section 4 then presents the solu-

tion design and implementation. Section 5 gives some

concrete examples. Finally, section 6 provides some

conclusions and ideas for future work.

The paper does not include a related work section,

because although it relies on solid and proven com-

ponents and approaches, we could ﬁnd no publication

relating to a similar approach of building a centrally-

managed environment for authentication and autho-

rising access to services in a loosely-coupled web

environment while accepting external authenticators.

This may be linked to the highly decoupled and dis-

tributed approach which is inherent of large European

research projects.

2 LESSONS FROM THE

TEACHERS SURVEY

A survey was run during the second year of the

project (2012) to ask teachers about their current prac-

tices regarding the use of Learning Management Sys-

tems, the type of credentials they use, their familiar-

ity with third parties that provide authentication ser-

vices (Google, Facebook, Microsoft Hotmail, Yahoo)

as well as their inclination towards re-using creden-

tials among various websites.

We received a total of 269 responses from 17

countries. Distribution across countries is unbal-

anced, but since the survey is only indicative, this is

not considered as a problem.

Results showed that Moodle is the most widely

used LMS, but quite a long list of other systems are

also in use. The LMS is installed either locally to the

http://itec.eun.org/

school, or shared among different schools, although

almost half of the respondents did not really know.

More importantly, responses showed that although

a majority of users have local credentials to login to

their LMS, a signiﬁcant number of them use external

credentials, which can be provided by an education

authority (school, regional or national authority) or by

third parties (such as Google, Facebook, etc.)

Finally, the survey showed that the vast majority

of teachers (and students) have accounts with one of

the major Identity Providers on the Web (Facebook,

Google, Yahoo) and that almost 70% of them are will-

ing to re-use those credentials to access their school

services.

However, it is important to note that integration

with external Identity Providers is not always an op-

tion, due to technical restrictions deﬁned at the school

level (site-blocking ﬁrewall).

Our conclusion is that if we want to add new

services to existing LMS already made available to

schools, we shall have to integrate them without

adding an extra authentication burden on users. It

means that new services will have to extend existing

infrastructure and offer the possibility of re-using cre-

dentials that users may already possess. However, be-

cause some users are concerned that re-using creden-

tials might constitute a security risk, it is important to

propose a mixed approach (i.e. use both siloed and

re-used credentials).

Complete results of the survey are presented in

(Colin and Simon, 2012)

3 PROJECT DESCRIPTION AND

ARCHITECTURE

The iTEC project (innovative Technologies for an

Engaging Classroom) is a four-year project funded by

the EU; it is focused on the design of the future class-

room in Europe. The project, which involves 27 part-

ners among which 15 Ministries of Education from

across Europe, brings together teachers, policymak-

ers, pedagogical experts - representatives from each

stage of the educational processes - to introduce inno-

vative teaching practices.

The goal of iTEC is to pilot learning and teach-

ing scenarios using integrated technology solutions

in over 1,000 classrooms in 15 countries, making it

by some margin the largest pan-European validation

of ICT in schools yet undertaken. The scope of the

project ranges from pedagogical scenario design, cus-

tomisation to local technical environments, develop-

ment of required technologies and school piloting. In

this paper, we will focus on the technical aspects only.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

3.1 Basic Concepts

The idea behind iTEC technical implementation is

to pull pedagogical content and tools together into a

common interface in a meaningful way, i.e. so that

they can support a speciﬁc pedagogical scenario. The

basic building blocks of the iTEC ecosystem (aka the

iTEC Cloud) are the following:

• a shell is the host platform (in mashup terminol-

ogy, this is the Mashup-providing platform) used

to integrate the various forms of content and tools;

it acts as an empty ’nest’ for those remote compo-

nents. It is also the ﬁrst user-facing component.

No particular assumption is made on the shell

technology, beyond the fact that it must be able to

display widgets (Wilson et al., 2011). Examples

of shell platforms are Learning Management Sys-

tems (LMS) like Moodle

, mobile platform like

Android

or Interactive Whiteboard software like

OpenSankore

• a Web application is an autonomous piece of code

that offers a set of a self-contained services. It

takes care of its own rendering and embeds all

necessary services to serve end-users and fulﬁll

expected functionalities. It may include user man-

agement functionalities or rely on third-party for

that purpose.

• A widget is an elementary piece of application or

content (image, video...); it embeds some func-

tionality that is of interest to the users and is dis-

played through a shell. A widget does not operate

on its own, but rather, requires a widget engine

or runtime to create and manage widget instances

and a shell to be made available to users. Several

kinds of widget engines exist, like Yahoo Konfab-

ulator, Apple’s Dashboard, Opera Widgets run-

time, Apache’s Wookie server. A self-contained

widget is a widget that embeds all its function-

alities, like a calculator widget. A WebService-

backed widget is a widget that relies on other

components to function. Such component may

take the form of backend services reached through

a REST webservices interface. This would be the

case for a chat widget that stores chat messages

on a separate distant datastore. Widgets may offer

collaboration services, like chat or videoconfer-

encing, access to pool of resources, geolocation

functionalities or administrative functions (user

management...)

https://moodle.org

http://www.android.com

http://open-sankore.org

• A backend service is a software component with

no user interface, that is accessed by other com-

ponents through a web service interface. In iTEC,

most components are built in such a way that the

user interface is implemented by a widget while

the business logic and data layer are implemented

by a backend service, although in some cases,

components are developed as a standalone web

application, with or without access to a backend

service.

iTEC’s approach to assemble and deliver content and

tools is through the integration of widgets in a shell;

the combination of widgets is derived from a peda-

gogical scenario, with the aim of supporting it by pro-

viding the right tools, which may be synchronous or

asynchronous collaboration and communication, cal-

culator, simulator, geolocation or content sharing. In

addition to widgets, iTEC also uses web applications

for some of its services.

3.2 iTEC in Action

Starting from a pedagogical scenario, widgets are as-

sembled in a shell’s space, typically a course page in

a LMS or a presentation slide in an Interactive White-

board notebook, in a way that they can be used by

end-users, a teacher and his class for example. To

support this type of usecase, iTEC designed a set of

components:

• the widget store is the main repository for wid-

gets. It stores widget descriptions, allowing for

searching, tagging, rating and commenting about

widgets. It is similar in its concept to Google’s

PlayStore or Apple’s AppStore. It is built as a

widget.

• the Composer is used to manage pedagogical sce-

narios, and assemble widgets that meet the re-

quirements of those scenarios. For instance, a

scenario may include synchronous communica-

tion, picture sharing and collaborative writing,

and this would translate into a chat-, a camera-

and a wiki widget. This instantiation takes into

account the technical settings of the target envi-

ronment, i.e. the set of technologies available in a

speciﬁc school. The Composer is built as a web-

application.

• the People and Event directory is a database of

people and events that may be of interest to peda-

gogical actors; it can be a subject expert, or a con-

ference or similar event. Those resources are also

rated, tagged and commented. This component is

built as a web-application with an integrated back-

end service, thus supporting the development of

AuthenticationandAuthorisationforWidget-basedApplicationsinaLoosely-coupledWebeLearningEnvironment

widgets.

• the Scenario Development Environment is a rec-

ommendation engine, that can collects data from

the above components, and provides recommen-

dation to the Composer in its scenario instantiat-

ing role, by suggesting most appropriate resources

to include in the setup. This component is de-

veloped as a pure back-end service since it is not

meant to support any type of user interaction.

3.3 Authentication and Authorisation

Challenges

From the description above, iTEC integrates a wide

variety of components: shells, web applications, self-

contained widgets, widget-based applications... This

integration raises some questions in terms of user

management and access control:

• user authentication may take place at the shell

level, but also, some integrated services may re-

quire some form of authentication or at least be

aware of the visiting user’s identity. This implies

the need for an authentication mechanism that can

span the range of components and provide a con-

sistent information about the user

• access control policies may be deﬁned centrally,

at the iTEC Cloud level, but these policies have

to co-exist and be consistent with those deﬁned at

the shell level, or at the integrated services level,

if any. Again, this requires an authorisation mech-

anism that integrates at the various levels of the

architecture.

Our goal is thus to design a system that would meet

the following requirements:

• allow user authentication at the shell level, and

pass the information into sub-components (wid-

gets and back-end services)

• allow access policies to be deﬁned globally to the

iTEC Cloud, based on a Role-Based Access Con-

trol (Ferraiolo et al., 2001) model, and have those

policies propagated to the sub-components

• from the global access rules, provision local poli-

cies at the level of iTEC back-end services

• designed solution should support interoperability

with major service providers

4 PROPOSED SOLUTION

The interoperability requirements led us to focus on

open standards and protocols to build authentication

and authorisation mechanisms. We performed a thor-

ough study, and identiﬁed candidate protocols like

SAMLv2

, OpenID

and oAuth

. Due to their tech-

nological maturity, their relative simplicity, their sup-

port for web interactions, the availability of libraries

and their wide adoption by main actors on the net, we

selected oAuthv2 and OpenIDv2 as the basis for our

solution. The fact that users are warned when an ap-

plication wants to access protected data was also an

element of choice.

OpenIDv2 (Foundation, 2007) is an open and

standard protocol for signing on to websites using one

single set of credentials. The protocol has been devel-

oped for many years and adopted by major players

on the Internet, like Google. It relies on the assump-

tion that users have an identity deﬁned with an Iden-

tity Provider (IdP), and want to use that identity to

access various services offered by Service Providers

(SP). The typical ﬂow is a user visiting a Service

Provider that requires authentication; SP prompts the

user for her identity or that of her IdP. The user is

then redirected to the IdP to authenticate, and if au-

thentication succeeds, the user is sent back to the SP

with the proof that successful authentication did take

place. Optionally, the IdP may provide additional in-

formation about the user (this requires some protocol

extensions).

oAuthv2 (Hardt, 2012) is a protocol for manag-

ing delegation of authorisation. Its main use case is

a user (the resource owner) needing to give access to

some of its resources hosted on a server (the resource

server) to a client, typically another service. To avoid

forcing the user to give her credentials to the client,

oAuthv2 introduces a workﬂow where when the user

is asked by the client to give access to a resource, she

is sent back to an authorisation server where she au-

thenticates and is then asked to grant or deny access.

Upon success, the authorisation server issues an ac-

cess token to the client that it will use to access the

resource on behalf of the user. In this way, the user’s

credentials are never disclosed to the client. This is

the protocol that Facebook or Yahoo use for granting

access to their services to remote sites, after getting

the agreement of the user. oAuthv2 supports various

types of ’grants’, to support different proﬁles of this

protocol and accommodate different situations:

Authorisation Code Grant this is the most secure

scenario, in which the client directs the resource

owner to the authorisation server for authentica-

tion and access request; upon success, the au-

thorisation server issues an authorisation code to

http://saml.xml.org/

http://openid.net/

http://oauth.net/2/

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

the client, that the client then exchanges with

the authorisation server for an access token, that

is ﬁnally presented by the client to the resource

server to get access to the resource. All inter-

actions with the resource owner go through her

user-agent (typically her browser). This scenario

supports client authentication by the authorisation

server before issuing an access token, and en-

sures that the access token never reaches the re-

source owner’s user-agent, which could lead to to-

ken leakage.

Implicit Grant this is a simpliﬁed version of the

previous scenario, in which instead of being is-

sued an authentication code by the authorisation

server, the client directly receives an access token.

This scenario is targeted at clients implemented

in a browser, typically in javascript. In this case,

the authorisation server does not authenticate the

client, and the access token is exposed to the re-

source owner or other applications with access to

its user-agent.

Resource Owner Password Credentials Grant

this scenario is built on the assumption that

there exists a high degree of trust between the

resource owner and the client. The resource

owner provides the client with her credentials,

and the client uses them to request an access

token from the authorisation server. This scenario

supports client authentication.

Client Credentials Grant in this scenario, the client

is acting on its own behalf, not on behalf of the

user. The client authenticates directly to the au-

thorisation server and receives an access token.

It is worthwhile noting that oAuthv2 also supports ex-

tension grants that allow to extend the token request

mechanism to support different types of credentials,

like SAML assertions.

Because we chose to use oAuthv2 to secure wid-

get access to back-end services, and because widgets

usually involve client-side computing and get access

to the user’s environment, the implicit grant is the

only option of choice. However, we also successfully

implemented the client credentials grant to secure ac-

cess to the SDE backend service. One of the draw-

backs of the implicit grant is the absence of client

authentication, but this can be explained by the na-

ture of widgets, which are running client-side, making

available any sensitive information to other compo-

nents running in the user’s environment (user-agent).

It would thus not be possible to securely store client

credentials at the widget level.

To integrate those protocols into the iTEC envi-

ronment, we designed the UMAC (User Management

and Access Control) framework, which comprises the

following components:

• the UMAC server is responsible for user authen-

tication, issuance of tokens, and management of

user data and privileges; it plays the role of the

OpenID’s Identity Provider, the oAuth’s authori-

sation server, and implements a back-end service

to access, store and manage user data and privi-

lege information.

• the UMAC ﬁlter is an authorisation guard that sits

in front of back-end services; the back-end ser-

vice represents the oAuth’s Resource Server, and

the UMAC ﬁlter is in charge of validating access

tokens.

• the UMAC widgets are a collection of widgets that

allow to access and manage authentication and au-

thorisation information in the iTEC Cloud. Those

widgets allow to register a new user, to update a

user’s details, to create sets of users, and to assign

iTEC roles.

• the UMAC library is a JavaScript library of tools

to help the widget developer to easily integrate

with the UMAC framework and not care about the

various protocols’ implementation.

4.1 UMAC Server

The UMAC Server serves two main purposes: authen-

ticating users and controlling access to back-end ser-

vices.

To authenticate users, UMAC Server implements

the OpenID Provider speciﬁcation. It handles authen-

tication requests from iTEC relying parties, typically

shells or web applications, authenticates users, and

responds to relying parties; UMAC Server supports

SREGv1.0 and AXv1.0 OpenID extensions to pro-

vide basic information of logged in user (username,

ﬁrst and last names, email address, language, time-

zone, country). Authentication is checked against a

local database of users.

One of the requirements drawn from the survey

described in section 2 mandates that iTEC should

allow users to login using third-party credentials,

namely Google, Facebook or Yahoo. Thus the UMAC

Server supports user authentication using any of those

systems, by implementing an OpenID Relying Party

(in the case of Google and Yahoo) and an oAuth client

(in the case of Facebook).

Access control to iTEC services is handled by

UMAC Server. Access requests may come from wid-

gets or web applications, in which case the oAuthv2

scenario implemented is the implicit grant, but re-

quests may also come from standalone applications,

AuthenticationandAuthorisationforWidget-basedApplicationsinaLoosely-coupledWebeLearningEnvironment

which are run in a more controlled environment, and

for which the selected scenario is the client creden-

tials grant. Thus UMAC Server implements the re-

lated sections of the oAuthv2 speciﬁcation, and han-

dles Authorisation Requests (for the implicit grant)

and Access Token Requests (for the client creden-

tials grant), issuing access tokens to widgets and con-

trolled applications respectively. A token is a random

string concatenated with a timestamp.

In addition to the authentication and authorisation

functionalities, UMAC server is also used to store

user information; this information is made accessi-

ble through a REST API, which is protected by the

oAuthv2 protocol, just like any other iTEC back-end

service. Basic CRUD functionalities are implemented

to add, update, delete or get information about a user

account. This API is accessed typically by the UMAC

widgets.

Finally, UMAC server is used to manage user priv-

ileges; those privileges span all iTEC services, i.e. ap-

ply equally to shells, widgets or back-end services.

Six levels of privileges are deﬁned in a strictly hier-

archical way: super-user, administrator, coordinator,

teacher, student and guest. The level of privilege of a

user is passed to the OpenID relying party upon au-

thentication through SREG or AX extensions, where

available, and they are checked by the token valida-

tion process between the UMAC ﬁlter and the UMAC

server.

For a seamless user experience, UMAC authen-

tication is propagated to the shell through a plugin

mechanism which is dependent on the shell itself. In

this way, once the user is authenticated, all shell com-

ponents (typically widgets) can reuse the user infor-

mation.

4.2 UMAC Filter

The UMAC ﬁlter is designed to be put in front

of back-end services, and interacts with the UMAC

server following the oAuthv2 protocol to control ac-

cess to the services by ensuring that only authorised

requests get served. The current implementation of

the ﬁlter takes the form of a servlet ﬁlter, which makes

it very easy to integrate and (de)activate and realises a

separation of concerns by allowing the service devel-

oper to work independently from the access control

mechanism.

In the oAuthv2 terminology, the UMAC ﬁlter acts

as the protection part of the resource server. It re-

ceives requests for access in the form of REST calls

(basically http requests), and for each requests, it

checks that an access token is provided. If no token is

present, an error is returned, and it is up to the client to

obtain one. If a token is present, its validity is checked

by querying the UMAC server through a secure chan-

nel, and upon success, the lifetime of the token and

the userid of the token owner are returned to the ﬁl-

ter. Based on this information, the ﬁlter then checks

the local access policy that deﬁnes the rules for ac-

cessing the service. These rules are expressed using

the Apache Shiro

system. If the rules are evaluated

positively, access is granted and the request is passed

to the service. Otherwise, an error is returned. For

efﬁciency reasons, the UMAC ﬁlter caches the vali-

dated tokens for a period of time to avoid unnecessary

roundtrips with the UMAC server.

4.3 UMAC Library

The UMAC library is a Javascript library of functions

that aims at facilitating the development of widgets

and their integration with UMAC authentication ser-

vice, more precisely, the oAuth authentication end-

point’s service. It hides the complexity of the protocol

by providing methods to manage the whole authenti-

cation process (request for token, redirect to authen-

tication form, token transfer to requesting component

and error handling).

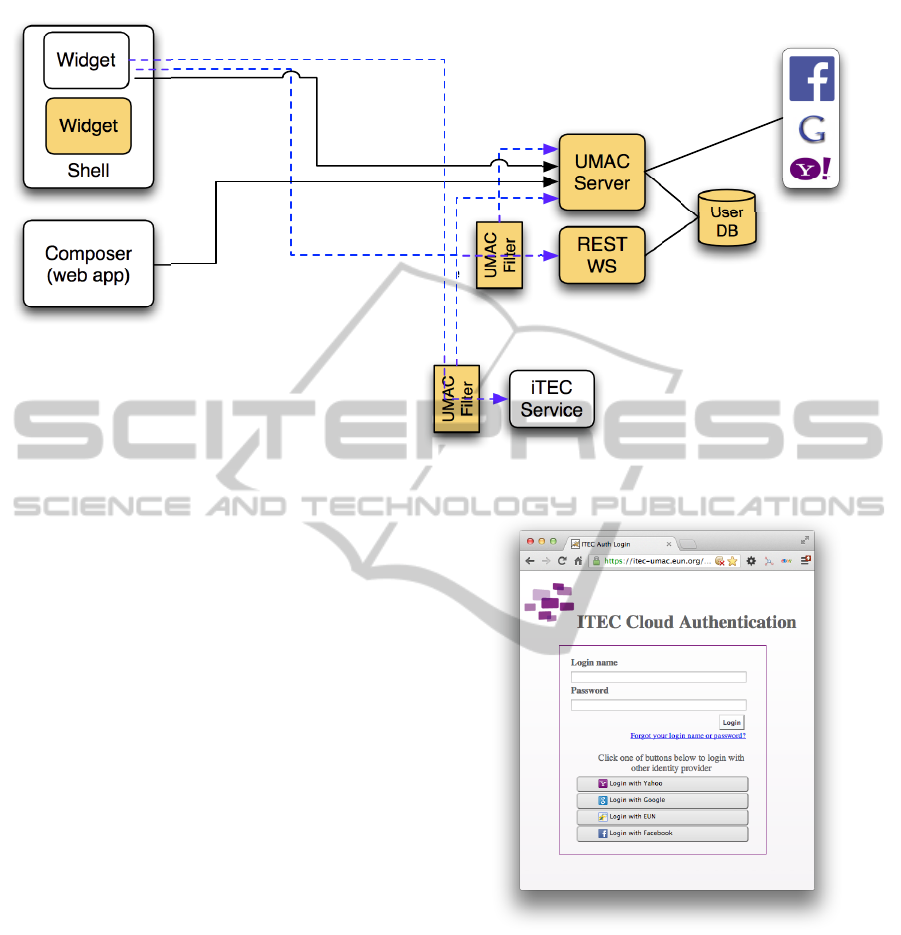

Figure 1 presents the UMAC components (in

gray) as well as the interactions with other iTEC sys-

tems. UMAC Server is used for authentication (solid

lines) either from shell, widgets or web applications

like the composer. This follows the OpenID pro-

tocol. Authentication may be local (using the User

DB) or rely on third-party authenticators (right-most

box). Regarding authorisation (dashed lines), UMAC

widgets allow to register or update user information

through the UMAC REST Web Service, which is

protected by the UMAC ﬁlter. Similarly, any other

iTEC component may access iTEC back-end services

which are protected by the UMAC ﬁlter (see bottom

of the diagram).

5 EXAMPLE SCENARIOS

In this section, we provide concrete examples of the

system described above.

5.1 Authenticating a User

This is the very ﬁrst step to do to consume a pro-

tected service or piece of content. A user makes an

authentication request directly from a widget, from a

shell or from a relying web application by clicking on

http://shiro.apache.org/

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

Shell

User

UMAC

Filter

Widget

REST

UMAC

Server

Composer

(web app)

iTEC

Service

UMAC

Filter

Widget

Figure 1: UMAC components.

an URL or a button. This causes redirection to the

UMAC Authentication Window (see ﬁgure 2),where

the user must provide her credentials to UMAC Server

or use her external authentication sources such as Ya-

hoo, Google, Facebook to proof his identity. Upon

successful authentication, an authentication response

(in case of OpenID ﬂow) or an access token (in case of

oAuth ﬂow) is generated by UMAC Server and sent

back to the Relying Party or the Client respectively.

It is to be noted that even though the authentica-

tion action is triggered at the widget level, authenti-

cation information is pushed up to the container level

(i.e. the Mashup Providing Platform).

5.2 User Authorisation

For ﬁne grain and ﬂexible authorisation, UMAC re-

lies on both a permission-based approach and on a

role-based system, in which permissions are assigned

to roles rather than being assigned directly to users.

Roles are then assigned to users who inherit all per-

missions linked to the role. At the moment, role struc-

ture is ﬂat, i.e. we do not support hierarchical roles.

A permission is basically a tuple that expresses

what action can be executed by a service on a speciﬁc

data scope. Our model follows a Discretionary Ac-

cess Control approach (Saltzer and Schroeder, 1975)

where each piece of data is owned by exactly one

user. Permissions are deﬁned according to the speciﬁ-

cations below (expressed in Augmented Backus-Naur

Form (Crocker, 2008)):

permi ssi on = ac ti on " :" ser vice - nam e

Figure 2: UMAC Login window.

*(" :" data - s cop e )

ac ti on = ( a tomic - ac ti on *(" ," atom ic -

ac ti on )) / "*"

atomic - ac ti on = " cre at e " / " r ead " / "

up da te " / " del et e "

serv ice - name = 1*( DIGI T / ALPHA / " -"

/"\ _")

data - sco pe = 1*( DIGI T / ALPHA ) /

spec ial - data - s co pe / ( data - s co pe

*(" ," data - scop e ))

spec ial - data - s co pe = " me " / " min e " /

"*"

The special-data-scope element can take one of

AuthenticationandAuthorisationforWidget-basedApplicationsinaLoosely-coupledWebeLearningEnvironment

three special values:

• “me”: this data-scope represents the user currently

logged in, i.e. the user who issued the access re-

quest; this is typically used for the user manage-

ment to allow a user to update his own data, but

others’

• “mine”: this data-scope includes all data that is

owned by the user currently logged in;

• “*”: this data-scope includes all data; it does

not need to be speciﬁed, e.g.: the permission

action:service-name:* has exactly the same

meaning with action:service-name

The next paragraphs provide some concrete exam-

ples of expressing UMAC permissions.

The rule ”any user can read and update his in-

formation and unregister his account” can be decom-

posed as follows:

• The actions are “update”, “read” (for update and

read information) and “delete” (for unregistering

account).

• The service in used is “users”.

• The id of the target is the identiﬁer of the request-

ing user himself, which can be the real id of user

as recorded in UMAC, or the special id “me”.

The rule would then translate to:

update,read,delete:users:me.

In UMAC this is the default permission assigned

to all registered users.

Role-based rules follow a similar approach: for in-

stance, the rule “UMAC admin Role can read and up-

date any user information as well as grant and revoke

iTEC Coordinator of Belgium role to a user” includes

two different sets of permissions:

• read and update information of any user, which

translates to update,read:users:* or more

brieﬂy update,read:users

• grant and revoke belgian coordi-

nator role:, which translates to

read,delete:roles:coordinator:be (the

last be data scope represent the belgian record)

Permission to role assignments are stored in the

UMAC server database, and are managed through the

UMAC widgets; this operation can performed at run-

time, which means that the role can be deﬁned dy-

namically. Moreover, all modiﬁcation of permission/-

role assignments takes effect immediately for all users

to whom the role is assigned.

5.3 Securing a Webservice

As stated in section 4.2, backend services are pro-

tected by the UMAC ﬁlter. Implementation of the

ﬁlter takes the form of a servlet ﬁlter because most

iTEC technologies use the Java language and because

it is easy to integrate as a proxy in a non-Java envi-

ronment. As a consequence, the protected web ser-

vice provider only needs to include the declaration of

the UMAC ﬁlter in the servlet mapping section of the

web.xml conﬁguration ﬁle.

In iTEC, the UMAC ﬁlter is currently deployed at

the People and Event Directory (P&E Directory)

With this deployment, P&E Directory developers

only focus on their functional development, all autho-

risation rules being activated by a simple declaration

in its conﬁguration ﬁle. Authorisation rules of the ﬁl-

ter can be deﬁned dynamically, as shown in section

(5.4)

The UMAC ﬁlter is also used to protect the

UMAC Backend Service (REST WS box on ﬁgure 1)

5.4 Central Policy Management

Permissions, roles, role-permissions assignment and

user-role assignments are managed by the UMAC

Server; they can be updated through the UMAC wid-

gets or any other component that access the UMAC

REST WS, provided the appropriate level of privilege

is granted.

UMAC supports the super-admin role, a static

built-in role which is assigned to the UMAC system

administrator once it is installed. Since the authen-

tication and authorisation engine is based on Apache

Shiro framework(Team, 2013), most of authentication

authorisation information are deﬁned in a “shiro.ini”

ﬁle, including: built-in super admin accounts, default

permissions granted to all authenticated user, map-

ping table between service names and REST service

contexts which require authorisation and information

for initialising authentication realms (local realm to

motely with Yahoo, Google...).

The UMAC ﬁlter (section 4.2) has a similar im-

plementation except that there is no authentication

database since it relies entirely on the authentication

service of UMAC server. It only maintains an authori-

sation database which can also be conﬁgured through

REST services. The UMAC ﬁlter administrator is de-

ﬁned in “shiro.ini” at ﬁlter side; it has similar function

to super-user at UMAC server but is completely in-

dependent. This design helps the ﬁlter beneﬁt from

authentication service of UMAC server while keep-

ing a totally independent authorisation lattice under

the control of the ﬁlter administrator.

The UMAC authorisation widgets are developed

to manipulate all information related to authorisation

http://itec.eun.org/web/guest/people-and-events

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

in the iTEC Cloud. The widgets also allow an au-

thorised user to register a backend service provider

and assign authorisation rules to that service provider,

thus providing a central place to manage all authori-

sation at the iTEC components level. This allows for

a more consistent and secure approach.

5.5 Implementing Widgets and Services

Integrating a new service into UMAC is a very simple

process that consists of instantiating the UMAC ﬁlter

in front of the new service. As stated above, the ﬁl-

ter takes the form of a Java servlet, that intercepts all

service requests, authenticates them and checks au-

thorisation together with the central policy. A map-

ping between the centrally-managed iTEC roles and

the service-speciﬁc roles is deﬁned and translated into

the Shire rules.

Widgets access services through the XMLHttpRe-

quest API that allows to connect to remote sites and

services. To make the integration with UMAC as easy

as possible for widget developer, calls to services are

wrapped through calls of the UMAC library that hide

the logic of the underlying protocols. From the wid-

get perspective, invoking a service is simply a matter

of issuing a request to the service. Authentication and

token issuance is handled under the control of the li-

brary.

6 CONCLUSION & FUTURE

WORK

In this paper, we described a model and its imple-

mentation that supports centralised authentication and

authorisation in a loosely-coupled multi-layered web

application in the eLearning area. The model is open

to third-party authenticators, following the conclusion

of a survey run among potential users of the platform.

Although the individual components of the approach

themselves are not particularly innovative, yet state-

of-the-art, we advocate that the integration approach

we propose, that takes into account requirements and

behaviours of end-users, and the complexity of the en-

vironment to which it applies constitute the core of the

research. It could easily be transposed to other similar

environments.

The whole iTEC ecosystem has been used through

various cycles of piloting, involving over 2,000 class-

rooms across 19 European countries, and the UMAC

component, although almost invisible to the vast ma-

jority of users, did work properly, securing the ser-

vices from 4 main providers access through a wide

variety of widgets.

In the future, we intend to work on a stronger and

easier integration between shells and UMAC compo-

nents, which would allow further customisation of the

shell based on information received from the UMAC

system. We will explore the IMS Learning Tools In-

teroperability speciﬁcations(Wilson et al., 2011)

it seems to be a potential candidate for supporting

tools integration.

A scope should be added to tokens, to reduce the

granularity of authorisation rules and limit the poten-

tial impact of token interception, and client authenti-

cation should be added to the protocol to ensure that

only authenticated clients can obtain access tokens

from UMAC server.

REFERENCES

Aghaee, S. and Pautasso, C. (2012). An evaluation of

mashup tools based on support for heterogeneous

mashup components. In Harth, A. and Koch, N.,

editors, Current Trends in Web Engineering, volume

7059 of Lecture Notes in Computer Science, pages 1–

12. Springer Berlin Heidelberg.

Colin, J.-N. and Simon, B. (2012). D7.2: Second generation

of iTEC shells and composer. Project deliverable 7.2,

University of Namur.

Crocker, D. (2008). Augmented BNF for Syntax Speciﬁca-

tions: ABNF. RFC 5234, RFC Editor.

De Keukelaere, F., Bhola, S., Steiner, M., Chari, S.,

and Yoshihama, S. (2008). Smash: secure compo-

nent model for cross-domain mashups on unmodiﬁed

browsers. In Proceedings of the 17th international

conference on World Wide Web, WWW ’08, pages

535–544, New York, NY, USA. ACM.

Ferraiolo, D. F., Sandhu, R., Gavrila, S., Kuhn, D. R., and

Chandramouli, R. (2001). Proposed nist standard for

role-based access control. ACM Trans. Inf. Syst. Se-

cur., 4(3):224–274.

Foundation, O. (2007). Openid authentication 2.0. http:

//openid.net/developers/specs/.

Govaerts, S., Verbert, K., Dahrendorf, D., Ullrich, C.,

Schmidt, M., Werkle, M., Chatterjee, A., Nussbaumer,

A., Renzel, D., Scheffel, M., Friedrich, M., Santos,

J. L., Duval, E., and Law, E. L.-C. (2011). Towards

responsive open learning environments: the ROLE in-

teroperability framework. In Proceedings of the 6th

European conference on Technology enhanced learn-

ing: towards ubiquitous learning, EC-TEL’11, pages

125–138, Berlin, Heidelberg. Springer-Verlag.

Hardt, D. (2012). The OAuth 2.0 Authorization Framework.

RFC 6749, RFC Editor.

Saltzer, J. and Schroeder, M. (1975). The protection of in-

formation in computer systems. Proceedings of the

IEEE, 63(9):1278–1308.

http://www.imsglobal.org/toolsinteroperability2.cfm

AuthenticationandAuthorisationforWidget-basedApplicationsinaLoosely-coupledWebeLearningEnvironment

Team, A. S. (2013). Apache shiro reference documentation.

http://shiro.apache.org/reference.html.

Wilson, S., Sharples, P., Grifﬁths, D., and Popat, K. (2011).

Augmenting the vle using widget technologies. Int. J.

Technol. Enhanc. Learn., 3(1):4–20.

Zibuschka, J., Herbert, M., and Roßnagel, H. (2010).

Towards privacy-enhancing identity management in

mashup-providing platforms. In Proceedings of the

24th annual IFIP WG 11.3 working conference on

Data and applications security and privacy, DB-

Sec’10, pages 273–286, Berlin, Heidelberg. Springer-

Verlag.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies
