M3: Machine-to-Machine Management Framework

Heikki Mahkonen

, Tony Jokikyyny

, Jaime Jimenéz

and Sławomir Kukliński

Ericsson Research, Kirkkonummi, Finland

Orange Labs, Warsaw, Poland

Keywords: Machine-to-Machine, Internet of Things, Cognitive Network Management, Distributed Hash Tables,

Publish Subscribe Networking.

Abstract: The number of deployed sensor devices with Internet connection is expected to exceed 50 billion units.

Many of these devices spend most of their time in sleep mode to conserve energy. This sets new kinds of

requirements for network management, and creates the need of redesigning conventional network

management. Hence, most of the manual deployment, configuration and operation tasks need to be

automated in a scalable fashion, using protocols that can deal with the uncertainty caused by the intermittent

nature of the devices. For scalability reasons, the network management logic needs to be distributable in the

network management architecture. In this document we describe our management framework for M2M

networks. It is also shown, how the framework has been implemented as a prototype testbed. We have used

the testbed to study centralized and de-centralized M2M network management logic for different

management scenarios.

1 INTRODUCTION

In future networks the amount of users and M2M

devices are growing. This sets new requirements for

network management. Typical users do not have the

expertise to deploy and configure M2M networks by

themselves. Neither ISPs have the manpower to

manually configure all the expected Machine-to-

Machine (M2M) network deployments. For this

reason, new automated and scalable ways of

deploying and managing network equipment are

required.

This work is related to a CELTIC project, called

COgnitive network ManageMent under UNcErtainty

(COMMUNE) (COMMUNE, 2013), which studies

cognitive network management under uncertainty.

The main goal of the project is to design a network

management architecture that can distribute

programmable network management algorithms to

different parts of the network. In a typical case, these

algorithms are cognitive in nature, allowing them to

learn and adapt to changes in the environment where

they are running. We have implemented a M2M

management testbed as part of COMMUNE work.

The purpose of the testbed is to study different

network management algorithms in a real M2M

networking environment.

In this paper, we describe the current state of our

testbed and evaluate some of the implemented

network management functionality. The paper is

structured as follows. In Section 2 we give

background on M2M networks, and current work on

network management. Section 3 discusses our

cognitive M2M network management framework.

Section 4 describes the testbed implementation and

experimented scenarios. Finally, Section 5 concludes

the work.

2 BACKGROUND

2.1 M2M Networks

European Telecommunications Standards Institute

(ETSI) describes a high level architecture (TS-

102.690, 2011) for M2M networking and for

Internet of Things (IoT) services and applications. In

this architecture, a functional split can be made

between the constrained M2M devices, a

middleware layer with more logic and processing

power, and an IoT service and the application layer.

M2M devices may use multiple different

communications protocols e.g. 6LoWPAN

(Montenegro, 2007), CoAP (Z. Shelby K. H., 2013).

139

Mahkonen H., Jokikyyny T., Jimenéz J. and Kukli

nski S..

M3: Machine-to-Machine Management Framework.

DOI: 10.5220/0004806501390144

In Proceedings of the 3rd International Conference on Sensor Networks (SENSORNETS-2014), pages 139-144

ISBN: 978-989-758-001-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

The main differentiator between M2M device and

any other device is that M2M device is a battery,

memory, and CPU constrained device, serving a

certain predefined purpose. Device management for

such a device is required to enable automated

configuration and management of the service.

To connect M2M devices to Internet services

different kinds of M2M middleware services can be

used e.g. CoAP, HTTP REST (Fielding, 2000), or

CoRE Resource Directory (Z. Shelby S. K., 2013).

Management functions for the M2M middleware

need to deal with configuration of the Personal Area

Network (PAN), device identification and lookup as

well as providing semantic descriptions of devices.

Internets of Things (IoT) service platforms are

handling service and application capabilities.

Typically, it provides users a web service interface,

through which users can view M2M device data and

use M2M devices. For scalability reasons, IoT

services are often implemented into a cloud

platform, e.g. OpenStack (OpenStack, 2013).

2.2 Network Management

The Telecommunication Standardization Sector of

the International Telecommunications Union (ITU-

T) (M.3400, 2002) has defined a model and

framework for network management, called FCAPS.

This model has been widely used as a basis, when

designing network management frameworks and

protocols.

SNMP is an Internet Engineering Task Force

(IETF) standard for managing devices on IP

networks (Rose, 1991) (Case, 1990). The main

problem of using FCAPS and SNMP in M2M, is the

scalability when the volume of devices and gateways

can reach up to 50 billion units.

2.3 Self-Organizing Networks

The problems with classical network management

have already been identified about 10 years ago,

generating the concept of autonomic or self-

organized networks. We went through some of the

most interesting work; however, as we noticed in

these activities the problem of M2M and IoT

management has been ignored.

The aim of EFIPSANS FP7 project (EFIPSANS,

2009) was to expose the features in IPv6 protocols

that could be exploited or extended for the purposes

of creating autonomic networks and services. The

project implemented autonomic networks and

services through a Generic Autonomic Networking

Architecture (GANA). This approach seems to be

too complex to use it for M2M management.

The 4WARD FP7 (Ghader, 2009) project has

similar objectives as EFIPSANS, although it is not

focused on IPv6. The approach is also less

hierarchical. The idea of this In-Network

Management (INM) system is to execute

management functions on its own.

The Self-Organizing Networks (SON) solutions

for cellular networks are currently being defined in

the 3rd Generation Partnership Project (3GPP)

standardization (TS-32.500, 2013). The problem

with SON is that it is focused on plug-and-play

deployment of new 3GPP radio base stations and

therefore cannot be used in other networks.

2.4 Distributed Management

The nature of M2M calls for distributed network

management. There are already several distributed

management examples, such as (G. Goldszmidt,

1995) allowing the distribution of management, and

(Waldbusser, 2006) extending the functionality of

SNMP’s MIB. More recent work provides a

management framework for a distributed Machine-

to-machine network, using Chord, (Y. Peng, 2012)

(I. Stoica, 2001). Chord provides very efficient

lookup with a key-based routing system (P.

Pietzuch, 2007). A similar example is the SNMP

Usage for RELOAD (Gupta, 2012) that uses

RELOAD as lookup mechanism for SNMP.

One of the advantages of having decentralization

in management logic is that it enables management

while some devices are offline. Another advantage is

that distribution can provide autonomous monitoring

by delegating some of the monitoring tasks into the,

often very powerful, monitored devices themselves.

Finally, in scenarios with high churn a distributed

approach would ensure the scalability of network.

The current management systems are not

completely distributed. For example, in order to

authenticate the devices and their operations on a

distributed network, there is usually a central

enrolment server serving as a trust anchor and

Certification Authority (CA) for the whole overlay.

In this work we propose a new kind of network

management framework for M2M and IoT service

management that is autonomous and distributed. The

autonomous features minimize the required human

intervention. The distribution of the management

logic and signalling enable the framework to be

scalable even in most demanding network scenarios.

SENSORNETS2014-InternationalConferenceonSensorNetworks

140

3 M3: FRAMEWORK

In this section we describe our M3 framework, based

on the GARSON model (S. Kukliński, 2012).

GARSON is a generic paradigm that allows for

centralized and distributed management operations.

It divides the network into smaller management

domains. Moreover, it suggests a way in which the

management functions should be decomposed, what

provides profits related to reusability of components

and more systematic and simpler network

management programmability.

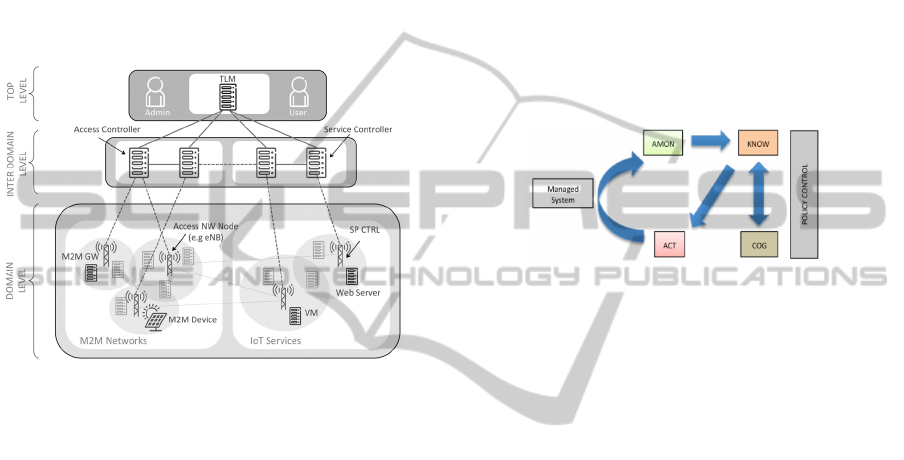

Figure 1: GARSON architecture for M2M and IoT

Network Management.

Figure 1 shows how the hierarchy proposed by

GARSON is applied to M2M management. We have

defined two management domains for M2M

networking and IoT services. Common Inter Domain

Level (IDL) can handle bot domains. In the Top

Level Management (TLM), the proxy server

provides interfaces for system administrator and

users to control the M2M management using policy

updates.

3.1 Distribution in M3 Framework

The M3 framework allows both centralized and

distributed operations simultaneously. Centralized

network management is required in some use cases

e.g. authentication, security, accounting, and

bootstrapping of distributed features. Most of the

network management should, however, be run in

distributed and autonomous fashion.

In GARSON, distribution of the management

decisions can be implemented in the intra-domain

and inter-domain levels of the architecture.

Distribution of management data and commands

between these autonomous management logics can

be done either with DHT (H. Balakrishnan, 2003) or

publish/subscribe (P. Jokela, 2009) networking.

To support the programmability and

functionality update, a suitable execution

environment is needed that can handle distribution

of execution modules. In our framework we used

e.g. Java OSGi (OSGi, 2013). Due to this approach

new management functions can be easily added or

existing updated on fly.

3.2 GARSON System Model

Figure 2 shows the general system model for

autonomic and cognitive management that we used

in our work.

Figure 2: System model of autonomic and cognitive

network management.

This model provides management system

decomposition into internal layers to provide

monitoring (AMON), knowledge based autonomic

reasoning (KNOW), cognitive reasoning (COG)

logic, and actuation (ACT) in different network

elements. In addition, the functionality of these

processes can be controlled through policies.

Components of each layer can be implemented in

different networks nodes and intra-layer

communication mechanisms are provided in order to

achieve the assumed goals:

 AMON: A programmable monitoring

functionality, needed to produce network

management input for management decision logic.

 KNOW: Knowledge base reasoning algorithms

using input from AMON and producing decisions

ACT.

 COG: Cognitive functions e.g. machine learning

required to autonomously learn from previous

actions.

 ACT: An actuation layer is required to format

reasoning decisions into management commands.

 POLICIES: Administrators can control the

management through policies.

3.3 Communication Models

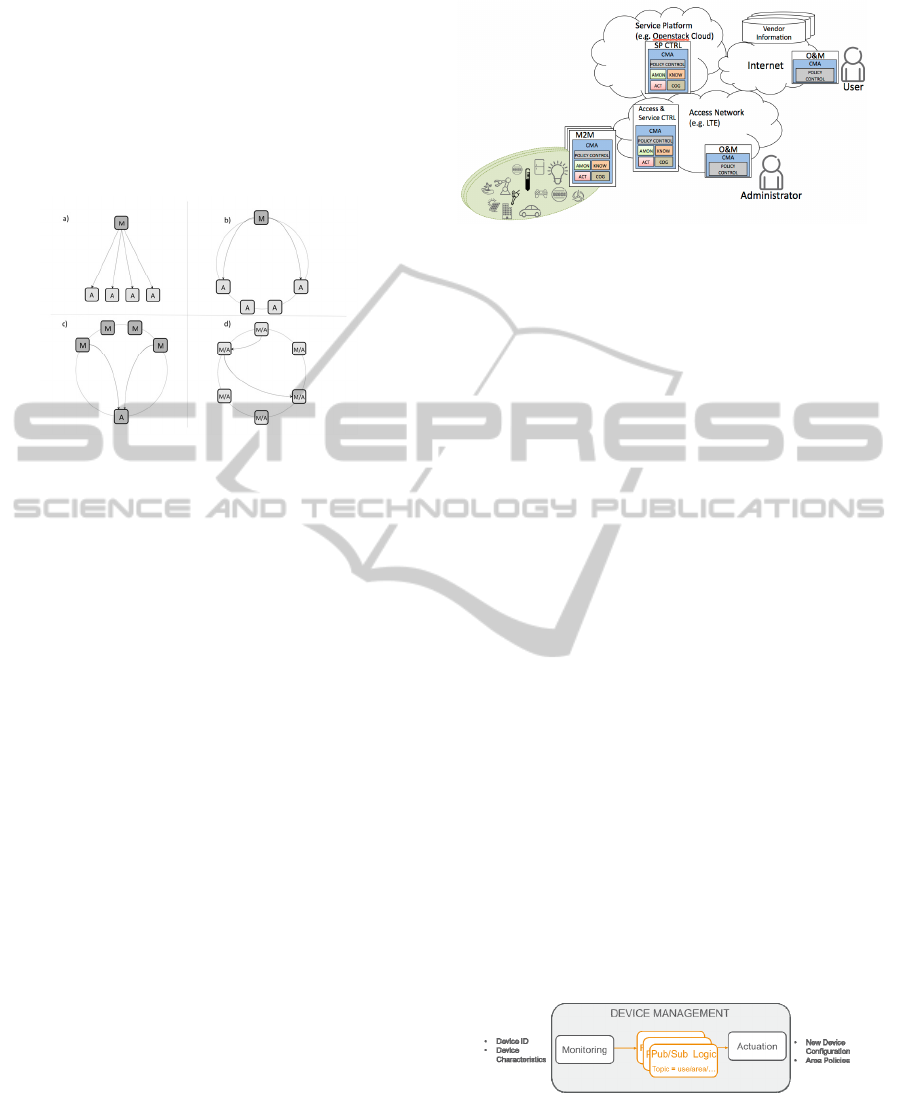

Figure 3 a) shows a traditional manager-agent

communication pattern used for centralized network

M3:Machine-to-MachineManagementFramework

141

management. In this model, agent is the managed

entity and the manager implements the management

function. To enable distribution of the management

reasoning logic and functions communication

without the need of direct connection a

publish/subscribe overlay can be used. This option

enables agent discovery via the overlay, still having

the MIB within the manager entity Figure 3 b).

Figure 3: Some possible network topologies: (a)

Centralized approach, (b) Multiple Distributed Agents, (c)

Multiple Distributed Managers, (d) Fully decentralized.

In a similar way, multiple managers can manage one

or more agents via a P2P overlay, without the need

for establishing and maintaining direct connections

between them, and having the MIB distributed only

among the managers Figure 3 c).

Finally, to solve the fully distributed

management scenario, an overlay of peers with the

functionality of both managers and agents can be

used, see Figure 3 d). In this scenario, peers will

forward and route their messages via each other. An

extra logic is required on the peers to establish the

preference, when sending commands to each node.

4 M3: TESTBED

A testbed was created to enable experimentation of

M2M network and IoT service management

algorithms. Figure 4 shows overview of the testbed

architecture.

The M2M devices in our testbed are Arduino

(Arduino, 2013) devices with various kinds of

sensors and actuators. Each device is connected to

the M2M network wirelessly.

The M2M gateway is running a Java OSGi

framework. The gateway handles M2M

communication over Digi XBee (Digi, 2013). In

addition, it connects to publish/subscribe and DHT

management frameworks.

We implemented the DHT and publish/subscribe

overlay using Hazelcast (Hazelcast, 2013) in the

Figure 4: Overview of the cognitive network management

testbed.

testbed. The Hazelcast API provides easy to use API

for DHT implementations. In addition, it provides a

Topic posting feature that was used to implement the

publish/subscribe mechanism.

The IoT service platform in the testbed is an

OpenStack cloud platform (OpenStack, 2013). In

this environment, we have a capability to instantiate

virtual machines in real time depending on our

needs.

The access controller functionality is in charge of

connecting M2M devices to management framework

by configuring them with publish/subscribe

information and bootstrapping DHT.

Communication to it is secured with Generic

Bootstrap Architecture (GBA) (TS-33.220, 2013).

4.1 Device Description Management

The device description management is needed to

identify and configure M2M. We use the

publish/subscribe channel to connect attaching M2M

devices to different management entities. The

management entities can be added and removed by

subscribing and unsubscribing them. This

architecture provides an easy way to introduce new

management functionality without updating the

software of a management server. Different users

may have different requirements for the

management of M2M devices, e.g. ISP, device

vendors, users, etc.

Figure 5: Device Description Management.

Figure 5 shows that the AMON functionality is

distributed into M2M gateways that collect device

information. The device identity that is a 64-bit

serial number is published to a well-known

SENSORNETS2014-InternationalConferenceonSensorNetworks

142

management channel that connects the information

to KNOW logic built into management entities. The

management entity maps the device identity to a

device description and publishes the information to

the channel as ACT command. The M2M gateway

that is responsible for managing the device will

receive the device description and actuate the

management commands based on it.

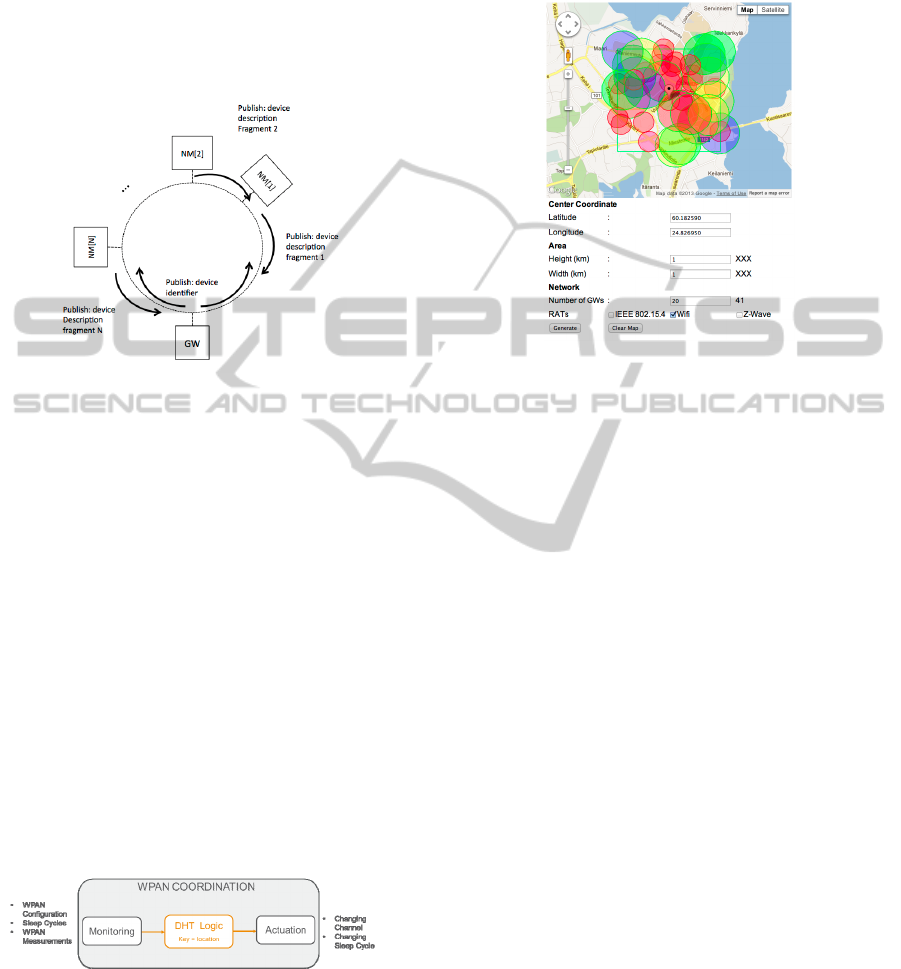

Figure 6: Network management publish subscribe channel

for device management.

As shown in Figure 6, the publish/subscribe

interface supports subscription from multiple

network management entities. These entities can

have a single network management function that

they are responsible for. If there are multiple

management functions, the gateway gets a number

of device description fragments as a reply to a

device description request. The device description is

then constructed by combining the fragments.

4.2 WPAN Coordination

We used the DHT implementation to cluster the

management information from M2M gateways that

reside in particular geographic area. This offers us a

way to distribute some management tasks as the data

required is available in the DHT e.g. WPAN

coordination.

Figure 7: Wireless Private Area Network Management.

Figure 7 shows the monitoring information we can

store into the DHT. The AMON layer is shared by

each gateway through the DHT based on

geographical location. Each gateway implements the

KNOW layer and has a capability to calculate local

optimum for their WPAN configuration as they

know the network configurations around them. The

ACT layer is implemented inside each gateway and

acts according to the output from KNOW layer.

Figure 8: M2M network emulation GUI.

In our testbed each gateway stores the WPAN

configuration into the DHT with a key that has

geographical significance. This way the stored

information also maps to a location or area. By using

the same key the gateways can collect all WPAN

information in their vicinity. We have implemented

a simple algorithm in all gateways to optimize

WPAN channel usage based on the stored

information. The algorithm constructs a coverage

map based on the information in DHT and selects

the channel based on the minimum overlap on other

WPANs.

An emulation interface was used to evaluate our

self-optimization functionality for WPANs. The

interface depicted in Figure 8, shows our physical

gateways and their coverage areas, as well as

emulated gateways and their expected coverage

areas. Channels are colour coordinated. The physical

gateways are separated in the map by the marker.

This setup allows us to study scalability issues in

M2M management.

5 CONCLUSION AND FUTURE

WORK

In this paper we described a new kind of network

management framework, designed for M2M

network and IoT service management. We also

described our current implementation of the

framework. The capability of our testbed was shown

in two example scenarios. Two ways of distributing

M3:Machine-to-MachineManagementFramework

143

the monitoring and reasoning logic for network

management were described.

We showed, that the management functions can

be distributed into different nodes and

interconnected using a publish/subscribe interface.

This enables multiple separated network managers

to correspond to a single signal that is published.

One future work item is to look into how SNMP

could use the publish/subscribe interface as its data

transport mechanism.

To enable independently running distributed

management algorithms, the input data needs to be

distributed. We can achieve distribution by using

DHT to store the monitored input data. Each

managed node can run the reasoning logic locally

and use monitoring information collected globally,

or from locations near to the entity. The coordination

of the distributed management logic, COG layer

support and policy control is left for future work.

REFERENCES

Arduino. (2013). http://www.arduino.cc. Arduino.

Case, J. F. (1990). Simple NetworkManagement Protocol

(SNMP). RFC 1157.

COMMUNE. (2013). http://projects.celticinitiative.org/

commune. CELTIC EU Project.

Digi. (2013). http://www.digi.com/xbee. Digi XBee.

EFIPSANS. (2009). Third draft of autonomic behaviours

specifications (abs) for selected diverse networking

environments. EFiPSANS EU Project.

Fielding, R. (2000). Architectural styles and the design of

network-based software architectures. http://

www.ics.uci.edu/fielding/pubs/dissertation/top.htm.

G. Goldszmidt, Y. Y. (1995). Distributed management by

delegation, in proceedings of the 15th international

conference on distributed computing, pp. 333-340.

IEEE.

Ghader, M. (2009). Network management architecture in

the future internet. Spain: ICT MobileSummit.

Gupta, N. (2012). Management of decentralized dht based

m2m network.

H. Balakrishnan, M. F. (2003). Looking up data in p2p

systems. In Communications of the ACM.

Hazelcast. (2013). http://www.hazelcast.com. Hazelcast.

I. Stoica, R. M. (2001). Chord: A scalable peer-to-peer

lookup service for internet appli-cations. in

Proceedings of SIGCOMM’01 Conference.

M.3400. (2002). M.3400 (02/200): Tmn management

functions. ITU-T.

Montenegro, G. K. (2007). Transmission of IPv6 Packets

over IEEE 802.15.4 Networks. RFC 4944 (Proposed

Standard). Updated by RFCs 6282, 6775.

OpenStack. (2013). http://www.openstack.org. OpenStack.

OSGi. (2013). Open services gateway initiative.

http://www.osgi.org.

P. Jokela, A. Z. (2009). Lipsin: Line-speed

publish/subscribe inter-networking. Barcelona, Spain:

in proceedings of SIGCOMM ’09.

P. Pietzuch, D. E. (2007). Towards a common api for

publish/subscribe. Canada: in Proceedings of

DEBS’07.

Rose, M. T. (1991). The simple book: an introduction to

management of TCP/IP-based internets. Englewood

Cliffs, NJ;: Prentice Hall, 2nd edition.

S. Kukliński, M. S. (2012). Garson: Management

performance aware approach to autonomic and

cognitive networks. IEEE MENS.

TS-102.690. (2011). Machine-to-machine communications

(m2m) functional architecture. ETSI.

TS-32.500. (2013). Telecommunication management self-

organizing networks (son) concepts and requirements.

3GPP.

TS-33.220. (2013). Generic bootstrapping architecture

(gba). 3GPP SON standardization.

Waldbusser, S. (2006). Remote Network Monitoring

Management Information Base Version 2. RFC 4502.

Y. Peng, W. H. (2012). An snmp usage for reload. IETF

draft.

Z. Shelby, K. H. (2013). Constrained application protocol

(coap). IETF draft.

Z. Shelby, S. K. (2013). Core resource directory. IETF

draft.

SENSORNETS2014-InternationalConferenceonSensorNetworks

144
