Enhance Text Recognition by Image Pre-Processing to Facilitate
Library Services by Mobile Devices
Chuen-Min Huang, Yi-Ling Chuang, Rih-Wei Chang and Ya-Yun Chen
Department of Information Management, National Yunlin University of Science and Technology,
123, Sec. 3 University Road, Douliou, Yunlin, Taiwan
Keywords: Image Pre-processing, Text Recognition, Optical Character Recognition (OCR), M-Library Services,
Mobile Devices.
Abstract: Facing the popularity of web searching, libraries continuously invest in the provision of online searching
and refurnish physical facilities to attract users during the past decades. In this study, we conducted a
technical feasibility study to facilitate library services by applying a novel image pre-processing technique
to enhance performance of OCR via mobile devices. In the binarization stage, a grayscale image is usually
assigned a global threshold value to be binary, while this will not be suitable for some scenarios, such as
non-uniform lightness and complicated background. Instead of segregating the grayscale image into many
regions like other studies, our approach only partitioned an image into three equal-sized horizontal segments
to identify the local threshold value of each segment and then restored the three segments back to the
original state. The experimental results illustrate that the proposed method efficiently and effectively
improves the text recognition. The accuracy rate was raised from 17.7% to 72.05% of all test images.
Without counting eight unrecognizable images, the average accuracy rates of our treatment can reach
90.06%. To compare with other studies we conducted another evaluation to examine the validity of our
approach. The result showed that our treatment outperforms most of the other studies and the performance
achieves 74.6% in precision and 80.2% in the recall.We are confident that this design will not only bring
users more convenience in using libraries but help library staff and businessmen to manage the status of
books.
1 INTRODUCTION
Mary Meeker, an expert on network analysis,
unveiled her annual Internet Trends report for
2013 showing robust growth in the number of
broadband and mobile users. The mobile usage
continued to grow, making up about 15 percent of
all Internet traffic, compared with 10 percent a year
before(Lawler, 2013). In addition to the growing
penetration of mobile devices, the reduced price of it
has made a lot of demands.
Optical Character Recognition (OCR) is
frequently used to identify the text on books or in
documents(Mori et al., 1992). With the
explosion of mobile devices, the need of text
recognition in an image, such as signs or posters is
continuously rising(Minetto et al., 2011). Recently,
text recognition via mobile devices has received a
great deal of attention from many researchers. If text
could be directly recognized from an embedded
camera, it would lead to a diversity of new
applications and yield enormous benefits for users.
For example, as a user simply snaps a photo of a
company signboard the imaging connection can
instantly recognize the name and return relevant
information about the company.
Many terms have been used to describe images,
including pictures, graphics, drawings, photographs,
digitized data, and visual resources. Here, an image
is defined as a pictorial representation that conveys
visual or abstract properties. An image usually
consists of background context and foreground
texts. Due to the variety of background components,
for example, different kind of color, texture, or
brightness in an image, text visibility is hence
seriously affected. Notwithstanding the prominent
improvement of the OCR technique at the present
stage, there are still problems that would affect the
result of recognition including the complicated
background and non-uniform lightness situations
453
Huang C., Chuang Y., Chang R. and Chen Y..
Enhance Text Recognition by Image Pre-Processing to Facilitate Library Services by Mobile Devices.
DOI: 10.5220/0004818504530460
In Proceedings of the 6th International Conference on Agents and Artificial Intelligence (ICAART-2014), pages 453-460
ISBN: 978-989-758-015-4
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
(Liu and Samarabandu, 2006, Chowdhury et al.,
2009, Kim et al., 2009). Some studies utilized
machine-learning based method or edge detection
approach to solve the problems, while those methods
mainly work on the images of text with the nearly
uniform background. (Raza et al., 2001, Shutao
and Kwok, 2004, Ye et al., 2005). We considered
text extraction from natural scene images shall be a
challenging problem. To tackle the problem, we
focused on the image pre-processing to deal with the
stains and unwanted objects taken from the shooting.
Different from general procedure of segregating the
grayscale image into many regions, our approach
partitioned an image into three equal-sized
horizontal segments to identify the local threshold
value of each segment. An adaptive threshold
operation was proposed to deal with the problem of
non-uniform lightness. Further, we applied the
conditional connected-component to discard the
unimportant or redundant background via condition
setting. The result showed that the accuracy rate of
recognition was raised and our treatment
outperforms most of the other studies.
To test the feasibility of our experiment in a real
setting, we gained a permission from the library of
National Yunlin University of Science and
Technology in Taiwan to access their online catalog
via Z39.50 protocol from October 1
st
to December
31, 2011. Our system successfully connected to
libraries when the user simply pressed the Internet
connected photo button from their mobile devices to
capture the title from a physical book or a poster.
The result was displayed by indicating the location
of the book in the library or the e-book stores if the
book does not exist in the library. It is expected to
increase the usability of library services, furthermore,
promote the Internet marketing with our design.
The remaining part of the paper is outlined as
follows. Section 2 describes and reviews the
techniques applied in this study. In section 3, the
research methods and experimental results are
illustrated. Conclusions and future work are
presented in section 4.
2 APPLIED TECHNOLOGY
2.1 Image Binarization
One critical perspective of image pre-processing is
the noise filtering. To reduce noise in an image, a
couple of studies have applied in the smoothing
filter to solve the geometric distortion (Pei-Jun and
Effendi, 2010). There are two common types of
filter: one is “smoothing filter” and the other is
“sharpening filter”. The principle of smoothing filter
is to average the grayscale values of mask operation.
Then, the average value will be a substitute for all
the corresponding pixels to eliminate noise.
Sharpening filter functions as image sharpening and
contrast enhancement. The major purpose of image
sharpening is to magnify edges or regions,
consequently the contour of an image can be more
significant after sharpening.
There are many kinds of filters, such as, low-
pass, median filter, or high-pass. Low-pass filters
and median filters are used most often for noise
suppression or smoothing, while high-pass filters are
typically used for image enhancement (Taisheng et
al., 2012). after performing contrast enhancement.
We did not adopt high-pass filters because in high
brightness situation,
the inner details in an image
will totally disappear.
Median filter has the merit of preserving edges as
wel as removing noise, while the computational
effort on calculating the median of each window is
huge. For mobile devices, the efficiency of
calculation is a critical factor in determining how
fast the application can run. For this reason we
adopted the low-pass filter in the experiment.
2.2 Object Identification
Connected-component labeling is often used to
detect the similar set of intensity values of connected
regions in an image (Marqués and Vilaplana, 2002).
The connected components can be labelled to
identify objects and describe their location, height,

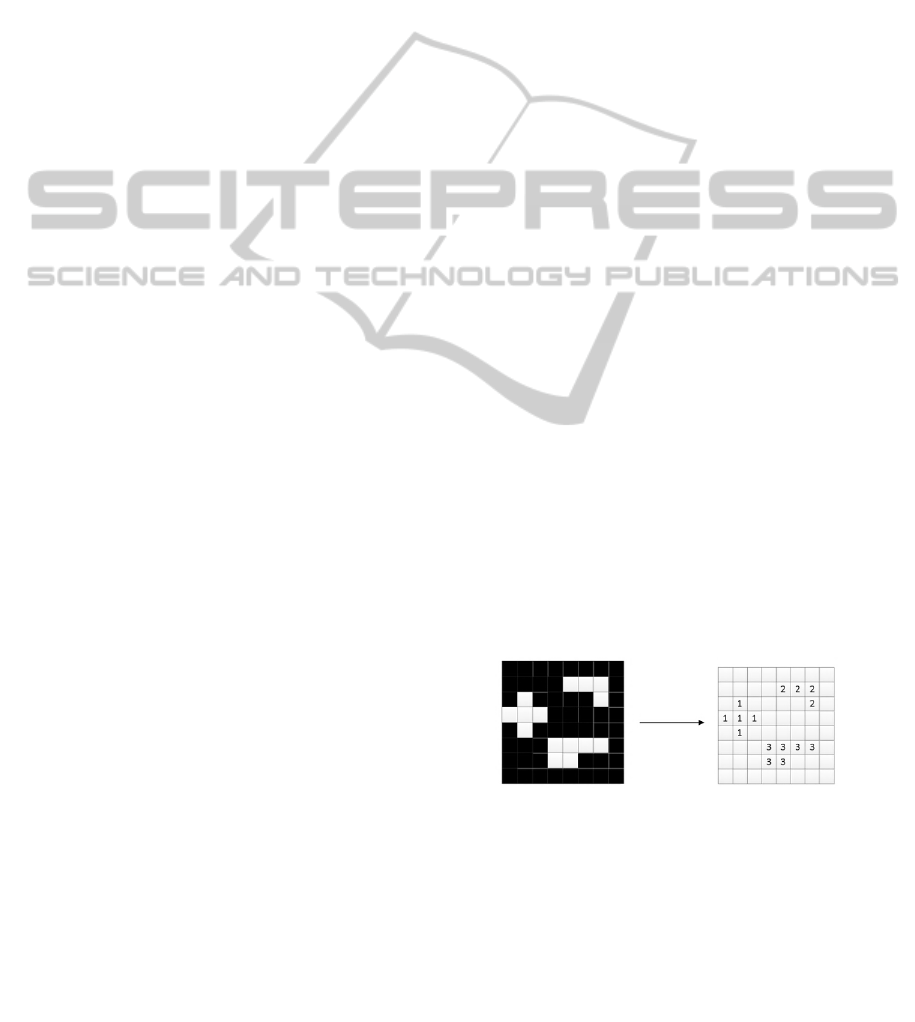

width, or density information. Figure 1 displays the
connected-component labeling. For a binary image,
we can label the white pixels with a unique symbol
to find interesting objects in an image.
Figure 1: Connected-component labeling.
Mathematical morphology proposed by G. Matheron
and J. Serra in 1989 (Besag, 1989) is used to extract
the shape feature of a graph and reduce noise. It
includes four operators: dilation, erosion, open, and
close. Dilation and open operators are usually used
to launch the edge enhancement and fill the broken
pixel. Erosion and closure operators are frequently
ICAART2014-InternationalConferenceonAgentsandArtificialIntelligence
454
used to carry out the noise reduction and erase the
weak edge. In the operation of morphology, it will
firstly define a structure element as a small set or a
sub-image, and its size is often set as a 3*3 mask

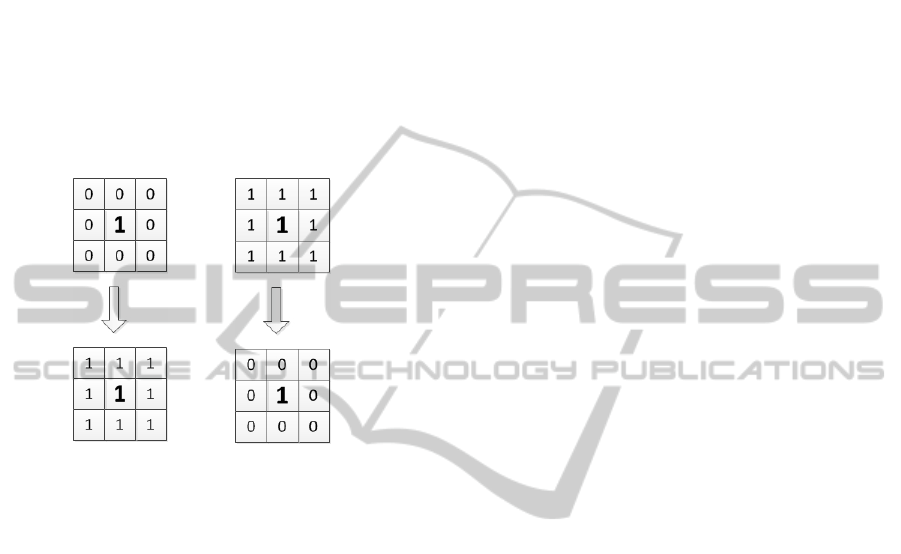

(Shuqing and Qiaoning, 2006). Figure 2 (a)
describes the process of dilation. If the center pixel
is white, the neighbors will change into white.
Figure 2 (b) describes the process of erosion. If the
center pixel is white, the neighbors will change into
black. During the operation, if it is open it will
perform the dilation first and then erosion. On the
other hand, if it is close, it will firstly perform the
erosion and then dilation.
(a) (b)
Figure 2: Dilation and Erosion of morphology.
2.3 Optical Character Recognition
Many applications about OCR have been proposed
in 1970s. OCR software was first used by libraries
for historic newspaper digitization projects in the
early 1990's . The most successful application of
OCR is applied in the fields of pattern recognition,
artificial intelligence and computer vision. Even
though digital cameras are fast, versatile, mobile,
and convenient, they also suffer some drawbacks,
such as geometrical distortions (e.g., when
photographing a thick volume), focus loss and
uneven document lighting(Bieniecki et al., 2007).
Notwithstanding the progress of OCR technique at
the present stage, the ways to improve the accuracy
rate of recognition are still an intriguing issue to
explore (Holley, 2009).
2.4 Mobile Library
With the trend toward digital libraries, paperless is
one of the ways of resource conservation, for
example, “The Library without a Roof Project”
initiated by South Alabama University Library in
November, 1993
was the first systematic effort to
connect a PDA to library online public access
catalogs, commercial online databases, and the
Internet (Foster, 1995). It has been well recognized
and implemented in many aspects (Rong-Yuh, 2002).
In recent years, the rapid development of mobile
devices provides a good platform for the expansion
of library services for the readers. A recent
investigation of how library users access and interact
with information when they are on the move found
that the most needed services include opening hours,
contact information, location map, library catalog,
and borrowing records (Mills, 2010). Therefore,
using WAP Web technology to design and
implement a more convenient mobile library system
become possible.
3 EXPERIMENT AND RESULT
To test the feasibility of our experiment in a real
setting, we gained a permission from the library of
National Yunlin University of Science and
Technology in Taiwan to access their online catalog
via Z39.50 protocol from October 1
st
to December
31, 2011 and obtained part of the layout of the floor

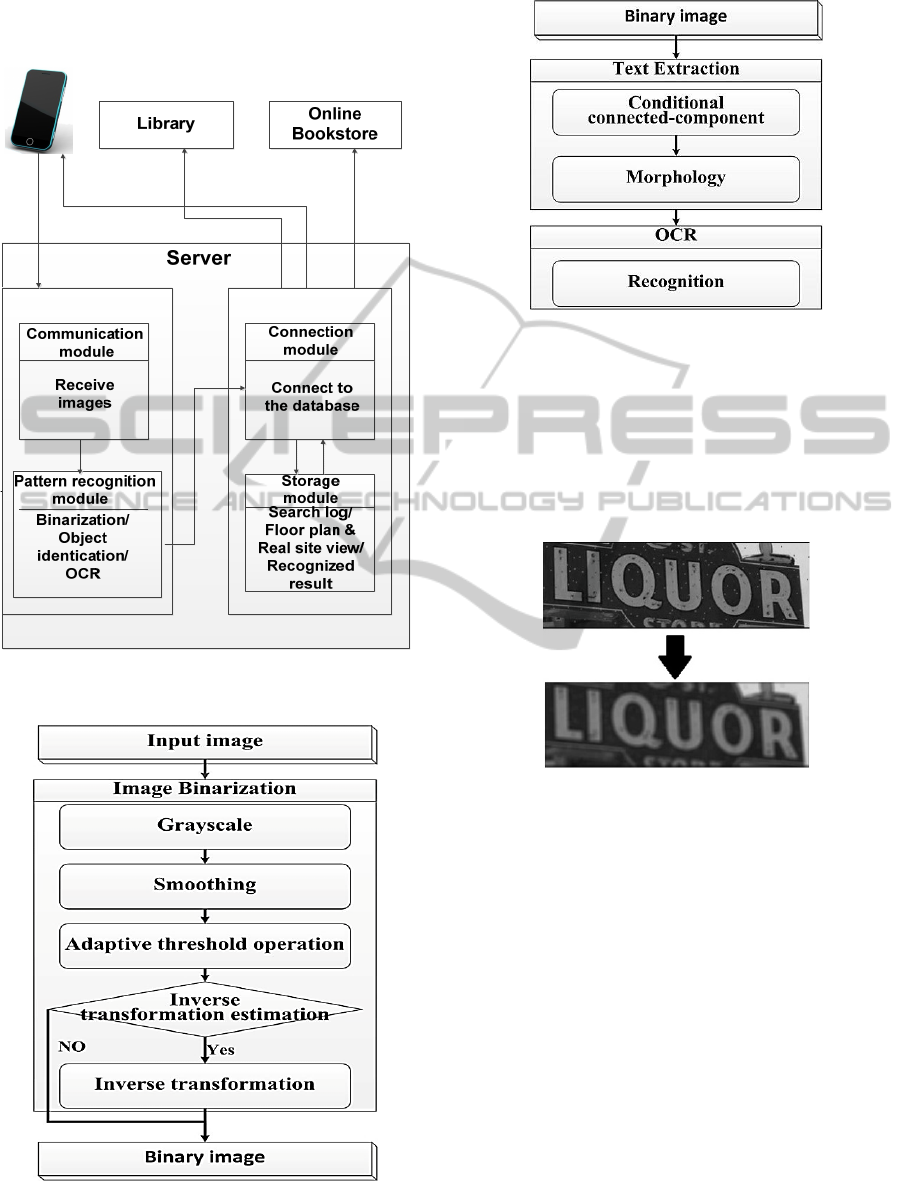

plan and bookshelves of the libary. Figure 3 shows
the system architecture of this study. Special
attention will be paid on image pre-processing in the
pattern recognition module.
3.1 Communication Module
This model is activated as users press an “upload”
button to submit images from their mobile devices.
3.2 Pattern Recognition Module
Upon receiving the image from communication
module, the color image will be converted into
grayscale to reduce the computational complexity
as well as memory requirements. After that, a series
of steps including image binarization as Figure 4 and
text extraction as Figure 5 will be processed. The
OCR dynamic link library designed by Microsoft
Office Document Imaging was applied in this
experiment.
3.2.1 Grayscale Transformation
To convert a grayscale image into binary, the
original image will be applied a threshold value T as
the cutting point, then change the pixels into black
or white based on the grayscale value of each pixel
as (1).
EnhanceTextRecognitionbyImagePre-ProcessingtoFacilitateLibraryServicesbyMobileDevices
455
PixelColor
,
,
(1)
Figure 3: System architecture.
Figure 4: Image binarization.
Figure 5: Text extraction.
3.2.2 Smoothing
Due to impaired words usually share the same
texture with its background context, we conducted
the optical low-pass filter (OLPF) to reduce the
noise. LPF will blur the broken characters as Figure
5.
Figure 6: Image smoothing.
3.2.3 Adaptive Threshold Operation
Due to the adoption of a global threshold value to be
binary may not be suitable for some scenarios, such
as non-uniform lightness and complicated
background. In (Kaur, 2013), a face detection
algorithm dynamically changes the threshold to
distinguish different faces and proved it a better
grayscale transformation method.
Different from their studies, our research used
the concept of divide and merge to identify local
thresholds. Instead of segregating the gray image
into many regions (Jian et al., 2009), our approach
only partitioned an image into three equal-sized
horizontal segments (top, middle, and bottom as
Figure 6) to identify the local threshold value of
each segment.
ICAART2014-InternationalConferenceonAgentsandArtificialIntelligence
456
3.2.4 Inverse Transformation
The stage is to standardize binarization template to
have a black background and white foreground.
Inverse transformation (IT) estimation is conducted
if the result happened to be opposite. If the total
number of pixels in white is greater than black, we
will conduct the transformation estimation as (2)(2).
Where′
indicates the value of pixels after IT,
and
is the original value. After processing, the
three segments will be restored to its original state.
0,
255
255,
0
(2)
Figure 7: Three-segmented image.
3.2.5 Conditional Connected Component
In many cases, the pixels in white (S
1
) may span two
to three segments, hence there are three kinds of
merging circumstances stated as follows:
S
1
is the top segment: (1) top segment only (2)
the merge of top and middle segments (3) the
merge of all three segments.
S
1
is the bottom segment: (1) bottom segment
only (2) the merge of the bottom and middle
segments (3) the merge of all three segments.
S
1
is the middle segment: (1) middle segment
only (2) the merge of top and middle segments
(4) the merge of the middle and bottom
segments (3) the merge of all three segments.
To determine whether the identified components
need to be merged and to what extent, we configured
a set of formulas (5%∗
∗T
, 15%∗
∗T
,
25%∗
∗T
, 35%∗
∗T
, 45%∗
∗T
) with
10, 20, 30, and 40 images to test the difference
before and after the merging, respectively. Ti
represents the total number of pixels of image i.
Using the formula 5%∗
∗T
, we gain the least
number of connected components after segment
combination whereas it also neglects valid text
region. On the other hand, using the formula
45%∗
∗T
, it makes little effect of the change of
the components before and after the segment
combination. Finally we identified 15%
T
as
the optimal threshold to process the connected
components.
After the above processing, we successfully
captured the text region. To eliminate invalid objects
(too large or too small, width is far longer than the
height, etc.), we devised three filtering rules as (3),
(4), (5) based on the shape of fonts. Any object
satisfying any one of the following criteria is
eliminated.
Fontheight Fontwidth 250
(3)
0.5
1.8
(4)
0.5
1.5
(5)
3.2.6 Morphological Enhancements
In this part, we executed the erosion and dilation to
cope with the non-textual noise. Erosion was
conducted to reduce image noise and magnified the
difference between foreground texts and
background context. Due to the side effect of
erosion may shrink the size of the connected
components, we resumed it by the way of dilation.
After executing morphological enhancement, we
successfully erased the unnecessary stains and
made the texts clearer as Figure 8. The purified texts
are ready to process OCR.
Figure 8: Morphology execution.
3.3 Connection & Storage Module
In this phase, we built the floor plan with a 3D
virtual reality of the library presented as Figure 9.
Google SketchUp was the tool to model the graph. A
personal account database was created to record
users’ query history. It was designed to reduce the
query time by referring to the query logs. We also
provided a book order link to a price comparison
webpage. In addition, users can also select the “book
EnhanceTextRecognitionbyImagePre-ProcessingtoFacilitateLibraryServicesbyMobileDevices
457
recommendation” function, if the needed book does
not exist in the library.

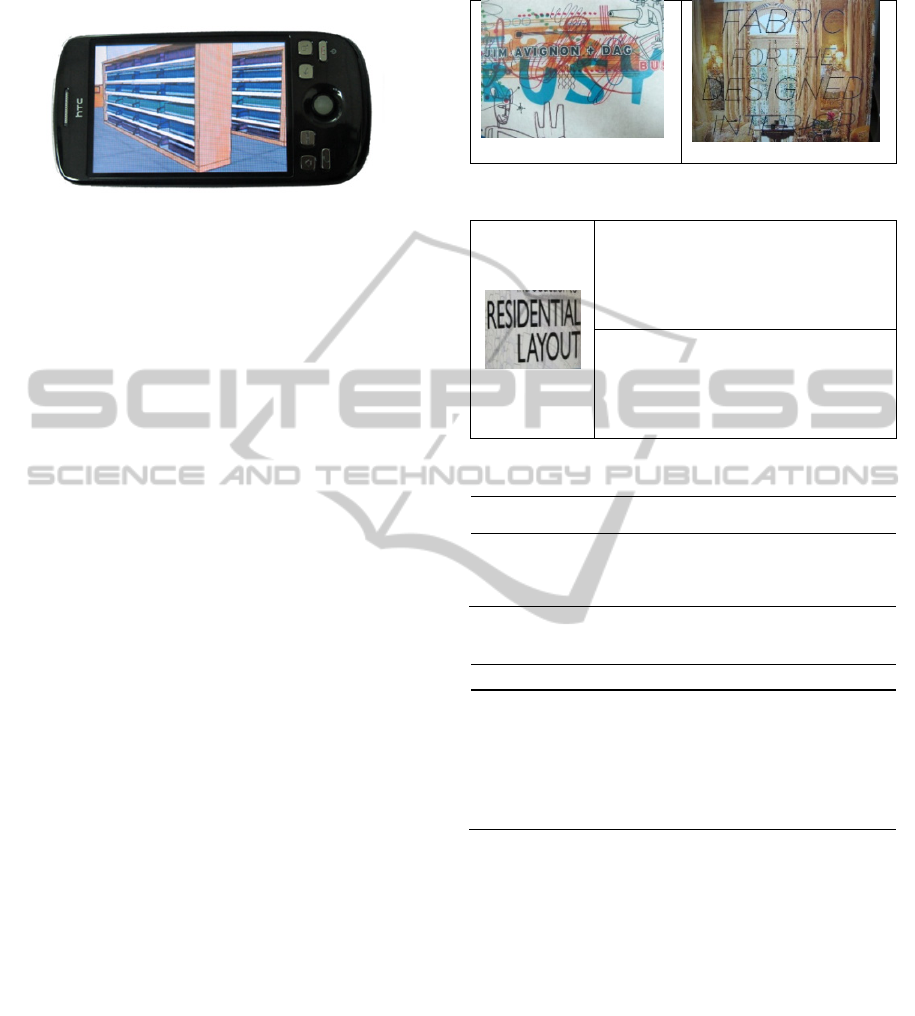

Figure 9: 3D virtual reality.
3.4 Evaluation and Result Analysis
Forty book titles were used as the test cases. The
accuracy rate is defined as the proportion of
recognized characters actually correct. Results
showed that except for 8 extremely complex images
as Table 1, our treatment successfully identified a
part or full text. Table 2 displays a snapshot of the
text recognition result with and without the
treatment. The average accuracy rates of text
recognition are presented in Table 3. The average
accuracy rate was raised from 17.7% to 72.05% of
all test images with the treatment. Without counting
the eight unrecognizable images, the average
accuracy rates of our treatment can reach 90.06%.
To compare with other studies (Wai-Lin and Chi-
Man, 2011, Kim et al., 2004), we conducted another
evaluation to examine the validity of our approach.
We selected 90 images with the size of 640 * 480
from the ICDAR2003 Robust Reading Competition.
The deliberately selected samples contain the
features including different font-size, non-uniform
illumination, low contrast, or complicated
background. In the second evaluation, we adopted
precision and recall as the measurement criteria. A
total of 895 text objects was captured from the 90
images. Precision measures the proportion of
recognized text objects actually correct, whereas
recall measures the proportion of correct objects
actually recognized. Table 4 displays the
performance comparison. Our treatment outperforms
most of the other studies and the performance
achieves 74.6% in precision and 80.2% in the recall.
Through the test cases, we are confident that a
careful implementation of image pre-processing is
essential to enhance the accuracy rate of text
recognition of nature scene images.
Table 1: Complex images -2 samples.
Complicated context
Obscure texts
Table 2: Result of text recognition – 1 sample.
Without treatment:
RES_D____ LAYOUI
Accuracy rate: 52.94%
With treatment:
RESIDENTIAL LAYOUT
Accuracy rate: 100%
Table 3 Average accuracy rates.
Treatment Yes No
40 book titles
72.05% 17.7%
32 book titles
90.06% 22.13%
Table 4: A comparison with other studies.
P R
Ashida
0.55 0.46
HW David
0.44 0.46
Wolf
0.3 0.44
Chan
0.58 0.59
Kim
0.64 0.83
Our approach
0.75 0.80
* the digits are the rounded value.
4 CONCLUSIONS
In this study, we conducted a series of experiments
of image pre-processing to deal with the unwanted
objects taken from the shooting. Different from
general procedure of segregating the grayscale
image into many regions, our approach partitioned
an image into three equal-sized horizontal segments
to identify the local threshold value of each segment.
An adaptive threshold operation was proposed to
deal with the problem of uneven lightness. Further,
we applied the conditional connected-component
and morphological enhancement to identify
ICAART2014-InternationalConferenceonAgentsandArtificialIntelligence
458
components and cope with the non-textual noise.
We used the library of National Yunlin
University of Science and Technology in Taiwan as
a testing site to apply this technique for searching
books via mobile devices. One of the main
advantages of this mechanism is that none the
existence of a standard database is needed. So it can
be applied to different types of images. The results
illustrate that the proposed method effectively
improves the text recognition. The accuracy rate was
raised from 17.7% to over 72.05%. Without
counting the eight unrecognizable images, the
average accuracy rates of our treatment can reach
90.06%.
To compare with other studies we conducted
another evaluation to examine the validity of our
approach. The result shows that our treatment
outperforms most of the other studies and the
performance achieves 74.6% in precision and 80.2%
in the recall. Our future work will focus on
optimizing the current recognition results by
exploiting new approaches for segmentation and
new types of features for better noise attenuation and
correction of text skew orientation. We are confident
that this design will not only bring users more
convenience in using libraries but help library staff
and businessmen to manage the status of books.
ACKNOWLEDGEMENTS
This research is partly supported by National
Science Council, Taiwan, R.O.C. under grant
number NSC 101-2221-E-224-056.
REFERENCES
Besag, J. 1989. Digital Image Processing: Toward
Bayesian Image Analysis. Journal Of Applied
Statistics, 16, 395-407.
Bieniecki, W., Grabowski, S. & Rozenberg, W. 2007.
Image Preprocessing For Improving Ocr Accuracy.
International Conference On Perspective Technologies
And Methods In Mems Design.
Chowdhury, S. P., Dhar, S., Das, A. K., Chanda, B. &
Mcmenemy, K. Robust Extraction Of Text From
Camera Images. Proceedings Of The 10th
International Conference On Document Analysis And
Recognition, 2009 Barcelona, Spain. 1635445: Ieee
Computer Society, 1280-1284.
Foster, C. 1995. Pdas And The Library Without A Roof.
Journal Of Computing In Higher Education, 7, 85-93.
Holley, R. 2009. How Good Can It Get? Analysing And
Improving Ocr Accuracy In Large Scale Historic
Newspaper Digitisation Programs. D-Lib Magazine.
Jian, Y., Yi, Z., Kok-Kiong, T. & Tong-Heng, L. Text
Extraction From Images Captured Via Mobile And
Digital Devices. Proceedings Of The Ieee/Asme
International Conference On Advanced Intelligent
Mechatronics(Aim), 14-17 July 2009. 566-571.
Kaur, A. 2013. Mingle Face Detection Using Adaptive
Thresholding And Hybrid Median Filter. International
Journal Of Computer Applications In Technology, 70,
13-17.
Kim, E., Lee, S. & Kim, J. 2009. Scene Text Extraction
Using Focus Of Mobile Camera. The 10th
International Conference On Document Analysis And
Recognition.
Kim, K. C., Byun, H. R., Song, Y. J., Choi, Y. W., Chi, S.
Y., Kim, K. K. & Chung, Y. K. Scene Text Extraction
In Natural Scene Images Using Hierarchical Feature
Combining And Verification. Proceedings Of The
17th International Conference On Pattern
Recognition(Icpr) 23-26 Aug 2004. 679-682.
Lawler, R. 2013. Mary Meeker's 2013 Internet Trends:
Mobile Makes Up 15% Of All Internet Traffic, With
1.5b Users Worldwide [Online]. Available:
Http://Techcrunch.Com/2013/05/29/Mary-Meeker-
2013-Internet-Trends/.
Liu, X. & Samarabandu, J. Multiscale Edge-Based Text
Extraction From Complex Images. Proceedings Of
The Ieee International Conference On Multimedia And
Expo, 9-12 July 2006 Toronto,Ontario,Canada. 1721-
1724.
Marqués, F. & Vilaplana, V. 2002. Face Segmentation
And Tracking Based On Connected Operators And
Partition Projection. Pattern Recognition, 35, 601-614.
Mills, K. 2010. M-Libraries: Information Use On The
Move. In: Neeham, G. & Ally, M. (Eds.) M-Libraries
2: A Virtual Library In Everyone's Pocket. London:
Facet Publishi.
Minetto, R., Thome, N., Cord, M., Stolfi, J., Precioso, F.,
Guyomard, J. & Leite, N. J. 2011. Text Detection And
Recognition In Urban Scenes. Ieee International
Conference On Computer Vision Workshops (Iccv
Workshops).
Mori, S., Suen, C. Y. & Yamamoto, K. 1992. Historical
Review Of Ocr Research And Development.
Proceedings Of The Ieee, 80, 1029-1058.
Pei-Jun, L. & Effendi 2010. Adaptive Edge-Oriented
Depth Image Smoothing Approach For Depth Image
Based Rendering. Ieee International Symposium On
Broadband Multimedia Systems And Broadcasting
(Bmsb).
Raza, M. U., Ullah, A., Ghori, K. M. & Haider, S. Text
Extraction Using Artificial Neural Networks.
Proceedings Of The International Conference On
Networked Computing And Advanced Information
Management, June 2001 Gyeongju, Gyeongsangbuk-
Do, South Korea. 134-137.
EnhanceTextRecognitionbyImagePre-ProcessingtoFacilitateLibraryServicesbyMobileDevices
459
Rong-Yuh, H. The Design And Implementation Of Mobile
Navigation System For The Digital Libraries.
Proceedings Of The Sixth International Conference On
Information Visualisation 2002. 65-69.
Shuqing, Z. & Qiaoning, Y. Microarray Images
Processing Based On Mathematical Morphology.
Proceedings Of The 2006 8th International Conference
On Signal Processing, 16-20 2006 2006.
Shutao, L. & Kwok, J. T. Text Extraction Using Edge
Detection And Morphological Dilation. Proceedings
Of The International Symposium On Intelligent
Multimedia, Video And Speech Processing, 20-22 Oct
2004. 330-333.
Taisheng, L., Xuan, Z. & Chongrong, L. 2012. An
Improved Adaptive Image Filter For Edge And Detail
Information Preservation. International Conference On
Systems And Informatics (Icsai).
Wai-Lin, C. & Chi-Man, P. Robust Character Recognition
Using Connected-Component Extraction.
Proceedings Of The Seventh International Conference
On Intelligent Information Hiding And Multimedia
Signal Processing (Iih-Msp), 14-16 Oct 2011. 310-
313.
Ye, Q., Huang, Q., Gao, W. & Zhao, D. 2005. Fast And
Robust Text Detection In Images And Video Frames.
Image Vision Comput, 23, 565-576.
ICAART2014-InternationalConferenceonAgentsandArtificialIntelligence
460
