An Application to Interact with 3D Models Reconstructed from Medical

Images

F´elix Paulano, Juan J. Jim´enez and Rub´en Pulido

Computer Science Department, University of Ja´en, Ja´en, Spain

Keywords:

3D Interaction, Stereoscopy, CT Scans, Model Reconstruction.

Abstract:

Although the reconstruction of 3D models from medical images is not an easy task, there are many algorithms

to perform it. However, the reconstructed models are usually large, have a lot of outliers and have not a correct

topology. To interact with these models, the methods must be fast and robust. In this paper, we present an

application that enables the interaction with models reconstructed from medical images. The application uses

Marching Cubes to generate triangle soups from the medical scans. Then, the user can deﬁne models by

selecting sets of triangles. Once the models have been deﬁned, the application allows to interact with them.

In addition, a detailed collision detection is calculated between the models in the scene not only to avoid that

models in the scene collide, but also to determine which triangles are overlapping. In addition, the calculation

of distances and nearest points provides visual aid when the user is interacting with the models. Finally, the

Leonar3Do system have been incorporated to improve the interaction and to provide stereo visualization. The

presented application can be used in the ﬁeld of education since users can manipulate individual body parts

to examine them. Moreover, the application can be utilized in the preparation of an intervention or even as a

guide for it, since it enables the utilization of models reconstructed from real medical scans.

1 INTRODUCTION

Nowadays, it is very common to work with polygonal

models of the human body. In most cases, these mod-

els are generated from scans of real patients, since it

allows to customize the simulation. However, the re-

construction of 3D models from medical images is not

an easy task. Usually, the reconstructed geometry is

not topologically correct or even topological informa-

tion is not available. This geometry is huge and has

a lot of outliers in most cases. In addition, the differ-

ent models represented by the reconstructed geometry

are not isolated or labelled. For all these reasons, it is

necessary to develop tools that allow to interact with

the reconstructed geometry. These tools should in-

clude, among others, visualization, picking, area se-

lection and collision detection methods.(der Bergen,

2003)(Jim´enez et al., 2006).

Due to the fact that the different models repre-

sented by the reconstructed geometry are neither iso-

lated nor labelled, a tool that allows to select pieces

of geometry and deﬁne models from them is neces-

sary. This allows the user to interact with the models

independently. In addition, this type of tools helps

to clean from the scene the not interesting geome-

try. Once the models are deﬁned, picking methods

are needed. Since this type of methods allows to se-

lect the model to interact with, they enable the inter-

action with a model independently from the others.

The integration of a detailed collision detection pro-

vides visual aid during the interaction and allows to

detect which models are colliding or even the collid-

ing zones. This information is useful to avoid that

two models collide and then generate a response to

the collision. Moreover, it also can be helpful to in-

form the user that the models collide, hence the user

can act accordingly during the interaction. If the col-

lision detection is not calculated, the user can ﬁnd dif-

ﬁculties when placing the models is the scene. Since

time is a very important factor in medicine, stereo dis-

play and 3D interaction systems can be integrated to

improve the usability of the application and reduce

the usage time. Because of the complexity of the

reconstructed models, all these techniques and sys-

tems must be fast and robust. In recent years sev-

eral approaches to reconstruct 3D surfaces from med-

ical images have been presented. Some techniques

have been adapted from popular methods in compu-

tational geometry such as Delaunay triangulation and

Voronoi diagram (Lv et al., 2009). Other techniques

224

Paulano F., Jiménez J. and Pulido R..

An Application to Interact with 3D Models Reconstructed from Medical Images.

DOI: 10.5220/0004834902240229

In Proceedings of the 9th International Conference on Computer Vision Theory and Applications (VISAPP-2014), pages 224-229

ISBN: 978-989-758-009-3

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

are based on Hierarchical Space Subdivision Schemes

(Boubekeur et al., 2006). In (Sharf et al., 2007) pre-

sented a method to interactively reconstruct surfaces

by using a prior distribution. On the other hand, the

extraction of contours, using a hierarchical spatial de-

composition, can be complemented with a table of

patterns to triangulate these contours (Pulido et al.,

2012). Applications that are usually used to work

with medical images are limited to 3D visualization

(Bhanirantka and Demange, 2002) and they usually

only allow to rotate the camera and to remove outliers

if it is necessary. In (Rautek et al., 2007), authors, in-

stead of using the traditional transfer function speci-

ﬁcation, use semantic layers to deﬁne the mapping of

volumetric attributes to a speciﬁc visual style. This

mapping is speciﬁed by rules which are evaluated

with fuzzy logic arithmetic. There are several toolk-

its which enable the manipulation of models recon-

structed from medical scans. ITK-SNAP (Yushkevich

et al., 2006) is a application that allows to interac-

tively segment structures from medical scans. MITK

(Wolf et al., 2004) combines VTK and ITK to provide

interaction with models reconstructed from medical

scans. Most of these methods and tools work with

volumetric models and do not allow to separate and

classify parts of the model and interact with them.

Thus, it could be useful to develop an application that

lets the user interact with a model individually. In

addition, 3D motion tracking devices could allow to

improve the user experience and could make the ap-

plication easy to use.

In this paper, we present an application that en-

ables the examination of 3D models, which are gen-

erated from medical images, in detail. This can be

used in the ﬁeld of education since users can trans-

late and rotate individual body parts to examine them.

Moreover, proximity queries and collision detection

methods can help the user to place body parts in their

correct position. On the other hand, the application

can be used in the preparation of an intervention or

even as a guide for it, since it allows to work with

models reconstructed from real medical images. For

all the above reasons, the application can be used to

improve the visualization and thus the diagnosis.

2 OVERVIEW OF THE

APPLICATION

The graphic user interface is mainly composed of

four canvas and a hierarchy tree. The main canvas

(Figure1, A) allows to move the camera and the other

three show static views: side, front, and top view

(Figure1, B). All canvas can exchange their position

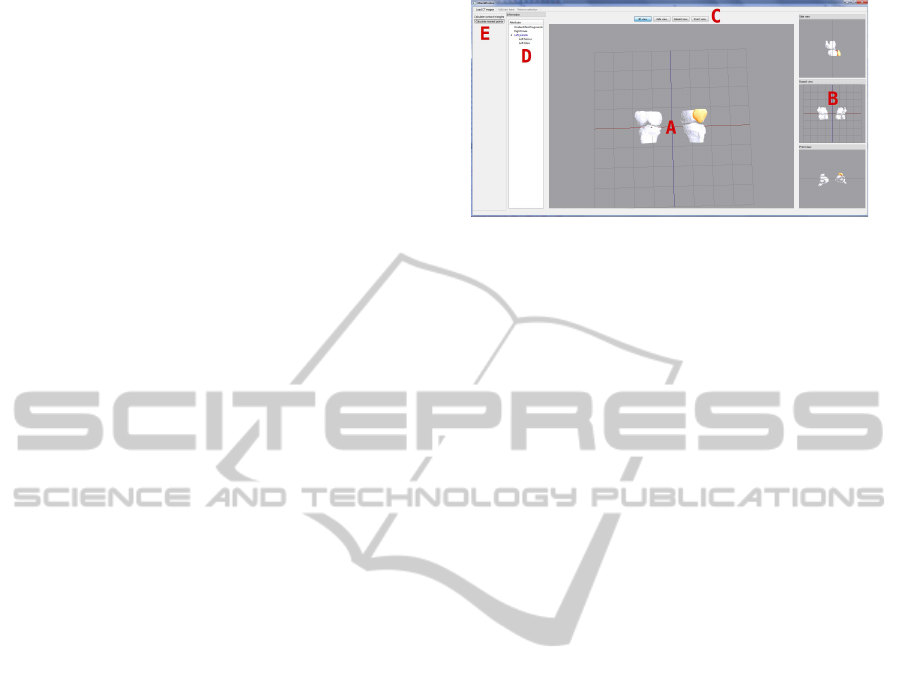

Figure 1: Screen capture of the application. A - Main can-

vas. B - Secondary canvas. C - Buttons to exchange canvas.

D - Hierarchical tree of the scene. E - Toolbars.

dynamically by clicking on any of the auxiliary can-

vas or using the buttons on the top of the window

(Figure1, C). This interface is similar to that used in

current medical visualization applications, hence it is

easy to use for professionals. On the left side of the

application window, an hierarchy tree shows the rela-

tion between the models and the model which is cur-

rently selected (Figure1, D). At the top of the window

there is a toolbar that allows to load medical images,

deﬁne models and their relationship, remove unneces-

sary parts, and enable the calculation of nearest points

and overlapping triangles (Figure1, E). The procedure

for using the application can be summarized as fol-

lows. First of all, the user must specify the medical

images to be loaded. Once the images are loaded,

the application generates a triangle soup from them.

Then, models must be identiﬁed and deﬁned using an

area selector. Each time a model is deﬁned, the user

can set the models to which it is related and the ap-

plication updates the hierarchy of models. Moreover,

the unnecessary parts and the outliers can be removed

by using the area selector. Deﬁned models can be

selected, translated and rotated to place it correctly

in the scene. With the aim of providing assistance

during the interaction, the application calculates the

nearest points and the overlapping triangles. The def-

inition of the hierarchy of models allow to only calcu-

late collisions and distances between the models that

have some type of relationship. To improve the in-

teraction, the Leonar3Do input device can be used to

manipulate the models.

The generation of 3D geometric models from

medical images takes a few seconds. For instance,

it takes approximately 20 seconds to perform a recon-

struction from 200 medical images and 30 seconds

from 400. The resolution of the CT images utilized in

the test is 512x512 and the application is able to load

up to 400 medical images. Once the geometric mod-

els have been generated, the interaction is performed

in real time. To measure this, a Intel i7 2.80GHz

processor, 4GB RAM and a NVidia GeForce GTS

AnApplicationtoInteractwith3DModelsReconstructedfromMedicalImages

225

240 have been used. The application has been im-

plemented in C++ using the gcc compiler and fol-

lowing a MVC architecture. The user interface has

been developed using the Qt 4.7 library (Blanchette

and Summerﬁeld, 2006). Therefore, the implemented

software can be compiled for various platforms. The

QtOpenGL module has been used to implement 3D

graphics. Furthermore, the application uses VTK

(Schroeder et al., 2006) to reconstruct the 3D models

and PQP (Larsen et al., 1999) to calculate a detailed

collision detection. To program the Leonar3Do, the

1.0 version of the LeoAPI has been utilized.

3 MODEL RECONSTRUCTION

Model reconstruction from medical data is a difﬁcult

task due to the complexity of the human body struc-

tures. Once the medical images are obtained, the ﬁrst

step consists in segmenting the images in order to iso-

late the areas of interest. After that, the result ob-

tained is utilized to reconstruct a 3D geometric model.

The results obtained depend on the techniques used in

each of the parts of the process.

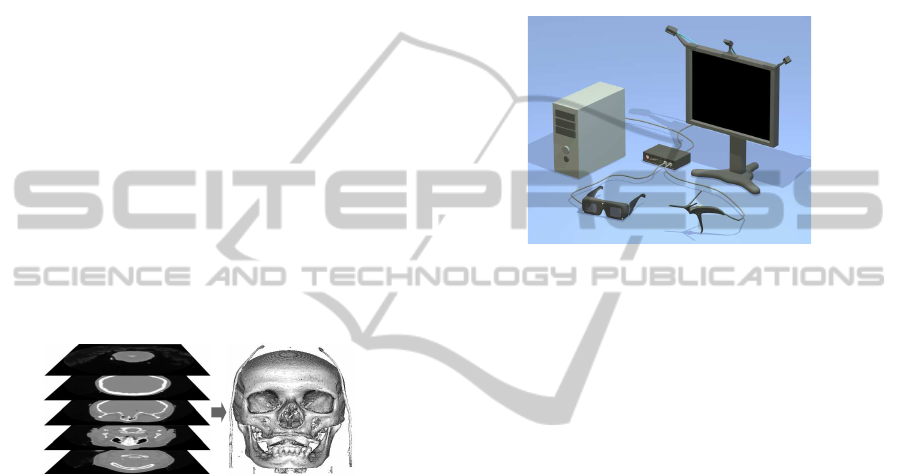

Figure 2: Iso-surface rendering from 3D medical images by

using the Marching Cubes algorithm.

There are different sources such as Computed To-

mography (CT), Magnetic Resonance Imaging (MRI)

or Ultrasonic (US) techniques (Sachse, 2004) that

provides 3D datasets and values that represent physy-

cal quantities, e.g. proton densities in MRI, and at-

tenuation coefﬁcients in CT. In the context of mod-

elling, these values can be used to extract features of

a patient, such as bone, muscle or fat. These medical

image sources can store the information in multiple

formats. The Digital Imaging and Communications

in Medicine (DICOM) standard is the most common

format. Our application allows to visualize 2D im-

ages and reconstruct models from 3D medical image

series and it has been tested with DICOM datasets and

images from The Visible Human Project repository

(NLM, 1986). To generate 3D data, the presented ap-

plication makes use of the Marching Cubes algorithm

[LC87] (see Figure 2). Marching Cubes is a fast and

simple method that allows to automatically generate

large polygonal datasets from volumetric data with

high resolution. The outcome of the algorithm is a

large soup of triangles without topology. However,

the presented application is able to deal with surfaces

that present holes by using the interaction techniques

described in the next section. Before the reconstruc-

tion process, a threshold based method is utilized to

segment the medical images in order to isolate the de-

sired tissue. The threshold depends on the type of tis-

sue and it is manually selected by the user. The seg-

mentation result is a volume which is used as a input

of the Marching Cubes algorithm.

Figure 3: Virtual representation of the Leonar3Do

(Leonar3Do, 2012).

4 INTERACTION

Once the 3D geometric model has been reconstructed,

our application enables the interaction with it. With

this aim, it has been integrated registration, collision

detection, picking and multi-view methods. These

methods allow the user to deﬁne 3D models from the

reconstructed geometry and interact with each of the

models independently. In addition, the detailed col-

lision detection and the multi-view implementation

provide visual aid to the user during the interaction.

In order to improve the interaction, the Leonar3Do

has been utilized. This is a virtual reality system that

enables a stereo interaction. The Leonar3Do system

mainly consist of a spatial input device, 3D glasses

and monitor-mountedsensors (ﬁgure 3). Both the bird

and the 3D glasses operate in six degrees of freedom

and sensors can track both the bird and the glasses.

To this end, the Leonar3Do system uses a technology

based on infrared sensors. The bird has two buttons,

one big and one small, which can be programmed. In

addition, the big button is sensitive to pressure. On

the other hand, 3D glasses enable stereoscopic vision.

For that, Leonar3Do can use either an active and a

passive system. While the passive system uses com-

monly polarizing lenses, the active system uses liquid

crystal shutters which are powered through an USB

port. In our case, the active system have been utilized.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

226

4.1 Registration of the Models

Due to the fact that the reconstructed geometry is a

triangle soup, there is no information about the model

to which each triangle belongs. To solve this deﬁ-

ciency, an area selector has been implemented. This

tool allows to select a set of triangles and to deﬁne a

model from them (Figure 4, bottom). When a model

is deﬁned by the area selector, the application allows

to relate it to another previously deﬁned model. Thus,

it is possible to establish an hierarchy between the de-

ﬁned models. Furthermore, the area selector can also

be used to remove triangles from the scene (Figure 4,

top). Each time the user makes a selection, the scene

has to be repainted to draw the selector. To solve this

problem, we avoid repainting the entire scene by us-

ing a frame buffer. In the rendering function, the con-

tent of the frame buffer is drawn in a 2D texture which

is located in the background of the scene. Moreover,

to determine which triangles have been selected they

are projected in the plane determined by the selec-

tor. Thus, it is only necessary to resolve a triangle-

rectangle test for each triangle in the scene. More-

over, as the intersection is calculated in 2D, it is easy

to implement new shapes for the selector.

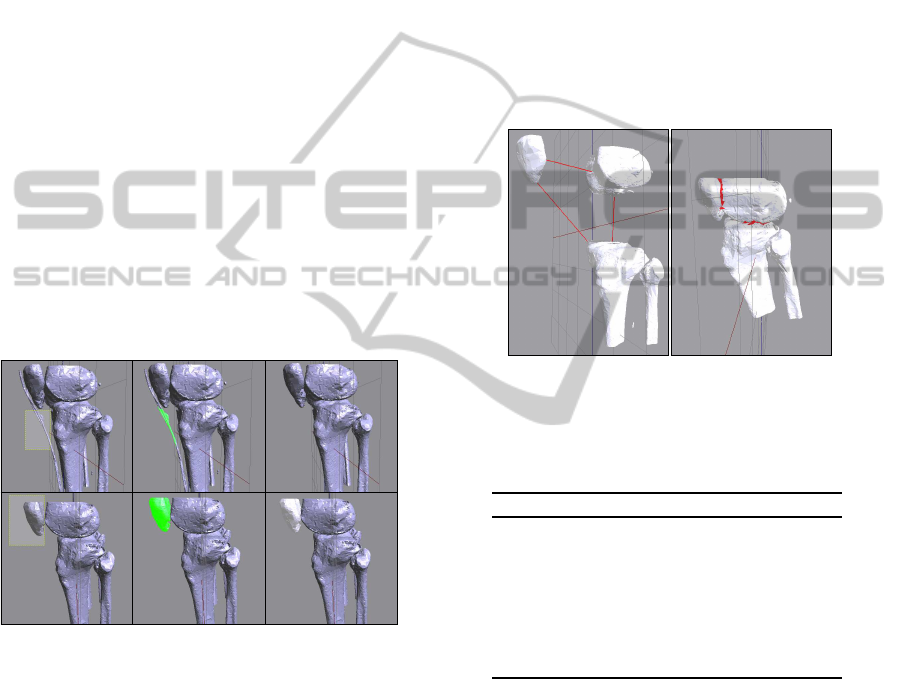

Figure 4: The area selector is used to remove unnecessary

parts and to deﬁne models. Top, from left to right: selecting

the part to remove; the selected part is displayed in green;

Unnecessary parts have been removed from the scene. Bot-

tom, from left to right: selecting the triangles that represent

the patella; selected triangles are displayed in green; ﬁnally,

the deﬁned model is shown in white.

4.2 Collision Detection

In order to implement the interaction between the

different models, we have not only to calculate the

collision but also to provide visual aid to the user.

Since the reconstructed models are triangle soups, it

is necessary to use algorithms that can work with that

type of models. These calculations are necessary to

avoid that two models overlap or even to inform the

user that the models are colliding (Figure 5, right).

Furthermore, the distances and the nearest points be-

tween two models can help the user to place models

that are not correctly positioned (Figure 5, left). The

leonar3Do system has been used to improve the col-

lision response. When a collision occurs, the spatial

input device emits a small vibration. Some algorithms

have been tested (Paulano et al., 2012) to choose the

best suited to this problem. In that work, algorithms

were tested with models with a complexity of up to

one million triangles. The results shown that the PQP

library (Larsen et al., 1999) is quite fast and robust.

This library uses swept sphere hierarchies to perform

collision detections. Moreover, PQP is able to calcu-

late different collision detection parameters, such us

distances, overlapping triangles, or closest points.

(a) (b)

Figure 5: a) Calculation of the nearest points between some

models. b) Overlapping triangles are displayed in red.

Table 1: Picking time using the ray picking method based

on the PQP library. Run in a computer with Intel i7

2,80GHz, 4GB RAM, NVidia GeForce GTS 240.

Triangles in the scene Picking time (s)

58206 0.0671

253696 0.2868

428411 0.3845

478462 0.4231

513658 0.4608

546308 0.4949

577827 0.5206

4.3 3D Picking

After the models are deﬁned, the application allows

to select them by picking.To this end, the spatial in-

put device is used. By moving this device, a 3D

cursor in the scene is manipulated. This cursor en-

ables the selection of previously deﬁned models by

using the small programmable button. If a model is

selected, the spatial input device manipulates the se-

lected model instead of the 3D cursor. Apart from

this, each selected model can be rotated and trans-

lated by using the mouse. These transformations are

performed independently from the rest of the mod-

els in the scene. In order to enable the selection of

AnApplicationtoInteractwith3DModelsReconstructedfromMedicalImages

227

models, we decided to implement a method based on

ray picking. The method consist of throwing a ray

from the observer that pass through the cursor posi-

tion and calculating the collision between the ray and

all the objects in the scene. In order to check the col-

lisions, we have used the PQP library. In this way, the

data structures previously constructed are reused. To

measure the efﬁciency of the method, some tests have

been performed. As shown in table 1, the method

calculates the ray picking in a reasonable good time,

even when there are several hundred of thousand of

triangles in the scene. Moreover, since it is based on

PQP, the method is also robust.

4.4 Multi-canvas

Although the 3D view provides extra information to

the user, doctors and radiologists usually work with

a 2D view of the area of the patient. For this reason,

the application includes four canvas: a canvas with a

free camera and three canvas with static cameras. The

ﬁrst one is the main canvas and the other three can-

vas represent a top, side, and front view respectively.

However, the four canvas can exchange their posi-

tions dynamically by clicking them or by pushing the

buttons located at the top of the window. Instead of

implementing multi-canvas using several glViewport

(Shreiner, 2010), we decided to use four QGLWidget

to implement the four canvas. In this way, we can

take advantage of all the functionality that is already

implemented in the QtOpenGL module.

4.5 Stereo Visualization and Immersion

The Leonar3Do system have been used to provide

stereo visualization in the main canvas by using active

glasses (see ﬁgure 6). This visualization system al-

lows the user to better understand the scene and makes

easy to select objects by using the spatial input device.

In addition, the stereo visualization increases the feel-

ing of immersion when using the application.

The Leonar3Do API (LeoAPI) is divided into two

main parts: the tracking API and the stereoscopic

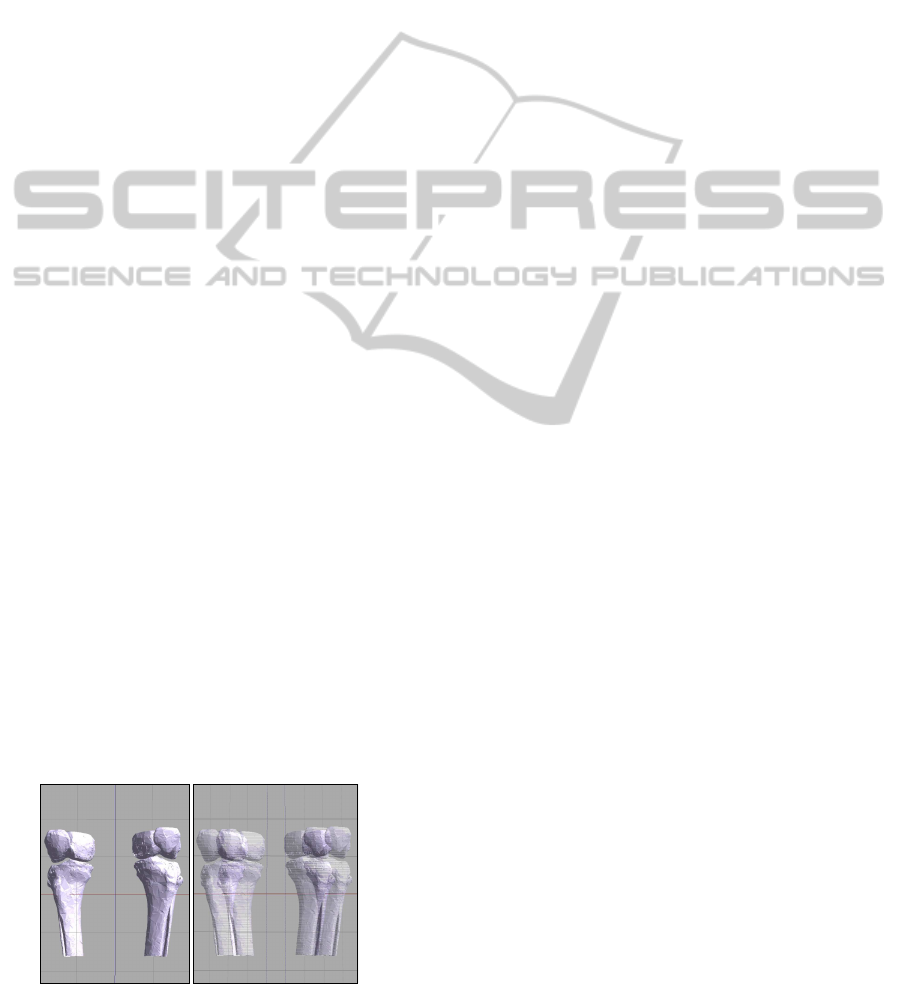

Figure 6: Screenshot of the main canvas of the application.

Left, non-stereo mode. Right, stereo mode.

API. The ﬁrst one allows to know where both the spa-

tial input device and the glasses are situated. As said

in previous sections, the spatial input device has been

used to manage a 3D cursor that enables the selec-

tion of models in the scene and to manipulate selected

models. On the other hand, the position of the glasses

is used to manage the camera, hence when the user

move the head, the camera moves accordingly. To

do this, both the translation and the rotation of the

user head are considered. This increases the feeling

of immersion and makes the application easy to use.

It is important to consider that the camera position is

modiﬁed by the LeoAPI, hence that it is placed at the

focal point. The stereoscopic API enables the imple-

mentation of the stereo view and it is responsible for

generating the ﬁnal frame of the application, whether

or not the stereo mode is activated. In our case, the

stereo API is responsible for drawing the main canvas

of the application. Because of this responsibility, it is

necessary to disable the auto-bufferswapping because

the LeoAPI already does it. Moreover, the LeoAPI

ﬁll a projection matrix which have to be provided to

OpenGL before rendering the main canvas. However,

this projection matrix can be modiﬁed before passing

it to the OpenGL pipeline.

5 CONCLUSIONS

In this work, an application to interact with 3D mod-

els reconstructed from medical data has been devel-

oped. Unlike other existing applications that enable

3D visualization of medical images, the presented ap-

plication can interact with the 3D models in terms

of geometry because it previously performs a recon-

struction. Moreover, the application enables a real-

time interaction, although the reconstruction gener-

ates large models with no topology. Finally, the fol-

lowing tasks are proposed as future work:

• The presented application can be applied to pre-

pare various types of surgical procedures. The

surgeon could generate a 3D model from real pa-

tient data and simulate the interaction with the

damaged area before the intervention.

• Measure the usability of the application. Experts

will test the application and propose improve-

ments to make the interaction more realistic.

• Obtain topologically correct meshes from trian-

gle soups. These meshes would enable the use

of more efﬁcient algorithms to perform the inter-

action. In addition, different body parts could be

labelled during the reconstruction step, avoiding

the selection and registration of the models.

VISAPP2014-InternationalConferenceonComputerVisionTheoryandApplications

228

1 2 3 4 5 6

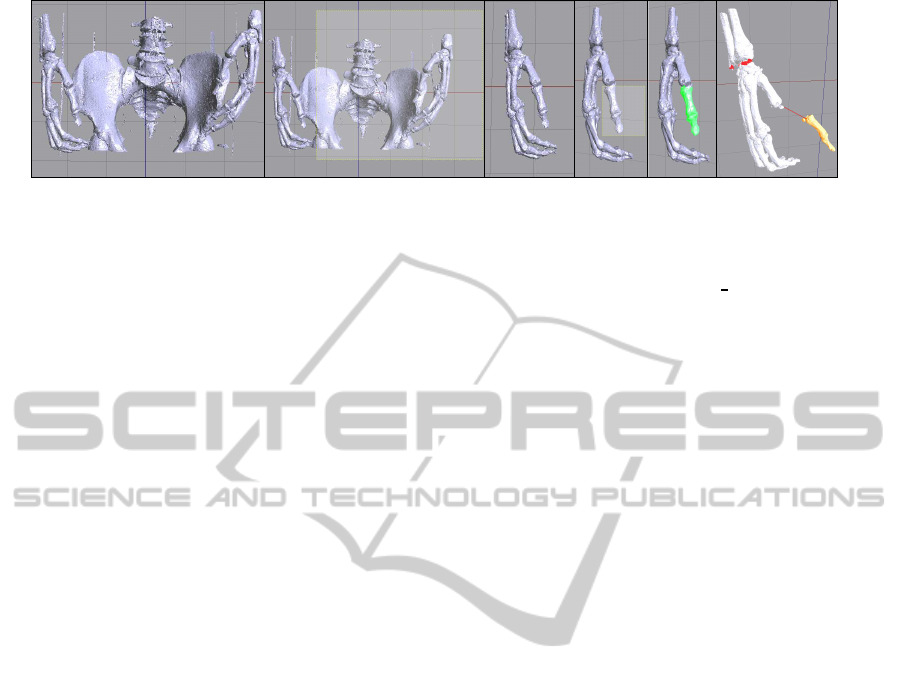

Figure 7: Example of using the application. 1 - Triangle soup generated from CT scans. 2 - Selection of some unnecessary

triangles. 3 - Cleaned scene. 4 - Selection of a model. 5 - Selected model. 6 - Interaction with deﬁned models.

• Incorporate a method to remove outliers automat-

ically that avoids the user having to delete them

manually. This would allow to obtain less com-

plex models and improve the interaction.

ACKNOWLEDGEMENTS

This work has been partially supported by the Min-

isterio de Econom´ıa y Competitividad and the Euro-

pean Union (via ERDF funds) through the research

project TIN2011-25259.

REFERENCES

Bhanirantka, P. and Demange, Y. (2002). OpenGL volu-

mizer: a toolkit for high quality volume rendering of

large data sets. In Symposium on Volume Visualiza-

tion and Graphics, 2002. Proceedings. IEEE / ACM

SIGGRAPH, pages 45–53. IEEE.

Blanchette, J. and Summerﬁeld, M. (2006). C++ GUI Pro-

gramming with Qt 4. Prentice Hall Open Source Soft-

ware Development Series. Prentice Hall PTR.

Boubekeur, T., Heidrich, W., Granier, X., and Schlick, C.

(2006). Volume-Surface Trees. Computer Graphics

Forum, 25(3):399–406.

der Bergen, G. V. (2003). Collision Detection in Interactive

3D Environments. Elsevier.

Jim´enez, J. J., Og´ayar, C. J., Segura, R. J., and Feito, F. R.

(2006). Collision Detection between a Complex Solid

and a Particle Cloud assisted by Programmable GPU.

In Vriphys: 3rd Workshop in Virtual Realitiy, Interac-

tions, and Physical Simulation, pages 43–52.

Larsen, E., Gottschalk, S., Lin, M., and Manocha, D.

(1999). Fast proximity queries with swept sphere vol-

umes. Technical report, Department of Computer Sci-

ence, UNC Chapel Hill.

Leonar3Do (2012). Leonar3do. http://www.leonar3do.com.

[Online; accessed 2-October-2013].

Lv, S., Yang, X., Gu, L., Xing, X., and Pan, L. (2009). De-

launay mesh reconstruction from 3D medical images

based on centroidal voronoi tessellations. In Compu-

tational Intelligence and Software Engineering, 2009.

CiSE 2009. International Conference on, pages 1–4.

NLM (1986). The visible human project. http://www.nlm.

nih.gov/research/visible/visible

human.html.

Paulano, F., Jim´enez, J. J., Pulido, R., and Ogayar, C. J.

(2012). A comparative study of implemented collision

detection strategies. In Proceedings of the Interna-

tional Conference on Computer Graphics Theory and

Applications (GRAPP 2012), pages 485–490.

Pulido, R., Jim´enez, J. J., and Paulano, F. (2012). Surface

reconstruction from 3d medical images based on tri-

tree contouring. In Proceedings of the International

Conference on Computer Graphics Theory and Appli-

cations (GRAPP 2012), pages 175–181.

Rautek, P., Bruckner, S., and Gr¨oller, E. (2007). Seman-

tic layers for illustrative volume rendering. IEEE

transactions on visualization and computer graphics,

13(6):1336–1343.

Sachse, F. (2004). 5. digital image processing. In Compu-

tational Cardiology, volume 2966 of Lecture Notes in

Computer Science, pages 91–118. Springer Berlin.

Schroeder, W., Martin, K. M., and Lorensen, W. E. (2006).

The Visualization Toolkit: An Object-Oriented Ap-

proach to 3D Graphics. Kitware, Inc.

Sharf, A., Lewiner, T., Shklarski, G., Toledo, S., and Cohen-

Or, D. (2007). Interactive topology-aware surface re-

construction. ACM Trans. on Graphics, 26(3):43.

Shreiner, D. (2010). OpenGL Programming Guide: The

Ofﬁcial Guide to Learning OpenGL, Versions 3.0 and

3.1. OpenGL Series. Addison-Wesley.

Wolf, I., Vetter, M., Wegner, I., Nolden, M., Bottger, T.,

Hastenteufel, M., Schobinger, M., Kunert, T., and

Meinzer, H.-P. (2004). The Medical Imaging Interac-

tion Toolkit (MITK) a toolkit facilitating the creation

of interactive software by extending VTK and ITK.

In Medical Imaging 2004, pages 16–27. International

Society for Optics and Photonics.

Yushkevich, P. A., Piven, J., Hazlett, H. C., Smith, R. G.,

Ho, S., Gee, J. C., and Gerig, G. (2006). User-guided

3D active contour segmentation of anatomical struc-

tures: Signiﬁcantly improved efﬁciency and reliabil-

ity. NeuroImage, 31(3):1116–1128.

AnApplicationtoInteractwith3DModelsReconstructedfromMedicalImages

229
