Partial Correctness and Continuous Integration in Computer Supported

Education

Daniela Fonte

, Ismael Vilas Boas

, Nuno Oliveira

, Daniela da Cruz

Alda Lopes Ganc¸arski

and Pedro Rangel Henriques

Departmento de Inform

atica, Universidade do Minho, Braga, Portugal

Institute Telecom, Telecom Sud Paris, Paris, France

Keywords:

Computer Uses in Education, Problem-based Learning, Competitive Learning, Collaborative Learning,

Automatic Grading System, Semantic Program Evaluation, Program Analysis.

Abstract:

In this paper we support the idea that students and teachers will beneﬁt from a computer-based system that

assesses programming exercises and provide immediate and detailed feedback: students would be able to

evolve in the right direction and teachers would follow and assess more fairly their students. This assessment

should outperform the typical right/wrong evaluation returned by existing tools, allowing for a ﬂexible partial

evaluation. Moreover, we adopt a concept from Agile Development, the Continuous Integration (CI), to

improve students’ effectiveness. The applicability of CI reﬂects a better monitoring by the teams and their

individual members, also providing the ability to improve the speed of the development.

Besides the description of the capabilities that we require from an Automatic Grading System (AGS), we

discuss iQuimera, an improved AGS that we are working on, that implements our teaching/learning principles.

1 INTRODUCTION

When students start learning Computer Program-

ming, they can experience difﬁculties to understand

the basilar concepts due to a lack of adequate back-

ground (Milne and Rowe, 2002) or even adequate

proﬁciency. Actually, Programming is a very com-

plex task specially for beginners who need to have

special skills including a high abstraction capability.

Programmers need to be capable of understanding the

problem statement, analyze it, sketch algorithms and

implement them in a programming language. These

tasks are equally important and all of them require a

lot of effort to be dominated.

In particular, learning a programming language (to

code the algorithm and implement the problem reso-

lution) has a lot of complex details that need to be

mastered. However, semantic issues involved in any

programming language (besides the syntatic pecular-

ities of each one) are the main obstacles to this learn-

ing process. We believe that Problem-based Learning

approach is a good way to diminish this barrier. This

is, we advocate that Programming courses should be

highly practical; students should solve on the com-

puter practical exercises since the ﬁrst class, to prac-

tice the new language syntax and semantics. Follow-

ing a problem-based approach, they should learn by

practice to deal with all the phases of programming

life cycle (since the problem analysis to the program

testing). However, to assist all the students in the con-

text of big laboratorial classes (with 20 or 30 students)

is almost impossible for the teacher. In real situations,

teachers can neither monitor individually all their stu-

dents nor provide them an exhaustive feedback re-

garding the exercises they solve. This leads students

to give up and fail to reach the course objectives.

From the teacher’s perspective, this problem-

based approach in Programming courses implies the

obligation of manually analyzing and testing the code

for each exercise. This time consuming task is neither

simple nor mechanical: it is a complex and arduous

process, prone to faults, that involves a lot of work.

Different teachers may assign different evaluations to

the same exercise, due to several factors like fatigue,

favoritism or even inconsistency.

Summing up, we recognize that teachers are not

able to fully support the students, giving feedback

about the mistakes they made in every exercise. This

strongly suggests that problem-based learning should

be supported by powerful software tools — that is pre-

205

Fonte D., Vilas Boas I., Oliveira N., da Cruz D., Lopes Gançarski A. and Rangel Henriques P..

Partial Correctness and Continuous Integration in Computer Supported Education.

DOI: 10.5220/0004848802050212

In Proceedings of the 6th International Conference on Computer Supported Education (CSEDU-2014), pages 205-212

ISBN: 978-989-758-021-5

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

cisely the focus of the present paper.

Moreover, the changes introduced by Bologna

Process (Tauch, 2004) have generalized the concept

of Continuous Evaluation in Education. This tech-

nique fosters the work outside classes, providing

space for an active and collaborative learning. It also

aims at achieving a closer monitoring of each stu-

dent’s progress along a course, by issuing tests and

individual or group works. Group-work is another

relevant idea: in this way, students are able to share

knowledge and take advantage of collective and col-

laborative activities, like brainstorming or social facil-

itation; they can also improve soft skills like schedul-

ing, communication, distribution of tasks and leader-

ship (Forsyth, 2009). On the other hand, grouping

students in a team provides an efﬁcient solution for

teachers to assess multiple students through a singu-

lar assessment process, with a signiﬁcant reduction of

the amount of work required compared to individual

evaluation (Guerrero et al., 2000).

This new trend also introduces some difﬁculties

both for students (that need to comprehend how to

follow it), and for teachers (that must ﬁnd a just way

to assess individually each student). These troubles

can, once again, be overcame resorting to the support

of intelligent software tools, like Automatic Grading

Systems (AGS), as will be discussed along the fol-

lowing sections (this topic is the second motivation

for the work here described).

After this motivation and before conclusion, the

paper has 3 sections. Section 2 discusses in general

the support that computers can bring to education. In

Section 3 we introduce our proposal — the main char-

acteristics that an effective AGS should have. Then,

in Section 4 we show the architecture of iQuimera, an

AGS that we are developing to realize our proposal.

2 COMPUTERS IN EDUCATION

Since a long time ago, computer scientists and soft-

ware engineers are working on the development of

tools to help teachers and students in the teach-

ing/learning process; this gave rise, in the eighties,

to the so called area CAE (Computer-aided educa-

tion) that also involved people from the Education

Science and Psychology ﬁelds. Two large classes of

computer applications were then developed: tutoring

systems, to help students learning (Natural and Ex-

act Sciences); learning management systems, to help

teachers to deal with students registry and follow-up.

The evolution of tutoring systems went in the di-

rection of the development of tools to assess individu-

ally students. In a ﬁrst phase, using tests (in the form

of questionnaires, or similar devices) previously made

by teachers; in a second phase, generating automati-

cally those tests selecting questions from a repository

or creating them from templates.

Later, with the development of computer commu-

nications and the birth of computer networks, people

started the construction and use of the so called e-

Learning systems, on the one hand combining both

classes of tools, and on the other hand enabling the

distance learning process.

As previously said, in this paper we are interested

in a new generation of tools called Automatic Grad-

ing Systems (AGS) (Matt, 1994; Leal and Silva, 2003;

Hukk et al., 2011) devoted to the support of Computer

Programming courses. They can be distinguished ac-

cording to the approach followed to evaluate the sub-

mitted program: static or dynamic analysis. Dynamic

approaches depend on the output results, after running

the submitted program with a set of predeﬁned tests.

The ﬁnal grade depends on the comparison between

the expected output and the output actually produced.

Static approaches take proﬁt from the technology de-

veloped for compilers and language-based tools to be

able to gather information about the source code with-

out executing it. The improvement of dynamic test-

ing mechanism with static techniques (like metrics or

style analysis), led to a new generation of hybrid sys-

tems such as CourseMaker, Web-CAT, eGrader, Au-

toLEP or BOSS that combine the best of both ap-

proaches. This symbiosis keeps providing immediate

feedback to the users, but enriched by a quality anal-

ysis – which is obviously a relevant extra-value.

In the past few years, with the spreading of

Agile Methodologies (Beck, 2001), some experi-

ments (Hazzan and Dubinsky, 2003; Jovanovic et al.,

2002) were conducted aimed at combining two top-

ics: Agile Development and Education. In this con-

text, the implementation of Continuos Integration

(CI) (Kim et al., 2008) concept within classrooms

seems to be perfectly acceptable as a way of track-

ing the real evolution of the students in what concerns

their programming skills and knowledge about the es-

sential programming concepts, as will be discussed

in Section 4.4. With this concept, the evaluation be-

comes truly continuous, as the name and the origi-

nal idea assumes. Nevertheless, this matter is not yet

deeply explored; to the best of our knowledge there

are no AGS which implement this concept.

As we discuss in Section 1, current educational

methodologies invest on group work and social col-

laboration between students to improve their overall

effectiveness in regard to learning. In fact, group

work is already a reality in education, reducing the

time spent by teachers on evaluation and improving

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

206

the students’ effectiveness on learning. What is miss-

ing, however, is to take full advantage of its beneﬁts.

We will propose in the next section an improvement

of an AGS that supports the adoption of CI practices

in education, bringing to teachers valuable resources

that allow them to follow and assess the students’ evo-

lution with more accuracy.

3 A PROPOSAL FOR AN

EFFECTIVE AGS

According to the teaching/learning ideas exposed

along Section 1, a software tool to support, on the

one hand, the problem-based learning and, on the

the other hand, the continuous evaluation (based on

group-work) approaches should comply with the fol-

lowing requirements.

From the teacher’s perspective, it should alleviate

his tedious and error prone (manual) work of marking

and grading the programming exercises submitted by

students, allowing him to focus on the students’ actual

needs.

From the students’ perpective, it should make pos-

sible to have their works automatically evaluated,

ﬁnely measured and fairly graded in due time (this

means, as fast as possible after each submission).

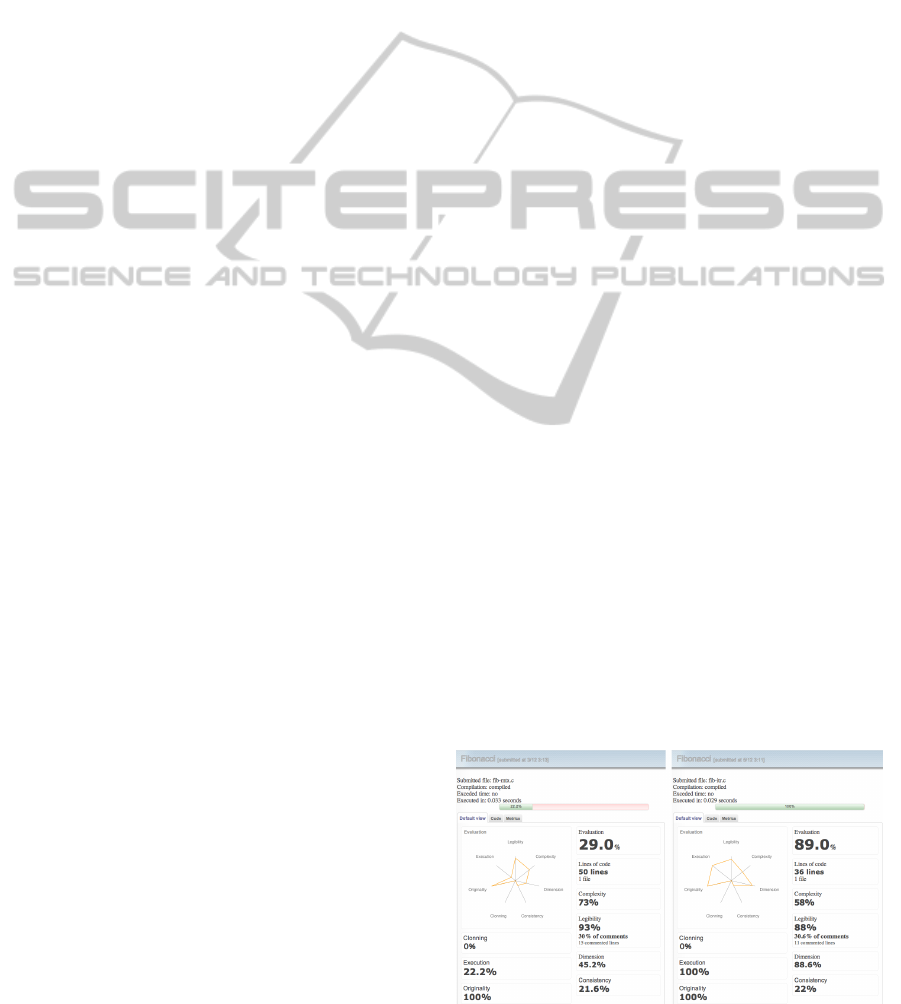

To do that, the envisaged AGS shall provide de-

tailed reports on each submission. Those reports must

say if the answer is totally or partially correct, but

shall also include information on the code quality

(sofwatre metrics) and on eventual code plagiarism.

Student’s position when compared with other students

and evolution rate are other data that shall be consid-

ered in the report.

As discussed in Section 2, at this moment avail-

able AGS provide several of these basic features.

However, these tools still lack some important fea-

tures, mainly in what concerns the following: the ac-

ceptance of semantically correct answers, no matter

its lexico-syntatical appearance; the evaluation of par-

tially correct answers; and the ability to follow stu-

dents’ individual evolution in the context of a conti-

nous group work.

All of these considerations led us to build the sys-

tem that will be introduced in the next section.

4 iQUIMERA

iQuimera is an improved version of our AGS ﬁrst ap-

proach – the Quimera system (Fonte et al., 2012) –

developed to support the features announced in Sec-

tion 3. This system is a web-based application to as-

sess and grade students’ programming exercises writ-

ten in the C programming language, either in learn-

ing or programming contest environments. It offers a

complete management system, allowing to set up and

manage contests; register students and associate them

in groups; and follow up and monitor the different ac-

tivities involved.

With iQuimera extension, we aim at improving

our original approach in two important directions:

• Flexibilization of the Grading process – on the

one hand, being able to accept as correct answers

semantically similar to the expected one, indepen-

dently of their syntactic differences

; on the other

hand, allowing the deﬁnition of a set of partially

correct answers that should also be accepted and

graded

• Collaborative learning – continuously assessing

the group work, providing individual feedback

about each group element.

The next subsections introduce iQuimera architec-

ture and its main functionalities. First, we describe

the basic features, already implemented in Quimera

ﬁrst version, and then we discuss the improvements

(listed above) underdevelopment.

4.1 Quimera Initial Functionalities

Quimera is a system capable of evaluating and auto-

matically ranking programming exercises in learning

or programming contest environments, by combining

a very complete static source code analysis with dy-

namic analysis. Thus, Quimera is able to ensure the

grading of the submitted solution based not only on its

capability of producing the expected output, but also

considering the source code quality and accuracy. Our

system guarantees that different programming styles

will receive different grades even if they produce the

correct output and satisfy all the requirements; this

can be an advantage on learning environments, be-

cause the student is stimulated to ﬁnd different correct

solutions. Teachers will not waste time searching for

problems that have only one solution; the approach

adopted allows problems that can be solved in differ-

ent manners. Moreover, they can settle more interest-

ing problems whose solutions are a set of values, in-

stead of a single value (this constraint, typical of the

The structure of the output ﬁle produced by the student

program should not be taken into consideration when com-

paring it to the expected output ﬁle.

Using the same semantic similarity approach to com-

pare the output produced by the student program with the

partially correct outputs.

PartialCorrectnessandContinuousIntegrationinComputerSupportedEducation

207

classic systems, heavily restrict the kind of statements

that can be proposed).

Quimera completes its static analysis with a pla-

giarism detection tool, in order to prevent fraud

among submitted solutions (a common issue in learn-

ing environments). To the best of our knowledge, this

feature is not provided by the tools referenced above.

Quimera also allies a simple and intuitive user in-

terface with several graphics exhibiting various statis-

tics concerning the assessment process ﬂow. These

statistic graphics are useful for the students, as they

illustrate their individual and overall evaluation and

performance rates; but they are also useful for the

teachers, as they provide fast views over each student,

groups of students working on the same problem, or

over groups working on different problems.

Notice that the feedback returned to the program-

mer immediately after each submission and the possi-

bility to resubmit new solutions, encourages compet-

itive learning. The student, after receiving the infor-

mation that his submission is wrong, tends to locate

the error, rewrite the program to ﬁx it and submit it

again.

4.1.1 Dynamic Analysis

Quimera Dynamic Analyzer module follows the tra-

ditional strict approach: the submitted (source) code

is compiled and then executed with a set of prede-

ﬁned tests. Each test is composed of an input data

vector and the correspondent output vector. Running

the compiled code (submitted by the student) with

one input data vector, the output produced is saved

as a vector and is compared with the expected output.

The student’s submission passes that test if both out-

put vectors are strictly equal (the difference between

them is null). In this way, the submission under as-

sessment is correct if and only if all the tests succeed.

After the assessment (running the submitted code

with all the test vectors), the user can consult the per-

centage of tests successfully passed. However, he

does not know how many tests there are and only has

access to the tests included in the problem statement.

This is useful to avoid situations of trial and error for

test set guessing.

4.1.2 Static Analysis

Quimera Source Code Analyzer module produces a

complete report about the quality of the source code

submitted through a set of predeﬁned metrics (cur-

rently 56 metrics), grouped by ﬁve classes, namely:

Size, Consistence, Legibility, Complexity and Origi-

nality (as detailed in (Fonte et al., 2012), here om-

mited for the sake of space).

The different values computed automatically by

this module using classic compiler technologies,

when combined with the dynamic evaluation (as dis-

cussed in subsection 4.1.1), provide a ﬁne grain as-

sessment that is uttermost relevant for the student

learning process. However to be useful in the grad-

ing process, the numerical values obtained along the

metrics evaluation must be appropriately transformed.

For the sake of simplicity and space we do not discuss

here those transformations.

4.1.3 Automatic Grading Process

The Grader module takes into account the results de-

livered by the Dynamic Analyzer and by the Source

Code Analyzer and combines them using a grading

formula. This grading formula considers six different

assessment categories and uses appropriate weights

(that can be tuned by the teacher according to the

learning objectives). Those assessment categories

are the ﬁve metric classes introduced in the previous

subsection (Size, Consistency, Legibility, Complex-

ity, Cloning) plus one that results from the strict dy-

namic analysis and that mesures the execution success

(the number of tests passed and the execution time).

Cloning is obviously related with the Originality met-

ric, but more pragmatically measures the percentage

of duplicated code in the source code submitted.

At present we are using the following combination

of weights: Execution (75% + 5%), Size (2%), Con-

sistence (5%), Legibility (2%), Complexity (6%) and

Cloning (5%). In this way, we enhance the dynamic

analysis: the actual program ability to produce the

correct output corresponds to 80%; the source code

quality inﬂuences the ﬁnal grading with just a factor

of 20%.

The report issued by Quimera after the Grading

phase, contains not only the ﬁnal grade but all details

concerned with the two previous marking phases, as

depicted on both sides of Figure 1.

On the left side of Figure 1, we can see a report for

an answer that only passes in 22% of the tests. This

Figure 1: Two assessment report examples.

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

208

is a well documented answer (it has 15 commented

lines in 50 lines of code) and its Legibility has a ﬁnal

score of 93%. The Complexity score is owed to the

number of used variables and data structures. Since its

50 lines of code exceed the average size of the contest

submissions for this problem, this penalizes the ﬁnal

grade on the Dimension category (only 45.2%). In

the Consistency category, its 21.6% are owed to the

use of several returns through the code (assuming a

maximum of two returns per function as a reasonable

limit to the source code consistency) and also to the

use of pointers.

The right side of Figure 1 shows a report for a

correct answer that passes all the tests. This answer is

better documented (11 commented lines in 36 lines of

code), but its Legibility has a lower ﬁnal score (88%)

once it did not used deﬁnes, as the other solution. The

Complexity score of 58% is owed to the implemented

loop. Its 36 lines of code improve its ﬁnal grade on

the Dimension category to 88.6%. In the Consistency

category, its weak weight of 22% is also owed to the

use of several returns through the code.

Finally, it is possible to see that both solutions

have not been plagiarized (100% original) and stu-

dents follow the good practice of not repeating their

own code (0% of duplicated code). These assess-

ments led to a ﬁnal grade of 29% on the ﬁrst case

and a signiﬁcant 89% on the second case. Quimera

also completes this evaluation with radial charts to a

quicker and easier comparison of the solution perfor-

mance in the different grading categories.

4.2 Architecture

iQuimera architecture is organized in four levels, as

depicted in Figure 2.

Grading Module

Quimera Core

Web Site

Continuous

Integration Engine

Course/Problem

Manager

Group/User

Manager

Code RepositoryProblem RepositoryUser Repository

Compiler

Statical Analizer

AST Builder

Metrics Evaluator

Command Line

Pluggable

Main EngineData

Interface

Service Integration Engine

Dynamic Analizer

OSSL

Processor

Validator & Grader

Test

Executer

Figure 2: iQuimera Architecture.

• The Data level represents the data abstraction

layer. It is composed of the modules related with

the storage of the data concerned with contests,

users, and problems in a relational Database. This

level also includes the Code Repository, where all

the students’ submissions are stored.

• The Main Engine level works as the system core,

linking and controlling the communication be-

tween the several components of the system.

This level includes: the Course/Problem and the

Group/User managers which are responsible for

the interaction with the data associated with the

problem and user management tasks; The Con-

tinuous Integration Engine that is responsible for

keeping the Code Repository integrity, managing

the tasks associated with Code Repository update

and with the continuous assessment process; and

ﬁnally, the Service Integration Engine that is the

API for the communication between the plugins

and the system.

• The Pluggable level encloses all the plugins cur-

rently available in the system. These plugins

represent the different tools that can be used in

the grading process. They are grouped in three

types, namely: Compilers, Static Analyzers and

Dynamic Analyzers.

• The Interface level is responsible for the interac-

tion between the user and the system. Like the

ﬁrst version, iQuimera is a web-based system with

a nice and modern web interface; however we also

provide the possibility to active and work with the

system via the command line.

4.3 Flexible Dynamic Analysis

As said in Sections 2 and 3, one of the main draw-

backs of the existing AGS is their incapability of de-

tecting and correctly grading alternative answers. For

instance, they do not support situations where small

differences in the order of the output elements do not

mean a bad answer (which would be considered cor-

rect in a manual assessment).

To overcome this gap we propose a generic model

to obtain a more ﬂexible and rigorous grading pro-

cess, closer to a manual one. More speciﬁcally, an ex-

tension of the traditional Dynamic Analysis concept,

by performing a comparison of the output produced

by the program under assessment with the expected

one at a semantic level. We aim at allowing not only

the speciﬁcation of which parts of the generated out-

put can differ from the expected one, but also to deﬁne

how to mark partially correct answers (Fonte et al.,

2013).

PartialCorrectnessandContinuousIntegrationinComputerSupportedEducation

209

To implement this model, we perform a seman-

tic comparison between both outputs based on a Do-

main Speciﬁc Language (DSL), specially designed

to specify the output structure and semantics – the

Output Semantic-Similarity Language (OSSL). The

OSSL design also supports the mark of partially cor-

rect answers.

For this, we are extending the grading module of

Quimera with a Flexible Dynamic Analyzer (FDA).

Figure 3 depicts the architecture of that extension,

which is composed of three modules: the OSSL Pro-

cessor, the Flexible Evaluator and the Grader.

Flexible Dynamic Analyser

OSSL Processor Grader

Compiled

Program

∈

≈

Extended

Learning Object

Dynamic Analysis

Grading Report

Input 1

Input n

Flexible Evaluator

Grading Instructions

Test

Report 1

Test

Report n

Executer

Val ida tor

Program Output

Compilation Report

Output IR 1

Output IR 2

Figure 3: Flexible Dynamic Analyzer Architecture.

The OSSL Processor is responsible for producing

the set of resources required to execute, validate and

grade the submission under assessment. It receives an

Extended Learning Object containing the problem de-

scription, the associated metadata and the OSSL spec-

iﬁcation, and generates the set of Inputs, the set of the

Expected Outputs (through an intermediate represen-

tation, IR) and the Grading Instructions.

The Flexible Evaluator is responsible for execut-

ing and validating the submissions. It receives the set

of Inputs, extracted from the OSSL speciﬁcation by

the OSSL Processor, and executes the Compiled Pro-

gram. If an execution is successful, the Flexible Eval-

uator module produces a Program Output ﬁle that is

validated against the respective Output IR – the inter-

mediate representation of the OSSL speciﬁcation of

the expected output, generated by the OSSL Proces-

sor. This output IR allows to compare (at the seman-

tics level) the meaning of the expected output with

the output actually produced. This validation process

produces a Test Report for each test performed, con-

taining the details about time and memory consump-

tions and the test results.

The Grader module produces a Grading Report

resulting from the dynamic evaluation performed,

concerning the set of Test Reports produced by the

Flexible Evaluator and the Grading Instructions pro-

vided by the OSSL Processor. This Grading Report

is composed of the details about each individual test

report and the submission assessment, which is cal-

culated regarding time and memory consumptions,

the weight and score for each test and the number of

successful tests. Moreover, if the submission under

assessment fails the compilation phase, this grading

process is based on the Compilation Report provided

by the compiler, in order to give feedback about the

program under assessment.

Using the FDA only requires from the teacher to

describe the test set by providing the OSSL deﬁnition

of input and expected output for each problem. This

description has only to be written once for each dif-

ferent problem, since this module automatically gen-

erates all the data necessary for the student’s answers

validation.

As an example of usage, consider an exercise

where it is asked to write a program that tests which

points of a giving set of cartesian coordinates can de-

ﬁne a square. As input, the program receives a ﬁle

with two integers per line, giving the cartesian coor-

dinates of each point. As output, is expected that the

student’s answer produces the set of four coordinates

that deﬁnes each square. Considering as input the

following set of coordinates: (0,0), (0,10), (10,10),

(10,0), (20,0), (20,10), (25,10), (25,0), it is possible

to deﬁne two squares as depicted in Figure 4.

10 20 30

Answer 1:

(20,0) (10,0) (20,10) (10,10)

(10,0) (10,10) (0,0) (0,10)

Answer 2:

(10,0) (0,0) (0,10) (10,10)

(20,10) (20,0) (10,10) (10,0)

Figure 4: Cartesian representation of the exercise input.

Traditional AGS only accept answers containing

the groups of four coordinates in a certain order.

Also, answers that output only one of the two possi-

ble squares are considered incorrect. With the proper

OSSL deﬁnition (as introduced in (Fonte et al., 2013),

here ommited for the sake of space), the FDA module

accepts answers with the correct coordinates for each

square in any order or with the squares also listed in

any order. Moreover, it can also accept as partially

correct answers solutions that only output one of the

two possible squares. On the right side of Figure 4,

we can see an example of two answers accepted by

the FDA module, that differ not only on the coordi-

nates order inside each square, but also in the squares

order.

We have conﬁdence that the proposed approach is

easy to use (OSSL allows to specify the output mean-

ing in a simple way) and not difﬁcult to implement.

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

210

We also argue that it effectively improves the role of

AGS as Learning Support Tools, ensuring the interop-

erability with existent programming exercise evalua-

tion systems that support Learning Objects (Hodgins

et al., 2002).

4.4 Continuous Integration to Track

Students’ Evolution

Continuous Integration (CI) is one of the main keys

for success within Extreme Programming. It grants

the quality of the software, by controlling the devel-

opment process on each small step.

CI takes advantage of the automation of a set of

pipelined tasks done in order to improve the produc-

tivity in the development (Duvall et al., 2007). It starts

by merging the code from multiple team members

in an integration machine. This machine stores the

latest version of the project and is able to integrate

new changes with the existing code, following the

synchronous model for team programming (Babich,

1986). This operation may produce collisions in the

merging server when two or more ﬁles were changed

by different team members.

Despite integration may take advantage of usual

repository version control tools (like SVN

or Git

) to

easily handle colisions, CI goes further in the sense

that the code is always built and tested upon each

commit. A valuable coproduct is the generation of

success statistics and reports for every team member

who performs an integration (Miller, 2008).

We are enriching Quimera evaluation process by

taking advantage of the techniques used in CI, to im-

prove students’ effectiveness (Vilas Boas et al., 2013).

To the best of our knowledge, CI methodology was

never attempted as assessment tool within the edu-

cational environment, more speciﬁcally, in teaching

programming languages to beginners.

Figure 5 depicts the Quimera system extension to

include the CI methodology. This process requires the

implementation of a Code Integration Engine (CIE)

with capability to work with some of the common

Version Control Systems. New code integration will

be automated as much as possible, using the auto-

merge mode of those tools to minimize collisions.

After a successful Integration, CIE builds the

code, with the tools already available in the AGS.

Along this process, the warnings and errors found are

reported. Then, some metrics are evaluated directly

from the source code to enrich the ﬁnal report. As

an optimization, ﬁles without changes are not reeval-

uated, speeding up the process.

http://subversion.apache.org

http://git-scm.com

Continuous

Integration

Engine

Report

Build

Deploy

Test

Code

Fragment

Measure

Status

Warnings

/Errors

Metrics

Integration

Code

Repository

Figure 5: Continuous Integration Engine activity.

Recurring to the AGS, the executable code pro-

duced is deployed to a sandbox running on protected

environment, in order to be tested. This allows to em-

ulate the real environment where the code should be

tested and prevents system failure that can come from

the execution of malicious code. After deployment,

the set of test units is run and a report about the code

correctness is generated. This report is the main result

of the integration. Finally, another report is generated

with details about the status of each step of the pro-

cess described. This report, available in several for-

mats, is sent to the students and teacher according to

their preferences.

iQuimera requires a new set of conﬁgurations. To

administrators, these new settings are applied at sys-

tem’s initial setup. A conﬁguration routine and doc-

umentation will be available to simplify this process.

To teachers, the continuous integration process is au-

tomatic, so does not require any extra effort. To stu-

dents, the use of a CVS requires machine speciﬁc con-

ﬁgurations according to their development environ-

ment. This may be the most difﬁcult step to the suc-

cess of its adoption.

As brieﬂy referred in Section 2, there are some

good results that arose from the application of Agile

Development (mainly Extreme Programming) meth-

ods in educational environments. However, they are

applied mostly on advanced years of programming

courses due to the programming knowledge level re-

quired to follow the complex rules of Extreme Pro-

gramming. With novices, these will hardly bring pos-

itive results, which led us to design this approach to

be more suitable for beginners.

We have in mind that this proposal will not soften

the steep curve for programming concepts acquain-

tance, once the basilar concepts will remain hard to

grasp. However, with the feedback on continuous

evolution on this matter will allow to focus where the

problem really exists. Moreover, it also provides a fair

PartialCorrectnessandContinuousIntegrationinComputerSupportedEducation

211

assessment, since students are followed closely and

measured for their evolution and implicit effort. All

these ingredients contribute to augment the students

motivation and enthusiasm.

5 CONCLUSION

We discussed the difﬁculties inbred in teaching

and learning Programming Languages and proposed

iQuimera, a system developed in the scope of com-

puter aided education to help making this process

more successful through problem-solving paradigm.

iQuimera extends Quimera, an hybrid (static and dy-

namic) Automatic Grading System (AGS) in what

concerns students evaluation approaches.

Our contribution is two fold. On one hand, we

propose a more ﬂexible assessment model accept-

ing answers that have syntactic differences (although

semantically correct), and also partially correct an-

swers. On the other hand, we propose to apply Con-

tinuous Integration (CI) principles for a continuous

assessment of group elements.

Although iQuimera requires more conﬁguration

effort from the three actors enrolled than the tradi-

tional AGS—more time to specify the problem, test

vectors, and grading mechanisms (teacher), to man-

age all the participants and processes (admin), and to

use the system in collaborative mode (students), as

well as, more sensibility to tune appropriately the sys-

tem (teacher)—, it is not an effort necessary each time

someone wants to use the system, but it shall be done

only once per course or exercise. Thus, we believe

that this conﬁguration effort is surpassed by the ad-

vantages iQuimera provides with CI and Flexible Dy-

namic Analysis adoption.

We plan (1) to ﬁnish the implementation of the

Flexible Dynamic Analyser and the CI engine; (2)

to develop new front ends in order for iQuimera to

accept other programming languages than C; (3) to

extend iQuimera such that it performs with minimal

students intervention. Afterwards, we plan to test

iQuimera with real users by means of a carefully

sketched real case study, in order to verify its useful-

ness and beneﬁts.

ACKNOWLEDGEMENTS

This work is funded by National Funds through

the FCT - Fundac¸

ao para a Ci

encia e Tecnologia

(Portuguese Foundation for Science and Technology)

within project ”Projeto Estrat

egico - UI 752 - 2011-

2012 - Ref. PEst-OE/EEI/UI0752/2011”.

REFERENCES

Babich, W. A. (1986). Software conﬁguration management:

coordination for team productivity. Addison-Wesley

Longman Publishing Co., Inc., Boston, MA, USA.

Beck, K. (2001). Manifesto for Agile Software Develop-

ment. http://agilemanifesto.org.

Duvall, P. M., Matyas, S., and Glover, A. (2007). Con-

tinuous Integration: Improving Software Quality and

Reducing Risk. Addison-Wesley Professional.

Fonte, D., Boas, I. V., da Cruz, D., Ganarski, A. L., and

Henriques, P. R. (2012). Program analysis and evalu-

ation using quimera. In ICEIS’12, pages 209–219.

Fonte, D., Cruz, D. d., Ganc¸arski, A. L., and Hen-

riques, P. R. (2013). A Flexible Dynamic System

for Automatic Grading of Programming Exercises. In

SLATE’13, volume 2, pages 129–144.

Forsyth, D. R. (2009). Group dynamics. Wadsworth Pub-

lishing Company, Belmont, 5 edition.

Guerrero, L. A., Alarcon, R., Collazos, C., Pino, J. A., and

Fuller, D. A. (2000). Evaluating cooperation in group

work. In Groupware CRIWG 2000, pages 28–35.

Hazzan, O. and Dubinsky (2003). Teaching a software

development methodology: the case of extreme pro-

gramming. In CSEE&T 2003, pages 176–184.

Hodgins, W. et al. (2002). Draft Standard for Learning Ob-

ject Metadata. IEEE 1484.12.1-2002, pages i–44.

Hukk, M., Powell, D., and Klein, E. (2011). Infandango:

Automated Grading for Student Programming. In

ITiCSE ’11, page 330. ACM.

Jovanovic, V., Murphy, T., and Greca (2002). Use of

extreme programming (XP) in teaching introductory

programming. FIE’02, 2:F1G–23.

Kim, S., Park, S., Yun, J., and Lee, Y. (2008). Auto-

mated Continuous Integration of Component-Based

Software: An Industrial Experience. In Automated

Software Engineering, pages 423–426.

Leal, J. P. and Silva, F. (2003). Mooshak: a Web-based

multi-site programming contest system. Software:

Practice and Experience, 33(6):567–581.

Matt, U. v. (1994). Kassandra: the automatic grading sys-

tem. SIGCUE Outlook, 22(1):26–40.

Miller, A. (2008). A Hundred Days of Continuous Integra-

tion. In AGILE ’08, pages 289–293.

Milne, I. and Rowe, G. (2002). Difﬁculties in learning and

teaching programming—views of students and tutors.

Education and Information technologies, 7(1):55–66.

Tauch, C. (2004). Almost Half-time in the Bologna Process

- Where Do We Stand? European Journal of Educa-

tion, 39(3):275–288.

Vilas Boas, I., Oliveira, N., and Rangel Henriques, P.

(2013). Agile Development for Education effective-

ness improvement. In SIIE’13, Viseu, Portugal.

CSEDU2014-6thInternationalConferenceonComputerSupportedEducation

212
