Hypermodal

Dynamic Media Synchronization and Coordination between WebRTC Browsers

Li Li

, Wen Chen

, Zhe Wang

and Wu Chou

Shannon Lab, Huawei Technologies, Bridgewater, New Jersey, U.S.A.

Contractor, Global Infotech Corporation, Kearny, New Jersey, U.S.A.

CS Dept., Rutgers University, Piscataway, New Jersey, U.S.A.

Keywords: Temporal Linkage, Synchronization Tree, RDF, Media Fragments URI, WebRTC, REST API.

Abstract: This paper describes a Web based real-time collaboration system, Hypermodal, based on the concept of

temporal linkage between resources. The system allows the users to construct, manipulate and exchange

temporal linkages organized as synchronization trees. The temporal linkage is defined by RDF <sync>

predicate based on a novel use of Media Fragments URI and permits on-the-fly tree updates while the

resources in the tree are playing. We propose RDF <mirror> predicate and a new protocol to correlate and

initialize distributed synchronization trees without requiring clock synchronization. Moreover, we develop a

new REST API optimized for efficient tree updates and navigations based on super nodes. The preliminary

test results on a prototype system show the approach is feasible and promising.

1 INTRODUCTION

The true power of the Web is to organize distributed

information in an unconstrained way through

hypertext (Berners-Lee, 2000). With the vast amount

of multimedia resources on the Web and the advent

of WebRTC, there is an acute need to be able to link

these real-time multimedia resources in an accurate

and meaningful way.

The continuous nature of multimedia resources

makes it insufficient to link them the way we link

discrete documents or images. What we need is a

new type of temporal linkage that can link intervals,

regions or objects within multimedia resources. The

application domains of such technology are wide

open. We can link a person in a video stream to his

home page so that the conference participants can

find more about him without asking. When

discussing a trip to Barcelona Spain, we can link the

conversation to a Google map, a Wikipedia page,

and a public transportation page about the city.

Users of MOOCS websites can link part of an online

video lecture to relevant segments of another video

during a live discussion such that students can learn

the same concepts from different professors. The

agents that link the resources can also be machine

programs, such as Speech Recognition, Machine

Translation, or Face Tracking and Detection

engines. For example, a moderator can schedule

conference topics and a topic search engine can link

resources relevant to the topics on time into the

conference.

Temporal linkages can even link discrete

resources without a temporal dimension, by treating

them as continuous resources whose content does

not change in small time scale. They can also link

abstract resources that have a temporal dimension

but no intrinsic content, such as a session. This

generalization gives us the ability to temporarily link

any types of resources in anywhere in a uniform

way.

This paper describes a real-time collaboration

system Hypermodal based on the concept of

temporal linkage. The system allows the users to

construct, manipulate and exchange temporal

linkages in a meaningful way in real-time. Our goal

is to create a mutual feedback loop between the

system and the Web: any Web resources can be

linked to the system and the links created by the

system become part of the Web. To achieve this

goal, we use as many standards as possible such that

the components processing the temporal linkages

can be developed independently but fully

interoperate. Under this guideline, we address the

following research issues in this paper.

If not constrained, the temporal linkages can

Li L., Chen W., Wang Z. and Chou W..

Hypermodal - Dynamic Media Synchronization and Coordination between WebRTC Browsers.

DOI: 10.5220/0004856100740081

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 74-81

ISBN: 978-989-758-024-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

form an arbitrary directed graph which is difficult to

manage for both users and machines. To solve this

problem, we propose RDF <sync> predicate to

define a generic temporal linkage based on a novel

use of W3C Media Fragments URI standard

(Troncy, 2012), such that we can construct

synchronization trees, instead of directed graphs, to

represent temporal linkages.

During a collaboration session, the

synchronization trees are not static but are

constructed incrementally and may change at any

time when the resources in the tree are playing. To

support on-the-fly updates, we develop a mechanism

to play individual <sync> linkages without

interrupting the resources in play.

In our system, whenever a user modifies a

synchronization tree, the modification may

propagate to other remote trees so all users have the

same view. However, WebRTC Web browsers

assign different URIs to the same multimedia

resource, making it impossible to exchange <sync>

linkages between synchronization trees that share

the same resource. To address this problem, we

propose RDF <mirror> predicate and a new protocol

to correlate and initialize distributed synchronization

trees without requiring clock synchronization

between browsers and servers.

The components in our system need a protocol to

communicate their updates to the synchronization

trees. However, current RDF query and update

languages are not designed for efficient updates to

synchronization trees. To address this problem, we

develop a novel REST API to navigate and update

synchronization trees based on the concept of super

node.

The rest of this paper is organized as follows.

Section 2 surveys the related work. Section 3 defines

the synchronization tree based on the <sync> and

<mirror> relations. Section 4 describes how to

initialize synchronization trees using WebRTC call

control protocol. Section 5 introduces the REST API

for managing the synchronization. Section 6

describes our prototype implementation and

experimental results, and we conclude the paper

with Section 7.

2 RELATED WORK

The approach described in this paper is different

from the screen/application sharing offered by many

Web conference systems. In screen sharing, shared

content is read-only to all users except the owner,

whereas in our approach, shared resources are

interactive to all users. Screen sharing requires more

network bandwidth to send the encoded video than

the REST API to coordinate distributed

synchronization trees. For example, Skype (Skype,

2013) requires at least 128 kbits/s for screen sharing,

whereas we estimate the bandwidth required by our

REST API is lower than 5 kbits/s. Furthermore,

screen sharing creates a loophole for the Same

Origin Policy (Rescorla, 2013), whereas our

approach enforces this policy.

WebRTC (Bergkvist, 2013) is an ongoing joint

effort between W3C and IETF to develop Web

(JavaScript) and Internet (codec and protocol)

standards to enable P2P real-time communication

between Web browsers without any external plug-

ins. Several open source Web browsers, including

Chrome (WebRTC Chrome) and Firefox (WebRTC

Firefox), already support some WebRTC functions

and demonstrate certain degree of interoperability.

SMIL (Bulterman, 2008) is a XML dialect to

express temporal synchronization between

multimedia resources. However, SMIL does not

support dynamic media synchronization. Once a

SMIL document begins to play, we cannot modify

the document to add new media or change the

synchronization relations between existing media.

Nixon (Nixon, 2013) describes a research agenda

for Linked Media, inspired by the Linked Data

initiative, where the main approach is to link

multimedia based on the conceptual relations

between the fragments of the multimedia. Li et al

(Li, 2012) describes Synote, a system to interlink

multimedia fragments based on RDF and Media

Fragments URI. Oehme et al (Oehme, 2013)

describes a system to link a video to Web resources

and overlay the resources on top of the video.

Mozilla Popcorn Maker (Popcorn Maker) is an open

source JavaScript library that allows a user to create

multimedia presentations by layering Web

information, e.g. Google map or Wikipedia page, at

different intervals and regions of an online video.

However, all these approaches are for single user

presentations or based on ad-hoc languages, not for

multi-user and on-the-fly resource synchronization

based on temporal linkage.

3 SYNCHRONIZATION TREE

Figure 1 illustrates the smallest Hypermodal system

with two Web browsers connected by a Web server,

where the synchronization trees are stored in the

browsers and the <mirror> linkages are stored on the

server.

Hypermodal-DynamicMediaSynchronizationandCoordinationbetweenWebRTCBrowsers

Figure 1: Basic Hypermodal system architecture.

A synchronization tree consists of nodes that define

the intervals of resources based on Media Fragments

URI, and edges that define temporal linkages

between the nodes based on our RDF <sync>

predicate, as illustrated in Figure 2, where the nodes

are rendered as horizontal lines, whose lengths

indicate the intervals, and the edges as vertical

arrows whose positions indicate synchronization

points. Both trees are rooted at the same session

resource identified by URI0. The <mirror> linkages

that link the same resources shared between the trees

are rendered as the curved arrows.

Figure 2: Correlations between tree A (top) and tree B

(bottom).

Synchronization tree does not constrain the

resources in any way as long as they can be

identified by Media Fragments URI. For example,

we can even synchronize two different intervals of

the same video. If we treat the unique resources, not

the intervals of the resources, as nodes, they can

form a directed graph linked by the <sync> linkage.

However, a tree is a more accurate representation of

<sync> linkages, because different intervals of the

same resource can be updated independently as

distinct resources. For instance in Figure 2, the same

Wikipedia page (

URI6) occurs as two nodes in two

<sync> linkages (

A4 and A7). When one linkage is

changed, the other one is not affected. But if the

page is changed, it will be reflected on both

linkages.

Synchronization trees are constructed

dynamically when the resources in the tree are

playing: 1) new edges can be added anywhere by

inserting RDF <sync> triples (edges); 2) the

intervals and synchronization points of a resource

can be changed by modifying the Media Fragments

URI (nodes). This process is detailed in Sections 4

and 5.

3.1 The <Sync> Predicate

We propose <sync> RDF predicate whose subject

and object are Media Fragments URIs. If

xs,xe,ys,ye are nonnegative integers that denote

the start and end time of a resource in second, then

the canonical triple:

<URI_X#t=xs,xe><sync><URI_Y#t=ys,ye>

instructs the user agent to play the interval

[sy,ey)

of resource

URI_Y within the interval [sx,ex) of

resource

URI_X. For example, the following triple:

<A_URI1#t=50><sync><URI5#t=30,120>

plays the interval [30,120)of resource URI5 when

resource

A_URI1 reaches the 50th second and before

it ends.

The <sync> linkage assigns different meanings

to Media Fragments URI based its role in a <sync>

triple: the subject interval [

xs,xe) defines

synchronization points on

URI_X, not a new

resource extracted from

URI_X, whereas the object

interval [

ys,ye) defines a new resource extracted

from

URI_Y. This is why we can simultaneously

attach many resources to intervals of

URI_X while

URI_X is playing, but at the same time maintain the

tree structure by breaking

URI_Y into independent

portions.

The canonical <sync> triple requires the user

agents to know the absolute play time of resources.

This is difficult in distributed system when the

machine clocks are not synchronized. To address

this problem, we introduce two extensions to Media

Fragments URI: relative delay and event

Web Server

<mirror> triples

Translation

Page A

Tree A

<sync>

Page B

Tree B

<sync>

Browser A

Web RTC

Browser B

Web RTC

Web

RTP media

REST API REST API

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

synchronizations. If

and

are positive numbers,

then the relative delay triple:

<URI_X#t=+d,+r><sync><URI_Y#t=ys,ye>

plays an interval of

URI_Y

within the interval

[now+d, now+d+r)

of resource

URI_X

, where

now

denotes the normal play time of resource

URI_X

when the triple is to be played.

Event synchronization is borrowed from SMIL

(Bulterman 2008). If

E1 and E2

denote events

generated by resource

URI_X,

then the triple:

<URI_X#t=E1+d,E2+r><sync><URI_Y#t=ys,ye>

defines the resource play interval based on the time

of the events. For example, to automatically display

the PowerPoint at

URI_Y

when topic

t1

is being

discussed in the session that generates event

t1_s

when

starts and event

t1_e

when the topic ends,

we could use the following triple:

<session#t=t1_s,t1_e><sync><URI_Y>

To play a canonical <sync> triple while the

subject resource is playing, we use the process

depicted in Figure 3, which takes the current subject

play time and a <sync> triple as input, calculates the

actual play time of the object resource, and produces

a task as output. A <sync> triple can specify any

start and end times, and it can be played at any time,

but the process makes sure the actual play interval of

the object resource is always within the current play

time and the specified end time of the subject

resource. If this is impossible, the object resource

will not be played.

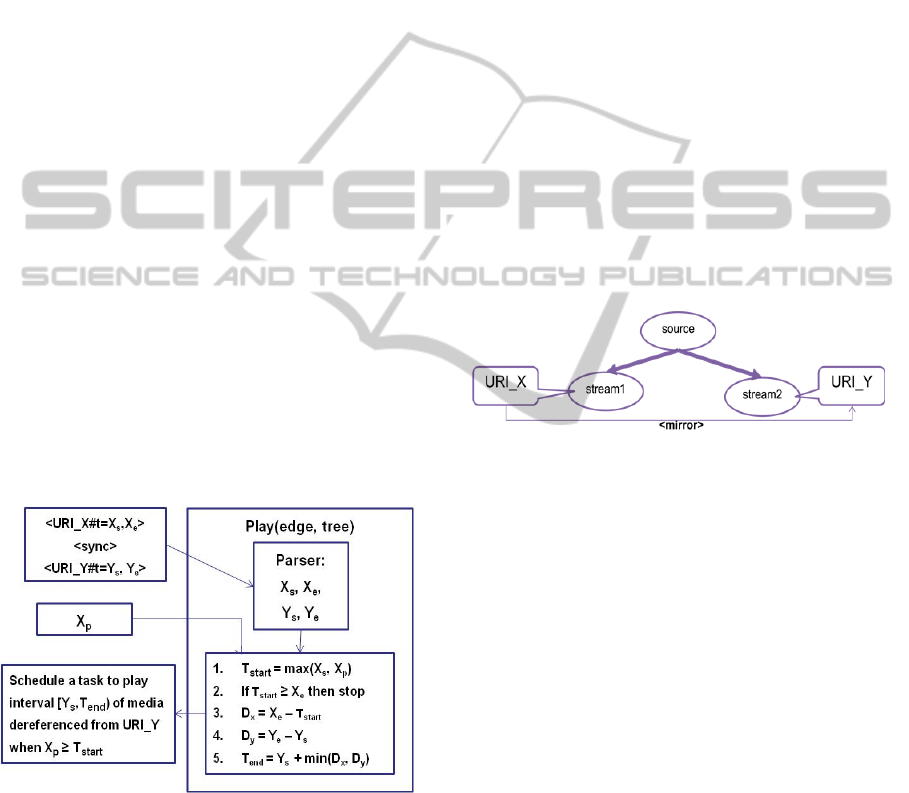

Figure 3: Process to play a <sync> triple.

To play a relative delay triple, the process

translates

to absolute play time

now+d

. To play an

event triple, the process translates

E+d

to absolute

play time

time(E)+d

. For example, if event

t1_s

happens at the 600

second, and

t1_e

happens at the

1200

second, then

<session#t=t1_s,t1_e>

translated to

<session#t=600,1200>

The play process automatically compensates the

network delay by adjusting the play interval. To

illustrate this effect, suppose browser B sends

browser A the <sync> triple:

<URI5#t=20,30>

<sync><URI6>

when the current play time of

URI5

at browser A is 19. When browser A receives the

triple in 2 seconds, the current play time of

URI5

has

advanced to 21=19+2. Browser A will then play

URI6

only for 9 seconds. This approach never

rewinds a subject resource in play although it may

abbreviate the play intervals of object resources. It is

a reasonable approach if the network delay is

relatively small compared to the play intervals. An

alternative approach outlined in (Pan, 2012) is to

“rewind”

URI5

back to 20 to play

URI6

for 10

seconds. However, such approach will not work if

there are multiple conflicting “rewind” actions.

3.2 The <Mirror> Predicate

We propose <mirror> RDF predicate whose subject

and object identify resources from the same source,

as illustrated in Figure 4.

Figure 4: Resource model for <mirror> linkage.

For example,

<A_URI1> <mirror> <B_URI1>

indicates the two URIs in Figure 2 identify two

resources whose streams come from the same video

camera. The <mirror> linkage is not equivalent to

RTP SSRC (Perkins, 2008), because two resources

in the <mirror> linkage can have different SSRC

values. For example, a media device may mix a

video stream1 with an advertisement stream2 to

create a picture-in-picture stream3. Although

stream1 and stream3 have different SSRC, they are

still regarded as the same by users because their

main contents are the same.

The <mirror> closures can be computed based on

the following properties:

Commutative:

X <mirror> Y => Y

<mirror>X

Transitive:

X <mirror> Y, Y <mirror> Z

=>X<mirror>Z

With these closures, the translation between <sync>

triples is straightforward as shown in Figure 5.

Hypermodal-DynamicMediaSynchronizationandCoordinationbetweenWebRTCBrowsers

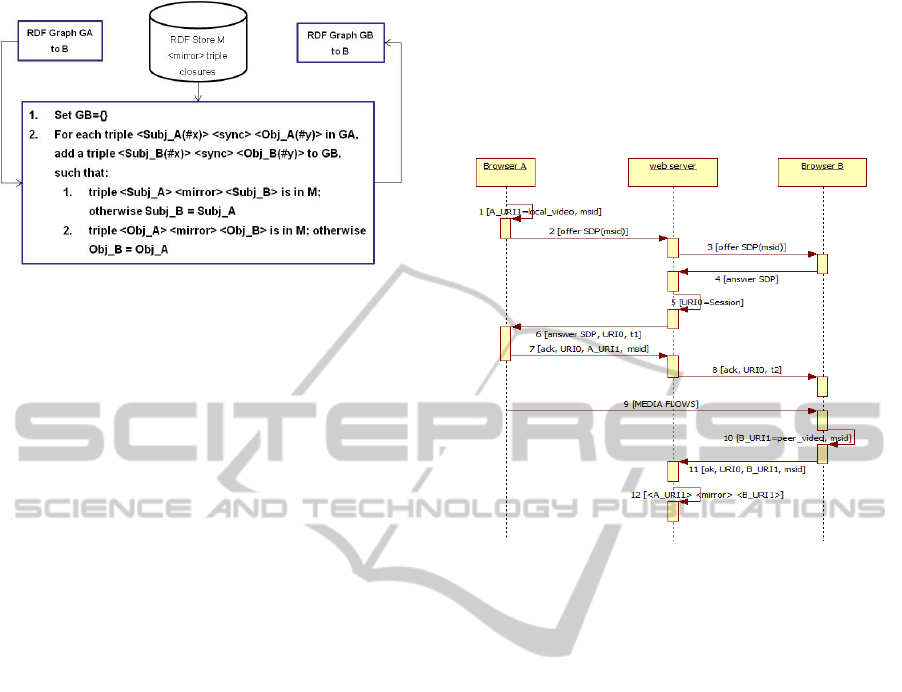

Figure 5: translation based on <mirror> closures.

4 TREE INITIALIZATION

When a user joins a collaboration session, the

synchronization tree is initialized automatically by

the system with the session and whatever media

streams the user chooses to send and receive. To

avoid performance overhead, the best approach is to

embed the tree initialization protocol within the

regular session establishment protocol. Figure 6

illustrates this technique using WebRTC

offer/answer protocol (Rosenberg, 2002) with two

additional messages

ack and ok. The server sends

the browsers the session URI and play time in

regular

answer (t1 at step 6) and ack (t2 at step 8)

messages so that browsers can attach local media

resources to the session at the correct time. The

browsers send the server the correlation relations in

ack (step 7) and ok (step 11) messages so that the

server can derive the <mirror> relations between

local URIs from the correlations. The correlation is

established from media stream identifier (msid)

maintained by WebRTC API.

When a browser wants to attach a resource to the

session, it must know the current session time.

However, the session time is maintained by the

server clock, whose rate is unknown to the browser.

One solution is to synchronize the clocks of the

browsers and the server. But this requires additional

protocol stack (e.g. NTP), which is often not

available on the browsers and servers. This paper

proposes two alternative approaches without

requiring any dedicated time synchronization

protocol.

In the server-based approach, the browsers use

relative delay URI and let the server to figure out the

session play time. For example, browser A can send

<URI0#t=+0> <sync> <A_URI1> to the server,

which calculates the session play time

tx by:

tx=now–d(S,X) according to the current session

time

now and the network delay d(S,X)≥0 between

the browser and the server. The advantage of this

approach is that the browser does not need to know

the session time maintained by the server. The

constraint is that the server needs to store the

synchronization trees for the browsers.



Figure 6: Tree initialization and correlation process.

In the client-based approach, each browser estimates

the current session play time using its own clock.

When a browser first receives the session time

t0 at

its local time

t1, it records these numbers. When it

sends a <sync> triple at time

t2≥t1, it estimates the

current session time

tx by: tx=t0+t2‐t1 and uses

tx in the <sync> triple. The advantage of this

approach is that server does have to store the

synchronization trees. The disadvantage is that the

estimated session time may be inaccurate when the

client clock differs from the server clock.

5 SYNCHRONIZATION TREE

REST API

In our system, users can frequently add <sync>

triples, update the triples, or delete a triple. Users

may also navigate and explore synchronization trees.

Different user agents may accept different formats of

a synchronization tree, e.g. XML, JSON or RDF

Turtle (Manola, 2007). Servers and user agents need

to cache and store the trees at different locations and

formats. These use cases led us to choose REST API

to encapsulate the synchronization trees.

There are several approaches (Gearon, 2013,

Sesame REST API, Berners-Lee 2001, Tummarello

2007) to update RDF graphs using REST API (ref).

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

However, these approaches treat the entire RDF

repository (i.e. a synchronization tree in our case) as

a resource. To locate a RDF triple in the repository,

a client must specify the subject, predicate and

object of the triple. However, in a concurrent

system, a client’s knowledge about a triple will be

out of date if other clients have changed the triple.

To address this problem and to reduce message

size, our REST API treats each <sync> triple as a

resource and assigns it a unique URI that does not

change, which can be easily achieved because many

RDF packages such as Jena (Jena) assigns unique

internal identifiers to RDF triples. With this URI, a

client can locate any <sync> triple without

specifying its current state. This idea is illustrated in

Figure 7 where each rectangle enclosing a <sync>

triple represents a REST resource with a unique

URI. For example, the triple:

<URI_0#T01> <sync>

<URI_X#TX0>

is a REST resource identified by

URI_triple1

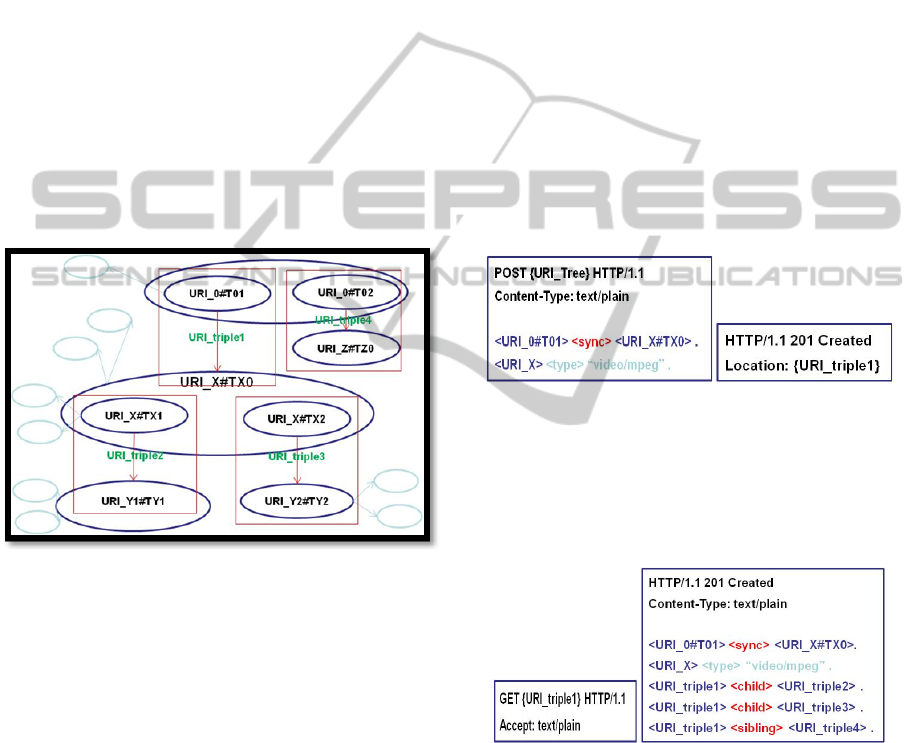

Figure 7: Resource model of synchronization tree.

However, these REST resources are not

connected as the rectangles do not intersect. To

address this problem, we introduce the concept of

super node, represented by ovals that enclose the

objects and subjects of different <sync> triples

which share the same base URI (URI without

fragment). For example, the super node

URI_X

contains

URI_X#TX0

URI_triple1

URI_X#TX1

URI_triple2

, and

URI_X#TX2

URI_triple3

Because

URI_X#TX1

and

URI_X#TX2

are the

children of

 URI_X#TX0

, we map these relations to

the corresponding REST resources to connect them

as follows:

<URI_triple1><child><URI_triple2>

<URI_triple1><child><URI_triple3>

At the top of Figure 7 is a root super node that

contains a set of “sibling” URIs:

URI_0#T01

URI_triple1

and

URI_0#T02

URI_triple4

Similarly, we map this relation to the REST

resources to connect them:

<URI_triple1><sibling><URI_triple4>

The members of a super node are updated

whenever a new <sync> triple X is attached to an

existing <sync> triple Y by the following rule: assert

relation: <Y> <child> <X> if the subject of X has

the same base URI as the object of Y. For new triple

without parents, the REST API attaches them to an

internal subject, so they can be checked for

<sibling> relations.

5.1 Create Triple

Figure 8 shows POST request and response to add

new triples to a tree resource identified by

URI_tree

, or to attach new <sync> triples to an

existing one, by replacing

URI_tree

with the URI to

the triple.

Figure 8: create a <sync> triple.

5.2 Retrieve Triple

Figure 9 shows the GET request and response that

returns the requested triple and its neighbors

connected by super nodes.

Figure 9: retrieve a <sync> triple.

5.3 Update and Delete Triple

Figure 10 shows three ways to update a <sync>

triple: 1) subject interval; 2) object interval; or 3)

both subject and object intervals.

We use DELETE message to a <sync> resource

to delete it, which will stop its playback and remove

all its child <sync> triples.

Hypermodal-DynamicMediaSynchronizationandCoordinationbetweenWebRTCBrowsers

Figure 10: 3 update a <sync> triple.

6 PROTOTYPE SYSTEM

A prototype Hypermodal system was implemented

based on the open source Mozilla Popcorn Maker

engine (Popcorn Maker) and Jena RDF package

(Jena).

Mozilla Popcorn Maker engine is implemented

in JavaScript and runs in Web browsers. The engine

allows a user to layer multimedia resources, such as

YouTube video, Google map and Twitter stream, on

a time axis. Users can change the start time and

duration of the layered media during playback, and

control the playback of these media with start, stop,

seek, pause and resume actions.

We integrated a WebRTC call control module

into Popcorn Maker so that users can make

audio/video calls through the Web server. During

the call negotiation, the Web server and the Web

browsers initialize the synchronization trees as

described in Section 4. We modified the Popcorn

Maker to detect relevant events at one Popcorn

Maker instance, translate these events to the REST

API messages, and send these messages over

WebSocket to the Web server as described in

Section 5. The Web server will translate the

messages based on <mirror> relations and broadcast

them to the Popcorn Maker instances in other

browsers.

Two screenshots of the modified Popcorn Maker

interface are shown in Figure 11 for Alice (top) and

Bob (bottom). Here Alice added a Google map

beneath her video and the map is displayed on Bob’s

screen under Alice’s video. Similarly, Bob added a

recorded video to his video, and this video is shown

on Alice’s screen below Bob. Other Web resources,

including Wikipedia page, Twitter page, chat

window and images, can be added to the

synchronization trees by the users as well.

We tested the performance of the system at the

Web browsers (Lenovo Thinkpad 420 with Intel

Core i5 2520M 2.50GHz (Dual Core) and 4.0GB

RAM, 32-bit Windows 7 Professional) and the Web

server (Dell OptiPlex 990 Mini Tower with Intel®

Core™ i7 2600 Processor (3.4GHz, 8M), 16GB

RAM, 64-bit Windows® 7 Professional) in a LAN

environment, when users add new <sync> triples or

modify them. For each operation, the following 4

time measurements were recorded.

1. BT: browser translates UI action to RDF

triples and sends them in REST API request.

2. SP: the server parses the triples in request

and stores them in Jena RDF models.

3. ST: the server translates the request triples

and broadcasts them to other browsers.

4. BR: round-trip time at the browser from

sending REST API request to receiving

response.

Figure 11: Screenshots of Hypermodal prototype system.

The following tables summarize the results (in

millisecond) for adding the triples (top) and updating

the triples (bottom) respectively, each averaged over

20 runs.

Table 1: Task time for adding and updating triples.

Time/task BT SP ST BR

mean

47.55 0.66 0.10 18.45

std

7.98 0.34 0.01 1.93

Time/task BT SP ST BR

mean

14.05 0.21 0.24 6.9

std

1.93 0.04 0.05 0.85

These experimental results indicated that the

proposed approach is feasible and promising since

the total server processing time is less than 1 ms and

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

the total round-trip delay at browsers is 66 ms for

adding triples and 21 ms for updating triples.

7 CONCLUSIONS

The contributions of this paper are summarized as

follows.

1. A synchronization tree model based on

temporal linkage defined by RDF <sync>

predicate to allow dynamic modifications to the

tree while the resources in the tree are playing.

2. A RDF <mirror> predicate and a new protocol

to correlate and initialize distributed

synchronization trees so that updates to one

tree can be correctly translated to another tree

without clock synchronization.

3. A novel REST API to support efficient updates

on synchronization trees by treating <sync>

triples as REST resources and connect them

through super nodes.

For future work, we plan to extend the temporal

linkage to spatial regions and objects in resources,

study multimedia resource cache mechanisms for

efficient constructions of synchronization trees, and

security mechanisms to prevent unauthorized and

malicious updates to synchronization trees, and

apply the described Hypermodal system to more

complex real-time collaboration applications.

REFERENCES

Bergkvist, A. et al (ed): WebRTC 1.0: Real-time

Communication Between Browsers, W3C Editor's

Draft 30 August 2013, http://dev.w3.org/2011/

webrtc/editor/webrtc.html, Last Access: October 10,

2013.

Berners-Lee, T.: Weaving the Web, Harper, 2000.

Berners-Lee, T. et al: Delta: an ontology for the

distribution of differences between RDF graphs, 2001,

http://www.w3.org/DesignIssues/Diff, Last Access:

October 10, 2013.

Bulterman D. et al (ed): Synchronized Multimedia

Integration Language (SMIL 3.0), W3C

Recommendation 01 December 2008, http://

www.w3.org/TR/SMIL3/, Last Access: October 10,

2013.

Gearon, P. et al (ed): SPARQL 1.1 Update, W3C

Recommendation 21 March 2013, http://www.w3.

org/TR/sparql11-update/, Last Access: October 10,

2013.

Jena: http://jena.apache.org/, Last Access: October 10,

2013.

Li, Y. et al: Synote: Weaving Media Fragments and

Linked Data, LDOW2012, April 16, 2012, Lyon,

France, http://events.linkeddata.org/ldow2012/papers/

ldow2012-paper-01.pdf, Last Access: October 10,

2013.

Manola, F. et al (ed): RDF Primer — Turtle version,

http://www.w3.org/2007/02/turtle/primer/, Last

Access: October 10, 2013.

Nixon, L. J. B.: The Importance of Linked Media to the

Future Web, WWW 2013 Companion, May 13–17,

2013, Rio de Janeiro, Brazil, http://www2013.

wwwconference.org/companion/p455.pdf, Last

Access: October 10, 2013.

Oehme, P. et al: The Chrooma+ Approach to Enrich Video

Content using HTML5, WWW 2013 Companion, May

13–17, 2013, Rio de Janeiro, Brazil. pages 479-480.

Pan, J., Li, L., Chou, W.: Real-Time Collaborative Video

Watching on Mobile Devices with REST Services,

2012 Third FTRA International Conference on

Mobile, Ubiquitous, and Intelligent Computing, pages

29-34, Vancouver, Canada, June 26-28, 2012.

Perkins, P.: RTP, Audio and Video for the Internet,

Addison-Wesley, 2008.

Popcorn Maker: https://popcorn.webmaker.org/, Last

Access: October 10, 2013.

Rescorla, E.: Notes on security for browser-based

screen/application sharing, March 11, 2013, http://

lists.w3.org/Archives/Public/public-webrtc/2013Mar/

0024.html, Last Access: October 10, 2013.

Rosenberg, J. et al: RFC3264: An Offer/Answer Model

with the Session Description Protocol (SDP), June

2002, http://www.ietf.org/rfc/rfc3264.txt, Last Access:

October 10, 2013.

Sesame REST API: http://openrdf.callimachus.net/

sesame/2.7/docs/users.docbook?view, Last Access:

October 10, 2013.

Skype: https://support.skype.com/en/faq/FA1417/how-

much-bandwidth-does-skype-need, Last Access:

October 10, 2013.

Troncy, R. et al (ed): Media Fragments URI 1.0 (basic),

W3C Recommendation 25 September 2012,

http://www.w3.org/TR/media-frags/, Last Access:

October 10, 2013.

Tummarello, G. et al: RDFSync: efficient remote

synchronization of RDF models, The Semantic Web,

Lecture Notes in Computer Science, Volume 4825.

ISBN 978-3-540-76297-3. Springer-Verlag Berlin

Heidelberg, 2007, p. 537, http://iswc2007.

semanticweb.org/papers/533.pdf, Last Access:

October 10, 2013.

WebRTC Chrome: http://www.webrtc.org/chrome, Last

Access: October 10, 2013.

WebRTC Firefox: http://www.webrtc.org/firefox, Last

Access: October 10, 2013.

Hypermodal-DynamicMediaSynchronizationandCoordinationbetweenWebRTCBrowsers
