Automatic Web Page Classiﬁcation Using Visual Content

Ant

onio Videira and Nuno Gonc¸alves

Institute of Systems and Robotics, University of Coimbra, Coimbra, Portugal

Keywords:

Web Page Classiﬁcation, Feature Extraction, Feature Selection, Machine Learning.

Abstract:

There is a constantly increasing requirement for automatic classiﬁcation techniques with greater classiﬁcation

accuracy. To automatically classify and process web pages, the current systems use the text content of those

pages. However, little work has been done on using the visual content of a web page. On this account, our

work is focused on performing web page classiﬁcation using only their visual content. First a descriptor is

constructed, by extracting different features from each page. The features used are the simple color and edge

histograms, Gabor and Tamura features. Then two methods of feature selection, one based on the Chi-Square

criterion, the other on the Principal Components Analysis are applied to that descriptor, to select the top

discriminative attributes. Another approach involves using the Bag of Words (BoW) model to treat the SIFT

local features extracted from each image as words, allowing to construct a dictionary. Then we classify web

pages based on their aesthetic value, their recency and type of content. The machine learning methods used

in this work are the Na

ıve Bayes, Support Vector Machine, Decision Tree and AdaBoost. Different tests are

performed to evaluate the performance of each classiﬁer. Finally, we thus prove that the visual appearance of

a web page has rich content not explored by current web crawlers based only on text content.

1 INTRODUCTION

Over the last years, the world has witnessed a huge

growth on the internet, with millions of web pages on

every topic easily accessible through the web, making

the web a huge repository of information. Hence there

is need for categorizing web documents to facilitate

the indexing, searching and retrieving of pages. In or-

der to achieve web’s full potential as an information

resource, the vast amount of content available in the

internet has to be well described and organized. That

is why automation of web page classiﬁcation (WPC)

is useful. WPC helps in focused crawling, assists

in the development and expanding of web directories

(for instance Yahoo), helps in the analysis of speciﬁc

web link topic, in the analysis of the content structure

of the web, improves the quality of web search (e.g.,

categories view, ranking view), web content ﬁltering,

assisted web browsing and much more.

Since the ﬁrst websites in the early 1990’s, design-

ers have been innovating the way websites look. The

visual appearance of a web page inﬂuences the way

the user will interact with it. The structural elements

of a web page (e.g. text blocks, tables, links, images)

and visual characteristics (e.g., color, size) are used

to determine the visual presentation and level of com-

plexity of a page. This visual presentation is known

as Look and Feel, which is one of the most impor-

tant properties of a web page. The visual appearance

(Look and Feel) of each website is constructed using

colors and color combinations, type fonts, images and

videos, and much more.

The aim of this work is to enable automatic anal-

ysis of this visual appearance of web pages by using

the web page as it appears to the user and evaluate the

performance of different classiﬁers in the classiﬁca-

tion of web pages in several tasks.

The motivation behind our work is based on

(de Boer et al., 2010), where the authors proved

that by using generic visual features it was possible

to classify web pages for several different types of

tasks. They classify web pages based on their aes-

thetic value, their design recency and the type of web-

site. They concluded that by using low-level features

of web pages, it is possible to distinguish between

several classes that vary in their Look and Feel, in

particular aesthetically well designed vs. badly de-

signed, recent vs. old fashioned and different topics.

We extend their work by using and comparing sev-

eral features, testing new feature selection methods

and classiﬁers. We used the same binary variables

(aesthetic value and design recency) but extended the

type of webpage content for 8 classes instead of 4. We

also aim to obtain better accuracy in classiﬁcation.

193

Videira A. and Goncalves N..

Automatic Web Page Classiﬁcation Using Visual Content.

DOI: 10.5220/0004856201930204

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 193-204

ISBN: 978-989-758-024-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 RELATED WORK

The text content that is directly located on the page is

the most used feature. A WPC method presented by

Selamat and Omatu (Selamat and Omatu, 2004) used

a neural network with inputs based on the Principal

Component Analysis and class proﬁle-based features.

By selecting the most regular words in each class and

weighted them, and with several methods of classiﬁ-

cation, they were able to demonstrate an acceptable

accuracy. Chen and Hsieh (Chen and Hsieh, 2006)

proposed a WPC method using a SVM based on a

weighted voting scheme. This method uses Latent

semantic analysis to ﬁnd relations between keywords

and documents, and text features extracted from the

web page content.Those two features are then sent to

the SVM model for training and testing respectively.

Then, based on the SVM output, a voting scheme is

used to determine the category of the web page.

There are few studies of WPC using the visual

content, because traditionally only text information

is used, achieving reasonable accuracy. It has been,

however, noticed (de Boer et al., 2010) that the visual

content can help in disambiguating the classiﬁcation

based only on this text content. Additionally, another

factor in favor of using the visual content is the fact

that subjective variables as design recency and aes-

thetic value cannot be studied using text content con-

tained in the html code. These variables are increasing

in importance due to web marketing strategies.

A WPC approach based on the visual information

was implemented by Asirvatham et al. (Asirvatham

and Ravi, 2001), where a number of visual features,

as well as text features, were used. They proposed

a method for automatic categorization of web pages

into a few broad categories based on the structure of

the web documents and the images presented on it.

Another approach was proposed by Kovacevic et al.

(Kovacevic1 et al., 2004), where a page is represented

as a hierarchical structure - Visual Adjacency Multi-

graph, in which, nodes represent simple HTML ob-

jects, texts and images, while directed edges reﬂect

spatial relations on the browser screen.

As mentioned previously, Boer et al. (de Boer

et al., 2010) has successfully classiﬁed web pages us-

ing only visual features. They classiﬁed pages in two

binary variables: aesthetic value and design recency,

achieving good accuracy. The authors also applied the

same classiﬁcation algorithm and methods to a multi-

class categorization of the website topic and although

the results obtained are reasonable, it was concluded

that this classiﬁcation is more difﬁcult to perform.

3 CLASSIFICATION PROCESS

This section presents the work methodology used to

fulﬁll the proposed objectives. Namely, how the pro-

cess of classiﬁcation of new web pages is done. In

Fig. 1 it is possible to see the necessary steps to pre-

dict the class of new web pages. The algorithms were

developed in C/C++ using the OpenCV library (Brad-

ski, 2000), that runs under Windows, Linux and Mac

OS X.

The next subsections present an explanation of the

methods used to extract features from the images, and

the construction of the respective feature descriptors.

It is explained in detail the techniques used to perform

feature selection.

3.1 Feature Extraction

The concept of feature in computer vision and image

processing refers to a piece of information which is

relevant and distinctive. For each web page, differ-

ent feature descriptors (feature vector) are computed.

This section describes how a descriptor of low level

features which contains 166 attributes that character-

ize the page is obtained and how the SIFT descriptor

using Bag of Words model is built.

3.1.1 Low Level Descriptor

Visual descriptors are descriptions of visual features

of the content of an image. These descriptors describe

elementary characteristics such as shape, color, tex-

ture, motion, among others. To built this descriptor

the following features were extracted from each im-

age: color histogram, edge histogram, tamura features

and gabor features.

Color Histogram. It is a representation of the dis-

tribution of colors in an image. It can be built in

any color space, but the ones used in this work is the

HSV color space. It was selected because it reﬂects

human vision quite accurately and because it mainly

uses only one of its components (Hue) to describe the

main properties of color in the image. The Hue his-

togram is constructed by discretization of the colors

in the image into 32 bins. Each bin will represent an

intensity spectrum. This means that a histogram pro-

vides a compact summarization of the distribution of

data in an image.

Edge Histogram. An edge histogram will repre-

sent the frequency and directionality of the brightness

changes in the image. The Edge Histogram Descrip-

tor (EHD) describes the edge distribution in an image.

It is a descriptor that expresses only the local edge

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

194

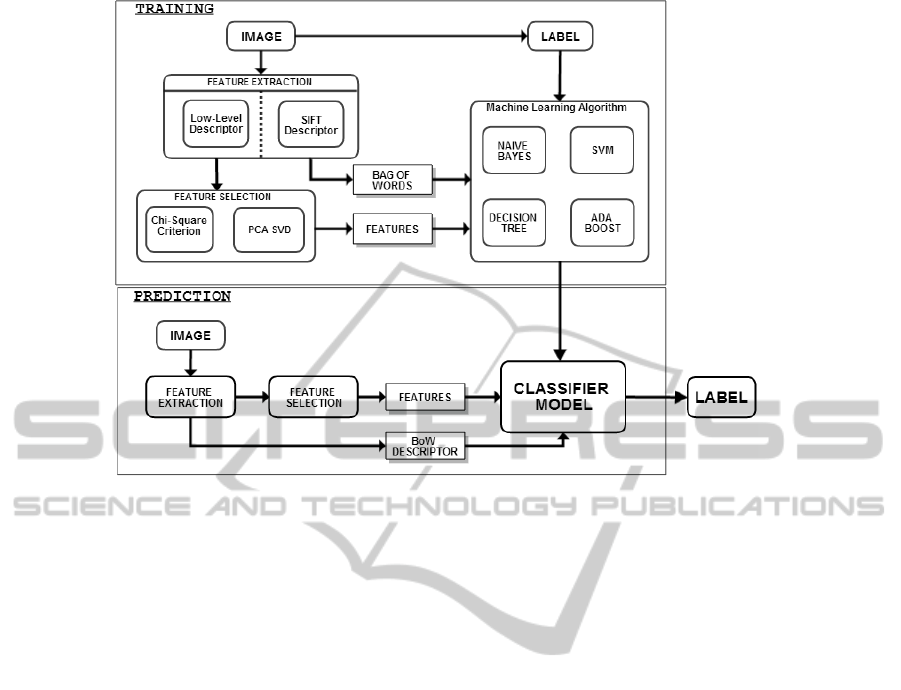

Figure 1: Classiﬁcation Process diagram.

distribution in the image, describing the distribution

of non-directional edges and non-edge cases, as well

as four directional edges, and keeps the size of the de-

scriptor as compact as possible for an efﬁcient storage

of the metadata. To extract the EHD, the image is di-

vided into a ﬁxed number of sub-images (4x4) and the

local edge distribution for each sub image is represent

by a histogram. The edge extraction scheme is based

on an image block rather than on the pixel, i.e., each

sub-image space is divided into small square blocks.

For each image block it is determined which edge is

predominant, i.e., the image block is classiﬁed into

one of the 5 types of edge or a non edge block. Since

there are 16 sub images in the image, the ﬁnal his-

togram is construct by 16x5 = 80 bins.

Tamura Features. Tamura et al. (Tamura et al.,

1978), on the basis of psychological experiments,

proposed six features corresponding to human visual

perception: coarseness, contrast, directionality, line-

likeness, regularity and roughness. After testing the

features, the ﬁrst three attained very successful results

and they concluded those were the most signiﬁcant

features corresponding to human visual perception.

The deﬁnition of these three features in (Deselaers,

2003) shows the preprocessing that is applied to the

images and the steps necessary to extract those three

features. The coarseness and contrast are scalar val-

ues, and the directionality is histogramized into a his-

togram of 16 bins.

Gabor Features. The interest about the Gabor func-

tions is that it acts as low-level oriented edge and

texture discriminators, sensitive to different frequen-

cies and scales, which motivated researchers to exten-

sively exploit the properties of the Gabor functions.

The Gabor ﬁlters have been shown to posses optimal

properties in both spatial and frequency domain, and

for this reason it is well suited for texture segmen-

tation problems. Zhang et al. (Zhang et al., 2000)

present an image retrieval method based on Gabor ﬁl-

ter, where the texture features were found by comput-

ing the mean and variation of the Gabor ﬁltered im-

age. The ﬁnal descriptor is composed by 36 attributes.

3.1.2 SIFT Descriptor using Bag of Words

Model

In pattern recognition and machine learning,

keypoint-based image features are getting more

attention. Keypoints are salient image patches that

contain rich local information of an image. The Scale

Invariant Feature Transform was developed in 1999

by David Lowe. The SIFT features are one of the

most popular local image features for general images,

and was later reﬁned and widely described in (Lowe,

2004). This approach transforms image data into

scale-invariant coordinates relative to local features.

On the other hand, the bag-of-words (BoW) model

(Liu, 2013) is a feature summarization technique that

can be deﬁned as follows. Given a training dataset

D, that contains n images, where D = {d

, d

, ..., d

where d is the extracted features, a speciﬁc algorithm

is used to group D based on a ﬁxed number of visual

AutomaticWebPageClassificationUsingVisualContent

195

words W represented by W = {w

, w

, ..., w

}, where

v is the number of clusters. Then, it is possible to

summarize the data in a n × v co occurrence table of

counts N

i j

= N(w

, d

), where N(w

, d

) denotes how

often the word w

occurred in an image d

To extract the BoW feature from images the fol-

lowing steps are required: i) detect the SIFT key-

points, ii) compute the local descriptors over those

keypoints, iii) quantize the descriptors into words to

form the visual vocabulary, and iv) to retrieve the

BoW feature, ﬁnd the occurrences in the image of

each speciﬁc word in the vocabulary.

Using the SIFT image feature detector and de-

scriptor implemented in OpenCV, each image is ab-

stracted by several local keypoints. These vectors are

called feature descriptors and as explained above the

SIFT converts this keypoints into a 128-dimensional

vector. But once we extract such local descriptors

for each image, the total number of them would most

likely be of overwhelming size. In that case, BoW

solve this problem by quantizing descriptors into ”vi-

sual words”, which decreases the descriptors amount

dramatically. This is done by k-means clustering, an

iterative algorithm for ﬁnding clusters in data. This

will allow to ﬁnd a limited number of feature vectors

that represent the feature space, allowing to construct

the dictionary.

Once the dictionary is constructed, it is ready to

be used to encode images. In the implementation of

this algorithm, different sizes of the dictionary (i.e.,

the number of cluster centers) were used, to analyze

the difference in the performance of the classiﬁers.

3.2 Feature Selection

An important component of both supervised and un-

supervised classiﬁcation problems is feature selection

- a technique that selects a subset of the original at-

tributes by selecting a number of relevant features. By

choosing a better feature space, a number of problems

can be solved, e.g., avoid overﬁtting and achieve bet-

ter generalization ability, reduce the storage require-

ment and training time and allowing us to better un-

derstand the domain. Two algorithms for applying

feature selection are built. One is based on the Chi-

Square Criterion, the other uses the Principal Compo-

nents Analysis. In both methods a different number

R corresponding to the most relevant features is se-

lected. The different values of R used in this work are

1%, 2%, 5%, 10%, 20% and 50% of the total features.

3.2.1 Chi-Square Criterion

Feature Selection via chi square (χ

) test is a very

commonly used method (Liu and Setiono, 1995).

Chi-squared attribute evaluates the worth of a fea-

ture by computing the value of the chi-squared statis-

tic with respect to the class. The Feature Selection

method using the Chi-Squared criterion is represented

in algorithm 1.

Algorithm 1 : Feature Selection using Chi-Square

Criterion.

Input: Data Matrix (M×N)  M represents the

number of samples, and N the number of features

Input: Number of classes C.

Output: Top R features

1: For each feature and class

Find the mean value corresponding to each feature.

2: For each feature

Compute the mean value of the classes mean val-

ues.

Compute the Expected and Observed Frequencies,

and calculate the chi-squared value.

∑

(ExpectedFreq−ObservedFreq)

ExpectedFreq

;

3: Sort the chi-squared values and choose the R

features with the smallest sum of all values.

3.2.2 Principal Component Analysis using

Singular Value Decomposition

PCA was invented in 1901 by Karl Pearson as an

analogue of the principal axes theorem in mechanics.

This algorithm is based on (Song et al., 2010), that

proposed a method using PCA to perform feature se-

lection. They achieved feature selection by using the

PCA transform from a viewpoint of numerical anal-

ysis, allowing to select a number of M features com-

ponents from all the original samples. In algorithm 2

the Singular Value Decomposition (SVD) is used to

perform PCA. The SVD technique allows to reduce

dimensionality by obtaining a more compact repre-

sentation of the most signiﬁcant elements of the data

set, and this enable to express the data set more com-

pactly.

4 WEB PAGES DATABASE

In this work, different web page classiﬁcation experi-

ments are evaluated. There are two binary classiﬁca-

tions and one multi-category classiﬁcation. The two

binary classiﬁcations are: the aesthetic value of a web

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

196

Algorithm 2: Feature Selection using PCA through

SVD.

Input: Data Matrix (M×N)  M represents the

number of samples, and N the number of features

Output: Top R features

1: Perform mean normalization in the Data Matrix.

2: Calculate the SVD decomposition of the Data

Matrix.

3: Select the eigenvectors that correspond to the

ﬁrst d largest singular values, and denote these vec-

tors as K

, ..., K

, respectively.

4: Calculate the contribution, of each feature com-

ponent as follows c

∑

p=1

p j

where K

p j

denotes the j entry of K

, j = 1, 2, ..., N,

p = 1, 2, ..., d. |K

p j

| stands for the absolute value of

p j

5: Sort c

in the descending order, and select the R

features corresponding to the R largest orders in c

page, i.e., if a web page is beautiful or ugly (a mea-

sure that depends on the notion of aesthetic of each

person), and the design recency of a web page, i.e.,

trying to distinguish between old fashioned and new

fashioned web pages. The multi category classiﬁca-

tion involves classiﬁcation on the web page topic.

Using the Fireshot plugin

for the Firefox web

browser, allows to retrieve a screen shot of a web page

and save it as a .PNG ﬁle. Different training sets of

30, 60 and 90 pages are built for each class of the clas-

siﬁcation experiment. For each site we only retrieved

the landing page which is generally the index page.

4.1 Aesthetic

The notion of aesthetic differs from person to person,

because what can be beautiful for someone, can be

ugly for another. That is why this classiﬁcation de-

pends of each classiﬁer and it is a subjective classi-

ﬁcation. Nevertheless, there is a generic notion of

the beautiful and of the ugly that is common to the

individuals of a certain culture. We emphasize that

this underlying notion of the aesthetic value is of ex-

tremely importance to marketing and psychological

explorations.

https://addons.mozilla.org/pt-pt/ﬁrefox/addon/ﬁreshot/

In this classiﬁcation experiment two classes are

then deﬁned: ugly and beautiful web pages. Notice

that in Aesthetic, the important aspect is the visual

design (”Look and Feel”) of a web page, and not the

quality of information or popularity of the page.

The ugly pages were downloaded from two arti-

cles (Andrade, 2009) and (Shuey, 2013) and their cor-

responding comment section, and also from the web-

site World Worst Websites of the Year 2012 - 2005

(Flanders, 2012). The beautiful pages were retrieved,

consulting a design web log, listing the author’s selec-

tion of the most beautiful web pages of 2008, 2009,

2010, 2011 and 2012 (Crazyleafdesign.com, 2013).

After analyzing the web pages retrieved (Fig.2) ,

it was possible to notice that, in general, an ugly web

page don’t transmit a clear message, uses too much

powerful colors, lacks clarity and a consistent navi-

gation. While, on the opposite side, it was possible

to notice that a beautiful web page usually has an en-

gaging picture, an easy navigation, the colors compli-

ment each other and it is easy to ﬁnd the information

needed. Obviously these are some directives observed

from the database and do not correspond to strict con-

clusions.

4.2 Design Recency

The objective of this classiﬁcation is to be able to dis-

tinguish from old fashioned and new fashioned pages.

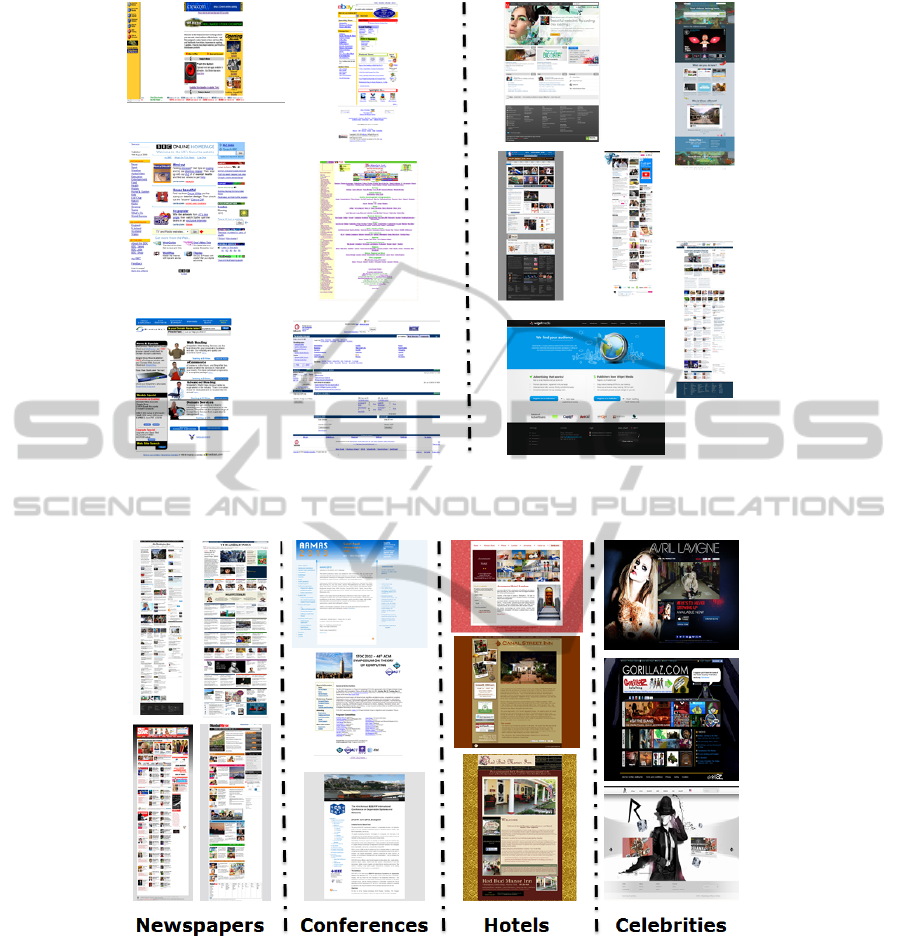

The principal differences between these pages (Fig.3)

is that nowadays the web design of a page has ﬁrmly

established itself as an irreplaceable component of ev-

ery good marketing strategy. Recent pages usually

have large background images, blended typography,

colorful and ﬂat graphics, that is, every design ele-

ment brings relevant content to the user. In the past

the use of GIFs, very large comprised text and blind-

ing background were common in most sites.

The old web pages were retrieved consulting the

article (waxy.org, 2010), that shows the most popu-

lar pages in 1999, and using the Internet Archive web

site

allowed to retrieve the versions of those websites

in that year. To retrieve the new pages, the Alexa

web

page popularity rankings was used, selecting then the

2012 most popular pages.

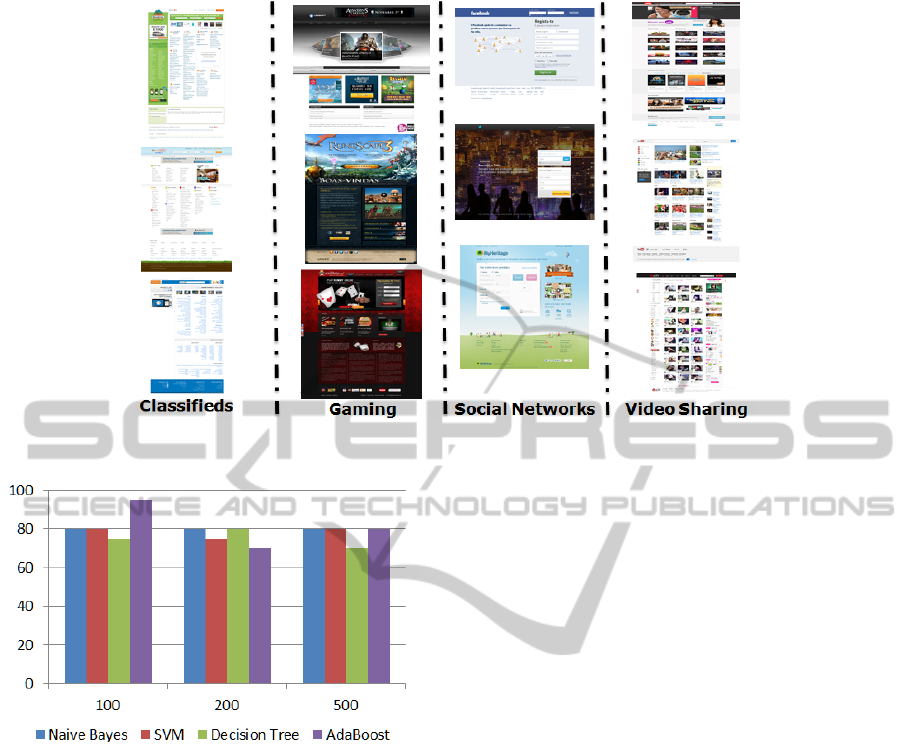

4.3 Web Page Topic

In this classiﬁcation eight classes are deﬁned. These

classes are newspapers, hotels, celebrities, confer-

ences, classiﬁed advertisements, social networks,

gaming and video-sharing.

http://archive.org/web/web.php

http://www.alexa.com

AutomaticWebPageClassificationUsingVisualContent

197

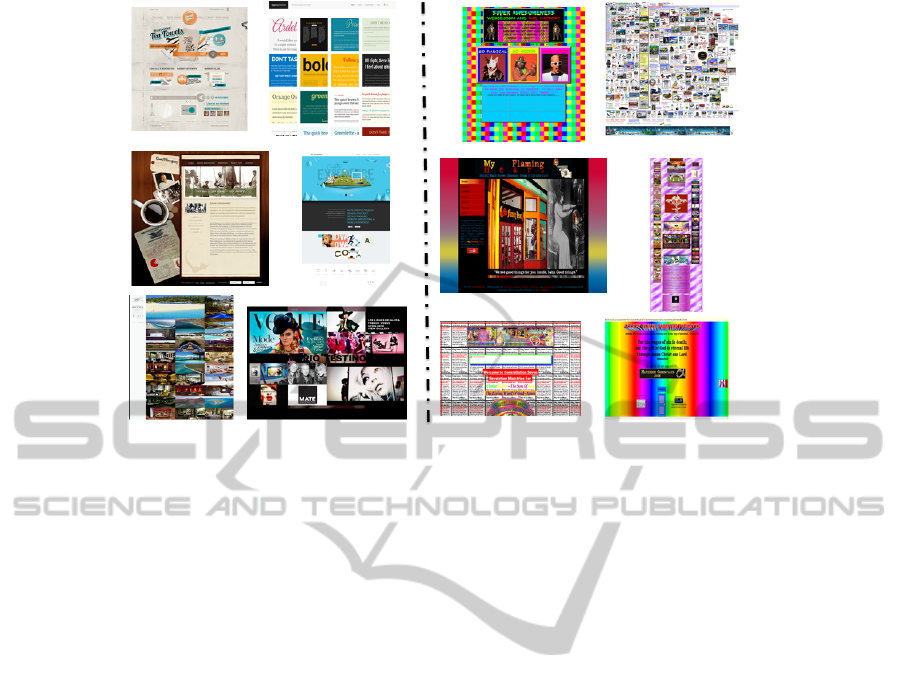

Figure 2: An example of the web pages retrieved for the Aesthetic classiﬁcation. In the left, there are 6 beautiful web pages,

and in the right 6 ugly web pages.

For the newspaper and celebrity classes, the

Alexa.com was consulted, retrieving the most well-

known and popular newspapers and celebrity sites.

The celebrity sites also include popular fan sites.

The conferences class consist in the homepages of

the highest ranked Computer Science Conferences.

And for the hotel class, different sites from bed-and-

breakfast businesses are retrieved. The classes in-

clude different pages from different countries. The

classiﬁed advertisements sites were extracted using

also the Alexa.com, retrieving the most visited sites

of classiﬁeds of all world (sections devoted to jobs,

housing, personals, for sale, items wanted, services,

community, gigs and discussion forums). The video-

sharing class and the gaming class (company gaming

websites and popular gaming online websites), were

extracted consulting the google search engine for the

most popular sites in this type of websites. Social

networks class consist in the major social networking

websites homepages (e.g., websites that allow people

to share interests, activities, backgrounds or real-life

connections).

A topic of a web site is a relevant area in the classi-

ﬁcation of web pages. Each topic has a relevant visual

characteristic that distinguishes them, being possible

to classify the web pages despite of their language or

country. Looking at the pages retrieved (Fig.4 and 5),

it is possible to perceive a distinct visual characteris-

tic in each class. The newspaper sites have a lot of

text followed with images, while celebrity sites have

more distinct colors and embedded videos. The con-

ferences sites usually consist in a banner in the top

of the page, and text information about the confer-

ence. Hotel sites have a more distinct background,

with more photographs. Classiﬁeds sites consist al-

most in blue hyperlinks with images or text, with a

soft color background and banner. The body content

of a video-sharing site consist in video thumbnails.

The gaming sites have a distinct banner (an image or

huge letters), with a color background and embedded

videos. The social networks homepages, have a color

pattern that is persistent.

5 RESULTS AND DISCUSSION

By training our classiﬁers with different training data

sets, different comparisons can be made. Different

evaluations were made to analyze what features and

which classiﬁers are better for each classiﬁcation task.

Each classiﬁer was evaluated with the low feature

descriptor (containing 166 features), just the Color

Histogram, Edge Histogram, Tamura Features, Ga-

bor Features, and the descriptor containing the most

relevant features selected by the methods of feature

selection. Additionally the same data sets were used

to train the classiﬁers with the SIFT descriptor using

the bag of words model. The results for each classi-

ﬁcation task are shown in the next sections, as well

as a comparison with the results of (de Boer et al.,

2010). Different tests were performed using different

data size for the training of the classiﬁers.

To test all methods after the training phase, new

web pages were used to the prediction phase. Our re-

sults are based on the accuracy achieved by this pre-

diction phase.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

198

Figure 3: An example of the web pages retrieved for the Recency classiﬁcation. In the left, there are 6 old fashioned web

pages from 1999, and in the right 6 new fashioned web pages from 2012.

Figure 4: Examples of web pages extracted for four web site topic classes.

5.1 Aesthetic Value Results

Boer et al. (de Boer et al., 2010) in this experiment

with the 166 features achieved an accuracy using the

Naive Bayes and a J48 Decision Tree of 68% and 80%

respectively. Using just the Simple Color Histogram

and Edge Histogram they correctly classiﬁed 68% and

70% respectively for the Naive Bayes, and 66% and

53% for the J48 Decision Tree classiﬁer.

For this experiment, Fig.6 show the best rate pre-

diction for our classiﬁers, when used the SIFT de-

scriptor. Using different sizes for the dictionary, we

obtained good result for each classiﬁer. The best re-

sults for the Na

ıve Bayes, SVM and the Decision Tree

was of 80%, and for the AdaBoost we achieved a pre-

diction accuracy of 85%.

When trained the model using just the Color His-

togram attributes, the results show an accuracy of

65% for Naive Bayes, 85% in SVM, 70% for the De-

cision Tree and 85% using the AdaBoost when trained

with 90 images for each class. When we selected

the top discriminative attributes to train the classi-

AutomaticWebPageClassificationUsingVisualContent

199

Figure 5: Examples of web pages extracted for the other four web site topic classes.

Figure 6: SIFT Descriptor using BoW Model prediction re-

sults with different dictionary sizes (100, 200 and 500) for

the Aesthetic Value.

ﬁers, the best results using the Chi-Squared method

was when the classiﬁers were trained with the top

50% attributes. The Naive Bayes and SVM achieved

an accuracy of 65%, the Decision Tree 80% and the

AdaBoost an accuracy of 75%. When trained with

the top 20% attributes by using the PCA method, the

Naive Bayes classiﬁer achieved an accuracy of 75%,

the SVM classiﬁer predicted 65% of corrected pages,

and ﬁnally, the Decision Tree and the AdaBoost clas-

siﬁers both had an accuracy of 80%.

All the classiﬁers showed a high prediction accu-

racy, with different features. Since most of the fea-

tures chosen by the feature selection method are from

the Color Histogram, it is possible to achieve a good

prediction rate just by passing this simple descriptor.

The SIFT descriptor give the best results, proving that

the images from this two classes have distinctive key-

points.

5.2 Design Recency Results

In this experiment, Boer et al. (de Boer et al., 2010)

using the complete feature vector achieved an accu-

racy using the Na

ıve Bayes and a J48 Decision Tree

of 82% and 85% respectively. Using just the Simple

Color Histogram the Na

ıve Bayes performed slightly

worse than the baseline and the J48 Decision Tree

classiﬁer sightly better. Using only the edge informa-

tion, both models correctly classiﬁed 72% and 78%

respectively for the Na

ıve Bayes and J48 Decision

Tree classiﬁer.

Our best results for this experiment, using the low-

level descriptor, are shown in Fig.7. The Na

ıve Bayes,

SVM and Adaboost achieved an accuracy of 100%,

when the top 5% attributes were selected using the

chi-square method for the ﬁrst one and the Gabor de-

scriptor for the other two. The Decision Tree best ac-

curacy (95%), was when the PCA method selected the

top 5% attributes.

Relatively to the SIFT descriptor, all the classiﬁers

obtain a good accuracy. Noteworthy that all the classi-

ﬁers obtain an accuracy of 90% when they used a dic-

tionary size of 500. The best accuracy result achieved

was for the Na

ıve Bayes with a 95% rate of success,

with a dictionary size of 200 words.

These results proves that the classiﬁers can learn

just by using simple visual features. All the classi-

ﬁers obtained good accuracy around 85%, using just

the top 1% attributes selected by both methods. In-

stead of using a more complex method like BoW, the

use of simple visual features allows to decrease the

computational cost for larger databases.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

200

Figure 7: Best prediction results for the Recency value for

four different classiﬁers, using the low-level descriptor. All

these predictions values, were obtained by training the clas-

siﬁers using 90 images for each class.

5.3 Web Page Topic Results

5.3.1 Experiment 1 - Four Classes

(de Boer et al., 2010) deﬁne the following four

classes for the topic: newspapers, hotel, celebrities

and conference sites. The classiﬁcation results

obtained were the following: when all features are

used, an accuracy of 54% and 56% for the Na

ıve

Bayes and the J48 respectively. Using the Color

Histogram subset result in much worse accuracy.

Using only the Edge Histogram attributes, the Na

ıve

Bayes predict with an accuracy of 58%, whereas the

J48 predicts with an accuracy of 43%. When they

performed feature selection they show that the best

predicting attributes are all from the Tamura and

Gabor feature vectors. Using the top 10 attributes a

prediction accuracy of 43% for both classiﬁers was

obtained.

Using the same low-level descriptor that they

used, all our classiﬁers obtained better results. The

ıve bayes achieved an accuracy of 62,5% using

the Tamura Features. The SVM and Decision Tree

achieved an accuracy rate of 72,5%, when used the

selected top 20% attributes using the PCA method

and using the whole descriptor, respectively. While

the AdaBoost classiﬁer achieved an accuracy of

70% using the PCA method selecting the top 50%

attributes.

Furthermore, the results showed in Fig. 8 are

an improvement of the accuracy of approximately

22% using the BoW model. Every classiﬁer have an

acceptable accuracy, where the best accuracy result

is as high as 82,5% for the Decision Tree using just

100 words to construct the dictionary. In fact all the

classiﬁers have accuracy higher than or equal to 70%

when used just 100 words in the dictionary.

Table 1: Confusion Matrix for 4 classes each with 10 web

pages, for the best prediction result of the Na

ıve Bayes clas-

siﬁer, using the SIFT descriptor.

Actual

Newsp. Conf. Celeb. Hotel

Predicted

Newsp. 7 0 0 0

Conf. 2 7 2 2

Celeb. 0 0 8 2

Hotel 1 3 0 6

Figure 8: SIFT Descriptor using BoW Model best predic-

tion results with different dictionary sizes (100, 200 and

500). Experiment with 4 classes.

Examining the results of the confusion matrices

(Table 1, 2, 3 and 4) corresponding to the best pre-

dictions of each classiﬁer using the SIFT with BoW

model (Fig. 8), it was veriﬁed, when analyzing the

accuracy by class, that the Na

ıve Bayes, Decision

Tree and AdaBoost perform much worse for the Ho-

tel class. The Na

ıve Bayes and AdaBoost classiﬁers

reports false positives for the Hotel class as Confer-

ence or Celebrity pages. While the Decision Tree re-

turns false positives for Celebrities web pages as Ho-

tel web pages, and vice versa. By his hand, the SVM

classiﬁers perform much worse for the Celebrity web

pages where most of the instances are erroneously

classiﬁed as Hotel pages. Since the Newspapers and

Conference classes have simpler designs, when com-

pared with the other classes, they are easier to distin-

guish. On the other hand, it is harder to distinguish

between more complex and sophisticated classes like

Hotel and Celebrity.

Although the results obtained for this multi-class

categorization are worse than those obtained for

aesthetic value and design recency, generally good

accuracy was obtained with best values usually near

or above 80%. Additionally, our results are better

than those obtained by Boer et al. (de Boer et al.,

2010), mainly if SIFT with BoW is used.

AutomaticWebPageClassificationUsingVisualContent

201

Table 2: Confusion Matrix for 4 classes each with 10 web

pages, for the best prediction result of the SVM classiﬁer,

using the SIFT descriptor.

Actual

Newsp. Conf. Celeb. Hotel

Predicted

Newsp. 10 1 1 0

Conf. 0 8 1 0

Celeb. 0 0 4 2

Hotel 0 1 4 8

Table 3: Confusion Matrix for 4 classes each with 10 web

pages, for the best prediction result of the Decision Tree

classiﬁer, using the SIFT descriptor.

Actual

Newsp. Conf. Celeb. Hotel

Predicted

Newsp. 10 0 1 0

Conf. 0 9 0 1

Celeb. 0 1 7 2

Hotel 0 0 2 7

Table 4: Confusion Matrix for 4 classes each with 10 web

pages, for the best prediction result of the AdaBoost classi-

ﬁer, using the SIFT descriptor.

Actual

Newsp. Conf. Celeb. Hotel

Predicted

Newsp. 10 0 1 0

Conf. 0 6 1 3

Celeb. 0 1 8 3

Hotel 0 2 0 4

5.3.2 Experiment 2 - Eight Classes

Along with the four classes deﬁned in the experiment

1, four additional classes were added to this classiﬁ-

cation: classiﬁed advertisements sites, gaming sites,

social networks sites and video-sharing sites.

Using the low-level descriptor the Na

ıve Bayes

had the best accuracy with 47,5%, while the SVM

achieved an accuracy of 41,25% using the Tamura

descriptor. The Decision Tree and AdaBoost classi-

ﬁers had a poor performance, where the best accuracy

was 37,5% and 33,75%, respectively. When we used

the Chi-Squared and PCA method to select the top

attributes the classiﬁers performance didn’t improve.

We conclude that for this type of classiﬁcation more

complex features or a bigger database are necessary.

Figure 9: SIFT Descriptor using BoW Model best predic-

tion results with different dictionary sizes (100, 200 and

500). All these predictions values, were obtained by train-

ing the classiﬁers using 30 and 60 images for each class.

When we used the SIFT descriptor (Fig. 9) all

the classiﬁers had a better accuracy relatively to the

results obtained using the low-level descriptor. The

SVM achieved an accuracy of 58,75%, and the Na

ıve

Bayes 63,75%. The Decision Tree best accuracy was

48,75% , while the Adaboost only predict the correct

class in 38,75% of the predictions.

When examining the confusion matrices (Table 5

and 6) of Na

ıve Bayes and SVM classiﬁers (which

achieved accuracy over 50% when using the SIFT de-

scriptor), it is possible to verify that both classiﬁers

have problems distinguishing celebrities web pages.

The Na

ıve Bayes also struggles in identify Video-

Sharing pages (only 3 correct predictions), while the

SVM have troubles in identifying Social Networks

web pages (only 2 correct predictions). The body of

video-sharing web pages that consist mostly in video

thumbnails are easily mistaken as newspapers web

page (mostly images followed by text). In both meth-

ods some classiﬁeds advertisements web pages are

also predicted as newspapers (most classiﬁeds adver-

tisement websites use a simple color background with

a lot of images). To overcome this drawbacks a bigger

database is necessary.

5.4 Discussion

The results show that based on aesthetic value and de-

sign recency, simple features such as color histogram

and edges provide quite good results, where in some

cases an accuracy of 100% is achieved (average best

accuracy of 85%). For the topic classiﬁcation, the use

of a SIFT with BoW provide much better results.

As expected when more website topics are added

to topic classiﬁcation, the classiﬁcation gets harder

and the classiﬁers accuracy decreases to an average

accuracy of around 60%. This indicates that even if

the pages have visual characteristics that distinguishes

them, they also have some attributes or characteris-

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

202

Table 5: Confusion Matrix for 8 classes, for the best prediction result of the Na

ıve Bayes classiﬁer, using the SIFT descriptor.

Actual

Newsp. Conf. Celeb. Hotel Classif. Gaming Social N. Video

Predicted

Newsp. 9 0 1 1 3 1 0 4

Conf. 1 5 0 0 1 0 0 0

Celeb. 0 0 3 2 0 2 2 1

Hotel 0 1 0 5 0 1 1 0

Classif. 0 1 1 1 6 0 0 1

Gaming 0 0 5 0 0 6 0 0

Social N. 0 1 0 1 0 0 6 1

Video 0 0 0 0 0 0 1

Table 6: Confusion Matrix for 8 classes, for the best prediction result of the SVM classiﬁer, using the SIFT descriptor.

Actual

Newsp. Conf. Celeb. Hotel Classif. Gaming Social N. Video

Predicted

Newsp. 9 1 1 1 4 0 1 2

Conf. 1 8 0 0 0 0 0 0

Celeb. 0 0 4 2 0 3 2 1

Hotel 0 0 0 7 0 1 1 1

Classif. 0 0 1 0 6 1 0 0

Gaming 0 0 4 0 0 5 2 0

Social N. 0 1 0 0 0 0 2 0

Video 0 0 0 0 0 0 2 6

tics in common. To overcome this setbacks a bigger

database is necessary. Nevertheless, the aim of this

work was to demonstrate that it is possible to classify

web pages in different topics with reasonable accu-

racy and to prove that this visual content is very rich

and can be successfully used to complement, not to

substitute, the current classiﬁcation by crawlers that

use only text information. Notice too, that in the de-

sign of web pages, there is a growing tendency to

include content in the images used, preventing text-

based crawlers to get to this rich content (mainly in

titles, separators and banners).

Classiﬁcation using the visual features has how-

ever some limitations: if the image of the web page

has poor quality, the accuracy in the classiﬁcation

will drastically be reduced. Other disadvantage is that

many web page topics have very common patterns in

their design, making very hard to the classiﬁer to dis-

tinguish between them. We intend to enhance these

classiﬁers in the future to improve its accuracy.

6 CONCLUSION

In this work we described an approach for the auto-

matic web page classiﬁcation by exploring the visual

content ”Look and feel” of web pages, as they are ren-

dered by the web browser. The results obtained are

quite encouraging, proving that the visual content of

a web page should not be ignored, when performing

classiﬁcation. This implementation uses a method for

categorization based on low-level features.

In the future, in order to improve the classiﬁcation

accuracy we can also follow some additional paths.

The integration of these visual features with other fea-

tures of web pages can thus boost the accuracy in the

classiﬁers. The analysis of the visual appearance of a

web page can be combined with the well-established

AutomaticWebPageClassificationUsingVisualContent

203

analysis based on text content, URL, the underlying

HTML, or others. In this case associate this visual

features with the text content may give rise to a pow-

erful classiﬁcation system. Additionally, we also in-

tend to mix the classiﬁcation using visual features

with a semantic analysis of them. We expect to im-

prove the results by integrating the semantic content

of a webpage image not only in the classiﬁcation of

the aesthetic or recency value but also for the classi-

ﬁcation of the topic. Another approach is the extrac-

tion of more sophisticated features that can analyze

their dynamic elements (animated gifs, ﬂash, adver-

tisement content, and so on).

As for the applications of the visual classiﬁcation

of web pages, the methods studied may be applied to

an advice system that assist the design and rating of

web sites that can be applied to content ﬁltering. In

a research perspective, the fact that the aesthetic and

design recency value are such a subjective measures,

also make of great interest studies of the consumer

proﬁle for the ﬁeld of digital marketing.

ACKNOWLEDGEMENTS

The authors acknowledge the support of the Por-

tuguese Science Foundation through project PEst-

C/EEI/UI0048/2013.

REFERENCES

Andrade, L. (2009). The worlds ugli-

est websites!!! retrieved october 2009:

http://www.nikibrown.com/designoblog/2009/03/03/

theworlds-ugliest-websites/.

Asirvatham, A. P. and Ravi, K. K. (2001). Web page clas-

siﬁcation based on document structure. In IEEE Na-

tional Convention.

Bradski, G. (2000). The OpenCV Library. Dr. Dobb’s Jour-

nal of Software Tools.

Chen, R. C. and Hsieh, C. H. (2006). Web page classi-

ﬁcation based on a support vector machine using a

weighted vote schema. Expert Syst. Appl., 31(2):427–

435.

Crazyleafdesign.com (2013). Most beautiful and inspira-

tional website designs.

de Boer, V., van Someren, M., and Lupascu, T. (2010). Clas-

sifying web pages with visual features. In WEBIST

(2010), pages 245–252.

Deselaers, T. (2003). Features for image retrieval (thesis).

Master’s thesis, RWTH Aachen University, Aachen,

Germany.

Flanders, V. (2012). Worst websites of the year 2012

- 2005: http://www.webpagesthatsuck.com/worst-

websites-of-the-year.html.

Kovacevic1, M., Diligenti, M., Gori, M., and Milutinovic1,

V. (2004). Visual adjacency multigraphs, a novel ap-

proach for a web page classiﬁcation. Workshop on

Statistical Approaches to Web Mining (SAWM), pages

38–49.

Liu, H. and Setiono, R. (1995). Chi2: Feature selection and

discretization of numeric attributes. In Proceedings

of the Seventh International Conference on Tools with

Artiﬁcial Intelligence, TAI ’95.

Liu, J. (2013). Image retrieval based on bag-of-words

model. arXiv preprint arXiv:1304.5168.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. IJCV, 60(2):91–110.

Selamat, A. and Omatu, S. (2004). Web page feature selec-

tion and classiﬁcation using neural networks. Inf. Sci.

Inf. Comput. Sci., pages 69–88.

Shuey, M. (2013). 10-worst-websites-for-2013:

http://www.globalwebfx.com/10-worst-websites-

for-2013/.

Song, F., Guo, Z., and Mei, D. (2010). Feature selection us-

ing principal component analysis. In System Science,

Engineering Design and Manufacturing Informatiza-

tion (ICSEM), 2010 International Conference on, vol-

ume 1, pages 27–30.

Tamura, H., Mori, S., and Yamawaki, T. (1978). Tex-

tural features corresponding to visual perception.

IEEE Transaction on Systems, Man, and Cybernetics,

8:460–472.

waxy.org (2010). Den.net and the top 100 websites of 1999:

http://waxy.org/2010/02/dennet

and the top 100 web-

sites of 1999/.

Zhang, D., Wong, A., Indrawan, M., and Lu, G. (2000).

Content-based image retrieval using gabor texture fea-

tures. In IEEE Paciﬁc-Rim Conference on Multimedia,

University of Sydney, Australia.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

204
