QoS-aware Service Composition Based on Sequences of Services

Sylvain D’Hondt and Shingo Takada

Grad. School of Science for Open and Environmental Systems, Keio University, Yokohama, Japan

Keywords:

Service Composition, Service Selection, Quality of Service.

Abstract:

Service composition is an important part of developing Service-oriented Systems. There are two basic ap-

proaches for service composition. First, the developer identiﬁes and searches for individual services that can

be composed. In the second approach, the developer identiﬁes the global input(s) and output(s) of the entire

composition and searches for a composition with the best match. We propose a “middle of the road” approach,

where we identify and search for “sequences of services”, each of which is a consecutively executed service

that appears within an existing composition stored in a database. Our approach utilizes a database containing

Service-oriented Systems. The developer speciﬁes a query containing functional and non-functional require-

ments in XML format. Then the query is used to search within the database for a sequence of services that

matches the requirements. We show the results of an experiment that indicates our approach enabled subjects

to ﬁnd more executable compositions than a tool that searches for services individually.

1 INTRODUCTION

Service-Oriented Architecture (SOA) and its promise

of more ﬂexible, adaptive and evolutionary systems is

a hot topic. However, it remains complex to design

and to implement. Service composition and selection

are important aspects of SOA, and present some crit-

ical issues such as real-time composition and Quality

of Service (QoS).

Services can be deﬁned as business functionalities

built as software components that can be reused for

different purposes. Services are independent, loosely

coupled units of functionality that have no calls to

each other embedded in them. Each service imple-

ments one action, such as submitting an online appli-

cation for an account, or viewing an online bank state-

ment, or placing an online booking or airline ticket

order. Basically, a service requester sends a message

to the interface of a service, which will eventually re-

spond with another message. Web service is the most

widely used technology for implementing a service.

Although each service may be simple, a large and

complex system (Service-oriented System; SoS) can

be created by composing them. The basic steps to

build a SoS normally consists of ﬁrst designing the

SoS by specifying the tasks to be performed, includ-

ing constraints such as QoS, and their organization.

Diagrams similar to UML activity diagram are often

used. Then a search is performed to retrieve candidate

services. These candidates are ﬁltered according to

various criteria, and ﬁnally the developer “connects”

them using technology such as BPEL or ESB.

The search for candidate services normally takes

one of the following two approaches:

• Individual service selection: For each task in the

design, the developer searches for one service.

QoS constraints may be used to choose among

multiple candidates.

• Global service composition: The entire composi-

tion is searched for. QoS constraints are consid-

ered for the entire composition. If no such com-

position can be found, then services are searched

for individually.

We propose an approach that searches for se-

quence of services. We consider QoS and focus our

implementation on SoS that use Mule ESB (Mule-

Soft, 2013). A “sequence of services” is any consec-

utively executed services that have already been used.

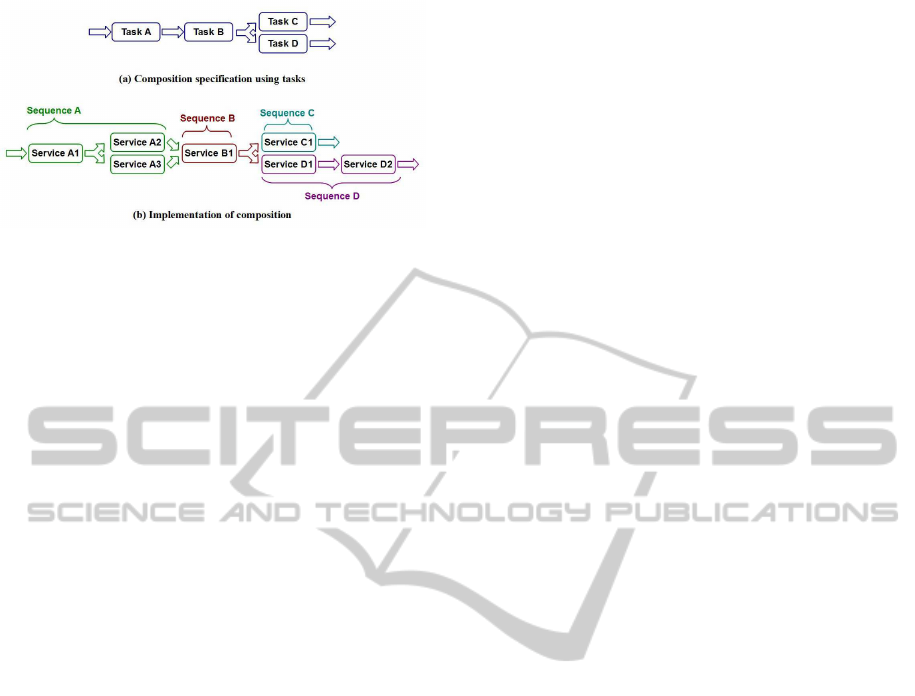

Figure 1 shows an example of how a task composition

can be achieved with sequences of services: instead

of only having a one-to-one correspondence between

task and service, some tasks are achieved with a se-

quence of several services. Figure 1 (a) shows the

composition speciﬁcation using tasks, while Figure 1

(b) shows the implementation of the composition us-

ing sequences of services. Task A is implemented by

the sequence of services Sequence A, which consists

of three services.

In the rest of this paper, Section 2 reviews related

548

D’Hondt S. and Takada S..

QoS-aware Service Composition Based on Sequences of Services.

DOI: 10.5220/0004864205480555

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 548-555

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Figure 1: Composition achieved with sequences of services.

work. Section 3 describes our proposed approach to

service composition, and our implementation. Sec-

tion 4 evaluates our approach. Section 5 gives con-

cluding remarks.

2 RELATED WORK

UDDI (OASIS, 2013) is a registry that was originally

proposed as a central part of the Web service standard.

Since then, there has been a wide range of work done

on searching for Web services (Mukhopadhyay and

Chougule, 2012).

Keywords, service function, input/output of ser-

vice are the pillars of searching for services. Differ-

ent approaches exist to determine the similarity of a

query to the service information. For example, Ding

(Ding and Jutla, 2011) used Google Distance to com-

pute how close two terms are.

QoS is another piece of information that has re-

cently been considered. Strunk (Strunk, 2010) listed

several different QoS metrics aggregation formulas,

optimization models for composition problems and

their solutions. The goal is to select the services for

each task that maximize the end-to-end QoS of the

service composition. Rosenberg, et al. (Rosenberg

et al., 2009) proposed the Vienna Runtime Environ-

ment for Service-Oriented Computing (VRESCo). Its

goal is to ﬁnd an optimal solution within the QoS con-

straint boundaries given by the user.

Much work has also been done on ﬁnding combi-

nations of services to reuse. Granell, et al. (Granell

et al., 2005) proposed a methodology for composing

services based on workﬂow patterns and incremen-

tally reusing existing services. However, their work

focuses on the design process and not necessarily au-

tomatic composition of the existing services. Thus,

the developer would need to ﬁnd one-to-one corre-

spondence between the lowest level task and service.

Kono et al. (Kono et al., 2004) proposed a tool,

which given an activity (or task), would automatically

search for a combination of services that would match

that activity. However, their work was limited in that

their tool can only automatically handle combinations

of one or two services. If an activity corresponds to

three or more activities, then the developer will need

to manually reﬁne the activity.

Takada proposed an approach that searches for

BPEL fragments (Takada, 2011). A BPEL docu-

ment describes a SoS, and the developer searches for

any consecutive parts of previous BPEL documents

that can be reused in the SoS under development.

However, the developer needs to accurately spec-

ify/breakdown the task into activities as the matching

process is based on a one-to-one correspondence be-

tween each activity and service. The search process

will not retrieve any BPEL fragments if there is no

corresponding service to the speciﬁed activity.

AI planning is another approach to ﬁnding com-

binations of services. SHOP2 (Sirin et al., 2004) is

a Hierarchical Task Network (HTN) planner which

tries to produce a sequence of actions that will per-

form some activity or task. OWLS-Xplan (Klusch

et al., 2005) combines HTN planning with a Fast-

Forward planner. Haley (Zhao and Doshi, 2009) is

also based on a hierarchical framework, but it is also

based on semi-Markov decision process. All three ap-

proaches require domain knowledge to be prepared

in advance, such as how a task can be decomposed

into subtasks. This is not easy, as developers may not

know how much detailed domain knowledge should

be prepared. Another issue is possible mismatches

between the output of a Web service which is to be

used as input to the next Web service.

One way to avoid the above issue of ﬁnding com-

binations of services is to prepare combinations of

services in advance and exposing them as singular

composite services. Ma, et al. (Ma and Leymann,

2009) proposed constructs to explicitly deﬁne frag-

ments of BPEL processes. Such an approach would

enable developers to use conventional methods to

search for such composite services as if they were

one service. However, this would require that the de-

veloper can deﬁne “useful” composite services in ad-

vance. But this in itself is a difﬁcult task requiring

developers to predict which composite services may

be useful (Holmes and Walker, 2012).

3 SEQUENCE OF SERVICES

BASED COMPOSITION

We propose a QoS-aware approach to service compo-

sition based on sequence of services.

QoS-awareServiceCompositionBasedonSequencesofServices

549

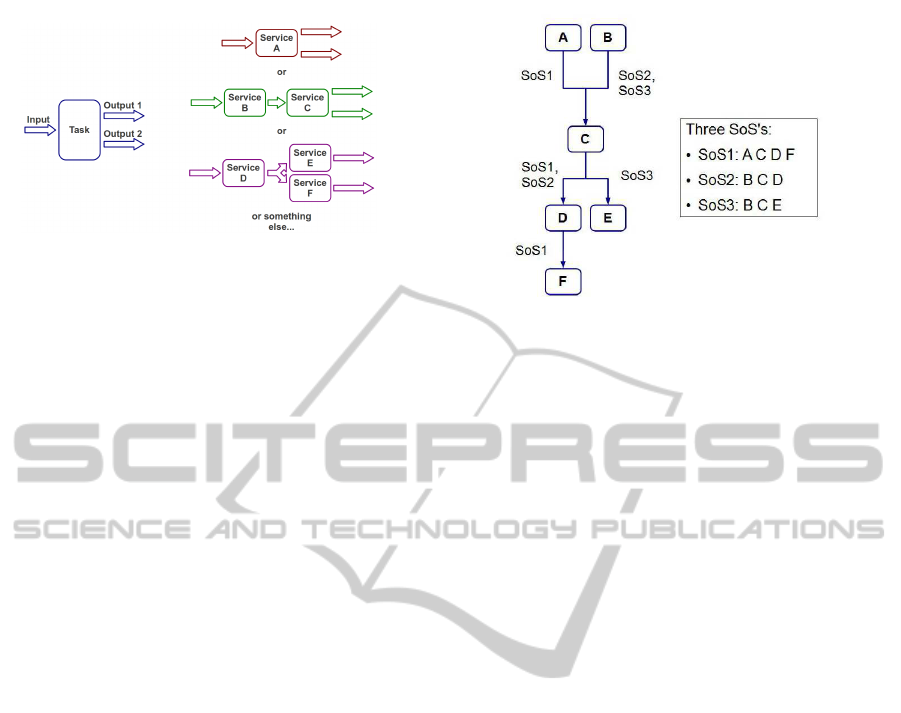

Figure 2: One task can be achieved by one or several ser-

vices.

3.1 Key Idea: Sequence of Services

A “sequence of services” is any consecutively exe-

cuted services that have already been used in an exist-

ing composition. For each task described by the user,

we try to ﬁnd one service or one sequence of service

to implement the functionality (Figure 2).

This offers three advantages. First, there are no

dependency problems or conﬂicts inside a sequence

since services have already been used together. Sec-

ond, there are more alternatives for the task composi-

tion since one task can be achieved with several ser-

vices. Finally, we can assume that existing sequences

have, at least, “not bad” QoS since someone has al-

ready used them in a previous composition.

3.2 Database of Services

Since our approach is based on ﬁnding sequence of

services which may be any part of an existing SoS, we

use a graph database instead of a conventional SQL-

based database. This enables all services to be stored

in a graph structure so that the existing relationships

between services of a same sequence are kept. We

also believe that this will lead to better scalability and

be more efﬁcient compared to using SQL.

Each node in the graph corresponds to a service,

and stores information such as the following: Name,

Type, Input (keywordand type), Output (keywordand

type), description (used for the functionality), speciﬁc

properties related to the type, and QoS values.

QoS values are currently limited to response time,

availability, and throughput. We do not consider non-

measurable QoS such as security and interoperability

because they cannot be known nor quantiﬁed in most

cases. However, our tool can be extended to handle

other measurable metrics as desired.

Links between nodes, i.e. services, indicate that

those services belong to the same sequence. and thus

have already been used in a previously developed sys-

tem. Note that links are directed since there is an or-

der to how the services are called. Also, links contain

Figure 3: Multiple SoS as a graph.

information to clarify which SoS it belongs to.

For example, Figure 3 shows how three separate

SoS’s can be represented within a graph database.

Service C appears in all three SoS’s but only appears

once in the database. Links make clear which ser-

vices are used together in which SoS. Thus, SoS1 is

composed of services A, C, D, and F, while SoS2 is

composed of services B, C, D.

3.3 Searching for Sequence of Services

Sequence of services are found by querying the

database. The query is based on three types of in-

formation: input/output, functionality, and QoS.

Input/Output. The basic matching scheme is based

on input and output, i.e., the input/output that are

speciﬁed in the query match the input/output of a se-

quence of services, as follows:

1. Search in the graph database for all possible

“start” nodes that have the required input.

2. Do the same for “end” nodes that have the re-

quired output.

3. Find all paths between all “start” and “end” nodes

where each node in the path belongs to the same

SoS.

For example, suppose that in Figure 3 nodes A

and B take input that are speciﬁed in the query, while

nodes E and F have outputs that match the output

speciﬁed in the query. There are four possible paths

that start with either A or B, and ends with either E or

F: ACDF, ACE, BCDF, and BCE. However, since the

link between A and C is SoS1 and the link between C

and E is SoS3, the path ACE is not a valid sequence

of services, i.e., this combination does not belong to

a single SoS. Similarly, BCDF is also an invalid se-

quence of services. As a result, ACDF and BCE are

considered as the candidate sequence of services.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

550

Functionality. Searching with only input/output

can lead to many unnecessary paths. To make the

query more speciﬁc, the user can specify a keyword

in the query. This keyword is used to restrict the re-

sults to the sequence of services that contain a service

(i.e., node) with the keyword in the name or descrip-

tion.

QoS Aggregation. QoS is also an important part of

the search process. After ﬁnding candidate sequences

of services based on input/output and function, the

global QoS values for each of the candidates are com-

puted. The user can then be notiﬁed whether or not

the QoS values for each candidate sequence of ser-

vices meets the requirements speciﬁed by the user.

The global QoS values can be computed based on

formulas given in (Strunk, 2010). Speciﬁcally, the

three types of QoS values are computed as follows:

ResponseTime =

∑

i=1

Time(S

)

Availability =

∏

i=1

Avail(S

)

Throughput = Min(Throughput(S

))

Note that S

corresponds to the ith service in the se-

quence of services. Response time is the sum of the

response time of each service in the sequence. Avail-

ability is the product of the availability of each service

in the sequence. Throughput is the minimum value of

the throughput for all services in the sequence.

3.4 Implementation

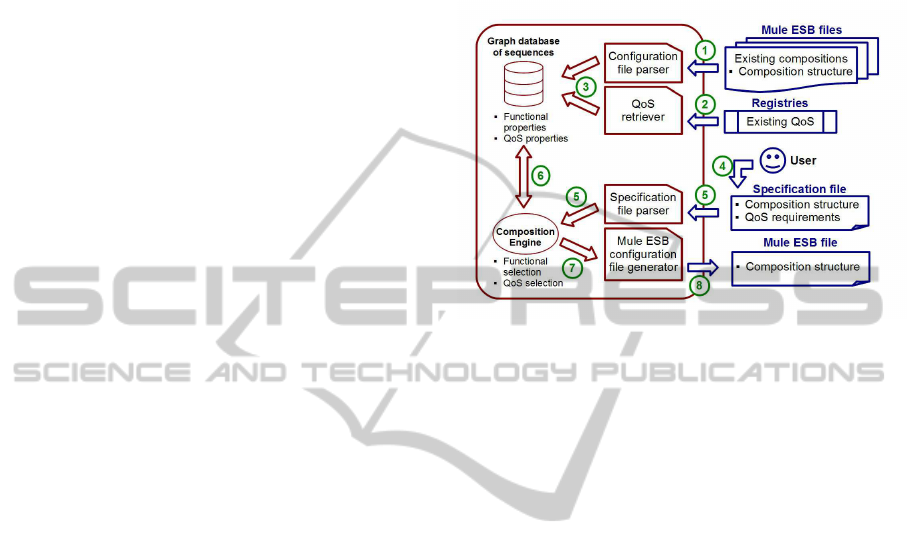

Figure 4 shows the architecture of our tool. Our tool

mainly consists of a part that stores new SoS’s, and a

part that queries and retrieves sequence of services.

3.4.1 Database

Our database is implemented using Neo4J, which is a

widely used graph database (Neo Technology, 2013).

Services are added to our database as follows (num-

bers correspond to Figure 4):

1. Our conﬁguration ﬁle parser parses a Mule ESB

conﬁguration ﬁle, which contains an existing SoS.

2. The QoS retriever fetches the QoS values for ser-

vices that have QoS values in a repository.

3. Each service is stored in the database as a node

with its information, functional properties, de-

scription and QoS.

• The service is connected to the root node if it is

the ﬁrst service of the composition; otherwise it

is connected to the previous service in the SoS.

• If the service already exists in the database, a

new node is not made. The existing node is just

connected to the appropriate node.

Note that the connections, i.e. links, between nodes

contain information such as which SoS it belongs to.

Figure 4: Architecture of the implementation of the tool.

3.4.2 Retrieving Sequence of Services

The user queries for existing sequence of services as

follows (numbers correspond to Figure 4):

4. The user writes a speciﬁcation ﬁle that speciﬁes

the tasks that need to be carried out as well as

any QoS requirements. Each task can be decribed

by its input/output, functionality, and QoS con-

straints.

5. The speciﬁcation ﬁle parser parses the speciﬁca-

tion ﬁle, and creates an internal query that will be

used by the composition engine.

6. The composition engine queries the database to

ﬁnd all the candidate sequences of services for the

tasks speciﬁed by the user that best matches the

requirements. The search process is conducted as

was described in section 3.3.

7. The user chooses one of the sequence of services

from the query result.

8. Our tool outputs the chosen composition in the

format of Mule ESB conﬁguration ﬁle. The con-

tents of this ﬁle can be used (at least as a starting

point) to build the ﬁnal composition.

3.4.3 Example

Suppose that the user wants to ﬁnd a (sequence of)

service that takes the name of a stock as a string and

returns its quote in XML format within 4000 ms. The

user will ﬁrst need to write a query as a speciﬁcation

ﬁle as shown in Figure 5.

QoS-awareServiceCompositionBasedonSequencesofServices

551

<?xml version=”1.0” encoding=”UTF-8”?>

<task

input=”stock:string”

output=”quote:xml-ﬁle”

keyword=”stock”

responseTime=”4000”

</composition>

Figure 5: Speciﬁcation ﬁle example.

The ﬁle is parsed by our tool into an internal query

which is used to search the graph database. Services

which take stock:string as input are ﬁrst searched for.

Then services which have quote:xml-ﬁle as output are

searched for. Paths are searched between the two

types of services. During the search, each path is

checked to see if it belongs to the same SoS. Then the

keyword stock is used to ﬁlter out paths which do not

have the keyword in any of the services names and

descriptions. Finally the response time is calculated

for each of the path.

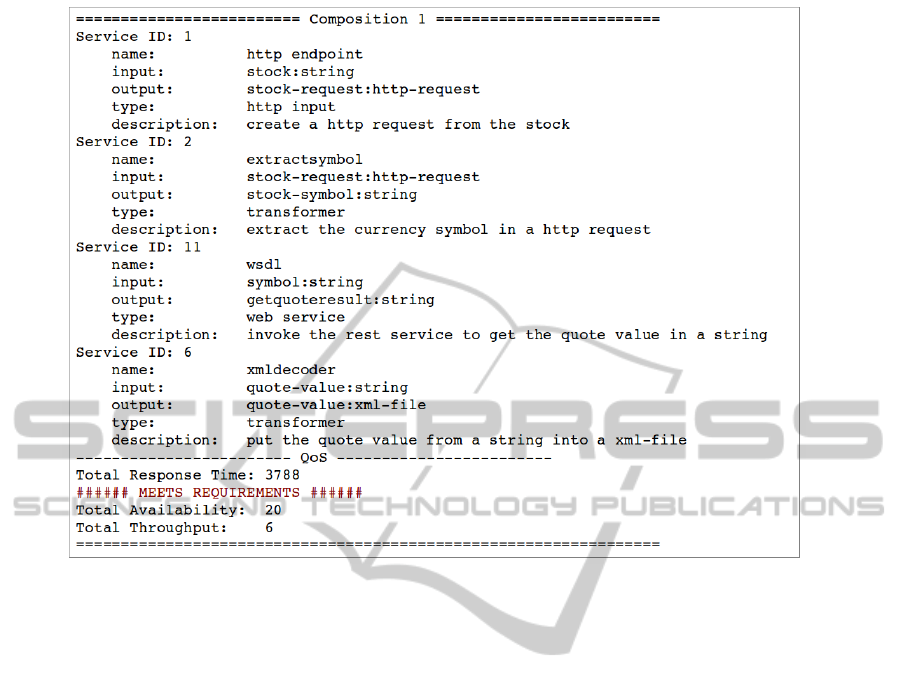

Figure 6 shows one resulting composition. The

composition consists of four services, where the ﬁrst

one (ID #1) takes stock:string as input and the fourth

service (ID #6) has quote-value:xml-ﬁle as output.

The keyword stock appears in the description of the

ﬁrst service, and the total response time is calculated

as 3788 ms, which meets the response time require-

ment of 4000 ms. Although not explicitly shown in

Figure 6, all four services belong to the same SoS.

4 EVALUATION

We evaluated our approach by comparing it with a

tool that can only search for services one by one.

4.1 Experimental Method

Test subjects were given requirements in natural lan-

guage, and told to build as many compositions as they

can in a limited time (ﬁve minutes). They used our

sequence-based tool as well as a tool that can only

search for individual services in the database for com-

parison.

Test subjects were composed of twelve undergrad-

uate students (mostly majoring in computer science).

They were divided into four groups of three students

each. To minimize learning effect, we used two differ-

ent sets of requirements (Q1 and Q2), each containing

three questions (Table 1). Each subject separately an-

swered both requirements: one set using our tool (S)

Table 1: Questions used in experiment.

ID Question

1.1 Build a system that suggests locations as string

given an address as a string.

1.2 Build a system that searches for a book (returns

a book object) in a catalog given the title of one

book as string.

1.3 Build a system that given astock titleas a string,

writes the stock quote value in a XML ﬁle.

2.1 Build a system that given a Facebook page ad-

dress as string, writes the feed in a ﬁle.

2.2 Build a system that given a misspelled word as a

string, writes words suggestions in a XML ﬁle.

2.3 Build a system that given an amount of money

as a string, returns the corresponding coins for

the amount as a string.

Table 2: Subject grouping.

Group ID #1 Set / Tool #2 Set / Tool

A Q1 / I Q2 / S

B Q2 / S Q1 / I

C Q1 / S Q2 / I

D Q2 / I Q1 / S

Table 3: Generated Composition Levels.

Level Points Validity I/O Functionality

3 3 OK Type & OK

Keyword

2 2 OK Type Maybe

1 1 X Type X

0 0 X X X

and the other using individual service search (I). Table

2 shows how each group carried out the experiment.

The database contained 21 SoS’s with a total of

62 distinct individual services. SoS’s included exam-

ples from the Mule ESB documentation (MuleSoft,

2013). In cases where the individual services did not

have QoS values, we generated random values with a

Gaussian law based on the set of services in the QWS

data set (Al-Masri and Mahmoud, 2007).

We evaluated our tool against the individual

search tool based on the quality of the composition.

Since we built the questions and knew the entire

database, we manually judged the quality of the com-

positions. Speciﬁcally, we established four levels,

each corresponding to an objective achieved by the

composition and assigned points (Table 3):

• Level 0: No composition was built, or the com-

position is not even close to the possible solutions

(wrong input/output or functionality).

• Level 1: Input and output are correct (at least the

type) but there are incompatibilities in between

that make the composition impossible to run.

• Level 2: Input and output type are correct and the

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

552

Figure 6: Matching composition.

composition is valid and can run, but it is only in-

cluded in a possible solution (the format of some

parameter is close but not correct).

• Level 3: The correct composition was made.

The points were summed for each question set (Q1

and Q2) for each group (A, B, C, and D), and used

to analyze the results. Since the maximum number

of points for one set of one group is 27 points (=(3

points)*(3 questions)*(3 subjects)), we can use “point

percentage” (PP), where 100% is 27 points, to com-

pare the results. A higher point percentage means that

the quality is better.

Note that level 2 corresponds to a misunderstand-

ing of the question: the test subjects may not have

understood the difference between two close terms,

e.g., “stock” and “stock symbol”. Thus the generated

composition would be valid if the input would have

been “stock symbol” but not for “stock” only.

4.2 Results and Analysis

We found two issues with the experimental results:

• One test subject never achieved any level 3 nor 2

composition. He only had one level 1 composi-

tion and 5 compositions of level 0. Since only one

person produced such results, we considered that

this particular person did not understand the ques-

tions or how to use the programs and decided not

to incorporate the corresponding results.

• The last question of the second set (Q2.3) was

neverachieved by any test subject, not even a level

2. This suggests that the question was not well

formulated and thus we decided not to include it

when calculating the point percentages.

We now show and analyze the results of the exper-

iment taking the above two points into account.

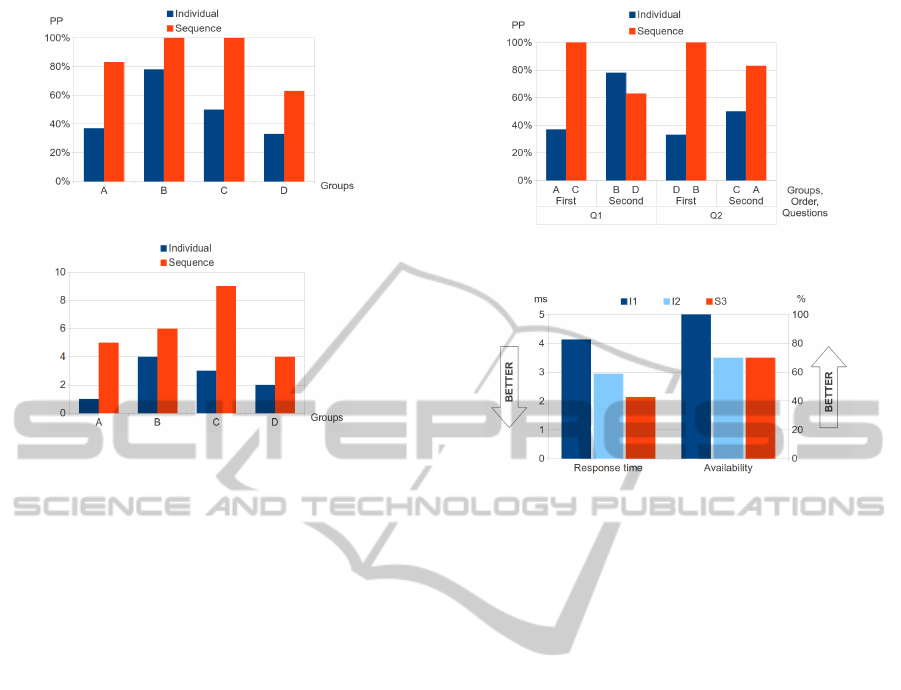

Global Comparison. Figure 7 shows the point per-

centage for each group and each tool used. In all four

groups, we ﬁnd that the results using our sequence

tool had a higher point percentage (i.e., had better

quality) compared to the individual tool. Figure 8

shows the number of level 3 compositions. Again,

the groups using our sequence tool clearly had more

valid compositions than the groups using the individ-

ual tool. For both Figures 7 and 8, we applied the

t-test and found that they were statistically signiﬁcant.

Comparison between Tools. Figure 9 compares

the results based on each requirement set (Q1 and

Q2), as well as its order. We can see that in three out

of four cases, the sequence tool had a higher point per-

centage compared to the individual tool. In the lone

QoS-awareServiceCompositionBasedonSequencesofServices

553

Figure 7: Global results of the experiment.

Figure 8: Number of level 3 compositions generated by the

subjects.

opposite case, the difference was not too large (about

15%), compared to the differences for the other three

cases.

QoS Requirement Achieved. Among the six ques-

tions in the two sets, four of them had at least two pos-

sible valid compositions. We had originally planned

to compare the QoS values of the generated composi-

tions for each question between the compositionsgen-

erated with the sequence tool and the ones generated

with the individual tool. But only one test subject was

able to ﬁnd several compositions for the same ques-

tion, and only for two questions (Q1.2 and Q1.3).

Figure 10 shows the QoS values (left axis for the

response time, right axis for the availability) for the

compositions generated for question Q1.2. As ex-

pected, the compositions generated with the individ-

ual tool (I1 and I2) have different QoS than the one

generated with the sequence tool (S3). The composi-

tions generated with the individual tool have a longer

response time but one of those two also has a bet-

ter availability. On the other hand, the composition

generated with the sequence tool has the shortest re-

sponse time. Note that all three compositions have the

same throughput value.

For question Q1.3, only subjects using the se-

quence tool succeeded in building valid compositions,

thus there were no compositions generated with the

individual tool to compare to. Some test subjects re-

ported that they could not ﬁnd multiple compositions

because the time to build compositions was too short.

Although there are not much data to use for com-

Figure 9: Comparison results between the sequence tool

and the individual tool.

Figure 10: QoS comparison of the three compositions gen-

erated for Q1.2.

parison, only the sequence tool allowed one subject to

ﬁnd several compositions for two questions whereas

no one was able to do it with the individual tool.

This suggests that the sequence tool can be used more

quickly and offer more choices to the user.

4.3 Threats to Validity

As with any experiment that uses students as subjects,

this would be one threat to validity. Indeed, as was

discussed in the previous section, one of the students

had difﬁculty in making compositions regardless of

using the sequence tool or individual tool. However,

we could also say that students represent a good test

for the usability of the tool: if even beginners can use

this tool to build working service composition, this

means that the idea and the implementation were of a

satisfying quality for its purpose.

There is the possibilty that the two sets of ques-

tions may differ in difﬁculty. Thus, we compare Q1

and Q2 by adding the raw results (points) of each

set and then computing the percentage obtained com-

pared with the maximum. The result indicates the av-

erage PP obtained for each set. Figure 11 indicates

the contribution of each group to this global percent-

age. Although the global PP of Q1 is a little higher

than Q2, when we applied t-test, the difference (i.e.,

“Q1 is easier than Q2”) was not statistically signiﬁ-

cant. Thus we conclude that one set of questions was

not necessarily more difﬁcult than the other.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

554

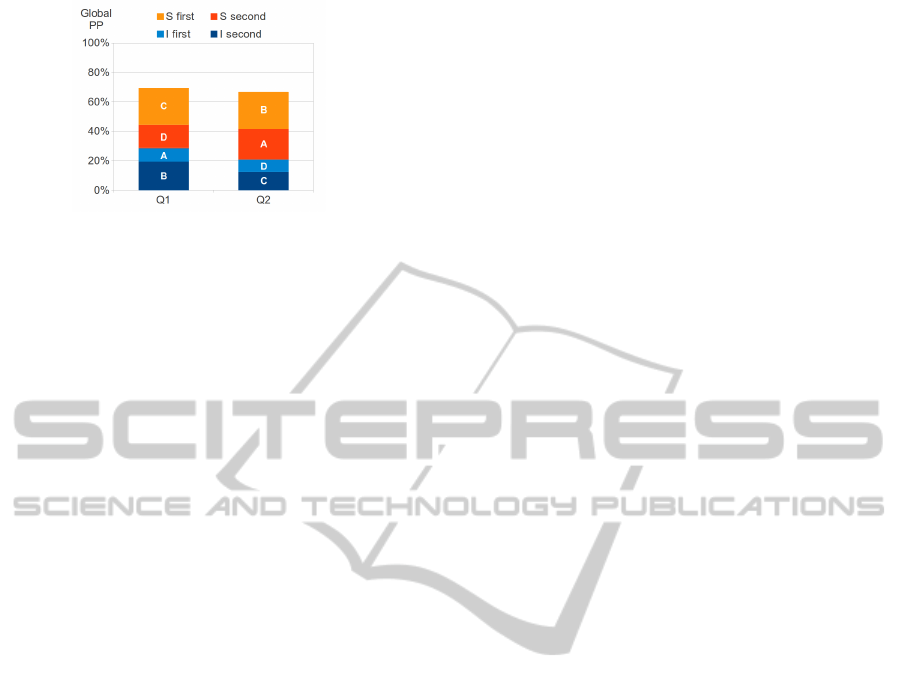

Figure 11: Global PP comparison between Q1 and Q2.

Finally, the time to answer each question (up to

ﬁve minutes) could be considered as a threat to va-

lidity. We chose this short time to avoid the test sub-

jects spending too much time “exploring” the graph

database and to limit the learning effect. But given the

results, it may appear a little too short since some sub-

jects reported that they may have been able to build

more compositions with more time.

5 CONCLUSIONS

We proposed an approach that searches for sequences

of services to build a SoS. Sequences of services al-

low a task to be implemented not only by one service,

but by any existing composition of services. An eval-

uation found that our approach resulted in composi-

tions of higher quality (based on our notion of “point

percentage”) compared to an approach based on ﬁnd-

ing services in a composition one-by-one.

Future work include improving the quality of the

Mule ESB conﬁguration ﬁle parser by adding sup-

ported Mule ESB elements and structures. Another

enhancement would allow more ﬂexibility for the use

of the graph database with a graphical interface to vi-

sualize, search and edit the graph database, keeping

consistency with the indexes. Finally, a third exten-

sion concerns the structure of the generated composi-

tions, still limited to linear sequences whereas Mule

ESB can handle choices, fault handling, etc.

REFERENCES

Al-Masri, E. and Mahmoud, Q. H. (2007). QoS-based dis-

covery and ranking of web services. In IEEE 16th

International Conference on Computer Communica-

tions and Networks, pages 529–534.

Ding, R. and Jutla, D. (2011). Flexible ontology-

independent and QOS-enabled dynamic web services

composition using google distance. In 2011 IEEE In-

ternational Conference on Services Computing, pages

266–273.

Granell, C., Gould, M., Gronmo, R., and Skogan, D.(2005).

Improving reuse of web service compositions. In 6th

International Conference on E-Commerce and Web

Technologies, pages 358–367.

Holmes, R. and Walker, R. (2012). Systematizing pragmatic

software reuse. ACM Transactions on Software Engi-

neering and Methodology, 21(4).

Klusch, M., Gerber, A., and Schmidt, M. (2005). Seman-

tic web service composition planning with OWLS-

Xplan. In AAAI Fall Symposium on Semantic Web and

Agents.

Kono, Y., Takada, S., and Doi, N. (2004). A framework

for multiple service discovery and robustness. In 8th

IASTED International Conference on Software Engi-

neering and Applications, pages 546–551.

Ma, Z. and Leymann, F. (2009). BPEL fragments for modu-

larized reuse in modeling BPEL processes. In 5th In-

ternational Conference on Networking and Services,

pages 63–68.

Mukhopadhyay, D. and Chougule, A. (2012). A survey on

web service discovery approaches. In 2nd Interna-

tional Conference on Computer Science, Engineering

and Applications, pages 1001–1012.

MuleSoft (accessed Sept. 30, 2013). Mulesoft community.

http://www.mulesoft.org/.

Neo Technology (accessed Oct. 2, 2013). Neo4j.

http://www.neo4j.org/.

OASIS (accessed Oct. 2, 2013). UDDI speciﬁca-

tions. https://www.oasis-open.org/committees/uddi-

spec/doc/tcspecs.htm.

Rosenberg, F., Celikovic, P., Michlmayr, A., Leitner, P.,

and Dustdar, S. (2009). An end-to-end approach for

QoS-aware service composition. In 2009 IEEE Inter-

national Conference on Enterprise Distributed Object

Computing Conference, pages 151–160.

Sirin, E., Parsia, B., Wu, D., Hendler, J., and Nau, D.

(2004). HTN planning for web service composition

using SHOP2. Web Semantics: Science, Services and

Agents on the World Wide Web, 1(4):377–396.

Strunk, A. (2010). QoS-aware service composition: A sur-

vey. In 2010 IEEE 8th European Conference on Web

Services, pages 67–74.

Takada, S. (2011). Finding web services via BPEL fragment

search. In 3rd International Workshop on Search-

Driven Development: Users, Infrastructure, Tools,

and Evaluation, pages 9–12.

Zhao, H. and Doshi, P. (2009). Ahierarchical framework for

logical composition of web services. Service Oriented

Computing and Applications, 3(4):285–306.

QoS-awareServiceCompositionBasedonSequencesofServices

555
