Visualizing Traceability Information with iTrace

an Santiago, Juan M. Vara, Valeria de Castro and Esperanza Marcos

Kybele Research Group, Rey Juan Carlos University, Avd. Tulip

an S/N, M

ostoles - Madrid, Spain

Keywords:

Model-driven Engineering, Program Comprehension, Visualization Techniques and Tools.

Abstract:

The key role of models in Model-Driven Engineering (MDE) provides a new landscape for dealing with

traceability. However, despite the certain maturity reached by some MDE tools, providing efﬁcient views of

traceability data is still in its early stages. To contribute in this direction, this work introduces the visualiza-

tion mechanisms provided by iTrace, a framework for the management of traceability in MDE projects. In

particular, a multipanel editor for trace models supports the low-level edition of traceability data whereas dif-

ferent dashboards provide high-level views of such data. Both proposals are illustrated by means of a running

example.

1 INTRODUCTION

Traceability (IEEE, 1990) has always been a rele-

vant topic in Software Engineering (Asunci

on, 2008).

Maintaining links from requirement to analysis, de-

sign artifacts, working-code or test cases has been ac-

knowledged as one of the best ways to perform im-

pact analysis, regression testing, validation of require-

ments, etc. Likewise, the appropriate management of

traceability information is key to control the evolution

of the different system components during the soft-

ware development life cycle (Ramesh et al., 1997).

Unfortunately, maintaining links among software

artifacts is a tedious, time-consuming and error-prone

task if no tooling support is provided to that end

(Oliveto, 2008). As a consequence, traceability data

use to become obsolete very quickly during software

development. Even sometimes it is completely omit-

ted. Nevertheless, the advent of Model-Driven Engi-

neering (Schmidt, 2006) can drastically change this

landscape. The key role of models positively inﬂu-

ences the management of traceability since the traces

to maintain are simply the links between the elements

of the different models handled along the process.

Furthermore, such traces can be collected in other

models to process them using any model process-

ing technique, such as model transformation, model

matching or model merging (Bernstein, 2003).

One of the areas where appropriate management

of traceability has been acknowledged to help deci-

sively is software comprehension (De Lucia et al.,

2006). This statement gains strength in the context

of Model-Driven Engineering (Schmidt, 2006), where

software (in the shape of model transformations) is

responsible for driving forward the development pro-

cess. In fact, any MDE project consists basically of

a chain of model transformations that consume in-

put models to produce output models (Sendall and

Kozaczynski, 2003). Being able to keep trace of

the relationships between the elements of such mod-

els implies complete control over the transformations

that implemented them and thus over the development

process itself (Mohagheghi and Dehlen, 2007).

Therefore, in previous works (Santiago et al.,

2012) a systematic review was conducted to assess

the state of the art on traceability management in

the context of MDE. The review showed that de-

spite the maturity reached by MDE tools for some

speciﬁc tasks, such as model edition or transforma-

tion (Volter, 2011), the area of traceability manage-

ment presents some serious limitations, like the ab-

sence of proposals to support the analysis of the in-

formation produced when traceability is considered

or the lack of appropriate tooling to visualize trace-

ability data. Regarding the latter, the review re-

vealed that there are very few tools providing ad-hoc

mechanisms to deal with trace models AMW (AMW, ),

ModeLink (ModeLink, ), MeTaGeM-Trace (Metagem-

Trace, ) and none of them supports both model-to-

model (m2m) traces and model-to-text (m2t) traces.

Besides, the huge amount of data collected during an

MDE project where the production of traceability in-

formation is enabled, makes it very convenient to pro-

vide some kind of aggregated view over such data.

Santiago I., M. Vara J., de Castro V. and Marcos E..

Visualizing Traceability Information with iTrace.

DOI: 10.5220/0004865400050015

In Proceedings of the 9th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2014), pages 5-15

ISBN: 978-989-758-030-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

To deal with these issues, this work introduces the

visualization mechanisms supported by iTrace (San-

tiago et al., 2013), a framework for traceability man-

agement in MDE projects. On the one hand, it bun-

dles an editor for trace models that supports both m2m

and m2t traces. On the other hand, it leans on Busi-

ness Intelligence (BI) (Kimball, 1998) tools to pro-

vide a set of dashboards for traceability data

. that

can be used to produce high-level overviews of the

relationships between the artefacts involved in the de-

velopment process.

The rest of this paper is structured as follows: Sec-

tion 2 introduces existing works in the ﬁeld, highlight-

ing the contributions of this work. Section 3 intro-

duces the running example used to illustrate the pro-

posal. Section 4 illustrates the production of trace

models from legacy projects, while Section 5 presents

our proposal for the visualization of the data collected

in such models. Finally, Section 6 summarizes the

main conclusions derived from this work and provide

some directions for further work.

2 RELATED WORKS

It is worth noting that there are several works dealing

with the use of traceability matrix or reports to present

the traceability information gathered during an MDE

project. However, this work focuses on more elabo-

rated visualizations based on some kind of graphical

abstraction, such as graphs, editors or dashboards.

First of all, most of the existing works in the con-

text of MDE lean on the Eclipse Modeling Frame-

work (EMF) (Gronback, 2009) to implement their

proposals (Vara and Marcos, 2012). One of the main

features of EMF is the ability to generate simple yet

fully functional tree-based editors from a given meta-

model. These editors are consequently widely used

by MDE tools. Nevertheless, their generic nature do

not always ﬁt with the speciﬁc nature of some sce-

narios. For instance, trace models are eminently re-

lational models, i.e. models whose main purpose is

to collect the relationships between the elements of

some other models (Jim

enez et al., 2012).

A few works have previously addressed this is-

sue by providing multi-panel editors for EMF models.

This is the case of AMW, ModeLink, MeTaGeM-Trace or

iTrace (ITrace, ). However, although they improve

the capabilities of the generic EMF editors to display

relational models, they still own some generic nature

A dashboard is a visual interface that provides at-a-

glance views into key measures relevant to a particular

objective or business process (Alexander and Valkenbach,

2010).

that results in some limitations when used to display

trace models.

The main limitation of AMW when it is used to dis-

play trace models is that it hampers the distinction

between source and target models when dealing with

more than two related models. This results in related

models being misplaced regarding their role in the

traceability relationship. For instance, contrary to the

most intuitive idea, source models would be placed on

the right of the traces model.

ModeLink in turn just supports the visualization of

two/three models, including the relationships (traces)

model. Therefore, the user can only deﬁne relation-

ships between the elements of one source and one tar-

get model. As a consequence, a limitation arises when

traces between elements of several source and/or tar-

get models are needed.

Finally, although MeTaGeM-Trace overcame these

limitations, it does not support the deﬁnition of traces

between model elements and source-code (blocks),

i.e. m2t traces.

By contrast, Acceleo (Obeo, ) provides a solu-

tion to the last issue. In fact, it is a m2t transforma-

tion language which support traces generation. Every

time an Acceleo transformation is run, a traces model

between the input model and the code generated is

produced. Unfortunately, due to its functionality, it

is obviously limited to work with m2t trace models.

Besides, such models are just transient models. They

can only be used for debugging purposes but they are

not persisted when the IDE is closed.

From the visual point of view, the graph-based

visualizations supported by GEF3D (von Pilgrim, ),

TraceViz (Marcus et al., 2005) or TraVis (De Souza

et al., 2007), are probably more appealing. How-

ever, while GEF3D is mainly a extension to sup-

port 3D diagramming atop of Eclipse-GEF, TraceViz

and TraVis are general-purpose tools for traceabil-

ity management. That is, none of them were devised

to work with models, what results in a number of is-

sues when used in the context of MDE. The most im-

mediate is the need to serialize the trace models pro-

duced in MDE projects according to the input format

required by such tools.

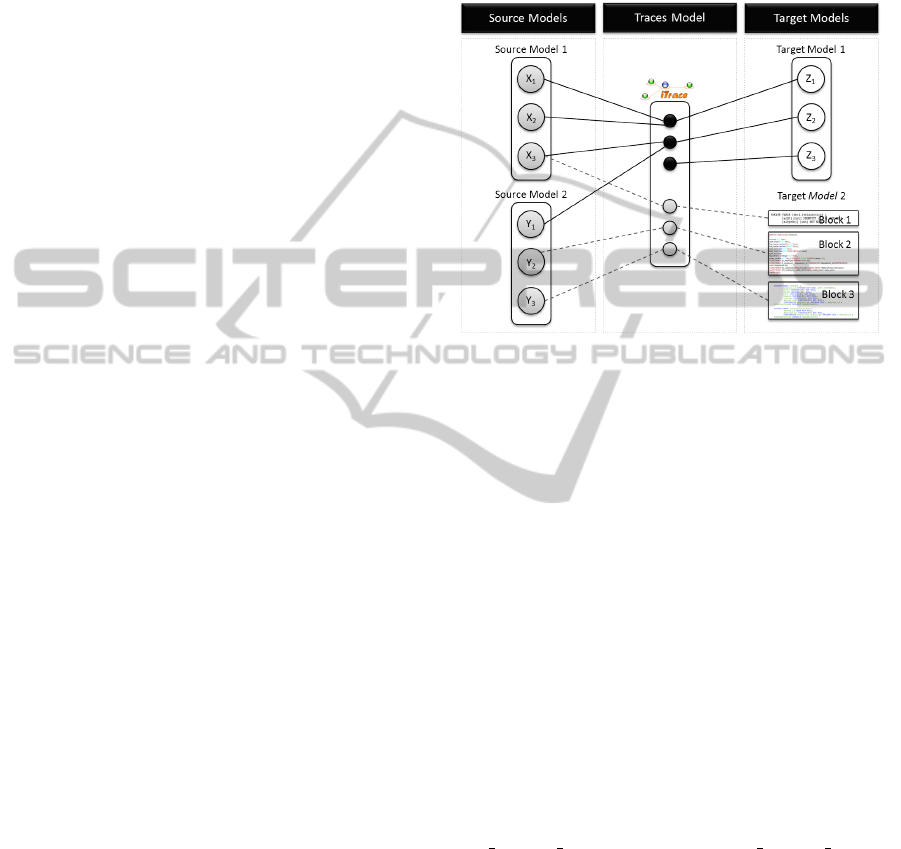

Regarding iTrace its editor for trace models

solve the different issues of the multi-panel editors

mentioned before: it displays n models that are cor-

rectly placed regarding their role in the traceability

relationship. Besides, it supports m2m or m2t trace

models. Nevertheless, the most outstanding feature

of iTrace regarding existing works is the use of BI

tools to provide a set of dashboards for traceability

data. They support the tracking of traces from high-

level models to source-code and the selection of dif-

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Table 1: Tools supporting traces visualization.

Tool NaT #Art Vsl MDE AGG

Acceleo m2t Sim TL 3 7

AMW m2m Sim M 3 7

GEF3D m2m Mul G* 7 7

ModeLink m2m Sim M 3 7

TraceViz m2t Sim G 7 7

TraVis m2m Mul G 7 7

MeTaGeM-Trace m2m Mul M 3 7

iTrace Both Mul M/D 3 3

* GEF3D models

ferent granularity levels, either showing or abstracting

from technical details. As a result, simpler and more

intuitive visualizations are provided.

To summarize the main ﬁndings of this section,

Table 1 compares the main features of iTrace regard-

ing visualization of traceability data against those of

reviewed proposals. In particular, the following fea-

tures are reviewed:

• Nature of the traced artifacts (NaT): the tool can

be used to display (m2m) traces, (m2t) traces or

both.

• Cardinality (#Art): the tool supports (Sim)ple

traces, which can reference elements from just

two artifacts (either models or source-code ﬁles)

or (Mul)tiple traces, which can reference elements

from more than two artifacts.

• Type of Visualization supported (Vsl): graph-

based (G), tree-like editor (TL), multipanel editor

(M), dashboard (D).

• MDE-oriented (MDE): either the tool was devel-

oped to work in the context of MDE (3) or not

(7).

• Aggregated views (AGG): either the tool provides

aggregated views of traceability data (3) or not

(7).

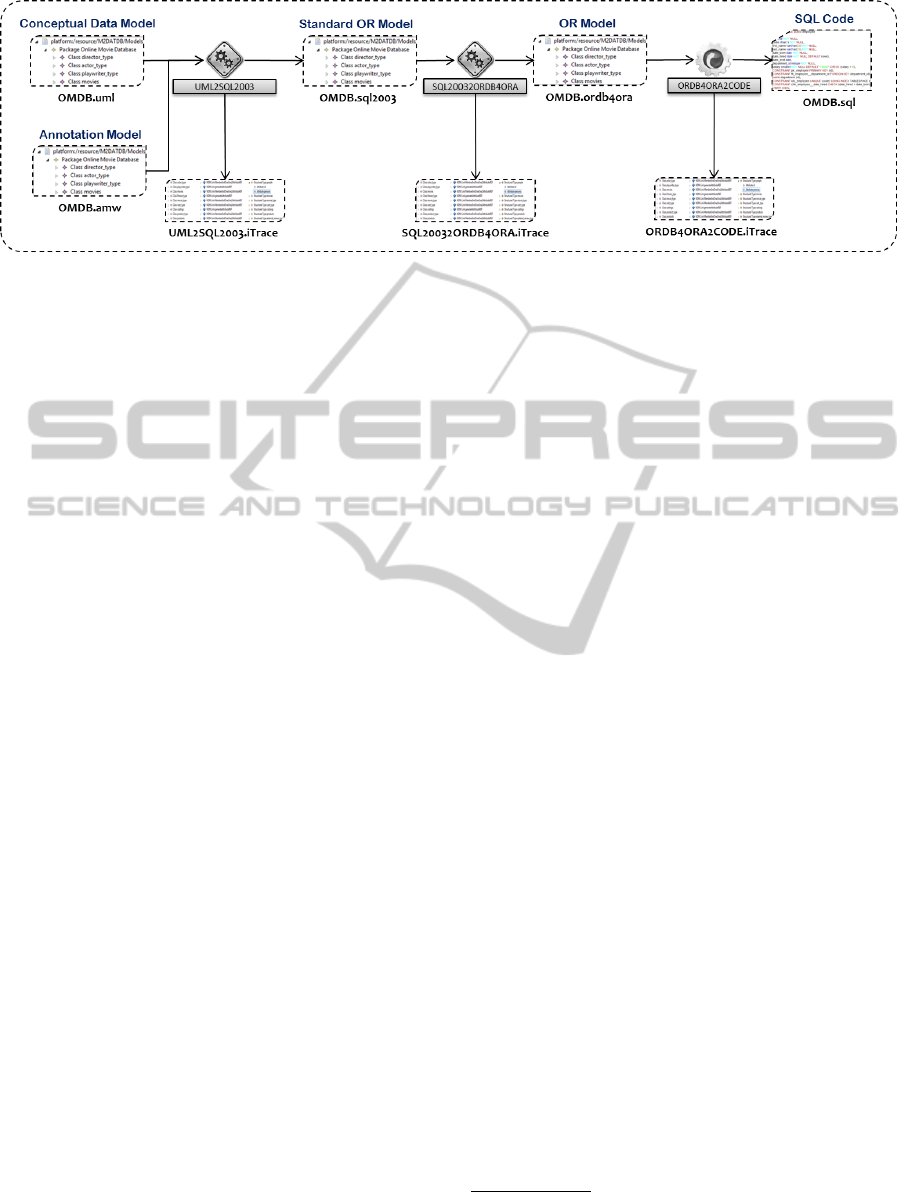

3 MOTIVATING SCENARIO

In order to illustrate the proposal of this work, this

section shows its application to an existing MDE

project. In particular, we used M2DAT-DB (Vara and

Marcos, 2012) a framework for Model-Driven Devel-

opment of modern database schemas. This work fo-

cuses on the use of M2DAT-DB to generate an Oracle

ORDB schema from a conceptual data model repre-

sented with a UML classs diagram, going through an

SQL2003 model as an intermediate step.

In order to run this scenario, a targeted domain

is needed. To that end, the Online Movie Database

(OMDB) example introduced by Feuerlicht et al.

(Feuerlicht et al., 2009) is used. Using an ”external”

case study prevents us from using ad-hoc models that

might ﬁt better to our needs. This way, the speciﬁ-

cation of the OMDB provided in (Feuerlicht et al.,

2009) is modeled using an UML class diagram that

constitutes the input model used to run M2DAT-DB.

This way, Fig. 1 shows an overview of the

case study

. Using M2DAT-DB, the UML class

diagram that depicts the OMDB conceptual data

model is translated into an ORDB schema conform-

ing to the SQL:2003 standard. If desired, such

mapping can be driven by a set of annotations col-

lected in a weaving model (Didonet Del Fabro et al.,

2006) to introduce some design decisions in the pro-

cess. This way, the UML2SQL2003 transformation

consumes the source models, conceptual data model

(OMDB.uml) and annotation model (OMDB.amw) to

generate the SQL2003 model (OMDB.sql2003). Next,

the SQL20032ORDB4ORA transformation consumes the

SQL2003 model to generate an ORDB model for

Oracle OMDB.ordb4ora). Finally, the ORDB4ORA2-

CODE m2t transformation generates the working-

code that implements the modeled schema in Oracle

OMDB.sql). Note that the running of each transfor-

mation produces, apart from the corresponding target

models, a traces model (see UML2SQL2003.itrace,

etc.).

4 GENERATION OF TRACE

MODELS

First step towards the appropriate management of

traceability is to dispose of traceability data. Unfortu-

nately many projects do not collect such data. How-

ever, one of the advantages of MDE is the ability to

run the project any number of times since it is mostly

automated. iTrace takes advantage from this feature

to gather traceability data from legacy MDE projects.

These data are persisted in trace models which con-

form to the iTrace metamodel, which is brieﬂy in-

troduced in the following.

4.1 The iTrace Metamodel

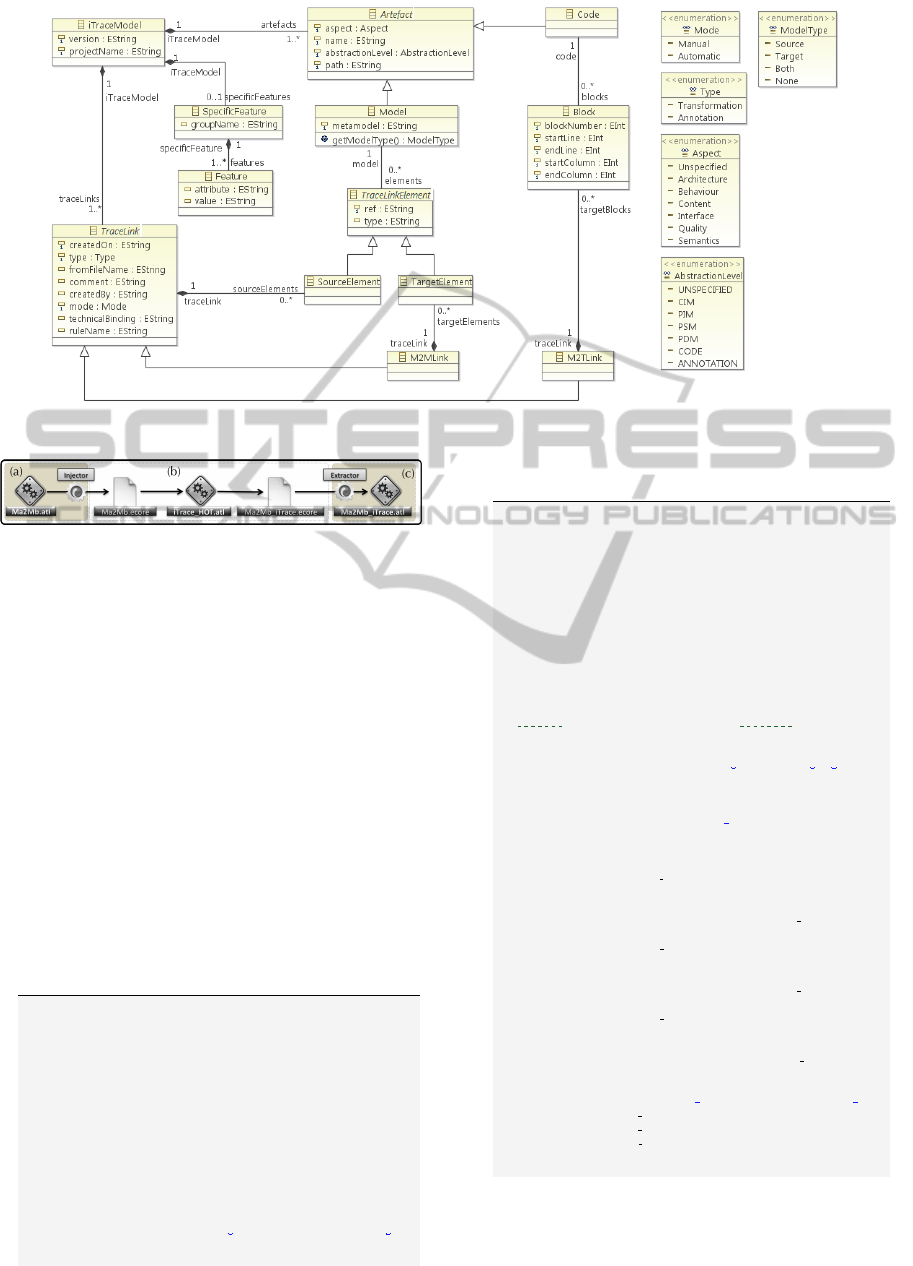

The iTrace metamodel, shown in Fig. 2, is deﬁned

to support the modeling of the low-level traceability

Full screen images for all the ﬁgures can be found

in: http://www.kybele.etsii.urjc.es/itracetool/index.php/

conferences/enase-2014/

VisualizingTraceabilityInformationwithiTrace

Figure 1: Model-driven development of the Object-Relational OMDB with M2DAT-DB.

information obtained from transformations and weav-

ing models.

An iTraceModel (root class) contains (software)

Artifacts, TraceLinks and/or SpecificFeatu-

res. The latter serve to collect the ad-hoc features

of the project under study which might be of interest

for the subsequent analysis. Since the information to

gather about each project might be completely differ-

ent, each particular feature is a simple key-value pair,

thus leaving complete freedom to the storage of any

type of data considered relevant.

The class Artifacts represents the building

blocks of the MDE project, i.e. models and source-

code, while the TraceLink class represents the traces

between them. Actually, such traces connect their

components, represented by TraceLinkElement ob-

jects in the case of models and Blocks in the case

of source-code. TraceLinkElement objects own an

EObject reference to point to a particular model ele-

ment.

Each TraceLink owns a type property whose

value deﬁnes how was the trace produced: either from

a model Transformation or from an Annotation

model. Each TraceLink is in turn a M2MLink or a

M2TLink. While the former relates two or more model

elements (at least a TraceLinkSourceElement and

a TraceLinkTargetElement), the latter relates one

or more model elements with source-code blocks

(M2TLink.codeTarget.blockCode).

4.2 Generation Process

iTrace supports the production of trace models in

two different scenarios. On the one hand, it sup-

ports the enrichment of model transformations that

were developed with model transformation languages

which do not support the generation of traces. On

the other hand, it bundles a set of transformations to

normalize existing traces models to a common meta-

model: the iTrace metamodel. In this paper, only

the ﬁrst scenario is considered, i.e., the production of

trace models by enriching existing model transforma-

tions. More speciﬁcally, we focus on the generation

of trace models from enriched ATL transformations.

ATL provides limited access to the target elements

generated by running a transformation, e.g. in the cur-

rent version of the ATL virtual machine (ATL-VM),

target elements cannot be selected according to their

type. Besides, the ATL-VM discards the tracing in-

formation after the transformation is run. This im-

plies that ATL model transformations should be refac-

tored to support the production of trace models (Yie

and Wagelaar, 2009). However, such refactoring can

be automated by using High-Order Transformations

(HOT) (Tisi et al., 2010), i.e. ”a model transforma-

tion such that its input and/or output models are them-

selves transformation model”.

This way, HOTs are used to enrich existing m2m

transformations so that they are able to produce not

only the corresponding target models, but also trace

models. This idea was ﬁrst proposed by Jouault in

(Jouault, 2005) that introduced an initial prototype to

support the enrichment of ATL transformations. The

enrichment process bundled in iTrace is a little bit

more complex than the one from (Jouault, 2005), due

to the increased complexity of iTrace metamodels.

Fig. 3 depicts graphically the enrichment process

for m2m transformations supported by iTrace: ﬁrst,

the TCS (Jouault et al., 2006) injector/extractor for

ATL ﬁles bundled in the AMMA platform

produces

a transformation model from a given ATL transfor-

mation (a); next, such transformation model is en-

riched by a HOT (b) and ﬁnally the resulting transfor-

mation models is again serialized into an ATL model

transformation (c). As mentioned before, the execu-

tion of such enriched transformation will produce not

only the corresponding target models, but also a traces

model.

The result of this enrichment process is par-

The Atlas Model Management Architecture Platform.

Available in: http://www.sciences.univ-nantes.fr/lina/atl/

AMMAROOT/.

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Figure 2: The iTrace metamodel.

Figure 3: Adding traceability capabilities in ATL transfor-

mations - adapted from (Jouault, 2005).

tially illustrated by Listings 1 and 2 which

show a transformation rule and its refactored ver-

sion. More concretely, Listing 1 shows the

MemberEnd2NotNullOnTT mapping rule while List-

ing 2 shows the version of such rule produced by the

enrichment process. Note that LOC 1-15 (in both ver-

sions) and 16-19 (original) and 42-47 (refactored) re-

main invariant.

By contrast, lines 16-41 in the refactored corre-

spond to the statements incorporated with the aim of

producing iTrace objects. More concretely, lines 17-

26 correspond to the generation of a TraceLink; next,

mirror source (27-36) and target (37-41) objects are

also generated and latter related with the target ob-

jects produced by the mapping rule (44-46).

Listing 1: Original version of MemberEnd2NotNullOnTT

transformation rule.

1 r u l e MemberEnd2NotNullOnTT {

2 f r o m

3 pr o p : UML! P r o p e r t y ,

4 c : UML! C l a s s

5 (

6 ( pr o p . is A s s o c i a t i o n L o w e r M o r e T h a n Z e r o ( ) ) a nd

7 ( c . g e n e r a t e s T y p e d T a b l e ( ) ) a nd

8 ( c . ownsMemberEnd ( pr o p ) ) an d

9 ( n o t c . i s A b s t r a c t )

10 )

11 t o

12 n o t N u l l : SQL2003 ! N o t N u l l (

13 t a b l e <− t h i s M o d u l e . r e s o l v e T e m p ( c , ’ t t ’ ) ,

14 co l umn s <− p r o p

15 )

16 do {

17 pr o p . name . debug ( ’ r u l e MemberEnd2NotNullOnTT ’ ) ;

18 }

19 }

Listing 2: Refactored version of MemberEnd2NotNullOnTT

transformation rule.

1 r u l e MemberEnd2NotNullOnTT {

2 f r o m

3 pr o p : UML! P r o p e r t y ,

4 c : UML! C l a s s

5 (

6 ( pr o p . is A s s o c i a t i o n L o w e r M o r e T h a n Z e r o ( ) ) a nd

7 ( c . g e n e r a t e s T y p e d T a b l e ( ) ) a nd

8 ( c . ownsMemberEnd ( pr o p ) ) an d

9 ( n o t c . i s A b s t r a c t )

10 )

11 t o

12 n o t N u l l : SQL2003 ! N o t N u l l (

13 t a b l e <− t h i s M o d u l e . r e s o l v e T e mp ( c , ’ t t ’ ) ,

14 col u m ns <− pro p

15 )

16 −− Beg i n Added by i T r a c e

17 , Tr a c e L i n k : i T r a c e ! M2MLink (

18 rule N a m e <− ’ MemberEnd2NotNullOnTT ’ ,

19 comment <− ’ A u t o m a t i c g e n e r a t i o n by i T r a c e ’ ,

20 c r e a t e d O n <− ’ 15−02−2013 ’ ,

21 mode <− ’ Aut om a t i c ’ ,

22 t e c h n i c a l B i n d i n g <− ’ATL ’ ,

23 c r e a t e d B y <− ’ i T r a c e Too l ’ ,

24 t y p e <− ’ T r a n s f o r m a t i o n ’ ,

25 iT r a c e M o d e l <−t h i s M o d u l e . g e t T r a c e M o d e l R o o t

26 ) ,

27 e l e m e n t S o u r c e p r o p : i T r a c e ! S o u r c e E l e m e n t (

28 t y p e <− p r o p . oc l T y p e ( ) . t o S t r i n g ( ) ,

29 t r a c e L i n k <− Tr a ce L i n k ,

30 model <− t h i s M o d u l e . getModel UML

31 ) ,

32 e l e m e n t S o u r c e c : i T r a c e ! S o u r c e E l e m e n t (

33 t y p e <− c . o c l T y p e ( ) . t o S t r i n g ( ) ,

34 t r a c e L i n k <− Tr a ce L i n k ,

35 model <− t h i s M o d u l e . getModel UML

36 ) ,

37 e l e m e n t T a r g e t n o t N u l l : i T r a c e ! T a r g e t E l e m e n t (

38 t y p e <− n o t N u l l . o c l T y p e ( ) . t o S t r i n g ( ) ,

39 t r a c e L i n k <− Tr a ce L i n k ,

40 model <− t h i s M o d u l e . getModel SQ L 2003

41 )

42 do {

43 pr o p . name . debug ( ’ r u l e MemberEnd2NotNullOnTT ’ ) ;

44 e l e m e n t S o u r c e p r o p . r e f S e t V a l u e ( ’ o b j e c t ’ , p r o p ) ;

45 e l e m e n t S o u r c e c . r e f S e t V a l u e ( ’ o b j e c t ’ , c ) ;

46 e l e m e n t T a r g e t n o t N u l l . r e f S e t V a l u e ( ’ o b j e c t ’ ,

47 n o t N u l l ) ;

48 } }

VisualizingTraceabilityInformationwithiTrace

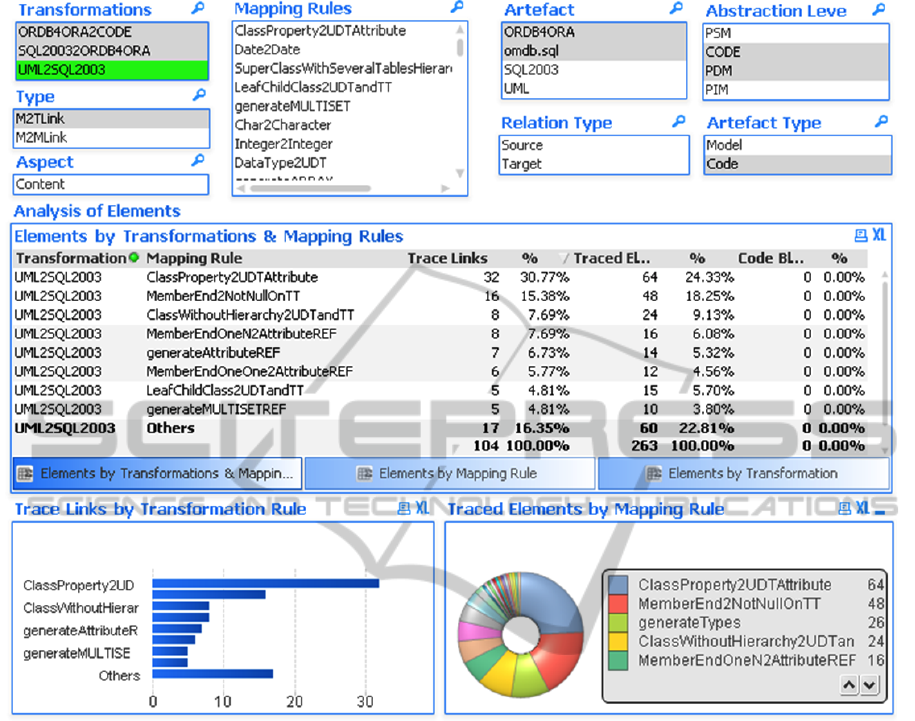

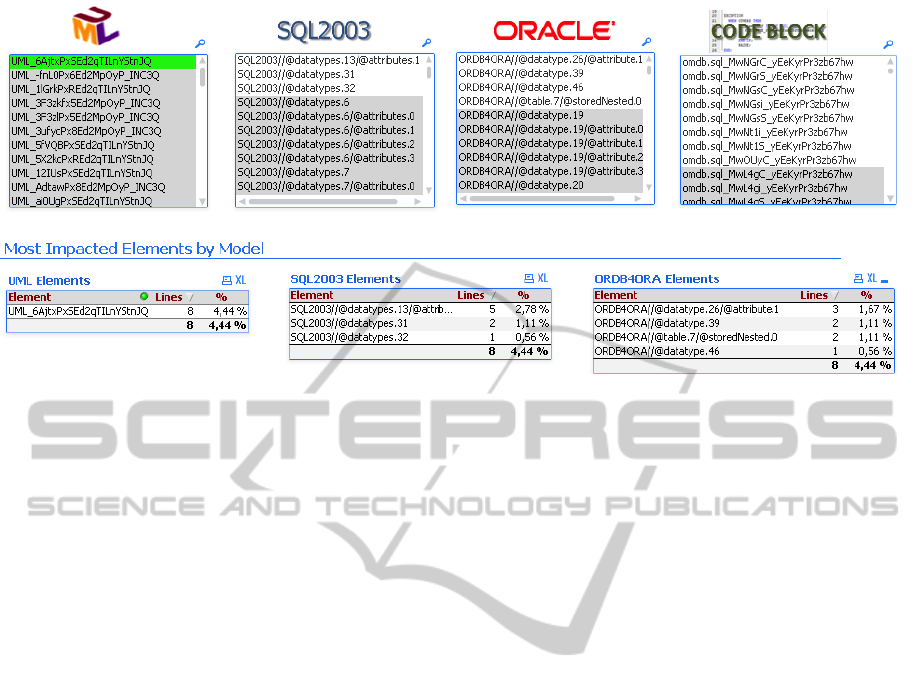

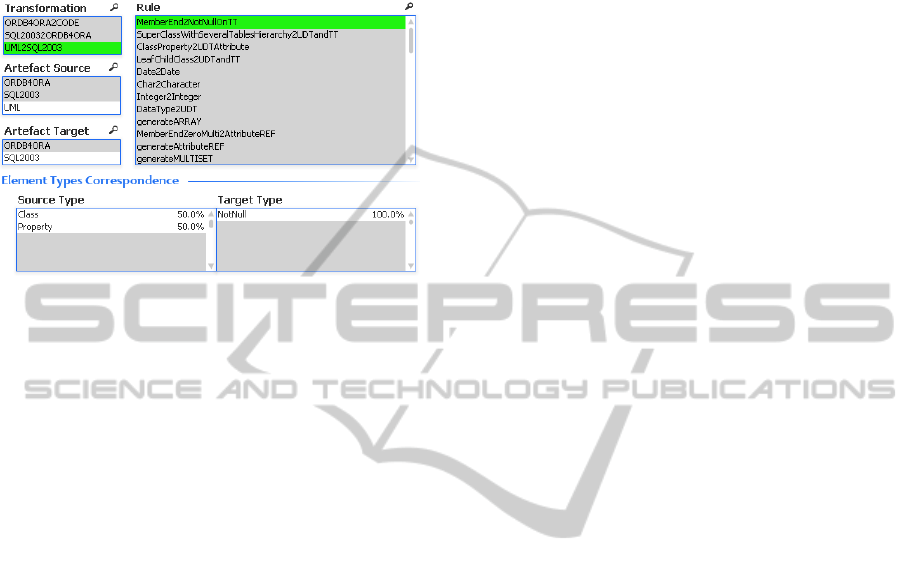

5 iTrace VISUALIZATION

MECHANISMS

Once traceability data has been persisted in the shape

of trace models, being able to visualize such links is

valuable, at least as an exploratory aid (Kerren, 2008).

However, the development of tool support to that end

is a non-trivial task and considerable effort is needed

to recover, browse and maintain traces (Marcus et al.,

2005).

In the following, the visualization mechanisms for

traceability data supported by iTrace are introduced.

A multipanel editor for trace models is ﬁrst presented

and then the use of dashboards providing aggregated

and non-aggregated views of traceability data is de-

scribed. The former can be seen as a tool for low-

level management of traces whereas the latter pro-

vides high-level information from such traces.

5.1 Multipanel Editor for Trace Models

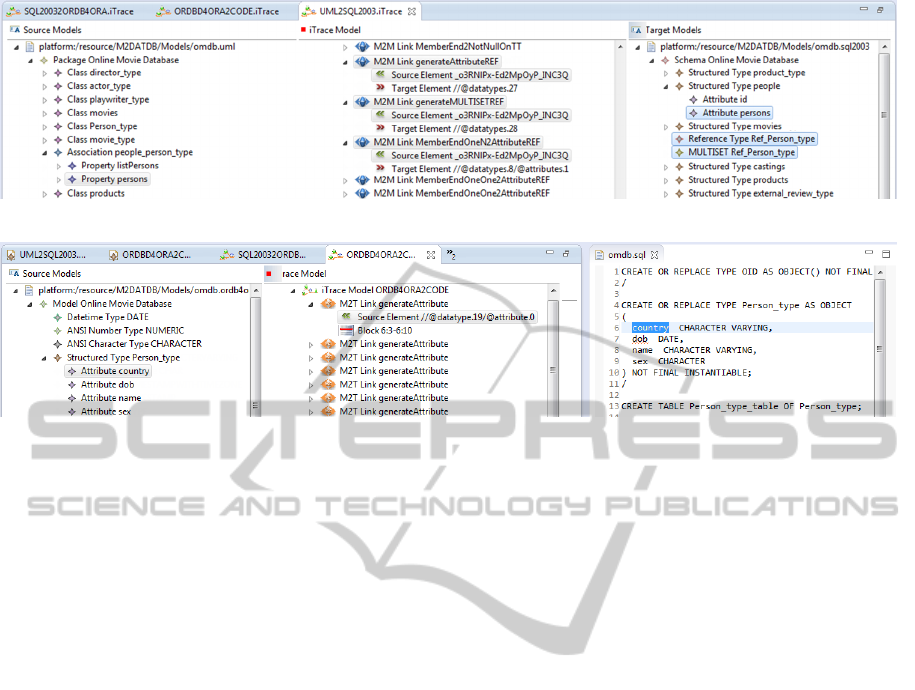

iTrace bundles an ad-hoc EMF-based multipanel ed-

itor for trace models. Such editor supports the man-

agement (visualization and edition) of the EMF trace

models generated from the execution of model trans-

formations. Note that such transformations are previ-

ously enriched by iTrace to support the generation

of traces.

Fig. 4 provides a high-level overview of the

planned structure for the editor. In order to overcome

the limitations described in Section 2 the editor was

devised to support the following set of functionalities:

• It should bundle three different panels to show

separately the source models, the trace model and

the target models. If there are several source or

target models, they should be co-located verti-

cally in their corresponding panel. Even the same

model could appear in both panels if it is refer-

enced both as source and target model by any set

of traces.

• The panel for target models should be adapted to

the nature of the models displayed, i.e. a proper

set of models or source-code ﬁles. Note that, in

the end, a source-code ﬁle is another model, this

one with the lowest level of abstraction. Thus,

the term models might be used as well to refer to

source-code ﬁles in the following.

• The user should be able to drag elements from

source and target models and drop them on the

traces model to create new trace-link objects.

• If the user selects a trace-link object, the editor

has to highlight automatically the elements ref-

erenced by the selected link, either model ele-

ments or source-code blocks, in the corresponding

model or source-code ﬁle.

• If the user selects a source or target element, the

editor must highlight the trace-link objects that

reference it.

Figure 4: Desired behavior for the iTrace multipanel edi-

tor.

In the following, two of the traces models pro-

duced in the running example are displayed in the

multipanel editor bundled in iTrace to illustrate the

ﬁnal result.

5.1.1 Running Example

When the UML2SQL2003 model transformation is run

using the OMDB class diagram as input, an SQL:2003

ORDB model plus a traces model between both mod-

els are generated.

Figure 5 shows an excerpt of such traces model

displayed in the multipanel editor of iTrace.

Note that as the Property persons source ele-

ment is selected, the trace-links referencing it are

automatically highlighted: M2M Link generate-

AtributteRef. The target elements referenced by

those traces are highlighted as well in the SQL2003

model: attribute persons, Reference Type

Ref Person Type y MULTISET Ref Person Type.

To illustrate the visualization of m2t traces mod-

els, ﬁgure 6 shows an excerpt of the traces model pro-

duced by the ORDB4ORA2CODE transformation in the

running example. In this case, the right panel shows

the SQL script generated to implement the ORDB

schema modeled in the source model (ORDB4ORA

model). The selection of the ﬁrst trace-link (M2T

Link generateAttribute) results in the automatic

highlighting of the corresponding source elements

(Attribute country) and associated source-code

(country column in line 6 of the SQL script).

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Figure 5: UML2SQL2003 m2m traces model displayed in the iTrace multipanel editor.

Figure 6: ORDB4ORA2CODE m2t traces model displayed in the iTrace multipanel editor.

Notice for instance the utility of the editor for

change impact analysis since it eases enormously

tracking dependencies between source and target el-

ements and the other way round.

5.2 Dashboards for Traceability Data

A quick look at the traces model shown in the pre-

vious section serves to give an idea of the number

of traces that can be generated by any MDE project.

The multipanel editor introduced supports efﬁciently

edition of such traces. Nevertheless, working at this

level of abstraction might not ﬁt to all the stakehold-

ers involved in the project. Aggregated views provid-

ing with high-level information of the raw data (trace-

links) would be welcome in this context.

To address this issue, iTrace leans on BI tools to

support the multidimensional analysis of traces mod-

els. The aim is to elicit knowledge from the trace-

links gathered during the project. To that end, traces

models are ﬁrst denormalized and then used to pop-

ulate QlikView (QlikTech International AB, ) dash-

boards. As a result, high-level overviews of the rela-

tionships between the artefacts involved in the devel-

opment process are obtained. In the following, three

particular dashboards produced in the running exam-

ple are used to illustrate the proposal.

5.2.1 Running Example: Project Overview

Dashboard

The Project overview dashboard shows all the

model elements involved in the project under study

(including source-code blocks), as well as their re-

lationships. Besides, it allows assessing the contri-

bution of each element to the project by identifying

the #LOC directly related with it. Figure 7 shows an

screen capture of the dashboard which is divided into

two main blocks:

Upper part allows tracking all the relationships of

a given element along the project. To that end, it

shows all the model elements so that when a given

element is selected, related elements in the rest of

models are automatically highlighted while the rest

of elements are greyed-out. For instance, the ﬁgure

shows that the selection of a UML element results in the

highlighting of related elements in the SQL2003 and

ORACLE models, as well as the corresponding source-

code blocks. Currently the framework uses the unique

identiﬁer of every model element to display them in

the dashboard. However, more intuitive identiﬁers

will be used in future versions.

Lower part of the dashboard (Most Impacted El-

ements by Model) shows the elements of each model

which are associated with the highest #LOC. In this

case, the UML is related to 4.44% of the total #LOC

generated in the project.

Model transformations are inherently complex

(Bollati et al., 2013). They get even more complex

when they aim at lowering the level of abstraction at

which software is modelled to support code genera-

tion since the semantic gap between the models in-

volved implies making assumptions and adding ex-

tra machinery to consider all the possible scenarios.

In this context, the Project overview dashboard

abstracts from such complexity providing a quick

overview of the relationships between the different el-

ements of the project without having to look at the

VisualizingTraceabilityInformationwithiTrace

Figure 7: Project overview dashboard.

source code that implements the model transforma-

tions connecting them.

5.2.2 Running Example: Mapping Rules

Overview Dashboard

The Mapping rules overview dashboard shown in

Fig. 8 goes a step further, since it provides a closer

look at the transformations involved in the project. In

particular, it allows identifying which are the rules in-

volved in a given transformation and which is their

role in the project. The latter refers to the workload

of such rules, i.e. the amount of objects effectively

mapped by the mapping rule under consideration.

To that end, upper side of the dashboard bundles

a set of controls to deﬁne high-level criteria for the

analysis. This way, the traces that will be analyzed

can be ﬁltered according to:

• Transformations: only traces produced by the se-

lect model transformations will be considered.

• Type: only model-to-model or model-to-text

traces will be considered.

• Mapping Rules: only traces produced by the se-

lected mapping rules will be considered.

Likewise, the model elements that will be object

of consideration can be ﬁltered according to another

set of criteria:

• Artefact: only elements included in the selected

models or source-code ﬁles will be considered.

• Relation Type: depending on the selection, only

model elements used that were either as source or

target objects of the selected transformations will

be considered.

• Abstraction Level: only model elements belong-

ing to models deﬁned at the selected abstraction

levels will be considered.

• Artefact Type: depending on the selection, only

model elements or source-code blocks will be

considered.

Obviously, none of the criteria above are manda-

tory. That is to say, the user might set no values for

any of them. If so, no ﬁltering is applied and ev-

ery trace (respectively model element) is considered

in the analysis.

Once the criteria have been ﬁxed (if any), the cen-

tral and lower part of the dashboard collects aggre-

gated data regarding the number of traces, model ele-

ments (referred to as traced elements) and source-

code blocks, which fulﬁll the criteria. In this case, the

table in the middle shows which are the mapping rules

producing more traces. In particular, it shows the top

8 rules, while the rest are blended into the Others

row.

First and second columns show respectively the

transformations and mapping rules rules under con-

sideration (those that meet the ﬁltering criteria). Next

columns show the number of trace links produced by

each mapping rule and the percentage over total num-

ber of traces produced by the mapping rules selected.

Following columns show also the number of model

elements and source-code blocks referenced by each

mapping rule.

For instance, second row of the table states that

the MemberEnd2Not-NullOnTT of the UML2SQL2003

transformation generates 16 trace links (15.38% over

the total number of trace links produced by the se-

lected mapping rules) and such links refer to 48 model

elements (note that not every trace link represents a

one-to-one relationship).

Finally, lower side of the dashboard provides dif-

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Figure 8: Mapping rules overview dashboard.

ferent views of these data. The bar graph on the left

summarizes the number of trace links produced by

each transformation rule, while the pie chart on the

right represents the distribution of traced elements by

transformation rule.

The information collected in this dashboard could

be used by model-transformation developers to lo-

cate candidates for reﬁning. For instance, the data

presented in Fig. 8 highlights the importance of

the ClassProperty2UDTAttribute mapping rule,

which generates more than 30% of the trace links pro-

duced by the UML2SQL2003 transformation. Thus, this

rule might be object of study if transformation devel-

opers aims at optimizing the overall performance of

the transformation.

5.2.3 Running Example: Mapping Rules Detail

Dashboard

Model transformations are inherently complex (Bol-

lati et al., 2013). Therefore, dealing with legacy trans-

formations might be even more complex. The analy-

sis of trace models can be used to raise the abstrac-

tion level at which we think about model transfor-

mations. In addition, it allows the developer to ab-

stract from the particular model transformation lan-

guage used and provide him with simple and compre-

hensible information regarding the mapping rules that

compose the different transformations.

For instance, Listing 1 showed a code excerpt

from the UML2SQL2003 transformation. In particular,

it shows the MemberEnd2NotNullOnTT mapping rule.

To understand the functionality of this rule and what

type of elements it maps, a minimum knowledge of

ATL is needed.

By contrast, a quick look at the dashboard shown

in Fig.9 let us know at ﬁrst sight which the purpose

of the mapping rule is. Indeed, no previous knowl-

edge of ATL is needed. The information displayed on

the upper side of the dashboard reveals that the rule is

part of the UML2SQL2003 transformation and it maps

UML objects into SQL2003 objects (recall that the

name of the transformations are now always as intu-

VisualizingTraceabilityInformationwithiTrace

itive as here). More revealing is a look at the lower

side of the dashboard which shows that the rule is re-

sponsible for mapping pairs of Class and Property

objects into NotNull objects.

Figure 9: Mapping rules detailed dashboard.

Note that the dashboard provides this type of in-

formation for all the transformations bundled in the

project under study. To move through them, the up-

per side of the dashboard provides a set of ﬁlters that

allow the user to select a particular transformation,

source model, target model or mapping rule/s (non-

selected ﬁltering values are greyed-out). The bot-

tom part of the dashboard shows the type of elements

transformed by the mapping rules that meet the crite-

ria established by the user. Note also that this analy-

sis may be useful in order to document not only m2m

transformations, but also m2t ones.

To sum up, iTrace supports a number of dif-

ferent visualizations with different granularity levels:

transformations, transformation rules and model (ele-

ments). For the sake of space just some of them have

been introduced here to illustrate the utility and po-

tential of the proposal.

6 CONCLUSION AND FUTURE

WORKS

Despite the prominent role played by traceability in

SE has been widely acknowledged, it is commonly

omitted since dealing with traceability is a task inher-

ently complex. The main principles of MDE, where

models, model transformations and automation act as

main actors, might contribute to boost the actual us-

age of traceability data (Santiago et al., 2012). In this

sense, huge effort is still needed to recover, browse

and maintain trace-links (Marcus et al., 2005). Never-

theless, even though MDE tooling has reached certain

levels of maturity during the last years (Volter, 2011)

the management of traceability leaves still much room

for improvement (Kuhn et al., 2012).

In particular, this work has ﬁrst introduced the

main issues related with the visualization of traceabil-

ity data to later introduce the solutions provided by

iTrace an EMF-based framework for the manage-

ment of traceability data in MDE projects. On the one

hand, the framework bundles a multipanel panel edi-

tor for trace models (both m2m or m2t trace models)

that can be used to support low-level management of

traceability data. On the other hand, such data is de-

normalized in order to populate different dashboards

that provide high-level views of the traceability infor-

mation.

The dashboards from the running example have

shown that the information provided can be used to

produce a high-level overview of the transformations

involved in a project, to explain the purpose of a

particular mapping rule or to identify the rules that

should be optimized in order to improve the execution

of a given transformation. Besides, it is worth not-

ing that, once the data has been denormalized, ad-hoc

dashboards can be deﬁned at will for different pur-

poses.

Three main lines are distinguished regarding di-

rections for further work. First, we are working to

support the extraction of partial trace models. The

idea is to produce trace models attending to the crite-

ria previously deﬁned by the user by selecting a num-

ber of trace-links from a given trace model. Besides,

support for text-to-model transformations is also be-

ing integrated in the framework, so that Model-Driven

Reverse Engineering projects can be also object of

study. Therefore, the visualization of text-to-model

traces will be tackled as well. Finally, we would like

to emphasize the fact that we are currently working

on the evaluation of the tool with external MDE de-

velopers.

ACKNOWLEDGMENTS

This research is partially funded by the MASAI

project, ﬁnanced by the Spanish Ministry of Science

and Technology (Ref. TIN2011-22617).

REFERENCES

Alexander, M. and Valkenbach, J. (2010). Excel Dash-

boards and Reports. Wiley Publishing, Inc.

AMW. URL: http://www.eclipse.org/gmt/amw/.

Asunci

on, H. U. (2008). Towards practical software trace-

ability. In Companion of the 30th international confer-

ence on Software engineering, ICSE Companion ’08,

pages 1023–1026, New York, NY, USA. ACM.

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

Bernstein, P. (2003). Applying Model Management to Clas-

sical Meta Data Problems. In 1st Biennial Confer-

ence on Innovative Data Systems Research, pages 1–

10, Asilomar, CA, USA.

Bollati, V., Vara, J. M., Jim

enez, A., and Marcos, E. (2013).

Applying MDE to the (semi-)automatic development

of model transformations. Information and Software

Technology, 55(4):699–718.

De Lucia, A., Oliveto, R., Zurolo, F., and Di Penta, M.

(2006). Improving Comprehensibility of Source Code

via Traceability Information: a Controlled Experi-

ment. In Proceedings of the 14th IEEE International

Conference on Program Comprehension (ICPC’06),

pages 317–326. IEEE.

De Souza, C. R. B., Hildenbrand, T., and Redmiles, D.

(2007). Toward visualization and analysis of trace-

ability relationships in distributed and offshore soft-

ware development projects. In 1st International Con-

ference on Software Engineering Approaches for Off-

shore and Outsourced Development, SEAFOOD’07,

pages 182–199, Berlin, Heidelberg. Springer-Verlag.

Didonet Del Fabro, M., B

ezivin, J., and Valduriez, P.

(2006). Weaving Models with the Eclipse AMW plu-

gin. In Eclipse Modeling Symposium, Eclipse Summit

Europe.

Feuerlicht, G., Pokorn

y, J., and Richta, K. (2009). Object-

Relational Database Design: Can Your Application

Beneﬁt from SQL: 2003? In Information Systems De-

velopment, pages 1–13. Springer US.

Gronback, R. C. (2009). Eclipse Modeling Project: A

Domain-Speciﬁc Language (DSL) Toolkit. Eclipse Se-

ries. Addison-Wesley Professional.

IEEE (1990). IEEE Standard Glossary of Software Engi-

neering Terminology. Technical report, Institute of

Electrical and Electronics Engineers.

ITrace. URL: http://www.kybele.etsii.urjc.es/itracetool/.

Jim

enez, A., Vara, J. M., Bollati, V., and Marcos, E. (2012).

Developing a multi-panel editor for EMF traces mod-

els. In 1st Workshop on ACademics Modelling with

Eclipse (ACME), Kgs. Lyngby (Dinamarca).

Jouault, F. (2005). Loosely coupled traceability for ATL.

In 1st European Conference on Model-Driven Ar-

chitecture: Traceability Workshop (ECMDA’05), vol-

ume 91, pages 29–37, Nuremberg, Germany.

Jouault, F., B

ezivin, J., and Kurtev, I. (2006). TCS: a DSL

for the speciﬁcation of textual concrete syntaxes in

model engineering. In 5th International Conference

on Generative Programming and Component Engi-

neering, GPCE ’06, pages 249–254, New York, NY,

USA. ACM.

Kerren, A. (2008). Information Visualization: Human-

Centered Issues and Perspectives. Springer, 1 edition.

Kimball, R. (1998). The Data Warehouse Lifecycle Toolkit.

Wiley.

Kuhn, A., Murphy, G. C., and Thompson, C. A. (2012).

An exploratory study of forces and frictions affect-

ing large-scale model-driven development. In Model

Driven Engineering Languages and Systems, pages

352–367. Springer.

Marcus, A., Xie, X., and Poshyvanyk, D. (2005). When and

how to visualize traceability links? In 3rd Interna-

tional Workshop on Traceability in Emerging Forms

of Software Engineering, TEFSE ’05, pages 56–61,

New York, NY, USA. ACM.

MetagemTrace. URL: http://www.kybele.etsii.urjc.es/

metagem-trace/.

ModeLink. URL: http://www.eclipse.org/epsilon/doc/

modelink/.

Mohagheghi, P. and Dehlen, V. (2007). An overview of

quality frameworks in model-driven engineering and

observations on transformation quality. In Workshop

on Quality in Modeling, pages 3–17.

Obeo. URL: http://www.obeo.fr/pages/acceleo/en.

Oliveto, R. (2008). Traceability Management Meets Infor-

mation Retrieval Methods - Strengths and Limitations.

In 12th European Conference on Software Mainte-

nance and Reengineering (CSMR’2008), pages 302–

305.

QlikTech International AB. URL: http://

www.qlikview.com.

Ramesh, B., Stubbs, C., Powers, T., and Edwards, M.

(1997). Requirements traceability: Theory and prac-

tice. Annals of Software Engineering, 3:397–415.

Santiago, I., Jim

enez, A., Vara, J. M., De Castro, V., Bollati,

V., and Marcos, E. (2012). Model-Driven Engineering

As a New Landscape For Traceability Management:

A Systematic Review. Information and Software Tech-

nology, 54(12):1340–1356.

Santiago, I., Vara, J. M., De Castro, V., and Marcos, E.

(2013). Towards the effective use of traceability

in Model-Driven Engineering projects. In Ng, W.,

Storey, V. C., and Trujillo, J. C., editors, 32nd Interna-

tional Conference on Conceptual Modeling (ER’13),

volume 8217 of Lecture Notes in Computer Science,

pages 429–437, Hong-Kong. Springer Berlin Heidel-

berg.

Schmidt, D. (2006). Model-Driven Engineering. IEEE

ComputerComputer, 39(2):25–31.

Sendall, S. and Kozaczynski, W. (2003). Model transfor-

mation: The heart and soul of model-driven software

development. IEEE Software, 20(5):42–45.

Tisi, M., Cabot, J., and Jouault, F. (2010). Improv-

ing higher-order transformations support in ATL. In

International Conference on Model Transformation

(ICMT’2010), pages 1–10.

Vara, J. M. and Marcos, E. (2012). A framework for model-

driven development of information systems: Techni-

cal decisions and lessons learned. Journal of Systems

and Software, 85(10):2368–2384.

Volter, M. (2011). From Programming to Modeling - and

Back Again. Software, IEEE, 28(6):20–25.

von Pilgrim, J. URL: http://gef3d.org.

Yie, A. and Wagelaar, D. (2009). Advanced Traceability

for ATL. In 1st International Workshop on Model

Transformation with ATL (MtATL 2009), pages 78–

87, Nantes, France.

VisualizingTraceabilityInformationwithiTrace
