A Risk Analysis Method for Selecting Service Providers

in P2P Service Overlay Networks

Rafael Giordano Vieira, Omir Correia Alves Junior and Adriano Fiorese

Dept. of Computer Science, Santa Catarina State University, Joinville, Brazil

Keywords:

Virtual Organization, P2P SON, Risk Analysis.

Abstract:

In an increasingly competitive market place, the development of collaborative networked environments has

become a key factor to companies successfully leverage their business activities. Nevertheless, when these

companies get involved in more volatile strategic networks, it is necessary to deal with additional risks that

need to be identiﬁed, measured, and mitigated through a well deﬁned process. In this sense, this paper aims

to specify a method for risk analysis comprising a set of service providers (SPs) in a P2P Service Overlay

Network (SON). In this applied, qualitative and essentially exploratory work, the proposed method assesses

the level of risk present in a set of previously selected SPs using key performance indicators (KPIs), and

measures the viability of a Virtual Organization (VO) formation using those selected SPs. A computational

prototype was also speciﬁed and used to execute a set of tests to assess the proposed risk analysis method.

1 INTRODUCTION

Services are becoming a major source of revenue on

the Internet. Fundamental developments in network

technologies, particularly the advent of Peer-to-Peer

Service Overlay Networks (P2P SON) (Duan et al.,

2003; Fiorese et al., 2012), are providing an advan-

tageous environment for companies make their ser-

vices available to the global user community. The

joining of the SON and P2P ﬁelds offers a high po-

tential for handling services, by creating dynamic and

adaptive value chain networks across multiple Ser-

vice Providers (SPs). Moreover, a wide range of ser-

vices can be made available, as well as an environ-

ment where price and quality can be competitive dif-

ferentials (Zhou et al., 2005).

The P2P SON concept applies to a broad range

of network architectures. This paper deals particu-

larly with the Virtual Organization (VO) type of net-

work. A VO is a temporary and dynamic strategic

alliance of autonomous, heterogeneous and usually

geographically dispersed companies created to attend

very particular business opportunities (Mowshowitz,

1997; Camarinha-Matos and Afsarmanesh, 2008). In

this sense, the P2P SON acts as infrastructure that

provides an environment for VO formation and, addi-

tionally, enhances beneﬁts to SPs, i.e. sharing costs,

bandwidth and others (Fiorese et al., 2010).

Although the mentioned advantages of using P2P

SON can improve the VO formation process, the nat-

ural VO networked structure faces additional risks

than other general forms of organization (Alawamleh

and Popplewell, 2010). For this reason, the service

provisioning is not guaranteed and needs the sup-

port of methods that encompass one or more crite-

ria, supporting a set of key performance indicators

(KPIs). These methods seem well suited especially

when dealing with complex service chain networks

(Junior and Rabelo, 2013).

In a previous work, the same authors designed a

three-layer architecture for services management in

P2P SONs, named OMAN (Fiorese et al., 2010). The

OMAN offers an efﬁcient search and selection pro-

cess of most suitable SPs in a multi-provider envi-

ronment. Authors also presented results of SP selec-

tion by using a geographical location criteria (Fiorese

et al., 2012). However, the VO risk aspects in the con-

text of P2P SONs were not addressed.

This paper presents an exploratory work, which

complements the proposals of (Fiorese et al., 2012)

and (Junior and Rabelo, 2013), and looks for answer-

ing how SPs can be properly selected when consider-

ing risks. This work consists in adding an additional

risk management level in the search and selection pro-

cess, conceiving a new risk analysis method, named

MARTP (Multi criteria Risk Analysis Method applied

to P2P Service Overlay Networks). In the proposed

method, the SPs are two-stage evaluated, both indi-

477

Giordano Vieira R., Correia Alves Junior O. and Fiorese A..

A Risk Analysis Method for Selecting Service Providers in P2P Service Overlay Networks.

DOI: 10.5220/0004865804770488

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 477-488

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

vidually and collectively. The goal of the method is

to measure the level of risk and identify which SPs

are most risky for the VO formation. This will al-

low decision-makers to decide wisely about which

SPs should be effectively discarded for a given busi-

ness collaboration opportunity, and additionally, the

identiﬁed risks can be managed and hence mitigated

throughout the VO formation process.

The remainder of this paper is organized as fol-

lows: Section 2 addresses the problem of SPs search

and selection in P2P SONs and contextualizes it

within the VO risk analysis proposal. Section 3 de-

scribes the proposed method for VO risk analysis.

Section 4 provides a numerical example to illustrate

the proposed method. Section 5 presents the set of ex-

periments conducted to evaluate the proposed method

and also presents the ﬁnal results. Finally, Section 6

concludes and discusses future directions.

2 BACKGROUND

2.1 Service Provider Integration

As cited in Section 1, different SPs can be grouped

in a given VO in order to accomplish a mutual goal,

also referred to as Collaboration Opportunity (CO).

These SPs might range from non-governmental orga-

nizations to autonomous software entities, by sharing

costs, beneﬁts and risks, acting as they were one sin-

gle enterprise (Camarinha-Matos and Afsarmanesh,

2008). Regarding to the classical main phases of a VO

life cycle (creation, operation, evolution and disso-

lution phases) (Camarinha-Matos and Afsarmanesh,

2005), this paper focuses on the creation (or forma-

tion) phase, which is seen in Figure 1. Within the

creation phase, this analysis is carried out during the

Partner’s Search and Selection step (left circle).

Rough VO

Planning

Rough VO

Planning

Detailed

VO Planning

Detailed

VO Planning

Negotiation

Lauching

Contracting

CO Identif. &

Characteriz.

CO Identif. &

Characteriz.

Collaboration

Opportunity

Partners

Search &

Selection

Preparatory

Planning

Finalization

Consortia Formation

BPSS

Risk Analysis

Figure 1: Framework for the VO Formation Process. Ex-

tended from (Camarinha-Matos and Afsarmanesh, 2005).

The process of collaboration among the SPs in

a VO is accomplished through interactions between

their business processes, which are usually supported

by a network infrastructure. Particularly, this work

addresses the use of P2P SON to organize all the SPs

committed with the eventual VO formation. A P2P

SON is an infrastructure designed to provide services

and, in the context of this work, it can be seen as a par-

ticular Virtual Breeding Environment (VBE) (Afsar-

manesh and Camarinha-Matos, 2005). It is also con-

sidered that the SP’s search and selection procedures

is performed by the OMAN (Fiorese et al., 2010) ser-

vice management architecture, with particular empha-

sis on its speciﬁc module (named BPSS), which is

responsible for performing the selection of the most

appropriate SPs in a P2P SON.

Figure 2 details the BPSS module. P2P SON,

shown as the elliptic curve, is created covering do-

mains (clouds in Figure 2) that contain SPs. Every

peer in the P2P SON runs service(s) from the corre-

sponding SPs. The AgS is created in a higher level in-

side the P2P SON, where each AgS peer maintains an

aggregation of services published by the SON peers

(providers at the P2P SON level). In order to se-

lect a SP (peer), the BPSS sends a service request to

the AgS, which forwards the request to the peers in

the aggregation overlay. In the context of this work,

this means the begin of a new Collaboration Oppor-

tunity (CO) that will trigger the formation of a new

VO (Camarinha-Matos and Afsarmanesh, 2005). The

result of this request is a list of all SPs that fulﬁll a

required service according a particular, or a set of ap-

plication metrics.

Domain CDomain BDomain A

Provider/User

Aggregation Service (AgS)

SON peer

Aggregation peer

Aggregation links

Physical links

Overlay links

SON

Best Peer

Selection Service

(BPSS)

Figure 2: BPSS Model (Fiorese et al., 2012).

2.2 VO Formation Risk Analysis

The problem in choosing the most appropriate SPs to

compose a VO is critical. The concept of risk can

be handled at a number of perspectives. (March and

Shapira, 1987) provide an overview of risk deﬁni-

tion, as a variation in the distribution of possible out-

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

478

comes, their probabilities, and their subjective values.

(Moskowitz and Bunn, 1987) associate risk with the

likelihood of an unfavorable outcome. When applied

on this research context, the risk can then be viewed

as a composition of three basic elements: the gen-

eral environment where it can happens; its occurrence

probability; and the scope of its impact in the case of

its occurrence (Vose, 2008).

In the state of the art review, some works related

to risk analysis for VOs have been identiﬁed. In

(Alawamleh and Popplewell, 2012; Alawamleh and

Popplewell, 2010), thirteen KPIs were identiﬁed as

general risk sources in VOs, further identifying the

importance of each one. In (Grabowski and Roberts,

1998), the problem of risk mitigation in VO was dis-

cussed, and four processes were identiﬁed to improve

the level of VOs performance reliability. In (Li and

Liao, 2007) two sources of risks were speciﬁed (ex-

ternal and internal), and risk occurrence likelihood in

the life span of a VO was calculated based on them.

(Min et al., 2007) and (Fei and Zhixue, 2010) consid-

ered the fuzzy characteristics and the project organi-

zation mode of VOs to propose Multi Strategy Multi

Choice (MSMC) risk programming models.

In spite of these reviewed works and the insights

we have been taken from them, none have somehow

formalized how the proposed KPIs should be used nor

provided means to quantity VO partners risks before

the VO formation. Moreover, from the best of our

knowledge, it was not identiﬁed proposals that specify

a method or procedure that aims to systematize the

process of risk qualiﬁcation/quantiﬁcation involved in

the SP’s Search and Selection for the VO formation.

Therefore, this paper presents as a contribution a way

to specify KPIs together with a mathematic method

that enable measuring the risk in the VO formation.

In this sense, the VO formation process depicted

in Figure 1 was extended by proposing two sub-steps

in the Partner’s Search and Selection step. The ﬁrst

sub-step comprises the BPSS model (as seen in Sec-

tion 2.1). It is used to provide an environment for SP’s

search and selection. Next, the second sub-step intro-

duces an additional process in order to embrace also

risk analysis (right circle in Figure 1). Thus, given

a VO in formation (composed by SPs), a set of ade-

quate performance indicators are ﬁrstly used and, ul-

timately the SP selection also considers the risk per-

spective.

The way the risk is represented should be aligned

with the organization’s goals so that the most im-

portant ones can be determined for further and more

proper management. Identifying risk sources is the

ﬁrst and most important step in risk management

(Vose, 2008). Therefore, there are four main sources

of risks regarding VOs: trust, communication, col-

laboration and commitment (Alawamleh and Pop-

plewell, 2010). In this work they are modeled as KPIs

and their values are calculated and provided by the

methodology developed in (Junior and Rabelo, 2013):

• Trust: SPs who are going to compose a VO do

not necessarily have prior knowledge about each

other before starting collaborating. Thus, trust is

crucial to bear in mind, which in turn involves

commitment in doing the planned tasks. When

trust among providers is not enough established

there is a hesitation to share risks and so the VO

can be jeopardized;

• Communication: Communication among VO’s

SPs is a key factor for its proper operation. They

should provide correct information about parts,

products and services, collaborating in solving

conﬂicts, sharing practices, etc. However, this

can be complicated by the fact SPs are heteroge-

neous, independent, geographically dispersed and

usually have distinct working cultures. The insuf-

ﬁcient communication can put a VO on risk;

• Collaboration: Collaboration is characterized

when the sharing of risks, costs and beneﬁts of

doing business are agreed and fairly distributed

among partners. However, when a collaboration

agreement is not clearly deﬁned, i.e., when there

is no clear deﬁnition of its main objectives, the

VO risk increases;

• Commitment: Commitment is related to the atti-

tude of VO members with each other, i.e., it con-

siders the contributions and agreements made by

and among them for a business. This is important

as partners have complementary skills and so it is

important they feed the whole environment with

the right and timely information. The VO risk gets

higher when partners fail in that attitude.

3 THE PROPOSED METHOD

This section aims at describing the proposed method,

named MARTP (Multi criteria Risk Analysis method

applied to P2P Service Overlay Networks).

3.1 MARTP Overview

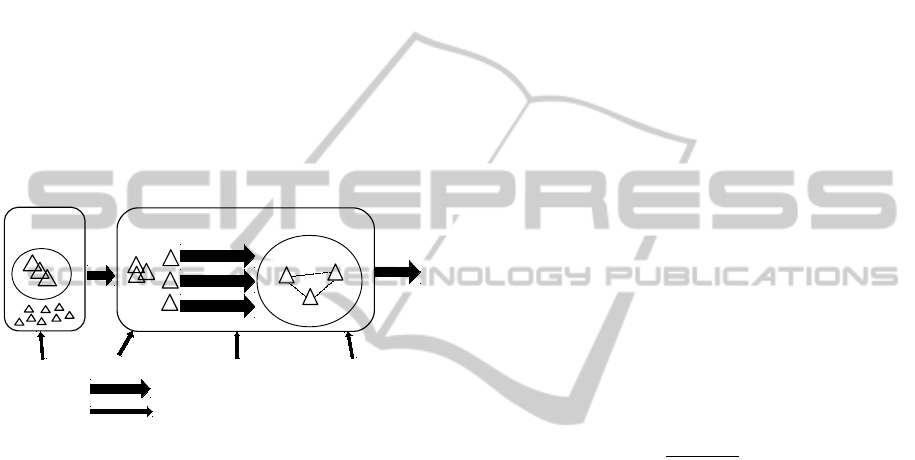

The devised method for risk analysis is generally

presented in Figure 3. It starts having as input a

pre-selected and ranked list of most adequate SPs

(through BPSS simulation) registered in a P2P SON

environment. The main goal of the proposed risk

analysis method is to add another support dimension

ARiskAnalysisMethodforSelectingServiceProvidersinP2PServiceOverlayNetworks

479

for decision-making, identifying and measuring how

risky is each of those SP candidates involved in the

VO formation process. In this work, considering VO

reference theoretical foundations (Camarinha-Matos

and Afsarmanesh, 2008), the so-called VO Manager

is seen as the main decision-maker.

The method splits the problem into two stages. In

the ﬁrst stage, it starts measuring the risks individu-

ally, for each possible SP, and after and based on that,

collectively, for the entire SP team for the given VO.

In this context, VO manager has the following role:

quantiﬁes the level of risk (acceptable range) for VOs

before creating them. There is also a risk specialist,

who is in charge of auditing the SPs historical KPI

metrics. The risk techniques and criteria are applied

to assess the risk according to the VO manager guide-

lines.

VO Manager

Pre-selected

SPs (BPSS)

Risk Analysis Process

Individual Risk

Analysis

Collective Risk

Analysis

Level of

Risk

Techniques

and Criterias

Risk Analysis Flow

Interactivity between the user and the method

Risk

Specialist

Selection Process

Selection

Techniques

and Criterias

Figure 3: Overview of MARTP.

3.2 MARTP Architecture

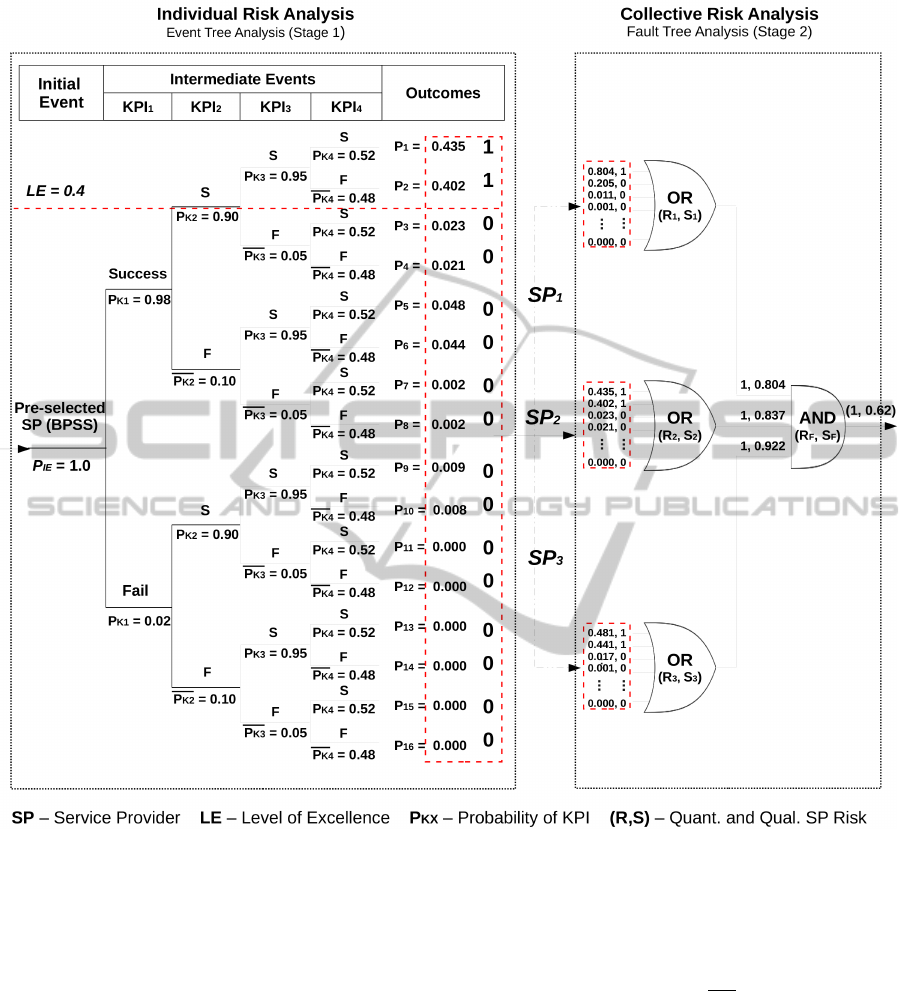

The MARTP method itself is illustrated in Figure 4.

Inspired in (Mosleh et al., 2004), it divides the prob-

lem into two phases: the ﬁrst phase does the indi-

vidual risk analysis applying the Event Tree Analy-

sis (ETA) method for that. The second phase does

the risk analysis taking the group of SPs as a whole

into account, applying the Fault Tree Analysis (FTA)

method (Ericson, 2005; Vose, 2008).

3.2.1 Individual Risk Analysis

In the ﬁrst phase of MARTP, it is performed an indi-

vidual risk analysis for pre-selected SPs. ETA is par-

ticularly suitable for risk analysis of systems where

there are interactions between several types of proba-

bilistic events, whether dependent or independent (Er-

icson, 2005). It uses a visual representation based on

a logical binary tree structure, known as Event Tree

(ET), as shown in Stage 1 of Figure 4.

An ET is a probability tree, which provides two

possible conditions: success and failure. It also has

three basic components: initial event; intermediary

events; and outcomes. The initial event begins the ET

creation process. In this work, it corresponds to one

pre-selected SP, and the assigned probability (P

) is

always 1 (or 100%) in the beginning (Ericson, 2005).

Next step consists in specifying the (four) intermedi-

ary events, which are represented by the (four) KPIs:

trust, communication, collaboration and commitment.

These events are used to quantify the effectiveness

of a particular SP, i.e., if it is able or not to compose a

VO, and to generate an ET by assigning success and

failure probabilities to each of them as shown in Stage

1 of Figure 4. The criterion to assign the KPI success

probability to each SP takes the historical values anal-

ysis of the KPI that were assigned to it in past VOs

participations (Pidduck, 2006; Goranson, 1999). This

analysis is fundamentally based on statistical infer-

ences by quantifying both the central trend and vari-

ability of historical values.

The central trend analysis is performed by cal-

culating an exponentially weighted average index

(EWA) for each set of historical KPI values of a

given SP. The EWA is currently used in ﬁnancial risk

analysis and supply chain management being popular

in practice due to its simplicity, computational efﬁ-

ciency and reasonable accuracy (giving more impor-

tance for the most recent values in an exponential fac-

tor) (Montgomery and Runger, 2011). The EWA is

formally deﬁned by Equation 1:

X =

∑

i=1

∑

i=1

(1)

where x =

{

,...,x

}

means a non-empty set of

historical KPI values and w represents a normalized

exponential decay constant (note that this paper aims

to calculate a success probability by KPI historical

analysis; the determination of optimal values for cen-

tral trend analysis is not within its scope). After cal-

culating the EWA for each SP, the Maximum Qual-

ity Index (MQI) value is assigned as the higher value

among all EWA results. The MQI is used as a per-

formance reference (threshold) for all others SPs that

will be assessed. In this sense, considering i the num-

ber of used KPIs (four) and n the number of SPs as-

sociated for each KPI (three), Equation 2 shows the

MQI calculation procedure:

MQI

= max

(

) (2)

For instance, Figure 5 shows a graph with hy-

pothetical KPI values about trust (intermediate event

KPI

according to Stage 1 of Figure 4) associated to

a SP.

The value of the MQI (left circle in Figure 5) as-

signed for this KPI would have been set up as 6.7 (this

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

480

Figure 4: MARTP Architecture.

value is the highest EWA value calculated for SPs us-

ing the KPI trust). Nevertheless, it is obvious that,

when taking into account only the highest MQI value,

a few KPIs will reach an acceptable success probabil-

ity. For this reason, a variability metric is well-suited

in this scope. The metric used is the standard devia-

tion (SD) of MQI. Therefore, the acceptable interval

will range not only values above 6.7, but also includes

the SD interval, which are 2.4 (right circle in Figure

5). So, the acceptable range turn to 6.7 − 2.4 = 4.3.

The values assigned to each KPI can vary from

0 to 10 and are associated with a probability success

rate which varies from 0 to 1, respectively. Assum-

ing that each SP has participated in n

past VOs and

since that n

represents the number of SP’s previous

participation in VOs where its KPIs values are higher

than MQI − SD (with an * in Figure 5), Equation 3

calculates the KPI success probability for the current

participation.

Pr (K) =

(3)

The failure rate for a given KPI is represented as

Pr (

K) by the following equation:

Pr (

K) = 1 − Pr (K) (4)

According to Figure 4, the success and failure

probability rates are calculated for all KPIs that com-

pose the ET of a SP, which are presented by the

four intermediate (and independent from each other)

ARiskAnalysisMethodforSelectingServiceProvidersinP2PServiceOverlayNetworks

481

events KPI

1:4

that populate the ET. Event KPI

, for

instance, would be related to KPI communication,

with success and failure values of 0.90 and 0.10, re-

spectively.

...

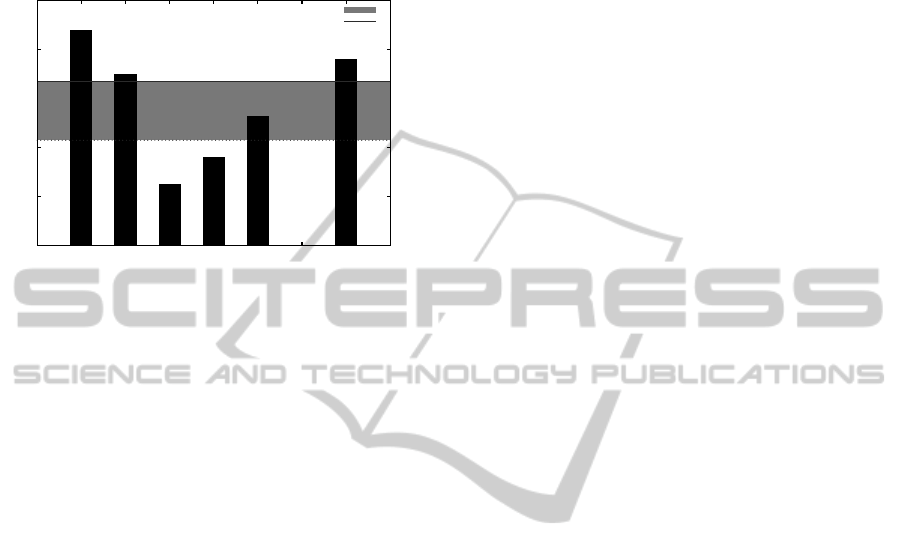

KPI value

Previous participations in VOs

MQI = 6.7

SD = 2.4

Standard Deviation considered interval

8.8

7.0

2.5

3.6(*)

5.3(*)

7.6

Maximum Quality Index (MQI)

Figure 5: Trust KPI historical values for a given SP.

After assigning all probabilities for all ET

branches, it is necessary to identify if the SPs are min-

imally qualiﬁed to compose a VO. For this, a calcula-

tion is performed to obtain the ﬁnal probabilities for

all event combinations composing the ET. They are

determined for each of the 2

branches of ET and

are got by multiplying the probabilities of events that

compose each path. The results greater than a Level

of Excellence (LE) are then selected to be part of the

Stage 2 of MARTP. LE is set by the VO manager and

corresponds to a minimum acceptable probability that

qualiﬁes/enables a SP to compose a VO. The LE val-

ues can be classiﬁed as follows: [0.0; 0.2] : regret-

table; [0.2; 0.4] : bad; [0.4; 0.6] : regular; [0.6; 0.8] :

good; [0.8;1.0] : superior.

The presented concepts can be formalized as fol-

lows:

Let SP =

{

,SP

,...,SP

}

be a set of n SPs

previously selected, where each element in this set

is associated with a different type of service activ-

ity that is being requested in a business. Let K =

{

,...,K

}

be a set of m KPIs associated to a

, and ρ(K) the probability function associated

with each event in K (as deﬁned in Equation 3). ETA

events occur independently, i.e., where the occurrence

of an event does not affect the occurrence of other

event. This situation can be represented by the equal-

ities deﬁned in Equation 5 and Equation 6:

ρ(K

m−1

|...|K

) = ρ(K

) (5)

ρ(K

∩ ··· ∩ K

) = ρ(K

) · ρ (K

)···ρ(K

) (6)

Now consider P =



,...,P



as a set of all

possible outcomes from the 2

ET events combina-

tions. The procedure for obtaining this set was per-

formed using a Binary Search Tree (BST) (Bentley,

1975), which travels 2

different paths and assigns a

value to each element of P, as shown in Equation 7:

P =

[

k=1

∗

∏

l=1

ω(i, j,k, l)

(7)

where P

is the initial probability of the SP. The func-

tion ω, as shown in Equation 8, corresponds to a 4-

dimensional vector which performs a binary search in

the tree, returning a path element from each iteration.

Values i and j correspond, respectively, to the begin-

ning and ending of the search, and have i = 0 and

j = 2

as initial values. The value k corresponds to

the index of the sought element (an element of P) and

l, the current level of the tree. The sequence of events

can be viewed in Stage 1 of Figure 4.

ω(i, j,k, l) =



Pr (K

); j = c, k ≤ c

1 − Pr (K

);i = c, k > c

(8)

where c = (i + j)/2. After deﬁned all possible out-

puts P for a SP and calculated their probabilities, the

method applies a constraint variable Q, which checks,

for each element of P, whether its value is greater than

or equal to LE. Only the results that are greater than

LE are considered, and the other are discarded. Thus,

Q =

{

,...,Q

}

is a subset of P:

Q =

{

q ∈ P | q ≥ LE

}

(9)

The ﬁnal probability values obtained by Equation

9 will be used to measure and analyze the SP’s risk

collectively.

3.2.2 Collective Risk Analysis

The second phase of the MARTP method aggregates

the results provided by the ﬁrst phase (i.e., the risk

level of each pre-selected SPs) to calculate the VO

success probability as a whole (if the VO formation

can succeed or not).

This phase applies FTA (Fault Tree Analysis)

method (Ericson, 2005). FTA uses a logical diagram

called Fault Tree (FT) - which is a graphical repre-

sentation of failure logical events that can occur in a

system among all other possible event combinations.

The graphical model can be translated into boolean

logic using logic gates to calculate failures. Events

are associated with input lines from the logic gates

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

482

(0-failure, 1-success) and must be analyzed to deter-

mine the logical connection between underlying fail-

ure events that might cause them. On the other hand,

FTA also performs probabilistic analysis for the un-

derlying failure events, by calculating the probability

of the top event (VO overall risk), given the FT and

the probability of occurrence of the basic events (risk

level of SPs) (Ericson, 2005).

This paper performs both qualitative risk analysis

(boolean values) and quantitative analysis (probabil-

ity associated to the boolean values). To make this

possible, ﬁrst is considered that the risk level of each

SP is deﬁned by a pair

R,S

. R represents a condi-

tion of the SP to compose a VO (using boolean logic),

while S represents the success probability of the SP

associated with the condition R. So SP

for

the i-th selected SP and the i-th S associated with the

i-th R. The R value is calculated checking if the set

Q has some element (Equation 10), i.e., if there is at

least one outcome value greater than LE. A value 1

corresponds to the presence of elements, so enabling

the SP to compose a VO. The S value (Equation 11) is

calculated summing all elements of Q, obtaining the

success probability rate for a SP.



0 ,

= 0

1 ,

6= 0

(10)

∑

i=1

, q

∈ Q (11)

In this sense, next step consists of taking all the re-

sults from ETA (ﬁrst phase) and set them as the input

(see Figure 4) of the FTA method. A logic gate OR

with 2

entries is associated with each SP, meaning

that the number of logic gates OR changes according

to the number of SPs. In this case, the OR operation

among all inputs will result in a pair

for each

SP.

Resulting values from logic gates OR are then ag-

gregated to an AND logic gate, which veriﬁes if all

SPs are able to compose the VO. This gate returns

a pair

where R

= 1 means success, i.e.,

the VO formation is considered feasible from the risk

analysis point of view, and R

= 0 means failure, i.e.,

VO is discarded and the procedure is restarted with

other SPs (with the other possible VO compositions).

If all members are considered able to, the VO as a

whole is considered able to go for operation. It is nec-

essary to mention that S

quantiﬁes the value of R

i.e., even though the R

determines the criterion to

assigned success or failure in a given VO, the S

will

show how risky is the VO formation process itself.

The calculation for R

with all SPs is performed

aggregating all R

in order to verify if each SPs is able

to compose the VO. This process is formalized as fol-

lows (Equation 12):

i=1

(12)

The quantitative risk can be also found by S

which shows the ﬁnal success VO probability. In this

case, the logic port AND presented in FTA acts mul-

tiplying all S

results acquired in the OR logic gate, as

seen in Equation 13.

∏

i=1

(13)

4 A NUMERICAL EXAMPLE

This section presents a numerical example to bet-

ter understand the proposed method operation. Sup-

pose that a CO was created and three SPs (SP =

{

,SP

}

were selected (using the SPs selec-

tion method developed in a previous work (Fiorese

et al., 2012)). Therefore, the goal is to measure the

risk of every pre-selected possible SP for the given

VO. Following the proposed method, the individual

risk of every SP is measured and the overall VO risk

is calculated.

The assessment criteria K of each SP are deﬁned

by a set of four KPIs: Trust (K

), Communication

), Collaboration (K

) and Commitment (K

). Ta-

ble 1 shows hypothetical historical values assigned to

KPIs of SP

, SP

and SP

for its participations in the

last four VOs (V ). Equation 3 (see Section 3) calcu-

lates the success probability of these KPIs. The MQI

value for KPIs

1:4

are also computed and subtracted of

their respective SDs values, based on the procedures

presented in Equations 1 and 2.

In order to individually measure the risk level of

the SP

, SP

and SP

, they are submitted to the ﬁrst

stage of MARTP, applying ETA method. It should

also consider the success and failure probabilities of

each KPI that composes the intermediate events so to

add them as parameters in the ET. The ET graphical

representation can be viewed in Stage 1 of Figure 4.

According to Table 1 and using Equations 3 and 4,

the success and failure probabilities associated with

all KPIs of each SP are calculated (Table 2) and the

respective ETs are formed.

Now, let P

{

,...,P

}

a set of all combi-

nations among K

, K

for each SP

and, for

example, LE = 0.4 (a regular level). Table 3 presents

this result after applying Equation 7. It represents

ARiskAnalysisMethodforSelectingServiceProvidersinP2PServiceOverlayNetworks

483

Table 1: Quantitative values of KPIs according historical values of SP

, SP

and SP

in VOs.

K Service Providers (Past VOs)

MQI−SD

0.50 0.74

∗

0.89

∗

0.82

∗

0.84

∗

0.85

∗

0.93

∗

0.86

∗

0.48 0.90

∗

0.81

∗

0.96

∗

0.71(SP

)

0.84

∗

0.90

∗

0.96

∗

0.70 0.94

∗

0.80

∗

1.00

∗

0.79

∗

0.85

∗

0.77

∗

0.90

∗

0.78

∗

0.75(SP

)

0.87

∗

0.95

∗

0.91

∗

0.77

∗

0.57 0.80

∗

0.96

∗

0.85

∗

0.75

∗

0.98

∗

0.85

∗

0.74

∗

0.72(SP

)

0.99

∗

1.00

∗

0.95

∗

0.73 0.99

∗

0.97

∗

0.89

∗

0.69 1.00

∗

0.89

∗

0.94

∗

0.77

∗

0.74(SP

)

∗

KPI values greater than (MQI − SD)

are considered in the risk analysis

Table 2: Success and failure probabilities for SP

, SP

K Service Providers

Suc Fail Suc Fail Suc Fail

0.75 0.25 1.00 0.00 0.75 0.25

0.75 0.25 1.00 0.00 1.00 0.00

1.00 0.00 0.75 0.25 1.00 0.00

0.75 0.25 0.75 0.25 1.00 0.00

Table 3: Results from event combinations for SP

, SP

P Service Providers (Outcomes)

0.422

∗

→ 1 0.562

∗

→ 1 0.750

∗

→ 1

0.141 → 0 0.187 → 0 0.000 → 0

0.000 → 0 0.187 → 0 0.000 → 0

0.000 → 0 0.062 → 0 0.000 → 0

0.141 → 0 0.000 → 0 0.000 → 0

0.047 → 0 0.000 → 0 0.000 → 0

0.000 → 0 0.000 → 0 0.000 → 0

0.141 → 0 0.000 → 0 0.250 → 0

0.047 → 0 0.000 → 0 0.000 → 0

0.000 → 0 0.000 → 0 0.000 → 0

0.047 → 0 0.000 → 0 0.000 → 0

0.012 → 0 0.000 → 0 0.000 → 0

0.000 → 0 0.000 → 0 0.000 → 0

∗

Values greater than LE = 0.4

the 2

|K|

combinations of K, corresponding to all the

probabilities (sixteen) associated with each event. For

each value of P, the respective binary representation

are added (1 – values equal to or greater than LE; 0 –

values less than LE) as seen in Stage 1 of Figure 4.

The second stage of the method consists in to ag-

gregate all the individual results from the SP team and

to analyze them as a whole. This is done using ET re-

sults (the set with P

, P

, ..., P

) as input to verify

whether that VO coalition, collectively, is feasible or

not. So, it will be ﬁrstly assigned a S

score and a

boolean result for each SP (Equations 11 and 10)

that are calculated through a logic gate OR present

in FTA method. For each SP is also deﬁned a con-

straint Q

(Equation 9), corresponding a set with the

values greater than LE (these procedures are seen as

follows):

= {0.422}

= {0.562}

= {0.750}

Note that the number of elements in all Q are equal

to 1. It happens because only one value of P asso-

ciated with both SP

, SP

and SP

was reached 0.4.

Therefore, applying the values of constraint Q, Table

4 summarizes all these informations:

Table 4: Values of

R,S

associated with SP

, SP

R,S

Service Providers

R 1 1 1

S 0.422 0.562 0.750

Given the values of R and S for all three SPs,

Equations 12 and 13 are applied considering the

provided values (Table 4) using the SP

(R) and SP

(S)

as follows:

= SP

(R) ∧SP

(R) = 1 ∧ 1 ∧ 1 = 1

= SP

(S) ∗ SP

(S) =

0.422 ∗ 0.562 ∗ 0.750 = 0.177

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

484

As explained in Section 3, considering R

= 1

would mean that the combination of those three SPs

has an acceptable level of risk. Hence, they could be-

come members of the VO, i.e., the VO could be cre-

ated. Considering quantitative levels (calculated by

), the VO as a whole has 17.7% chance of success.

5 EVALUATION FRAMEWORK

This section presents results of an ongoing and ex-

ploratory research, through MARTP method evalua-

tion. A computational simulation is conducted based

on the preliminary results of (Fiorese et al., 2012) re-

search, in order to add the risk analysis context. Next

subsections present the results obtained.

5.1 Computational Prototype

The developed prototype was split into two modules:

BPSS (Best Peer Selection Service) (Fiorese et al.,

2012) and DFRA (Decision Framework for Risk

Analysis). The ﬁrst module implements the BPSS

model developed by (Fiorese et al., 2012; Fiorese

et al., 2010) (view Section 2.1) by using the Peer-

FactSim.KOM discrete event simulator (Stingl et al.,

2011) to support the creation of the P2P SON infras-

tructure and additionally make available the process

for SPs search and selection. On the other hand, the

DFRA module focuses speciﬁcally on the risk anal-

ysis methods simulation. This model was integrated

with BPSS in order to group the pre-selected SPs into

a new potential VOs and to perform a MARTP evalu-

ation (see Figure 3).

Regarding technical system speciﬁcations, the

prototype was built and the tests were developed in a

computer Intel Core i5 3.1GHz, 4.0GB of RAM and

Linux Mint 14.1 64-bit distribution.

5.2 Simulations Setup

The initial conﬁguration for the risk scenario follows

the same rules used for the SP’s selection. The data

was taken from the CAIDA project and MaxMind

GeoIP database (Caida, 2013). The SPs are repre-

sented by a set of pre-selected SON peers whose iden-

tiﬁers (IPs addresses) belong to ﬁve geographical do-

mains, corresponding to the ﬁve countries (Portugal,

Spain, France, Italy and Germany). They are also

equally distributed between the ﬁve domains.

Taking into account the risk analysis data setup,

the KPIs values assigned to each SP follows a linear

distribution (varying from 0 to 1) during the simula-

tion. The linear distribution strategy for generating

the KPIs values is primarily used ﬁrstly because com-

panies are often very variable and the implementa-

tion of the four chosen KPIs (trust, communication,

collaboration and commitment) in real scenarios to

cope with risks in VO also depends on the culture and

working methods currently applied by the involved

organizations. In the same way, it is also considered

that each SP has participated at 10 previous VOs (in

average) when it was selected. The LE (Level of Ex-

cellence) is deﬁned as 0.6, which represents a good

level of quality, as seen in Section 3.

5.3 Results

5.3.1 VO Risk Analysis

The results presented in this section aims to evalu-

ate the efﬁciency of MARTP (regarding the number

of VO formed) in choosing SPs when comparing the

selection process. The overall procedures for obtain-

ing the selection and risk results are divided into two

different phases as follows:

• The ﬁrst phase basically performs the process of

SP’s search and selection through the BPSS model

(Fiorese et al., 2012). In this paper, the process

for VO formation will take into account a set of

three distinct SPs that will provide the following

services: VPN (SP

), Billing (SP

) and Video-

Streaming (SP

). For this reason, the BPSS model

should be used three-times in order to provide the

three different SPs, each of them providing its par-

ticular service.

• The second phase take emphasis on the risk anal-

ysis process (MARTP). Thus, this phase uses as

input the three SPs acquired at the ﬁrst phase (SP

and SP

) to group them into a consortia to

measure the risk of their collaboration in compos-

ing a new VO.

The process for comparison between the number

of formed VOs without risk analysis (i.e., only group-

ing the three SPs acquired in the ﬁrst phase into a con-

sortia for forming a new VO) and with risk analysis

(analyzing the risk of the previous formed consortia)

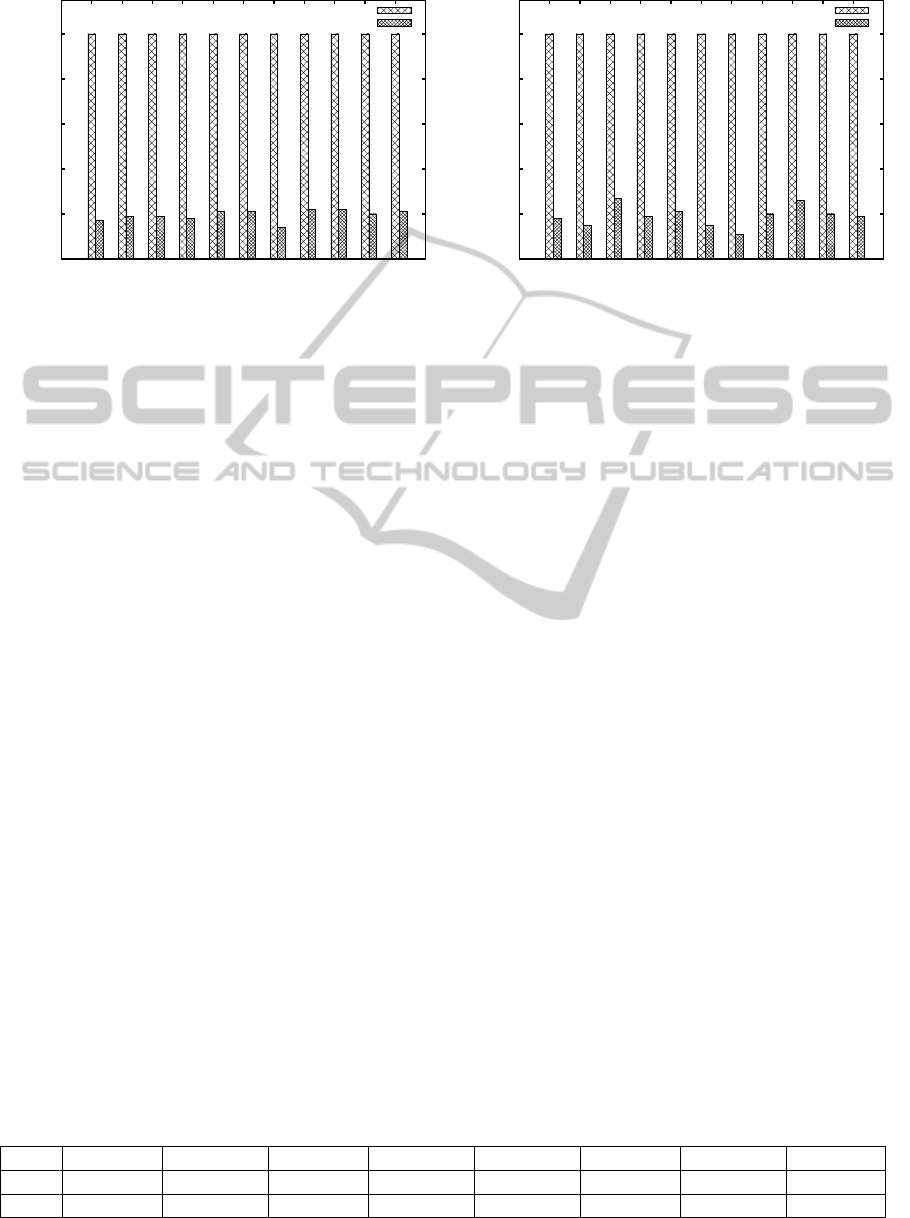

for the best SPs is depicted in Figure 6a. The simula-

tion comprises 11 sets of individual scenarios divided

into clusters that range [50,300] SPs. For each of the

eleven scenarios (50 SPs, 75 SPs, ···, 300 SPs), the

ﬁrst and second phase early mentioned are performed

100 times, which will result in eleven 2-bar clusters,

which one varying from 0 to 100. This scale are rep-

resented by the vertical axis and shows, in percentage,

the number of formed VOs regarding the two bars.

ARiskAnalysisMethodforSelectingServiceProvidersinP2PServiceOverlayNetworks

485

100

50 75 100 125 150 175 200 225 250 275 300

Formed VOs

Number of SPs

Without Risk

With Risk

(a)

100

50 75 100 125 150 175 200 225 250 275 300

Formed VOs

Number of SPs

Without Risk

With Risk

(b)

Figure 6: Clustering VO Formation for: (a) Best SPs; (b) Second Best SPs.

It is worth mentioning that the selected SPs in the

ﬁrst phase (i.e., without risk analysis; ﬁrst-bar clus-

ter), will form VOs (since if does not have other cri-

teria to block the formation). Nevertheless, there is

a signiﬁcant decrease on the percentage of VOs for-

mation under risk analysis (MARTP) results. The

method is primarily behaving just as a ﬁlter, where

from selected SPs, it checks whose are able to com-

pose VOs, regardless of whether they have been rated

as the best or the worst according to other criteria.

The comparison between VO formation also took

into account the second best SPs (selected by the

BPSS), as shown in Figure 6b. This comparison can

aids the validation of the MARTP method by measur-

ing the average improvement of two distinct scenarios

(in this case, the difference of the best SPs over the

second-best SPs).

Considering average results (and based on a con-

ﬁdence interval of 95%), the reduction in the num-

ber of formed VOs when adding the risk ﬁlter for the

“best” SPs was 80.54%, and for the second offering

better services, the reducing dropped 80.81%. The

results show that there was not signiﬁcant variations

between the average of percentage reductions of the

best and second best SPs.

It is important noting that forming the VO based

on choosing only the best SPs accordingly the best

rates of KPIs is not a very good choice. A wiser deci-

sion is to submit the chosen SPs to a risk evaluation.

This is what MARTP does. More importantly, it does

it considering also the odds of SPs working together.

This is the reason of the high drops in the number of

VOs formed after the risk analysis.

5.3.2 Estimation of VO Acceptance Rate

The results presented in Section 5.3.1 showed the

amount of formed VOs when considering LE = 0.6.

However, it is necessary to consider that such results

are calculated based on static values of LE, i.e., that

were previously deﬁned by VO manager and give

only a partial view of the method functionality.

Accordingly, there was performed an evaluation

regarding the relation between the amounts of formed

VOs while LE varies. This evaluation aims to show

how the LE variation can impact in the number of

formed VOs, and additionally, to obtain an equation

that best deﬁne this behavior.

The evaluation was carried out by a regression

analysis, where equations were found that describe

how the number of formed VOs behaves in accor-

dance with the increase in LE for 100 simulated sce-

narios (each scenario represents a simulation per-

formed with LE varying from 0.00 to 1.00, with in-

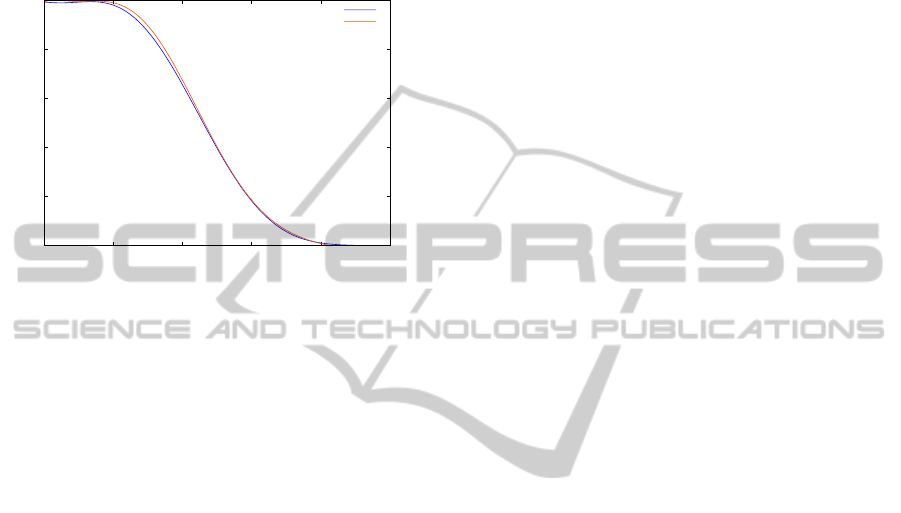

tervals of 0.01). Figure 7 presents two curves, each

one generated by applying a regression calculation in

the dataset obtained through the 100 simulated sce-

narios. The minimum and maximum ranges [0,100]

represented on the vertical axis was deﬁned accord-

ing to the limit in the number of formed VOs. This

means that for values lower or higher than the adopted

Table 5: Polynomial coefﬁcients for the best and becond-best SPs regression analysis.

a b c d e f g h

Eq 1 1.008e+2 -7.312e+1 9.128e+2 -2.912e+3 -2.534e+3 1.581e+4 -1.727e+4 5.972e+3

Eq 2 9.976e+1 -5.416e+1 7.972e+2 -3.161e+3 4.502e+1 1.011e+4 -1.211e+4 4.273e+3

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

486

range, the number of VOs formed remains constant at

0 or 100. In contrast, the horizontal axis represents

the variation in the LE value. It ranges from 0 to 1

with intervals of 0.01 (100 possible results), accord-

ing deﬁned in Section 3.

100

0 0.2 0.4 0.6 0.8 1

Formed VOs in Average (%)

Value of LE

Best SPs Fitted Curve

Second Best SPs Fitted Curve

Figure 7: Regression analysis for VO formation in relation

to LE variation.

The curve is better adjusted by a polynomial equa-

tion, where the approximate polynomial coefﬁcients

are shown in Table 5. In the analysis performed

through Figure 7, it was found the correlation coef-

ﬁcient (which verify the correlation degree between

LE and the VO formation percentage) r

= −0.999

for the best SPs and r

= −0.999 for the second-best

SPs scenario. It means that the LE values have a

strong negative correlation with the number of VOs

formed, i.e., the more increases the value of LE, the

smaller becomes the number of VOs, with a success

rate higher than 99.999% for both cases.

One can also see that even maintaining a lower

LE value, often the SPs cannot become able to com-

pose VOs (for instance, the results presented in Sec-

tion 5.3.1 shows that the number of formed VOs when

LE is 0.6 is approximately 20%). It primarily occurs

because how the ETA method (which makes up the in-

dividual risk analysis) in this work is designed to deal

with independent events, so it is sufﬁcient that just

one of all KPIs present a low value for signiﬁcantly

reduce the SP success probability as a whole.

In this sense, it can be concluded that the method

favors a more rigorous evaluation when is encom-

passed an increased number of indicators, what is de-

sirable when analyzing the risk in the VO as a whole.

Moreover, for all SPs that will compose a VO, it is

necessary that all their indicators have reasonably ac-

ceptable values. Otherwise, they can compromise the

proper working of the VO.

6 CONCLUSION

This paper addressed some issues related to VO risk

identiﬁcation and measurement. Overall, risk analy-

sis has become a key element in VO planning since

small errors can lead them to impairment as a whole.

Therefore, it is proposed a new method to perform a

risk analysis in a set of Service Providers (SPs) that

are going to compose a Virtual Organization (VO).

The presented method, named MARTP, is com-

posed of two stages. The ﬁrst stage performs an indi-

vidual risk analysis for all pre-selected SPs, by basing

it on ETA analysis. Having as input the results from

the ﬁrst stage, the second stage calculates and anal-

yses the global risk considering all SPs together. It

applies FTA method to accomplish that.

In order to assess the MARTP behavior, four dis-

tinct KPIs (trust, communication, collaboration and

commitment) are assigned for each SP. Moreover,

these indicators are combined with real geographical

data in a simulation environment. The performed sim-

ulations involved sets of pre-selected SPs, which have

been taken in (Fiorese et al., 2012).

The achieved results seem promising about the

suitability of the method regarding its purpose. The

level of competence required for each SP to compose

a VO is higher and it is strongly inﬂuenced by LE,

which is decisive for this choice. Thus, the VO man-

ager should increase the quality of the SPs by increas-

ing the LE value, which result in a more restrict set of

SPs that are able to compose a VO.

Likewise, the presented method contributes to a

more concrete way to express, measure, assess and

deal with the risks in VO forming, both individually

and collectively, while focusing only on SPs. Never-

theless, the use of the method in the process of risk

analysis provides an evaluation with a lower level of

subjectivity, discarding SPs or not, before composing

a VO, according to the established criteria.

Therefore, future work includes testing the

method in near-real scenarios as well as creating a

framework for risk analysis regarding VOs formation

as a whole. The next steps also include extend the

evaluation to an expert panel, in order to improve the

quality of the method as well as the comparison with

other decision support methods like Bayesian Net-

works (Heckerman, 1996), Genetic Algorithms (Hol-

land, 1973) and Data Envelopment Analysis (DEA)

(Cooper et al., 2007).

ARiskAnalysisMethodforSelectingServiceProvidersinP2PServiceOverlayNetworks

487

REFERENCES

Afsarmanesh, H. and Camarinha-Matos, L. M. (2005). A

framework for management of virtual organization

breeding environments. In Proceedings of the 6th

Working Conference on Virtual Enterprises (PRO-

VE’05), pages 35–48, Valencia, Spain.

Alawamleh, M. and Popplewell, K. (2010). Risk sources

identiﬁcation in virtual organisation. In Enterprise In-

teroperability IV, pages 265–277. Springer London.

Alawamleh, M. and Popplewell, K. (2012). Analysing vir-

tual organisation risk sources: an analytical network

process approach. International Journal of Network-

ing and Virtual Organisations, 10(1):18–39.

Bentley, J. L. (1975). Multidimensional binary search trees

used for associative searching. Communications of the

ACM, 18(9):509–517.

Caida (2013). Macroscopic topology project. http://www.

caida.org/analysis/ topology/macroscopic/.

Camarinha-Matos, L. M. and Afsarmanesh, H. (2005). Col-

laborative networks: a new scientiﬁc discipline. Jour-

nal of Intelligent Manufacturing, 16(4-5):439–452.

Camarinha-Matos, L. M. and Afsarmanesh, H. (2008). On

reference models for collaborative networked orga-

nizations. International Journal of Production Re-

search, 46(9):2453–2469.

Cooper, W. W., Seiford, L. M., and Tone, K. (2007). Data

Envelopment Analysis: A Comprehensive Text with

Models, Applications, References and DEA-Solver

Software. Springer Verlag, New York, USA.

Duan, Z., Zhang, Z. L., and Hou, Y. T. (2003). Service

overlay networks: SLAs, QoS, and bandwidth pro-

visioning. IEEE/ACM Transactions on Networking,

11(6):870–883.

Ericson, C. A. (2005). Hazard analysis techniques for sys-

tem safety. John Wiley & Sons, New York, USA.

Fei, L. and Zhixue, L. (2010). A fuzzy comprehensive eval-

uation for risk of virtual enterprise. In Proceedings of

the 10th International Conference on Internet Tech-

nology and Applications, pages 1–4, Corfu, Greece.

Fiorese, A., Sim

oes, P., and Boavida, F. (2010). OMAN a

management architecture for P2P service overlay net-

works. In Proceedings of the 4th international confer-

ence on Autonomous infrastructure, management and

security (AIMS’10), pages 14–25, Zurich, Switzer-

land.

Fiorese, A., Sim

oes, P., and Boavida, F. (2012). Peer selec-

tion in P2P service overlays using geographical loca-

tion criteria. In Proceedings of the 12th international

conference on Computational Science and Its Applica-

tions (ICCSA’12), pages 234–248, Salvador de Bahia,

Brazil.

Goranson, H. T. (1999). The agile virtual enterprise cases,

metrics, tools. Quorum Books, Westport, CT, USA.

Grabowski, M. and Roberts, K. H. (1998). Risk mitiga-

tion in virtual organizations. Journal of Computer-

Mediated Communication, 3(4):704–721.

Heckerman, D. (1996). A tutorial on learning with bayesian

networks. Technical report, Learning in Graphical

Models.

Holland, J. H. (1973). Genetic algorithms and the optimal

allocation of trials. SIAM J. Comput., 2:88–105.

Junior, O. C. A. and Rabelo, R. J. (2013). A KPI model for

logistics partners’ search and suggestion to create vir-

tual organisations. International Journal of Network-

ing and Virtual Organisations, 12(2):149–177.

Li, Y. and Liao, X. (2007). Decision support for risk anal-

ysis on dynamic alliance. Decision Support Systems,

42(4):2043–2059.

March, J. G. and Shapira, Z. (1987). Managerial perspec-

tives on risk and risk taking. Management Science,

33(11):1404–1418.

Min, H., Xue-Jing, W., Lu, F., and Xing-Wei, W. (2007).

Multi-strategies risk programming for virtual enter-

prise based on ant colony algorithm. In Proceedings

of the 1st International Conference on Industrial En-

gineering and Engineering Management, pages 407–

411, Singapore.

Montgomery, D. C. and Runger, G. C. (2011). Applied

Statistics and Probability for Engineers. John Wiley

& Sons, New Jersey, USA.

Moskowitz, H. and Bunn, D. (1987). Decision and risk

analysis. European Journal of Operational Research,

28(3):247–260.

Mosleh, A., Dias, A., Eghbali, G., and Fazen, K. (2004).

An integrated framework for identiﬁcation, classiﬁ-

cation, and assessment of aviation systems hazards.

In Proceedings of the 6th International Conference

on Probabilistic Safety Assessment & Management

(PSAM’04), pages 2384–2390, Berlin, Germany.

Mowshowitz, A. (1997). Virtual organization. Communi-

cations of the ACM, 40(9):30–37.

Pidduck, A. B. (2006). Issues in supplier partner selec-

tion. Journal of Enterprise Information Management,

19(3):262–276.

Stingl, D., Gross, C., Ruckert, J., Nobach, L., Kovacevic,

A., and Steinmetz, R. (2011). PeerfactSim.KOM: a

simulation framework for peer-to-peer systems. In

Proceedings of the 13th International Conference

on High Performance Computing and Simulation

(HPCS’11), pages 577–584, Istanbul, Turkey.

Vose, D. (2008). Risk analysis: a quantitative guide. John

Wiley & Sons, New Jersey, USA.

Zhou, S., Hogan, M., Ardon, S., Portman, M., Hu, T., Won-

grujira, K., and Seneviratne, A. (2005). Alasa: When

service overlay networks meet peer-to-peer networks.

In Proceedings of the 11th Asia-Paciﬁc Conference

on Communications (APCC’05), pages 1053–1057,

Perth, Australia.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

488
