A Novel Framework for Computing Unique People Count from

Monocular Videos

Satarupa Mukherjee and Nilanjan Ray

Department of Computing Science, University of Alberta, Edmonton, Alberta T6G2E8, Canada

1 STAGE OF THE RESEARCH

I am a 5th year PhD student in the department of

Computing Science in University of Alberta. I have

passed my candidacy examination last year. I am cur-

rently in the ﬁnal stage of my research and planning

to defend by next semester.

In my PhD thesis, I have developed a novel peo-

ple counting algorithm for computing unique people

count from monocular videos. The algorithm has the

capability of handling severe occlusion in addition to

computing unique people count with exorbitant accu-

racy. Also it is online in nature, and does not accumu-

late error over time.

I have performed extensive experiments with the

proposed algorithm on four standard datasets - the

UCSD dataset (Chan et al., 2008), which consist of

a full one hour video of 25,656 frames, the FUDAN

dataset (Tan et al., 2011) consisting of 1500 frames,

the LHI dataset (Cong et al., 2009) which has 12

videos captured at different camera angles (90 de-

gree, 65 degree and 40 degree) and of duration be-

tween 5 minutes and 15 minutes, and the PETS 2009

dataset (Krahnstoever et al., 2008) consisting of mul-

tiple camera views, targeted at the evaluation of vari-

ous surveillance applications. The algorithm has pro-

duced more than 95% accuracy for most of these

videos.

2 INTRODUCTION

People counting is important for solving many impor-

tant applications like trafﬁc management, detection

of overcrowded situations in public buildings, tourist

ﬂow estimation, surveillance and many others. It is

also a signiﬁcant component in video analytics. By

unique people count, we mean the computation of

the total number of people in a speciﬁc time interval

by counting a person only once while the person is

present within a ﬁeld of view (FOV) or a region of

interest (ROI) within the FOV.

People counting systems can be roughly catego-

rized into computer vision based and non-computer

vision based techniques. The non-computer vision

based systems use many different technologies (Box

and Oppenlander, 2010), each with its own advan-

tages and disadvantages. Probably the most straight-

forward system is the tally counter or clicker counter.

It has a very simple working mechanism where press-

ing a button activates the count. However, the method

needs human intervention, which is both labour and

cost intensive. A very accurate people counting sys-

tem is the mechanical counter, known as the turnstile,

which needs to be turned by the individual each time

he/she crosses it in order to take into account the indi-

vidual count. However again, this method is invasive

and disruptive. Laser beam-based sensors are among

the non-invasive methods used frequently in railway

stations. These methods are inexpensive, but they are

not suitable for counting people in outdoor environ-

ments, because their performance can be negatively

affected when subjected to direct sunlight. Another

well-known non-invasive people counter is based on

thermal sensors. However, once again, they are sensi-

tive to ambient temperatures.

Computer vision-based solutions to date are

mainly based on methods that use either a camera

network or a monocular video. The network of mul-

tiple cameras is one of the most advanced technolo-

gies used for people counting. It takes into account

different views of people with different camera an-

gles to avoid occlusion. But setting up of the system

can be costly and the process may often be cumber-

some due to lack of resources. Moreover, homogra-

phy constraints often need to be applied (Black and

Ellis, 2006) for ﬁnding out correspondences among

views of people obtained from multiple cameras in

order to perform any kind of tracking or counting.

The homography computation may also lead to the

occurrence of transfer errors (summation of the pro-

jection error in each camera view for a pair of cor-

respondence points) that needs to be dealt with. Our

proposed approach to ﬁnding the unique people count

is based on monocular videos. Our principal moti-

Mukherjee S. and Ray N..

A Novel Framework for Computing Unique People Count from Monocular Videos.

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

vation is to make use of existing cameras and avoid

expensive camera network setup and maintenance.

3 OUTLINE OF OBJECTIVES

Based on the above discussion, the objectives of my

PhD thesis are as follows -

i. Compute unique people count over a certain inter-

val of time from monocular videos.

ii. Make use of existing cameras by avoiding expen-

sive camera setup and maintenance.

iii. Overcome occlusion problems and still obtain re-

markable people count accuracies.

iv. Apply the algorithm on different scenarios and

various kinds of human ﬁgures.

4 RESEARCH PROBLEM

My PhD thesis aims to develop a robust algorithm,

the input of which is a monocular video consisting of

human views and the output will be the total unique

count of people within certain duration of the video.

The aim of the algorithm is its application towards

real life problems. To avoid the expensive and also

challenging video camera network system, it works

on the view taken from a single camera. Finally, apart

from dealing with sparse crowds, the algorithm is able

to deal with large as well as dense crowds. Hence, it

is capable of handling occlusions.

5 STATE OF THE ART

The computer vision based algorithms for people

counting from monocular videos are mainly used for

ﬁnding out two types of counts - frame based people

count and unique people count. Frame based count is

also known as density estimation.

The frame based people counting algorithms

count people in individual video frames with rea-

sonable accuracy even in the presence of occlu-

sions (Chan et al., 2008; Chan and Vasconcelos, 2012;

Chan and Vasconcelos, 2009; Conte et al., 2010;

Tan et al., 2011; Lempitsky and Zisserman, 2010).

These methods use extracted features from individual

frames and count the number of people in each frame

with the help of machine learning techniques that map

the extracted features to the number of people present

in the frame. But these methods fail to count the

unique number of people present in a video over an

interval of time, as they do not consider the corre-

spondence of the same person over multiple frames.

For example, if there are n people in the ﬁrst frame

and one person enters, while another person exits the

FOV in the second frame, the frame based counting

will produce n as the people count for the second

frame. However, the unique count of people for the

two frames should be n+ 1.

The computer vision based solutions to unique

people count can be further categorized into three

types: a) the detection and tracking based approach

(Harasse et al., 2005; Kim et al., 2002; Zeng and Ma,

2010), b) the visual feature clustering based approach

(Brostow and Cipolla, 2006; Rabaud and Belongie,

2006) and c) the line of interest (LOI) counting ap-

proach (Ma and A.B.Chan, 2013; Cong et al., 2009;

Kim et al., 2008). The ﬁrst two individual based anal-

yses are somewhat successful for low density crowds

or overhead camera views, but they are not compe-

tent enough for large crowds. In these types of views,

there is too much occlusion, or people are depicted by

only a few pixels or the situations are too challeng-

ing for tracking. The LOI counting methods are ca-

pable of handling occlusion, but these methods have

received relatively less attention so far.

The detection and tracking based approaches (Ha-

rasse et al., 2005; Kim et al., 2002; Zeng and Ma,

2010) count people by detecting individuals in an im-

age and creating corresponding trajectories by track-

ing them. The number of trajectories in an interval of

time accounts for the number of people. This tech-

nique works well for situations where the object size

is large, the crowd is not too dense and occlusion is

not severe. Large object size helps in the detection

as there are enough image pixels to depict the ob-

ject. Tracking is failsafe for overhead FOVs where

little or no occlusion is present. In case of whole

body views, where partial occlusion is present, par-

ticle ﬁlter based tracking can be applied. Applying

the detection-tracking approach becomes difﬁcult in

dense crowds where each person is depicted by only

a few image pixels and people occlude each other in

complex ways. Detection becomes challenging due to

both occlusion and the small sizes of people. Occlu-

sion also poses a difﬁcult challenge for tracking.

The visual feature trajectory clustering meth-

ods (Brostow and Cipolla, 2006; Rabaud and Be-

longie, 2006) cluster feature trajectories that exhibit

coherent motion and the number of clusters is used as

the number of moving objects. This type of method

requires sophisticated trajectory management, like

handling broken feature tracks due to occlusions or

measuring similarities between trajectories of differ-

ent length. Thus, in crowded environments, it is fre-

VISIGRAPP2014-DoctoralConsortium

quently the case that coherently moving features do

not belong to the same person. Thus, equating the

number of people to the number of trajectory clusters

becomes quite error prone. Once again, occlusion is a

serious bottleneck for these methods too.

The LOI counting methods (Ma and A.B.Chan,

2013; Cong et al., 2009; Kim et al., 2008) have re-

ceived much less attention so far. The basic principle

here is to construct a temporal image at the LOI over

a period of time. Next, the temporal image is con-

verted to a cumulative count of people that crossed

the LOI. But, often the methods are incapable of han-

dling dense crowds and the methods may not perform

well if the walking speed variesa lot within the crowd.

6 METHODOLOGY

The novel framework discussed in this paper, has a

monocular video as its input, consisting of human

views and the output of the framework is the total

unique count of people within a certain duration of

the video. The framework deals with both sparse as

well as dense crowds, because it is capable of han-

dling occlusions. Finally, a major advantage of the

proposed framework is that it is online in nature and

does not accumulate error over time.

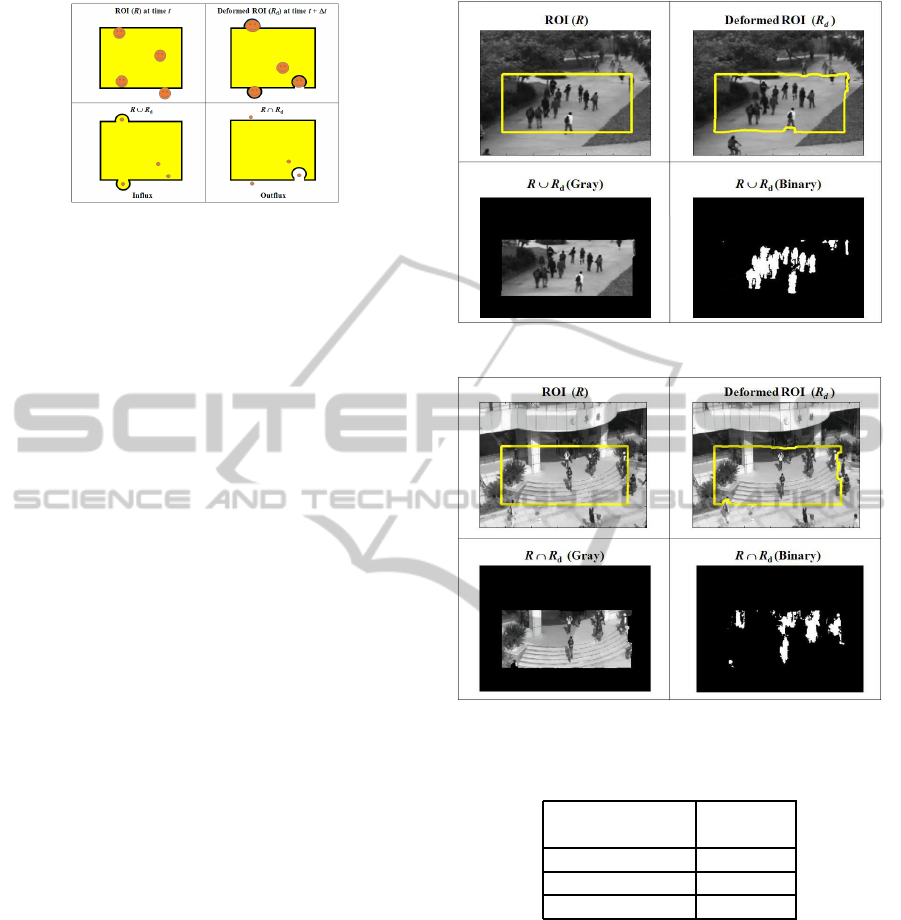

We achieve the unique people count by a ROI

analysis that is in a sense similar to the control vol-

ume analysis in ﬂuidics describing the ﬂow of ﬂuid

mass in/out/across a volume. Given a ROI within the

FOV of a monocular video, our method counts the

number of unique people who have entered or left

the ROI within a short period of time. Thus, we are

able to compute the inﬂux and/or the outﬂux rate of

unique people at any time instant. Summing these

rates between any two time points provide us with the

unique people count. Our method achieves this feat

by combining frame-based people counting (a super-

vised machine learning method) with a simple ROI

boundary tracker. Because, our method only com-

putes pixel correspondence at the ROI boundary over

a short period, it is able to cope well with occlusions.

In this manner, our framework passes the responsibil-

ity of people count in the presence of occlusions to

the supervised learner, and avoids object tracking al-

together. The proposed method differs signiﬁcantly

from the LOI methods, as we do not rely on any tem-

poral image generation and their analysis. Note also

that LOI counting method relies on straight lines of

interest, while our ROIs do not have such shape re-

strictions.

6.1 Background

Our proposed unique people count utilizes two tech-

niques: a) frame based count and b) ROI boundary

tracking. We discuss these two components in this

section.

(a) Frame based Count. The general idea here is to

extract features from an image frame and map these

features to the number of people present in the im-

age frame. This mapping is achieved by supervised

machine learning methods, such as Gaussian Process

regression (Chan et al., 2008).

The features that are taken into account include

foreground features obtained from a background sub-

traction method and texture features. Based on em-

pirical experiments, the background subtraction algo-

rithms chosen for our framework are the Approximate

Median method (McFarlane and Schoﬁeld, 1995) for

the UCSD and the PETS 2009 datasets, Mixture of

Gaussians method (Stauffer and Grimson, 1999) for

the FUDAN dataset and ViBe (Barnich and Droogen-

broeck, 2011) for the LHI dataset. The features con-

sidered for the frame based count are as follows:

i. Segment features are extracted to capture proper-

ties like shape, size etc. by computing a) fore-

ground area, b) perimeter of foreground area, and

c) perimeter-area ratio.

ii. Edge features, such as a) number of edge pix-

els, and b) edge orientation are computed. Edges

within a segment are strong cues about the num-

ber of people in it.

iii. Texture features - Texture features, which are

based on the gray-level cooccurrence matrix, are

used for estimating the number of pedestrians in

each segment (Chan et al., 2008; Tan et al., 2011).

The image is ﬁrst quantized into eight gray levels

and masked by the segment. The joint probabil-

ity of neighboring pixels i and j within the image

frame I, p(I(i),I( j) | θ) is then estimated for four

orientations θε{0

◦

,45

◦

,90

◦

,135

◦

a Homogeneity: the texture smoothness,

∑

i, j

p(I(i),I( j) | θ)/(1+ |i− j|).

b Energy: the total sum-squared energy,

∑

i, j

p(I(i),I( j) | θ)

c Entropy: the randomness of the texture distri-

bution,

∑

i, j

p(I(i),I( j) | θ)logp(I(i),I( j) | θ).

Generally, features like foreground segmentation

area or number of edge pixels should vary linearly

with the number of people in each frame (Hou et al.,

2010; Zhu, 2005). Foreground segmentation area ver-

sus the individual frame-based manual people count

ANovelFrameworkforComputingUniquePeopleCountfromMonocularVideos

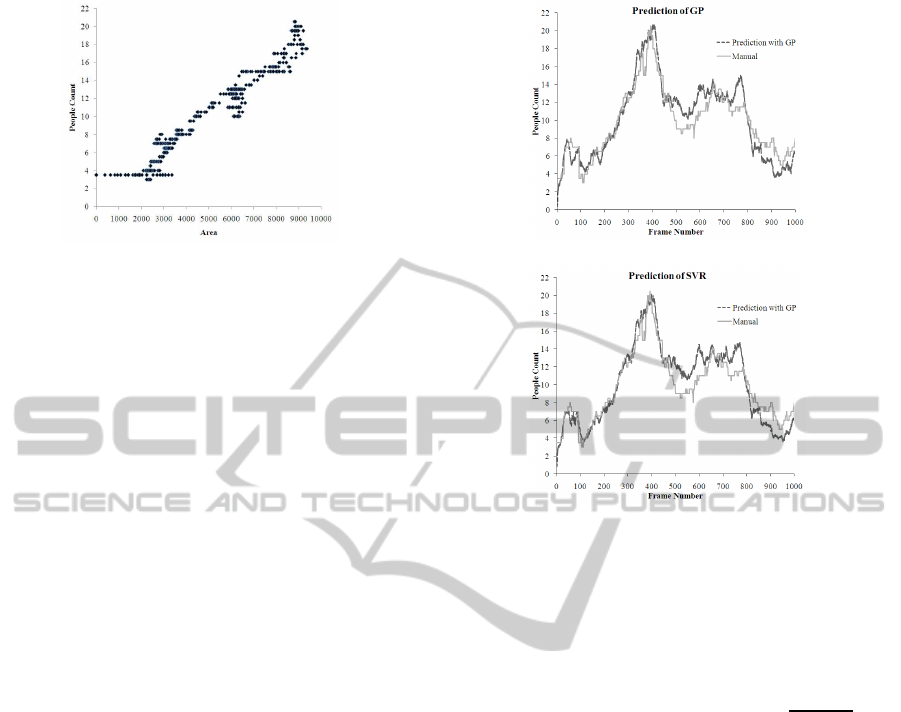

Figure 1: Plot of foreground segmentation area vs. people

count on ﬁrst 1000 frames of the UCSD dataset.

over the ﬁrst 1000 frames of the UCSD dataset is

plotted in Figure 1. It can be observed that the

overall trend is almost linear with some local non-

linearities. These local non-linearities occur due to

different reasons like occlusion, segmentation errors

in background subtraction, perspectiveforeshortening

etc.

The non-linearities are modeled by including ad-

ditional features, other than the segmentation areas,

which are mentioned above and handled by a machine

learner using a suitable kernel function. Here, we

experiment with two machine learners which are ca-

pable of handling non-linear relationships- Gaussian

Process (GP) Regressor (Rasmussen and Williams,

2006) and Support Vector Regressor (SVR) (Smola

and Scholkopf, 1998).

We choose the UCSD dataset to evaluate the per-

formance of the machine learners as it has many dense

crowd instances. For training, the number of people is

counted manually on 500 frames with variable crowd

densities and the features of each frame within the

ROIs are extracted. Next, the machine learners are

trained with these extracted features and the corre-

sponding people count in each frame within the ROI

to learn the relationship between the two. The per-

formance of the machine learners is then evaluated

on 1000 validation frames that are different from the

training frames. Manual count is also generated on

these 1000 validation frames to perform the quantita-

tive comparison between the two machine learners.

Figure 2 plots the predicted count versus the man-

ual count for both the machine learners on the 1000-

frame validation set. The dotted lines plot the pre-

dicted count from the machine learner, whereas the

solid lines denote the true count produced manually.

Both the GP Regressor and the SVR performs well on

all of the validation set. A quantitative analysis based

on mean squared error, mean absolute error and per-

centage of mean absolute error is reported in Table I.

Here it can be seen that the performance of the GP

Regressor is slightly better than that of the SVR. So,

(a)

(b)

Figure 2: Performance evaluation of the two machine learn-

ers.

we chose GP for our framework.

The kernel of the GP or SVR is a combination

of both linear and squared exponential kernels (RBF)

(Chan et al., 2008):

k(x

) = α

+ 1) + α

−kx

−x

δ(p,q),

where x

and x

are the p-th and q-th feature vec-

tors and α = {α

,α

} are the hyperparame-

ters.

(b) Boundary Tracking with Optical Flow. As has

been mentioned earlier, our proposed unique people

count is inspired by the control volume analysis in

ﬂuidics. Thus, we need to account for people leav-

ing or entering the ROI. To mitigate the effect of oc-

clusion, we avoid the tracking of individual people in

our framework. Instead, we track pixels on the ROI

boundary over a short period of time. A number of

methods can be applied for tracking the ROI bound-

ary. However, we choose a simple off-the-shelf opti-

cal ﬂow (Horn and Schunck, 1981) technique prin-

cipally to make our framework more accessible. The

optical ﬂow computes pixel motion between two con-

secutive image frames, taking into account brightness

constancy. Optical ﬂow has a rich history; we found

that a very basic technique (Horn and Schunck, 1981)

sufﬁces for boundary tracking in our application. We

have used a publicly available implementation with

VISIGRAPP2014-DoctoralConsortium

Table 1: Performance of GP and SVR on 1000 test frames.

Machine Mean Squared Error Mean Absolute Error Percent Mean

Learner (No. of people squared/frame) (No. of people/frame) Absolute Error (%)

GP 2.3818 1.2378 7.3

SVR 2.5151 1.3001 7.6

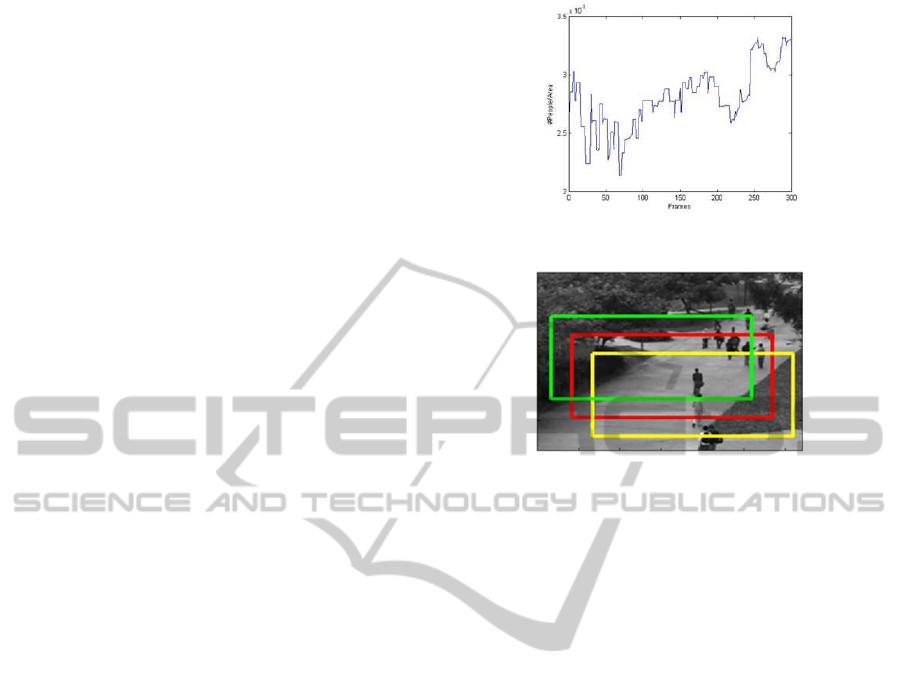

Figure 3: Actual ROI and Tracked ROI on an image of

video 3-3 of the LHI dataset.

the default parameter settings in all our experiments.

The original ROI and tracked ROI on an image of

video 3-3 of the LHI dataset is plotted in Figure 3 to

cite an example of boundary tracking.

6.2 Proposed Unique Count Framework

In this section, the proposed framework is presented.

Our proposed framework counts the unique number

of people who enter or leave an ROI within a time in-

terval. In order to realize the framework, we assume

availability of the following two functionalities dis-

cussed in the previous section:

Functionality 1. A ROI boundary tracker (Track)

that is able to track the boundary of ROI R for a short

while ∆t.

Functionality 2. A machine learner (Pred), which is

able to predict the number of people present within a

ROI on a single video frame.

With these two functionalities, the following

framework counts the number of unique people who

have entered or left the ROI R.

Unique Inﬂux and Outﬂux Count (UIOC) for

t = 0,1,2,3,....

← Pred(I

,R);

← Track(I

t+∆t

,R);

∆C

← Pred(I

t+∆t

,R ∪ R

) −C

;

∆C

out

← C

− Pred(I

t+∆t

,R ∩ R

);

← ∆C

/∆t;

out

← ∆C

out

/∆t;

end

Output at time point t: F

out

Unique inﬂux count between t

and t

is C

∑

t=t

and unique outﬂux count between t

and t

∑

t=t

out

where,

: Video frame at time t

R: Region of interest (ROI)

: Deformed ROI due to boundary tracking between

frames I

and I

t+∆t

∆C

: Unique inﬂux between time points t and t + ∆t

∆C

out

: Unique outﬂux between time points t and

t + ∆t

: Inﬂux rate of people at time t

out

: Outﬂux rate of people at time t.

The Track functionality tracks the ROI boundary

R from I

through I

t+∆t

. Track returns R

, which

is the deformed ROI due to the pixel motion at the

boundaries of R. The Pred functionality counts the

number of people within a ROI based on extracted

image features. If a ROI neither consumes nor gener-

ates people, the inﬂux and the outﬂux count over a pe-

riod of time should be equal, assuming accurate per-

formance by the two aforementioned functionalities.

We refer to such a ROI as a (mass) conserving ROI.

An example of a non-conserving ROI, where people

get consumed and/or generated, is a view of an eleva-

tor, in which people enter or come out of.

Figure 4 explains why the framework works. The

top left part of Figure 4, illustrates the positions of

people and the ROI R at time instant t. The top right

panel displays the positions of people at time instant

t + ∆t as well as the deformed ROI R

. Notice that

is a result of tracking the boundaries of R be-

tween t and t + ∆t. The bottom left and right panels

respectively show set union and intersection of the

original ROI R and the deformed ROI R

. For clar-

ity, the positions of people at time instant t + ∆t at

the bottom two panels are depicted by dots. Note

that inﬂux is given by ∆C

= Pred(I

t+∆t

,R ∪ R

) −

Pred(I

,R) = 4 − 3 = 1, whereas outﬂux is given by

∆C

out

= Pred(I

,R)−Pred(I

t+∆t

,R∩R

) = 3− 1= 2.

The total unique number of people produced by the

inﬂux count is Pred(I

,R) + ∆C

= 3+ 1 = 4 and the

total outﬂux count is Pred(I

t+∆t

,R)+∆C

out

= 2+2 =

4. As expected, these two numbers are equal, since the

ROI here is a conserving one that neither consumes

nor generates people.

The effect of occlusions is mitigated principally

because of two reasons: (a) unlike object tracking,

our boundary tracker, which computes pixel motion

ANovelFrameworkforComputingUniquePeopleCountfromMonocularVideos

◦

Figure 4: Explanation of inﬂux and outﬂux.

on the ROI boundary for a short period, is hardly af-

fected by occlusions, and (b) machine learner-based

frame count is not much affected by occlusions ei-

ther. Note that even if frame count is affected by oc-

clusions to some extent at a particular time instant,

chances are that in a later instant, the same occlu-

sions will not exist in the scene. As a result, when

we sum up the inﬂux/outﬂux rates, the effect of oc-

clusions is suppressed. Basically, by avoiding object

tracking and/or track generations for an extended pe-

riod, we bypass occlusions and pass the responsibility

of tackling occlusions to the machine leaner. Our ex-

periments validate this observation.

7 RESULTS AND DISCUSSIONS

For the UCSD dataset, we have chosen a rectangular

ROI R, as shown in the top left panel of Figure 5. For

the FUDAN dataset, our chosen ROI is shown in the

top left panel of Figure 6. The top right panels in Fig-

ures 5 and 6 show the deformed ROI R

. We have

chosen to compute inﬂux count for the UCSD dataset

and outﬂux count for the FUDAN dataset. The bot-

tom left panels in Figures 5 and 6 show respectively

R∪ R

and R∩ R

. The bottom right panels in Figures

5 and 6 show the foreground/background segmenta-

tions. It is noted that both the datasets have severe

occlusions. Another challenge in the FUDAN dataset

is that it also contains shadows of people.

We compute the inﬂux count on the LHI dataset.

For the LHI dataset, the ROIs are chosen as shown in

Figure 7. Here, the ROI selection is decided based on

the detection region considered in (Cong et al., 2009).

The formula used for calculating accuracy is 100(1-

(| Manual Count - Predicted Count |/Manual Count))

(Cong et al., 2009).

The timestep ∆t is the only tunable parameter

in our framework. On one hand, a large ∆t would

smooth out noisy predictions by the machine learner.

On the other hand, a large ∆t would make the bound-

ary tracking more challenging due to occlusions. The

timestep used for the application of the tracking rou-

Figure 5: Visual Results on the UCSD dataset.

Figure 6: Visual Results on the FUDAN dataset.

Table 2: Accuracy for three different timesteps for the FU-

DAN dataset.

∆t Accuracy

(No. of Frames) ( %)

20 91.35

25 98.46

30 93.22

tine varies for different datasets. These values are

chosen based on our experiments with three different

values on the ﬁrst 100 frames. The experiments for

the FUDAN dataset are shown in Table II.

UIOC performs well on all the datasets. The re-

sults for the UCSD and the FUDAN dataset including

the accuracies are tabulated in Table III and IV respec-

tively. UIOC also performs well on all 12 videos of

the LHI dataset. The accuracies remain close to 95%

for most datasets. Also, note that all types of camera

angles and video lengths do not seems to decrease the

accuracy as much as observed in Table V.

We demonstrate with experiments that our frame-

work is competent enough to handle occlusions. We

VISIGRAPP2014-DoctoralConsortium

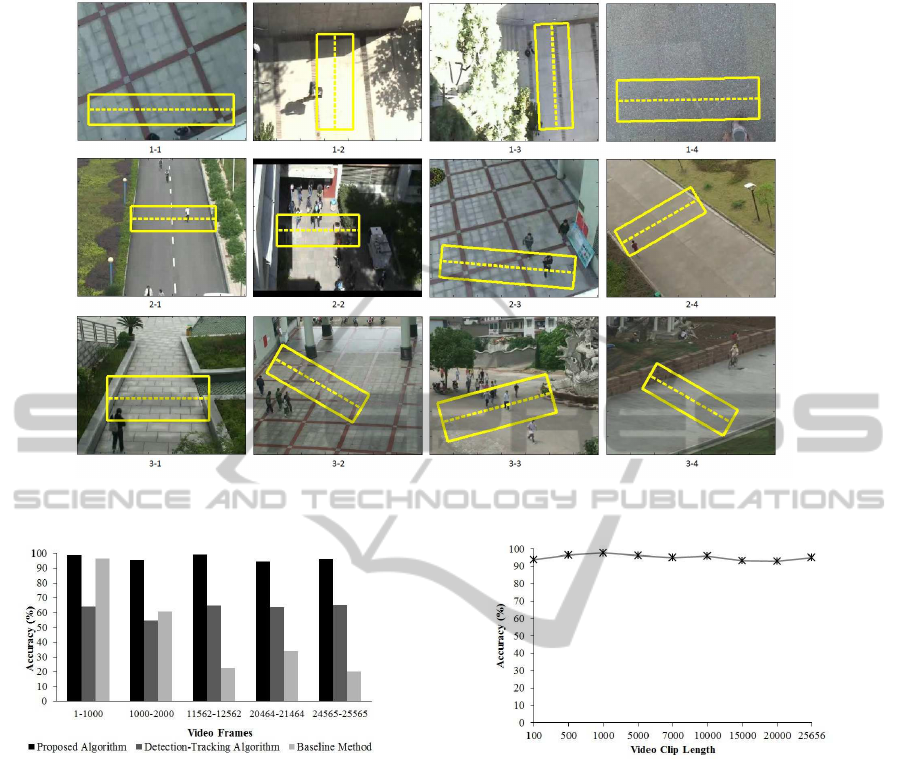

Figure 7: Different videos of the LHI dataset. The dotted lines are the LOIs of (Cong et al., 2009). The rectangles are our

ROIs.

Figure 8: Performance evaluation of three algorithms.

choose 5 mostly occluded video clips each of length

1000 from the UCSD dataset. We produce the exper-

imental count from our framework on these 5 video

clips along with the manual unique count to obtain

the accuracy in Figure 8. In all the cases, the accu-

racy is more than 90% that shows that the framework

performs well on occluded crowds.

We also want to illustrate experimentally that

there is no error accumulation with the increase in

length of video clips. Toward this end, unique peo-

ple count is done on different length of video clips

from the UCSD dataset and a plot of accuracy versus

video clip lengths is shown in Figure 9. It is observed

from the graph that the accuracy remains more or less

ﬂat when the number of frames is increased.

UIOC works as fast as 10 frames per second on a

system with Intel(R), core(TM), DuO CPU, E8400 @

3GHz. The system is implemented in openCV using

the MATLAB implementation of the GP.

Figure 9: Accuracy of the proposed framework with in-

crease of video clip lengths.

Performance of UIOC is compared with the

method proposed by Zeng et al. (Zeng and Ma,

2010), which is a detection-tracking method for peo-

ple counting and also with the Flow-Mosaicking

method (Cong et al., 2009), which is a LOI count-

ing method. UIOC is also compared with a baseline

method. These comparisons are described next.

7.1 Comparison with a Baseline Method

The baseline method we devise here is as follows.

Suppose, we know the average number of frames n

for which a person is inside the ROI R on frame t.

Then, a baseline estimate of the unique people count

can be computed between two time points t

and t

as:

∑

t=t

Pred(I

,R)/n

, where, as before, Pred(I

,R)

predicts the number of people on frame I

within the

ANovelFrameworkforComputingUniquePeopleCountfromMonocularVideos

ROI R. A few comments are in order here. First, not

all the people are staying within the ROI for the same

number of frames due to varying walking paces, and

different entry and exit points. So, the above formula

would indeed provide a crude estimate of the unique

people count. Second, even estimating the average

number of frames n

is a nontrivial task. Instead of

object tracking, we can try to ﬁnd out the foreground

pixel motion trajectories laid across the ROI. These

trajectories would provide us with the average num-

ber of frames for which a foreground pixel stayed

within the ROI. However, ﬁnding these trajectories

is a nontrivial task, mainly because of occlusions. A

practical and quick approximation to n

can be ob-

tained by dividing the distance d between a typical

entry and exit point on the ROI border by the average

foreground pixel speed s

(obtained by optical ﬂow)

computed on frame t. With these approximations, the

baseline method count turns into the formula: (

∑

t=t

Pred(I

,R))/d.

Furthermore, we treat the distance d as a tunable

parameter here. So, we choose its value by matching

the baseline count with the manual count on a train-

ing set of the ﬁrst 500 frames. We apply the baseline

method on both the UCSD and FUDAN datset. The

total unique count produced by the method for the

datasets are 1324.19 and 121.77 respectively, while

the manual counts are 1062 and 74. The compari-

son of accuracies of the proposed framework and the

baseline method as demonstrated in Table III and Ta-

ble IV shows that the proposed UIOC outperforms the

baseline method for both the datasets.

The unique people count is also recorded for the

baseline method on the same 5 mostly occluded video

clips from the UCSD dataset of length 1000 used for

UIOC. The result is plotted in Figure 8. Notice that on

the ﬁrst 1000 frames, the baseline method performed

well, because we have tuned d on the ﬁrst 500 frames.

The comparison here clearly shows that UIOC out-

performs much more in terms of accuracy, even in the

occluded regions.

7.2 Comparison with a

Detection-tracking Method

In Zeng et al.’s work, each individual person is de-

tected in a frame and then tracked in consecutive

frames until the person leaves the ﬁeld of view (Zeng

and Ma, 2010). The trajectory generated due to track-

ing represents a single individual. The number of tra-

jectories denote the number of people during a time

interval.

The detection here is a supervised method in

Table 3: Accuracy of three algorithms on the UCSD dataset.

Algorithm Predicted Manual Accuracy

People People (%)

Count Count

UIOC 1118.27 1062 94.70

Zeng et al. 727 1062 68.46

Baseline 1324.19 1062 75.31

Table 4: Accuracy of three algorithms on the FUDAN

dataset.

Algorithm Predicted Manual Accuracy

People People (%)

Count Count

UIOC 75.14 74 98.46

Zeng et al. 21 74 28.38

Baseline 121.77 74 35.45

which Zeng et al. use both Histogram of Gradients

(HOG) (Dalal and Triggs, 2005) and Local Binary

Pattern (LBP) (Ojala et al., 2002) features to detect

the head and shoulders of people to avoid partial oc-

clusion. For tracking, they use a particle ﬁlter tracker

(Chateau et al., 2006).

Zeng et al.’s method is also applied on both the

UCSD dataset and the FUDAN dataset. As it is a su-

pervised method, 50% of the total number of frames

is used for training and the remaining 50% for testing.

Though the detection process is tried to be made ro-

bust by taking into account both HOG and LBP fea-

tures, the detection performance was observed to be

somewhat poor on the datasets used here. This hap-

pens mainly because of two reasons. Since the size

of human beings is very small in the UCSD dataset,

the detection process becomes complicated as there

are fewer pixels on a human body to detect it prop-

erly. The second issue is the occlusion that plagues

both detection and tracking.

The performance evaluations of the detection-

tracking algorithm are tabulated in Table III for

the UCSD dataset and Table IV for the FUDAN

dataset showing that UIOC outperformsthe detection-

tracking algorithm for both the datasets.

Unique people count is also recorded for Zeng et

al.’s method on the same 5 mostly occluded video

clips from the UCSD dataset of length 1000 used for

UIOC. The results are plotted in Figure 8. The com-

parison here clearly shows that UIOC outperforms

much more in terms of accuracy, even in the occluded

regions.

VISIGRAPP2014-DoctoralConsortium

7.3 Comparison with a LOI Counting

Method

The LOI counting method described in the Flow-

Mosaicking method (Cong et al., 2009) counts the

number of people crossing a speciﬁc line of interest

based on ﬂow velocity estimation and temporal image

generation. This method was applied on 12 videos

of the LHI dataset (Cong et al., 2009). The videos

are captured with camera angles of 90, 65 and 40 de-

grees respectively. There are 4 videos corresponding

to each angle and the videos have different views and

different lengths. We have chosen ROIs similar to

those used in the paper (Cong et al., 2009). These

ROIs are shown in Figure 7. We run our UIOC frame-

work on all 12 videos of the LHI dataset and provide

a comparative study of our accuracies versus the ac-

curacies of the Flow-Mosaicking method in Table V.

We observe that the accuracy of our method on all 12

videos exceed those of the LOI counting method. We

attribute the failure of the LOI method here on inaccu-

racies arise due to the analysis of the temporal images.

In contrast, our method does not rely on any temporal

images or their analysis.

7.4 Work on Multiple ROIs

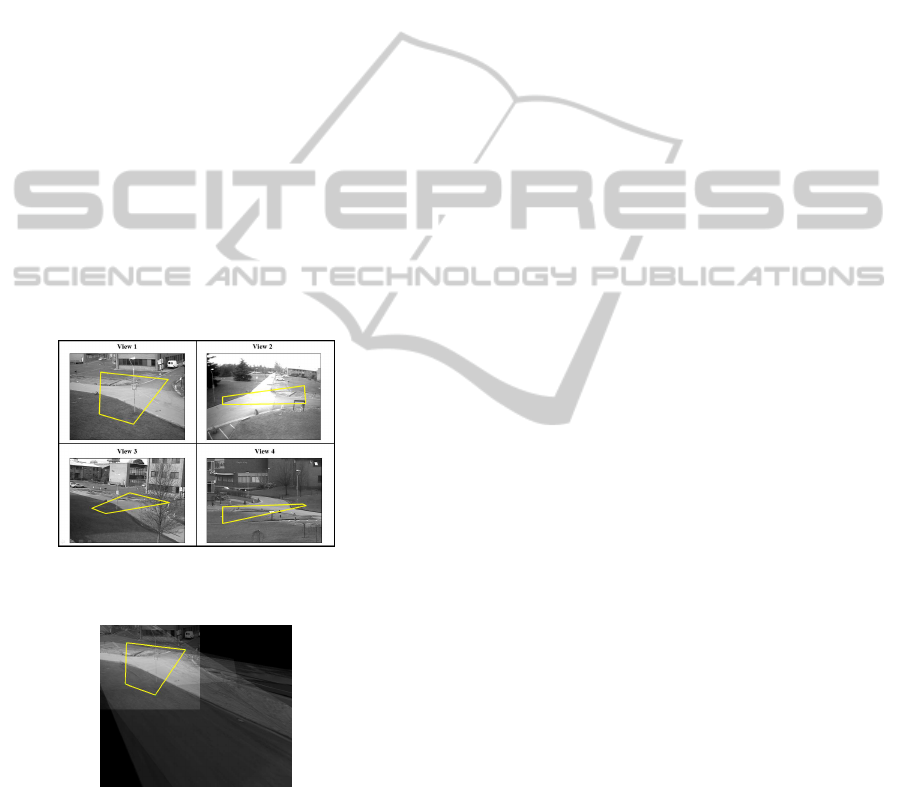

In order to increase the accuracy of the UIOC frame-

work, we apply it on multiple ROIs, rather than on a

single ROI as shown in Figure 11. Apart from the ROI

in the middle on which we train our machine learner,

we take more ROIs to take different sample regions

from the image. To avoid the increase of computa-

tional cost due to multiple ROIs, we plan to apply the

machine learner only once. In order to incorporate

this idea, initially we calculate the ratio of the num-

ber of people present in a ROI versus foreground area,

denoted by α. The plot of α for the ﬁrst 300 frames

of the UCSD dataset is shown in Figure 10. The num-

ber of people used for obtaining this ratio is calcu-

lated on the training ROI, ie the ROI on which the

machine learner is trained. By observing the graph in

Figure 10, we note that α does not vary dramatically

within a short period of time. Thus, we can calculate

the inﬂux count for ROIs with the following equation:

∆C

= α

t+∆t

(R∪R

) − α

(R)

where,

= Pred(I

,R)/A

(R)

t+∆t

= Pred(I

t+∆t

,R)/A

t+∆t

(R)

(R): foreground area of ROI R at time t

R: actual ROI

: deformed ROI due to boundary tracking

∆C

: inﬂux at time t.

Figure 10: Plot of α over time.

Figure 11: Multiple ROIs.

Once we get the total inﬂux count for all the indi-

vidual ROIs, we take the average to compute the ﬁnal

unique count. Number of ROIs is a design parame-

ter here. On the training set, we empirically found

that we obtained maximum accuracy with 3 ROIs.

The experimental unique count achieved is 1078.41,

whereas the manual count was 1062. The accuracy

is 98.45% on the entire UCSD dataset. In compari-

son, the unique count was 94.70% with a single ROI

previously.

8 ADDITION OF

DIRECTIONALITY

In addition to total people count, we also intend to

incorporate directionality in our framework. We test

this idea on the UCSD dataset. In the UCSD dataset,

the people ﬂow goes mainly in two directions: north

and south. In order to count the number of peo-

ple heading north, we need to take into account the

people exiting through the upper boundary i.e., the

directional outﬂux through the upper boundary, be-

cause the people who are entering the ROI through

the lower boundary are exiting the ROI through the

upper boundary. Similarly, for counting the people

heading south, we need to consider the people exiting

through the lower boundary ie the directional outﬂux

through the lower boundary.

Figure 12 explains how the directional counting

works. The top left panel of Figure 12 illustrates the

positions of people and the ROI R at time instant t.

ANovelFrameworkforComputingUniquePeopleCountfromMonocularVideos

Table 5: Comparative study of the UIOC method and the Flow-Mosaicking method (Cong et al., 2009) on the LHI dataset.

Camera Angle Video name Video Length Total no. of Accuracy (%) Accuracy (%)

(min:sec) pedestrians UIOC method Flow mosaicking method

1-1 8:59 256 99.64 97.66

1-2 14:48 247 97.02 94.33

1-3 4:30 23 96.61 95.65

1-4 5:30 180 98.63 93.33

2-1 11:29 62 98.27 83.87

2-2 8:24 300 96.21 84.67

2-3 3:45 42 91.26 90.48

2-4 4:40 44 99.72 86.36

3-1 7:16 29 97.25 82.76

3-2 25:35 267 94.64 93.26

3-3 13:08 288 99.26 93.75

3-4 10:08 40 93.08 87.50

Figure 12: Addition of directionality.

The top right panel displays the positions of people at

time instant t+∆t as well as the deformed ROI R

. R

is a result of tracking the boundaries of R between t

and t +∆t. The bottom left panel shows R

intersected

with R at the upper boundary, which we need in order

to compute the number of people heading north. The

bottom right panel shows R

intersected with R at the

lower boundary which we need in order to compute

the number of people heading south. The number of

people heading north is given by the difference of the

number of people present in the actual ROI and the

number of people present in the deformed ROI, which

is formed from the intersection of R and R

at the top

i.e., ∆C

= 4 − 2 = 2. On the other hand, the number

of people heading south is given by the difference of

the number of people present in the actual ROI and

the number of people present in the deformed ROI,

which is formed by the intersection of R and R

at the

bottom i.e., ∆C

= 3− 2 = 1. Summing ∆C

and ∆C

and dividing a speciﬁc time interval, we get the total

number people moving north and the total number of

people moving south respectively.

We test the method on the ﬁrst video of the UCSD

dataset, which has the densest crowd. We manually

count the number of people heading north and south

separately and then run our framework to get the ex-

perimental count. We achieve more than 90% accu-

racy in both cases as tabulated in Table VI.

Table 6: Performance of UIOC for directionality.

Direction Manual Accuracy

People Count (%)

North 183 94.17

South 204 93.23

9 APPLICATION ON MULTIPLE

VIEWS

For extending our framework towards more bench-

mark datasets, we apply it on multiple views of the

PETS 2009 dataset. (S1-L2 view, Time 14-31).

In order to apply the UIOC framework on mul-

tiple views, the ﬁrst step is to merge multiple views

together in order to choose a ROI. Using a simple

program that uses the OpenCV library, the views

are merged by their overlapping areas to create an

extended view. This is accomplished by manually

choosing corresponding points between the source

images (views two, three and four) and the destination

image (view one) which are the four views presented

in Figure 13. Using these points and OpenCV library

functions, the homography among the views is found

and used to transform views two, three, and four into

the closest match of view one.

Once the three views are transformed, all four

views are superimposed on top of one another for the

actual merging. Figure 14 shows the merged view.

The ROI is then chosen on the merged image. For

each view that is transformed, the coordinates of the

chosen ROI are transformed using the inverse of the

VISIGRAPP2014-DoctoralConsortium

transformation matrix that is used to transform the im-

age to match view one. In this way, the newly trans-

formed ROI corresponds roughly to the correct loca-

tion on each original view. Also, any points too close

to the edges or out of bounds have to be moved in.

In the case of the PETS data, as all the views have

signiﬁcant overlap and there is not much room to lose

people in, the count for each view should theoretically

be almost the same. Therefore, at the end of the pro-

gram, the average count among all four views is taken

as the ﬁnal estimated people count. The actual count

for the selected ROI is 38, and the estimated count is

38.49 which produces 98.71% accuracy.

We compare our results with an existing multi-

camera person tracking work (Krahnstoever et al.,

2008). According to (Krahnstoever et al., 2008), the

people count accuracy on PETS 2009 S1-L2 dataset

(Time 14-31) is almost 82% whereas our accuracy is

98.71% which we achieve without taking into consid-

eration any homography constraints.

So, the UIOC framework, though initially devel-

oped for monocular videos, is proved to be ﬂexible

enough to perform well even on a network of cameras

capturing multiple human views.

Figure 13: The four different views and the chosen ROIs on

the PETS 2009 S1-L2 dataset.

Figure 14: Merged view of PETS dataset.

10 CONCLUSIONS

We design a novel framework for ﬁnding the unique

people count on monocular videos. Our framework

is capable of counting the total number of people in a

speciﬁc time interval by overcoming occlusion, which

is one of the most dominant problems in the domain

of computer vision based solutions to people count-

ing. We achieve more than 95% accuracy on numer-

ous publicly available benchmark videos. Our method

outperforms two state of art algorithms and a baseline

method. We even extend our framework to work on

multiple views with highly satisfactory accuracy.

11 EXPECTED OUTCOME

The expected outcome of my research is to produce

a people counting software, the input of which will

be a monocular video and the output will be the to-

tal unique count of people within the video. We ex-

pect to produce more than 90% accuracy in all kinds

of human video. The software is user friendly and

can generate results in real time. Thus it is viable for

commercialization. Once commercialized, the soft-

ware can be used in many real life scenarios like traf-

ﬁc management, surveillance videos and many other

video analytic applications as discussed earlier in this

paper.

ACKNOWLEDGEMENTS

The authors would like to thank Dr. Yang Cong for

the LHI dataset. The authors also acknowledge the

following sources of funding for this work: NSERC,

AQL Management Consulting Inc., and Computing

Science, University of Alberta.

REFERENCES

Barnich, O. and Droogenbroeck, M. V. (2011). Vibe: A

universal background subtraction algorithmfor video se-

quences. Transactions in Image Processing, 20:1709–

1724.

Black, J. and Ellis, T. (2006). Multi camera image tracking.

Image and Vision Computing, 24:1256–1267.

Box, P. C. and Oppenlander, J. C. (2010). Manual of trafﬁc

engineering studies. Technical report, Institute of Trans-

portation Engineers.

Brostow, G. J. and Cipolla, R. (2006). Unsupervised

bayesian detection of independent motion in crowds. In

CVPR, pages 594–601.

Chan, A. B., Liang, Z. S. J., and Vasconcelos, N. (2008).

Privacy preserving crowd montioring: counting people

without people models or tracking. In CVPR, pages 1–7.

Chan, A. B. and Vasconcelos, N. (2009). Bayesian poisson

regression for crowd counting. In ICCV, pages 1–7.

Chan, A. B. and Vasconcelos, N. (2012). Counting people

with low-level features and bayesian regression. In TIP,

volume 21, pages 2160–2177.

ANovelFrameworkforComputingUniquePeopleCountfromMonocularVideos

Chateau, T., GayBelille, V., Chausse, F., and Lapreste, J.

(2006). Real-time tracking with classiﬁers. In ECCV,

pages 218–231.

Cong, Y., Gong, H., Zhu, S., and Tang, Y. (2009). Flow mo-

saicking: Real-time pedestrian counting without scene-

speciﬁc learning. In CVPR, volume 1093-1100.

Conte, D., Foggia, P., Percannella, G., Tufano, F., and

Vento, M. (2010). Counting moving people in videos

by salient points detection. In ICPR, pages 1743–1746.

Dalal, N. and Triggs, B. (2005). Histograms of oriented

gradients for human detection. In CVPR, pages 886–893.

Harasse, S., Bonnaud, L., and Desvignes, M. (2005). Peo-

ple counting in transport vehicles. Transactions on Engi-

neering, Computing and Technology, 4:221–224.

Horn, B. and Schunck, B. (1981). Determining optical ﬂow.

Artiﬁcial Intelligence, 17:185–203.

Hou, C. P., Zhang, C. S., Wu, Y., and Nie, F. P. (2010).

Multiple view semi-supervised dimensionality reduction.

Pattern Recognition, 43:720–730.

Kim, J., Choi, K., Choi, B., and Ko, S. (2002). Real-

time vision-based people counting system for the secu-

rity door. ITC-CSCC, pages 1418–1421.

Kim, Y. S., Lee, G. G., Yoon, J. Y., Kim, J. J., and Kim,

W. Y. (2008). A method of counting pedestrians in

crowded scenes. In International Conf. on Intelligent

Computing, pages 1117–1126.

Krahnstoever, N., Yu, T., Patwardhan, K. A., and Gao, D.

(2008). Multi-camera person tracking in crowded envi-

ronments. In PETS workshop, pages 1–7.

Lempitsky, V. and Zisserman, A. (2010). Learning to count

objects in images. NIPS.

Ma, Z. and A.B.Chan (2013). Crossing the line: Crowd

counting by integer programming with local features. In

CVPR, pages 2539–2576.

McFarlane, N. J. B. and Schoﬁeld, C. P. (1995). Segmen-

tation and tracking of piglets in images. Machine Vision

and Applications, 8:187–193.

Ojala, T., Pietikainen, M., and Maenpaa, T. (2002). Mul-

tiresolution gray scale and rotation invariant texture anal-

ysis with local binary patterns. In PAMI, volume 24,

pages 971–987.

Rabaud, V. and Belongie, S. J. (2006). Counting crowded

moving objects. In CVPR, pages 705–711.

Rasmussen, C. E. and Williams, C. K. I. (2006). Gaus-

sian Processes for Machine Learning. MIT Press, Cam-

bridge, MA.

Smola, A. and Scholkopf, B. (1998). A tutorial on sup-

port vector regression. NeuroCOLT Technical Report

NC-TR-98-030, Royal Holloway College, University of

London, UK.

Stauffer, C. and Grimson, W. (1999). Adaptive background

mixture models for real-time tracking. In CVPR, pages

246–252.

Tan, B., Zhang, J., and Wang, L. (2011). Semi-supervised

elastic net for pedestrian counting. Pattern Recognition,

44:2297–2304.

Zeng, C. and Ma, H. (2010). Robust head-shoulder detec-

tion by pca-based multilevel hog-lbp detector for people

counting. In ICPR, pages 2069–2072.

Zhu, X. J. (2005). Semi-supervised learning literature sur-

vey. Technical Report Technical Report 1530, University

of Wisconsin-Madison.

VISIGRAPP2014-DoctoralConsortium
