Hardware Implementation of Smart Embedded Vision Systems

Elisa Calvo-Gallego, Piedad Brox and Santiago Sánchez-Solano

Instituto de Microelectronica de Sevilla IMSE-CNM, CSIC - University of Seville, Seville, Spain

1 INTRODUCTION

The research presented in this contribution is

focused on the efficient hardware implementation of

image processing algorithms that are present at

different levels of a smart vision system. The system

is conceived as a reconfigurable embedded device

which, in turn, will be a node of a collaborative

sensor network.

The inclusion of fuzzy logic techniques is

explored to improve the performance of

conventional vision algorithms.

This project is integrated into the research line

dedicated to 'Embedded Systems' of the 'Micro-

electronics' PhD Program from the University of

Seville (“Microelectronics doctorate program”). The

author is financially supported by one of the most

prestigious fellowship in Spain, the FPU Program

from the Ministry of Education of the Spanish

Government. The work is partially funded by project

TEC2011-24319 from the Spanish Government with

support from FEDER.

2 RESEARCH PROBLEM

Digital image/video processing is a key discipline

due to the wide range of applications in which it

could be used. Not only it is required by necessity in

professional areas such as industry (in sectors as

automotion, packing, robotics, etc.), medicine (real-

time monitoring of cells or viruses, rehabilitation-

physical therapy, etc.), environment (fire detection,

animal population monitoring, etc.) or security

(building/area surveillance), but also it is required in

consumer products for applications more related to

entertainment and enjoyment (Figure 1).

As a consequent of this relevance, many efforts

are being invested in the development of new

systems able to provide improved functionalities and

to support emerging applications. Many of these

new applications require the integration of vision

systems in embedded devices, like PDAs, mobile

phones or sensor networks (Figure 2).

The majority of the vision algorithms proposed

in literature are not conceived to be implemented on

platforms with limited resources being necessary an

adaptation process. In addition, many applications

require autonomous devices, which demand

solutions with low-power consumption. However,

these systems have to work in real-time demanding a

high processing time, which is besides continuously

increasing due to the use of high resolution cameras.

These facts force designers to study different options

as alternative to classical software implementations

on CPUs or GPUs, whose computational/

programming models are far to satisfy real-time

requirements of the majority of video standards.

Moreover, they involve a high economic cost and

they are not a low-power consumption solution.

In this sense, the use of hardware/software co-

design methodologies and Field Programmable Gate

Arrays (FPGAs) could be a good idea to accelerate

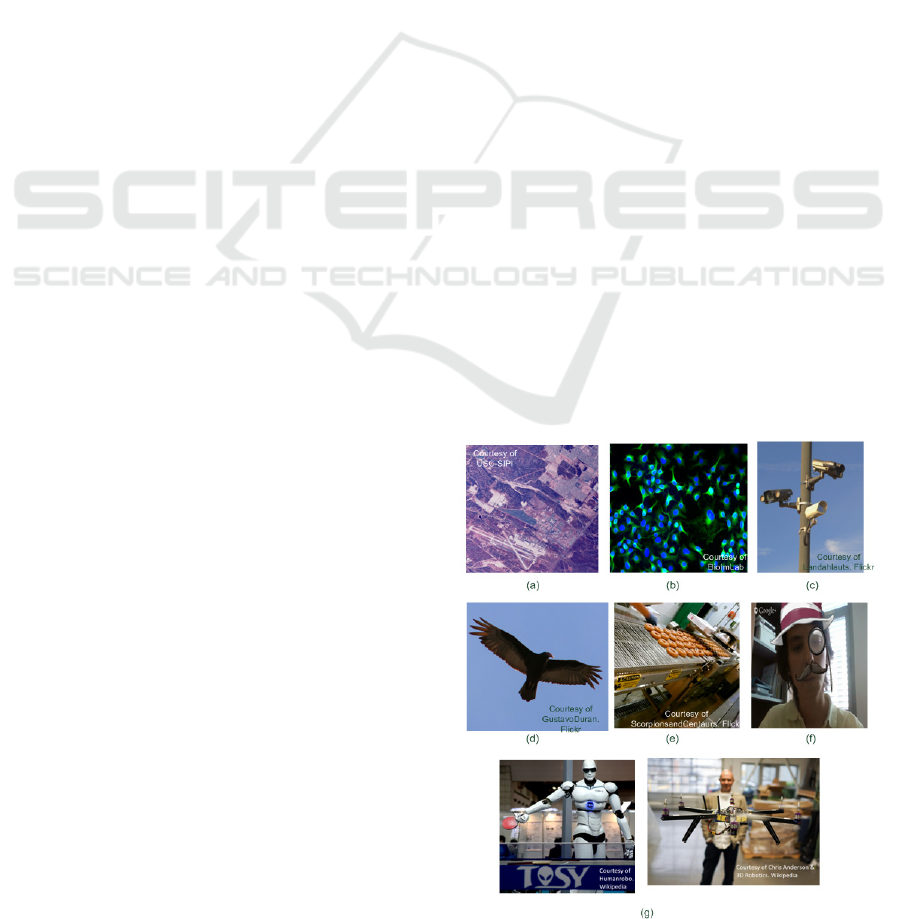

Figure 1: Examples of applications where image or video

processing is essential (a) Aerial Topography. (b)

Medicine. (c) Security. (d) Environmental Sciences. (e)

Industry. (f) Entertainment. (g) Robotics.

Calvo-Gallego E., Brox P. and Sánchez-Solano S..

Hardware Implementation of Smart Embedded Vision Systems.

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

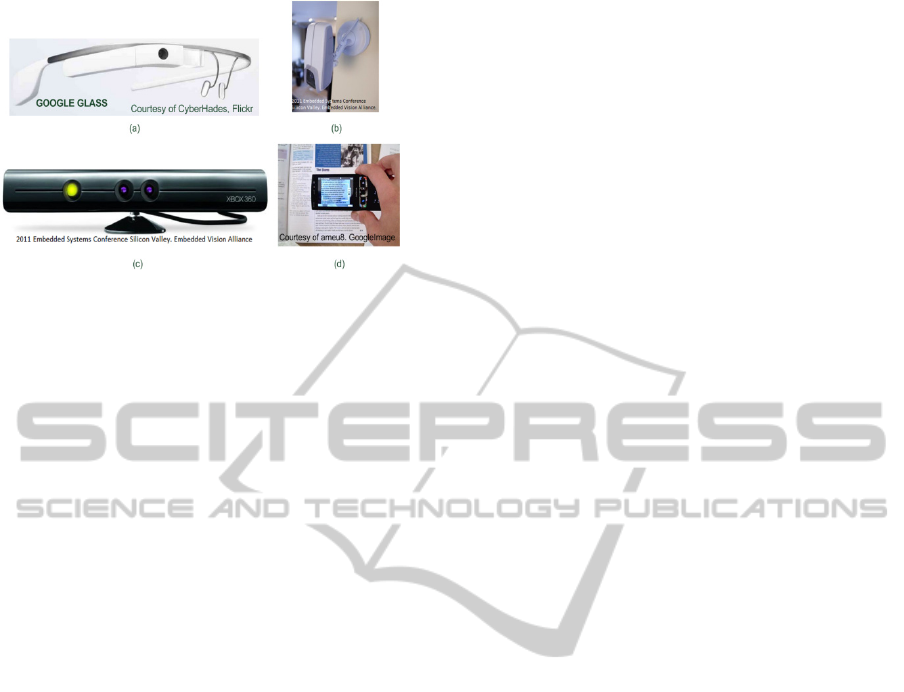

Figure 2: Examples of vision embedded systems (a)

Google Glass (b) Security Camera (c) Kinetic. XBox

Game Console (d) Text Reader on a mobile phone.

the development of smart video embedded systems

required by this kind of applications.

The hardware/software co-design concept stated

to emerge in 1990s. It consists of designing a mixed

hw/sw system where the coexistence between the

two kinds of components is taken into account along

all the design process. This design strategy allows

designers to accelerate software implementations by

moving timing-critical tasks to hardware. In the last

years, a set of new computer aided design tools (i.e.

Vivado HLS) has appeared which allows the

exploitation of hw/sw co-design techniques in

FPGAs. These electronic components are essentially

high density arrays of uncommitted logic. They are

very flexible devices where developers can establish

trade-offs between resources and performance by

selecting the appropriate level of parallelism to

implement an algorithm. In this way, FPGAs could

be excellent platforms for final hardware realization

or for systems prototyping to be implemented as

application specific integrated circuits (ASIC).

In addition to the challenges of adapting vision

algorithms to new platforms and its integration on

reconfigurable devices, others research problems to

tackle are related to common difficulties in image

and video processing. For example, noise or

illumination changes could be a problem in all the

stages of a vision system.

These obstacles can be faced up modifying the

existing algorithms with the knowledge coming

from other areas such as statistic or soft-computing.

This last term was introduced in the middles of 90s

by Zadeh to encompass a set of techniques (fuzzy

logic, neuro-computing, etc.) that allow designers to

manage uncertainty and vagueness inherent to many

natural problems, trying to emulate the human

reasoning. These properties have been widely

exploited in low- and middle-level tasks in image

and video processing. Some examples are noise

filtering and video de-interlacing, where the use of

neuro-fuzzy techniques improves the performance of

conventional algorithms.

Finally, more complex vision systems are

distributed. This means that this kind of algorithms

are implemented in a collaborative network, where

several nodes co-operate to carry out the assigned

work. This strategy provides a lot of improvements

in performance and computing. However, it presents

some problems as a consequence of the limited

network capacity, the way in which the information

of the different nodes is exchanged, shared,

protected and processed to validate a decision or to

rectify errors, and the manner in which the partition

of tasks is done.

3 STATE-OF-ART

As this PhD project addresses the general flow of a

vision system, it would be difficult to include here a

complete review of the contributions in the state-of-

art. A block diagram of a complete vision system is

illustrated in Figure 3. Each one of the algorithms

that are implemented in each stage is briefly

introduced herein.

A large variety of papers has been published

regarding low-level processing operations. Among

them, lens distortion / correction, color space

conversion, feature detection (edges or corners),

filtering (noise reduction) or picture enhancement

(contrast improvement in the image by means of the

redistribution of the pixel values) could be found.

Normally, low-level processing algorithms are

relatively simple and they could be processed in

pixel time without needing to consume a large

amount of resources. Some works in this level are

(Bailey, 2011)(Wnuk, 2008). The experience of our

research group in this area has allowed the

development of a library of hardware Intellectual-

Property modules (Garcés-Socarrás et al., 2013).

Some examples of medium-level processing

algorithms are background subtraction (moving

objects in a scene are identified), labeling

(connected components in an image are identified in

a unique way) or segmentation (objects or regions

with similar properties in an image are isolated).

Hardware implementation of this kind of algorithms

is more complex. They could need several frame-

buffers to save intermediate results and its

implementation in real-time is not always achieved.

Labeling algorithms are classified in the

literature attending to multiples criterions such as the

level of parallelization or the way in which the

VISIGRAPP2014-DoctoralConsortium

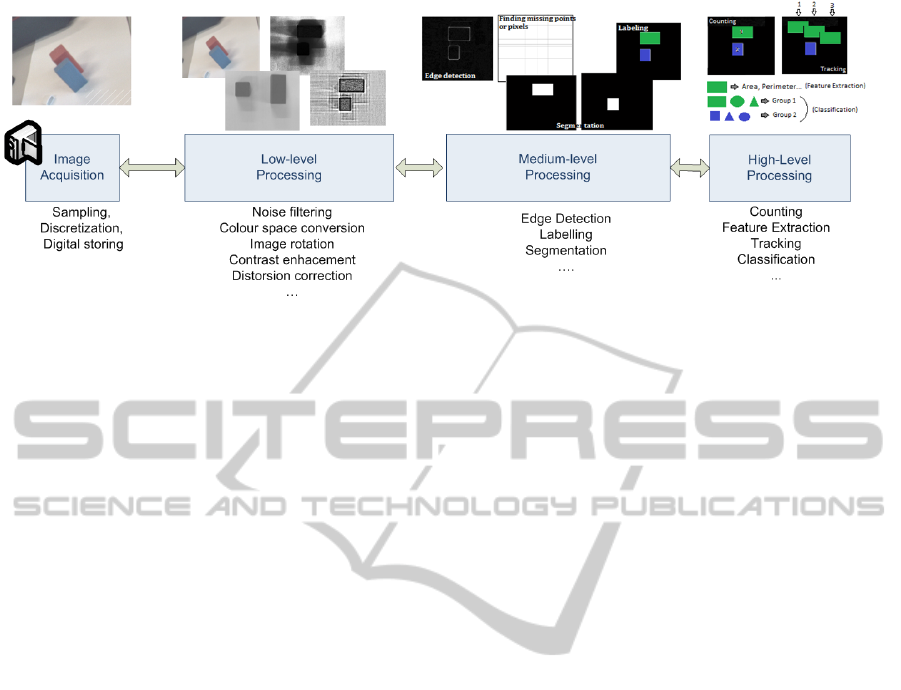

Figure 3: Complete vision system.

image is represented. However, a classification

according to the number of image scans is found in

(Calvo-Gallego, 2011). In a first group, one-scan

algorithms, as region growing, contour and feature

extraction algorithms, are described. The main

drawback of many of them is an irregular and

random mode to access to memory. Multi-scan

algorithms, in the second group, have simple

hardware implementation due to its regular accesses

to memory, but their execution time depends on the

position of the pixels in image, so it is impossible to

determine its duration and, therefore, to achieve real-

time operation. Third group is composed by two-

scan algorithms. Proposals of two-scan algorithms

differ from each other in the method and data

structure used to save label equivalences, and in the

way it is performed the final resolution. A good

algorithm of labeling is provided on (Bailey and

Johnston, 2007).

On other hand, background subtraction

algorithms are usually classified into different

categories: basics (frame differencing, mean

filtering, median filtering, etc.); statistical (Gaussian

model-based, support vector based, learning

subspaces based); of estimation (application of

Kalman filter, wiener filter, etc.); neural-network

and fuzzy logic modeling; and clustering. A review

of existence methods could be found in (“BS_Rev,”

n.d.). In terms of complexity, basic methods could

be implemented in hardware, although they consume

a lot of memory since they are based in the analysis

of several previous frames. Other options are the

simplification and adaptation of complex methods

(Appiah and Hunter, 2005).

Finally, complex feature extraction (color,

texture, position, shape, motion, etc.), stereo vision

and tracking techniques are included among high-

level processing algorithms. Hardware implemen-

tation of feature extraction algorithms have been

recently proposed in (Svab et al., 2009)(Schaeferling

and Kiefer, 2010). Stereo vision systems obtain the

position of the points in the scene from several

images. The key problem is the selection of

characteristics points in one of the images and its

identification in the other ones. Hardware

implementations are performed using sum-of-

absolute-differences or sum-of-squared-differences.

A complete revision can be found in (Lazaros et al.,

2008). Tracking techniques are used to monitor the

movement of an object. A review of classical

algorithms can be found in (Yilmaz and Javed,

2006). Hardware implementations are provided on

(Cho et al., 2006) and (Fan Yang and Paindavoine,

2003).

High-level algorithms are complex and, in

occasions, it is necessary to use more than one

reconfigurable device to provide a real-time

solution.

Concerning collaborative sensor networks, some

fundamental ideas have to be explored. Although

there are some publications in which the network is

composed by independent cameras (Stillman et al.,

1999), it is more frequent to find works focused on

the learning of a topology of a network (Zhao et al.,

2008), the way of calibrating the system (Lobaton et

al., 2010) or the control or parameters definition in

pan, till and zoom networks (Everts et al., 2007).

Regarding the applications developed over these

distributed networks, object detection, tracking,

recognition or pose estimation could be found in

(Sankaranarayanan et al., 2008), (Chen Wu and

Aghajan, 2008).

4 OBJETIVES

The main objective of this research is the design of

efficient image/video processing algorithms tailored

HardwareImplementationofSmartEmbeddedVisionSystems

for hardware implementation on reconfigurable

devices. Based on this idea, the research will cover

these three lines:

 The improvement of existing algorithms with

a double purpose: its integration in embedded

devices and the increasing of its performance

by means of the use of soft-computing

techniques (Nachtegael et al., 2007).

 The efficient hardware implementation of

algorithms into reconfigurable devices.

 The use of design methodologies that allow us

to reduce implementation and verification

times. Specifically, a model-based design

methodology based on Matlab/Simulink and

Xilinx Tools, which provides a common

integrated framework to cover all the steps in

the design flow (from software implement-

tation to hardware co-simulation), will be

used.

5 METHODOLOGY AND TOOLS

The followed methodology to develop each block of

the system will be:

 Review of the State-of-Art: The initial step in

each block is to review the fundamentals as

well as previously published works. In this

way, enough knowledge to face up to the

problem will be acquired.

 Software Implementations: For a better

understanding of the studied methods, and in

order to compare the results with the obtained

in other works, software implementations of

analyzed algorithms will be developed.

 Studies about improved Algorithms: Once the

limits of current methods have been evaluated,

the incorporation of new proposals will be

analyzed. Soft-computing techniques could be

applied in some cases. In this point,

algorithms suited for a hardware

implementation will be especially considered.

 Design and Hardware Implementation of Final

Algorithms: A microelectronic design of the

algorithms for a reconfigurable device will be

developed. Different options to optimize area

and timing will be considered to achieve the

goals. Moreover, advantages, constraints and

cost of a possible hw/sw partition must be

studied to find the optimal solution.

 Verification stage: To verify the desired

behavior of the block and characterize it from

the point of view of resources, operation

speed, etc.

 Integration as IP Core: The adaptation of the

designed blocks for its integration as IP Core

of standards embedded microprocessor on

FPGA.

Once completed the design of the considered blocks,

a demonstrator of a whole system and a prototype of

the network will be built. Among the applications,

environmental, security and surveillance will be

considered.

5.1 State of Research

This research work started after finishing the Master

in Microelectronics (“Microelectronics Master,”).

As final project of this master some hardware

implementations of connected component labeling

algorithms were developed (Calvo-Gallego et al.,

2012b). Two simple demos to illustrate theirs

applications in counting and tracking were also

included. After that, a new implementation that takes

advantage of the blanking periods in video standards

and temporal parallelism was proposed. This last

implementation was integrated on a Spartan 3A DSP

3400 development board and it was able to process

VGA (640x480) video sequences from Micron

MT9V022 camera (Calvo-Gallego et al., 2012a).

After developing a deep study about state-of-art

in background subtraction, the student proposed in a

recent publication an algorithm to improve

background subtraction using fuzzy logic (Calvo-

Gallego et al., 2013).

Currently, her work is centered on developing an

efficient hardware implementation of this algorithm.

6 EXPECTED OUTCOME

Efficient hardware implementation of a smart

embedded vision system is going to be carried out.

This system will be a node of a distributed sensor

network, able to tackle complex tasks.

Environmental and surveillance applications for this

network will be considered. It is expected to transfer

this knowledge to industrial companies.

VISIGRAPP2014-DoctoralConsortium

REFERENCES

Bailey, D.., Johnston, C.., 2007. Single Pass Connected

Components Analysis.

Bailey, D.G., 2011. Design for embedded image

processing on FPGAs. John Wiley & Sons (Asia),

Singapore.

BS_Rev [WWW Document], n.d. URL https://

sites.google.com/site/thierry- bouwmans/background-

subtraction

Calvo-Gallego, E., 2011. Implementación sobre FPGAs de

algoritmos de procesamiento de imágenes para

etiquetado de componentes conectados (Trabajo Fin de

Máster Máster en Microelectrónica: Diseño y

Aplicaciones de Sistemas Micro/Nanométricos).

Sevilla.

Calvo-Gallego, E, Aldaya-Cabrera, A., Brox, P, Sánchez-

Solano, S, 2012a. Real-time FPGA Connected

Component Labeling System. Presented at the 19th

IEEE International Conference on Electronics,

Circuits and Systems (ICECS),.

Calvo-Gallego, E., Brox, P., Sanchez-Solano, S., 2012. Un

algoritmo en tiempo real para etiquetado de

componentes conectados en imágenes, in: Proceedings

of the XVIII International IBERCHIP Workshop.

Calvo-Gallego, E, Brox, P, Sanchez-Solano, S, 2013b. A

Fuzzy System for Background Modeling in Video

Sequences. Springer, Lecture Notes in Artificial

Intelligence (LNAI) 184–192.

Chen Wu, Aghajan, H., 2008. Real-Time Human Pose

Estimation: A Case Study in Algorithm Design for

Smart Camera Networks. Proc. IEEE 96, 1715–1732.

Cho, J.U., Jin, S.H., Dai Pham, X., Jeon, J.W., Byun, J.E.,

Kang, H., 2006. A real-time object tracking system

using a particle filter, in: Intelligent Robots and

Systems, 2006 IEEE/RSJ International Conference

On. pp. 2822–2827.

Everts, I., Sebe, N., Jones, G.A., 2007. Cooperative Object

Tracking with Multiple PTZ Cameras. Presented at the

14th International Conference on Image Analysis and

Processing, 2007. ICIAP 2007, pp. 323–330.

Fan Yang, Paindavoine, M., 2003. Implementation of an

rbf neural network on embedded systems: real-time

face tracking and identity verification. IEEE Trans.

Neural Networks 14, 1162–1175.

Garcés-Socarrás, L.., Sánchez-Solano, S., Brox, P.,

Cabreara Sarmiento, A.., 2013. Library for model-

based design of image processing algorithms on

FPGAs. Rev. Fac. Ing. Univ. Antioquia, n

68 3–5.

Lazaros, N., Sirakoulis, G. C., Gasteratos, A., 2008.

Review of Stereo Vision Algorithms: From Software

to Hardware. Int. J. Optomechatronics 2, 435–462.

Lobaton, E., Vasudevan, R., Bajcsy, R., Sastry, S., 2010.

A Distributed Topological Camera Network

Representation for Tracking Applications. IEEE

Trans. Image Process. 19, 2516 –2529.

Microelectronics doctorate program [WWW Document],

URL http://www.phdmicroelectronica.us.es/eng/?pag=

general_description

Microelectronics Master [WWW Document], URL

http://www.mastermicroelectronica.us.es/)

Nachtegael, M., Van der Weken, D., Kerre, E.E., Philips,

W., 2007. Soft Computing in Image Processing,

Studies in Fuzziness and Soft Computing,. Springer

Verlag.

Sankaranarayanan, A.C., Veeraraghavan, A., Chellappa,

R., 2008. Object Detection, Tracking and Recognition

for Multiple Smart Cameras. Proc. IEEE 96, 1606–

1624.

Schaeferling, M., Kiefer, G., 2010. Flex-SURF: A flexible

architecture for FPGA-based robust feature extraction

for optical tracking systems, in: Reconfigurable

Computing and FPGAs (ReConFig), 2010

International Conference On. pp. 458–463.

Stillman, S., Tanawongsuwan, R., Essa, I., 1999. Tracking

multiple people with multiple cameras, in:

International Conference on Audio-and Video-based

Biometric Person Authentication.

Svab, J., Krajník, T., Faigl, J., Preucil, L., 2009. Fpga

based speeded up robust features, in: Technologies for

Practical Robot Applications, 2009. TePRA 2009.

IEEE International Conference On. pp. 35–41.

Wnuk, M., 2008. Remarks on Hardware Implementation

of Image Processing Algorithms. Int. J. Appl. Math.

Comput. Sci. 18.

Yilmaz, A., Javed, O., 2006. Object Tracking: A Survey.

ACM Comput. Surv. 38.

Zhao, J., Cheung, S.-C., Nguyen, T., 2008. Optimal

Camera Network Configurations for Visual Tagging.

IEEE J. Sel. Top. Signal Process. 2, 464 –479.

HardwareImplementationofSmartEmbeddedVisionSystems
