Towards Multi-level Organizational Control Framework to Manage
the Business Transaction Workarounds
Sérgio Guerreiro
Lusófona University, Campo Grande, 376, 1749-024 Lisbon, Portugal
Keywords: Business Transaction, Control, Framework, Model, Operation, Workaround.
Abstract: Organizations strive to find solutions that perform their business processes more efficiently and effective.
Steering the organizational operation using a priori prescribed models derives from the classical control
engineering theories. These approaches are valid for business information systems domain but require
contextual adaptation for dealing with concerns such as change management. In the context of business
transaction, the models prescribe the design freedom restrictions for producing a new service or product,
and share a common understanding between the stakeholders that have diverse interpretations of it.
However, for many and diverse reasons, organizational actors perform workarounds at operation time that
could be extremely different from the previous prescribed business transaction models. This paper reviews
the organizational control related work and synthesizes it in a conceptual framework. The goal is to
establish a set of concepts, and their relationships, to identify workarounds occurring at operation time and
then feedback the organizational management with reviewed models, where the control solution
encompasses three competence levels: enterprise governance, business rules and access control.
1 INTRODUCTION
Dealing with the issues of efficiency and
effectiveness in business transaction operation are
cornerstone for a controlled organizational
environment. However, due to organizational
complexity, the classic control approaches are
insufficient because it is impracticable to entire
specify the dynamics of the system to be controlled
(Herwig, M. & Verelst, J., 2009). To produce
decisions about which action to enact, the
understanding of the essential dynamic of the
enterprise is crucial. Enterprise Ontology (EO)
(Dietz, 2006) and the emerging field of Enterprise
Engineering (EE) (Dietz et al., 2013) along with
dynamic systems control theory (Franklin et al.,
2009) are followed in this paper to support the
understanding of the business transactions dynamics
and the understanding of the workarounds. Theory
of workarounds is about how agents with some
degree of behavioural discretion decide whether to
follow established practices and what to do when
exceptions, anomalies and mishaps occur (Alter, in
press). Alter S. (2013) states that a workaround is a
goal-driven adaptation, improvisation, or other
change to one or more aspects of an existing work
system in order to achieve a desired level of
efficiency, effectiveness, or other organizational or
personal goals by overcoming, bypassing, or
minimizing the impact of obstacles, exceptions,
anomalies, mishaps, established practices,
management expectations, or structural constraints
that are perceived as preventing that work system or
its participants from achieving their goals.
The aim of this novel approach is to integrate a
set of concepts that are usually referred alone and
that appear to be incompatible. The relationships
that exist between the concepts are supported on
evidences from the related literature. This
conceptual integration allows the design of dynamic
systems control applied to the specific context of
business transactions operating at run-time.
Following this line of thought, whenever a
workaround occurs, the organization is aware of it
and thereafter it could act with a change in the
business transactions models or a change in the
access control models. In this paper, we propose a
multi-level organizational control framework to
manage the business transaction workarounds
grounded in the literature review and conceptual
synthesis. The following section motivates the need
for our study. Thereafter, section 3 includes related
288
Guerreiro S..
Towards Multi-level Organizational Control Framework to Manage the Business Transaction Workarounds.
DOI: 10.5220/0004870502880294
In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 288-294
ISBN: 978-989-758-029-1
Copyright
c
2014 SCITEPRESS (Science and Technology Publications, Lda.)
work identifying the core concepts for
organizational control. Section 4 designs the
framework. In the end, the paper concludes the
achievements obtained and identifies future work.
2 MOTIVATION
The idea of specifying a framework that is able to
cope with workarounds has the wide potential
application of offering some new insights to
business processes run-time compliance verification
and organizational access control models. These
following two applications are actually not
completely solved. In the first application, the
enforcement of Governance Risk and Compliance
(GRC) solutions for financial enterprises (Rozinat &
van der Aalst, 2008) are demanded by situations
such as on May 6, 2010 when the US equity market
experienced a severe drop in prices, falling more
than 5% in few minutes. In reaction to this, the
Securities and Exchange Commission (U.S.
Securities, 2010) proposed a rule to pause trading
whenever severe drops occur. The decision of
pausing in now based in the transaction price of a
primary listing market if it moves ten percent or
more in the preceding five minutes period. Although
the investors view the transaction prices as a single
number, it occurs in microseconds and involves
executing complex financial processes. GRC
observes each micro task of the financial process,
within every session, guarantying that the pre-
defined governance rules are satisfied; whenever
they are not satisfied, it may act pausing the market.
In the second application, the organizations need to
govern the user’s access to their artifacts using fine-
grained task-based policies. A lot of solutions are
mostly being considered in the technological part
regarding security, such as networks protocols,
authentication, federated entities, but in practice
these solutions are strictly applied to specific
enterprise architecture layers (usually the software
layers) and do not satisfy the concern of operating in
an unified and integrated organizational whole
(Nordberg, 2009; DHS, 2013; ENISA, 2013).
In reality, many control systems exist within an
organization and many different scientific
perspectives are actually available to the manager.
Some examples are the access control models
(Ferraiolo et al., 2001) that are responsible to grant
or revoke the user’s access to the different artifacts
that exists in an organization. Other example is the
business rules that are responsible to maintain the
organizational operation within predefined goals
(OMG, 2013b). Moreover, in a broader scope, the
Enterprise Governance that specifies the design
restrictions and the subsequent design for the
organizational models (Hoogervorst, 2009).
Also, in the IT industrial context, the efforts
presented by the well spread ITIL (OGC, 2011),
which is a set of good practices to be applied on
infrastructures, operation and maintenance of IT
services, shows a solution that prescribes and steers
the operation and a continuous change management
processes. COBIT (ISACA, 2013) prescribes a
framework to enforce IT with control mechanisms,
using good practices, policies, procedures, practices
and organizational structures. COBIT bridges the
gap between business risks, control needs and
technical aspects. As the main goal, the undesired
events are identified and corrected. Even in the
Human body, a multitude of control systems exists,
e.g., the Human Peripherical Nervous Systems
(PNS) or the Human Central Nervous Systems
(CNS).
Therefore, this paper is motivated on this
multitude of conceptual definitions pointing to the
need of control enforced inside the organization and
proposes a multi-level framework applied to the
specific problem of controlling the operation of
business transaction when workarounds occurs.
3 RELATED WORK
A business transaction is a model representation of a
given organizational reality that is valid within a
specific timeframe, and that should include who is
responsible for each part of the business transaction
and the comprehensive definition of system’s state
and transition (Guerreiro & Tribolet, 2013).
In addition, operation is defined by Dietz (2006)
as the collective activity of the elements in the
composition and the environment is called the
operation of the system. Thus, operation of a system
is the manifestation of its construction in the course
of time, encompassing both the productions as
performed by the elements in the composition and
the interactions through the structural bonds. From
the perspective of classic control concepts (Franklin
et al., 2009) the system that we want to control is the
execution of the business transactions. The purpose
of a control system is to react whenever the
disturbance affects the behavior of the system or
whenever a new input is established. By other
words, when the system is not producing the desired
output for the imposed input. Control act in the input
at the same time as the disturbance is affecting the
TowardsMulti-levelOrganizationalControlFrameworktoManagetheBusinessTransactionWorkarounds
289
system.

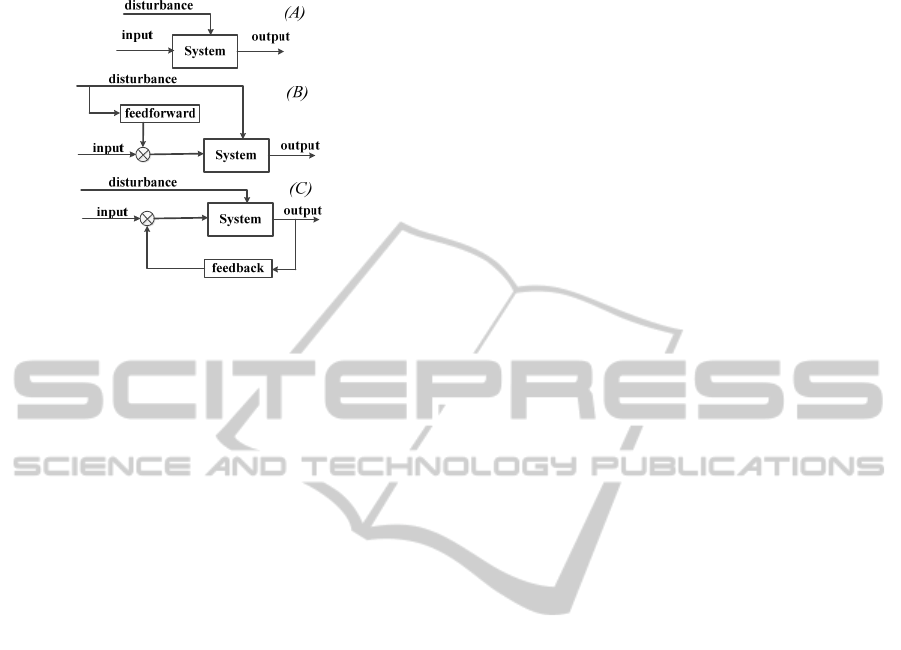

Figure 1: Design pattern of control systems. (A) without
control, (B) feed forward control and (C) feedback control.
Figure 1 depicts classical design patterns for a
control system. In the top, (A), it shows a system
that is not controlled. The disturbance always affects
the output delivered by the system. In this pattern, it
is not possible to guarantee the behavior of the
system output. In the middle, (B), a feed forward
pattern that shows that the system input changes
accordingly with the actual disturbance. Therefore,
the system dynamics it not included in the control
actuation. At the bottom of the Figure 1, (C), a
feedback control pattern calculates the system input
accordingly with the actual misalignment obtained
between the output and input. In this pattern, the
control actuation calculation takes into consideration
the disturbance and the system dynamics. Because
the system output depends on the disturbance
imposed in the system and on the system dynamics
itself. Moreover, to produce results, all systems
control requires the capabilities of observation and
actuation.
In the scope of a business transaction,
observation is the collection of states and transitions
whose actors are involved during operation. In fact,
there are parts of a business transaction that are
observable, while others are unobservable
(Guerreiro et al., 2012). Hence, not all the states of
the enterprise are controlled. Actuation is the
capability to act in the prescribed models.
3.1 Organizational Access Control
Ferraiolo et al. (2001) defines that access control, or
authorization in its broadest sense, is present in
today’s every information technology and is
concerned with the ways in which users can access
resources in the computer system, or informally
speaking, with ”who can do what”. By the authors,
access control is arguably the most fundamental and
most pervasive security mechanism in use today.
The author compares the actual access control
models with the Guards, gates and locks that have
been used since the ancient times to limit the
individual’s access to the valuables.
Nevertheless the development of the role-based
access control (RBAC) concepts, from the access
control models (ACM) community, this approach is
only helpful for specifying and implementing the
structural security access concerns for a single
organizational silo (Ferraiolo et al., 2001).
Typically, the ACM follows predefined policies that
are applied to a specific application layer of an
organization. Examples of such approach are the
discretionary access control (DAC), mandatory
access control (MAC), role-based access control
(RBAC), time-role-based access control (TRBAC),
Orcon or Chinese wall (Ferraiolo et al., 2001).
Organizational access control models (OACM) are
still evolving and are less mature. Concerns related
with the access control inside and outside of
organizations are identified in the literature (Bertino
et al., 1999; Kang et al., 2001). In this security
scope, it is also valuable to identify that the 2012
IBM tech trends report (IBM, 2012) points for
security as a major adoption barrier and requiring
focus beyond IT. The pacesetters organizational
actors are establishing security and privacy policies
ahead of their peers. IBM defines pacesetters, as the
ones that believe emerging technologies are critical
to their business success and are using them to
enable new operating/business models and that are
well ahead of competitors. In this scope, this report
recommends a better collaboration between
organizations and academia, as well as to develop
new strong security and privacy policies to protect
the informational assets.
During this research, it has been identified that
the solutions offered by ACM scientific community
are in most situations decoupled from the detailed
organizational artifacts, meaning that organizational
access control demands more research efforts.
3.2 Business Rules
A well-known example of low-level business rules
implementation is the SBVR language proposed by
OMG (2013b). Accordingly, Muehlen and Indulska
(2010) explain that separating the process modeling
languages and the business rules is not consensual,
because sometimes they are complementary in terms
of improving the organizational operation. These
authors describe the historical evolution of business
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
290
rules and investigate the representation capability of
Simple Rule Markup Language (SRML), the
Semantic Web Rules Language (SWRL), the
Production Rule Representation (PRR), and the
Semantics of Business Vocabulary and Business
Rules (SBVR) specification. A statement that aims
to influence or guide behavior and information in an
organization defines a business rule. The authors
highlight that business rules are a category in that
they focus on specifying what is required to take
place rather than how something is accomplished.
The evaluation uses Bunge–Wand–Weber (BWW)
representation theory (Wand & Weber, 1993) and
the results show that combining BPMN with SRML
provides the highest representation power while
suffering an amount of construct overlap that is no
higher than that of other language.
3.3 Enterprise Governance
The Enterprise Governance concept is strictly
related with the steering concern that exists in many
scientific efforts, such as, the General Systems
Theory (Bertalanffy, 1969), the Viable System
Model (Beer, 1979; Beer, 1981) and the recent
Enterprise Governance proposals (Hoogervorst,
2009; Hoogervorst & Dietz, 2008). In general,
organizational steering is related with the ability to
control, within a bounded effort, the operation of the
enterprise towards a desired prescription whenever
changes or perturbations occur. In line with this
concern, Guerreiro et al. (2012) integrates the
dynamic systems control (DSC) concepts with the
EE concepts to understand, design and implement
the enterprise dynamic systems control (EDSC).
More recently, in (Guerreiro & Tribolet, 2013) the
EDSC solution details the control for the actor’s
activity, checking workarounds between the
prescribed models and the observations. The
observed control variables are used to trigger the
EDSC. Using the metaphor of CNS and PNS, PNS
grounds on the ability to control using a systemic
view of the business transactions operations,
checking if complies with the ex-ante business
transactions and access control models. The result
obtained is one low-level control action: (i) a grant
or revoke access to the activities that are currently
attempted and/or (ii) a change to the prescribed
models. CNS grounds in the ability to control using
a systemic view of the historical transactions,
checking if complies with the ex-ante business rules.
The result is one of the following, high level control
actions: (i) a change in the business rules, (ii) a
change in the business transaction model or (iii) a
change in the access control model. When needed
PNS is able to send an order directly to PNS. For
instance, new government laws demanding
immediate effect. This solution integration allows
the design of a non-singular solution, because any
set of business transactions designed in any business
domain could benefit from this solution, and not
only a particular subset of business domains.
4 BUSINESS CONTROL AT
OPERATION TIME
This section details a multi-level framework for
business transactions control using the concepts
defined on literature review.
Figure 2 separates vertically the models from its
operation. From one end, models are the
prescriptions that the organization wants the actors
to follow. When a model is created, changed or
deleted we consider that an actuation is being
performed. A model is thus actable. On the other
end, operation is the collective activity of the various
elements in the composition of a system and the
environment, therefore when actors workaround
then models compliance is not guaranteed.
Therefore, operation is observable. This three
horizontal layered framework aims at establishing
principles that overcome this non-compliance
problem, observing what the actors are doing, or
attempting to do, and then acting in the business
transactions models or in the access control models
when needed. Moreover, a workaround is not
necessarily harmful for the organization. For
instance, if actors are performing differently from
the prescription it could indicate new, and
innovative, ways of performing their duties (Davison
& Ou, 2013).
To facilitate the understanding, and envisioning a
future implementation, our framework separates the
concepts of observation, actuation and controller
throughout different abstraction layers. Regarding
the horizontal axis, in the top abstraction layer, the
enterprise governance, using feed forward,
prescribes models and business rules. It partially
follows the definition proposed by Land et al. (2009)
that state that enterprise governance is the
continuous compliance to the rules and is obtained
by acting in the model design restrictions that are
made available to the governance controllers.
Business rules are established from the feed
forward (identified by Feedforward* in Figure 2) of
enterprise governance controller. In the same way,
TowardsMulti-levelOrganizationalControlFrameworktoManagetheBusinessTransactionWorkarounds
291
Figure 2: Multi-level organizational control framework. Between different levels feed forward control loops are enforced.
access control are established from the feed forward
(identified by Feedforward** in Figure 2) of
business rules controller. A chain of command and
control is thus established between the three layers.
In the second horizontal layer, the business rules are
located. In detail, the business rules layer, are a set
of production rules of the kind “if (rule condition)
then (rule action)” that offers the capability to
identify if predefined situations occur and then to
react, playing an authority role in the organization.
A rule condition stands for the conjunction of
predefined operands and operators taken from the
operation, which evaluation results in the logical
values true or false. If a rule condition is true then a
rule action is triggered consisting in one of the
following executions: (i) an adhoc action, or (ii) a
change in the business transaction models (example
in Equation 1) or (iii) a new feed forward
prescription to the access control (example in
Equation 2).
if (actual budget is surpassed) then
Add Auditing transaction
(1)
if (user attempts fraud) then
Revoke all roles from user
(2)
Furthermore, the third horizontal layer is devoted
to the access control. Many approaches exists for
specifying the ACM, here we refer to the example of
the well-known RBAC model. ACM focus in the
structural dependencies between the different
business transactions artifacts and leads to the
trustworthiness of the users towards the systems.
ACM comprises the principles of responsibility
between the organizational actors. RBAC models the
concepts for symmetric role-based access control
between the concepts of users, roles, permissions
and constraints. Users are assigned to a role, and
each role has a set of associated permissions.
Changing the permissions affects the role and
consequently the users associated assigned to that
role. These changes are reflected on the access
control models.
In detail, on our framework, the access control
layer verifies if the operational conditions are
conforming to the prescribed access policies. If
operation is not conforming to the prescribed access
policies then an actuation is enforced on ACM (e.g.:
revoking user access). Otherwise, if the operational
conditions require a change in the business
transactions prescriptions, for instance, when a
constraint of separation of duties (SoD) is violated
then an actuation in the business transaction model
is enforced.
Considering the previous definition of a business
transaction encompassing the comprehensive
description of system’s state (e.g.: a data store) and
transition (e.g.: a web service call) a fine-grained
access control model is demanded, where each
business transaction artifact is strictly enforced with
a specific permission. Subsequently, each user is
related with a role. The access control is thus able to
control if the operational conditions are conforming
to the organizational wide access control models,
and if not then act in the correspondingly model.
5 CONCLUSIONS
This paper presents a framework for controlling the
operation of business transactions. Control cope the
workarounds that occur while the organizational
actors operate. A workaround is when an actor
decide to adapt, improvise, or other change to one or
Enterprise Governance
Business rules
Access Control
IF < …> then rule <…>
Each state and
transition is controlled
Feedforward
Feedforward *
Observation
Feedback
Feedback
Actuation
Feedforward **
Observation
Actuation
e.g.: RBAC
Actuation
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
292
more aspects of an existing model. In some
situations, a workaround could indicate new, and
innovative, ways of actors performing their duties. It
is not necessarily harmful for the organization.
The control framework separates the operation
from the prescribed models, and establishes three
horizontal layers: enterprise governance, business
rules and access control. The core focus of this
framework is studying which are the control
concepts and how do they interrelate between each
other. The enterprise governance controller sends
feed forward information to the business rules and to
the business transaction models. By its turn, the
business rules and the access controller observe the
operation and act in the models. In addition, the
integration between RBAC model and business
transaction models is discussed. The benefit of such
integration is to fine-grain enforce the access
policies in the business transactions artifacts. This
framework has the advantage of narrowing the
design freedom restrictions of the organizational
control issue and facilitates the related discussions
between peers. Future work will include a
comprehensive taxonomic study focusing on the
relationship that exists between the workarounds and
the business transaction redesigns.
REFERENCES
Alter S., 2013, Theory of Workarounds. Communications
of the Association for Information Systems.
Alter, S., 2013. Work System Theory: Overview of Core
Concepts, Extensions, and Challenges for the Future,
Journal of the Association for Information Systems, 14
(2), article 1.
Beer, S., 1979. The Heart of the Enterprise, John Wiley &
Sons Inc. New York, NY.
Beer, S., 1981. Brain of the Firm: The Managerial
Cybernetics of Organization. John Wiley & Sons Inc.
New York, NY.
Bertalanffy, L., 1969. General Systems Theory. George
Braziller, New York, NY.
Bertino, E., Ferrari, E., and Atluri, V., 1999. The
specification and enforcement of authorization
constraints in workflow management systems. ACM
Trans. Inf. Syst. Secur., 2(1):65–104.
Davison, R., & Ou, C., 2013. Sharing Knowledge In
Technology Deficient Environments: Individual
Workarounds Amid Corporate Restrictions. In 21th
European Conference on Information Systems,
Utrecht.
DHS, 2013. Department of homeland security strategic
plan fiscal years 2008-2013. Homeland Security, USA,
retrieved from http://www.dhs.org.
Dietz, J., 2006. Enterprise Ontology – Theory and
Methodology. Berlin, Heidelberg, Springer-Verlag.
Dietz, J., Hoogervorst, J., Albani, A., Aveiro, D., Babkin,
E., Barjis, J., Caetano, A., Huysmans, P., Iijima, J.,
van Kervel, S., Mulder, H., Op 't Land, M., Proper, H.,
Sanz, J., Terlouw, L., Tribolet, J., Verelst, J., &
Winter, R., 2013. The discipline of enterprise
engineering. International Journal of Organisational
Design and Engineering, 3 (1), 86-114.
ENISA, 2013. European network and information security
agency. Retrieved September 20, 2013, from
http://www.enisa.europa.eu/.
Ferraiolo, D. F., Sandhu, R., Gavrila, S., Kuhn, D. R., and
Chandramouli, R., 2001. Proposed NIST standard for
role-based access control. ACM Trans. Inf. Syst.
Secur., 4(3):224–274.
Franklin, F., Powell, D., & Emami-Naeini, A., 2009.
Feedback control of dynamic systems. 6th ed.
Addison-Wesley Publishing Company.
Guerreiro, S., Vasconcelos, A, & Tribolet, J., 2012.
Enterprise dynamic systems control enforcement of
run-time business transactions. In EEWC 2012, series
Lecture Notes in Business Information Processing,
volume 110, part 2, Delft, Netherlands pp.46-60.
Guerreiro, S., & Tribolet, J., 2013. Conceptualizing
Enterprise Dynamic Systems Control for Run-Time
Business Transactions. In 21th European Conference
on Information Systems, Utrecht.
Herwig, M. & Verelst, J. 2009. Normalized Systems: Re-
creating Information Technology based on Laws for
Software Evolvability. Koppa.
Hoogervorst, J., & Dietz, J., 2008. Enterprise architecture
in enterprise engineering. Enterprise Modelling and
Information Systems Architecture, 3 (1), 3-11.
Hoogervorst, J., 2009. Enterprise governance and
enterprise engineering. Springer-Verlag.
IBM, 2012. Fast track to the future, IBM Center for
Applied Insights, The 2012 IBM Tech Trends Report.
ISACA, 2013. Control Objectives for Information and
related Technology, COBIT 5.
Kang, M. H., Park, J. S., and Froscher, J. N., 2001. Access
control mechanisms for interorganizational workflow.
In SACMAT ’01: Proceedings of the sixth ACM
symposium on Access control models and
technologies, pp. 66–74, New York, NY, USA. ACM.
Land, M., Proper, E., Waage, M., Cloo, J., and Steghuis,
C., 2009. Enterprise Architecture Creating Value by
Informed Governance. Springer-Verlag.
Muehlen, M. & Indulska, M., 2010. Modeling languages
for business processes and business rules: A
representational analysis. Information Systems
Journal, 35 (4), 379-390.
Nordberg, T., 2009. Security and trust, the foundation for
building an eunion. Paper presented at the Proceedings
of the 5th Ministerial eGovernment Conference,
Malmö.
OGC, 2011. Office for Government Commerce, ITIL v3,
Information Technology Infrastructure Library.
OMG, 2013. Object management group. Semantics of
business vocabulary and business rules. Retrieved
from http://www.omg.org/spec/SBVR/1.0/PDF.
TowardsMulti-levelOrganizationalControlFrameworktoManagetheBusinessTransactionWorkarounds
293
Rozinat, A. & van der Aalst, W., 2008. Conformance
checking of processes based on monitoring real
behavior. Information Systems Journal, 33 (1), 64-95.
U.S. Securities, 2010. U.S. security & exchange
commission: Preliminary findings regarding market
events of may 6. U.S. Commodity Futures Trading
U.S. Securities & Exchange Commission, 2010.
Wand, Y. & Weber, R., 1993. On the ontological
expressiveness of information systems analysis and
design grammars, Information Systems Journal, 3 (4),
217–237.
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
294
