Tool Independent Code Generation for the UML

Closing the Gap Between Proprietary Models and the Standardized UML Model

Arne Noyer

, Padma Iyenghar

, Elke Pulvermueller

, Florian Pramme

, Joachim Engelhardt

Benjamin Samson

and Gert Bikker

Institute for Distributed Systems, Ostfalia University, Salzdahlumer Strasse 46/48, Wolfenbuettel, Germany

Institute of Computer Engineering, University of Applied Sciences Osnabrueck, Osnabrueck, Germany

Institute for Software Engineering, University of Osnabrueck, Osnabrueck, Germany

Keywords:

Model-driven Software Engineering, Code Generators, Model Transformation, Meta-models, Uniﬁed Model-

ing Language (UML), Eclipse Modeling Framework (EMF), Model Facade.

Abstract:

Embedded software development is moving towards the model-based paradigm to support the complexity of

today’s embedded systems, as they become more and more important and omnipresent in our daily lives.

In this context, the Uniﬁed Modeling Language (UML) is a widely used standard. Code generators can be

executed to generate source code from UML models. Usually the code generators are proprietary for one

UML tool. If code generators for different targets or programming languages have to be supported by various

modeling tools, the wheel must be reinvented. Code generators could use the standardized Extensible Markup

Language Metadata Interchange (XMI) format of the UML as a basis. However, tools export their data to

XMI differently. Therefore, the paper shows how the proprietary models of UML tools can be mapped to a

standardized UML model. This is realized by using techniques for model to model transformations. These

techniques need a meta-model for the source and the target model. Hence, an approach is introduced for

creating meta-models for Application Programming Interfaces (APIs) of UML-tools, which act as a facade.

Then the code generators can work with the standardized UML model to generate the source code. This results

in an improved scalability of the code generators.

1 INTRODUCTION

Nowadays embedded systems are omnipresent and in-

creasingly used in a wide variety of application sce-

narios. The number of functionalities they have to

provide and the number of systems they interact with

continue to grow. For instance, automobiles have

more and more comfort features that are executed on

different Electronic Control Units (ECUs). For ex-

ample, in luxury vehicles there are already up to 100

control devices in use (Hergenhan and Heiser, 2008).

In embedded software engineering, classically, the

software is implemented in a 3rd generation language

(3GL), such as ANSI C/C++. As the embedded sys-

tems are developed with additional features, the com-

plexity of the underlying software increases, necessi-

tating new and automated ways of software develop-

ment, such as model-based approaches. In the Auto-

motive Safety Norm ISO 26262 the usage of model

based approaches is highly recommended.

The Uniﬁed Modeling Language (UML) (Object

Management Group, 2013d) is one among the widely

used industry standards for Model Driven Develop-

ment (MDD) (France et al., 2006). Apart from the

general UML elements and diagrams, UML proﬁles

can be used to address certain application areas such

as the real-time embedded systems (Krichen et al.,

2013).

MDD is considered as a key solution for struc-

tured embedded software engineering and automa-

tion. Thereby it is inevitable for future projects.

The hardware in the embedded system has often

only limited resources (e.g. memory) (Sestoft et al.,

2002) which is imperative for its efﬁcient operation

and cost optimization. This results in stringent and

special requirements during embedded software de-

velopment. Therefore, code generators, which create

code from UML models, have to be highly efﬁcient.

The development of a code generator comes with a

lot of effort and the generated code may be speciﬁc

117

Noyer A., Iyenghar P., Pulvermueller E., Pramme F., Engelhardt J., Samson B. and Bikker G..

Tool Independent Code Generation for the UML - Closing the Gap Between Proprietary Models and the Standardized UML Model.

DOI: 10.5220/0004870701170125

In Proceedings of the 9th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE-2014), pages 117-125

ISBN: 978-989-758-030-7

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

for a certain target platform. For supporting different

platforms, many code generators have to be realized

or adaptions have to be made.

Unfortunately, the code generators are in general

proprietary and speciﬁc for a given modeling tool.

This paper addresses the aforementioned gaps and

outlines an approach to create tool independent code

generators for the UML.

In this context, an approach for creating model fa-

cades for Application Programing Interfaces (APIs)

is introduced. The remaining of this paper is orga-

nized as follows. Section 2 presents state of the art

techniques for code generation and coupling of differ-

ent modeling domains. It also outlines related work.

Section 3 presents an approach for tool independent,

UML-based code generation. A prototype implemen-

tation of the proposed approach is presented in section

4. Section 5 concludes the paper.

2 STATE OF THE ART AND

RELATED WORK

This section discusses the state of the art and re-

lated work pertaining to model based development,

code generation in MDD from UML tools, meta-

models for UML, model to model transformation,

meta-model generation for APIs and model to text

transformation. Since code generators are basically

model to text transformations, different techniques for

model to text transformations are discussed. The in-

put for tool independent code generators has to be a

uniform model. Therefore, standardized UML meta-

models are analyzed. In order to transform the pro-

prietary model of modeling tools into a standardized

UML model, a model to model transformation mech-

anism is needed. However, for using many of these

mechanisms, a meta-model is needed not only for the

target model, but also for the source model. Since the

data of modeling tools can often be accessed by using

an Application Programing Interface (API), possibil-

ities for creating a meta-model for an API are pre-

sented. This section concludes with a short summary,

which also includes the related work pertaining to the

state of the art techniques presented so far in this sec-

tion. Last but not the least, the gaps in the existing

methodologies pertaining to the main goals of this pa-

per are enlisted.

2.1 Code Generation from UML Tools

The huge advantage of the UML can be fully realized

if the source code is generated directly from the mod-

els (Burke and Sweany, 2007). Therefore, many mod-

eling tools such as Rational Rhapsody (IBM, 2012)

and Enterprise Architect (Sparx Systems, 2012) have

code generators that generate the source code auto-

matically from the models.

However, many producers of modeling tools only

focus on code generators for a selection of applica-

tions and target platforms. For example, there are

code generators for large systems, such as Windows

CE, Linux and VxWorks, in Rhapsody (IBM, 2012).

For many potential users with special application ar-

eas, e.g. VHDL for embedded systems (Moreira et al.,

2010), this is not sufﬁcient. Also for specialized sys-

tems with limited resources, the code generators that

are included in the modeling tools often can not be

used. Therefore, companies like (Willert Software

Tools GmbH, 2013) are offering frameworks for dif-

ferent target platforms, and developed their own code

generators for modeling tools that use these frame-

works. Such development of new code generators for

certain ﬁelds of application, e.g. MISRA compliant

C (Motor Industry Software Reliability Association

(MISRA), 2012) for a Cortex M3 (ARM, 2013), and

their integration in a speciﬁc modeling tool results in

signiﬁcant effort. Furthermore, the code generators

are typically proprietary to a modeling tool since they

access the model from the tool by using its interfaces.

Nevertheless, code generators are working very simi-

lar if they have the same ﬁeld of application, e.g. the

same target language. They differ primarily in how

they read the model.

MDD Tool 1 MDD Tool 2 MDD Tool 3

C C++ Java C C++ Java C C++ Java

generates generates

Figure 1: Similar code generators for different modeling

tools.

For supporting a speciﬁc kind of code generation

in different modeling tools, (at least) one proprietary

code generator must be developed for each modeling

tool (Fig. 1). These are very similar, as code shall be

generated in the same way. They differ mostly only

in reading the data (models) from the tools. So, a

signiﬁcant effort and time are needed for developing

different code generators that also have many redun-

dancies. For example, if three code generators for the

languages C, C++ and Java should be developed and

these should be compatible with three different mod-

eling tools, a total of nine code generators would be

needed (Fig. 1). This also results in the risk of er-

rors such that something is not correctly implemented

in a new code generator, which already worked in

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

118

another code generator (redundancy issues). Also,

changes in the application ﬁeld of similar code gener-

ators would cause the need for adapting those changes

to all of these similar code generators (e.g. for con-

sidering MISRA-rules). The same is of course also

applicable if different code generators for embedded

systems are required that support various target plat-

forms. In contrast, the approach in this paper al-

lows to use one speciﬁc code generator with different

modeling tools. Therefore, a uniform meta-model is

needed with which such a code generator can work.

2.2 Meta-models for UML

The Meta Object Facility (MOF) (Object Manage-

ment Group, 2011) is a standard by the OMG (Ob-

ject Management Group, 2013b) for deﬁning meta-

models. It is also used for deﬁning the UML. Fur-

thermore, the OMG provides an XMI format for ex-

porting/importing UML models (Object Management

Group, 2013d). In theory, this format can be used

to exchange UML models between different UML

tools. Unfortunately, different UML tools export the

same model to XMI differently. For example, Rhap-

sody exports the reference from an UML attribute to

a datatype as a XMI attribute, while Enterprise Ar-

chitect creates a XMI child element, which contains

the reference. For the realization of tool independent

UML code generators, this also makes it very hard to

just export the model as XMI ﬁle from UML tools and

then using the XMI ﬁle as input for a code generator.

The need for a transformation from models of UML

tools into a generic model still exists.

There is an implementation of the UML2 meta-

model for Eclipse (Eclipse Foundation, 2013e), which

is based on the Eclipse Modeling Framework (EMF)

(Eclipse Foundation, 2013b). The EMF is basi-

cally an implementation of the reduced Meta Object

Facility (MOF), the essential Meta Object Facility

(eMOF). It is widely used for creating meta-models

and there are many frameworks with a variety of func-

tions, which can be used in combination with EMF-

based meta-models. Beneﬁts of the EMF itself are for

example the easy creation of meta-models, the Java

code generation from the meta-models as implemen-

tation and the possibility to generate a graphical tree

editor for working with instances of the meta-model.

They are discussed in detail in (Bzivin et al., 2005).

In summary, there already are implementations of the

standardized UML meta-model, which could be used

as input for code generation. The question emerges,

how a transformation from different UML tools to a

standardized model can be realized. There are already

many mechanisms for model to model transforma-

tions. Concepts for model to model transformations

are analyzed below.

2.3 Model to Model Transformation

In the literature, there are different techniques avail-

able for model to model transformations. Signiﬁcant

concepts are Triple Graph Grammars (TGG) (Kindler

and Wagner, 2007), Query View Transformation

(QVT) (Object Management Group, 2013c) and the

Atlas Transformation Language (ATL) (Jouault et al.,

2006). It is noticeable that many implementations

of these techniques are based on Eclipse and use the

EMF. In order to execute a model to model transfor-

mation with such an implementation, for both sides an

EMF-based meta-model is needed just as there is one

for the UML2 meta-model. Different Triple Graph

Grammars (TGG) are compared with each other in

(Hildebrandt et al., 2013). These techniques allow

a model to model transformation to the EMF-based

UML2 model, if there is an EMF-based meta-model

for the source model. Unfortunately, most UML tools

do not provide a (EMF-based) meta-model for their

internal model. Many tools, such as IBM Ratio-

nal Rhapsody (IBM, 2012) and Enterprise Architect

(Sparx Systems, 2012), allow to access their internal

data model by providing an API, but in most cases

there is also no meta-model for their API.

One of the major aims of this paper is to address

this gap and propose an approach towards automatic

generation of an EMF-based meta model. This acts

as a facade for accessing an API of a modeling tool.

This means that model elements are like a view on the

objects of the API. If operations of model elements

are called, the call is forwarded to the representing

operations of API objects (see section 4.1).

2.4 Meta-model Generation for APIs

An approach for generating a meta-model for an ex-

isting API is API2MoL (Izquierdo et al., 2012). For

generating a meta-model the existing source code of

an API and its structure must be analyzed. For each

class inside the API a corresponding element in the

meta-model is created. Moreover, the approach aims

at creating bridges between model driven engineering

and APIs automatically. Therefore, two operations

are needed, after the meta-model is generated. One

operation is to obtain model elements from the ob-

jects of the API. The other operation is to create API

objects from model elements. API2MoL provides op-

erations for both sides, which can be executed when

such a conversion is needed. There is an EMF-based

implementation of API2MoL, which is available at

ToolIndependentCodeGenerationfortheUML-ClosingtheGapBetweenProprietaryModelsandtheStandardizedUML

Model

119

(Atlanmod and Modelum research groups, 2013).

API2MoL could be used for converting the inter-

nal data of an API into a model. Then a model to

model transformation could be executed for convert-

ing the API model into a standardized UML2 model.

The transformation from UML2 model elements to

API model elements can be useful for realizing re-

verse engineering functionalities. If API objects and

their model representations with their attributes are

stored on both sides, synchronization problems may

occur. This can happen if API objects and their model

representations are both changed before the changes

are applied to the other side.

In order to avoid synchronization problems, an-

other approach for creating a meta-model facade for

an API is presented in chapter 4 of this paper. Fur-

thermore, that approach allows the seamless integra-

tion with other technologies, which need an EMF

based model. These include technologies for model

to model transformations (see section 2.3). As soon

as models of modeling tools can be accessed as a stan-

dardized UML2 model, it should be enabled to gen-

erate source code from it. Therefore, the next section

brieﬂy discusses approaches for model to text trans-

formations.

2.5 Model to Text Transformation

Code generators are basically model to text trans-

formations. They can be implemented by program-

matically concatenating strings or by using one of

many template based approaches. The clarity of the

source code of huge code generators can suffer, if

they are implemented in an ordinary programming

language. Template based approaches make the pro-

gramming easier and improve the maintainability. In

(Rose et al., 2012) different concepts for model to

text transformations are discussed in detail. There are

also many frameworks for model to text transforma-

tions for Eclipse, such as Acceleo (Eclipse Founda-

tion, 2013a), Xpand (Eclipse Foundation, 2013f) and

Xtend (Eclipse Foundation, 2013g). Acceleo is an

implementation of the standardized MOFM2T (Ob-

ject Management Group, 2013a). Furthermore, there

also exist code generators for Eclipse, which generate

code from EMF-based UML2 models, such as (Obeo,

2013), which is based on Acceleo. There are many

frameworks for developing code generators and there

are already existing code generators, which can be

used for an EMF-based UML2 model.

2.6 Summary

Most modeling tools provide their own code gener-

ators, which can only generate code from their own

models. Besides the tool manufacturers there are also

other companies (like (Willert Software Tools GmbH,

2013)) that develop code generators. In most cases,

the code generators in general are developed in a sim-

ilar way to those of the manufacturers by using tool

speciﬁc mechanisms. If one type of code generation

is realized for different modeling tools, they develop

a proprietary code generator for each of them. This

results in a lot of effort for developing several similar

code generators. In order to improve this, an approach

for the development of tool independent code gener-

ators for UML is introduced and discussed in this pa-

per.

There is already a standardized XMI format for

UML, in which most UML tools can export their

models. Unfortunately, there are differences in how

they export their data, which makes it difﬁcult to just

use it as input for code generators. There is a gap be-

tween the proprietary models of different UML tools

and the standardized UML model.

A technique for model to model transformation

could be used for converting the proprietary mod-

els of UML tools into a standardized UML model.

However, most techniques need a meta-model for the

source and a meta-model for the target in order to al-

low a mapping between two models. Most modeling

tools do not provide such a meta-model.

Many UML tools allow to access their models by

using an API. In order to allow the usage of model to

model transformation techniques on an API, a novel

approach of creating a model facade for accessing an

API is introduced in this paper. After converting a

model of a tool into a standardized UML tool by us-

ing a model to model transformation, one of many

techniques for code generation can be used.

3 PROPOSED APPROACH

This section presents the approach for tool indepen-

dent code generation for UML. In the ﬁrst subsec-

tion, the general approach is discussed. Afterwards,

its scalability is analyzed. Subsection 3.3 discusses

different approaches for accessing the models of mod-

eling tools and converting them into a standardized

model. In this context, a new approach is introduced

for creating a model facade for APIs of modeling

tools. The next subsection introduces a prototype im-

plementation.

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

120

3.1 Tool Independent Code Generation

for the UML

A tool independent code generation can be realized

by ﬁrst converting the UML-tool-speciﬁc model into

a standardized UML model. Therefore, a model to

model transformation can be used. Afterwards code

generators can generate code from a standardized

model (cf. Fig. 2).

When a code generator is developed that works

with the standardized UML2 model, it is automat-

ically compatible with all tools for which a model

transformation to the generator model has been cre-

ated. In other words, of course, also all code gener-

ators are compatible with a tool for which a model

transformation is deﬁned. This approach is illustrated

in Fig. 2. Each of the three modeling tools has a

model transformation in order to transform its data

into the standardized model. Then the real code gen-

erators are used to generate the source code from

this model. In case another type of code generation

is needed (for example for generating code in C#)

only one code generator needs to be implemented that

works with the standardized UML2 model. It is auto-

matically compatible with each of the three modeling

tools.

Figure 2: Code generation with a standardized UML model.

3.2 Improved Scalability

Let us assume that a transformation of a model from a

modeling tool into a standardized model is also some

kind of code generation, since there is also an input

and an output. In this case the difference is that the

transformation results in a model instead of code. In

the example shown in Fig. 2, six code generators are

developed in total. In contrast, in Fig. 1 nine code

generators have to be developed for allowing the same

types of code generation for the same amount of mod-

eling tools.

Let C be the sum of all code generators (and model

transformations), which have to be developed, T the

number of tools that should be supported and G the

number of types of code generations (e.g. Java, C,

C++) that should be realized. Then, when tool spe-

ciﬁc code generators are developed, the calculation is

old

= T ∗ G.

When working with a standardized UML model

in the middle, let G

and G

further be the number

of model to model transformations and the number of

model to text transformations, which are needed. In

this approach, C

new

= G

+ G

. Since for each mod-

eling tool a model to model transformation G

must

be realized, it can also be expressed as C

new

= T + G

This is because, each model to text transformation G

realizes a different type of code generation, C

new

T + G.

If code generators are developed which should be

compatible with only one UML tool (T = 1) it is al-

ways C

old

< C

new

. This means that less transforma-

tions have to be realized if the code generator is just

proprietary for a certain tool. If at least two code gen-

erators are developed for at least two different tools,

it starts to get complex. In case T = 2 and G = 2, the

number of transformations that have to be realized is

in both cases four. If T and/or G are greater than 2,

old

> C

new

is always true. Since for calculating Cnew

the sum of T and G is used and for C

old

their product

is used, the amount of required transformations rises

much faster for C

old

. As an example Fig. 3 shows the

scalability for T = 3.

Figure 3: Scalability for T=3

Of course, the amount of effort for realizing model

to model transformations for different tools and for

realizing different types of code generators by using

model to text transformation techniques varies. It

strongly depends on which kind of technique is used

and aspects such as how similar the model of a tool

and the standardized UML model are. In the exam-

ples discussed above, it is assumed that the effort for

developing a model to model transformation for a spe-

ciﬁc tool is the same as the effort to develop a code

generator. This can assumed to be the worst case,

since a model to model transformation could also be

realized as model to text transformation, if a model

ToolIndependentCodeGenerationfortheUML-ClosingtheGapBetweenProprietaryModelsandtheStandardizedUML

Model

121

can be serialized into some kind of text. In real-

ity, mapping a model, which is similar to the UML

model, to a standardized UML model by using a suit-

able mapping technique results in many cases in less

effort. The question arises, how the data (the mod-

els) of modeling tools can be accessed and converted

to the standardized model in a suitable way. This is

discussed in the next section.

3.3 Converting Proprietary Models into

a Standardized Model

As stated in section 2.2, it is not an efﬁcient to just

use the XMI export of available UML tools to get a

standardized input for code generators. Of course, the

XMI ﬁles could be analyzed and further transformed

into a standardized model. Then there would be a fur-

ther step before the actual code generation could take

place, in which data has to be written on a hard drive.

This would result in more time for running code gen-

erators. Because of this, it is desirable to access the

data of modeling tools directly.

Many UML tools allow to access their internal

models by providing an API (see section 2.3). Un-

fortunately, in most cases they do not provide a meta-

model for their API, which would allow the usage

of many model to model transformation techniques.

However, a meta-model can be extracted from exist-

ing source code and/or compiled units by analyzing

their structure. Therefore, for each class a meta-class

has to be created in the meta-model with its attributes

and operations. Afterwards, operations could be im-

plement for creating model elements (of this meta-

model) for objects of the API and vice-versa. In order

to avoid synchronization problems, another approach

is introduced in the following.

The model elements have to refer to the API ob-

jects, which they represent. This is realized by storing

a associated API object in an attribute for the model

element. For example, Model APIObject could be

the model representation of an API object APIOb-

ject. Then an attribute is needed for Model APIObject

to store a reference to the corresponding API object.

This attribute could be named originalAPI Object.

Now, every call of an operation of the model ele-

ment can just be delegated to the equivalent operation

of the contained API object. In this context, only pub-

lic operations have to be considered and created in the

meta-model, since other operations of an API cannot

be accessed. There is also nothing else to do for pri-

vate attributes and for attributes for which getter and

setter operations exist. If there is a public attribute in-

side an object of the API for which no getter and set-

ter operations exist getter and setter operations should

nevertheless be created for the representing model el-

ements. They should, again, delegate the access to the

attribute. So, it is not needed to store attribute values

inside model elements. The access of all attributes is

also just delegated to the original API objects. Sec-

tion 4 elaborates on this methodology and discusses

a prototype implementation. When this model facade

is realized for an API, many existing model to model

transformations can be used for converting the inter-

nal model of a tool into a standardized UML model.

In some cases, the internal models of tools, such

as Merapi-Modeling (Ostfalia University, 2013) and

the open source tool Papyrus (Eclipse Foundation,

2013d) can be accessed directly and there is also a

meta-model available for it. Here, model to model

transformations can be used directly.

If a modeling tool does not provide a mechanism

(e.g. an API) to access their model elements from the

outside, one has to achieve this goal in a laborious

way. In any case, modeling tools somehow store their

models. This can be inside a database or inside ﬁles.

In order to understand the structure of the stored data,

a large amount of reverse engineering has to be per-

formed. Then, a meta-model can be created manually,

in which the operations of model elements access the

content of the database or the ﬁles. This was never

necessary for the implementation of a prototype, in

which four modeling tools were considered.

4 PROTOTYPE

IMPLEMENTATION

A code generation framework for the proposed ap-

proach is implemented as a prototype using Eclipse

technologies. As mentioned in section 2.2, there al-

ready is an implementation of the standardized UML2

model in Eclipse based on the Eclipse Modeling

Framework (EMF). This is used as model in the mid-

dle and input for code generators. Furthermore, EMF

allows to create other meta-models. Based on EMF

there are well established frameworks for model to

model and model to text transformations. For the pro-

totype, the UML tools IBM Rational Rhapsody (IBM,

2012), Enterprise Architect (Sparx Systems, 2012),

Merapi-Modeling (Ostfalia University, 2013) and Pa-

pyrus (Eclipse Foundation, 2013d) are considered.

4.1 Standardized UML2 Model for

UML-tools

Rhapsody and Enterprise Architect both provide an

Java API for external programs to access their inter-

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

122

nal model elements. For creating a EMF-based meta-

model of the APIs it can be analyzed by using the Java

Reﬂection API (cf. Fig. 4). For each class, a class

in the meta-model (called EClass in EMF) is created

with an attribute referring to the original API object.

Furthermore, representations of its public operations

are created for the class in the meta-model. The im-

plementation of these operations is done in a way that

they always delegate the call to the operation of the re-

ferred, original API object. This is realized by creat-

ing an EMF-based annotation for the operation inside

the meta-model that contains code for delegating the

calls. Afterwards, an EMF mechanism is used for cre-

ating Java code for the meta-model. This code is ex-

ecuted, whenever model elements of this meta-model

are used. A prototype is implemented for automati-

cally creating model facades in this way. The facade

generation can also be used for any other Java API.

There is a difference between this approach and

API2MoL (Izquierdo et al., 2012). API2MoL pro-

vides operations, which can be manually executed, to

convert the API objects into model elements and vice

versa. In the proposed approach, the model acts as a

facade for an API, i.e. a corresponding model is just

used as a layer for accessing the API. This also allows

a seamless integration for APIs with other EMF-based

frameworks, such as the Graphical Modeling Frame-

work (Eclipse Foundation, 2013c). There is no need

for executing operations for the conversion. There-

fore, no synchronization problems can occur. Model

representations of API object are created automati-

cally on demand.

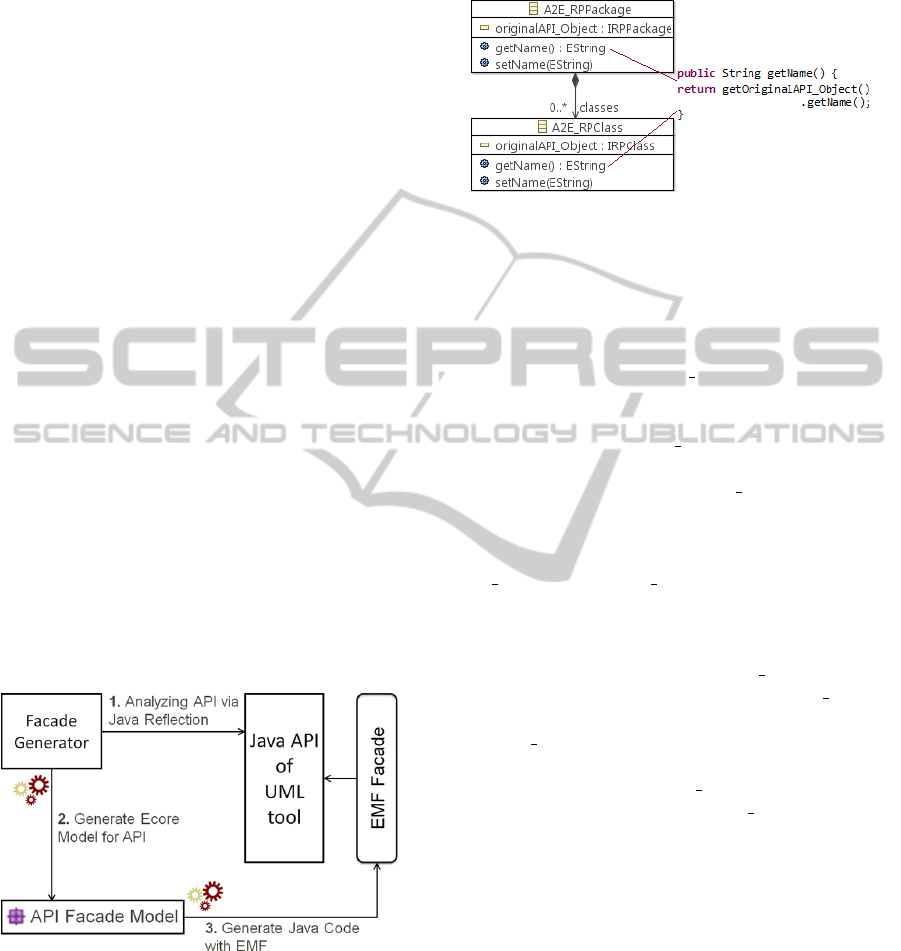

Figure 4: EMF facade generation.

The access of operations, which return API ob-

jects, have to return model representations of these

when working on the model level. Every time such an

operation is called on the model level, a model repre-

sentation of the API object is created and its attribute

for containing the original API object is set. In order

to avoid that several model representations of a sin-

gle API object are created, the API object is stored

together with its model representation inside a Map

data structure.

Figure 5: EMF facade for IBM Rational Rhapsody.

As an example Fig. 5 shows a small part of an

EMF facade for the Rhapsody API. There are two

EMF classes, which act as a facade for packages and

classes from Rhapsody. Their name has the preﬁx

A2E, which stands for API to Ecore. Both of them

have an attribute originalAPI Object for storing a ref-

erence to the object, which they represent. Further-

more, the EMF classes have an operation for each

method of the originalAPI Object. If such an oper-

ation is called, it just forwards the call to the repre-

sented operation of the originalAPI Object. The same

applies for accessing and setting attributes via getter

and setter methods, i.e. the attribute name.

An aggregation was created from the EMF class

A2E RPPackage to A2E RPClass, because the Rhap-

sody API class IRPPackage has an operation for

accessing contained API objects of type IRPClass.

When the code is executed for accessing the contained

classes of the EMF facade class A2E RPPackage, at

ﬁrst, the contained classes of the originalAPI Object

are resolved. Then it is checked, if already objects of

type A2E RPClass were created, which represent the-

ses classes. If necessary, new facade objects will be

created and their originalAPI object will be set. Fi-

nally, the facade objects of type A2E RPClass will be

returned.

Now a model to model transformation can be

used for converting API models into the EMF-based

UML2 model. Any technique from section 2.3 can

be used for this purpose. However, to have the possi-

bility of implementing reverse engineering function-

alities later, the technique should allow to make bidi-

rectional mappings and transformations. QVT would

be adequate, but there is a lack of a suitable imple-

mentation which supports QVT-Relations for bidi-

rectional transformations completely (Macedo and

Cunha, 2013). An interesting upcoming implementa-

tion is presented in (Macedo and Cunha, 2013). How-

ever, it is only recommended for medium size mod-

els for now, because of its execution performance.

TGGs are also very well suited for our purpose. It was

ToolIndependentCodeGenerationfortheUML-ClosingtheGapBetweenProprietaryModelsandtheStandardizedUML

Model

123

shown in (Rose et al., 2012) that the TGG implemen-

tation eMoﬂon has the most advanced functionalities

for bidirectional transformations. Therefore, eMoﬂon

is used in our prototype for model to model transfor-

mations.

«T GGObjec...

packageRp :

A2E_RPPackage

«T GGObj...

packageUML :

Package

«Corresp ondence»

rpPkgToUmlPkg :

PackageToPacka ge

«T GGObjec...

classRp :

A2E_RPClas s

«T GGOb...

classUM L :

Class

«Corresp ondence»

rpClassToUmlClass :

ClassToClass

{eq(classRp.n ame,classUML.name)}

EMF Facade

for Rhapsody

UML Meta-

Model

Mapping between

Meta-Models

na me

+packagedEl ement+classes

+ta rget

+source

+ta rget

+source

Figure 6: TGG for mapping the Rhapsody facade to UML.

Fig. 6 shows a part of a TGG for mapping Rhap-

sody classes to UML classes, which are contained in

Rhapsody packages or UML packages. A constraint

is used for mapping the attribute name.

Merapi-Modeling uses its own, UML-like meta-

model. Since it is already based on the EMF, eMoﬂon

can directly be used for realizing a model to model

transformation to the EMF-based UML2 model.

Papyrus even uses the EMF-based UML2 model

for storing its models. There is no need for imple-

menting a model to model transformation.

Now, any existing code generator for the EMF

UML2 model can be used for creating source code.

Further, code generators can be realized by using

mechanisms for model to text transformations (cf.

section 2.5).

5 CONCLUSION

Code generators, which are used to directly generate

source code from UML models, are in general propri-

etary for a speciﬁc tool. This results in a signiﬁcant

effort, if a certain type of code generation has to be

realized for different tools. This implies that there is

a need for an approach towards development of tool

independent code generators.

On the other hand, in order to make code genera-

tors compatible with different tools, they need a uni-

form input model. There is already a standardized

XMI format for the UML. Many tools can export their

model in this format. Unfortunately, they export their

models differently.

Techniques for model to model transformations

could be used for transforming the models of differ-

ent tools into a standardized UML model. The models

of most tools can be accessed by using an API. How-

ever, in order to use such techniques, a meta-model is

needed for the source and the target model. However,

there is a gap between the models of different UML

tools and the standardized UML model.

In order to address this gap, an approach for gen-

erating a meta-model for APIs is introduced in this

paper. Unlike in existing approaches, the model el-

ements of this meta-model are acting as a facade for

the original API objects. This allows the direct usage

of many techniques for model driven development.

Then the model can be transformed into a standard-

ized UML model. The proposed approach is evalu-

ated using a prototype implementation. In the em-

pirical evaluation, four different modeling tools are

transformed into an EMF-based UML model. Fur-

thermore, the experimental results indicate that the

proposed approach increases the scalability of code

generators signiﬁcantly, if more than one type of code

generation has to be realized for more than one UML

tool.

MDD for embedded systems beneﬁts from the im-

proved scalability. In order to support different target

platforms, many code generators have to be realized

or adaptions have to be made. It is more efﬁcient to

implement a code generator, which can be used for

several modeling tools, instead of implementing pro-

prietary code generators for each tool. Developers of

code generators can optimize and improve one code

generator rather than spending time on implementing

the same code generator again and again for different

tools.

There are still possibilities for further optimizing

the proposed approach. One aspect is to create UML

facades, which interact with the APIs of modeling

tools directly. This means to have a seamless UML

view on the proprietary models of different modeling

tools. Then additional transformations between the

meta-model of APIs and the standardized UML mod-

els could be avoided. In this context, the need arises

for a (new) mechanism to make a mapping between an

existing model and code (of an API) and an afﬁliated

facade code generation mechanism. Another aspect is

to analyze how the effort of recreating or adapting ex-

isting transformations can be reduced, when the meta-

model resp. the API of a modeling tool changes.

Tool independent code generation is only the be-

ginning of the potential uses of the presented ap-

proach. Future work is about the certiﬁcation of tool

independent code generators and the check of MISRA

modeling guidelines. Developers can select the UML

ENASE2014-9thInternationalConferenceonEvaluationofNovelSoftwareApproachestoSoftwareEngineering

124

tool of their choice and beneﬁt from all those features.

Furthermore, the model facade generation can be used

to seamlessly integrate any API into MDE.

ACKNOWLEDGMENT

This work is supported by a grant from BMWi (Fed-

eral Ministry of Economics and Technology, Ger-

many). This project work is carried out in close coop-

eration with Willert Software Tools GmbH, Ostfalia

University of Applied Sciences and University of Os-

nabrueck.

REFERENCES

ARM (2013). Cortex M3 processor product web-

site. http://www.arm.com/products/processors/cortex-

m/cortex-m3.php.

Atlanmod and Modelum research groups

(2013). API2MoL Project Website.

https://code.google.com/a/eclipselabs.org/p/api2mol/.

Burke, P. W. and Sweany, P. (2007). Automatic Code Gen-

eration Through Model-Driven Design. In Software

Technology Conference (STC).

Bzivin, J., Hillairet, G., Jouault, F., Kurtev, I., and Piers, W.

(2005). Bridging the MS/DSL Tools and the Eclipse

Modeling Framework. In In Proceedings of the con-

ference for Object-Oriented Programming, Systems,

Languages, and Applications (OOPSLA ’05).

Eclipse Foundation (2013a). Acceleo Project website.

http://www.eclipse.org/acceleo/.

Eclipse Foundation (2013b). Eclipse Modeling Framework

Project. http://www.eclipse.org/modeling/emf/.

Eclipse Foundation (2013c). Graphical

Modeling Framework Project website.

http://www.eclipse.org/modeling/gmp/.

Eclipse Foundation (2013d). Papyrus UML Product web-

site. http://www.eclipse.org/papyrus/.

Eclipse Foundation (2013e). UML2 Project website.

http://www.eclipse.org/modeling/mdt/?project=uml2.

Eclipse Foundation (2013f). Xpand Project website.

http://www.eclipse.org/modeling/m2t/?project=xpand.

Eclipse Foundation (2013g). Xtend Project website.

http://www.eclipse.org/xtend/.

France, R. B., Ghosh, S., Dinh-Trong, T., and Solberg, A.

(2006). Model-driven development using UML 2.0:

promises and pitfalls. Computer, 39:59 – 66.

Hergenhan, A. and Heiser, G. (2008). Operating Systems

Technology for Converged ECUs. Software Systems

Research Group.

Hildebrandt, S., Lambers, L., Giese, H., Rieke, J., Greenyer,

J., Schfer, W., Lauder, M., Anjorin, A., and Schrr, A.

(2013). A Survey of Triple Graph Grammar Tools. In

In Proceedings of the Second International Workshop

on Bidirectional Transformations (BX 2013).

IBM (2012). Rational Rhapsody Product Web-

site. http://www-01.ibm.com/software/ awd-

tools/rhapsody/.

Izquierdo, J. L. C., Jouault, F., Cabot, J., and Molina,

J. G. (2012). API2MoL: Automating the building of

bridges between APIs and Model-Driven Engineering.

In Information and Software Technology, 54:257–273.

Jouault, F., Allilaire, F., Bzivin, J., Kurtev, I., and Valduriez,

P. (2006). ATL: A QVT-like transformation language.

In Companion to the 21st ACM SIGPLAN symposium

on Object-oriented programming systems, languages,

and applications (OOPSLA ’06). ACM, New York, NY,

USA, 719-720.

Kindler, E. and Wagner, R. (2007). Triple Graph Grammars:

Concepts, Extensions, Implementations, and Applica-

tion Scenarios. Technical Report, University of Pader-

born.

Krichen, F., Hamid, B., Zalila, B., Jmaiel, M., and

Coulette, B. (2013). Development of reconﬁgurable

distributed embedded systems with a model-driven

approach. Concurrency Computat: Pract. Exper. doi:

10.1002/cpe.3095.

Macedo, N. and Cunha, A. (2013). Implementing QVT-R

Bidirectional Model Transformations using Alloy. In

FASE 2013.

Moreira, T. G., Wehrmeister, M. A., Pereira, C. E., Petin,

J., and Levrat, E. (2010). Automatic code generation

for embedded systems: From UML Speciﬁcations to

VHDL code. In Industrial Informatics (INDIN) 8th

IEEE International Conference, pages 1085 – 1090.

Motor Industry Software Reliability Association (MISRA)

(2012). MISRA C website. www.misra-

c.com/Activities/MISRAC/tabid/160/Default.aspx.

Obeo (2013). UML to Java Generator Project.

http://marketplace.obeonetwork.com/module/uml2java-

generator.

Object Management Group (2011). Meta Object Facility

Speciﬁcation 2.4.1. http://www.omg.org/spec/MOF/.

Object Management Group (2013a). MOFM2T 1.0 Speci-

ﬁcation. http://www.omg.org/spec/MOFM2T/1.0/.

Object Management Group (2013b). OMG Website.

http://www.omg.org/.

Object Management Group (2013c). QVT Speciﬁcation

1.0. http://www.omg.org/spec/QVT/1.0/.

Object Management Group (2013d). Uniﬁed Modeling

Language Speciﬁcation. http://www.uml.org/.

Ostfalia University (2013). Merapi-Modeling Product web-

site. http://www.merapi-modeling.de.

Rose, L. M., Matragkas, N., and Kolovos, D. S. (2012).

A feature model for model-to-text transformation lan-

guages. In In Proceedings of Modeling in Software

Engineering (MISE).

Sestoft, P., Hulgaard, H., and Wasowski, A. (2002).

Code Generation for Embedded Systems.

http://www.itu.dk/ wasowski/papers/poster.pdf.

Sparx Systems (2012). Enter-

prise Architect product website.

http://www.sparxsystems.com/products/ea/index.html.

Willert Software Tools GmbH (2013). Company website.

http://www.willert.de.

ToolIndependentCodeGenerationfortheUML-ClosingtheGapBetweenProprietaryModelsandtheStandardizedUML

Model

125
