Integrating Model-based Formal Timing Analysis in the Industrial

Development Process of Satellite On-Board Software

Rafik Henia

, Laurent Rioux

, Nicolas Sordon

, Gérald-Emmanuel Garcia

and Marco Panunzio

Thales Research & Technology, 1 Avenue Augustin Fresenl, 91767, Palaiseau Cedex, France

Thales Alenia Space, 5 Allée des Gabians BP 99, 06156 Cannes la Bocca Cedex, France

Keywords: Real-time Embedded Systems, Satellite On-Board Software Architecture, Model-based Formal Timing

Analysis, Industrial Development Process, Component-based Design, Model-based Engineering.

Abstract: As a consequence of the increasing complexity of modern real-time applications, the need for an efficient,

reliable and automated performance estimation method throughout the whole development cycle becomes

essential. Model-based formal timing analysis appears at first sight to be the adequate candidate for this

purpose. However, its use in the industry is conditioned by a smooth and seamless integration in the

development process. This is not an easy task due to the semantic mismatches between the design and

timing analysis models but also due to the missing links to the testing phase after code implementation. In

this paper, we present a model-based timing analysis framework we developed in the industrial context of

satellite on-board software. The framework enables overcoming the above mentioned problems, thus

allowing a fully integration and automation of model-based timing verification activities in the development

process, as a mean to shorten the design time and reduce risks of timing failures.

1 INTRODUCTION

The growing complexity of software applications

combined with constant quality and shorter time-to-

market constraints creates new challenges for the

timing performance engineering practices in the

development process of real-time embedded

systems: it is expected that delivered products

implement more and more complex features, while

respecting stringent real-time requirements. When

developing real-time systems according to a

traditional application of the “V”-cycle, the timing

verification activities start only when development

and integration are completed. As a consequence,

timing issues are not detected until the verification

stage starts. At this time, they are more difficult and

expensive to fix. Thus, a reliable timing performance

prediction at early design stages is essential to

guarantee that the designed system meets its timing

requirements before time and resources are invested

for the system implementation.

Formal timing analysis techniques are in theory

well adapted for this purpose, since their

applicability starts with the conceptual design phase

and continues throughout all following development

process phases. Furthermore, as recent development

trends are based on a joint application of

component-based software engineering (CBSE) and

model-driven engineering (MDE), formal timing

analysis can be applied directly on the design

models: we would then refer to it as model-based

timing analysis. Such analysis provides proofs for

the timing behavior based on a mathematical model

of the system timing behavior. These proofs allow

calculating safe lower and upper bounds for

performance values over a range of scenarios, thus

guaranteeing corner-case coverage.

If model-based timing analysis seems to be so

attractive in theory, what hinders its use in the

industry?

A major reason is the lack of engineering

methods allowing the integration of the model-

based timing analysis in the different phases of the

development process of real-time systems. Formal

timing analysis is often not directly applicable to

conceptual design models due to the semantic gap

between the latter and the analysis timing model. In

addition, after code implementation, the applicability

of model-based timing analysis is hindered by the

missing link to the testing phase of the implemented

619

Henia R., Rioux L., Sordon N., Garcia G. and Panunzio M..

Integrating Model-based Formal Timing Analysis in the Industrial Development Process of Satellite On-Board Software.

DOI: 10.5220/0004874306190625

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MBAT-2014), pages 619-625

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

software. Solving the above mentioned issues is

therefore essential to break the walls separating the

model-based timing analysis from the development

process of real-time systems, in order to enable its

use in the industry.

In this work, we present our model-based timing

analysis framework allowing the application, the

automation and the consolidation of formal timing

analysis in the development process of real-time

embedded systems starting from the early

conceptual design phase until the integration phase,

as a mean to reduce the design time and avoid costly

timing failures detected after system

implementation. The framework was developed in

the context of the industrial component-based design

and development of the Sentinel-3 satellite on-board

software.

A description of the Sentinel-3 satellite on-board

software use-case and the currently employed

component-based design approach are given in the

next section. Section 3 describes in detail the overall

model-based timing analysis framework structure

including the extension of the component-based

design model with a timing performance model, the

model transformation from design to timing analysis

via a pivot analysis model, the worst-case timing

analysis, the results translation process and the link

to the system execution. In Section 4 we present the

approach evaluation. Finally we draw the

conclusions.

2 INDUSTRIAL CONTEXT

It has always been a challenge to introduce formal

timing analysis into the industrial development

process as the inputs required for the analysis, in

particular the worst-case execution time (WCET)

and the system behaviour description, are moving

target all across the different development process

phases. Starting from very high level system

architecture and rough timing allocations, the formal

timing analysis has to be refined at each step of the

project (architectural design, detailed design, coding,

unit test and software validation phases) down to

concrete timing measurements on the final system.

Maintaining a representative timing analysis

taking into account all the architectural, design (both

static and dynamic) and timing changes across a

complete development process is time consuming

and error prone. The timing analysis shall be rather

integrated into the development process. Its

application shall be also automated in order to have

the capability to continuously perform timing

analysis during the process.

Thanks to the recent introduction of model based

methods (in particular multi-view points) in the

development process, this goal seems to be

reachable.

The Sentinel-3 satellite on-board software use-

case based on which we have developed our model-

based timing analysis framework is an on-going

project at Thales Alenia Space. The use-case as well

as the employed component-based design approach

are briefly described in the next two sections.

2.1 GMES Sentinel-3 Satellite

On-Board Software

Sentinel-3 is an Earth Observation mission primarily

devoted to support services related to the marine

environment. It is one of the satellites of Copernicus

(formerly known as GMES), an ambitious Earth

Observation program to provide timely and accurate

information for environment management, improve

knowledge on climate change and help in civil

security. The first Sentinel-3 satellite is expected to

be launched between 2014 and 2015, followed by a

second one so that they work together to provide

maximum coverage. The mission’s main objective is

to determine parameters such as sea-surface

topography, sea- and land-surface temperature as

well as ocean- and land-surface color with high-end

accuracy and reliability. Near-real time data

processing and delivery will allow a broad range of

Copernicus services for both the marine and land

environment to continuously take advantage of the

mission results. These services include, for example,

maritime safety services that need ocean-surface

wave information, surface temperature and data to

improve ocean current forecasting systems; sea-

water quality and pollution monitoring requiring

advanced ocean color products in both open ocean

and coastal oceanographic application areas; sea-ice

charting services requiring sea-ice extent and

iceberg detection; services to monitor land-use

change, forest cover, photosynthetic activity, soil

quality and fire detection.

Thales Alenia Space is the prime contractor of

the Sentinel-3 mission and in particular it is the

prime contractor of both the avionics and the

platform on-board software of the satellite. The

platform on-board software (OBSW) implements all

major functions of the satellite: the Attitude and

Orbit Control System (AOCS), the Thermal Control

System (TCS), Mode Management, management of

the ground/board interface, etc. A subset of those

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

620

OBSW functions is characterized by stringent real-

time requirements (for example the commanding of

the thrusters to perform an attitude modification or

an orbital maneuver). The development process shall

then be capable of statically ascertain that those real-

time requirements are always fulfilled, by supporting

a suitable and reliable form of timing estimation

technique.

2.2 Component-based Design

Approach

Thales created a software framework family, named

MyCCM (Make your Component Container Model)

(

E. Borde, 2009), to support the implementation of

real-time embedded software. MyCCM is a

tailorable component-based design approach that

takes inspiration from the Lightweight Component

Container Model standard (LwCCM) defined by the

OMG. MyCCM applications range from critical

systems (e.g. on-board satellite software) to near

real-time systems (e.g. image processing).

MyCCM implements the concept of functional

components that encapsulate algorithms. MyCCM

components correspond to passive code controlled

by an underlying runtime, and are connected through

communication ports to create a complete

application. This allows the construction of

applications by assembling independent functional

components. It also enforces the separation of

concerns between the functional aspects described

by the component ports and the non-functional

elements that stay outside the components (message

chaining across the whole component architecture,

FIFO sizes, task priorities, communications

mechanisms, execution times etc.). MyCCM

components can be seen as black boxes that contain

the intelligence of the applications and are controlled

by a runtime that is domain specific.

The MyCCM design process involves several

aspects: data modeling, specification of the

functional contracts of the components, specification

of component implementations (i.e. the

implementation of the algorithms), the connections

between component ports, and possibly the

allocation of execution resources (threads and

mutexes) if the underlying runtime can be

configured accordingly. MyCCM architectures can

be described in Thales internal modeling tools or in

UML modelers with plain UML. From such

architecture models, it is possible to perform

documentation and code generation.

3 MODEL-BASED TIMING

ANALYSIS FRAMEWORK

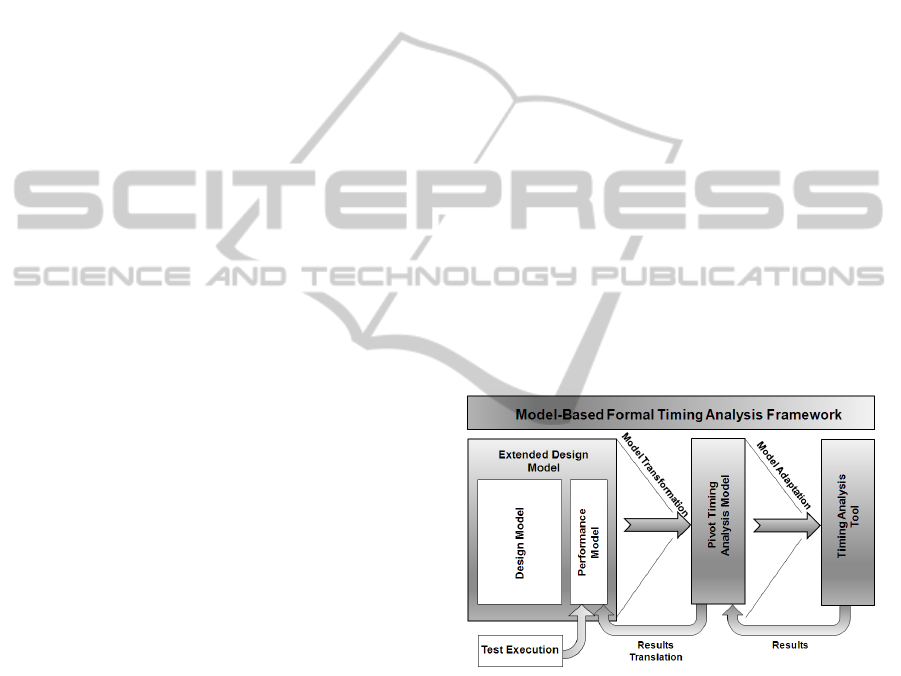

The model-based timing analysis framework

structure is illustrated in Figure 1. It is composed of

five major steps. The first step consists in extending

the design model with a performance model

describing the timing characteristics, the behavior

abstraction of the application and the execution

properties of the platform. In the second step, the

extended design model is transformed into a

scheduling analysis model based on formal

transformation rules preserving both the design

model semantic and temporal behavior. The

transformation is performed via an intermediate

pivot analysis model. In the next step, formal timing

verification is performed using a timing analysis

tool. The fourth step consists in translating the

timing analysis results to be compliant with the

original design model and injecting them in the

modeling tool. Finally, after code implementation,

the formal timing analysis is refined based on

concrete timing measurements extracted from test

executions. All the mentioned steps in the model-

based timing analysis framework are explained in

detail in the following sections.

Figure 1: Model-based timing analysis framework

structure.

3.1 Extending the Design Model with

a Performance Model

MyCCM design models were not designed to take

into account timing concerns. Since model-based

timing analysis, calculates performance estimates

based on the timing characteristics of the software

application, the MyCCM design model has to be

extended with a performance model. The

performance model has to provide information

describing the timing characteristics of the software

application such as the activation frequency for the

IntegratingModel-basedFormalTimingAnalysisintheIndustrialDevelopmentProcessofSatelliteOn-BoardSoftware

621

tasks and the core execution times for the operations.

Since execution times of operations are not yet

available at early design stages, i.e. before code

generation and implementation, the designer has to

provide timing estimates instead (based on his

experience of previous projects) and budgets (to be

intended as an upper-bound requirement on the

execution time).

As model-based analysis calculates performance

estimates related to a specific execution platform,

the performance model has also to provide

information about scheduling and execution such as

the processor speed, the scheduling policy (e.g.

priority preemptive scheduling, EDF), the

scheduling parameters (e.g. priorities), the tasks set

and the mapping from the operations to task

executors, etc.

And last but not least, MyCCM design models

are static. Since model-based analysis calculates

performance estimates related to the dynamic

behavior of the application, the performance model

has also to provide behavioral information such as

the data dependencies between tasks and the

communication protocols.

We selected specific concepts from the MARTE

standard (MARTE, 2011) to build a performance

model capable of expressing the needs described

above. The MARTE standard is key technology for

this purpose. It allows extending UML design

models (

UML, 2011) with concepts modeling the

real-time constraints and the target platform, e.g. the

SwSchedulableResource concept of the SRM

(Software Resources Modeling) and the

HwProcessor and HwBus concepts of the HRM

(Hardware Resource Modeling).

In order to describe the dynamic behavior of the

application and to annotate the MARTE-based

performance model with the above mentioned

timing and execution characteristics, we have used a

so-called “Abstract Action Language” (AAL). AAL

was defined at Thales and was originally intended to

describe model-based functional test scenarios. We

extended AAL with timing and execution elements

to be able to annotate the performance model. Using

AAL for both model-based timing analysis and

functional testing allows increasing the design

efficiency and robustness by avoiding the

duplication of work and excluding the risks of

consistency failures.

3.2 Filling the Semantic Gap between

Design and Timing Analysis Models

Model-based timing analysis techniques are well

adapted for the performance estimation at early

design stages, since they rely on an abstraction of

the timing relevant characteristics and behaviors

such as execution scenarios and tasks activation and

communication. From these characteristics and

behaviors, the model-based timing analysis

systematically derives worst-case scheduling

scenarios and timing equations that provide safe

bounds on the worst-case response times for each

task.

However, we faced the problem that model-

based timing analysis is not directly applicable to the

extended MyCCM models due to the semantic

mismatch between the latter and the variety of

timing analysis models known from the classical real

time systems research (MAST) (MPA)

(CHEDDAR) and from the commercial timing

analysis tools (SymTA/S).

For instance, in the common timing analysis

models, a standard assumption is that a task writes

its output data at the end of its execution. This is not

the case in MyCCM. Operation calls in MyCCM are

namely either synchronous (blocking) or

asynchronous (non-blocking). As a consequence, the

task, to which the caller operation is mapped, may

write data into the input of a connected task, to

which the called operation is mapped, at any instant

during its execution and not necessarily at the end.

For the Sentinel-3 satellite on-board software

use-case, the semantic mismatches between the

design model and the different timing analysis

models were basically related to the operation calls,

accesses to semaphores and tasks activation

behavior (data dependent activation).

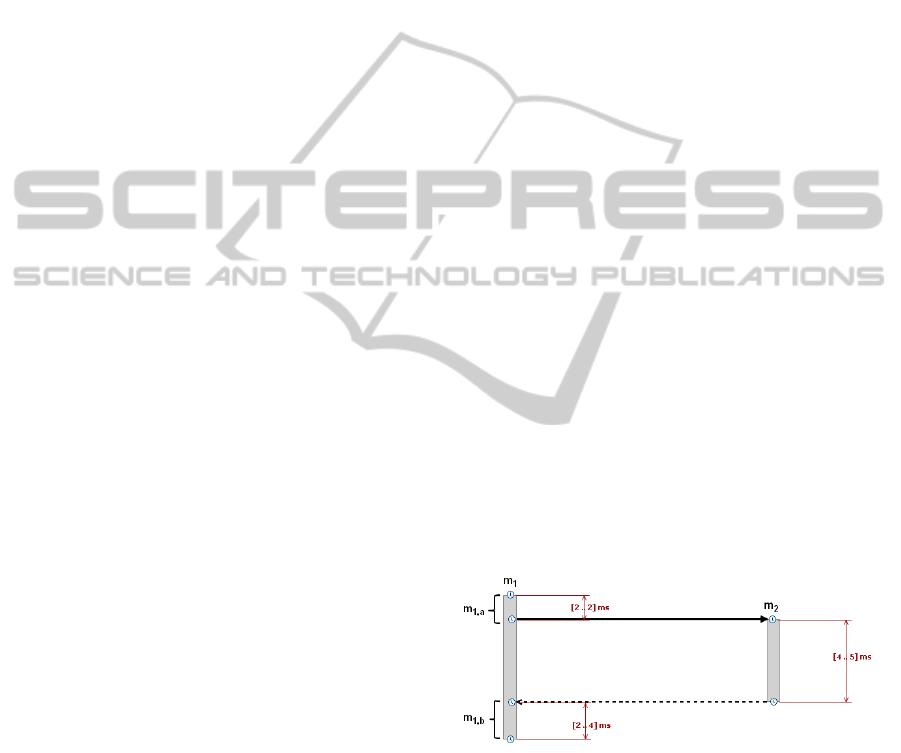

Figure 2: Synchronous call between operations in the

MyCCM design model.

In order to overcome the semantic mismatch

between design and timing analysis, we have

defined a set of rules transforming extended

MyCCM models into equivalent timing analysis

models. This step is essential for the applicability of

the model-based timing analysis to design models.

In the following, we present an example of such

transformation rules.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

622

An example of a synchronous call between two

operations in the extended MyCCM design model is

illustrated in Figure 2. Let us assume that the

operation m

is mapped to a task called T

, while the

operation m

is mapped to a task called T

. Let us

assume static priority preemptive scheduling for the

tasks (

Lehoczky, 1990). Regardless of the priority

assignment for the tasks, the execution order of the

operations will always be the following: after its

activation, task T

will first execute the operation

fragment m

1,a

. Then, it calls task T

. Since the call is

blocking, task T

is suspended until task T

finishes

executing the operation m

and sends data back.

Then, task T

executes the operation fragment m

1,b

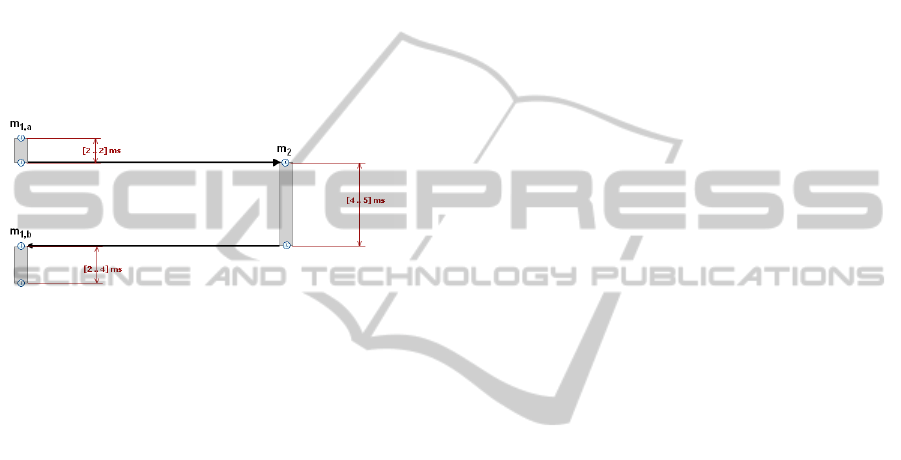

Figure 3: Transformed synchronous call between

operations in the timing analysis model.

In order to keep the synchronous call behavior of the

operations and tasks while respecting the timing

analysis model semantic, we have to split the

operation m

in two distinct operations

corresponding to the operation fragments m

1,a

and

1,b

. This can be observed in Figure 3. We also have

to split task T

in two tasks T

1,a

and T

1,b

that inherit

its priority. Then, we have to map the operations m

1,a

and m

1,b

respectively to the tasks T

1,a

and T

1,b

Obviously, this transformation preserves the same

execution order and thus, the synchronous call

behavior of the original operations and tasks in the

extended MyCCM model. On the other side, it is

compliant with the above mentioned timing analysis

standard assumption, since task T

1,a

calls task T

the end of its execution and not before as task T

does.

3.3 Pivot Timing Analysis Model

Based on the set of transformation rules mentioned

in the previous section, we can in theory directly

translate an extended MyCCM design model into the

selected timing analysis tool specific model. In

practice, as illustrated in the framework structure in

Figure 1, we have decided to introduce a pivot

timing analysis model in-between, in order to ensure

a minimum of independence from modeling and

analysis tools.

The pivot timing analysis model is a sort of

“standard” timing analysis model free from any

specificity of the selected timing analysis tool. This

makes the replacement of the analysis tool, if

required, easier. In this case, the transformation from

the extended MyCCM design model to the pivot

timing analysis model remains unchanged, while

only the interface between the pivot timing analysis

model and the new selected timing analysis tool has

to be implemented. The use of a pivot timing

analysis model allows as well hiding the timing

analysis tool complexity to the designer, since the

latter does not need to pay attention to the tool

specificities.

Generally speaking, the use of a pivot timing

analysis model avoids the combinatorial explosion

of transformations across every combination of

modeling tool and timing analysis tool. Direct

connections from N modeling tools to M timing

analysis tools require N*M transformations.

Connections from N modeling tools to M timing

analysis tools via a pivot timing analysis model

require only N+M transformations.

Note that in our developed model-based timing

analysis framework, if required by the user, the pivot

timing analysis model could be run in background

thus being completely transparent to the designer.

3.4 Model-based Formal Timing

Analysis

The next step in the model-based timing analysis

framework is performing the timing analysis. The

scheduling policy for tasks execution in the Sentinel-

3 satellite on-board software use case is the fixed

priority preemptive scheduling. The analysis was

performed using the SymTA/S timing analysis tool

(SymTA/S). The analysis algorithm is derived from

the one presented by Tindell in (

K.W. Tindell, 1994).

Basically, based on mathematical proofs, the timing

analysis algorithm calculates safe lower and upper

bounds for the tasks response time values for each

task, thus guaranteeing corner-case coverage. In

addition to the response times, we use SymTA/S for

the processor load, tasks output jitter and the buffer

size calculation.

3.5 Timing Analysis Results

Adaptation to Design Model

Semantic

The worst-case responses times calculated by the

IntegratingModel-basedFormalTimingAnalysisintheIndustrialDevelopmentProcessofSatelliteOn-BoardSoftware

623

analysis tool SymTA/S are specific to the timing

analysis model obtained after transformation of the

MyCCM design model. Therefore, some calculated

response times may be related to tasks and

operations resulting from the splitting process

explained in Section 3.2. Such tasks and operations

are only notional and do not have a correspondence

in the MyCCM design model. Thus, injecting the

analysis results as calculated by SymTA/S in the

MyCCM modeling tool may be confusing for the

designer. A translation process for the calculated

response times is therefore required.

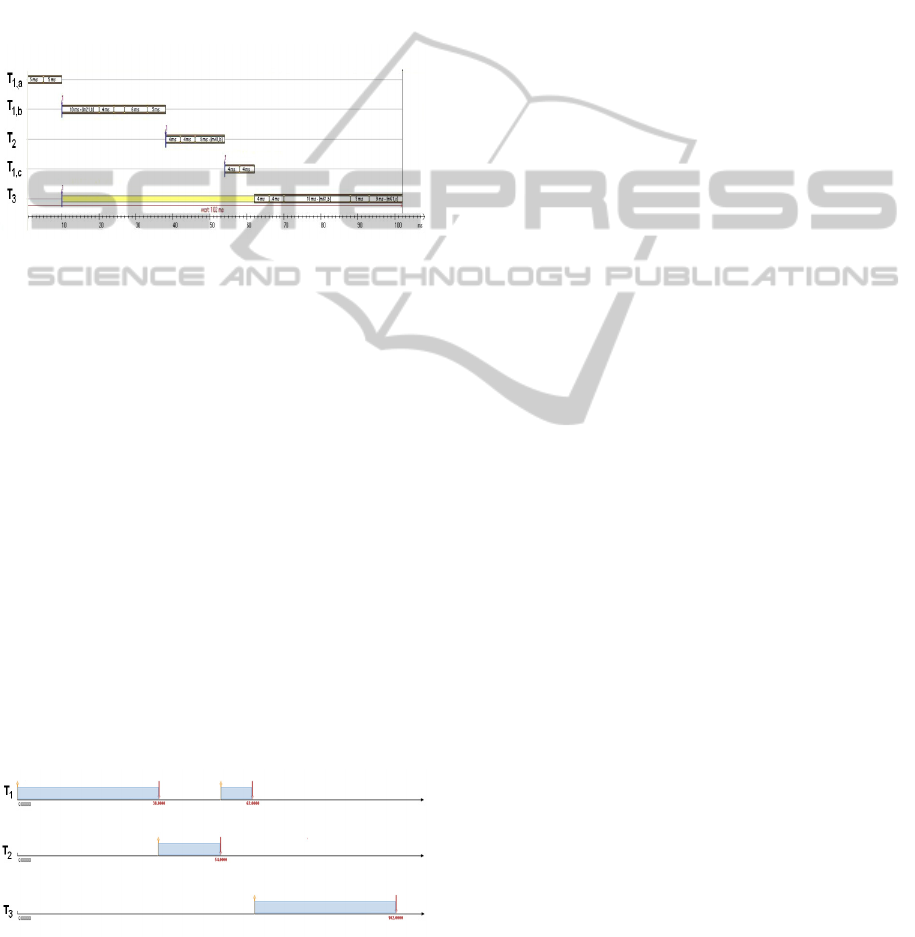

Figure 4: Gantt charts in the timing analysis tool

SymTA/S.

Figure 4 shows a Gantt chart example produced by

SymTA/S after worst-case timing analysis. It

illustrates the worst-case execution scenario for a

lower priority task T

. As can be noticed, the worst-

case scenario involves executions of the higher

priority tasks T

1,a

, T

1,b

, T

1,c

and T

. As their names

suggest, the first three tasks were obtained after

splitting a task called T

from the MyCCM design

model. In order to provide the designer a

comprehensive worst-case execution scenario, we

have developed a translation process allowing

merging executions of split tasks and operations and

their illustration in dedicated Gantt charts. We

implemented these dedicated Gantt charts using the

TimingAnalyzer tool (TimingAnalyzer). The

transformed Gantt charts are directly displayed in

the modeling tool. Figure 5 illustrates the

transformed Gantt chart obtained from the SymTA/S

Gantt chart represented in Figure 4.

Figure 5: Translated Gantt charts injected in the design

model.

3.6 Model-based Timing Analysis

Consolidation through Functional

Testing

The model-based timing analysis process presented

above is based on timing budgets and estimates for

the operations and tasks execution times. After code

implementation, the defined timing budgets need to

be consolidated. As illustrated in the model-based

timing analysis framework in Figure 1, this is done

with the help of model-based functional testing.

Functional tests are namely generated from the

design model and executed on the hardware

platform. From the functional tests execution traces,

lower and upper bounds for the core execution times

of the operations and tasks are extracted. The

obtained execution time intervals are then compared

with the predefined timing budgets. If the execution

time intervals fit within the timing budgets, there is

no need to rerun the model-based timing analysis.

Otherwise, the timing budget bounds are adjusted

and the model-based timing analysis described in the

previous sections is rerun using the new obtained

core execution time values.

4 APPROACH EVALUATION

The model-based timing analysis framework was

deployed on a demonstration platform where a

representative part of an operational project

(Sentinel 3) has been analyzed. To demonstrate the

capability to use operational models, real MyCCM

components of Sentinel 3 were used as starting point

for the timing analysis framework. Then, a

performance model was developed in order to

describe the real-time architecture and the different

temporal characteristics (WCET, deadlines, etc.).

Then, model transformation is executed and the

resulting pivot model is sent to the analysis tool

without manual intervention from the user. This is a

very important point for the acceptance of the

solution as the pivot model does not need to be

manipulated by the user, the user staying at the level

of the MyCCM architectural model which is the

right level of abstraction for him. After Analysis, the

calculated results are translated then sent back to the

design tool to offer a view at the right level.

The integration of the timing analysis results into

the MyCCM design tool is a key enabler for a

seamless integration of the model-based timing

analysis into the development process. This

integration moves the timing analysis from a parallel

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

624

loosely correlated to the main stream of the

development process to a completely integrated

process.

The main advantage of the approach is the

elimination of the redundancies in the development

process (avoiding describing the design for the

timing analysis tool and thus avoiding eventual

errors and non-synchronization). As the dynamic

aspects are modeled in the same design tool than the

architecture, they are always synchronized enabling

an execution of the analysis very often during the

development process (even eventually thought

continuous integration process). Finally as the

dynamic architecture is fully described in the design

tool, generative techniques ensure that the model

will always represent the final system (indeed all the

code related to real-time entities declarations can be

fully generated).

5 CONCLUSIONS

In this work, we present a model-based timing

analysis framework developed in the industrial

context of satellite on-board software, allowing the

full automation of timing verification activities, their

application at early design stages and their

transparent integration in the development process

of real-time embedded systems.

The model-based timing analysis framework

allows bridging the existing semantic gap between

the design models and the common timing analysis

models through the application of dedicated model

transformation rules, thus permitting the integration

of the variety of existing timing analysis tools in the

design process.

Through the use of a pivot timing analysis

model, the developed framework ensures an

independence from the selected timing analysis tool

specificities and facilitates its replacement.

Other benefits of the model-based timing

analysis framework are related to the increase of the

design efficiency and robustness by respectively

avoiding the duplication of work and excluding the

risks of consistency failures through its applicability

to the functional design model.

We believe that the model-based timing analysis

framework we have developed represents an

important step toward the full acceptance of the

model-based formal timing analysis techniques in

the industry.

ACKNOWLEDGEMENTS

The work described in this paper is partially funded

by the ARTEMIS project MBAT

(https://www.mbat-artemis.eu/).

REFERENCES

E. Borde, F.Gilliers, G. Haik, T. Vergnaud, J. Hugues, L.

Pautet, 2009. MyCCM-HI, a component-based

Framework Implementing a Model Driven

Engineering Approach. Neptune 2009.

MARTE 1.1, June 2011. OMG publication, 2011-06-02.

UML superstructure 2.4.1, August 2011, OMG

publication, formal/2011-08-06.

Lehoczky, 1990. Fixed Priority Scheduling of Periodic

Task Sets with Arbitrary Deadline. IEEE Real-Time

System Symposium (RTSS 1990).

SymTA/S https://www.symtavision.com/symtas.html

K.W. Tindell, 1994. An extendible approach for analysing

fixed priority hard real-time systems. Journal of Real-

Time Systems, 6(2):133–152, Mar 1994.

TimingAnalyzer http://www.timing-diagrams.com/

MAST http://mast.unican.es/

MPA http://www.mpa.ethz.ch/Rtctoolbox/Overview

CHEDDAR http://beru.univ-brest.fr/~singhoff/cheddar/

IntegratingModel-basedFormalTimingAnalysisintheIndustrialDevelopmentProcessofSatelliteOn-BoardSoftware

625
