Information Models and Transformation Principles Applied

to Servitization of Manufacturing and Service Systems Design

Carlos Agostinho

, Hassan Bazoun

2, 3

, Gregory Zacharewicz

, Yves Ducq

and Hadrien Boye

Centre of Technology and Systems, CTS, Uninova, 2829-516, Caparica, Portugal

University of Bordeaux – IMS/LAPS, 33405, Talence Cedex, France

Hardis Ouest, 44800, Saint Herblain, France

Keywords: MDA, MDE, Enterprise Interoperability, Model Transformations, MDSEA, Manufacturing Servitization.

Abstract: Based on systems engineering principles, information modelling is seen as a central activity for the

development and life cycle support of a product or system. It enables to reduce the costs derived from

miscommunications and misconceptions normally occurring throughout the service system design, analysis

and maintenance activities. Supporting the servitization of manufacturing and the evolution towards

product-service systems or extended products, modelling and interoperability is becoming of utmost

importance to ensure coherence among conceptual design phases at organizational levels down to

technology development. Therefore, this paper explores the model-driven development and model-driven

interoperability transformations principles to unify every step of the development of service systems, from

its start at the application's business requirements, through the design of technology independent functions,

to deployable services.

1 INTRODUCTION

The evolution from an economy of products towards

an economy of services has been becoming

important in manufacturing since the nineties. The

“Servitization” concept, intrinsically linked to

discussions on services and service provision, is

loosely defined around the delivery of product-based

services, and its most tangible effect is the

development of Product Service Systems (PSS) and

Extended Product (Vandermerwe & Rada, 1988;

Baines et al., 2009; Thoben et al., 2001).

Being the application of competence for the

benefit of another, a service involves at least two

entities to enable value co-creation (Spohrer et al.,

2007). This service orientation trend has been

gaining momentum also in ICT to support the

integration of products and services with customers.

They are not just provided with products, but

broader more tailored solutions based on the

customer centricity paradigm (Baines et al., 2009).

In fact, service-oriented architectures have

modernized information systems towards that

direction, providing powerful methods and tools to

decompose complex systems in autonomous

components, and supporting enterprise processes

and workflows with simple orchestrations and

compositions (Ducq, Doumeingts, et al., 2012).

Embracing the servitization integrated view on

PSS and extended products, services will concern

physical products as well as the associated

technology, people and knowledge (Chesbrough &

Spohrer, 2006). Indeed, depending on the type and

core competencies required to supply the associated

services, it will be necessary to involve several

business partners collaborating very closely towards

a common goal, sharing risks and resources (Ducq,

Chen, et al., 2012). This requires the integration of

autonomous, geographically distributed and

heterogeneous stakeholders in virtual organizations

and business ecosystems, creating, sharing and

reusing information across teams and enterprise

boundaries (Zdravkovic et al., 2013).

Therefore, to meet the above requirements, there

is a need to apply modelling paradigms in order to

support Service Systems (SS) development along the

lifecycle of different organizational forms such as

Virtual Manufacturing Enterprise (VME) (Ducq,

Doumeingts, et al., 2012; Estefan, 2007).

Nevertheless, developers need to take care of

properties such as interoperability. Being directly

related with the heterogeneity of modelling

657

Agostinho C., Bazoun H., Zacharewicz G., Ducq Y. and Boye H..

Information Models and Transformation Principles Applied to Servitization of Manufacturing and Service Systems Design.

DOI: 10.5220/0004875206570665

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MDSE-2014), pages 657-665

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

languages, communication capabilities, databases

and semantics, interoperability hides a great barrier

in the path towards collaborative services

development. In fact, since many organizations

within VME’s and enterprise networks use software

solutions based on their own needs, the cooperation

with others is not a trivial activity (Jardim-

Goncalves et al., 2013).

To solve this problem, the authors propose

Model Driven Architecture (MDA) based

technologies such as Model-Driven Development

(MDD) and Model-Driven Interoperability (MDI) to

unify every step of the development of service

systems, from its start specifying application's

business requirements, through the design of

technology independent functions and behaviour, to

deployable services. Based of these principles, and

continuing the work of Ducq et al. (2012), this paper

explores a methodology for service system design

and implementation, and proposes a framework for

the specification of mappings and execution of

automatic transformations among different models

and modelling levels. It enables to respond to the

service lifecycle and VME dynamics, ensuring its

sustainability along service (re)engineering and co-

design, i.e. changes that occur over time and could

impact negatively the business ecosystem can be

controlled, tuned and balanced to maximize

servitization efficiency without jeopardizing

interoperability.

2 MODEL DRIVEN SERVICE

SYSTEM ENGINEERING

Service systems emphasize collaboration and

adaptation in value co-creation, and establish a

balanced and interdependent framework for systems

of reciprocal service provision. Such systems may

be business entities that survive, adapt, and evolve

through mutual exchange and application of

resources – particularly knowledge and skills

(Spohrer et al., 2007). SS engage in exchange with

others to enhance adaptability and survivability, co-

creating value for both. All these are issues related

to the Enterprise Interoperability (EI) domain, thus

some EI intensive concepts and methods, such as

modelling, can be adapted to service systems

engineering (Agostinho, Jardim-Goncalves, et al.,

2012; Jardim-Goncalves et al., 2012).

Also, being a hot topic for the last couple of

years, service management derived from product

lifecycle management, aiming at handling all service

data relating to its design, implementation, operation

and final disposal (Garschhammer et al., 2001).

Based on ISO 15704 (ISO TC184/SC5, 2000), the

various service system engineering phases iterate

among: (1) identification, (2) concept, (3)

requirement, (4) design, (5) implementation, (6)

operation and (7) decommission. A service could be

re-engineered several times during its life, and

feedback loops could happen in order to answer

better to the requirements of the previous phase

(Ducq, Doumeingts, et al., 2012).

In this context, service modelling seeks to

formalise the concept of a service, largely through

definition on the participants in service value

creation (providers and consumers). Proposed

models include those by Garschhammer et al.

(2001), and Kohlborn et al. (2009) generic business

service management framework, form the early

engineering phases, and follow model-driven

principles to iterate through the different phases.

2.1 Model Driven Engineering (MDE)

and Architecture (MDA)

MDE, sometimes also referred as model-driven

development, is an emerging practice for developing

model-driven applications. Popularized by the OMG

MDA (OMG, 2003), it represents a promising

software engineering approach to address systems

complexity, by simplifying and formalizing the

various activities and tasks that comprise an

information system life cycle. MDE is meant to

maximize compatibility between systems,

simplifying the process of design, and promoting

communication between teams working on the

system (Selic, 2003; Agostinho, Černý, et al., 2012).

MDD/MDE’s vision encourages the use of

models at different levels of abstraction, from high-

level business models focusing on goals, roles and

responsibilities down to detailed use-case and

scenario models for business execution (Bézivin,

2005; Frankel, 2003). These models are developed

through extensive communication among product

managers, designers, and members of the

development team, and as they approach

completion, enable a fast development of systems.

An MDA system can be observed and analysed

from different points of view, defining a hierarchy of

models at three different levels of information

abstraction (OMG, 2003): (a) Computation

Independent Model (CIM), specifying the

requirements and the environment where the system

will operate. It is meant for the domain practitioners

and is based on the vocabulary of the specific target

domain; (b) Platform Independent Model (PIM),

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

658

formalising the structure and functionality of the

system. This model focuses on operational details

while hiding specific details of any particular

platform in order to be suitable for use with several

different platforms; and (c) Platform Specific Model

(PSM) that combines the PIM model with

implementation constructs that specify how the

system uses a particular type of platform.

Model transformation methods are used to

automate the translation process from high level

specifications (CIM) and formal descriptions of the

systems (PIM), to the bottom levels (PSM) and

implementation code, increasing speed, code

optimization and avoiding errors in the engineering

process (Frankel, 2003; Agostinho, Černý, et al.,

2012).

2.2 Model-Driven Service Engineering

Architecture (MDSEA)

Based on the above MDA principles, the MDSEA

architecture is being defined along the MSEE

integrated project (www.msee-ip.eu/) to model and

guide the transformation from the business

requirements of the SS into detailed specifications of

components that must be implemented to support the

servitization process (Ducq, Chen, et al., 2012;

Ducq, Doumeingts, et al., 2012).

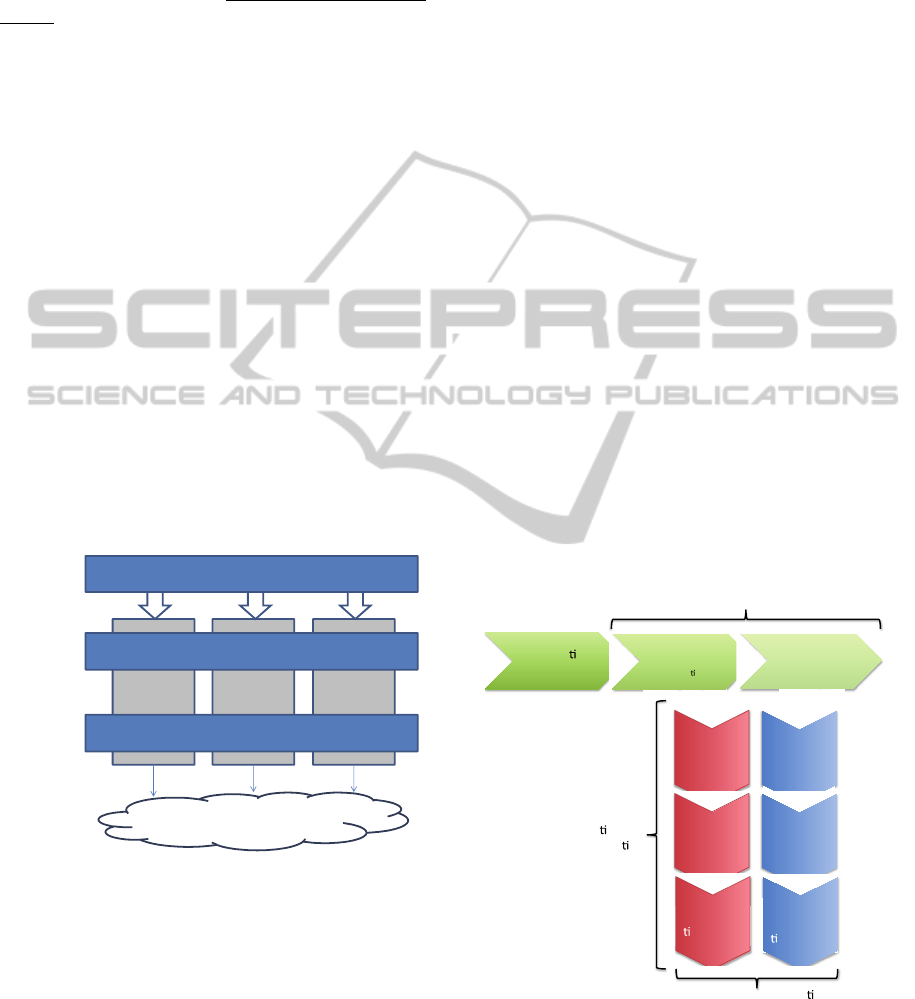

Figure 1: MDSEA (Ducq, Chen, et al., 2012).

As illustrated in Figure 1 and in resemblance to the

MDA’s CIM-PIM-PSM, this architecture defines

several modelling levels to have a progressive

specification of service system components at the

business (Business Service Modelling - BSM),

functional (Technology Independent Modelling -

TIM), and technological (Technology Specific

Modelling - TSM) levels. Extending the modelling

approach of MDA with principles explored on EI’s

enterprise modelling, technology related models

integrate not only the IT part but also the

requirements leading to the implementation of a

solution in organization and physical domains.

The approach implies that the different model,

obtained via model transformation from the upper-

level ones, should use dedicated service modelling

languages that represent the system with the

appropriate level of description. GRAI Integrated

Modelling (Chen & Doumeingts, 1996) and BPMN

2.0 (OMG, 2011a) have been considered as a

reference for the BSM and TIM levels, but further

details on the analysis and selection of the most

appropriate languages can be found in MSEE

(2012); Ducq et al. (2012).

3 METHODOLOGY

FOR SERVICE SYSTEM

DESIGN & IMPLEMENTATION

In order to operationalize enterprises servitization

using model-based engineering and interoperability

concerns presented before, it is necessary to propose

a precise method to implement the service system.

Figure 2 illustrates a structured multi-step approach

to-be implemented through various groups of actors

belonging to the enterprises and organizations

involved in the servitization process, as well as by

external actors to support this process.

Figure 2: MSEE Methodology for servitization system

definition and implementation.

The methodology begins at the strategic level of

companies that want to evolve towards service-

Organisation

Human

Domain

Physical

means

Domain

Business Services Models (BSM)

Technology Independent Models (TIM)

Technology Specific Models(TSM)

Services in virtual enterprises

(IT Applications, Processes, Products,

Services, Organisation/Human, Physical

Means(machine, robots), etc…)

Generation of “components”

( IT_ Organisation/Human_Physical means

Defini on

strategy

AS‐IS

Modelling

(for evalua on and

diagnosis

)

TO‐BE

Modelling

(to

accomplish

strategy)

Business

Specific

Model

(refinement)

Detailed

Model

Implementa

Model

Business

Specific

Model

Detailed

Model

Implementa

Model

Enterprise

Modellin

Ver cal

Transforma on

Horizontal

Transforma on

InformationModelsandTransformationPrinciplesAppliedtoServitizationofManufacturingandServiceSystemsDesign

659

oriented business methods following the extended

product stages introduced by Thoben et al. (2001),

i.e. from a single product, to product with services,

until product-as-a-service. Depending on their

objectives, modelling and MDSEA vertical

transformations are required to go from the desired

strategy, a “to-be” business specific model (BSM

level), towards a detailed functional definition

(TSM) and practical implementation model (TSM).

Moreover, since models can be shared to enable

value co-creation (e.g. through collaborative process

orchestration) among companies operating at several

domains and using different technologies, horizontal

transformations are also considered to ensure

interoperability. In summary, the horizontal flow

initializes the study to reach the “to-be”, while the

vertical sequence allows to implement MDSEA and

determine the components of the SS by domains.

After the specification of the methodology,

which contributed to the identification of concrete

transformation requirements, the MDSEA

architecture provided the building blocks for VME

service development, scoping the work to be

implemented:

 The capability to transform a business specific

model into a functional one that can then be

complemented by a system architect;

 The capability to transform a functional model into

a technology specific one envisaging the

generation of concrete software and services;

 The capability to harmonize models specified by

different enterprises, enabling interoperability and

collaboration (e.g. process orchestration, service

matching) within the ecosystem.

4 MDSEA MODEL

TRANSFORMATIONS

FRAMEWORK

The MSEE methodology applies the distinction

between vertical and horizontal transformations,

providing interoperability and portability at the same

degree of relevance as the traceability features,

linking requirements, design, analysis, and testing

models of the several MDSEA levels. In this

context, a framework for MDSEA transformations

along 3 different axes is here proposed (

Figure 3

 Axis 1 - Modelling levels. Defined according to

the meta-modelling reference architecture

proposed by OMG (OMG, 2011b), which

envisages that real world data is modelled using

four levels that go for data itself (M0) to the meta-

meta-model (M3). Following this axis, service

models are described at the level M1 using the

modelling language concepts and constructs

defined at level M2.

 Axis 2 - MDSEA levels. MDSEA enables service

system modelling around the three abstraction

levels summarized before in section 2.2.

 Axis 3- VME integration. Starting from a

minimum of two systems, this axis represents the

integration among the multitude of systems part of

the enterprise service ecosystem.

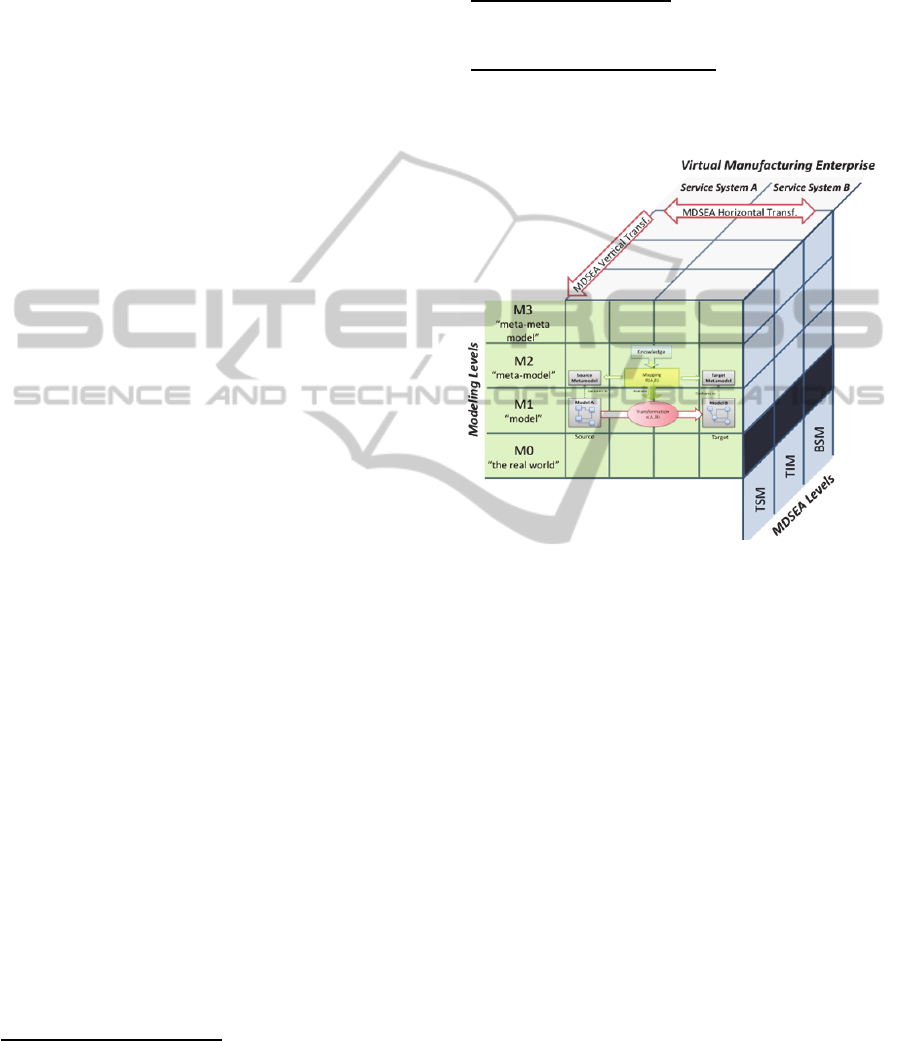

Figure 3: MDSEA Transformations Framework.

The transformations framework envisages a formal

specification of models along the first axis to enable

vertical transformations from BSM to TSM (axis 2)

as well as horizontal ones to integrate different

service systems (axis 3). Indeed, based on model

transformations, the MDSEA transformations

framework unifies every step of the service system

development.

4.1 Vertical and Horizontal

Transformations

Vertical transformations imply a change on the

abstraction level of the resulting model, i.e. going

from TIM to TSM implies a specialization

transformation along the MDSEA axis. As in MDA

vertical transformations, the amount of generated

models depends on both the code generator and also

the level of detail represented in the upper levels.

Ideally, only small portions of missing knowledge

should have to be added by the human in order to

ensure that, at the TSM level, the generated code and

auxiliary files are ready for compilation, linking and

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

660

deployment.

In the case of horizontal transformations, the

level of abstraction remains unchanged, leading to

solutions for that enable collaborative activities at

the VME axis. Greater interoperability benefits are

expected with this type of transformations, but as

studied by Agostinho et al. (2012), one might need

to be concerned also with language-related

specificities. In fact, different languages enable to

describe the same objects with different details (e.g.

properties, constraints). Thus, both input and output

models must be an instance of a well defined meta-

model according to axis 1.

4.2 Transformations Architecture

Recalling the first axis of the framework, namely the

relationship between the concepts of model and

meta-model, when performing a model

transformation (from ModelA to ModelB), one is

converting instances of a source model to instances

of another model, the target, and an explicit or an

implicit mapping at the same meta-modelling level

has to be performed.

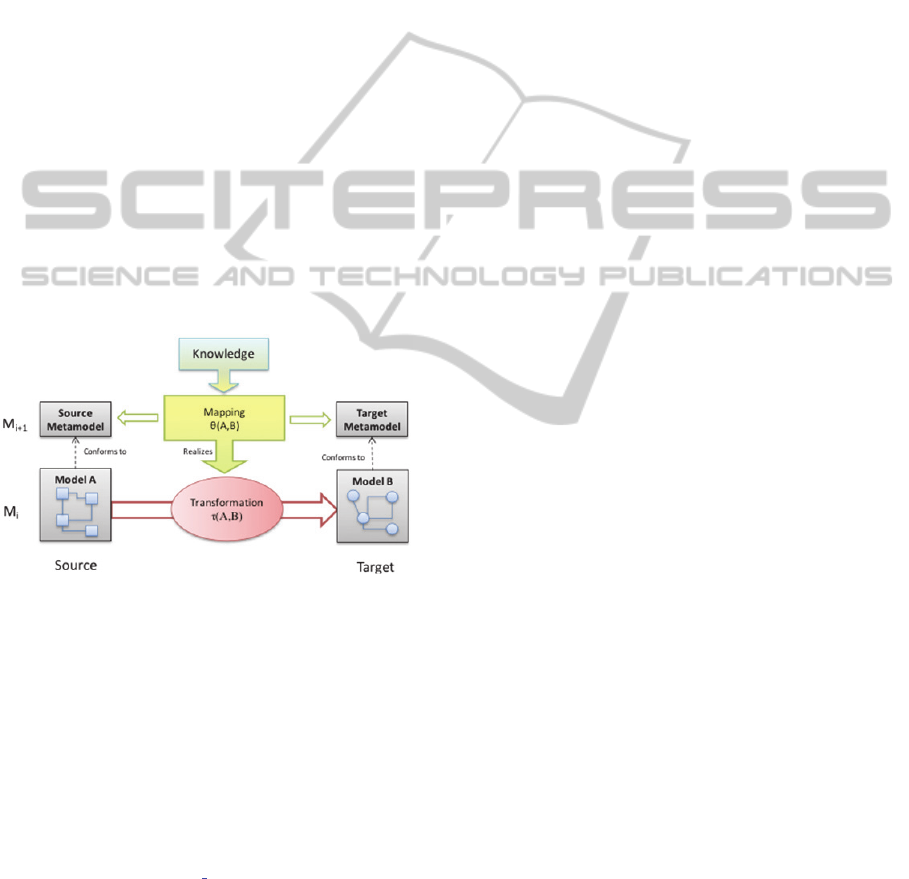

Figure 4: Generic Transformations Architecture - adapted

from MDA Guide (OMG, 2003).

As depicted in the generic transformations

architecture, included in the framework (frontal pane

Figure 3

) and highlighted in Figure 4, the idea is

that when performing a transformation “τ(A,B)” at a

certain level “i”, this transformation has (implicitly

or explicitly) to be designed by taking into account

mappings “θ(A,B)” at level “i+1”. Once the “i+1”

level mapping is complete, executable languages

such as the Atlas Transformation Language (ATL,

www.eclipse.org/m2m/atl/), the Query View

Transformation (QVT, www.omg.org/spec/QVT/),

or the AToM (http://atom3.cs.mcgill.ca) can be used

to implement the transformation itself, either

vertically along axis 2 or horizontally along axis 3.

4.3 Knowledge Management

in the Transformation Process

Simple type mappings are generally insufficient to

specify a complete transformation (Truyen, 2006).

Additional knowledge is frequently required to

complement the mapping, specifying that certain

concepts in the source model must be annotated

(marked) in a specific way in order to produce the

desired output in the target model. Sometimes, this

extra information cannot be determined from the

source model itself, and it might need to use

knowledge from external models, e.g. ontologies.

For these reasons, the generic transformations

architecture adopted by MDSEA is complemented

with a “knowledge” box on top of the meta-model

mappings.

Semantics are recognized as an important area

for models alignment identified as one of the levels

of interoperability to consider within an enterprise

(Athena IP, 2006). However, a general observation

shows that in traditional MDA/MDI transformations,

semantic knowledge is often not exploited to

improve interoperation automation.

MSDEA transformations framework envisages

to change that explicitly associating that semantic

knowledge (e.g. annotations, mismatches,

reconciliation rules, etc.) to models and mappings. It

needs syntactic alignment as a pre-requisite, so that

the approach for processing the information will be

interpretable from a known structure. However, once

the syntactical correctness has been verified,

semantic interpretation, which goes beyond syntax

or structure, must be understood and unambiguously

defined based on the context of the mapping

definition.

5 APPLICATION

IN AN INDUSTRIAL DOMAIN

Figure 5 illustrates a scenario from the clothing

industry (in the frame of MSEE project) indicating

the steps taken as part of the service system

implementation, namely the vertical transformation

of a modelled online product configurator (BSM

level) into a collaboration model (TIM level) that

enables specific VME services at TSM level.

More specifically, the scenario envisages to start

representing of the BSM processes using the

Extended Actigram Star (EA*) language

(Doumeingts et al., 2006). Due to transformation

requirements that model should be manually

InformationModelsandTransformationPrinciplesAppliedtoServitizationofManufacturingandServiceSystemsDesign

661

decomposed (steps 1 and 2) into two separate

models: user centred and system centred.

Subsequently, automatic vertical transformation is

applied to both (steps 3 and 4), and the result

consists in two separate BPMN diagrams, which are

also user and system centred. Then, the TIM models

are merged for orchestration in order to represent the

user-system interaction in one collaboration model

(step 5). For simplification reasons, no horizontal

transformation is required here. Later this diagram is

enriched manually at the TIM level for a more

detailed model and the vertical transformation

continues down to the TSM level (step 6).

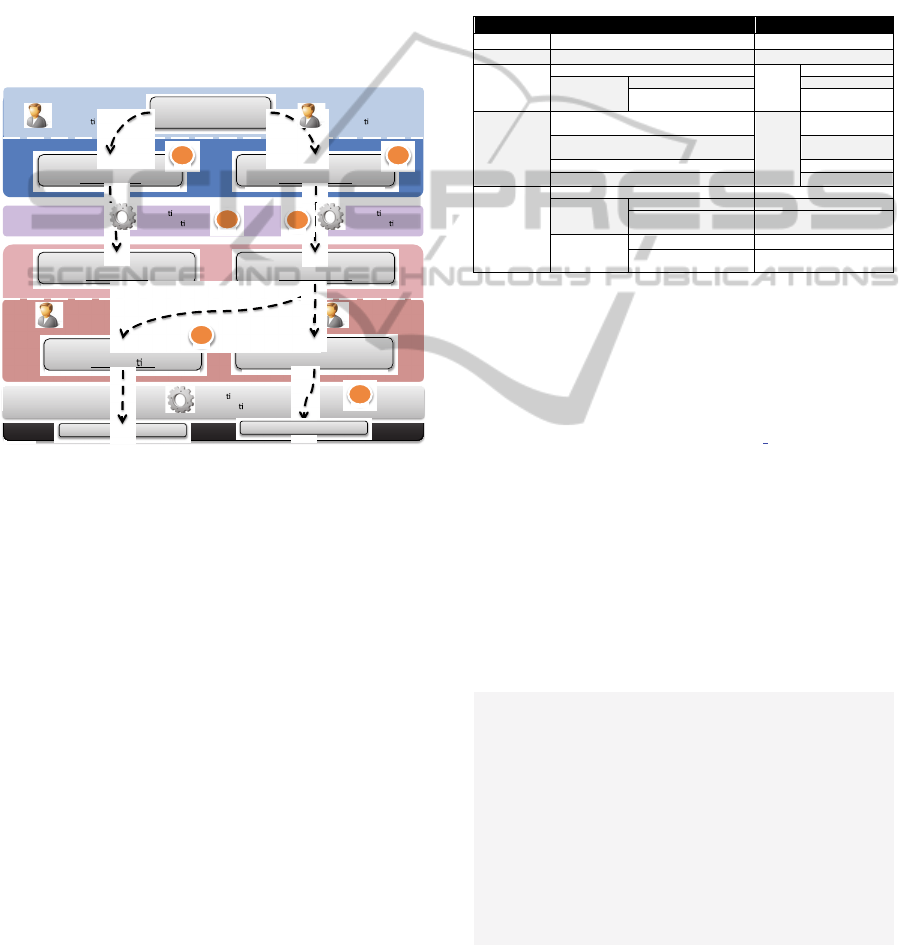

Figure 5: Modelling and transformation scenario.

Focusing on the paper contribution and due to space

constraints, detailed technical examples are only

taken at the transformation steps 3 and 4, helping to

illustrate the mechanism. To note that this example

is complying with a first priority specifications and

no work with ontologies and knowledge annotation

has yet been implemented for the knowledge

management.

5.1 MDSEA Axis Implementations:

EA* to BPMN2.0

Vertical transformations implemented along the

MDSEA axis of the transformations framework

require the definition of model mappings among

MDSEA core concept meta-models (Ducq,

Doumeingts, et al., 2012), as well as among selected

languages at BSM, TIM, and TSM. Being a process

modelling language, EA* language shares common

direct or indirect concepts with BPMN2.0. As a

result, a mapping is established from EA* concepts

to BPMN2.0 concepts following specific conditions.

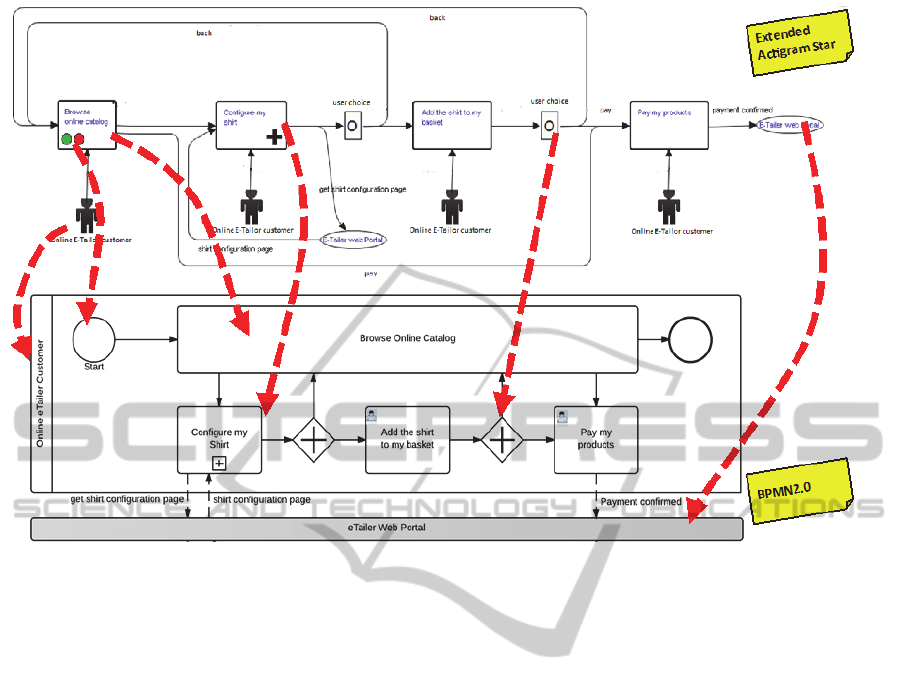

In the mapping subset of

Figure 6, it is possible to

see that several conditions govern the mapping of

“atomic” ExtendedActivity. These vary depending

on the type of resource(s) supporting the activity: (1)

if a Human resource is responsible for the realization

of the Extended Activity, it is mapped to a

UserTask; (2) if an IT resource is responsible for the

realization of the Extended Activity, it is mapped to

a ServiceTask. Full mapping is available in Bazoun

et al., (2013).

Figure 6: EA* and BPMN 2.0 Mapping Subset.

For the implementation, ATL was elected. It is a

largely used language to implement MDA based

tools, having a specific development toolkit plug-in

available in open source (Eclipse Modelling Project

- http://www.eclipse.org/modeling/) (Jouault &

Kurtev, 2007). The ATL rule mechanism provides

developers with a convenient means to specify the

way target model elements must be generated from

source model elements. For this purpose, a matched

rule enables to specify:

 Which source element must be matched;

 The number and the type of the generated target

model elements;

 The way these target model elements must be

initialized from the matched source elements.

Figure 7: Matched Rule.

Figure 7 contains an example of a “matched rule” to

TSM

BSM

TIM

EA*:

Configurator

EA*:

Buy

product

online

User

Process

EA*:

Buy

product

online

System

Process

BPMN:

Buy

product

online

User

Process

BPMN:

Buy

product

online

System

Process

Manual

decomposi on

Manual

decomposi on

Automa c

model

Transforma on

Automa c

model

Transforma on

BPMN:

Buy

product

online

Collabora on

BPMN:

Provide

Configurator

Service

Manual

Enrichment

Manual

Enrichment

TIM

TSM

Automa c

model

Transforma on

‐‐‐‐

EA*

ition BPM N2.

Model Definitions

Process Pool, Process, and Participant

Extended

Activity

Structural

Activity

Sub Process

Atomic

It is supported by Human UserTask

It is supported by IT (no

human interaction)

ServiceTask

LogicalOperator

DivergingOr

Gateway

Diverging Exclusive

Gateway

ConvergingOr Converging

Exclusive Gateway

DivergingAnd Parallel Gateway

ConvergingAnd Parallel gateway

Resource

Material Data Object

Human Responsible for Lane

Participates in Resource (added to the list of

resources of a task)

IT Responsible for Lane

Participates in Resource (added to the list of

resources of a task)

rule ExtendedActigramToDefinition{

from s: EA!EaModel

to a: BPMN!Definitions (

id <- s.name,

targetNamespace <-'www.jboss.org/drools',

expressionLanguage <- 'www.mvel.org/2.0',

typeLanguage <- 'www.java.com/javaTypes',

rootElements <-

thisModule.ProcessToProcess(s.process)

)

}

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

662

transform an ExtendedActigram element to a

Definition element. It is identified by its name, and

is composed of two mandatory (the “from” and the

“to” parts) and an optional (the do parts) sections.

The “from” part represents the concept to be mapped

from the Extended Actigram Star meta-model which

is ExtendedActigram and the “to” part represents its

corresponding concept in BPMN meta-model which

is Definitions. The declarative block of the “to” part

is used for assigning values to attributes.

Figure 8: Lazy Rule.

In our implementation, the ATL mechanism of “lazy

rules” has also been used, called from match rules.

They have the same structure but are applied only on

the element passed as a parameter. “thisModule.

ProcessToProcess(s.process)” from Figure 7 calls

the lazy rule “ProcessToProcess” on the element

“s.process”. It is evident that the rule included in

Figure 8 calls other rules, yet both “to” and “do”

parts have been shortened (“…”) due to space

constraints.

Figure 9 illustrates graphically how the results of

applying the transformation from an EA* model to a

BPMN model looks like.

6 CONCLUDING REMARKS,

DISCUSSION AND FUTURE

WORK

Based on model transformations, MDSEA has the

challenge to unify every step of the enterprise (or

virtual enterprise) servitization. It answers to the

requirements of service system re(engineering)

while maintaining portability and interoperability,

enabling value co-creation.

The proposed methodology and transformations

framework brings bi-dimensionality and automation

to the servitization system. Having MDA/MDI as

the enabling technology, vertical and horizontal

dimensions are supported implementing a

comprehensive transformations architecture that

recognizes semantics as an important area for

models alignment. Following the architecture and

applying the mappings presented, some ATL

transformations have been implemented and

executed in the frame of an industrial scenario.

From a user’s perspective, feedback has been

received stating that modelling actually facilitates

the requirement collection, and the model driven

approach allows getting to code level more

efficiently and robustly. Re-engineering is no longer

seen as a problem.

From a developer’s perspective, the mappings

are time-consuming processes that once defined can

be executed any number of times achieving the same

results. Nevertheless, despite its robustness, the ATL

technology represents models as meta-models and

relates their properties through static rules. This

means that each time that it is necessary to change

relations between models, manual codification is

required to recreate them. This behavior is a direct

consequence of dynamism flaw.

In this context, the application of communication

mediation ontologies in the line of the work

presented by Sarraipa et al., (2010) are considered

relevant for the future work, and positive influencers

for the success of MDSEA-based transformations.

As parseable knowledge repositories, properly

instantiated with domain data, they can support

automation by enabling intelligent services to work

on top of them and facilitate the intervention of the

Human actor (both user and developer).

Another line of future work concerns the

simulation of models to evaluate the behaviour of

the system regarding time and identify desired or

undesired behaviour, including the respect of causal

relations. Another step proposed for this research is

to add one new transformation of BPMN models to

DEVS models in the goal of running simulations.

Some on-going works have started reusing, in the

context of Service process modelling and simulation,

already existing matching between Workflow and

DEVS (Zacharewicz et al., 2008).

lazy rule ProcessToProcess{

from s: EA!EaProcess (

s.oclIsTypeOf(EA!EaProcess)

)

to a: BPMN!Process (

id <- s.id,

name <- s.name,

flowElements <- s.flowElements.append(…),

laneSets <- thisModule.laneSet

)

do {

thisModule.bpmnProcess <- a;

thisModule.bpmnProcess.flowElements <-

thisModule.bpmnProcess.flowElements.union(this

Module.bpmnFlowElements);

thisModule.bpmnProcessRef <-a;

thisModule.eaStarProcessRef <- s;

…}

}

InformationModelsandTransformationPrinciplesAppliedtoServitizationofManufacturingandServiceSystemsDesign

663

Figure 9: Graphical example of mapping and transformation of models.

ACKNOWLEDGEMENTS

Authors would like to acknowledge the European

funded Project MSEE (FP7 284860) that supported

the development of various ideas, concepts and use

case presented in this paper.

REFERENCES

Agostinho, C., Černý, J. & Jardim-goncalves, R. (2012)

MDA-Based Interoperability Establishment Using

Language Independent Information Models. In: M.

van Sinderen, P. Johnson, X. Xu, & G. Doumeingts

eds. 4th International IFIP Working Conference on

Enterprise Interoperability (IWEI 2012). Harbin,

China, Springer, pp.146–160.

Agostinho, C., Jardim-Goncalves, R., Sarraipa, J.,

Lampathaki, F., Koussouris, S., Charalabidis, Y.,

Psarras, J., Assogna, P., Missikoff, M., Popplewell, K.,

Silva, E. & Ferreira, J. (2012) Deliverable D2.4: EISB

Models & Tools Report. ENSEMBLE CSA Project

(FP7-ICT-257548).

Athena IP (2006) ATHENA Interoperability Framework

(AIF) (Internet). Available from: < http://

athena.modelbased.net > (26 Nov 2013).

Baines, T. S., Lightfoot, H. W., Benedettini, O. & Kay, J.

M. (2009) The servitization of manufacturing: A

review of literature and reflection on future challenges.

Journal of Manufacturing Technology Management,

20 (5), pp.547–567.

Bazoun, H., Zacharewicz, G., Ducq, Y. & Boye, H. (2013)

Transformation of Extended Actigram Star to

BPMN2.0 in the frame of Model Driven Service

Engineering Architecture. In: Symposium on Theory of

Modeling and Simulation (TMS/DEVS 2013). San

Diego, CA, USA.

Bézivin, J. (2005) Model Driven Engineering: An

Emerging Technical Space. In: Generative and

Transformational Techniques in Software

Engineering, International Summer School (GTTSE

2005). Braga, Portugal.

Chen, D. & Doumeingts, G. (1996) The GRAI-GIM

reference model, architecture and methodology. In: P.

Bernus, L. Nemes, & T. J. Williams eds. Architectures

for Enterprise Integration. London, UK, Chapman &

Hall.

Chesbrough, H. & Spohrer, J. (2006) A research manifesto

for services science. Communications of the ACM, 49

(7), p.35.

Doumeingts, G., Vallespir, B. & Chen, D. (2006) GRAI

GridDecisional Modelling. In: P. Bernus, K. Mertins,

& G. Schmidt eds. Handbook on Architectures of

Information Systems. Springer Berlin Heidelberg,

pp.321–346.

Ducq, Y., Chen, D. & Alix, T. (2012) Principles of

Servitization and Definition of an Architecture for

Model Driven Service System Engineering. In: 4th

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

664

International IFIP Working Conference on Einterprise

Interoperability (IWEI 2012). Harbin, China,

Springer.

Ducq, Y., Doumeingts, G., Lieu, C., Chen, D., Alix, T. &

Zacharewicz, G. (2012) Deliverable D11.2: Service

concepts, models and method: Model Driven Service

Engineering (M12 issue). MSEE IP Project (FP7 FoF-

ICT 284860).

Estefan, J. A. (2007) Survey of Model-Based Systems

Engineering (MBSE) Methodologies. INCOSE. From:

<www.omgsysml.org/MBSE_Methodology_Survey_

RevB.pdf> (Accessed 7 September 2011).

Frankel, D. (2003) Model Driven Architecture – Applying

MDA to Enterprise Computing. 1

edit. OMG Press.

Garschhammer, M., Hauck, R., Hegering, H.-G., Kempter,

B., Radisic, I., Rolle, H., Schmidt, H., Langer, M. &

Nerb, M. (2001) Towards generic service management

concepts a service model based approach. In: 2001

IEEE/IFIP International Symposium on Integrated

Network Management Proceedings. pp.719–732.

ISO TC184/SC5 (2000) Industrial Automation Systems—

Requirements for Enterprise-reference Architectures

and Methodologies (ISO 15704:2000).

Jardim-Goncalves, R., Agostinho, C. & Steiger-Garcao, A.

(2012) A reference model for sustainable

interoperability in networked enterprises: towards the

foundation of EI science base. International Journal of

Computer Integrated Manufacturing, 25 (10), pp.855–

873.

Jardim-Goncalves, R., Grilo, A., Agostinho, C.,

Lampathaki, F. & Charalabidis, Y. (2013)

Systematisation of Interoperability Body of

Knowledge: the foundation for Enterprise

Interoperability as a science. Enterprise Information

Systems, 7 (1), pp.7–32.

Jouault, F. & Kurtev, I. (2007) On the interoperability of

model-to-model transformation languages. Science of

Computer Programming, 68, pp.114–137.

Kohlborn, T., Korthaus, A. & Rosemann, M. (2009)

Business and software lifecycle management. In: 2009

Enterprise Distributed Object Computing Conference

(EDOC ’09).

OMG (2011a) Business Process Model and Notation

(BPMN) - version 2.0 (formal/2011-01-03). Available

from: <http://www.omg.org/spec/BPMN/2.0/PDF/>.

OMG (2003) MDA Guide Version 1.0.1 (omg/2003-06-

01). Object Management Group. Available from:

<http://www.omg.org/cgi-bin/doc?omg/03-06-01.pdf>

[Accessed 7 September 2011].

OMG (2011b) OMG Unified Modeling LanguageTM

(OMG UML), Infrastructure - version 2.4.1. From

<www.omg.org/spec/UML/2.4.1/Infrastructure/PDF/>

Sarraipa, J., Jardim-Goncalves, R. & Steiger-Garcao, A.

(2010) MENTOR: an enabler for interoperable

intelligent systems. International Journal of General

Systems, 39 (5), pp.557–573.

Selic, B. (2003) The pragmatics of model-driven

development. IEEE Software, 20 (5), pp.19–25.

Spohrer, J., Maglio, P., Bailey, J. & Gruhl, D. (2007)

Steps Toward a Science of Service Systems.

Computer, 40 (1), pp.71–77.

Thoben, K., Eschenbächer, J. & Jagdev, H. (2001)

Extended Products: Evolving Traditional Product

Concepts. In: 7th International Conference on

Concurrent Enterprising. Bremen, Germany.

Truyen, F. (2006) (White Paper) The Fast Guide to Model

Driven Architecture: The Basics of Model Driven

Architecture. Available from: <http://www.omg.org/

mda/mda_files/Cephas_MDA_Fast_Guide.pdf>.

Vandermerwe, S. & Rada, J. (1988) Servitization of

business: adding value by adding services. European

Management Journal, 6 (4), pp.314–324.

Zacharewicz, G., Frydman, C. & Giambiasi, N. (2008) G-

DEVS/HLA Environment for Distributed Simulations

of Workflows. SIMULATION, 84 (5), pp.197–213.

Zdravkovic, M., Panetto, H. & Trajanovic, M. (2013)

Semantic Interoperability for Dynamic Product-

Service. In: International Conference on Information

Systems and Technology (ICIST 2013). Kopaonik,

Serbia.

InformationModelsandTransformationPrinciplesAppliedtoServitizationofManufacturingandServiceSystemsDesign

665
