Staged Model-Driven Generators

Shifting Responsibility for Code Emission to Embedded Metaprograms

Yannis Lilis

, Anthony Savidis

1, 2

and Yannis Valsamakis

Institute of Computer Science, FORTH, Heraklion, Crete, Greece

Department of Computer Science, University of Crete, Crete, Greece

Keywords: Model-Driven Engineering, Multistage Languages, Code Generation, Compile-Time Metaprogramming.

Abstract: We focus on MDE tools generating source code, entire or partial, providing a basis for programmers to

introduce custom system refinements and extensions. The latter may introduce two maintenance issues once

code is freely edited: (i) if source tags are affected model reconstruction is broken; and (ii) code inserted

without special tags is overwritten on regeneration. Additionally, little progress has been made in combining

sources whose code originates from multiple generative tools. To address these issues we propose an

alternative path. Instead of generating code MDE tools generate source fragments as abstract syntax trees

(ASTs). Then, programmers deploy metaprogramming to manipulate, combine and insert code on-demand

from ASTs with calls resembling macro invocations. The latter shifts responsibility for source code

emission from MDE tools to embedded metaprograms and enables programmers control where the

produced code is inserted and integrated. Moreover, it supports source regeneration and model

reconstruction causing no maintenance issues since MDE tools produce non-editable ASTs. We validate our

proposition with case studies involving a user-interface builder and a general purpose modeling tool.

1 INTRODUCTION

In general, Model-Driven Engineering (MDE)

involves tools, models, processes, methods and

algorithms addressing the demanding problem of

design-first system engineering. An important

authoring requirement for such tools is to involve

notions and concerns inherent in the design domain.

In this context, either general-purpose notations are

adopted in software modeling, or mission-specific

models are offered for very specific tasks. Then,

target implementations are incrementally derived,

usually with various intermediate transitions from

the modeling to the implementation domain, until

eventually reaching a source code representation.

The latter relates to generative MDE tools that

deploy code generators to automatically produce

source code for the various modeled entities. The

generated code may contain special tags carrying

model information in order to allow model

reconstruction, while it is typically extended with

custom user code to deliver the final application.

The primary tool-chain of generative MDE

frameworks is outlined under Figure 1.

Our work falls in the field of generative model-

driven tools and focuses on addressing the

maintenance issues arising from code generation.

We continue elaborating on parameters of the

problem and then brief the key contributions of our

work to address this issue.

1.1 Problem Definition

MDE tools cannot optimally address all required

features of an application at the software engineering

level. As a result, custom source code amendments

and modifications are always anticipated. Even if

advanced methods are deployed to modularize and

decouple generated code from custom application

code, one can never exclude the possibility that

interdependencies or custom updates may appear.

The typical lifecycle of the generated code is

outlined under Figure 2. As shown, a dependency is

introduced by having the application logic directly

refer and deploy generated components (middle

part). But for most languages this is overall

insufficient for effectively linking application and

generated code, practically requiring the generated

code to be also manually modified. Typical updates

relate to application functionality importing and

509

Lilis Y., Savidis A. and Valsamakis Y..

Staged Model-Driven Generators - Shifting Responsibility for Code Emission to Embedded Metaprograms.

DOI: 10.5220/0004878605090521

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 509-521

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

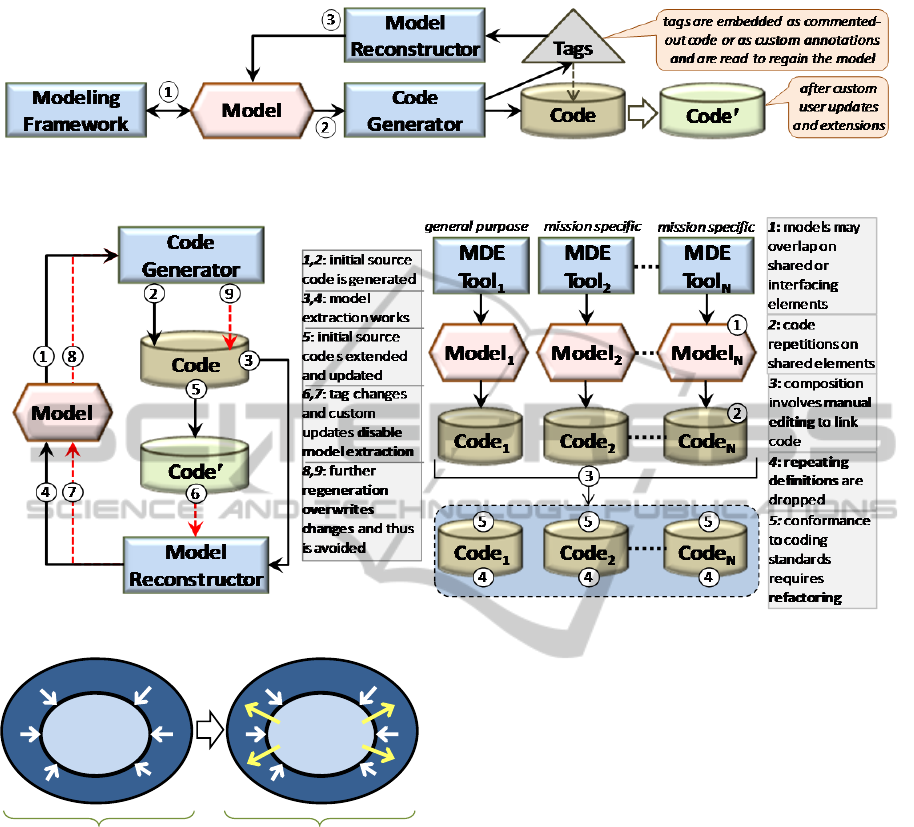

Figure 1: Tool chain in generative MDE tools: (1) interactive model editing; (2) code generation from a model; and (3)

model reconstruction from tags inserted in the generated source code, carrying model information.

Figure 3: Maintenance issues involved in the deployment of generative MDE tools, individually (left) or collectively (right).

Figure 2: Common growth of application code around the

originally generated code; future custom extensions and

updates eventually lead to bidirectional dependencies.

invoking, application-specific event handling,

linkage to third-party libraries that are not known to

the MDE tool, code improvement or refactoring.

This situation very quickly results into many

bidirectional dependencies (right part).

The latter maintenance issues are detailed in the

typical generative model-driven process shown in

Figure 3. Initially, if the code is not changed, source

regeneration and model reconstruction are well-

defined (left, steps 1-4). In other words, the MDE

tool works perfectly for both steps of the processing

loop. However, once the generated code is updated

(left, step 5), two problems directly appear. Firstly,

tag editing and misplacing may break model

reconstruction (left, steps 6-7), while any code

manually inserted outside the MDE tool causes a

model-implementation conflict. Secondly, source

regeneration overwrites all manually introduced

updates (left, steps 8-9). For real-life applications of

a considerable scale the latter may lead to the

adoption of the MDE tool only for the first version,

or worse, avoiding using an MDE tool at all.

Maintenance issues also arise when trying to

combine the outcome of multiple MDE tools. When

using multiple tools, a single application element

may end up being shared by different models. This

means that when the code for each model is

generated, there will be code repetitions for the

shared elements (right, steps 1-2). In this case, the

developer has to manually edit the generated sources

to drop any repeated definitions and link the code

properly (right, steps 3-4). Furthermore, the use of

different MDE tools implies different code

generators and thus different coding styles and

methods present in the generated code. Having all

generated sources conform to specific coding

standards inevitably requires manual refactoring

(right, step 5).

generated

code

appcode

generated

code

appcode

codeupdates

applicationcodetypicallyextends

aroundgeneratedcode

generatedcodeisupdated(filling

gapsorusingappfeatures)

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

510

1.2 Contributions

Our main contribution is an inversed responsibility

model for generative MDE tools (Figure 4) where:

(i) the code for model entities becomes available in

the form of ASTs; and (ii) the actual code generation

is applied on-demand and in-place through

generative macros embedded in the main program as

a metaprogram that is evaluated before compilation.

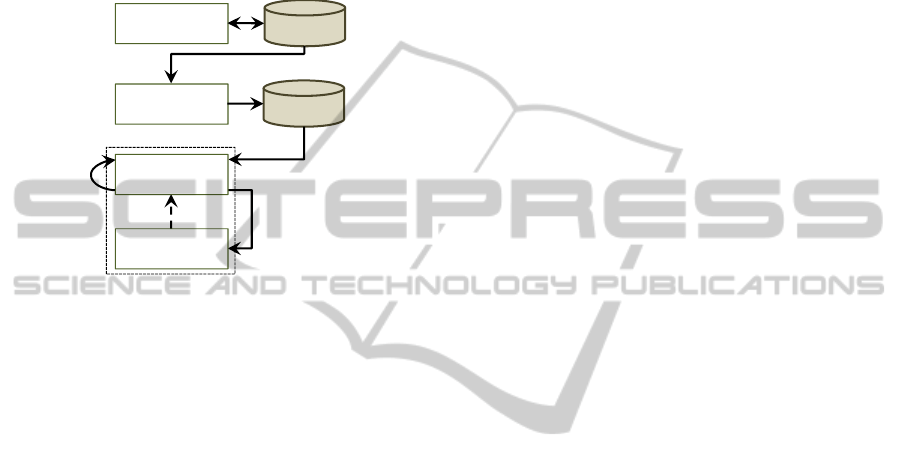

Figure 4: Outline of the proposed MDE approach.

This approach addresses the maintenance issues of

traditional generators and sets code manipulation as

a first-class concept in the MDE, revealing the value

of using a metaprogramming language in this

context. Apart from compile-time evaluation, we

also elaborate on how our approach can be applied

using the runtime metaprogramming facilities of

languages like Java and C#.

Overall, we propose an improved process where

the MDE tool outcome is read-only, decoupled from

source code generation, letting the application

directly deploy and manipulate generated code

fragments, instead of being built around them. In

this context, we also discuss how AST composition

allows combining sources whose code originates

from multiple MDE tools.

2 RELATED WORK

Our work targets the field of MDE and focuses on

the maintenance issues arising from source code

generation. In this context, we review advanced and

popular general-purpose generative MDE tools.

The EMF (Eclipse Foundation, 2008) project is a

modeling framework and code generation facility for

building applications based on a structured data

model. The model is described in the Ecore meta-

model, while code generation targets Java and uses

@generated annotations to specify the automatically

generated code segments. By default, all generated

code segments include this annotation and are

overwritten upon regeneration. In case the generated

code is manually extended, the @generated

annotations should be manually removed (or

alternatively turned into @generated not) to specify

that the annotated code segments should be

maintained and not overwritten upon regeneration.

However, manual extensions cannot be reflected

back to the model while model updates will be

discarded for manually extended code. Additionally,

misplacing or forgetting to remove the annotations

may result in losing manually written source code.

Acceleo (Obeo, 2006) is a code generator

implementing the OMG’s Model-To-Text-Language

specification. It is independent from the targeted

technology allowing the generation of any textual

format using plugins while it provides an OCL-

oriented (OMG, 2012) template-like definition for

expressing custom generators. Acceleo supports

incremental generation allowing developers to

regenerate target files without losing modifications

once explicit [protected] … [/protected] constructs

are used, translated into tagged comments that mark

a code region that will not be overwritten during

regeneration. Again, any intervention on such tags

breaks regeneration. Furthermore, placing such tags

requires an a priori knowledge of the locations

requiring manual updates, something not always

available during the design phase. Practically, this

means that for each required update, the developer

will have to go to the transformation script, insert a

protected code region, regenerate the code and

finally go back to the source to perform the update.

This is a tedious circle, while in our approach

updates are normally applied on the edited source

with no such context switches or regeneration.

Actifsource (Actifsource GmbH, 2010) is a

design and code generator tool focusing on domain-

driven software development. It utilizes a template-

based code generation approach including by default

various language generator templates, while

allowing new ones to be added for any language.

Like Acceleo, Actifsource also supports using

special tags to specify protected regions where

manually inserted code will not be overwritten upon

regeneration. Again, any intervention on these tags

causes maintenance issues once code is regenerated.

Umple (Badreddin and Lethbridge, 2013) is a

modeling tool that reduces the distance between

model and code by adopting UML abstractions

directly into a high-level programming language

code. This way, models become just another abstract

code view, eliminating the need for model extraction

MDE

Authoring

Model

MDE

Generator

CodeASTs

4.insertcodevia

generativemacros

include

3.loadAST

codefragments

andcompose

2.invokedas

preprocessing

before

compilation

MainProgram

Metaprogram

1.generate

ASTs

StagedModel-DrivenGenerators-ShiftingResponsibilityforCodeEmissiontoEmbeddedMetaprograms

511

as everything in the model is represented directly in

code. Umple can generate code for languages like

Java and PHP and allows embedding native code or

transforming the generated code through aspect-

oriented facilities. Umple’s philosophy for generated

code is that it should never be edited but treated as a

development artifact that can be thrown away and

recreated and thus, there is no issue of round-

tripping (Antkiewicz, 2007; Chalabine and Kessler,

2007). Our approach, maintains the separation

between model and code while overcoming the

round-trip issue through the in-place deployment of

code fragments generated by the model.

Papyrus (Lanusse et al., 2009) and Modelio

(Desfray, 2009) are both MDE tools offering code

generation for a many languages. They support the

full MDE development cycle allowing both model-

to-source and source-to-model transformations. For

the latter, they parse source files locating specific

code structures (e.g. classes, attributes, operations

etc.) in order to regenerate the model, while treating

any additional code they include as metadata. This is

an important step towards resolving the maintenance

issues; however, it cannot be applied in case the

generated code originates from multiple models.

Also, such a reverse engineering policy is valid for

general-purpose MDE tools but cannot be deployed

for mission specific tools. For example, in case of

MDE tools for user-interface code generation, like

GuiBuilder (Sauer and Engels, 2007) or GrafiXML

(Michotte and Vanderdonckt, 2008), it is practically

impossible to recognize the widget elements by

parsing manually written source code (Staiger,

2007). Our methodology can be deployed for both

general-purpose and mission-specific tools, while

still addressing the maintenance issues.

Maintaining manual updates after regeneration is

also possible by adopting the Generation Gap

Pattern (Vlissides, 1996). For instance, in

Xtext/Xtend (Bettini, 2013) the generated code is

placed in a separate source folder src-gen, whose

contents are overwritten and should thus never be

modified. On the first generation, Xtext also

generates stub classes in the normal source folder

that inherit from class in the src-gen folder. These

classes are never regenerated and can thus safely be

edited without the risk of being overwritten.

However, this approach does not work well when

generated classes are involved in existing class

hierarchies, while it also complicates system design.

Additionally, it does not address the issue of

combining generated code from multiple MDE tools.

Our proposition for improving the MDE process

involves metaprogramming techniques. In this

context, we also consider work utilizing generative

programming and aspect-oriented programming

techniques for MDE to be related to ours. Völter and

Groher (2007) explore aspect-oriented techniques

for model-driven code generation, while Hemel et

al. (2010) and Zschaler & Rashid (2011) treat source

code generation as another model transformation

utilize a rewriting-based technique to compose and

combine partial generation represented respectively

in AST and text form. While in all cases code

generation is achieved, the final source may be

freely edited with no additional consideration for the

involved maintenance issues.

3 STAGED METAPROGRAMS

Generally, metaprogramming relates to functions

which generate code, i.e. programs producing other

programs, while metaprogramming languages take

the task of code generation and support it as a first-

class language feature. This is a sort of reification of

the language code generator enabling programmers

to write code which generates extra source code.

When available as a macro system before

compilation, the method is known as compile-time

metaprogramming. Alternatively, if offered during

runtime – typically using the language reflection

mechanism – it is called runtime metaprogramming.

We focus on compile-time metaprogramming as it is

more powerful than its runtime case. In this context,

code generating macros are functions manipulating

code in the form of ASTs, and are evaluated by a

separate stage preceding normal compilation. Then,

they are substituted in the source text by the code

they actually produce. Due to the introduction of an

extra stage, and because macros may generate

further macros, thus requiring extra staging, such

languages are also called multistage languages

(Sheard et al., 2000; Taha, 2004). In our work we

use the dynamic object-object language Delta

(Savidis, 2012), along with its compile-time

metaprogramming extension (Lilis and Savidis,

2012). Popular meta-languages also include Lisp

(Steele, 1990), Scheme (Dybvig, 2009), MetaML

(Sheard, 1999), MetaOCaml (Calcagno et al., 2001),

Template Haskell (Sheard, 2002), MetaLua (Fleutot,

2007) and Converge (Tratt, 2005).

In the Delta language, meta-code involves meta

definitions and inline directives (i.e., code

generation), prefixed with the & and ! symbols

respectively. In particular, inline directives accept an

expression returning an AST and are the only way to

insert extra code into the main program.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

512

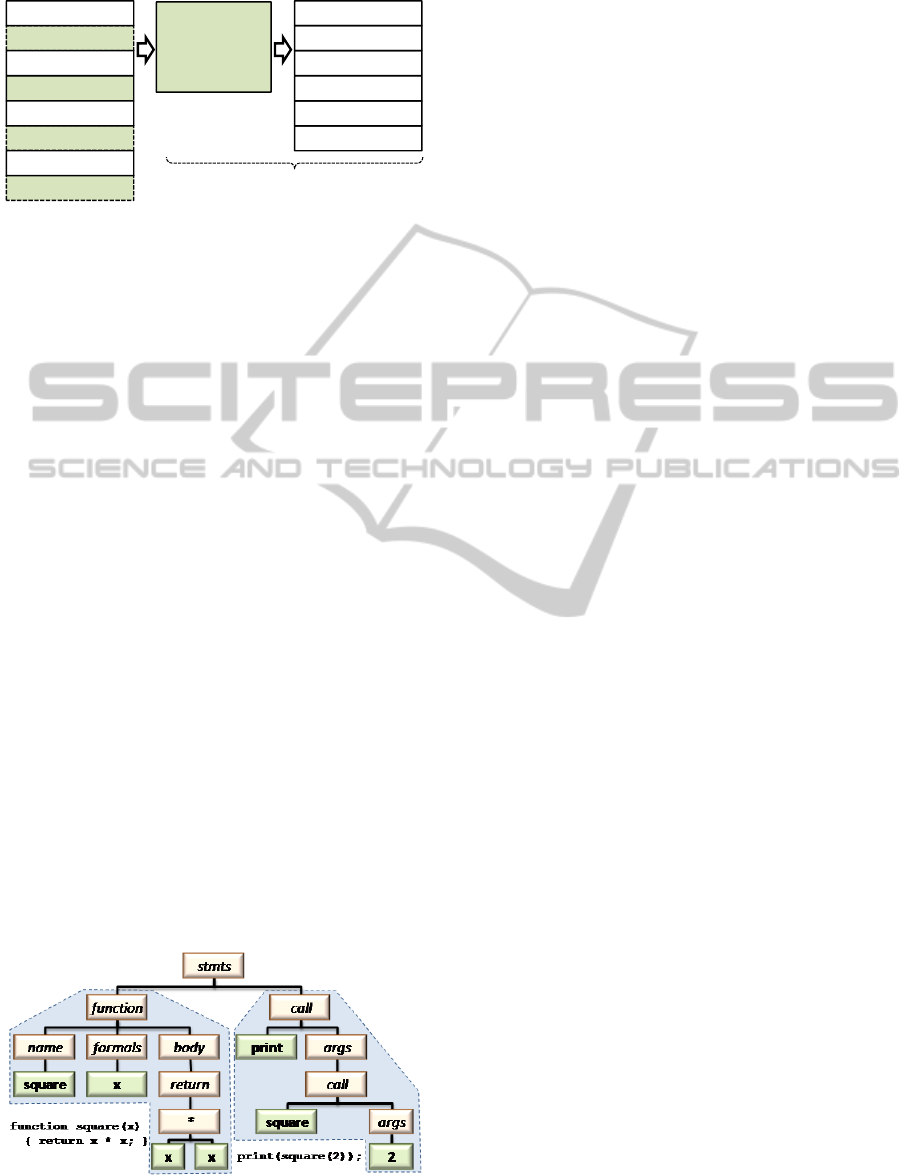

Figure 5: Evaluating generative macros with an extra

stage.

As shown in Figure 5, during the first stage the

compiler: (i) collects all scattered meta-code into a

single metaprogram; (ii) evaluates the program

while recording the output of the inline calls; and

(iii) removes all meta-code from the initial program

and replaces inline directives by the code they

produced. For example, consider the following code.

using std;

&ast = load_ast("<ast path>");

!(ast);  code generation directive

The first line is normal code, a directive to

import standard library functions. But the next two

lines are meta-code, indicated by & and ! prefixes.

The second line loads an AST from a file, assume

the loaded AST to be the one of Figure 6. The third

line inserts the code implied by this AST into the

main program. As a result, after the first stage, and

before normal compilation, the main program is:

using std;

function square(x) { return x * x; }

print(square(2));

Such code is only transient, and exists inside the

compiler temporarily during the first compilation

stage. It is shown here for clarity. After this first

stage, the resulting source text constitutes the input

to the normal compilation phase, as if it was

originally written this way by the programmer.

Figure 6: Abstract syntax tree example.

The previous example shows only the creation

and inlining of an AST value. However,

metaprograms typically operate on AST values,

adding, removing or transforming nodes they

contain. For example, consider that we wanted to

extend the above code with an extra print statement.

To achieve this, we would have to obtain and

manipulate the children of the root stmts node:

&ast = load_ast("<ast path>");

&stmts = ast.get_children();

&stmts.push_back(<<print("...")>>);

!(ast);  generate transformed code

The notation <<…>> is not a conceptual

symbolism, but actual Delta syntax relating to a

meta-language construct known as quasi-quoting.

Essentially, it is a compile-time operator that

converts the surrounded raw source-text to its

respective AST representation. For instance

<<1+2>> is equivalent to the AST of the

expression 1+2, not just the character string ‘1+2’.

Performing transformations on ASTs requires

knowledge of the particular AST structure as well as

information about the language AST representations.

Essentially, locating nodes that should be

transformed may involve tedious traversal of the

AST. This can be improved using a decoration

process that allows direct navigation across AST

nodes through named entities involved in the AST

structure. In the above example, inserting code

within the body of the square function would be

achieved with the following meta-code statement:

&ast.square.body.insert(<<...>>);

This way, high-level knowledge of the AST

contents and a simple tree manipulation API are

sufficient for introducing elaborate AST extensions.

4 PROPOSED PROCESS

The primary motivation for our work has been the

serious source code maintenance issue inherent in

the deployment of generative MDE tools. Although

we needed to avoid this problem, in the mean time

we wished to retain all powerful features of

generative MDE tools. Thus we started thinking of

an alternative path, in which: (i) the MDE tool

output would somehow remain invariant, that is in a

not-editable form; and (ii) the source code of the

application could still grow and evolve in an

unconstrained manner around it. This led us to the

idea of bringing staged metaprogramming into the

pipeline by enabling programmers algorithmically

&defs

2

&defs

6

!(AST‐expr

)

!(AST‐expr

)

defs

2

inlineAST‐expr



defs

6

inlineAST‐expr



defs

1

defs

3

defs

5

defs

7

defs

1

defs

3

defs

5

defs

7

insertedAST‐expr

4

insertedAST‐expr

8

initial

mainprogram



extracted

stagedcode



updated

mainprogram



firststageevaluatesthestagedcodeand

updatestheinitialprogram

StagedModel-DrivenGenerators-ShiftingResponsibilityforCodeEmissiontoEmbeddedMetaprograms

513

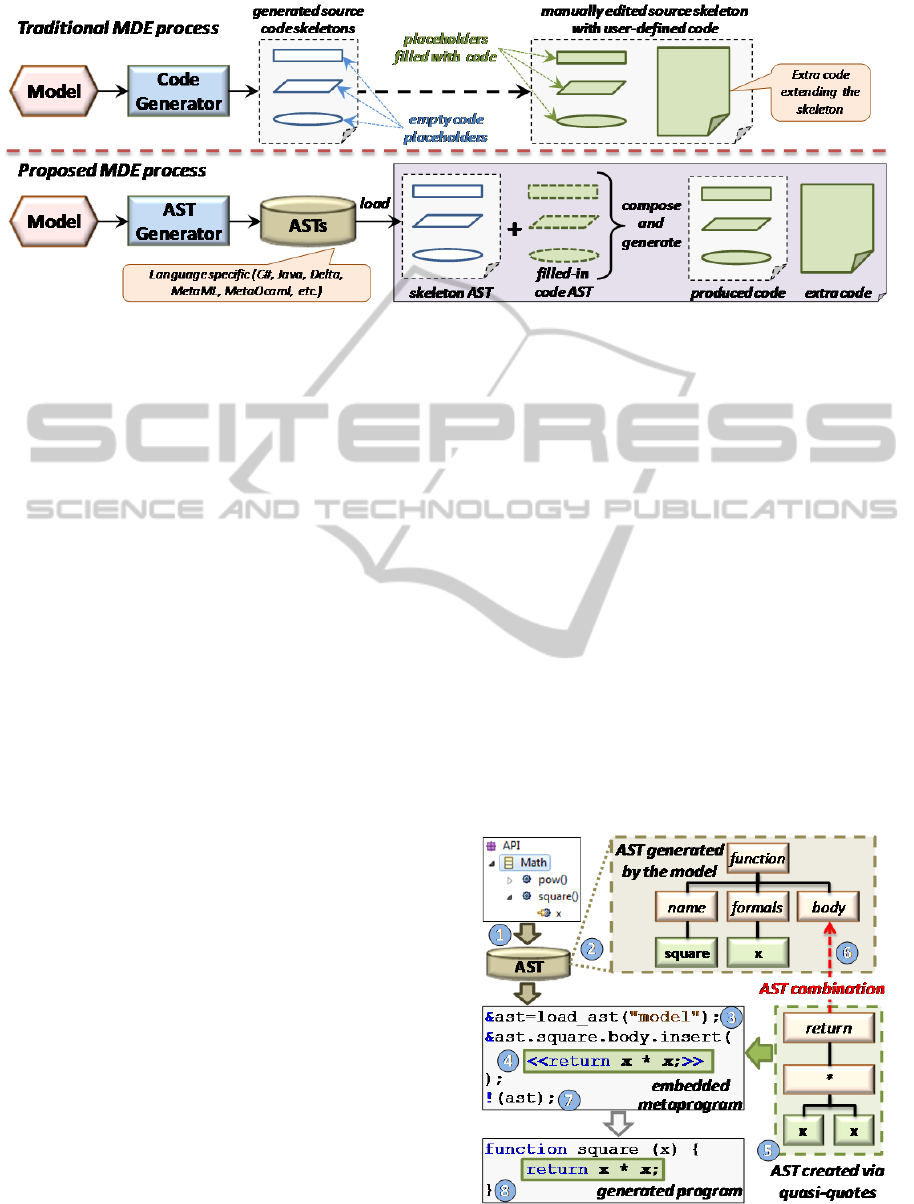

Figure 7: Top: Traditional MDE process where the generated source code files are manually updated with fill-in and extra

code. Bottom: The proposed MDE process where the tool output is in AST form and the programmer deploys embedded

metaprograms to load, compose and generate the model code that is integrated along with the custom application code.

manipulate the generated code including: loading,

processing and transforming. We continue detailing

our proposition for a refined model-driven process

and compare it against the traditional process. We

also discuss how a similar approach could be

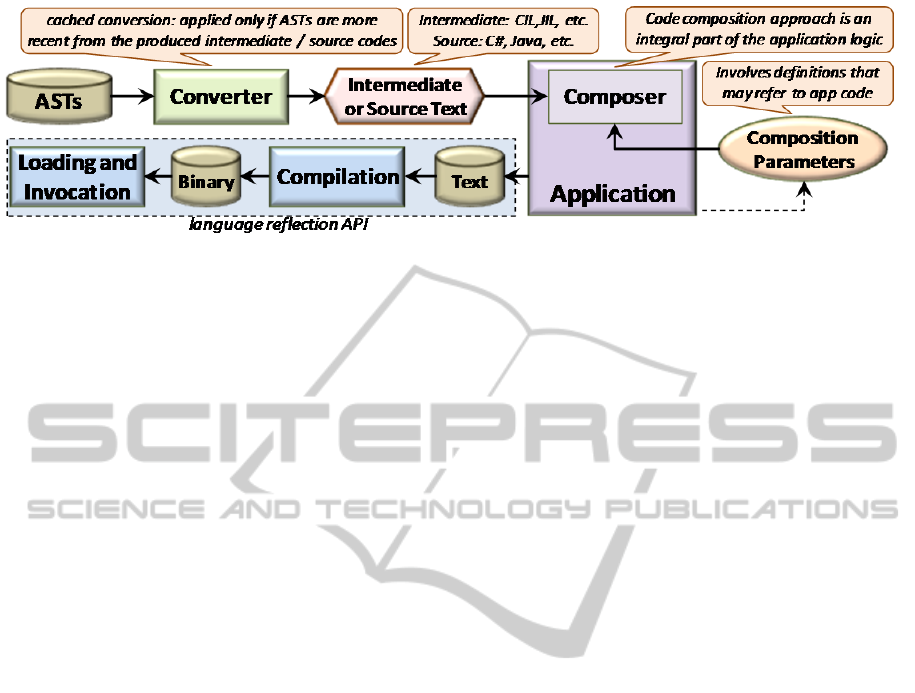

deployed in languages that do not offer explicit

support for staging but support some degree of

runtime composition though a reflection API.

4.1 Refined Tool Chain

Our proposition for a refined model-driven process

is deployed on languages with explicit support for

staging and could be directly applied on all

multistage languages discussed earlier. We utilize

two stages of evaluation, one for the evaluation of

the generative macros and another one for the

normal program translation. In particular, with

staged code generation, the MDE process, outlined

under Figure 7 in analogy to the traditional

generative process, is improved as follows.

Initially, the model-driven tools generate code in

the form of language-specific ASTs. Apart from

code, the ASTs can also incorporate any special

code annotations, like those required by various Java

frameworks. ASTs are essentially read-only data,

meaning the result of the code generation remains

unchanged and thus code-to-model reconstruction is

unnecessary. Then, any custom application code,

that would typically require manual extensions on

top of the generated source code files, is instead

developed as a full program that deploys embedded

metaprograms to load and incorporate the model

code as needed. Essentially, these metaprograms

include functionality for reading and manipulating

ASTs as previously discussed, so their evaluation

can generate a transient model code version (in read-

only form) that can directly incorporate custom

application code. If any changes are performed on

the model, then further regeneration overwrites only

the ASTs and not the source file that contains the

custom application code. This means that on the next

translation the metaprograms will simply load the

updated AST versions, generate the updated

transient model code and then directly integrate it

with the application code without requiring any

additional actions from the programmer, effectively

improving the maintenance of the system.

The adoption of an AST representation for model

code also enables the combined deployment of

multiple MDE tool outputs. Metaprograms can load

and manipulate multiple ASTs regardless of the

originating tool, so supporting such combination is

just a matter of specifying the appropriate AST

composition for the input models. Additionally,

Figure 8: Example of deploying the proposed MDE

process. Highlighted steps 1-8 are discussed within text.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

514

metaprograms may contain any further application-

specific composition or editing logic. This means

that it is possible to perform any code transformation

on a source fragment before inserting it in the final

source. Finally, after the staged evaluation has

produced the final source, the process continues with

the normal program translation or evaluation.

To better illustrate the steps involved in the

proposed process we discuss the deployment

example of Figure 8. The scenario involves a model

representing an API for mathematical functions

where we want to automatically derive the function

skeletons and then complete them with the

implementation code. For brevity, we only show the

implementation of a single function.

The model is initially passed to the AST

generator to produce its AST code representation

(step 1). The latter will contain the code skeleton for

the definition of function square, and is stored as a

data file (step 2). The programmer then develops the

custom application code and uses an embedded

metaprogram to integrate it with the model code. In

particular, the metaprogram begins by loading the

AST data (step 3) and then manipulating it to

incorporate the custom application code directly into

the loaded model code (step 4). The custom

application code here is just the return x*x;

statement that is turned into an AST through quasi-

quotes (step 5). The call to ast.square.body.insert

will then combine the two ASTs (step 6), resulting

in a single AST with the fully implemented function.

This AST is then inserted directly in the program

source through a code generation directive (step 7),

leading to the final source code version (step 8).

4.2 Comparing with Current Practices

We continue with a comparison between the

proposed and the traditional process when model

changes are involved. We reuse the model of

mathematical functions, and suppose we want to

extend it with further definitions.

In our approach, the application code specified

by the programmer as well as other client code that

relies on it, works with no issues and without

involving any additional programmer intervention.

Any existing functions for which implementations

where originally specified will still be present in the

new AST, so the metaprogram will combine them

with their matching implementations as before.

Newly introduced functions will simply be inserted

with empty implementations. For them to be fully

functional, the programmer should naturally provide

their implementations explicitly.

A traditional MDE tool that blindly overwrites

source code upon regeneration naturally requires

additional actions to maintain the previously

specified function implementations, involving a

temporary copy of the source code and a manual

code merge after the regeneration process.

More elaborate tools that allow custom

extensions to be retained across regenerations, i.e.

automatically merge manually updated code with

new model code, yield better results but do not fully

solve the problem. For instance, consider the

previously discussed use of @generated annotations

kept only on functions that should be overwritten

and removed from functions with custom extensions.

For the mathematical API example, this means that

original functions that were implemented no longer

have a @generated annotation. This way, when the

API is extended, regeneration will introduce the new

functions without overwriting the previous ones,

achieving the desired functionality. However,

consider a different model update involving

modifications for already implemented functions,

like adding an extra argument to some functions.

Since original functions versions are maintained, the

regeneration process introduces duplicate function

skeletons with updated prototypes. The programmer

should then manually move the implementations

from the original bodies to the matching new ones,

drop the old entries and finally specify that the new

functions contain user code by removing their

@generated annotation. Clearly, for multiple model

updates or a large number of modeled entities this is

a tedious and error-prone process.

Using our approach, such a model update

requires no further actions and is handled as before:

the updated model is loaded in AST form and then

the function implementations are inserted where

needed through AST manipulation without being

affected by the newly introduced argument.

Practically, the metaprogram specifies the logic for

integrating custom application code directly within

the model code, so as long as the model structure

matches this insertion logic, no model updates break

the regeneration process. Inconsistencies in the

metaprogram can only occur if some model entities

are removed, causing any meta-code that tries to

access them to fail. Nevertheless, the same happens

in traditional tools when previously generated code

that is retained tries to access model entities that no

longer exist, resulting into compilation errors.

4.3 Deploying using Reflection

Not all popular languages support staging, even

StagedModel-DrivenGenerators-ShiftingResponsibilityforCodeEmissiontoEmbeddedMetaprograms

515

Figure 9: Applying the proposed generative MDE process without explicit staging; the application composes intermediate

or source text and then deploys the language reflection API for compilation and invocation (JIL stands for Java Intermediate

Language, CIL for the Common Intermediate Language of .NET). The entire runtime conversion, composition and

compilation process is cached – it is only repeated when the ASTs change, i.e. upon regeneration.

though there are a few third party extensions such as

Metaphor (Neverov and Roe, 2004) and Mint

(Westbrook et al., 2010). In this context, one may

deploy the reflection mechanism of languages like

C# or Java to practice a similar source code

management and generation pipeline as the one

discussed in the previous section. This option is

detailed under Figure 9, showing that the language

compiler and the dynamic class loading and method

invocation facilities (i.e. reflection API) are directly

deployed. The entire process starting the conversion

from ASTs to intermediate representations (very

flexible, suggested), or alternatively to source text

(more rigid, not suggested), should be explicitly

implemented as it is not automated by the languages.

However, it is cached, meaning it is not repeated

during execution, but applied once per AST version.

The oval of Figure 9 labeled as composition

parameters represents the need for performing

custom mixing between the automatically generated

source code and the manually inserted code,

something that is apparent in the presence of

Composer as an integral part of the application. This

is similar to AST composition alternatives, although

at the intermediate representation level, and is very

critical to ensure that maximum code mixing

freedom is provided to developers.

5 CASE STUDIES

To validate our approach and assess its expressive

power and engineering validity, we have carried out

two case studies with proof-of-concept prototypes,

one focusing on user-interface code generation and

another one creating an entire class hierarchy based

on a given model. The goal of our studies was

twofold: (i) to show that the maintenance issues are

effectively eliminated; and (ii) to demonstrate the

huge expressive power of metaprogramming for

flexible code composition. The source code for the

case studies along with a video demonstrating the

entire MDE process is available at the Delta site

(Savidis, 2012) under the metaprogramming section.

5.1 User Interface Modeling

We have adopted wxFormBuilder (2006), a popular

publicly available interface builder for the

wxWidgets cross-platform library. It offers a typical

rapid-application development cycle with interactive

user-interface construction, and outputs interface

descriptions into its custom language-neutral format

called XRC (XML Interface Resources). Using this

tool, we modeled the interface of a paint application.

To convert XRC data to the Delta language ASTs

we built and deployed an appropriate AST

generator. Then, using the metaprogramming

features of the Delta language, we imported and

manipulated the application ASTs, and also added

extra interactive features and behavior to it, besides

the ones introduced just with wxFormBuilder.

Finally, we inserted custom extra code (e.g. event

handling) to offer a fully-functional application.

The entire modeling and implementation process

was incremental so as to involve multiple model

updates. In particular, we began with a primitive

user-interface model, consisting only of the canvas

and the painting tools (Figure 10, top-left), generated

the corresponding AST and provided the necessary

source code implementation (Figure 10, middle).

Then we gradually updated the user interface model

to include additional toolbars (Figure 10, top-right).

For each model update, we also provided the

matching implementation code (Figure 10, bottom).

Despite model updates, no maintenance issues arose

during the entire process. Actually, after each model

update, the previous source code version compiled

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

516

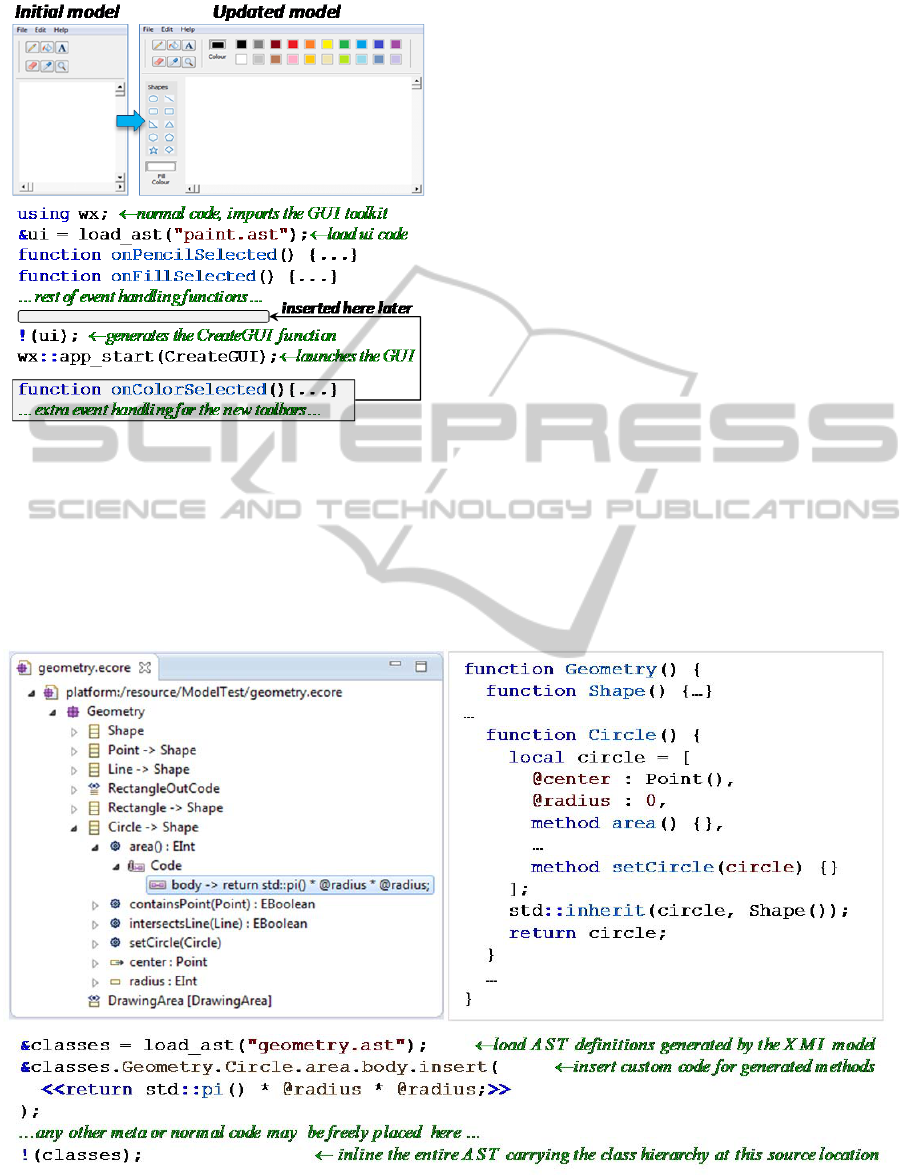

Figure 10: Deploying our MDE process for user-interface

generation. Top: Initial and updated interface models;

Middle: Original application code encompassing staged

code; Bottom: Code extensions for the updated model.

and executed normally without any changes, while

naturally offering no interaction for the newly

introduced toolbar. Finally, implementing new

functionality simply required inserting code in the

source file where necessary.

5.2 Class Hierarchy Modeling

We used the Eclipse Modeling Framework (EMF) to

model a class hierarchy for the core logic of a paint

application. Among other things, the model included

functionality for drawing shapes, containing classes

like points, lines, circles, etc. The model was created

through the Ecore meta-model and its specification

was generated in XMI format. Then, as with XRC

earlier, we implemented a custom generator from

XMI to ASTs. Figure 11 shows the model in the

EMF Editor, the respective code structure (shown as

source text, although they are manipulated in AST

form) as well as the deployment code required to

inline the code AST in-place with the normal

program code. Again during the process, we

reloaded the model and regenerated the XMI

specification to verify that no maintenance issues

were introduced in the development process.

For the method implementations of the modeled

classes we practiced two alternative methods. The

first one involved specifying the method bodies

directly in the model through the use of special

EAnnotation elements (Figure 11 top-left,

highlighted). The second one did not involve any

Figure 11: Top-left: Ecore model of the target class hierarchy; Top-right: Code structure (AST) generated by the model;

Bottom: Deployment code for loading the model code, performing manual updates through AST editing and inlining the

final AST code. The initial value of the meta-variable classes corresponds to the code structure shown at top-right.

StagedModel-DrivenGenerators-ShiftingResponsibilityforCodeEmissiontoEmbeddedMetaprograms

517

model editing, but relied on directly inserting code

in the method bodies through AST manipulation as

previously discussed. This approach may seem more

difficult to adopt, but in fact it is easy to develop and

offers several advantages over the first one.

When inserting the code directly in the model,

the code is entered as raw text and thus lacks any

programming facilities. Additionally, code overview

is severely restricted, as the model view truncates

the annotated text and full code inspection is only

allowed for a single selected EAnnotation. Of

course, there is no direct notion of parameterization

or reuse; the only option short of code repetition is

to explicitly introduce new model methods,

implement their code through a new EAnnotation

and use corresponding invocations where needed,

again as raw text placed in other EAnnotations. In

any case, inputting source code in separated text

areas is far from a productive development method.

Regarding the second approach, creating or

inserting code through metaprogramming is

achieved through additional syntax (quasi-quotes)

directly at code editing level. This means that the

developer may utilize all typically offered code

facilities like syntax highlighting, auto-completion,

refactoring tools, etc. Additionally, different code

segments (ASTs) corresponding to related methods

or classes may be placed in the same source location

as would be the case if the entire class was manually

written by the developer, thus supporting the typical

source code overview. Finally, since ASTs are

actually metaprogram data, they are subject to

standard software engineering practices like

parameterization, encapsulation, composition, etc.

5.3 Combining Modeling Tools

The last step of our case study focused on obtaining

the code generated by the previously discussed

methods and combining it along with the custom

application logic to implement a fully functional

paint application. To emphasize the compositional

flexibility of our proposed approach in combining

independently authored interfaces under a single

system, we further utilized two separate user-

interface models, one for the main paint interface

and another for the shapes toolbar extension.

A simple concatenation of the generated sources

caused no direct compilation conflicts; however it

was far from sufficient for deriving a fully-

functional application. In fact, many manual updates

were necessary for both generated components,

some of them involving bidirectional dependencies.

First, the two interfaces had to be combined to a

single one. Then, certain methods of the class

hierarchy like draw required invoking UI-related

operations. However, the class hierarchy model was

unaware of the deployed UI library, meaning that

such information could not be available in the model

and would thus have to be explicitly expressed as a

manual extension in the generated sources. Finally,

we needed to combine the generated code with

the custom application logic. The meta-code

implementing the above functionality is outlined

under Figure 12, with details removed for clarity.

We begin by loading the ASTs that were

previously generated by the XRC interface

definitions (both the paint UI and the shapes toolbar

extension) and the XMI class hierarchy model (step

Figure 12: Meta-code to load, manipulate and inline the source code of all modeled aspects of our system. The result is a

fully functional paint application like that shown on the top-right of Figure 7.

using wx;  normal code, di rective for importing the wxW i dgets GU I toolkit

&paintUI = load_ast("paint.ast");  load the A S T of the pai nt applicati on user-i nterface code

&shapesUI = load_ast("shapes.ast");  load the A S T of the shapes toolbar user-interface code

&classes = load_ast("classes.ast");  load the A S T of the class hi erarchy f or the toolset

&function MergeGUI(main, toolbar){…}  compile-ti me f unction to integrate an i nterface containing

&MergeGUI(paintUI, shapesUI);  a toolbar U I to the m ai n p rogram U I

classes.Geometry.Circle.draw.body =  i ns ert cu s tom i m p lemen tati on f or method C i rcle::draw ( dc)

<<dc.drawcircle(@center, @radius);>>;



dc: argument, @center and @radius: circle attributes

… other shape method i mplementati ons are inserted here as well…

… custom functionality and event handling code…

… any other meta-code or normal code may be freely inserted here…

!(classes);  inline the transformed classes A S T at this source location

… any other meta- or normal code may be freely i nserted here…

!(paintUI);  inline the transformed paintUI A S T at this source location – generates function CreateGU I

… any other meta- or normal code may be freely i nserted here…

wx::app_start(CreateGUI);  normal code, uses the generated CreateGUI function to launch the GUI

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

518

1). The interface definitions are combined as needed

to generate the final application interface (step 2). In

particular, the top level frame of the shapes toolbar

is dropped and the remaining interface component

(i.e. a panel) is inserted in the frame of the paint

application before the canvas. Then, we implement

the various methods of the class hierarchy (step 3)

by creating and inserting AST values in the method

bodies as previously discussed Notice that the quasi-

quoted code can directly link to UI elements.

Finally, once all appropriate transformations and

extensions have been performed on the ASTs, they

can be inlined to the final program at some source

location (step 4). The AST of the class hierarchy

should be inlined first so as to be available in the

subsequent UI code that utilizes it. The code of the

class hierarchy also requires the GUI toolkit

functionality; however it is already visible through

the import directive present in the first line.

6 DISCUSSION

Our approach overcomes the maintenance issues of

generative MDE tools; however its deployment

naturally involves some tradeoffs.

Firstly, it requires applying an advanced

programming technique such as metaprogramming

in an already demanding field like MDE, potentially

leading to increased system complexity. For

instance, creating and manipulating ASTs to perform

code updates is arguably harder than manually

editing the corresponding source code segments.

Nevertheless, the use of quasi-quotes enables

creating ASTs just like writing normal code, while

AST manipulation can be simplified with better

support for AST traversal (e.g. the name decoration

process discussed earlier) along with a simple tree

editing library.

Another issue concerns the transformation of the

MDE tool output into an AST and requires a

separate converter per deployment language as well

as per model format. For instance, in our test cases

we had to build two converters (one for XRC and

another for XMI) to support the two modeling tools

we used. Moreover, if we wanted to use our

approach in another language we would have to

create similar converters generating ASTs for that

language. In a setup with varying languages and

diverse model formats this arguably introduces an

overhead in the MDE process. However, a single

converter may be used for developing multiple

applications that share a development language and

a model format thus reducing the amortized effort

required for a particular application. The effort

required for such a converter is proportional to the

complexity of the target model specification.

Typically, it should be similar to creating a model-

to-code transformation but with the output being the

source code AST instead of the source code text. For

MDE tools that already provide model-to-code

transformations in the deployment language, an

alternative requiring significantly less effort is to

first use the transformation to get the generated

sources, parse them into ASTs and finally

manipulate them as needed (e.g. remove code

segments not directly relevant to the modeled

entities) to be ready for deployment. Additionally, it

is possible to further reduce the effort required to

implement a converter for a specific format across

different languages. The converter may have a

language-independent core handling the target

format and utilize multiple language-dependent

back-end plugins to support the various deployment

languages. In this sense, all common converter

functionality is only written once, thus minimizing

the overhead of supporting additional languages.

7 CONCLUSIONS

Currently, model-driven engineering represents a

domain of powerful development tools facilitating

the modeling of systems and supporting the

transformation process from abstract to concrete

models, eventually down to the physical platform

level. Generative MDE tools support the production

of concrete application implementations directly at

the source code level. Such a facility is very helpful,

powerful and flexible for software development.

However, it also causes maintenance issues once

extensions and updates are manually introduced over

the initially generated model code or when trying to

combine sources coming from multiple MDE tools.

To cope with such maintenance issues we

propose the exploitation of the metaprogramming

language facilities and suggest an improved model-

driven code of practice relying on the manipulation

of source code fragments by clients directly as data.

In this approach, the generator components of MDE

tools need output ASTs, not source code, while

clients should import and compose ASTs as needed,

before eventually performing on-demand and in-

place code generation.

We have carried out a case study to experiment

and validate the engineering proposition using a

compile-time metaprogramming language, a user-

interface builder and a general purpose modeling

StagedModel-DrivenGenerators-ShiftingResponsibilityforCodeEmissiontoEmbeddedMetaprograms

519

tool. Overall we were truly impressed by the

compositional flexibility which allowed us to safely

and easily manipulate and extend the produced

interface and application code without suffering

from maintenance issues. We believe our work

reveals the chances by combining metaprogramming

and generative MDE tools, and anticipate more

efforts to further exploit this field.

REFERENCES

Actifsource GmbH (2010). Actifsource Code Generator

for Eclipse. http://www.actifsource.com/_downloads/

actifsource_code_generator_for_Eclipse_en.pdf

Accessed 29 Oct 2013.

Antkiewicz, M. 2007. Round-trip engineering using

framework-specific modeling languages. In

Companion to the 22nd ACM SIGPLAN conference on

Object-oriented programming systems and

applications companion (OOPSLA'07).ACM,927-928.

DOI= http://doi.acm.org/10.1145/1297846.1297949.

Badreddin, O. and Lethbridge, T.C. 2013. Model Oriented

Programming: Bridging the Code-Model Divide. In

Proceedings of the 5th International Workshop on

Modeling in Software Engineering, IEEE, pp. 69-75,

DOI=http://dx.doi.org/10.1109/MiSE.2013.6595299.

Bettini, L. 2013. Implementing Domain-Specific

Languages with Xtext and Xtend. Packt Publishing.

Calcagno, C., Taha, W., Huang, L. and Leroy, X. 2001. A

bytecode-compiled, type-safe, multi-stage language.

Chalabine, M. and Kessler, C. 2007. A Formal Framework

for Automated Round-Trip Software Engineering in

Static Aspect Weaving and Transformations. In

Proceedings of the 29th international conference on

Software Engineering (ICSE '07). IEEE, 137-146.

DOI= http://dx.doi.org/10.1109/ICSE.2007.7.

Desfray, P. 2009. Modelio: Globalizing MDA. In Proc. of

the Tools and Consultancy Track of the Fifth

European Conference on Model-Driven Architecture

Foundations and Applications (ECMDA-FA 2009).

Dybvig, R. K. 2009. The Scheme Programming Language

(fourth edition). The MIT Press.

Eclipse Foundation. 2008. Eclipse Modeling Framework

(EMF). http://www.eclipse.org/modeling/emf/

Accessed 29 Oct 2013.

Fleutot, F. 2007. Metalua Manual. http://metalua.luaforge.

net/metalua-manual.html. Accessed 29 Oct 2013.

Hemel, Z., Kats, L. C. L., Groenewegen, D. M. and

Visser, E. 2010. Code generation by model

transformation: a case study in transformation

modularity. Software and Systems Modelling,

9(3):375-402. DOI=http://dx.doi.org/10.1007/s10270-

009-0136-1.

Lanusse, A., Tanguy, Y., Espinoza, H., Mraidha, C.,

Gerard, S., Tessier, P., Schnekenburger, R., Dubois,

H. and Terrier, F. 2009. Papyrus UML: an open source

toolset for MDA. In Proceedings of the Tools and

Consultancy Track of the Fifth European Conference

on Model-Driven Architecture Foundations and

Applications (ECMDA-FA 2009).

Lilis, Y. and Savidis, A. 2012. Supporting Compile-Time

Debugging and Precise Error Reporting in Meta-

Programs. In TOOLS 2012, International Conference

on Technology of ObjectOriented Languages and

Systems, Springer LNCS 7304, pp. 155-170. DOI=

http://dx.doi.org/10.1007/978-3-642-30561-0_12.

Michotte, B. and Vanderdonckt, J. 2008. GrafiXML, a

Multi-target User Interface Builder Based on

UsiXML. In Proceedings of ICAS 2008 4th

International Conference on Autonomic and

Autonomous Systems, Gosier, Guadeloupe, IEEE, 15-

22. DOI= http://dx.doi.org/10.1109/ICAS.2008.29.

Neverov, G. and Roe, P. 2004. Metaphor: A Multi-Stage,

Object-Oriented Programming Language. In

Proceedings of the Third International Conference on

Generative Programming and Component

Engineering (GPCE '04), Vancouver, Canada,

Springer LNCS 3286, pp. 168-185,

DOI=http://dx.doi.org/ 10.1007/978-3-540-30175-2_9.

Obeo. 2006. Acceleo: MDA generator. http://www.

acceleo.org/pages/home/en. Accessed 29 Oct 2013.

OMG. 2012. Object Management Group Object Constraint

Language (OCL). http://www.omg.org/spec/OCL/

ISO/19507/PDF/ Accessed 29 Oct 2013.

Sauer, S. and Engels, G. 2007. Easy model-driven

development of multimedia user interfaces with

GuiBuilder. In Proceedings of the 4th international

conference on Universal Access in Human Computer

Interaction (UAHCI'07), Beijing, China, Springer

LNCS 4554, pp. 537-546, DOI= http://dx.doi.org/

10.1007/978-3-540-73279-2_60.

Savidis, A. 2012. Delta Programming Language.

Available online from: http://www.ics.forth.gr/hci/

files/plang/Delta/Delta.html. Accessed 29 Oct 2013.

Sheard, T. 1999. Using MetaML: A Staged Programming

Language. In: Advanced Functional Programming.

Springer LNCS 1608, pp. 207–239, DOI=http://

dx.doi.org/10.1007/10704973_5.

Sheard, T., Benaissa, Z. and Martel, M. 2000. Introduction

to Multistage Programming Using MetaML. Pacific

Software Research Center, Oregon Graduate Institute,

2nd edition. Available from: http://web.cecs.pdx.edu/

~sheard/papers/manual.ps. Accessed 29 Oct 2013.

Sheard, T. and Peyton Jones, S. 2002. Template

metaprogramming for Haskell. SIGPLAN Not. 37, 12,

60-75, DOI=http://dx.doi.org/10.1145/636517.636528.

Staiger, S. 2007. Static Analysis of Programs with

Graphical User Interface. In Proceedings of 11th

European Conference on Software Maintenance and

Reengineering (CSMR '07). IEEE, pp. 252-264,

DOI=http://dx.doi.org/10.1109/CSMR.2007.44.

Steele, G. L. 1990. Common Lisp: The Language. Digital

Press, second edition.

Taha, W. 2004. A gentle introduction to multi-stage

programming. In Proceedings of Domain-Specific

Program Generation, Springer LNCS 3016, pp. 30-50.

DOI=http://dx.doi.org/10.1007/978-3-540-25935-0_3.

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

520

Tratt, L. 2005. Compile-time meta-programming in a

dynamically typed OO language. In Proceedings of the

2005 Symposium on Dynamic Languages (DLS '05).

ACM, New York, USA, pp. 49-63, DOI=http://

doi.acm.org/10.1145/1146841.1146846.

Vlissides, J. 1996. Generation Gap [software design

pattern]. C++ Report, 8(10), pp. 12, 14-18.

Völter, M. and Groher, I. 2007. Handling variability in

model transformations and generators. In Proceedings

of the 7th OOPSLA Workshop on Domain-Specific

Modeling (DSM ’07). Available online from:

http://www.voelter.de/data/workshops/HandlingVaria

bilityInModelTransformations.pdf.

Westbrook, E., Ricken, M., Inoue, J., Yao, Y., Abdelatif,

T. and Taha, W. 2010. Mint: Java multi-stage

programming using weak separability. In Proceedings

of the 2010 ACM SIGPLAN conference on

Programming language design and

implementation. PLDI '10 ACM, New York, 400-411.

DOI=http://doi.acm.org/10.1145/1806596.1806642.

wxFormBuilder. 2006. wxFormBuilder - A RAD tool for

wx GUI design. http://sourceforge.net/projects/

wxformbuilder/ Accessed 29 Oct 2013.

Zschaler, S. and Rashid, A. 2011. Towards modular code

generators using symmetric language-aware aspects.

In Proceedings of the 1st International Workshop on

Free Composition (FREECO '11). ACM, New York,

NY, USA, Article 6, 5 pages. DOI=http://

doi.acm.org/10.1145/2068776.2068782.

StagedModel-DrivenGenerators-ShiftingResponsibilityforCodeEmissiontoEmbeddedMetaprograms

521
