Using Artificial Intelligence Techniques to Enhance Traceability

Links

André Di Thommazo

1,2

, Rafael Rovina

, Thiago Ribeiro

, Guilherme Olivatto

, Elis Hernandes

Vera Wernek

and Sandra Fabbri

IFSP - São Paulo Federal Institute of Education, Science and Technology, São Carlos, SP, Brazil

LaPES - Software Engineering Research Lab, Federal University of São Carlos, UFSCar, São Carlos, SP, Brazil

Informatics and Computer Science Department, Rio de Janeiro State University (UERJ), Rio de Janeiro, RJ, Brazil

Keywords: Requirements Management Techniques, Requirements Engineering, Software Engineering, Fuzzy Logic.

Abstract: One of the most commonly used ways to represent requirements traceability is the requirements traceability

matrix (RTM). The difficulty of manually creating it motivates investigation into alternatives to generate it

automatically. This article presents two approaches to automatically creating the RTM using artificial

intelligence techniques: RTM-Fuzzy, based on fuzzy logic and RTM-N, based on neural networks. They

combine two other approaches, one based on functional requirements entry data (RTM-E) and the other

based on natural language processing (RTM-NLP). The RTMs were evaluated through an experimental

study and the approaches were improved using a genetic algorithm and a decision tree. On average, the

approaches that used fuzzy logic and neural networks to combine RTM-E and RTM-NLP had better results

compared with RTM-E and RTM-NLP singly. The results show that artificial intelligence techniques can

enhance effectiveness for determining the requirement’s traceability links.

1 INTRODUCTION

Several authors highlight the importance of

requirements management to the software

development process (Zisman and Spanoudakis,

2004) (Cleland-Huang et al., 2012) (Sommerville,

2010). The majority of software errors found are

derived from errors in the requirements elicitation

and on keeping up with their evolution throughout

the software development process (Salem, 2006).

Research performed by the Standish Group

(1994) (2005) showed that the three most important

factors to define whether a software project was

successful or not are: user specification gaps,

incomplete requirements, and constant changes in

requirements. Notice that these factors are directly

related to requirements management, which has the

traceability feature as a key point.

One of the main elements to help the activities of

requirements traceability is the requirements

traceability matrix (RTM). The RTM is designed to

requirements. Due to its importance, it is the main

focus of much research. Sundaram and others

(2010), consider traceability determination and RTM

to be essential in many software engineering

activities, although it is a time consuming and error

prone task. The authors claim that this task can be

facilitated if computational support is given and the

use of such automatic tools can significantly reduce

effort and costs to elaborate and maintain

requirements traceability and the RTM. These

authors emphasize that such support is still very

limited in existing tools. According to Cleland-

Huang and others (2012), the research which has

recently addressed requirements traceability has

focused on the automatic traceability definition.

Among the ways to automate traceability, Wang

and others (2009) highlight that current research

makes use of three approaches:

 The spatial vector model (SVM): the work of

Hayes and others (2003), this approach will be

mentioned in Section 5.2.

 Semantic indexing: the work of Hayes and

others. (2006) uses the ideas proposed by

Deerwester and others (1990) from Latentic

Semantic Indexing (LSI) in order to also

automatically identify traceability. When LSI is

in use, not only is the word frequency taken into

consideration, but also the meaning and context

Di Thommazo A., Rovina R., Ribeiro T., Olivatto G., Hernandes E., Werneck V. and Fabbri S..

Using Artiﬁcial Intelligence Techniques to Enhance Traceability Links.

DOI: 10.5220/0004879600260038

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 26-38

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

used in its construction.

 The network probability model: the work of

Baeza-Yates and others (1999) uses ProbIR

(Probabilistic Information Retrieval) to create a

matrix in which the dependencies among the

terms are mapped in relation to the other

document terms.

Given the aforementioned context, this article

presents two approaches to automatically create the

RTM using artificial intelligence techniques: RTM-

Fuzzy based on fuzzy logic and RTM-N based on

neural networks. Both of them combine two other

approaches; RTM-E, that is based on functional

requirements (FRs) entry data and RTM-NLP, that is

based on natural language processing (NLP).

Fuzzy logic is being applied because as is

known, traceability determination involves many

uncertainties, and fuzzy logic has the ability to

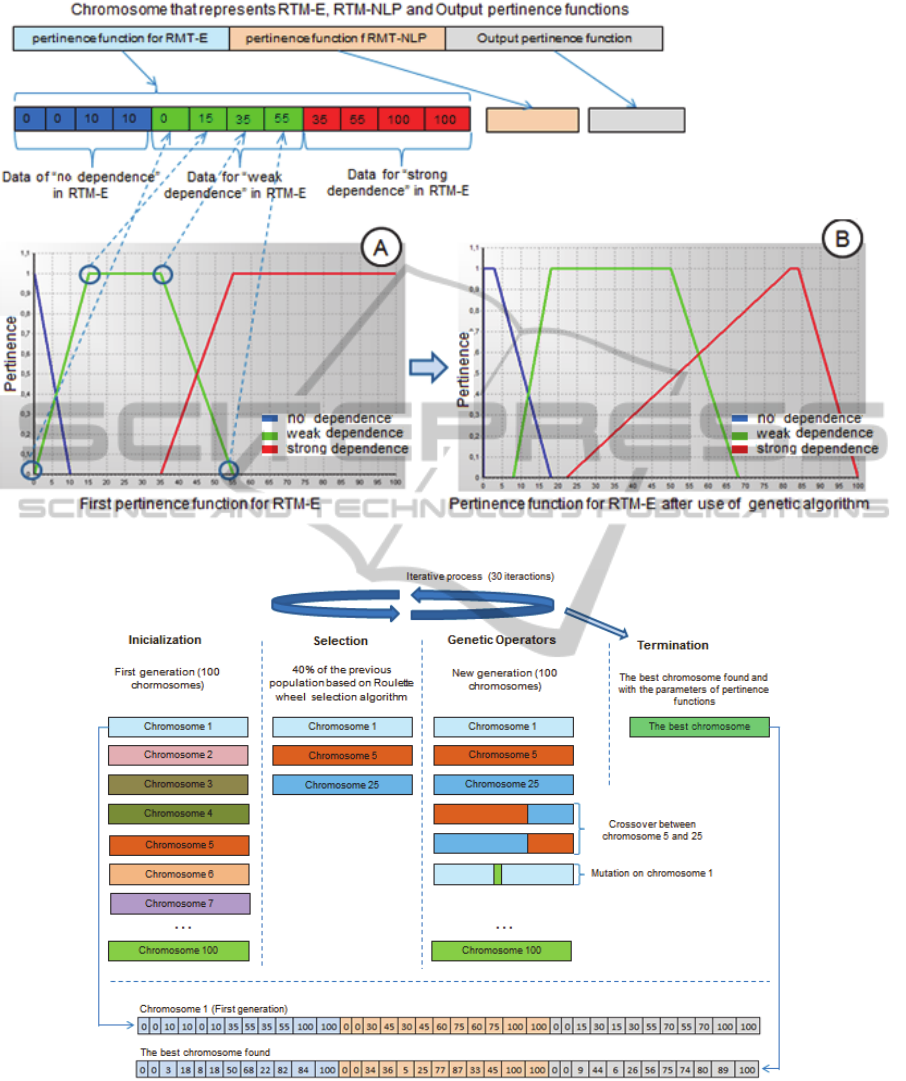

handle them. Besides, to improve the effectiveness

of this approach genetic algorithms were used to

determine the best configuration of the fuzzy system

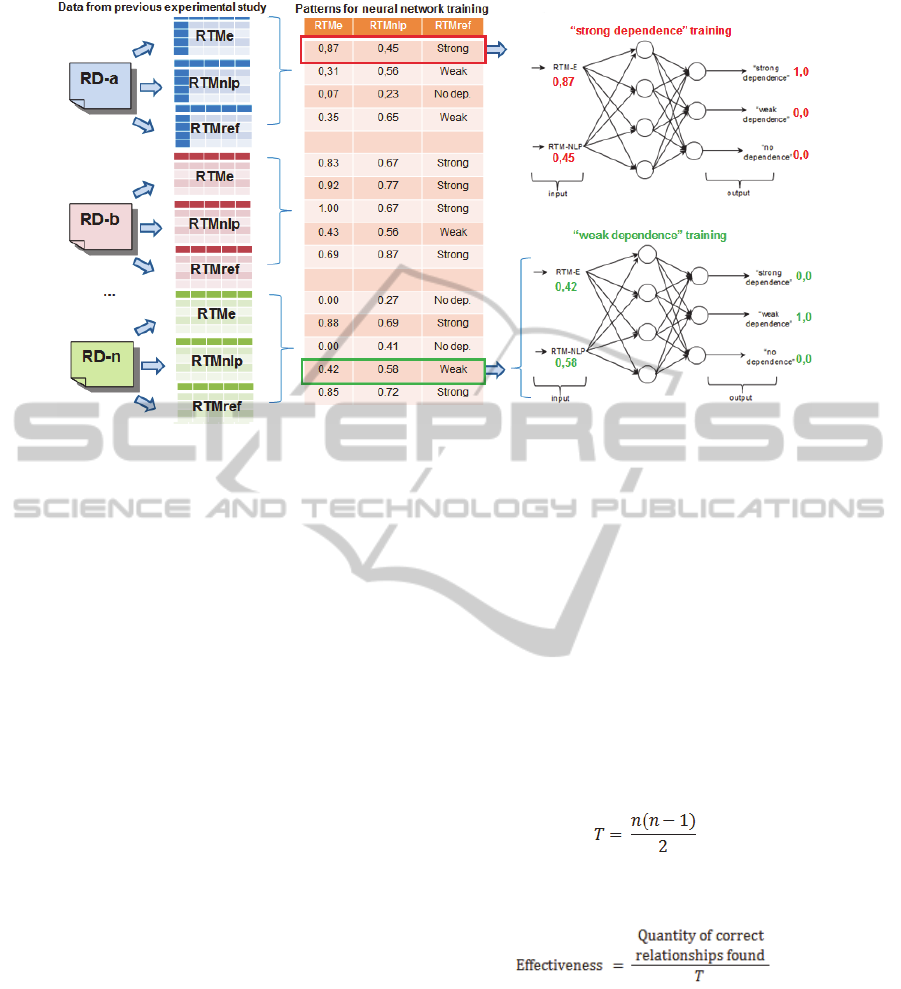

pertinence functions. Neural networks are being

used because they can store knowledge acquired

through examples and make inferences about new

ones, using examples during the training phase. In

our case, as we had executed some experimental

studies, there was much data available to train the

neural network, so motivating its use.

All these four approaches determine the level

(“no dependence”, “weak dependence” or “strong

dependence”) of the relationship between two FRs.

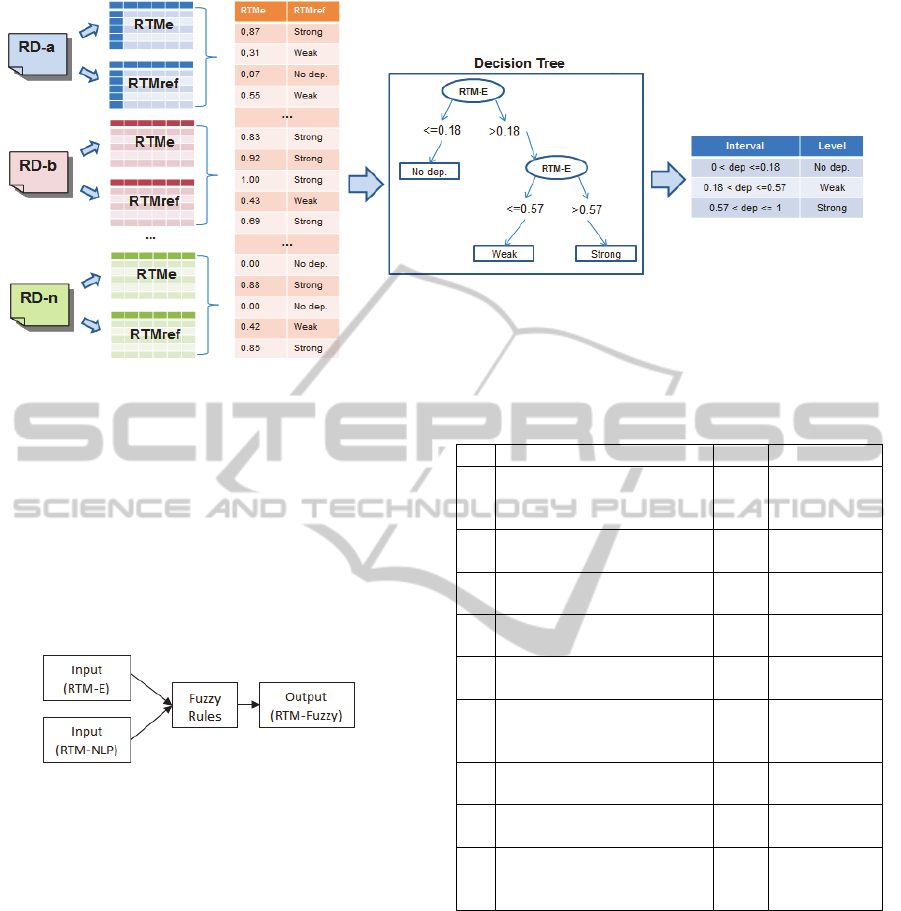

To help the definition of the ranges that determine

these levels generated by RTM-E and RTM-NLP a

decision tree was used (Artero, 2009; Coppin, 2004)

with the data obtained from previous experimental

studies (Di Thommazo et al., 2012).

The four approaches were evaluated by a new

experimental study to quantify the effectiveness of

each one. It is worth mentioning that the RTM-E and

RTM-NLP approaches had already provided

satisfactory results in two previous experimental

studies (Di Thommazo et al., 2012) (Di Thommazo

et al., 2013). To make all these experiments feasible,

the four RTM automatic generation approaches were

implemented in the COCAR tool (Di Thommazo

and others, 2007). COCAR tool supports some

activities of Requirements Engineering. It is possible

to store the description, processing, input data,

output data, constraints and stakeholders of each FR

of a system. The tool provides the generation of the

RTM according to four approaches that are

presented in this paper. Also, some reports on the FR

can be generated.

This article is organized as follows: in Section 2

requirements management, traceability and RMT are

introduced; Sections 3 and 4 present a brief

definition of fuzzy logic and neural networks,

respectively; in Section 5, the four RMT automatic

generation approaches are presented and exemplified

by using the COCAR tool; Section 6 shows the

experimental study performed to evaluate the

effectiveness of the approaches; conclusions and

future work are discussed in Section 7.

2 REQUIREMENTS

MANAGEMENT TECHNIQUES

Requirements management is an activity that should

be performed throughout the whole development

process, with the main objective of organizing and

storing all requirements as well as managing any

changes to them (Zisman and Spanoudakis, 2004)

(Sommerville, 2010).

As requirements are constantly changing,

managing them usually becomes a laborious and

extensive task, thus making relevant the use of

support tools to conduct it (Lai and Liu, 2009).

According to the Standish Group (2005), only

5% of all developed software makes use of any

requirements management tool, which can partially

explain the huge problems that software companies

face when implementing effective requirements

management and maintaining its traceability.

Various authors emphasize the importance of tools

for this purpose (Sommerville, 2010; Kannenberg

and Saiedian, 2009; Goknil et al., 2011). Zisman and

Spanoudakis (2004), for instance, consider the use of

requirements management tools to be the only way

for successful requirements management.

Two important concepts of requirements

management are requirements traceability and

traceability matrix, which are explained next.

2.1 Requirement Traceability

Requirements traceability concerns the ability to

describe and monitor a requirement throughout its

lifecycle (Guo et al., 2009). Such requirement

control must cover all its existence from its source –

when the requirement was identified, specified and

validated – through to the project phase and

implementation and ending at the product’s test

phase. Thus, traceability is a technique that allows

the identification and visualization of the

dependency relationship between one requirement

and the others, and/or the other artifacts generated

UsingArtificialIntelligenceTechniquestoEnhanceTraceabilityLinks

throughout the software’s development process. The

dependency concept does not mean, necessarily, a

precedence relationship between requirements but,

instead, how coupled they are to each other with

respect to data, functionality, or any other

perspective.

According to Guo and others (2009),

requirements traceability is an important

requirements management activity as it can provide

the basis for requirements evolutionary changes,

besides directly acting on the quality assurance of

the software development process.

Zisman and Spanoudakis (2004) consider two

kinds of traceability: horizontal traceability, when

the requirements’ relationship occurs between

different artifacts like the requirements document

(RD), models, source codes and, test artifacts; and

vertical traceability, the focus of this paper, in which

traceability is analyzed inside the same artifact, like

the RD for instance. Through this artifact’s FRs

analysis it is possible to identify their relationship

and generate the RTM.

2.2 Requirement Traceability Matrix—

RTM

According to Goknil and others (2011), despite the

various existing research treating traceability

between requirements and other artifacts (horizontal

traceability), only minor attention is given to the

requirements relationship between themselves, that

is, their vertical traceability. The authors also state

that this relationship influences various activities

within the software development process, such as

requirements consistency verification and change

management. A method of mapping such a

relationship among requirements is RTM creation.

In addition, Cuddeback and others (2010) assert

that an RTM supports many software engineering

validation and verification activities, like change

impact analysis, reverse engineering, reuse, and

regression tests. In addition, they state that RTM

generation is laborious and error prone, a fact that

means, in general, it is not generated or updated.

Overall, the RTM is constructed as follows: each

FR is represented in the i-th line and in the i-th

column of the RTM, and the dependency between

them is recorded in the cell corresponding to each

FR intersection (Sommerville, 2010).

Guo and others (2009), Goknil and others (2011)

and IBM (2012) have debated the importance and

need of the RTM in the software development

process, once such a matrix allows the prediction of

the impact that a change (or the insertion of a new

requirement) has on the system as a whole.

Sommerville (2010) emphasizes the difficulty of

obtaining such a matrix and goes further by

proposing a way to subjectively indicate not only

whether the requirements are dependent but how

strong such a dependency is.

3 FUZZY LOGIC

Fuzzy logic was developed by Zadeh (1965) and,

instead of simply using true or false, proposes the

use of a variation of values between a completely

false and an absolutely true statement.

In classic set theory there are only two pertinence

possibilities for an element in relation to a set as a

whole: the element pertains or does not pertain to a

set (Artero, 2009). In fuzzy logic, pertinence is given

by a function to which the real values pertain in a

closed interval between 0 and 1. The process of

converting a real number into its fuzzy

representation is called “fuzzyfication”. Another

important concept in fuzzy logic is related to the

rules that use linguistic variables in the execution of

the decision support process. The linguistic variables

are identified by names, have a variable content and

assume linguistic values, which are the names of the

fuzzy sets (Artero, 2009). In the context of this

work, the linguistic variables are the traceability

obtained by the three RTM generation approaches

and may assume the values (nebulous sets) “no

dependence”, “weak dependence” or “strong

dependence”, which will be represented by a

pertinence function.

4 NEURAL NETWORKS

Neural networks are inspired by the human brain

and are composed of several artificial neurons.

These neurons were created by McCulloch and Pitts

(1943). In a neural network each neuron receives a

number of input values. A function—called the

activation function—is applied to these input values

and the neuron activation level is generated as the

function result that corresponds to the output value

provided by the neuron. Neural networks are used to

model complex relationships between inputs and

outputs and have the ability to acquire knowledge

for pattern recognition (Coppin, 2004).

There are multiple classifications for neural

networks, depending on different characteristics:

 the number of layers or the type of connectivity:

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

fully connected or partially connected;

 the flow of the processed signals: feed-forward

or feed-back;

 the way the training is done: supervised (when

desired input and output data are presented to the

neural network) or unsupervised (when only the

input data are presented to the neural network

and it is in charge of setting the output values).

The training consists of presenting input patterns

to the network such that it can adjust their

weights. Thus, its outputs should present an

adequate response when the input data provided

are similar but not necessarily identical to those

used in training (Artero, 2009).

An important kind of neural network is a

multilayer perception (MLP) neural network. It is

composed of source nodes that represent the network

input layer, one or more intermediate layers, and an

output layer. Except for the input layer, the others

are composed of neurons. The MLP network

connectivity is feed-forward; that is, the output of

each neuron connects only to all the neurons of the

next layer, without the presence of feed-back loops.

Thus, the signal propagates in the network

progressively. To develop the RTM-N approach an

MLP neural network was used.

5 APPROACHES TO RTM

GENERATION

The four RTM automatic generation approaches

proposed in this work only take into consideration

the software FRs and establish the relationship

degree between each pair of them.

The RTM names were based on each taken

approach. The approach called RTM-E had its

traceability matrix named RTMe, the RTM-NLP

matrix was called RTMnlp, the RTM-Fuzzy matrix

was called RTMfuzzy, and the RTM-N matrix was

called RTMn.

The approaches are implemented in the COCAR

tool, which uses a template (Kawai, 2005) to store

all requirements data. After the template is

completed, the RD provides all the necessary data to

evaluate the approaches. The main objective of such

a template is to standardize the FR data, avoiding

inconsistencies, omissions and ambiguities.

One of the template fields (which makes the

RTM implementation feasible) is called Entry, and it

is used to store the FR’s data entry in a structured

and organized way. It is worth mentioning here the

work of Kannenberg and Saiedian (2009), which

considers the use of a tool to automate the

requirements recording task to be highly desirable.

In the following, the approaches are presented.

5.1 RMT-E Approach

RTM generation is based on the FR input data. The

dependency relationship between FRs is determined

by the percentage of common data between FR

pairs. This value is obtained through the Jaccard

Index calculation (Real and Vargas, 1996), which

compares the degree of similarity and/or diversity

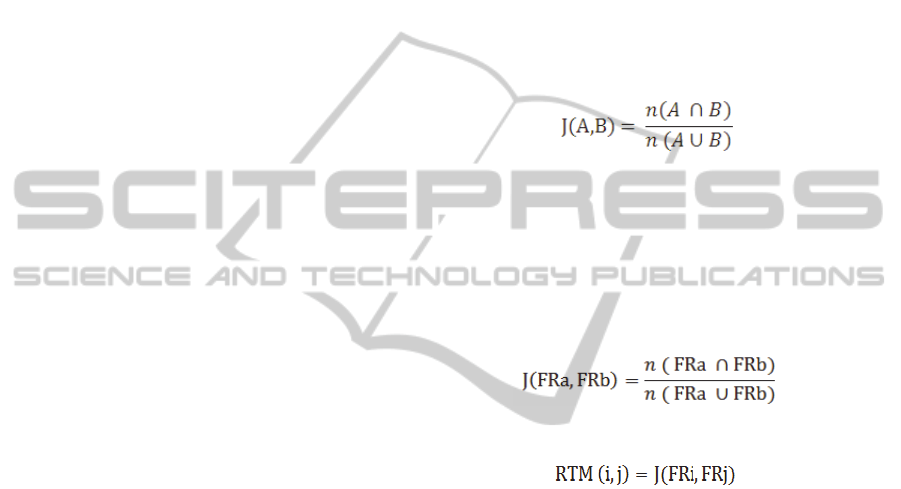

between the data sets of each pair. Equation 1

represents this calculation.

(1)

The equation numerator is given by the quantity

of data intersecting both sets (A and B), and the

denominator corresponds to the quantity associated

to the union between those sets.

Considering FRa as the data set entries for a

functional requirement A and FRb the data set

entries for a functional requirement B, their

dependency level can be calculated by Equation 2.

(2)

Each position (i,j) of the traceability matrix

RTM(i,j) corresponds to values from Equation 3:

(3)

As COCAR stores the requirements data in an

atomic way, once the data is inserted into a

requirement data set, it becomes available to be

inserted into the data set of another FR. This fact

avoids data ambiguity and data inconsistency.

It is worth noting that initiatives using FR data

entries to automatically determine the RTM were not

found in the literature. Similar initiatives do exist to

help determine traceability links between other

artifacts, mainly models (for UML diagrams) and

source codes, like those found in Cysneiros and

Zisman (2008).

The determination of the dependency levels (“no

dependence”, “weak dependence” and “strong

dependence”) was initially carried out based on three

RDs from applications of different domains. Such a

process was performed in an interactive and iterative

way, adjusting the values according to the detected

traceability for each one of the three RDs. The levels

obtained were: “no dependence” for values equal to

0%; “weak dependence” for values between 0% and

50%; and “strong dependence” for values above

50%. Adopting these intervals two experimental

UsingArtificialIntelligenceTechniquestoEnhanceTraceabilityLinks

studies (Di Thommazo et al., 2012; Di Thommazo et

al., 2013) were conducted. To improve the accuracy

of the approach we decided to use the decision tree

J48 (Coppin, 2004; Artero, 2009) aiming to detect

the best intervals to define the levels of dependency.

If we could be able to determine better intervals, the

approach would be more effective, classifying

correctly the relationship between two FRs. Decision

tree is a technique able of finding the best intervals

based on previous data (Artero, 2009). Hence, data

from all RDs used in the previous experimental

studies (Di Thommazo et al., 2012; Di Thommazo et

al., 2013) were applied as input data to generate the

decision tree.

As shown in Figure 1, based on the RDs, two

types of matrix were generated: the RTMe and the

RTMref, where this last was construed by specialists

as will be detailed in Section 6. The percentage

determined by the RTM-E approach (from 0 to

100% of dependence) and the correct level of each

relationship link determined in the RTM-Ref were

applied to create the decision tree. Hence, analyzing

the decision tree new intervals were defined.

5.2 RMT-NLP Approach

RTM generation is based on NLP which, in the

context of requirements engineering, does not aim

for text comprehension itself but, instead, aims to

extract embedded RD concepts (Deeptimahanti and

Sanyal, 2011). There are many initiatives that make

use of NLP to determine different traceability types

in the software development process. However, few

of them consider traceability inside the same artefact

(Goknil et al., 2011). In addition, the proposals

found in the literature do not use a requirements

description template nor determine dependency

levels as in this work. Hence, aiming to determine

the dependency level between two FRs, the

frequency vector and cosine similarity methods were

used (Salton and Allan, 1994). This method

determines a similarity percentage between two text

excerpts.

To improve the process efficiency, text pre-

processing is performed before applying the

frequency vector and cosine similarity methods in

order to eliminate all words that might be considered

irrelevant, like conjunctions articles and prepositions

(also called stopwords). For example: after this step

the excerpt “Allow warehouse users to check in/out

a set of inventory items”, becomes “Allow

warehouse users check set inventory items”. After

this, a process known as stemming is applied to

reduce all words to their original radicals, levelling

their weights in the text similarity determination.

Thus the phrase that we are using as example

becomes: “Allow warehouse user check set

inventory item”. After these two steps, the method

calculates the similarity between two FRs texts: each

excerpt is represented through a vector. The

occurrences in each vector are counted to determine

each word frequency. Both vectors are

alphabetically reorded. Vectors have their terms

searched for matches on the other and, when the

search fails, the word is included in the “faulting”

vector with 0 as its frequency. After this, it is

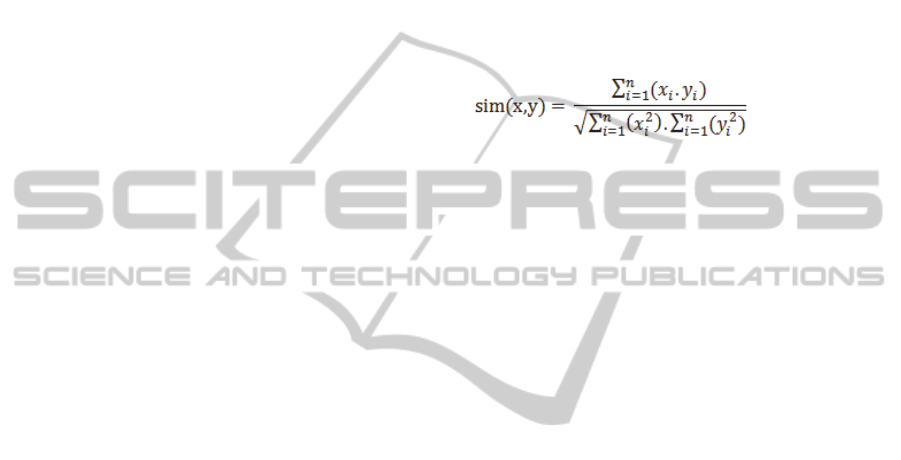

applied the Equation 4 to calculate the similarity.

(4)

As in the RTM-E approach, the dependency

level values had been defined according to the

decision tree (J48): “no dependence” from 0% to

37%; “weak dependence” from 37% to 67%; and

“strong dependence” for values above 67%.

5.3 RMT-Fuzzy Approach

The RTM generation is based on fuzzy logic. The

purpose of this approach is to combine, through a

fuzzy system, the two approaches previously

detailed. In this way, it is possible to consider both

features—the relationship between the entry data

manipulated by the FRs (RTM-E) and the text that

describes the FRs (RTM-NLP)—to create the RTM.

Note that RTM-E and RTM-NLP determine the

dependency levels (“no dependence”, “weak

dependence”, and “strong dependence”) between

two FRs according to the value generated by the

approaches. However, this method of calculating the

dependency level can be very imprecise.

For instance, if the RTM-NLP approach

generates a value of 56.5% for the dependency

between two FRs, according to Figure 1, the

dependency level would be “no dependence”,

whereas a value of 57.5% would indicate “weak

dependence”. Using the fuzzy logic, this problem is

minimized due to the possibility of working with a

nebulous level between those intervals through the

use of a pertinence function, as mentioned in Section

III. This conversion from absolute values to its fuzzy

representation is called fuzzification.

In the pertinence functions, the X axis represents

the dependency percentage between FRs (from 0%

to 100%), and the Y axis represents the pertinence

level, that is the probability of belonging to a certain

fuzzy set (“no dependence”, “weak dependence” or

“strong dependence”), which can vary from 0 to 1.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

Figure 1: Steps to determine the new intervals level.

Figure 2 depicts the adopted fuzzy system, where

RTM-E and RTM-NLP are the entry data. Table 1

indicates the rules created for the fuzzy system. Such

rules are used to calculate the output value, that is,

the RTMfuzzy determination. Initially, the values

used for creating the pertinence functions were

determined based on the experience of the authors of

this paper. However, aiming to improve these

functions, we used a genetic algorithm to reach

better values for them.

Figure 2: Fuzzy System.

The use of genetic algorithm to improve the

results os Fuzzy System has been used in literature

According with Herrera (2008) the automatic

deﬁnition of an fuzzy rule based system can be

supported by genetic algorithms.

Genetic algorithms are evolutionary algorithms

which generate solutions to optimization problems.

They are inspired by natural evolution and apply

concepts like selection, mutation and crossover

(Artero, 2009).

Another important concept is the concept of the

chromosome, which corresponds to a set of

properties of the “problem”. Hence, the first step in

using the genetic algorithm was to model the initial

parameters of the pertinence functions in a

chromosome. Figure 3 illustrates the chromosome

definition scenario.

Table 1: Rules used in Fuzzy system.

Antecedent Consequent

RTM-E = “no dependence”

AND RTM-NLP = “no

dependence”

then

“no

dependence”

RTM-E = “weak” AND

RTM-NLP = “weak”

then “weak”

RTM-E = “no dependence”

AND RTM-NLP = “strong”

then “weak”

RTM-E = “strong” AND

RTM-NLP = “strong”

then “strong”

RTM-E = “no dependence”

AND RTM-NLP = “weak”

then

“no

dependence”

RTM-E = “weak” AND

RTM-NLP = “no

dependence”

then “weak”

RTM-E = “no dependence”

AND RTM-NLP = “strong”

then “weak”

RTM-E = “strong” AND

RTM-NLP = “weak”

then “strong”

RTM-E = “strong” AND

RTM-NLP= “no

dependence”

then “weak”

Each function of each linguistic variable is used

in the chromosome. As an example, considering the

RTM-E approach defined by this author, data from

the pertinence function “weak dependence” (Figure

3-A) was used to create the green part of the

chromosome. After using the genetic algorithm the

same pertinence function was modified as shown in

Figure 3-B. The genetic algorithm process is

summarized in Figure 4.

After the first chromosome creation (Figure 3),

the next step is the initialization phase, when a

generation of chromosomes is created. Thus, other

chromosomes are randomly generated, with new

values in some parts of the initial chromosome. In

UsingArtificialIntelligenceTechniquestoEnhanceTraceabilityLinks

this case, a population of 100 individuals was used.

The next step is the selection phase where

individuals that will continue in the next generation

are selected. In this phase the roulette wheel

selection algorithm was used, selecting 40% of the

original population, based on the fitness function.

This function evaluates the efficiency of each

chromosome in solving the traceability detection.

To do this, we used data from a previous

experimental study (Di Thommazo et al., 2012)

since the values of RTM-E, RTM-NLP and

reference RTM were known. The fitness function

was used to summarize how close each chromosome

was to the best solution.

After selecting the individuals that we will “keep

alive” in the next generation, the genetic operators

mutation and crossover were applied. When the

mutation operator was applied a chromosome value

(e.g. one cell of the green block) was randomly

chosen to be changed with a new value (also

randomly chosen). In the new population, 5% was

generated through the mutation operator. The other

individuals were generated using the crossover

operator. Applying the crossover operator means

that two chromosomes must be chosen to be crossed,

generating new ones.

The process was iteratively executed until the

termination phase was reached and the best

chromosome was found. As the stop criterion we

used 30 iterations. At the bottom of Figure 4 are the

initial values of the first chromosome that generated

the first population and the chromosome that

reached the best results in the last population.

5.4 RMT-N Approach

RTM generation is based on neural networks. The

purpose of this approach is to combine, through an

MLP neural network, the two first approaches—

RTM-E and RTM-NLP. An MLP neural network

was used to develop the RTM-N approach. The

process of training neural networks is detailed in

Figure 5. Data from a previous experimental study

(Di Thommazo et al., 2012) were used: the input

data were the values of the RTM-E and RTM-NLP

approaches and the output was the correct

relationship, marked in the reference RTM (RTM-

Ref). For example: considering the input values of

0.87 from RTM-E and 0.45 from RTM-NLP, it is

necessary to set in the neural network that the output

must be “strong dependence”, since this is the value

of the RTM-REF. This is achieved by setting the

value “1” to the neuron that represents “strong

dependence” and “0” to the two other neurons. After

setting these values, the neural network should be

trained, adjusting their weights to be able to detect

similar inputs of RTM-E and RTM-NLP and correct

results of dependence. If the input values were 0.42

from RTM-E and 0.58 from RTM-NLP, the neuron

that represents the “weak dependence” must be set

with “1” and the other with “0”. The knowledge of

patterns used to train the neural network came from

the previous experimental studies, represented in

Figure 5 by the DRs, RTMe, RTM-NLP and RTM-

Ref.

Once the neural network has been created and

trained, and it is provided with new input data

obtained by the RTM-E and RTM-NLP approaches,

the level of dependence between the involved FRs

can be automatically identified (Di Thommazo et al.,

2013).

To clarify the approaches it will be used the

application of them a real system developed for a

private aviation company (the full example is

available at Di Thommazo et al., 2012 and Di

Thommazo et al., 2013). To exemplify the RTM-E

consider the following two FRs: FR3 related to

products going in and out from a company’s stock

(warehouse) and FR5, related to an item transfer

from one stock location to another. How they have

some similar input data the RTM-E indicates a

“strong dependence” (66% of common data)

according to the Jaccard Index. The text of these two

FRs also have a high similarity (88%), generating a

“strong dependence” by RTM-NLP.

To exemplify the RTM-Fuzzy, consider the same

FR3, previously mentioned, and FR7, related to the

stock report generation. They do not have common

entry data and, therefore, there is “no dependency”

between them according to RTM-E. Despite this,

RTM-NLP indicates a “strong dependency” (75.3%)

between these FRs. This occurs because both FRs

deal with the same set of data (although they do not

have common entry data) and a similar scope, thus

explaining their textual similarity. The fuzzy logic

processing (presented in the Section 5.3), after

applying Mandami’s inference technique, generates

the the value 42.5 for these entries, that corresponds

to “weak dependence”. To exemplify the RTM-N

consider the same FR3 and FR5 already used in the

first example. After the neural network was trained

according to the process clarified in Section 5.4 it is

ready to classify the FRs relationship. As the

relationship between FR3 and FR5 generated by

RTM-E was 66% and generated by RTM-NLP was

88%, these values are used as input to the neural

network and the output indicates that the value of

this relationship between FR3 and FR5 is “strong

dependence”.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

Figure 3: Creation of chromosome to be used in genetic algorithm.

Figure 4: Steps of genetic algorithm.

6 EXPERIMENTAL STUDY

To evaluate the effectiveness of the proposed

approaches, an experimental study has been

conducted following the guidelines below:

Context: The experiment has been conducted in the

context of the Software Engineering class at IFSP—

Federal Institute of São Paulo—as a voluntary extra

UsingArtificialIntelligenceTechniquestoEnhanceTraceabilityLinks

Figure 5: Steps of training the neural networks.

activity. The experiment consisted of each pair of

students conducting requirements gathering on a

system involving a real stakeholder. The final RD

had to be created in the COCAR tool.

Objective: Evaluate the effectiveness of the RTM-E,

RTM-NLP, RTM-Fuzzy and RTM-N approaches in

comparison to a reference RTM (called RTM-Ref)

and constructed by the detailed analysis of the RD.

The RTM-Ref creation is detailed next.

Participants: 32 undergraduate students on the

Systems Development course at IFSP.

Artifacts utIlized: RD, with the following

characteristics:

 produced by a pair of students on their own;

 related to a real application, with the

participation of a stakeholder with broad

experience in the application domain;

 related to the information systems domain with

basic creation, retrieval, updating and deletion of

data;

 inspected by a different pair of students in order

to identify and eliminate possible defects;

 included in the COCAR tool after identified

defects were removed.

RTM-Ref:

 created from RD input into the COCAR tool;

 built based on the detailed reading and analysis

of each FR pair, determining the dependency

between them as “no dependence”, “weak

dependence”, or “strong dependence”;

 recorded in a spreadsheet so that the RTM-Ref

created beforehand could be compared to the

RTMe, RTMnlp and RTMfuzzy for each system;

 built by the DR authors with supervision of this

work’s authors. The students were always in

touch with the stakeholders whenever a

reservation was found.

Metric: the metric used was the effectiveness of the

three approaches with regard to the coincidental

dependencies found by each approach in relation to

the RTM-Ref. Effectiveness is calculated by the

relation between the quantity of dependencies

correctly found in each approach, against the total of

all dependencies that can be found between the FRs.

Considering a system consisting of n FRs, the total

quantity of all possible dependencies (T) is given by

Equation 5:

(5)

Therefore, the effectiveness rate is given by

Equation 6:

(6)

Results: The results of the comparison between the

data of RTMe, RTMnlp, RTMfuzzy and RTMn are

presented in Table 2. The first column contains the

name of the specified system; the second column

contains the FR quantity; and the third provides the

total number of possible dependencies between pairs

of FRs. These values were calculated through

Equation 5. The fourth, sixth, eighth and tenth

columns contain the total number of coincidental

dependencies between the respective approach and

the RTMref. For example: if the RTM-Ref has

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

Table 2: Experimental study results.

RTM-E RTM-NLP RTM-Fuzzy RTM-N

System

Req

Qty

# of possible

dependencies

correct effect. correct effect. correct effect. correct effect.

Medical 17 136 115 85% 106 78% 124 91% 122 90%

Car Rental 23 253 204 81% 190 75% 215 85% 217 86%

Sales 18 153 122 80% 121 79% 130 85% 133 87%

Clothing Store 17 136 103 76% 105 77% 117 86% 119 88%

Cars 16 120 97 81% 93 78% 107 89% 107 89%

Habitation 16 120 103 86% 93 78% 110 92% 110 92%

Book Store 21 210 167 80% 157 75% 177 84% 180 86%

Pizza Delivery 16 120 95 79% 86 72% 104 87% 106 88%

Sales 22 231 195 84% 186 81% 213 92% 206 89%

Administration 17 136 103 76% 101 74% 113 83% 117 86%

Movies 17 136 103 76% 93 68% 112 82% 114 84%

Games 18 153 119 78% 118 77% 130 85% 131 86%

Food 19 171 134 78% 132 77% 144 84% 145 85%

Student 17 136 102 75% 94 69% 114 84% 117 86%

Computer Store 15 105 82 78% 78 74% 91 87% 91 87%

Ticket 20 190 159 84% 155 82% 169 89% 171 90%

determined a “strong dependence” in a cell and the

RTM-E approach also defined the dependency as

“strong dependence” in the same position, a correct

relationship is determined. The fifth, seventh, ninth

and eleventh columns represent the effectiveness of

the RTMe, RTMnlp, RTMfuzzy and RTMn

approaches, respectively, calculated by the relation

between the quantity of correct dependencies found

by the approach and the total number of

dependencies that could be found (third column).

Results Analysis: Statistical analysis was been

conducted using SigmaPlot software. Applying the

Shapiro-Wilk test it could be verified that the data

followed a normal distribution, and the results

shown next are in the format: average ± standard

deviation. To compare the effectiveness of the

proposed approaches (RTM-E, RTM-NLP, RTM-

Fuzzy and RTM-N) variance analysis (ANOVA) has

been used for post-test repeated measurements using

the Holm-Sidak method. The significance level

adopted was 5%. The RTM-N approach was found

to be the most effective with (87.3% ± 2.18),

whereas the RTM-Fuzzy approach offered (86.6% ±

3.1) the RTM-E approach offered (79.6% ± 3.5), and

the RTM-NLP obtained an effectiveness level of

(75.7% ± 3.7). Based on these data it is possible to

observe that the RTM-N and RTM-Fuzzy

approaches (that combine the other two approaches

through artificial intelligence) were more effectives

on traceability detection than the RTM-E and RTM-

NLP approaches singly.

In this experimental study, the results obtained

by the RTM-E approach were similar to those

obtained in two previous studies (Di Thommazo et

al., 2012) (Di Thommazo et al., 2013), despite the

fact that, in the first study, the RTM-NLP only

presented an effectiveness level of 53%, which led

us to analyze and modify this approach. In the

second experimental study (Di Thommazo et al.,

2013) this approach had an effectiveness level of

75%, very similar to that obtained in this

experimental study. Even with such improvements,

the approach still generates false positive cases, that

is, non-existing dependencies between FRs.

According to Sundaram and others (2010) the

occurrence of false positives is an NLP characteristic,

although this type of processing can easily retrieve

the relationship between FRs.In the RTM-E data

analysis, there were very few false positives. In most

cases, the dependencies found, even the weak ones,

did exist. The errors influencing this approach were

due to relationships that should have been counted as

“strong” being counted as “weak”. As previously

mentioned, if a relation was found to be “strong” in

RTM-Ref and the proposed approach indicated that

the relation was “weak”, an error in the experiment’s

traceability was counted. In the case of relationships

indicating only “dependence” or “no dependence”,

that is, without using the “no dependence”, “weak

dependence” or “strong dependence” labels, the

effectiveness determined would be higher. In such a

case the precision and recall metrics could be used,

given that such metrics only take into account the

fact that a dependency exists and not its level

(“weak” or “strong”) (Cleland-Huang et al., 2012).

In relation to the RTM-Fuzzy approach, the

results generated by it were always higher than the

results found by the RTM-E and RTM-NLP

UsingArtificialIntelligenceTechniquestoEnhanceTraceabilityLinks

approaches alone.

A previous study with RTM-Fuzzy had an

effectiveness level of 83%. To improve this result in

this study, the approach was improved with the use

of genetic algorithms, as detailed in Section 5. With

the new fuzzy system pertinence functions, better

results were found (86%).

In relation to the RTM-N approach the generated

results were also always higher than the results found

by the RTM-E and RTM-NLP approaches alone.

The experimental study herein presented has

some threats to its validity. One of them is related to

the students’ inexperience in eliciting the

requirements from the stakeholders. In an attempt to

minimize this risk, known domain systems were used

as well as RD inspection activities. The inspection

was conducted based on a defect taxonomy

commonly adopted in this context and which

considers inconsistencies, omissions, and

ambiguities, among others. Another risk is related to

the correctness of the RTM-Ref. To minimize errors

in this artifact the authors of this paper helped the

students with this task and the stakeholder was

contacted whenever there was any doubt about the

relationship.

6 CONCLUSIONS AND FUTURE

WORK

This article presents two approaches to

automatically create the RTM using artificial

intelligence techniques. RTM-Fuzzy is based on

fuzzy logic and RTM-N is based on neural networks.

They combine two other approaches: RTM-E, which

is based on the percentage of entry data that two FRs

have in common, and RTM-NLP, which uses NLP to

determine the level of dependency between pairs of

FRs.

Fuzzy logic was used to treat the uncertainties

that might negatively interfere in the requirements

traceability determination. Thus, RTM-Fuzzy uses

the results presented in two other approaches but

adds a diffuse treatment in order to perform more

flexible RTM generation. Hence, RTM determination

is a difficult task, even for specialists, and using the

uncertainties treatment provided by fuzzy logic has

been shown to be a good solution for automatically

determining traceability links with enhanced

effectiveness. To improve this approach, genetic

algorithms were used to determine the pertinence

function. Compared with a previous experimental

study, after the use of this technique, the

effectiveness improved from 83% to 86%.

Neural networks were used due to the possibility

of using the knowledge from previous experimental

studies conducted to detect the traceability links with

RTM-E and RTM-NLP. With the data from these

experimental studies a neural network was trained

such that it was able to detect the traceability

automatically. The results of the experimental study

show that combining the other approaches through a

neural network is a promising solution to

automatically create the RTM.

From the four approaches here presented, it is

worth noting that there are already some reported

proposals in the literature using NLP for traceability

link determination, mainly involving different

artifacts (requirements and models, models and

source code, or requirements and test cases). Such a

situation is not found in RTM-E, for which no similar

attempt was found in the literature. Comparing the

four approaches presented in this paper with the

others initiatives in the literature it is possible to say

that, while the other approaches are limited to

establish if “there is” or “there is no” dependence

between two FRs, the approaches presented in this

paper determine the level of dependence: “no

dependence”, “strong” or “weak”. This feature

allows a development team give a special attention to

the “strong dependencies” if there is any constraint of

resources in the project (people, time, money) in

case, for example, during a maintenance activity. In

addition, the major initiatives, according to Wang

and others (2009) - LSI and VSM, ProbIR - are

focused on NLP, which implies in a large number of

false positives (Sundaram et al., 2010). To minimize

this problem, the approaches RTM-Fuzzy and RTM-

N combine the RTM-NLP with the RTM -E

presented in this paper, minimizing the number of

false positives and increasing the effectiveness of the

approaches, as shown by the experimental study.

The four approaches were implemented in the

COCAR environment, so that experimental study

could be performed to evaluate the effectiveness of

each approach. The results showed that RTM-Fuzzy

and RTM-N presented superior effectiveness

compared to the others. The disadvantage of the

approaches is that they are restrict to FRs.

The results motivate the continuity of this

research, as well as further investigation into how

better to combine the approaches for RTM creation

using fuzzy logic. The main contributions of this

particular work are the incorporation of the COCAR

environment, which corresponds to the automatic

relationship determination between FRs. This

facilitates the evaluation of the impact that a change

in a requirement can generate on the others. New

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

studies are being conducted to improve the

effectiveness of the approaches. As future work, it is

intended to improve the NLP techniques. Another

investigation to be undertaken relates to how an

RTM can aid the software maintenance process, ,

offering support for regression test generation.

REFERENCES

Artero, A. O. 2009. Artificial intelligence - theory and

practice. , 1st ed., São Paulo: Livraria Fisica.

Baeza-Yates, R., Berthier, A., Ribeiro-Neto, A. 1999.

Modern Information Retrieval. 1st ed. New York:

ACM Press / Addison-Wesley.

Cleland-Huang, J., Gotel, O., Zisman, A. 2012. Software

and Systems Traceability. 1st ed., London: Springer.

Coppin, B. 2004. Artificial Intelligence Illuminated, 1st

ed. Burlington: Jones and Bartlett Publishers.

Cuddeback, D., Dekhtyar, A., Hayes, J.H. (2010).

Automated requirements traceability: the study of

human analysts. In 18th IEEE International

Requirements Engineering Conference, RE. Sydney,

Australia, Sep.: IEE Computer Society. 231-241.

Cysneiros, Zisman, A. (2008). Traceability and

completeness checking for agent oriented systems. In

ACM Symposium on Applied Computing, Fortaleza,

Brasil, New York: ACM Digital Library. 71-77.

Deeptimahanti, D. K., Sanyal, R. (2011). Semi-automatic

generation of UML models from natural language

requirements. In India Software Engineering Conf..

Kerala, India, Feb. New York: ACM Digital Library.

165-174.

Deerwester, S., Dumais, S.T., Furnas, G. W., Landauer,

T.K., Harshman, R. 1990. Indexing by latent semantic

analysis. Journal of the American Society for

Information Science, 41(6), 391–407.

Di Thommazo, A., Martins, M. D. C., Fabbri, S.C.P.F.

(2007). Requirements management in COCAR

environment (in portuguese). In Requirements

Engineering Workshop, WER, Toronto, Canada, May.

Rio de Janeiro: PUC-Rio. 11-23.

Di Thommazo, A., Malimpensa, G., Olivatto, G., Ribeiro

T., Fabbri, S. (2012). Requirements traceability

matrix: automatic generation and visualization. In 26th

Brazilian Symposium on Software Engineering, Natal,

Brazil. May.: IEE Computer Society. 101-110.

Di Thommazo, A., Ribeiro, T., Olivatto, G., Rovina, R.,

Werneck, V., Fabbri, S. (2013). Detecting traceability

links through neural networks. In 25th International

Conference on Software Engineering and Knowledge

Engineering, SEKE, Boston, USA. July. Illinois:

Knowledge Systems Institute, 2013. 36-41.

Goknil, A., 2011. Semantics of trace relations in

requirements models for consistency checking and

inferencing. Software and Systems Modeling, 31-54.

Guo, Y, Yang, M., Wang, J., Yang, P., Li, F. (2009). An

ontology based improved software requirement

traceability matrix. In 2nd International Symposium on

Knowledge Acquisition and Modeling, KAM, China,

Dec. Los Alamitos: IIEE Computer Society. 160-163.

Hayes, J. H., Dekhtyar, A., Osborne, J. (2003). Improving

requirements tracing via information retrieval. In 11th

International IEEE Requirements Engineering

Conference, Monterey, CA, Sep. Los Alamitos: IEE

Computer Society. 138-147.

Hayes, J. H., Dekhtyar, A., Sundaram, S. 2006. Advancing

candidate link generation for requirements tracing: the

study of methods. IEEE Transactions on Software

Engineering, 32(1), 4–19.

Herrera F. 2008. Genetic fuzzy systems: taxonomy,

current research trends and prospects. Evolutionary

Intelligence , Volume 1, Issue 1 , pp 27-46 DOI

10.1007/s12065-007-0001-5.

IBM, Ten Steps to Better Requirements Management.

[Online]. Available at: http://public.dhe.ibm.com/

common/ssi/ecm/en/raw14059usen/RAW14059USEN

.PDF. [20 May 2012].

Kannenberg, A., Saiedian, A. 2009. Why software

requirements traceability remains a challenge:

CrossTalk. The Journal of Defense Software

Engineering, 14-19.

Kawai, K. K., 2005. Guidelines for preparation of

requirements document with emphasis on the

functional requirements (in Portuguese). Master

degree thesis. São Carlos, Brazil: Universidade

Federal de São Carlos.

McCulloch , W. S., Pitts, W. 1943. A logical calculus of

the ideas imminent in nervous activity. The Bulletin of

Mathematical Biophysics, 5(4), 115-133.

Real , R., Vargas, J. M. 1996. The probabilistic basis of

Jaccard's index of similarity. Systematic Biology,

[Online]. 45(3), 380-385. Available at:

http://sysbio.oxfordjournals.org/content/45/3/380.full

[Accessed 31 July 2013].

Salem, A. M., (2006). Improving software quality through

requirements traceability models. In 4th ACS/IEEE

International Conference on Computer Systems and

Applications, AICCSA, .Dubai, Sharjah, March, Los

Alamitos: IEE Computer Society. 1159-1162.

Salton, G., Allan, J. (1994). Text retrieval using the vector

processing model. In 3rd Symposium on Document

Analysis and Information Retrieval, Univ.of Nevada,

Sommerville, I. 2010. Software Engineering. 9th ed. New

York: Addison Wesley.

Standish Group, CHAOS Report 2005, 2005. [Online].

Available at: http://www.standishgroup.com/sample

_research/PDFpages/q3-spotlight. [Accessed 20 July

2013].

Standish Group, CHAOS Report 1994, 1994. [Online].

Available at: http://www.standishgroup.com/sample

_research/chaos_1994_2.php. [Accessed 20 July

2013].

Sundaram, S. K. A. Hayes, J. H. B., Dekhtyar, A. C.,

Holbrook, E. A. D., (2010). Assessing traceability of

software engineering artifacts. In 18th International

IEEE Requirements Engineering Conference, Sydney,

Australia, Sep.: IEE Computer Society. 313-335.

Zadeh, L. A. 1965. Fuzzy sets. Information Control, 8(1),

UsingArtificialIntelligenceTechniquestoEnhanceTraceabilityLinks

338–353.

Zisman, A., Spanoudakis, G. 2004. Software Traceability:

Past, Present & Future, Requirenautics Quarterly, 13,

Newsletter of the Requirements Engineering Specialist

Group of the British Computer Society, Sep.

Wang, X., Lai, G., Liu, C. 2009. Recovering relationships

between documentation and source code based on the

characteristics of software engineering. Electronic

Notes in Theoretical Computer Science, 243(1),

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
