Using Visualization and Text Mining to Improve Qualitative Analysis

Elis Montoro Hernandes

1,2

, Emanuel Teodoro

, Andre Di Thommazo

1,2

and Sandra Fabbri

LaPES - Software Engineering Research Lab, Federal University of São Carlos, UFSCar, São Carlos, SP, Brazil

IFSP - São Paulo Federal Institute of Education, Science and Technology, São Carlos, SP, Brazil

Keywords: Qualitative Analysis, Coding, Feasibility Study, Visualization, Experimental Software Engineering,

Empirical Software Engineering.

Abstract: Context: Qualitative analysis is a scientific way to deeply understand qualitative data and to aid in its

analysis. However, qualitative analysis is a laborious, time-consuming and subjective process. Aim: The

authors propose the use of visualization and text mining to improve the qualitative analysis process. The

objective of this paper is to explain how the use of visualization can support the Coding in multiple

documents simultaneously, which may allow codes standardization thus making the process more efficient.

Method: The Insight tool is being developed to make the proposal feasible and a feasibility study was

performed to verify if the proposal offers benefits to the process and improves its results. Results: The study

shows that the subjects who applied the proposal got more standardized codes and were more efficient than

the ones who applied the process manually. Conclusions: The results derived from the use of visualization

and text mining, even in a feasibility study, encourage proceeding with the project, which aims to combine

both techniques to obtain more benefits on qualitative analysis conduction.

1 INTRODUCTION

According to Basili, “The only way to discover how

applicable a new method, technique, or tool is in a

given environment is to experiment with its use in

that environment”. (Basili et al., 1996). Considering

it, one of the essential steps of any scientific

research is its evaluation, for obtaining results and

clarifying its contributions and limitations.

The evaluation of a scientific research should

apply a scientific method, adopting procedures for

planning, collecting and analyzing research data. In

general, these procedures are related to the different

kinds of experimental studies as surveys, case study

and controlled experiment (Wohlin et al., 2000).

For the data analysis step both the qualitative and

quantitative analysis can be applied. The major

differences between these methods are the type of

data – usually, text for qualitative analysis and

numbers for quantitative analysis – and the

procedure to draw the study conclusions.

For qualitative analysis, the basic procedure to

analyze data begins with the labelling of relevant

excerpts of the collected data, with the purpose of

identifying the differences and similarities among

them. The labels, called codes, shall facilitate the

identification and interpretation of the relevant

excerpts, called quotations (Hancock, 2002). After

this procedure, called Coding, new or

complementary information about the studied object

can be acquired.

However, as mentioned by Seaman (2008),

"qualitative analysis are sometimes boring, often

tedious, and always more time-consuming than

expected". When the amount of data is large, the

qualitative analysis process can be slower and more

tedious, inducing to relaxation of the label definition

criterion (coding), loss of relevant excerpts for the

study, or definition of different codes for similar

excerpts, which may affect the conclusions on the

data and consequently, the evaluation of the study.

Even though qualitative analysis is a method

usually applied by researchers from the medical and

humanities areas, Seaman (2008) explains that the

use of this method has been intensified in the

software engineering area since the human

behaviour can influence the use of the techniques of

this area.

Seaman (2008) mentions that one of the

advantages of using qualitative analysis methods is

201

Montoro Hernandes E., Teodoro E., Di Thommazo A. and Fabbri S..

Using Visualization and Text Mining to Improve Qualitative Analysis.

DOI: 10.5220/0004880102010208

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 201-208

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

that the researcher tends to get deeper into the

complexity of the issues from her/his study and is

not concerned with abstractions of the inquiry.

Moreover, this type of analysis requires more effort

compared to quantitative methods.

Considering the advantages of applying

qualitative analysis in software engineering area and

how difficult it is to apply this method when a study

involves a lot of data, we propose the use of

visualization and text mining techniques to support

the qualitative analysis process. We expect that these

techniques make the process easier, allowing the

documents to be handled simultaneously, providing

more consistent results, ie, quotations, codes and

categories (which organizes the codes) more concise

when compared to results obtained without the use

of such techniques.

The remainder of this paper is organized as

follows: Section 2 briefly presents qualitative

analysis, Section 3 presents the proposal and Section

4 the feasibility study performed to evaluate it.

Finally, Section 5 presents the conclusions and

further works.

2 QUALITATIVE ANALYSIS

According to Strauss and Corbin (2008), the

qualitative research aims to understand a specific

topic by means of descriptions, comparisons and

interpretations of data, unlike to quantitative

research, which uses numbers to understand a topic.

Thus, qualitative research concerns a type of

research in which the results are not achieved

through statistical procedures, since the data is

represented by words, pictures, videos, sounds, and

not just numbers.

Coleman and O'Connor (2007) argue that while

quantitative studies are concerned with questions

like "How much?" and "How often?", qualitative

studies are related to questions like "Why?", "How"

and "In what way?". Somewhat, the authors’

explanation highlighted that the research methods

are complementary and if used together, might

improve the research results.

Thus, this type of analysis can bring relevant

insights for software engineering researchers. For

instance, when two similar techniques are compared,

knowing the reasons why one of them is more

effective than the other may be more important than

just knowing which one is most effective.

Seaman (1999, 2008) presents two sets of

qualitative data analysis methods: Generation of

Theory: methods used for generating hypothesis that

are grounded in the data. For instance, Constant

Comparison Method and Cross-Case Analysis; and

Confirmation of Theory: methods used to construct

the "weight of evidence" that is necessary to confirm

hypothesis. The goal of these methods is not to

prove a theory. For instance, Validation,

Triangulation, Anomalies in the data, Negative case

analysis and Replication.

Though some of these methods could consider

quantitative data analysis, to analyze qualitative data

(usually textual data) the Coding technique is

usually applied.

The Coding technique can be split in three steps

(Seaman, 2008): (i) open coding: the researcher

shall read the text looking for references about the

research interest topic and shall insert labels (codes)

to each relevant excerpt (quotation or quote); (ii)

axial coding: the researcher shall cluster the codes

and excerpts creating categories to better understand

the data, and (iii) selective coding: the researcher

shall reanalyze the codes and categories and

elaborate a description that synthesizes the analyzed

data.

Hancock (2002) describes the Coding technique

as the following set of steps:

1) Read the textual data looking for excerpts

(quotations) with relevant information and write

a short note (code) that represents its topic;

2) Elaborate a list of all different codes;

3) Group the codes into categories that should

represent the main topic related to the codes and

elaborate a list of these categories;

4) If there are interrelated categories, create

another category and define a hierarchy of

categories;

5) Analyze and compare all categories, changing

their position in the hierarchy and creating new

categories if necessary;

6) Repeat steps 1 to 5 to all research documents;

7) Be sure that the excerpts tagged with the same

code are interrelated;

8) Be sure that the categories, their hierarchy and

all labels are representative;

9) Analyze possible relationships among the

categories because they may suggest important

insights about the research. This analysis should

be performed after the certainty that all codes

and excerpts are in the suitable categories;

10) Revise the documents taking the

categories into account and look for excerpts

not considered before but that now seem

relevant.

As these steps suggest, the Coding technique

seems an arduous activity and requires commitment

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

202

and skill of the researcher for analyzing qualitative

data. When the Coding technique must be applied on

a large amount of documents, problems may occur

that can hamper or jeopardize the results:

 the process may be susceptible to relaxation of

the coding criterion, because the researcher

may start coding carefully, searching for

implicit details in the text, and after a while he

or she can become less detail-aware. Hence,

relevant excerpts about the research may be

lost in the last documents analyzed;

 different codes may be assigned to similar

quotations once the documents may be

analyzed at different moments. In this case the

steps 7 and 8 may require additional effort.

Some software can support the researcher to

conduct this activity, for example, NVivo

(www.qsrinternational.com), Atlas.ti (atlasti.com),

The Ethnograph (www.qualisresearch.com) and

SaturateApp (www.saturateapp.com). Moreover,

some researchers have reported the use of

spreadsheets (Gu, Lago, 2009) and documents or

word processing software (Seaman, 1999).

Regardless of whether these software related to

Insight tool are free or not, they offer many

resources for supporting the Coding technique.

However, they do not provide computational

resources to facilitate the analysis of a set of

documents simultaneously. Although the codes

could be reused in different documents of the same

project, finding excerpts correlated should be done

exclusively by the researcher, a fact which does not

avoid the problems mentioned before.

3 THE CODING SUPPORTED

BY VISUALIZATION

AND TEXT MINING

As mentioned before, the qualitative analysis allows

exploring issues deeply, providing results and

drawing more relevant conclusions for the research

question. Considering the explanation presented in

the last section the proposal here presented intends

to make the qualitative analysis process more

efficient (faster) and effective (better results).

Despite of the fact that qualitative analysis can

also be applied on pictures and videos, the files

frequently investigated are textual documents. As

the codes are inserted in the documents under

analysis, the researcher’s goal is to find patterns,

such that the data is grouped according to them,

aiming to understand and discover new information

in an easier way.

Hence, considering the objective of the

qualitative analysis and our intention of improving

the process, the proposal is based on the use of two

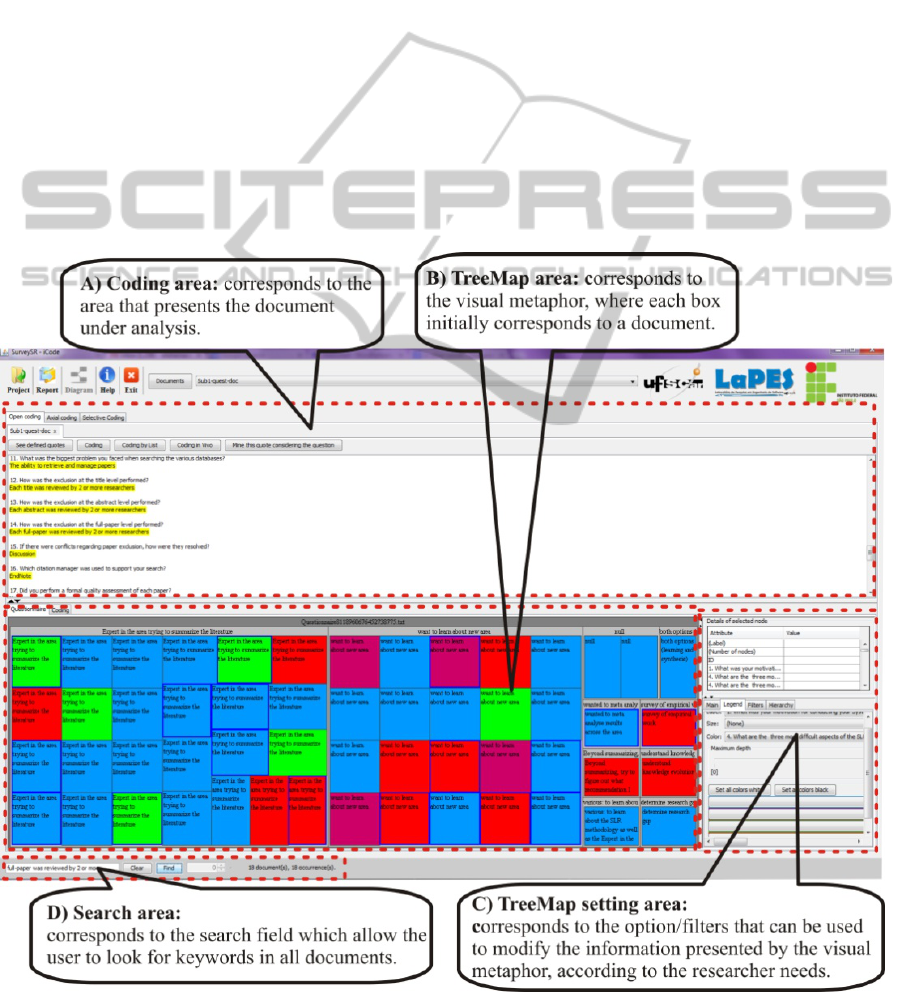

resources: (i) treemap visualization (Johnson,

Shneiderman, 1991) to allow navigating on various

documents at the same time, in order to jointly

handle similar information contained in different

documents; and (ii) text mining techniques to

facilitate the search and identification of patterns in

the documents (Feldman, Sanger, 2007).

We observe that our hypothesis is that processing

many documents at the same time (combining the

use of these techniques) can help to standardize the

attribution of codes as well as make the activity

more efficient.

Aiming to implement the proposal, a tool named

Insight tool has been developing. Figure 1 shows the

main screen of the tool where some parts are tagged.

To explain the proposal through the support

available in the tool, let’s suppose that there is a set

of documents containing qualitative data to be

analyzed. After defining the project identification

(name, analysts and description), the documents

should be inserted into de project.

Initially, each box of the treemap visualization

represents a document. On the TreeMap setting area

(Figure1-C), the user can modify the visualization -

colors, labels and hierarchy – adopting a better

hierarchy for the analysis (e.g. based on similar

quotations).

To analyze and coding the documents using the

resources currently available in the tool, the user

must follow the steps:

 Identify and select a relevant excerpt, and create

a label to code it. If appropriated, the option

"Apply this code for equal quotations" will be

labelled all the equal excerpts in all documents

with the same code. Also, a code equal to the

selected excerpt is created and stored;

 Insert a keyword from the excerpt or the whole

excerpt in the Search area (Figure1-D). If other

documents (boxes) become highlighted (blue

border) in the visualization (Figure1-B), this

means that they also have the searched text;

 Clicking on one of the highlighted boxes the

correspondent document will be showed in the

Coding area (Figure1-A) and the matched

keyword or excerpt will be highlighted in the

screen. ;

 After reading the excerpt in the context of this

new document, codes previously created can be

reused, promoting their standardization;

UsingVisualizationandTextMiningtoImproveQualitativeAnalysis

203

 If more than one document were highlighted, the

user can process all of them at this moment,

aiming to facilitate the interpretation of each

excerpt and, consequently, the attribution of

codes.

It is also possible to analyze and create a code

based on the similarity of excerpts. Selecting the

excerpt and choose the option "Mining this

quotation", a new Treemap is showed and boxes

which represents documents with similar excerpts

will be coloured according to a legend that indicates

their percentage of similarity. To determine the

similarity percentage between the excerpt selected

by the researcher (Insight user) and all the other

documents the Frequency Vector and Cosine

Similarity methods (Salton, Allan, 1994) are used.

Aiming to support the Axial Coding and

Selective Coding (Seaman, 1999), the Insight tool

allows grouping the codes by categories, and

categories into other categories, without restriction

of levels. Moreover, a simple text editor is available

for writing down comments, insights or a theory.

4 FEASIBILITY STUDY

According to the empirical methodology for

introducing software processes, presented by Shull,

Carver and Travassos (2001), we performed a

feasibility study to evaluate our proposal of using

visualization for enhancing the Coding process.

The original Coding process was adapted by the

introduction of visualization, providing facilities for

dealing with various documents at the same time a

document is being analyzed and codes are being

defined. This way of dealing with documents may

standardize the code definition and make the process

more efficient.

In the following subsections the steps of the

study are presented: Subsection 4.1 presents the

Figure 1: Main screen of the Insight tool.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

204

identification, definition and planning of the study;

Subsection 4.2 comments the study conduction;

Subsection 4.3 presents the data analysis, results and

discussion; and finally, Subsection 4.4 presents the

threats to validity.

4.1 Identification, Definition

and Planning

The study was planned using the GQM template

(Basili, Caldiera, Rombach, 1996), presented by

Table 1.

Table 1: Goal of the feasibility study.

Analyze

the modified process for applying

the Coding technique

for the purpose of

evaluate the feasibility of applying

the process

with respect to

effectiveness (standardization of

codes)and efficiency (time spent) in

applying the Coding technique with

the tool and manually

from the point of

view of

Researchers

in the context of MsC and Ph.D students

The artefacts created to this study were nine:

lecture on Qualitative Analysis and Coding; lecture

on the Treemap technique; lecture on the Insight

tool, subject characterization questionnaire; a set of

newspaper articles about the 2014 World Cup;

feedback questionnaire; report form (for Group C);

consent form and reference model of the Coding

application

It is important mention that the reference model

was elaborated manually by one of the authors and

reviewed by another one, and was used just to

compare the subjects' results. We emphasize that it

was not considered as a correct version, but a

version created by people who know the Coding

technique more deeply than the subjects.

The study design was defined aiming to identify

the effects of applying Coding in a set of documents

according to two different procedures: analyzing

various documents simultaneously using the Insight

tool, and analyzing one document at a time. In the

latter case, there were two possibilities – with and

without the tool.

To select the subjects, a message was sent to an

e-mail list of graduate students. One MsC. and five

Ph.D. students have participated in the study as

volunteers. A characterization questionnaire was

applied aiming to define the groups. Table 2

summarizes the subjects’ profile.

Based on the result of the characterization

questionnaires, the six subjects, labelled as P1, P2,

P3, P4, P5 and P6, were distributed into the 3

groups. Group C is the control group since this

option is the usual way to apply Coding and the

other two groups – A and B – are the treatment

groups since these options are the ones we want to

evaluate. Table 3 presents the study design.

Table 2: Subjects’ characterization.

Question

Wide

knowledge

Little

knowledge

1) What is your level of

qualitative analysis

knowledge (theoretical)?

P1, P2, P4 P3, P5, P6

2) What is your level of

Coding technique

knowledge?

P5, P6

P1, P2, P3,

3) What is your level of

Treemap visualization

technique knowledge?

P5, P6 P1, P3 P2, P4

4) What is your level of

Treemap tool knowledge?

P5, P1, P3, P6 P2, P4

Table 3: Study design.

Group Group A Group B Group C

Subjects ID (P1 & P2) (P3 & P4) (P5 & P6).

Way to

conduct the

Coding

activity

(Insight tool

+ simultaneous

analysis);

(Insight tool

+ one

document at a

time)

(manually +

one document

at a time)

4.2 Conduction

The study was carried out in two days. In the first

day, an instructor (one of the authors) explained the

purpose of the feasibility study, and got the subjects’

agreement in the Consent Form. The subjects also

have answered the characterization form. Moreover,

the subjects of Groups A and B received training

about the Insight tool and the Treemap technique to

understand how the tool works and how

visualization should be used for applying the

modified process.

During the second day the Coding technique was

applied by the three groups. The document set was

composed of newspaper articles about the 2014

World Cup and the objective was to identify any

topic highlighted in the articles. The subjects

performed the activity in the same place and no

communication was allowed among them.

4.3 Data Analysis, Results

and Discussion

Aiming to verify if it is feasible to apply the Coding

process dealing with many documents at the same

time, the collected data was analyzed based on the

UsingVisualizationandTextMiningtoImproveQualitativeAnalysis

205

meaning of codes, the number of categories, codes

and quotations, the time spent by treatment groups

and finally, the qualitative analysis of the subjects'

feedback questionnaire.

Moreover, a rate of number of quotations divided

by number of codes was measured aiming to observe

the consistency of defined codes. In other words,

this rate means how much the codes were reused to

label similar excerpts.

4.3.1 Analysis of the Subjects’ Results

Considering that in the context of qualitative analysis

it is not viable to argue that some result is wrong or

better than another one, we analyzed the results of this

study mainly from the semantic point of view.

The steps applied for analyzing the results were:

i) tabulating the codes of subjects and the reference

model; ii) based on the meaning, the codes of each

subject were compared to the codes of the reference

model to identify the ones that were interrelated and,

iii) the coincidental codes were identified. Table 4

summarizes the results, showing the number of

agreements and disagreements between each subject

result and the reference model. Complementary data

is presented in Table 5.

We highlight that every code defined in the

reference version was also defined by at least one

subject. Besides, five from the six subjects have

more than 50% of codes semantically similar to the

codes of the reference model. This suggests that the

subjects understood the objective of the activity as

well as the Coding technique.

In relation to the effectiveness, i.e., the

standardization of codes, Group A presents the most

standardized results, once the number of codes

defined by its subjects (19 and 15) were the smallest

ones, and the rate (#quotations/#codes) of subjects

was similar (see Table 5). This information gives

insights that analyzing the set of documents

simultaneously, may facilitate the reuse of codes

created by the user as the coding technique is

executed.

The subjects of Group B presented the most

different results in semantically (Table 4) and

numbers (Table 5), when compared to each other. P3

created many codes but a number of categories

similar to the others, except for P4 who created few

categories. The subjects of Group C presented codes

and categories similar in numbers, but a little

different in meaning. Observe that this group

defined few codes. Probably this occurs due to the

fact that conducting Coding manually is a boring

and laborious activity.

The number of codes is not a crucial data to

qualitative analysis, unless the coding is being

performed to transform qualitative data into

quantitative data. However, comparing the codes

defined by the subjects P5 and P6 with the codes of

the reference model, we can observe that relevant

information was not identified by them. This fact

may jeopardize the final summary of the analysis.

The time spent by the Group C was higher than

the time spent by the Groups A and B. This result

was expected and corroborated the known

information that applying the Coding technique

manually is a laborious task.

Table 4: Summary of subjects' results.

Reference

model

(22 codes)

Group A Group B Group C

P1 P2 P3 P4 P5 P6

# and % of

agreements

59%

68%

54%

36%

59%

50%

# of

disagreements

6 0 12 12 7 6

Table 5: Number of categories, codes and quotations and

time spent by each subject.

Group

Categories

Codes

Quotations

Quot./Code

Time

spent

GroupA -

8 19 40 2,1 0:40h

GroupA -

6 15 34 2,2 0:52h

GroupB -

7 24 80 3,3 1:16h

GroupB -

3 20 32 1,6 1:00h

GroupC -

6 20 24 1,2 1:30h

GroupC -

7 17 21 1,2 1:56h

Comparing the lowest and highest spent time by

each subject, it can be noticed that Group A was

about 55% more efficient than Group C and Group

B was about 33% more efficient than Group C:

Group A x C: (i) highest time - P2 was 55.56% more

efficient than P6; (ii) lowest time - P1 was 55.18%

more efficient than P5; Group B x C: (i) highest time

- P3 was 34.49% more efficient than P6; (ii) lowest

time – P4 was 33.34% more efficient than P5.

In summary, the time spent in conjunction to the

result presented in the previous section shows that

analyzing various documents as the codes are being

defined is a promising approach that deserves the

continuity of our research.

4.3.2 Analysis of the Feedback

Questionnaires

After the Coding application each subject answered

a short feedback questionnaire, according to the

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

206

participation group.

Question 1 was related to the use of the Treemap

technique and according to the subjects, the use of it

is useful to: (i) quickly identify the results of a

search aiming to manage various documents

simultaneously; (ii) help in the Coding application,

aiming to visualize and reuse the codes that were

previously created. These benefits mentioned by the

subjects are in accordance with the intention of the

authors’ proposal.

Question 2 was related to the search

functionality that combined with visualization helps

the simultaneous analysis of documents. According

to the subjects, this functionality was used all the

time and helped to locate the excerpts in the

documents and reuse the codes, promoting their

standardization. Question 3 was related to the

simultaneous analysis of documents. According to

the subjects, the possibility to deal with various

documents simultaneously also helps the reading of

documents and the standardization of codes.

Question 4 was related to text mining

functionality. According to the subjects, this

functionality was used when a long quotation was

identified and the participant wanted to check if

there were any excerpt of similar text in which the

same code could be applied.

Question 5 was related to the difficulties faced

by the subjects who conducted the analysis

manually. These subjects reported that the manual

application of the Coding technique leads to the

analysis of one document at a time, since dealing

with all documents at the same time is hard. The

main difficulties mentioned were the definition of

different codes for the same topic and the difficulty

to define the categories. Moreover, the

functionalities requested by the subjects were to

comb through relevant information in the

documents, to prevent the definition of different

codes for similar excerpt, and to aid the analysis of

more than one document at the same time.

In summary, the analysis of the feedback

questionnaire showed functionalities that should be

inserted into the Insight project and that the search

functionality combined with visualization provides

evidences that the proposal is feasible and the

project should be continued.

4.4 Threats to Validity

Threats to validity are inherent to experimental

studies, despite the experimental design. Then,

according to (Jedlitschka, Ciolkowski, Pfahl, 2008),

every study report should expose its threats.

In relation to the study presented in this paper,

the authors could identify the following threats to

internal, external and conclusion validity.

The topic to be analyzed can represent a threat to

Internal Validity because the subjects may have

different knowledge on it. Hence, to minimize it, the

authors have chosen a set of documents about a

generic topic - the 2014 World Cup. Although the

newspaper articles do not represent a research

domain, it was the way found to guarantee the same

level of domain knowledge of the subjects.

We understand that the results can be different in

a different sample of subjects. The subjects of this

study were graduate students and most of them have

little knowledge about Qualitative Analysis and

Treemap technique, which is considered an threat to

External Validity. However, considering the

positive results even in this non-experienced group,

we understand that the proposal can be considered as

a benefit for this activity.

One of the challenges of this study was analyzing

the coding results of each subject and characterizing

the effectiveness of the proposal. For minimizing the

risks related to the wrong application of the Coding,

the authors have used for comparison a reference

model, even though this comparison may be

considered a threat to Conclusion Validity, since

the comparison itself, as well as the reference

version, are both subjective.

5 CONCLUSIONS

Qualitative analysis is relevant to software

engineering considering that this area is a blend of

technical and non-technical issues (Seaman, 2008) -

the success of a process depends on the process and

on who perform the process as well.

Despite the advantages that this kind of analysis

can offer to researchers, its application is laborious,

time consuming, error prone, and requires ability to

be conducted correctly. These characteristics are

emphasized when there is a large volume of data

distributed in many documents. In addition, for

conducting qualitative analysis, the main used

technique is Coding, which, in general, is applied on

a document at a time. This procedure makes the

Coding application more difficult and leads to few

standardization of the created codes.

Considering this context, to enhance the Coding

application, we are proposing the use of

visualization and text mining to allow that various

documents are analyzed at the same time. This

simultaneous analysis of various documents can

UsingVisualizationandTextMiningtoImproveQualitativeAnalysis

207

make the Coding application more agile and more

standardized, because when a quotation is identified

and a code is created, this action is evaluated on all

the documents that are being analyzed.

Hence, this paper presented the concept of

simultaneous analysis, explaining the steps that

compose its application. The use of visualization and

text mining makes the proposal feasible. To apply

these techniques, a tool is indispensable and this is

the reason why Insight tool is being developed.

Therefore, through an experimental study we

explained the proposal and have conducted a first

feasibility study.

In relation to effectiveness, the results of this

study showed that Group A presented the most

standardized and homogeneous results. This result

gives insights that analyzing the set of documents

simultaneously, may facilitate the reuse of codes. In

relation to efficiency, the results showed that the

proposal makes the Coding (qualitative analysis)

procedure more agile than when this procedure is

conducted manually, what was expected.

Based on the subjects’ feedback questionnaire

we drew evidences that the search functionality

combined with visualization make the Coding

activity easier, which may improve the qualitative

analysis process.

Considering the experience of conduct this study,

we can cite two lessons learned. First, the difficulty

to analyze the subject’s results, since in the context

of qualitative analysis it is not appropriate to

establish an oracle. Hence, we created a reference

model for comparing the results, just to minimize the

assumption that the subjects could apply the Coding

technique in a wrong way. Second, in this study we

required that the subjects extracted all relevant

information contained in the newspaper documents;

maybe, if we establish a specific topic for the

Coding application (perspective), the analysis of the

results could be easier and more precise.

Despite these questions, we consider that the

proposal is feasible and promising. As future works

we plan to conclude the development of the proposal

through the Insight tool and make it available under

the GLP license. Besides, we will explore the

proposal in the context of experimental studies for

analyzing the characterization form and feedback

questionnaires and a study to compare Insight tool

with Atlas.ti software.

In addition to these further works realized, the

proposal has been used for analyzing primary studies

in the context of secondary studies (Thematic

Synthesis (Cruzes, Dybå, 2011)) and in the context of

software inspection process for analyzing defects lists.

REFERENCES

Basili, G, Basili., V., Green, S. Laitenberger, O., Lanubile,

F., Shull, F., Sorumgard, S., Zelkowitz, M., 1996.

Packaging researcher experience to assist replication

of experiments. In ISERN Meeting, Sydney, pp. 3-6.

Basili, V., Caldiera, C., Rombach, H., 1996. Goal

Question Metric Paradigm, In Marciniak, J.,

Encyclopedia of Software Engineering, London: John

Wiley & Sons.

Coleman, G., O'Connor, T., 2007. Using grounded theory

to understand software process improvement: A study

of Irish software product companies. Information and

Software Technology. vol.49, n.6, p. 654-667.

Cruzes, D., Dybå, T. 2011. Recommended Steps for

Thematic Synthesis in Software Engineering. In

International Symposium on Empirical Software

Engineering and Measurement, ESEM’11, Banff,

Canada, PP. 275-284

Feldman, R., Sanger, J., 2007. The Text Mining Handbook.

Cambridge: Cambridge Univ. Press.

Gu, Q., Lago, P. Exploring service-oriented system

engineering challenges: A systematic literature review.

Service Oriented Computing and Applications, vol. 3,

n. 3, p.171-188.

Hancock, B., 2002. Trent Focus for Research and

Development in Primary Health Care: An

Introduction to Qualitative Research. Trent Focus.

Jedlitschka, A, Ciolkowski, M., Pfahl, D., 2008. Reporting

guidelines for controlled experiments in software

engineering, In Shull, F., Singer, J., Sjoberg, D., Guide

to Advanced Empirical Software Engineering, Eds.

London: Springer.

Johnson, B, Shneiderman, B., 1991. Tree-maps: a space-

filling approach to the visualization of hierarchical

information structures, In IEEE Conf. on

Visualization, October 1991, pp. 284-291, San Diego.

Salton, G., Allan, J. 1994. Text Retrieval Using the Vector

Processing Model, In 3rd Symp. Document Analysis

and Information Retrieval, March 1994. Las Vegas

Seaman, C., 1999. Qualitative methods in empirical

studies of software engineering, IEEE Transactions on

Software Engineering, vol. 25, n. 4, p.557-573.

Seaman, C., 2008. Qualitative Methods. In Shull, F.,

Singer, J., Sjoberg, D., Guide to Advanced Empirical

Software Engineering, Eds. London: Springer.

Strauss, A., Corbin, J., 2008. Basics of qualitative

research: techniques and procedures for developing

grounded theory. Sage Publications, 3ed.

Shull, F., Carver, J., Travassos, G., 2001. An empirical

methodology for introducing software processes, IN

European Software Eng. Conf. , September 2001, pp.

288-296, Helsinki.

Wohlin, C., Runeson, P., Höst, M., 2000. Experimentation

in Sof. Eng. - An Introduction, Sweden: Springer.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

208
