Architecture Principles Compliance Analysis

João Alves

, André Vasconcelos

1,2

and Pedro Sousa

Instituto Superior Técnico, University of Lisbon, Av. Rovisco Pais, Lisbon, Portugal

INESC-Inovação, Instituto Superior Técnico, Lisbon, Portugal

Keywords: Enterprise Architecture, Architecture Principles, Architecture Analysis, Architecture Principle Compliance

Analysis.

Abstract: The architecture principles play a key role in the enterprise architecture evolution. However, the architecture

does not always address the principles intentions, which could result in unplanned deviations. Through the

related work is perceptible the nonexistence of an architecture analysis based on architecture principles.

Hereupon, this research proposes an architecture analysis to evaluate the architecture compliance with

architecture principles. The proposed analysis, based on ArchiMate consists in the principle formalization

where the principle expected impact is recognized. This analysis enables to identify the principle compliant

elements in an enterprise architecture description. This analysis has been applied in one of the largest

Portuguese insurance companies to analyse the compliance of some specific architectures. The analysis

feasibility presents this research as a contribution to the architecture principles field.

1 INTRODUCTION

Modern enterprises face a range of challenges

imposed by their environment (Op’t Land et al.,

2008) which impacts how they hold their evolution,

making them transform. This is where organizations

position the enterprise architecture (EA) as an

instrument to coordinate and steer their

transformation (Greefhorst and Proper, 2011). The

EA design defines the delivered services and all the

alignment between the underlying business

processes, information systems and IT infrastructure

(Greefhorst and Proper, 2011). The robustness of

this design is critical to face the imposed challenges.

Hereupon, the EA design must evolve in order to

make effective the organization adaption to the

environment. To properly guide this evolution, the

architecture principles are positioned as the key

ingredient. The architecture principles provide rules

and guidelines to inform and support the way in

which an organization sets about fulfilling its

mission (The Open Group, 2009). Therefore, it’s

important that EA design complies with their

guiding principles, which is not always achieved.

This emphasizes the need for an EA compliance

evaluation based on architecture principles.

However, the related work study shows that an

EA analysis to evaluate the EA compliance with

their guiding principles still lack. Hereupon, our

vision pretends to formalize architecture principles,

based on ArchiMate to enable their EA compliance

analysis. This formalization enables to analyse an

enterprise architecture description (EAD) through

the detection of architecture structures that represent

the principle expected impact and consequently

identify their compliant elements.

This work is organized as follows. In section 2

are explained the principal domains related with this

research and its motivation. In section 3 the

approach behind the research proposal is presented.

In section 4, the proposed analysis based on two

principles is highlighted. In section 5 the research

proposal feasibility is demonstrated in a real case

study and finally the section 6 concludes the paper

and provides research future directions.

2 RELATED WORK AND

MOTIVATION

2.1 Enterprise Architecture

The EA can be defined as a coherent whole of

principles, methods, and models that are used in the

design and realisation of an enterprise’s

328

Alves J., Vasconcelos A. and Sousa P..

Architecture Principles Compliance Analysis.

DOI: 10.5220/0004882803280334

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 328-334

ISBN: 978-989-758-029-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

organisational structure, business processes,

information systems, and infrastructure (Lankhorst,

2009). It enables a better decision making by sharing

knowledge on architecture decisions and provides a

way to describe and control an organization’s

structure, processes, applications, systems, and

technology in an integrated way (Lankhorst, 2009).

The analysis intended by this research is

intimately connected how EA could be represented.

The ArchiMate comprises an EA modelling

language providing precise descriptions of the

architecture in different domains and different

stakeholders, a feature that is not allowed in other

modelling languages (The Open Group, 2012). The

integrated representation between domains could

turn easier to analyse the principle impact that

propagates through multiple domains. The

possibility to extend the ArchiMate metamodel (The

Open Group, 2012) represents also another

important issue. Some specific cases in principle

analysis could require the unambiguously

identification of a certain element or relationship

that is not endorsed by the ArchiMate metamodel.

These considerations justify the ArchiMate use in

the proposed analysis.

2.2 Architecture Principles

The architecture principles can be seen as general

rules and guidelines, intended to be enduring and

seldom amended, that inform and support the way in

which an organization sets about fulfilling its

mission (The Open Group, 2009). They play a

prominent role in the EA development giving advice

how to design target architecture by restricting the

design freedom of EA transformation projects (Aier

et al., 2011). The architecture principles to be really

effective and be considered good principles they

must have a clear semantic, understandable syntax

and the right focus (Lindström, 2006; Van Bommel

et al., 2007). However, if any of these characteristics

are violated some deviations in the expected impact

could emerge (Greefhorst and Proper, 2011). This

fact emphasises the need to verify if the EA impact

is the prescribed by the architecture principles.

The principle application consists in the

transformation activity, which is separated in two

types. The first one called derivation consists in the

principles transformation into statements that are

relevant in a more specific context. The other is

related with the principle transformation to models.

This transformation it´s build on the fact that

architecture principles can be the rationale behind a

number of elements in the model and for their

relationships (Greefhorst and Proper, 2011).

It’s also important to relate the transformations

with the respective compliance management. In the

compliance management is advised the principle

refinement into requirements and then in design

decision to perform the compliance verification

(Greefhorst and Proper, 2011). However, this advice

maps with the derivation transformation. So, it‘s

evident a lack of a compliance verification to the

principle transformation to models and it is here that

our work presents as a contribution.

Finally, the architecture principles used are

selected from the catalogue in (Greefhorst and

Proper, 2011). Another catalogue is provided by

TOGAF (The Open Group, 2009) although the

principles from the previous catalogue present some

advantages. They are based on real-world

architectures (Greefhorst and Proper, 2011), they are

aligned with ArchiMate and are more level-specific

(Vieira, 2012).

2.3 Architecture Analysis

The EA discipline advocates the use of models to

support decision-making (Johnson et al., 2007).

These decisions can be supported by appropriate

analysis techniques that show why a solution is

better or to detect inconsistencies (Šaša and Krisper,

2011). Lankhorst (2009) describes different

architecture analysis techniques that can be used

with ArchiMate. Quantitative and qualitative

analysis techniques are distinguished.

Quantitative analysis focuses on the quantitative

aspect of relationships between different EA

elements and layers. It can be used for optimization

by quantifying the effect of alternative design

choices obtaining measures to support impact-of-

change analysis (Šaša and Krisper, 2011).

Qualitative analysis enables to understand how a

system that conforms to the architecture works, to

find the impact of a change on the architecture, or to

validate the architecture correctness. This analysis

distinguishes structural and dynamic aspects

(Lankhorst, 2009). The structural analysis is used to

determine the EA change impact which implies

traverse the architecture and consider each relation

and its meaning to determine whether the change

might propagate. Description logics are useful

formalisms to perform this analysis. For dynamic

analysis, techniques based on formal interpretations

are used. Dynamic analysis improves consistency

and focuses on logical aspects of the models. (Šaša

and Krisper, 2011)

Other approaches based on EA patterns exist for

ArchitecturePrinciplesComplianceAnalysis

329

business support analysis (Šaša and Krisper, 2011).

The approach used consists in the pattern

formalization to detect architecture structures that

characterize each pattern. The detection of the

referred structures enables to be aware of what could

be changed and how the EA could evolve. The

pattern formalization is based on ArchiMate.

Hereupon, the proposed analysis could be

positioned in the structure analysis, however it is not

intended to analyse the EA change impact. It allows

evaluating the EA coherence which could result in

the improvement of the architecture dynamics.

These improvements could represent the rationale

underlying the prescribed architecture principle.

3 APPROACH

The architecture principles are considered the

rationale for the existence of several EA elements

and relationships (Greefhorst and Proper, 2011),

which could position EADs as artifacts that provide

relevant information for the compliance analysis.

The approach underlying the proposed analysis is

based on (Šaša and Krisper, 2011). Initially it

consists in the identification of the EA elements and

relationships needed to perform the compliance

analysis. Then, the architecture structures that

represent the principle expected impact are

recognized. This recognition enables to determine

the compliant elements in the analyzed EAD. So, the

used approach is composed as follows.

 To Define Relevant EA Perspectives. These

perspectives are the viewpoints that represent the

structures impacted by the principle. Their goal is

to ensure that corresponding views illustrate

exactly the relevant elements for the analysis.

 To Define Characteristics That Address the

Principle Perspectives. These characteristics

define the prescriptions imposed by the principle.

They enable to recognize the principle expected

impact in the EAD.

In summary, we represent an architecture principle

as a set of elements, which is formalized with its

membership conditions. If an EA element respects

the principle membership conditions it is compliant.

4 PROPOSAL

To perform the proposed analysis the symbols used

in the principle formalization are presented in Table

1. These symbols based on (Šaša and Krisper, 2011)

represent the ArchiMate elements (The Open Group,

2012) impacted by the considered principles.

However, it’s important to notice that not every

element belongs to the ArchiMate metamodel. The

new elements and relationships correspond to

extensions to the metamodel. The reason for each

extension is explained in the principle analysis that

requires it. (The Open Group, 2012).

Table 1: Symbols for principle formalization.

mbols

PIA

Set of all elements and relations

of an EAD

ACPreL

Set of all presentation logic application

components in the EAD:

CPreL

⊆

Set of all business roles in the

EAD

ACProL

Set of all process logic application

components in the EAD:

CProL

⊆

Set of all customers in the EAD:

⊆

ACBL

Set of all business logic application

components in the EAD:

CBL

⊆

Set of all business interfaces in

the EAD

ACDL

Set of all data logic application

components in the EAD:

CDL

⊆

Set of all electronic forms in the

EAD: EF

⊆

(a,b)

∈

Realization

a is related to b with the Realization

relationship : a realizes b

Set of all business services in the

EAD

(a,b)

∈

Composition

a is related to b with the Composition

relationship: a is composed of b

Set of all application services in

the EAD

(a,b)

∈

ggregation

a is related to b with the Aggregation

relationship: a aggregates b

Set of all application components

in the EAD

(a,b)

∈

Used

a is related to b with the Used by

relationship: a is used by b

DO Set of all data objects in the EAD

(a,b)

∈

Provide

a is related to b with the Provide

relationship: a

rovides b

(a,b)

∈

Creation

a is related to b with the Creation

relationship: a creates b

(a,b)

∈

ssignmen

a is related to b with the Assignment

relationship: a is assigned to b

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

330

Table 2: Applications are modular principle (Greefhorst and Proper, 2011).

A.28 Applications Are Modular (AAM)

Type of information: application

Quality attributes: reliability, maintainability, portability

Rationale:

 Modularized applications are much easier to develop, maintain, reuse and migrate than monolithical

applications.

 Modularized applications are also more reliable since changes have a more localized and therefore

predictable impact.

Implications:

 Applications are decomposed into components that have limited and acyclical dependencies on other

components.

 Application components are units of configuration management and deployment.

 Application components have a logical and documented layered structure, where lower level layers are

independent of higher level layers.

 Presentation logic, process logic, business logic and data exist in separate layers or components.

It’s also relevant to understand how the principle

perspectives are defined. If PIA represents a set of

all element and relationships of an EAD, then a

viewpoint can be defined as a function vp that maps

a given EA into a subset of its elements and their

relations. Function vp(PIA)=P, P

⊆

PIA, where P

represents a view of the EA from the viewpoint vp.

Hereupon, two functions are defined to represent a

viewpoint (Šaša and Krisper, 2011):

 Function Elt(x), where x

⊆

PIA, is a function which

returns all elements in a given EAD x or in a given

view x of an EA.

 Function Rel(x), where x

⊆

PIA is a function which

returns all relationships in a given EAD x or in a

given view x of an EA.

4.1 Applications Are Modular Analysis

The compliance analysis presented here is based on

the principle highlighted in Table 2. Concerning this

analysis, the needed ArchiMate extensions are

represented as follows.

 The ACPreL, ACProL, ACBL and ACDL sets

identify the application components that

implement presentation, process, business and data

logic, respectively.

4.1.1 Definition of AAM Perspectives

The AAM viewpoint (AAMV), AAMV

⊆

PIA is

defined as follows.

(1)Elt(AAMV)={x|(x

∈

AC)

∨

∈

AS,

∃

ac1,ac2

∈

AC:

(ac1,x)

∈

Realization

∧

(x,ac2)

∈

Used by)}

(2)Rel(AAMV)={(x,y)|x,y

∈

AC: (x.y)

∈

Composition

∨

(x.y)

∈

Aggregation}

∪

{(t,z)|z

∈

AC,t

∈

AS :

(z,t)

∈

Realization

∨

(t,z)

∈

Used by}

4.1.2 Definition of AAM Characteristics

Concerning the AAM analysis, the principle

prescribes that each monolithical application

component only should implement one type of logic.

The MoAC1L set identifies the application

components that address this prescription.

(3)MoAC1L=MoAC\(MoAC∩ACSevL)

The MoAC set identifies the monolithical

components and ACSevL defines the application

components that implement at least two logics.

(4)MoAC={a|a

∈

∧

(

∄

∈

AC: (a,b)

∈

Composition

∨

(a,b)

∈

Aggregation)}

(5)ACSevL=(ACPreL∩ACProL)

∪

(ACPreL∩ACBL)

∪

(ACPreL∩ACDL)

∪

(ACProL∩ACBL)

∪

(ACProL∩

ACDL)

∪

(ACBL∩ACDL)

The principle also prescribes about the

dependency between application components. This

dependency is related to the usage that a component

makes from other component. To control this

dependency the application components that

correspond to a layer with lower abstraction level

are independent of higher level components. So, the

components with a certain type of logic only could

use application components with lower or equal

abstraction level logic. To verify this prescription

the different logics have to be classified depending

on the abstraction level. From the higher level to the

lower, the presentation logic is followed by the

process, business and data logic. The ACU set

identifies the monolithical components that address

the dependency prescription. The ACPreLU,

ACProLU, ACBLU and ACDLU (Appendix) sets

define for each logic the components that endorse

the dependency prescription.

ArchitecturePrinciplesComplianceAnalysis

331

Table 3: Data are provided by the source principle (Greefhorst and Proper, 2011).

A.14 Data Are Provided by the Source (DPS)

Type of information: data, application

Quality attributes: reliability, efficiency

Rationale:

 When those who have the data also provide them, unnecessary intermediate layers (e.g. people or IT

components) are prevented.

 The performance and reliability of the data also increases, since each link in the chain adds

performance overhead and potential errors.

Implications:

 Electronic forms are provided to customers to enter their requests.

 Applications acquire data from the source application.

(6)ACU=ACPreLU

∪

ACProLU

∪

ACBLU

∪

ACDLU

The principle also prescribes about the

application component composition. The

components only should be composed by

components in accordance with the prescriptions

previously analysed. This guarantees the application

layered structure intended by the principle. So, the

ACComp set identifies the components that respect

this prescription.

(7)ACComp={ac|ac

∈

(AC\MoAC)

∧

(AppComp(ac)

⊆

ACU)}

The AppComp(ac) function previously used

identifies the application components that compose a

certain component.

(8)AppComp(x)={ac|ac

∈

∧

((x,ac)

∈

Composition

∨

(x,ac)

∈

Aggregation)}

Hereupon, the principle compliant application

components are identified by the AAM set.

(9)AAM = ACU

∪

ACComp

4.2 Data Are Provided by the Source

Analysis

The compliance analysis presented here is based on

the principle highlighted in Table 3. Concerning this

analysis the ArchiMate extensions needed are:

 The Creation and Provide relationships. They are

created to avoid the access relationship ambiguity.

 The CR set identifies business roles that

correspond to customers.

 The EF set identify business interfaces that

represent electronic forms.

4.2.1 Definition of DPS Perspectives

The DPS viewpoint (DPSV), DPSV

⊆

PIA is

characterized as follows.

(10)Elt(DPSV)={x|(x

∈

AS)

∨

∈

AC,

∃

∈

AS:

(x,a)

∈

Realization)

∨

∈

DO,

∃

∈

AS: (b,x)

∈

Provide

∨

(b,x)

∈

Creation)}

∪

{y|(y

∈

BS)

∨

∈

BI,

∃

∈

BS:

(x,c)

∈

Assignment

∧

∃

∈

BR: (x,c)

∈

Used by)}

(11)Rel(DPSV)={(x,y,z)|x

∈

AS,y

∈

DO,z

∈

AC,

((x,y)

∈

Provide

∨

(x,y)

∈

Creation)

∧

(z,x)

∈

Realization}

∪

{(t,u,v)|t

∈

BR,u

∈

BI,v

∈

BS,

(u,z)

∈

Assignment

∧

(u,t)

∈

Used by}

4.2.2 Definition of DPS Characteristics

The principle prescribes that data object should be

provided by its application source. The application

source of a certain data is the application component

responsible for its creation. So, the ASDOAS set

identifies the application services that only provide

data created by the component that realizes that

services.

(12)ASDOAS={a|a

∈

∧

(

∃

∈

DO: (a,do)

∈

Provide)

∧

(

∃

∈

ASAC(a): (b,do)

∈

Creation)}

The ASAC(a) function identifies all application

services realized by the application component that

realizes a certain application service.

(13)ASAC(a)={as│as

∈

∧∃

∈

AC:(ac,a)

∈

Realizat

ion

∧

(ac,as)

∈

Realization}

It’s also prescribed that should be provided

electronic forms to customers enter their requests

and use the delivered business services. This

prescription is endorsed by the BSEF set.

(14)BSEF={bs|bs

∈

∧∃

∈

EF:(bi,bs)

∈

Assignment

∧∃

∈

CR:(bi,br)

∈

Used by}

Hereupon, the DPS set identifies the principle

compliant elements.

(15)DPS = ASDOAS

∪

BSEF

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

332

5 CASE STUDY

To demonstrate our proposal the compliance

analysis was applied to real EADs provided by one

of the largest Portuguese insurance companies. The

used architectures should address the considered

principles and for that reason are used to perform

this analysis. So, for each principle analysis several

views describe the analysed architecture, where are

marked in green the compliant elements resulting

from the analysis application. It’s important to

notice that these views are based on the principle

perspectives and their element names are letters due

to confidentiality reasons. In Figure 1 and 2 each

partition represents a view where the responsible set

for the compliance analysis is also referred.

5.1 AAM Analysis Application

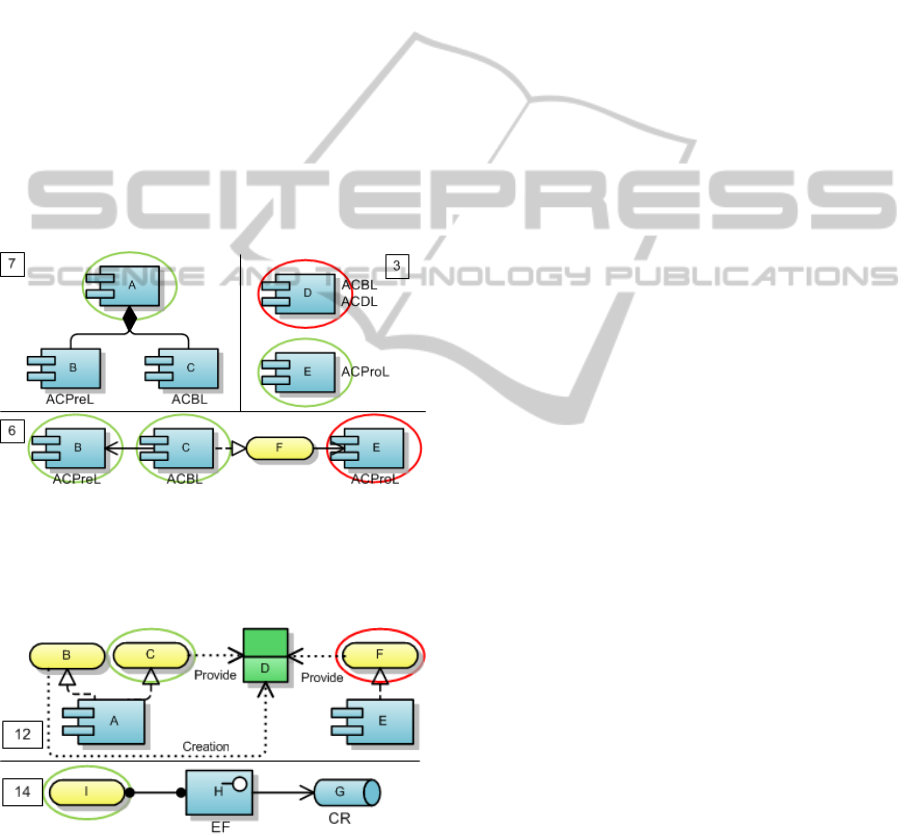

The AAM analysis is illustrated in Figure 1.

Figure 1: AAM compliance analysis.

5.2 DPS Analysis Application

The DPS analysis is illustrated in Figure 2.

Figure 2: DPS compliance analysis.

5.3 Results Analysis

The recognition of the EA compliant elements

through the proposal application also enables to

acquire the knowledge of what the non-compliant

elements are. Regarding the AAM analysis (Figure

1) the non-recognition of several elements as

compliant is due to their development have been

carried before the emergence of software application

modularity principles. This past legacy represents

the reason for the non-recognition of “D” and “E” as

compliant elements.

Concerning the DPS analysis (Figure 2), the “F”

non-recognition is explained by a redundancy in the

insurance company middleware layer. The existence

of this redundancy is known by the architects and is

explained by the acquisition of the “A” and “E”

components as a package. When other components

want to obtain the “D” object from services provided

by “A” they can’t, since “E” is responsible for the

communication with “A”. So, “D” only could be

provided through “E” which does not represent its

application source. Consequently “F” is not

recognized as compliant.

Hereupon, the proposed compliance analysis

enable to evaluate the EA based on architecture

principles. This analysis allows identifying the

compliant elements through the principle expected

impact.

6 CONCLUSIONS

In this paper was proposed an EA analysis based on

architecture principles. This analysis enables to

identify the compliant elements of an EAD with

their guiding principles. The analysis endorses two

different principles sufficiently objective to realize

which impact they have on the EA. The principle

expected impact and the ArchiMate language

provide the basis for the approach underlying the

proposed analysis. Initially are defined the

architecture perspectives which provide the elements

and relationships impacted by the principle. Then,

for each perspective are formally defined the

conditions prescribed by the selected principle. This

formalization is used to verify if the elements of a

certain perspective are or not compliant with the

respective principle.

The analysis feasibility was demonstrated in real

architectures where compliant elements are

identified and the non-conformities are justified. As

part of this research, this analysis will be extended to

endorse other architecture principles and also it’s

expected their implementation in an EA

management tool to a larger and complex analysis

could be performed. To conclude, as identified in

this work an EA analysis based on architecture

principles still lack. Hereupon, our research

ArchitecturePrinciplesComplianceAnalysis

333

contributes to surpass this gap providing a

mechanism that allows analysing the principle

compliance through an EAD.

REFERENCES

Aier, S., Fischer, C., Winter, R., 2011. Construction and

Evaluation of a Meta-Model for Enterprise

Architecture Design Principles. Wirtschaftsinformatik

Proceedings.

Greefhorst, D.,Proper, E., 2011. Architecture Principles:

The Cornerstones of Enterprise Architecture,

Springer, Berlin.

Johnson, P., Lagerström, R., Närman, P., Simonsson, M.,

2007. Enterprise architecture analysis with extended

influence diagrams. Information Systems Frontiers.

Lankhorst, M., 2009. Enterprise Architecture at Work:

Modelling Communication and Analysis, Springer.

Berlin, 2

edition.

Lindström, A., 2006. On the syntax and semantics of

architectural principles. In HICSS '06, 39th Hawaii

international conference on system sciences.

Computer Society Press.

Op’t Land, M., Proper, H.A., Waage, M., Cloo, J.,

Steghuis, C., 2008. Enterprise architecture—creating

value by informed governance, Springer. Berlin.

Šaša, A., Krisper, M., 2011. Enterprise architecture

patterns for business process support analysis. In

Journal of Systems and Software. Elsevier.

The Open Group, 2012. ArchiMate 2.0 Specification, Van

Haren Publishing.

The Open Group, 2009. TOGAF Version 9 TOGAF Series,

Van Haren Publishing.

Van Bommel, P., Buitenhuis, P.G., Stijn, J.B.,

Hoppenbrouwers, A., Proper, E.H.A., 2007.

Architecture Principles – A Regulative Perspective on

Enterprise Architecture. In Reichert M, Strecker S,

Turowski K (eds) Enterprise modelling and

information systems architectures Gesellschaft fuer

Informatik.

Vieira, T., 2012. Evaluating Enterprise Architectures:

From Principles to Metrics. MscThesis.

APPENDIX

(16)ACPreLU={ac1|ac1

∈

(ACPreL∩MoAC1L)

∧

((

∃

∈

MoAC1L:(ac2,ac1)

∈

Used

∨

(

∃

as1

∈

AS:(as1,ac1)

∈

Used

∧

(ac2,as1)

∈

Realization))

∨

(

∄

ac3

∈

AC:(ac3,ac1)

∈

Used by

∧∄

as2

∈

AS:(as2,ac1)

∈

Used by))}

(17)ACProLU={ac1|ac1

∈

(ACProL∩MoAC1L)

∧

((

∃

ac2

∈

(ACProL

∪

ACBL

∪

ACDL)∩MoAC1L):(ac2,ac1

)

∈

Used by

∨

(

∃

as1

∈

AS:(as1,ac1)

∈

Used

∧

(ac2,as1)

∈

Realization))

∨

(

∄

ac3

∈

AC:(ac3,ac1)

∈

Used by

∧∄

as2

∈

AS:(as2,ac1)

∈

Used by))}

(18)ACBLU={ac1|ac1

∈

(ACBL∩MoAC1L)

∧

((

∃

ac2

∈

((ACBL

∪

ACDL)∩MoAC1L):(ac2,ac1)

∈

Used

∨

(

∃

as1

∈

AS:(as1,ac1)

∈

Used

∧

(ac2,as1)

∈

Realization))

∨

(

∄

ac3

∈

AC:(ac3,ac1)

∈

Used by

∧∄

as2

∈

AS:(as2,ac1)

∈

Used by))}

(19)ACDLU={ac1|ac1

∈

(ACDL∩MoAC1L)

∧

((

∃

ac2

∈

(ACDL∩MoAC1L):(ac2,ac1)

∈

Used

∨

(

∃

as1

∈

AS:(as1,ac1)

∈

Used

∧

(ac2,as1)

∈

Realization))

∨

(

∄

ac3

∈

AC:(ac3,ac1)

∈

Used by

∧∄

as2

∈

AS:(as2,ac1)

∈

Used by))}

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

334
