Domain-specific Languages as Tools for Teaching 3D Graphics

Kęsik Jacek

, Nowakowski Kamil

and Żyła Kamil

Institute of Computer Science, Lublin University of Technology, 36b Nadbystrzycka St., Lublin, Poland

Independent consultant, Lublin, Poland

Keywords: 3D Graphics, Domain-specific Languages, Model-Driven Engineering, Modeling Shaders, Teaching.

Abstract: Model-driven engineering is constantly gaining importance, expanding to domains varying from the Web to

the 3D graphics. Domain-specific languages besides contributing to the development process can be used in

a didactic process conducted not only in schools. Thus this paper introduces new domain-specific language

and discusses its usage in teaching construction of shaders and materials while working with 3D graphics. It

presents the authors stance regarding the usefulness of domain-specific languages in education of 3D

graphics development.

1 INTRODUCTION

During a process of creating 3D computer

visualizations, as well as games, developers use

specialized tools, including self-made ones. One of

these tools is materials editor, which main purpose is

defining optical properties of lighted surfaces on the

3D stage. Each material can be described by a set of

parameters which allows to obtain and customize

effects like - reflections, mattness, surface

distortions etc. These sets are then passed to

a specially designed program running on a graphics

card, called shader, which purpose is to color and

illuminate particular pixels on the screen (de

Carvalho, Gill and Parisi, 2004).

Graphics card is a device specialized in image

processing, vertex transformations (e.g. animation of

3D models of plants), triangles rasterization, etc.

Moreover, shaders are usually the subject of strong

parallelization performed on many graphics

processors. As the result a programmer or a graphic

designer needs to know low-level architecture and

commands specific for this environment. As can be

expected only limited number of people is able to

work on mentioned graphical effects without the

help of specialized tools, usually designed for

specific purpose. Inexperienced programmers face

major difficulties with reading and understanding

shaders written in specialized language.

These factors cause the need of seeking for

higher-level solutions, that are able to ease-up and

speed-up work of people involved in 3D graphics

and to extend this group by lowering requirements

concerning shader design knowledge. Thus the idea

of utilizing model-driven engineering (MDE)

concepts during teaching and development process,

in the 3D graphics domain, is quite attractive.

This paper is organized in three main sections.

First presents evolution of languages for 3D graphics

leading to the usage of domain-specific languages

(DSLs). Next one introduces new DSL for building

shaders and materials from its usage in a didactic

process point of view. Last one describes authors’

experiences concerning incorporation of MDE in

a teaching process.

2 3D GRAPHICS AND MDE

One of the most programmatically complex tasks in

3D graphics development is generation of materials

and effects using shaders - subprograms uploaded

and executed by graphic card unit. It is almost

natural application for DSL languages, as typical 3D

developers not necessarily possess high level

programming skills required for that task. It has been

already noticed by main players on the market and

suitable DSLs are implemented into their 3D

development environments.

Initially shaders were programmed in low-level

language similar to Assembler, where programmer

worked on particular processor instructions,

registers, banks, etc. Also, performing micro-

optimizations by “tricks” was common practice

498

Jacek K., Kamil N. and Kamil

Z..

Domain-speciﬁc Languages as Tools for Teaching 3D Graphics.

DOI: 10.5220/0004884404980503

In Proceedings of the 2nd International Conference on Model-Driven Engineering and Software Development (MODELSWARD-2014), pages 498-503

ISBN: 978-989-758-007-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

(Bailey and Cunningham, 2012). Listing 1 presents

exemplary part of simple shader, and listing 2

presents the same part after simple optimization by

replacing few processor instruction with one, which

is equivalent to: (A - 0.3) × 2.5 = A × 2.5 + ( -0.75 ).

It is easy to imagine, the code complication level of

a typical, optimized shader.

Listing 1. Part of exemplary shader.

def c0, 0.3, 2.5, 0 , 0

textld r0, t0

sub r0, r0, c0.x

mul r0, r0, c0.y

Listing 2. Part of exemplary shader after

optimization.

def c0, -0.75, 2.5, 0 , 0

textld r0, t0

mad r0, r0, c0.y, c0.x

The need for more programmer friendly syntax was

obvious. Next step in evolution of languages for

programing shaders has been triggered by popularity

of C / C++ languages. Their programmer friendly

syntax was inspiration for High Level Shader

Language (HLSL) for DirectX (Feinstein, 2013),

OpenGL Shading Language (GLSL) for OpenGL

(Rost et. al., 2010) and Cg language for both

platforms. They became popular as they speed-up

development process, ease-up maintaining code and

decrease number of code version iterations needed to

obtain final effect. Listing 3 presents exemplary

shader written using C / C++ like language.

Listing 3. Basic shader written in C / C++ like

language.

void main (void)

{

vec4 base = texture2D(text, uv);

gl_FragColor.rgb = mix(

gl_Fog.color.rgb,

base.rgb * ambient,

fog_param );

gl_FragColor.a = base.a;

}

Currently, in parallel to the above mentioned

languages, state of the art (sharing in some degree

MDE concepts) solutions exist. They are developed

and published along with well-known commercial

and open source projects for 3D graphics

manipulation and game design. The nature of such

projects - releasing to the broad audience of users,

implies the need for maximal ease of converting

designer’s concepts to the shader language. The

approaches worth mentioning are presented below.

Blender’s Node Editor. The concept of designing

materials covering the objects has been made

available to basic level users by utilizing Node

Editor. It allows to graphically mount visual effects

applied to the material. The whole process of

designing effect is reduced to connecting graphical

units (nodes) and adjusting parameters. The

connection is kept in tree model allowing for many

outputs and single input of a node. The graphical

representation of a node allows for in-place

presentation of the effect acquired at the specific

point (Valenza, 2013). The example of whole

concept is presented in the figure 1. The nodes

available for designer are grouped into sets

dedicated to different aspects of material creation.

The user of Node Editor is required only to possess

knowledge about specific material creation, without

the need to understand low or high level shader

language.

3DS Max Slate Material Editor. The Slate

Material Editor is designed according to the same

concepts, thus the overall look of it is similar to the

Node Editor. One can argue which one borrows

concepts from which. The design elements are

divided into Material, Map and Controller units,

where material is the main object, controlled by

connecting sets of other type objects. Final solution

is connected to the graphical object of choice. As in

the Node Editor case, the user is required only to

possess knowledge about specific material creation.

His actions are applied instantly to the connected

graphical element but a render pass is required to

actually see the changes on an object (Murdock,

2011).

UDK Editors. The Unreal Development Kit

provides several DSLs as an aid in game

development. The Material Editor is another

example of “connect objects” approach to material

creation, resulting in creation of specific shader. It is

similar in user operation to other approaches. What’s

more, the created materials can be used by a set of

additional tools e.g. Cascade Particle Editor

allowing for, simple in operation, conducting of

complicated task like preparing system of particle

emitters (Doran, 2013). UDK is also equipped with

Kismet DSL - much more complex approach. Due to

its general game control purpose, not fixed on

developing shaders, it is not considered in this list.

All of these approaches share the same concepts

of connecting elements and behaviours well known

to 3D object designers, thus it is quite simple for

them to develop materials accordingly to their needs.

The similarity and utilization of common

concepts allows for simplification of explaining used

Domain-specificLanguagesasToolsforTeaching3DGraphics

499

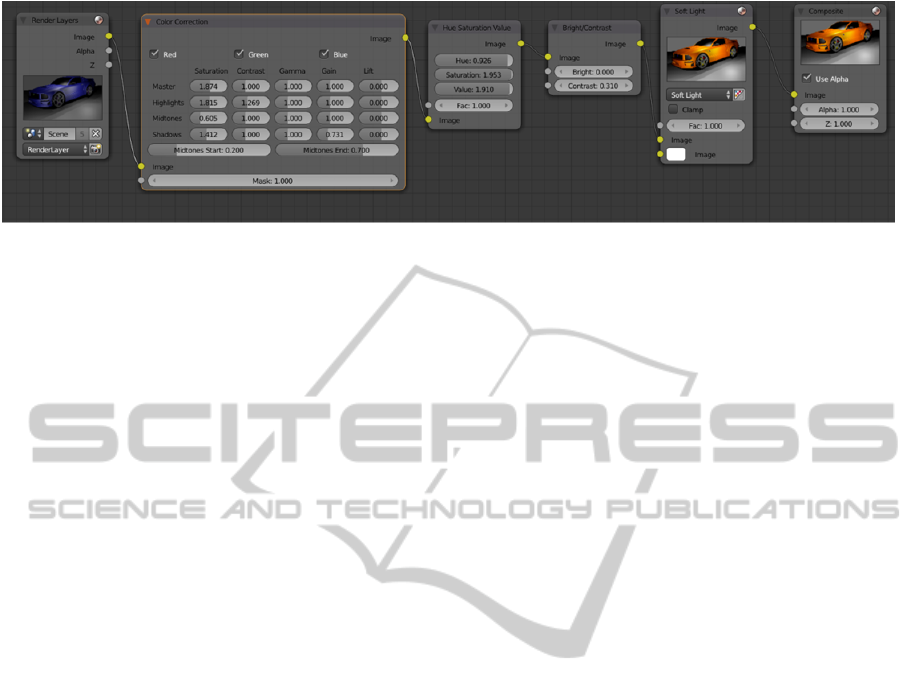

Figure 1: Example of a node type of DSL for defining materials for 3D object. Solution utilized in Blender.

approaches, thus improving education process both

in classroom and tutorial approach.

3 ROLE OF SKINSHADER IN

EDUCATION OF GAME

DESIGN

Language introduced in this chapter has been created

as a response for needs of team developing massive

multiplayer online role play game, based on the state

of art 3D engine (Barok engine). Despite of

existence of proven tools, noticeable part of their

users were not able to create advanced shaders due

to insufficient knowledge. Another factor was rapid

upgrades in the engine forced by arousing needs of

developed game. Standard game control script

language would become too unstable to be used by

inexperienced developers. The goal of developed

graphical DSL - SkinShader was to provide simple

high-level solution that could be used either for

game control or for creating advanced shaders as

well as training inexperienced team members.

Language components were inspired by

a solution provided with Blender for building

materials. Its main concepts are units (nodes)

performing particular actions and connections,

between them, determining flow of information.

Another key concept is master unit, special case of

regular unit that gathers all connections from other

units in order to orchestrate execution of model and

code generation. Each unit has input and output of

specific type - it means that unit can compute input

values only of types predefined for the particular

unit, the same applies for the output of the unit. Such

mechanisms allow to minimize errors among

beginners and speed-up obtaining fully functional

results exemplifying theoretical topics. Another

advantage is the optical similarity to widely used

Entity-Relationship Diagrams (ERD), which makes

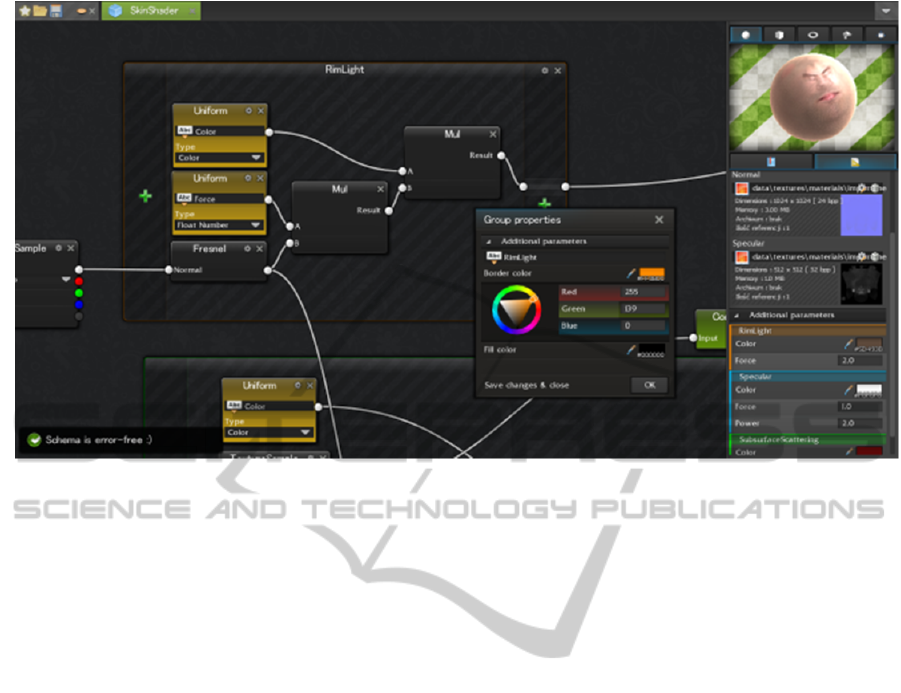

the look (figure 2) of language more familiar

(Nowakowski, 2013).

One of the key aspects during teaching process is

curiosity of trainees, who very often invent ideas and

applications beyond the imagination of the language

creator. Also the ability of adjusting solution

according to technological changes and development

requirements, decides of its usability. Introduced

DSL was designed keeping in mind its flexibility

and expandability, thus it can be expanded by

defining new components using syntax similar to

JSON and implemented scripting engine (Lua).

A clearly arranged interface allows for quick

learning of beginners and also does not slow down

the ones possessing expertise in its usage. Ability to

group elements eases navigation in complex designs

while built-in schema evaluator takes the burden of

checking the correctness of connections. It is

especially important in the early learning stage,

when simple mistakes are most likely to occur.

Another important issue is the quality of

generated code. Optimization is very important in

developing shaders where every millisecond counts.

Presented DSL has been equipped with optimization

mechanisms allowing for generation of fast working

shaders. The resulting code is thus made even more

unfriendly to editing due to random variable names

but its hand edition is not assumed.

A gross of actions is kept behind the stage. The

developer does not need the overall, high level

knowledge about developing and optimizing shaders

to create complex materials. Using the primary

mathematical operations and visual representation of

calculation process, the developer can construct

a technologically advanced code, consistent with

many standards.

While the general purpose of SinShader creation

was to make available conceptual creation of

material shaders, irrespective of technology and

architecture changes, it has proven to be an

important aid in teaching of material creation

concepts. It allows for explanation of an approach on

a conceptual level while on the other hand enables

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

500

Figure 2: Interface of SkinShader editor.

presentation of working solution. All that without

diving into nuances of shader-specific languages.

4 MDE IN A TEACHING

PROCESS

MDE and DSLs are not commonly used concepts in

regular academic education curricula. Current

techniques are mostly focused on teaching methods

of object programming in languages of the 3rd

generation. Introduction of MDE (and especially

DSLs) allows, in specific applications, for rapid

progress to concepts explanation and

implementation without the need for prior

acquaintance to specificity of general purpose

language (GPL) doing its work on lower level.

Students specializing in specific branch are not

forced to first learn the actual GPL used by teacher

to explain concepts, while in their future career they

might be using completely different one. It also

minimizes issues that due to teachers’ abilities and

attitude, students have to learn set of different 3rd

generation languages during one specialization,

which is not directly dedicated to teaching of these

languages.

Teaching of DSL concepts has been introduced

by authors in the course of web-design, where the

standard development method has been substituted

with MDE approach (Parreiras, 2012). While

seeking to confirm the statements presented above

a set of surveys has been conducted among students

during conducing of the course. The surveys have

shown (figure 3) a large interest in such teaching

methods, as 70% of students have rated the new

method positively, while 82% declared

comprehension of presented concepts. Nevertheless,

the overall willingness to utilize MDE methods in

web development was quite low: 36% of

respondents. It can be explained by parallel

declaration of high knowledge of web languages,

thus exchanging it to a new concept did not seem

profitable. The students who declared lower level of

web languages knowledge were presenting more

positive attitude. The negative bias in students

attitude could be also created by limitations and

drawbacks of presented solution, which was at the

moment of conducting surveys in not fully mature

stage.

Authors performed also a short informal

evaluation of the SkinShader. Besides developers

team, language was also introduced to members of

student organization dealing with 3D graphics and

animation. At first, students have been acquainted

with the tool by presenting the step-by step process

of simple tasks development. During the process

they were encouraged to ask questions and propose

next-step solutions. In the following phase students

were asked to implement minor changes in already

developed solutions. They were allowed to ask for

help with performing specific tasks of their concept.

The last stage was the singlehandedly development

of specific real life concept of limited complexity,

Domain-specificLanguagesasToolsforTeaching3DGraphics

501

for the purpose of 3D visualisation of historic city of

Lublin.

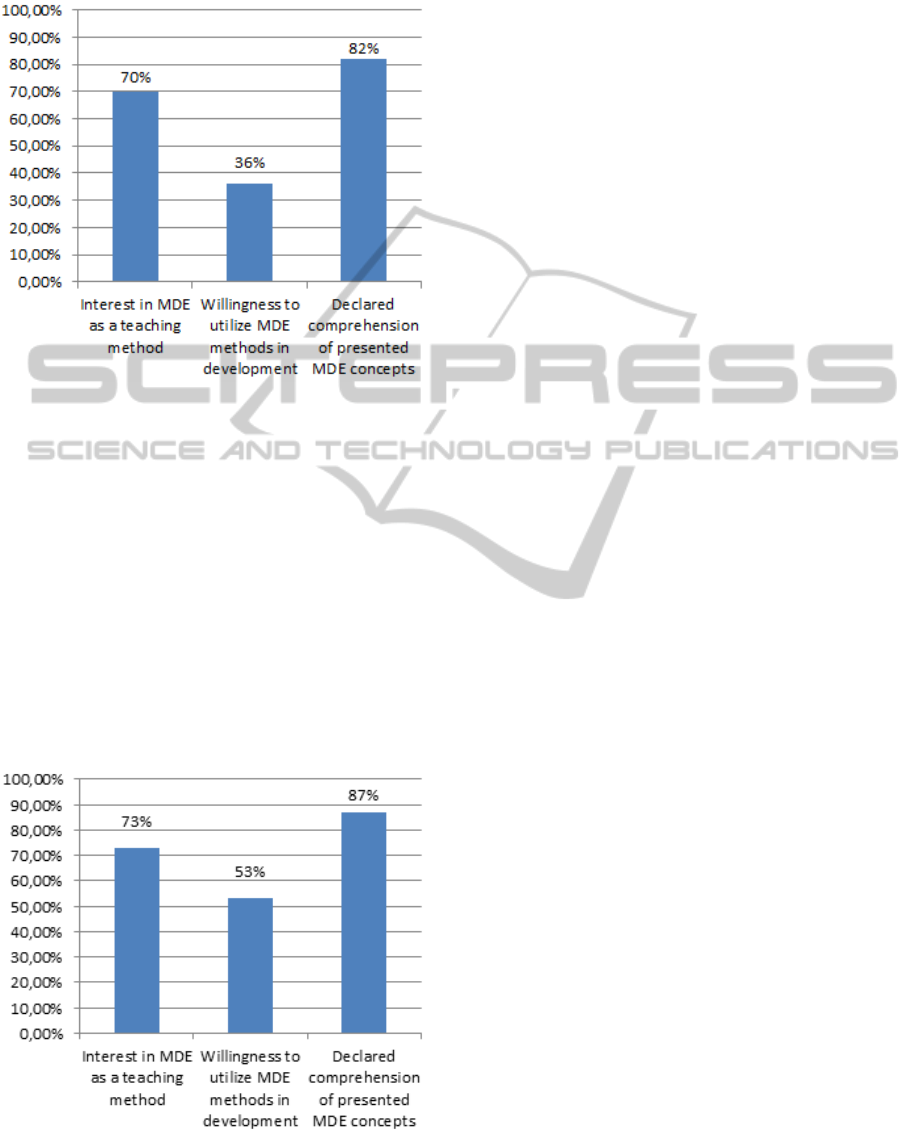

Figure 3: Results of survey on MDE concepts in web

design.

In general, SkinShader as a tool for creating

advanced shaders in real life projects, has been

received positively. Students highlighted its

simplicity and suggested that they would like to

learn this language during regular classes. 80% of

students were able to accomplish their tasks without

the need of significant help. 53% of respondents

were able to accomplish task without the help.

Moreover, the surveys have shown (figure 4) a large

interest in such teaching method, as 73% of students

have rated the new method positively, while 87%

declared comprehension of presented concepts. The

overall willingness to utilize MDE methods in real

Figure 4: Results of survey on MDE concepts in 3D

graphics design.

life 3D graphics projects was quite high: 53% of

respondents. Authors believe that this enthusiasm

might be related to the state of knowledge of

respondents, as they were less experienced in low-

level programming of domain problems, then

respondents working on Web technologies.

More detailed research will be conducted after

introducing concepts of DSLs for modeling 3D

graphics and animation into curricula. Nevertheless,

the overall summary of surveys was encouraging to

further introducing of MDE concepts into another

courses, especially of not highly programmer

focused branches.

5 CONCLUSIONS

Model-Driven Engineering is a very specific branch

of software engineering, where opposite opinions

concerning its usefulness, aside from didactic

process, are fighting against each other. Particular

MDE-like solution have chances to be widely

accepted only when provides fair amount of

flexibility and usability exceeding the cost of

learning new solution. Also, personal preferences of

developers play major role. It can be argued that

developers possessing fair knowledge on solving

domain problems will less likely switch to using

technology that can potentially limit their freedom.

DSL for 3D graphics leverages programming to

the conceptual modeling, which allows usage of

domain experts’ knowledge and rapid prototyping.

Nevertheless, stating that complete newbie in

particular domain can grasp all rules of language

adjusted to the specific domain is a bit risky. In other

word person pretending to use particular domain

language has to know basic concepts of this domain.

The learning process is though, in authors opinion,

significantly faster than the regular one.

The presented SkinShader possess several

features encouraging to use it as a training language

in 3D development course. These features are

common in the whole category of MDE solutions.

First the automation of low-level operations rises

the abstraction level, minimizing the need for such

specific knowledge. Developer can obtain the

optimized solution not even being aware of the

optimization process behind the scene. Secondly it

provides the graphical platform independence,

reliving the developer from the burden of attending

to nuances of different types of graphics cards. The

whole weight of this process is on the generator side,

also assuring its implementation wherever it is

needed. And as a final one, the rapid development of

MODELSWARD2014-InternationalConferenceonModel-DrivenEngineeringandSoftwareDevelopment

502

materials and their shaders clearly supports the

development process allowing for onsite testing of

different approaches without losing time for coding

it into specific shader syntax. All of that creates

a developing environment on a conceptual level,

especially suitable for teaching purposes.

From the education point of view the

introduction of MDE is starting to prove successful,

thus MDE aspects are more often introduced into

educational programs. The student can fully

concentrate on conceptual aspects of learned domain

without the distraction of learning specific language

syntax. It applies to 3D design as well. Authors can

state that SkinShader DSL used by them in

educational process has proven successful, what has

been confirmed by opinion of students involved in

3D design projects. The presented solution has been

usually described as comprehensible, elastic and

worth learning.

REFERENCES

Bailey, M. and Cunningham, S. (2012). Graphics Shaders:

Theory and Practice. CRC Press.

de Carvalho, G. N. M., Gill, T. and Parisi, T. (2004). X3D

programmable shaders. In Proceedings of the ninth

international conference on 3D Web technology,

ACM, New York, (pp. 99 - 108). doi:10.1145/

985040.985055

Doran, J. P. (2013). Mastering UDK Game Development.

Packt Publishing.

Feinstein, D. (2013). HLSL Development Cookbook. Packt

Publishing.

Murdock, K. L. (2011). 3ds Max® 2012 Bible. Chapter

15, John Wiley & Sons.

Nowakowski, K. (2013). Dokumentacja Barok Engine.

Retrieved October 23, 2013, from http://

barokengine.com/dokumentacja/

Parreiras, F. S. (2012). Semantic Web and Model-Driven

Engineering. Wiley.

Rost, R. J., Licea-Kane, B. M., et al. (2010). OpenGL

Shading Language (3rd Edition). Addison-Wesley.

Valenza, E. (2013). Blender 2.6 Cycles: Materials and

Textures Cookbook. Packt Publishing.

Domain-specificLanguagesasToolsforTeaching3DGraphics

503
