Code Inspection Supported by Stepwise Abstraction and

Visualization

An Experimental Study

Anderson Belgamo

1,2

, Elis Montoro Hernandes

1,3

, Augusto Zamboni

Rafael Rovina

and Sandra Fabbri

LaPES - Software Engineering Research Lab, Federal University of São Carlos, UFSCar, São Carlos, SP, Brazil

IFSP - São Paulo Federal Institute of Education, Science and Technology, Piracicaba, SP, Brazil

IFSP - São Paulo Federal Institute of Education, Science and Technology, São Carlos, SP, Brazil

Keywords: Code Reading, Reading Technique, Software Inspection, Experiments, Empirical Software Engineering,

Experimental Software Engineering.

Abstract: Background: In order to inspect source code effectively and efficiently, in a previous work the use of

visualization for supporting the reading technique Stepwise Abstraction was proposed and implemented in

the CRISTA tool. Visualization aids code comprehension, which is an essential task for a successful

inspection. Goal: The objective of this paper is to evaluate the effectiveness and efficiency of using stepwise

abstraction supported by visualization for defects detection, in comparison to an ad-hoc approach. Method:

A controlled experiment was conducted with two groups of undergraduate students. One group inspected

the Java source code of the Paint software using the approach implemented in CRISTA and the other group

inspected the code using an ad-hoc approach. Results: The general performance of the subjects who used

Stepwise Abstraction supported by visualization was better than that of the subjects who used the ad-hoc

approach. Besides, the subjects’ experience in inspection and Java did not influence the identification of

defects. Conclusion: the results reveal that the use of Stepwise Abstraction and visualization promotes better

performance in detecting defects than the ad-hoc approach. In future work, other approaches are being

investigated as well as the support of the approaches for different types of defects.

1 INTRODUCTION

The software inspection process was created in 1972

by Fagan, for IBM, with the objective of improving

software quality and increasing programmers’

productivity. It is a static analysis method used for

verifying whether products generated during the

software development process satisfy users (Fagan,

1976, 1986).

The premise of inspection is that as soon as

defects are detected, less time is spent in reworking,

ensuring that the software can answer the user’s

requirements and be delivered on time and in

accordance with the budget.

The inspection process can be used for

inspecting every kind of artifact, for example,

requirements, documentation, and test case plans,

with the objective of improving the final product

quality. Inspection does not replace testing; they are

processes that must be combined (Russel, 1991;

Elberzhager et al., 2012).

In addition, inspection is a way of improving the

software maintainability that allows the detection of

types of defects that are not detectable by other

techniques (Siy and Votta, 2001). Examples are the

evolvability defects, which are related to functional

defects that would never be detected if inspection

were not applied (Mantyla and Lassenius, 2009).

Aiming to evaluate the software inspection

activity, some experimental studies have been

executed and the artifacts most frequently inspected

are the requirement document (Basili et al., 1996a;

Travassos et al., 2002; Marucci et al., 2002;

Belgamo et al., 2005) and source code (Dunsmore et

al., 2003; Laitenberger and DeBaud, 1997; Kelly

and Sheppard, 2000, 2002; Almeida et al., 2003).

In general, the inspection activity is supported by

Belgamo A., Hernandes E., Zamboni A., Rovina R. and Fabbri S..

Code Inspection Supported by Stepwise Abstraction and Visualization - An Experimental Study.

DOI: 10.5220/0004886000390048

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 39-48

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

reading techniques, which aim to facilitate the task

and guide inspectors in finding defects. Particularly,

taking into account the source code, there are studies

highlighting the need for a systematic way to

comprehend it such that all type of defects can be

found. Besides, the systematic comprehension of

code can be aided by visualization techniques, which

were classified by Caserta and Zendra (2011).

The objectives of this paper are (a) to present an

inspection approach implemented through the

reading technique Stepwise Abstraction with the

support of visualization and (b) to present the results

of an experimental study that evaluated the

effectiveness and efficiency for defect identification

in source code, comparing the use of Stepwise

Abstraction supported by visualization, implemented

in the CRISTA (Code Reading Implemented with

STepwise Abstraction) tool (Porto et al., 2009b),

with the ad-hoc approach.

The results of the experiment give insights that

Stepwise Abstraction supported by visualization

helps the inspector to identify defects and makes the

activity shorter compared with the ad-hoc approach.

This paper is organized as follows: Section 2

presents concepts related to code inspection

supported by visualization and Stepwise

Abstraction. Section 3 presents the experiment

carried out and the results obtained. Finally, Section

4 presents our conclusions and future work.

2 CODE INSPECTION

SUPPORTED BY STEPWISE

ABSTRACTION AND

VISUALIZATION

Code comprehension is the starting point of code

inspection. In relation to code comprehension, a

usual approach for systematically comprehending

code is to analyze its structure and to construct a

high level representation for it. Some techniques

attempt to standardize abstractions derived from

program comments and variable names. Other

methods attempt to understand the program by

applying transformation rules for deriving abstract

concepts which represent parts of the code (Vinz and

Etzlorn, 2006). However, these approaches are not

used for code inspection, which is conducted

through reading techniques.

Aiming to identify the reading techniques used

for code inspection, a systematic mapping was

conducted and it was found that the following

techniques were used: ad-hoc (Aurum et al.,

2002),checklist (Gilb and Graham, 1993; Humphrey,

1989; Laitenberger and DeBaud, 1997; Dunsmore et

al., 2003), Stepwise Abstraction (Linger et al., 1979;

McMeekin et al., 2009), use case (Dunsmore, 2003),

Perspective-Based Reading, PBR (Basili et al.,

1996a; Basili et al., 1996b; Basili et al., 1998;

Laitenberger and DeBaud, 1997), Task-Directed

Inspection, TDI (Kelly and Sheppard, 2000; Kelly

and Sheppard, 2002), and the comparison-based

approach (Li, 1995).

The Stepwise Abstraction technique (Linger et

al., 1979) helps to comprehend the program

functionality through the functional abstraction

generated from the source code. The inspector must

read the code from the internal to the external

structures and write a specification for the software

according to his or her comprehension.

As the inspector should read and abstract all

parts of the code, he or she obtains a good

knowledge of the whole code. On one hand this is a

positive point, but on the other hand this technique

requires great effort and time, since even the

simplest parts of code, as a variable increment, must

be abstracted. Hence, the use of an ad-hoc technique

(nonsystematic) can be most productive.

Hence, Porto et al. (2009b) developed the

CRISTA tool to help in code comprehension and

code inspection, adopting the Stepwise Abstraction

technique supported by visualization. According to

Knight and Munro (1999, 2001) and Mayrhauser

(1998), visualization aims to acquire enough

knowledge about software through the

comprehension of the artifacts produced along the

software development process and the relationship

among them.

Code visualization is a kind of software

visualization that is frequently used for

comprehension purposes. In the context of this work

code visualization is used for comprehending the

code and also to support the application of the

Stepwise Abstraction technique.

The next section presents the CRISTA tool and

the visualization support implemented with the

treemap technique.

2.1 The CRISTA Tool

The motivation for implementing the tool CRISTA

was to support code inspection through the reading

technique Stepwise Abstraction and the visual

metaphor named treemap (Johnson and

Shneiderman, 1991). It provides support for the

whole process (reading the code, registering

discrepancies, joining discrepancy lists, etc.), unlike

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

other tools that just support some activities.

The visual metaphor treemap visually represents

the hierarchical blocks of the code, offering a simple

way to look at the code structure. Code blocks are

separated and represented as nested rectangles,

according to the code hierarchy. Initially, the

rectangles start in red to indicate that no block was

abstracted. In addition, by changing the rectangle

colors from red to green, the reader obtains a visual

feedback of the code analysis process according to

the evolution of the blocks abstraction.

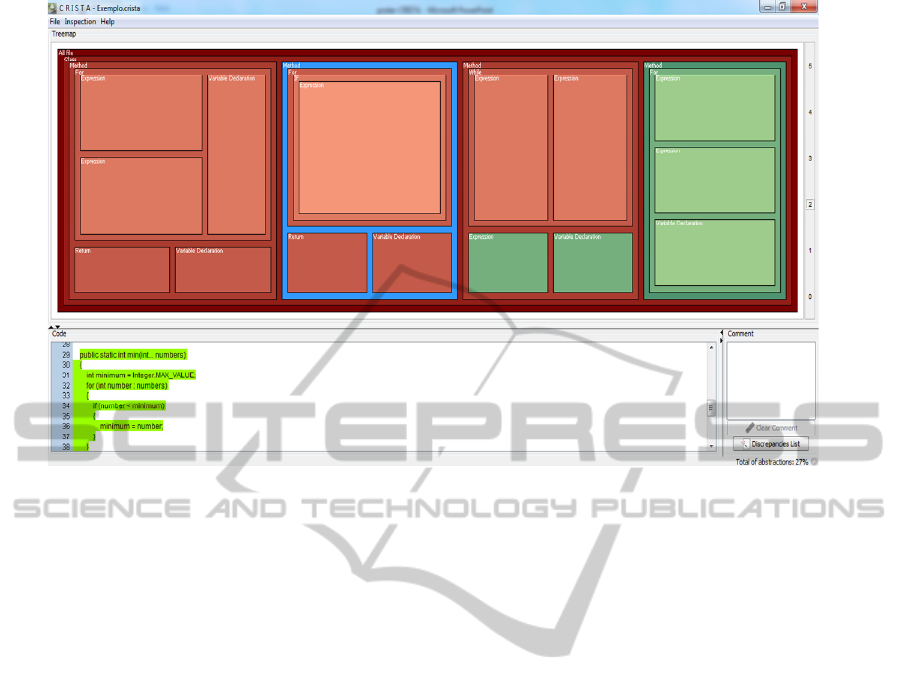

Figure 1 presents the main screen of the tool,

which has three main areas: 1) the visual metaphor

that corresponds to the hierarchical structure of the

code being analyzed; 2) the code being analyzed,

which is logically linked to the visual metaphor; any

rectangle clicked on the metaphor highlights the

corresponding source code and vice-versa; and 3)

the documentation area, where the reader can enter a

comment, as a free text, explaining what the selected

code block executes. This comment can have a later

use to produce code documentation or pseudo-code,

since it will be physically associated to the selected

block. Once a comment has been inserted, the

rectangle corresponding to this code block changes

from red to green. Thus, the reader can easily follow

the progress of the code abstraction process.

CRISTA provides two options for abstracting

code: (i) following Stepwise Abstraction strictly, in

which the inspector can document an outer block

only if all the internal blocks were already

documented; and (ii) disabling the use of Stepwise

Abstraction, allowing any code block can be

abstracted without any constraint.

Besides, considering the diversity of program

languages, CRISTA was designed to be easily

instantiated for different languages (Porto et al.,

2009b). Currently, it accepts Java, C, C++, and

Cobol85 codes.

Some experimental studies were already carried

out to evaluate the use of visualization and the

support of CRISTA for conducting coding

inspection. In these studies (Porto et al., 2009a),

CRISTA was evaluated with a group of students (41

students in total). The studies indicate that the tool is

easy to use and can systematize code comprehension

and documentation.

Currently there are some tools for inspection,

particularly for supporting the software inspection

process, as mentioned by Hernandes et al. (2013).

For code inspection the following tools were

identified by the authors through a systematic

literature mapping: Team Tracks (DeLine et al.,

2005), ReviewClipse – RC (Bernhart et al., 2010),

SCRUB (Holzmann, 2009), ICICLE (Brothers et al.,

1990), Codestriker and ReviewPro (Remillard,

2005).

Although these tools can be used for code

inspection, they do not use visualization and they

accept only one programming language: C or Java.

They do not allow legacy code as Cobol programs to

be visualized through a visual metaphor.

3 EXPERIMENTAL STUDY

The objective of the experimental study was to

evaluate the effectiveness and efficiency for

detecting source code defects through two

approaches: Stepwise Abstraction supported by

visualization and Ad-hoc.

The Ad-hoc technique was selected for the

control group for two reasons: firstly, the authors

intend to identify code inspection patterns by

evaluating the way the participants have conducted

the inspection, since their actions were recorded.

Secondly, in general, checklists are adjusted for a

specific environment, such that they can abstract the

characteristics of the team for producing better

results.

The participants inspected an object-oriented

application with four known defects. The defect

descriptions were previously disclosed for the

participants to them so that they could mark the

necessary time to identify each of the defects.

Below, the sections describe the main topics of

the experiment, according to Wohlin et al. (2000).

3.1 Experiment Definition

The goal of the experiment was defined as shown in

the following template:

Analyze

The use of Stepwise Abstraction

supported by visualization

for the purpose of evaluation

with respect to effectiveness and efficiency

from the point of

view of the

researchers of the code inspection

area

in the context of

students of the Bachelor of

Computing Science and

Computing Engineering courses of

the Federal University of São

Carlos

CodeInspectionSupportedbyStepwiseAbstractionandVisualization-AnExperimentalStudy



Figure 1: CRISTA tool.

3.2 Context Selection

The experiment was a task during a Software

Engineering module in the context of the Bachelor

of Computing Science and Computing Engineering

courses at the University of São Carlos. The

participants received a grade only for their

participation and not for their performance. They

were aware of collaboration in the research and were

willing to participate

The context of the experiment can be

characterized according to four dimensions (Wohlin

et al., 2000): i) off-line: the software was not

developed by industry; ii) student: the subjects were

undergraduate students; iii) toy: the problem to be

solved was not a real problem, although the selected

application has all the features of the object-oriented

paradigm; iv) specific: the results cannot be

generalized to other contexts.

3.3 Variables Selection

For this experiment we considered the independent

variable, called “UsedTechnique”, which represents

the use or non-use of the reading technique Stepwise

Abstraction supported by visualization and

implemented in the CRISTA tool (Porto et al.,

2009b). This independent variable has two

treatments which characterize the way the code

inspection activity was done:

 StepVis: represents the use of Stepwise

Abstraction and visualization, that is, the use of

the CRISTA tool.

 Ad-Hoc: represents the use of an ad-hoc

approach.

Besides, there were also the following

independent variables:

 Experience in Java: this variable was used to

investigate whether experience in Java language

would have any influence on the results.

 Experience in code inspection: this variable was

used to investigate whether experience in code

inspection would have an influence on the

results.

Two dependent variables were considered:

 Effectiveness: defined as the amount of real

defects identified by the code inspector. It was

measured as the sum of discrepancies that were

correspondent to the list of four known defects;

 Efficiency: defined as the time spent by the

inspector. It was measured as “the number of real

defects identified/time”.

It is important to notice that the inspector can

identify discrepancies which cannot be classified as

“real defects”. These discrepancies are called false

positives and are not used to calculate the

effectiveness and efficiency variables.

3.4 Selection of Participants

The selection of participants was based on

convenience since the Software Engineering

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

program was offered by one of the authors. The

topic “Software Inspection” was part of this program

and most of the students (experiment participants)

had no previous knowledge of this topic.

3.5 Experimental Design

The experimental design was based on the

independent variable “UsedTechnique” such that

two reading techniques were compared: StepVis and

Ad-Hoc. Each subject used one of the techniques

and the subjects were divided into two groups (G1,

which used the StepVis alternative, and G2, which

used the Ad-Hoc alternative), consisting of 30 and

29 subjects, respectively. It is important to notice

that the participants were divided into two groups

according the characteristics collected by the profile

questionnaire.

3.6 Instrumentation

The materials used during the experiment execution

were the consent form, defect and time report,

feedback report, training material, source code of the

Paint software, and CRISTA tool to support the

Stepwise Abstraction technique and visualization.

The Paint software is a simple figure editor

written in Java language. It allows users to draw,

erase, clear, and undo colored strokes (using RGB

pattern) on a white canvas. This software has been

used in other studies (Ko et al., 2006; Robbilard et

al., 2004).

There is no documentation about Paint and the

code has no comment. Paint was implemented with

nine Java classes through nine source files that have

an average of 73 lines of code. The four defects

reported were not artificial, but emerged during the

creation of Paint (Ko et al., 2006):

 Defect 1: Users cannot select yellow color.

 Defect 2: The button “undo my last stroke” does

not work properly.

 Defect 3: The button “undo my last stroke” is

enabled without any action being taken.

 Defect 4: There is an option to draw a line but it

does not work.

3.7 Hypotheses Formulation

The following hypotheses were formulated:

 Hypothesis 1:

0,1

: There is no difference in the number of

defects (effectiveness) identified when using the

StepVis or the Ad-Hoc technique.

1,1

: There is a difference in the number of

defects (effectiveness) identified when using the

StepVis or the Ad-Hoc technique.

 Hypothesis 2:

0,2

: There is no difference in the time spent

(efficiency) when using the StepVis or the Ad-Hoc

technique.

1,2

: There is a difference in the time spent

(efficiency) when using the StepVis or the Ad-Hoc

technique.

 Hypothesis 3:

0,3

: The subject’s experience in code inspection

does not affect the number of defects identified

when using the StepVis or the Ad-Hoc technique.

1,3

: The subject’s experience in code inspection

affects the number of defects identified when using

the StepVis or the Ad-Hoc technique.

 Hypothesis 4:

0,4

: The subject’s experience in the Java

programming language does not affect the number

of defects identified when using the StepVis or the

Ad-Hoc technique.

1,4

: The subject’s experience in the Java

programming language affects the number of defects

identified when using the StepVis or the Ad-Hoc

technique.

3.8 Threats to Validity

There are some levels of validity to consider, which

are explained below:

 Internal validity: concerns external factors that

could affect the dependent variable.

a) Interference in subjects’ performance due to

the grade associated with the task. However,

as the grade was assigned just for

participation, it is considered that the

performance risk was mitigated.

b) Mistake when recording the final time of

technique application: this risk could not be

mitigated because each subject was

responsible for marking his or her time.

 External validity: concerns the degree to which

the results of the study can be generalized to a

broader context.

a) The results cannot be generalized to a

professional context. This threat was not

mitigated because only students participated

in the experimental study.

b) The Paint software, although used in other

experimental studies (Ko et al., 2006;

Robbilard et al., 2004), is not representative

of industrial products in terms of either size

or complexity.

CodeInspectionSupportedbyStepwiseAbstractionandVisualization-AnExperimentalStudy

 Conclusion validity: concerns the relationship

between the treatment and the outcome.

a) When data normality could not be assumed,

we performed a statistical analysis using non-

parametric tests. The data normality was

evaluated using the Kolmogorov-Smirnov

test. Thus, this kind of risk was mitigated.

b) The subjects of both groups (StepVis and Ad-

Hoc) were trained on and applied just one

technique, mitigating possible interference by

treatment combination.

3.9 Preparation and Execution

Each subject received the necessary material to

execute the following tasks:

 Task 1: filling out a profile questionnaire, which

included personal and technical details.

 Task 2: the subjects were trained as follows:

G1was trained in code inspection using

“stepwise abstraction + visualization”, that is,

using the CRISTA tool, and G2 was trained only

in code inspection, that is, the Ad-Hoc technique.

The training was performed using a sample

application. This task was performed one week

before the execution of the experiment.

 Task 3: inspection of the Paint software

according to the assigned technique. The subjects

worked under examination conditions and were

not allowed to talk to each other or to ask the

supervisor.

3.10 Data Collection

Data collection occurred through questionnaires that

should be completed by each subject. The group that

used the CRISTA tool also answered questions

related to the use of the tool.

3.11 Analysis and Interpretation

The analyses were carried out by means of the

MiniTab statistical tool and the results are shown in

the next sections.

3.11.1 Descriptive Statistics

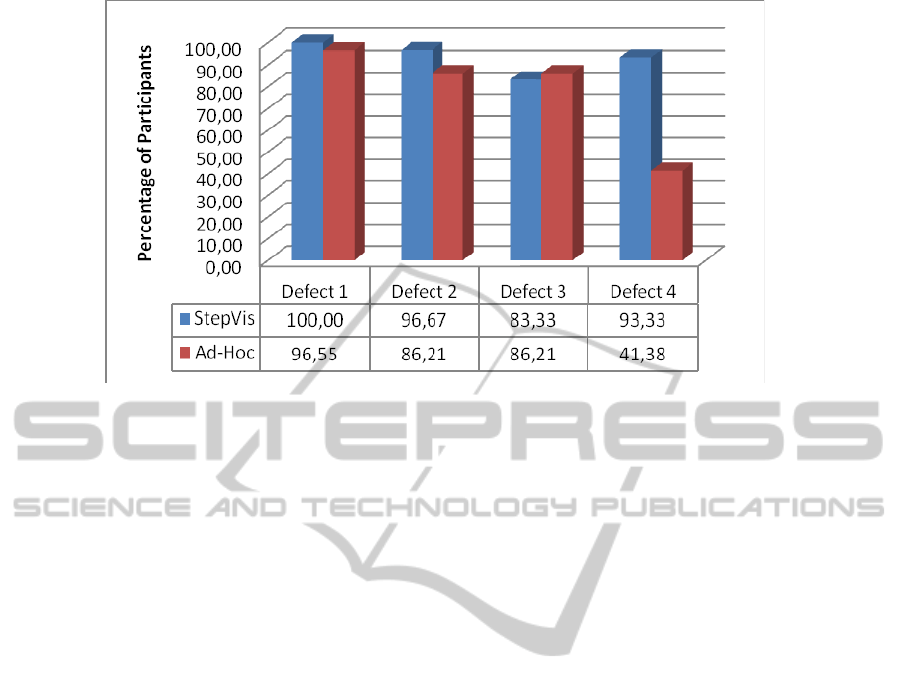

Figure 2 shows the percentages of subjects who

found the defects mentioned previously.

From Figure 2, it can be seen that all subjects

who applied StepVis found Defect 1. Almost 100%

of these subjects also found Defect 2. The greatest

difference occurred for Defect 4, which was found

by approximately 93% of subjects who applied

StepVis and about 41% those who applied Ad-Hoc.

In addition, in relation to Defect 3, subjects who

applied StepVis performed slightly worse than those

who applied Ad-Hoc. Therefore, the kind of defect,

its complexity, and its localization are being

investigated in another experiment. Nevertheless

some comments can be made:

 Defect 1: This defect is easy to locate in the

source code since it involves a single class where

it can be observed that only two colors of the

RGB pattern are mentioned (red and green).

Apparently, the influence of the technique on

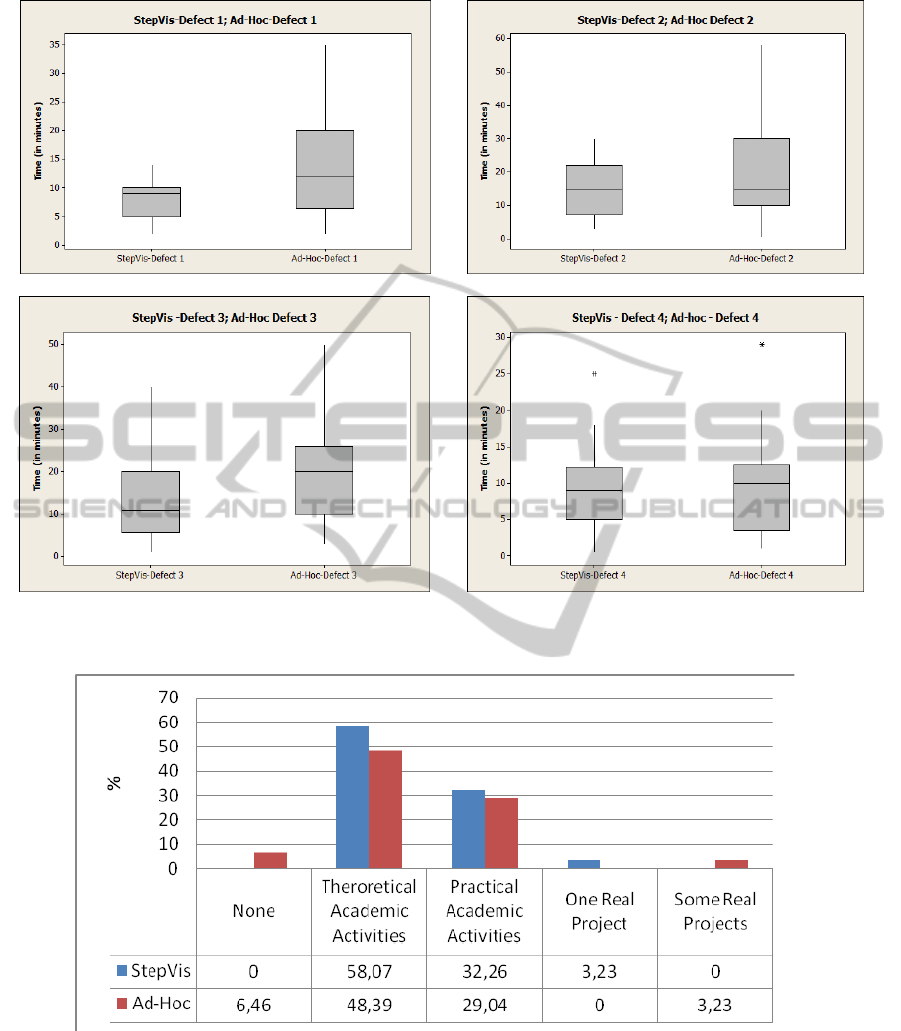

finding this defect only affected the time spent

for its identification, as shown in Figure 3(a).

 Defect 2: This defect is considered complex

because its identification is not trivial through

static analysis. Regardless of this characteristic,

both techniques reached good effectiveness, as

shown in Figure 2.

 Defect 3: This defect depends on a deeper

comprehension of the source code because it is

necessary to comprehend and inspect two

different Java classes. The identification of

defects that involve more than one class is

probably more complex.

 Defect 4: To identify this defect it is necessary to

comprehend and inspect three Java classes that

are associated through inheritance and

dependency. According to Figure 2, the use of

StepVis provided better effectiveness than Ad-

Hoc.

Thus, the technique probably influenced the

identification of this defect.

Figure 3 presents the box-plots for each defect.

They present the time spent to identify the defect

and the technique applied.

The box-plot analysis reveals that the subjects

who applied StepVis identified defects in almost the

same time interval.

This fact can be observed, for example, in Figure

3(a), where the variability related to StepVis is less

than that related to Ad-Hoc. Although it is easy to

find Defect 1, with StepVis, 100% of the subjects

found it in a short time interval. Almost all subjects

who applied Ad-Hoc also identified Defect 1, but

they spent more time. Hence, it is interesting to

investigate whether there is some relationship

between the defect identification and the

effectiveness of the technique.

3.11.2 Hypothesis Test

Based on the hypotheses previously presented, the

data analysis used for answering them is presented.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

Figure 2: Percentage of participants who found defects.

The null hypothesis is written again to facilitate

reading.

0,1

: There is no difference in the number of

defects (effectiveness) identified when using the

StepVis or the Ad-Hoc technique.

For this hypothesis the chi-square test was

applied using all defects found by all subjects. The

p-value was 0.239, meaning that the null hypothesis

cannot be rejected; that is, the technique used does

not interfere with the number of defects found.

However, Defect 4 was found by 93.33% of subjects

who used StepVis and by 41.38% of those who used

Ad-Hoc. In another experiment, whose data are

under analysis, we are investigating different types

of defects. Hence, different types of defects were

injected in the source code in order to explore the

effectiveness of the StepVis technique. This

procedure is suggested by some authors whenever

the effectiveness of a technique is to be investigated

(Mäntylä and Lassenius, 2009; Ko et al., 2006).

0,2

: There is no difference in the time spent

(efficiency) when using the StepVis or the Ad-

Hoc technique.

As the data did not present a normal distribution,

the non-parametric Mann-Whitney test was used.

Considering a significance level of 95%, the p-value

was equal to 0.0247, meaning that the null

hypothesis can be rejected. This means that the time

spent detecting defects depends on the technique

used. Hence, using StepVis through CRISTA

impacts on the time spent.

0,3

: The subject’s experience of code inspection

does not affect the number of defects identified

when using the StepVis or the Ad-Hoc

technique.

For this hypothesis the statistical analysis was

done using the Pearson correlation. The result shows

that experience of inspection did not impact on the

number of defects found for either technique. The p-

value for the group which applied StepVis was equal

to 0.073 and that for the group which applied Ad-

Hoc was 0.0935.

Figure 4 shows the software inspection

experience for both groups of subjects.

0,4

: The subject’s experience in the Java

programming language does not affect the

number of defects identified when using the

StepVis or the Ad-Hoc technique.

In order to evaluate this hypothesis the statistical

analysis was done using the Pearson correlation.

Irrespective of the technique used, the null

hypothesis could not be rejected. This means that

experience in Java language had no influence on the

number of defects found. The p-values for the two

groups, StepVis and Ad-Hoc, were 0.285 and 0.475,

respectively.

Figure 5 presents the Java experience for both

groups.

4 CONCLUSION

According to the experimental results and analysis,

the use of the StepVis technique aided in defect

identification. In addition, considering the context of

the experiment, the participant’s experience of

inspection and the programming language had no

CodeInspectionSupportedbyStepwiseAbstractionandVisualization-AnExperimentalStudy

(

)

Defect 1

(

)

Defect 2

(d) Defect 4

Figure 3: Time spent inspecting the code.

Figure 4: Participants’ experience in source code inspection.

influence on the results.

Based on the results and the analysis of the

questionnaires, the following points can be

highlighted:

 When the StepVis technique is used, the

inspectors obtain a deep comprehension of the

code since this technique requires that all

elements of the code are abstracted (from the

inner to the outer, however simple they are).

 Despite the probable disadvantage of the

necessity of abstracting every element of the

code, the use of StepVis enhanced the

identification of defects once the whole project

was better understood.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

Figure 5: Participants’ experience (years) in Java programming language.

 The effectiveness of the code inspection activity

was not influenced by the techniques. However,

the efficiency was influenced by the technique

once the use of StepVis provides evidence of the

time improvement for executing the inspection

process.

 The effectiveness and efficiency related to

StepVis computational support of the CRISTA

tool allows the inspection data to be processed

and some reports to be generated. This aids in the

code comprehension and, consequently, in the

identification of defects.

 The computational support of the CRISTA tool

allows the inspection data to be processed and

some reports to be generated. This aids in the

code comprehension and, consequently, in the

identification of defects.

In summary, it seems that the StepVis technique

provides better conditions for defect identification

than the Ad-Hoc inspection.

A new experiment has been conducted with two

research purposes: (1) map the types of defects that

are found when applying StepVis and their

association with the object-oriented features, (2)

evaluate the decisions and workflow used by

inspectors when applying StepVis aiming at

identifying strategies for applying this technique.

ACKNOWLEDGEMENTS

Our thanks to the Brazilian funding agency CNPq.

REFERENCES

Almeida, J. R., Camargo, J. B., and Basseto, B. 2003. Best

practices in code inspection for safety-critical

software. IEEE Software, 20(3):56–63.

Aurum, A., Petersson, H., and Wohlin, C., 2002. State-of-

the-art: software inspections after 25 years. Software

Testing Verification and Reliability, 12(3):133–154.

Basili, V. R., Caldiera, G., Lanubile, F.,and Shull, F.

1996a. Studies on reading techniques. In: Annual

Software Engineering Workshop, 21, Greenbelt,

Maryland. NASA/Goddard Software Engineering

Laboratory Series, December, pp. 59–65.

Basili, V.R., Green, S., Laitenberger, O., Shull, F.,

Sørumgård, S., and Zelkowitz, M. 1996b. The

empirical investigation of Perspective-Based Reading.

Empirical Software Engineering, 1(2):133–164.

Basili, V., Green, S.,Laitenberger, O.,Lanubile, F.,Shull,

F.,Sorumgard, S.,and Zelkowitz,M. 1998. Lab package

for the empirical investigation of perspective-based

reading, University of Maryland. Available from:

http://www.cs.umd.edu/projects/SoftEng/ESEG/manu

al/pbr_package/manual.html. Last accessed: 29 August

2013.

Belgamo, A., Fabbri, S., and Maldonado, J. C.

2005.TUCCA: Improving the effectiveness of use case

construction and requirement analysis. In: Proceedings

of International Symposium on Empirical Software

Engineering, ISESE 2005, Noosa Heads, vol. 1.

Bernhart, M., Mauczka, A., Grechenig, T. 2010. Adopting

Code Reviews for Agile Software Development. Agile

Conference.

Brothers, L., Sembugamoorthy, V., Muller, M. 1990.

ICICLE: groupware for code inspection. In:

Proceedings of the ACM Conference on Computer-

supported cooperative work, CSCW.

Caserta, P.,and Zendra, O., 2011. Visualization of the

static aspects of software: a survey. IEEE

Transactions on Visualization and Computer

Graphics, 17(7):913–933.

Deline, R., Czerwinski, M., and Robertson, G., 2005.

Easing program comprehension by sharing navigation

data. IEEE Symposium on Visual Languages and

Human-Centered Computing, pp. 241–248.

Dunsmore, A., Roper, M., and Wood, M., 2003. The

development and evaluation of three diverse

CodeInspectionSupportedbyStepwiseAbstractionandVisualization-AnExperimentalStudy

techniques for object-oriented code inspections. In:

IEEE Transactions on Software Engineering,

29(8):677–686.

Elberzhager, F., Münch, J., and Nha, V. 2012. A

systematic mapping study on the combination of static

and dynamic quality assurance techniques.

Information and Software Technology.

Fagan, M. E. 1976. Design and code inspections to reduce

errors in program development. IBM Systems Journal,

15(7):182–211.

Fagan, M. E. 1986. Advances in software inspections.

IEEE Transactions on Software Engineering,

12(7):744–751.

Gilb, T., and Graham, D. 1993. Software Inspection.

Wokingham, England: Addison-Wesley.

Hernandes, E., Belgamo, A., Fabbri, S. 2013.

Experimental studies in software inspection process –

a systematic mapping. In: International Conference on

Enterprise Information Systems, ICEIS.

Holzmann, G. J. 2009. SCRUB: a tool for code reviews.

Laboratory for Reliable Software, Jet Propulsion

Laboratory, California Institute of Technology.

Humphrey, W.S. 1989. Managing the software process.

Addison-Wesley Longman Publishing Co.

Johnson, B., and Shneiderman, B. 1991. Tree-maps:

aspace-ﬁlling approach to the visualization

ofhierarchical information structures. In: Proceedings

ofthe 2nd Conference on Visualization.

Kelly, D.,and Sheppard, T. 2000. A novel approach to

inspection of legacy code. Proceedings of Practical

Software Quality Techniques, PSQT’00, Austin,

Texas.

Kelly, D., and Sheppard, T. 2002. Qualitative observations

from software code inspection experiments.

Proceedings of the Conference of the Centre for

Advanced Studies on Collaborative Research,

CASCON '02.

Knight C., and Munro M., 1999. Visualising software – a

key research area. Proceedings of the International

Conference on Software Maintenance, ICSM'99, IEEE

Press.

Knight C., and Munro M., 2001. Visualising the non-

existing, IASTED International Conference: Computer

Graphics and Imaging, Hawaii, USA.

Ko, A.J., Myers, B.A., Coblenz, M.J.,and Aung, H.H,

2006. An exploratory study of how developers seek,

relate, and collect relevant information during

software maintenance tasks. IEEE Transactions on

Software Engineering, 32(12): 971–987.

Laitenberger, O., and Debaud. J., 1997. Perspective-based

reading of code documents at Robert Bosch GmbH.

Information and Software Technology.

Li, X. A., 1995. Comparison-based approach for software

inspection. Proceedings of the 1995 Conference of the

Centre for Advanced Studies on Collaborative

Research, CASCON '95.

Linger, R. C., Mills, R. C., and Witt, B.I. 1979. Structured

Programming: Theory and Practice. Addison-Wesley.

Mäntylä, M. V., and Lassenius, C. 2009. What types of

defects are really discovered in code reviews. IEEE

Transactions on Software Engineering, 35(3):430–

448.

Marucci, R. A., Fabbri, S. C. P. F., Maldonado, J. C., and

Travassos, G.H. 2002.OORTs/ProDeS: Definição de

técnicas de leitura para um processo de software

orientado a objetos. In: Simpósio Brasileiro de

Qualidade de Software, Gramado, Brazil.

Mayrhauser A., and Vans, A. M. 1998. Program

understanding behavior during adaptation of large

scale software. Proceedings of the 6th International.

Workshop on Program Comprehension, IWPC ’98,

Italy, pp. 164–172.

McMeekin, D. A., Von Konsky, B. R., Chang, E. J.,and

Cooper, D. 2009.Evaluating Software Inspection

Cognition Levels Using Bloom’s Taxonomy. 22nd

Conference on Software Engineering Education and

Training, CSEET '09.

Pfeiffer, J., and Gurd, J. 2006. Visualisation-based tool

support for the development ofaspect-oriented

programs. Aspect-Oriented Software Development

Conference.

Porto, D., Mendonça, M., and Fabbri, S., 2009a. CRISTA:

A tool to support code comprehension based on

visualization and reading technique. 17thIEEE

International Conference on Program

Comprehension.

Porto, D, Zamboni, A., Mendonça, M., and Fabbri, S.

2009b. Manutenção de código apoiada pela ferramenta

CRISTA. Anais do VI Workshop de Manutenção de

Software Moderna, 2009, VI WMSWM, Ouro Preto.

Remillard, J. 2005. Souce code review systems. IEEE

Software.

Robbilard, M. P., Coelho, W., and Murphy, G. C., 2004.

How effective developers investigate source code: an

exploratory study. IEEE Transactions on Software

Engineering, 30(12): 889–903.

Russel, G. W. 1991. Experience with inspection in

ultralarge-scale developments, IEEE Software,

8(1):25–31.

Siy, H., and Votta, L. 2001. Does the modern code

inspection have value? In: Proceedings of IEEE

International Conference on Software Maintenance.

Travassos, G. H., Shull, F., Carver, J., and Basili, V. R.

2002. Reading techniques for OO design inspections,

Technical Report CS-TR-4353, UMIACS-TR-2002-

33, University of Maryland, Maryland, 56 p. Available

from: http://drum.lib.umd.edu/bitstream/1903/1193/

1/CS-TR-4353.pdf.

Vinz, B. L., and Etzkorn L. H., 2006. A synergistic

approach to program comprehension. In: International

Conference on Program Comprehension, ICPC 2006,

pp. 69–73.

Wohlin, C., Runeson, P., and Höst, M., 2000.

Experimentation in Software Engineering – An

Introduction. Sweden: Springer.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
