Enhance OpenStack Access Control via Policy Enforcement Based

on XACML

Hao Wei, Joaquin Salvachua Rodriguez and Antonio Tapiador

Departamento de Ingenier

ıa de Sistemas Telem

aticos, Universidad Polit

ecnica de Madrid, Madrid, Spain

Keywords:

Cloud Computing, Security, Authorization, XACML, Access Control, OpenStack.

Abstract:

The cloud computing is driving the future of internet computation, and evolutes the concepts from software to

infrastructure. OpenStack is one of promising open-sourced cloud computing platforms. The active developer

community and worldwide partners make OpenStack as a booming cloud ecosystem. In OpenStack, it supports

JSON ﬁle based access control for user authorization. In this paper, we introduce a more powerful and complex

access control method, XACML access control mechanism in OpenStack. XACML is an approved OASIS

standard for access control language, with the capability of handling all major access control models. It has

numerous advantages for nowadays cloud computing environment, include ﬁne-grained authorization policies

and implementation independence. This paper puts forward a XACML access control solution in OpenStack,

which has Policy Enforcement Point (PEP) embedded in OpenStack cloud service and a XACML engine

server with policy storage database. Our implementation allows OpenStack users to choose XACML as an

access control method of OpenStack and facilitate the management work on policies.

1 INTRODUCTION

Cloud computing is an emerging computing paradigm

today. Many people see it as the future generation

of utility computing. The concept of “Cloud” ex-

tends from Internet of Service, includes Web Ser-

vice, Service-Oriented Architecture (SOA), and Util-

ity Computing like Grid, Virtual Organizations, also

from visualization and outsourcing (Schubert and Jef-

fery, 2012). It’s the solution to the challenges of mod-

ern IT requirements: high performance, accessibility,

scalability and availability, etc.

The term Cloud Computing denotes the services

of infrastructure, platform and software. Rapidly, it

changed the way people used to think and act. Now

businesses and users could just pay for the services

they need, instead of buying software or purchasing

servers, data centers.

In the era of cloud computing, the system protec-

tion of cloud is a critical issue. Data security and re-

source security, those two issues raised serious con-

cerns both from users and cloud service providers.

Users concern that the privacy and conﬁdentiality

of the data stored in the cloud, while cloud service

providers concern that the safety of the resources

which are opened to the public.

Access control is a classic method utilized to con-

strain the activity of users. This authorization deter-

mines that if a legitimate user could execute an action

on certain resources. In area like cloud computing,

XACML is an operational access control method and

has proven ability in distributed environment(Lorch

et al., 2003). It supports ﬁne- and coarse-grained au-

thorization policies, allows an interchangeable policy

format.

What follows is that discussion of OpenStack ar-

chitecture and some of OpenStack components. In

the section following, the contemporary mechanism

of access control in OpenStack is discussed. The in-

troduction of XACML is in the section IV. Then in

the next section we presented our design to imple-

ment XACML access control in OpenStack. In the

end, the implementation of a prototype and two exper-

iments which validate the feasibility of our proposal

and show the ability of XACML.

2 OpenStack AND ITS

ARCHITECTURE

OpenStack is an open-sourced cloud operating sys-

tem, it enables the users to provide the computing,

storage and networking resource pool through a sim-

283

Wei H., Salvachua Rodriguez J. and Tapiador A..

Enhance OpenStack Access Control via Policy Enforcement Based on XACML.

DOI: 10.5220/0004893802830289

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 283-289

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

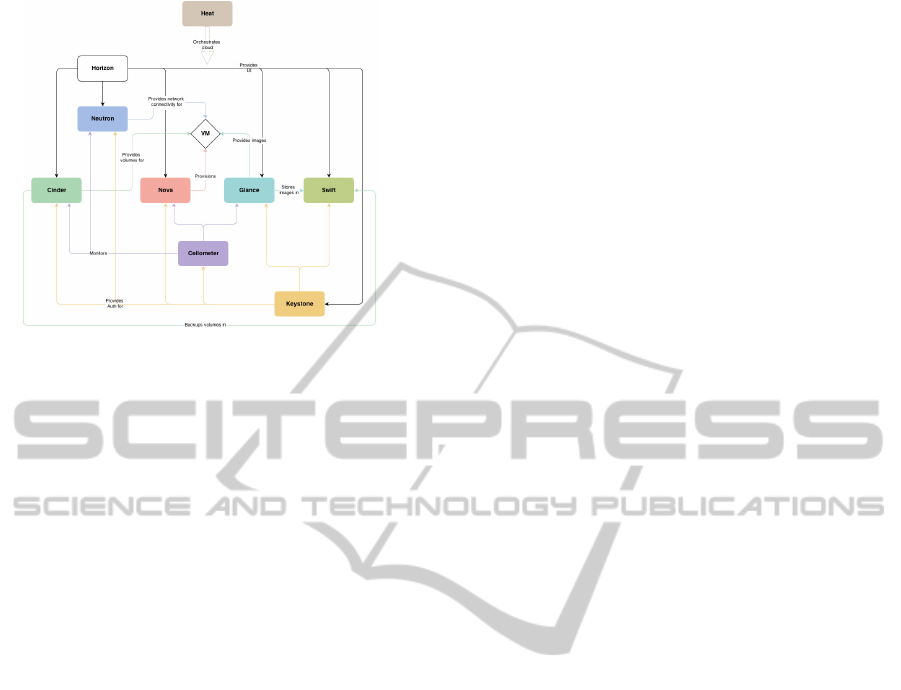

Figure 1: OpenStack conceptual architecture (OpenStack,

2013b).

ple web service(OpenStack, 2013b). With increas-

ingly popularity and active developer community, it

becomes the one of the projects of Infrastructure As

A Service (IAAS) with great potential.

Among many open-sourced clouds, like Eucalyp-

tus, OpenNebula, OpenStack has good scalability to

handle massive resource. While, Eucalyptus scala-

bility is limited and the source code of some mod-

ules is closed (Sefraoui et al., 2012) and OpenNeb-

ula is aimed to build up private cloud with a few

cloud machines(Mahjoub et al., 2011). Further more,

the better compatibility of OpenStack with support-

ing of most virtualization solutions, like KVM, Hy-

perV, LXC, etc. makes it popular and promising in

the cloud solution market(Wen et al., 2012).

2.1 OpenStack Components

OpenStack is collective of several projects as showed

in Figure 1 they are different aspects of cloud com-

puting. Nova is the main part of OpenStack system.

It hosts and manages VM instances. With provided

API, Nova has good compatbility with Amazon Web

Services (AWS).(Beloglazov et al., 2012).

Glance is the name of OpenStack Image Service,

which provides retrieval, storage and meta-data as-

signment for images running on OpenStack cloud.

This service supports multiple VM image formats,

such as Raw, AMI, VHD, etc.

Neutron Networking Service (former name Quan-

tum) offers Network As A Service (NAAS). It has

APIs to manage networks, build rich networking

topologies and conﬁgure advanced network policies.

Swift and Cinder both provide storage services.

Swift is OpenStack Object Store project and offers

highly scalable and durable multi-tenant object stor-

age service for large amounts of unstructured data.

While Cinder is the block storage service, with which

user could manage volumes.

Keystone is the identity service in OpenStack,

it includes user management and service catalog of

available services with their API endpoints.

Horizon is dashboard for whole OpenStack plat-

form; Ceilometer is the infrastructure of measuring

and collecting data; Heat aims to create a human and

machine accessible service for managing entire life

cycle of infrastructure and applications.

3 ACCESS CONTROL IN

OpenStack

Each of OpenStack cloud service has its access con-

trol module. The modules use different ways to val-

idate access privilege, except Swift has no policy

check. The similarities among these modules are :

1) JSON is the format of access control policy ﬁles;

2) the phase of policy check is before the execution

of API from each cloud service; 3) The policy engine

only returns True or False, indicate “allow” or “disal-

low”.

Generally Nova, Neutron, Glance and Keystone

share the same policy engine. It is the most popular

and typical engine in OpenStack. Though Keystone’s

policy engine is slightly different from others. Its pol-

icy engine has an Enforcer class. And also not like

other services API to check the whole access privi-

lege, Keystone policy check only validates whether

the user has an administrator role.

While Cinder has another type of policy check en-

gine. The algorithm simply validates rule, role and

remote target information with policy ﬁle in Cinder.

The imaginable reason is that operations on volumes

could also be controlled by Novas policy check.

3.1 Nova Access Control: Algorithm

and Engine

We take Nova’s policy engine as an example. This

engine is mainly combined by different checks.They

validate requests against policies and give the result.

The checks are logic checks, like False check, True

check, Not check, And check and Or check; and some

other checks, like Rule check, Role check, Http check

and Generic check. Rule check checks if request

matches policy rule. Role check is to see if user role

information matches policy rule. Http check validates

the availability of a remote server.

The process is that when the cloud service starts,

policy engine loads the JSON policy ﬁle, and parses

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

284

the rules in policy ﬁle into different check objects

as introduced above. These objects are stored in

cache. The operation on cloud service executes

through APIs. Before an API takes any action, it

sends a request to the policy engine to check the ac-

cess privilege and receives the result. As part of the

request, a context object which contains user informa-

tion, project information and the action is also sent.

3.2 Nova Policy Logic

In OpenStack, policy is composed by lines of rules.

Each rule contains a string of resource and action,

followed by a rule check. Policy engine looks for

the resource and action string, then perform the re-

quest validation against rule check. The rule check

uses name-value pairs, “and” and “or” logics. The

rule check has three kinds of checks. First two are:

1) “@” or an empty rule means accept all the access;

2) “!” means reject all the access. The third one is

the most common check. It can be expressed in two

forms: a list of lists, or a policy language string. For

the list of lists expression, the innermost lists combine

with “and” logic, and then with “or” logic. The pol-

icy language is similar with list of lists, but with one

more logic of “not” operator(OpenStack, 2013a).

3.3 Problem Area

In the time of cloud, open and sharing, users’ data,

even their infrastructure are shifting from private,

self-owned to public, third party stored. Information

security and protection are never more vital than now.

OpenStack provides a basic functioned access control

method, it can be easy to handle some requirements

of authorization. However, there are still some issues

we found that needs improvements on.

1. Flexibility of access control. OpenStacks

JSON based access control module still cannot com-

pare with XACML access control, which has a so-

phisticated logic of policy validation. OpenStack’s

access control policy language faces a lot of limita-

tions when compared with XACML language. Spe-

cially, XACML version 3 brings more useful features

and combining algorithms.

2. Modiﬁcation of policy ﬁle. If an administra-

tor wants to modify the access privileges for users, he

has to, at ﬁrst, change the policy ﬁle and then restart

the cloud services to reload the policy ﬁles in order to

make the effect. Because when cloud service starts,

they load the policy ﬁles in the cache, even the pol-

icy ﬁle is changed, the policy in cache is still the

same. However, the policy engine provides a method

to reload the policy ﬁle, but could not ﬁnd that there

is a mechanism to call this method. This brings the

trouble that every time policy ﬁle changes, the service

will have to restart. That could further affect stability

of cloud services.

3. Policy ﬁles management. Each service has its

speciﬁc policy ﬁle in the installation folder. It is a

challenge for admin to universally manage the access

privileges. Like explained, if an administrator makes

adjustments to the access privileges for a user role,

then he needs to visit each services installation folder,

modify the policy ﬁles and restart all the services.

That brings extra workload, and difﬁculty with the

management of OpenStack access control policies.

4. Security issue of policy ﬁles in OpenStack.

Keystone, Nova and all other cloud services simply

put access control ﬁles into one JSON ﬁle, which is

stored in the installation folder. They are susceptible

to all the users who can visit this folder. This con-

stitutes a security issue and brings risks to the access

control module.

4 ACCESS CONTROL WITH

XACML

XACML, eXtensible Access Control Markup Lan-

guage, an XML implemented access control lan-

guage speciﬁed by Organization for the Advancement

of Structured Information Standards (OASIS)(Erik,

2012). It is the one of most popular and widely used

access control standard, and OASIS XACML Techni-

cal Committee includes member from Oracle, IBM,

Cisco, etc.

The advantages of XACML are, ﬁrstly, its sim-

plicity and strength which make it suitable for numer-

ous environments. Specially, its independence from

implementation could be utilized in cloud comput-

ing and cloud federation; Secondly, XACML’s RBAC

proﬁle well supports RBAC function and due to the

large and well-adopted XML ecosystem, XACML is

the one of the best RBAC and policy based autho-

rization method; Moreover, compared with IBM’s

Enterprise Privacy Authorization Language (EPAL),

XACML has more features on complex enterprise

policies and is better standardized and implemented

(Anderson, 2005).

This standard deﬁnes both policy language and

request/response language. They express the access

control policies, the queries and the answers of the

queries. In the policies, XACML speciﬁes three main

parts, such as PolicySet, Policy, Rule. PolicySet is the

root of other PolicySets or Policies, and Policy could

contain multiple Rules. One Rule in policy is the min-

imum unit of policy check, could return results: per-

EnhanceOpenStackAccessControlviaPolicyEnforcementBasedonXACML

285

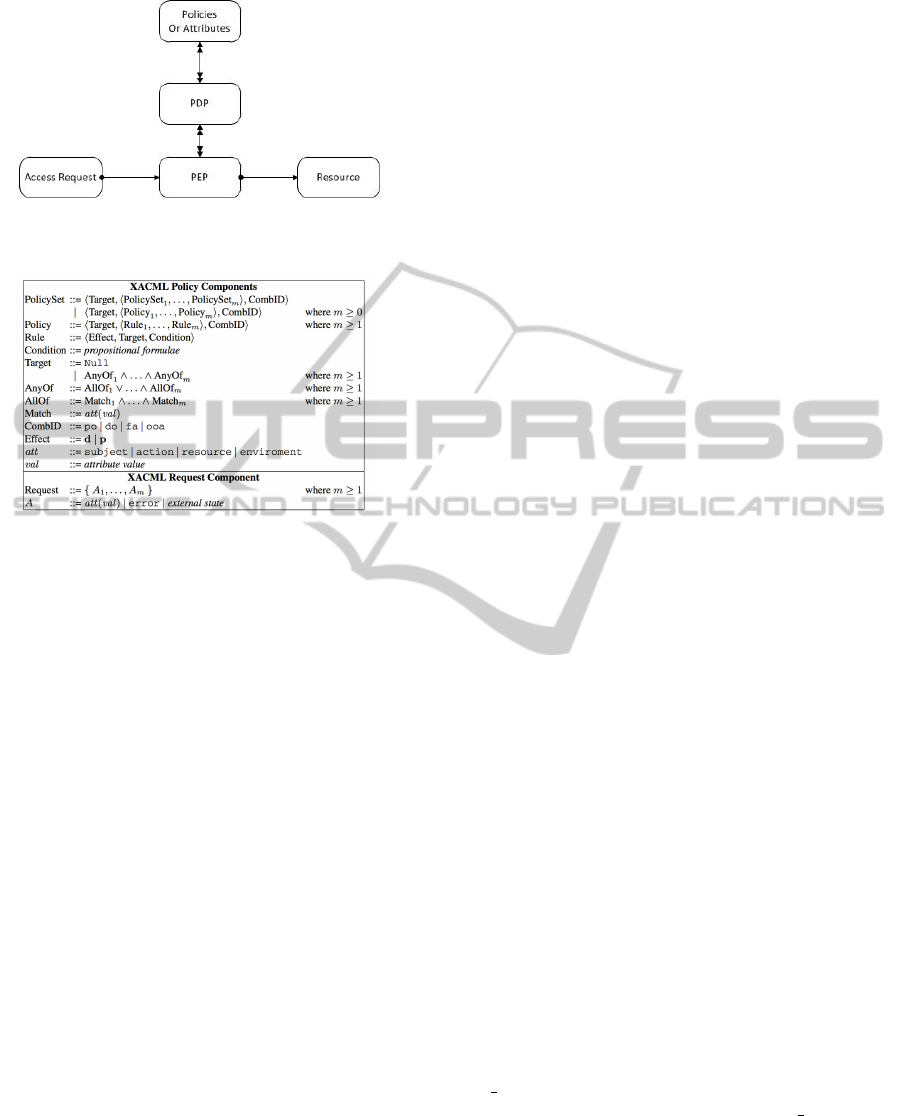

Figure 2: XACML data ﬂow diagram.

Table 1: Abstraction of XACML 3.0 Components.

mit, deny, not applicable or interminate. In both Pol-

icy and Rule, a target is a match condition which de-

termine whether the request is applicable to the pol-

icy or rule. While combination algorithms in Poli-

cySet and Policy weigh the results from Policies and

Rules, and then give the ﬁnal result. Along with Obli-

gation expressions and Advice expressions, therefore

XACML could be able to implement complex logic

to access control policies.

A general XACML data ﬂow model is: an

XACML access request is sent to Policy Enforce-

ment Point (PEP). Then the PEP sends request to Pol-

icy Decision Point (PDP). PDP evaluates the request

against policy, and returns the response to PEP. We

can see the ﬂow from Figure 2.

To get an overview of XACML logic, the seman-

tic of XACML v3 speciﬁcation could almost be for-

malized to multi-valued logic approach, like Belnap

logic(Belnap Jr, 1977) and D-algebra(Ni et al., 2009).

Generally, the Table 1 (Ramli et al., 2013) describes

the syntax of XACML v3.

5 XACML IN OpenStack

Implementing XACML is to apply XACML ac-

cess control to OpenStack and as an alternative to

the native JSON based access control. The design

of XACML access control solution in OpenStack

doesn’t only apply the XACML standard to Open-

Stack and extend the access control ability, but also

facilitates the management work and improves the se-

curity on policies. This design bases on existing ar-

chitecture and native access control design concepts

of OpenStack. Meanwhile it tries to leave some space

for future requirement.

The following section discusses the design con-

sideration, the solution and use of XACML in Open-

Stack. This design is for OpenStack, Grizzly release,

the seventh stable release at the time of this research.

5.1 Design Consideration

The cloud services already have a simple access con-

trol. Based on several experiments on Nova, we have

veriﬁed that there is a data package contains user cre-

dential information like user name, token, user role,

action name etc. Therefore all the information a PEP

needs is already existing in OpenStack. For the secu-

rity reason of not exposing the credential information

and the architecture of OpenStack cloud service, the

PEP should build inside the cloud service in order to

safely obtain the data package.

Furthermore, we have investigated several

XACML implementations. Balana is an XACML

v3 well-supported open source software with

Java(WSO2, 2012). It developed from widely

adopted Sun XACML implementation, which only

has supports for XACML v2. Additionally Open-

Stack is implemented with Python. So to address

the problem of languages and also to decouple the

XACML access control module to other OpenStack

modules. The access control module should be

designed as a service. Inside XACML access control

module, we also selected an open sourced native

XML database, eXist-db(Meier, 2003), as policy

storage.

5.2 Use XACML in OpenStack

As discussed above, XACML has more potent abil-

ity to handle complex access control requirement. In-

tegrated with XACML in OpenStack could provide

more comprehensive authorization functions. Basi-

cally, access control in Grizzly release only does the

user role match to each of the resource. For exam-

ple, we query all the network instance, the action is

“get all”, the resource is “network”. So the access

control will look for a rule of “network:get all” in the

policy, and check whether the user role of user who

wants to execute this action can match with the user

role speciﬁed in that rule. However, besides this plain

access check, XACML could implement a much more

complex policy. This will be discussed in experiment

section.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

286

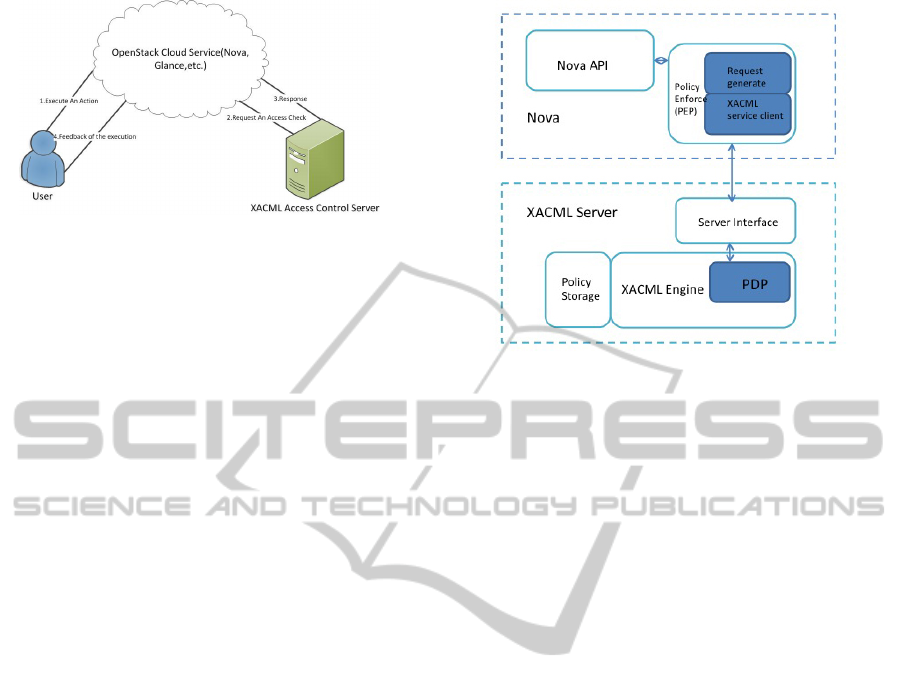

Figure 3: XACML access control in OpenStack.

This design of XACML access control module

also centralized all the policies in separate cloud ser-

vices into one place. Through eXist-db database,

administrator could manage policies for the whole

OpenStack platform. More importantly, this modiﬁ-

cation of policies could be made on the ﬂy, it will take

effect without restarting the cloud service.

In addition, Store the policy ﬁles in database also

improves the security level of access control of Open-

Stack. It could not be easily accessed, considering

that before the policy ﬁle is just in the installation

folder.

5.3 XACML Access Control as a Service

For design considerations mentioned above, in our

solution, XACML access control server is detached

from OpenStack. Therefore, the server is as a uni-

versal authorization interface which could accept re-

quests from all the cloud services.

The interaction is showed in Figure 3. When a

user calls a cloud service API, the API needs to check

the authorization of the user at ﬁrst. The API connects

to the XACML access control server and sends the au-

thorization request. The server receives and validates

the request, then constructs a response and sends it

back. When the API gets the response, it will validate

the response. If the response is positive, the API will

execute the action user requests and returns the result

to the user. Otherwise it will reject user’s request. The

detailed prototype architecture is discussed in follow-

ing section.

6 PROTOTYPE

IMPLEMENTATION

We implemented a prototype on Nova. However, the

same architecture could also apply to other cloud ser-

vices.

XACML access control in OpenStack involves

two parts: PEP part is in Nova, it abstracts neces-

Figure 4: Prototype architecture for XACML access control

in OpenStack.

sary data and constructs XACML request then sends

to PDP in XACML server; all other parts of XACML

access control are organized in the server.

Therefore each of OpenStack cloud service has

one PEP connect to XACML access control server.

All the policies are universally managed and stored in

XML database.

As Figure 4 shows, the policy enforce is as an in-

terface, gets data package from cloud service API and

returns result of access control check; request gen-

eration component constructs XACML request from

given data which is from cloud service API; the

XACML client component is responsible to conﬁg-

ure the client, connect to XACML server and listen to

the response from server. The policy enforce checks

the result, and returns it to cloud service API.

In XACML standard, it deﬁnes several results for

the response of evaluation, however, here we process

these result only into True or False, and only the case

of “Allow” will be considered as True, other cases are

all False.

On server, XACML server starts, PDP and other

parts of XACML initiate and be ready to receive re-

quest. When server receives the XACML request

from the client and passes it to PDP; PDP evaluates

the request and returns the response; the response

will be processed in order to provide a suitable result

to server; in the last, server sends back the result to

client.

6.1 Two Experiments

We also designed two sets of experiments to

demonstrate the functionality and advantages of this

XACML access control module. Experiment One is

designed to test that the entire prototype we developed

EnhanceOpenStackAccessControlviaPolicyEnforcementBasedonXACML

287

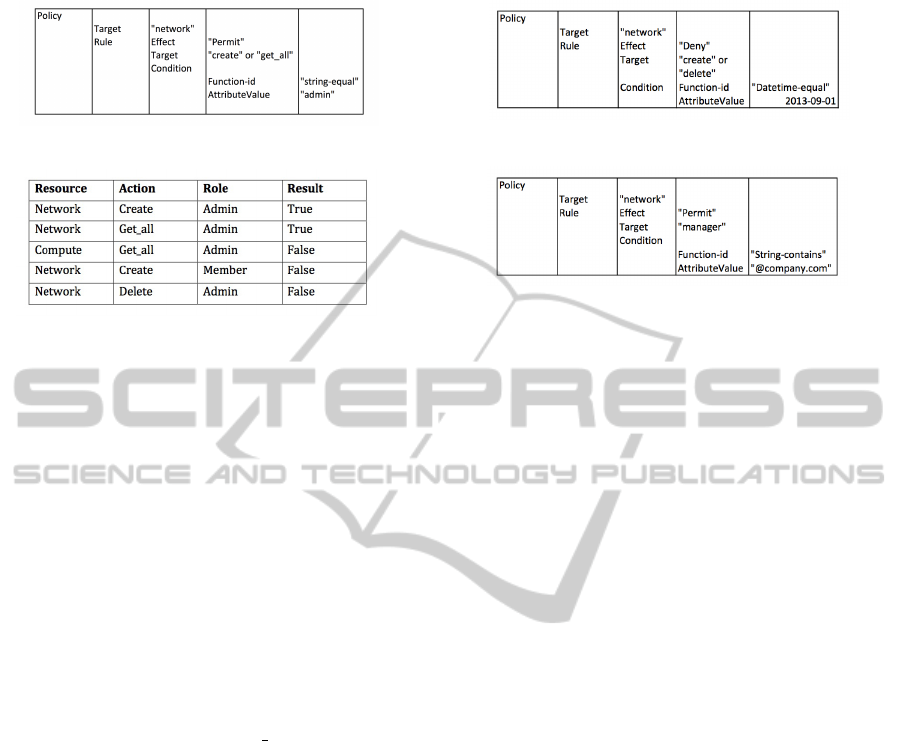

Table 2: Policy of Experiment One.

Table 3: Result of Experiment One.

is functional, could be utilized to do the access control

check and is capable of handling various results. Ex-

periment Two illustrates the advantages of expressive-

ness of XACML. In modern enterprise access control

scenarios, XACML could be more suitable and have

more features than OpenStack’s native access control

module. Experiment Two uses the beneﬁts of power-

ful XACML policy language to handle the complex

access control cases, in which the original module is

limited.

6.1.1 Experiment One

We took a network control in Nova as an example. We

utilize Experiment One to verify the proposed design

and prototype.

We deﬁned a policy that deﬁnes if user role is “ad-

min”, he could do “create” or “get all” actions on re-

source “network”. There are totally 12 possible com-

binations to test. However, we only prepared 5 dif-

ferent requests, which are sufﬁcient for covering the

major route of policy check and getting all kinds of re-

sults. The policy is showed as Table 2. The requests

are showed as Table 3.

6.1.2 Experiment Two

Experiment Two has two scenarios as examples to see

how XACML access control could satisfy the com-

plex requirement in contemporary days, while Open-

Stack’s access control is not able to handle these sit-

uations. The ﬁrst scenario introduces the data type of

time into the policy, in order to add a time constraint

to access control. The second one utilizes string func-

tion in XACML policy language to achieve the con-

ditional authorization. Because of the solo user role

check mechanism, the original access control could

not deal with any of these scenarios. These two sce-

narios are:

Table 4: Policy of Experiment Two: Scenario 1.

Table 5: Policy of Experiment Two: Scenario 2.

1) Due to maintenance, on date “1st, September,

2013” user with user role “Member” could not do

“create” or “delete” action on resource “network”;

2) Users with user role “Manager” and its name

contains “@company.com” could do “create” action

on the resource “network”. The scenario 1 is inspired

by (Evered and B

ogeholz, 2004).

Both of the policy ﬁle structures are showed on

Table 4 and Table 5.

7 CONCLUSIONS AND FUTURE

WORK

To improve the security, OpenStack uses JSON ﬁle

based Role Based Access Control (RBAC). For each

combination of resource and action, it deﬁnes a condi-

tion in order to establish whether a user could perform

this action or not. However, due to the logic of access

control check in OpenStack, the current mechanism

has its limits to meet the requirement of modern cloud

computing system. Also it exposes some security is-

sues, like policy ﬁle security, the difﬁculty of policy

ﬁle management and the variety of policy engines in

different cloud services.

In this paper, we introduce XACML access con-

trol in OpenStack. In each cloud service of Open-

Stack, an XACML PEP is embedded in authorization

part and responsible for generating, sending requests

and receiving the responses from XACML server. An

independent XACML server will process requests and

manage policies, it contains a PDP and a policy stor-

age database. As a result, user is able to switch from

OpenStack native access control to XACML access

control. The prototype of our design is successfully

implemented and is able to work on OpenStack Griz-

zly release.

This research presented here enables the possibil-

ity of future work. Based on this work, the very ﬁrst

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

288

objective would be to provide the solution of building

the identity and access control federation. In the fu-

ture, we aim to design a hybrid cloud solution with

good scalability and security with OpenStack plat-

form. That means for a private cloud it is easy to ac-

quire public cloud resource to form hybrid cloud, and

also easy to withdraw from hybrid cloud back to pri-

vate cloud without scalability and security problems.

ACKNOWLEDGEMENTS

This work developed in collaboration with the Project

Fi-ware, funded by the 7th EU R & D Framework

Programme (subsidy agreement number 285248).

REFERENCES

Anderson, A. (2005). A comparison of two privacy policy

languages: Epal and xacml.

Belnap Jr, N. D. (1977). A useful four-valued logic. In

Modern uses of multiple-valued logic, pages 5–37.

Springer.

Beloglazov, A., Piraghaj, S. F., Alrokayan, M., and Buyya,

R. (2012). Deploying openstack on centos using

the kvm hypervisor and glusterfs distributed ﬁle sys-

tem. Technical report, Technical Report CLOUDS-

TR-2012-3, Cloud Computing and Distributed Sys-

tems Laboratory, The University of Melbourne.

Erik, R. (2012). Extensible access control markup

language (xacml) version 3.0. http://docs.oasis-

open.org/xacml/3.0/xacml-3.0-core-spec-cs02-

en.html.

Evered, M. and B

ogeholz, S. (2004). A case study in

access control requirements for a health information

system. In Proceedings of the second workshop on

Australasian information security, Data Mining and

Web Intelligence, and Software Internationalisation-

Volume 32, pages 53–61. Australian Computer Soci-

ety, Inc.

Lorch, M., Proctor, S., Lepro, R., Kafura, D., and Shah,

S. (2003). First experiences using xacml for access

control in distributed systems. In Proceedings of the

2003 ACM workshop on XML security, pages 25–37.

ACM.

Mahjoub, M., Mdhaffar, A., Halima, R. B., and Jmaiel,

M. (2011). A comparative study of the current cloud

computing technologies and offers. In Network Cloud

Computing and Applications (NCCA), 2011 First In-

ternational Symposium on, pages 131–134. IEEE.

Meier, W. (2003). exist: An open source native xml

database. In Web, Web-Services, and Database Sys-

tems, pages 169–183. Springer.

Ni, Q., Bertino, E., and Lobo, J. (2009). D-algebra for com-

posing access control policy decisions. In Proceedings

of the 4th International Symposium on Information,

Computer, and Communications Security, pages 298–

309. ACM.

OpenStack (2013a). The nova.openstack.common.

policy module. http://docs.openstack.org/develo-

per/nova/api/nova.openstack.common.policy.html.

OpenStack (2013b). Openstack: The open source cloud op-

erating system. http://www.openstack.org/software/.

Ramli, C. D. P. K., Nielson, H. R., and Nielson, F. (2013).

The logic of xacml. Science of Computer Program-

ming.

Schubert, L. and Jeffery, K. (2012). Advances in clouds.

Technical report, European Union, Tech. Rep.

Sefraoui, O., Aissaoui, M., and Eleuldj, M. (2012). Open-

stack: toward an open-source solution for cloud com-

puting. International Journal of Computer Applica-

tions, 55(3):38–42.

Wen, X., Gu, G., Li, Q., Gao, Y., and Zhang, X. (2012).

Comparison of open-source cloud management plat-

forms: Openstack and opennebula. In Fuzzy Systems

and Knowledge Discovery (FSKD), 2012 9th Interna-

tional Conference on, pages 2457–2461. IEEE.

WSO2 (2012). Balana xacml for authorization.

http://xacmlinfo.org/category/balana/.

EnhanceOpenStackAccessControlviaPolicyEnforcementBasedonXACML

289
