Reuse of Service Concepts Based on Service Patterns

Wannessa Rocha Fonseca

1, 2

and Pedro Luiz Pizzigatti Corrêa

PCS / POLI / University of São Paulo, São Paulo, Brazil

CEPROMAT, Cuiabá, Brazil

Keywords:

Service, Service-Oriented Computing, Reuse, Service Patterns, Electronic Government.

Abstract:

In the process of service-oriented software development, one of the main tasks is to design services, since

errors at this stage can propagate throughout the project. This paper proposes a service speciﬁcation model in

the public sector based on service patterns. The service pattern is an abstract service that represents a generic

and reusable description. In this context, a lifecycle of service patterns is proposed, as well as the steps for

specifying the service patterns. A case study shows an example of a service pattern in the e-government

scenario.

1 INTRODUCTION

The adoption of service-oriented computing

(SOC) may beneﬁt the area of information and

communication technology (ICT) as well as the

business area. Some beneﬁts in the area of ICT

highlighted by Marks and Bell (Marks and Bell,

2006) are increased productivity, greater reuse

of assets, agility and cost reduction of ICT. The

business area may beneﬁt from greater ﬂexibility,

faster time-to-market for business enterprise,

rapid responses to changes in business and ﬁnally

establishing a closer relationship between ICT service

and business needs.

The public sector, in general, appears as a

high potential scenario for service-oriented solutions

use, especially due to the large number of existing

applications, technological diversity, the need for

interaction between these applications and the need

for service quality management. However, the

scenario described does not exempt the public sector

from the challenges related to the paradigm of

service-oriented development.

In the electronic government (e-government)

context when the term service is used, it easily

relates to the term electronic service directly provided

to the citizen, through an end-user interface. In

this paper, the term service is used to represent

a software interface, provided by a public sector,

to be consumed by applications from governmental

institutions or non-governmental institutions. When

the public sector provides an electronic service to

citizens by means of an application, that application

may be consuming a service (via Web Services) or

not, it depends on the approach used to develop the

application.

One of the challenges of lifecycle services is

the activity of identifying services that support the

business activities of the organization. The service

identiﬁcation is seen by Kang, Song and Baik

(Kang et al., 2008), Arsanjani et al. (Arsanjani

et al., 2008) and Boerner and Goeken (Boerner and

Goeken, 2009), as a prerequisite for the successful

implementation of a service-oriented architecture.

This paper presents research on the service

speciﬁcation, speciﬁcally in the government scenario,

given that: i) the government scenario has been

redundant in business rules in its various levels and

sectors of government, and ii) there is the need to

reduce effort and cost in designing service-oriented

solutions. The goal is to have a service patterns

repository for the area of government, and from these

service patterns, new services will be created. The

idea is that this model may support the reuse of the

service concept in the e-government scenario.

There are ﬁve sections, besides this introduction.

Section 2 presents the characteristics of service

patterns. Section 3 work related to the topic of

this research. Section 4 presents the proposed

model for the reuse of service concept in the setting

of e-government and the service pattern lifecycle.

Section 5 presents case study. Finally, section 6

presents the paper’s conclusions.

290

Fonseca W. and Corrêa P..

Reuse of Service Concepts Based on Service Patterns.

DOI: 10.5220/0004894702900297

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 290-297

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

2 BACKGROUND

Generally speaking, patterns are reusable solutions

for recurrent design problems (Li et al., 2009). The

reuse of solutions that have already been devised and

that worked in the past is a good practice in the

development of systems, regardless of the paradigm

this implies. Although Gamma et al. (Gamma

et al., 2000) address the object-oriented paradigm,

they point out that the best designers know they

should not solve a problem based on basic principles

or from scratch.

2.1 Service Patterns

The concept of service patterns used in this study is

similar to that deﬁned by Fki, Tazi and Dupuy (Fki

et al., 2010) an abstract service representing a generic

and reusable description. Besides this deﬁnition,

service patterns must contemplate the description of

atomic services and compound services, as well as the

interactions between services. Thus, service patterns

will be able to meet a government task or business

process.

Drawing a comparison between services and

service patterns, we can say that: i) while the goal of a

service is to be part of a highly reusable inventory, the

service pattern aims to be part of a highly traceable

service repository, ii) While a service is represented

by artifacts: speciﬁcation of services, source code,

Web Services Description Language (WSDL) and

deployment code, the service pattern is represented

only by the Service Pattern Description document,

and iii) the reuse of a service is directly related to the

amount of service invocations, while the reuse of a

service pattern is related to the amount of times this

pattern has been used as the basis for specifying new

services. The service pattern is not implementable,

but it is used as a reference for the service deﬁnition.

A service pattern is intended to be more abstract

than a service. A service interface describes how the

service should be consumed, while a service pattern

is used as a basis to deﬁne a new service.

Service orientation has its origins in past

distributed computing design platforms and the

inﬂuence of established design concepts, approaches

and previously published design pattern catalogs.

As illustrated in Figure 1, the Service-Oriented

Architecture (SOA) design patterns are inﬂuenced

by design patterns of different areas: object

orientation, enterprise application integration (EAI),

enterprise application architecture and software

architecture. These patterns were certainly inﬂuenced

by Christopher Alexander’s original pattern language.

SOA design patterns are inﬂuenced by the design

patterns of other areas. Similarly, see the inﬂuence

of established concepts of SOA design patterns on

service patterns and consequently on the speciﬁed

services from the service patterns may be observed,

which is the purpose of this work.

The goal of using service patterns is to assist the

speciﬁcation of new services from existing services

in government, aiming at the reuse of already

devised solutions. The goal of service-oriented

computing is to have service inventories that can meet

business processes. Therefore, based on the modelled

business process the service patterns catalog should

be consulted in order to locate service patterns that

may be suitable for the business process.

3 RELATED WORK

Speciﬁcally regarding the use of service patterns, the

works selected from a literature review on the subject

are presented in Table 1. The work analysis supports

the understanding regarding the proposed approaches

and also the mapping of the following information:

• Speciﬁc Application Domain – If the patterns

presented in the papers are meant to solve a

speciﬁc business problem or a problem of service

design that can be applied in various business

areas;

• Pattern Description – If the paper presents a

description scheme of service pattern. Nazih and

Alaa (Nazih and Alaa, 2011) present patterns, but

they do not provide a detailed description. It

displays a list of generic service patterns and a

diagram to represent the service abstraction layer

and sequence diagram to represent the interaction

between the actors of the systems.

In general, all of these patterns seek to support the

reuse of solutions, both solutions to a service design

problem, as well as to a speciﬁc business problem.

Among the works presented in Table 1, those that are

closer to the focus of this research are: Nazih and

Alaa (Nazih and Alaa, 2011) and Li et al. (Li et al.,

2009).

The following items are available in the e-PING

(BRASIL, 2012) portal: a template for specifying

services, called Documentation Interoperability

Services, and a catalog of services provided by

the government. The purpose of the catalog is to

provide services that have already been created and

made available by the government, aiming to the

consumption of these services.

ReuseofServiceConceptsBasedonServicePatterns

291

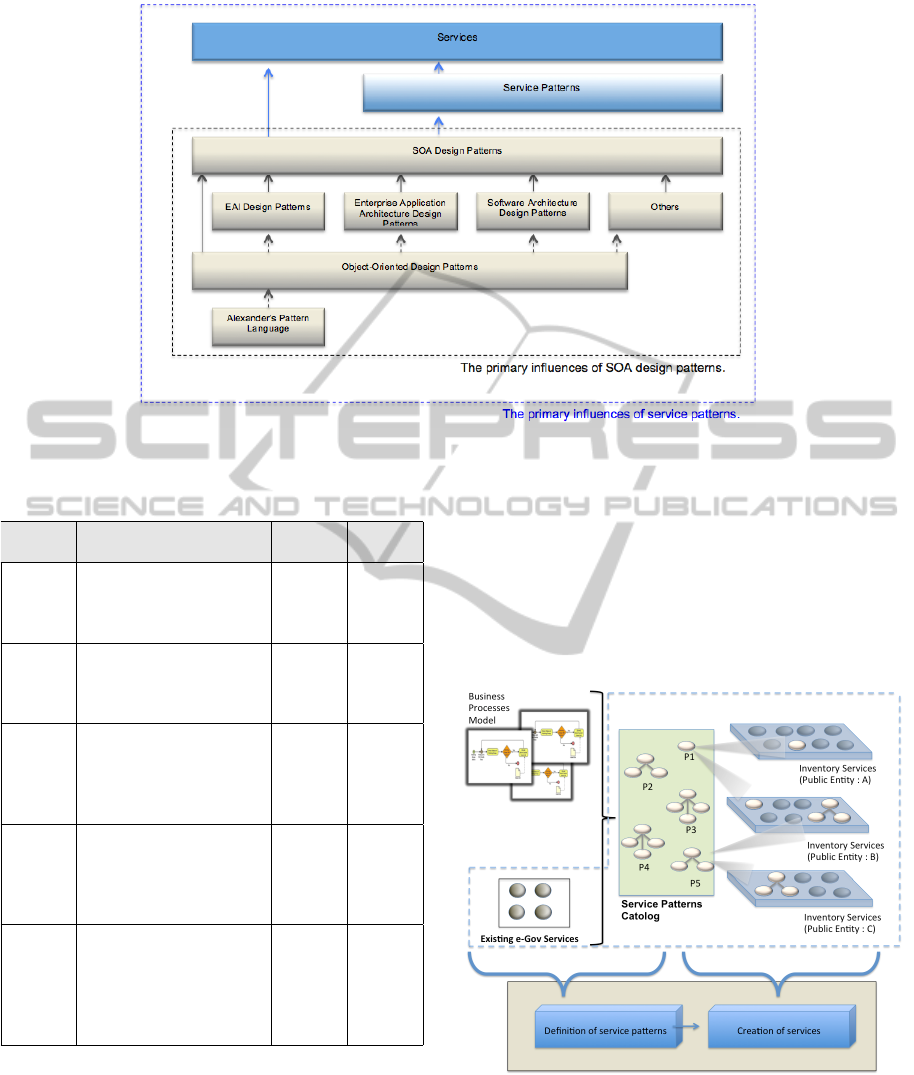

Figure 1: The Primary Inﬂuences of SOA Design Patterns - Adapted from Erl (Erl, 2009a).

Table 1: Patterns Related to Services.

Id Approach Speciﬁc

Domain

Descri-

ption

(Tchuta

and

Chunhua,

2011)

Presents a pattern for

the creation of atomic

services

No Yes

(Nazih

and

Alaa,

2011)

Displays Generic

Service Patterns

for Enabled Public

Healthcare Systems.

Yes No

(Li

et al.,

2009)

Shows a reputation

pattern as a solution

to the trust problem in

service provision in the

SOC.

Yes Yes

(Fu

et al.,

2009)

Approach based

on service patterns

to support service

compositions, using

ontology.

No Yes

(Fki

et al.,

2010)

Presents an approach

to service composition,

based on the model

of the users intention,

domain ontology and a

service pattern model.

No Yes

4 PROPOSED MODEL

Figure 2 illustrates an abstract view of Service

Speciﬁcation Model for e-government (SSMe-Gov).

The SSMe-Gov aims to:

a) Abstract the concept linked to a service and

represent it as a service pattern;

b) Document the service pattern using the Service

Pattern Description template;

c) Catalog the service patterns in the repository;

d) Develop new services from cataloged service

patterns.

Figure 2: e-Government Service Speciﬁcation Model Based

on Service Patterns.

The model basically consists of two steps,

deﬁning the service patterns and creating services

from service patterns. In this work will be discussed

only the ﬁrst step.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

292

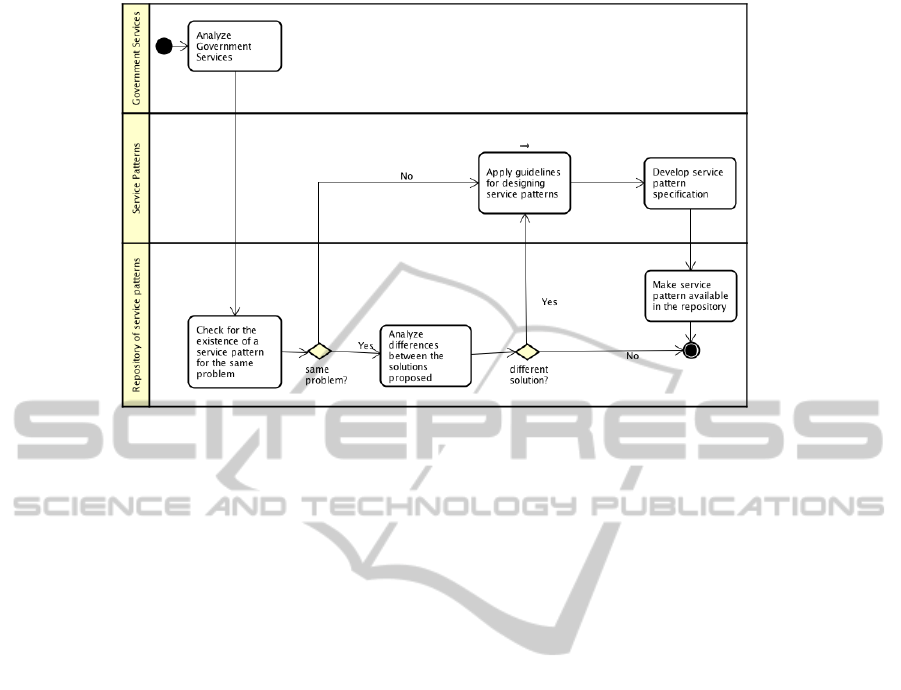

Figure 3: Activity to create service patterns.

4.1 Deﬁnition of Service Patterns

To deﬁne the service patterns the following steps are

presented as a diagram in Figure 3.

• Step 1. Analyze the existing services in the

government scenario.

a) If an artifact of Service Speciﬁcation exists, use

this document for analysis;

b) Otherwise, use the WSDL.

• Step 2. Check if a service pattern for the same

problem already exists in the service patterns

repository.

a) If there is no service pattern to solve the

same problem, you must apply the appropriate

guidelines to deﬁne the service pattern;

b) If there is a pattern to solve the same problem,

the differences between the solutions proposed

to solve the proposed problem should be

analyzed.

• Step 3. Analyze the differences between the

solutions proposed by the service pattern.

a) If there is no difference between the solutions

proposed to solve the same problem, one must

consider that the candidate service pattern is

already documented and the activity should be

closed;

b) In case of difference between the solutions

proposed, the appropriate guidelines should be

applied to set the service pattern. The new

pattern should be documented highlighting the

differences between the related patterns, so that

the solution is clear. There may be more

than just one pattern in the service patterns

repository to solve the same problem, as a

problem can be solved in several ways.

• Step 4. Apply guidelines for developing service

patterns.

a) Check if the service meets the design principles

proposed by Erl (ERL, 2009b)

i) If the service meets the design principles,

move on to the next step;

ii) Otherwise, the services have to be remodeled.

b) eliminate existing redundant and similar

operations in service;

c) Abstract the concept of service. Extract the

basic concept of the service by eliminating

the implementation details, data structure and

communication technology.

• Step 5. Specify the service pattern.

a) The pattern must be represented using the

Service Pattern Description template;

b) Represent the service pattern interface. The

service pattern interface must only contain

business information and not the information

on technical control;

c) An activity diagram that represents the logical

operation of the activity must be prepared for

each operation.

• Step 6. Make the service pattern available in the

service patterns repository. The service patterns

should be cataloged according to the business area

to which the service is associated.

ReuseofServiceConceptsBasedonServicePatterns

293

4.2 Representation of Service Patterns

In this work, the service pattern is identiﬁed by

name and version. For a better understanding of

the pattern, it should be described in more detail by

presenting its purposes, described description of the

problem as well as the solution to solve the mentioned

problem. To represent the pattern, certain items must

be previously deﬁned: (i) the type of pattern (atomic

or compound); (ii) which are the service patterns

related to the pattern described, and (iii) which is the

catalog the pattern belongs to. The service pattern

description template does not intend to present either

technical issues and or the internal processing logic

of the service. The aim is to show the service pattern

interface. In addition, the name of the operation and

the UML activity diagram that represents the logic of

the operation must be described for each operation of

the service.

4.3 Service Pattern Lifecycle

The speciﬁcation of the service patterns should be

based on already designed government services, since

the goal is to reuse the concept associated with a

service. Figure 4 shows that the identiﬁed pattern

must be documented and made available in the service

patterns catalog.

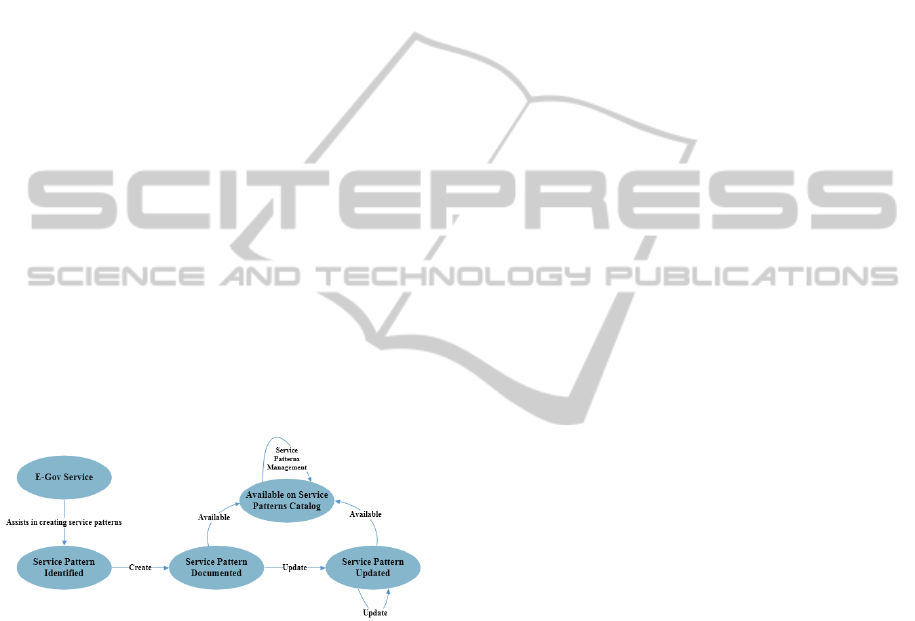

Figure 4: Service Pattern Lifecycle.

The model proposed in this paper is to set service

patterns to represent a service at a higher level

of abstraction, but it does not aim to set business

process patterns. Other authors discuss the use of

patterns related to the business process, such as

Thom et al. (Thom et al., 2007), who addresses

the reuse of patterns of workﬂow modeling tools for

the business process and Thom et al. (Thom et al.,

2009) presents patterns of workﬂow activities and the

potential for their reuse in the context of business

process modeling.

5 CASE STUDY

Based on the preliminary survey of government

services, a study was conducted on the services

related to the Electronic invoice (NF-e) and Electronic

Cargo Bill of Lading (CT-e) projects.

5.1 Scenario Description

The replacement of the paper ﬁscal document for a

national model of electronic ﬁscal document, gave

birth to the NF-e project. The NF-e project (BRASIL,

2012b) has reached the status of a national system

of electronic ﬁscal document, shared between the

Federal States and the Internal Revenue Service of

Brazil.

The goal is for the NF-e issuing company to

generate and send an electronic ﬁle through the

Internet, containing tax information on a commercial

operation and also to perform other operations such as

cancelling, and rendering NF-e numbering unusable,

as well as conducting queries. The communication

between the taxpayer application and the State

Revenue Ofﬁce is based on Web Services provided

by the Electronic Invoice Reception System. The

taxpayer application invokes a service provided by

the State Revenue Ofﬁce. There is a speciﬁc

Web Services for each service offered. The

services available for the NF-e are: 1) NF-e Batch

Reception, 2) NF-e Batch Processing Check, 3) NF-e

Cancellation, 4) rendering NF-Numbering unusable,

5) NF-e Current Status Check, 6) Service Status

Check, 7) Taxpayer Register Check and 8) Event Log

for the correction of NF-e information.

Other projects are currently using similar

solutions to the NF-e for the processing of electronic

documents between a taxpayer application and the

State Revenue Ofﬁce. An example is the CT-e, which

is an exclusively digital document, electronically

issued and stored in order to document shipping

services. The CT-e Project (BRASIL, 2012a)

emerged along with the electronic invoice project.

This project has pretty much the same service

structure, although the information input and output

are different, but the concept of the NF-e and CT-e

project services are similar. Services concerning

CT-e are: 1) CT-e Batch Reception, 2) CF-e Batch

Processing Check, 3) CT-e Cancellation, 4) rendering

CT-e Numbering unusable, 5) CT-e Current Status

Check and 6) Service Status Check. Another project

that can also be cited is the Retail Electronic Invoice

(NFC-e). One of the motivating factors for the

emergence of the NFC-e project was the successful

experience with the NF-e (Rehem and Oller, 2012).

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

294

After analyzing these projects and the services

already created to meet those business areas, it

becomes apparent that the service concepts speciﬁed

for the NF-e project were reused in the project

CT-e. Some factors that may have facilitated the

reuse of concepts are: 1) the NF-e project has the

service speciﬁcation documented, 2) the institutions

and managers responsible for the two systems were

the same, making the sharing of experiences easier;

and 3) NF-e is an example of a Brazilian model

project, both in the area of government and other areas

of application, because it somehow affects, directly or

indirectly, several business areas in Brazil. In the case

of speciﬁc projects within the government internal

area (G2G) created solutions do not have the same

impact and repercussion as the NF-e has had. These

factors stimulate and facilitate the reuse of service

concepts, but do not guarantee the concept reuse.

5.2 Examples of Service Patterns

In this case study, the creation of a service pattern

from the NF-e Batch Reception service is illustrated.

This service can be abstracted to contemplate

receiving an Electronic Tax Document (DF-e

–Documento Fiscal Eletronico) and represented

as a DF-e Batch Reception service pattern.

Considering that there are other types of Electronic

Fiscais Documents that must be delivered to the

Government, this service pattern have a potential

for reuse. To demonstrate this possibility the DF-e

Batch Reception service pattern established and

documented, as illustrated in Table 2. Other patterns

were also speciﬁed: DF-e Batch Processing Check,

DF-e Cancellation, rendering DF-e Numbering

unusable, DF-e CurrentStatus Inquiry and Service

Status Check.

5.3 Difﬁculties

According to the proposed model, the creation of

service patterns should be made from the existing

services in the government, but most services have

no documentation. This has been an obstacle to

understanding the services. In the case study related

to the Electronic Invoice presented in this article,

the services had been documented. For other case

studies conducted during the research the authors

chose to select services from a business area of

their knowledge, to solve the problem of lack of

documentation. This was a difﬁculty encountered

during the execution of the case study, but the

purpose of this work is that, in the real scenario of

government, the software architect who creates the

service also make the service pattern documentation

himself based on the model proposed in this paper.

The services analyzed in the Government

generally represent speciﬁc integration solutions and

in most cases were not designed aiming at reuse.

To solve this problem it was necessary to analyze

the operations and to apply the principle of reuse

capability of a service, according to Erl (Erl, 2009b).

Difﬁculty in establishing the level of abstraction

of the representation of service patterns. Although

there are works that address the use of service

patterns, there is no established rule regarding

the ideal level of abstraction for deﬁning service

patterns. Some patterns are highly abstract as to

have only one name (title), others represent all details

regarding the concept and technology. The Service

Pattern Description template was created to solve the

problem related to the level of abstraction necessary

to represent the service, containing the necessary

information to represent the abstraction.

To conduct the case study, a service survey was

performed in public agencies in the State of Mato

Grosso directly with the teams that had implemented

the services, which demanded availability of the

interviewee’s agenda. Due to the difﬁculties

encountered in the way of carrying out the survey of

services in the State of Mato Grosso, the survey of

services in other Brazilian states is being conducted

via electronic questionnaire.

6 CONCLUSIONS

The lack of subsidies to promote the reuse

of service-oriented solutions in the e-government

scenario and the challenges inherent to the activity

of identifying services in the service-oriented

development cycle have been the motivating factors

of this work.

A case study was performed in a real government

scenario. The service patterns presented in the

case study were deﬁned based on the analysis of

existing services in the Government. The case study

demonstrated the feasibility of using service patterns

as a way to support the reuse of service concepts.

The SSMe-Gov has been proposed. Besides the

model, other items have been proposed the lifecycle

of service patterns and a the primary inﬂuences of

service patterns.

This work has also proposed a service patterns

catalog. The creation of the catalog itself does not

guarantee reuse, but it can support the reuse and

design services. Successful reuse depends not only on

technical issues but it is also closely related to issues

ReuseofServiceConceptsBasedonServicePatterns

295

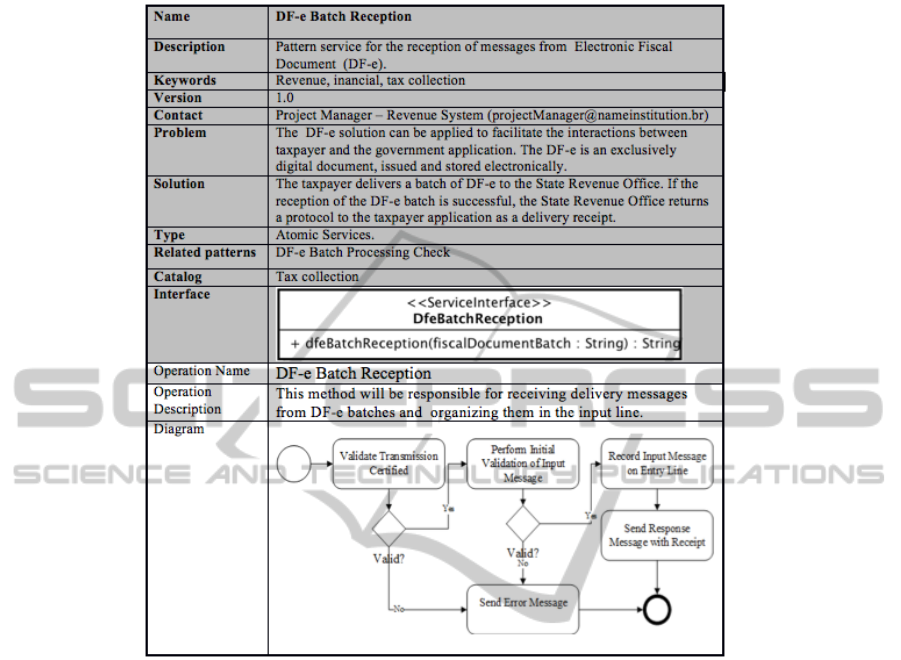

Table 2: Service Pattern Example - DF-e Batch Reception.

of management and organizational culture.

Future studies may consider developing an

automated environment to manage the patterns

catalog, deﬁning mechanisms to search for patterns

in this environment, and deﬁning other sources

to identify the service patterns, such as business

processes. Change management of service patterns

is also an important issue.

ACKNOWLEDGEMENTS

The authors thank CAPES, the Brazilian

government entity dedicated to the training of

human resources and FAPEMAT, Foundation for

Research Support of the State of Mato Grosso,

for providing support towards the viability of the

EPUSP/UFMT/CEPROMAT agreement for the

completion of the PhD on which this work is based.

REFERENCES

Arsanjani, A., Ghosh, S., Allam, A., Abdollah, T.,

Ganapathy, S., and Holley, K. (2008). SOMA:

a method for developing service-oriented solutions.

IBM Systems Journal, 47:377–396.

Boerner, R. and Goeken, M. (2009). Service identiﬁcation

in SOA governance literature review and implications

for a new method. In 2009 3rd IEEE International

Conference on Digital Ecosystems and Technologies,

DEST ’09, pages 588–593.

BRASIL (2012). Padrões de interoperabilidade de governo

eletrônico - e-PING. Technical report, Brasília:

Comitê Executivo de Governo Eletrônico. Documento

de Referência Versão 2012.

BRASIL (2012a). Projeto conhecimento de transporte

eletrônico (manual de integração contribuinte -

padrões técnicos de comunicação). Versão 1.0.4c.

BRASIL (2012b). Sistema nota ﬁscal eletrônica (manual

de orientação do contribuinte - padrões técnicos de

comunicação). Versão 5.0.

Erl, T. (2009a). SOA Design Patterns. Prentice Hall PTR, 1

edition.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

296

Erl, T. (2009b). SOA: Princípios de Design do Serviço.

Pearson Prentice Hall.

Fki, E., Tazi, S., and Dupuy, C. S. (2010). Towards a

user intention aware service composition. In New

Technologies of Distributed Systems (NOTERE), 2010

10th Annual International Conference on, pages 113

–120.

Fu, J., Bastani, F. B., Yen, I.-L., and Hao, W. (2009). Using

service patterns to achieve web service composition.

In Semantic Computing, 2009. ICSC ’09. IEEE

International Conference on, pages 402 –407.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J. (2000).

Padrões de Projeto. Bookman.

Kang, D., Song, C.-y., and Baik, D.-K. (2008). A

method of service identiﬁcation for product line.

In Proceedings - 3rd International Conference on

Convergence and Hybrid Information Technology,

ICCIT 2008, volume 2, pages 1040–1045.

Li, P., Xiangxu, M., Zhiqi, S., and Han, Y. (2009). A

reputation pattern for service oriented computing. In

Information, Communications and Signal Processing,

2009. ICICS 2009. 7th International Conference on,

pages 1 –5.

Marks, E. A. and Bell, M. (2006). Service-Oriented

Architecture (SOA): A Planning and Implementation

Guide for Business and Technology. Wiley, 1 edition.

Nazih, M. and Alaa, G. (2011). Generic service patterns

for web enabled public healthcare systems. In 2011

7th International Conference on Next Generation Web

Services Practices (NWeSP), pages 274–279. IEEE.

Rehem, A. and Oller, N. (2012). Projeto nota ﬁscal

eletrônica do varejo NFC-e.

Tchuta, L. and Chunhua, G. (2011). Atomic new

service pattern. International Journal of

Software Engineering and Its Applications,

5(International Journal of Software Engineering

and Its Applications):1–20.

Thom, L., Reichert, M., and Iochpe, C. (2009). Activity

patterns in process-aware information systems: Basic

concepts and empirical evidence. International

Journal of Business Process Integration and

Management (IJBPIM), 4(2):93–110.

Thom, L. H., Lau, J. M., Iochpe, C., and Mendling,

J. (2007). Extending business process modeling

tools with workﬂow patterns reuse. In International

Conference on Enterprise Information Systems,

ICEIS, 9., Angers. Proceedings. ICEIS Press.

ReuseofServiceConceptsBasedonServicePatterns

297
