Evaluating the Effort for Modularizing Multiple-Domain

Frameworks Towards Framework Product Lines with

Aspect-oriented Programming and Model-driven Development

Victor Hugo Santiago C. Pinto

, Rafael S. Durelli

, André L. Oliveira

and Valter V. de Camargo

Advanced Research Group on Software Engineering (AdvanSE)- Computing Department,

Federal University of São Carlos, Washington Luís highway - km 235, 13.565-905, São Carlos, SP, Brazil

Institute of Mathematical and Computer Sciences, University of São Paulo, São Carlos, SP, Brazil

Keywords: Multiple-Domain Frameworks, Framework Product Lines, Framework Modularization.

Abstract: Multiple-Domain Frameworks (MDFs) are frameworks that unconsciously involve variabilities from several

domains and present two main problems: i) useless variabilities in the final releases and ii) architectural

inflexibility. One alternative for solving this problem is to convert them into Framework Product Lines

(FPL). FPL is a product line whose members are frameworks rather than complete applications. The most

important characteristic of FPLs is the possibility of creating members (frameworks) holding just the

desired variabilities. However, the process of converting an MDF into an FPL is very time-consuming and

the choice for the most suitable technique may improve significantly the productivity. The main focus of

this paper is an experiment that evaluates two techniques that are usually considered for dealing with

features: model-driven development and aspect-oriented programming. Our experiment was conducted

comparing the effort in converting an MDF called GRENJ into an FPL called GRENJ-FPL The results

showed significant differences regarding the time spent and the occurrence of errors using both techniques.

1 INTRODUCTION

Frameworks are reuse infrastructures that aim to

make the development of applications more

productive by reusing both design and source-code

from specific domains. The reuse process of a

framework is known as instantiation, which consists

in selecting variabilities to address application

requirements (Johnson, 1991; Gamma et al., 1995).

Regardless of the way a framework is instantiated,

all of its variabilities are usually carried along with

the application code in the final release. That is,

irrespective whether we are developing a small or a

huge application, the same set of features will be in

the final release (Batory et al., 2000).

Frameworks are widely adopted when they offer

a vast set of variabilities that cover as many domain

requirements as possible. Consequently, during

evolution processes, it is natural the inclusion of new

variabilities aiming to attend clients from new

domains. However, when the evolutions are not

properly managed and designed, certain added

variabilities may go beyond the borders of the

original conceived domain, i.e., the new variabilities

can belong to a domain/subdomain different from

that one originally covered by the framework. When

this happens, the framework becomes so broad that

supports the development of applications in different

domains; or at least in domains not previously

thought (Batory et al., 2000; Oliveira et al., 2012).

This brings many consequences, but the most

evident one is that applications will include in their

final release a lot of variabilities from other

domains, which will never be useful. We call this

kind of frameworks “Multiple-Domain

Frameworks” (MDF), because they provide a wide

set of variabilities for more than one

domain/subdomain (Codenie et al., 1997). This kind

of framework present problems for Framework

Engineers (FE) and Application Engineers (AE). For

AEs, it is necessary to select variabilities from a too

vast set; what may decrease their productivity. For

FEs, besides the maintenance become very complex,

the MDF architectural inflexibility prevent them to

compose smaller and more constrained frameworks.

Framework Product Line (FPL) is a Software

Product Line (Clements and Northrop, 2001) whose

composition of features does not result in

Hugo Santiago C. Pinto V., S. Durelli R., Oliveira A. and V. de Camargo V..

Evaluating the Effort for Modularizing Multiple-Domain Frameworks Towards Framework Product Lines with Aspect-oriented Programming and

Model-driven Development.

DOI: 10.5220/0004894900600070

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 60-70

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

conventional applications, but in frameworks. So,

the members of an FPL are frameworks that still

need to be instantiated to create or to support the

development of final applications. There are two

main goals behind the idea of FPLs: i) allowing a

more productive development of different

frameworks that share a common set of reusable

assets and ii) allowing the composition of

frameworks that contain just the variabilities likely

to be used in its domain, that is, preventing the

creation of frameworks with useless variabilities

(Batory et al., 2000; Kästner et al., 2009). As the

main problem of MDFs is one of the main goals of

FPLs (goal ii) we recognize that FPLs is a promising

alternative for solving the problems of MDFs, that

is, the conversion of an MDF into an FPL can solve

the aforementioned problems.

However, the process of converting an MDF into

an FPL is a time consuming and error-prone process

involving several activities. During this process one

important decision is regarding the technique which

must be employed during the conversion process

(Zanon et al., 2010). The productivity along this

process as well as the quality of the resulting MDF

is highly dependent on the technique used. Aspect-

Oriented Programming (AOP) (Kiczales et al., 1997;

Kiczales et al., 2001) and Model-Driven

Development (MDD) are two promising

technologies that are widely employed to deal with

features in software product lines (Mezini and

Ostermann, 2004; Trujillo et al., 2007; Voelter and

Groher, 2007; Gottardi et al., 2013).

In this paper we present an experiment that

compares the effort of converting an MDF into an

FPL using AOP with AspectJ (Kiczales et al., 2001)

and MDD with Acceleo Templates (Obeo, 2013).

The MDF used in the experiment was GRENJ

(Durelli et al., 2010), which is a framework

originally conceived to support the business-

transaction management domain. GRENJ is an MDF

because it involves three subdomains, so

applications that belong to one of those subdomains

and that were developed with the support of this

framework, carry with them a lot of variabilities

which will never be used. We analyzed the time

spent to modularize its subdomains and the problems

found in the derived members from the FPL

obtained.

Therefore, the main contributions of this paper

are: i) providing directions for those who needs to

decide which technology (AOP or MDD) is the most

suitable for converting MDFs into FPLs. ii)

revisiting the concept of FPL and MDF iii) provide a

quick overview of the process for converting an

MDF into an FPL.

In Section 2, the typical characteristics of the

MDFs are discussed. In Section 3, the FPL concept

is revisited and the main steps of our conversion

process are briefly described. In Section 4, the

structure of our experimental study and the results

are presented, in which the GRENJ subdomains

were modularized in order to obtain FPLs. In

Section 5, we present the related work and finally in

Section 6 the conclusions and future perspectives.

2 MULTIPLE-DOMAIN

FRAMEWORKS

Multiple-Domain Frameworks (MDFs) is a term we

have used to designate frameworks whose

boundaries go beyond just one domain, that is, they

provide variabilities to support the development of

several domains of the applications.

Conventional frameworks become MDFs when

they are submitted to a non-controlled and

unmanaged evolution process. As a consequence,

their architecture becomes inflexible avoiding the

composition of frameworks targeted to the domain

of applications. Since MDFs cover more than one

domain, applications that are developed with their

support involves in their final release variabilities

that will never be used by these applications.

So, one inherent problem of MDFs is the

presence of useless variabilities in specific sets of

applications, that is, variabilities that are not likely

to be used in the future (Batory et al., 2000). As a

result, MDFs present problems for Application

Engineers (AEs) and Framework Engineers (FEs).

AEs need to live together with a vast set of

variabilities and parts of them are useless to some

specific domains, impacting negatively on their

productivity. FEs do not manage to build smaller

framework versions thanks to the architectural

inflexibility.

These characteristics of the MDFs are common

and real difficulties. For instance, if an application is

developed using the Hibernate (JBoss-Community,

2013), the final release will include the object code

of both the application and the whole framework,

regardless of the amount of variabilities that is used.

Based on available documentation about

Hibernate (Bauer and King, 2004; JBoss-

Community, 2013), we identified that although there

were parts separately available, such as: ORM

(Object/Relational Mapping), Shards, Search, Tools,

Validator, Matamodel Generator e OGM

EvaluatingtheEffortforModularizingMultiple-DomainFrameworksTowardsFrameworkProductLineswith

Aspect-orientedProgrammingandModel-drivenDevelopment

(Object/Grid Mapper), there are other modules

provided together with the core and are not always

used in applications. These modules have

variabilities to address certain technical subdomains

regarding to platform of the applications.

For instance, “Envers” is highly common in SaaS

(Software as a Service) in which the software

deployment model allows the users to access a

specific application or module that is hosted by the

vendor as needed. Another example is “OSGi” that

is designed for highly dynamics applications and

thus they need to be frequently modified. In these

applications, the components must be installed,

deactivated, and uninstalled during runtime, without

requiring a system restart. Furthermore, this

framework supports the development in several

databases, so it has many dialects and kinds of

transactions and sessions.

In general, the whole framework is kept along

with the application, even if few variabilities are

actually used. However, since there is the possibility

of using the other non-used variabilities when the

application evolves, this is not recognized as a

problem, because this is a framework characteristic.

On the other hand, in cases as Hibernate, there

are variabilities not likely to be used in certain sets

of applications. To clarify this idea, when we type

for a period, it is possible select a variability of

Hibernate from the list that is showed. Regardless of

the domain or complexity of the application that we

are developing, the same set of variabilities is

presented and, as aforementioned, there are specific

variabilities covered by Hibernate to address

different application domains.

3 FRAMEWORK PRODUCT

LINES

A “Framework Product Line” is a kind of Software

Product Line whose members are frameworks rather

than concrete and functional applications. Thus, the

features composition in FPLs results in frameworks

that still need to be instantiated or coupled to

concrete applications to work properly (Zhang and

Jacobsen, 2004; Camargo and Masiero, 2008;

Batory et al., 2000; Oliveira et al., 2011).

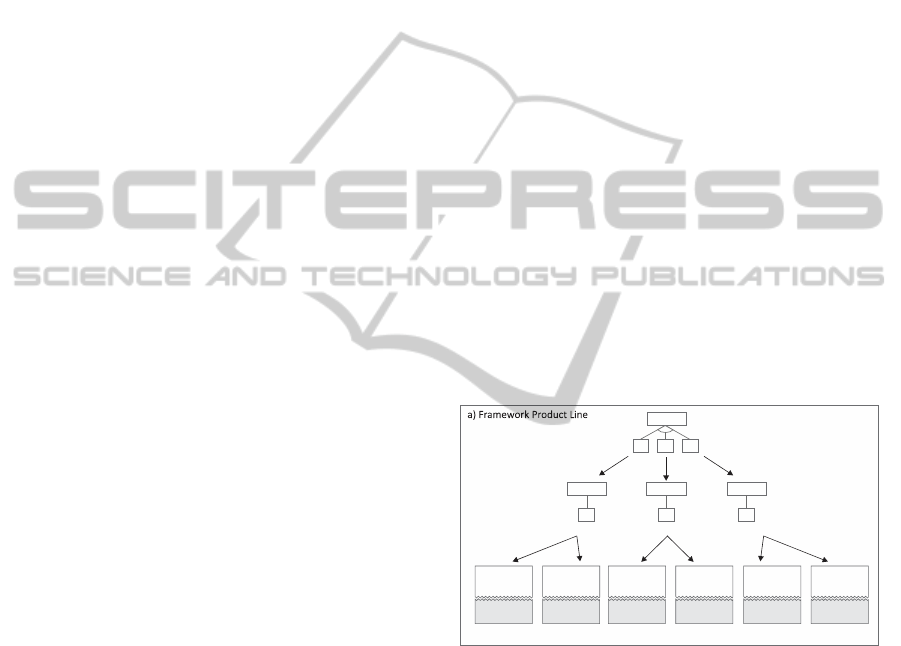

Figure 1 illustrates the main idea of an FPL. In

the part (a), there is a feature model which

represents an FPL. In the part (b) there are

framework members generated from the FPL. In the

part (c), we can see the applications that were

developed with framework members support.

In the part (a), the common part is called Core and

the other features stand for the subdomains S1, S2

and S3. The reason for creating this FPL is to allow

the reuse of the Core, since there are common

variabilities that may be used in both subdomains; if

this is not the case, the ideal would be three entirely

independent frameworks. In the case of this FPL, the

subdomains are disjoint, i.e., although there is a

common set of variabilities, there are specific

variabilities to address only one of them. In that

way, the three members from this FPL are possible

to be built, as illustrated in the part (b). For instance,

there is a set of applications which can be developed

and evolved with a framework containing only the

features Core and S1 without the remaining

variabilities, as it is shown in the part (c).

In this paper, we consider only FPLs with

coarse-grained features, i.e., features in subdomain

level. Thus, their variabilities are associated with

subdomains or separated in a common part forming

the feature Core. However, an FPL can also be

developed in order to obtain fine-grained features. In

this case, it will have a more flexible architecture,

because with the variabilities separated into a greater

set of features and combinations among them, it is

possible to compose members more targeted and

constrained to the applications requirements.

Figure 1: Framework Product Line.

Regardless of the granularity of the features, an

FPL should be modularized in a way that does not

allow the composition of frameworks with features

that will never be used for certain sets of

applications. We believe that the most common

situation is the generation of large frameworks from

FPLs with coarse-grained features. However, if

necessary, someone can build FPLs with a larger

number of fine-grained features for the provision of

various frameworks with slightly different

characteristics.

One important point to be highlighted is that in

an FPL with fine-grained features, when applications

evolve, they may ask for features that do not exist in

b)DerivedFrameworks

c)Applications

Core

framework1 framework2framework3

App1

modules

App2

modules

App3

modules

App4

modules

App5

modules

App6

modules

App1 App2 App3 App4 App5 App6

framework1 framework1 framework2 framework2 framework3 framework3

S1 S2 S3

Core

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

the restricted version of the framework. Thus, it is

important to have an “on-demand feature selection

and composition” strategy. Therefore, there must be

a mechanism for searching new features in the FPL,

checking them out and composing them to the

framework. This is important, but it is out of the

scope of this paper.

The main motivation for an FPL with coarse-

grained features is to identify if a framework

comprehends more than one subdomain, that is,

when using it to develop applications that are

specific to the framework subdomain. A set of

features may not be used during instantiation;

nonetheless, since they belong to the same

subdomain of the developed application, they are

likely to be used in the future. As the granularity of

the FPL features is coarse, one may create wider

frameworks. This means that applications can evolve

without having to seek features that are not in the

framework. The number of features that are carried

along with the application is much higher, though; it

is a trade-off.

3.1 Conversion Process

To transform MDF into FPL, we developed a

conversion process that requires several activities. In

this paper, we briefly describe only the relevant

details of the process in the context of our

experimental study.

First of all, it is important to identify the

subdomains covered by MDF. A way to perform this

task is to consider all available information about the

framework, such as documentation, previous

knowledge and developed applications with its

support. For instance, GRENJ was developed based

on a pattern language called GRN (Braga et al.,

1999) and applications developed with its support

involve rental, trade and maintenance transactions of

business resources. In that way, we consider as

subdomains: Rental, Trade and Maintenance.

Secondly, we suggest creating a feature model

(Kang, 1990) to represent the subdomains. For this,

it is necessary to make proper decisions based on

domain knowledge to define the properties and

relationship among features.

In case of GRENJ, it is important to note that this

framework was developed to address applications in

a constrained domain, i.e., small businesses as video

store, etc. Then, we identified that applications from

Rental subdomain can evolve and use the

variabilities from Trade and vice-versa. Thus, Rental

and Trade can stay together, but separated from

Maintenance. Applications from Rental subdomain

do not need to use the variabilities from

Maintenance subdomain. However, the applications

from Trade subdomain can evolve adding

Maintenance. In that way, we established “or”

relationships among features and we also defined an

“excludes” constraint between Rental and

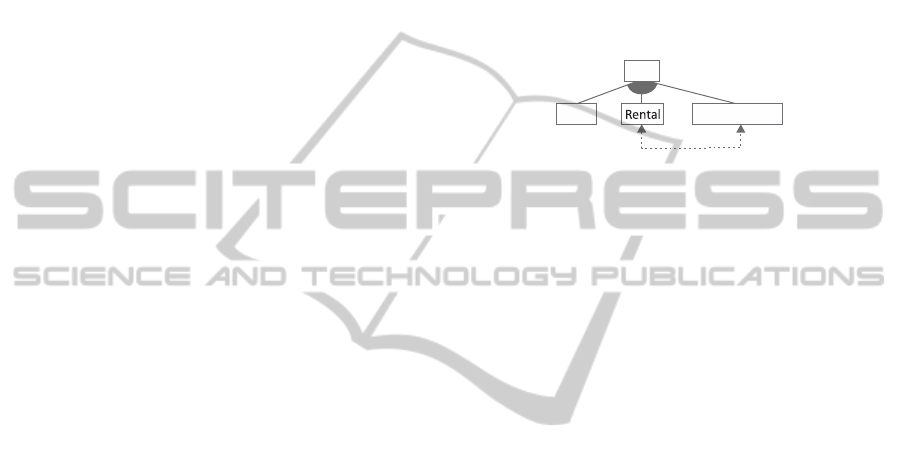

Maintenance (Barreiros and Moreira, 2011). Figure

2 shows the feature model for GRENJ framework.

Note that, besides the features to represent each

subdomain, there is a feature called Core because

there are common variabilities among the

subdomains.

Figure 2: Features model for GRENJ.

Afterwards, we need to identify the modular

units that collaborate with the implementation of

each feature. Regarding to this issue, it is important

to know the framework architecture in order to

identify which pieces of code must be modularized

to obtain an FPL. After this identification, a proper

technique must be selected to modularize the

features and obtain an FPL that is flexible in

architectural terms.

4 EXPERIMENT

This section describes an experiment that compares

the effort to convert an MDF into an FPL using two

techniques: Aspect-Oriented Programming (AOP)

using AspectJ (Kiczales et al., 2001) and Model-

Driven Development (MDD) using Acceleo (Obeo,

2013). We have chosen AOP because it is the most

well-known technique for modularizing crosscutting

concerns and AspectJ language because is the most

disseminated AOP language. Concerning MDD, we

have chosen Acceleo because it allows associating

pieces of code with their respective features and

generating source-code from models. The MDF used

as our case study was GRENJ.

The aim of the experiment is to assist domain

engineers in choosing the most suitable technology

to be used when converting an MDF into an FPL. It

is important to highlight that the experiment does

not aim neither to evaluate the conversion process

nor to show that an FPL is better or worse than an

MDF. As the time spent to conduct the conversion

is so important as the quality of the obtained FPL,

we also take into account the number of errors in

Core

MaintenanceTrad e

excludes

EvaluatingtheEffortforModularizingMultiple-DomainFrameworksTowardsFrameworkProductLineswith

Aspect-orientedProgrammingandModel-drivenDevelopment

members derived from the FPL.

As previously discussed, the process to convert

an MDF requires three high-level activities.

Considering the complexity in performing these

activities, we have decided to evaluate just the third

activity. Thus, we had previously identified the

MDF subdomains and provided the final feature

model to the subjects. This feature model is the same

illustrated in Figure 2.

4.1 Planning

The experiment was planned mainly to answer the

following research questions: RQ1: “Is the

productivity different when using AOP or MDD

to convert an MDF into an FPL?”, and RQ2: “Is

there difference in terms of structural and

inconsistence errors when using AOP or MDD?”

To answer the first question, we gathered and

assessed the time spent to make the conversion. It is

important to notice that the total time spent includes

the time to handle errors found in the resultant FPLs’

members. Similarly, to answer the second question,

we analyzed a form that the subjects had filled

informing the errors they had found. The planning

phase was divided in six parts that are described in

the next subsections.

4.1.1 Context Selection

The experiment was conducted involving graduate

students in Computer Science and it was performed

in a laboratory at the university.

4.1.2 Hypothesis Formulation

The RQ1 was formalized as follows: Null

hypothesis, H

There is no difference between the

AOP and MDD in terms of time spent to obtain an

FPL from an MDF, that is, the techniques are

equivalent.

Alternative hypothesis, H

There is difference

between the AOP and MDD in terms of time to

obtain an FPL. Thus, the techniques are not

equivalent. Hypotheses for the RQ1 can be

formalized by equations 1 and 2:

: μ

AOP

= μ

MDD (1)

: μ

≠ μ

(2)

Similarly, the RQ2 was also formalized in two

hypothesis, as follows:

Null hypothesis, H

There is

no significant difference between the AOP and

MDD in terms of errors found in the outcome FPLs’

members. Thus, the techniques are equivalent.

Alternative hypothesis, H

There is difference

between AOP and MDD in terms of errors found in

the outcomes FPLs’ members. Thus, the techniques

are not equivalent. Similarly, the hypotheses for the

RQ2 can be formalized by equations 3 and 4:

AOP

MDD

(3)

≠

(4)

4.1.3 Variable Selection

The dependent variables are: (i) the “time spent to

restructure an MDF into an FPL” and (ii) the

“number of errors found in the outcome FPL

members”. The independent variables are: (i) FPL:

The subjects were asked to create two FPLs from the

given MDF. The only difference between the

resultant FPLs was the employed techniques, i.e.,

either AOP or MDD; (ii) Trade and Rental

subdomains from GRENJ.

4.1.4 Selection of Subjects

Subjects were selected according to convenience

sampling (Wohlin et al., 2000). Fourteen students

from the Computer Science post-graduate program

participated in the experiment. The scope of their

attendance was the “Topics in Software

Engineering" course.

4.1.5 Experiment Design

The experiment followed the general design

principle of grouping the subjects in homogeneous

blocks (Wohlin et al., 2000). Thus, it was possible to

avoid a direct impact of the experience level in the

treatment outcomes of the restructuring technique

factor, increasing the accuracy of the experiment.

In order to divide the subjects in balanced

groups, we firstly asked them to fill out a

Categorization Form with questions about their

experience level in themes related to the experiment

– this was the self-avaliation. Later, we asked them

to solve some experiment-related exercises to check

their solutions against the self-evaluation to verify if

what they had said about themselves was really true.

So, based on these data we divided them in two

blocks of seven subjects. These groups were

submitted to a pilot experiment, and based on the

data gathered from the pilot we rearranged the

groups again for the real experiment.

The Categorization Form included questions

regarding to the knowledge about: Java, AspectJ,

Acceleo, Developer Level, GRENJ, GRN and

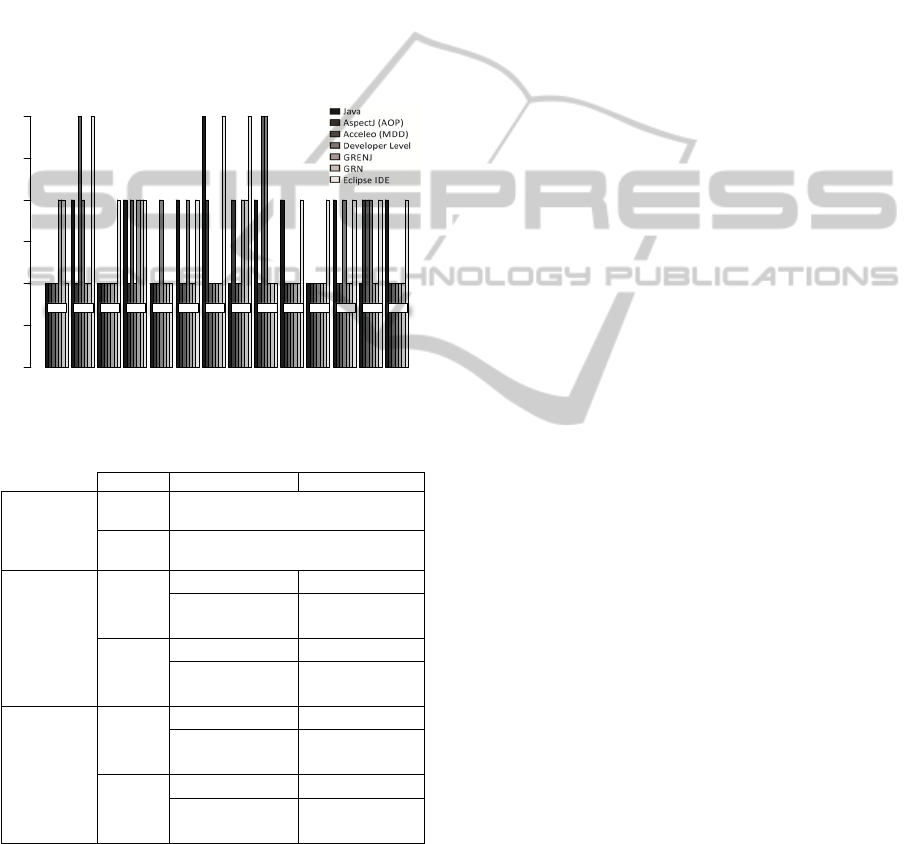

Eclipse IDE. Figure 3 describes the results of the

application of this form in a grouped bar graph. This

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

graph illustrates the levels of experience of all

subjects as well as the average level of them, i.e., the

rectangles overlapped with labels. These levels were

gathered to quantify the weight between the degrees

of knowledge of each subject, e.g., scales 1 through

3 wherein: 1 (one) represents that the subject has

basic level, 2 (two) represents that the subject has

medium level, and 3 (three) represents that the

subject has high level of experience. Based on these

data, the subjects were separated into two balanced

groups, considering the Categorization Form,

exercises and data collected from pilot experiment.

The subjects S1 to S7 belong to group 1 and the

subjects S8 to S14 are from group 2.

Figure 3: Experience level of all subjects.

Table 1: Experiment Design.

Phase Group 1 Group 2

Training

Phase

Development Techniques: AOP and

MDD

Phase

Restructuring of the GRENJ towards

FPL using AOP and MDD

Pilot

Phase

MDD AOP

*Modularizing the

Trade Subdomain

*Modularizing the

Rental Subdomain

Phase

AOP MDD

*Modularizing the

Rental Subdomain

*Modularizing the

Trade Subdomain

Real

Experiment

Phase

MDD AOP

Modularizing the

Trade Subdomain

Modularizing the

Rental Subdomain

Phase

AOP MDD

Modularizing the

Rental Subdomain

Modularizing the

Trade Subdomain

Table 1 shows the experiment configuration.

During the Training, every subject was introduced to

both AOP, using AspectJ, and MDD, using Acceleo

templates. Afterwards, they were taught on how to

use these technologies to modularize the Trade and

Rental subdomains of the GRENJ into features of

the target FPL. Notice that the subjects had not

converted the whole GRENJ, just two of its

domains. However, we claim that this was enough to

evaluate the given technologies.

As can be seen in Table 1, the steps Pilot and

Real Experiment have the following activities:

“Modularizing the Trade Subdomain” and

“Modularizing the Rental Subdomain”, using either

MDD or AOP. The result of each modularization is

a "partial FPL" that allows generating some

members. These members contain just the

variabilities related to the modularized subdomain,

avoiding the presence of variabilities that belong to

others domains. For instance, the modularization of

the Rental subdomain results in a partial FPL that

allows generating a framework without the features

of the Trade and Maintenance subdomains. In order

to test FPL members, we provided a workspace with

ready applications to use the members. Thus, the

subjects added the member to the applications and

then, they executed the test case.

The activities in the pilot and in the real

experiment had the same descriptions. They were

not exactly the same because this would threaten the

validity of the obtained data in the real experiment.

Thus, for each activity of the subdomains

restructuration, we provided different versions of the

Trade and Rental subdomains. To indicate this

difference, in the activities of the pilot experiment

there is “*”, meaning a different version of the

subdomains used in the real experiment.

The size and complexity in modularizing both

subdomains were equivalent. For instance, the

modularization of both Trade and Rental

subdomains required the modularization of 6 full

classes and 17 methods scattered over 7 classes.

That is, the activity “Modularizing the Trade

Subdomain” in the pilot required that 17 methods

scattered over 7 classes and 6 whole classes should

be modularized. This activity, in the real experiment,

required the same effort, but with others methods

and classes. The same is valid for the modularization

of the Rental subdomain.

4.1.6 Instrumentation

To assist the subjects in the conversion process, we

provided them with a document which shows the

mapping between classes and features of the

GRENJ, simulating as if they had already done these

activities previously. Therefore, it was

straightforward for the subjects to identify which

classes collaborate with the implementation of the

features. Table 2 illustrates part of this mapping

document.

The lines represent the features and the columns

represent the MDF classes. Each cell marked with

0.0

0.5

1.0

1.5

2.0

2.5

3.0

Java (OOP)

AspectJ (AOP)

Acceleo (VSC)

Developer Level

GRENJ

GRN

Eclipse IDE

1.29

1.86

1.14

1.71 1.14

1.43

1.71 1.71

1.71

1.29 1.14 1.43

1.57 1.29

S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14

EvaluatingtheEffortforModularizingMultiple-DomainFrameworksTowardsFrameworkProductLineswith

Aspect-orientedProgrammingandModel-drivenDevelopment

“X” indicates that class collaborates with the

implementation of that feature. For instance,

AbstractCalculator is a class that contributes to the

implementation of the Core feature and

BasicDelivery contributes to the Trade feature.

Furthermore, we also had inserted comments in the

source code of the classes to indicate which pieces

of code were related to the features. In addition, we

also provided the class documentation and a guide

with the steps that must be followed during the

conversion process.

Table 2: Mapping between Classes and Features of the

GRENJ.

AbstractCalculator

BasicDelivery

BasicMaintenance

BasicNegotiation

BasicPurchase

BasicSale

BusinessResourceQuotation

BusinessResourceTransaction

Cash

CashOnDelivery

Classes

Features

Core X X X X X X

Trade X X X

Rental

Maintenance X

Thus, with the feature model and the mapping

document at hand, the subjects were asked to obtain

two FPLs, each one with a different modularization

technique, but equivalent in terms of functionally,

complexity and composition alternatives.

4.2 Operation

Once the experiment had been defined and planned,

it was performed according to the following steps:

preparation, operation, and validation of the

collected data.

4.2.1 Preparation

At this stage, the students got committed with the

experiment and they were made aware its purpose.

Thus, they accepted the terms regarding the

confidentiality of the provided data, which would be

only used for academic purposes, and their freedom

to withdraw, by signing a Consent Form. In addition

to this form, other objects were provided as follows:

 Characterization Form: Questionnaire in which

the participants assessed their knowledge about

on the technologies and concepts used in the

experiment;

 Support Material: Roadmap describing the steps

to restructure the Trade and Rental subdomains

of the GRENJ;

 Data Collection Form: Document containing

empty spaces to be filled by the participants to

record the start and finishing time of each

activity during the experiment.

In order to avoid interference between the time

spent in learning AOP and MDD techniques, a 24

hours training, divided into six daily meetings of

four-hours, was planned and provided to all

participants. Thus, everybody was able to perform

the activities proposed in the experiment.

The platform adopted to perform the experiment

consisted of Java as implementation language,

AspectJ as aspect-oriented language, Acceleo

templates as a tool to create the rules of source code

generation and the Eclipse IDE as development

environment.

4.3 Data Analysis

This section presents our findings. The analysis is

divided into two points: (i) descriptive statistics and

(ii) hypotheses testing.

4.3.1 Descriptive Statistics

Herein we provide descriptive statistics of the

experiment data. The data collected during the

experiment are depicted in Table 3: (i) the time

employed for each subject for restructuring the

GRENJ into two FPLs, using both MDD and AOP

and (ii); the types and number of problems found in

the resultant FPL members.

Before applying statistical methods, we verified

the quality of the input data (Wohlin et al., 2000).

Incorrect data sets can be obtained due to

systemantic errors or the presence of outliers, which

are data values that are much higher or much lower

than expected when compared with the remaining

data. Therefore, we used box plot (Wohlin et al.,

2000) as a way to identify outliers. Figure 4 shows

the box plot based on time spent by all subjects.

As result, we identified just one subject, the

“S11”. Thus, we did not consider the data collected

from this subject in the average time and in the

average of the number of problems foud. It is also

important to note that although the time consumed

is unbalanced, the subjects were separated in a

balanced way, as described earlier.

Table 3 shows that for most subjects, AOP

technique spent more time to restructure the GRENJ

subdomains than the MDD, i.e., aproximately 53%

against 47%. This result is due to the fact that, in the

AOP, the subjects obtained more errors regarding

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

the inconsistency and structure, 9 out of 13 subjects

considered specifically, concluded the restructuring

with more time. On the other hand, when the

subjects used MDD, they performed it with less

errors. Furthermore, in Table 3 it is possible

visualize two kinds of problems that we have found

in the FPL members: inconsistency and structure. It

is evident by observing this table that the MDD

technique guided all subjects to make less problems

than the AOP, i.e., 25% against 75% for

inconsistency and the same for structure,

respectively. By observing Table 3 we can remark

that the MDD, using templates conducts the

developer to make a design with less problems than

the AOP technique.

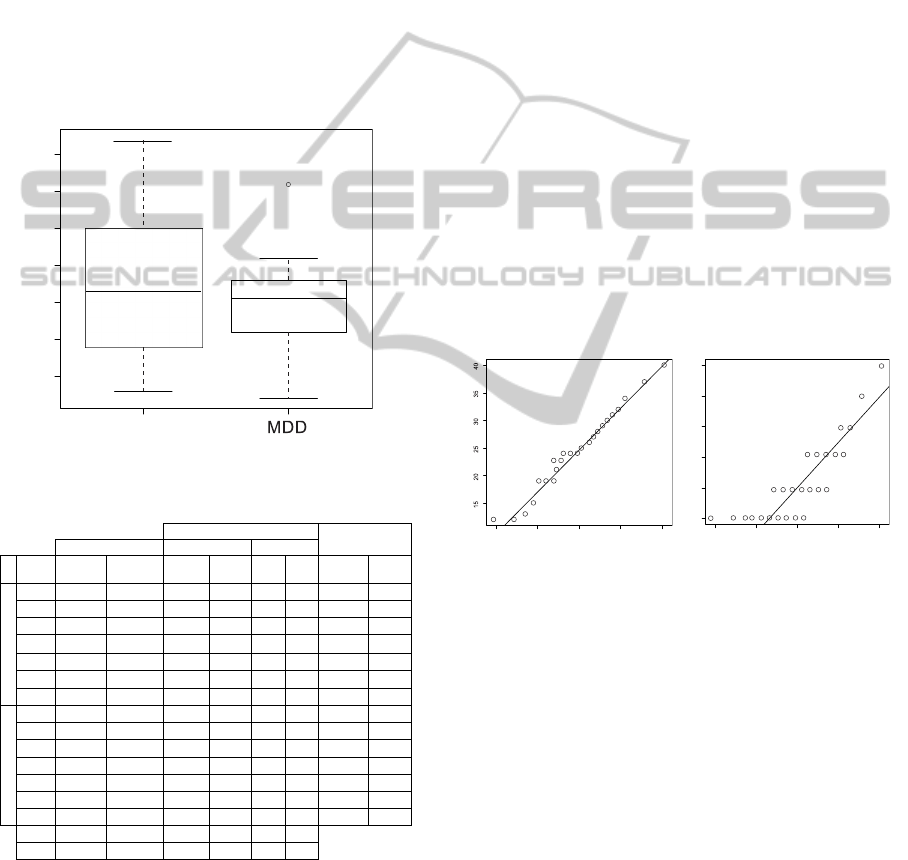

Figure 4: Box plot for the time spent by the subjects.

Table 3: Gathered Data.

Problems

Total number

of problems

Time (min) Inconsistency Structure

G S

MDD AOP MDD AOP MDD AOP

Total

MDD

Total

AOP

S1 26 24 0 5 0 0 0 5

S2 24 23 1 2 0 0 1 2

S3 12 19 0 0 0 2 0 2

S4 27 37 0 1 1 3 1 4

S5 28 29 0 0 0 0 1 0

S6 24 40 0 0 0 1 0 1

S7 19 23 0 0 0 0 0 0

S8 25 13 1 0 2 0 3 0

S9 12 15 0 1 0 1 0 2

S10 21 19 1 1 0 2 1 3

°S11 41 47 0 4 0 0 0 4

S12 26 32 0 0 0 2 0 2

S13 30 35 1 1 0 1 1 2

S14 31 34 0 1 1 0 1 1

Avg. 23.46 26.38 0.31 0.92 0.31 0.92

% 47% 53% 25% 75% 25% 75%

4.3.2 Hypotheses Testing

Hypothesis Testing - Time: Since some statistical

tests only apply if the population follows a normal

distribution, before choosing a statistical test we

examined whether our gathered data departs from

linearity. Therefore, we have used Shapiro-Wilk test

on the gathered time; this is shown on third and

fourth column in Table 3 (group by Time(min)).

These data represent the time that all subjects spent

to devise an FPL by using both MDD and AOP. For

these data the p-value is 0.8107, considering an α =

0.05. As a consequence, we do not reject the

hypothesis that the data are from a normally

distributed population, as can be seen in the Q-Q

plot which is plotted in Figure 5 (left side). In this

plot we also showed the results without the presence

of the outlier.

Afterwards, we have applied Paired T-Test in

these data. In order to carry out the test with the data

the following were calculated: d = {2, 1, -7, -10, -1, -

16, -4, 12, -3, 2, -6, -5, -3}, Sd = 6.726336 and t

= -

1.5669. The number of degrees of freedom is f=n-

1=13-1=12, and the confidence interval are -

6.987761 to 1.141607. According to Student’s t

Table, it can be seen that t 0.025,9 = 2.16037. As for

t0 < t 0.025,9 it is impossible to reject the null

hypothesis with a two-sided test at the 0.05 level.

Therefore, statistically, we may assume that the time

needed to modularize an MDF into an FPL by using

both AOP and MDD are approximately equal.

Figure 5: Normality test.

Hypothesis Testing - Problems: Similarly, we

used Shapiro-Wilk test on both ninth and tenth

column. These data represent the amount of

problems that were found in the resultant FPL, by

using both the AOP and MDD. Therefore, for these

data the p-value is 0.001026, considering α = 0.05.

As p-value is less than alpha level we rejected the

hypothesis that the data are from a normally

distributed population. It is fairly evident by

observing the Figure 5 (right side) that the problems

lie nearly in a straight line, but not exactly,

indicating that the problems may not be i.i.d normal.

Thus, we used a non-parametric test, the Wilcoxon

signed-rank test. The signed rank of these data are

s/r = {-10, -2, -5.5, -8.5, -2, 8.5, -5.5, -5.5, -2}. As

result we got a p-value = 0.06549227, once p-value

is greater than 0.05, we can conclude that there is

not considerable difference between the means of

30 3

40 4

0 1 2 3 4 5

-2 -1 0 1 2 -2 -1 0 1 2

Normal Theorical

uantiles Normal Theorical

uantiles

Normal Data Quantiles

Normal Da

les

EvaluatingtheEffortforModularizingMultiple-DomainFrameworksTowardsFrameworkProductLineswith

Aspect-orientedProgrammingandModel-drivenDevelopment

the two treatments, considering the Wilcoxon

signed-rank test. Thus, we were not able to reject H

even though the number of errors obtained with

MDD were lesser (9 against 24, without outlier) than

errors obtained with AOP.

4.4 Threats to Validity

4.4.1 Internal Validity

 Experience Level of Participants: One can argue

that the heterogeneous knowledge of the subjects

could have affected the collected data. To

mitigate this threat, we divided the participants

into two-balanced blocks considering the

experience level and we rebalanced the groups

considering the preliminary results. During the

training, the subjects were trained on how to use

the AspectJ and Acceleo to restructure

frameworks in order to obtain FPLs;

 Productivity under evaluation: One can argue

that the results were influenced because the

subjects often tend to think they are being

evaluated by experiment results. In order to

mitigate this, we explained to the subjects that no

one was being evaluated and their participation

was considered anonymous;

 Facilities used during the study: different

computers and installations could affect the

recorded timings. However, the subjects used the

same hardware configuration and operating

system.

4.4.2 Validity by Construction

 Hypothesis expectations: the subjects already

knew the researchers, in which reflects one of our

hypotheses. This issue could affect the collected data

and cause the experiment to be less impartial. In

order to keep impartiality, we enforced that the

participants had to keep a steady pace during the

whole study.

4.4.3 External Validity

 Interaction between configuration and

treatment: it is possible that the exercises performed

in the experiment are not accurate for every

framework development for real world applications.

Only two FPLs were developed and they had the

same complexity. To mitigate this threat, the

exercises were designed considering framework

domains based on the real world.

4.4.4 Conclusion Validity

 Measure reliability: it refers to the metrics used

to measure the development effort. To mitigate

this threat we have used only the time spent,

which was captured in forms filled by the

subjects;

 Low statistic power: the ability of a statistic test

in reveals reliable data. To mitigate we applied

two tests: T-Tests to statistically analyze the time

spent to develop an FPL and Wilcoxon on

signed-rank test to statistically analyze the

number of problems found in the outcome FPL.

5 RELATED WORK

The most related work to ours is presented by

(Batory and Shepherd, 2011), introducing the

concept of Product Line of Software Product Line

(SPL

). The idea is to provide simpler specifications

and prevent the generated applications from

considering unnecessary features in product lines,

which core is extensive. Thus, it is demonstrated

that, from the analysis of the derived applications

from a product line, some applications require only

part of the core. Therefore, features can be

dissociated from the core, generating a greater

number of features, as well as a probably higher

number of combinations with the new features of the

line. This way, it is possible to generate applications

that only contain the essential features. MDFs are

fully considered by applications as an "indivisible

core". They do not provide experiments comparing

possible technologies to modularize the core of an

SPL. In our paper, we present a solution for

frameworks, but not for SPL. The solution avoids

unnecessary features in applications and improves

the architectural flexibility and the framework reuse

Another approach was proposed by (Xu and

Butler, 2006). The researchers presented a

methodology for restructuring of frameworks in

cascade. They consider that a framework can be

specified by a set of models and, through these, a set

of modularizations may be sequentially applied. The

modularization starts in the feature model, then in

the use case model and, after that, in the

architectural model till it achieves the source code.

In order to preserve the framework behavior after

each change, trace maps should be used among the

models. As a result of the process, decision records

regarding the transformations are analysed in order

to document and to completely restructure the

framework, with improvements in terms of

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

modularity, which reflect more effective levels of

maintenance. Considering their methodology, trace

maps can assist the modularization of MDFs in

FPLs. Their work presents just a strategy, but does

not concern about modularization criteria and an

empirical study comparing technologies that can be

applied in the modularization process.

6 CONCLUSIONS

The main focus of this work was to investigate the

impact AOP and MDD impose when converting a

MDF into a FPL. Although FPL principles are

technology and language independent, the process of

converting an MDF into a FPL is influenced by the

technology used. So, we concentrated on the i) the

time employed to convert an MDF into an FPL and

ii) the number of errors found in the resultant FPL

members.

Thus, it must be emphasized that the time spent

to make restructuration is not so important as the

quality of FPL obtained. A package containing the

tools, materials and more details about the

experiment steps is available at http://

www2.dc.ufscar.br/~victor.santiago/exp.zip.

The main findings of our experiment showed

that, in terms of productivity, there is no much

difference of using AOP or MDD. However, the

number of inconsistency and structural errors of the

resulting FPL members were significantly

influenced, that is, AOP got 50% more errors than

MDD. So, taking into consideration all the

limitations of our experiment, we conclude that

MDD with Acceleo templates is a better option.

An FPL provides a flexible architecture that

enables the creation of members that have a subset

of the features. These members are frameworks

completely aligned with the domain of these

applications, so they need to be instantiated in order

to obtain concrete applications. When converting

MDFs into FPLs, one can achieve greater flexibility

in the composition of features, which provide

smaller frameworks and also better productivity

levels by reducing errors in the instantiation process.

The flexibility of composing features of an FPL

enables to address the specific demands of

applications.

Considering the concepts presented, one of the

future perspectives of our work is to explore the

possibility of developing an SPL from an FPL that

was obtained from an application framework,

including the classes that instantiate it and, then,

compose and test the applications derived from this

line. Besides, we also intend to explore the synergy

between the concept of Software Ecosystems

(SECOS) (Jansen and Cusumano, 2012) and FPL.

This seems to be a very promising research field,

since an FPL may consist of several developers on a

distributed and open-source platform, that is, a

collaborative network.

One current limitation FPLs is the lack of a

comprehensive tool that supports the conversion

process. With a complete tool, it would also be

possible to investigate the impact of new features in

the architecture of an FPL, by analysing the

interferences they can cause in the existing ones. It

is also believed that the creation of a plugin to

visualize the mapping between features and classes

can assist FEs in the conversion process, by showing

which classes implement a particular feature and

which are affected in case a feature is selected.

Another interesting tool which could be

developed is one that could enable the creation of

FPL members at various abstraction levels. Firstly,

the FPL Engineer could create members with the

features of a given domain and, then, if necessary,

they would select a more specific set of features

from this subdomain.

ACKNOWLEDGEMENTS

The authors would like to thank CNPq (Process

560241/2010-0) and Fapesp (Process 2011/04064-8)

for financial support.

REFERENCES

Barreiros, J., Moreira, A., 2011. Soft Constraints in

Feature Models. In Proceedings of the 6th

International Conference on Software Engineering

Advances. ICSEA, pp. 136-141.

Batory, D., Cardone, R., Smaragdakis, Y., 2000. Object

Oriented Frameworks and Product Lines. In 1st

Software Product Lines Conference. SPLC1, pp. 227-

247.

Batory, D., Shepherd, C. T., 2011. Product Lines of

Product Lines. Technical Report, University of Texas,

Department of Computer Science.

Bauer, C., King, G., 2004. Hibernate in Action (In Action

series), Manning Publications Co.. Greenwich, CT,

2nd edition.

Braga, R. T. V., Germano, F. S. R., Masiero, P. C., 1999.

A Pattern Language for Business Resource

Management. In Proceedings of the 6th Pattern

Language of Programs Conference, pp. 1-33.

Camargo, V. V., Masiero P. C., 2008. An approach to

EvaluatingtheEffortforModularizingMultiple-DomainFrameworksTowardsFrameworkProductLineswith

Aspect-orientedProgrammingandModel-drivenDevelopment

design crosscutting framework families. In

Proceedings of the 2008 AOSD workshop on Aspects,

components, and patterns for infrastructure software,

pp. 1-6.

Clements, P., Northrop, L., 2001. Software Product Lines:

Practices and Patterns, Addison-Wesley Professional,

Boston, 3rd edition.

Codenie, W., Hondt, K., Steyaert, P., Vercammen, A.,

1997. From Custom Applications to Domain-Specific

Frameworks. Communications of the ACM, 40(10).

Durelli, V. H. S., Durelli, R. S., Braga, R. T. V., Borges,

S. S., 2010. A Domain Specific Language for

Lessening the Effort Needed to Instantiate

Applications Using GRENJ Framework. In:

Information Systems Brazilian Symposium, pp. 31-40.

Gamma, E., Helm, R., Johnson, R., Vlissides, J., 1995.

Design patterns: Elements of reusable object-oriented

software. Addison Wesley.

Gottardi, T., Durelli, R., López, O., Camargo, V. V., 2013.

Model-based reuse for crosscutting frameworks:

assessing reuse and maintenance effort. In Journal of

Software Engineering Research and Development, v.

1, p. 4-34.

Jansen, S., Cusumano, M., 2012. Defining Software

Ecosystems: A Survey of Software Platforms and

Business Network Governance. In Proceedings of the

4th Workshop on Software Ecosystems. IWSECO, pp.

41-58.

JBoss-Community, 2013. Hibernate http://

www.hibernate.org.

Johnson, R. E., 1991. Reusing Object-Oriented Design.

University of Illinois, Technical Report.

Kang, K. C., Cohen, S. G., Hess, J. A., Novak, W. E,

Peterson, A. S., 1990. Feature Oriented Domain

Analysis (FODA) Feasibility Study. Technical Report.

Kästner, C., Apel, S., Rahman, S. S. ur, Rosenmüller, M.,

Batory, D., Saake, G., 2009. On the impact of the

optional feature problem: analysis and case studies. In

Proceedings of the 13th International Software

Product Line Conference. SPLC, pp. 181-190.

Kiczales, G., Lamping, J., Mendhekar, A., Maeda, C.,

Lopes, C., Loingtier, J., Irving, J., 1997. Aspect

Oriented Programming. In: Proceedings of the

European Conference on Object-Oriented

Programming. ECOOP.

Kiczales, G., Hilsdale, E., Hugunin, J., Kersten, M., Palm,

J., Griswold, W. G., 2001. An overview of AspectJ. In

Object-Oriented Programming. Springer Berlin

Heidelberg. ECOOP, pp. 327-353.

Mezini, M., Ostermann, K., 2004. Variability management

with feature-oriented programming and aspects. In:

Proceedings of the 12th ACM SIGSOFT twelfth

international symposium on Foundations of software

engineering. SIGSOFT/FSE, pp. 127-136.

Obeo, 2013. "Acceleo" http://www.eclipse.org/acceleo/.

Oliveira, A. L., Ferrari, F. C., Penteado, R. A. D.,

Camargo, V. V., 2012. Investigating Framework

Product Lines. In: Proceedings of the 27th Annual

ACM Symposium on Applied Computing, pp. 1177-

1182.

Trujillo, S., Batory, D., Diaz, O., 2007. Feature Oriented

Model Driven Development: A Case Study for

Portlets. In Proceedings of the 29th international

conference on Software Engineering, ICSE, pp. 44-53.

Voelter, M., Groher, I., 2007. Product Line

Implementation using Aspect-Oriented and Model-

Driven Software Development. In 11th International

Software Product Line Conference. SPLC, pp. 233-

242.

Wohlin, C., Runeson, P., Höst, M., Ohlsson, M. C.,

Regnell, B., Wesslén, A., 2000. Experimentation in

software engineering: an introduction. Kluwer

Academic Publishers, Norwell.

Xu, L., Butler, G., 2006. Cascaded Refactoring for

Framework Development and Evolution. In

Proceedings of the Australian Software Engineering

Conference. ASWEC, pp. 319-330.

Zanon, I. B., Camargo, V. V., Penteado, R. A. D., 2010.

Reestructuring an Application Framework with a

Persistence Crosscutting Framework. In INFOCOMP

Journal of Computer Science, pp. 9-16.

Zhang, C., Jacobsen, H., 2004. Resolving feature

convolution in middleware systems. In Proceedings of

the 19th Annual ACM SIGPLAN OOPSL Conference,

pp. 188-205.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
