A Framework for Concurrent Design of Metamodels and Diagrams

Towards an Agile Method for the Synthesis of

Domain Speciﬁc Graphical Modeling Languages

François Pﬁster

, Marianne Huchard

and Clémentine Nebut

LGI2P, Ecole des Mines d’Alès, site de Nîmes, Parc Scientiﬁque G. Besse, 30000 Nîmes, France

LIRMM, CNRS, Université Montpellier 2, 161 rue Ada, 34095 Montpellier Cedex 5, France

Keywords:

Model Driven Architectures and Engineering, Modeling Formalisms and Notations, Domain Speciﬁc

Languages, Graphical Syntax, Concrete Syntax.

Abstract:

DSML (Domain Speciﬁc Modeling Languages) are an alternative to general purpose modeling languages

(e.g. UML or SysML) for describing models with concepts and relations speciﬁc to a domain. DSML design

is often based on Ecore metamodels, which follow the class-relation paradigm and also require deﬁning a

concrete syntax which can be either graphical or textual. In this paper, we focus on graphical concrete syntax,

and we introduce an approach and a tool (Diagraph) to assist the design of a graphical DSML. The main

principles are: non-intrusive annotations of the metamodel to identify nodes, edges, nesting structures and

other graphical information; immediate validation of metamodels by immediate generation of an EMF-GMF

instance editor supporting multi-diagramming. We report a comparison experience between Diagraph and

Obeo Designer (a commercial proprietary tool), which was conducted as part of a Model Driven Engineering

Course.

1 INTRODUCTION

Practitioners who model technical or sociotechnical

systems master usual notations such as those pro-

posed by UML (Omg, 2006). This language pro-

vides a ﬁnite number of concepts and notations for

expressing structural and behavioral views of the sys-

tems under study. In some cases, the UML notations

are too generic, and practitioners have to deﬁne ex ni-

hilo a language which is able to handle their speciﬁc

concepts. In this case, they often start with a class-

relation formalism, either extending UML, or using

MOF (Omg, 2006), a class based language, to deﬁne

the concepts which were previously unavailable, so as

to obtain a new language tailored to their ﬁeld. Deﬁn-

ing such a language thus includes two major phases:

ﬁrst, the abstract syntax is deﬁned with the use of a

class diagram, and second, a concrete syntax is pro-

posed, to specify the form of (textual or graphical)

statements that conform to the abstract syntax. In

this paper we are interested in graphical concrete syn-

taxes. These have been somewhat neglected by lan-

guage theorists: there is no consensus, as this exists

with MOF for abstract syntaxes or EBNF (Garshol,

2003) for textual concrete syntaxes, about a descrip-

tion language for graphical concrete syntaxes. Indeed,

designing and implementing a graphical notation is a

complex activity requiring signiﬁcant expertise, both

in its semiotic and cognitive concerns, and in its tech-

nical and operational aspects.

Several solutions for developing graphical syn-

taxes exist, but none of them satisﬁes all our needs.

In particular, we are interested in a framework that of-

fers at the same time: an easy to use solution, a native

support of the multi-view paradigm, a native or easy

support of nested nodes, an integration in the Eclipse-

OSGI ecosystem, which is a de facto standard in the

Model Based Engineering ﬁeld, an open technology,

with a published metamodel, MOF compliant, and a

released tool (regularly updated).

In this paper, we propose a method and a tool

(Diagraph) for agile development of graphical model-

ing languages on top of Ecore (Budinsky et al., 2003).

The objective of Diagraph is to design Domain Spe-

ciﬁc Modeling Languages (DSML). These languages

are closely tailored to elicit models representing com-

plex systems in general, even beyond software engi-

neering. Such models, even if they belong to a spe-

ciﬁc domain, must describe in general, structural con-

cepts (composite things), operational concepts (work-

298

Pﬁster F., Huchard M. and Nebut C..

A Framework for Concurrent Design of Metamodels and Diagrams - Towards an Agile Method for the Synthesis of Domain Speciﬁc Graphical Modeling

Languages.

DOI: 10.5220/0004895202980306

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 298-306

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

ﬂows, processes) that convert composite things or be-

haviors that deﬁne the states of the systems. The

Diagraph framework provides a set of tools and pro-

cesses that supports the design of these languages, by

deﬁning simultaneously their abstract syntax (meta-

model) and their concrete syntax (notation and dia-

grams). The Diagraph description language allows us

deﬁning a new graphical modeling language by an-

notating the metamodel (abstract syntax). Diagraph

includes the multiple view paradigm.

We also aim to integrate Diagraph into the Eclipse

ecosystem, and to comply with the current standards

of Model Based Engineering (MBE). Thus, we de-

signed Diagraph as a technical overlay over GMF

(Gronback, 2009), which is powerful but overly com-

plex for the end user. In addition, we propose a pro-

cess, which lacks in most of the existing propositions.

In our context of academic research, we wish to pro-

pose an open tool and its related concepts at the dis-

posal of the MBE community. At the end of this paper

we relate an experiment, where we compare Diagraph

and Obeo Designer (Juliot and Benois, 2009), a pro-

prietary framework.

In Section 2, we study the existing state of the

art. In Section 3 and 4 we present our contribution:

A process in two phases, some key features of our

tool, the Diagraph language, and its underlying meta-

model. In Section 5 we give a use-case that typiﬁes

the problem of designing a graphical concrete syntax

while designing the metamodel. In Section 6, we re-

late the experiment we did to compare Diagraph and

Obeo Designer. We conclude in Section 7 and discuss

future research directions.

2 STATE OF THE ART

In this section, we study frameworks which are able

to generate graphic editors from which we can cre-

ate models, that are instances of a given metamodel.

Main inputs of the tools that generate such editors

are the given metamodel and parameters provided by

the modeling expert. The degree of automation of

the generation process remains a challenge (Baetens,

2011). We list below some existing solutions.

GMF (Gronback, 2009) is a framework based on a

mapping between Ecore, and Gef, a Graph Drawing

engine which is a part of Eclipse (Eclipse, 2001). This

framework is powerful, but poorly documented, and

therefore requires a huge technical expertise, this re-

sults in a steep learning curve.

ModX (Renaux et al., 2005) is a graphic tool

used to create both models and metamodels based

on Ecore. It supports XMI format (import/export)

in order to be interoperable with other MDA tools.

The framework integrates the following functionali-

ties: edition of metamodels, graphical notations (view

types), and instance models. Several view types can

be deﬁned for a metamodel, and view types allow

nested structures. ModX has an outstanding main

feature: it is possible to change the underlying meta-

model or one of its graphical notation while editing a

related model. Even if ModX is Ecore compliant, the

framework is a standalone tool, and thus not able to be

integrated in contemporary tool chains based on plug-

in architectures such as the Eclipse (Eclipse, 2001)

ecosystem.

MetaEdit+ (Kelly and Tolvanen, 2008) is not

based on the Emf-Ecore stack, but on a speciﬁc meta-

metamodel named GOPRR (Graph, Object, Property,

Role and Relationship).

GME (Ledeczi et al., 2001) whose class graphi-

cal notation is, in addition, atypical is based on MS

Component Object Model technology. Microsoft Dsl

Tools has a proprietary meta-metamodel, while XMF

Mosaic’s is based on an infrastructure named XCore.

Obeo Designer (Juliot and Benois, 2009) is a mod-

eling environment based on the notion of points of

view as promoted by the IEEE1471 standard (IEEE,

2000). It can be integrated as a component of the

Eclipse platform (Eclipse, 2001). The Obeo technol-

ogy is based on EMF and GMF-Runtime. In addition

to the diagrammatic notation, Obeo also represents

models with tables and tree views. Obeo process be-

gins by deﬁning the vocabulary of the domain (con-

cepts and their relationships, through a metamodel).

During the second phase, the concrete syntax is built

by creating diagram elements by means of a form

based editor, and by associating these graphical ele-

ments with the metamodel elements. Styles are also

associated with the graphical elements. Constraints

on the model can be expressed in an OCL-like lan-

guage. The user experience of Obeo Designer goes

through capturing the concrete syntax by the mean

of property editors, through a process, which is de-

scribed in a user guide. That process is as complex

as it needs a primary help given by Obeo’s experts

team. The underlying metamodel of Obeo Designer

is not published nor documented. Obeo Designer and

MetaEdit+ are commercial tools that are split in two

different parts: a workbench, a tool for designing

modeling languages and a modeler, a tool for using

modeling languages.

While Diagraph is tightly integrated in the

Eclipse platform, its principle is inspired by Eugenia

(Kolovos et al., 2010), which consists to annotate the

metamodel with concrete syntax statements, by the

mean of EAnnotation objects. However, Eugenia is a

AFrameworkforConcurrentDesignofMetamodelsandDiagrams-TowardsanAgileMethodfortheSynthesisof

DomainSpecificGraphicalModelingLanguages

299

Table 1: Features of available solutions.

Id Concern Description GMF Eugenia Obeo ModX GME MetaEdit+

1 open-source Published under a free and open-source license yes yes no yes yes no

2 legacy integration Integrated in the Emf/Ecore ecosystem yes yes yes no no no

3 user interaction Extended class diagram editor allowing to capture

the graphical roles of the metamodel entities.

no no no no no no

4 platform indepen-

dance

The targetted diagram is abstract and independant

of a given platform.

no no no no no no

5 diagrammatic

abstraction

The graphical concrete syntax targets a diagram

which is deﬁned by a metamodel.

yes yes

(through

GMF)

yes

(through

GMF)

no no opaque

6 grammatical arte-

fact

The graphical concrete syntax and the abstract syn-

tax are deﬁned together in a unique artifact (a gram-

mar)

no yes no no no no

7 language composi-

tion

Domain Speciﬁc Languages can be composed by a

merging mechanism.

no no no no yes no

8 navigation between

views

A multiview mechanism, including the navigation

between views is a part of the graphical concrete

syntax.

no no yes yes yes yes

9 support of hierar-

chies

A native support of recursive hierarchies is pro-

vided.

no partial no yes yes yes

10 positional grammar The positional grammar is separated from the

stylistic grammar.

no no no no no no

11 rule based static se-

mantic

The static semantic is supported by OCL like rules yes yes yes no yes no

12 visual inheritance Visual inheritance is implemented (automatic prop-

agation of graphical compositions)

no no no no no no

13 inference of con-

structs

Inference of graphical constructs, based on pattern

recognition.

no no no no no no

very thin layer over GMF, which hides the complex-

ity of the latter, but, it does not provide large scale

metamodel handling as does Obeo Designer.

As it results from the above survey, several limitations

of the existing work lead us to design a new language

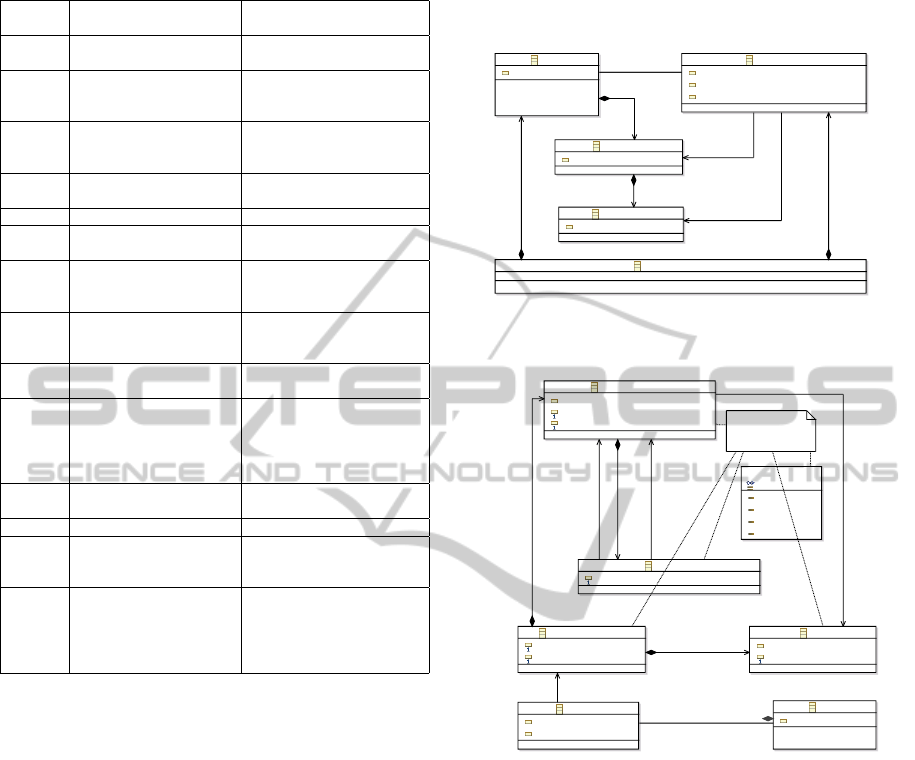

and framework. The Table 1 summarizes some fea-

tures available in the candidate frameworks. None

of the latter reaches completely our requirements: an

ideal tool would combine the ability to work simulta-

neously on the abstract syntax and the concrete syntax

as does Eugenia (but not Obeo Designer), and manage

multiple views as does the latter. As we will explain

in the remainder of the paper, these 13 features are

offered by Diagraph, our tooled method for designing

Domain Speciﬁc Graphical Modeling Languages.

3 METHODOLOGY

In this section, we describe ﬁrst the general process

that we propose to DSML designers, and then the

relations of Diagraph with several diagram renderers

and graph drawing platforms.

3.1 The Process

In practice, designers are focusing on the DSML

metamodel that deﬁnes the core concepts of the lan-

guage. This phase is generally well controlled by

practitioners, but is often separated from the de-

sign of graphical concrete syntax. DSMLs are bet-

ter built in an incremental way, so an iterative ap-

proach is adopted, that allows many stake-holders and

end-users to validate and verify the welformness of

the language under study. Such an iterative and in-

cremental process would be possible only with an

adapted tool support. A deﬁned workﬂow shows how

to process temporally in parallel and with the same

interest, the two aspects of the modeling process. In-

deed, an impossibility or difﬁculty of graphically elic-

itating a concept coming from the metamodel may de-

note the transgression of a well-formedness rule, and

even a conceptual error.

The process we propose organizes the design pro-

cess of the DSML by maintaining consistency in its

abstract syntax and concrete syntax graphs. The re-

lationship between the abstract and concrete syntax

graphs is a third graph of correspondences between

the elements of both graphs. As we have seen, this

correspondence graph is noted on the abstract syn-

tax graph by annotating the latter with a very simple

language, like a layer that would provide additional

information to a map, by transparency. In addition,

the process prescribes to compose a language with

fragments located in a repository based on the con-

cept of mega-model (Favre, 2006): each metamodel

is stored with several sample models that are its in-

stances, these models ﬁgure typical use cases, and

that also are witnesses of their ability to be instan-

ciated, and are a kind of factual proofs of their well-

formedness.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

300

3.2 The Framework

The modeling framework, named Diagraph, supports

the described process, the annotation language, and

includes the mega-model manager. Diagraph con-

tributes to the Eclipse platform (Budinsky et al., 2003)

as a plugin, in a non-intrusive way, on the top of

legacy tools.

The Diagraph Framework is a component con-

forming to the OSGI (Castro Alves, 2011) industry-

wide standard, plugged within the Eclipse Platform,

contributing to already existing services (e.g. it uses

the layout service of the Ecore Tools, through the

OSGI protocol). The principle of the user interface

is not that of a wizard, but of a grammar that de-

ﬁnes the graphical concrete syntax upon the abstract

syntax. The user is guided by the reference man-

ual that describes the Diagraph language syntax, at

one hand, and the messages (and in the future a code

completion feature) generated by the Diagraph inter-

nal parser in case of syntax errors, while writing the

Diagraph annotations in a compartment beneath the

EClass compartments in the class diagram editor. As

we explained, the idea is to deﬁne the concrete syntax

declaratively by the mean of a grammatical notation.

3.3 A Two-phases Process

The ﬁrst phase of the design process of a graphi-

cal notation is the positional phase: which are the

nested nodes (included in a compartment)? What is

the nesting depth? Which are the nodes associated

with a graphical link? Which are the labels used for

the elements of the notation? How many views will

compose the language? Which semantic classes will

compose each view? Which is the navigation path

between the different views? The positional phase

is critical in sense of the design art, and also in an

architectural sense: Good architectures that simplify

usage are complex to design. The second phase of

the process, which has signiﬁcant cognitive conse-

quences, but that is technically more trivial, is the

stylistic phase; it corresponds to the choice of sym-

bols associated with elements of the representation:

icon, shape, color. The chosen symbols have to de-

note the semantics of the model. The method we pro-

pose clearly separates these two phases. This sepa-

ration is underpinned by the metamodel structure of

Diagraph. Diagraph’s semiotic language is based on

the paradigm of cascaded styles.

3.4 Key Feature

The key feature of Diagraph is the management of the

graphical complexity. The paradigm of composition

by graphically nesting model elements (when they are

semantically and structurally nested), is a key factor

in the quality level of cognitive effectiveness. Many

well known notations use actively such constructs:

statecharts (Harel, 1987), package representation in

UML, hierarchical functional models (Ross, 1977).

Deﬁning a compartment rather than an external re-

lated node is done by changing one keyword of the

Diagraph description language (ref becomes kref ).

The graph structure of the concrete syntax (consid-

ered as an abstract graph) is preserved when switching

from nested nodes to associated nodes: further tooling

that would handle pattern recognitions or similarity

scoring between different models deals with the same

computable graph structure (Falleri et al., 2008).

When the nesting becomes too deep, the positive

effect of the nesting paradigm declines and disap-

pears. It is then necessary to hide the nested details

included and adopt the paradigm of additional view

equivalent to a zoom on the hidden details. The view

deﬁnition is a native part of the Diagraph Language.

As with compartments, the abstract graph structure of

the concrete notation is preserved.

The separation of the model into different views

represents a System Architecture, conforming to the

IEEE 1471 information model (Muller, 2009)).

4 IMPLEMENTATION

As does Eugenia (Kolovos et al., 2010), Diagraph

annotates the metamodel with concrete syntax state-

ments, by the mean of EAnnotation objects. How-

ever Diagraph is an entirely original development.

Eugenia has some conceptual and usability limita-

tions that have been addressed by Diagraph, where

we have: visible key-value pairs acting as a visual

stereotype mechanism, user interface integrated in the

Ecore Tools editor, multi-view concept, separation of

positional deﬁnition and stylistic deﬁnition.

The core difference is that Diagraph is based on

a proper metamodel which describes the domain of

diagramming, while Eugenia uses the metamodel of

GMF. Therefore Diagraph is platform independent,

and able to address other diagramming platforms (e.g.

Graphviz).

4.1 The Diagraph Metamodel

The abstract syntax of the Diagraph language is a

straightforward metamodel which conforms to a spe-

cialized graph. The Figure 1 shows a simpliﬁed ver-

sion of the positional part of the Diagraph metamodel

AFrameworkforConcurrentDesignofMetamodelsandDiagrams-TowardsanAgileMethodfortheSynthesisof

DomainSpecificGraphicalModelingLanguages

301

DEdge

compartment : EBoolean

compartmentName : EString

DGraphElement

name : EString

DNode

pointOfView : EBoolean

pointOfViewName : EString

DGraph

EModelElement

(from ecore)

EClass

(from ecore)

EAttribute

(from ecore)

EReference

(from ecore)

EClassifier

(from ecore)

EPackage

(from ecore)

ENamedElement

(from ecore)

EStructuralFeature

(from ecore)

DDSMLGrammar

EAnnotation

(from ecore)

EStringToString...

(from ecore)

key : EString

value : EString

Concrete Syntax

Mapping

Ecore excerpt

Diagraph excerpt

edges

1..*

target

source

nodes

0..*

eSuperTypes

0..*

eReferenceType

eClassifiers

0..*

eSubpackages

0..*

eStructuralFeatures

0..*

rootPointOfView

parentPointOfView

0..1

eAnnotations

0..*

details

0..*

abstractSyntax

concreteGraphicalSyntax

0..1

csMappingEdge

0..1

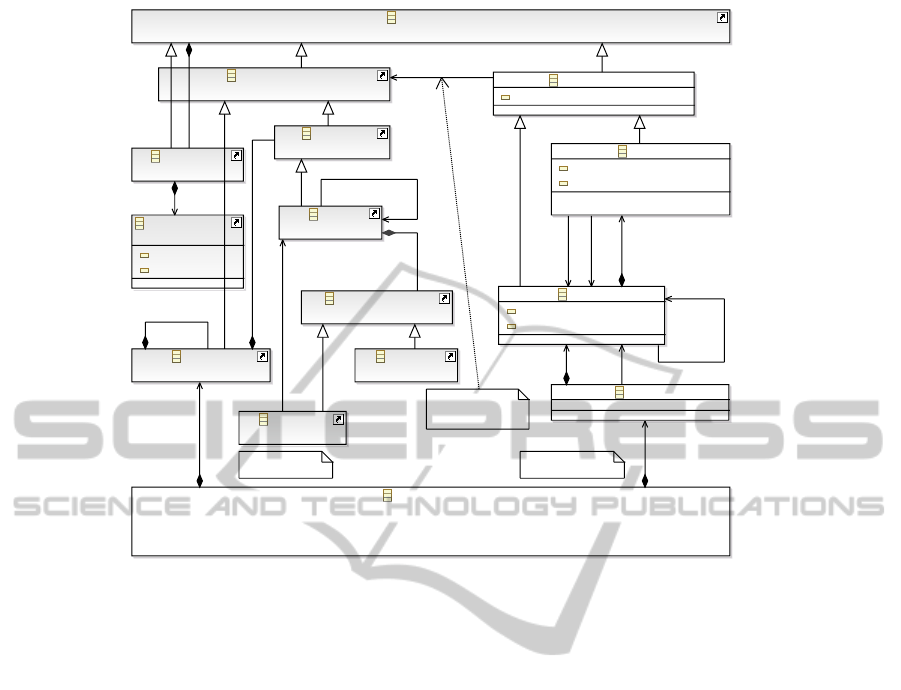

Figure 1: The positional part of Diagraph, related to Ecore (simpliﬁed excerpts).

(at the right) associated to the Ecore metamodel (at

the left). The stylistic part is based on another inde-

pendent metamodel that is here out of the scope, for

the sake of clarity. The metamodel of Diagraph rep-

resents an abstract diagram which has a graph struc-

ture. Nodes can be graphically integrated into each

other (if the attribute compartment is true). Elements

of the concrete syntax (DGraphElement) belonging

to the diagram are mapped by the csMappingEdge

reference to elements belonging to the Ecore meta-

model (ENamedElement). That principle of map-

ping a concrete syntax onto an abstract syntax is

also described by (Brambilla et al., 2012) in their

section 7.4.1, and our metamodel is close to a pat-

tern called "generic gcs metamodel" by these authors.

The latter distinguishes Mapping-centric Graphical

Concrete Syntaxes from Annotation-centric Graphi-

cal Concrete Syntaxes. However, our approach starts

from an annotation-centric syntax, to generate an in-

stance of the Diagraph metamodel, mapped onto the

metamodel of the target domain. That Diagraph in-

stance is a graphical notation, that is to say a concrete

syntax, which is at this stage independent of a graph-

ical renderer. The renderer can be, on one hand, the

GMF Runtime, invoked by a diagram editor resulting

from a transformation taking a Diagraph instance as

an input and producing the GMF tools artefacts, or

on the other hand, the Graphviz Runtime, activated

by a DOT model resulting from a transformation tak-

ing a Diagraph instance as an input. Our proposition

is annotation-centric in the sense of (Brambilla et al.,

2012), and also wraps an internal mapping-centric ap-

proach.

The diagram itself will be generated by a DGraph

instance, while nodes (either top nodes, or child nodes

nested in other nodes) will result of DNode instances.

A DNode may be the root of a point of view, so a new

diagram is opened starting from this DNode if the at-

tribute pointOfView is true. A DNode is always un-

derpinned by an EClass, in this case (csMappingEdge

relates to an EClass).

A DEdge object will give an edge on the diagram.

Three different kinds of edges may be created:

• The DEdge is underpinned by an EClass, thus

it carries labels taken from the EClass at-

tributes, when the csMappingEdge relates to an

ENamedElement which is an EClass.

• The DEdge is underpinned by an EReference,

when the csMappingEdge relates to an

ENamedElement which is an EReference.

This leads to two cases:

– The DEdge is a nesting edge (the compartment

attribute is true), so the target DNode is graph-

ically nested within the source DNode (and the

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

302

Table 2: The Diagraph vocabulary.

Keyword Semantics Abstract Syntax correspon-

dence

node A graphical shape plays

the role of the related class

DNode

link A graphical line plays the

role of the related class

(noted on the class)

DEdge

lnk Idem, but acts as a short-

cut noted on the source

class

DEdge

lsrc Deﬁnes the source for a

link

DEdge.source

ltrg Deﬁnes a target for a link DEdge.target

cont Deﬁnes a container for a

link

DNode.edges

cref A graphical nested com-

partment holds the target

node

DEdge.source (opposite of)

kref Idem, but several compart-

ments are created, one per

type

DEdge.source (opposite of)

afx A graphical afﬁxed port is

the target node

DEdge.source (opposite of)

ref A graphical line plays the

role of the related refer-

ence (no underlying class,

thus no label can decorate

the line)

DEdge.source (opposite of)

pov A new diagram plays the

role of the node

DNode.pointOfView

view Identiﬁes the diagram DNode.pointOfViewName

nav A graphical hyperlink

leads to a new Diagram

opened as a view

DEdge.target

label A graphical label deco-

rates the node or the link,

the label plays the role of

the related attribute refer-

enced by the argument

DGraphElement.labelAttributes

DEdge is graphically hidden).

– The DEdge is a simple relation, so the target

DNode will be shown as a sibling node on the

diagram, and a visible line generated by the

DEdge will be shown, without carrying any la-

bel (there is no EClass providing any attribute).

4.2 Stylistic Part

The stylistic part has a tree structure and can be in-

stantiated as a cascadable styles model. It is not

shown in this paper (the stylistic concern is more triv-

ial than the positional one, even if our proposition of a

cascadable mechanism similar to the principle of cas-

cading style sheets seems, as far we know, original

when applied to the ﬁeld of diagramming).

5 CASE STUDY

To illustrate the paper, we propose a toy case which

is that of a publication process whose concepts are

captured in a metamodel shown in Figure 2 and 3. An

instance model is shown in Figure 5.

Researcher

name : EString

forName : EString

position : EString

Paper

name : EString

Paragraph

content : EString

ReviewNote

content : EString

PublicationStructure

researchers

0..*

paragraphs

0..*

reviews

0..*

authors

0..*

writes

0..*

reviews

0..*

papers

0..*

papers

0..*

Figure 2: Abstract Syntax of the Publication Domain (struc-

tural part).

<<enumeration>>

SequenceType

startToStart

finishToStart

startToFinish

finishToFinish

PDL Pattern

PublicationProcess

minTime : EInt

maxTime : EInt

PublicationPhase

name : EString

minTime : EInt

maxTime : EInt

Sequence

sequenceType : SequenceType

Rule

key : EString

text : EString

Paper

name : EString

Progress

percent : EInt

time : EInt

phases

0..*

linksToSuccessors

0..*

successor

publicationRules

0..*

rules

0..*

predecessor

progress

0..*

process

0..1

paper

0..1

Figure 3: Abstract Syntax of the Publication Domain (pro-

cess part).

5.1 A Language for Publications

The elements of the domain are as follows:

PublicationProcess initiated by a research team,

PublicationStructure composed by several Re-

searcher, shown Figure 2. The metamodel is

split in two parts corresponding, in the resulting

concrete syntax, to two different views, a static

(structural) view, and a dynamic (process) view. The

PublicationStructure holds many papers (Paper),

each composed of paragraphs (Paragraph), and each

paragraph of reviews (ReviewNote). One Researcher

writes many papers and one Paper has several

authors. One Researcher writes many paragraphs

and reviews them with ReviewNote. The Publication-

Process (Figure 3) is the root of the process view, that

part of the metamodel implements the PDL pattern

AFrameworkforConcurrentDesignofMetamodelsandDiagrams-TowardsanAgileMethodfortheSynthesisof

DomainSpecificGraphicalModelingLanguages

303

diagraph

(from Researcher)

node

lnk=writes

lnk=reviews

label=name

label=position

diagraph

(from Paper)

node

kref=paragraphs

diagraph

(from Paragraph)

node

kref=reviews

cont=Paper.paragraphs

label=name

diagraph

(from ReviewNote)

node

diagraph

(from Progress)

link

cont=Paper.progress

ltrg=process

diagraph

(from PublicationStru...

node

kref=researchers

kref=papers

nav:structure

Researcher

name : EString

forName : EString

position : EString

Paper

Paragraph

content : EString

ReviewNote

content : EString

Progress

percent : EInt

time : EInt

PublicationStructure

Graphic Concrete

Syntax metadata

researchers

0..*

paragraphs

0..*

reviews

0..*

progress

0..*

paper

0..1

authors

0..*

papers

0..*

papers

0..*

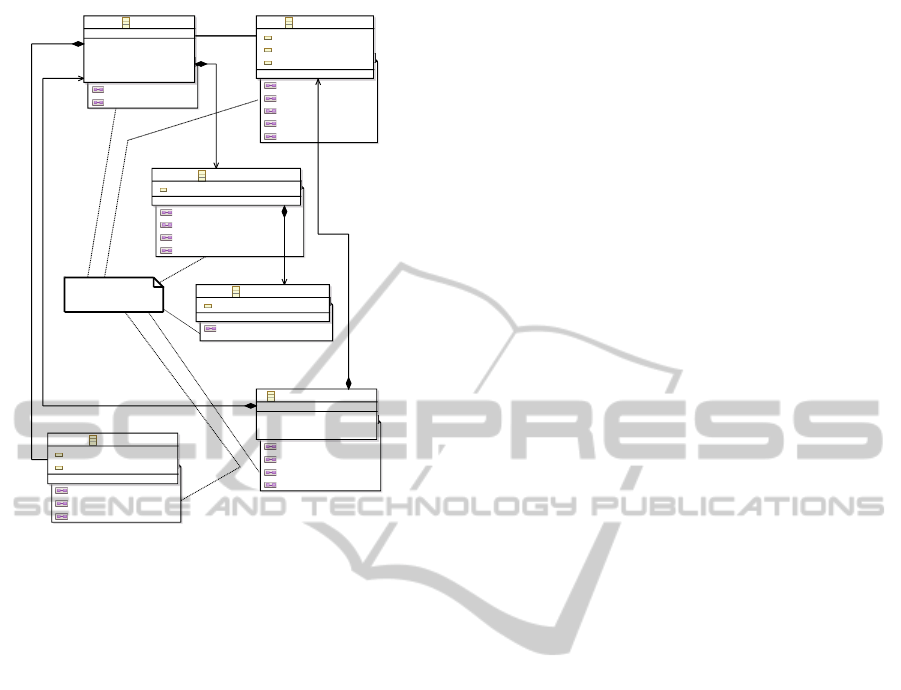

Figure 4: The concrete syntax annotated onto the abstract

syntax (fragment).

proposed by (Combemale et al., 2007). The two parts

of the metamodel are related by two EReferences:

neededPerson, and process. So to obtain the best

expressiveness for our graphical language, we need

to design it according to the criteria proposed by

Moody. (Moody, 2009). These criteria consider,

ﬁrst, the relative position of the graphic symbols that

make up the graphical language, and then, stylistic

criteria about shapes, icons, colors and line styles.

We are interested, in this case, only on the positional

criterion. One possible notation is that shown in

Figure 5.

To specify graphical positional roles for the ele-

ments composing a metamodel, we deﬁne in Table

2 the Diagraph vocabulary, and the associated se-

mantics. The third column, Abstract Syntax corre-

spondence, refers to the Diagraph metamodel shown

Figure 1.

We use this language to annotate our metamodel

as shown in Figure 4. For example, Paper will be rep-

resented as a node, while Progress will be represented

by a link. The annotation area uses the EAnnotation

from Ecore. The EAnnotation cartridge is automati-

cally laid out exactly beneath the EClass rectangles,

ﬁguring an extension of the class diagram (Diagraph

contributes to the layout service within the Eclipse

platform by providing its speciﬁc layout constraints).

The vocabulary of the concrete syntax deﬁnition is

directly derived from the metamodel in Figure 1 as

shown in the third column of Table 2.

The notation, when embodied in a model instance

of the Publication metamodel augmented by the

Diagraph model named publication.diagraph, looks

like Figure 5. At this point, the style has not yet

been applied. The positional criterion is a key point

that guarantees the cognitive ﬁt of a notation, and the

semiotic (stylistic) concern will further improve the

result. The stylistic part is not shown in this paper, for

the sake of clarity, but it follows the same principle of

an annotation based language.

6 EXPERIMENT

We evaluated the usability of Diagraph through a

Master modeling course given at the University of

Montpellier II. We asked students to implement sev-

eral simple graphical languages (see metamodels

at http://aigle-2012.googlecode.com/svn/experiment)

with each tool. We evaluated the performance of each

tool. This process was based on an agility scheme.

After an introduction to the overall implementation

of the Eclipse EMF and GMF Tooling, two work-

shops were proposed to build Graphical Domain Spe-

ciﬁc Modeling Languages based on simple metamod-

els, each consisting of 6 classes, representing a toy

modeling situation, with at least one compartmental-

ized node, several un-typed relations without any la-

bel, and also several typed links carrying labels. The

multi-view feature was not processed due to the lim-

ited time available. The metamodels are different for

each tool compared, and for each mode (supervised

and autonomous). However, they are of comparable

complexity in terms of the metamodel structure. The

proﬁle of the subjects is a mix of research proﬁle and

professional proﬁle. For each experiment, each stu-

dent restitutes:

• A free report outlining the taken steps, including

text and screenshots of the experiment in progress.

• An assessment questionnaire for the process.

At the end of the experiment, an interview was con-

ducted. The students consider that the fact of being

based on a annotation language is ﬁnally more a dis-

advantage for Diagraph. They think that using anno-

tations, which are informal metadata, are not adapted

to write a formal language. The unavailability of a

wizard, a property editor, a code completion mecha-

nism also was a disadvantage for Diagraph. On the

other hand, they consider that the cognitive compre-

hension is in favor of Diagraph which is intuitive, due

to the proximity of the abstract syntax which is close

to the graphical concrete syntax, in a unique artifact.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

304

process: rules + phases

manuscript

latex doublespace

style

no passive voice

template

LNCS

syntax

american english

abstract

100 words max

redaction

decision

submission

figures

state of the art

revision

publication

bibliography

Structure: researchers + papers

Lo, M

Student

Daclin, N

Assistant Professor

Derosiere, G

Student

Dray, G

Assistant Professor

Urtado, C

Assistant professor

Improving Usability in Human Computer ...

Intro

note 1

translation

note 2

Related Work

contrib 2

Some contribution

for the ...

part 1

part 2

Opinion Ext

conclusion

modif 1

FINISH_TO_START

START_TO_START

FINISH_TO_START

START_TO_START

FINISH_TO_START

START_TO_START

FINISH_TO_START

START_TO_START

FINISH_TO_START

START_TO_START

FINISH_TO_START

progress = 25 %

progress = 50%

progress = 100 %

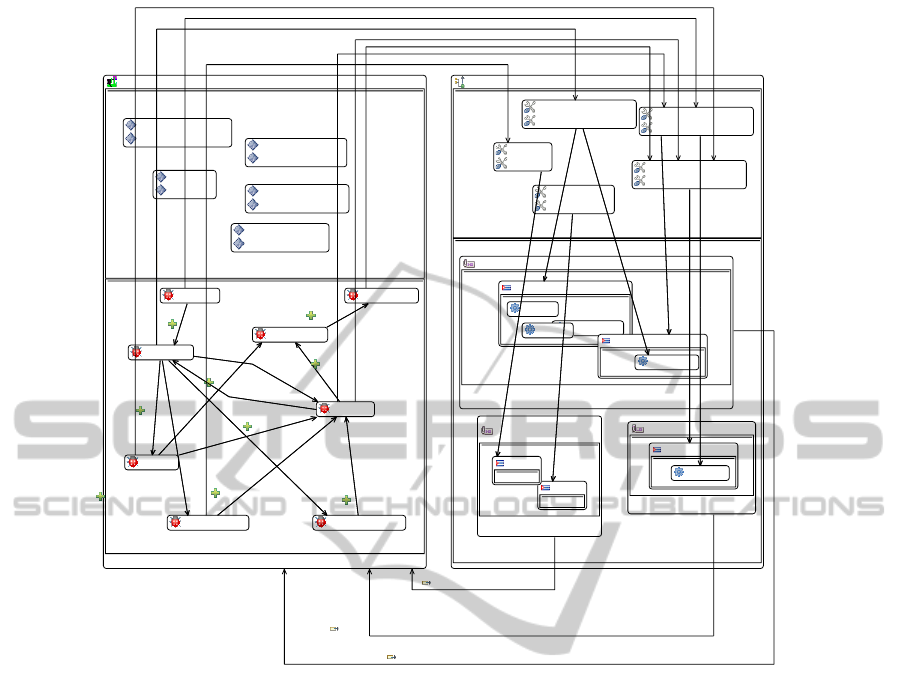

Figure 5: A Publication model created with the generated diagram editor.

Similarly, they believe that the syntax of Diagraph is

very ﬂexible, e.g. it is easy to convert an indepen-

dent node into a nested node, by changing a keyword,

while they must undo a complex construct to do the

same operation with Obeo. Despite the difﬁculty of

editing Diagraph expressions by the mean of non syn-

tactically controlled annotations, they feel that the de-

sign process is faster with Diagraph.

In the case of Obeo Designer, they are close to

the concrete syntax, but far from the abstract syntax

which resides in a different instance of Eclipse. In

the participant’s mind, Diagraph is, for the moment,

an experimental tool, close to the research area, while

Obeo is adapted to industrial contexts. This fact is

coherent with the nature of the license, which is ex-

pensive in the case of Obeo while Diagraph will have

a free open-source license. We notice that Obeo pro-

cures academic free licenses; however, the users com-

plain that Obeo is a black box.

7 CONCLUSION

We have proposed Diagraph, a modeling framework

that helps the design of graphical Domain Speciﬁc

Modeling Languages – DSML, on the top of Eclipse

EMF-GMF. It includes, on the one hand a process,

and the other hand a set of annotations to enrich a sim-

ple Ecore conformant metamodel with concrete syn-

tax graphical roles, playing in one single model the

role of a grammar for graphical languages as EBNF

does for textual languages. Taking this grammar as

an input, Diagraph automatically generates all EMF-

GMF artifacts (intermediate models, diagram editors,

skeletons of unit tests). Multi-diagramming is na-

tively supported. Diagraph is non-intrusive: no de-

pendency is left in the target models; the framework

is structured in a platform independent layer based

on a clean metamodel, deﬁning an abstraction for

graphical concrete syntax, and a transformation layer

targeting the GMF platform, but also other graph-

drawing or diagramming systems: Dot-Graphviz (yet

implemented), Graphiti, GraphML (non limitative

AFrameworkforConcurrentDesignofMetamodelsandDiagrams-TowardsanAgileMethodfortheSynthesisof

DomainSpecificGraphicalModelingLanguages

305

list, and not yet implemented). The tool includes a

"zoo" (Favre, 2006) of numerous example cases. The

Diagraph is released under an open-source license at

http://code.google.com/p/diagraph/.

Our current work is to design functional models

such as eFFBD (Pﬁster et al., 2012), which are hierar-

chical decompositions in the sense of IDEF0 (Ross,

1977), and also are executable models (timed Petri

nets), even if the operational semantics is not a part

of our research.

Abstract syntax and concrete syntax coevolution

is realized de facto by Diagraph. As a future work,

we would like to master the coevolution of a language

(abstract and concrete syntax) and existing instances

of that language.

We also would like to (semi) automatize the gen-

eration of a Diagraph grammar, by analyzing patterns

in the abstract syntax. Such patterns would drive the

concrete syntax: in fact they are concrete-syntax in-

tentions. We think about integrating the annotation

mechanism in the refactoring process of Eclipse, and

to improve the editor with code completion. A long-

term objective is building concrete syntaxes by ab-

stract syntax patterns recognition, but also, at a dif-

ferent (lower) meta-level, building model by imitat-

ing model patterns taken from a thematic repository.

Another objective is to improve the megamodel man-

agement by splitting the abstract syntax in several

metamodels. At last, we would like promoting the

Diagraph metamodel at the M3 level.

REFERENCES

Baetens, N. (2011). Comparing graphical DSL editors:

AToM3 , GMF, MetaEdit+. Technical report, Univer-

sity of Antwerp, Antwerp, Belgium.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

Driven Software Engineering in Practice. Morgan

Claypool.

Budinsky, F., Steinberg, D., Merks, E., Ellersick, R., and

Grose, T. J. (2003). Eclipse Modeling Framework

(The Eclipse Series).

Castro Alves, A. (2011). OSGi in Depth. Manning.

Combemale, B., Garoche, P.-L., Crégut, X., and Thirioux,

X. (2007). Towards a Formal Veriﬁcation of Pro-

cess Model’s Properties – SimplePDL and TOCL case

study. In 9th International Conference on Enterprise

Information Systems ICEIS, pages 80–89. INSTICC

press.

Eclipse (2001). About the Eclipse Foundation.

Falleri, J.-R., Huchard, M., Lafourcade, M., and Nebut, C.

(2008). Meta-model Matching for Automatic Model

Transformation Generation. In MODELS’08: 11th

International Conference on Model Driven Engineer-

ing Languages and Systems, volume 5301, pages 326–

340.

Favre, J.-M. (2006). Megamodelling and Etymology. In

Transformation Techniques in Software Engineering.

Schloss Dagstuhl - Leibniz-Zentrum für Informatik.

Garshol, L. M. (2003). BNF and EBNF: What are they and

how do they work?

Gronback, R. (2009). Eclipse Modeling Project: A Domain-

Speciﬁc Language (DSL) Toolkit. Addison-Wesley

Professional.

Harel, D. (1987). Statecharts: A visual formalism for com-

plex systems. Sci. Comput. Program., 8(3):231—-

274.

IEEE (2000). IEEE SA - 1471-2000 - IEEE Recommended

Practice for Architectural Description for Software-

Intensive Systems.

Juliot, E. and Benois, J. (2009). Viewpoints creation using

Obeo Designer or how to build Eclipse DSM without

being an expert developer?

Kelly, S. and Tolvanen, J.-P. (2008). Domain-Speciﬁc Mod-

eling. Wiley-IEEE Computer Society Press.

Kolovos, D., Rose, L., Abid, S., Paige, R., Polack, F., and

Botterweck, G. (2010). Taming EMF and GMF Us-

ing Model Transformation. In Petriu, D., Rouquette,

N., and Haugen, O., editors, Model Driven Engineer-

ing Languages and Systems, chapter 15, pages 211—-

225. Springer, Berlin / Heidelberg, lecture no edition.

Ledeczi, A., Maroti, M., Bakay, A., Karsai, G., Garrett, J.,

Thomason, C., Nordstrom, G., Sprinkle, J., and Vol-

gyesi, P. (2001). The generic modeling environment.

In Workshop on Intelligent Signal Processing.

Moody, D. (2009). The “Physics” of Notations: Toward

a Scientiﬁc Basis for Constructing Visual Notations

in Software Engineering. IEEE Transactions on Soft-

ware Engineering, 35(6):756–779.

Muller, G. (2009). How to create an architecture overview.

Omg (2006). Meta Object Facility (MOF) Core Speciﬁca-

tion. Technical report.

Pﬁster, F., Chapurlat, V., Huchard, M., Nebut, C., and Wip-

pler, J.-L. (2012). A proposed meta-model for formal-

izing systems engineering knowledge, based on func-

tional architectural patterns. Systems Engineering.

Renaux, E., Le Pallec, X., and Moura, C. (2005). ModX -

a graphical tool for MOF metamodels. In European

Conference on Model Driven Architecture - Founda-

tions and Applications.

Ross, D. T. (1977). Structured Analysis (SA): A Language

for Communicating Ideas. IEEE Transactions on Soft-

ware Engineering, 3(1):16–34.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

306
