Towards Formal Foundations for BORM ORD

Validation and Simulation

Martin Podlouck´y and Robert Pergl

Department of Software Engineering, Faculty of Information Technology,

Czech Technical University in Prague, Prague, Czech Republic

Keywords:

BORM, ORD, Process Simulation, Process Analysis, Formal Foundations.

Abstract:

Business Object Relation Modelling (BORM) is a method for systems analysis and design that utilises an

object oriented paradigm in combination with business process modelling. BORM’s Object Relation Diagram

(ORD) is successfully used in practice for object behaviour analysis (OBA). We, however, identiﬁed several

ﬂaws in the diagram’s behaviour semantics. These occur mostly due to inconsistent and incomplete formal

speciﬁcation of the ORD behaviour. In this paper, we try to amend this gap by introducing so called input and

output conditions, which we consider to be the most important ﬁrst step towards a sound formal speciﬁcation

of the ORD.

1 INTRODUCTION

1.1 Motivation

Business Object Relation Modelling (BORM) is a

complex method for systems analysis and design that

utilises an object oriented paradigm in combination

with business process modelling. It originated at the

Loughborough University, UK in 1993. Successfull

utilisations have been reported and published ever

since, mostly in the area of IT and knowledge sys-

tems analysis and design (Knott et al., 2003), Ob-

ject Behavior Analysis (Knott et al., 2000), (Merunka

and Merunkova, 2013), Organization Modelling and

Simulation (Brozek et al., 2010), ontological analy-

sis (Pergl, 2011) and Business Intelligence (Merunka

and Molhanec, 2011). Several other methods and

techniques are based on the BORM method, such

as FSM-Based Object-Oriented Organization Model-

ing and Simulation (Merunka, 2012), the C.C Lan-

guage (Merunka et al., 2008) or a complexity esti-

mation method called “BORM Points” (Struska and

Merunka, 2007).

We agree with BORM’s authors Knott, Merunka

and Polak that there is a need for a simple, yet ex-

pressive tool for process modelling – and such a

tool is BORM. In our experience, we can fully sup-

port (Knott et al., 2000) statement that it is a good

approach to “start with a limited set of high level

concepts which can subsequently be transformed

into more software-oriented concepts necessary for

the construction of a software oriented conceptual

model”, or – as other work on BORM suggests – into

other types of artefacts and interpretations.

We have been using BORM successfully in prac-

tice for several years, as discussed in (Struska and

Pergl, 2009), that we had an honour to present at

ICEIS in 2009. Our professional focus is mostly

on analysis and design of enterprise processes and

behavioural analysis. Our practical experience led

us to develop our own CASE tool to satisfy our

needs in practical BORM usage. The ﬁrst achieve-

ments were published in (Pergl and Tuma, 2012).

After building a modelling tool that suited our needs,

we started working on implementing simulation of

BORM ORD (Object Relation Diagrams)

, which is

the core of BORM’s behaviour aka process descrip-

tion (Knott et al., 2000). We were mostly inspired

by Craft.CASE

, for – as far as we know – there is

no other comparable tool for BORM diagrams simu-

lation available today. Even though, one of BORM

authors – Vojtech Merunka – gave a series of lec-

tures on the Craft.CASE development, as witnessed

in (Merunka, 2010), it seems, unfortunately, that there

is no foundational paper that would explain the simu-

lation semantics and rules in detail.

This diagram is called “BOBA” ORD in (Knott et al.,

2000), an abbreviation from “BORM Object Behaviour

Analysis”.

http://craftcase.com

315

Podloucký M. and Pergl R..

Towards Formal Foundations for BORM ORD Validation and Simulation.

DOI: 10.5220/0004897603150322

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 315-322

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

1.2 Goals

As advocated above, the main advantage of the

BORM methodology and Object Relations Diagrams

in particular is their great practical usefulness. On

the other hand, we see one big disadvantage and it

is a lack of sound formal foundations which would

allow to clearly and precisely deﬁne the structure

and semantics of ORD and other concepts related to

BORM. Nowadays, many of such concepts are un-

derstood only intuitively. Therefore, the main goal

of our work is to create sound formal foundations for

BORM, which would not only help in understanding

the semantics of BORM, but it will also help us to im-

plement advanced software tools for this method.

The ﬁrst results are presented in this paper, which

addresses issues related to simulation and execution

of the Object Relation Diagrams. The speciﬁc goals

are:

• to thoroughly describe the semantics of BORM

Object Relation Diagrams,

• to identify and discuss the main issues and ambi-

guities of the ORD semantics,

• to suggest an extension or modiﬁcation of the

ORD such that the above issues can be overcome

and

• to start laying down the sound formal foundation

for the ORD.

1.3 Structure of the Paper

In section 2 we introduce BORM’s Object Relation

Diagram, being the focus of our study. We describe

the basics of ORD together with minor changes to the

meta-model we propose. In section 3 we inspect the

semantics of ORD and we try to deal with its basic

ambiguities. In section 4 we introduce the concept

of input and output conditions which should resolve

the described issues. The rest of the paper follows a

common structure: Discussion, Related work, Future

work and Conclusion.

2 BUSINESS OBJECT RELATION

MODELLING

This section introduces the Business Object Rela-

tion Modelling (BORM) methodology. We limit our-

selves just to the Object Behaviour Analysis method

(OBA)

, its purpose, advantages and also details with

For a more thorough description of BORM itself, we

refer the reader to the references.

respect to the issues we discuss here. In the following

text, we abbreviate BORM OBA to “BOBA”, as seen

in (Knott et al., 2000).

Since BOBA generally studies processes, it is

appropriate to explain our use of the term, in parti-

cular given the amount of deﬁnitions available in the

literature. For the purposes of this work, we stick to

the simple, practically-oriented deﬁnition provided by

ISO 9000:2000:

Deﬁnition 1. Process is a set of interrelated or inter-

acting activities that transforms inputs into outputs.

As the term activity has a speciﬁc (narrower)

meaning in BOBA, we substitute ISO’s term activity

in the deﬁnition by task in this paper. Thus the term

task will have a general informal meaning “something

that needs to be done in order to accomplish a partic-

ular goal in a process”.

2.1 Object Relation Diagrams

BORM methodology introduces Object Relation Dia-

gram (ORD) to model processes and perform BOBA.

Since in (Knott et al., 2000) only a very brief descrip-

tion of the ORD notation can be found, we start by

a thorough description of the basic concepts of this

modelling notation (Figure 1).

2.1.1 Participants, States, Activities

The Object Relation Diagram is a graphical descrip-

tion of a process. It is essentially a collection of par-

ticipants (depicted as grey rectangles), which are in

turn collections of states (white rectangles) and acti-

vities (white ellipses). Each participant in ORD rep-

resents a person, an organization or a system partici-

pating in the process. Participants follow the struc-

ture of the Mealy’s machine (Mealy, 1955). States

are thus the primary components of each participant.

Each participant has exactly one start state (marked

with black arrow) and at least one ﬁnal state (drawn

with double-line border) – this is our ﬁrst proposal

for ORD change, as the original syntax uses spe-

cial symbols for a start state and a ﬁnal state sim-

ilar to UML Activity Models, while our concept is

completely aligned with the deﬁnition of Mealy’s ma-

chine, where the start state and end states are regular

states.

States are connected by transitions which are rep-

resented as arrows. If two states A and B are con-

nected by a transition, the participant being in state A

can continue to state B.

On each transition, there may be an activity which

describes what is happening when the participant

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

316

Participant A

State A1

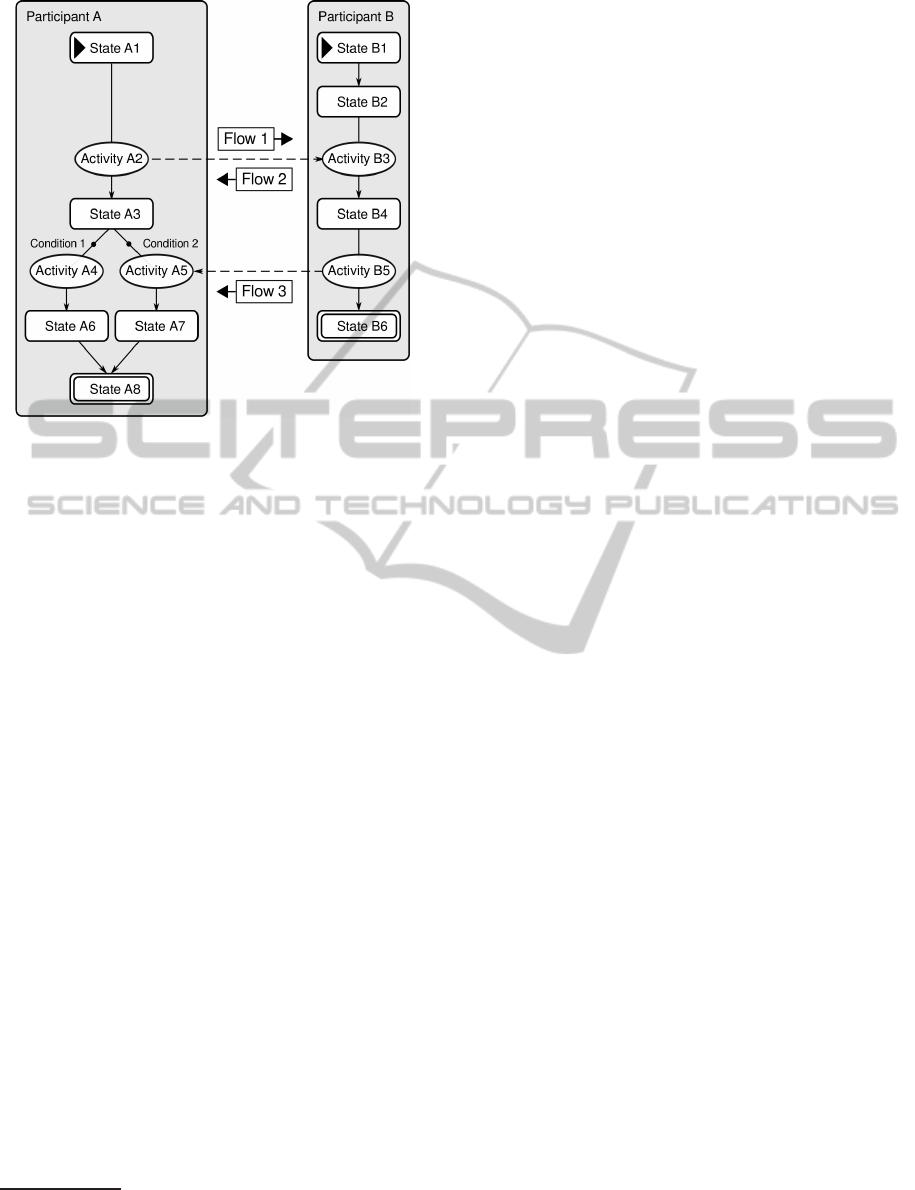

Figure 1: A sample Object Relation Diagram.

transitions from one state to the other. The word

“may” represents our second proposal for the ORD

notation: In the original notation, the activities are

required between the states, which is sometimes not

wanted – analysts

then invent artiﬁcial activites like

”no action”, etc. Our proposal is nothing more than

incorporating the notion of the ε-transition from the

theory of ﬁnite state machines, i.e. a spontaneous

transition from one state into the other.

The purpose of activities is twofold. First, follow-

ing the semantics of the Mealy’s machine, an activity

represents an action which produces some kind of an

output. Such an output may or may not be in fact tan-

gible. In the end, an activity may simply be a task

that needs to be done by the participant in order to ad-

vance to the next state. The mere fact, that the task

was done, is being considered as the output.

2.1.2 Communications and Data Flows

The second purpose of the activities is that they allow

participants to communicate with each other. Acti-

vities can be connected by communications (drawn as

horizontal dashed-line arrows). Communications rep-

resent channels for sending outputs of an activity of a

participant to another participant. Such outputs are

called data ﬂows. Data ﬂow is information or an arte-

fact that is sent from a participant to another partici-

pant. The participant containing the activity with the

outward communication arrow is always the initiator

of the communication. Data ﬂows sent by the initiator

Let us call the person doing the modelling an “analyst”.

We use the term task with the meaning explained in

section 2.

are called input data ﬂows. In reaction, the receiving

participant may send output data ﬂows back to the ini-

tiator.

The original concept of communications in ORD

presumes that both initiating and receiving partici-

pants must be in the initiating and the respective re-

ceiving activity at the same time in order for the com-

munication to take place. We call such a commu-

nication direct. Howerver, in practical applications

of ORD, we often ﬁnd ourselves in the need for an

indirect communications, as well. A direct commu-

nication models the situation where two interacting

participants need to actually meet each other either

personally, over a phone or using some other direct

medium. On the other hand, if for example Bob writes

an email to Alice, she does not have to wait at the

other end to receive it. The e-mail waits for her un-

til she opens it and Bob may in the meanwhile con-

tinue in his agenda. Thus, this represents our third

proposal: the communication may be marked as in-

direct, which means that the initiator does not have to

wait until the receiver arrives at his receiving activity

and he may go right to the following state. The re-

ceiver, on the other hand, always needs to wait, until

the respective data ﬂow arrives.

2.1.3 Conditions

Transitions may be also restricted by conditions. If

more than one transition comes out of a state, a con-

dition may be placed on any number of the transi-

tions. The participant may go forward along a transi-

tion only when its condition is met. Example of such

a situation is shown in Figure 1. Conditions are used

to express restrictions on decisions of participants and

they are usually expressed in the natural language.

2.1.4 Other Constructs

So far, we have described the basics of ORD seman-

tics and graphical notation. There are also other, more

advanced constructs in ORD. A state, for example,

may contain a nested process; Conditions may be

placed on communications as well. However, we do

not deal with these contructs in this paper, since we

identiﬁed that they bring serious complexity to the in-

terpretation and simulation of processes.

2.2 ORD Simulation

Apart from structural aspects of ORD, we need to dis-

cuss the behavioural aspects. In fact, simulation or

execution of processes deﬁned by ORD is the main

challenge of our work. As already mentioned in the

TowardsFormalFoundationsforBORMORDValidationandSimulation

317

Introduction, there is no canonical deﬁnition of how

the ORD process should by executed. As far as we

know, the only implementation of ORD simulation is

offered by the Craft.CASE modelling tool.

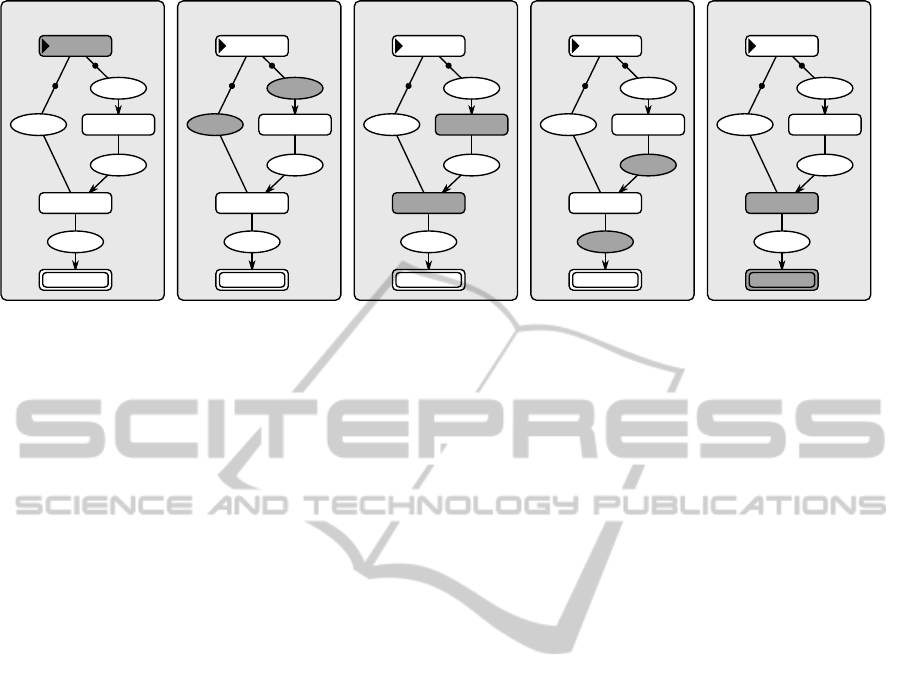

Figure 2 illustrates the ﬁrst ﬁve steps of simula-

tion of one simple participant, as performed by the

Craft.CASE tool. When the participant is in a par-

ticular state, or it is performing a particular activity,

such state or activity is highlighted with dark grey

background. We say that such a state or activity is

being visited. We see that the participant in the ﬁ-

gure faces a decision at the start state X and chooses

to proceed both of the possible ways simultaneously.

We call such parallel ways branches. This illustration

enables us to inspect the main issues with the simula-

tion of processes deﬁned by ORD.

3 REVISION OF ORD PROCESS

BEHAVIOUR

ORD in the BORM methodology is a simple, yet a

powerful way of describing and visualising business

process. Its semantics can be easily described, es-

pecially to people with little technical knowledge in

process modelling. That, of course, is a great advan-

tage in the business environment. On the other hand,

ORD still suffers from ambiguities in deﬁnitions and

that, consequently, causes serious troubles especially

when process simulation and analysis come to play.

3.1 Decision Making and Parallelism

Let us discuss the ambiguities and issues of the ORD

behaviour that we mentioned above. Decision making

and parallelism are the fundamental ones. There

seems to be a lack of agreement on them. On the one

hand, Knott, Merunka and Polak state in (Knott et al.,

2000) that “BOBAs process model is strictly based

on the theory of ﬁnite automata”, namely on Mealy’s

machines. On the other hand, Brozek, Merunka and

Merunkova explain in (Brozek et al., 2010) that “vi-

sual simulation of a business process is based on

marked-graph Petri net” – but neither explain how

these two different perspectives should merge to-

gether into a consistent and sound theoretical foun-

dation and interpretation of the process speciﬁed by

the ORD.

3.2 The Simultaneity Principle

The basic difference between Petri nets (Peterson,

1981) and Mealy’s machines (Mealy, 1955) lies in the

fact that Petri nets operate on the basis of massive pa-

rallelism, whereas Mealy’s machines, when executed,

always follow one simple path. The Craft.CASE tool

obviously uses Petri nets to simulate processes as doc-

umented by Figure 2. However, this approach im-

poses a serious challenge of an ontologically correct

interpretation of the notion of parallelism. From this

perspective, we propose a notion of the simultaneity

principle:

Principle 1. The simultaneity principle states that

no participant can be split into multiple instances and

thus perform several tasks in parallel.

This principle states that even though any partici-

pant may be in several states at once, no participant

can actually perform several activities at once. The

parallel branches in ORD have, therefore, ontologi-

cally this meaning – the activities belonging to differ-

ent branches do not depend on each other. From that

follows that such activities can be done regardless of

order, which allows one to perform them virtually in

parallel. Therefore, if a participant is required to do

activities in parallel, the actual meaning is that it can

choose to do them in any order desired, or switch be-

tween doing them, as wanted

. It is evident that this

concept imposes some constraints on the general be-

haviour of Petri nets, where multiple parallel tokens

are moving independently through the structure of the

net. The simultaneity principle is illustrated in Fi-

gure 2. If the participant A ﬁnds itself in the state X,

it faces a decision where to go next. In the next step it

appears to perform both the following activities at the

same time which is, in fact, only a graphical illustra-

tion of the principle described above.

Furthermore, it is necessary to ontologically clarify

what happens once the participant arrives to the state

F. For example, if the participant arrives to F by the

shorter of the two possible branches, should it wait in

F until the other branch is completed as well? If so,

what happens once the participant had chosen only

one branch at the state X? In such a case the process

falls into a deadlock. On the other hand, if we just

follow the Petri net behaviour, no merge is performed

and we get an ontologically extravagant situation as

depicted in 2, where the participant actually arrives to

F multiple times. This is in direct contradiction with

the dependency principle.

The above issue could be solved simply by stating that

F waits only for those branches, that had been actu-

ally chosen. Unfortunately, the nature of this issue

seems to be deeper. When creating a process model,

the analyst should be given a way to explicitly deﬁne

The situation may be compared to the preemptive mul-

titasking of a computer processor.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

318

Participant A

cond 1

cond 2

Participant A

cond 1

cond 2

Participant A

cond 1

cond 2

Participant A

cond 1

cond 2

Step 1 Step 2 Step 3 Step 4 Step 5

cond 1

cond 2

Figure 2: Simulation of a participant facing a decision.

which decisions are valid in a given state and which

are not. For instance, executing several branches may

not be possible in some situations in the reality. In-

stead, a process may require that there is precisely

one of the possible branches that needs to be com-

pleted in order to advance further. Since simultane-

ous and exclusive choices are both valid in process

deﬁnition and simulation, we come to the conclusion

that neither Mealy’s machines, nor Petri nets provide

a sufﬁcient formal description of the ORD process be-

haviour.

3.3 The Dependency Principle

Before we introduce the second principle of ORD se-

mantics, we ﬁrst need to clarify some terminology.

From the perspective of ORD, we talk about states

and activities, states being the primary components of

a participant in the process. When a transition is made

from one state to another, an activity is performed and

we say that the participant completed a task. To iden-

tify that task, we associate it with the state at which

the participant has arrived. So the notions of task and

state will be synonymous from our point of view.

Above, we already informally touched the notion

of the task dependency, which is a very essential

principle of process deﬁnition regardless of particular

methodology. The terms “interrelated and interact-

ing” in Deﬁnition 1 denote the fact that often several

tasks have to be completed prior to completing an-

other task. From now on, we refer to this principle as

the dependency principle:

Principle 2. The dependency principle states that a

task A may require other task to be completed before

A can be completed.

The rules that determine on which tasks the task A

depends, may be quite complex. Let us have a set of

tasks {X, Y, Z}. For example, the task A may require

a completion of exactly two tasks from this set. Thus,

we need a sufﬁciently expressive system for specify-

ing such dependency conditions – we introduce such

a system utilising boolean algebra in the next section.

4 INPUT/OUTPUT CONDITIONS

Having explained the main challenges, we may start

formulating new formal foundations of the ORD. We

start by introducing the concept of input and output

conditions, which incorporates the dependency prin-

ciple into the ORD and targets the formalisation of the

simultaneity principle.

4.1 Input and Output Conditions

To be able to express the dependency principle in an

ORD, we attach an input condition to each state:

Deﬁnition 2. Input condition of a state is a boolean

expression whose variables are the transitions ending

in that state. It speciﬁes that the execution of the pro-

cess cannot advance further from the given state until

its input condition is met, i.e. until the corresponding

boolean expression is evaluated as being true.

Similarly, each state also has an output condition.

Deﬁnition 3. Output condition is a boolean expres-

sion whose variables are the outgoing transitions from

the given state. It speciﬁes admitted combinations of

branches into which the process execution may split

itself from this state.

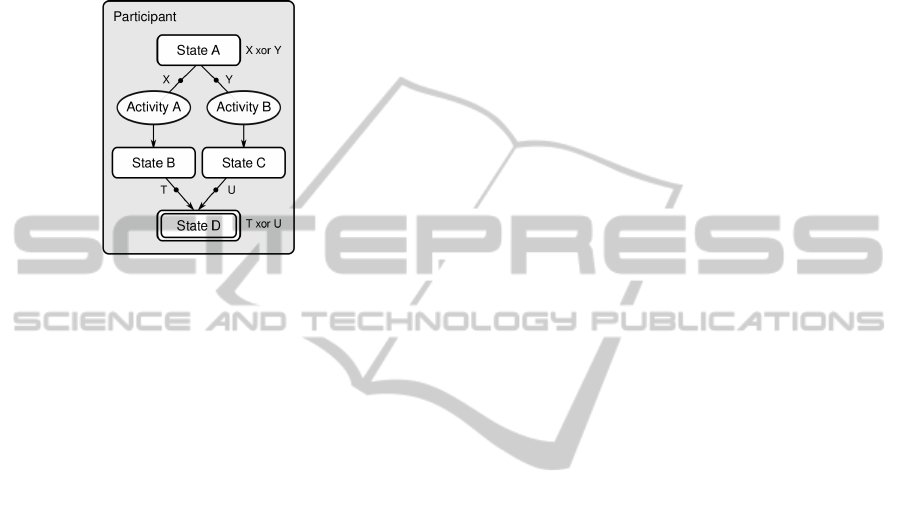

Figure 3 shows an example of input and output

TowardsFormalFoundationsforBORMORDValidationandSimulation

319

conditions allowing precisely two distinct paths

through the participant’s state graph. State A has

an output condition which says that exactly one of

two possible transitions may be chosen to continue

forward. The state D has, in turn, an input condition

saying, that exactly one branch is allowed to com-

plete.

Participant

State A

Figure 3: Sample input and output conditions.

The input condition of a state is interpreted as fol-

lows: When several branches merge in one state, then

this state waits for all of them to complete and only

then evaluates its input condition. If the condition

is met, the participant may advance to the next state,

otherwise the process fails.

The output conditions, on the other hand, en-

sure that when the process ﬂow splits into several

branches, only the appropriate branches are allowed

to be chosen, i.e. the branches that do not allow the

process to fail – falling into deadlock. Therefore, in-

put and output conditions provide a solution to ad-

dressing both the simultaneity and the dependency

principles. Since each state waits for all the branches

to complete before evaluating its input condition, it

prevents the situation, where the participant would

split into several independent instances, because one

branch took more steps to complete. Moreover, each

state now speciﬁes exactly on what branches it de-

pends and thus perfectly expresses the dependency

principle.

5 DISCUSSION

The solution of the issues with ORD process be-

haviour interpretation and simulation proposed here

lies in the introduction of the input/output conditions

of states. The solution has the following features:

1. Input/output condition are expressions in boolean

logic and therefore general and unambiguous.

2. They address both the simultaneity and depen-

dency principle.

3. No additional elements in the ORD are needed,

so the diagrams remain clear and simple as was

intended by the authors.

6 RELATED WORK

As we stated above, we are not aware of any sys-

tematic effort to build formal foundations of BOBA.

Given that, our work is very likely quite novel for

BORM. However, looking at model execution, sim-

ulations and behaviour analysis from a broader per-

spective, we may identify other attempts similar to

ours – and at these, we want to look at now. There

are generally two complementary approaches:

1. Start with a formal apparatus and build a practi-

cally applicable domain-oriented method and/or

tool.

2. Start with a method used in practice and upgrade

it into a simulation-able or an executable model.

Starting with the ﬁrst type of approach, Brand’s

and Zaﬁropulo’s Communicating Finite State Ma-

chines are an example. Their purpose was to de-

sign communication protocols (Brand and Zaﬁrop-

ulo, 1983). The authors took the ﬁnite state machines

(FSM) theory and upgraded it consistently for mod-

elling several together-bound FSMs. Another exam-

ple of such an approach is Pattavita’s and Trigila’s

proposal to combine the FSM with Petri nets for mod-

elling communicating processes (Pattavina and Trig-

ila, 1984). Another example is the Yasper tool for

workﬂow modelling and analysis (van Hee et al.,

2006); it is based on Petri nets enriched by several

practical concepts from the domain of process analy-

sis (hierarchies, choices, roles and others).

The second mentioned approach, i.e. to upgrade

an existing method, is exempliﬁed by our work. Kin-

dred spirit to ours is Barjis: he proposed a method for

developing executable models of business systems.

Barjis’ method is based on the DEMO method (Di-

etz, 2006). To make the static DEMO models exe-

cutable, Barjis proposed a transformation into Petri

nets (Barjis, 2007). His insight has been recently fol-

lowed by, for instance, Vejrazkova and Meshkat (Ve-

jrazkova and Meshkat, 2013).

We are also aware of similar approaches focused

on standard ”industry” notations UML and BPMN.

In spite of general popularity of these notations, we

do not deal with them, as they suffer from vagueness,

ambiguities and ontological ﬂaws, as mentioned by

e.g. Silver in (Silver, 2011) or Dijkman et al. in (Di-

jkman et al., 2008). Guizzardi performed a deep anal-

ysis of BPMN suitability for expressing simulation

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

320

models in (Guizzardi and Wagner, 2011) with quite

discouraging results for researchers and practitioners

focused on ontological soundness of modelling.

Though we could continue in compiling a list of

similar approaches, our goal was just to document

that a combination of a practical approach with a ro-

bust formal foundation leads to a new level of under-

standing of modelling methods, improving their ex-

pressiveness, power and, ultimately, their usefulness.

7 FUTURE WORK

As implied by the title of the paper, our goal was just

to make ﬁrst steps towards sound formal foundations

of BORM. The future work means to specify a com-

plete formalism for ontologically sound executionand

simulation of processes deﬁned by ORD. This formal-

ism should encompass the needed features of Mealy’s

machine and Petri nets, while at the same time not al-

lowing ontologically extravagant situations.

In this paper, we omitted advanced ORD con-

structs (communication conditions and nested pro-

cesses). These constructs should be also studied in

the future work.

8 CONCLUSION

We described the syntax and semantics of BORM Ob-

ject Behaviour Analysis (BOBA) – Object Relation

Diagrams (ORD). We discussed the main issues and

ambiguities of the ORD semantics with the respect

to execution and simulation of processes deﬁned by

ORD. We proposed minor changes and enhancements

for the model. Then, as the ﬁrst step towards a sound

formalisation of BOBA, we introduced the input and

output conditions enhancement for states.

Our honest hope is that our contribution may be

an inspiration for both BORM practitioners and for-

malists to join their forces to bring BOBA to a new

level of expressive power and possibilities.

REFERENCES

Barjis, J. (2007). Developing executable models of busi-

ness systems. Setubal. Insticc-Inst Syst Technologies

Information Control & Communication.

Brand, D. and Zaﬁropulo, P. (1983). On communication

ﬁnite-state machines. Journal of the ACM, 30(2):323–

342.

Brozek, J., Merunka, V., and Merunkova, I. (2010). Or-

ganization modeling and simulation using BORM ap-

proach, volume 63 of Lecture Notes in Business Infor-

mation Processing.

Dietz, J. L. G. (2006). Enterprise ontology: theory and

methodology. Springer, Berlin; New York.

Dijkman, R. M., Dumas, M., and Ouyang, C. (2008). Se-

mantics and analysis of business process models in

bpmn. Inf. Softw. Technol., 50(12):1281–1294.

Guizzardi, G. and Wagner, G. (2011). Can BPMN be

used for making simulation models? Lecture Notes

in Business Information Processing, 88 LNBIP:100–

115. 00004.

Knott, R., Merunka, V., and Polak, J. (2000). Process mod-

eling for object oriented analysis using BORM ob-

ject behavioral analysis. In 4th International Con-

ference on Requirements engineering, 2000. Proceed-

ings, pages 7–16.

Knott, R., Merunka, V., and Polak, J. (2003). The BORM

methodology: a third-generation fully object-oriented

methodology. Knowledge-Based Systems, 16(2):77–

89.

Mealy, G. H. (1955). A method for synthesizing sequential

circuits. Bell System Technical Journal, 34(5):1045–

1079.

Merunka, V. (2010). Object-oriented proces modeling and

simulation – borm experience. Trakia Journal of Sci-

ences, 8(3):71–87.

Merunka, V. (2012). FSM-Based object-oriented organiza-

tion modeling and simulation. In Aalst, W., Mylopou-

los, J., Rosemann, M., Shaw, M. J., Szyperski, C., Ba-

jec, M., and Eder, J., editors, Advanced Information

Systems Engineering Workshops, volume 112, pages

398–412. Springer Berlin Heidelberg.

Merunka, V. and Merunkova, I. (2013). Role of OBA ap-

proach in object-oriented process modelling and sim-

ulation. In Barjis, J., Gupta, A., and Meshkat, A.,

editors, Enterprise and Organizational Modeling and

Simulation, volume 153 of Lecture Notes in Business

Information Processing, pages 74–84. Springer Berlin

Heidelberg.

Merunka, V. and Molhanec, M. (2011). BORM: agile mod-

elling for business intelligence. In Rahman El Sheikh,

A. A. and Alnoukari, M., editors, Business Intelli-

gence and Agile Methodologies for Knowledge-Based

Organizations: Cross-Disciplinary Applications. IGI

Global.

Merunka, V., Nouza, O., and Broek, J. (2008). Automated

model transformations using the C.C language. In Di-

etz, J., Albani, A., and Barjis, J., editors, Advances in

Enterprise Engineering I, volume 10 of Lecture Notes

in Business Information Processing, pages 137–151.

Springer Berlin Heidelberg.

Pattavina, A. and Trigila, S. (1984). Combined use of ﬁnite-

state machines and petri nets for modelling commu-

nicating processes. Electronics Letters, 20(22):915–

916.

Pergl, R. (2011). Supporting enterprise IS modelling using

ontological analysis. Lecture Notes in Business Infor-

mation Processing, 88:130–144.

Pergl, R. and Tuma, J. (2012). OpenCASE – a tool

for ontology-centred conceptual modelling. Lecture

Notes in Business Information Processing, 112:511–

518.

TowardsFormalFoundationsforBORMORDValidationandSimulation

321

Peterson, J. L. (1981). Petri net theory and the modeling of

systems. Prentice Hall.

Silver, B. (2011). BPMN Method and Style, 2nd Edition,

with BPMN Implementer’s Guide: A structured ap-

proach for business process modeling and implemen-

tation using BPMN 2.0. Cody-Cassidy Press.

Struska, Z. and Merunka, V. (2007). BORM points - new

concept proposal of complexity estimation method.

In Cardoso, J., Cordeiro, J., and Filipe, J., editors,

Proceedings of the ninth international conference on

enterprise information systems, pages 580–586. IN-

STICC.

Struska, Z. and Pergl, R. (2009). BORM-points: introduc-

tion and results of practical testing. Lecture Notes in

Business Information Processing, 24:590–599.

van Hee, K., Oanea, O., Post, R., Somers, L., and van der

Werf, J. (2006). Yasper: a tool for workﬂow model-

ing and analysis. In Sixth International Conference on

Application of Concurrency to System Design, 2006.

ACSD 2006, pages 279 –282.

Vejrazkova, Z. and Meshkat, A. (2013). Translating

DEMO models into petri net. In Enterprise and Or-

ganizational Modeling and Simulation, volume 153.

Springer Verlag Heidelberg.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

322
