Automatic Interpretation Biodiversity Spreadsheets

Based on Recognition of Construction Patterns

Ivelize Rocha Bernardo, André Santanchè and Maria Cecília Calani Baranauskas

Institute of Computing - Unicamp, Avenida Albert Einstein, 1251, Cidade Universitária, Campinas, Brazil

Keywords: Spreadsheet Interpretation, Semantic Mapping, Information Integration, Patterns Recognition, Biodiversity

Data Integration.

Abstract: Spreadsheets are widely adopted as "popular databases", where authors shape their solutions interactively.

Although spreadsheets have characteristics that facilitate their adaptation by the author, they are not

designed to integrate data across independent spreadsheets. In biology, we observed a significant amount of

biodiversity data in spreadsheets treated as isolated entities with different tabular organizations, but with

high potential for data articulation. In order to promote interoperability among these spreadsheets, we

propose in this paper a technique based on pattern recognition of spreadsheets belonging to the biodiversity

domain. It can be exploited to identify the spreadsheet in a higher level of abstraction – e.g., it is possible to

identify the nature a spreadsheet as catalog or collection of specimen – improving the interoperability

process. The paper details evidences of construction patterns of spreadsheets as well as proposes a semantic

representation to them.

1 INTRODUCTION

When producing spreadsheets, end-users have

autonomy and freedom to create their own

systematization structures, with few formal

requirements. However, the product is driven to

human reading, causing a side effect: programs

provide poor assistance in performing tasks, since

they are unable to recognize the spreadsheet

structure and to discern the implicit schema – hidden

in the tabular organization – from the instances and

consequently the semantics of this schema.

Therefore, it is difficult to combine and coordinate

data among spreadsheets using conventional

methods, because each new different schema may

seem unknown.

But, how much different they are in fact? We

present in this paper evidences that similarities in

spreadsheets can indicate patters followed by

groups.

Making a parallel, spreadsheets can be seen

asclay, in which authors sculpt their elements

according to their own experiences and/or

conventions followed by the group to which they

belong. For example, to carve a table, even though

there is multitude of possibilities, there are patterns

that have been consolidated in the author’s

community: tables have a top supported by one or

more legs. These undocumented patterns are created

and replicated according to users experience and

their observations in the real world.

We consider that it is possible to map these

patterns to a respective semantic description,

through the recognition of structural reasons which

leads a user to interpret a spreadsheet in one way

and not another.

Thus, our strategy focuses on the detection of

patterns to recognize similar spreadsheets. We argue

that the specific way authors build their spreadsheets

– i.e. the criterion to define elements, the approach

to spatially organize them and the relationship

between these elements – is directly related their

daily experience in the community they belong.

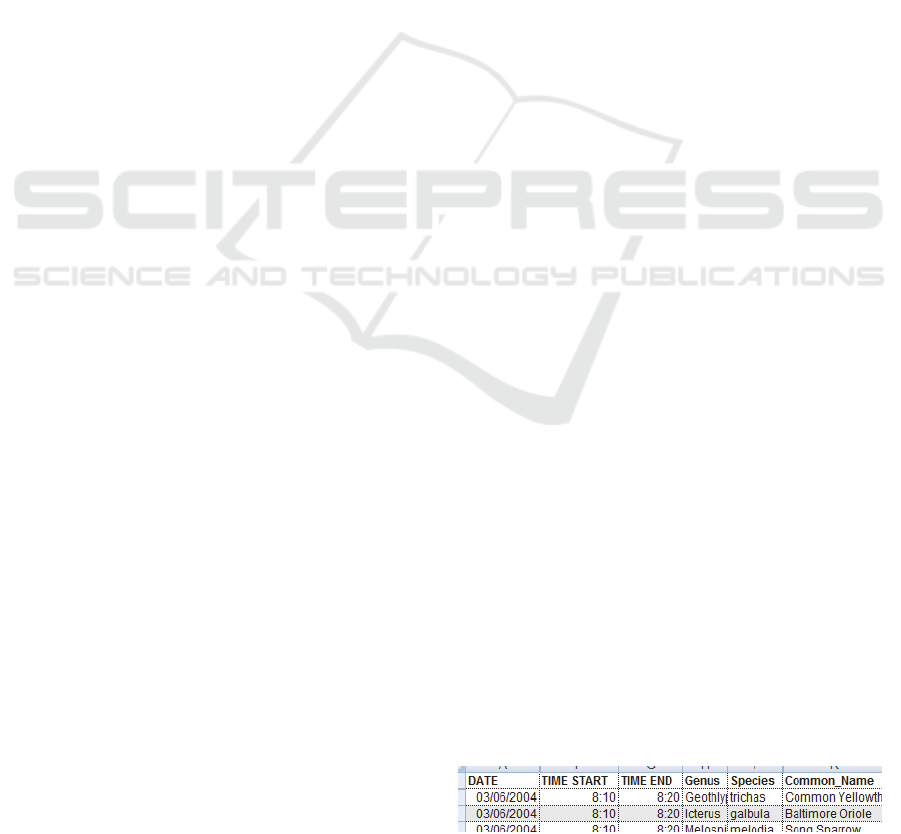

Figure 1: Example of a spreadsheet recording a collection

[ecosystems.mbl.edu].

Figure 1 shows an example of a spreadsheet to

identify it due to the specific arrangement of the

columns, registering event related fields in the

leftmost columns, followed by genus and species.

Rocha Bernardo I., Santanchè A. and Cecília Calani Baranauskas M..

Automatic Interpretation Biodiversity Spreadsheets Based on Recognition of Construction Patterns.

DOI: 10.5220/0004898200570068

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 57-68

ISBN: 978-989-758-029-1

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

However, these signs are not recognized by

computer programs. Up to now, only humans are apt

to infer the purpose of this spreadsheet and its

organization.

The challenge of this research is to consider a

computer system as a consumer of spreadsheets

besides the user. Our approach involves to achieve a

richer semantic interoperability for data from

spreadsheets through pattern recognition.

Both (Tolk, 2006) and (Ouksel and Sheth, 1999)

classify interoperability in progressive layers and

consider that higher layers will subsidize more

efficient operations.

Tolk (2006) proposes a more detailed

classification and add the pragmatic, dynamic and

conceptual layers, i.e. it is possible to consider

aspects of context and user intentions in the

interoperability process.

Beyond machines, (Haslhofer and Klas, 2010)

define the highest interoperability level as the ability

of humans and machines to share the same semantic.

In order to implement an interoperability

technique, our proposal has two stages to map

metadata, the first stage maps the terms to

exploratory questions, in order to recognize the

context – based on Jang et al., (2005) – and the

second stage concerns the analysis of how these

fields are arranged in the spreadsheet. This

organization indicates construction patterns followed

according to the conventions adopted by their

community.

Most of the related work disregard this

organization when implement strategies for seeking

interoperability of tabular data. This paper argues

that the structure, i.e. the organization of spreadsheet

elements, must be considered, since it leads to the

identification of construction patterns, which is

related to the user intention/action. This technique

allows us to go towards the pragmatic

interoperability layer (Tolk, 2006).

We present in this paper evidences of

spreadsheet construction patterns adopted by

biologists and the application of these patterns in

automatic recognition of their implicit schemas. To

support our thesis we collected and analyzed

approximately 11,000 spreadsheets belonging to the

biodiversity domain.

This article is organized as follows: Section 2

gives an overview of some basic concepts and our

research, Section 3 details the process of collecting

and analyzing spreadsheets employed by biologists,

as well as research hypotheses and their evaluation;

Section 4 highlights evidences of construction

patterns followed by biologists; Section 5 introduces

our model to represent construction patterns; Section

6 compares our approach with related initiatives to

recognize implicit schemas in spreadsheets; Section

7 presents our concluding remarks and the next steps

of this research.

2 RESEARCH SCENARIO

According to Syed et al., (2010), a large amount of

the information available in the world is represented

in spreadsheets. Despite their flexibility,

spreadsheets were designed for independent and

isolated use, and are not easily articulated with data

from other spreadsheets / files.

For this reason, there is a growing concern to

make spreadsheet data more apt to be shared and

integrated. The main strategies convert them into

open standards to allow software to interpret,

combine and link spreadsheet data(Connor et al.,

2010); (Zhao et al., 2010); (Han et al., 2008); (Yang

et al., 2005); (Ponder et al., 2010); (Doush and

Pontelli, 2010); (Abraham and Erwig, 2006).

Related work address this problem mainly by

manual mapping to Semantic Web open standards or

by automatic recognition, relating spreadsheet

elements to concepts available on Web knowledge

bases such as DBpedia (http:/ / dbpedia.org).

Systematic approaches for data storage, such as

databases, predefine explicit schemas to record data.

These schemas can be considered as semantic

metadata for the stored data. Spreadsheets, on the

other hand, have implicit schemas, i.e. metadata and

data merged in the same tabular space.

Many related work attempt to separate schema of

their instances, as if one is more than the other. One

of our hypotheses is that both are equally important

and powerful in the search for a given semantically

richer.

The central thesis behind our approach is that we

can detect and interpret the spreadsheet’s schema by

looking for construction patterns shared by research

groups. We propose in this paper a representation

model able to capture such patterns, as well as to be

processed by machines. Results of our analysis in

thousands of spreadsheets indicate the existence of

such recurrent patterns and that they can be

exploited to recognize implicit schemas in

spreadsheets.

There are several aspects that hinder the

spreadsheet recognition and its implicit schema,

such as differences between columns order, the label

used to identify fields and their respective semantics

etc.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

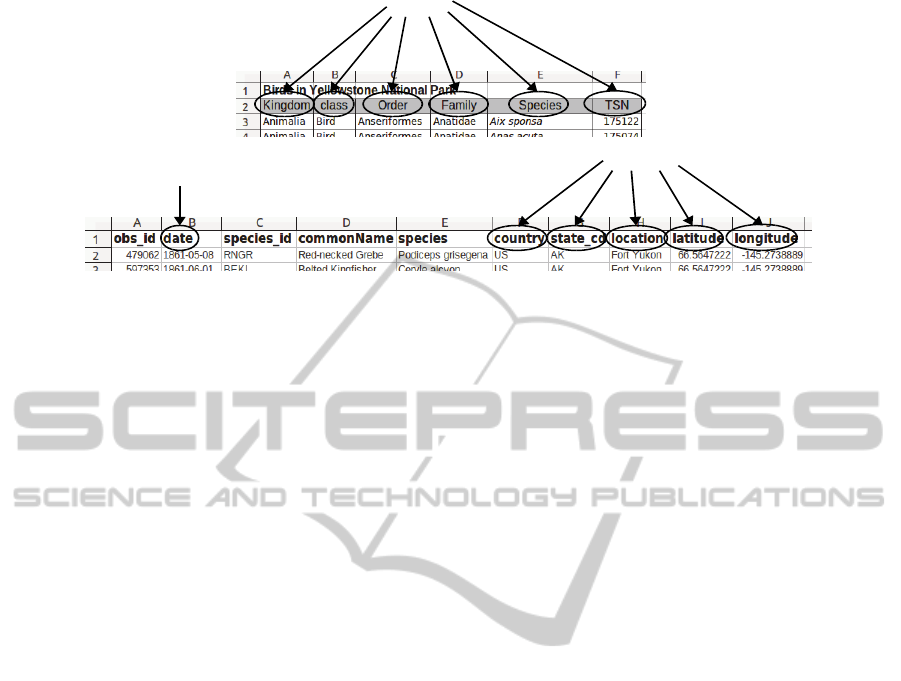

Figure 2: Fields Characterization.

Although related work explore a subset of the

common practices in tabular data – sometimes

taking into account their context (Jannach et al.,

2009); (Venetis et al., 2011); (Mulwad et al., 2010) –

they do not define a mechanism or model to

independently represent these patterns. Since the

knowledge about how to recognize patterns is mixed

with the programs, they cannot be decoupled from

their code. We claim here that a representation to

materialize the knowledge about these patterns as

artefacts, independently of specific programs and

platforms, enables to share, reuse, refine and expand

such patterns among users and applications.

This research is driven by a larger project that

involves cooperation with biologists to build

biodiversity bases. We observed that biologists

maintain a significant portion of their data in

spreadsheets and, for this reason, this research

adopted the context of biology as its specific focus.

We propose a model to represent construction

patterns, departing from observations conducted

through incremental steps, including spreadsheets

collecting/catalog, formulating hypotheses/models

and evaluation and they will be detailed in next

sections.

3 METODOLOGY

As previously mentioned, our approach to represent

construction patterns was based on a study of related

work and field research in the biology domain.

Based on an initial analysis of how biologists of

the Institute of Biology (IB) of Unicamp created

their spreadsheets, we designed a process to

automate the recognition of construction patterns,

whose design involved (i) collecting and analyzing

spreadsheet data;(ii) formulating hypotheses about

construction patterns of spreadsheets; (iii) designing

and implementing automatic recognizers for these

spreadsheets.

3.1 Initial Data Collection and Analysis

Our analysis started with 9 spreadsheets belonging

to the IB, in which we identified two main

construction patterns, related to the nature of the

spreadsheet: catalogs of objects – e.g., specimens in

a museum – and event related spreadsheets, e.g., a

log of samples collected in the field. We further will

refer to these spreadsheet natures as catalog and

event.

In order to address the significant differences

among spreadsheet types we classified each field in

six exploratory questions (who, what, where, when,

why, how) (Jang et al., 2005). It enabled us to

represent and recognize patterns in a higher level of

abstraction, e.g., a catalog spreadsheet has as initial

fields the taxonomic identification – classified as

what question – on the other hand, a collection

spreadsheet has as initial fields: date and locality –

classified as when and where questions, as illustrated

in Figure 2.

The next step involved collecting more 33

spreadsheets on the Web to compose our sample. To

search spreadsheets belonging to the biology

domain, we applied domain related keywords as

criterion.

3.2 Hypotheses

According to the observation of these spreadsheets,

we proposed the following pattern-related

hypotheses:

H1: most of the spreadsheets organization follows

the pattern of columns as fields and rows as records;

H2: in order to characterize the context (Jang et al.,

2005)fields in the spreadsheets can be classified in

what

when

where

AutomaticInterpretationBiodiversitySpreadsheetsBasedonRecognitionofConstructionPatterns

one of the six exploratory questions;

H3: the first fields of a spreadsheet often define its

nature, e.g., catalog or event, as well as its

construction pattern.

We developed a system – SciSpread – to

automatically recognize schemas based on these

hypotheses. We found evidences, based on our

hypothesis, that patterns can drive the recognition of

the spreadsheet nature in a context, to make its

schema explicit and to support its semantic

annotation.

3.3 SciSpread

Figure 3 illustrates the overall SciSpread

architecture. Figure 3 (A) represents the data input

of the system, divided into two groups: spreadsheets

collected on the Web and a configuration file, which

guides the process of the spreadsheets recognition.

This configuration file contains data concerning

construction patterns of spreadsheets, e.g., schema

keywords, the relationship among these keywords

and exploratory questions. It works as a dictionary

of terms, mapping them to exploratory questions.

Each term also receives a weight according to its

relevance in a given pattern. For example, in order to

recognize a specific category of spreadsheets, if the

term species is 50% more relevant than latitude, its

relevance-weight will be 10, while the latitude

weight will be 5.

Figure 3 (B) details the processing of

spreadsheets, in which the system extracts the data

from these spreadsheets using a library and performs

processing based on the model.

Thus, in the Fields Recognition stage, a

search is performed looking for terms of the

spreadsheet related to terms contained in the

configuration file. Whenever a term is recognized, it

follows to the Fields Classification step,

in which it is linked to an ontology concept specified

in the dictionary of the configuration file. The

process continues until it finds a schema (Schema

Identification step) that meets one of the

expected patterns, otherwise, the corresponding

spreadsheet is classified as unrecognized. The

recognized schema/pattern conducts to the

Identification of the Spreadsheet

Nature step.

This search for terms/schema involves two

aspects: the relevance-weight of the recognized

spreadsheet terms and their spatial arrangement.

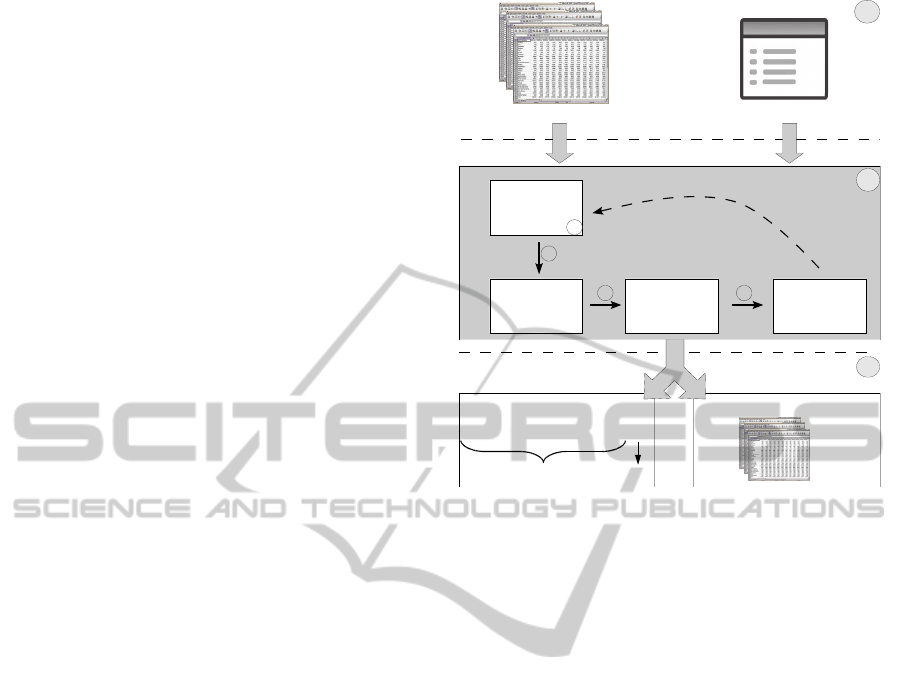

Figure 3: System Architecture.

Even though the recognition process operates in

successive steps, the two last steps –to identify the

spreadsheet schema and nature – are progressive,

according to the recognition of terms and their

arrangement as construction patterns.

Like related work – detailed in the previous

section – this version of the system mixes with the

program code most of the knowledge about how to

recognize patterns and categorize spreadsheets,

comprising the order and spatial relationships among

fields. To address this limitation, we propose in this

paper a model to represent construction patterns and

their links with semantic representations based on

ontologies. This model is independent of specific

programs and platforms, enabling to share, reuse,

refine and expand representations among users and

applications.

Our model is founded in field observations

detailed in the next section, which presents the

results obtained by the SciSpread system after

processing thousands of spreadsheets collected on

the Web. A statistical analysis of these results

indicates that spreadsheets follow building patterns

shared by communities.

4 EVIDENCES OF

CONSTRUCTION PATTERNS

The process of collecting and analyzing spreadsheets

spreadsheets

Schema Explicitation

Spreadsheet Description

configuration file

Phylum Class Order Genus Species Date

what when

Fields

Recognition

Fields

Classification

Schema

Identification

Recognition of

Spreadsheet

Nature

3 4

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

was developed as follows:

In the first step, we initially collected 9

spreadsheets of the Institute of Biology (IB) used for

different purposes. The analysis of these

spreadsheets revealed that common terms and

patterns are followed by the community. Its results

guided the next step: the collection of 33 additional

spreadsheets on the Web.

Based in our preliminary assumptions, we looked

for patterns concerning: schema layout (e.g., column

labels), order and grouping of spreadsheet fields etc.

A set of hypotheses – presented in the previous

section – was defined and we developed an initial

version of the automatic recognition system to

validate these hypotheses.

The system was tuned to recognize all

spreadsheets of this initial sample, whose nature fit

in our context. We further randomly collected more

1,914 spreadsheets on the Web, finding them

through the Google search engine, based on

keywords extracted from previous spreadsheets:

kingdom, phylum, order, biodiversity, species,

identification key etc. The system recognized 137

spreadsheets (7%) of all 1,914 spreadsheets

collected. The manual analysis of these spreadsheets

showed that the system correctly recognized 116

spreadsheets and incorrectly recognized (false

positives) 21 spreadsheets. Even though the latter

spreadsheets have the expected construction pattern,

they do not address the focus of our study, which are

spreadsheets used for data management.

Increasing our sample size to 5,633 spreadsheets,

the system recognized 7%; subsequently, increasing

to about 11,000 spreadsheets, the system recognized

10.4%, which corresponds to 1,151 spreadsheets, in

which 806 were classified in the catalog and 345 in

the event.

We selected a random subset of 1,203

spreadsheets to evaluate the precision / recall of our

system. The percentage of automatic recognition of

the spreadsheets in the subset was approximately the

same as the larger group. Our system achieved a

precision of 0.84, i.e. 84% of retrieved spreadsheets

were relevant; are call of 0.76, i.e. the system

recognized 76% of all relevant spreadsheets; and an

F-measure of 0.8. The accuracy was 93% and the

specificity 95%, i.e. among all spreadsheets that the

system does classified as not relevant, 95% were in

fact not relevant.

The recognition rate of approximately 10.4% of

the spreadsheets must consider that they were

collected through a Web search tool. According

Venetis et al., (2011), these search tools treat tabular

structures like any piece of text, without considering

the implicit semantics of their organization and thus

causing imprecision in the search results. We further

show an analysis of the data extracted from

spreadsheets.

4.1 Pattern for Schema Location

The graph in Figure 4 shows that the spreadsheets

schemas were concentrated on the initial lines and

the percentage of matching per line of terms

extracted from the spreadsheets against terms of our

dictionary of terms. The quantity of spreadsheets

that do not have schemas in the first lines decreases

exponentially as we move away from the initial

lines. We observed that most of the terms are located

in the initial lines. Therefore, there is a tendency

positioning schemas at the top followed by their

respective instances.

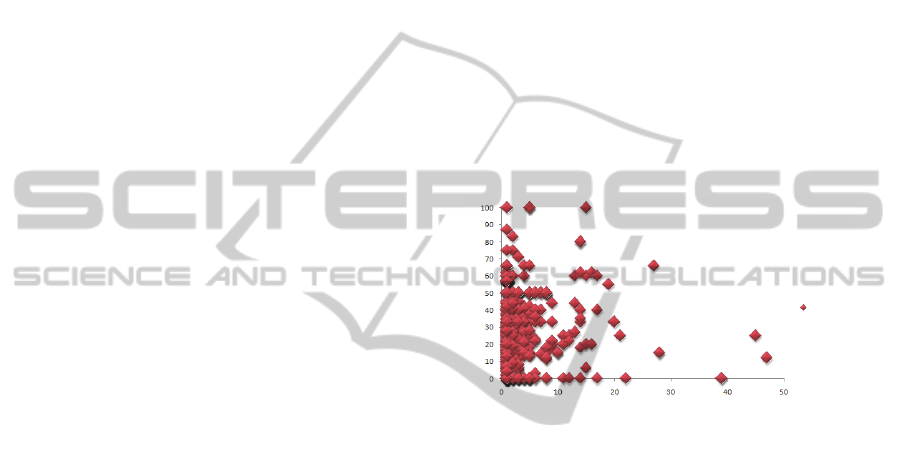

Figure 4: Terms by schema of initial lines.

4.2 Predominance of Terms and

Spatial Distribution

In this stage of the analysis, we verified how much

the predominant terms and their disposition in the

schema can indicate of the spreadsheet nature:

catalog or event (see explanation of these natures in

Section 3.1).The schema fields were grouped in one

of the six exploratory questions and they were

weighted according to their position in the schema –

a field will weigh less as it is far from the initial

position.

Figure 5 shows the distribution of fields

answering the “what” question in catalog

spreadsheets as a gray map. Each block in the gray

map represents a quadrant (set of cells) of the

analyzed spreadsheets. Since spreadsheets have

different sizes, the size (number of cells) of the

quadrant to map each spreadsheet will vary

proportionally to the size of the spreadsheet, in such

a way that all spreadsheets are divided in the same

number of quadrants/blocks.

Schema Row

spreadsheet

AutomaticInterpretationBiodiversitySpreadsheetsBasedonRecognitionofConstructionPatterns

The degree of gray indicates the percentage of

spreadsheet fields answering the “what” question

inside the quadrant. The results indicate that “what”

fields are concentrated in the initial fields for

catalog spreadsheets. Even though we found terms

below the upper rows, the amount was incipient and

thus we omitted of the figure.

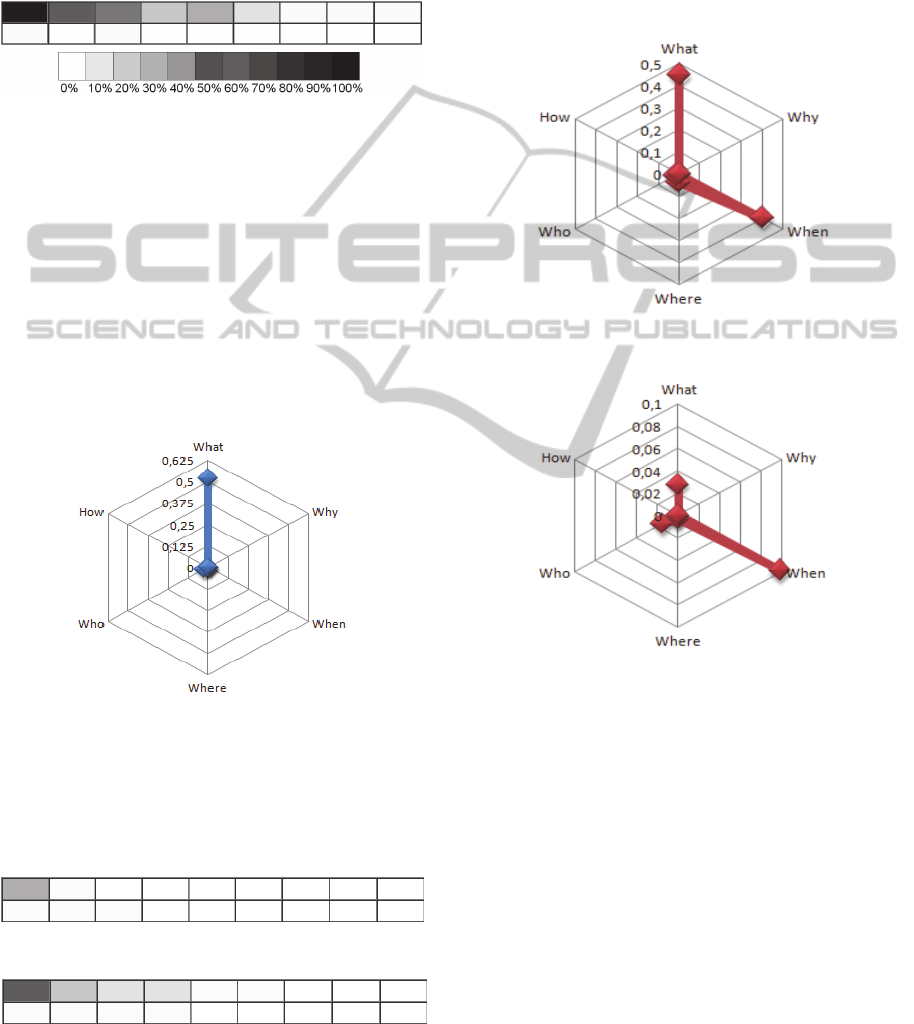

Figure 5: Distribution of what fields – catalog

spreadsheets.

In catalog spreadsheets, the other five questions

appear in smaller proportions. In order to perform a

comparative analysis among proportions of the

fields, we present a radar chart in Figure 6.

Spreadsheets recognized as catalog tend to have

many fields that answer the “what” question and

some fields that answer the “who” question. The

quantities of others questions were no significant. It

delineates a pattern for catalog spreadsheets; it tends

to have more fields to identify and detail specimens,

with identification (what) fields in the beginning.

Figure 6: Proportions among fields – catalog spreadsheets.

Figure 7 and Figure 8 show the distribution of

exploratory questions “what” and “where” in event

spreadsheets. Compared to catalog spreadsheets,

they have predominant fields answering the question

“where” instead of “what”.

Figure 7: Distribution of what fields - event spreadsheets.

Figure 8: Distribution where fields - event spreadsheets.

Following the same approach of Figure 6, in Figure

9 we show the proportions of fields in event

spreadsheets. In these spreadsheets there are lots of

fields that answer the questions “what” and “when”.

Even though both have similar proportions in

number, as we will show in the next chart, “when”

fields predominate in the initial positions and hence

by hypothesis H3, these field guides to identify the

nature of the spreadsheet.

Figure 9: Relationship between the fields without

positional weight - event spreadsheets.

Figure 10: Relationship between the fields with positional

weight - event spreadsheets.

Figure 10 emphasizes the importance of field

positions in the schema. It is a variation of the chart

in Figure 9, assigning weights to the fields that

decrease exponentially as they move away from the

initial columns. The chart in Figure 10 shows the

sum of these weighted fields.

Analyzing Figure 9 singly, we tend to infer that

“what” questions are as relevant as “when”

questions, to characterize the pattern of event

spreadsheets. However, Figure 10 indicates that

fields answering “when” questions are mostly

located in the initial positions. This positional

differentiation can be exploited to drive the nature

recognition process of spreadsheets. These

observations motivated our proposition of a model to

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

represent these patterns – presented in the next

section – which takes into account relative positions

of fields.

5 REPRESENTATION OF

CONSTRUCTION PATTERNS

This section details the model, proposed in this

paper, to capture and represent construction patterns

in spreadsheets, which can be interpreted and used

by machines. The characteristics of this model were

based on field observations reported in the previous

section. Therefore, even though we intend to

conceive a generic model to represent patterns in

spreadsheets for data management in general, in the

present stage our analysis is focused in biology

spreadsheets.

As detailed before, the schema recognition step

involves analyzing patterns used by users to

organize their data, which we argue to be strongly

influenced by the spreadsheet nature inside a

domain. Departing from our spreadsheet analysis,

we produced a systematic categorization of

construction patterns observed in biology

spreadsheets, which supported the design of a

process to recognize these patterns. Our process to

recognize construction patterns and consequently the

spreadsheet nature is focused on the schema

recognition. The model presented in this section was

designed to be used as part of this process, i.e. while

a schema is recognized, the system tries to map it to

a candidate model of a pattern, as illustrated in

Figure 11.

Our representation approach considers that there

is a latent conceptual model hidden in each

spreadsheet, which authors express through patterns.

How authors conceive models and transform them

into spreadsheets is highly influenced by shared

practices of the context in which the author is

inserted, e.g., a biologist author cataloging

specimens from of a museum. Her reference to build

the catalog will be the specimens themselves, but

also the usual strategy adopted by biologists of her

community to tabulate data from specimens.

Thus, the construction patterns and the respective

hidden conceptual models to be represented here

reflect community or domain patterns and models.

Figure 11 introduces two main patterns to be

addressed by our representation approach, which

follow the nature of the respective spreadsheet: a

catalog and an event spreadsheet. Our analysis

shows that a catalog spreadsheet contains taxonomic

information of a specimen (“what” question)

concentrated in the initial positions, defining their

role as identifiers. On the other hand, an event

spreadsheet contains temporal and location fields in

the initial positions.

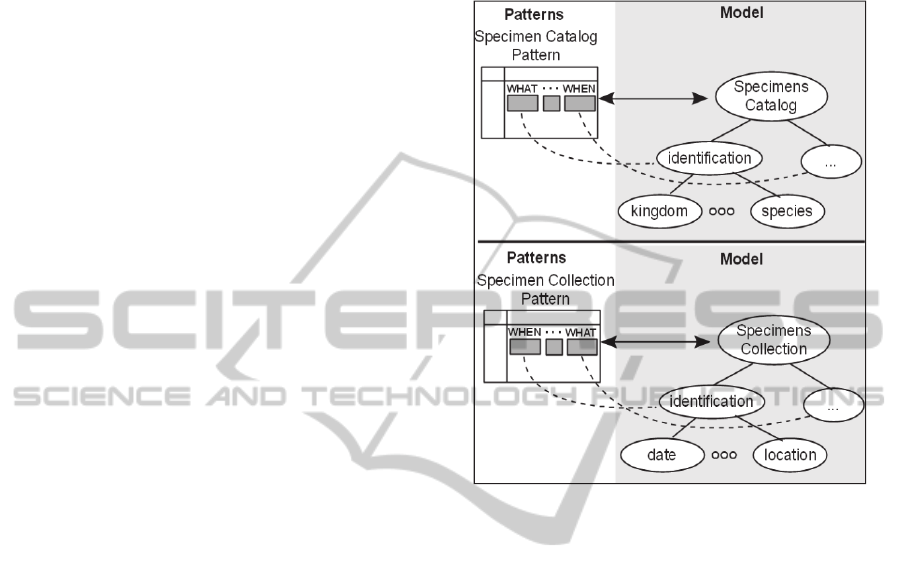

Figure 11: Matching between patterns and respective

models.

Figure 12 shows a diagram that synthesizes a

construction pattern for spreadsheets that catalog

specimens. It was conceived from observations in

the analysis described in the previous section. This

diagram spatially delimits two main blocks of a

spreadsheet: the implicit Schema and the data

Instances which follow this schema. Delimited

spaces identified by labels in the schema define the

spatial organization of the hidden conceptual model.

This diagram visually introduces the rationale

behind our model to represent a construction pattern

and its relation with a conceptual model implicit in

the organization. Elements of the conceptual model

in the schema are represented by a hierarchy of

labelled blocks. The innermost rectangles – e.g.,

kingdom and date – represent spreadsheet fields

related to properties in an implicit schema. An inner

block inside an outer block means a property which

is part of a higher level property – e.g., kingdom is

part of identifier.

A visual analysis of this diagram gives us

directions of how the pattern is organized, e.g.,

schema up / instances down; identifier on the left, as

a series of progressively specialized taxonomic

references. To express these characteristics of the

AutomaticInterpretationBiodiversitySpreadsheetsBasedonRecognitionofConstructionPatterns

Figure 12: Construction pattern of catalog spreadsheet.

pattern in a computer interpretable representation,

we represent them as qualifiers. We show qualifiers

in the diagram of Figure 12 identified by the prefix

"q", positioned on top of the upper left corner of the

block they refer. They are categorized as follows:

Positional Qualifier – characterizes an element in a

pattern according to its absolute position within a

higher level element. There are four positional

qualifiers: left (q←), right (q→), top (q↑) and

bottom (q↓). In Figure 12 the positional qualifiers

indicate that the schema is positioned on the top

(above its instances); an identifier on the left of a

schema and observations on the right.

Order Qualifier (q#) – characterizes an element in

a pattern according to its relative order regarding its

neighbouring elements. In Figure 12, each part of

the identifier is recognized according its order (e.g.,

kingdom before phylum and species after

gender); the collected property (date and time a

specimen was collected) is positioned after the

identifier and before obs.

Label Qualifier (q@) – indicates that the label

characterizes the element. In the example, the label

species identifies that this column refers to

species.

Data Type Qualifier (q$) – characterizes the

predominance of one data type in the instances of a

given property. In the figure, the elements which are

parts of the identifier are typed as strings.

Range Qualifier – specify if neighbour elements

have generalization / specialization relations. The

qualifier (q>) indicates that the left one is more

general than the right one and (q<) the opposite.

Classified Qualifier – characterizes instances of a

given property that are arranged in ascending order

(q+) or descending order (q-). Figure 12 has no

classified qualifiers. However, event spreadsheets

further detailed have instances of date and time

fields usually sorted in ascending order, receiving

classified qualifiers in the pattern.

Redundancy Qualifier (q=) – characterizes

redundancy of information in instances of a

property. Such redundancy is typical, for example,

in non-normalized relations among properties and

composite properties, in which the values of a sub-

property are broader or more generic of a related

sub-property – usually the value of one sub-property

embraces the value of the other. In the example, the

kingdom sub-property embraces the phylum sub-

property, which embraces the following sub-

property and so on. Therefore, the kingdom is

highly redundant, since several instances will have

the same kingdom. The redundancy decreases

while you move to more specialized sub-properties

of identifier.

Besides the qualifiers in the diagram of Figure

12, we indicate between brackets the relation of

elements with one of the six exploratory questions

(who

, what, where, when, why, how). This

association will subsidize the characterization of

construction patterns in a more abstract level. For

example, looking at other kinds of catalog

spreadsheets, outside the biology domain, we

observed they define “what” fields as identifiers and

they appear in the leftmost position (q←).

5.1 Formalizing the Model to

Represent Patterns

In Figure 12 we informally introduced our model to

represent patterns through a visual diagram. In this

subsection, we will present a more formal

representation, to be stored in digital format and to

be read and interpreted by machines. This

representation takes as a starting point the

conceptual model implicitly expressed through the

pattern. Figure 13 shows the representation of the

construction pattern illustrated in Figure 12. The

Schema

Instances

q↑

q↓

identifier

(specimen)

q←

obs

q→

kingdom speciesphylum gender

q@#> q@#> q@#> q@#

collected

date hour

[when]

q@#^ q@#

q$= q$q$= q$= q$= q$ q$

[what]

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

model is based on the OWL Semantic Web standard.

The ovals represent classes (owl:class) and

rectangles represent properties

(owl:ObjectPropertyorowl:DatatypePr

opert).

The root class –Specimen in the figure –is

related to the spreadsheet nature; in this case,

instances of the Specimen class represent the

instances of the spreadsheet, which catalogs

specimens. A class will have a set of applicable

properties, represented by a domain edge

(rdfs:domain). Properties of this model are

related to fields extracted from the spreadsheet.

Range edges (rdfs:range)indicate that values of

a given property are instances of the indicated class.

For simplicity, the diagram omits details of the

OWL representation.

Figure 13: Conceptual model for catalog spreadsheets

annotated with qualifiers.

Properties in our model are annotated by qualifiers

presented in the previous section. Properties can be

annotated in OWL through the

owl:AnnotationProperty. In this case,

annotations are objects that specify the qualifier and

the pattern they are related. Qualifiers as annotations

are depicted in Figure 13 above and/or below the

properties they qualify. A qualifier above a property

indicates that it is applied to the relationship

between the property and the class to which it is

applied by the domain relation. For example, the

qualifier q← (left positional qualifier) is represented

above the identifier property, indicating that

when this property is used as a field in a spreadsheet

describing a Specimen, we expect that it will

appear in the left position.

A qualifier below the property means that it

applies to property values – instances in the

spreadsheet. For example, the qualifier q$= below

the kingdom property indicates that a specific type

(string) and redundancy are observed in the values

of this property in the instances.

Properties are also annotated as answering one of

the six exploratory questions. These annotations are

depicted in Figure 13 inside brackets. There are

additional concerns in the OWL model that are

necessary to bridge it to the implicit spreadsheet

schema, which are also represented as annotations:

the order of properties and their relation with labels.

This OWL representation allows us to digitally

materialize building patterns of spreadsheets, to be

shared by users and applications. Figure 14

illustrates our OWL model applied to the

characterization of an event spreadsheet used by

biologists to record the log of specimens collected in

the field – each specimen collected here is an event.

In this model we highlight that: in each instance

(event), the time or the location is expected to be an

identifier, positioned on the left (q←); values for

time related properties (e.g., date and hour) will

appear in ascending order (q+) in the instances.

Figure 14: Conceptual model for collection spreadsheets

enriched with qualifiers.

6 RELATED WORK

As discussed in Section 5, a fundamental

characteristic of spreadsheets used for data

management is the separation between schema and

instances. The schema is presented above (q↑) or left

(q←) and instances is below (q↓) or right (q→).

This observation appears in all the papers of

related work, whose purpose is to recognize the

implicit schema of spreadsheets. Syed et al., (2010)

point out that this challenge leads to a more general

problem of extracting implicit schemas of data

sources – including databases, spreadsheets etc. One

approach to make the semantics of spreadsheets

interoperable, promoting the integration of data, is

the manual association of spreadsheet fields to

concepts in ontologies represented by open

standards of the Semantic Web.

Han et al., (2008) adopt the simplest

identifier

q←

obs

q→

kingdom speciesphylum gender

q@#>

property

Legend:

[what]

q@#> q@#> q@#

collected

date

hour

[when]

q@#^

q@#

q$= q$= q$= q$

q$= q$

Specimen

domain

Specimen

Identifier

Date

Hour

range

domain

identifier

q←

obs

q→

property

Legend:

[what]

collected

date

hour

[when]

q@#^

q@#

q$= q$

Collection

domain

Specimen

Identifier

Date

Hour

range

location

[where]

latitude

longitude

q@#

q$ q$

Coordinate

range

domain

AutomaticInterpretationBiodiversitySpreadsheetsBasedonRecognitionofConstructionPatterns

approach to devise a schema and its respective

instances, called entity-per-row(Connor et al., 2010).

In this approach, besides the schema, each row of

the table should describe a different entity and each

column an attribute for that entity. The spreadsheet

of Figure 1, for example, follows this kind of

organization: each column corresponds to an

attribute – e.g., Date, Genus, Species etc. – and

each row to an event – a collection of a specimen.

Han et al., (2008) and several related work assume

the entity-per-row organization to support the

process of manually mapping attributes, to make

them semantically interoperable. Initially, the user

must indicate a cell whose column contains a field

which plays the role of

identifier–equivalent to the

primary key of a database. In the example of

Figure1, it would be the field date and time

start. Then, the system allows manual association

between each cell of a field and an attribute of the

semantic entity, considering that the respective

column of the field will contain its values.

Langegger and Wob (2009) propose a similar,

but more flexible, solution to map spreadsheets in an

entity-per-row organization. They are able to treat

hierarchies among fields, when a field is divided into

sub-fields. In Figure 1, for example, the fields

Date, Time Start and Time End refer to when

the species was collected. It is usual that authors

create a label spanning the entire range above these

columns – e.g., labelled as "CollectionPeriod"

– to indicate that all these fields are subdivisions of

the larger field. This hierarchical perspective can be

expressed in our model, since a property can be

typed (rdfs:range) by a class, which in turn has

properties related to it – e.g., the identifier

property in Figure 13 is typed by the class

Specimen Identifier, which affords the

properties kingdom, phylum etc.

RDF has been widely adopted by related work as

an output format to integrate data from multiple

spreadsheets, since it is an open standard that

supports syntactic and semantic interoperability.

Langegger and WOB (Langegger and Wolfram,

2009) propose to access these data through SPARQL

(Pérez et al., 2009) – a query language for RDF.

Oconnor et al., (2010) propose a similar solution, but

using OWL.

Abraham and Erwig (2006) observed

spreadsheets are widely reused, but due to their

flexibility and level of abstraction, the reuse of a

spreadsheet by people outside its domain increases

errors of interpretation and therefore inconsistency.

Thus they propose a spreadsheet life cycle defined in

two phases: development and use, in order to

separate the schema of its respective instances. The

schema is developed in the first cycle, to be used in

the second cycle. Instances are inserted and

manipulated in the second cycle guided by the

schema, which cannot be changed in this cycle.

Another approach to address this problem is

automating the semantic mapping using Linked

Data. Syed et al., (2010) argue that a manual process

to map spreadsheets is not feasible, so they propose

to automate the semantic mapping by linking

existing data in the spreadsheets to concepts

available in knowledge bases, such as DBpedia

(http://dbpedia. org) and Yago (http://www.mpi-

inf.mpg.de/yago-naga/yago/).Yago is a large

knowledge base, whose data are extracted, among

others, from Wikipedia and WordNet

(http://wordnet.princeton.edu). The latter is a digital

lexicon of the English language, which semantically

relates words.

Among the advantages of the last approach, there

is the fact that such bases are constantly maintained

and updated by people from various parts of the

world. On the other hand, the search for labels

without considering their contexts can generate

ambiguous connections, producing inconsistencies.

Thus, there are studies that stress the importance of

delimiting a scope before attempting to find links.

Venetis et al., (2011) exploit the existing

semantics in the tables to drive the consistent

manipulation operations applicable to them. The

proposal describes a system that analyzes pairs of

terms heading columns and their relationship, in

order to improve the semantic interpretation of them.

Authors state that a main problem in the

interpretation of tabular data is the analysis of terms

independently. This paper tries to identify the scope

by recognizing a construction pattern, which is

related to a spreadsheet nature inside a context.

Jannach et al., (2009) state that the compact and

precise way to present the data are primarily directed

to human reading and not for machine interpretation

and manipulation. They propose a system to extract

information from web tables, associating them to

ontologies. They organize the ontologies in three

groups: 1. core: concepts related to the model

disassociated from a specific domain; 2. core +

domain: domain concepts of a schema related to the

information to be retrieved; 3. instance of ontology:

domain concepts of instances. These ontologies aim

at gradually linking the information to a semantic

representation and directed by the user's goal.

Among these solutions, we note that some of

them address individual pieces of information inside

spreadsheets – devoid of context – and others

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

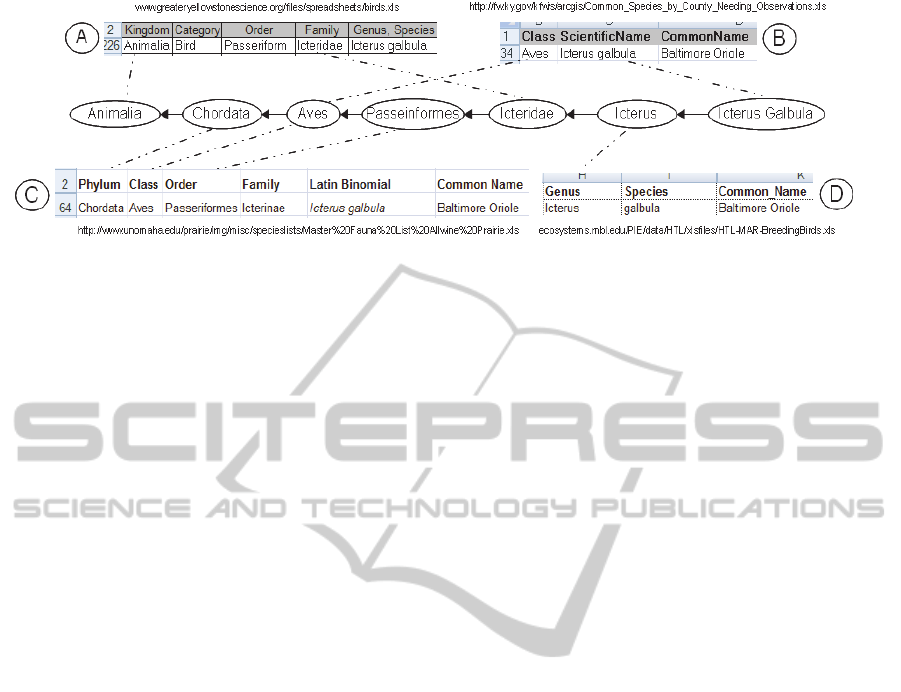

Figure 15: Taxonomy chain create from spreadsheets.

consider the importance of identifying and

characterizing the context. Even though all

approaches rely on construction patterns of

spreadsheets, none of them proposes a model to

represent, exchange, reuse and refine these patterns,

which is one of the main contributions of this work.

7 CONCLUSION AND FUTURE

WORK

This paper presented our thesis that it is possible,

from a spreadsheet structure, to recognize, map and

represent how users establish construction patterns,

which are reflected in the schema and data

organization.

One of our main contributions here is a model to

represent such patterns, as well as its association

with a conceptual model to guide a process of

automatic recognition.

Our process also involves the association

between fields of spreadsheets and concepts

available in ontologies. None of the related work

departs from the characterization of the underlying

conceptual models and their association with

construction patterns, to categorize spreadsheets

according to the nature of information they

represent, and to recognize them.

Such categorization is essential to drive

consistent operations according to the semantics and

applicability of the extracted data, and to establish

how data from different spreadsheets can be

combined according to their type – e.g., (i) data from

a spreadsheet containing events can be ordered and

presented in a timeline; (ii) data from specimens in a

museum (catalog) can be linked to records of their

collections (events) in a specific manner.

To show the potential of this semantic

characterization and the application of consistent

operations over the extracted data, we implemented

a prototype able to recognize schemas and extract

data from several spreadsheets, mapping them to a

semantic representation, which is combined with a

taxonomic tree, see http://purl.org/biospread/

?task=pages/txnavigator.

Figure 15 shows part of the interface of our

prototype displaying a chain of the resulting

taxonomic tree, populated combining partial

fragments of spreadsheets “A”, “B”, “C” and “D”.

In spreadsheet “A”, the system finds the link

between the Animalia Kingdom and the Icteridae

Family. The instance in spreadsheet “B” links the

Aves Class to the Icterus galbula Species –whose

ScientificName term is related to the Species

concept – and the BaltimoreOriole Common Name.

In spreadsheet “C”, there are instances linking the

Chordata Phylum, the Aves Class, the Passeriformes

Order, the Icteridae Family and the BaltimoreOriole

Common Name. Finally, in spreadsheet “D”, the

Icterus Gender is linked to Baltimore Oriole

Common Name.

Even though each spreadsheet has a partial

fragment of the chain, their recognized schemas

support instances integration and linking. Since

spreadsheets were captured from several repositories

on the Web, we observed that the instances showed

greater diversity of format and data quality

problems, whose proper integration is beyond the

scope of this work and may be addressed in future

work.

Our studies presented here have focused in the

area of biodiversity. We intend to investigate its

generalization to other domains of knowledge,

extending this strategy to a semiotic representation.

In a starting approach, the proposal involves the

creation and implementation of an interpretation

model through the description of a system of signs.

A sign is all that stands for something to someone

and can be described as: sign = signifier + signified.

The signifier is defined as the acoustic image/shape

of the sign, the signified is the meaning/idea that the

image has for each person or group (Saussure,

AutomaticInterpretationBiodiversitySpreadsheetsBasedonRecognitionofConstructionPatterns

2011).

Extending this concept to spreadsheets, the

signifier would be their structure and organization,

which can represent of convention adopted by a

community or user, reflected in a construction

pattern. The significant would be the signifier

associated with a particular meaning in the domain

of the spreadsheet. As in linguistics, the relation

between signifier/significant is indivisible; shape

(signifier) depends on its usage (signified), as well

as, idea (signified) depends on its representation

(signifier) (Saussure, 2011).

Thus, our main concern in future work is to

define and model spreadsheet elements in this sign

model, besides interoperability issues, like name

conflicts, domain conflicts etc.

ACKNOWLEDGEMENTS

Work partially financed by the Microsoft Research

FAPESP Virtual Institute (NavScales project), the

Center for Computational Engineering and Sciences

- Fapesp/Cepid 2013/08293-7, CNPq (grant

143483/2011-0, MuZOO Project and PRONEX-

FAPESP), INCT in Web Science (CNPq

557.128/2009-9), CAPES and FAEPEX- Unicamp,

as well as individual grants from CNPq.

REFERENCES

Abraham, R. & Erwig, M., 2006. Inferring templates from

spreadsheets. Proceeding of the 28th international

conference on Software engineering - ICSE ’06, 15,

p.182.

Connor, M. J. O., Halaschek-wiener, C. & Musen, M. A.,

2010. Mapping Master: a Flexible Approach for

Mapping Spreadsheets to OWL. In Proceedings of the

International Semantic Web Conference. pp. 194–208.

Doush, I. A. & Pontelli, E., 2010. Detecting and

recognizing tables in spreadsheets. Proceedings of the

8th IAPR International Workshop on Document

Analysis Systems - DAS ’10, pp.471–478.

Han, L. et al., 2008. RDF123: from Spreadsheets to RDF.

In The Semantic Web. Springer, pp. 451–466.

Haslhofer, B. & Klas, W., 2010. A survey of techniques

for achieving metadata interoperability. ACM

Computing Surveys, 42(2), pp.1–37.

Jang, Seiie, Ko, Eun-Jung and Woo, W., 2005. Unified

User-Centric Context: Who, Where, When, What,

How and Why. In Proceedings of the International

Workshop on Personalized Context Modeling and

Management for UbiComp Applications. pp. 26–34.

Jannach, D., Shchekotykhin, K. & Friedrich, G., 2009.

Automated ontology instantiation from tabular web

sources—The AllRight system

☆

. Web Semantics:

Science, Services and Agents on the World Wide Web,

7(3), pp.136–153.

Langegger, A. & Wolfram, W., 2009. XLWrap –

Querying and Integrating Arbitrary Spreadsheets with

SPARQL. In The Semantic Web. pp. 359–374.

Mulwad, V. et al., 2010. Using linked data to interpret

tables. In Proceedings of the International Workshop

on Consuming Linked Data. pp. 1–12.

Ouksel, A. M. & Sheth, A., 1999. Semantic

Interoperability in Global Information Systems A brief

introduction to the research area and the special

section. , 28(1), pp.5–12.

Pérez, J., Arenas, M. & Gutierrez, C., 2009. Semantics and

complexity of SPARQL. ACM Transactions on

Database Systems, 34(3), pp.1–45.

Ponder, W. F. et al., 2010. Evaluation of Museum

Collection Data for Use in Biodiversity Assessment. ,

15(3), pp.648–657.

Saussure, F. de, 2011. Course in General Linguistics R.

Harris, ed.,

Syed, Z. et al., 2010. Exploiting a Web of Semantic Data

for Interpreting Tables. , (April), pp.26–27.

Tolk, A., 2006. What comes after the Semantic Web -

PADS Implications for the Dynamic Web. , pp.55–62.

Venetis, P. et al., 2011. Recovering Semantics of Tables

on the Web. Proceedings of the VLDB Endowment, 4,

pp.528–538.

Yang, S., Bhowmick, S.S. & Madria, S., 2005. Bio2X: a

rule-based approach for semi-automatic transformation

of semi-structured biological data to XML. Data &

Knowledge Engineering, 52(2), pp.249–271.

Zhao, C., Zhao, L. & Wang, H., 2010. A spreadsheet

system based on data semantic object. 2010 2nd IEEE

International Conference on Information Management

and Engineering

, pp.407–411.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
