MongoDB for Electrophysiology Experiments

Petr Je

zek, Roman Mou

cek and Jakub Dan

New Technologies for the Information Society, Department of Computer Science and Engineering,

Faculty of Applied Sciences, University of West Bohemia, Univerzitn

ı 8, 306 14 Plze

n, Czech Republic

Keywords:

Data, Metadata, Experiment, EEG, ERP, EEG/ERP Portal, Oracle, Mongo, Performance, Flexibility, Fixed-

schema, Free-schema.

Abstract:

Many efforts are devoted to provide a uniﬁed solution for maintaining data from electrophysiological experi-

ments. Because large data collections of heterogeneous nature are obtained, neuroinformatics databases must

be robust and ﬂexible. Current database systems are of two types. The ﬁrst one uses a ﬁxed schema while the

second one is schema free. This paper discusses usage of a NoSQL database, MongoDB, for electrophysiolog-

ical experiments and investigates transformation of existing electroencephalography (EEG) and event-related

potentials (ERP) database records in Oracle into MongoDB. Two perspectives, ﬂexibility and performance are

discussed. A ﬁnal approach that proﬁts from combination of both concepts, is also discussed.

1 INTRODUCTION

Since laboratories performing electrophysiological

experiments are facing a lot of difﬁculties with data

storing, management and sharing, researchers are

consistently working on deﬁnition of data standards

for the electrophysiological data. The main scientiﬁc

initiatives lead not only in deﬁnition of standards for

raw data, but more signiﬁcantly, in deﬁnition of stan-

dards for metadata. The ability to deal with experi-

mental metadata signiﬁcantly helps with better under-

standing of experimental raw data. These difﬁculties

are solved within Neuroinformatics Coordinating Fa-

cility (INCF) that released recommendations (van Pelt

and van Horn, 2007) for handling of the experimental

data/matadata.

Our research group specializes in the research of

brain activity using methods of electroencephalogra-

phy (EEG) and event related potentials (ERP). As

a member of Czech INCF National Node (CNNN)

we cooperate in deﬁnition of data standards for the

EEG/ERP domain.

A large amount of obtained data (tens megabytes

per experiment) and metadata are stored in a custom

system - the EEG/ERP Portal (Jezek and Moucek,

2012) developed as a part of the CNNN infrastructure

(Jezek et al., 2013). It is a mature web based tool de-

veloped to help fulﬁl INCF goals in standardization of

data formats in electrophysiology. Currently, the data

layer of the EEG/ERP Portal is build on Oracle re-

lational database management system (RDBMS). Al-

though this RDBMS ensures robustness of the system

its concept based on a relational model causes inﬂex-

ibility. The aim of this paper is to investigate possi-

bilities to migrate records from a relational database

with a ﬁxed schema to a database with a free schema.

This approach is investigated from performance and

ﬂexibility perspectives.

The remainder of this paper is organized as fol-

lows. We start with a review of the state-of-the-art,

pointing out limitations of current approaches. Then,

we brieﬂy introduce the most important part of the

data model in the EEG/ERP Portal. For the reasons

mentioned above a part of this paper is dedicated to

explore whether and how NoSQL databases could

be used as a persistence layer of the EEG/ERP Por-

tal. The last part before conclusion introduces per-

formance testing done to discuss comparison of a re-

lational database in contrast with a NoSQL database.

Finally, the following questions are discussed: What

changes to the application would have to be done to

change the database engines? What disadvantages

would the change brings?.

2 STATE OF THE ART

Several databases for electrophysiological data are

gradually formed. (Rautenberg et al., 2011) presents

a data management system for electrophysiological

422

Ježek P., Mou

cek R. and Dan

ek J..

MongoDB for Electrophysiology Experiments.

DOI: 10.5220/0004903604220427

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2014), pages 422-427

ISBN: 978-989-758-010-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

data based on a well established relational database

technology (PostgreSQL) together with mechanism

to deal with the heterogeneity of electrophysiologi-

cal data. Different data models link by speciﬁc ”glue”

tables. It enables management heterogeneous data.

INCF Dataspace (Group, 2013) is a solution pro-

vided by INCF. It associates INCF nodes data sources

in a distributed system based on iRods solution. Tech-

nically, data are managed locally by individual nodes

and connected using catalogue servers. From a user

perspective it works as a large data ﬁle system ac-

cessed through a web interface.

Although this solution is ﬂexible, when such data

are intended to be shared among different systems,

metadata must be provided in a uniﬁed format.

Open MetaData Markup Language (OdML)

(Grewe et al., 2011) is a ﬂexible data format introduc-

ing a tree structure of Sections and Properties. The

Property is a core entity of the odML data model that

can contain values. Properties are logically grouped

in sections that can consists of subsections.

Hierarchical Data Format (HDF5) (The HDF

Group, 2010) is a self-describing data format de-

signed to store and organize large amounts of numer-

ical data. The ﬁle structure is based on two major

types of objects: Datasets (multidimensional arrays

of a homogeneous type), and Groups (container struc-

tures which can hold datasets and other groups).

StorageBIT (Carreiras et al., 2013) is a solution

that combines HDF5 format (that ensures data persis-

tency) with MongoDB used as a front end for data

access.

Due to heterogeneous nature of data, a growing

number of developers and users have begun turning

to various types of non relational databases (Leav-

itt, 2010). The existence of a broad range of NoSQL

databases on the one hand and efforts to provide ﬂex-

ible data formats on the other hand was the motiva-

tion to investigate replacement of common relational

database by their NoSQL alternatives. Our EEG/ERP

Portal served as a suitable test case. Our tests simul-

taneously validated a StorageBIT approach.

3 EEG/ERP PORTAL DATA

STRUCTURE

The internal structure of the EEG/ERP Portal pro-

vides a set of metadata organized in several seman-

tic groups. The core structure contains the following

metadata:

• Scenario of experiment (name, length, descrip-

tion, ...)

• Experimenters, testing persons, experiment owner

(given name, surname, contact, experiences,

handicaps, ...)

• Description of raw data (format, sampling fre-

quency, ...)

• Codebooks (weather, environment notes, elec-

trode settings, artifact information, ...)

4 IMPLEMENTATION

4.1 Metadata Selection

Because of the EEG/ERP Portal database is extensive

a proof-of-concept working on a restricted subset of

metadata is presented. The set of selected metadata

represents a typical subset of items most often used

when data are queried:

• start and end time of an individual experiment

• research group the experiment belongs to includ-

ing its name and owner’s name

• name of the experiment owner (the responsible

person)

• experiment scenario including its title, description

and name of the scenario’s owner

• subject information including name, date of birth,

laterality, gender and age

• codebooks including surrounding weather, envi-

ronment notes, electrode settings and artifact in-

formation

4.2 Data Models

The database shown in Figure 1 represents all meta-

data selected in Section 4.1.

Because MongoDB represents data in a BSON

format

, a BSON document representing the data

structure from Figure 1 has been designed (Listing 1).

Listing 1: JSON Schema that is equivalent to the database

structure. Individual values are demonstration examples.

They do not represent real persons or real experiments.

{

" ex pe ri me nt _i d " : 1,

" h e a der " : {

" s t a r t _ t i m e " : " s tar t t ime " ,

" e n d _ t ime " : " e nd t ime " ,

" o w ner " : {

" f i r s t n a me " : " O liv e r " ,

" l a s t n ame " : " T w ist "

" re s e a r c h _ g r o u p " : {

BSON is a binary representation of JSON documents,

though contains more data types than does JSON

MongoDBforElectrophysiologyExperiments

423

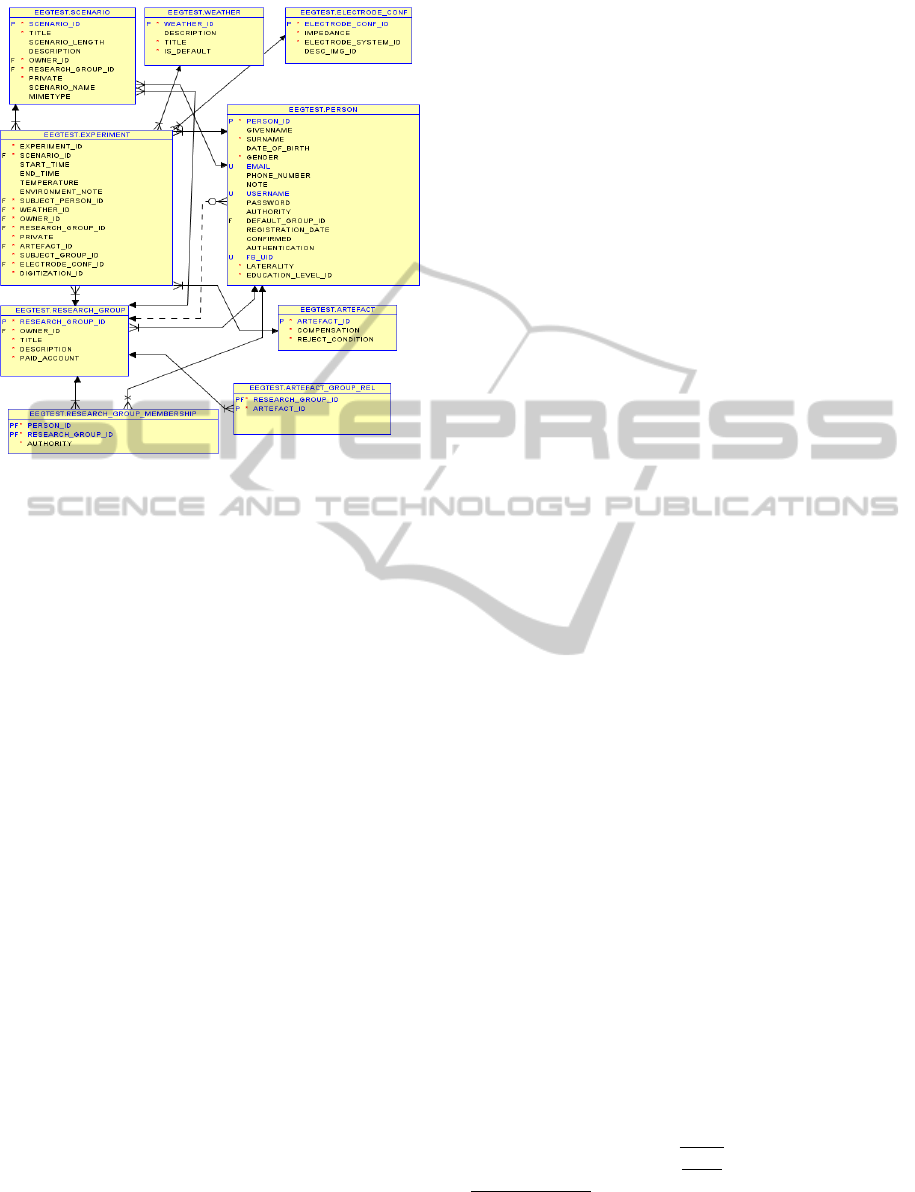

Figure 1: ERA model containing representative subset of

stored metadata.

" t i tle " : " EE G / E RP G r o up " ,

" o w ner " : {

" f i r s t n a me " : " Joh n " ,

" l a s t n ame " : " S m ith "

}

" s c e n a rio " : {

" n ame " : " dr iv er ’s at t e n tio n " ,

" de s c r i p t i o n " : " Dri ve r ’ s at t e n t i on - a u d i t ory

st i m u l a t i o n of d r iv e r a nd pa s s e nger " ,

" o w ner " : {

" f i r s t n a me " : " O liv i a " ,

" l a s t n ame " : " D u n ham "

}

" s u b j ect " : {

" f i r s t n a me " : " Jac k " ,

" l a s t n ame " : " B l ack " ,

" g e n der " : " g e nde r " ,

" d ate of b i rth " : "0 8 /0 1 / 1 9 8 8 " ,

" l a t e r a l i t y " : " r igh t h and " ,

" g r oup " : {

" t i tle " : " EE G / E RP G r o up " ,

" d e s c r i p t i o n " : " A g ro u p e s t a b l i s h ed to p erf o r m

EE G / ER P e x p e r i m e nts "

}

" co n f i g u r a t i o n " : {

" te m p e r a t u r e " : 2 2 ,

" w e a t her " : {

" t i tle " : " S unn y " ,

" d e s c r i p t i o n " : " S unn y w e a t her "

" en v i r o n m e n t _ n o t e " : " It c o n t r ibut e t o a b ett e r

mo od of te st p er s o n s " ,

" a r t e f act " : {

" co m p e n s a t i o n " : " u se d f i l ter th at re m o ves 5 0 Hz

fr e q u e n cy " ,

" re j e c t _ c o n d i t i o n " : " it doe s not w ea r the

si g n al "

" el e c t r o d e _ s y s t e m " : "1 0 - 2 0 sy s tem " ,

" di g i t i z a t i o n " : {

" sa m p l i n g _ r a t e " : "1 0 2 4 " ,

" g ain " : "1 . 2 "

}

4.3 Test Framework

A test framework has been developed for easier and

repeatable testing

. It is written in Python which

has been chosen because contains drivers for both the

database engines, provides good handling of data col-

lections and enables fast development. The frame-

work provides the following functionality:

• Parameter-based generation of test data into Ora-

cle DB

• Export of all experiments from Oracle DB into

MongoDB

• Running bulks of queries on both databases.

It enables to measure execution time, deﬁne

parameter-based bulk size or run bulks in paral-

lel to increase server load.

4.4 Test Cases

The tests were run on a Gentoo machine (kernel:

3.7.10, Intel i7 with 4 cores, 8GB of RAM), with

the necessary code implemented in Python. Oracle

database (11g Release 2) and MongoDB 2.4.0. were

used.

We deﬁned three test cases used to compare Mon-

goDB with Oracle performance:

• Search by scenario title (single join in Oracle) -

Test Case 1

• Search by title of a research group’s owner (two

joins in Oracle) - Test Case 2

• Search by age of a subject (aggregation function

in Oracle, date comparison in MongoDB) - Test

Case 3

5 RESULTS

5.1 Performance

Each test consisted of 100 queries in 6 iterations (N).

The tests were run in 1, 2, 4, 8, 16, and 32 paral-

lel processes in each iteration. Therefore 100, 200,

400, 800, 1600 and 3200 queries had been run in each

iteration. The performance (P) was measured in op-

erations per second (op/s) by averaging (avg(s)) how

long each iteration took to run (t

) (Equation 1).

P =

∑

i=1

(1)

availabe from: https://github.com/NEUROINFOR

MATICS-GROUP-FAV-KIV-ZCU/EEG-ERP-Portal-

Mongo-PoC

HEALTHINF2014-InternationalConferenceonHealthInformatics

424

Detailed results can be found in Table 1. The ta-

ble is split into two parts (the left part for Oracle, the

right part for MongoDB). For MongoDB six itera-

tions were executed without indexes (the upper half

of table), followed by six iterations with indexes cre-

ated (the bottom part of table). For Oracle, all 12 it-

erations were executed with indexes created for the

relevant columns. For simplicity, results for individ-

ual iterations are omitted, table shows only averaged

results over all iterations.

From Table 1 we can observe:

• MongoDB returns results on average 2-3 times

faster than Oracle in most cases.

• Indexes in MongoDB did not seem to have any

signiﬁcant effect on performance.

• When running queries in parallel MongoDB per-

forms better for Test Case 1 and Test Case 2. Or-

acle kept the same query/s ratio (which resulted

in exponential growth of test duration, depending

on the number of threads). Query/s ratio of Mon-

goDB was increasing signiﬁcantly up to 8 threads

(and it kept the ratio for 16 and 32 threads)

• MongoDB had problems with Test Case 3 under

heavy load (16 and 32 threads).

5.2 Flexibility

Due to its query system and document nature, Mon-

goDB is suitable for searching experimental meta-

data. However, it does not provide an ultimate solu-

tion for all experimental metadata as there are pieces

of information for which relational integrity is re-

quired (typically a person own several experiment or

one scenario can be used in more experiments (see

Figure 1)). MongoDB does support foreign keys, yet

their usage would result in multiple queries (as it does

not support joins).

There is several options, each with own difﬁculties

to overcome:

1. Keep all data in a relational database - It ensures

an easy way to maintain data integrity, but it does

not provide a ﬂexible data model.

2. Transfer all data to MongoDB - It ensures a ﬂexi-

ble data model but it brings many difﬁculties. Ei-

ther it contains duplicate data or references due

to nonexistent foreign keys. Some application

changes are required. Although, it brings fast read

queries, a need for multiple queries (in case of ref-

erences usage) to retrieve all related data to an in-

dividual record occurs.

3. Parallel use of both database engines

(a) in one application - It requires to keep data

which require relational integrity in Oracle and

to keep experiment-speciﬁc meta-data in Mon-

goDB.

(b) separate data warehouse - architecture taken

from the StorageBIT (Carreiras et al., 2013)

proposal requires implementation a separate

experiment data storage on top of MongoDB,

and access it from the Portal via public API.

6 DISCUSSION

From Section 5.1 we can observe that Oracle per-

formed better only in Test Case 3. One of the rea-

sons might be that while Oracle can get the age value

from a date, MongoDB has to compare dates directly.

MongoDB gave stable results for all iterations. Ora-

cle experienced signiﬁcant performance jumps during

iterations, for unknown reason (as a result the average

query/s ratio contains rather high statistical error).

Option 2 from Section 5.2 seems to be the least

suitable solution for the project such as the EEG/ERP

Portal. Even though the NoSQL database provides

good facility for storing electrophysiology experi-

ments, it is not the best choice for the current version

of the EEG/ERP Portal. Any attempt to use solely

MongoDB as the EEG/ERP Portal’s data storage, due

different nature of NoSQL databases, would probably

result in large changes in the application.

Option 1 is the safest one, while option 3 is worth

further investigation as it might result in a solution

which would be able to combine strengths of both

concepts. Option 3a is most difﬁcult to implement

(probably most complicated changes to the appli-

cation requires answer questions how to query ef-

ﬁciently and how to handle transactions?). Option

3b would require changes in the Portal’s application

structure. In addition, it brings similar integrity issues

as with 3a. The recommended approach uses combi-

nation of Hibernate (Bauer and King, 2006) for Or-

acle and Spring Data (Pollack et al., 2012) for Mon-

goDB. A layer implemented between the application

and persistence provides a uniﬁed access to data in a

relational database and data in a NoSQL database.

7 CONCLUSIONS

Lot of difﬁculties were identiﬁed when electrophys-

iological data were stored and maintained. The aim

of current research initiatives is to design robust sys-

tems for storing large collections of data sets. We de-

veloped the EEG/ERP Portal. The robustness of this

MongoDBforElectrophysiologyExperiments

425

Table 1: Performance results. It compares Oracle (the left part of table) with MongoDB (the right part of table) for all three

test cases deﬁned in Section 5.1. The upper part of the table shows results when indexes were disabled, the bottom part when

indexes were enabled.

Oracle MongoDB

Without indexes

Test Case 1

Processes 1 2 4 8 16 32 1 2 4 8 16 32

avg(s) 15,749 29,373 59,722 131,443 244,95 320,111 6,899 7,612 8,24 13,42 25,863 52,082

op 100 200 400 800 1600 3200 100 200 400 800 1600 3200

op/s 6,35 6,809 6,698 6,086 6,532 9,997 14,495 26,273 48,544 59,615 61,865 61,442

avg 7,079 45,372

Test Case 2

avg(s) 17,984 32,422 57,652 128,311 220,652 131,534 9,891 10,121 10,557 18,618 36,827 74,206

op 100 200 400 800 1600 3200 100 200 400 800 1600 3200

op/s 5,561 6,169 6,938 6,235 7,251 24,328 10,111 19,761 37,888 42,969 43,446 43,123

avg 9,414 32,883

Test Case 3

avg(s) 72,404 143,456 286,598 387,175 323,436 514,247 23,946 45,673 80,695 163,815 373,29 753,373

op 100 200 400 800 1600 3200 100 200 400 800 1600 3200

op/s 1,381 1,394 1,396 2,066 4,947 6,223 4,176 4,379 4,957 4,884 4,286 4,248

avg 2,901 4,488

With indexes

Test Case 1

Processes 1 2 4 8 16 32 1 2 4 8 16 32

s 13,996 26,683 48,646 84,48 164,857 304,819 6,446 7,21 7,767 12,604 24,271 48,852

op 100 200 400 800 1600 3200 100 200 400 800 1600 3200

op/s 7,145 7,495 8,223 9,47 9,705 10,498 15,513 27,74 51,503 63,474 65,921 65,504

avg 8,756 48,276

Test Case 2

s 16,45 30,518 57,537 118,879 150,591 140,543 9,336 9,68 10,142 17,374 34,471 69,582

op 100 200 400 800 1600 3200 100 200 400 800 1600 3200

op/s 6,079 6,553 6,952 6,73 10,625 22,769 10,711 20,66 39,439 46,045 46,416 45,989

avg 9,951 34,877

Test Case 3

s 64,773 128,272 255,519 379,731 338,034 500,823 21,885 44,654 81,854 167,622 399,704 828,011

op 100 200 400 800 1600 3200 100 200 400 800 1600 3200

op/s 1,544 1,559 1,565 2,107 4,733 6,389 4,569 4,479 4,887 4,773 4,003 3,865

avg 2,983 4,429

system is ensured using Oracle database on backend.

Although this solution works quite satisfactorily, a us-

age of relational database makes difﬁcult to store het-

erogeneous experimental data. This disadvantage is

solved using document-based databases. We tested

MongoDB and investigate possibilities to use it in-

stead of Oracle. Despite the advantages that this so-

lution brings, a lot of difﬁculties remain. The most

signiﬁcant is the loss of data integrity together with a

need to duplicate data items. The second one is an ab-

sence of a uniﬁed API to access data (some solution

similar to Hibernate that ensures object-relational-

mapping for Java programs). Our future work in-

cludes two following goals: The data where its per-

sistence is strictly required will be exactly deﬁned.

Next, a uniﬁed API that enables parallel data access

in a ﬁxed schema database together with data access

in a schema free database will be provided.

ACKNOWLEDGEMENTS

This work was supported by the European Regional

Development Fund (ERDF), Project ”NTIS - New

Technologies for Information Society”, European

Centre of Excellence, CZ.1.05/1.1.00/02.0090.

REFERENCES

Bauer, C. and King, G. (2006). Java Persistence with Hi-

bernate. Manning, revised. edition.

Carreiras, C., Silva, H., Loureno, A., and Fred, A. L. N.

(2013). Storagebit - a metadata-aware, extensible, se-

mantic and hierarchical database for biosignals. In

Stacey, D., Sol-Casals, J., Fred, A. L. N., and Gamboa,

H., editors, HEALTHINF, pages 65–74. SciTePress.

Grewe, J., Wachtler, T., and Benda, J. (2011). A bottom-up

HEALTHINF2014-InternationalConferenceonHealthInformatics

426

approach to data annotation in neurophysiology. Fron-

tiers in Neuroinformatics, 5(16).

Group, I. W. (2013). Incf dataspace.

Jezek, P. and Moucek, R. (2012). SYSTEM FOR

EEG/ERP DATA AND METADATA STORAGE

AND MANAGEMENT. NEURAL NETWORK

WORLD, 22(3):277–290.

Jezek, P., Stebet

ak, J., Bruha, P., and Moucek, R. (2013).

Model of software and hardware infrastructure for

electrophysiology. In Stacey, D., Sol

e-Casals, J., Fred,

A. L. N., and Gamboa, H., editors, HEALTHINF,

pages 352–356. SciTePress.

Leavitt, N. (2010). Will nosql databases live up to their

promise? Computer, 43(2):12–14.

Pollack, M., Gierke, O., Risberg, T., Brisbin, J., and

Hunger, M. (2012). Spring Data. O’Reilly Media.

Rautenberg, P., Sobolev, A., Herz, A., and Wachtler, T.

(2011). A database system for electrophysiological

data. In Hameurlain, A., Kng, J., Wagner, R., Bhm,

C., Eder, J., and Plant, C., editors, Transactions on

Large-Scale Data- and Knowledge-Centered Systems

IV, volume 6990 of Lecture Notes in Computer Sci-

ence, pages 1–14. Springer Berlin Heidelberg.

The HDF Group (2000-2010). Hierarchical data format ver-

sion 5.

van Pelt, J. and van Horn, J. (2007). 1st incf workshop

on sustainability of neuroscience databases. Workshop

report. Stockholm.

MongoDBforElectrophysiologyExperiments

427
