An Architecture for Resilient Ubiquitous Systems

Anubis G. M. Rossetto

, Cláudio F. R. Geyer

Carlos O. Rolim

Valderi R. Q. Leithardt

and Luciana Arantes

PPGC, Institute of Informatics, Federal University of Rio Grande do Sul (UFRGS), Porto Alegre, Brazil

Institute of Technology, Senai, Porto Alegre, Brazil

LIP6, University of Paris 6, CNRS, INRIA, 4, Place Jussieu, 75005 Paris, France

Keywords: Ubiquitous Computing, Self-healing, Healthcare, Fault Tolerance, Fault Detector.

Abstract: With the perspective of ubiquitous computing becoming more common form of technology in our everyday

lives, our increasing dependency on these systems will require them to be always available, failure-free,

fully operational and safe. They will also enable more activities to be carried out and provide new

opportunities for solving problems. In view of the potential offered by ubiquitous computing and the

challenges it raises, this work proposes a self-healing architecture to support ubiquitous applications aimed

at healthcare The goal is to continuously provide reliable services to meet their requirements despite

changes in the environment. We outline the application scenario and proposed architecture, as well as giving

a detailed account of its main modules with particular emphasis on the fault detector.

1 INTRODUCTION

Ubiquitous computing has its origins in the visionary

work of Marc Weiser who at the beginning of the

1990s predicted that there would be environments

saturated with computing devices, with

communication capabilities highly integrated with

human users (Weiser, 1991). According to Weiser,

ubiquitous computing could only be successful, if its

functions were transparent to the user. This would

allow possible system faults from being masked and

would mean that user intervention is only required

when absolutely necessary. Ubiquitous computing

environments are mainly focused on the interface of

a physical environment, where the user seeks to

make the devices "invisible" and operate with the

minimum of intervention. Thus, the occurrence of a

fault in this type of system can be anything from

annoying which reduces its applicability/usability, to

something that is dangerous and might put the user's

life at risk.

According to Weber (2002) entirely foolproof

systems are impossible, since failures are inevitable.

Thus, the area of fault tolerance attempts to employ

mechanisms that provide computing systems with a

higher level of confidence. In view of the future

scenario, attempts have been made to design

continuously evolving systems that constitute

complex information infrastructures - from super

computers and large data centers to thousands of

small portable computers and embedded devices. As

a result, it - has been a challenge: to maintain

dependability in the systems (Avizienis et al., 2004),

despite the occurrence of changes (Laprie, 2008),

which is called resilience.

As Kephart and Chess (2003) point out, the

management of systems poses a real challenge since

evolution of systems brings increasing of total costs

of ownership. Thus, one solution is to make the

systems more autonomous, to some extent, so as not

to depend on human intervention when carrying out

basic management tasks. Autonomic computing

aims to address the current concerns of complexity

and total cost of ownership, since it is able to meet

the future needs in pervasive and ubiquitous

computing and communications (Sterritt, 2005).

One of the properties of autonomic computing is

self-healing. A system designed with this feature is

able to identify when its behavior deviates from

what is expected and reconfigure itself so that it can

correct the deviation (Sterritt, 2005). This property

ensures effective and automatic recovery when

faults are detected, since it requires not only

masking of failures, but the identification of the

problem and its repair without any interruption of

the service and minimal external intervention. Its

459

G. M. Rossetto A., F. R. Geyer C., O. Rolim C., R. Q. Leithardt V. and Arantes L..

An Architecture for Resilient Ubiquitous Systems.

DOI: 10.5220/0004910404590464

In Proceedings of the International Conference on Health Informatics (HEALTHINF-2014), pages 459-464

ISBN: 978-989-758-010-9

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

goal is to minimize the number of faults so that

applications are kept active and available at all

times.

In light of the potential of ubiquitous computing

and the challenges it raises, we propose a self-

healing architecture to support ubiquitous

applications designed for healthcare, to ensure

reliable services are continuously provided, even in

the face of changes in the environment, as well as to

meet its new requirements.

The paper is structured as follows: first we

provide the application scenario, then the proposed

architecture is outlined in detail; following this there

is a discussion of related works and finally the

conclusions are given together with suggestions for

the next phase of the research.

2 APPLICATION SCENARIO IN

HEALTHCARE

This research is concerned with an application

scenario in the area of healthcare, particularly for

people who require continuous monitoring for some

pathological reason.

This application scenario for monitoring people

requires the use of several sensors to measure

information about the health status of a person in

different ways, for instance, vital signs, location,

falls, gait patterns, acceleration, variations, balance

and symmetry.

On the basis of the collected data, the system can

predict disorders and, for example, detect the

occurrence of an emergency situation that requires

immediate attention, such as a fall. From this

perspective, this scenario is critical, since it is

dealing with life. Thus, the occurrence of faults in

the components can put someone at serious risk.

Research studies into the question of applications

in healthcare should be carried out to make

ubiquitous computing a real technology in the lives

of people. They should be conducted in a transparent

way, so as to bring benefits to the work of

professionals, improve the quality of life and

perhaps in the future act as an alternative means of

making savings in health resources.

Thus, the use and expansion of ubiquitous

applications largely depends on the security and

reliability provided by the environment.

Figure 1 shows the conceived scenario which

aims to provide people with monitoring in their

homes from various sensors. These sensors are

small, have a long battery life and can be deployed

in the environment or on the patient's clothing. An

intermediary mobile device collects the sensor data

and transmits it to a computer base which is also in

the environment. The collect of data can also be

made directly by the computer base. The computer

base processes the data and sends it to a server

where it is stored. The data processing can result in a

simple log (for historical purposes) or trigger a

warning, that can be directed to an emergency

situation.

The central infrastructure makes available

information that can be accessed by different

profiles: doctors, nurses, family, or a health center.

Each profile has access to specialized information.

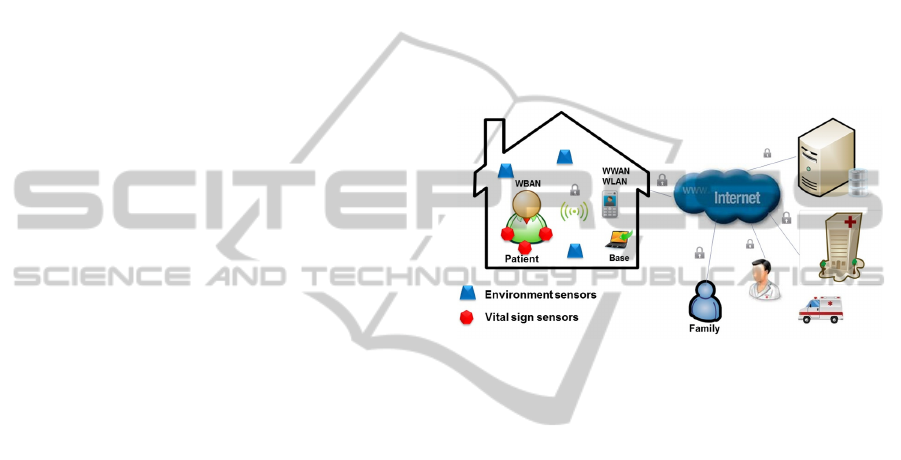

Figure 1: Healthcare Scenario.

3 PROPOSED ARCHITECTURE

Due to the nature of ubiquitous systems, failures are

inevitable and may be frequent. For this reason, our

aim is to provide an architecture that can continue to

provide services even if failures occur. Thus, we

proposed an architecture (shown in Figure 2) with

different layers to support ubiquitous environments

in accordance with the imagined scenario.

The proposed architecture aims to cater for the

needs of a scenario where the ubiquitous

environment must manage applications that are

distributed, mobile, and adaptive to context and

available anywhere and at any time. In these

environments, detecting a fault in other processes is

a key issue. Thus, when a failure is detected, the

system has to make the necessary adjustments to

avoid error propagation which can result in major

damage to the system.

As shown in Figure 2, the proposed architecture

has been divided into three layers: Home, Central

and Interface. The Home layer has the components

that are part of every cell in the ubiquitous

environment. The Central layer contains the

components responsible for keeping the complete

HEALTHINF2014-InternationalConferenceonHealthInformatics

460

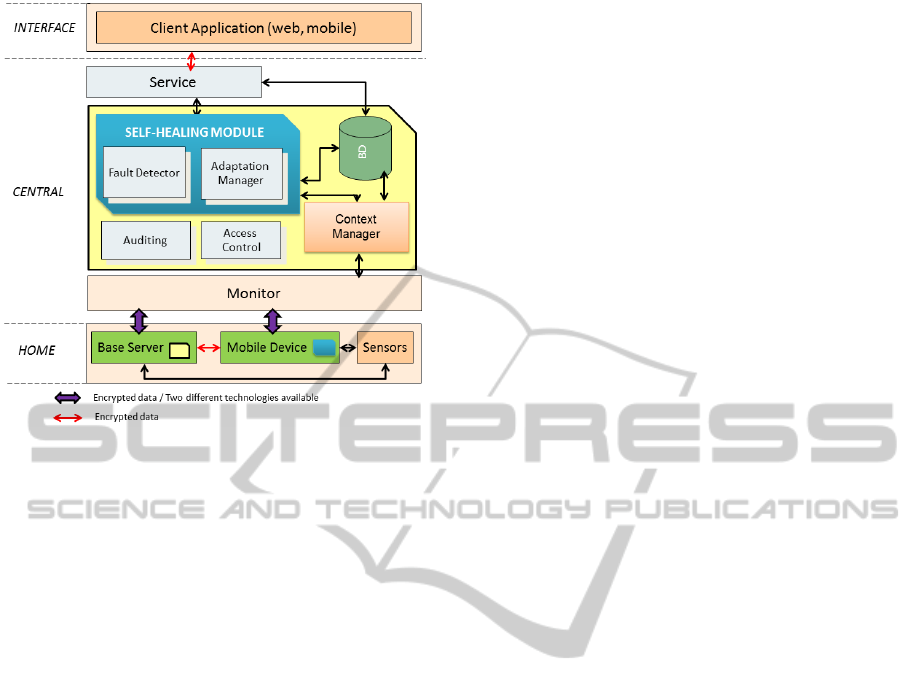

Figure 2: Proposed Architecture.

structure of resources for the ubiquitous

environment. And the Interface layer is available

for applications that seek to access information from

the ubiquitous environment.

The ubiquitous environment has what we call

here a ‘cell’, which is a specific structure to respond

to the applications in a particular place. The

ubiquitous environment is composed of various cells

managed by a middleware layer (Central).

Each cell contains a Base Server that is

responsible for storing and processing data from the

sensed context. A cell may contain several sensors,

actuators and other mobile devices. The

communication between them can occur through

different wireless communication protocols (for

instance, Bluetooth, NFC, Wi-Fi, and others). In

addition, the Base Server has the function of

providing the communication with the central server

(Central layer) to send data and process the received

returns. In the architecture, the data exchanged

between mobile devices and the base server must be

encrypted in a way that keeps it confidential.

The developed applications for the Interface

layer is only concerned with an information query

that is available from the Central layer. Since these

applications may be any kind of platform (web,

mobile), they will have access to the data through a

Web Services that is available in the Central layer.

This information must also be transmitted on a

secure channel (encryption).

The Central layer is made available in a cloud

computing structure. Cloud computing makes more

efficient use of computing resources, since it has

features like availability, elasticity and adaptability

of services, and can provide the user with remote

access (Armbrust et.al., 2010).

The Central layer has several components with

specific responsibilities which are interrelated. The

Monitor component is responsible for providing

interaction with the cell layer (Home).

Communication between the layers foresees the

presence of multiple communication channels (DSL,

mobile,...) through interconnection networks, which

makes the system robust with regard to connectivity

and faulty nodes.

The Central layer has a database for storing

historical data from the ubiquitous system. As well

as storing generated information in the system, this

database also contains a repository of rules and

settings that can be used to determine what

adjustments are required when different fault events

occur. Another component is the Context Manager

which is responsible for processing the context and

adaptations. This is directly linked to all the other

components of the Central layer. The manager is

responsible for processing all the contextual

information received by the monitor.

The blue frame in Figure 2 defines what is called

the Self-Healing Module (SHM). Two main

components form a part of this module: Fault

Detector and Adaptation Manager. The former

consists of an adaptive fault detector that is

responsible for detecting faults of different entities

that need to be monitored in the system. The

Adaptation Manager makes decisions to allow a

suitable adaptation strategy to reduce the impact of

the failure that is identified. Table 1 shows some

examples of failures and their adaptation measures.

The Self-Healing Module is also present in the

Home layer of the architecture, in the Base Server

and Mobile Device components, so that the failure

detector is responsible for monitoring all the

processes that are at the same level and the

information is propagated through the hierarchy.

The deployment of ubiquitous systems requires

robust security mechanisms for access control and

authentication. Failures in these cases can lead to

security breaches and hence impair reliability. Thus,

the Access Control component is responsible to

verifying the authentication of users by giving them

restricted access to resources. The basic access

policies of this component are defined and stored in

the repository, which takes into account aspects of

control, role-based access and location. Thus, a user

is provided with a digital identity and can be

communicated to the system access control.

AnArchitectureforResilientUbiquitousSystems

461

Table 1: Examples of faults and adaptation.

Fault Adaptation

without

communication

between the home and

central layers

Local mode operation (store

data locally to be sent later)

temperature sensor

Fault notification

(responsible), limited

operation mode (ignore value)

Smartphone Backward error recovery

ECG sensor

Fault notification

(responsible); Forward

recovery.

In addition, since the ability to audit data is very

important, all the changes must be the responsibility

of some decision system, and made by an

autonomous process or specialist, that is, someone

must take responsibility for the messages that are

being transmitted/stored. In this way, the Auditing

component will check who is responsible for the

information and will record all the actions to allow

future audits.

Our main contribution is related to the self-

healing module, whose function is to detect faults

and make the necessary adjustments to keep the

application active and available at all times. Thus, in

this paper we focus on the defined characteristics of

the Fault Detector component.

3.1 Fault Detector

A failure detector (FD) is a fundamental service that

can enable the development of fault tolerant

distributed systems (Greve, Sens, Arantes, Simon;

2012). We propose an unreliable fault detector since

communications for an application scenario can be

considered to be partly synchronous. An unreliable

fault detector periodically provides a list of

processes that are suspected of having crashed. The

partial synchrony model proposed by (Chandra;

Toueg, 1996) stipulates that, for every execution,

there are bounds on process speeds and message

transmission times. The fault detector will handle

two types of faults: crash recovery and omission.

In light of the features of ubiquitous

environment, we propose a self-tuning failure

detector, that is able to calibrate its parameters in

order to offer an improved quality of service. Some

features were defined to proposed detector:

 Flexibility:

The detector must be able to provide an output that

is related to a set of processes (e.g., sensors) and not

just to each one individually. This approach can

reduce the rate of false responses provided by an

unreliable detector. In some scenarios, if one or

another sensor fails, it is not serious, but in

percentage terms, the system can be badly affected.

In this way, the output detector would be a value

related to a set of sensors and not a value for each

one, as proposed in (Hayashibara et al. 2004).

 Adaptability:

According to Nunes & Jansch-Porto (2004),

adaptive detectors have the ability to dynamically

adapt their timeout to the behavior of the delay, in

accordance with a margin of safety that can enhance

the quality of service. The detector must have the

ability to self-calibrate with different values of its

parameters (for instance, the heartbeat interval,

detection time, time of expected arrival ...) according

to the requirements of the process (or processes)

monitored. Thus, we seek to reduce the number of

false suspicions, runtime and number of mistakes, by

taking into account that there are periods of burst in

the network with loss and delay messages.

Moreover, by means of the criteria established for

the detector adaptation, it is possible to consider the

history of faults and mistakes. In other words, it can

be determined if there is a burst of failures in a given

period and whether in this same period, the number

of mistakes is low, which indicates that multiple

sensors are probably faulty and action needs to be

taken. Moreover, in some cases, the accuracy of

detection, may be pre-defined by the user for each

monitored node (or group of nodes), for instance,

with regard to hours (at night a finer monitoring

process is required but this can be relaxed during the

day).

 Economy:

In carrying out its functions, the fault detector

receives the control messages, such as the heartbeat

mechanism (Arantes; Strike; Sens, 2011). This

mechanism is based on two temporal references, in

the interval for sending the message I_am_alive! (th)

and in the timeout to wait for the reception of a

message.

Every th time unit, each monitored component q

sends a I_am_alive! message to the monitor

component. If the detector of a monitored

component receives a message from q before its

timeout expires, then the related timeout is restarted.

If the detector of the monitor component does not

receive a message within timeout, then q is added to

the list of suspects.

With the aim of measuring the energy consumed

by different types of devices that may be in the

ubiquitous environment, it will seek strategies to

reduce the number of heartbeats, find an appropriate

agreement about the detection time, and the number

HEALTHINF2014-InternationalConferenceonHealthInformatics

462

of mistakes, and frequency of heartbeats. An

approach that can be applied is the use of the

application message rather than heartbeats (Fetzer;

Raynal; Tronel, 2001) (Satzger et al., 2008). Thus, if

the application sends a message, the detector

considers this message to be an "I am alive" message

and delays sending the I_am_alive! self-message.

 Scalability:

The fault detectors of a distributed system composed

by several processes may or may not collaborate

with each other. This feature determines their degree

of scalability. In this approach, we seek a detector

that can be applied to a scenario with a hierarchical

organization of modules, where the detector is used

in different layers and provides this result to the

higher layers.

4 RELATED WORKS

With regard to related work, references were

consulted that focus on ubiquitous systems and

employ fault handling.

Gaia is a middleware architecture that has the

capacity to manage resources in physical spaces

(Chetan; Ranganathan; Campbell, 2005). A fault

tolerance technique was incorporated in the Gaia

system that considers a model of the faults fail-stop

type and only devices that can host applications,

such as laptops and portable devices. This tolerates

application faults that can be masked by the restart

of applications; thus, the applications periodically

save their states at checkpoints. When it detects that

there is a lack of heartbeat messages, it infers a

contextually appropriate surrogate device where the

application can be restarted (rollback).

The SAFTM is considered to be a fault-tolerant

middleware self-adaptive for ubiquitous computing

with a dynamic environment in ad hoc networks.

The authors propose the architecture of a fault-

tolerant system that applies a scheme based on

policies that seek to address faults in hardware,

software and the network (CAI; PENG; JIANG;

ZHANG, 2012). It detects faults by means of

continuous monitoring of the state of the component

(CPU, memory, OS, I / O, network operations) and

dynamically builds the self-adaptive mechanism in

accordance with the various types of failures.

The Self-healing unit of MARKS (ad-hoc)

middleware is called ETS (efficient, transparent, and

secure) Self-healing, and contains a healing

manager, to handle faults (Sharmin; Ahmed;

Ahamed, 2006). In predicting faults, it conducts an

analysis of the changing rate of status of each device

(memory, energy, communication signal). With

regard to fault containment, it isolates the faulty

device and assigns the service to a provider of

alternative resources.

The fault tolerant service framework selection

(FTSS) keeps track of all the services that are

allocated to registered users and monitors whether

the execution of the allocated service has been

completed successfully (Silas; Ezra; Rajsingh,

2012). When a failure occurs, it waits for 't' time to

examine whether it is a transient failure. If it is not

restored, it delivers a generated report at the

checkpoint (checkpoint) to the next service provider.

Table 2: Related Works.

Focus

Self-

healing

Fault

Detector

Adaptation

Gaia

Middleware No

Yes/

Heartbeat

Checkpoint

rollback

Marks

Middleware

Ad-hoc

Yes

No/

Changing

rate of status

Isolation/

alternative

resources

FTSS

Framework No

No/ Monitor

execution o

service

Checkpoint

rollback

SAFTM

MiddlewareAd-

hoc

Yes

No/ Monitor

the state of

device

Dynamic

Proposed

Middleware Yes

Yes/

Fault

detector

Dynamic

In the evaluation of related work, it can be seen

that there are limitations with regard to adaptation,

with most of the studies employing a fixed criterion

for adaptation when failures occur. Moreover, none

of the studies employs the use of an adaptive fault

detector as proposed in this work. Table 2

summarizes the features of related works.

5 CONCLUSIONS AND FUTURE

WORK

In this paper, we have outlined a self-healing

architecture that enables the development and

execution of ubiquitous applications that are reliable,

AnArchitectureforResilientUbiquitousSystems

463

and allow their evolution and adaptation in the face

of change. This proposal is based on an application

in the health scenario which is of critical importance

since it deals with people´s lives. Thus, the self-

healing mechanism employed in this scenario is

essential to ensure effective recovery. It operates

automatically when faults are detected, in order not

to interrupt the service and only requires a minimum

of external intervention, by keeping the applications

active and available at all times. We have described

the architecture with its layers and main

components, while focusing on the characteristics of

the Fault Detector.

As a further stage of this research, we are

planning to implement the failure detector and make

an evaluation with regard to some metrics supplied

by the QoS of fault detectors. The purpose of this is

to determine how quickly faults can be detected and

the exact extent of false detections (Chen; Toueg;

Aguilera, 2002).

REFERENCES

Arantes, L., Greve, F., & Sens, P., 2011. Unreliable

Failure Detectors for Mobile Ad-hoc Networks. In:

Cruz-Cunha, Maria Manuela; Moreira, Fernando.

Handbook of Research on Mobility and Computing:

Evolving Technologies and Ubiquitous Impacts.

Armbrust, M., Fox, A., Griffith, R., Joseph, A. D., Katz,

R., Konwinski, A., & Zaharia, M., 2010. A view of

cloud computing. Communications of the ACM, 53(4),

50-58.

Avizienis, A., Laprie, J. C., Randell, B., & Landwehr, C.,

2004. Basic concepts and taxonomy of dependable and

secure computing. Dependable and Secure Computing,

IEEE Transactions on, 1(1), 11-33.

Cai, H., Peng, C., Jiang, L., & Zhang, Y. (2012, April). A

Novel Self-Adaptive Fault-Tolerant Mechanism and

Its Application for a Dynamic Pervasive Computing

Environment. In Object/Component/Service-Oriented

Real-Time Distributed Computing Workshops

(ISORCW), 2012 15th IEEE International Symposium

on (pp. 48-52). IEEE.

Chandra, T. D., & Toueg, S. (1996). Unreliable failure

detectors for reliable distributed systems. Journal of

the ACM (JACM), 43(2), 225-267.

Chen, W., Toueg, S., & Aguilera, M. K. (2002). On the

quality of service of failure detectors. Computers,

IEEE Transactions on, 51(5), 561-580.

Chetan, S., Ranganathan, A., & Campbell, R. (2005).

Towards fault tolerance pervasive computing.

Technology and Society Magazine, IEEE, 24(1), 38-

44.

Fetzer, C., Raynal, M., & Tronel, F. (2001). An adaptive

failure detection protocol. In Dependable Computing,

2001. Proceedings. 2001 Pacific Rim International

Symposium on (pp. 146-153). IEEE.

Ganek, A. G., & Corbi, T. A. (2003). The dawning of the

autonomic computing era. IBM systems Journal,

42(1), 5-18.

Greve, F., Sens, P., Arantes, L., & Simon, V. (2012).

Eventually Strong Failure Detector with Unknown

Membership. The Computer Journal, 55(12), 1507-

1524.

Hayashibara, N., Defago, X., Yared, R., & Katayama, T.

(2004, October). The φ accrual failure detector. In

Reliable Distributed Systems, 2004. Proceedings of

the 23rd IEEE International Symposium on (pp. 66-

78). IEEE.

Kephart, J. O., & Chess, D. M. (2003). The vision of

autonomic computing. Computer, 36(1), 41-50.

Laprie, J. C. (2008, June). From dependability to

resilience. In 38th IEEE/IFIP Int. Conf. On

Dependable Systems and Networks.

Nunes, R. C., & Jansch-Pôrto, I. (2002, February). Non-

stationary communication delays in failure detectors.

In Proceedings of the 3rd IEEE Latin-American test

Workshop (LATW’02), Montevideo-Uruguay (pp. 16-

21).

Satzger, B., Pietzowski, A., Trumler, W., & Ungerer, T.

(2008, March). A lazy monitoring approach for

heartbeat-style failure detectors. In Availability,

Reliability and Security, 2008. ARES 08. Third

International Conference on (pp. 404-409). IEEE.

Sharmin, M., Ahmed, S., & Ahamed, S. I. (2006, April).

MARKS (middleware adaptability for resource

discovery, knowledge usability and self-healing) for

mobile devices of pervasive computing environments.

In Information Technology: New Generations, 2006.

ITNG 2006. Third International Conference on (pp.

306-313). IEEE.

Silas, S., Ezra, K., & Rajsingh, E. B. (2012). A novel fault

tolerant service selection framework for pervasive

computing. Human-centric Computing and

Information Sciences, 2(1), 1-14.

Sterritt, R. (2005). Autonomic computing. Innovations in

systems and software engineering, 1(1), 79-88.

Weber, T. S. (2002). Um roteiro para exploração dos

conceitos básicos de tolerância a falhas. Relatório

técnico, Instituto de Informática UFRGS.

Weiser, M. (1991). The computer for the 21st century.

Scientific american, 265(3), 94-104.

HEALTHINF2014-InternationalConferenceonHealthInformatics

464
