MEFORMA Security Evaluation Methodology

A Case Study

Ernő Jeges, Balázs Berkes, Balázs Kiss and Gergely Eberhardt

SEARCH-LAB Security Evaluation Analysis and Research Laboratory, Budafoki út 91/C, Budapest, Hungary

Keywords: Security Evaluation Methodology, Security Testing, Security Objectives, Threat Modelling, Case Study,

Embedded Systems Security.

Abstract: Even software engineers tend to forget about the fact that the burden of the security incidents we experience

today stem from defects in the code – actually bugs – committed by them. Constrained by resources, many

software vendors ignore security entirely until they face an incident, or are tackling security just by focusing

on the options they think to be the cheapest – which usually means post-incident patching and automatic

updates. Security, however, should be applied holistically, and should be interwoven into the entire product

development lifecycle. Eliminating security problems is challenging, however; while engineers have to be

vigilant and find every single bug in the code to make a product secure, an attacker only has to find a single

remaining vulnerability to exploit it and take control of the entire system. This is why security evaluation is

so different from functional testing, and why it needs to be performed by a well-prepared security expert. In

this paper we will tackle the challenge of security testing, and introduce our methodology for evaluating the

security of IT products – MEFORMA was specifically created as a framework for commercial security

evaluations, and has already been proven in more than 50 projects over twelve years.

1 INTRODUCTION

Hacking is not just an arcane activity committed by

social outcasts with a strange hobby – not anymore

(Kirwan, 2012). There are well-organized criminals

who are making good money by taking over

computers through attacking vulnerable software

across the Internet, and creating botnets consisting

of millions of zombie machines to do their bidding.

Hacking became a big business (Moore, 2009), an

industry on its own within the area of cyber-crime.

Due to the effective financial motivation,

attackers are coming up with newer attack methods

literally every day. The attack landscape is

continuously changing; new technologies appear

regularly, usually solving some known problems,

but – most of the time – they also introduce new

ones. We very rarely have silver bullet solutions to

problems (Brooks, 1986), and trying to keep up with

attackers is an eternal cat-and-mouse game.

The landscape of motivations also changes. From

cyber-crime we are apparently moving towards

cyber-war and cyber-terrorism (Andress, 2011), with

major governmental players expending massive

resources, resulting in much more severe

consequences that we are yet to experience. Stuxnet

(Symantec, 2010), Duqu, Flame and Gauss

(Bencsáth, 2012) are examples of complex malware

developed by security specialists for millions of

dollars that can destroy factory machinery or spy on

targeted victims while being undetectable for long

enough to do their job. Yet even these are doing

nothing else but exploiting security vulnerabilities –

actually: bugs – being present in software products.

So vulnerabilities are here to stay. But several

sources confirm – including CERT (CERT Software

Engineering Institute, 2010), SANS (Walther, 2004),

Gartner or Microsoft – that around 90% of attacks

do actually exploit well-known vulnerabilities,

which have been already published at least six

months before the attack took place. Thus, usually

we have solutions for the occurring problems, but

we just don’t use them; it is similar to driving cars

without the safety belts fastened.

Securing software is possible in many different

ways. Considering the product development

lifecycle, approaches may consist of educating

engineers about secure coding practices, doing

security by design, appropriate implementation (i.e.

coding), accomplishing security testing of the

267

Jeges E., Berkes B., Kiss B. and Eberhardt G..

MEFORMA Security Evaluation Methodology - A Case Study.

DOI: 10.5220/0004919902670274

In Proceedings of the 4th International Conference on Pervasive and Embedded Computing and Communication Systems (MeSeCCS-2014), pages

267-274

ISBN: 978-989-758-000-0

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

product, secure deployment and operation, and many

more. Not all approaches are generally equivalent

regarding efficiency or usefulness, and each

development team should analyse the best return of

investment for each; a good source of wisdom of the

crowd in this area is the Building Security In

Maturity model (BSIMM, 2013), a survey intended

to collect and document possible activities that

companies are applying to secure their products.

1.1 The Nature of Security Evaluation

Security evaluation of products is a challenging

discipline that requires a fundamentally different

mind-set from functional testing. While functional

testing simply consists of the verification of well-

defined requirements and the goal is usually to

statistically decrease the number of bugs, security

testing involves finding evidence of abnormal

operation in non-obvious borderline cases: it is not

about how the system should work (aligned to the

various use cases), but rather about how it should

not (considering misuse and abuse cases).

Since during security testing we are looking for

possible behaviour outside of the specified

functionality, in theory we should check “anything

else”, which is obviously an infinite and hard-to-

define set. This is why – due to the bounded

resources – one should first prioritise by doing a risk

analysis. To do that, solid expertise in security is

needed, complemented with the ability to think as

the attackers would do, and be aware not only of the

applicable methodologies, techniques and tools, but

also of the trends among the attackers.

1.2 Security Evaluation Methodologies

Various methodologies exist that aim at security

evaluation of products – some of them general, some

of them domain-specific.

One of the best-known schemes for certification

of products from a security point of view is

Common Criteria, applying the Common

Methodology for Information Technology Security

Evaluation (CEM, 2012). The methodology defines

roles and the evaluation process itself, distinguishing

between evaluating a Protection Profile (describing

generic criteria for certain product family) or an

actual product as the Target of Evaluation (ToE). A

Common Criteria evaluation, however, needs

enormous resources, which are often not in line with

the evaluated product.

Microsoft has gone a long way in the last decade

to secure its products, in parallel defining a

methodology for secure software development.

Microsoft Secure Development Lifecycle (MS SDL,

http://www.microsoft.com/security/sdl/default.aspx)

is a process covering all steps of software product

development; however, there is only a weak focus

on testing, since its Verification step includes only

the practices of applying dynamic analysis, fuzz

testing and the review of the attack surface.

One of the most referred sources regarding

security in the Web application domain is the

OWASP – Open Web Application Security Project

(http://www.owasp.org). One of its sub-projects is

the Application Security Verification Standard

(ASVS, 2013), which defines a methodology for

assessing the security level of products, governed by

a guidance and with a commercial approach through

providing requirements for project contracts. ASVS

defines four levels of verification: 0-Cursory, 1-

Opportunistic, 2-Standard and 3-Advanced, along

with verification requirements for each; though parts

of the methodology are stated quite generally, its

focus is still solely on Web applications.

Open Source Security Testing Methodology

Manual (OSTMM, 2010) provides a quite general

approach, and is a continuously developing, peer-

reviewed – open community developed –

methodology based on verified facts. The overall

process is, however, at some points quite vague, and

some find it hard to translate the presented general

approach to actual evaluation steps and procedures.

Some of the above-described methodologies are

too domain-specific, yet some are incomplete

considering the whole evaluation process or are

quite vague in describing certain steps. In the

following Chapter we will introduce our

comprehensive, practice oriented approach that has a

proven track record in evaluating the security of

various IT products.

2 MEFORMA OVERVIEW

MEFORMA is a security evaluation methodology

designed to be customer-oriented, meaning that the

evaluations are being accomplished on a project

basis using up resources fixed in advance, and the

outcomes not only provide a passed-or-failed result

like most of the certification schemes, but by the

recommendations given, the development groups

also receive valuable support on how to correct the

found problems.

Aligned to the usual terminology, ToE denotes

the system being evaluated, and we have two simple

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

268

roles, the Developer and the Evaluator.

The project approach implies that the work is

accomplished in different phases that build upon

each other, and that each phase ends with providing

a deliverable documenting the results. A typical

MEFORMA evaluation project consists of the

following phases:

 Preparation Phase: The test environment is

established, and threat modelling is performed on

the ToE – based on its results, test cases are

specified. Deliverable is the Evaluation Plan that

contains the definition of the scope, the identified

security objectives, the threat model, and the test

cases.

 Evaluation Phase: The defined test cases are

executed, confirming whether the originally

identified threats are viable or not. Verified threats

(findings) are reported to the Developer regularly

through Weekly Status Reports documenting the

progress of the evaluation.

 Documentation Phase: The findings are

collected, all threats are enlisted and a risk analysis

is performed. Most importantly, recommendations

are given to the Developer explaining how it

should deal with each threat. All results are

compiled in the Evaluation Report as the main

deliverable of the project.

 Review Phase: During this final phase, a new and

fixed version of the ToE is re-evaluated

(regression testing) to determine whether the

identified threats had been adequately addressed.

Evaluation Report is updated with the new results,

forming the Review Report.

In the following chapter we introduce the steps

of the methodology in more detail.

3 THE EVALUATION PROCESS

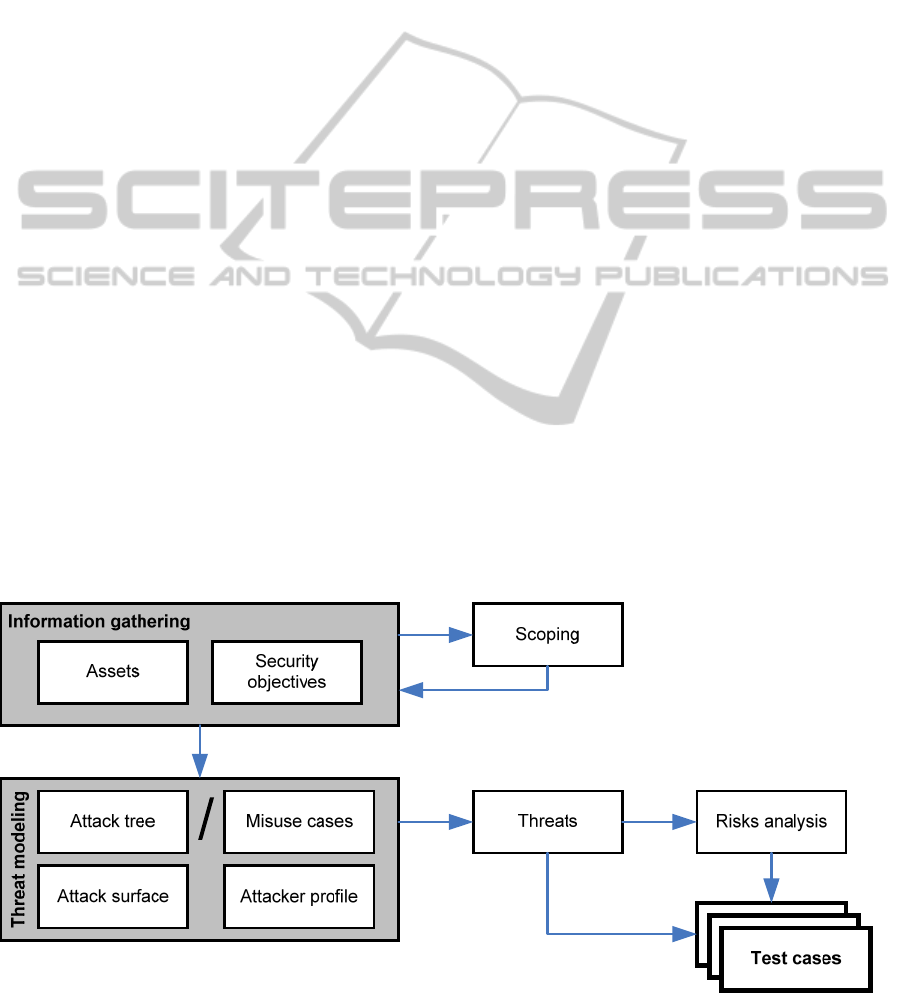

In the subsequent sections we will explain the steps

of the evaluation. The Preparation Phase (see

previous Chapter) consists of Scoping, Information

Gathering, Threat Modelling, and finally the Test

Case Specification, all documented in the Test Plan.

The actual Evaluation takes place based on the

agreed Test Plan, followed by the Documentation

Phase during which the findings are documented and

recommendations are given, and the verified threats

are rated by a Risk Analysis. Finally, a low-intensity

Review phase allows for the clarification of findings

and regression testing.

3.1 Scoping

As the first step, the ToE must be identified, and the

scope of the evaluation must be specified, which is a

co-operative effort between the Evaluator and the

Developer. For this, it is important to fix the ToE

(platform, versions, builds, etc.) before the work

starts, since the evaluation involves consecutive tests

that build upon the results of previous ones.

Basically there are three main aspects of

planning an audit: scope, depth of analysis and the

audit risk. If we limit the scope of the evaluation,

important issues may not be addressed even if we

increase the depth of the analysis. Contrarily, if we

want to keep the scope as wide as possible and

evaluate the whole system, limits in the available

resources will imply limitations in the depth of the

analysis. In both cases it is important to be aware of

those remaining risk factors that the investigations

would not cover.

Figure 1: Preparatory steps for the MEFORMA security evaluation.

MEFORMASecurityEvaluationMethodology-ACaseStudy

269

3.2 Information Gathering

The main goal of this step is to specify the security

objectives. For this, one should first identify and

understand the assets within the system that need to

be protected, and then for each asset determine

which of the independent security objectives

(typically taken from the CIA triad i.e.

Confidentiality, Integrity, and Availability) are

relevant. The assets are then further grouped into

categories appropriate to the specific evaluation –

for instance, a software evaluation would likely have

‘software assets’, ‘data assets’, and ‘other assets’

categories.

If the Developer provides their own list of

security requirements, those are used to refine these

further, prioritizing the security of the assets the

Developer finds to be the most important.

3.3 Threat Modelling

Once the elements of the system are identified and

understood, threat modelling is accomplished

according to the security objectives. This can be

done by various means and following various

approaches; we mostly use the following:

 Attack tree (Schneier, 1999) modelling consists of

conceptual diagrams of perceived threats to a

system. This process is performed by identifying

an attacker goal, and then modelling the various

ways these goals can be achieved.

 Misuse cases are similar to the use case UML

formalism, but instead of describing ways to use

system functionality, they present ways on how to

misuse it (Alexander, 2002). The misuse cases are

derived from the normal use cases: for instance,

for a normal ‘shutdown’ use case there may be

several misuse cases defined where the system can

be shut down.

In threat modelling, as security testing is about

how a system should not work, there is a remarkable

emphasis on the evaluators’ security experience, i.e.

its knowledge about how things can go wrong, and

also about the attack trends among the attackers. For

this, one can rely not only on its experience, but can

also refer to repositories and knowledge bases, like

the SVRS (Security Repository Vulnerability

Services, browsable and accessible after registration

at https://svrs.shields-project.eu) or the ENISA

Threat landscape (ENISA, 2012).

Optionally, attacker profiling may also be

performed in this stage. This identifies several

different types of attackers that may have different

goals when it comes to attacking the security of the

ToE, and may also have different resources and

expertise at their disposal. Example profiles are

insider, exploiter, misuser, and thief.

The end result of this step is a set of threats.

3.4 Test Case Specification

During threat modelling, many potential threats will

be identified. Some of these threats may be

considered out of scope for the evaluation due to

some reasons (for instance being unlikely or out of

the control of the Developer, like the vendor’s secret

key being leaked) or trivial (e.g. a particular aspect

of the system is insecure by design). However, most

of the threats will require investigation to confirm

their feasibility – which is the main goal of the

evaluation.

To that end, the evaluators categorize the

relevant threats, and accomplish a preliminary risk

analysis to reveal which are the most important

threats. This prioritization is especially important,

since the project size and the allocated efforts might

not be in line with the volume of the actually

revealed and relevant threats; risk analysis will show

which are the issues that should be put in focus and

included in the evaluation, and which will be

possibly omitted due to lack of resources.

As the final step of the preparatory work, test

cases are defined, aligned to the threats in focus. By

accomplishing these test cases, we can check if the

associated threats are real, i.e. if it is feasible to

execute an attack and realize the threat.

Results of Scoping, Information Gathering,

Threat Modelling and Test Case Specification are all

summarized in the Test Plan, which is refined and

agreed with the Developer through several iterations.

3.5 Evaluation

Building upon good preparatory work, the

evaluation simply means the execution of the test

cases already specified. Actual evaluation of a test

case can consist of black-box / white-box / grey-box

(Kicillof, 2007) testing or source code review, and

can also include reverse-engineering of the system.

Manual execution of test cases can be mixed with

automated evaluation, for instance fuzzing (Miller,

1990) or penetration testing tools.

The goal is basically to determine if any of the

identified threats can be realized through any flaw or

vulnerability that exist the system.

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

270

3.6 Documentation

and Recommendations

As a result of the evaluation a list of verified threats

is compiled, i.e. the findings. Most of the time, these

are threats that were already identified during the

threat modelling step, but completely new threats

can also surface during the evaluation.

When documenting the threats, we use several

symbols to denote the results of individual tests

within a test case. These symbols are as follows:

 Normal operation. The outcome of the test

indicates that the implementation is correct; no

findings.

 Problem. The outcome of the test has clearly

identified a security problem.

 Potential / possible problem. The outcome of

the test does not clearly indicate a security

problem, but may lead to unexpected or

abnormal operation. This symbol is also used if a

security issue is suspected, but could not be

verified.

Figure 2: Documenting the findings.

For each verified threat, recommendations are given

for techniques that could be used to completely

eliminate the threat, or at least reduce the associated

risks. In each case, the goal is to reduce either the

likelihood or the severity of the threat.

All results are contained in an Evaluation Report

delivered to the Developer, who should make the

appropriate steps to address the found issues.

3.7 Risk Analysis

We estimate the risk each discovered threat poses to

the system. This is done by specifying the severity

(damage that can be potentially done by realizing the

threat) and likelihood (the difficulty of realizing the

threat) of each threat. This latter can be dependent of

many factors, including the needed resources (time,

money, tool accessibility, etc.) and the expertise

level required by an attacker to realize the threat, i.e.

commit a relevant attack.

The risk is the product of these two values using

the standard likelihood X severity risk calculation:

Table 1: Likelihood X severity risk calculation.

Likelihood

/ Severity

Low Medium High

Low

Very Low Low Medium

Medium

Low High Very High

High

Medium Very High Catastrophic

The risk value of each threat can take the following

levels:

 Very Low (VL): The threat has a very minor – but

still not negligible – effect on the security of the

asset.

 Low (L): The threat has a minor effect on the

security of the asset.

 Medium (M): The threat has a noticeable effect on

the security of the asset.

 High (H): The threat significantly endangers the

asset.

 Very high (VH): The threat significantly

endangers the asset or the system as a whole.

 Catastrophic (C): The threat presents a critical

risk to the system as a whole; if not mitigated, its

effects could put the entire business process at risk.

3.8 Review

Following the evaluation, a several weeks long

review phase is usually reserved for the Developer

to review the results and fix the revealed

weaknesses. At the end of this period, the Evaluator

receives a new version of the ToE, and re-runs the

relevant test cases on it to verify if the threats have

been appropriately tackled.

A residual risk analysis is accomplished showing

the threats that still remain in the system after the

review. Any new threats discovered during the

review are also presented in the Review Report.

4 A CASE STUDY

The case study evaluation described in this section

was performed as part of the nSHIELD project (see

acknowledgements).

4.1 The ToE

The Target of Evaluation was an integrated secure

MEFORMASecurityEvaluationMethodology-ACaseStudy

271

node prototype running on an ARM-based

development board. The protection of node

functionality was realized through two main

software components: a secure boot loader and a

hypervisor.

The secure boot loader is the code that is first run

on the ToE. It ensures the integrity of the firmware

that is loaded and run afterwards, and which also

contains the hypervisor and the protected application

running on the board.

The hypervisor guarantees the isolation of

applications running on the platform as well as

secure interaction between trusted applications and

open components. An example trusted application

running within the hypervisor was also provided for

the evaluation.

As the first step, we had to define the scope of

the evaluation. Considering the dependencies

between the two components – specifically, the

hypervisor’s dependency on the secure boot loader

to maintain integrity within the node – we decided to

perform a combined evaluation of the two software

components described above.

After the scope definition, we identified the

security objectives that were relevant for the ToE.

We focused mainly on integrity objectives from the

CIA triad model, since – aside from the trusted

application and its cryptographic assets –

confidentiality and availability objectives were not

in the scope. We identified the following assets:

 Hardware assets: secure flash, persistent storage

 Software assets: secure boot loader, hypervisor,

trusted application, kernel

 Cryptographic assets: trusted application keys,

secure boot loader public key

We then identified the main threats that an

attacker may need to realize in order to achieve their

goal (compromising the node’s operation). These

threats consisted of bypassing the bootloader’s

integrity protection, obtaining confidential data

from the trusted application, and breaking out of

the virtual guest mode provided by the hypervisor.

Based on the identified threats, we have specified

the following test cases in the Test Plan:

 Source code analysis of the secure boot loader –

checking whether the main function and high-level

logic of the secure boot loader were implemented

correctly.

 Security of the signature verification process –

checking whether image validation was

implemented correctly, and whether the process

itself was free of cryptographic issues, e.g. the

Bleichenbacher attack (Kühn, 2008).

 Source code analysis of other libraries – checking

whether additional libraries used by the secure

boot loader to manage hardware devices (MMC,

VFAT, etc.) were free of typical security flaws.

 Source code analysis of hypercalls – checking

whether the implementation of hypercall handlers

were free of typical security flaws.

 Protection of virtual guest modes – checking

whether the state of the virtual guest mode was

protected and whether the implementation was free

from any logical flaws.

 Protection of trusted application – verifying

whether it was possible to bypass the Hypervisor

and access the trusted application in any way.

4.2 Evaluation Results

As we had access to the source code of the secure

boot loader and hypervisor components, source code

analysis was the main approach to follow during the

evaluation. Additionally, for the Source code

analysis of hypercalls test case, we set up a runtime

environment to verify our results.

During the evaluation, we have identified and

verified several threats that could impact the security

of the prototype. These are listed below; along with

the appropriate recommendations, these were

communicated to the Developer in the Test Report.

 Integrity protection could be bypassed – Due to a

design flaw and several implementation flaws, it

was possible to bypass the integrity protection

features of the secure boot loader.

 Security-critical programming errors – Several

programming bugs in the prototype could be

potentially exploited by an attacker to crash the

node, or – in some cases – even take control of it.

 Signature padding was not checked properly – The

secure boot loader’s signature checking function

did not check the padding at the end of the

signature properly; this was a Bleichenbacher-type

weakness, but was not exploitable due to the RSA

exponent used.

 Library contained known vulnerability – An old

version of the PuTTY library

(http://www.chiark.greenend.org.uk/~sgtatham/put

ty/) was used for RSA operations; this version

contained a known buffer overflow vulnerability

that could cause a crash or even execution of

malicious code.

 Hypervisor-level code execution possibility – A

Write-What-Where vulnerability in the hypervisor

could allow an attacker to write arbitrary data into

any place in memory.

 Guest privilege escalation possibility – A logic

error in hypercall handling could allow a guest to

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

272

change its mode to trusted; however, the

hypervisor would crash soon thereafter.

 Weaknesses in the trusted application – Several

recurring programming errors and design issues

were found in the example trusted application that

could allow an attacker to obtain the application’s

secret data as well as forge contract signatures that

would be accepted as valid. Even though this

example application was meant to be only a proof

of concept implementation, it could be used as a

basis for developing an example application later.

For this reason, this issue was still reported to the

Developer in order to make future ToE releases

more secure.

After having the above list of verified threats, we

performed a risk assessment, the results of which are

presented in the next Table ordered by risk value

(S: Severity, L: Likelihood, R: Risk – see section 3.7

for more details).

Table 2: Risk assessment for the evaluated prototype.

Threat name S L R

Integrity protection could be

bypassed

H M

Security-critical programming errors

(secure boot loader)

H M

Weaknesses in the trusted application

H M

Hypervisor-level code execution

possibility

VH L

Guest privilege escalation possibility

L H

Library contained known

vulnerability

M L

Signature padding was not checked

L L

Security-critical programming errors

(hypervisor)

L L

Following the delivery of the Test Report, all of the

identified vulnerabilities in the prototype have been

addressed by the Developer, and this has been

verified by the regression testing accomplished in

the Review Phase. The presented case study proved

once again that the approach provided by the

MEFORMA methodology can be used to

successfully improve the overall security level of

any system.

5 CONCLUSIONS

The MEFORMA security evaluation methodology

was created to provide a framework for commercial

security evaluations, and it has been used – and

continuously refined – in more than 50 evaluation

projects over twelve years, aiming at assessing the

security of various software and hardware based

products, in the domain of telecom, banking, finance

and consumer electronics, among others.

As compared to Common Criteria (CC) which

focuses on the development process and the proofs

developers should produce during their work, our

methodology provides a cost efficient approach in

focusing on the actual results of the design and

development work, i.e. the security of the actual ToE

itself. Thus the primary aim of MEFORMA is to

help developers in creating more secure products.

In the presented case study, we have shown the

effectiveness of our systematic approach, which

revealed 7 weaknesses of the evaluated platform: a

hypervisor supported by a secure boot loader.

Moreover, based on the recommendations given to

address each revealed problem, the Developer has

fixed the evaluated system, and the correctness of

the fixes has been verified by regression testing in

the final Review Phase of the evaluation. After the

conclusion of the evaluation, it has resulted in an

implementation of the prototype that is much more

resistant to various attacks.

For further improvement of the methodology, we

plan to do a comprehensive study of the threat

modelling landscape, and optionally include some

recently introduced techniques in this critical step of

the process. In addition, we plan to introduce a

suggestion on the tools and techniques (e.g static

code analysis or fuzz testing) to be used during the

actual evaluation, since this step is at the moment

completely dependent on the evaluator’s expertise.

ACKNOWLEDGEMENTS

MEFORMA is a security evaluation methodology

developed by SEARCH-LAB Security Evaluation

Analysis and Research Laboratory for its everyday

assessments.

The case study has been accomplished within

nSHIELD project (http://www.newshield.eu) co-

funded by the ARTEMIS JOINT UNDERTAKING

(Sub-programme SP6) focused on the research of

SPD (Security, Privacy, Dependability) in the

context of Embedded Systems.

REFERENCES

Kirwan, G. and Power, A., 2012. The Psychology of Cyber

Crime: Concepts and Principles, IGI Global.

Moore, T., Clayton, R., and Anderson, R., 2009. The

Economics of Online Crime, Journal of Economic

MEFORMASecurityEvaluationMethodology-ACaseStudy

273

Perspectives, American Economic Association, vol. 23

(3), pp. 3-20.

Brooks, Jr.F.P., 1986. No Silver Bullet—Essence and

Accidents of Software Engineering, Information

Processing 86, Elsevier Science Publishers, pp. 1069-

1076.

Andress, J., Winterfeld, S, 2011. Cyber Warfare:

Techniques, Tactics and Tools for Security

Practitioners, Syngress.

Symantec Security Response, 2010. W32.Stuxnet.

http://www.symantec.com/security_response/writeup.jsp?

docid=2010-071400-3123-99; last visited: October 2013.

Bencsáth, B., Pék, G., Buttyán, L., Félegyházi, M., 2012.

The Cousins of Stuxnet: Duqu, Flame, and Gauss,

Future Internet 2012, 4, pp. 971-1003.

CERT Software Engineering Institute, 2010. Software

Assurance Curriculum Project Volume I: Master of

Software Assurance Reference Curriculum, Technical

Report.

Walther, J., 2004. Meeting the challenges of automated

patch management, GSEC practical assignment.

BSIMM, Building Security In Maturity Model, Release V,

October 2013. http://bsimm.com/; last visited October

2013.

CEM, 2012. Common Methodology for Information

Technology Security Evaluation, v3.1, revision 4.

http://www.commoncriteriaportal.org/files/ccfiles/CE

MV3.1R4.pdf; last visited: October 2013.

ASVS, 2013. OWASP Application Security Verification

Standard 2013, version 2.0 beta,

http://www.owasp.org/index.php/Category:OWASP_

Application_Security_Verification_Standard_Project;

last visited October 2013.

OSSTM, 2010. The Open Source Security Testing

Methodology Manual , Contemporary Security

Testing and Analysis, version 3, ISECOM,

http://www.isecom.org/research/osstmm.html; last

visited November 2013.

Schneier, B., 1999. Attack Trees. Dr. Dobb's Journal, vol.

24, pp. 21 - 29.

Alexander, I., 2002. Misuse cases: Use cases with hostile

intent, Software, IEEE, Vol. 20, 1, pp. 58-66.

ENISA European Network and Information Security

Agency, 2012. ENISA Threat Landscape, Responding

to the Evolving Threat Environment, September 2012.

Kicillof, N., Grieskamp, W., Tillmann, N., Braberman V.

A., 2007. Achieving both model and code coverage

with automated gray-box testing, in: 3rd Workshop on

Advances in Model-Based Testing, A-MOST'07,

ACM Press, pp. 1-11.

Miller, B. P., Fredriksen, L. and So, B., 1990. An

Empirical Study of the Reliability of UNIX Utilities,

Communications of the ACM 33, pp. 32-44.

Kühn, U., Pyshkin, A., Tews, E. and Weinmann, R., 2008.

Variants of Bleichenbacher's Low-Exponent Attack on

PKCS#1 RSA Signatures, Proc. Sicherheit 2008, pp.

97-109.

PECCS2014-InternationalConferenceonPervasiveandEmbeddedComputingandCommunicationSystems

274
