A Semantic-based Data Service for Oil and Gas Engineering

Lina Jia

1,2

, Changjun Hu

1,2

, Yang Li

1,2

, Xin Liu

1,2

, Xin Cheng

1,2

, Jianjun Zhang

and Junfeng Shi

School of Computer & Communication Engineering, University of Science & Technology Beijing,

No.30 Xueyuan Road, Haidian District, Beijing, China

Beijing Key Laboratory of Knowledge Engineering for Materials Science,

No.30 Xueyuan Road, Haidian District, Beijing, China

Research Institute of Exploration

＆

Development, CNPC, No.20 Xueyuan Road, Haidian District, Beijing, China

Keywords: Semantic-based Data Integration, Ontology, Data Service, Data of Oil and Gas Engineering.

Abstract: For complex data sources of oil and gas engineering, this paper summarizes characteristics and semantic

relationships of oil data, and presents a semantic-based data service for oil and gas engineering (SDSOge).

The domain semantic data model is constructed using ontology technology, and semantic-based data

integration is achieved by ontology extraction, ontology mapping, query translation, and data cleaning. With

the semantic-based data query and sharing service, users can directly access distributed and heterogeneous

data sources through the global semantic data model. SDSOge has been used by upper applications, and the

results show that SDSOge is efficient in providing a comprehensive and real-time data service, saving

energy, and improving production.

1 INTRODUCTION

With continuous expansion of the scale of petroleum

exploration industry, the domain of oil and gas

engineering has accumulated massive data

resources, like production data, geological

structures, equipment data, well structure data, etc.

These data are large in scales, numerous in kinds,

complex in relationships and various in

characteristics:

1) Distribution: In oil fields, different types of

data are stored in different specialized databases,

such as production database, geological database,

and equipment database. But applications of oil and

gas engineering require various data from different

databases.

2) Heterogeneity: Each specialized database has

its own data organizing and naming convention,

which results in system, syntax, structure, and

semantic heterogeneity. (1) System heterogeneity:

Different data have different operating

environments, such as hardware configurations and

operating systems. (2) Syntax heterogeneity:

Different data are stored in different forms in the

computers. Some are in relational databases, while

some are in text files. (3) Structure heterogeneity:

Similar data are represented in different data

schemas. (4) Semantic heterogeneity: Similar data

have different semantic understandings, or different

data have the same meaning, which has traditionally

been divided into homonyms and synonyms.

3) Complex Semantic Relationships: There are

complex relationships between different data.

4) Real-time Performance: The data of oil and

gas engineering is dynamic and instantly updated

with high real-time demand.

The characteristics of data of oil and gas

engineering bring unprecedented challenges for

conventional data management. On the one hand,

with the differences in data schemas of different oil

fields and the shortage of data management and

naming rules, it is necessary to shield heterogeneity

of underlying data to establish a global semantic

data model for the domain of oil and gas

engineering, which can maintain the unification of

rules and standards, and data management platform.

On the other hand, applications of oil and gas

engineering are typically data-intensive. Data are the

source of these applications and various data from

different specialized databases are needed, but

databases of oil fields are highly autonomous, which

makes data interacting and sharing more difficulty.

Thus semantic-based data integration is urgently in

need, which can provide a unified and semantic-

based interface to access the underlying data sources

directly and implement data sharing.

131

Jia L., Hu C., Li Y., Liu X., Cheng X., Zhang J. and Shi J..

A Semantic-based Data Service for Oil and Gas Engineering.

DOI: 10.5220/0004947601310136

In Proceedings of the 10th International Conference on Web Information Systems and Technologies (WEBIST-2014), pages 131-136

ISBN: 978-989-758-024-6

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

This paper presents a semantic-based data service

for oil and gas engineering named SDSOge, which

provides a rich semantic view of the underlying data

and enables an advanced querying functionality.

Users can enjoy a plug-and-play (Mezini and

Lieberherr 1998) model and have direct access to the

distributed and heterogeneous data resources

anywhere. In addition, the data service offers a

semantic reasoning functionality, which can reason

implicit knowledge behind the complicated semantic

relationships.

SDSOge firstly extracts local ontologies from

schemas of data sources using ontology technology,

and then establishes a completed global ontology

which can support each local data source.

Furthermore, an interface is set up to access

underlying data sources, which can eliminate

differences in data sources and provide a uniform

and transparent semantic-based data query service.

Finally, the cleaned standard data are returned to the

upper applications.

This paper is organized as follows. Section 2

introduces related work while section 3 describes the

architecture of SDSOge and its implementation in

details. The usage of SDSOge system and its

production application pointing out the advantages

comparing to previously employed techniques are

illustrated in section 4. Finally, the conclusion and

directions for future work are given in section 5.

2 RELATED WORK

As the complexity of data brings more and more

challenges, a new approach of data service is

becoming increasingly necessary.

Carey et al. (2012) survey three kinds of popular

data services, service-enabling data stores, integrated

data services and cloud data service, respectively.

But none of the three considers semantic association.

Doan et al. (2004) introduce the special issue on

semantic integration. They point out that 60-80% of

the resources in a data sharing project are spent on

reconciling semantic heterogeneity. Halevy et al.

(2005) describe successes, challenges and

controversies of enterprise information integration.

Kondylakis et al. (2009) review existing approaches

for ontology/schema evolution and give the

requirements for an ideal data integration system.

Bellatreche et al. (2006) propose the contribution

of ontology-based data modeling to automatic

integration of electronic catalogues within

engineering databases, but this method assumes the

data source itself does not have enough semantic

information.

Ghawi and Cullot (2007) propose a semantic

interoperability from relational database to ontology,

but it only considers the case of one data source.

In order to make a more intuitive view of

mapping, many mapping tools like COG, DartGrid,

VisAVis, and MAPONTO, are developed. These

tools need users to build mappings in an interactive

way.

Data from different domains have different

characteristics. These data are the basis of scientific

research in the fields. Semantic–based data

integration and data services for domain-oriented

ontology are hotspots of current research.

Establishment of semantic data models, and

integration and application of semantic data in

scientific fields are important aspects worthy of

discussion and research.

3 SDSOGE ARCHITECTURE AND

IMPLEMENTATION

3.1 System Architecture

SDSOge provides a global semantic data model and

APIs for users and upper applications to send

queries and receive desired data. Service consumers

need not to know the source and original schema of

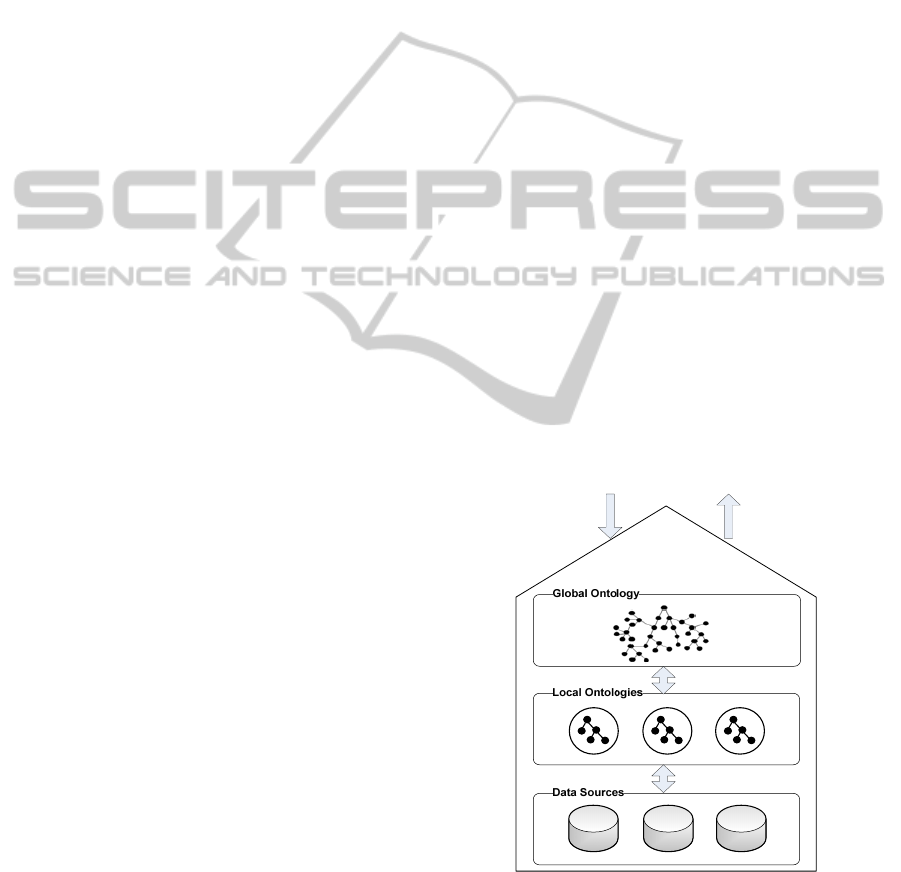

data. Figure 1 shows the architecture of SDSOge.



Semantic‐basedDataServiceforOilandGasEngineering



SDSOge



Request



Res

onse

Figure 1: SDSOge Architecture.

3.2 Global Ontology Construction

There are four steps to establish the global ontology.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

132

First of all, filter data of oil and gas engineering

field and get entities that system needs and

relationships between the entities. Next, extract

schema information of databases to establish local

ontoloties using ontology technology. Then, the

global ontology can be built through standardizing

names of properties with the synonym table, and

further refining, improving and merging of local

ontologies. Finally, adding semantic constraint rules

and reasoning mechanisms to form a complete and

semantically rich global ontology. The global

ontology construction process is shown in Figure 2.



DB



DB



Iteration

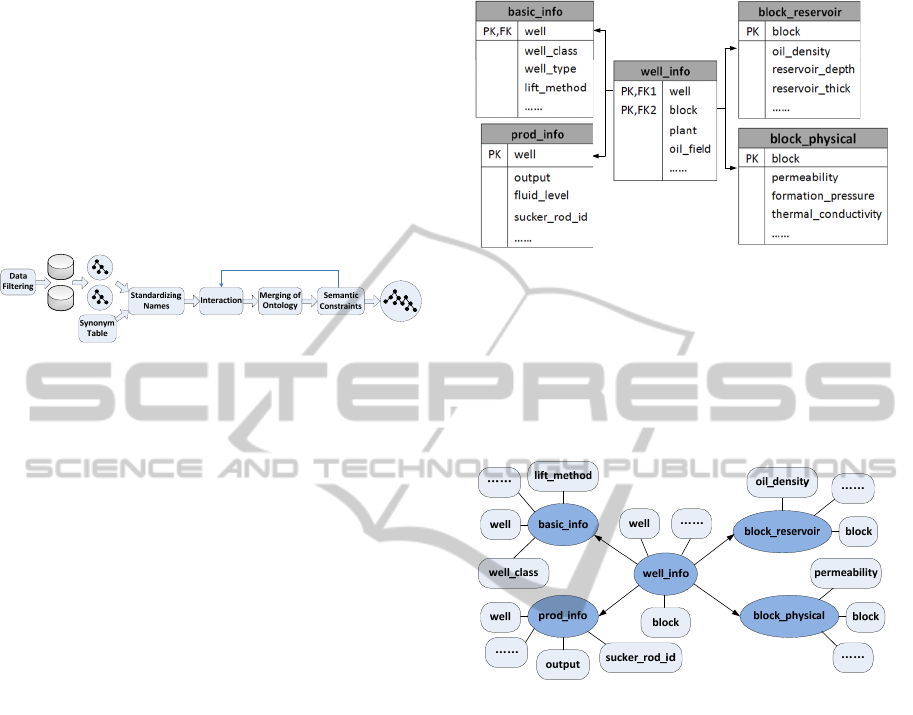

Figure 2: The global ontology construction process.

3.2.1 Data Filtering

In the field of petroleum exploration and

development, data involve more than 20 professional

aspects, and data of oil and gas engineering domain

are just a part of them. So we should firstly define

the basic scope of required data to form entities,

attributes and relationships between entities referring

to the data dictionary.

Take block data entity and sucker rod data entity

as examples, the corresponding entity models are as

follows.

Block data entity:

E(BlockInfo)={block_name, oil_density, permeability,

reservoir_depth, ……}

Sucker rod data entity:

E(SuckerRodInfo)={sucker_rod_id, diameter, length,……}

3.2.2 From Relational Database to Local

Ontology

Based on the features of tables and constraints

between tables in the specialized databases, rules

from relational database to local ontology are

defined as follows.

Rule1: Convert each table T into a class or a

subclass C

(OWL: Class or OWL: Subclass).

Rule2: Convert C

into a subclass of C

, if the

foreign key of table T

corresponds to the primary

key of table T

(OWL: Subclass).

Rule3: Convert the foreign key of table T into

object property OP

(OWL: ObjectProperty).

Rule4: Convert the primary key of table T into

the datatype property with functional property DP

(OWL: DatatypeProperty).

Rule5: Convert other columns of table T into

data properties DP

(OWL: DatatypeProperty).

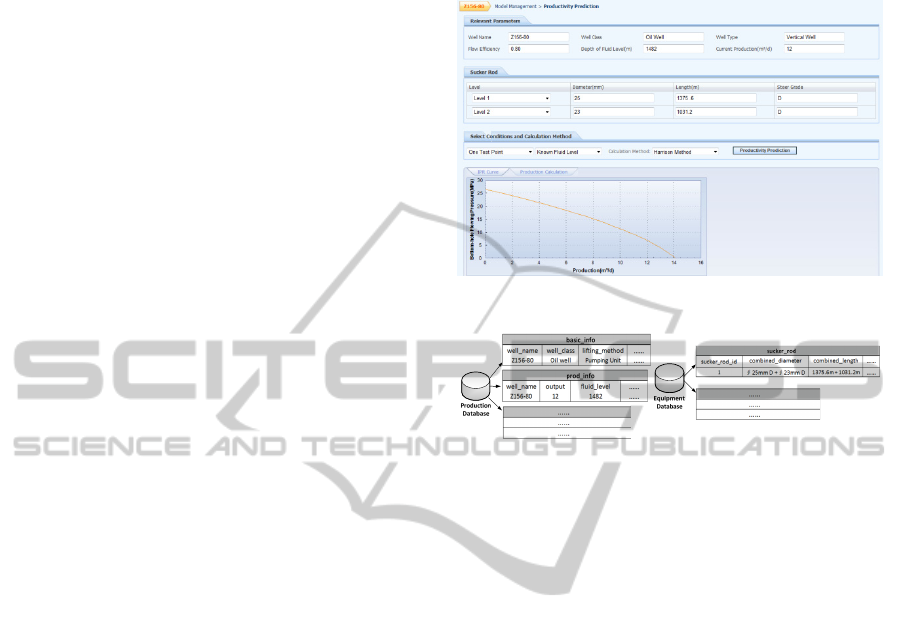

Figure 3: Tables in production database (partial).

Figure 3 shows the schema of a few tables in

production database. According to the mapping rules

above, the local ontology can be generated

automatically. The relationships between classes are

foreign key constraints in the database, as shown in

Figure 4.

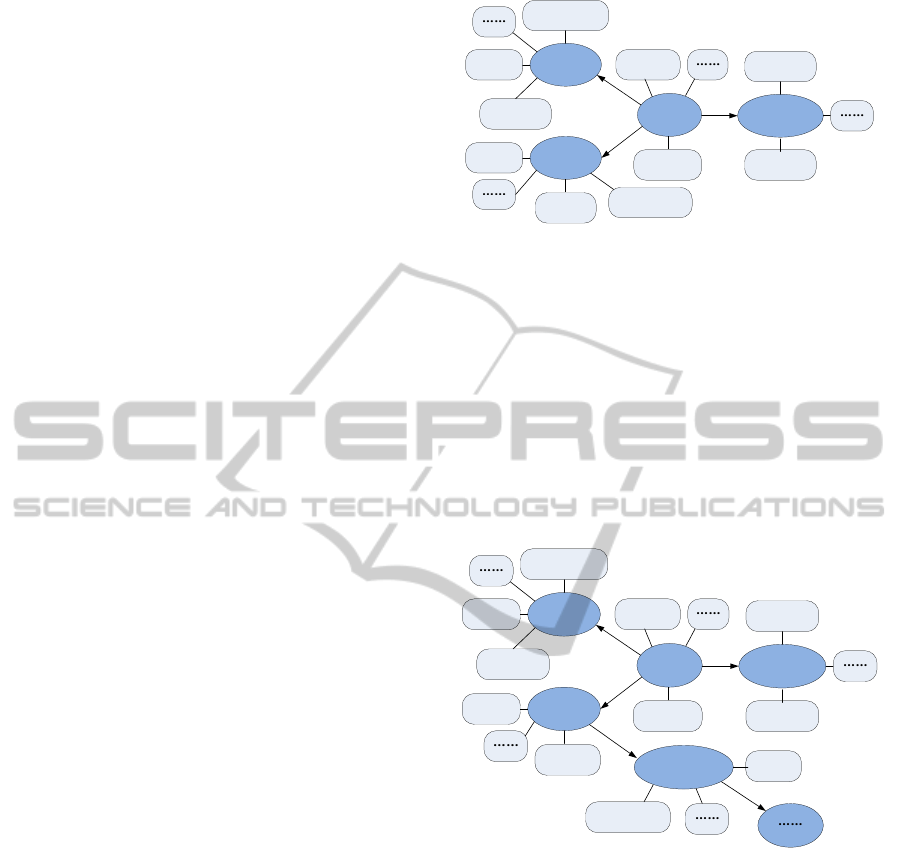

Figure 4: Local ontology of production database (partial

classes).

3.2.3 From Local Ontologies to Global

Ontology

The process of local ontologies to global ontology is

divided into three steps, renaming of properties,

merging of classes, and combination of local

ontologies.

Renaming of properties, comparing names of

ontology properties with the corresponding terms in

the synonym table, aims at ensuring consistency of

domain terminologies and reusing the semantic data

model in the field. The synonym table, which is

constructed by domain experts and DBAs referring

to exploration-development database handbooks, can

solve problems of semantic heterogeneity. The

names of terms with synonymous semantic relations

in the handbooks are stored in a same collection in

the synonym table. The collection name is unified

into the corresponding name of the attribute in the

entity, which is defined in 3.2.1.

ASemantic-basedDataServiceforOilandGasEngineering

133

If the name of ontology property is in the synonym

table, rename the ontology property to the

corresponding collection name in the synonym table.

If it is not in the synonym table, user is required to

complete the property renaming task through the

GUI, and then add the property into the synonym

table. If one property name of local ontology

corresponds to multiple collection names in the

synonym table, which is semantic heterogeneity of

the same vocabulary expressing different meanings

in different data sources, the GUI is also needed.

We propose a merging algorithm in the stage of

classes merging. Comparing local ontology

properties with the entity attributes constructed in

the step of data filtering, the scope of ontology

datatype properties of a class must be consistent

with the corresponding attributes range of the entity,

and the class name must be same with the

corresponding entity name. If properties of two or

more ontology classes correspond to one entity,

merge the two or more classes into one class named

the corresponding entity name.

The classes merging algorithm is detailed as

follows.

Step1: Create an ontology class C

, whose name

is the name of entity E(i).

Step2: DP

∈C

, if DP

∈E(i) ∧ DP

∉C

，

add DP

into class C

, and delete DP

from class C

If DP

∈E(i) ∧ DP

∈C

, delete DP

from class C

and do not add DP

into class C

Step3: If DP

∉C

, delete class C

, the C

’

constraint relationships convert into C

’.

Step4: Traverse other classes C

of local

ontology, loop through Step 2 and 3.

Step5: Select other entities E(i), and loop through

Step 1-4 until all the entities have been traversed.

Figure 5 shows the normalized local ontology of

production database after properties renaming and

classes merging. Take class BlockInfo in Figure 5 as

an example to illustrate the classes merging steps.

Create a new class named BlockInfo firstly. In

Figure 4, the names of datatype properties of class

block_reservoir are in the entity BlockInfo, which is

defined in the step of data filtering, so add the

datatype properties into the new class BlockInfo,

and delete the datatype properties from class

block_reservoir. If all the datatype properties in

class block_reservoir are deleted, delete class

block_reservoir, and the constraint relationships of

class block_reservoir are turned into class

BlockInfo’. Similarly, traverse other classes. Here,

we also add the datatype properties of

block_physical into the new class BlockInfo.

WellInfo

well_nameBasicInfo

well_class

output

lifting_method

BlockInfo

ProdInfo

well_type

oil_density

fluid_level

block_name

permeability

sucker_rod_id

Figure 5: Normalized local ontology of production

database (partial classes).

Next is combining local ontologies generated

from different specialized databases into a global

ontology. Starting to traverse the root classes of two

local ontologies, if the two classes have the same

datatype property, bridge the two classes by a

foreign key constraint relationship. The class with

functional property is converted into the subclass of

the other class without functional property. Two

local ontologies can be linked in this way. And then

other local ontologies can be combined.

sucker_rod_id

WellInfo

well_nameBasicInfo

well_class

output

lifting_method

BlockInfo

ProdInfo

well_type

SuckerRodInfo

oil_density

fluid_level

diameter

block_name

permeability

Figure 6: Global Ontology (partial classes).

Figure 6 shows a global ontology, which is a

result of the combination of production database

ontology and equipment database ontology.

Sucker_rod_id is not only the primary key of table

sucker_rod in equipment database, but also a

property of table prod_info in production database,

so bridge the two classes via sucker_rod_id by a

foreign key constraint relationship.

Local ontologies can be converted into a global

ontology after properties renaming, classes merging,

and local ontologies combining.

3.2.4 Adding Semantic Constraint Rules

Semantic constraint rules are added to strengthen the

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

134

hierarchical relationships between concepts.

Reasoning engine can use the constraint rules to

reclassify and reorganize concepts of the global

ontology, achieve a certain reasoning function, and

obtain the implicit knowledge.

3.3 Semantic Query

According to the global semantic view, users can

submit SPARQL statements to query the global

ontology. SPARQL statements are converted into

SQL to access the underlying data sources. Finally,

the query results are presented to users in a uniform

format after cleaning.

The semantic query implementation steps are as

follows.

Step1: Get the query request, and generate the

global query statement Q

, which is described by

SPARQL.

Step2: Reasoning engine converts names of

classes/properties of Q

in global ontology into the

names in relative local ontologies based on the

information of synonym table.

Step3: Divide the global query Q

into sub

queries {Q

, Q

, ……, Q

} for local ontologies.

Step4: Rewrite sub queries {Q

, Q

, …… ,

} as local sub queries {Q

, Q

, ……, Q

} for

each data source. Local sub queries are described by

SQL.

Step5: Execute local sub queries and return the

results {R

, R

, ……, R

} in unified formats.

Step6: Combine the results {R

, R

, ……,

}, and return the final query response after data

cleaning and converting.

4 APPLICATION OF SDSOGE

Due to the demand of oil and gas engineering

domain, we develop the SDSOge system, which is

implemented based on JAVA technology. SDSOge

parses the global ontology and related local

ontologies using Jena and makes the reasoning

function into effect. Meanwhile, SDSOge

implements the extraction of schemas of data

sources and the data searching process using JDBC

data access interfaces. SDSOge makes the use of

data more profound and efficient.

Oil and gas engineering optimization design and

assisted management system (OGEA) is a typical

example of industrial application of SDSOge.

OGEA is widely used in oil and gas engineering

field. It could implement the production design and

decision-making process with the support of

specialized databases, thus increase the production

and recovery ratio.

Figure 7: Interface of productivity prediction module.

Figure 8: Corresponding data sources of productivity

prediction module.

Figure 7 shows the interface of productivity

prediction module of OGEA. The corresponding

data sources of the module are shown in Figure 8. In

Figure 7, the relevant parameters, such as depth of

fluid level and current production, are collected from

production database, while sucker rod data are

collected from equipment database; which

implements the integration of distributed data. The

structure of sucker rod in Figure 7 is stored

differently in databases from that in Figure 8.

SDSOge shields the structural heterogeneity and

presents sucker rod data to the upper level in the

same format. The lower part of Figure 7 is the result

of productivity prediction using the data in the upper

portion. The application shown in Figure 7 is for

multiple fields, but names of the same type of

needed information are not identical in the databases

of different oil fields. SDSOge can shield this

semantic heterogeneity and map into the

corresponding individuals by reasoning engine.

The OGEA system equipped with SDSOge has

been put into production in oil fields of Daqing,

Jilin, Huabei, and Dagang. Currently, SDSOge,

which has measured effect evaluation for 28985

wells, could provide an entire and real-time data

service of production monitoring and perform well

in real applications.

After application of OGEA system with SDSOge

in five oil production plants in Huabei Oil Field, the

ASemantic-basedDataServiceforOilandGasEngineering

135

average efficiency has increased by 3.6%, while the

average pump inspection period has increased by 83

days, and total oil production has increased by 9054

tons. The cost of manpower and material resources

has been saved, and the efficiency of management

has been improved. Moreover, the average system

efficiency has improved 3.75% and the average

pump inspection period has increased by 75 days

after the SDSOge applied in six oil production plants

of Dagang Oil Field, which makes a lot of sense in

extending pump inspection period, saving energy

and raising production.

Based on the distributed and heterogeneous

databases of oil fields, SDSOge shields the

heterogeneity of underlying databases, builds the

global semantic data model, provides the semantic

searching function based on domain terminologies,

and makes the searching results available for upper

applications. SDSOge enables the value of data

improved.

5 CONCLUSIONS AND FUTURE

WORK

The current researches and applications mainly

focus on solving semantic heterogeneity between

data sources using ontology, data integration based

on semantic methods, and data services for upper

applications.

The semantic-based data service mentioned in

this paper connects distributed, heterogeneous and

complicated data seamlessly, which makes upper

applications moving smoothly on SDSOge platform.

SDSOge, which makes data shared and reused,

builds a semantic-abundant global ontology in the

domain of oil and gas engineering, implements data

query transformations based on semantic methods,

and provides a data service for upper applications.

SDSOge could shield the heterogeneity of

underlying data sources and allow users to access

the standard data everywhere directly, thus provide

effective data supports for production. SDSOge

combines industrial production and scientific

research tightly and is a great example that science

promotes the progress of industry.

In the future, we would add more reasoning

mechanisms to provide better semantic-based data

services, and introduce SDSOge into more oil fields.

ACKNOWLEDGEMENTS

This work is supported by the R&D Infrastructure

and Facility Development Program under Grant No.

2005DKA32800, the Key Science-Technology Plan

of the National ‘Twelfth Five-Year-Plan’ of China

under Grant No. 2011BAK08B04, the 2012 Ladder

Plan Project of Beijing Key Laboratory of

Knowledge Engineering for Materials Science under

Grant No. Z121101002812005, the National Key

Basic Research and Development Program (973

Program) under Grant No. 2013CB329606, and the

Fundamental Research Funds for the Central

Universities under Grant No. FRF-MP-12-007A.

REFERENCES

Bellatreche, L., Dung, N. X., Pierra, G., Dehainsala, H.,

2006. Contribution of ontology-based data modelling

to automatic integration of electronic catalogues

within engineering databases. In Computers in

Industry, 57(8-9), 711-724.

Carey, M. J., Onose, N., Petropoulos, M., 2012. Data

Services. Communications of the ACM, 55(6), 86-97.

Doan, A., Noy, N., Halevy, A., 2004. Introduction to the

special issue on semantic integration. In ACM

SIGMOD Record, 33(4), 11-13.

Ghawi, R., Cullot, N., 2007. Database-to-Ontology

Mapping Generation for Semantic Interoperability. In

VLDB ’07, Vienna, Austria.

Halevy, A.Y., Ashish, N., Bitton, D., et al, 2005.Enterprise

information integration: Successes, Challenges and

Controversies. In SIGMOD Conference, 778-187.

Hu, C., Tong, Z., et al, 2001. Research on Constructing of

Object-Oriented Petroleum Common Data Model.

Journal of Software, 12(3), 427-434.

Kondylakis, H., Flouris, G., Plexousakis, D., 2009.

Ontology and Schema Evolution in Data Integration:

Review and Assessment. In Meeraman, R., Dillon, T.,

Herrero, P. (eds.) OTM 2009. LNCS, 5871, 932-947.

Springer, Heidelberg (2009).

Kondylakis, H., Plexousakis, D., 2011. Exlixis: Evolving

Ontology-Based Data Integration System. In

SIGMOD’11, 1283-1286.

Ludäscher, B., Lin, K., Bowers S., et al, 2006. Managing

Scientific Data: From Data Integration to Scientific

Workflows. Geological Society of America Special

Paper on GeoInformatics, 109-129.

Mezini, M., Lieberherr, K., 1998. Adaptive Plug-and-Play

Components for Evolutionary Software Development.

In: Proceedings OOPSLA’98, ACM, Vancouver,

British Columbia, Canada, 97-116.

Ye, Y., Yang, D., Jiang, Z., Tong, L., 2008. Ontology-

based semantic models for supply chain management.

In The International Journal of Advanced

Manufacturing Technology, 37(11-12), 1250-1260.

WEBIST2014-InternationalConferenceonWebInformationSystemsandTechnologies

136
