Implementation of Asynchronous Mobile Web Services

Implementation and First Usage

Marc Jansen

1,4

, Javier Miranda

and Juan Manuel Murillo

Computer Science Institute, University of Applied Sciences Ruhr West, Tannenstr. 43, Bottrop, Germany

GLOIN S.L. Cáceres, Spain

Software Engineering Department, University of Extremadura, Badajoz, Spain

Department of Media Technology, Linnaeus University, Växjö, Sweden

Keywords: Mobile Devices, Web Services, Asynchronous Services.

Abstract: Mobile devices are nowadays used almost ubiquitously by a large number of users. 2013 was the first year

in which the number of sold mobile devices (tablet computers and mobile phones) outperformed the number

of PCs’ sold. And this trend seems to be continuing in the coming years. Additionally, the scenarios in

which these kinds of devices are used, grow almost day by day. Another trend in modern landscapes is the

idea of Cloud Computing, that basically allows for a very flexible provision of computational services to

customers. Yet, these two trends are not well connected. Of course there exists already quite a large amount

of mobile applications (apps) that utilize Cloud Computing based services. The other way round, that

mobile devices provide one of the building blocks for the provision of Cloud Computing based services is

not well established yet. Therefore, this paper concentrates on an extension of an implementation that allows

to provide standardized Web Services, as one of the building blocks for Cloud Computing, on mobile

devices. The extension hereby consists of a new approach that now also allows to provide asynchronous

Web Services on mobile devices, in contrast to synchronous ones. Additionally, this paper also illustrates

how the described implementation was already used in an app provided by a business partner.

1 INTRODUCTION

Nowadays, the success of the Cloud Computing

business model cannot be ignored. This is mainly

due to the proliferation of small services deployed in

the cloud that are consumed massively. Proof of that

is the impressive economic growth experimented by

companies like Facebook (Facebook, 2013)

Instagram (Meijer, 2013), or Dropbox (Dropbox,

2013). Many studies show that, increasingly, this

consumption is generated from mobile devices. As

an example, Gartner predicts that mobile application

development projects targeting smartphones and

tablets will outnumber native PC projects by a ratio

of 4:1 by 2015 (Gartner, 2012). Undoubtedly this

fact is favoured by the effort expended by

manufacturers to provide mobile devices with

capabilities that were hardly imaginable a few years

ago.

However, the growing capabilities of mobile

devices and the interest they arouse in the industry

and consumers contrast with the secondary role to

which they are relegated in cloud applications.

Cloud services are conventionally based on pure

client-server architectures where mobile devices are

always assumed as clients. Thus, although current

mobile devices have enough power and capabilities

to support architectures in which they could also

behave as service providers (SaaS), not many efforts

have been done in designing such infrastructures.

Thinking about mobile devices as service

providers opens new horizons for the industry of

small cloud services (Raatikainen, et al., 2012 and

Guillén, et al., 2014). Nevertheless, the roadmap for

getting mobile devices providing services is not

without difficulties related to important aspects such

as security, privacy or mechanisms to deploy

services in them. In particular, this paper focuses on

the implementation needed to deploy Web Services

on mobile devices.

In an effort to get mobile devices capable of

providing SaaS some works (McFadden, et al., 2003,

Srirama, et al., 2006 and AlShahwan, et al., 2010)

have already proposed platforms to deploy Web

645

Jansen M., Miranda J. and Murillo J..

Implementation of Asynchronous Mobile Web Services - Implementation and First Usage .

DOI: 10.5220/0004948906450651

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 645-651

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

Services in them. Although such proposals have

made a valuable contribution, they still do not cover

specific issues such as the continuous connections

and disconnections of mobile devices with the

subsequent renewals of IPs. Moreover, while the

above proposals cover the essential aspects of the

Web Services they still left uncovered other aspects

that have proved very useful such as the support for

both synchronous and asynchronous invocations.

In previous works (Jansen, 2013a, Jansen, 2013b,

Guillén, et al., 2014 and Miranda, et al., 2013) the

authors presented an implementation that supports

the deployment of Web Services in mobile devices.

The use of proxies enabled support for connection

and reconnection of devices with IP renewals. Now,

this paper focuses on the necessity of both

synchronous and asynchronous invocations and how

they can be enabled in mobile devices. This equals

mobile devices with the potential offered by

conventional servers for deployment and invocation

of Web Services calls. Thus, mobile devices are

provided with capabilities not exploited so far

opening the door to a new generation of cloud

applications where mobile devices gain relevance.

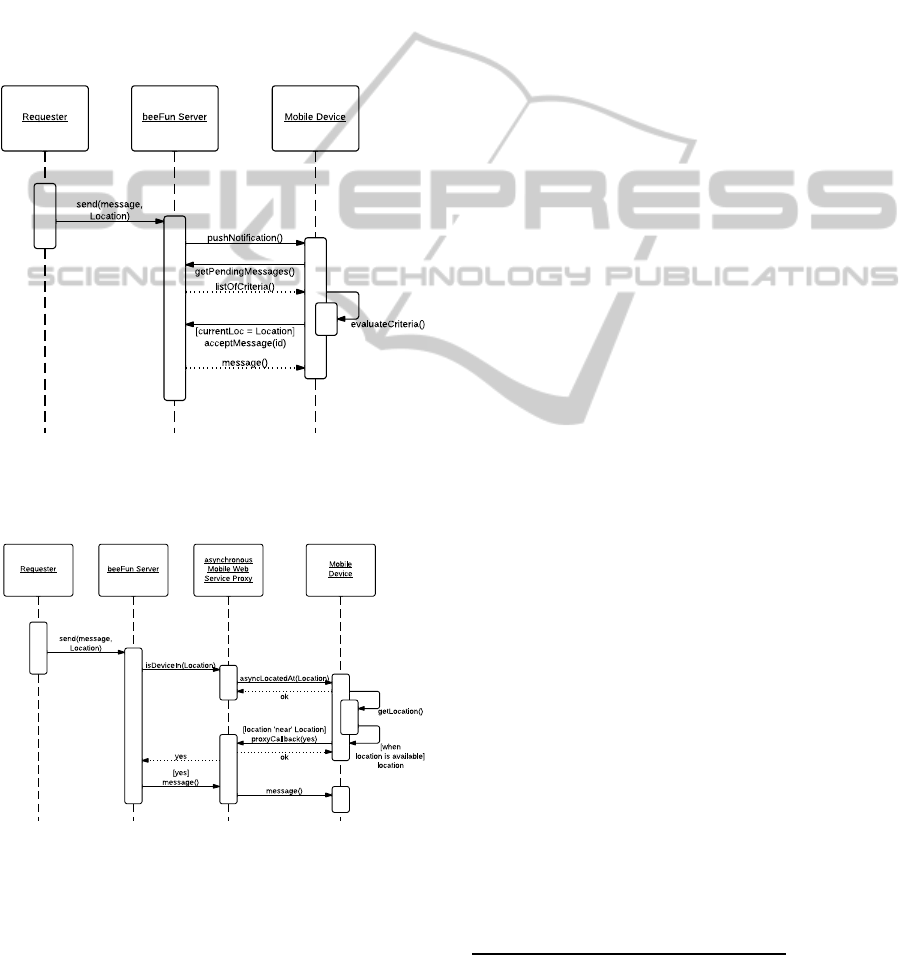

As an example it is shown how the proposed

implementation has been used to build a M2M

messaging application.

The outline of the paper is as follows. Section 2

presents the context of the work. In section 3 the

necessity and benefits of both synchronous and

asynchronous Web Services invocations in mobile

devices is discussed. Section 4 proposes an

implementation of both invocation methods. Section

5 presents an experience of using the proposal for

the implementation of a M2M messaging app.

Finally, section 6 summarizes the conclusions and

future works.

2 STATE OF THE ART

The idea of providing Web Services on mobile

devices was probably presented first by IBM

(McFaddin, et al., 2003). This work presents a

solution for a specific scenario where Web Services

are hosted on mobile devices. More general

approaches for providing Web Services on mobile

devices are presented in (Srirama, et al., 2006) and

(AlShahwan, et al., 2010). In (Li and Chou, 2011),

another approach, focusing on the optimization of

the HTTP protocol for mobile Web Services

provisioning, is presented. Importantly, none of the

mentioned approaches manages to overcome certain

limitations of mobile devices, as demonstrated in the

next section.

Yet, these approaches do not overcome certain

limitations of mobile devices, e.g., permanently

changing networks, IP addresses from networks with

network address translation (NAT) or the fact that

mobile devices are usually not designed to be always

online (might be switched off, might have not

network connection, …).

An additional approach that covers these

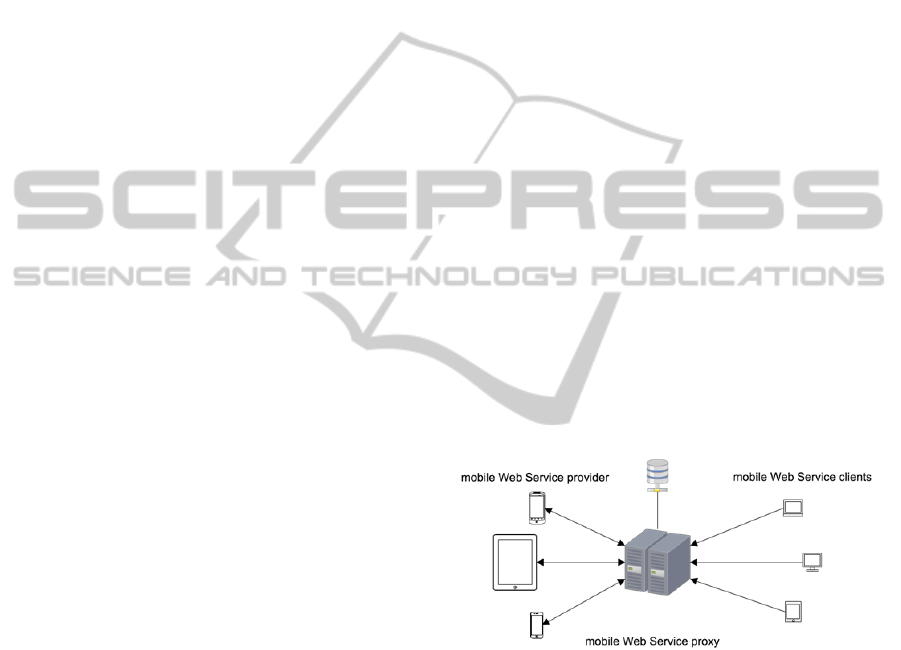

problems, is presented in (Jansen, 2013a). This

approach utilizes a central proxy infrastructure, that

allows on the one hand to cover the mentioned

problems and on the other hand establishes a stable

infrastructure for mobile device to provide

standardized Web Services. As we will see in the

following sections, this central proxy infrastructure

could easily be extended in order to provide also

asynchronous Web Services on mobile devices.

Additionally, the work presented in (Jansen,

2013b) argues for a new perspective to Web

Services especially if those services are deployed to

mobile devices.

An alternative proposal for deploying services in

Mobile devices has been presented in (Guillén, et al.,

2014 and Miranda, et al., 2013). This work focuses

not only on technical issues but also on the kind of

services that could be served from mobile devices

and the new generation of applications they would

enable.

All the above works let the authors see the

potential of having Web Service in mobile devices

and the necessity of having them fully featured,

including asynchronous calls.

After contextualizing the presented work in the

context of the current research, the next section will

start describing the basic difference between

synchronous and asynchronous service requests.

3 ASYNCHRONOUS VERSUS

SYNCHRONOUS WEB

SERVICES

In both, programming and the theory of distributed

systems, a differentiation between synchronous and

asynchronous tasks is well defined. This section

provides a short overview about this differentiation

in the first subsection.

Furthermore, based on the description of the

differentiation synchronous and asynchronous calls,

the necessity of asynchronous calls with respect to

Web Services provided on mobile devices is argued.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

646

3.1 Asynchronous versus Synchronous

Services

In distributed systems, the differentiation between an

asynchronous and a synchronous call to a certain

service is well defined. In case of a synchronous

service call, the service consumer waits for the

answer of the service provider, so the service result,

before the service consumer continues its tasks.

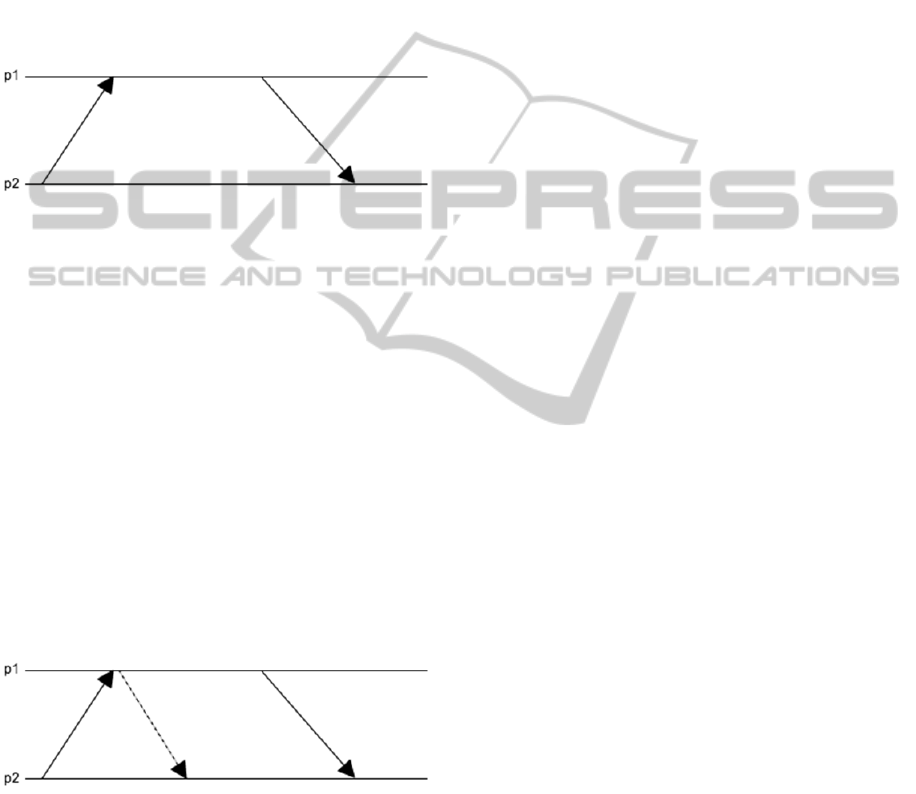

Figure 1 shows the flow of calls for a synchronous

service request between a process p1 (server

provider) and a process p2 (service consumer).

Figure 1: A synchronous service request between a service

provider (p1) and a service consumer (p2).

Therefore, the more time the calculation of the

service result takes for the provider of the service,

the more time the service consumer waits until it

continues with its current tasks.

In contrast, by performing an asynchronous

service request, the service consumer is not waiting

until the service provider answers the request, but

just sends the request for the execution of the service

to the service provider and immediately continues

working on remaining tasks. In a later step, when the

service provider has finally calculated the outcome

of the service request, the service provider sends the

result back to the service consumer. The information

flow for an asynchronous service requests between a

service provider (p1) and a service consumer (p2) is

shown in Figure 2.

Figure 2: An asynchronous service request between a

service provider (p1) and a service consumer (p2).

For retrieving the result of an asynchronous

service request, the service consumer usually defines

a function that retrieves the result of the requested

service. This function then controls also the further

actions necessary for handling the result of the

service request. The function responsible for

handling the result of an asynchronous service

request is usually called a callback function.

In programming languages, the difference

between an asynchronous and a synchronous call to

a method or a function is also well known. If a

program performs a usual (synchronous) call to a

method, the program continues working in this

method and the rest of the program is only executed

after the program finished the method call and

provided the return value. Of course, programs can

outsource computational expensive method calls in

sub processes/threads, so that the program continues

with the rest of its tasks while the method is

executed in parallel.

On the other hand, many programming

languages (or frameworks based on usually

synchronous programming languages) allow

asynchronous requests to methods/functions. One of

the probably most prominent examples for this

approach is JavaScript. Especially for the

development of Web 2.0 applications, the idea of

AJAX (Asynchronous JavaScript and XML)

(Powell, 2008) came up. Here, method calls to

JavaScript methods/functions are performed in an

asynchronous manner that allows the browser to

continue with its current task. By using this

approach, the AJAX application running in a

browser, behaves pretty much the same way as a

usual desktop application with respect to

performance and user feedback. For similar reasons,

also the currently most prominent server side

implementation for JavaScript, NodeJS (Tilkov and

Vinoski, 2010), also integrates an asynchronous

approach for method calls. This allows a non-

blocking and single threaded approach for the server

side implementation of services, that is known for

providing increased performance (Tilkov and

Vinoski, 2010) in comparison to multi threaded

approaches, e.g., this is the major reason that

proposed solutions for the C10K problem (Kegel,

2013) almost completely rely on asynchronous

approaches.

3.2 The Necessity of Asynchronous

Mobile Web Services

Synchronous mobile Web Services represent a valid

approach when the required time by a mobile device

to process each request is low enough to be solved

and responded back to the client before it gets a

timeout exception message. In this sense, there are

several use cases that could be implemented using

this type of mobile Web Service, like those that

involve simple information retrieval or processing,

ImplementationofAsynchronousMobileWebServices-ImplementationandFirstUsage

647

that is, when such information is available

immediately (usually, it has been previously

calculated and stored in the device, like an image, a

contact name, or a text message).

Unfortunately, mobile devices are exposed to

continuous context changes that may affect the time

lapse required for solving specific types of request,

especially those that depend on information

provided by external resources or sensors. This

implies that the response time for such requests is

unpredictable at design time, and a proper behaviour

at run-time cannot be ensured using the synchronous

approach.

In order to illustrate the necessity of

asynchronous mobile Web Services, we have

considered, at least, the following potential use cases

of mobile Web Services we could deploy in the

current state-of-the-art of mobile applications:

 Services that offer information fetched from an

external device/sensor. Gathering information

from sensors (like GPS or Bluetooth) is usually

implemented by mobile operative systems using

asynchronous methods with their callbacks.

 Services that depend on device’s user interaction.

Mobile devices could serve human-based

services that allow asking users about anything,

including OCR or captcha-like challenges. They

can be answered at any time, so the callback

response with the user’s choice would be sent

asynchronously.

 Services offering information that needs to be

evaluated gathered or processed during a long

period of time. We can include in this category

use cases related with measurement and tracking,

like “determining the distance the user will travel

in the next five minutes” using the accelerometer

sensor information for tracking it, or “taking the

temperature average for the next 2 hours”

tracking it from a temperature sensor.

 Services that depends on a particular context to

be processed. This category could include

services offering information resulted from some

interaction with an external device or resource,

like: getting information from the car handsfree

system or a domotic interface; heavy processing

task that requires the device to be plugged-in to a

power supply; or a service that require higher

connectivity bandwidth to be properly executed.

These use cases that involve mobile Web

Services and require an asynchronous behaviour

suggest that synchronous mobile Web Services are

not enough for supporting more complex services,

and it motivates the proposal of this approach, which

implementation is described on the next section.

4 IMPLEMENTATION

Following the requirements formulated in the last

section, the approach described in (Jansen, 2013a)

was extended by the possibility to also provide

asynchronous calls to Web Services deployed to

mobile devices. This section describes the

implementation of these asynchronous mobile Web

Services.

Here, the basic idea for the implementation of

these asynchronous mobile Web Services was to be

as close as possible at the solution for synchronous

Web Services, which basically relies on two major

parts:

1) JSR 181 compatible annotations that allow to

marker a class as an implementation of mobile

Web Services and methods as mobile Web

Methods.

2) A proxy infrastructure that dynamically

generates implementations of a façade (Gamma,

et al., 1995) for the mobile Web Services in

order to overcome certain limitations of mobile

devices, with respect to the provision of services.

Additionally, from a technical point of view,

another requirement for the implementation was to

re-use already existing possibilities and not to invent

new techniques whenever possible. Therefore, the

architecture for synchronous mobile Web Services,

as shown in Figure 3, was analysed.

Figure 3: Architecture for providing synchronous mobile

Web Services.

In the centre of Figure 3, the mobile Web

Service proxy could be seen, which basically

provides the façade for the Web Services actually

running on the mobile devices in the left part of

Figure 3. Therefore, the requests to the performed by

the Web Service clients are not directly addressed to

the mobile devices, but to the proxy infrastructure.

After the detailed analysis of this architecture,

the following strategy was developed for the

implementation of asynchronous mobile Web

Services. First of all, a new annotation was

integrated in the existing framework

(@AsynchronousMobileWebMethod) for the

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

648

implementation of a method that should be executed

on a mobile device as an asynchronous mobile Web

Method.

Additionally, the proxy was modified so that it is

able to handle also asynchronous requests, next to

the synchronous ones. Here, the idea was to provide

a callback for every request to an asynchronous

mobile Web Service, as shown in Figure 4.

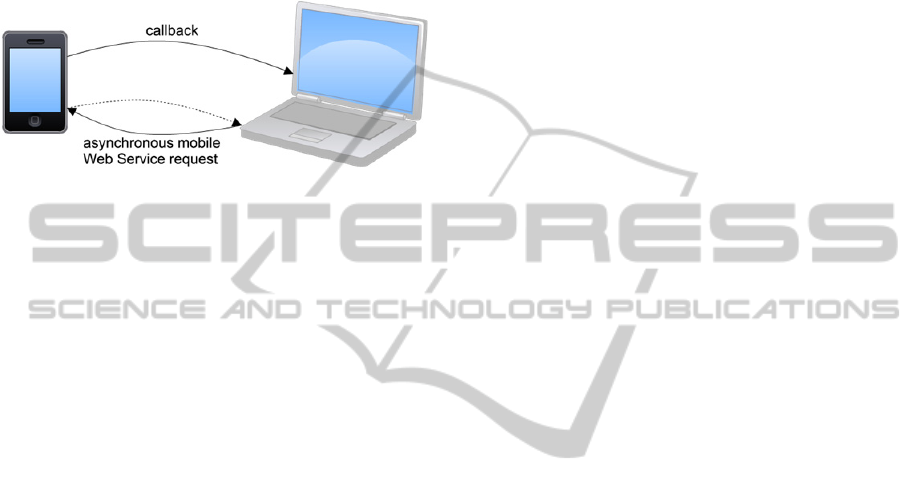

Figure 4: An asynchronous mobile Web Service request.

This callback itself was implemented as a

reference to a Web Service that was responsible for

handling the result of the asynchronous request to

the mobile Web Service. Therefore, the reference to

the callback is usually a URL to a WSDL (Web

Service Description Language) of the service that

handles the result of the asynchronous request.

By this, the method/function handling the result

could either be implemented on a mobile device

(using the implementation for mobile Web Services

described in (Jansen, 2013a)) or it could be

implemented as a usual Web Service running on a

usual computer/server.

Interestingly, from a developers point of view,

the implementation of an asynchronous mobile Web

Method does not differ from the implementation of a

synchronous mobile Web Method, especially no

reference to a callback needs to be provided. All the

necessary extensions for the handling of

asynchronous requests could automatically be

applied to the façade created by the central proxy.

The next section provides a description about a

mobile application that already utilizes the described

approach for asynchronous mobile Web Services

deployed to mobile devices. By the successful

integration of this implementation, the mobile

application was able to achieve the requirements

discussed earlier in this paper.

5 INTEGRATION OF

ASYNCHRONOUS MOBILE

WEB SERVICES INTO AN

EXISTING APPLICATION

The proposed implementation of asynchronous

mobile Web Services has been tested in beeFun, a

particular messaging application.

This mobile app treats to reinvent the traditional

messaging concept into a new, different and funny

experience. In order to make it attractive for users,

beeFun combines a simpler interface for sending

different preconfigured (or not) messages very

quickly with several gaming experiences like

weekly-renewed scores and badges obtainment.

Different templates of message are available to be

sent, including simple text, text with images,

location-based messages and surveys. Messages can

be sent to a given group of known users, or a

specifying set of criteria that define such receivers,

like their current location, age, or gender, among

others. Unlike other similar apps, this information is

stored exclusively on each device, so those criteria

are evaluated in every device when this kind of

message is sent. This design, in addition to bringing

a different perspective on mobile devices as service

providers similar to the Software-as-a-Service model

(but in a mobile context), allows sending geo-

located messages without forcing users to be tracked

neither updating their information to a centralized

server continuously, solving certain privacy issues in

a very elegant way.

Consequently, this architecture requires a fast

and flexible way to connect the server-side (which

orchestrates every message’s request and response)

with mobile devices (which evaluate the

conditionals and accept or decline every message

depending on their current status). Technically, this

was implemented through an in-house solution that

combines the use of Push Notification Services for

“waking up” mobile devices when new messages

arrive, and a RESTful-based server API

infrastructure for handling both requests and

responses to and from mobile devices. Figure 5

shows the main flow of interactions between server

and devices when a location-based message is sent.

Due to the asynchronous nature of the location-

based messaging of beeFun, it represents a useful

testbed for integrating the asynchronous mobile Web

Services framework. In beeFun, devices’ location is

fetched from the Location Service provided by the

mobile operating system, and it is done

asynchronously for avoiding deadlocks until a valid

ImplementationofAsynchronousMobileWebServices-ImplementationandFirstUsage

649

position is obtained from sensors (GPS, WiFi, etc.).

Actually, not only location but also any information

gathered by beeFun, including history of locations,

answers to surveys and so, conform the information

core component of the app, and can be considered as

a mobile Web Service itself with several Web

Methods for getting information about the device or

its owner.

Following that consideration, the integration of

the framework has changed the previous design of

the messaging component behaviour from the

diagram described in Figure 5 to the new flow

illustrated in Figure 6.

Figure 5: Sequence diagram of the location-based

messaging implementation without the asynchronous

mobile Web Service integration.

Figure 6: Location-based messaging flow using the

asynchronous mobile Web Service approach.

Both figures represent the same request for

sending a location-based message that is evaluated

and accepted by the device. However, the integration

of the asynchronous mobile Web Services

framework greatly simplifies the complexity of the

outgoing protocol between the beeFun server and

mobile devices in comparison with the previous non-

standardized approach.

Regarding the code, the implementation of the

mobile-side is also clearer thanks to the separation

of concerns derived from the adoption of the

proposed class hierarchy and its annotations, both

required for implementing mobile Web Services and

Web Methods properly.

Additionally, the use of the asynchronous mobile

Web Services platform can easily be extended to

other parts of beeFun services with minimal effort

due to the standardization of the business rules

between server and mobile.

6 DISCUSSION AND OUTLOOK

This paper has presented a proposal to enable Web

Services deployment in mobile devices allowing

both synchronous and asynchronous calls. It has also

described the experience of using the

implementation to build beeFun, a M2M messaging

application. beeFun is currently being commercially

exploited by the startup GLOIN

Having the possibility of deploying web services

to mobile devices raises the concept of Mobile

Clouds to a higher level. It not only opens the door

to a new generation of cloud applications in which

mobile devices acquire the capabilities of providing

SaaS. In addition, it also enables new business flows

benefiting the device owners.

Currently the authors are releasing new

applications based on the principles presented in the

article

. The new application areas are allowing them

to detect new features to be incorporated into the

technological platform.

Additionally, the described implementation also

allows to implement new scenarios, e.g., in the area

of mobile health applications, in which aspects like

security and privacy, but also de-central storage of

sensual personal data, could be handled much easier

in comparison if other technologies are used.

Therefore, the approach described in this paper

provides rich potential for further development of

new Cloud Computing based applications.

http://www.gloin.es/en/

http://www.nimbees.com/

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

650

REFERENCES

F. AlShahwan, K. Moessner, “Providing SOAP Web

Services and REST Web Services from Mobile

Hosts”, In: Fifth International Conference on Internet

and Web Applications and Services (ICIW 2010), pp.

174-179.

Dropbox. Dropbox FAQ, 2013.

https://www.dropbox.com/help/7/en.

Facebook, Do you know What's Up?. https://

www.facebook.com/notes/up-creative-inc/do-you-

know-whats-up-check-out-these-2013-social-media-

statistics/470970089631080.

E. Gamma, R. Helm, R. Johnson, J. Vlissides, Design

Pattern – Elements of Reusable Object-Oriented

Software, Addison-Wesley. 1995.

Gartner. Market Trends: Application Development

Software, Worldwide, 2012-2016. Technical report,

Gartner, 2012. http://www.gartner.com/

resId=2098416.

J. Guillén, J. Miranda, J. Berrocal, J. García-Alonso, J. M.

Murillo, C. Canal, “People as a Service: a mobile-

centric model for providing collective sociological

profiles”. IEEE Software SWSI: Next Generation

Mobile Computing (2014) [ACCEPTED, PENDING

PUBLICATION]

M. Jansen. Analysis and Improvement of Energy

Consumption for Providing Mobile Web Services. In.

International Journal of Soft Computing and Software

Engineering, DOI: 10.7321/jscse. 2013a.

M. Jansen. About the Necessity to Change the Perspective

for Mobile Web Services. In: Proceedings of the 15th

IEEE International Symposium on Web Systems

Evolution, 2013b.

D. Kegel. The c10k problem, http://www.kegel.com/

c10k.html, last visited: 18.12.2013.

L. Li, W. Chou, “COFOCUS – Compact and Expanded

Restful Services for Mobile Environments”, In:

Proceedings of the 7

International Conference on

Web Information Systems and Technologies, pp. 51-

60, Noordwijkerhout, The Netherlands. 2011.

G. Meijer. Instagram: A Case Study for the Clouds, 2013.

http://www.cloudproviderusa.com/instagram-a-case-

study-clouds/.

S. McFaddin, C. Narayanaswami, M. Raghunath, “Web

Services on Mobile Devices – Implementation and

Experience”, In: Proceedings of the 5

IEEE

Workshop on Mobile Computing Systems &

Applications (WMCSA’03), pp. 100-109, Monterey,

CA.

Miranda, J., Guillén, J., Berrocal, J., Garcia-Alonso, J.,

Murillo, J., & Canal, C. (2013). Architecting

Infrastructures for Cloud-Enabled Mobile Devices. In

C. Canal & M. Villari (Eds.), Advances in Service-

Oriented and Cloud Computing SE - 23 (Vol. 393, pp.

277–287). Springer Berlin Heidelberg.

doi:10.1007/978-3-642-45364-9_23.

T. A. Powell. AJAX – The Complete Reference, McGraw-

Hill Osborne Media, 2008.

M. Raatikainen, T. Mikkonen, V. Myllarniemi, N.

Makitalo, T. Mannisto, and J. Savolainen. Mobile

content as a service a blueprint for a vendor-neutral

cloud of mobile devices. IEEE Software, 29(4):28{32,

2012.

S. Srirama, M. Jarke, W. Prinz, “Mobile Web Service

Provisioning”, In: Proceedings of the Advanced

International Conference on Telecommunications and

International Conference on Internet and Web

Applications and Services (AICT/ICIW 2006), p. 120,

Guadeloupe, French Caribbean.

S. Tilkov, S. Vinoski. Node.js: Using JavaScript to Build

High-Performance Network Programs, IEEE Internet

Computing, vol. 14, no. 6, pp. 80-83,

November/December, 2010.

ImplementationofAsynchronousMobileWebServices-ImplementationandFirstUsage

651
