Formalizing Artifact-Centric Business Processes

Towards a Conformance Testing Approach

Hemza Merouani

, Farid Mokhati

and Hassina Seridi-Bouchelaghem

Departement of Mathematics and Computer Sciences, ReLa(CS)

Laboratory, University of Oum El-Bouaghi,

Oum El-Bouaghi, Algeria

Department of Mathematics and Computer Sciences, LAMIS Laboratory, University of Oum El-Bouaghi,

Oum El-Bouaghi, Algeria

Department of Computer Sciences, LabGed Laboratory, University of Annaba, Annaba, Algeria

Keywords: Business Process Management, Data-Centric Business Processes, Business Artifact, Maude-Strategy

Language, Formalization, Validation by Simulation, Conformance Testing.

Abstract: Recently, Artifact-Centric Business Processes have emerged as an approach in which processes are centred

on data as a “first-class citizen”. A key challenge faced by such processes is to develop effective

mechanisms that support formal specification, validation and verification of their static and dynamic

behaviours i.e., the data of interest and how they evolve. We present, in this paper, a novel approach that

allows on one hand, formalizing Artifact-Centric Business Process Models described in UML as an

executable formal specification in the Maude and its strategy language and, on the other hand, testing

whether the implementation of such models is conformant to its specification using all possible scenarios

that are described as Maude strategies. One of the main reasons for using Maude-Strategy language is due to

its execution environment in which the use of a wide range of formal methods is facilitated.

1 INTRODUCTION

Business Process Management (BPM) is “the

discipline that combines knowledge from

information technology and knowledge from

management sciences and applies this to operational

business processes” (Weske, 2012). Business

processes are the cornerstone of BPM; a business

process (BP), by definition, is “a collection of

activities that takes one or more kinds of input and

creates an output that is of value for the customer”

(Hammer, 1993). BPs occur in almost all

organizations, such as schools, government

agencies, business, hospitals, etc. and often in the

form of routine tasks in the daily life such as

shopping, banking, shipping and checking in/out

books from libraries.

During the last two decades, BPM has received

extensive attention due to its potential for

significantly improving enterprise productivity and

diminution costs. Being widely adopted by industry,

both researchers and practitioners in the BPM

community have focused only on studying control

flow aspects that define how a BP is supposed to

operate, but giving little importance (or none at all)

to the information produced as a consequence of the

process execution. A common drawback of such

modelling notations (such as BPMN, EPCs, Petri

Nets etc.) is being activity centric i.e., lacking the

connection between the process and the data

manipulated during its executions. This reflects also

in the corresponding verification techniques, which

often abstract away from the data component. This

problem affects many contemporary process-aware

information systems, incrementing the amount of

redundancies and potential errors in the development

phase (Solomakhin et al., 2013).

To tackle this problem, IBM introduced data-

centric business process models that give data a

foundational role in the context of business process

design (Nigam and Caswell, 2003). In particular,

such models are based around Business Artifacts

(BA) and their lifecycles. BA, sometimes referred as

a business record, “is a concrete, identifiable, self-

describing piece of information through which

business stakeholders add value to the business”.

They are key business-relevant objects that combine

both data and behavioural properties that are used as

368

Merouani H., Mokhati F. and Seridi-Bouchelaghem H..

Formalizing Artifact-Centric Business Processes - Towards a Conformance Testing Approach.

DOI: 10.5220/0004951803680374

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 368-374

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

primitive driving the process modelling.

(Nigam and Caswell, 2003) defined operational

specifications of a business artifact, and from there

many research efforts, methodologies and meta-

models have originated. Furthermore, the formal

foundations of the artifact-centric paradigm are

being investigated (Gerede et al., 2007)

(Bhattacharya et al., 2007) in order to capture the

relationship between processes and data and to

support formal reasoning.

In fact, the lack of formalism and rigor in

existing artifact-centric design models often leads to

ambiguities and different interpretations. Those

weaknesses combined with the inherent complexity

of business processes management systems generate

business processes without any rigorous

conceptualization and many problems in their

development process. Using formal notations to

specify behaviour of artifact-centric business process

models makes it possible to produce precise

description. This also offers a better support to their

verification and validation process.

In the setting of artifact-centric business process

modelling, there are three levels in the specification

of the solution for a given process:

 Definition of the data involved in the process,

 Identification of the basic actions that manipulate

those data, and

 Specification of how those basic actions must be

used by the process to reach the goal.

BALSA framework (Bhattacharya, 2009) is an

artifact-centric design methodology which is based

on the definition of a Business Operation Model

(BOM). These latter are defined across four explicit

inter-related but separable dimensions: (1) Business

Artifacts, (2) Lifecycles, (3) Services, and (4) the

Associations of services to artifacts. BOMs serve as

basis for system implementation and they are used

as input for the conceptual flow and workflow

realization phases. More recently, (Estañol et al.,

2013) identified the UML diagrams that can be used

to represent a process from an artifact-centric

perspective following the BALSA framework. The

importance of their contribution lies in the fact that

UML is a high-level, technology-independent

standard in the world of conceptual modelling and,

in our opinion, it can be automatically translated into

Maude (Clavel et al., 2011) and the translation can

be used for reasoning purposes.

Maude is based on a sound and complete logic

called rewriting logic (Meseguer, 1992).

The advantages of using Maude in this context are

many. First of all, it supports concurrent object-

oriented computation. These properties of rewriting

logic make it an ideal framework to support business

artifact formalization. Secondly, since Maude is

based on (conditional) rewrite rules, it is very natural

to express the evolution of an artifact from state to

another. And, last but not least, Maude allows us the

separation between the first two levels above, data

and actions (i.e. business entities with lifecycles) by

distinguishing at the logic level equations from

rewriting rules. Furthermore, Maude strategy

language (Martí-Oliet et al., 2009) completed

Maude by a third level of strategies to control and

determine the right sequencing of those actions.

In this paper, we advocate the feasibility and the

interest of: (1) Formalizing both static and

behavioural properties of BALSA framework

described in UML as an executable formal

specification with Maude and its strategy language

(2) Testing whether the implementation of such

models is conformant to its specification using all

possible scenarios which are described as Maude

strategies. We are concerned with conformance

testing approach for its ability to identify problems

in either finite or infinite state systems where the

state space becomes too large for model-checking.

The remainder of this paper is organized as

follows: In section 2, we give a general outline on

the major related works. We briefly present, in

section 3, the BALSA framework, Maude as well as

the Maude Strategy language. Section 4 presents our

approach. In section 5, we give some conclusions

and future work directions.

2 RELATED WORKS

In recent years, modelling, specification and analysis

of artifact-centric business processes have attracted a

lot of attention from the research community.

From modelling and specification viewpoint,

business process models are habitually the first

interface between business managers and software

engineers. Different formalisms and notations are

used to represent the four elements in the BALSA

framework, (i.e. business artifacts, lifecycles,

services and associations). A first challenge in this

perspective is to find: (1) a rich and flexible

modelling notation that provides understanding and

access to all facets of BALSA framework and, (2) an

appropriate formal notations which allows producing

rigorous and precise descriptions efficiently

supporting verification and validation process.

Table 1 gives a brief overview of some recent and

important works that deal with data-centric business

process modelling. In our work, we chose to

FormalizingArtifact-CentricBusinessProcesses-TowardsaConformanceTestingApproach

369

combine the advantages of the graphical modelling

notation UML defined in (Estañol et al., 2013) and

the formal specification language Maude-Strategy in

a single technique.

From formal analysis perspective, little is

understood about artifact-centric business process.

In general, the verification problem is undecidable

because model-checking technique in the presence

of data as a “first class citizen” makes the set of

possible states infinite (Hull, 2008) (Gerede et al.,

2007) (Bhattacharya et al., 2007). In this paper, we

are concerned with testing technique. Testing can be

used for identifying errors in infinite state systems.

After validating the generated formal specification

written in the Maude-Strategy language, we can use

it for testing the conformity of the implementation

models to their specifications.

Table 1: Some formalism and notations used to represent

the four elements of BALSA framework.

Artifact Lifecycle Service Association

Bhattacharya

et al., 2009

Entity-

Relationship

model

(ER)

State

Machine

Input,

Output, Pre-

condition &

Effects

Event

&Condition

&Action

(ECA) rule

Hariri

et al.,

2011

Data Base

schema

State

Machine

Pre & Post-

Condition

&Action

Deutsch

et al.,

2011

Attributes &

variables

Variable

Pre & Post-

Condition

Business

Rule

Hull et al.,

2011

Guard-

Stage-

Milestone

(GSM)

Guard-

Stage-

Milestone

(GSM)

/ /

Lohmann

& Wolf,

2014

Petri Nets Petri Nets / Petri Nets

Estanol

et al.,

2013

UML Class

Diagram

UML

State

Machine

OCL

Contract

UML

Activity

Diagram

3 BASIC CONCEPTS

Before presenting the technical details of our

approach, we present in this section some

fundamental notions used in this study.

3.1 BALSA Framework in UML

In this sub-section, we give a brief description of the

four BALSA dimensions and theirs representation

using UML diagrams. For more details see

(Bhattacharya et al., 2009) (Hull et al., 2009) and

(Estañol et al., 2013).

3.1.1 Business Artifacts

The information models of business artifacts are

intended to hold all of the information needed in

completing business process execution. A business

artifact has an identity, a set of attributes and

relationship with other artifacts. In UML, a class

diagram is used to show the business entities and

how they are related to each other, represented as

classes and associations respectively. Each class has

a series of attributes.

3.1.2 Business Artifact Lifecycle

Lifecycles represent key stages in the evolution of

an artifact, from its creation to its final disposition

and archiving. Macro-lifecycles is represented as

UML state machine.

3.1.3 Service

Services are units of work that make changes to one

or more business artifacts. Typically, several

services are applied during each stage of the

lifecycle of an artifact. Services are specified by

means of an OCL operation contract which consists

in a set of input parameters and output parameters, a

pre-condition and a post-condition.

3.1.4 Association

Associations are used to relate services and artifacts

from the micro-level lifecycle of artifact; the goal is

to define the right sequencing of services execution.

In UML, activity diagram is used for specifying each

external event in state machine diagrams when each

service is represented as an action, arrows and

control nodes show the order in which actions have

to be executed.

3.2 Maude and Its Strategy Language

Maude (Clavel et al., 2011) is a specification and

programming language based on rewriting logic

(Meseguer, 1992) which allows the description of

concurrent systems, this type of logic unifies all

formal models of concurrency. The rewriting rules

are of the form RL

: [t] -> [t’] if C, which

indicates that, according to rule

RL, term t becomes

t’ if a certain condition C is verified, the condition

is also optional. Three types of modules are defined

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

370

in Maude. Functional modules allow defining data

types and their functions. System modules allow

defining the dynamic behaviour of a system. This

type of module augments the functional modules by

introducing rewriting rules. Finally, object-oriented

modules, offer a more appropriate syntax to describe

the basic entities of the object paradigm.

Once the Maude specifications become

executable, we must ensure that the rewriting

process does not go in undesired directions and

eventually terminates. Maude-Strategy language

(Martí-Oliet et al., 2009) can be used to control how

rules are applied to rewrite a term in an attempt to

control the non-determinism in the execution

process. Strategies are defined in a separate module

and they defined how those basic rewriting rules

must be used to reach the desired solution. Besides

providing basic strategies through the use of rule

labels, the strategy language permits combining

these strategies into more complex ones using

several combinators: concatenation (

;), union (|),

and iteration (

E* for zero or more iterations and E+

for one or more iterations). Additionally, there is the

combinatory

orelse is a typical if-then-else. Given

a Maude system module

M, the user can write one or

more strategy modules to define strategies for

Such strategy modules have the following form:

smod STRAT is

protecting M .

including STRAT

...

strat E

: T

... T

@ K

sd E

,...,P

) := Exp

...

strat E

: T

... T

@ K

csd E

,...,Q

) := Exp

if C

endsm

where M is the system module whose rewrites are

being controlled,

STRAT

are imported strategy sub-

modules,

, ...,E

are identifiers, and Exp

,...,Exp

are strategy expressions. The strategy rewriting

command is:

srew T using E, which rewrites a

term

T using a strategy expression E.

4 OUR APPROACH

Significant research challenge for data-centric

workflow is the integration of reasoning into various

stages of the business processes lifecycle. Due to the

lack of effective and efficient tools, business

processes management systems models in practice

are not designed using rigorous techniques nor

analyzed with verifiers, this leads to many issues

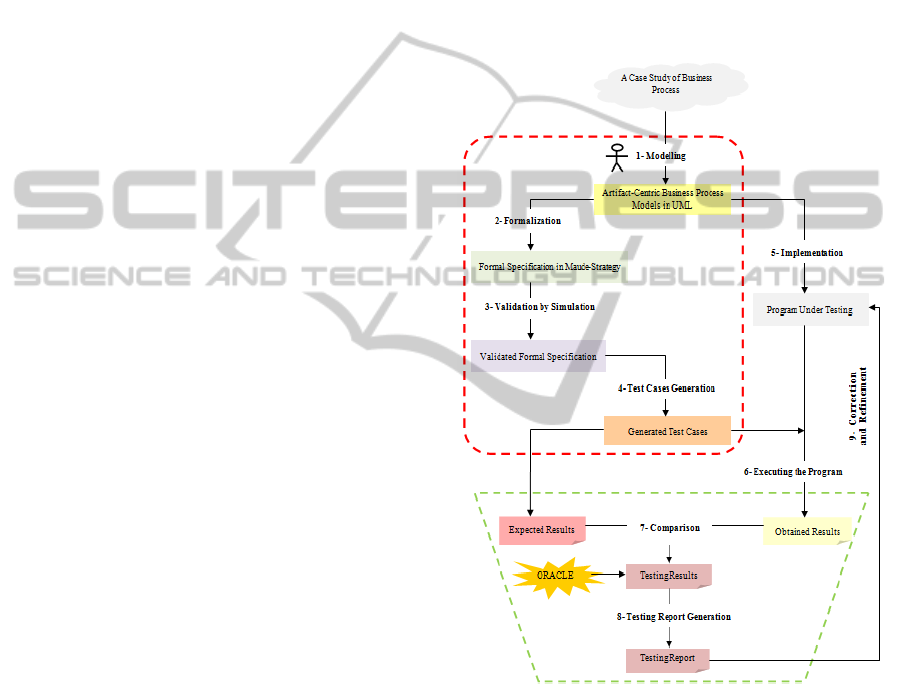

(Hull et al., 2009). Figure 1 illustrates the proposed

approach. Our long-term goal in this work is to

develop a novel methodology with sound tools to

design, formalize, implement and testing the

conformity of the implementation of such models to

their formal specifications. The dashed red bold-line

rectangle in the figure 1 correspond to the first steps

for reaching this goal that we advocate in this

section: (1) modelling, (2) formalizing the data-

centric business processes models, (3) validating the

generated formal specification and (4) generating the

tests cases from the validated formal specification.

Figure 1: The methodologies of our approach.

4.1 Modelling

Business process models are habitually the first

interface between business managers and software

engineers. Partly due to the traditional division of

academic disciplines it is often the case that in an

application context these two groups of people have

different technical backgrounds. As a result,

business process models that are understandable and

usable by one community are typically not

understandable and usable by the other. This leads to

significant communication problems, and a

FormalizingArtifact-CentricBusinessProcesses-TowardsaConformanceTestingApproach

371

significant cost (Hull et al., 2009).

In our work, we chose UML to represent

business process models. The graphical modelling

notation UML is a high-level, technology-

independent standard in the world of conceptual

modelling. Outputs of this step are:

(1) UML class diagram shows the business artifacts

and how they are related to each other, (2) set of

UML state machines represent the macro-level

lifecycle of artifacts, (3) set of OCL contracts

represent services and (4) a set of UML activity

diagrams represent the micro-level lifecycle of

artifacts.

4.2 Formalisation Process

In this section, we present the translation process in

order to give a formal semantics of UML/OCL

concepts generated in the first step using Maude and

Maude strategy language. The table 2 summarize

correspondences between the concepts abstracted

from UML/OCL and Maude (strategy) language.

Thanks to the strong correspondence between

UML class diagram concepts and the one in Maude

language, the generation of Maude specification

from UML class diagram is easily made. Every

UML class and its attributes are formalized by a

class with a set of attributes in object-oriented

module of Maude. In addition, inheritance is directly

supported by a subclass declaration.

To define UML state machine diagram, we

propose the functional module

Machine-Diagram.

This module mentions all states and actions

constituting the diagram that are defined in separated

STATE and ACTION modules. Furthermore it

includes the definition of two operations,

TargetState that determines the state destination

according to a state source and a condition, and the

AccomplishedAction operation to determine the

executed action according to a state and an event.

The latter is formalized by a Maude operation

msg.

Our way of representing OCL constraints is by

means of (conditional or unconditional) rewrite rule

CRL labelled with service name which express: input

and output objects (i.e. instances of class),

eventually a preconditions states the condition that

must be true before executing the RL and the post-

condition indicates which attributes change in

certain objects after RL execution.

Since the goal of the activity diagram is to define

the right sequencing of services execution i.e.,

control flows, we propose using several Maude

strategy combinators for specifying them. Table 2

presents also the description of some elements of the

UML activity diagram concepts and the

corresponding formal semantics. Each task (service)

is already represented as rewriting rule. In this way,

sequence strategy shows the order in which

RLs

have to be executed. OR-Fork and OR-Join will be

mapped using the conditional Maude strategy

orelse. A specific condition (guard) of the

conditional rewriting rules (

CRL) determines which

path (rewriting rule) will be taken (executed).

OR-

Fork (ORJoin) can be represented by a strategy

which expresses the concatenation between the

rewriting rule associated to the incoming segment

(outgoing segment) and one of the conditional

rewriting rules associated to the outgoing segments

(incoming segments). We can translate

AND-Fork

and

AND-Join in Maude strategy language using

union combinator (

|). AND-Fork is translated into a

Table 2: Mapping from UML/OCL concepts to

Maude/Maude strategies specifications.

BALSA

Concept

Class Diagram

concepts

Maude Specifications

Business

Artifact

Class

class C

Attributes

class C| a1 : S1, …,an :

Inheritance

Relation

subclass C’ < C

BALSA

Concept

State Machine

Diagram

concepts

Maude Specifications

Business

Artifact

Lifecycle

State

(fmod STATE is ... endfm)

Transition

Event

msg Evt :... -> Msg

Action

(fmod ACTION is ... endfm)

BALSA

Concept

OCL Concepts Maude Specifications

Service

Set of Input

Parameters

crl [service-name] :

< O

: C

/ ListeAt

> ...

< O

: C

/ ListeAt

< O

: C

/ ListeAt’

> ...

< O

: C

/ ListeAt’

if <Condition> .

Set of Output

Parameters

Precondition

Post-

Condition

BALSA

Concept

Activity

Diagram

Concept

Maude Strategies Specifications

Association

Task

crl [service-name]

Control

Nodes

sd sequence: = RL

; RL

sd ORFork:= RL

;(CRL

orelse RL

)

sd ORJoin:=(CRL

orelse RL

);

N+1

sd ANDFork := RL

; (RL

|...|RL

)

sd ANDJoin :=(RL

|RL

); RL

N+1

....

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

372

strategy which expresses the execution of the

rewriting rule associated to incoming segment

followed by the concurrent execution (in Parallel) of

rewriting rules associated to the outgoing segments.

4.3 Validation by Simulation

Since Maude and its Strategy language are supported

by powerful rewrite engine (Clavel et al., 2011), the

formal specification produced in the previous step

benefits the access to the arsenal of generic tools for

rewriting logic engine, such as simulation, LTL

model checking, inductive theorem proving, etc.

The rewriting logic offers a great flexibility in

terms of simulation of a specification, in particular,

while choosing the initial configuration. Using all

the system’s description, we can validate a part of

the system without involving the rest. Maude

provides two commands for doing simulation:

rewrite and search. The first command

explores a possible

execution path from an initial

state to another one. However, the second one

allows us to explore reachable state space in

different ways.

4.4 Conformance Testing Process

Starting from a validated Maude-Strategy formal

description of the Business process, the proposed

method allows, in the first step, analyzing this

description and extracting from it the possible

testing sequences representing the different possible

scenarios (i.e., the different strategies). These latter

are analyzed in order to extract the possible test

cases. Each test case contains input data and

expected results. For testing the conformity between

the implementation of the Business process and its

formal specification, we proceed to: (1) execute the

program under testing using the input data, (2)

compare the obtained results to the expected ones

using a test oracle. This latter represents a

mechanism that is used during testing to determine

whether software behaves correctly or not.

(3) Finally, a testing report is generated for helping

users to correct the potential errors (see figure 1).

5 CONCLUSIONS

In this paper, we have proposed a novel approach for

formalizing, validating and testing the data-centric

business process described in UML with the Maude-

Strategy language. This work in progress represents, in

fact, the first step towards developing an entire

methodology supported by sound tools to various

stages of the business processes lifecycle.

As future directions, we are working on the

development of an environment supporting the

proposed approach by using MDE (Model Driven

Engineering) techniques for implementing the

formalization process.

REFERENCES

Bhattacharya, K., Gerede, C., Hull, R., Liu, R., & Su, J.

(2007). Towards formal analysis of artifact-centric

business process models. In BPM (pp. 288-304).

Springer Berlin Heidelberg.

Bhattacharya, K., Hull, R., & Su, J. (2009). A data-centric

design methodology for business processes. Handbook

of Research on Business Process Modeling, 503-531.

IGI Global.

Clavel, M., Durán, F., Eker, S., Lincoln, P., Martı-Oliet,

N., Meseguer, J., & Talcott, C. (2011). Maude manual

(version 2.6). University of Illinois, 1(3), 4-6. USA.

Deutsch, A., Hull, R., Patrizi, F., & Vianu, V. (2009).

Automatic verification of data-centric business

processes. In Proceedings of the 12th ICDT (pp. 252-

267). ACM.

Estañol, M., Queralt, A., Sancho, M. R., & Teniente, E.

(2013). Artifact-Centric Business Process Models in

UML. In BPM Workshops (pp. 292-303). Springer

Berlin Heidelberg.

Gerede, C. E., Bhattacharya, K., & Su, J. (2007). Static

analysis of business artifact-centric operational

models. In SOCA (pp. 133-140). IEEE.

Hammer, M. (1993). Champy J. Re-engineering the

corporation: a manifesto for business revolution. 1st

edn. Harper Business, New York.

Hariri, B. B., Calvanese, D., De Giacomo, G., De

Masellis, R., & Felli, P. (2011). Foundations of

relational artifacts verification. In BPM (pp. 379-395).

Springer Berlin Heidelberg.

Hull, R. (2008). Artifact-centric business process models:

Brief survey of research results and challenges. In

OTM (pp. 1152-1163). Springer Berlin Heidelberg.

Hull, R., Damaggio, E., Fournier, F., Gupta, M., Heath III,

F. T., Hobson, S & Vaculin, R. (2011). Introducing the

guard-stage-milestone approach for specifying

business entity lifecycles. In WS-FM (pp. 1-24).

Springer Berlin Heidelberg.

Hull, R., Su, J., co-chairs, (2009). Workshop on Data-

Centric Workflows. Report of workshop Sponsored by

NSF. Arlington Virginia, USA.

Lohmann, N., & Wolf, K. (2014). From Artifacts to

Activities. In Web Services Foundations (pp. 109-

135). Springer New York.

Martí-Oliet, N., Meseguer, J., & Verdejo, A. (2009). A

rewriting semantics for Maude strategies. Electronic

Notes in Theoretical Computer Science, 238(3), 227-

247. Elsevier.

Meseguer, J. (1992). Conditional rewriting logic as a

FormalizingArtifact-CentricBusinessProcesses-TowardsaConformanceTestingApproach

373

unified model of concurrency. Theoretical computer

science, 96(1), 73-155. Elsevier.

Nigam, A., & Caswell, N. S. (2003). Business artifacts:

An approach to operational specification. IBM

Systems Journal, 42(3), 428-445. NY, USA IBM.

Solomakhin, D., Montali, M., Tessaris, S., & De

Masellis,R. (2013). Verification of Artifact-Centric

Systems: Decidability and Modeling Issues.

Weske, M. (2012). Business process management:

concepts, languages, architectures. Springer.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

374
