Database Design of a Geo-environmental Information System
George Roumelis
1
, Thanasis Loukopoulos
2
and Michael Vassilakopoulos
2
1
Dept. of Informatics, Aristotle University, Thessaloniki, Greece
2
Dept. of Computer Science and Biomedical Informatics, University of Thessaly, Lamia, Greece
Keywords: Geographical Information Systems, Environment, Database Modelling, Entity-Relationship Model,
Database Queries, Database Indexing.
Abstract: Environmental protection from productive investments becomes a major task for enterprises and constitutes
a critical competitiveness factor. The region of Central Greece presents many serious and particular
environmental problems. An Environmental Geographic Information System is under development that will
maintain necessary and available information, including existing environmental legislation, specific data
rules, regulations, restrictions and actions of the primary sector, existing activities of the secondary and
tertiary sectors and their influences. The system will provide information about the environmental status in
each location with respect to water resources, soil and atmosphere, the existence of significant pollution
sources, existing surveys, studies and measurements for high risk areas, the land use and legal status of
locations and the infrastructure networks. In this paper, we present a Database Design that supports the
above mentioned objectives and information provision. More specifically, we present examples of user
queries that the system should be able to answer for extraction of useful information, the basic
categorization of data that will be maintained by the system, a data model that is able to support such data
maintenance and examine how existing indexing structures can be utilized for efficient processing of such
queries.
1 INTRODUCTION
Environmental protection from productive
investments becomes a major task for enterprises
and constitutes a critical competitiveness factor. At
the same time, the viability depends on the growth
capability of all production sectors as well as on the
guarantee that the environmental effects will not
have a major social impact. The region of Central
Greece, presents many serious, several and
particular environmental problems. The main
pollution sources and environmental degradation
factors are:
 Many industrial, mining and energy units,
 Non-organized residential expansion,
 Absence of urban waste management,
 Absorption of aquatic resources by Attica
basin.
As a result several problems arise such as the
qualitative degradation of the primary sector, the
limited exploitation of tourism resources and the
potential ecological collapse of many sea and
terrestrial areas. The lack of rational planning,
spatial organization and operation control of the
human activity effects is the root of the diverse and
complex environmental problems.
In this context and especially for the
environmental problems in Central Greece, the
establishment of an Environmental Geographic
Information System (EGIS) (Gandhi et al., 2009) is
proposed which will include a multi-level software
with all necessary and available information
(Wainwright and Mulligan, 2013), including:
 Total existing legislation (Laws, specific
restrictions, decisions, guidelines for national,
regional and local planning, land use,
NATURA areas, specific environmental
studies, etc.) concerning the region
environmental issues.
 The specific rules, regulations, restrictions and
actions concerning the primary sector activities
as well as the special conditions or
requirements which are necessary for the
operation of any infrastructure (national and
local) in this geographical region.
 The existing activities of the secondary and
tertiary sectors and their produced geographical
influences. Towards this direction, it is
375
Roumelis G., Loukopoulos T. and Vassilakopoulos M..
Database Design of a Geo-environmental Information System .
DOI: 10.5220/0004952603750382
In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 375-382
ISBN: 978-989-758-028-4
Copyright
c
 2014 SCITEPRESS (Science and Technology Publications, Lda.)

necessary to take into account data from other
works designed for specific sections of the
region (e.g. Environmental Registry for the
secondary sector, which has been prepared by
certain prefectures).
The main objectives of the EGIS development are:
 The actual environmental impact assessment of
spatial planning, sector policies and
infrastructure, as well as the selection of
appropriate solutions by researchers and
inspecting mechanisms.
 The valid information about the existing
restrictions on the area and technology choices
appropriate for the interested investors and
social services.
 The elected bodies (municipal, district councils
etc.) and authorities’ decisions for investments
implementations.
 More efficient processes for the relevant
authorities’ audits and management.
 Planning policies for environmental protection
and enhancement.
 Management studies and research preparation
for environmental protection.
The system will provide information about:
 The environmental status in each location with
respect to water resources, soil and atmosphere.
 The existence of significant point (e.g. heavy
industries, aquaculture) or diffused (e.g.
informal industrial concentration, mining, fish
farms) pollution sources.
 The existing surveys, studies and
measurements for the high risk areas under
examination.
 The land use and legal status to any location.
 The infrastructure networks.
In this paper, we present a Database Design that
supports several of the above mentioned objectives
and information provision. In Section 2, we present
examples of user queries on such data that the
system should be able to answer, for extraction of
useful information. In Section 3, we present the
basic categorization of data that will be maintained
by the system. In Section 4, we present the data
model of a Database that is able to support such data
maintenance. In Section 5, we examine how existing
indexing structures can be utilized for efficient
processing of such queries. In Section 6, we
summarize the contribution of this work and discuss
future research directions.
2 USER QUERIES
After discussing with environmental-management
and spatial-planning specialists, a number of
example user queries that the EGIS should be able to
answer were gathered. These queries, in general,
consist of a series, or combination of conventional
(including conditions on 1-d data) and spatial
(including conditions on 2-d / 3-d data) database
queries. Processing of spatial queries is more
demanding than that of conventional ones (Corral
and Vassilakopoulos, 2009). A representative list of
such queries is presented in the following.
 Identify areas where logging activity can take
place, in combination with the restrictions of
reforestable geographical units.
 Identify coastal sites where aquaculture
activities could seamlessly develop, under
possible restrictions, due to various pollution
burdens of the marine environment that
evolved during the last 10 years .
 Which are the statutory quarrying areas, in the
Region of Central Greece .
 Identify sites where there is possibility of
operating oil refineries, given the current
restrictions on air pollutants or disposal of
generated waste.
 Identify sites where marinas of tourist vessels,
or/and identify hinterland sites where heliports
or airports of small private aircrafts can be
operated, according to the National and
Regional Spatial Framework.
 Identify sites where the installation and
operation of antennas for mobile telephony is
allowed based on the related regulatory
framework.
 Identify sites suitable for installation and
operation of a wind farm, according to the
existing spatial planning.
 Show the production units in the Region of
Central Greece that have annual assets
exceeding X€ and operate outside of organized
industrial areas and the conditions of
environmental protection that were set for their
operation.
3 DATA CATEGORIZATION
Based on the EGIS requirements and objectives
presented in the Introduction and by analysing the
detailed list of user queries and related regulatory
frameworks and by repetitively interviewing
environmental-management and spatial-planning
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
376

specialists, a categorization of the data collection to
be maintained was reached. In summary, the EGIS
should maintain data for the:
Natural Environment,
 protected areas (Natura/Ramsar conventions,
national parks, areas of outstanding natural
beauty, game and wildlife reserves), natural
monuments and archaeological/ historical sites,
natural processes data (rainfall, earthquakes,
disasters and landslides), special cases of
negative impacts (pollution, permanent
environmental nuisances), land use (Corine
2000 programme, wind-measurement/
insolation data, hydrographic network), and the
Anthropogenic environment,
 industry/artisanship facilities, interventions in
coastal areas, quantitative characteristics of
point/linear pollution sources, quantitative
characteristics and performance calibration of
biological treatment plants, areas and
installations of livestock facilities, air
pollution, tourism facilities, residential centres,
spatial plans of residential organization and
General Urban Plans, urban perspectives and
street plans, town planning and perspectives,
population and qualitative characteristics,
major construction projects, transport facilities,
ports.
The basic elements of the data categorization in
more structured and detailed manner is presented in
the following.
A. Primary Sector
1. Agricultural crops
 Classification - characterization
 Infrastructure: networks mapping
 Adequacy / quality of water resources
 Possible impacts
2. Livestock / Poultry units
A. Specific information
 Location, area – property, starting year, type
 Method
 Licenses
 Environmental terms and possible impacts
 Impacts ascertained
B. General information
 Incompatibilities with other uses
 Reports and studies on the impacts
3. Aquaculture
Α. Specific information
 Location
 Area, property
 Starting year
 Type, capacity
 Licenses
 Environmental terms and possible impacts
 Impacts ascertained
B. General information
 Incompatibilities with other uses
 Directions of spatial planning for Aquaculture
 Reports and studies on the impacts
B. Secondary Sector
1. Production Units
A. Specific information
 Location, area – property, starting year, type of
activity
 Licenses
 Environmental terms and possible impacts
 Impacts ascertained
 Other complaints and results
B. General information
 Incompatibilities with other uses
 Reports and studies on the impacts
2. Energy units and Renewable Energy Sources
(RES)
 Units in operation
 Units licensed
 Units applied for license
3a. Mining activities: mining, mineral researches,
mineral rights
3b. Quarrying activities: quarrying areas, quarries
A. Specific information
 Location, area of activity, ownership, starting
year
 Stage:
a) active
b) inactive
c) with definite concession
d) under licensed mineral exploration
 Mining type: Surface / underground
 Restorations made
 Restorations provisioned
 Installation location photos
 Licensing (start/end, renewals)
 Environmental terms and possible impacts
 Impacts ascertained
B. General information
 Incompatibilities with other uses
 Guidelines by national and regional spatial
plans
 Reports and studies on the impacts
C. Tertiary Sector and Infrastructure
1. Water management
DatabaseDesignofaGeo-environmentalInformationSystem
377

A. Specific information
 Location
 Licenses
 Environmental terms and possible impacts
B. General information
 Incompatibilities with other uses
 reports and studies on the impacts
2. Waste management
A. Specific information
 Location, starting year , provisioned duration,
settlements/population serviced, area,
description, annual capacity, competent
authority
 Licenses
 Environmental terms and possible impacts
 Impacts ascertained
B. General information
 Regional planning for waste management
 Incompatibilities with other uses
 Possible impacts
3. Liquid waste management
A. Specific information
 location, starting year, area, equivalent
population, description, management body
 Licenses
 Impacts ascertained
B. General information
 Incompatibilities with other uses
 Possible impacts
4. Energy networks
 Mapping, schematizing / dimensioning of
natural gas pipelines, power transmission lines
characterization, existing substations in outer-
urban space
5. Road networks
 Road category
6. Port facilities
A. Specific information
 location , starting year, area description,
management body
 Licenses
 Impacts ascertained
B. General information
 Incompatibilities with other uses
 Possible impacts
7. Decentralized Administration Services: Regions,
Municipalities, Chambers, other services
 Location , name, services provided, telephones,
e-mails
8. Markets and Auction Houses
 Location, name, services provided, telephones
9. Aggregates of small touristic units
 Location, description, type, capacity
10. Major touristic units
 Location, name, type, capacity
11. Permanent exhibitions - Exhibition halls
 Location, title, services provided, telephones ,
e-mails
12. Centers for education, research, innovation and
technology
 Location, title , services provided, telephones,
e-mails
Natural Environment and Problems
1. Soil / subsoil
 Description
 Measurements, researches
 Problems (erosion, pollution, desertification)
2. Watersheds / Water Resources Status (adequacy,
quality)
 Description of basin
 Location, rivers, lakes, artificial water systems
 Supplies of main water systems
 Problems
3. Forests, Protected Areas Status, Species
Biodiversity
 Description, measurements, surveys
4. Marine Environment - Fish Stocks
 Description, measurements, surveys
5. Atmosphere, Noise pollution
 Description, measurements, surveys
Urban Environment
1. Settlements Limits - Urban Data- Traditional /
Touristic Settlements - Archaeological Sites -
Historical Sites
 General Urban Plan, decisions of settlements
delimitation
2. Settlements outside the General Urban Plan
Institutional Environment
1. Statutory Areas
2. Industrial Area / Industrial Park
 Ownership / Management Body
 Foundation year / changes / history
 Area
 Established businesses, operational
infrastructure
 Provisioned infrastructure
 Possible impacts and environmental terms in
accordance with the Decisions of
Environmental Permits
3a. Nominated areas of absolute protection and
protection of nature
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
378

3b. Listed Monuments of Nature
3c. National Parks
3d. Landscapes of outstanding beauty
3e. Notable wetlands
 Management Bodies
4. Natura Areas
5. Spatial Plans – regulations – provisions of
national (special) Spatial Plans
 Listing of regulations regarding:
 National Spatial Plan
 Specific RES Spatial Plan
 Tourism Plan
 Industry Plan
 Aquaculture Plan
 Regional Spatial Plan
 Open-City Spatial Plan / General Spatial Plan
7. Approved Master Plans, General Urban Plans ,
Open-City Spatial Plans, Urban Control Zones
Year of preparation, area of reference, competent
service of implementation
8. Legal information
 Legal Environmental Guide, European
Directives
 Competent bodies / institutions
 Appeals - major convictions
4 DATABASE MODEL
The database design follows the Entity-Relationship
model (Thalheim, 2000), with two entity sets being
at the core. The first one consists of all the basic
objects (B), representing economic activity,
environment etc., while the second one concerns
legislation (L). In the sequel we present both and
discuss the overall schema as depicted by the Entity-
Relationship (ER) diagram of Figure 1. For
presentational reasons the ER diagram only shows
the core dependencies, not including attributes, full
entity categorization etc.
4.1 Basic Objects
Entity set B essentially implements the
categorization presented in Section 3. Therefore, a
basic object in the database belongs to one of the
following categories: primary, secondary and
tertiary sectors, natural and urban environment and
infrastructure. These categories are further split into
subcategories depending on object specifics. For
instance, the primary sector is split into: agriculture,
livestock/poultry and aquacultures. The refinement
of entity-sets is presented in Subsection 4.4
A basic object might “expire” for various
reasons. For instance, an industry might seize to
operate. Therefore, aside from the domain specific
attributes a basic object has (outlined in Section 3),
it also has a lifetime captured as start and end dates.
We expect that data about expired objects will be
kept for historical purposes.
Furthermore, a basic object might belong to a
greater group, e.g., a specific industry might belong
to the industrial zone of a city. We model the above
through the self relation “Group”.
Last, certain objects might have time dependent
attributes. For example, in an agricultural unit, the
owner as well as the type and volume of production,
can change from time to time. We model this
through the entity set “Time Dependent Attributes”
and the relationship “BOTDL”. It is worth noting,
that the entity set “Time Dependent Attributes”, in
fact consists of multiple tables (at least one for each
subcategory of “Basic Object”). It is also hard to
determine in advance for each case all the time
dependent attributes that will be required. Therefore
we will examine the use of Entity-Attribute-Value
model (Dinu and Nadkarni, 2007) that permits such
variability of attributes, but might affect query
performance.
4.2 Legislation
In the entity set “Legislation” we model the related
laws and regulations. Fully capturing the semantics
of legislation on environmental and development
issues is a formidable task on its own, and cannot be
accomplished within the EGIS budget limitations.
However, we plan to include key aspects of the
legislation as sets of rules that either force or restrict
concerning: (i) specific values on basic object
attributes and (ii) the coexistence of basic objects.
Thus, we will be able to model to a large extend,
laws regarding the permissible activities in areas of
environmental interest, allowable pollution levels
etc. Here too, we plan to examine the use of Entity-
Attribute-Value model in implementing the entity
set “Rules”
4.3 Other Design Issues
In the ER diagram, the relationship “Concerns” is
tertiary between “Legislation”, “Rules” and
“Reference Category”. This is done in order to
tackle situations where regulations are too vague to
be associated directly with specific basic objects
(“BOLeg” relationship) or with specific
DatabaseDesignofaGeo-environmentalInformationSystem
379

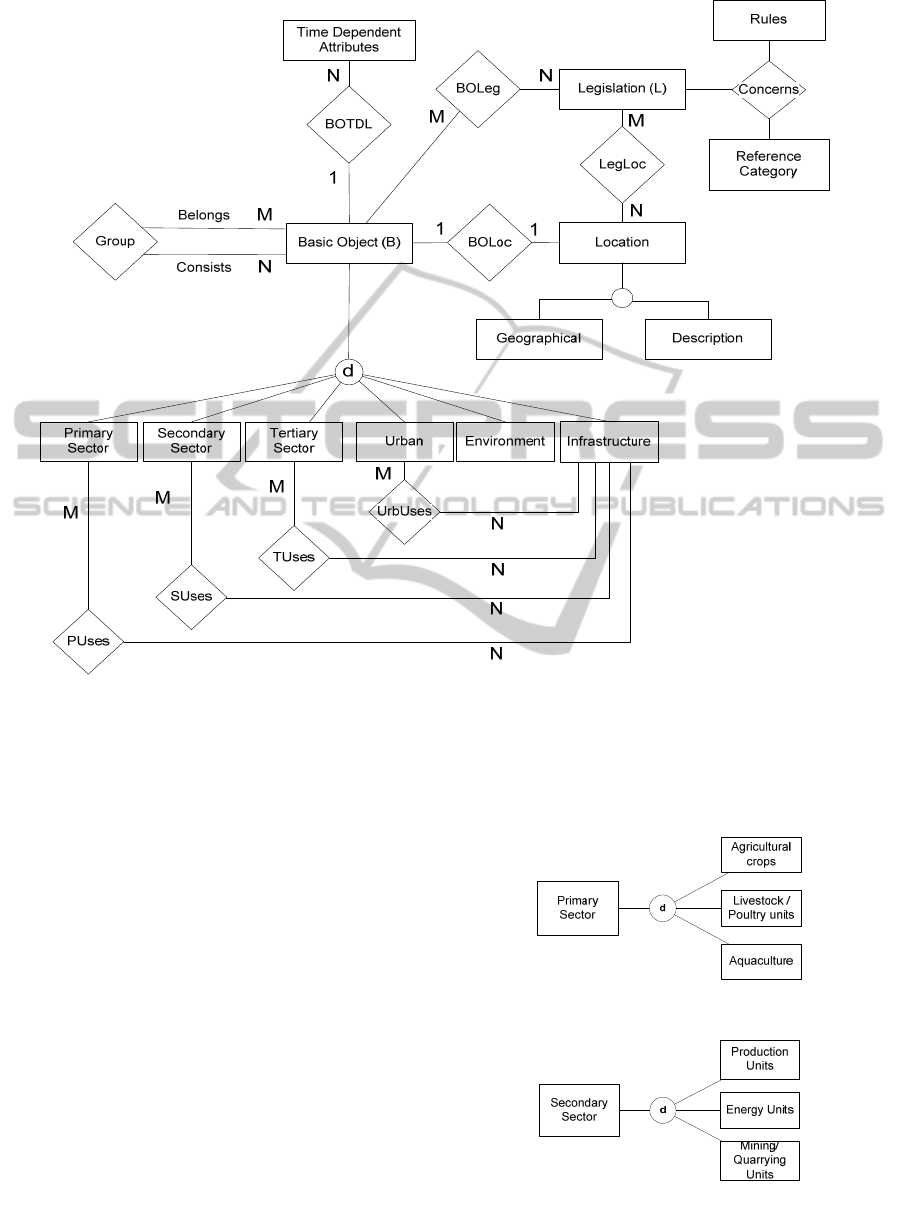

Figure 1: Basic ER diagram.
geographical areas (“LegLoc” relationship).
Another design decision we took was to enable
both text descriptions and geographical data to be
part of a “Location”. This was deemed necessary
since much of the data provided by Central Greece
prefectures have no clear geographical reference.
Concerning the storage of geographical infor-mation
per se, depending on the case, it can be a single
point, a line segment, a polygon, or a set of the
previous elements.
Last but not least, we model the fact that human
activities often require some sort of infrastructure,
through the relationships “XUses”. Since different
kind of infrastructure is used in different ways,
volumes, metrics etc., it is expected that the relevant
to “XUses” tables will be sparse making again an
Entity-Attribute-Value table implementation worth
investigating.
4.4 ER Diagram Refinement
To have a more complete depiction of the ER model,
in the following, we present specializations of the
basic objects entity-sets. For the sake of figure
clarity and space, attributes are not presented. In
Figure 2/3/4, the analysis of the Primary / Secondary
/ Tertiary Sector entity set is presented, while in
Figure 2: Analysis of the Primary Sector entity-set.
Figure 3: Analysis of the Secondary Sector entity-set.
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
380

Figure 5/6, the analysis of the
Environment/Infrastructure entity set is presented.
The Ubran entity-set is not presented, since we
consider that there is no need to further refine it.

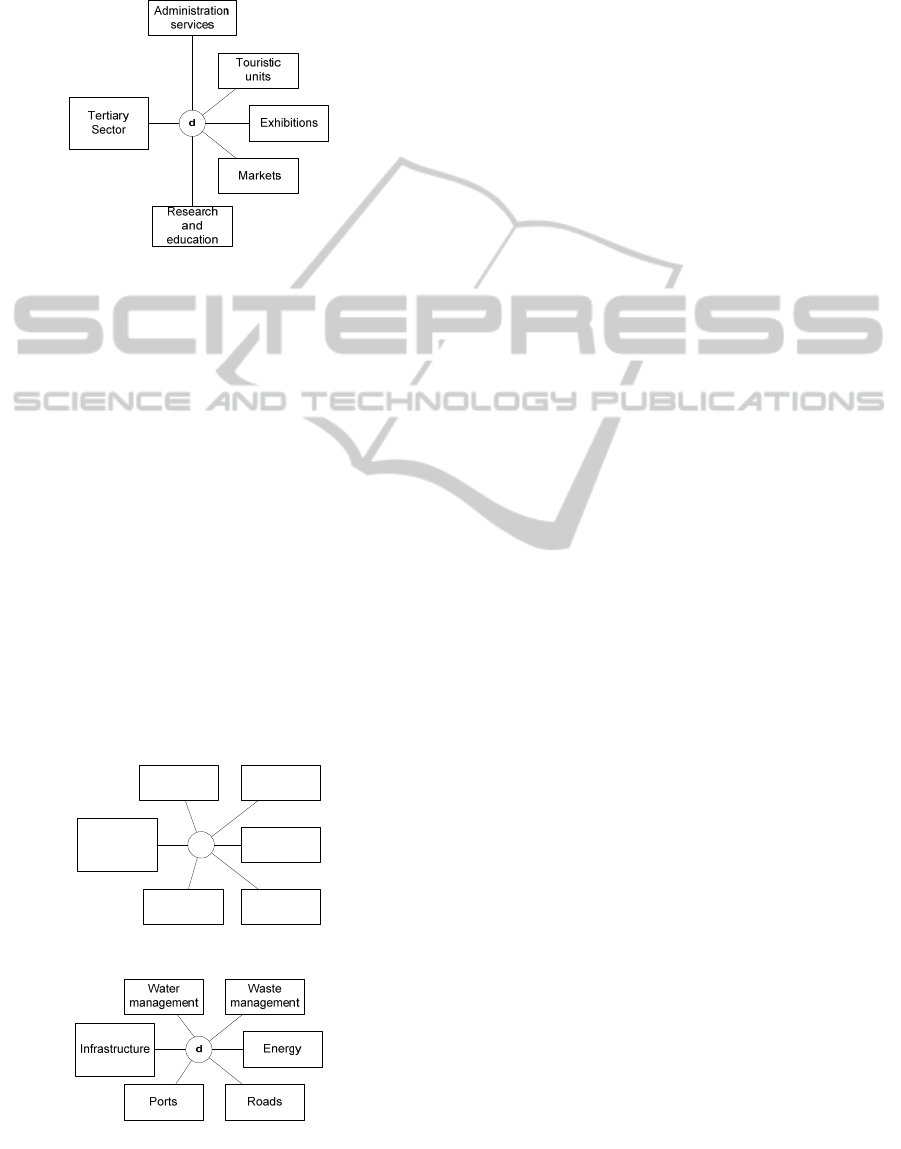

Figure 4: Analysis of the Tertiary Sector entity-set.
5 INDEXING TECHNIQUES
Out of the two basic entity sets, objects B, and
objects L, the representation of the first one of them
requires a Geographical Property, since such an
object possesses a certain geographical position. The
second object set refers to the first one, through
relationship sets of the ER diagram of Figure 1. To
efficiently process queries, techniques for indexing
these object sets and implementation of the relations
between them are needed. We choose to store all
objects in a spatially enabled Relational Database
Management System, e.g. PostgreSQL/PostGIS
(Regina and Hsu, 2011). More specifically, the key
attributes of the objects (object IDs) will be indexed
by an 1-d access method, like the B-tree, or the B+-
tree (Comer, 1979), supported by all relational
DBMSs.
Environment
d
Water
Marine
enviroment
Atmosphere
Soil / Subsoil
Forests
Figure 5: Analysis of the Environment entity-set.
Figure 6: Analysis of the Infrastructure entity-set.
PostgreSQL/PostGIS supports spatial indexes, like
R-trees (Manolopoulos et al, 2006), for indexing the
spatial attributes of the objects. The R*-tree
(Beckmann et al, 1990) is a more efficient member
of the R-tree family for query processing than the
original R-tree and if the RDBMS used in
implementation does not support it, external spatial
indexing of the object IDs could be a choice. This
can be accomplished either through RDBMS
embedded access methods, or through external
indexing, the spatial attributes of the objects will be
indexed by R-trees, or R*-trees.
When the spatial attribute of an object is a point,
this attribute per se will be inserted in the spatial
index. However, when the spatial attribute is a line
segment (e.g. a river, or road), a polygon (e.g. a lake,
or field), or a set of points (e.g. a group of weather
monitoring sensors), since R-trees are based on
Minimum Bounding Rectangles (MBR) of objects
and internal nodes, the MBRs of objects will have a
non-zero area (an MBR might even cover the
reference area, the Region of Central Greece) and
overlap between MBRs within the tree structure will
be high, reducing performance of query processing.
In this case, a new technique of indexing is required
that would partition the spatial characteristic of
objects in a controlled way, to keep query processing
performance high. Possibly, a member of the
Quadtree family that partitions space in a
hierarchical regular fashion would be appropriate.
Quadtrees have been recently shown to be
competitive to R-trees (Kim and Patel, 2010,
Roumelis et al, 2011).
When the user query (or one of the individual
queries to which a complex user query is analyzed
to) is based on a condition for the object IDs, it will
be submitted to the RDBMS through SQL, taking
advantage of the index on objects IDs. When this
query is based on a condition for the spatial property
of objects, it will be submitted to the spatial index
and the objects IDs satisfying this query will be
returned. Subsequently, the objects IDs will be used
for retrieving further properties of the objects from
the DBMS, through SQL, by taking advantage of the
index on objects IDs. This two step process could
also be reversed (accessing the non-spatial index,
retrieve spatial object characteristics and
subsequently the spatial index).
6 CONCLUSIONS
In this paper, based on existing modelling and
analysis techniques and existing techniques of
DatabaseDesignofaGeo-environmentalInformationSystem
381

database indexing and query processing, we
designed the data model and outlined the required
indexing that can lead to efficient query processing
of a Geo-Environmental Information System for the
Region of Central Greece. This systems aims to be
utilized for environmentally aware political decision
making, development, investments and spatial
planning and economic activities monitoring /
auditing, or, in other words, as a tool for combining
the protection of the environment and economic
growth, in a region with rich natural resources,
existing environmental problems and high potential
of development.
In the future, we plan to implement this design in
a pilot EGIS that will be assessed by final users and
domain experts (environmental-management and
spatial/development-planning specialists). Based on
this feedback, the INSPIRE directive (http://
inspire.jrc.ec.europa.eu/) and related literature (e.g.
Paolino et al., 2010), the design will be updated and
enhanced. Additionally, the use of Entity-Attribute-
Value model (Dinu and Nadkarni, 2007) and further
incorporation of the time dimension in the EGIS
data model will be examined. Moreover, we will
evaluate the indexing and query processing
techniques embedded in the pilot system and, based
on spatial indexing and query processing literature
(related reviews appear in Corral and
Vassilakopoulos, 2009, and in Vassilakopoulos and
Corral, 2009) we will develop new techniques (like
access methods that partition objects with non-zero
area), aiming at increased efficiency of demanding
query processing.
ACKNOWLEDGEMENTS
Work funded by the “Development of a Geo-
ENvironmental information system for the region of
CENtral Greece” (GENCENG) project
(SYNERGASIA 2011 action, supported by the
European Regional Development Fund and Greek
National Funds); project number 11SYN 8 1213.
REFERENCES
Beckmann, N., Kriegel, H.P., Schneider, R., Seeger, B.,
1990. The R*-tree: an Efficient and Robust Access
Method for Points and Rectangles. In SIGMOD
Conference, 322-331.
Comer, D., 1979. The Ubiquitous B-tree. ACM Computing
Surveys 11(2), 121–137.
Corral, A., Vassilakopoulos, M., 2009. Query Processing
in Spatial Databases. In Handbook of Research on
Innovations in Database Technologies and
Applications: Current and Future Trends, Vol II,
269-278, Information Science Reference.
Dinu, V., Nadkarni, P., 2007. Guidelines for the effective
use of entity-attribute-value modeling for biomedical
databases, International journal of medical
informatics, 76 (11–12), 769–779.
Gandhi, V., Kang, J. M., Shekhar, S., 2009. Spatial
Databases. In Encyclopedia of Computer Science and
Engineering, Cassie Craig (Eds.), Wiley.
Kim, Y.J., Patel, J., 2010. Performance Comparison of the
R*-tree and the Quadtree for kNN and Distance Join
Queries. IEEE Transactions on Knowledge and Data
Engineering 22(7), 1014–1027.
Manolopoulos, Y., Nanopoulos, A., Papadopoulos, A.N.,
Theodoridis, Y., 2006. Rtrees: Theory and
Applications, Springer, London.
Regina, O., Hsu, L., 2011. PostGIS in action, Manning
Publications Co., Stamford.
Roumelis, G., Vassilakopoulos, M., Corral, A., 2011.
Performance Comparison of xBR-trees and R*-trees
for Single Dataset Spatial Queries. In Proc. of ADBIS
2011, 228-242.
Thalheim, B., 2000. Entity-Relationship Modeling:
Foundations of Database Technology, Springer-
Verlag New York, Inc. Secaucus.
Vassilakopoulos, M., Corral, A., 2009. Spatio-Temporal
Indexing Techniques. In Handbook of Research on
Innovations in Data base Technologies and
Applications: Current and Future Trends, Vol II, 260-
268 Information Science Reference.
Wainwright, J., Mulligan, M. (Eds), 2013. Environmental
Modelling: Finding Simplicity in Complexity, John
Wiley & Sons, Chichester, 2nd ed.
Paolino, L., Sebillo, M., Tortora, G., Vitiello, G., 2010.
Integrating Discrete and Continuous Data in an
OpenGeospatial-Compliant Specification. Transa-
ctions in GIS, 14 (6), 731-753.
ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems
382
