Extending Hypervisor Architecture to Allow One Way Data Transfers

from VMs to Hypervisors

Mustafa Aydin and Jeremy Jacob

Department of Computer Science, University of York, York, U.K.

Keywords:

Cloud, Hypervisor, Forensics, Security, Energy.

Abstract:

We propose an alternative architecture to existing hypervisors, which allows for more data to be moved whilst

requiring less work for hardware and networks. Our suggestion is to develop an extension to hypervisors for

an interface which can allow data transfer one way from virtual machines to hypervisors. We argue that the

ability to transfer data directly in this way can provide a number of beneﬁts to cloud users and providers,

namely in the areas of security (conﬁdentiality, integrity, and through decreased overhead), reduced energy

consumption, and better use of hardware resources.

1 INTRODUCTION

Cloud computing has started to enjoy widespread

use, with the convenience of on-demand IT resources

proving to be increasingly popular among its users.

Although cloud customers are able to employ their

machines in much the same way as they can local

physical machines, the fact that cloud services are de-

livered remotely has forced many users to rethink the

way in which certain tasks are performed. Among

these tasks for example, is the need to back up impor-

tant data.

The backing up of data is a common operation in

any system, and in cloud systems backing up has gen-

erally meant redirecting data to secure locations else-

where. Data backup and redirection may be done for

a variety of reasons. Some of the more common rea-

sons include the backing up of log data for security

purposes, and the need to backup valuable informa-

tion which is too precious to lose. The fact that cloud

providers immediately delete VM images upon VM

termination is one example of why cloud users may

wish to redirect data before they no longer have access

to it. For this reason redirection of important data is

used as an important component of research looking

into providing ways to aid cloud forensics investiga-

tions (Marty, 2011) (Zawoad et al., 2013).

The fact that cloud computing is becoming more

popular means that the need to redirect data will

also need to increase. Along with an increase in the

amount of data being produced by applications gener-

ally, this means the amount of information needing to

be backed up and/or redirected is getting larger all of

the time. Sending this data will have an effect on per-

formance and network overhead, and may even result

in associated costs from the cloud provider, depend-

ing on the service used. In a world in which more and

more data and metadata is being produced, we need

a way in which data can be sent around or redirected

in more efﬁcient ways than we currently have at the

moment.

Our aim in this work is to provide more details of

our suggested design for an extended hypervisor ar-

chitecture, outlining the advantages of using our ap-

proach and responding to possible concerns. Our mo-

tivation is provided by the belief that the implemen-

tation of our approach would help to make better use

of available resources, and also make it more feasible

for larger amounts of information to be redirected for

use whenever required.

Our paper is structured in the following way: we

describe the area of virtualisation in Section 2, we

cover the design principles of our suggested architec-

ture in Section 3, and the advantages provided by our

approach in Section 4. We look at possible problems

in Section 5, discuss other related work in Section 6,

and provide a conclusion in Section 7.

2 VIRTUALISATION

Virtualisation is one of the key enablers of cloud

computing, allowing a way of operating multiple in-

604

Aydin M. and Jacob J..

Extending Hypervisor Architecture to Allow One Way Data Transfers from VMs to Hypervisors.

DOI: 10.5220/0004958006040609

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 604-609

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

stances of operating systems (known as virtual ma-

chines, or VMs) on a single physical machine. VMs

are run by a more privileged software layer known

as a hypervisor, which controls and allocates access

to the hardware resources between VMs. Virtualisa-

tion has many beneﬁts, providing secure isolation be-

tween VMs, and allowing much more efﬁcient use of

physical machines by utilising spare hardware capac-

ity. The need to make hypervisors use hardware ever

more efﬁciently has meant the development of tech-

niques which allow them to use available resources

better.

One of the biggest developments in this area was

the introduction of paravirtualisation. This is a tech-

nique in which the hypervisor presents guest ma-

chines with an interface through which certain exe-

cutable commands are directly passed to the hyper-

visor, commands able to be performed much more

quickly than they would if passed through the lay-

ers included within the virtual machine. In order to

do this, both the hypervisor and the guest operat-

ing system must be conﬁgured to take advantage of

this ability to paravirtualise. By cutting out unneces-

sary movement of calls through different layers of the

virtualised environment, paravirtualisation allows for

better utilisation of the hardware.

The successive adoption of paravirtualisation sug-

gests that using effective cooperation between hyper-

visors and operating systems in order to speed up

useful operations can see widespread use. Although

paravirtualisation has so far been concerned with al-

lowing operating system executions to be accelerated,

there is no reason why the principle of providing

faster services cannot be adapted to be useful in other

contexts. If the production and subsequent transfer of

data is an operation using more resources than neces-

sary, it makes sense to be able to reduce the impact of

this where possible.

We believe that taking advantage of similar prin-

ciples to paravirtualisation may be one way to cre-

ate a more efﬁcient environment for the cloud. The

ability to pass data directly from a VM to a hypervi-

sor could reduce the amount of overall work required

compared to sending the same data to a destination

over a network. This can be seen in Figure 1, which

shows data going through multiple virtual and hard-

ware layers, before reaching its ﬁnal destination. The

forwarded data is ﬁrst sent to the VM from the appli-

cation, before being sent off to the outside world for

storage. In contrast, in our proposed architecture, the

data is sent directly to the hypervisor and VM in par-

allel, and reaches its destination having gone through

as few layers as possible. This would help cloud users

and cloud providers to make better use of the available

To destination

Data redirection

through network

Data redirection from

VM to hypervisor

HYPERVISOR

APPS

HYPERVISOR + STORAGE

APPS

HYPERVISOR

APPS

HYPERVISOR + STORAGE

Application data log

Network data transfer

In-VM to hypervisor data transfer

Key:

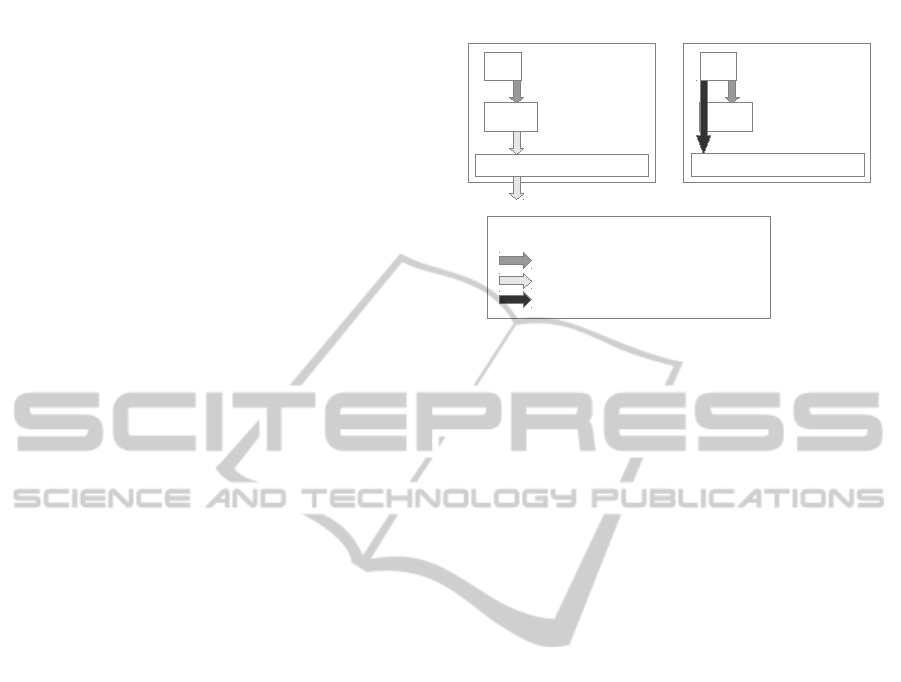

Figure 1: The diagram on the left shows the current archi-

tecture, while that on the right shows our proposal.

resources, and reduce both performance and network

overhead in particular instances.

3 DESIGN

In this section we consider some of the important de-

sign principles, in order to provide a better under-

standing of the way in which the suggested architec-

ture would work.

3.1 Storage

Redirecting data over the internet requires the data to

go through many virtual and physical layers. In our

proposed hypervisor extension, the data can be redi-

rected directly to the hypervisor layer on the same

physical machine (see Figure 1). Instead of pass-

ing through all of those layers and causing the re-

lated performance and network overheads, the data

can be redirected with minimal effort to an environ-

ment which is already trusted by the user.

The location of storage of the transferred data is

intended to be on the hypervisor layer, in a partition

which is linked to the running VM (and associated

user). This will allow subsequent retention of the in-

formation even when the VM has been terminated,

and can be moved to a more convenient place after

the VM has been shutdown. The ability to access the

data will need to be offered to the user, but this may

be of more concern to the cloud provider than to the

design of the extended hypervisor.

3.2 Privacy

Privacy is an important concept to cloud users, who

want assurances that their running VMs and any as-

ExtendingHypervisorArchitecturetoAllowOneWayDataTransfersfromVMstoHypervisors

605

sociated data is accessible only to themselves. Users

want to have the option of privacy for all data they in-

tend to send to alternative locations in the cloud. The

use of techniques such as encryption is one way to

provide this assurance.

Encryption of data at the moment of creation (i.e.

before being passed to the hypervisor) would be a use-

ful way of doing this. Users would have a level of

assurance that even an administrator would be unable

to access the transferred data (unless they somehow

learned the encryption key). Techniques which allow

the hypervisor to monitor some of the high level activ-

ity within a VM do actually exist, such as virtual ma-

chine introspection (Garﬁnkel and Rosenblum, 2003).

However without the ability to monitor low level OS

calls to the processor, the only other way someone

would be able to break the encryption would be poor

security on the part of the user.

Using established encryption techniques within

the interface for data transfer should be enough to sat-

isfy users that they have strong privacy in place for

their data.

3.3 One Way

The interface for data transfer is intended to be only

one way, allowing for the transfer of data from the

virtual machine to the hypervisor. The reason for this

limitation is that there is no conceivable reason for the

hypervisor to send any data to the virtual machine,

other than passing the communications which are re-

quired to be managed between the OS and the hard-

ware.

Preventing the ability to send information from the

hypervisor to the VM would be a necessary safety

measure. Communication from hypervisors to VMs

would provide signiﬁcant security worries for users,

and make hypervisors targets for hackers. Attackers

would try to use any such abilities to attack VMs from

the hypervisor level. Threats could even try to make

use of such opportunities from within VMs, by com-

municating with other VMs on the same hardware to

coordinate attacks. Maintaining the isolation of VMs

is an important security principle which could be vio-

lated by the ability to have two way messaging.

A problem created by the need to have one way

messaging would be the lack of acknowledgement

from the hypervisor for transferred data, which may

result in some incorrect data transfers.

3.4 Integrity

Integrity frequently comes into question after data

moves location. Redirecting data across the cloud is

an obvious case of when data integrity needs to be

veriﬁed. It may be less obvious that it would need

to be done when moving data from a VM to a hy-

pervisor, since it does not move off the physical ma-

chine. However the data could always move later on,

in which case its integrity would still need to be ver-

iﬁed. In addition, in the cloud the hypervisor layer

does not belong to the cloud user, making integrity an

important feature of the data.

The interface used for sending data to the hyper-

visor needs to also have the ability to sign informa-

tion with keys, in order to satisfy this need. Quicker

signing methods using single keys would be useful to

keep the performance overhead down, but more com-

plicated ones using changing keys could also be con-

sidered depending on a user’s preferences. Doing this

at the hypervisor level could be problematic, since

there may need to be a requirement to manage dif-

ferent keys for VMs, since a single physical machine

in a cloud environment is likely to be providing ser-

vices to more than one customer. It would make more

sense for each operating system to be able to manage

its own keys, reﬂecting the need for both hypervisors

and operating systems to work well together in order

to make better use of their environment.

3.5 Trust

The design presented here is based on the assumption

that users trust the hardware owner of the hypervisor

they are using. There is no more trust for the pre-

sented hypervisor architecture than is needed in any

other proprietary hypervisor. The point here is only to

reinforce the idea that whenever hypervisors are being

used, there is a level of trust placed in the hardware

owner the moment that a user chooses to use a VM on

that platform.

Future possibilities for those who do not trust the

hardware owner may lie in the use of homomorphic

encryption technology, in which fully encrypted data

is still able to be processed without the need for de-

cryption (Gentry and Halevi, 2011). Use of such

methods could be useful in order to keep valuable

information safe on untrusted environments like the

cloud, although the problem of its slow running speed

will need to be solved.

4 ADVANTAGES

In this section we consider possible advantages from

using the proposed architecture.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

606

4.1 Speed

One of the most obvious beneﬁts of the proposed ar-

chitecture is the fact that the delivery of data to the

intended destination would be performed as quickly

as the hardware would allow. Delivery of data to

any other location would be dependant on networks

and network layers, and hardware and hardware lay-

ers. Even though data may always succeed in getting

to the intended destination, services which would re-

quire fast delivery would still have to wait for data to

be sent. For security monitoring processes, the differ-

ence in the time taken to do this could be important.

4.2 Overhead

Overhead can be broken down into two main areas,

performance overhead and network overhead. The

redirection of data to alternative locations affects both

of these. Even copying a ﬁle onto another location on

a local hard disk can noticeably slow down a running

machine, so any opportunity with which this kind of

costly data transfer can be avoided would be prefer-

able to the average user.

An interface able to move data from one layer to

another could also be used to specify a duplicate lo-

cation in the hypervisor layer to place data at the mo-

ment it is created in the hardware. The simultaneous

writing of the data to both locations avoids the need to

copy any data later on, so the job does not need to be

performed a second time (unless required for another

reason).

The fact that data would no longer necessarily

need to be sent over a network would relieve the pres-

sure on networks too. This would allow for virtual

machines which have a need to preserve network ca-

pacity to use their network speed for purposes other

than the back up of data.

4.3 Security

Although sending information over networks is not

inherently insecure if done correctly, keeping data

within a trusted boundary does have its advantages.

The ability to send data directly to another level on

the same hardware prevents attacks such as a man in

the middle attack from taking place, a worry for those

with particularly sensitive information.

The most obvious point of attack for the VM

owner’s data is by a malicious administrator, who

would be able to access the VM owner’s data and

their VM image, but would not be able to access them

without also gaining the passwords with which they

were encrypted. However, this danger would exist

anywhere on the cloud on which a user stores data.

By keeping data within trusted conﬁnes, it would at

least reduce the need to look for additional services

which can offer third party storage.

4.4 Energy

Energy use has become a much more important con-

cern for organisations, as they have started to become

aware of the costs of its use. Energy costs will be

of most concern to cloud providers, due to the huge

amounts of energy required to power their data cen-

tres. There are ways in which this concern could be

passed to users as well. Firstly, if cloud providers ever

decide to start using energy units as part of the cost

calculations for their services. Secondly, due to wider

concern about energy use, it is not unlikely that cloud

providers could start to provide a breakdown of the

energy use of individual virtual machines.

Work looking at the energy use of different kind

of cloud services, and measuring the energy used to

send cloud data around the world, is now being pro-

duced (Schien et al., 2012). Our suggested architec-

ture could provide a way to decrease overall energy

use in the cloud, by reducing the need to send data

over the various hardware and network layers (which

for users who redirect huge amounts of data could

amount to a signiﬁcant saving). Even for users who

redirect small amounts of data, this could add up to a

worthwhile reduction in energy use (especially over

time, or from a collection of machines). With en-

ergy consumption becoming an environmental con-

cern too, this is the kind of approach regular cloud

users may express an interest in too.

5 PROBLEMS

Although our discussed design is intended to reduce

issues, there is still the possibility that there will be

problems.

5.1 Malware

In theory, malware might be able to use the opportu-

nity to pass data directly to a hypervisor as an ideal

opportunity to launch an attack. Despite this worry,

hypervisors have so far proven to be well isolated

against attack from VMs.

Nevertheless with security threats constantly

evolving, there may develop new ways in which clev-

erly designed malware could use the access to the hy-

pervisor provided here to attack the host, and by ex-

tension, the running VMs on the host. As an addi-

ExtendingHypervisorArchitecturetoAllowOneWayDataTransfersfromVMstoHypervisors

607

tional precaution therefore, it would be prudent to add

additional security by writing the transferred data to a

space from which nothing should be able to execute.

5.2 Scalability

Although one of the main beneﬁts of the intended sys-

tem design is to reduce the overall amount of work

performed for the delivery of data overall, it is un-

known exactly how the system would perform with

large amounts of data being sent from multiple in-

stances. These kinds of problems would only be able

to be analysed from a prototype, from which any is-

sues could then be properly addressed to make the ar-

chitecture better able to deal with them.

5.3 Vendor Lock-in

Vendor lock-in is the problem of use of a technol-

ogy or service by a customer from which they cannot

easily transition to a competitor’s alternative offering.

There are already problems around this issue for vari-

ous cloud services, such as the inability to move VMs

between different cloud providers.

In the architecture we have outlined here, it is

clear that users who would want to send data to the

hypervisor layer, and hope to store that data within

their user account, would have to do it with their VM

provider. The only alternative ways of redirecting

data would have to involve redirecting over the net-

work.

6 RELATED WORK

Apart from the development of paravirtualisation,

work on extended or modiﬁed hypervisors making

use of alternative architectures have received some at-

tention in the research literature.

Garﬁnkel et al. developed Terra, an architecture

designed to help increase VM and application secu-

rity (Garﬁnkel et al., 2003). Terra provides users

with the ability to run applications within regular

”open-box” VMs or specially protected ”closed-box”

VMs (with tailored security requirements), and uses

Trusted Computing to authenticate communications

betweeen applications.

Sailer et al. developed a secure hypervisor ar-

chitecture called SHype, speciﬁcally to control data

ﬂows between VMs (Sailer et al., 2005). This was

achieved by implementing Mandatory Access Control

to enforce security policies from the hypervisor level

in addition to relying only on OS security controls like

a regular hypervisor would.

Keller et al. propose the NoHype architecture in

order to reduce the risk of attack to the hypervisor

layer (Keller et al., 2010). Instead of a hypervisor the

system uses hardware features to split access to each

of the required resources (in a similar way to a VMM)

for each guest OS by utilising extensions to existing

hardware.

7 CONCLUSION

We have suggested an interface to allow data trans-

fer to take place from VMs to hypervisors, as a way

of reducing the overall amount of work associated

with data transfer over the cloud. We have looked at

the problems associated with transferring data in this

way, and demonstrated why it may be preferable to be

able to send them directly to the hypervisor layer. By

reducing the amount of overhead needed to perform

particular jobs, and allowing users to transfer more

data in an easier manner, we believe that such an ar-

chitecture would be able to offer improved security,

better utilisation of hardware resources in the cloud,

and help to reduce energy consumption.

In order to do this, both operating systems and

hypervisors would need to be adapted to take advan-

tage of this property. The success of paravirtualisation

suggests that cooperation between OS designers and

hypervisors designers can make such interfaces work

well.

The next step for this work will be to develop the

extended architecture and to test with a suitable oper-

ating system. Validation through experimental results

could encourage cloud stakeholders that the presented

design is worth using to provide cloud services.

ACKNOWLEDGEMENTS

The authors thank BT for their contribution to this

work, and the reviewers for their suggested correc-

tions. Mustafa Aydin is sponsored by BT and is an

EPSRC funded EngD student, and part of the LSC-

ITS project.

REFERENCES

Garﬁnkel, T., Pfaff, B., Chow, J., Rosenblum, M., and

Boneh, D. (2003). Terra: A virtual machine-based

platform for trusted computing. In Proceedings of the

Nineteenth ACM Symposium on Operating Systems

Principles, SOSP ’03, pages 193–206, New York, NY,

USA. ACM.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

608

Garﬁnkel, T. and Rosenblum, M. (2003). A virtual machine

introspection based architecture for intrusion detec-

tion. In In Proc. Network and Distributed Systems

Security Symposium, pages 191–206.

Gentry, C. and Halevi, S. (2011). Implementing gentrys

fully-homomorphic encryption scheme. In Advances

in Cryptology–EUROCRYPT 2011, pages 129–148.

Springer.

Keller, E., Szefer, J., Rexford, J., and Lee, R. B. (2010).

Nohype: Virtualized cloud infrastructure without the

virtualization. SIGARCH Comput. Archit. News,

38(3):350–361.

Marty, R. (2011). Cloud application logging for foren-

sics. In Proceedings of the 2011 ACM Symposium on

Applied Computing, SAC ’11, pages 178–184, New

York, NY, USA. ACM.

Sailer, R., Valdez, E., Jaeger, T., Perez, R., Doorn, L. V.,

Grifﬁn, J. L., Berger, S., Sailer, R., Valdez, E., Jaeger,

T., Perez, R., Doorn, L., Linwood, J., and Berger,

G. S. (2005). shype: Secure hypervisor approach to

trusted virtualized systems. In IBM Research Report

RC23511.

Schien, D., Preist, C., Yearworth, M., and Shabajee, P.

(2012). Impact of geographic location on the energy

footprint of ict services. In IEEE International Sym-

posium on Sustainable Systems and Technology (IEEE

ISSST 2012). Conference Organiser: IEEE.

Zawoad, S., Dutta, A. K., and Hasan, R. (2013). Seclaas:

Secure logging-as-a-service for cloud forensics. In

Proceedings of the 8th ACM SIGSAC Symposium on

Information, Computer and Communications Secu-

rity, ASIA CCS ’13, pages 219–230, New York, NY,

USA. ACM.

ExtendingHypervisorArchitecturetoAllowOneWayDataTransfersfromVMstoHypervisors

609
