Optimizing the Stretch for Virtual Screening Application on

Pilot-agent Platforms on Grid/Cloud by using Multi-level

Queue-based Scheduling

T. Q. Bui

1,2

, E. Medernach

, V. Breton

and H. Q. Nguyen

Laboratoire de Physique Corpusculaire, Universite Blaise Pascal, 63171 Aubiere, France

Institut de la Francophonie pour l’Informatique, Vietnam National University, Hanoi, Vietnam

Keywords: Virtual Screening, Grid Computing, Cloud Computing, Scheduling, Fairness, Stretch, Online-algorithm,

Multilevel Queue Scheduling.

Abstract: Virtual screening has proven very effective on grid infrastructures. We focus on finding platform scheduling

policy for pilot-agent platform shared by many virtual screening users. They need a suitable scheduling

algorithm at platform level to ensure a certain fairness between users. Optimal criterion used in our research

is the stretch, a measure for user experience on the platform. From our latest research (Quang et al., 2013),

simulation result and experimentation on real pilot agent platform showed that SPT policy is the best policy

in 4 different existing scheduling policies (FIFO, SPT, LPT and Round Robin) for optimizing the stretch.

However, research on real grid workload (Medernach, 2005) showed that there are two types of grid user:

normal users who submit frequently little jobs to grid and data challenge users who submit occasionally

large number of jobs to grid. And SPT policy, in particularly, is not appropriate for data challenge user

because they have to wait always normal user. In this paper, we proposed a new policy named SPT-SPT

which uses multi-level queue scheduling technique for scheduling in a pilot agent platform. In SPT-SPT

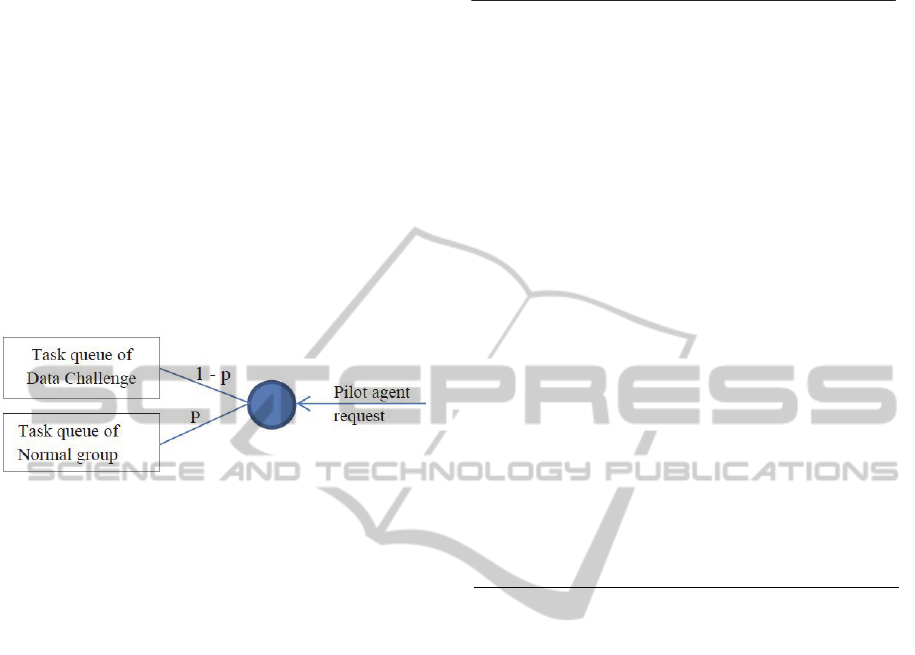

policy, the administrator creates two separate user groups in the platform: Normal group and Data

Challenge group. Each group has their own task queue in the platform and SPT policy is applied on it. A

parameter p (p ϵ [0,1]), the probability that task queue is chosen to send pilot agent their task, is assigned to

one task queue and 1-p for the other one. This policy improves user experience for Data Challenge group

and do not impact very much for Normal group.

1 INTRODUCTION

In silico drug discovery (in silico means computer-

assisted) offers an efficient alternative to reduce the

cost of drug development and to speed-up the

discovery process. Virtual screening is achieved

through a pipeline analysis whose first step requires

using a docking software such as Autodock, DOCK

or FlexX to predict potential interacting complexes

of small molecules in protein binding sites. From

now, we use VS to denote virtual screening.

Large scale virtual screening, and especially its

docking step, consumes large computing resources.

As docking is an embarrassingly parallel process

where thousands to millions of compounds are tested

in silico against a biological target, it was

successfully deployed on grid computing to reduce

the computation time. Some large scale VS projects

in the past have been deployed successfully on grids

such as WISDOM-I (Jacq et al., 2006) and

WISDOM-II (Kasam et al., 2009) on malaria or

Avian Flu Data Challenge (Jacq et al., 2008).

Pilot-agent platforms are tools used for

submitting and controlling a large number of user

jobs on grid infrastructures. Several pilot agent

platforms have been developed such as WPE

(Kasam et al., 2009), DIRAC (van Herwijnen et al.,

2003), DIANE (Mościcki, 2003), glideinWMS

(Sfiligoi, 2008), PanDA(Maeno, 2008). The DIRAC

pilot-agent platform is now available to the users of

several multi-disciplinary virtual organizations on

EGI (the European Grid Initiative). Because many

users share the DIRAC pilot-agent platform, it is

important to define a scheduling policy to ensure a

certain degree of fairness so that users receive a fair

share of system resources. The scheduling policies

used on the existing pilot-agent platforms on EGI,

199

Bui T., Medernach E., Breton V. and Nguyen H..

Optimizing the Stretch for Virtual Screening Application on Pilot-agent Platforms on Grid/Cloud by using Multi-level Queue-based Scheduling.

DOI: 10.5220/0004962801990204

In Proceedings of the 4th International Conference on Cloud Computing and Services Science (CLOSER-2014), pages 199-204

ISBN: 978-989-758-019-2

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

are respectively First In First Out (FIFO) policy in

WPE platform or Round Robin policy in DIRAC

platform. The VS project has specific properties

such as divisibility in many independent docking

tasks, no order of execution constraints and

comparable execution time of all docking tasks. In

this paper, we focus on evaluating suitable online

scheduling policies for the VS application on the

pilot-agent platform to improve user’s satisfaction in

the system.

Our research is also relevant to applications

which have the same properties of VS application

(divisibility in many independent tasks, no order of

execution constraints and comparable execution time

of all tasks) on pilot agent platform on grid/cloud.

These applications are used in a variety of scenarios,

including data mining, massive searches (such as

key breaking), parameter sweeps, simulations,

fractal calculations, computational biology, and

computer imaging.

1.1 Pull Model, 2-Level Scheduling and

Limited Machine Availability

Property of Scheduling

A pilot-agent platform uses pull model for efficient

submission and controlling of user tasks: tasks are

no longer pushed through the grid scheduler but are

put in a master pool and pulled by pilot agents

running on computing nodes. Scheduling job is the

process of ordering tasks in this pool. List

scheduling is applied in it. The pilot-agent itself is a

regular grid job, which is started through a grid

resource manager. It is submitted automatically by

platform and run on a computing machine on grid.

We can see pilot agent as container of jobs. Pull

model adapts to heterogeneous property of grid

(faster machine will pull more tasks than the other),

reduces faults (resubmission of failed tasks) and

improves latency (the waiting time of job in grid

scheduler is reduced).

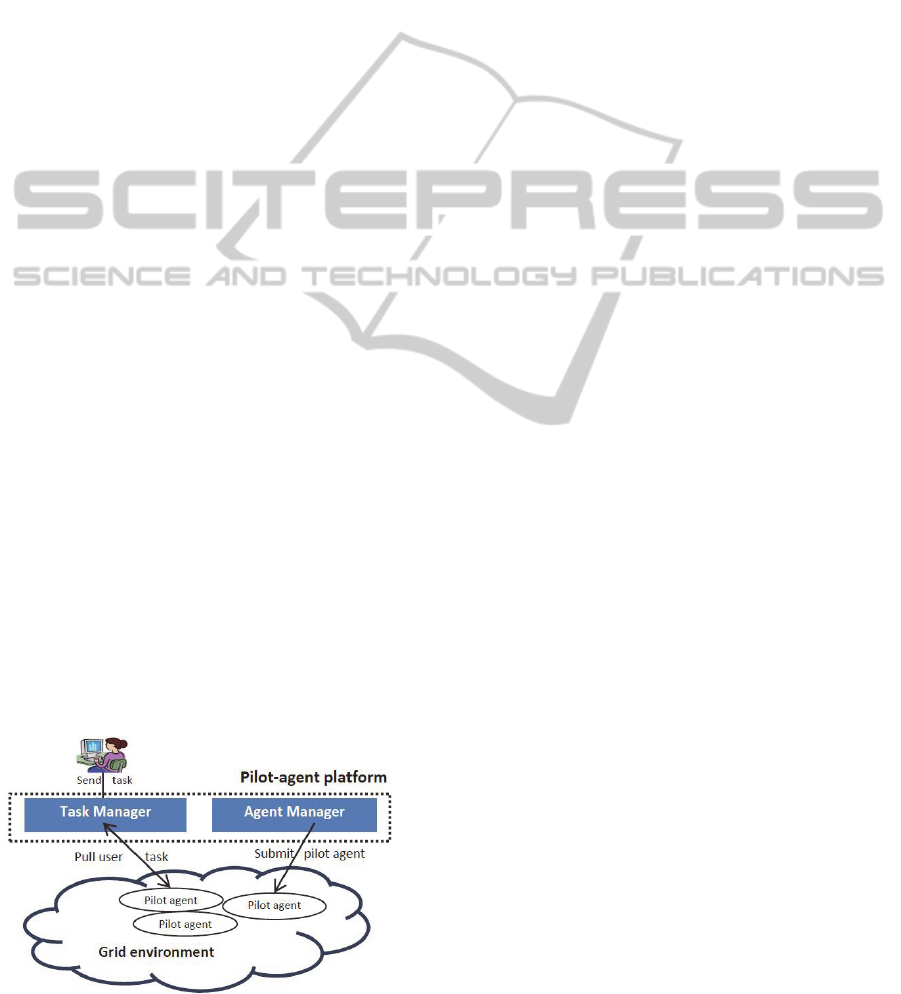

Figure 1: Pull model in pilot agent platform on grid.

As shown on figure 1, a pilot-agent platform has

two main modules, the Task Manager and the Agent

Manager.

Pilot agent is submitted automatically to grid by

Agent Manager. Then it communicates with Task

Manager and asks a user task to be executed. Task

Manager receives tasks from user and control queue

of user tasks. It receives also request of pilot agent,

choose some task from queue and sends task to pilot

agent.

Scheduling of pilot agent platform on grid takes

place at site and platform level. The site level

scheduling takes place in the site scheduler. Pilot

agents sent by the platform are distributed to the

sites according to the grid scheduling policy. The

platform level scheduling is done by the platform’s

Task Manager. User sends the VS project to the

Task Manager, where docking tasks are put in the

task queue. The Task Manager Scheduler calculates

task priorities, and responds to pilot agents requests

by sending to them tasks ranked with the highest

priority. There are underlying grid architectural

scheduling and logical scheduling for the specific

grid applications. And in our research, we concern

with scheduling issue for many virtual screening

application users who share the grid resources given

to the same group privilege.

Moreover, platform level scheduling has limited

machine availability property. Because each

computing center imposes some limits to the

maximum computing time for grid job, each pilot

agent is available for a limited period. Therefore the

number of machines available for the platform

changes over time. This specific property makes our

analysis directly relevant to cloud infrastructures

where users buy computing resources for a limited

time.

This paper focuses on finding out the most

suitable scheduling policy at platform level to

optimize the satisfaction of VS users.

1.2 The Stretch – A Measure for User’s

Satisfaction in Platform

To work on the fairness of scheduling policy, we

need to define a good metric for the satisfaction of

an individual user on platform. In the parallel

scheduling literature, metrics used to measure the

performance of scheduling policies can be classified

in two groups: System-centric metrics and Job-

centric metrics:

- System-centric metrics to assess platform

utilization: C

denotes the completion time of job

j. Makespan (the maximum of the job

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

200

termination time, max

) or the sum of

completion time (∑

) are common objective

functions. Minimization of makespan or sum of

completion times is conceptually a system-

centric approach.

- Job-centric metrics (Flow time, stretch...) to

assess user experience: Flow time F is the time

an individual job spends in the platform. The

stretch S (also called slowdown) is a particular

case of weighted flow time: for job j with size W

and flow time F

, the stretch is defined as F

In the context of variable job sizes, the stretch is

more relevant to describe user experience than

the flow time (Legrand et al., 2006).

This paper focuses on user-centric metric. The

stretch is here measured for a group of jobs all

belonging to the same user. Assume that user has U

jobs, F

is flow time of job j, W is total size of U

jobs, the stretch is then defined as max

jϵU

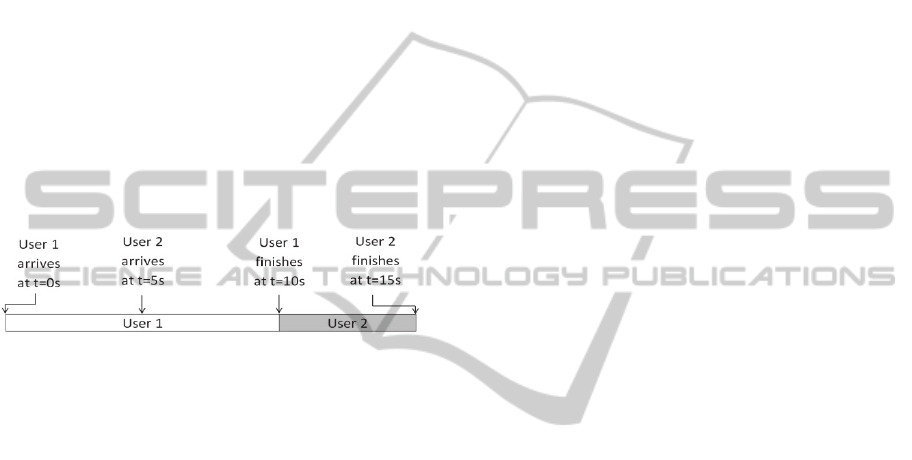

Figure 2: Example of the stretch for two users.

Figure 2 illustrates the mean of stretch in the

case of two users sending jobs to a platform (figure

2). User 1 has a job with size 10 that reaches the

platform at t=0s. User 2 has a job with size 5 that

reaches the platform at t=5s. User 1 job is executed

before user 2 job. As in figure 2, user 1 finishes at

t=10s. Because user 2 has to wait user 1 job

completion, he finishes at t=15s. Although the two

users spent the same time on the platform (10s), user

2 satisfaction is worse than user 1’s. The stretch of

user 1 is equal to 10/10=1 while the stretch for user

2 is equal to 10/5=2. This example illustrates why

the stretch S measures the user experience on the

platform: the larger the stretch, the lower the

satisfaction.

Our goal is to identify the best scheduling policy

to minimize the stretch of all VS users of a shared

pilot-agent platform. We use the max-stretch (Smax)

metrics as measures of fairness in our scheduling

problem. In our latest research (Quang et al., 2013),

we have compared two well-known scheduling

policies, Shortest Processing Time (SPT-the user

with the least number of tasks has the highest

priority) and Longest Processing Time (LPT: the

user with the greatest number of tasks has the

highest priority), to the scheduling policies currently

used on the existing platforms (FIFO and Round

Robin). Simulation result and experimentation result

on real platform has shown that SPT is the best

policy in these 4 policies for online job-centric

stretch optimization with virtual screening

application on pilot-agent platform on

grid/cloud(Quang et al., 2013).

Although SPT policy is very good online

algorithm for optimization of the stretch but this

policy has a disadvantage: it has the tendency to

push users with many tasks to the end of the task

queue. Sometimes these users have to wait a long

time for a long series of users with less number of

jobs. In the worst case, they have to wait forever.

Furthermore, research on grid workloads in

(Medernach, 2005) showed that there are two types

of grid users: normal users and data challenge users.

Normal user submits to the grid little number of

tasks, but the number of user in this group is very

large. While data challenge user group submit to the

grid very large number of jobs, but the number of

users in this group is small. If we use the original

SPT policy for all of user in pilot agent platform,

data challenge user will be negatively affected due

to large number of user in normal group.

In this paper, we propose a new scheduling

policy named SPT-SPT for platform level

scheduling in pilot agent platform which uses multi-

level queue scheduling techniques to improve the

stretch of VS users. Instead of using one task queue

which is implemented by SPT policy for all users,

we use two separate task queues: one for normal

user group and another one for data challenge user

group. These two task queues are both using SPT

policy to optimize the user's stretch in each one.

Moreover, a task queue is assigned a parameter p (p

ϵ [0, 1]) and the rest one with 1 - p. This parameter is

the probability that task queue will be selected by

Task Manager when Task Manager receives request

from pilot agents. We can see that for p > 0, this

policy ensures that the data challenge group did not

have to wait for the normal group to be entirely

empty. Therefore all users will get an opportunity to

utilize grid resources efficiently. The rest of paper is

organized as follows. Section 2 presents the related

works. In section 3, the SPT-SPT scheduling policy

is proposed. Finally, section 4 is our conclusion and

perspective on this research.

2 STATE OF THE ART

2.1 Grid Scheduling

Grid scheduling has been abundantly studied: some

OptimizingtheStretchforVirtualScreeningApplicationonPilot-agentPlatformsonGrid/CloudbyusingMulti-level

Queue-basedScheduling

201

surveys of grid scheduling algorithms are proposed

in (Maruthanayagam, 2010); (Jiang et al., 2007) and

performance of some priority rule scheduling

algorithms is presented in (Azmi, 2011). DIET

platform (Marrow et al., 2003) is a GridRPC

middleware relying on the client/agent/server

paradigm. The scheduling on DIET changes from

FIFO, Round Robin and CPU-based scheduling. But

the operation of DIET platform is different with

pilot-agent platform: DIET use both “push” and

“pull” scheduling. Mandatory requests are pushed

from clients to resources, whereas optional requests

are pulled by resources from clients. Pilot-agent

platform takes most scheduling decisions in a

centralized agent, in contrast, each client and each

server contributes to taking scheduling decisions in

DIET. Therefore, the solutions brought by research

of scheduling problem on DIET platform are not

directly applicable to our problem statement.

In (Berman et al., 1996), author presents a

scheduling solution in application level called

AppLeS. They describe an application specific

approach to scheduling individual parallel

applications on production heterogeneous systems.

They utilize comprehensive information about

application and resource to optimize execution time

of application on grid. Our goal is not to optimize

the execution time of all users but the quality of

service for each user.

Existing pilot agent platforms such as DIANE

(Mościcki, 2003), WPE(Kasam et al., 2009) and

DIRAC (van Herwijnen et al., 2003) have different

scheduling policies: WPE and DIANE platforms

use FIFO while DIRAC uses Round Robin policy.

The VS projects have specific properties such as

divisibility in many docking tasks and no order of

execution constraints. Therefore we need to find a

suitable online scheduling policy for the VS

application on the pilot-agent platform. Fortunately,

in some platform such as DIRAC platform, we can

configure the specific scheduling policy for a user

group sharing the same application. So we can apply

suitable policy in a VS user group to improve

fairness.

2.2 Cloud Scheduling

As mentioned earlier, the limited machine

availability property of the scheduling problem on

pilot agent platform is similar with scheduling on

cloud environment because on cloud environment,

user buys some resources with limited duration.

When a VS project is deployed on an IAAS cloud,

docking task will be executed on a virtual machine

with limited availability.

Some researches on cloud scheduling such as

(Pandey et al., 2010); (Li et al., 2011) have

presented their scheduling algorithms on cloud to

optimize the speed of resources allocation, the price

to pay and the utilization of system resource. But our

object is optimization of the fairness of users when

they share pilot-agent platform together.

In (Luckow et al., 2010), author proposed the

design and implementation of a SAGA-based Pilot-

Job system, which supports a wide range of

application types, and is usable over a broad range

of infrastructures from grids/clusters to cloud

computing. In (Fifield et al., 2011), author showed

also an extension of the pilot agent platform DIRAC

on cloud computing by submitting pilot agent on

Virtual Machine on cloud such as Amazon EC2.

Therefore our research is also relevant to pilot-agent

platforms on Cloud environments.

2.3 Scheduling for Stretch

Optimization with Limited

Machine Availability Constraints

Many groups have conducted research on optimizing

job-centric stretch in the context of dedicated

machines (i.e. always available). In (Muthukrishnan

et al., 1999), S. Muthukrishnan presented the

efficiency of the optimal on-line algorithm SPT on

uniprocessor and multi-processor. Their objective is

optimizing the average of the stretch. In (Legrand et

al., 2006), Legrand has shown that SPT is quite

effective at max-stretch and sum-stretch

optimization in problems with continuous machines.

But compared to these studies, our scheduling

problem uses a user-centric definition of stretch and

adds an additional constraint: machines have limited

availability. With this property, the number of

machines available for platform changes over time

and the complexity of problem increases. In

(Schmidt, 2000), authors have reviewed some

scheduling algorithm in the context of limited

machine availability. LPT is one of the online

scheduling algorithms proposed in this research. But

these researches are done on system-centric metrics

(makespan, sum of completion time…). In our latest

research for scheduling for stretch optimization with

limited machine availability constraints, we

compared two well-known scheduling policies, SPT

and LPT, to the scheduling policies currently used

on the existing platforms (FIFO and Round Robin).

Simulation result and experimentation result on real

platform showed that SPT policy is the best policy in

these 4 policies for optimization of user stretch in

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

202

the context of limited machine availability.

3 SOLUTION PROPOSED

In this section, we briefly explain the proposed

solution using multilevel queue technique in Task

Manager of pilot agent platform. Administrator of

pilot agent platform creates two groups for VS users:

Normal group and Data Challenge group. VS user is

assigned to Normal group by default. When

someone needs to process a big virtual screening

project, he will contact with administrator of pilot

agent platform to change his role to Data Challenge

group in some days or some weeks.

Figure 3: SPT-SPT policy with two task queues.

In Task Manager module, we build two separate

task queues: one for normal group and another for

data challenge group. We assign a priority p to

normal group task queue and 1 – p to the data

challenge group one. The Task Manager will use this

probability as index in order to choose task queue to

send their task when it receives request from pilot

agent.

According to our latest research, SPT is better

than FIFO, LPT, RR for minimizing the user stretch.

Therefore these both task queues use SPT policy for

optimizing the stretch of user on each one (We tried

with policy SPT-RR: SPT on normal group task

queue and Round Robin in data challenge task queue

and SPT-FIFO: SPT on normal group task queue

and FIFO on data challenge task queue. The result of

SPT-RR and SPT-FIFO is worse than SPT policy).

We use algorithm SPT-SPT to control user task in

Task Manager as algorithm 1. Administrator can

change value of parameter p in the configuration of

pilot agent platform.

We can see that with 0 < p < 1 there are always

pilot agents which take a task from Data Challenge

group. Therefore, Data Challenge user does not have

to wait for a long series of normal users which have

less number of tasks. We will use our simulator to

find out the best value of p to decrease S

max

of Data

Challenge group and do not increase very much S

max

of Normal group.

Algorithm 1: SPT-SPT policy in Task Manager scheduler.

p = parameter of task queue of normal user group

while (1)

if (receive request from pilot agent) then

if (data challenge task queue is empty

AND normal task queue is empty)

Push pilot agent to pilot agent queue

else if (data challenge task queue is

empty)

Send task of normal task queue to

pilot agent

else if (normal task queue is empty)

Send task of data challenge queue to

pilot agent

else

a = random(0,1)

if (a ≤ p) then

Send task of normal task queue

to pilot agent

else

Send task of data challenge task

queue to pilot agent

end if

end while

4 CONCLUSIONS

The paper describes a new scheduling policy for

virtual screening application on pilot agent platform

for optimizing the stretch of user. We proposed SPT-

SPT policy which uses multilevel queue technique

for platform level scheduling on pilot agent

platform. This approach based on the research of

grid workload which has showed that there are two

types of user (many users submitting small number

of tasks and a little user submitting large number of

tasks). Because Infrastructure as a Service cloud

users buy access to computing resources for a

limited time. This is similar with limited availability

of pilot agent on grid. Therefore, we can also

propose to implement SPT-SPT in deployment of

virtual screening application on cloud environments.

REFERENCES

Azmi, B., 2011. Performance Comparison of Priority Rule

Scheduling Algorithms Using Different Inter Arrival

Time Jobs in Grid Environment. International Journal

of Grid and Distributed Computing, 4(3), pp.61–70.

OptimizingtheStretchforVirtualScreeningApplicationonPilot-agentPlatformsonGrid/CloudbyusingMulti-level

Queue-basedScheduling

203

Berman, F. et al., 1996. Application-level scheduling on

distributed heterogeneous networks. In

Supercomputing, 1996. Proceedings of the 1996

ACM/IEEE Conference on. p. 39.

Fifield, T. et al., 2011. Integration of cloud, grid and local

cluster resources with DIRAC. Journal of Physics:

Conference Series, 331(6), p.062009.

Van Herwijnen, E. et al., 2003. Dirac-distributed

infrastructure with remote agent control. In

Conference for Computing in High-Energy and

Nuclear Physics (CHEP 03).

Jacq, N. et al., 2008. Grid-enabled virtual screening

against malaria. Journal of Grid Computing, 6(1),

pp.29–43.

Jacq, N. et al., 2006. Large scale in silico screening on

grid infrastructures. arXiv preprint cs/0611084.

Available at: http://arxiv.org/abs/cs/0611084

[Accessed December 31, 2013].

Jiang, C. et al., 2007. A survey of job scheduling in grids.

In Advances in Data and Web Management. Springer,

pp. 419–427.

Kasam, V. et al., 2009. WISDOM-II: screening against

multiple targets implicated in malaria using

computational grid infrastructures. Malaria journal, 8,

p.88.

Legrand, A., Su, A. & Vivien, F., 2006. Minimizing the

stretch when scheduling flows of biological requests.

Proceedings of the eighteenth annual ACM symposium

on Parallelism in algorithms and architectures,

pp.103–112.

Li, W., Tordsson, J. & Elmroth, E., 2011. Modeling for

dynamic cloud scheduling via migration of virtual

machines. In Cloud Computing Technology and

Science (CloudCom), 2011 IEEE Third International

Conference on. pp. 163–171.

Luckow, A., Lacinski, L. & Jha, S., 2010. SAGA BigJob:

An extensible and interoperable pilot-job abstraction

for distributed applications and systems. In Cluster,

Cloud and Grid Computing (CCGrid), 2010 10th

IEEE/ACM International Conference on. pp. 135–144.

Marrow, P. et al., 2003. DIET-a scalable, robust and

adaptable multi-agent platform for information

management. BT technology journal, 21(4), pp.130–

137.

Maruthanayagam, D., 2010. Grid scheduling algorithms:

A survey. International Journal of Current Research,

11(2), pp.228–235.

Medernach, E., 2005. Workload analysis of a cluster in a

grid environment. Job scheduling strategies for

parallel processing, (June).

Mościcki, J.T., 2003. Distributed analysis environment for

HEP and interdisciplinary applications. Nuclear

Instruments and Methods in Physics Research Section

A: Accelerators, Spectrometers, Detectors and

Associated Equipment, 502(2), pp.426–429.

Muthukrishnan, S. et al., 1999. Online scheduling to

minimize average stretch. In Foundations of Computer

Science, 1999. 40th Annual Symposium on

. pp. 433–

443.

Pandey, S. et al., 2010. A particle swarm optimization-

based heuristic for scheduling workflow applications

in cloud computing environments. In Advanced

Information Networking and Applications (AINA),

2010 24th IEEE International Conference on. pp.

400–407.

Quang, B.T. et al., 2013. Stretch optimization for virtual

screening on multi-user pilot-agent platforms on

grid/cloud. In Proceedings of the Fourth Symposium

on Information and Communication Technology. pp.

301–310.

Schmidt, G., 2000. Scheduling with limited machine

availability. European Journal of Operational

Research, 121(1), pp.1–15.

CLOSER2014-4thInternationalConferenceonCloudComputingandServicesScience

204
