A Multi-agent System to Monitor SLA for Cloud Computing

Benjamin G

ateau

Public Research Centre Henri Tudor, SSI Dept., 29 Av. John F. Kennedy, L1855 Luxembourg City, Luxembourg

Keywords:

Dynamic Infrastructure, Cloud Computing, SLA Management, Multi-agent Systems.

Abstract:

More than a technological solution Cloud Computing is also an economical advantage and already play an im-

portant roles in the information technology’s area. Thereby and in order to ensure a QoS commitment between

a provider and a customer, Service Level Agreements (SLA) describe a set of non-functional requirements of

the service the customer is buying. In this paper, we describe how we can use Multi-Agent Systems (MAS) to

manage SLA and we present the monitoring tool we develop with the SPADE framework.

1 INTRODUCTION

Evolution of high level ICT infrastructures in Europe

brings some difﬁculties due by a complex manage-

ment and the need of more and more energy. One

current fashionable solution to this problem is the use

of cloud computing services. Cloud computing is a

ICT model allowing an easy access through networks

to mutualised and conﬁgurable resources able to be

quickly activated and deactivated.

Cloud computing has become a mainstream tech-

nology offering mutualisation of IT infrastructures as

services along several paths such as Software (SaaS),

Platform (PaaS), and Infrastructure (IaaS). Compa-

nies such as Amazon, Microsoft, IBM, and Google,

to name but a few, offer such services, which rely

on virtualization and pay-as-you-go business models.

Flexibility and elasticity are also important features

of cloud computing made possible by the concept of

“dynamic Infrastructure.”

Dynamic infrastructure is an information techno-

logy paradigm concerning the design of datacenters

so that the underlying hardware and software can res-

pond dynamically to changing levels of demand in

more fundamental and efﬁcient ways than before. The

basic premise of dynamic infrastructures is to leve-

rage server virtualization technology to pool compu-

ting resources wherever possible, and then to allo-

cate these resources on-demand. This allows for load

balancing and is a more efﬁcient approach than kee-

ping massive computing resources in reserve to run

tasks that take place, for example, once a month. The

potential feature beneﬁts include enhancing perfor-

mance, scalability system availability and uptime, and

the ability to perform routine maintenance on either

physical or virtual systems all while minimizing in-

terruption to business operations and reducing cost

for IT. Dynamic infrastructures also provide the fun-

damental business continuity and high availability re-

quirements to facilitate cloud or grid computing.

Dynamic infrastructures allow the use of resource

when it is needed. For instance, Figure 1 represents

the case when clients of the service provider don’t

use their virtual machine at a certain time (night for

instance). It could happen that only few virtual ma-

chines are running on each physical machine. So

physical servers are not fully used and gathering vir-

tual machines on one physical server could permit to

save energy and use less resource. But by moving vir-

tual machines, the provider must ensure that the cus-

tomers pay for the service he previously speciﬁed and

that the Quality of Service (QoS) is still the same.

QoS delivery affects the value of the service for

the client and signiﬁcantly depends on IaaS or PaaS

provider’s infrastructure. Therefore there is need to

divide responsibility/risk between XaaS provider and

customer. To describe the responsibilities a formal

description of non-functional requirements from the

client’s point of the view is required.

In (G

ateau, 2011) we aimed at deﬁning a SLA

infrastructure that provides the same guarantees and

proofs that we can ﬁnd in e-contract management,

with more ﬂexibility. In this paper we are conside-

ring the monitoring part of the SLA management. In

the CLOVIS (Cloud computing improvement through

risk and SLA management) project (Morin et al.,

2012; Stamou et al., 2012) we intend to link SLA ma-

nagement and Information System Security Risk Ma-

647

Gâteau B..

A Multi-agent System to Monitor SLA for Cloud Computing.

DOI: 10.5220/0004970106470652

In Proceedings of the 16th International Conference on Enterprise Information Systems (ICEIS-2014), pages 647-652

ISBN: 978-989-758-028-4

 2014 SCITEPRESS (Science and Technology Publications, Lda.)

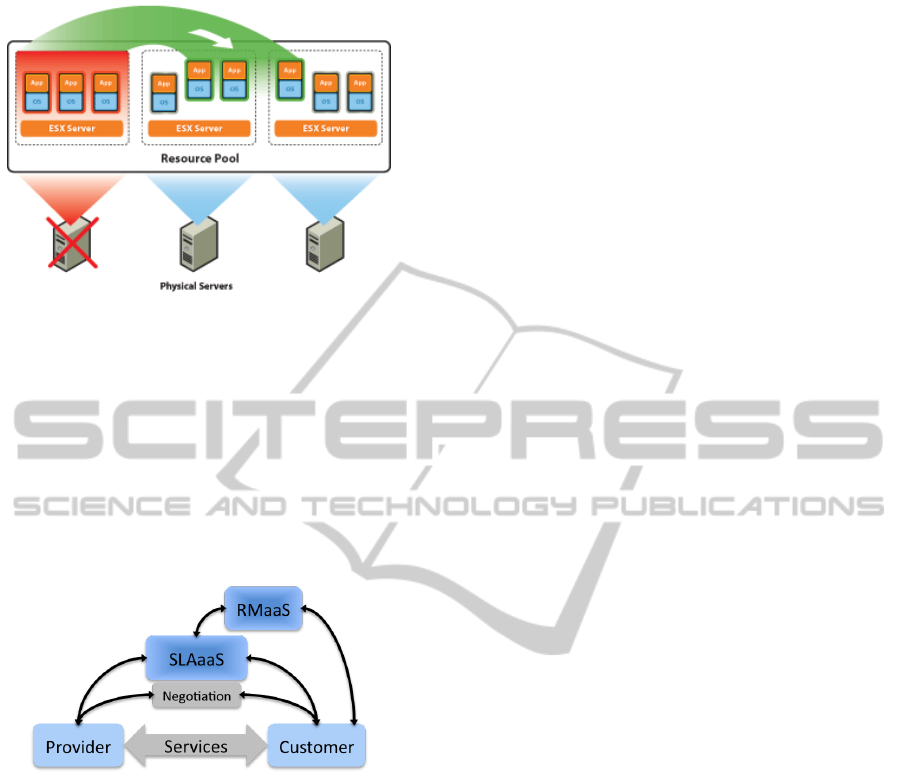

Figure 1: Moving VM in a VMware Infrastructure.

nagement (ISSRM). For that, we planned to improve

cloud computing governance, risk management and

compliance by producing a complete framework in-

tended for people in charge of the security of service-

oriented architectures such as cloud computing plat-

forms. Beyond the provision of such outputs to the

ISSRM community, their development is intended to

wider raise the incentive of the security management

issue in the emerging cloud computing concept.

Figure 2: CLOVIS framework.

The high-level model of the CLOVIS framework

assumes the existence of a risk management (RM)

tool, which can provide a customer with an ade-

quate risk assessment according to a customer’s ser-

vice criteria and requirements (RMaaS). Such ser-

vice requirements can then be utilized as input to

correctly match with available service offers, i.e.

pre-instantiated SLAs that are submitted by service

providers. SLOs and risk controls can be manipu-

lated for this purpose. In paper (Katerina Stamou and

Morin, 2013), the SLAaaS components was presented

and a monitoring component as an active agreements

management was introduced.

As we can see in Figure 2 a user (i.e. customer)

has two choices: (i) use the RMaaS module to get as-

sisted with the selection of requirements that he/she

wants to have in cloud offerings or (ii) directly sub-

mit functional criteria to the SLAaaS module and re-

quest a matching with available service offers. This

approach provides customers with a more granular

manipulation of existing SLA offers compared to the

ones currently consumed in the market. When a

matching set is found, a negotiation process can take

place between a customer and the selected provider to

agree and sign a SLA. The provision of the service(s)

can then be initiated.

Once the customer chose and signed a SLA with a

provider through the RMaaS and the SLAaaS, he/she

potentially wishes to be sure that the terms they

agreed on are fulﬁlled. If a term (security or guaran-

tee terms implemented by provider in order to reduce

risks) is violated during service provisioning, the risk

underneath is possibly more likely to happen. Thats

why we propose a monitoring tool in order to provide

feedback on the status of each term of the SLA and

their potential impact on risks. Monitoring will en-

able both customers and providers to ensure SLAs are

properly enforced but also, will be a mean to “close

the loop”: from deducing cloud computing service

requirements and their instantiation based on secu-

rity risks; to auditing risks based on the monitoring

of cloud computing service delivery. At this end, the

use of the fully distributed architecture supported by a

multi-agent system deﬁned in (G

ateau, 2011) will be

used.

This paper is organized as follows. We make a

quick survey on SLA management in the next sec-

tion, then we present our normative multi-agent sys-

tem solution before proposing a solution to monitor

SLA with an electronic institution based on multi-

agent system for the cloud computing.

2 SLA MONITORING

SLA describes a set of non-functional requirements

of the service the customer is buying. The agreement

usually contains also penalties when the requirements

are not met. An example of a non-functional require-

ment would be ”RTO - Return to Operation time for

a service in case of a failure. To describe a non-

functional requirement we needed an objective to be

achieved (e.g. RTO under two minutes ) and a set of

indicators that prove the objective is met (e.g. new in-

stance bootstrap time). The objective to be achieved

is called ”Service Level Objective (SLO) and the indi-

cators are called ”Key Performance Indicators (KPIs).

SLO is the objective of service quality that has to be

achieved. It is represented by a set of measurable

KPIs with thresholds to decide if the objective is ful-

ﬁlled or not. The fulﬁllment of an SLOs describes

a state of service when all of the SLOs key perfor-

mance indicators are within a speciﬁed thresholds.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

648

KPIs usually consist from one or more raw monito-

red values including min, avg and max specifying the

scale. They can also represent some aggregated mea-

surement (e.g. average output) within a sliding win-

dow that is combined from one or more monitoring

outputs. The provider has to be able to measure and

affect the KPIs otherwise it would not make sense to

guarantee them. The cloud computing infrastructures

are usually large scale, therefore SLAs need to be for-

mally described to enable their automated handling

and protection.

Automated SLA protection is based on a set of

policy rules. Each policy rule is formed by one or

more conditions (KPI’s value matching pattern) and

one or more actions. KPIs are periodically evaluated

according to deﬁned policies. If one or more condi-

tions are met, then appropriate actions are triggered.

An example of the policy action can be increasing

number of service instance. The action is triggered

by a server load KPI matching the policy rule. This

enables to automatically keep the load KPI under cer-

tain value speciﬁed by the SLO and avoid violating

the general SLA. These kinds of rules are named elas-

ticity rules.

Speciﬁcation of the policies (rules and action) is a

complex task in large scale dynamic system. Analy-

sis of historical KPI data and triggered actions can be

used to specify new or modify existing policies. This

enables system adaptation and automated SLA pro-

tection evolution. System can for example learn from

historical data about periodical service load peaks

and generate speciﬁc rules to keep the system with

throughput speciﬁed in SLA . Another research chal-

lenge is the speciﬁcation of models able to describe

and simulate these kinds of dynamic systems.

In his PhD thesis relating to E-contract mod-

eling and e-enactement (Krishna, 2010), P. Radha

Krishna describe the clauses of an electronic contract

as obligations being part of a SLA. He also says:

“E-contract management solutions should maintain,

monitor and manage contract rules derived from

these SLAs. Contract parties should verify QoS pa-

rameters by performing an SLA monitoring, which in-

volves monitoring the performance status of the of-

fered service. The e-contract management system

could assess the SLA requirements and apply penal-

ties if there is any deviation.”

The SLA4D-Grid project (Wieder et al., 2009)

deﬁnes a SLA management layer on top of an ex-

isting infrastructure providing e-contracting capabili-

ties. The infrastructure speciﬁes, implements and de-

ploys a SLA-based service stack for e-Contracting.

The authors say: “The SLA4D-Grid project is desi-

gning and implementing an SLA management layer.

The functions of the developments cover the complete

SLA life-cycle, including SLA design, contract estab-

lishment, SLA provisioning, and SLA monitoring.”.

The SLA@SOI project (Comuzzi et al., 2010) is

a FP7 project dealing with the deﬁnition of a SLA

management framework. The consortium deﬁned a

reference architecture, speciﬁed a SLA template and

the methodology to translate SLAs into monitoring

speciﬁcations (for the EVEREST environment). With

the RESERVOIR project, they the deﬁned how us-

ing cloud standards for the interoperability of cloud

frameworks.

In this global trend, multi-agent systems (MAS)

have been introduced to achieve the automation in

creation, execution and monitoring of e-contracts by

agents on behalf of users. The resulting contracts

consist in digital agreement between contractual parts

where rights and duties in terms of deliverable, costs

and delays of the participants are explicitly repre-

sented. However such contracts often lead to inﬂe-

xible relations between participants. The obtained re-

sult is in contrary to the requirements of open and dy-

namic system that are stressed by the actual business

paradigms aiming at improving the competitiveness

of companies like dynamic virtual enterprises and

dynamic service outsourcing (Hoffner et al., 2001).

Moreover, few of the existing research works take into

account the monitoring of contracts clauses (Padovan

et al., 2002) that bind agents together.

In (Boissier and G

ateau, 2007) we proposed an

Electronic Institution model based on MAS to man-

age electronic contract by specifying obligations.

In (G

ateau, 2011) we aimed at doing the same for the

management of SLA for Cloud Computing. In this

paper we will describe how we can used this model

to monitor SLA signed between a consumer and a

provider of cloud computing services.

3 A MULTI-AGENT BASED

MONITORING FRAMEWORK

3.1 The Model Principle

In (G

ateau, 2011) we proposed a multi-agent sup-

port for the enactment and monitoring of the different

SLO speciﬁed in the SLA. SLAs specify the agree-

ment between customers and the provider concerning

their participation to the distributed execution of the

job. A SLA must describe both the functioning and

the structure organizing this functioning. Moreover

it contains explicit legal dimensions bearing on the

involved participants. In order to take this into ac-

AMulti-agentSystemtoMonitorSLAforCloudComputing

649

count we propose to use a “normative organizational

model”, called M OISE

Inst

, to express SLA. This nor-

mative organizational model is accompanied by a spe-

cialized “normative middleware”, called S YNAI

monitor and enforce legal aspects expressed in the

SLAs.

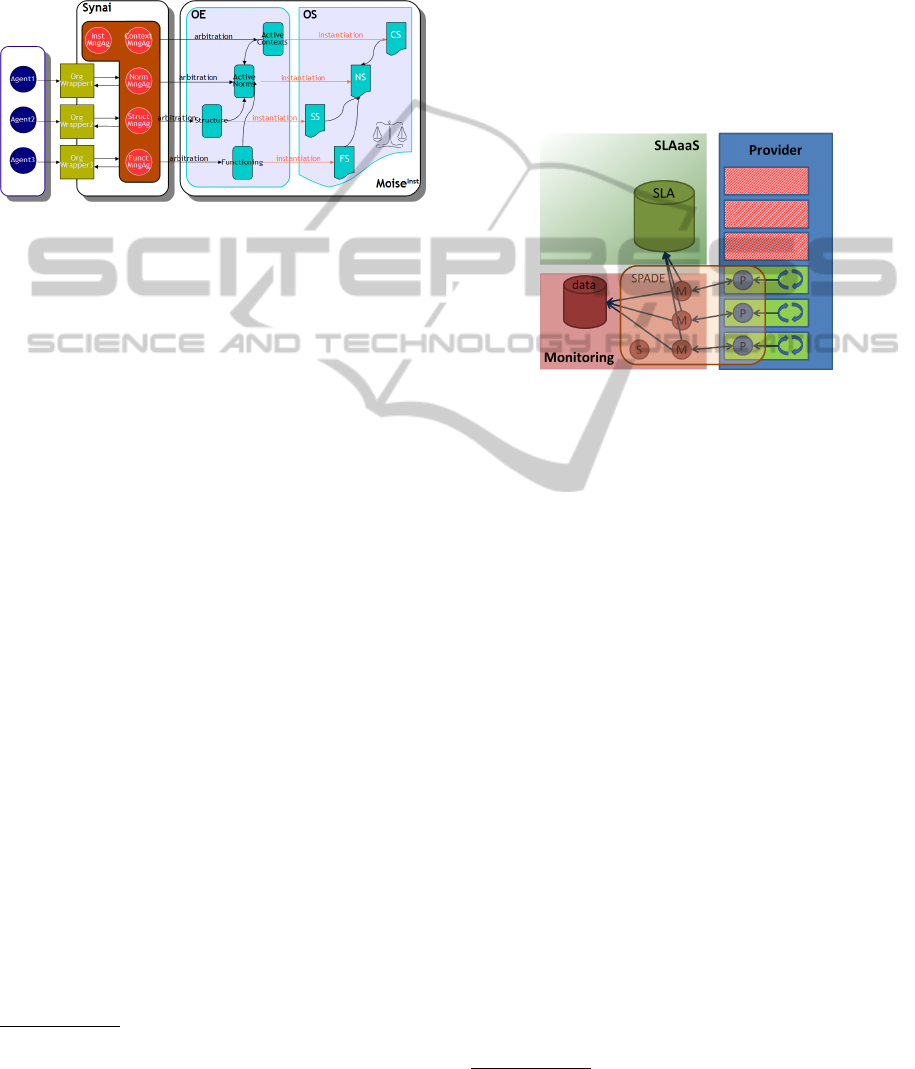

Figure 3: M OISE

Inst

, normative organization speciﬁcation

model, and S YNAI, normative middleware.

In this paper we propose a ﬁrst implementation

based on the SPADE framework (Smart Python Agent

Development Environment) in the context of the

CLOVIS framework. This implementation doesn’t

literally respect the M OISE

Inst

model. As reminder,

M OISE

Inst

ateau et al., 2007) is founded on the

M OISE

organizational model

(Hubner et al., 2002)

and is composed of the following components that are

used to specify an organisation of agents in terms of

structure, functioning, evolution and norms (OS of the

Figure 3):

• A Structural Speciﬁcation (SS) deﬁnes: (i) the

roles that agents will play in the organization, (ii)

the relations between these roles in terms of au-

thority, communication or acquaintance, (iii) the

groups, additional structural primitives used to de-

ﬁne and organize sets of roles;

• A Functional Speciﬁcation (FS) deﬁnes global

business processes that can be executed by the dif-

ferent agents participating to the organization ac-

cording to their roles and groups;

• A Contextual Speciﬁcation (CS) speciﬁes, a pri-

ori, the possible evolution of the organization in

terms of a state/transition graph;

• A Normative Speciﬁcation (NS) deﬁnes the deon-

tic relations gluing the three independent speciﬁ-

cation (SS, FS, CS). This NS clearly states rights

and duties of each roles/groups of SS on sets of

goals (missions) of FS, within speciﬁc states of

CS.

S YNAI: SYstem of Normative Agents for Institution.

M OISE

: Model of Organization for multI-agent Sys-

tem.

A BNF

complete deﬁnition of OS is available

in (G

ateau, 2007).

3.2 The System

On the Figure 4, the architecture of our implemented

solution is presented. The SPADE framework owned

several agents dispatched between the monitoring

system and the client’s VM machine in the provider’s

infrastructure. ‘S’ is the server agent. Its role is to re-

ceipt call from probe agents when they are launched

on a customer’s VM.

Figure 4: Architecture of the Monitoring System linked to

the CLOVIS framework.

‘M’ is a MUX Agent and its role is to make the

link between the monitoring system, the main compo-

nent of the CLOVIS framework, namely the SLAaaS

one and the VM to monitor. He is launched when the

server agent receives a call from a probe agent. The

newly created MUX agent is associated to the probe

agent and will receive monitoring information from

the probe agent. It will save all data in a database (we

choose mongoDB).

‘P’ is the probe agent located on the VM of the

provider and sending the measures values to its bound

MUX agent. The probe agent set up the function it

will call periodically and send back the result to the

MUX agent.

In the SPADE system (as in several multi-agent

platform), agents exhibits services and execute some

behaviour. By making the link with M OISE

Inst

, Role

and Group of the SS are represented by the services of

the agents. The Goals that the agent must achieved are

the behaviour they execute. And nothing represents

the CS. The NS deﬁnes the link between the roles and

the goal. Here, we could consider that the fact that

an agent with such services must execute such be-

haviour is hard-coded. We are really far from the dy-

namic speciﬁcation! Indeed, the OS is not represented

or managed by the Server Agent or another Manager

Agent.

BNF: Backus-Naur Normal Form.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

650

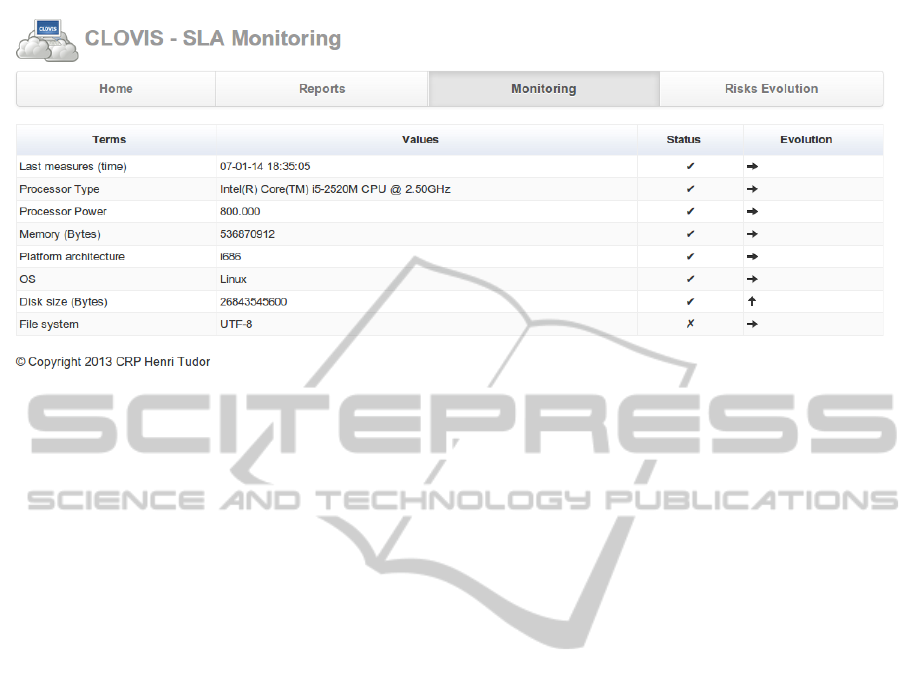

Figure 5: Web interface of the Monitoring System.

3.3 The Process

When a consumer of cloud computing services (IaaS

in our context) signed a contract (and a SLA) with

a cloud computing provider, the provider give him

access to the VM he chose. In order to activate the

monitoring, he as to install, conﬁgure (client ID and

password and the address of the monitoring system

where the server agent and the MUX agent are lo-

cated) and execute the probe agent. Once the agent

is running (and joined the multi-agent system hosted

on the monitoring system), it sends a message to the

server agent in order to announce its presence. The

server send to it as feedback the address of its new

MUX agent. Then the probe agent ask the MUX

agent the details (terms) of the contract (SLA) signed

between the provider and the customer. Once it has

the answer it make the measures and sent them to the

MUX agent which make them viewable by the user

through a web interface as depicted in Figure 5.

We noted that protocols were very important in

this implementation. SPADE propose behaviour de-

ﬁned through speciﬁc template. When a agent used

this template to send a message to another agent, this

is the behaviour running with this template which in-

tercepts the message and processes it. We can con-

sider that as a mean to deﬁne a kind of dialogical spe-

ciﬁcation.

4 CONCLUSION

The context of this paper is the CLOVIS project in

which the approach enables customers to take into ac-

count their needs in terms of security, when selecting

a cloud service. We proposed a multi-agent system

developed with SPADE and respecting the M OISE

Inst

model to monitor SLAs. We thus go a step further

by not only ensuring that the service meets its initial

speciﬁcations but also enabling customers to adjust

their needs. This implementation of the M OISE

Inst

model is an alternative to Utopia (Schmitt et al., 2011)

based on the JAVA language and the JADE frame-

work (which is less ﬂexible than SPADE developed in

Python). This prepare future works dealing with the

use of MAS respecting the M OISE

Inst

model in order

to gather distributed data coming from speciﬁc agents

and making others agents executing some action in or-

der to respect the global goal of the organisation. We

plan to use this future platform to complete existing

building automation and making them smart.

ACKNOWLEDGEMENTS

This work is supported by the CLOVIS project jointly

funded by the Swiss SNF and Luxembourg FNR

Lead Agency agreement; under Swiss National Sci-

ence Foundation grant number 200021E-136316/1

and Luxembourg National Research Fund (FNR)

grant number INTER/SNSF/10/02.

REFERENCES

Boissier, O. and G

ateau, B. (2007). Normative multi-

agent organizations: Modeling, support and con-

trol, draft version. In G. Boella, L. v. d. T. and

Verhagen, H., editors, Normative Multi-Agent Sys-

tems. Dagstuhl Seminar Proceedings 07122, Interna-

AMulti-agentSystemtoMonitorSLAforCloudComputing

651

tionales Begegnungs- und Forschungszentrum fuer In-

formatik (IBFI), Schloss Dagstuhl, Germany.

Comuzzi, M., Kotsokalis, C., Rathfelder, C., Theilmann,

W., Winkler, U., and Zacco, G. (2010). A framework

for multi-level sla management. In Dan, A., Gittler,

F., and Toumani, F., editors, Service-Oriented Com-

puting. ICSOC/ServiceWave 2009 Workshops, volume

6275 of Lecture Notes in Computer Science, pages

187–196. Springer Berlin / Heidelberg.

ateau, B. (2007). Modlisation et Supervision

d’Institutions Multi-Agents. PhD thesis, Ecole

Nationale Superieure des Mines de Saint Etienne.

defended at CRP Henri Tudor, Luxembourg.

ateau, B. (2011). A mas to manage and monitor sla for

cloud computing - a draft position paper. In CLOSER,

pages 687–692.

ateau, B., Boissier, O., Khadraoui, D., and Dubois,

E. (2007). Controlling an interactive game with a

multi-agent based normative organizational model. In

azquez-Salceda, J., Boella, G., Boissier, O., and

Matson, E., editors, ”Coordination, Organizations,

Institutions, and Norms in Agent Systems II”, volume

4386 of LNCS, pages 86–100. Springer Berlin / Hei-

delberg.

Hoffner, Y., Field, S., Grefen, P., and Ludwig, H. (2001).

Contract-driven creation and operation of virtual en-

terprises. Comput. Networks, 37(2):111–136.

Hubner, J. F., Sichman, J. S., and Boissier, O. (2002).

M OISE

: towards a structural, functional, and de-

ontic model for mas organization. In Proceedings

of the ﬁrst International Joint Conference on Au-

tonomous Agents and MultiAgent Systems, pages 501–

502, Bologna, Italy. ACM Press. ISBN 1-58113-480-

Katerina Stamou, Jocelyn Aubert, B. G. and Morin, J.-H.

(2013). Preliminary requirements on trusted third par-

ties for service transactions in cloud eco-systems. In

HICSS, pages 4976–4983.

Krishna, P. R. (2010). E-contract modeling and e-

enactement. PhD thesis, International Institute of In-

formation Technology, Hyderabad - 500 032, INDIA.

Morin, J.-H., Aubert, J., and G

ateau, B. (2012). Towards

cloud computing sla risk management: Issues and

challenges. In HICSS, pages 5509–5514.

Padovan, B., Sackmann, S., Eymann, T., and Pippow,

I. (2002). A prototype for an agent-based secure

electronic marketplace including reputation tracking

mechanisms. International Journal of Electronic

Commerce, 6(4):93–113.

Schmitt, P., Bonhomme, C., Aubert, J., and G

ateau, B.

(2011). Programming electronic institutions with

utopia. In Aalst, W., Mylopoulos, J., Sadeh, N. M.,

Shaw, M. J., Szyperski, C., Soffer, P., and Proper, E.,

editors, Information Systems Evolution, volume 72 of

LNBIP, pages 122–135. Springer Berlin / Heidelberg.

Stamou, K., Morin, J.-H., G

ateau, B., and Aubert, J. (2012).

Service level agreements as a service - towards secu-

rity risks aware sla management. In CLOSER, pages

663–669.

Wieder, P., Hasselmeyer, P., and Koller, B. (2009). En-

hancing a national academic computing infrastructure

with e-contracting capabilities. In Cunningham, P. and

Cunningham, M., editors, Proceedings of eChallenges

e-2009 Conference. ISBN: 978-1-905824-13-7.

ICEIS2014-16thInternationalConferenceonEnterpriseInformationSystems

652
